Handheld Group ALGIZXRW 10.1 Rugged Notebook User Manual Algiz XRW User s manual V0 3
Handheld Group AB 10.1 Rugged Notebook Algiz XRW User s manual V0 3
ALGIZ User manual
![](/img.php?id=1867116&img=bg1.png)
Algiz XRW User’s Manual
- 1 -
ALGIZ XRW
Quick Start Guide V0.3
![](/img.php?id=1867116&img=bg2.png)
Algiz XRW User’s Manual
- 1 -

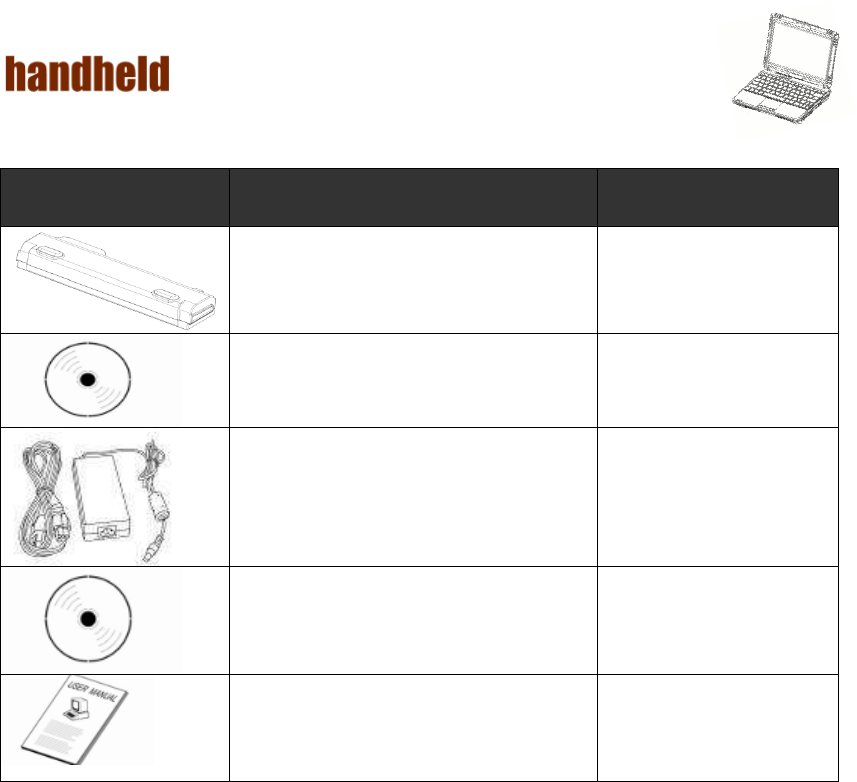

Accessory
Item Description Note
1 piece of 6 Cell Li-Polymer Battery
Pack
1 piece of DVD for System Driver
Utility.
1 piece of 19V Adapter w/ Standard
Power Cord.
Euro / U.S. Std type, 1.8M
1 piece of Recovery DVD for Operation
System.
With Windows 7
Ultimate
embedded
preinstalled
1 piece of Windows 7 Recovery User’s
Guide.
With Windows 7
Ultimate
embedded
preinstalled
![](/img.php?id=1867116&img=bg3.png)
Algiz XRW User’s Manual
- 1 -
Copyright Notice
Copyright © 2012 Handheld Inc., ALL RIGHTS RESERVED. No part of this
document may be reproduced, copied, translated, or transmitted in any form or by
any electronic or mechanical means, for any purposes without the permission of
the original manufacturer in advance.
Trademark Acknowledgement
Brand and product name are trademarks or registered trademarks of their
respective owners.
Disclaimer
Handheld Inc. reserves the right to make any product changes without notice,
including circuits and/or software described or contained in this manual in order
to improve product design and/or performance. Handheld Inc. assumes no
responsibility or liability for the use of the described product(s), conveys no
license or title under any patent, copyright, or masks work rights to these products,
and makes no representations or warranties that these products are free from
patent, copyright, or mask work right infringement, unless otherwise specified.
Applications that are described in this manual are for illustration purposes only.
Handheld Inc. makes no representation or warranty that such application will be
suitable for the specified use without further testing or modification.
Warranty
Handheld Inc. guarantees that all Handheld products will be free including
material and workmanship defects for one year from the invoice date. If the
customer discovers any defects, Winmate will, at its option, repair or replace the
defective product without any charge to customers, and ship the returned product
with prepaid transportation charges during the warranty time of one year. The
returned product must be properly packaged in its original packaging to be qualified
for warranty service.
If there is a time gap of over 30 days between the date marked on the serial
number and the shipping date, the one-year warranty time will then activate from
the shipping date. The third and fourth digits of the serial numbers stand for the
manufacturing year and the fifth digit stands for the manufacturing month (e. g.,
with A for October, B for November and C for December). For example, the serial
number 1W10Axxxxxxxx means October of year 2010.
![](/img.php?id=1867116&img=bg4.png)
Algiz XRW User’s Manual
- 1 -
Customer Service
We provide service guide for any problem as follow steps:
1. Visit Handheld website www.handheldgroup.com to get the updated product
information.
2. Contact with your distributor, sales representative, or our customer service
center for technical support if you need further assistance. You may have the
following information ready before you make the phone call:
Product serial number
Peripheral attachments
Software (OS, version, application software, etc.)
Detailed description of problems
The exact wording or print screen images of any error messages
In addition, free technical support is available at Winmate in every business
day. We are always ready to provide guidance in terms of application requirements
or specific information in terms of installation and operation of all our products.
Please feel free to call or e-mail us.
Manufacturer:Handheld Inc.
Address:Handheld Group AB, Kinnegatan 17 A, S-531 33, Linkoping, Sweden
TEL:+46 (0) 510-54 71 70
FAX:+46 (0) 510-282 05
![](/img.php?id=1867116&img=bg5.png)
Algiz XRW User’s Manual
- 1 -
Safety Precautions
Warning!
Always completely disconnect the power cord from the
device before you uncover the device and work on the
hardware. Do not connect the electronic device with power
socket while the power is on. Sensitive electronic components
can be damaged by sudden power surges. Only experienced
electronics personnel are suggested to open mechanical
housing.
Caution!
Always ground yourself to remove any static charge before
touching the CPU card. The electronic devices are very
sensitive to static electricity. For safety concerns, please use a
grounding wrist strap all the time. Place all electronic
components in a static-dissipative surface or static-shielded bag
when they are outside of the chassis.
UL Safety Announcement
UL Classification: Class I mark: with respect to electronic shock; Fire and
hazardous material only in accordance with the regulation of UL-60950
and CAN/CSA C22.2 No. 601.1.
Power Supply Announcement
The Handheld Rugged Netbook Power is supplied by Power Adapter and Battery
Pack, the power rating announcement and manufacturer information are listed as
below.
FEDERAL COMMUNICATIONS COMMISSION
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The antenna(s) used for this transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
RF exposure information (SAR)
This Rugged Notebook meets the government's requirements for exposure to radio waves.
This Rugged Notebook is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government. The exposure standard for wireless Rugged
Notebook employs a unit of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6 W/kg. Tests for SAR are conducted using standard
operating positions accepted by the FCC with the Rugged Notebook transmitting at its
highest certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of the Rugged
Notebook while operating can be well below the maximum value. This is because the
Rugged Notebook is designed to operate at multiple power levels so as to use only the
poser required to reach the network. In general, the closer you are to a wireless base
station antenna, the lower the power output. The highest SAR value for US model Rugged
Notebook as reported to the FCC when tested for use at the body, as described in this
user guide, is 1.192 W/kg.
Industry Canada Class B Statement
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
This device complies with Industry Canada licence-exempt RSS standard(s).Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
IEEE 802.11b or 802.11g operation of this product in the Canada is firmware-limited to
channels 1 through 11.
Déclarations d'exposition aux RF liéesAvertissement d'exposition RF: L'équipement est
conforme aux limites d'exposition aux RF établies pour un environnement non contrôlé.
L'antenne (s) utilisée pour ce transmetteur ne doit pas être co-localisés ou fonctionnant en
conjonction avec une autre antenne ou transmetteur.
Ce dispositif est conforme à la norme de l'industrie Candada exempts de licence RSS (s).
L'opération est soumise aux deux conditions suivantes: (1) Cet appareil ne peut causer
d'interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y
compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil.
![](/img.php?id=1867116&img=bg8.png)
Algiz XRW User’s Manual
- 1 -

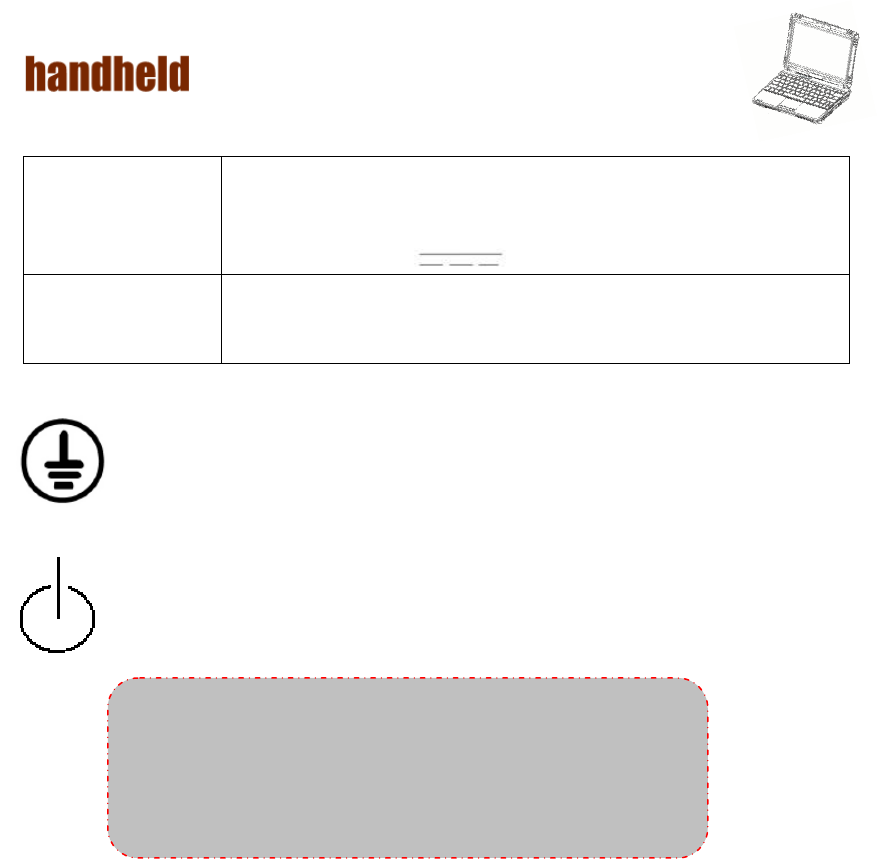

Power Notice!
Please notice that the power code of adapter needs to be connected to
the ground (earth).
Please push the power button for at least 4 seconds to enter sleep mode
(See Chapter 2.1 Starting and Stopping the Tablet PC).
Power Adapter Manufacture: FSP Group
Model: FSP065-AAB
Input Rated: 100-240Vac, 1.8A, 50-60Hz.
Output Rated: DC 19V,3.42A.
Battery Pack Manufacture: JHT Energy International Co Ltd
Model: ALGX-08A
Rated: 5200mAh, DC 11.1V
WARNING
Do not fix or replace battery, it may cause explosion!
Only use with specified battery by following the
manufacturer’s user manual’s instruction.
![](/img.php?id=1867116&img=bg9.png)
Algiz XRW User’s Manual
- 1 -
Index
Chapter 1 – Specification ............................................................ 2
1. System Specification ......................................................................... 2

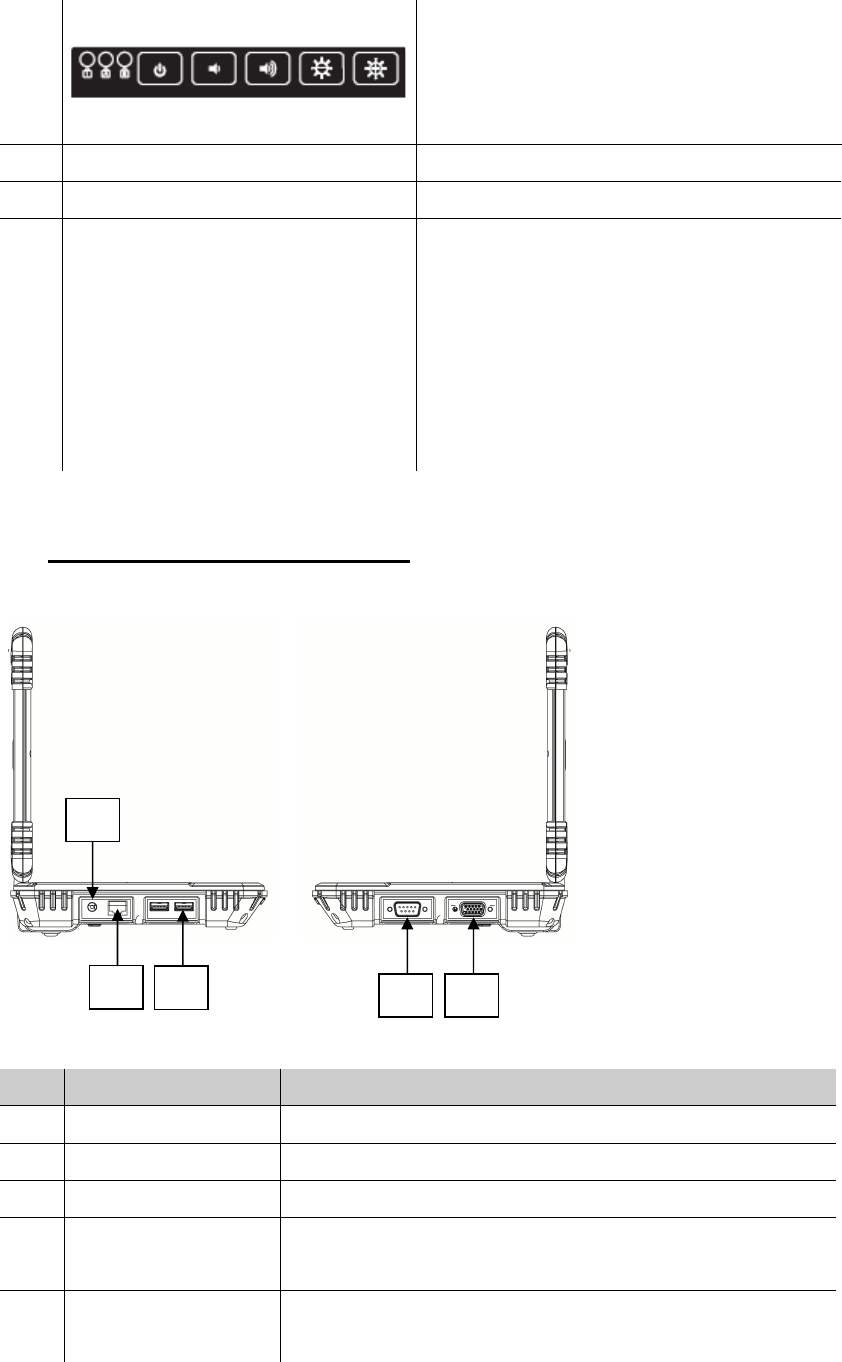

Chapter 2 – Identifying Hardware Components ......................... 3

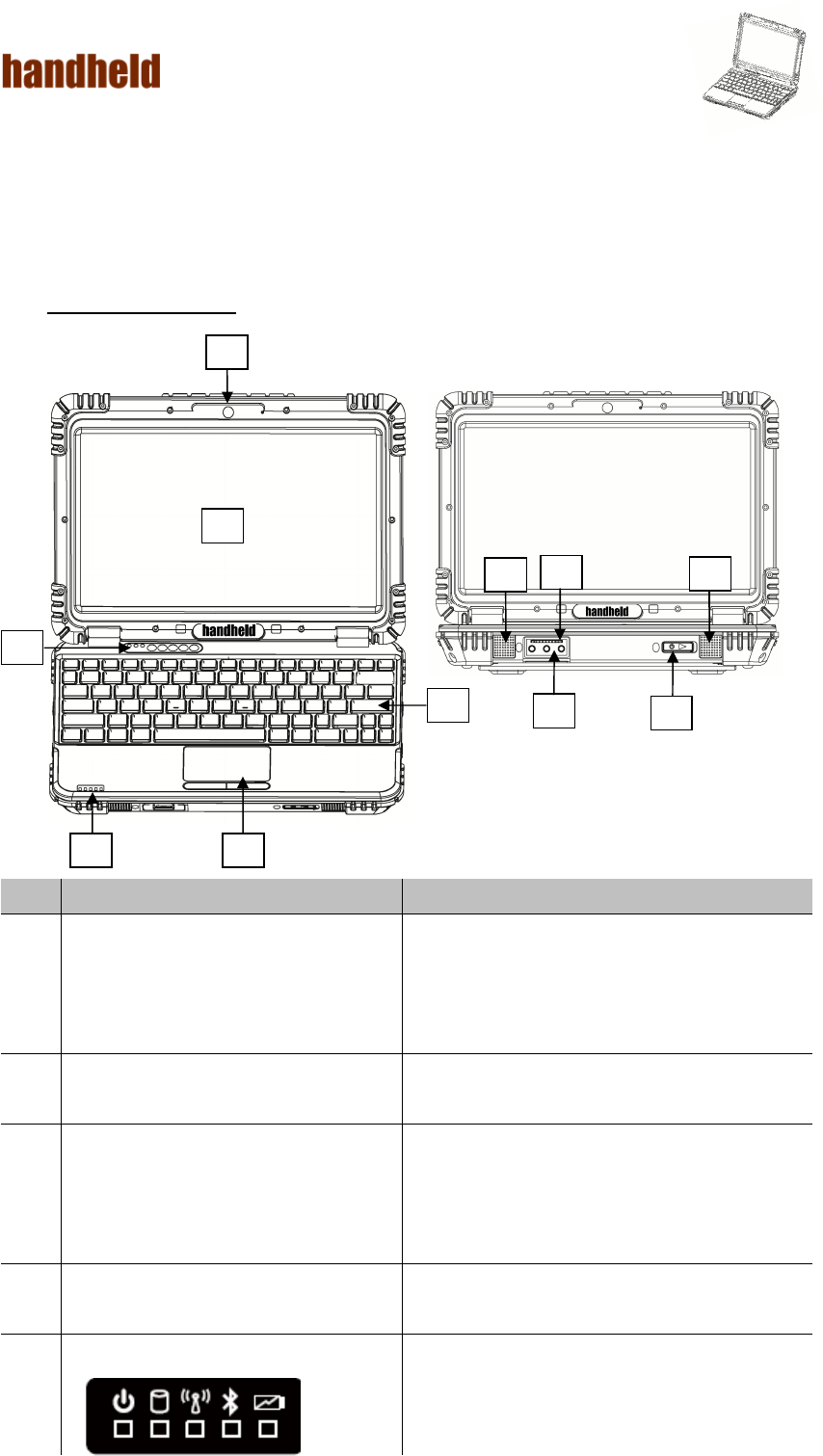

1. Front Side .......................................................................................... 3
2. Left and Right Side ............................................................................ 4

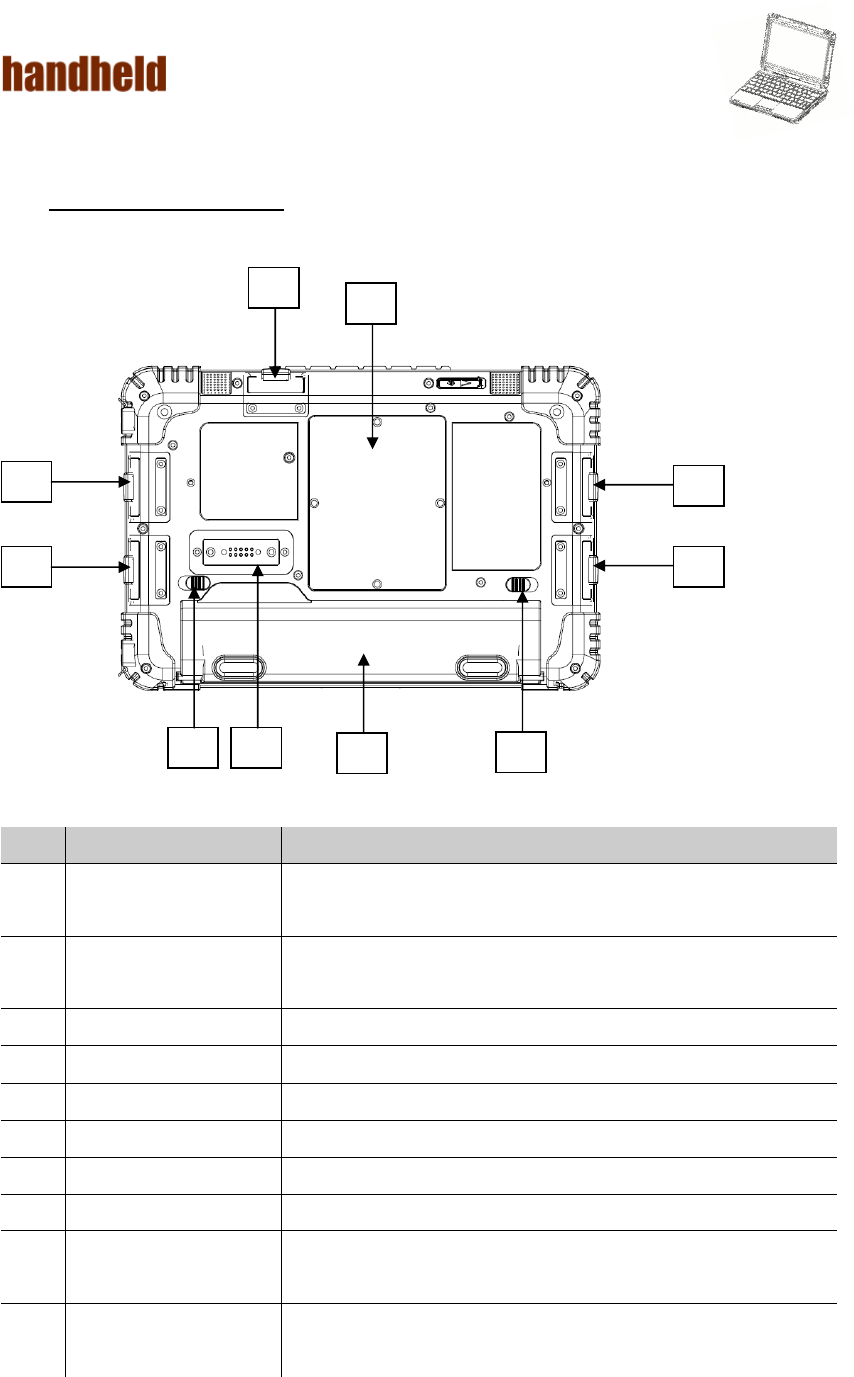

3. Bottom side ........................................................................................ 5

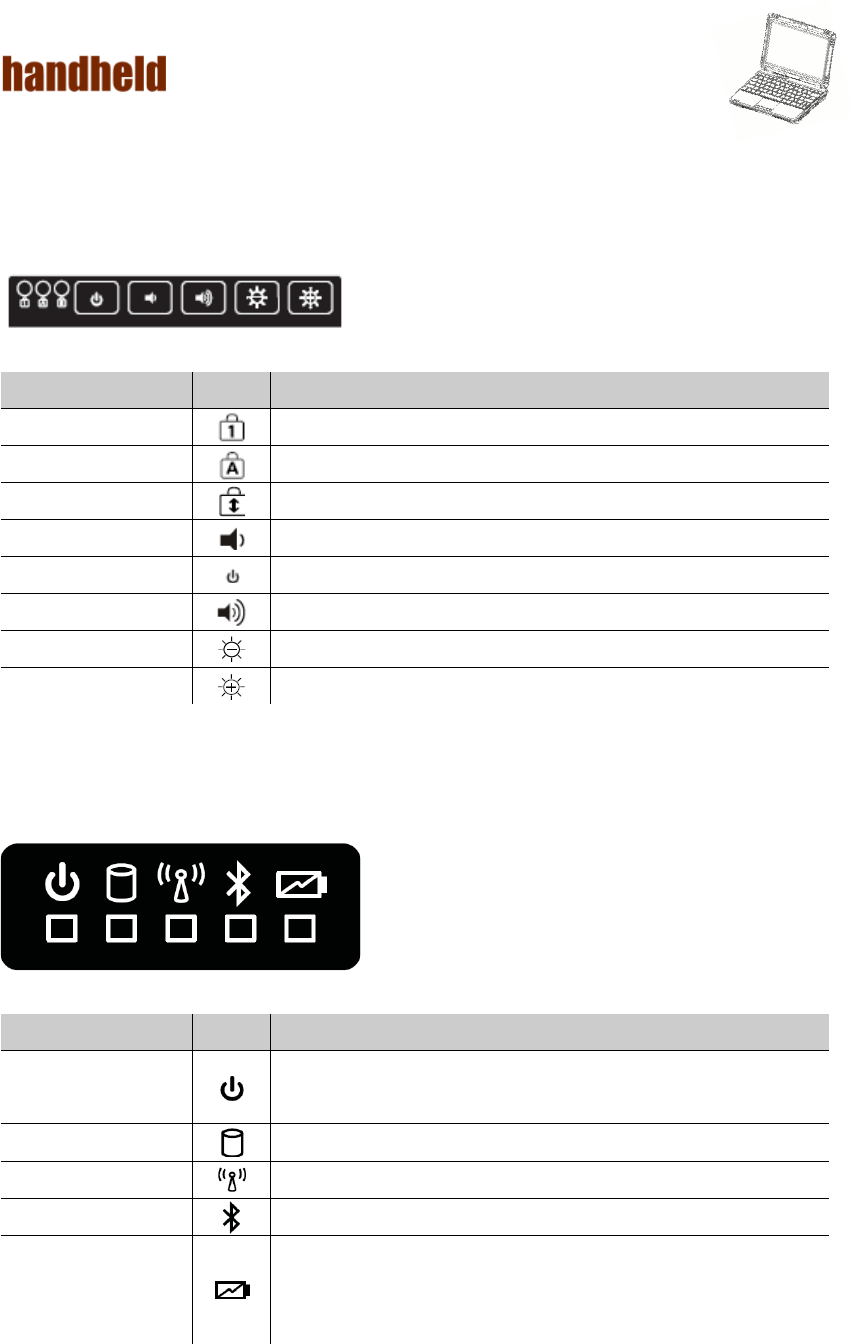

Chapter 3 – Buttons and Indicators ............................................ 6

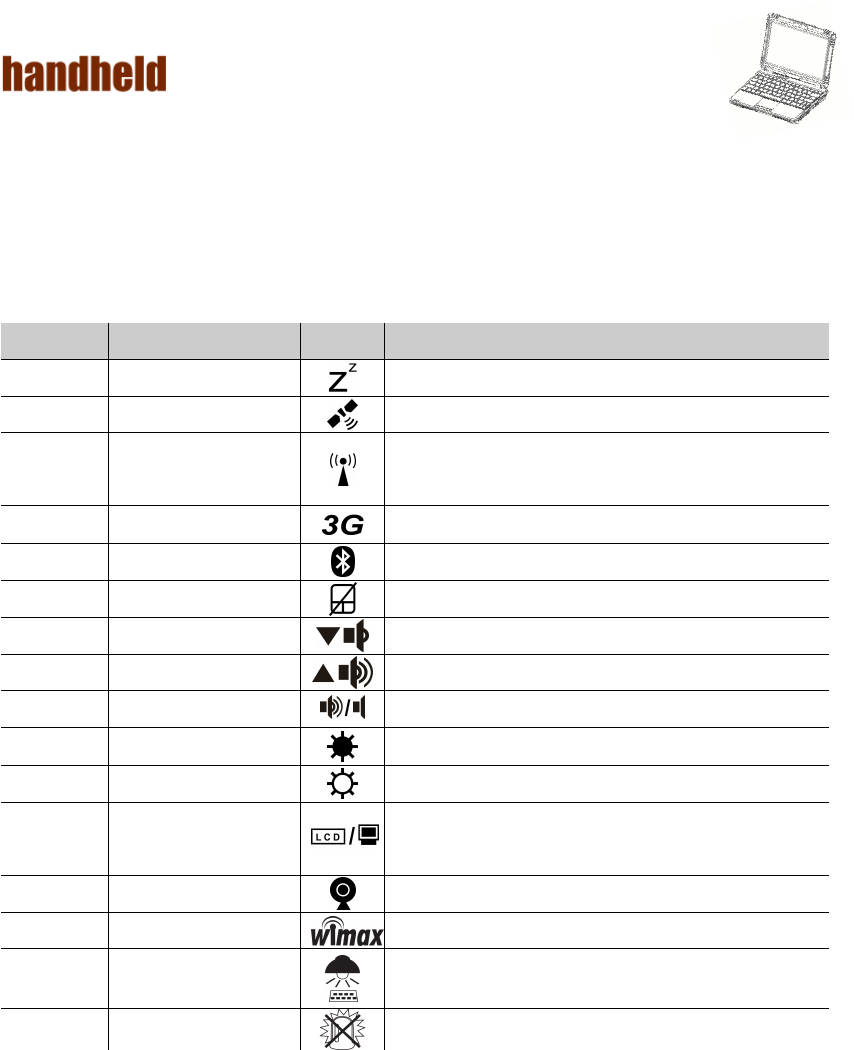

1. Function Keys .................................................................................... 6
2. On Screen Display Hot Keys ............................................................. 7
3. LED Indicators ................................................................................... 7

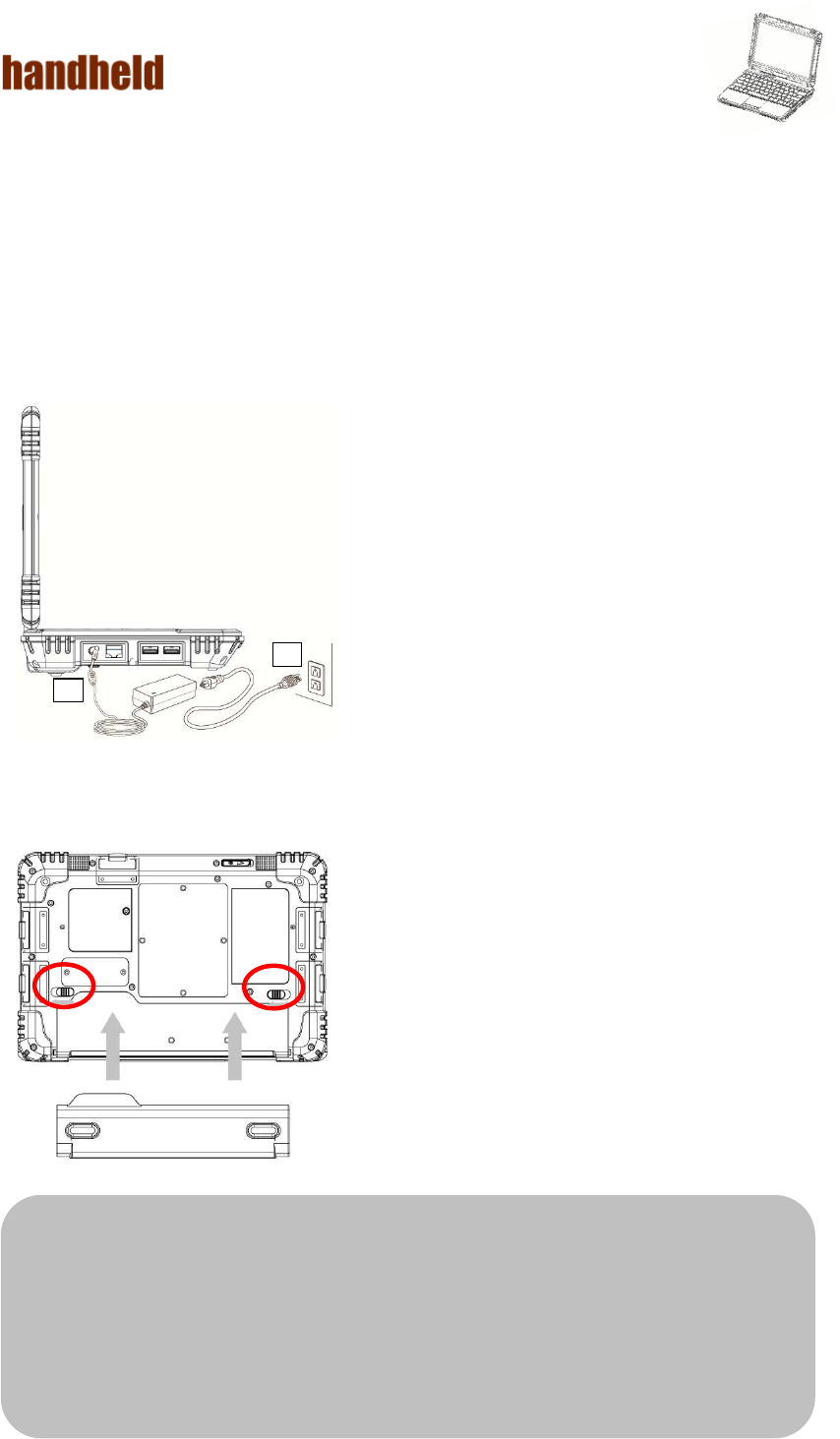

Chapter 4 – Getting Your Device Ready ..................................... 8
1. Plug in the AC Power......................................................................... 8
2. Installing Battery Pack ....................................................................... 8

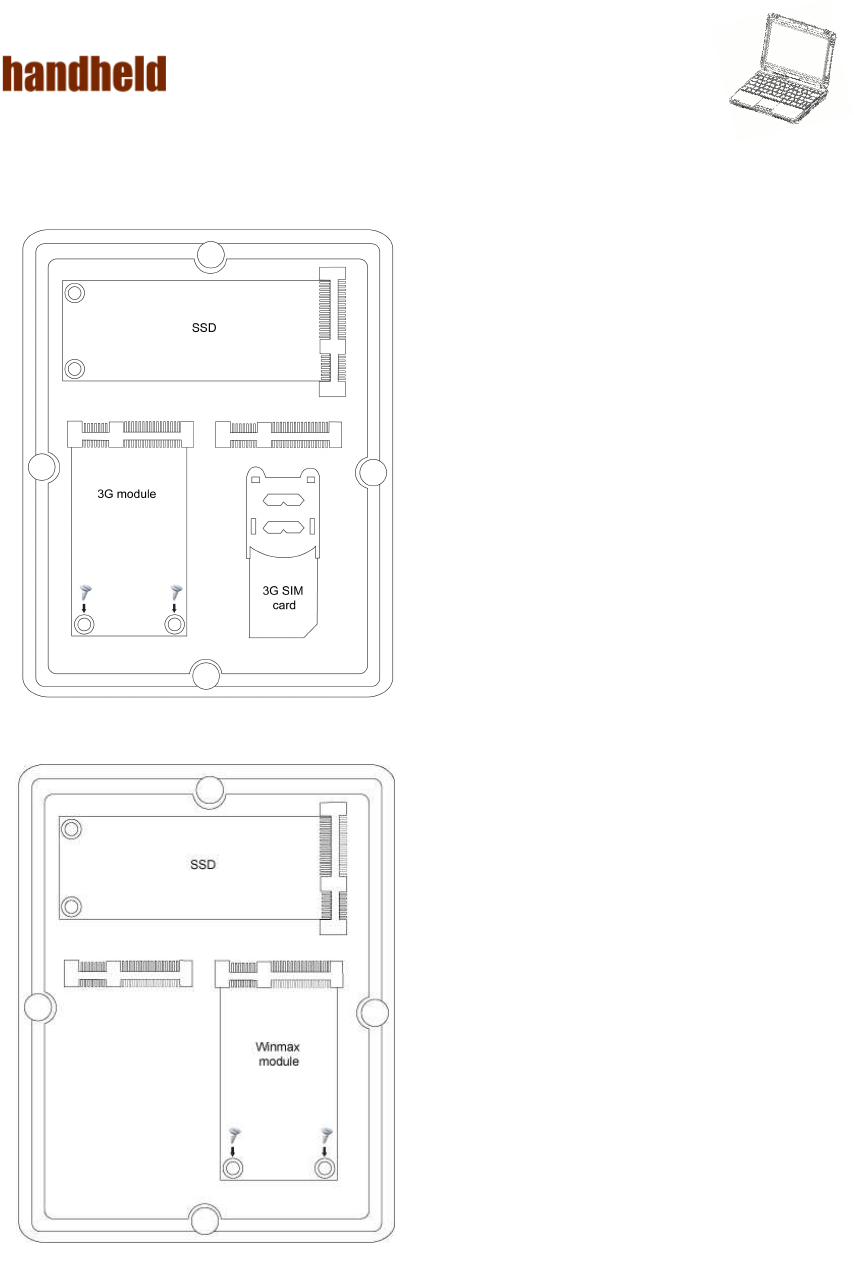

3. Installing 3G and WiMAX SIM Cards ................................................. 9
![](/img.php?id=1867116&img=bga.png)
Algiz XRW User’s Manual
- 2 -
Chapter 1 – Specification
Algiz XRW is a rugged netbook designed for the use in various challenging
environments, e.g., field work, outdoor activities and construction site. With its
rugged design, Algiz XRW is able to sustain shock, vibration, high humidity as well as
high/ low temperatures.
1. System Specification
System
Processor Intel® Atom™ Processor N2600
BIOS AMI System BIOS
Chipset Intel® NM10 Express Chipset
Memory 1 x SODIMM, DDR3 1333 2GB
LAN Controller Broadcom BCM57780 Gigabit-LAN
Storage SATA interface support Mini-PCIe interface SSD 64GB
Audio Audio-out for headset, Audio-in to send in audio signal,
Microphone-in for microphone jack,1.5W Speaker (Internal)
Display Specification
Size 10.1” (16:9)
Resolution 1366 x 768
Brightness 600 cd/m2 (typ.)
Touch 4W Resistive Touch
I/O Connectors
Left I/O Port 2x USB, 1x Giga LAN, 1x DC Power Jack
Right I/O Port 1xVGA, 1x RS232
Front I/O Port 1x Microphone-In, 1x Audio in ,1x Audio Out, 1x SD card slot,
1x Power slide
Bottom I/O Port 1x Pogo-pin for Docking, 1x Service Window
Buttons and Indicators
Control Button 3 LED indicators (Number Lock/ CAP Lock/ Scroll Lock) and 5
buttons (Power/Volume down / Volume up / Brightness down
/ Brightness up)
LED indicators Power / Hard Disk/ WLAN/ Bluetooth/Battery Status
![](/img.php?id=1867116&img=bgb.png)
Algiz XRW User’s Manual
- 3 -
Chapter 2 – Identifying Hardware
Components
1. Front Side
Ref.
Item Description
1 Webcam + Microphone 2 megapixels Webcam with Microphone
is used for picture taking, video recording
as well as any other possible interactive
activities.
2 LED Display High brightness LED panel displaying
computer output
3 Keyboard/ Quick Launch Buttons The built-in keyboard is with all the
functions of a full-sized keyboard
including Hot Keys (Fn) whose definition
will be elaborated later.
4 Touch Pad with left and right keys
Touch pad with left and right keys serve
as a regular mouse of desktop PC.
5 LED Indicator
Indicates the status of Power/ Hard Disk/
WLAN/ Bluetooth/Battery
10
9
7
7
8
1
2
3
4
5
6
![](/img.php?id=1867116&img=bgc.png)
- 4 -
4
6 On Screen Display
OSD includes 3 LED indicators (Number
Lock/ CAP Lock/ Scroll Lock) and 5
buttons (Power/Volume down / Volume
up /Brightness down / Brightness up)
7 Stereo Speakers 1.5W stereo speakers
8 SD Card Slot Accepts Secure Card(SD)
9 Audio in/
Audio out/
Microphone in
Audio out: connects with external audio
line out devices such as headphones or
external speakers
Audio in: allows users to send audio
signal to the laptop for processing or
recording
Microphone in: used to connect
2. Left and Right Side
Ref.
Item Description
11 DC Power Jack Plug in DC plug to input the power to the device
12 Ethernet(RJ45) Port
Connect to a Ethernet 10/100/1000 based network
13 USB 2.0 Port x 2 Can be connected with any USB-interface peripherals
14 RS232 Accepts external connection that is with interface of
RS232 (D-sub 9 pins)
15 VGA For connection with external displays devices such as
monitors and projectors
13
12
11
15
14
![](/img.php?id=1867116&img=bgd.png)
Algiz XRW User’s Manual
- 5 -
3. Bottom side
Ref.
Item Description
16 SD card & Audio
Cover
Open the cover to use the SD card slot and Audio jacks
17 Service Window Unscrew to install and uninstall SSD/ 3G/ WiMAX
module and SIM card
18 VGA Cover Open the cover to plug in the VGA cable
19 RS232 Cover Open the cover to plug in the RS232 cable
20 Battery Lock Used to fastens the battery
21 Battery Used for the purpose of portability of ALGIZ XRW
22 Pogo Pin Pogo pin for docking station
23 Battery Latch Sliding latches to fasten or release the battery
24 USB Cover Open the cover to plug in any USB 2.0 interfaced
devices
25 DC Jack & Ethernet
Port Cover
Open the cover to plug in DC Power Plug and RJ-45
LAN cable
17
21
16
24
23
18
19
20
20
22
![](/img.php?id=1867116&img=bge.png)
Algiz XRW User’s Manual
- 6 -
Chapter 3 – Buttons and Indicators
1. Function Keys
Hot Key Function Icon Description
Fn+F1 Sleep mode
Enter the sleep mode
Fn+F2 GPS
Enable/ Disable the function of GPS
Fn+F3 WLAN/ Wi-Fi
Enable/ Disable the function of Wireless
LAN
Fn+F4 3G Enable/ Disable the function of 3G
Fn+F5 Bluetooth
Enable/ Disable the function of Bluetooth
Fn+F6 Touchpad
Enable/ Disable Touchpad
Fn+F7 Volume down
Decrease the volume
Fn+F8 Volume up
Increase the volume
Fn+F9 Mute
Muffle the audio sound
Fn+F10 Brightness down
Decrease the display brightness
Fn+F11 Brightness up
Increase the display brightness
Fn+F12 LCD/ External
Monitor switch
Switch signal between laptop display and
external connected monitor or both
Fn+Esc Webcam
Enable/ Disable the function of webcam
Fn+ ~ WiMAX
Enable/ Disable the function of WiMAX
Fn+1 Keyboard
Auxiliary Light
Turn on/off the keyboard auxiliary light
Fn+2 Stealth mode
Enable/ Disable all LED indicators
![](/img.php?id=1867116&img=bgf.png)
Algiz XRW User’s Manual
- 7 -
2. On Screen Display Hot Keys
Function Icon Description
Number lock
Enable/ disable the number lock
Capital lock
Enable/ disable the capital lock
Scroll lock
Enable/ disable the scroll lock
Volume down Decrease volume
Power Boot up the netbook.
Volume up
Increase volume
Brightness down
Decrease brightness
Brightness up
Increase brightness
3. LED Indicators
Function Icon Description
Power Status
Green light – Power on
Orange light – Sleep mode
HDD Status
Green light – System is accessing the hard disk drive
Wi-Fi Status
Green light – Wi-Fi on
Bluetooth Status
Green light – Bluetooth on
Battery Status
Red light – Low Battery
Green light – Full Battery
Yellow light – Charging
![](/img.php?id=1867116&img=bg10.png)
Algiz XRW User’s Manual
- 8 -
Chapter 4 – Getting Your Device Ready
1. Make sure that your device is either connected to AC power or a battery that
still has power.
2. Press the power button to turn on your ALGIZ XRW.
1. Plug in the AC Power
1. Plug the DC power cord of the AC adapter
into the power connector of the device
2. Plug the female end of the AC power cord
into the AC adapter and the male end into
an electrical outlet
3. Slide the power switch to boot the system
2. Installing Battery Pack
1. Push the latches aside to install / release
the battery to the battery compartment
Caution
Before you use your ALGIZ XRW, you will have to charge the battery packs as
soon as ALGIZ XRW is connected with the external power source. Please fully
charge the battery in advance of operating ALGIZ XRW. The new battery packs
must be 100% charged before ALGIZ XRW is disconnected from the external
power source. It takes few hours to fully charge the battery when ALGIZ XRW
is turned off.
1
2
![](/img.php?id=1867116&img=bg11.png)
Algiz XRW User’s Manual
- 9 -
3. Installing 3G and WiMAX SIM Cards
3G Installation
1. Plug in the 3G module to mini PCIe
slot and screw the module onto the
motherboard
2. Pull up the SIM card socket to insert
the 3G SIM card and then push the
SIM card socket back.
WiMAX Installation
1. Plug in the WiMAX module to mini
PCIe slot and screw the module
onto the motherboard
