NX1‐UMTS
QuickGuide
V1.2
2013
HandheldGroupAB
2013/10/30
![](/img.php?id=2176499&img=bg2.png)
BitaTek Co. Ltd. 1
Technical Specifications
Model and System
Model:NX1-UMTS
System:Android 4.0.4
CPU and capacity
CPU:TI 1GHz dual core OMAP4430
Memory:2GB iNAND (SDIN5D1)
512MB DDR2 SDRAM (EDB816B3PF-8D), upgradable to 1GB.
5M pixels CMOS color camera with MIPI interface.
Type:Li-Ion Type:Li-Ion
Capacity:1530mAh Capacity:3060mAh
Show
Screen Size:4"
Resolution:800 x 480
Type:Capacitive
Wireless Communications
Bluetooth:V2.1 EDR WLAN WCDMA、GSM
GPS
aGPS, geotagging support
Camera
Battery
![](/img.php?id=2176499&img=bg3.png)
BitaTek Co. Ltd. 2

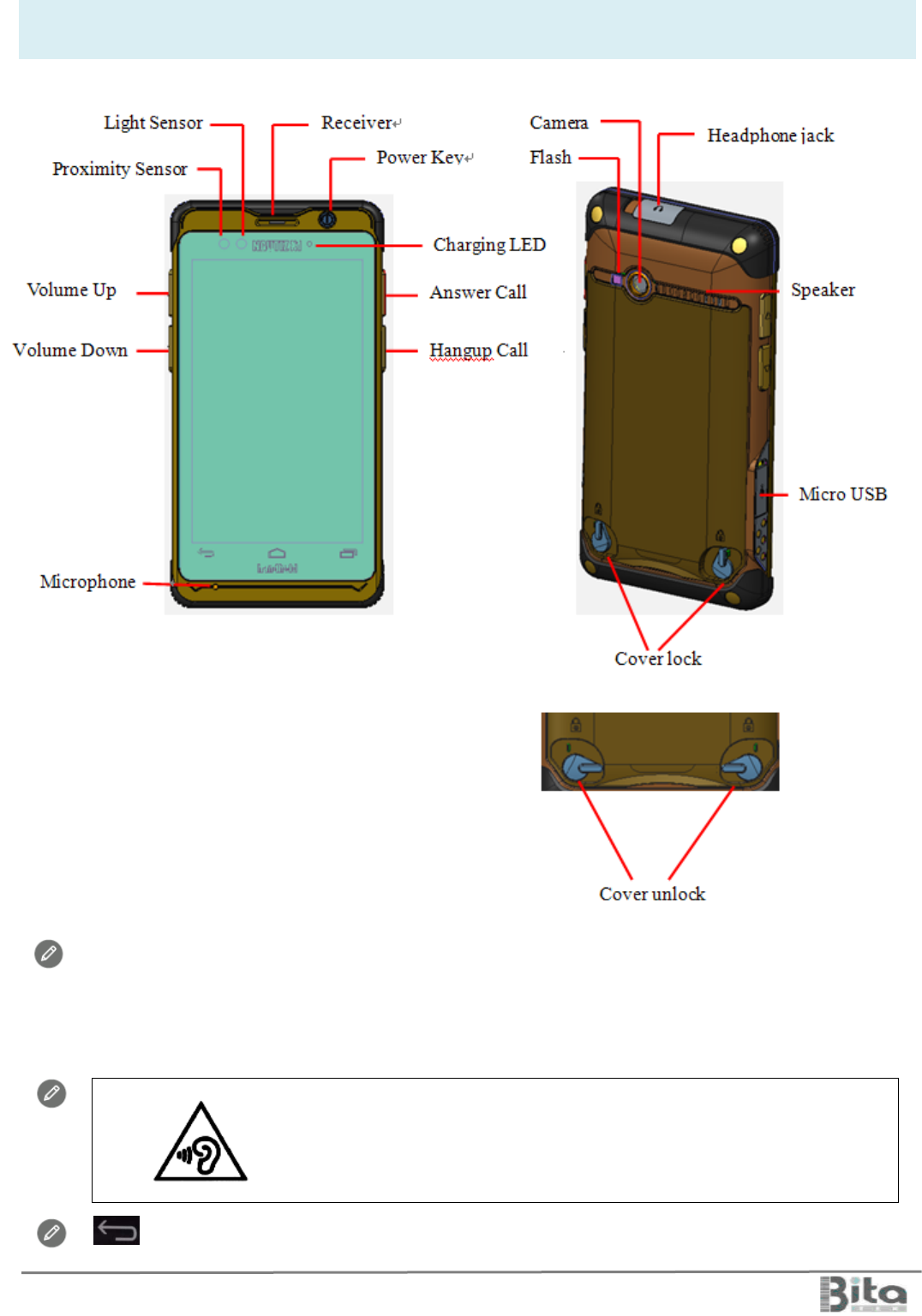

OVERVIEW
USB cover:USB rubber cover must completely pushed to meet IP67 standards
Headphone cover:Headphone rubber cover must completely pushed to meet IP67
standards
Prevention of Hearing Loss
Topreventpossiblehearingdamage,donotlistenathighvolumelevelsforlong
periods.
:Return to the previous work
![](/img.php?id=2176499&img=bg4.png)
BitaTek Co. Ltd. 3
:Return to the desktop
:Long press , there will be a directory listing

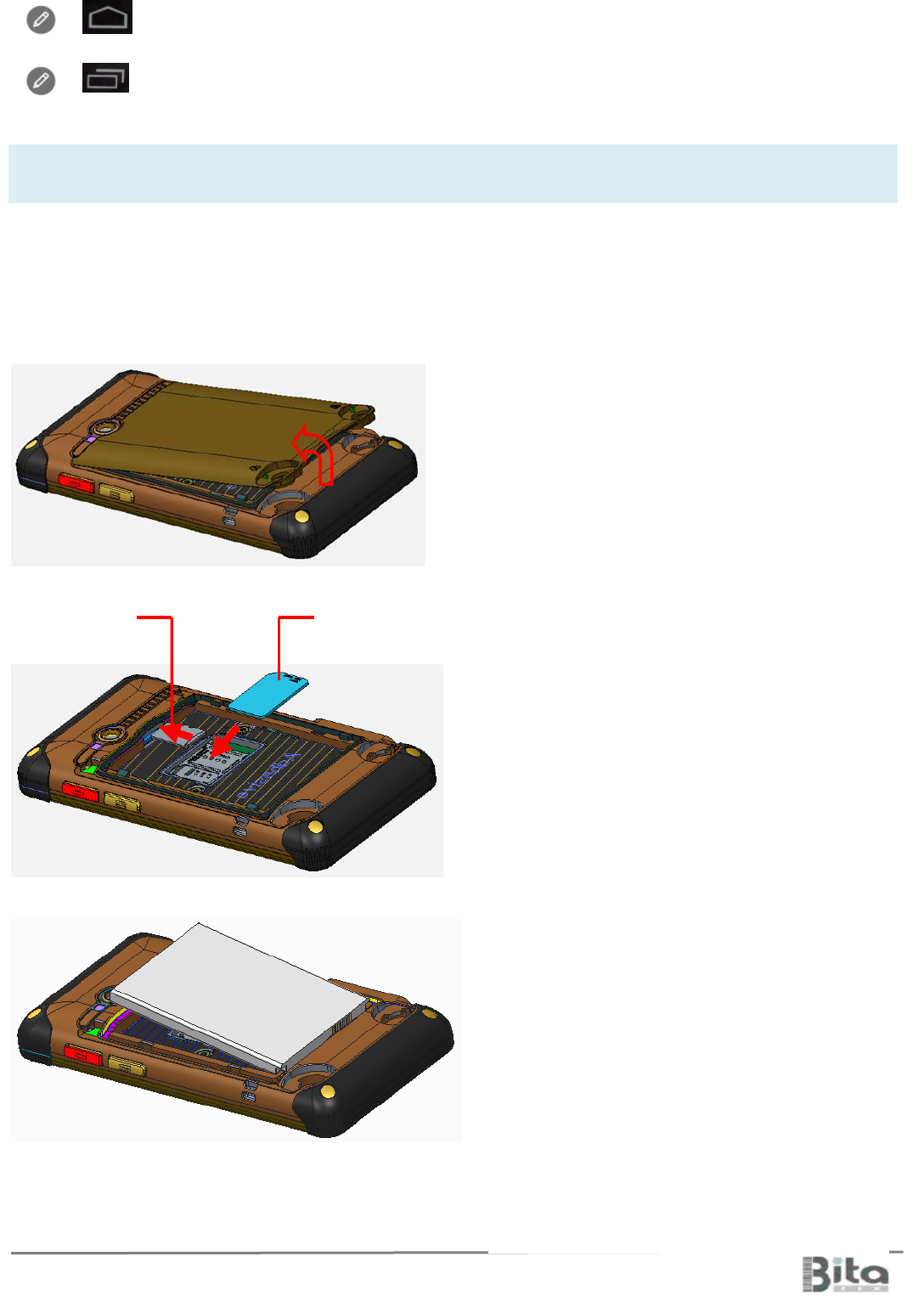

Preparation before using your phone
You need to insert a SIM card provided by your mobile operator to use mobile
services. As shown, install SIM / memory card and battery.
Step 1:Open the back cover
Step 2:Insert the SIM card and micro
SD card.
(Docking Connector is on down side)
Step 3:Install the Battery.
1530mAh
SIM card inserting
Micro SD card
installation
![](/img.php?id=2176499&img=bg5.png)
BitaTek Co. Ltd. 4

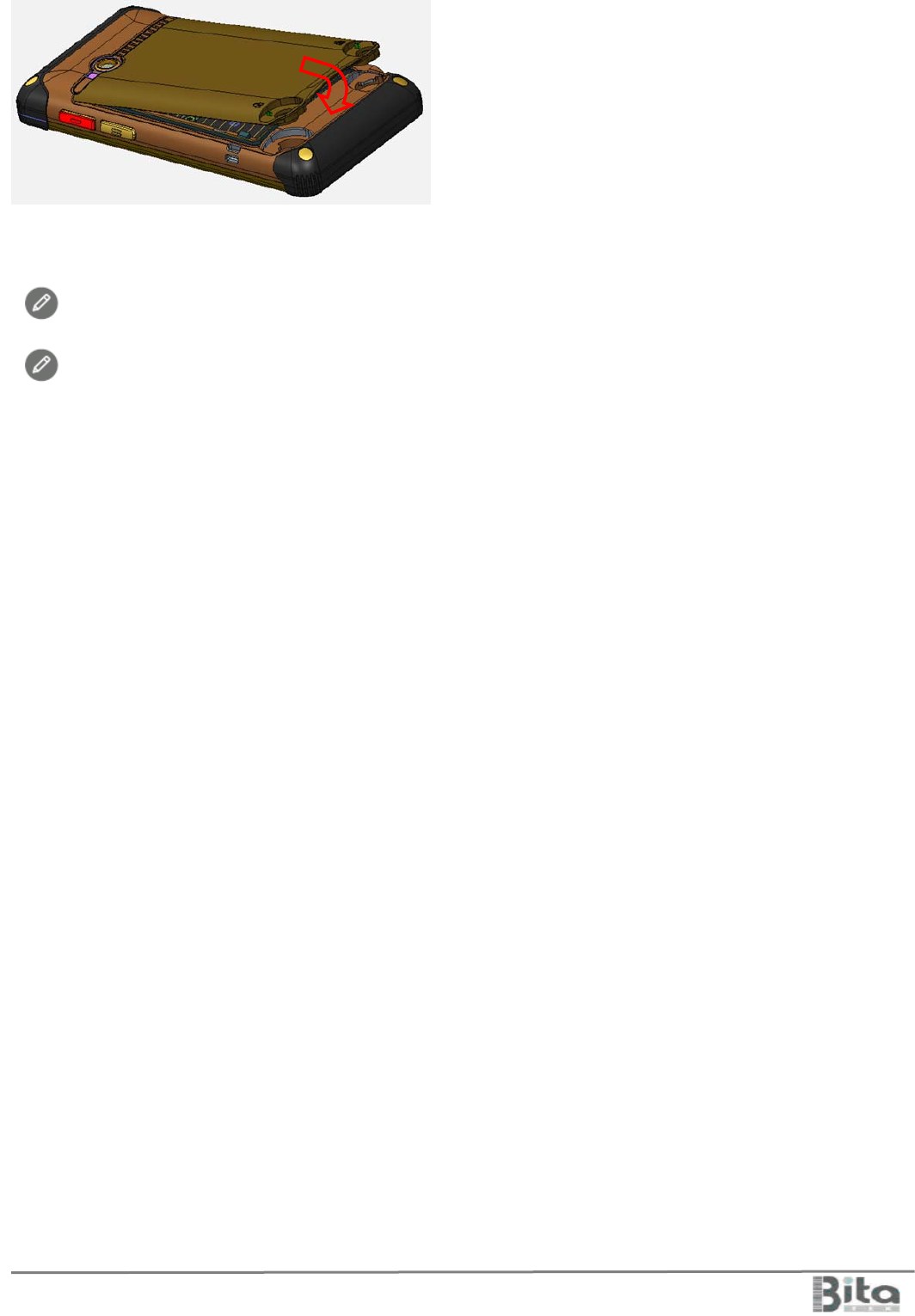

Do not open the phone insert or remove a SIM card.
Doing so may be the SIM card or the phone cause permanent damage.
Press battery cover must get click sound to ensure IP67
Step 4:Install the back cover.
1530mAh
![](/img.php?id=2176499&img=bg6.png)
BitaTek Co. Ltd. 5

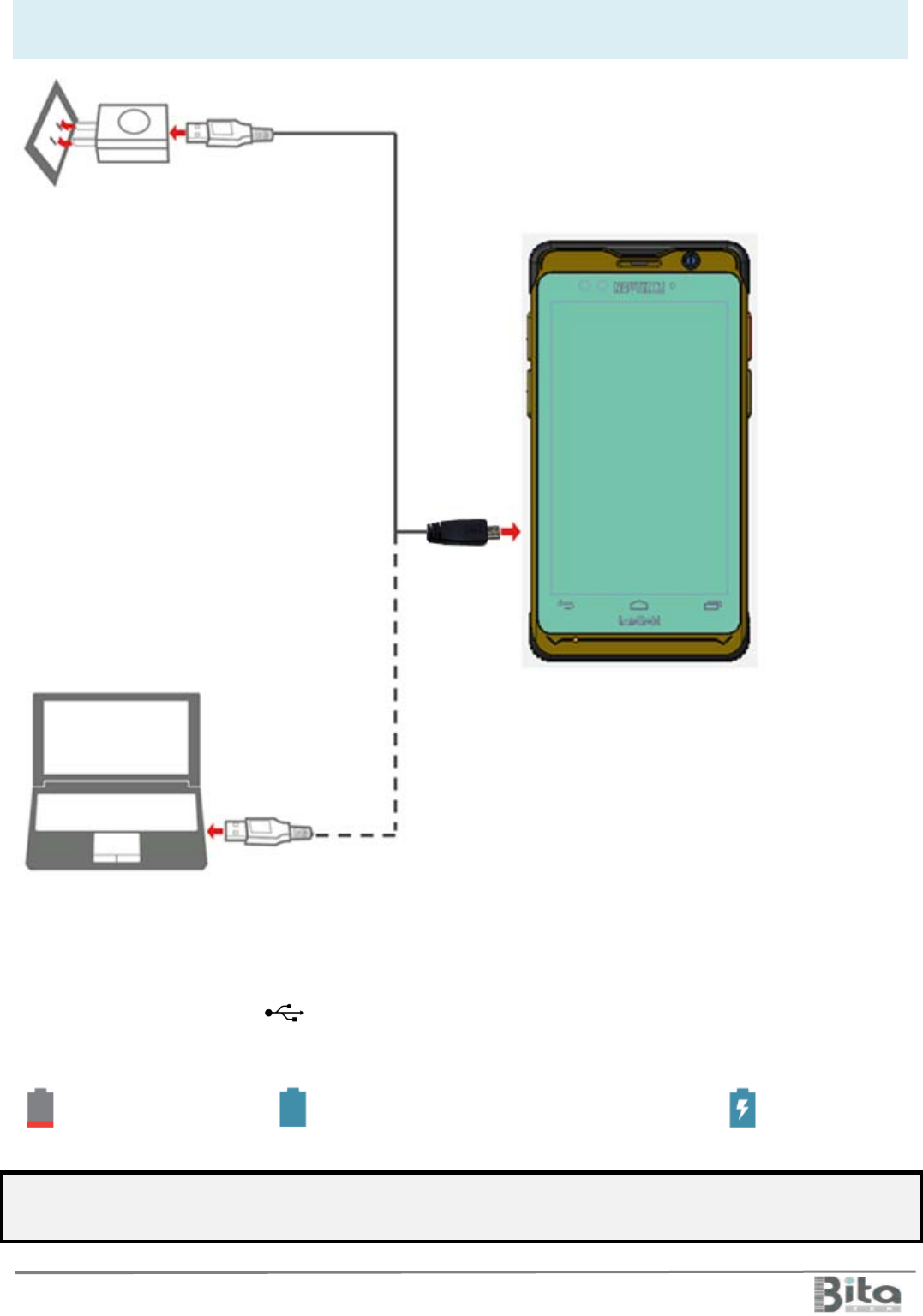

Battery Charging
Method 1:Using the supplied power adapter and USB cable to connect the phone to a power outlet .
Method 2:Use a computer to charge the battery.
Method 3:Keep this logo on top side and then Insert the micro USB
Method 4:Charging eight hours for 1st time use empty battery
Low power Positive charging is completed Charging
1. The operating temperature is from -20℃~ 60℃ for NX1-UMTS.
2. The charging temperature is from 0℃~ 40℃.
![](/img.php?id=2176499&img=bg7.png)
BitaTek Co. Ltd. 6
NX1-UMTS Regulatory Information
******************************************************************************
CE RF Exposure Compliance
This device meets the EU requirements (1999/519/EC) on the limitation of exposure of the general public to
electromagnetic fields by way of health protection.
The limits are part of extensive recommendations for the protection of the general public. These
recommendations have been developed and checked by independent scientific organizations through regular
and thorough evaluations of scientific studies. The unit of measurement for the European Council's
recommended limit for mobile devices is the "Specific Absorption Rate" (SAR), and the SAR limit is 2.0 W/
kg averaged over 10 gram of tissue. It meets the requirements of the International Commission on
Non-Ionizing Radiation Protection (ICNIRP).
For body-worn operation, this device has been tested and meets the ICNIRP exposure guidelines and the
European Standard EN 62209-2, for use with dedicated accessories. SAR is measured with this device at a
separation of 1.5 cm to the body, while transmitting at the highest certified output power level in all
frequency bands of this device. Use of other accessories which contain metals may not ensure compliance
with ICNIRP exposure guidelines.
******************************************************************************
Users have to use the connection to USB interfaces with USB 2.0 version or higher.
CAUTION! Risk of explosion if battery replaced aced by an incorrect type.
Dispose of used batteries according to the instructions.
The maximum ambient temperature for operating will not be higher than 60 ˚C
The adapter shall be installed near the equipment and shall be easily accessible.
*****************************************************************************
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
****************************************************************************************************************************
Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s
authority to operate the equipment.
![](/img.php?id=2176499&img=bg8.png)
BitaTek Co. Ltd. 7
****************************************************************************************************************************
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
****************************************************************************************************************************
FCC RF Exposure Compliance (SAR)
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF)
energy set by the Federal Communications Commission for an uncontrolled environment. The exposure standard for
wireless devices employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR limit adopted
by the FCC is 1.6W/kg for an uncontrolled environment. Tests for SAR are conducted using standard operating
positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency
bands. The FCC has granted an Equipment Authorization for this device with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines.
Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating
can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as
to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna,
the lower the power output.
SAR compliance for body-worn operation is based on a separation distance of 15 mm between the unit and the human
body. Carry this device at least 15 mm away from your body to ensure RF exposure level remains at or below the
maximum levels. To support body-worn operation, choose the belt clips or holsters, which do not contain metallic
components, to maintain a separation of 15 mm between this device and your body.
RF exposure compliance with any of body-worn accessory, which contains metal, was not tested and certified, and use
such body-worn accessory should be avoided.
****************************************************************************************************************************
