INTRODUCTION
Thank you for selecting the Oregon ScientificTM Heart Rate
Monitor with Speed and Distance plus PC Connection
(SE833). Apart from being an advanced heart rate monitor,
this watch is also designed with PC compatibility to allow
users to store exercise data for analysis and fitness
management. Other functions such as speed and distance
measurement, exercise timer with laps and exercise profiles
are available for users to optimize their workout.
2.4GHz-ANT Sports System is used in this watch to achieve
reliable transmission linkage with other devices such as
chest belt, foot pod or bike pod.
IMPORTANT This watch is for sport purposes only and is
not meant to replace any medical device.
Patent Notice: This product is protected by US Patent No.
7,237,446 (European Patent pending).
PACKAGE ITEMS
The package should include the following items:
• 1 x SE833 watch
• 1 x SZ909 chest belt
• 1 x AD112 USB dongle
• 1 x AD108 application software CD
• 1 x bike mount (with 2 nylon cords)
• 2 x CR2032 3V lithium batteries (already installed in
watch and chest belt)

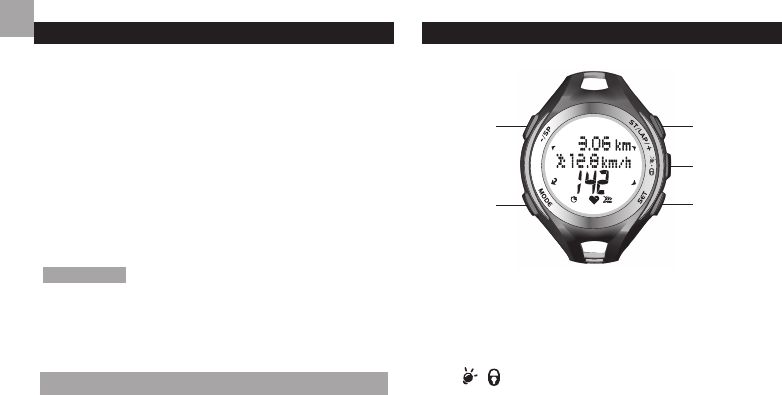

CONTROL BUTTONS
1
23
4
5
1. - / SP : Toggle options; decrease value; pause/stop
during exercise
2. MODE : Toggle modes; return to previous page
3. SET : Confirm settings; set alarm on/off in Time mode
4. / : Activate backlight; lock / unlock keypad
5. ST / LAP / + : Toggle options; increase value; mute/un-
mute in Time mode
![](/img.php?id=1211439&img=bg3.png)
EN
3

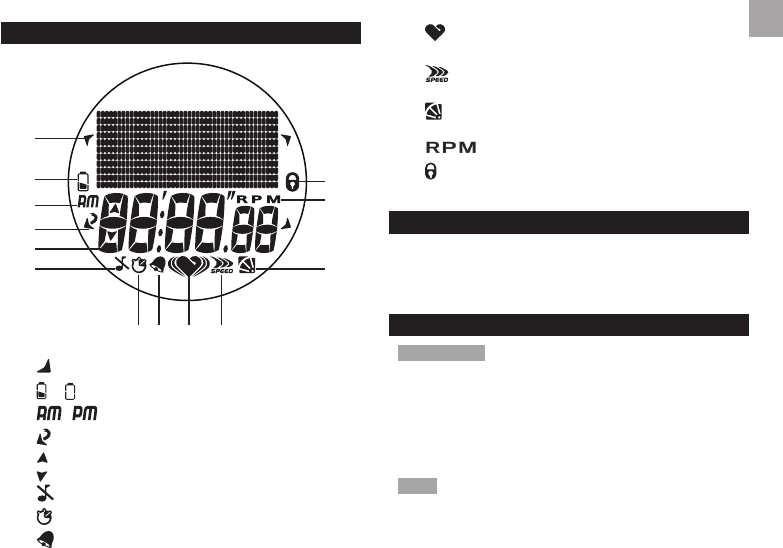

DISPLAY
1
2
3
4
5
6
7 8 9 10
11
12
13
1. : Key to press indicator
2. or : Indicates battery power is low or empty
3. / : 12 hour clock
4. : Press the key to exit
5. : Indicates up / down or upper / lower limit
6. : Indicates beep tone is off
7. : Indicates exercise timer is activated
8. : Indicates alarm is on
9. : Indicates heart rate signal is received or heart rate
chest belt is paired
10. : Indicates speed and distance signal is received or
foot pod is paired
11. : Indicates bike and cadence signal is received or
bike pod is paired
12. : Resolutions per minute (unit of cadence)
13. : Indicates keypad is locked
OPERATING MODES
STARTING YOUR WATCH (FIRST TIME)
After removing the watch from the package, activate it by
pressing and holding MODE until the display is shown. The
watch will prompt you to set your user profile.
SETTING UP YOUR WATCH
IMPORTANT
• To ensure accurate calculations with your exercise, you
are strongly required to set the watch and user profiles
before exercising.
• Remember to set the profiles after every battery
replacement or reset.
NOTE When the watch is left idle for 30 seconds during set
up, it will automatically exit.
![](/img.php?id=1211439&img=bg4.png)
EN
4

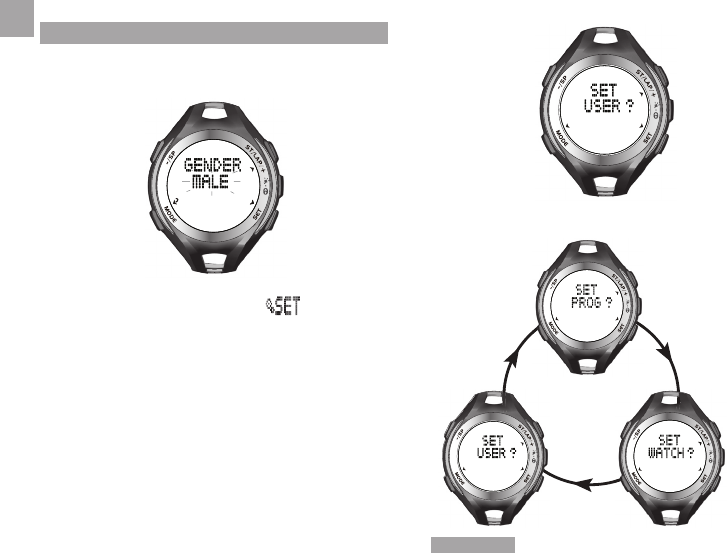

SET USER PROFILE
When prompted to set user profile after starting the watch
the first time, the screen below will be shown. Go directly
to step 4.
For normal setting procedure:
1. Press MODE repeatedly to select .
2. Press ST/LAP/+ repeatedly to select “SET USER”.
3. Press SET to enter user profile setting options.
4. Press ST/LAP/+ to select option, then press SET to
confirm.
5. Continue setting your user profile according to the
following order: year of birth, month of birth, day of
birth, weight unit and weight value, by pressing the
following buttons:
• ST/LAP/+ to increase value or select option
• -/SP to decrease value
• SET to confirm selected option
6. After your user profile is set, the screen below will be
shown.
7. You can continue setting other profiles (watch or
exercise profiles) by pressing ST/LAP/+ repeatedly.
press
ST/LAP/+
press
ST/LAP/+
press
ST/LAP/+
IMPORTANT Reset the user profile if the watch will be
used by another person.
![](/img.php?id=1211439&img=bg5.png)
EN
5
SET WATCH PROFILE
1. Press MODE repeatedly to select .
2. Press ST/LAP/+ repeatedly to select “SET WATCH”.
3. Press SET to enter watch profile setting options.
4. Press ST/LAP/+ or -/SP to select the option to set: set
alarm, set time, set date, set unit, set alert*, set view**.
5. Press SET and start setting the selected option by
pressing the following buttons:
• ST/LAP/+ to increase value or select option
• -/SP to decrease value
• SET to confirm selected option
* During exercise, when the heart rate is out of the target
zone, the watch will send out visual and sound alert. You
can select to turn on/off the sound alert in the “SET ALERT”
option. For details of target zone, refer to “TARGET ZONE”
section in this manual.
** During exercise, the watch will toggle display your
exercise information. You can select to turn on/off the toggle
display in the “SET VIEW” option.
SET EXERCISE PROFILE
IMPORTANT Reset the exercise profile if the watch will be
used by another person.
You can select to set the default exercise profiles in the
watch or to synchronise exercise profiles from the PC
application software.
SET EXERCISE PROFILE IN WATCH
You can set the 3 default exercise profiles (Cardio, Run,
Cycling) in the watch.
1. Press MODE repeatedly to select .
2. Press SET to enter exercise options.
3. Press ST/LAP/+ or -/SP to select the exercise to set:
set cardio, set run, set cycling.
4. Press SET to confirm selection, then continue to set
the profile* of the selected exercise by pressing the
following buttons:
• ST/LAP/+ to increase value or select option
• -/SP to decrease value
• SET to confirm selected option

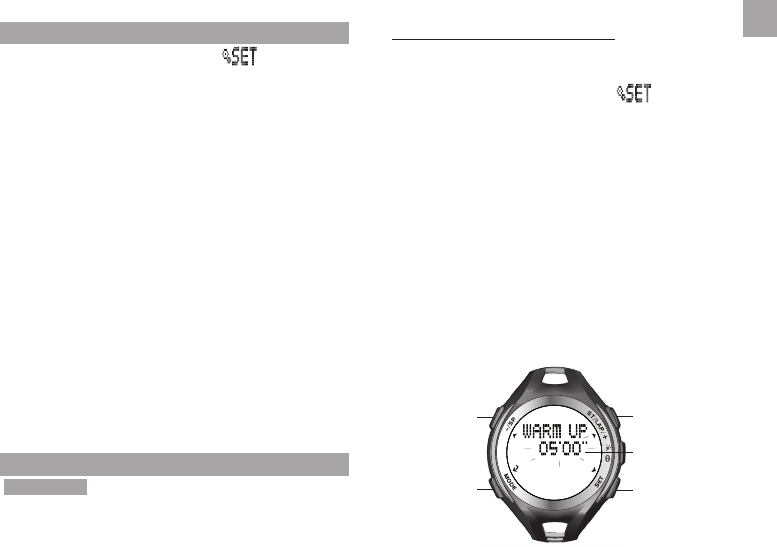

* The profile setting sequence is as follows:
1. Warm up time
warm up time
to increase
value
to next page
to decrease
value
to exit
![](/img.php?id=1211439&img=bg6.png)
EN
6

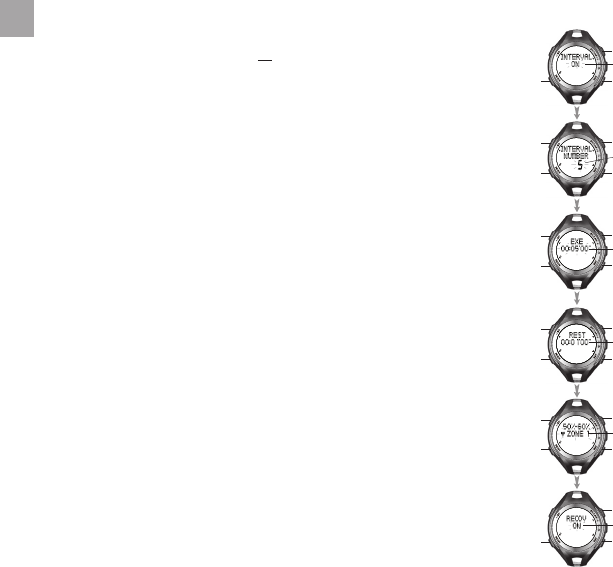

2. Interval training on/off
2a If you set interval training to on, you have to set:
v Number of interval (2-5)
v Exercise time for each interval
v Rest time for each interval
v Target heart rate zone (1-5) [For details, refer to
“TARGET ZONE” section in this manual]
v Recovery timer on/off
press SET
press SET
press SET
press SET
press SET
press SET
to toggle on or off
interval training on/off
to increase value
to increase value
to increase value
to confirm setting; to next page
to next page
to next page
to confirm setting; to next page
to exit
to decrease value
to exit
to decrease value
to exit
to exit
to decrease value
to exit
to exit
to decrease value
number of interval
exercise time for each interval
rest time for each interval
to increase value
to next page
target heart rate zone
to toggle on or off
to next page
recovery timer on/off
![](/img.php?id=1211439&img=bg7.png)
EN
7
2b If you set interval training to off, you have to set (for
Cardio setting only):
v Exercise time
v Target heart rate zone (1-5) [For details, refer to
“TARGET ZONE” section in this manual]
v Recovery timer on/off
press SET
press SET
press SET
to toggle on or off
interval training on/off
to increase value
to increase value
to toggle on or off
to next page
to next page
to confirm setting; to next page
to next page
to exit
to exit
to decrease value
to exit
to exit
to decrease value
exercise time
target heart rate zone
recovery timer on/off
2c If you set interval training to off, you have to set (for
Run and Cycling setting only):
v Exercise by distance or by time
v Exercise distance or exercise time
v Target heart rate zone (1-5) [For details, refer to
“TARGET ZONE” section in this manual]
v Recovery timer on/off
press SET
press SET
press SET
press SET
to toggle on or off
interval training on/off
to toggle by distance or by time
to increase value
to toggle on or off
to next page
to next page
to next page
to exit
to exit
to decrease value
to decrease value
to exit
to exit
exercise by distance or by time
exercise distance; exercise time
to confirm setting; to next page
recovery timer on/off
to increase value
to next page
to exit
target heart rate zone
![](/img.php?id=1211439&img=bg8.png)
EN
8
SYNCHRONISE EXERCISE PROFILE FROM PC
APPLICATION SOFTWARE
You can synchronise exercise profiles from the PC
application software to your watch with customised setting.
There are 9 exercise profiles available in the software.
For more details, refer to “SYNCHRONISE EXERCISE
PROFILE TO WATCH” in this manual.
NOTE If no exercise profile is synchronised from the
software to the watch, the watch will display its default
exercise profiles.
WEARING CHEST BELT
1. Wet the conductive pads on the underside of the chest
belt with a few drops of water or a conductive gel to
ensure solid contact.
conductive pads
2. Strap the chest belt across your chest. To ensure an
accurate heart rate signal, adjust the strap until the belt
sits snugly below your pectoral muscles.
TIPS
• The position of the chest belt affects its performance.
Move the chest belt along the strap so that it falls above
your heart.
• Avoid areas with dense chest hair.
• In dry, cold climates, it may take several minutes for the
chest belt to function steadily. This is normal and should
improve with several minutes of exercise.
PAIRING DEVICE
IMPORTANT To ensure accurate calculations with your
exercise, you should pair the watch with SZ909 chest belt.
This chest belt allows pairing of both heart rate and foot pod
functions.
![](/img.php?id=1211439&img=bg9.png)
EN
9
The watch can also pair with other chest belts and devices
such as foot pod and bike pod that use the ANT Sports
System. However, other chest belts can only allow pairing
of heart rate function.
1. Press MODE repeatedly to select . The watch
will show how many and which devices are paired
(if any). If no device is paired, the watch will show “0
DEVICE PAIRED”.
2. Press SET to enter “PAIR DEVICE”. Press SET to start
pairing.
PAIR WITH SZ909 CHEST BELT (OR OTHER
ANT-SYSTEM CHEST BELTS)
You have 2 ways to pair the watch with chest belt.
• One way is to strap the belt across your chest, and wait
until the watch displays
and
(only with SZ909)
• The other way is as follows:
i. Hold the chest belt firmly with your thumbs touching
the conductive pads that normally contact your
chest.
ii. Rub your thumbs back and forth across the
conductive pads a few times until the watch displays
the screens above.
NOTE Only with SZ909 chest belt can you pair both HR belt
and foot pod. If you pair with other ANT-system chest belt,
only HR belt can be found.
NOTE For SZ909 chest belt, pairing is only considered
successful when both HR belt and foot pod are found.
PAIR WITH ANT-SYSTEM FOOT POD / BIKE POD
You can purchase foot pod or bike pod separately to pair
with your watch, as long as they use the ANT system. For
information on pairing, refer to their User Guides.

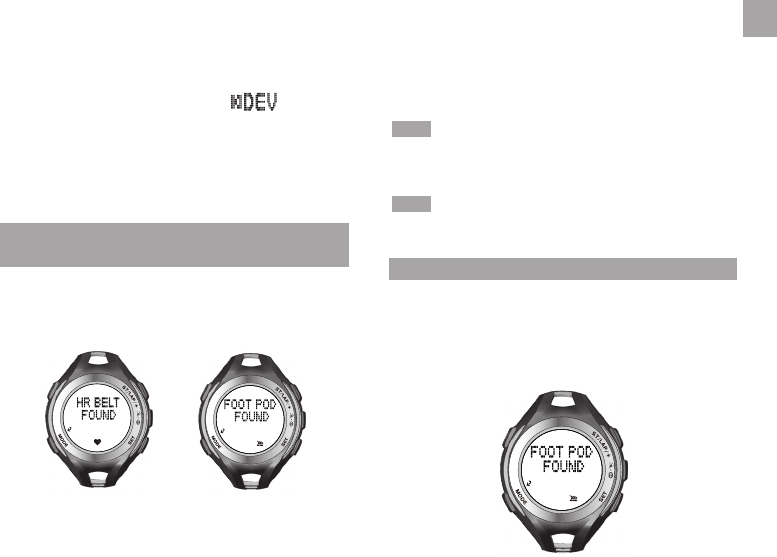

• When the foot pod is paired successfully, the watch will
display
![](/img.php?id=1211439&img=bga.png)
EN
10

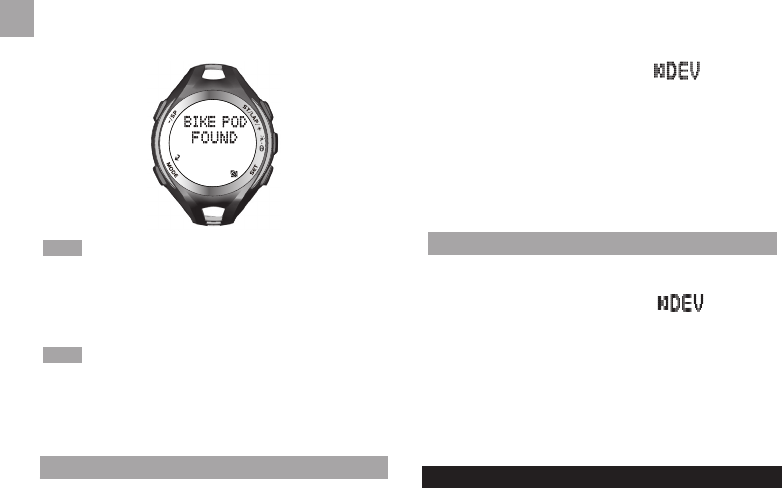

• When the bike pod is paired successfully, the watch will
display
NOTE If pairing is weak and unstable:
• Shorten the distance between the device and watch.
• Re-adjust the position of the device.
• Check the batteries. Replace them when necessary.
NOTE If the watch is already paired with SZ909 chest belt,
and you want to pair with another chest belt, you have to
first remove the SZ909 chest belt before you are able to pair
with another chest belt. This principle also applies to bike
pod and foot pod.
INPUT BIKE WHEEL SIZE (FOR BIKE POD)
The watch will not show “WHEEL SIZE” if no bike pod is
paired. For details of bike wheel size, refer to “BIKE WHEEL
SIZE” section in this manual.
If your watch is paired with bike pod, you will be asked to
input the wheel size values.
1. Press MODE repeatedly to select .
2. Press SET.
3. Press ST/LAP/+ repeatedly to select “WHEEL SIZE”.
4. Press SET.
5. Input the bike wheel size by pressing ST/LAP/+ to
increase values or -/SP to decrease values.
6. Press SET to confirm.
REMOVE PAIRED DEVICE
The watch will not show “DEVICE REMOVE” if no device
is paired.
1. Press MODE repeatedly to select .
2. Press SET.
3. Press ST/LAP/+ repeatedly to select “DEVICE
REMOVE”.
4. Press SET.
5. Press ST/LAP/+ to select which device to delete.
6. Press SET to confirm selection.
CALIBRATING PAIRED DEVICE
The watch will not show “CAL DEVICE” if no device is
paired.
You can calibrate by running, walking or inputting parameter.
The parameter is the same value after you have successfully
![](/img.php?id=1211439&img=bgb.png)
EN
11
calibrated by running or walking.
If you want to calibrate the device immediately after pairing,
go directly to step 4. Otherwise, start from the beginning.
CALIBRATE BY RUNNING OR WALKING
1. Press MODE repeatedly to select .
2. Press SET.
3. Press ST/LAP/+ repeatedly to select “CAL DEVICE”.
4. Press SET.
5. Press ST/LAP/+ to select “CAL BY RUN” or “CAL BY
WALK”.
6. Press SET to confirm selection.
7. The watch will conduct a device search first, as
indicated by flashing and . Wait until stops
flashing, then press SET to start calibration.
8. Ensure to complete walking or running the selected
distance for calibration.

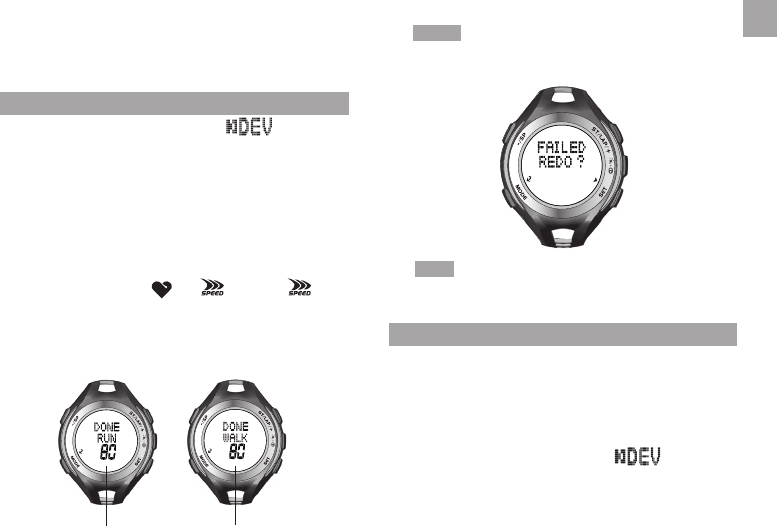

Ø If calibration is successful, the watch will display
Run parameter
or
Walk parameter
NOTE The Run parameter and Walk parameter is the
value to enter when calibrating by inputting parameter.
Ø If calibration fails, the watch will display
NOTE The SZ909 chest belt should be calibrated both
by running and walking.
CALIBRATE BY INPUTTING PARAMETER
You can only know your parameter if you have already
successfully calibrated by running or walking beforehand.
This is because the parameter is the same value displayed
after you have successfully calibrated by running or walking.
By inputting parameter, you will be spared the time of
calibrating by running or walking again.
1. Press MODE repeatedly to select .
2. Press SET.
3. Press ST/LAP/+ repeatedly to select “CAL DEVICE”.
4. Press SET.
5. Press ST/LAP/+ to select “PARA INPUT”.
![](/img.php?id=1211439&img=bgc.png)
EN
12
6. Press SET to confirm selection.
7. Input parameter for Walk by pressing ST/LAP/+ to
increase values or - / SP to decrease values. The
parameter is the same value after you have successfully
calibrated by walking.
8. Press SET to confirm.
9. Input parameter for Run by pressing ST/LAP/+ to
increase values or - / SP to decrease values. The
parameter is the same value after you have successfully
calibrated by running.
10. Press SET to confirm.
CONDUCTING EXERCISE
IMPORTANT To ensure accurate calculations with your
exercise, you should pair the watch with SZ909 chest belt or
other devices such as bike pod. However, if without pairing,
the chest belt will only receive heart rate signal.
There are 2 options for exercise: AUTO and PROG.
• AUTO refers to conducting exercise without using the
set exercise profile.
• PROG refers to conducting exercise by using the set
exercise profile (refer to “SET EXERCISE PROFILE”
section in this manual).
To conduct exercise:
1. Press MODE to select .

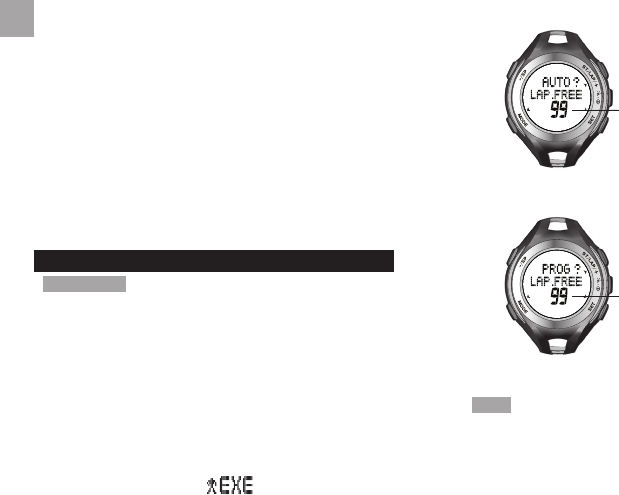

• To exercise without exercise profile, select
available lap
memory
• To exercise with exercise profile, press ST/LAP/+ to
select
available lap
memory
Press SET, then press -/SP or ST/LAP/+ to select
which exercise profile to use.
NOTE Available lap memory refers to the lap
memory available to do exercise. See “AVAILABLE
MEMORY FOR EXERCISE” for more details.
2. Press SET to confirm selection.
3. Wait for the watch to search for device first before
pressing SET to start exercise. See “DEVICE SEARCH
BEFORE EXERCISE” for more details.
4. During exercise, you can view your exercise data
by manually pressing SET repeatedly or automatic
![](/img.php?id=1211439&img=bgd.png)
EN
13
toggling. See “AUTO TOGGLE DATA VIEW DURING
EXERCISE” for more details. To know what exercise
data are shown, see “VIEW EXERCISE DATA DURING
EXERCISE” for more details.
5. If you need to take a break during exercise, press -/SP.
You can resume exercise by pressing ST/LAP/+. See
“PAUSE AND RESUME EXERCISE” for more details.
6. After you completed your exercise, you can save the
exercise data. See “SAVE EXERCISE DATA” for
more details.
AVAILABLE MEMORY FOR EXERCISE
The watch must have available memory to allow for exercise.
If you want to exercise but there is no available lap memory
or the watch memory is full, the watch will prompt you to
overwrite first before you can exercise.
• When the available lap memory is used up, AUTO and
PROG screens will show
or
and the watch will display the screens below if you press
SET to exercise. You cannot start exercise unless you
overwrite old lap memories.
2SEC
Press SET to overwrite old lap memories. After
overwriting, the available lap memory will resume and
the screens will display
or
• When watch memory is full, the watch will display the
screen below. You cannot start exercise unless you
overwrite old watch memories.
![](/img.php?id=1211439&img=bge.png)
EN
14
Press SET to overwrite old watch memories.
DEVICE SEARCH BEFORE EXERCISE
Before you start exercise, allow the watch a few seconds
to search for device first. This is to ensure you can receive
comprehensive calculations (such as your lap, calorie, heart
rate, distance, step, speed and cadence) during exercise.
But if you start exercise without device search, you will only
receive heart rate readings.
When you are in the screen below, you will find that the
device icons ( , , or ) are flashing and there are
no heart rate values. Wait until or stops flashing
and heart rate values appear. Then you can start exercise
by pressing SET.
AUTO TOGGLE DATA VIEW DURING EXERCISE
During exercise, if you want the watch to automatically toggle
the exercise data, go to Setting Mode to do the setting.
1. Press MODE repeatedly to select .
2. Press ST/LAP/+ repeatedly to select “SET WATCH”.
3. Press SET.
4. Press ST/LAP/+ or -/SP repeatedly to select “SET
VIEW”.
5. Press SET.
6. Press ST/LAP/+ to select “TOGGLE ON”.
7. Press SET to confirm selection.
NOTE If you have not set the above setting, you can
still view your exercise data by manually pressing SET
repeatedly during exercise.
PAUSE AND RESUME EXERCISE
If you need to take a break during exercise, press -/SP. Do
not press MODE, otherwise your exercise data will be lost.
During the long pause, the watch will lost connection with
the device. Hence, once you resume exercise, allow the
watch a few seconds to search for device first by pressing
![](/img.php?id=1211439&img=bgf.png)
EN
15
SET. You will find that the device icons ( , , or ) are
flashing and there are no heart rate values. Wait until or
stops flashing and heart rate values appear. Then you
can resume exercise by pressing ST/LAP/+.
SAVE EXERCISE DATA
1. Press -/SP to stop the watch from counting. Do not
press MODE, otherwise your exercise data will be lost.
2. Press and hold -/SP to save and exit.
EXCEED HEART RATE LIMIT
During exercise, if the upper or lower heart rate limit is
exceeded, the watch will warn by beeping and displaying
or
NOTE This feature is only available when exercising with
exercise profile. It is not available when exercising in AUTO
sub-mode.
VIEW EXERCISE DATA DURING EXERCISE
During exercise, you can view your exercise data either
by automatic toggling or manually pressing SET to toggle
screens.
Exercise data for AUTO exercise

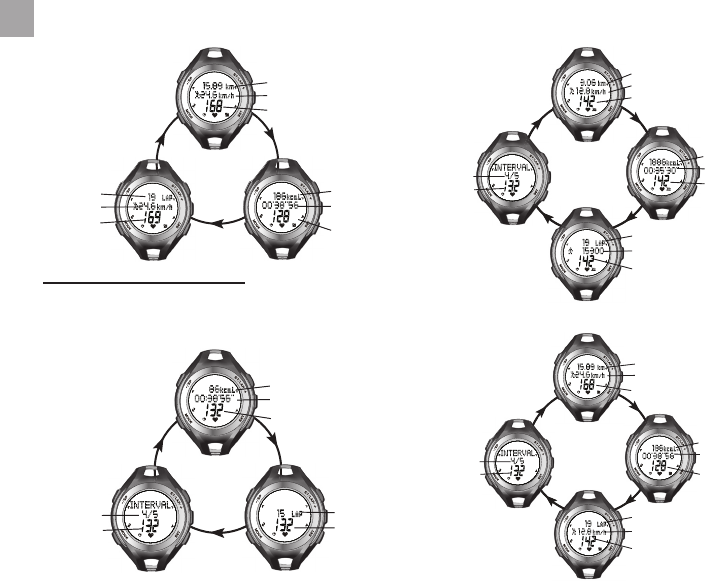

The diagrams below illustrate what exercise data will show
during exercise when paired with different devices.
• When paired with HR chest belt (except SZ909
chest belt)
calorie
exercise
time
heart rate
lap
exercise
time
heart rate
• When paired with HR chest belt + foot pod (or
paired with SZ909 chest belt only)
distance
speed
heart rate
lap
calorie
exercise
time
step
speed
heart rate
![](/img.php?id=1211439&img=bg10.png)
EN
16
• When paired with bike pod
distance
speed
heart rate
exercise
time
calorie
cadence
lap
speed
heart rate
R P M
Exercise data for PROG exercise
The diagrams below illustrate what exercise data will show
during exercise when using different exercise profiles.
• When using Cardio profile
calorie
remainning time
heart rate
lap
heart rate
interval
heart rate
• When using Running profile
distance
speed
heart rate
remaining time
heart rate
calorie
lap
step
heart rate
interval
heart rate
• When using Cycling profile
distance
speed
heart rate
remaining time
cadence
calorie
lap
speed
heart rate
interval
heart rate
R P M
![](/img.php?id=1211439&img=bg11.png)
EN
17

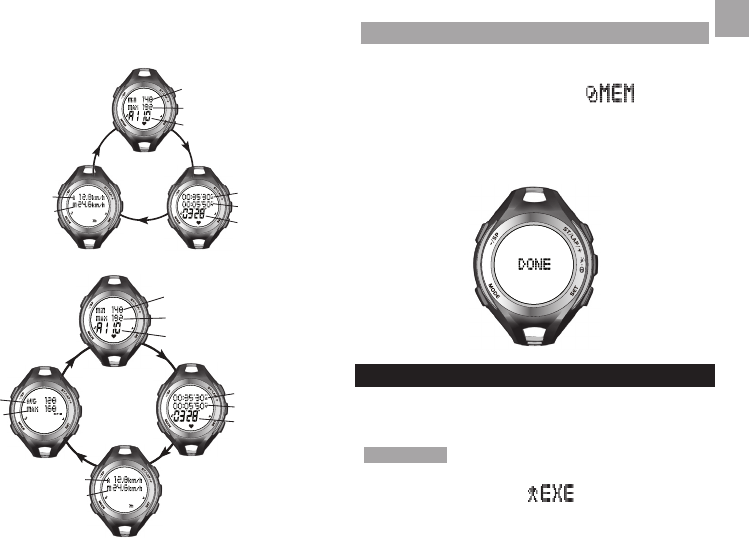

VIEWING EXERCISE RECORD
NOTE Memory Mode will not display when no exercise
record is stored.
To view exercise records:
1. Press MODE repeatedly to select . Your watch
will display the number of exercise records.
2. Press SET.
3. View your exercise records by pressing the following
buttons:
• ST/LAP/+ to select option
• -/SP to select option
• SET to enter Summary Record page or Lap Record
page and view record details
• MODE to return to previous page
In each exercise record, it may either include a Summary
Record page only or a Summary Record page plus a Lap
Record page.
VIEW EXERCISE RECORD IN SUMMARY RECORD
PAGE
The diagrams below illustrate what exercise record details
will show for different exercise profiles. Press SET to toggle
screens.
• For Auto
total laps
total distance
exercise time
maximum
heart rate
average
heart rate
minimum
heart rate
total steps
maximum speed
average speed
average cadence
maximum cadence
calorie
%fat burnt
• For Cardio
total laps
exercise time
maximum
heart rate
average
heart rate
minimum
heart rate
time above HR zone
time below HR zone
time in HR zone
calorie
%fat burnt
![](/img.php?id=1211439&img=bg12.png)
EN
18
• For Running
total laps
total distance
exercise time
maximum
heart rate
average
heart rate
minimum
heart rate
time above HR zone
time below HR zone
time in HR zone
total steps
maximum speed
average speed
calorie
%fat burnt
• For Cycling
total laps
total distance
exercise time
maximum
heart rate
average
heart rate
minimum
heart rate
time above HR zone
time below HR zone
time in HR zone
average
cadence
maximum speed
average speed
maximum
cadence
calorie
%fat burnt
VIEW EXERCISE RECORD IN LAP RECORD PAGE
The diagrams below illustrate what exercise record details
will show for different exercise profiles. Press SET to toggle
screens.
• For Auto
maximum
heart rate
average
heart rate
minimum
heart rate
average
cadence
maximum
speed
average
speed
maximum
cadence
• For Cardio
maximum
heart rate
average
heart rate
minimum
heart rate time above HR zone
time below HR zone
time in HR zone
![](/img.php?id=1211439&img=bg13.png)
EN
19
• For Running
maximum
heart rate
average
heart rate
minimum
heart rate
time above HR zone
time below HR zone
time in HR zone
maximum speed
average speed
• For Cycling
maximum
heart rate
average
heart rate
minimum
heart rate
time above HR zone
time below HR zone
time in HR zone
maximum speed
average speed
average
cadence
maximum
cadence
DELETE MEMORIES
You cannot select memory to delete, but have to delete all
memories.
1. Press MODE repeatedly to select . Your watch
will display the number of exercise records.
2. Press ST/LAP/+. Your watch will ask if you are going to
clear memory.
3. Press and hold SET until the watch displays
KNOWING YOUR FITNESS INDEX
Your watch will generate a fitness index based on your
aerobic exercise (by running 1 mile or 1.60 km).
IMPORTANT Ensure your watch is already paired with
heart rate chest belt before doing the fitness test.
1. Press MODE to select .
2. Press ST/LAP/+ repeatedly to select “FITNESS
TEST”.
3. Press SET. The watch will conduct a device search
![](/img.php?id=1211439&img=bg14.png)
EN
20
first, as indicated by flashing and . Wait until
stops flashing. The watch will also prompt you to
run 1 mile.
4. Press SET to start running. Ensure to complete running
1 mile for accurate fitness measurement. While running,
the watch will display the exercise time, distance and
heart rate.
5. After completing the run, your watch will automatically
calculate and show your fitness index. The higher the
index, the fitter you are. The diagrams below provide a
general guide as to what your fitness index means.
FITNESS INDEX FOR MEN
FAIR
GOOD
A
VERAGE
Fitness Index
Age
60
50
40
30
20
22 27 32 37 42
FITNESS INDEX FOR WOMEN
FAIR
GOOD
A
VERAGE
Fitness Index
Age
60
50
40
30
20
15 20 25 30 35 40
OTHER OPERATION AND SETTING
ACTIVATE BACKLIGHT
Press / to turn backlight On for 5 seconds.
NOTE The backlight function will not operate if “ ” or “ ”
is displayed.
LOCK / UNLOCK KEYPAD
Press and hold / for 2 seconds to lock or unlock
keypad. indicates keypad is locked.
SET ALARM ON / OFF
1. In Time Mode, press SET.
2. Press ST/LAP/+ to turn alarm On or Off. indicates
the alarm is turned On.
3. Press MODE or SET to exit.
SILENCE ALARM
• Press any button to stop the alarm and it will activate
again 24 hours later.
OR
• Set the alarm to Off.
SET BEEP TONE ON / OFF
In Time Mode, press ST/LAP/+. indicates the beep tone
is turned Off.
![](/img.php?id=1211439&img=bg15.png)
EN
21

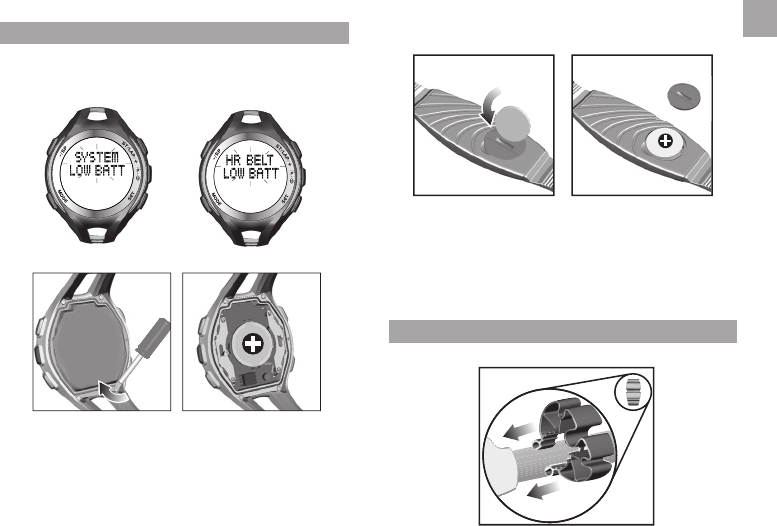

REPLACE BATTERY
If the battery power of your watch or chest belt is low, the
watch will display:
watch low battery chestbelt low battery
or
To replace watch battery:
1. Use a small screwdriver to open the battery
compartment lid.
2. Remove the old battery and insert a new CR2032, 3V
lithium battery.
3. Secure the lid by screwing it back into place.
To replace chest belt battery:
1. Use a coin to open the battery compartment lid by
turning it anticlockwise.
2. Remove the old battery and insert a new CR2032, 3V
lithium battery.
3. Secure the lid by turning the coin clockwise.
INSTALL BIKE MOUNT
1. Clasp the bike mount onto a bike or exercise machine.
![](/img.php?id=1211439&img=bg16.png)
EN
22
2. Insert the nylon cord to secure the bike mount according
to the diagrams below.
3. Fix the watch onto the bike mount.
USEFUL REFERENCE
TARGET ZONE
To help achieve maximum health benefits from your workout
programme, it is important to know your:
• Maximum Heart Rate (MHR)
• Upper heart rate limit
• Lower heart rate limit
MHR is expressed in beats per minute. You can get your
MHR from an MHR test, or you can estimate it by using the
following formula:
220 - age = MHR
The watch is pre-programmed with 5 target zone options,
each with its lower and upper heart rate limit, as listed in
the table below.
Lower Limit Upper Limit
Zone 1 50% x MHR 60% x MHR
Zone 2 60% x MHR 70% x MHR
Zone 3 70% x MHR 80% x MHR
Zone 4 80% x MHR 90% x MHR
Zone 5 90% x MHR 100% x MHR
The most popular zone range is from 50% to 80% of
your Maximum Heart Rate. This is where you achieve
cardiovascular benefits, burn fat and become fitter.
50%
60%
70%
80%
90%
100%
Moderate Activity
Weight Management
Aerobic Zone
Anaerobic Threshold Zone
Red Line Zone ( maximum capacity )
![](/img.php?id=1211439&img=bg17.png)
EN
23
There are three categories of training as described in the
table below.
TRAINING
CATEGORY MHR% DESCRIPTION
Health
Maintenance 65-78%
This is the lowest training
intensity level. It is good for
beginners and those who want to
strengthen their cardiovascular
systems.
Aerobic
Exercise 65-85%
Increases strength and
endurance. It works within the
body’s oxygen intake capability,
burns more calories and can
be maintained for a long period
of time.
Anaerobic
Exercise 78-90%
Generates speed and power.
It works at or above the body’s
oxygen intake capability,
builds muscle and cannot be
maintained for a long period
of time.
The upper and lower heart rate limits are calculated by
multiplying your MHR by the percentages of the selected
training category.
For example:
A 40-year-old training for basic health maintenance:
• His upper heart rate limit [220 - 40(age)] x 78%
• His lower heart rate limit [220 - 40(age)] x 65%
IMPORTANT Always warm up before exercise and select
the training category that best suits your physique. Exercise
regularly, 20 to 30 minutes per session, three to four times a
week for a healthier cardiovascular system.
WARNING Determining your individual training category is
a critical step in the process towards an efficient and safe
training programme. Please consult your doctor or health
professional to help you determine exercise frequency and
duration appropriate for your age, condition and specific
goals.
BIKE WHEEL SIZE
Match the ETRTO or wheel size diameter printed on the
wheel with the wheel size setting at the right hand column
of the table below. Input the relevant wheel size setting
number after bike pod is paired.
ETRTO
Wheel size
diameter
(inches)
Wheel size
setting (mm)
25-559 26 x 1.0 1884
23-571 650 x 23C 1909
35-559 26 x 1.50 1947
37-622 700 x 35C 1958
47-559 26 x 1.95 2022
20-622 700 x 20C 2051
52-559 26 x 2.0 2054
23-622 700 x 23C 2070
25-622 700 x 25C 2080
28-622 700 x 28 2101
32-622 700 x 32C 2126
42-622 700 x 40C 2189
47-622 700 x 47C 2220
![](/img.php?id=1211439&img=bg18.png)
EN
24
NOTE Wheel sizes on this table are for reference only as
wheel size depends on the wheel type and air pressure.
CONNECTING WITH PC SOFTWARE
Your watch can connect wireless with the PC application
software via the USB dongle.
NOTE The recommended PC requirements are:
• Operating system: Microsoft Windows 2000, XP SP2 or
Vista
• Processor: Pentium 4 or above
• RAM: Min. 512MB
• Hard disk free space: Min. 512MB
• Screen Display Area: 1024 x 600 pixels
To connect watch with PC:
On the PC
1. Insert the application software CD and install the PC
application software.
2. Plug in the USB dongle.
3. Open the PC application software.
On the watch
4. Press MODE repeatedly to select .
5. Press SET to start connecting.
6. If connection is successful, the screen will display
“DONE”. If connection fails, the screen will display
“FAILED”, press ST/LAP/+ then SET to try again.
PC SOFTWARE USER INTERFACE
Under construction
SYNCHRONISE EXERCISE PROFILE TO WATCH
Under construction
UPLOAD EXERCISE RECORD FROM WATCH
Under construction
WATER RESISTANCE
Item Water resistance
SE833 watch
50 metres (164 feet)
This means you can use the watch
for swimming or other water sport
activities (such as surfing) but it must
not be used for snorkeling and deep
water diving.
NOTE
• Ensure the buttons and battery
compartment are secured and
intact before exposing the watch
to excessive water.
• Avoid pressing the buttons while
in the water or during heavy
rainstorms, as this may cause
water to enter the watch, leading
to malfunction.
![](/img.php?id=1211439&img=bg19.png)
EN
25
Item Water resistance
SZ909 chest
belt
10 metres (32.8 feet)
Not recommended to use for
swimming.
AD112 USB
dongle No
NOTE Even if both the SE833 watch and the SZ909 chest
belt are water-resistant, as radio signals do not carry in
water, signal transmission between the watch and chest belt
will still be impossible in water.
SPECIFICATIONS
CLOCK
Time format 12/24 hour format with hour /
minute / second
Date format DD / MM or MM / DD
Year range 2009 - 2058
Alarm Alarm with daily, weekday or
weekend settings
TRAINING
Exercise time range 00:00:00 to 99:59:59
Rest time range 00:00:00 to 99:59:59
Warm up time range 00:00:00 to 00:15:00
Recovery timer range 0 or 5 minutes
Target heart rate zone Zone 1 to 5
Lower heart rate limit
range 30 to 220 bpm
Upper heart rate limit
range 80 to 240 bpm
Distance measurement
range
0 to 60.99 unit (unit is km or
mile)
Step measurement
range 0 to 999999
Maximum lap count 99
Cadence measurement
range 1 to 1999 rpm
Number of interval
training 2 to 5
Calorie range 0 to 9999 kcal
Fat burn percentage
range 0 to 100%
Fitness Index range 1 to 99
POWER
Watch 1 x CR2032 3V lithium battery
SZ909 chest belt 1 x CR2032 3V lithium battery
OPERATING ENVIRONMENT
Operating temperature
For watch
0°C to 40°C
(32°F to 104°F)
For SZ909 chest belt
5°C to 40°C
(41°F to 104°F)
Storage temperature
For watch and SZ909 chest
belt
-20°C to 60°C
(-4°F to 140°F)
![](/img.php?id=1211439&img=bg1a.png)
EN
26
PRECAUTIONS
To ensure you use your product correctly and safely, read
these warnings and the entire user manual before using the
product:
• Use a soft, slightly moistened cloth. Do not use
abrasive or corrosive cleaning agents, as these may
cause damage. Use lukewarm water and mild soap to
clean the watch thoroughly after each training session.
Never use the product in hot water or store it when
wet.
• Damage to the product may occur if the keys are
pressed underwater.
• Hot steam may cause damage to the product. Do not
wear it in steaming shower, spa or hot tub.
• The product should be rinsed thoroughly with fresh
water after being in contact with salt water.
• Do not subject the product to excessive force, shock,
dust, temperature changes, or humidity. Never expose
the product to direct sunlight for extended periods.
Such treatment may result in malfunction.
• Do not bend or stretch the transmitter part of the chest
belt.
• Do not tamper with the internal components. Doing
so will terminate the product warranty and may cause
damage. The main unit contains no user-serviceable
parts.
• Do not scratch hard objects against the LCD display as
this may cause damage.
• Take precautions when handling all battery types.
• Remove the batteries whenever you are planning to
store the product for a long period of time.
• When replacing batteries, use new batteries as
specified in this user manual.
• The product is a precision instrument. Never attempt
to take this device apart. Contact the retailer or our
customer service department if the product requires
servicing.
• Do not touch the exposed electronic circuitry, as there
is a danger of electric shock.
• Check all major functions if the device has not been
used for a long time. Maintain regular internal testing
and cleaning of your device. Have your watch serviced
by an approved service center annually.
• When disposing of this product, ensure it is collected
separately for special treatment and not as normal
household waste.
• Due to printing limitations, the displays shown in this
manual may differ from the actual display.
• The contents of this manual may not be reproduced
without the permission of the manufacturer.
NOTE The technical specifications for this product and the
contents of the user manual are subject to change without
notice.
NOTE Features and accessories will not be available in all
countries. For more information, please contact your local
retailer.
![](/img.php?id=1211439&img=bg1b.png)
EN
27
ABOUT OREGON SCIENTIFIC
Visit our website (www.oregonscientific.com) to learn more
about Oregon Scientific products.
If you’re in the US and would like to contact our Customer
Care department directly, please visit:
www2.oregonscientific.com/service/support.asp
For international inquiries, please visit:
www2.oregonscientific.com/about/international.asp
EU-DECLARATION OF CONFORMITY
Hereby, Oregon Scientific, declares that this Heart Rate
Monitor with Speed and Distance plus PC Connection (model
SE833) is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC. A copy of
the signed and dated Declaration of Conformity is available
on request via our Oregon Scientific Customer Service.
COUNTRIES RTTE APPROVED COMPLIED
All EU countries, Switzerland CH
and Norway N
FCC (US) / IC (CANADA) STATEMENT
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
WARNING Changes or modifications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee
that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
![](/img.php?id=1211439&img=bg1c.png)
EN
28
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV
technician for help.
This Class B digital apparatus complies with Canadian
ICES-003.
DECLARATION OF CONFORMITY
The following information is not to be used as contact for
support or sales. Please visit our website at
www2.oregonscientific.com/service for all enquiries.
We
Name: Oregon Scientific, Inc.
Address: 19861 SW 95th Ave.,Tualatin,
Oregon 97062 USA
Telephone No.: 1-800-853-8883
declare that the product
Product No.: SE833
Product Name: Heart Rate Monitor with Speed and
Distance plus PC Connection
Manufacturer: IDT Technology Limited
Address: Block C, 9/F, Kaiser Estate,
Phase 1,41 Man Yue St., Hung
Hom, Kowloon,
Hong Kong
is in conformity with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: 1) This device may
not cause harmful interference. 2) This device must accept
any interference received, including interference that may
cause undesired operation.
