MODAT-200
Page 1
IEI Technology Corp.
User Manual
MODEL:
MODAT-200
HANDHELD COMPUTER,
Quick Registration, Inspection, On-line Sales
Rev. 1.00 – 28 December, 2010
![](/img.php?id=1427524&img=bg2.png)
MODAT-200
Page 2
Revision
Date Version
Changes
28 December, 2010 1.00 Initial release
![](/img.php?id=1427524&img=bg3.png)
MODAT-200
Page 3
Copyright
COPYRIGHT NOTICE
The information in this document is subject to change without prior notice in order to
improve reliability, design and function and does not represent a commitment on the part
of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use or inability to use the product or
documentation, even if advised of the possibility of such damages.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this manual may be reproduced by any mechanical, electronic, or
other means in any form without prior written permission of the manufacturer.
TRADEMARKS
All registered trademarks and product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective
owners.
![](/img.php?id=1427524&img=bg4.png)
MODAT-200
Page 4
WARNING:
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
This device and its antenna(s) must not be co-located or operating in conjunction
with any other antenna or transmitter.
IMPORTANT NOTE:
For product available in the USA/Canada market, only channel 1~11 can be
operated. Selection of other channels is not possible.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
![](/img.php?id=1427524&img=bg5.png)
MODAT-200
Page 5
Table of Contents
1 INTRODUCTION .......................................................................................................... 1
1.1 OVERVIEW .................................................................................................................. 2
1.2 FEATURE .................................................................................................................... 2
1.3 APPLICATIONS ............................................................................................................ 3
1.4 EXTERNAL OVERVIEW ................................................................................................ 3
1.4.1 Front Panel ........................................................................................................ 4
1.4.2 Left Panel ........................................................................................................... 5
1.4.3 Top Panel ........................................................................................................... 5
1.4.4 Bottom Panel ...................................................................................................... 6
1.4.5 Rear Panel ......................................................................................................... 6
1.5 SPECIFICATIONS ......................................................................................................... 7
1.6 DIMENSIONS ............................................................................................................... 9
2 INSTALLATION ......................................................................................................... 10
2.1 UNPACK THE DEVICE ................................................................................................. 11
2.2 PACKING LIST ........................................................................................................... 12
2.3 CHARGING THE SYSTEM ........................................................................................... 13
2.3.1 Using Cradle (Optional) .................................................................................. 14
2.4 POWER-ON/OFF PROCEDURE ................................................................................... 16
A SAFETY PRECAUTIONS ......................................................................................... 17
A.1 SAFETY PRECAUTIONS ............................................................................................ 18
A.1.1 General Safety Precautions ............................................................................. 18
A.1.2 Anti-static Precautions .................................................................................... 19
A.1.3 Product Disposal ............................................................................................. 20
A.2 MAINTENANCE AND CLEANING PRECAUTIONS ........................................................ 20
A.2.1 Maintenance and Cleaning .............................................................................. 20
A.2.2 Cleaning Tools ................................................................................................. 21
C HAZARDOUS MATERIALS DISCLOSURE ......................................................... 22
C.1 HAZARDOUS MATERIALS DISCLOSURE TABLE FOR IPB PRODUCTS CERTIFIED AS
![](/img.php?id=1427524&img=bg6.png)
MODAT-200
Page 6
ROHS COMPLIANT UNDER 2002/95/EC WITHOUT MERCURY ....................................... 23
![](/img.php?id=1427524&img=bg7.png)
MODAT-200
Page 7
List of Figures
Figure 1-1: MODAT-200 .................................................................................................................. 2
Figure 1-2: MODAT-200 Front Panel ............................................................................................. 4
Figure 1-3: MODAT-200 Left Panel ................................................................................................ 5
Figure 1-4: MODAT-200 Top Panel ................................................................................................ 5
Figure 1-5: MODAT-200 Bottom Panel .......................................................................................... 6
Figure 1-6: MODAT-200 Rear Panel .............................................................................................. 6

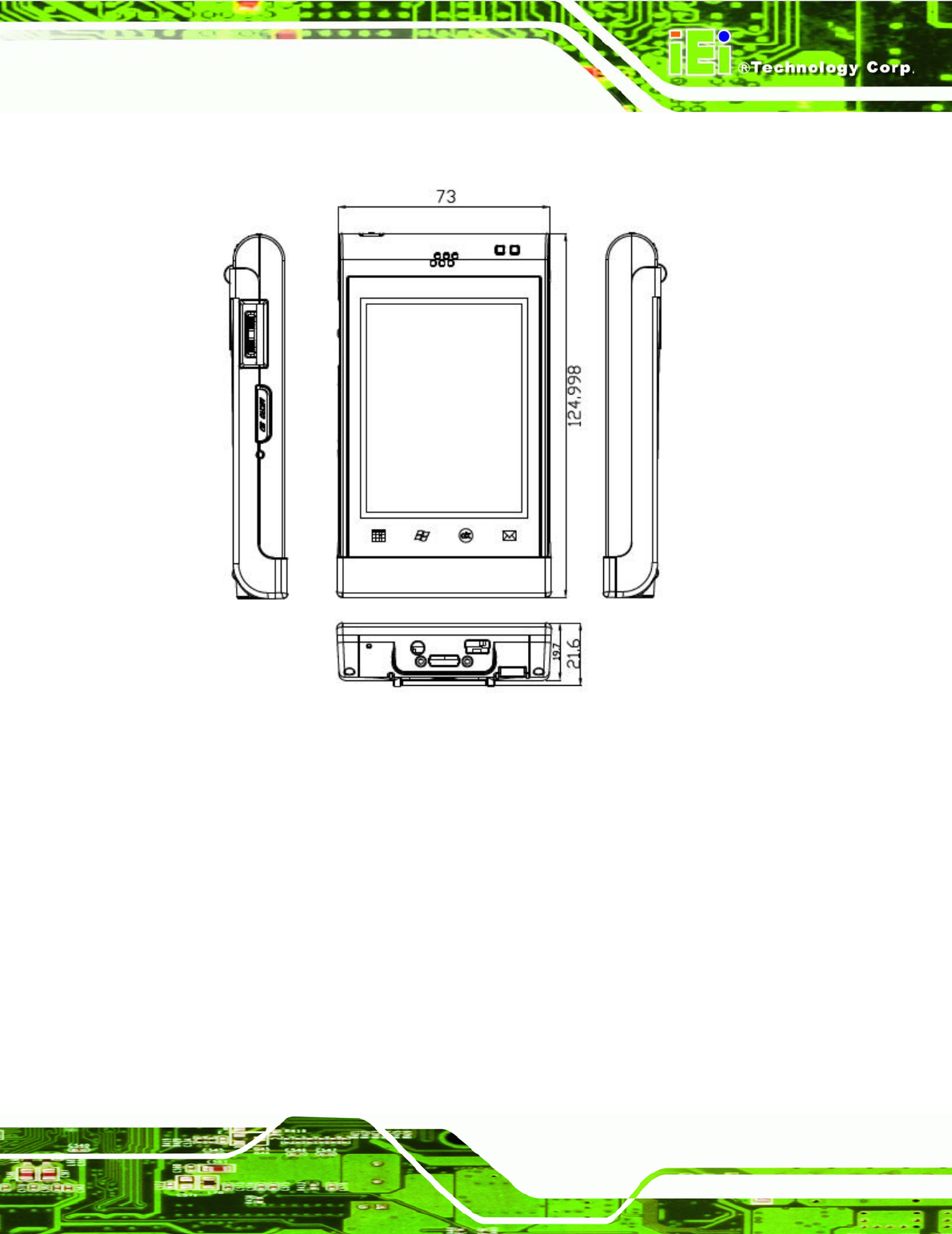

Figure 1-7: MODAT-200 Dimensions (units in mm) ..................................................................... 9

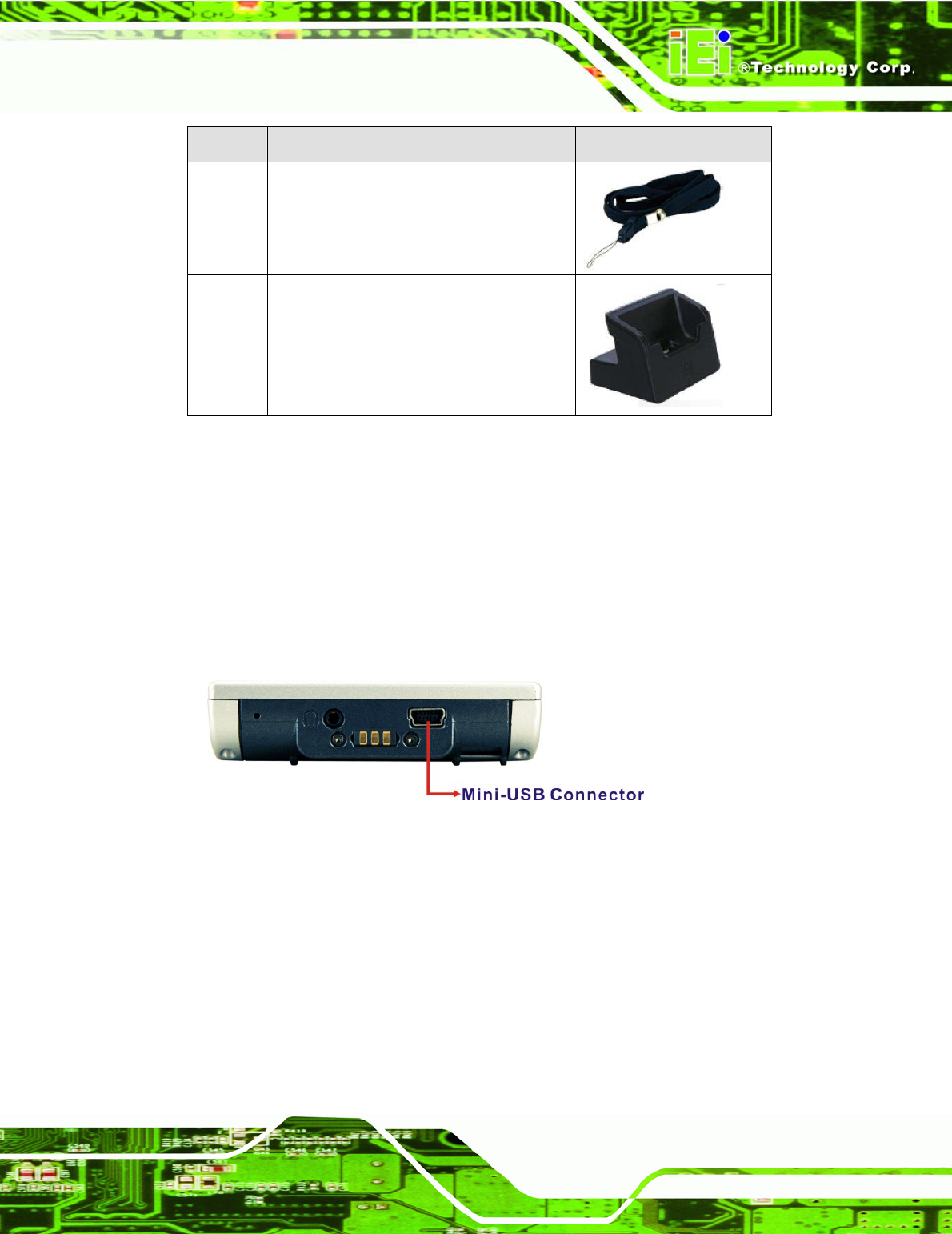

Figure 2-1: MODAT-200 Mini-USB connector ............................................................................ 13

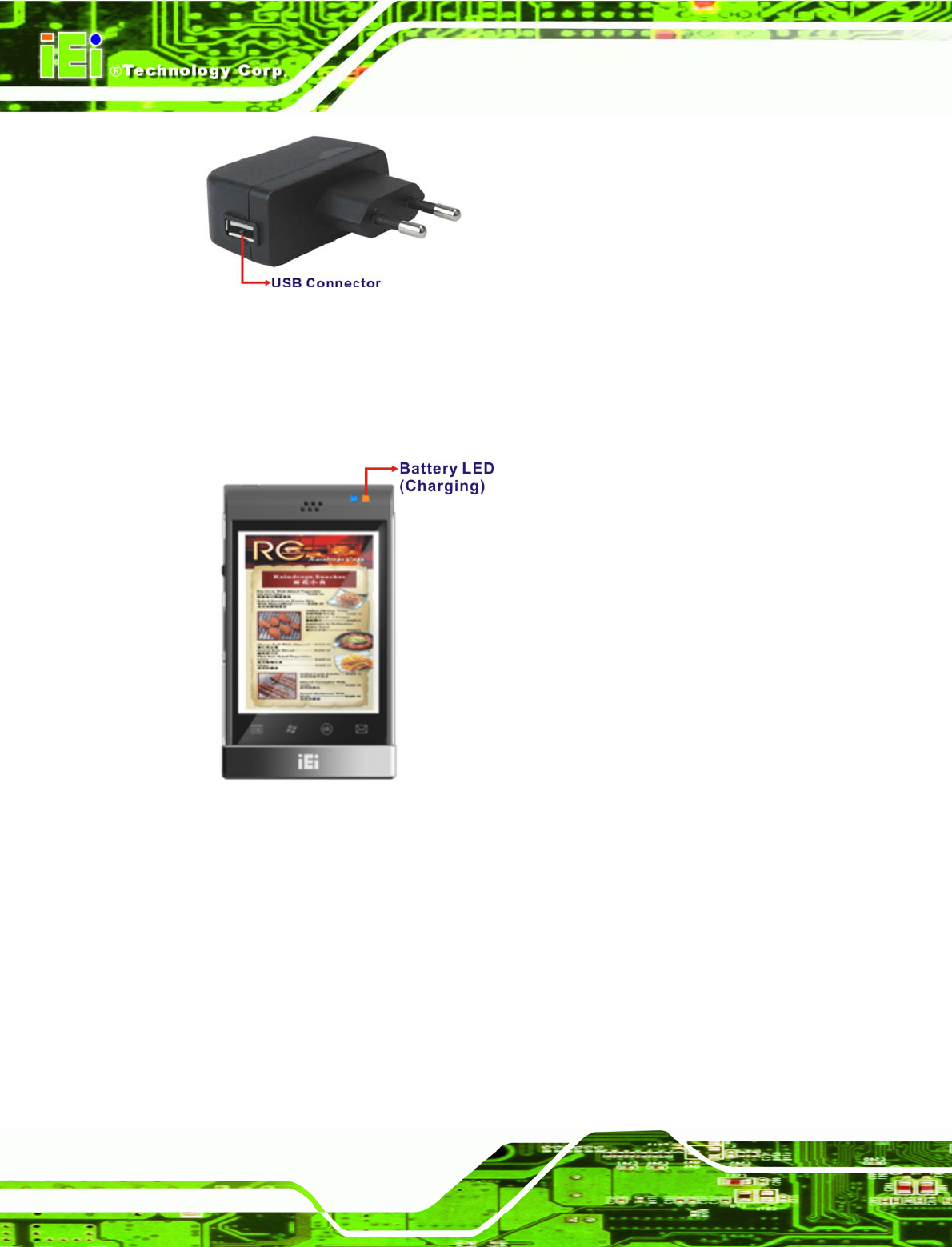

Figure 2-2: Power Adapter USB Connector ............................................................................... 14
Figure 2-3: Battery LED ................................................................................................................ 14

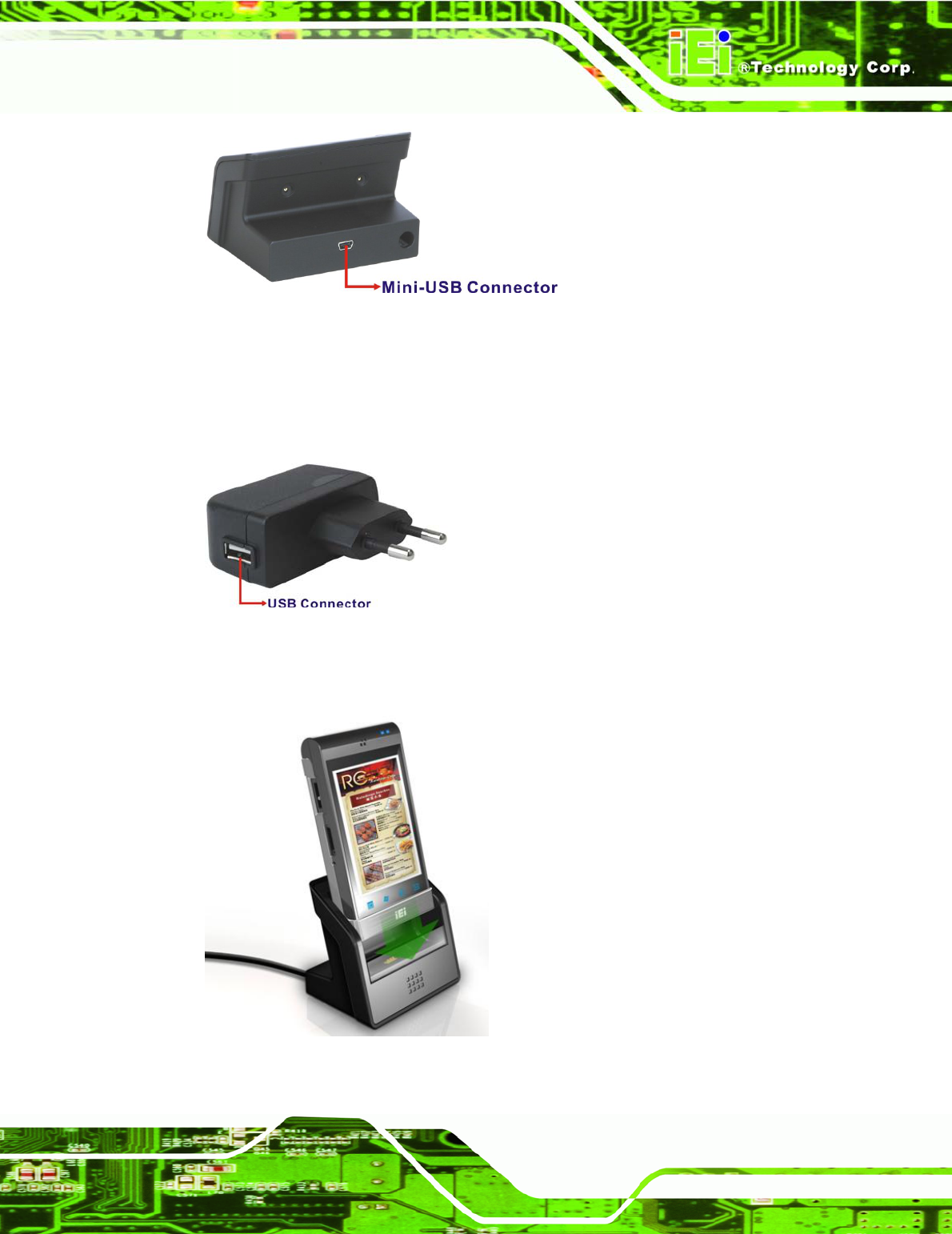

Figure 2-4: Mini-USB Connector of the Cradle .......................................................................... 15
Figure 2-5: Power Adapter USB Connector ............................................................................... 15
Figure 2-6: Connect the MODAT-200 to the Charging Cradle .................................................. 15

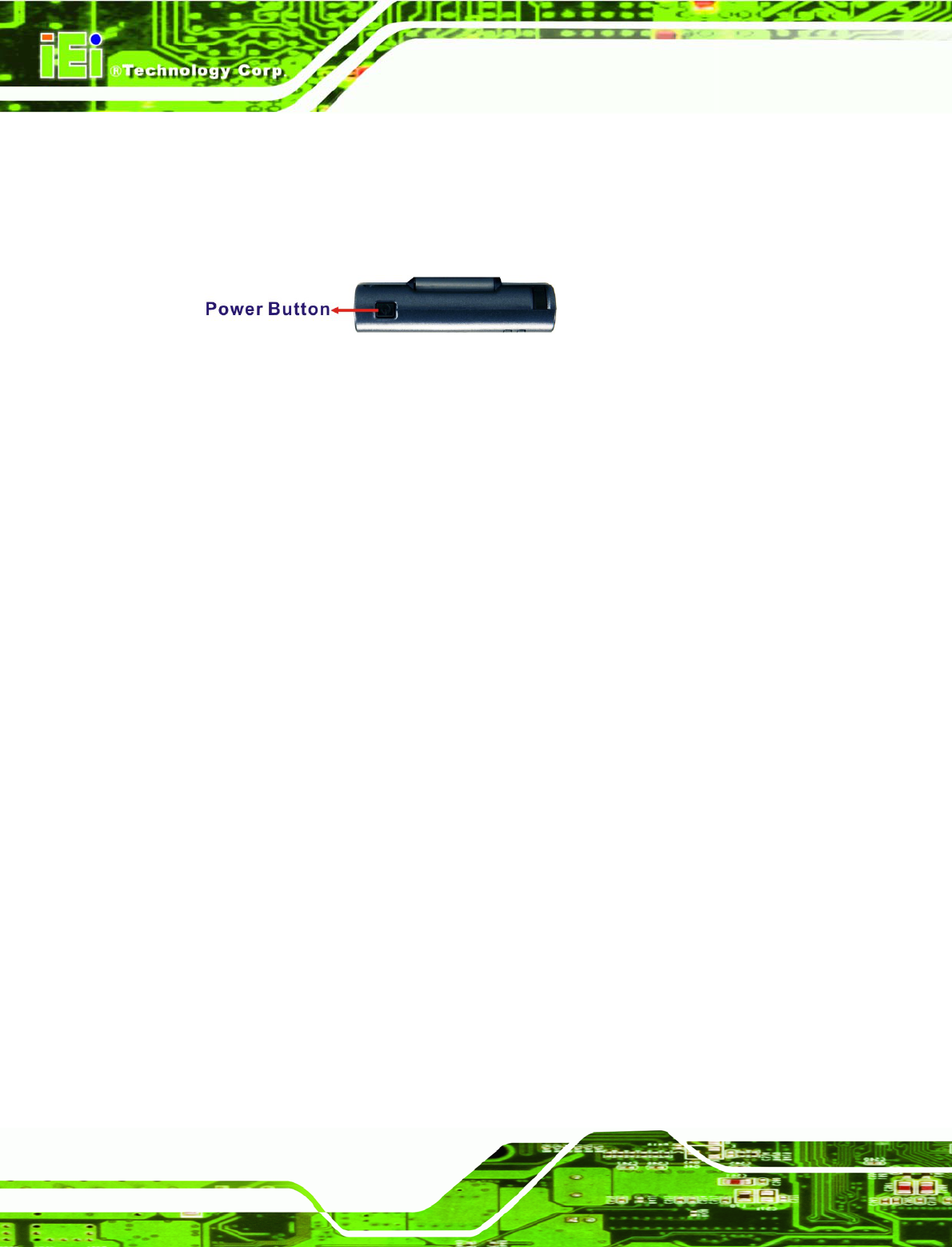

Figure 2-7: Power Button ............................................................................................................. 16
![](/img.php?id=1427524&img=bg8.png)
MODAT-200
Page 8
List of Tables
Table 1-1: MODAT-200 System Specifications ............................................................................ 8

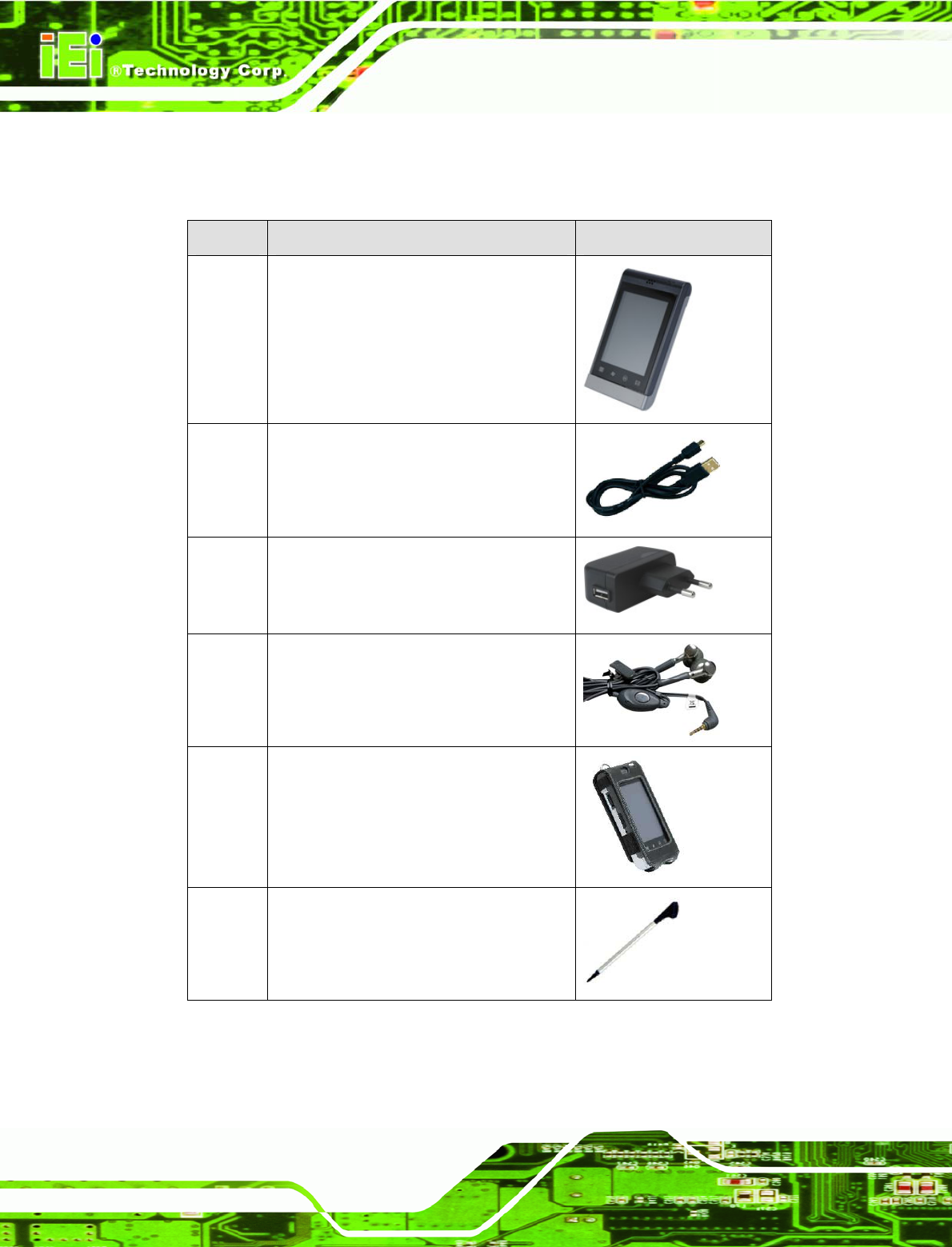

Table 2-1: Packing List ................................................................................................................. 13
![](/img.php?id=1427524&img=bg9.png)
MODAT-200
Page 1
Chapter
1
1 Introduction
![](/img.php?id=1427524&img=bga.png)
MODAT-200
Page 2
1.1 Overview

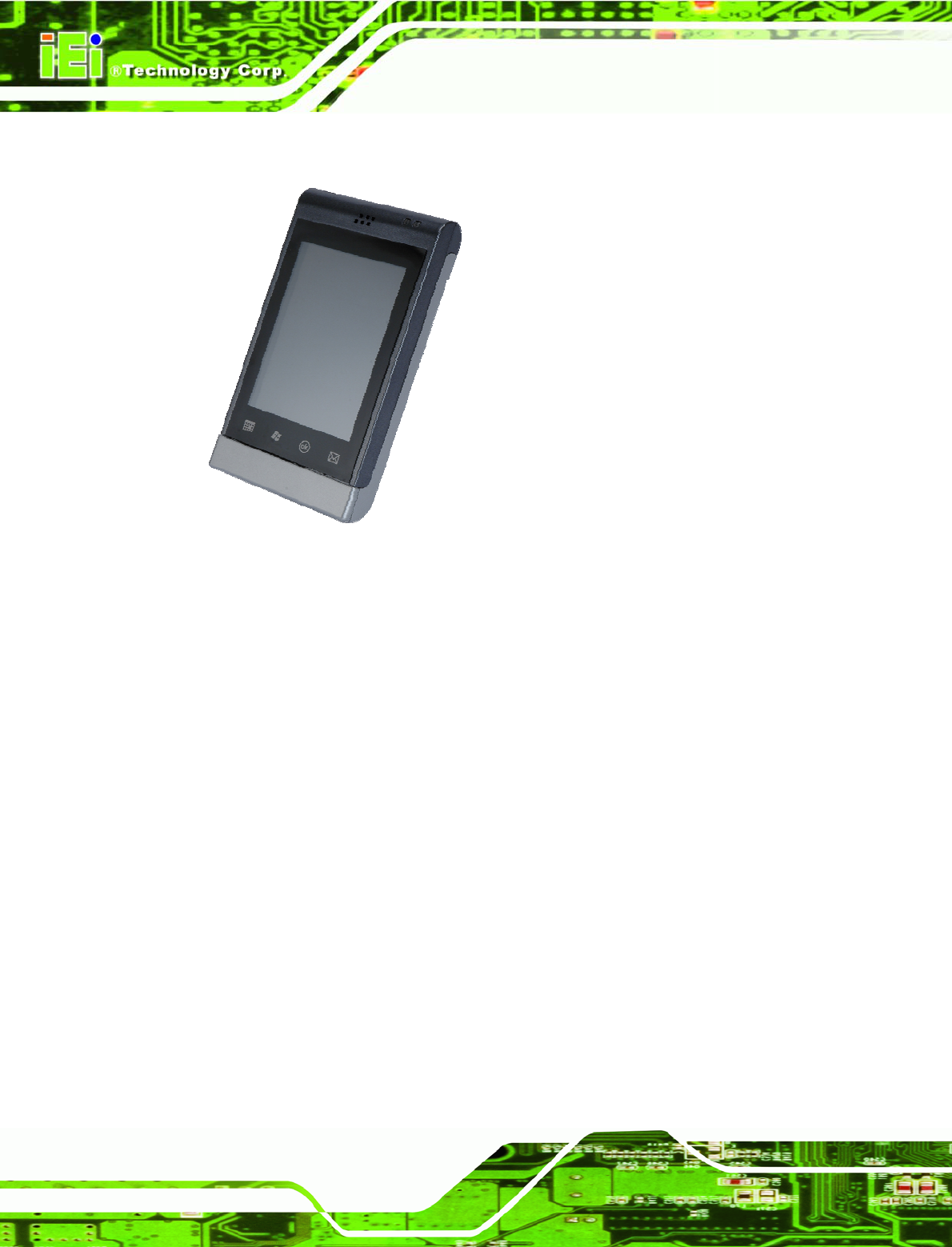

Figure 1-1: MODAT-200
The MODAT-200, built-in Windows Mobile 6.5, offers real-time information for staff to
provide their guests with better, faster service and more information.
The MODAT-200 links the staff to real-time, online data to serve customers with better,
faster service through Wi-Fi and connected Bluetooth devices such as headsets and
thermal printers. A built-in vibrator can alert the wait staff that an order is ready to be
served.
1.2 Feature
The MODAT-200 features the following:
667 MHz ARM11 CPU with built-in hardware codec (H.264/MPEG4/VC-1) and
2D/3D graphics acceleration
3.5” sunlight readable high brightness transflective TFT touchscreen with
stylus input
MicroSD Slot
USB client (for ActiveSync and battery charging)
Wi-Fi 802.11b/g
![](/img.php?id=1427524&img=bgb.png)
MODAT-200
Page 3
Bluetooth 2.0 + EDR
IP 54 compliant
Windows Mobile 6.5 preinstalled
Support Visual Studio .NET and .NET Compact Framework development
tools
Mobile application downloads: Windows Marketplace for Mobile
(http://www.windowsmarketplace.com)
1.3 Applications
The MODAT-200 can be applied in the following places:
Table service
Quick registration
Inspection
On-line sales
1.4 External Overview
The MODAT-200 combines its features in a stylish enclosure. The MODAT-200 consists
of a screen, rear panel, top panel, bottom panel and two side panels (left and right). The
panels are described in detail in the following sections.
![](/img.php?id=1427524&img=bgc.png)
MODAT-200
Page 4

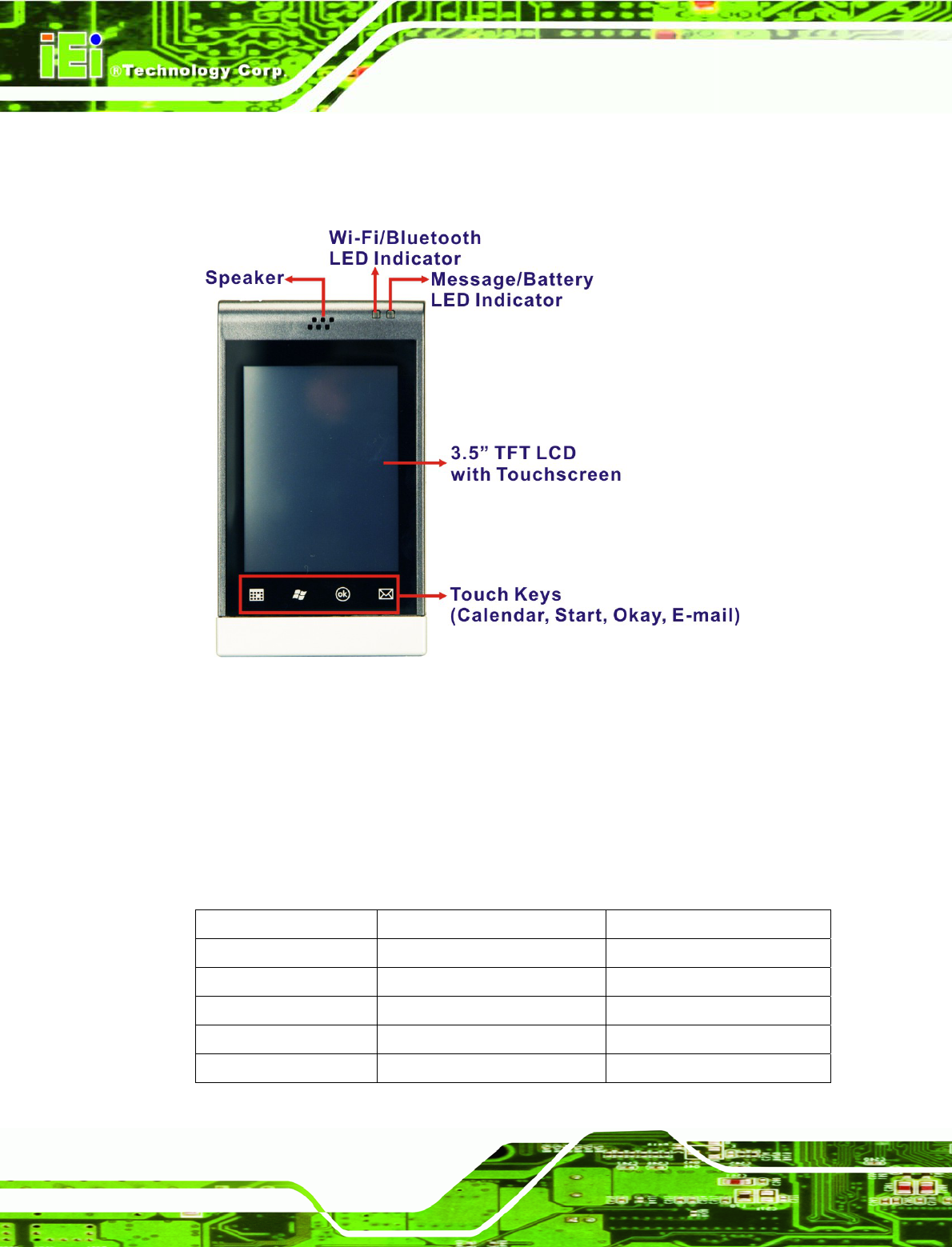

1.4.1 Front Panel
The front panel of the MODAT-200 is shown below.
Figure 1-2: MODAT-200 Front Panel
1 x Speaker
1 x Wi-Fi/Bluetooth status LED
1 x Battery status LED
4 x Touch keys
The two LEDs on the front panel indicate Wi-Fi, Bluetooth, battery and message status as
described below.
Wi-Fi/Bluetooth LED (Left) Battery/Message LED (Right)
Charging -- Orange
Incoming Message -- Red (blinking)
Bluetooth Connection Blue --
Wi-Fi Connection Green --
Bluetooth & Wi-Fi Switch between blue and green --
![](/img.php?id=1427524&img=bgd.png)
MODAT-200
Page 5
1.4.2 Left Panel
The left panel of the MODAT-200 is shown below.

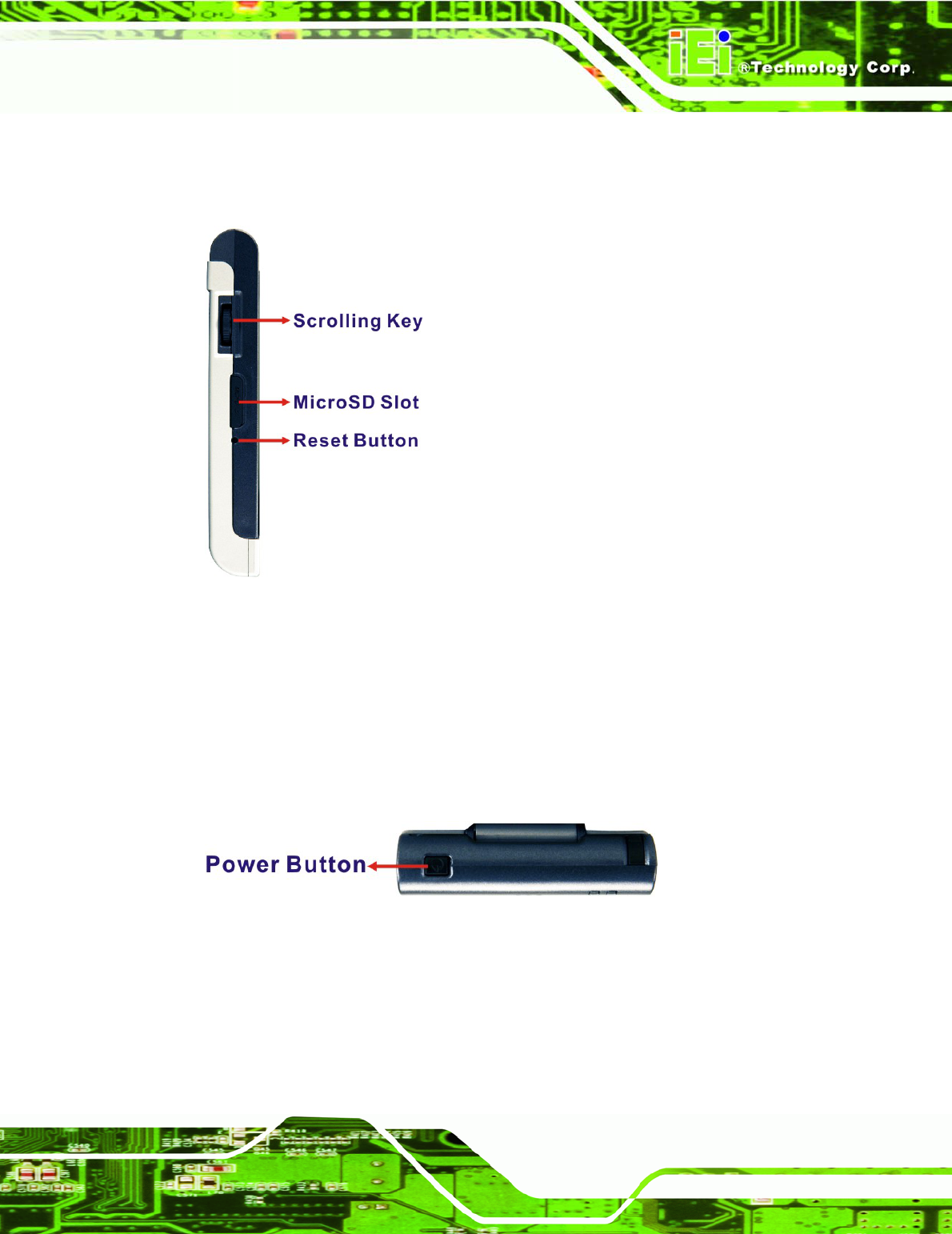

Figure 1-3: MODAT-200 Left Panel
1 x Scrolling key
1 x MicroSD card slot
1 x Reset button
1.4.3 Top Panel
The top panel of the MODAT-200 has a power button as shown in Figure 1-4.
Figure 1-4: MODAT-200 Top Panel
![](/img.php?id=1427524&img=bge.png)
MODAT-200
Page 6

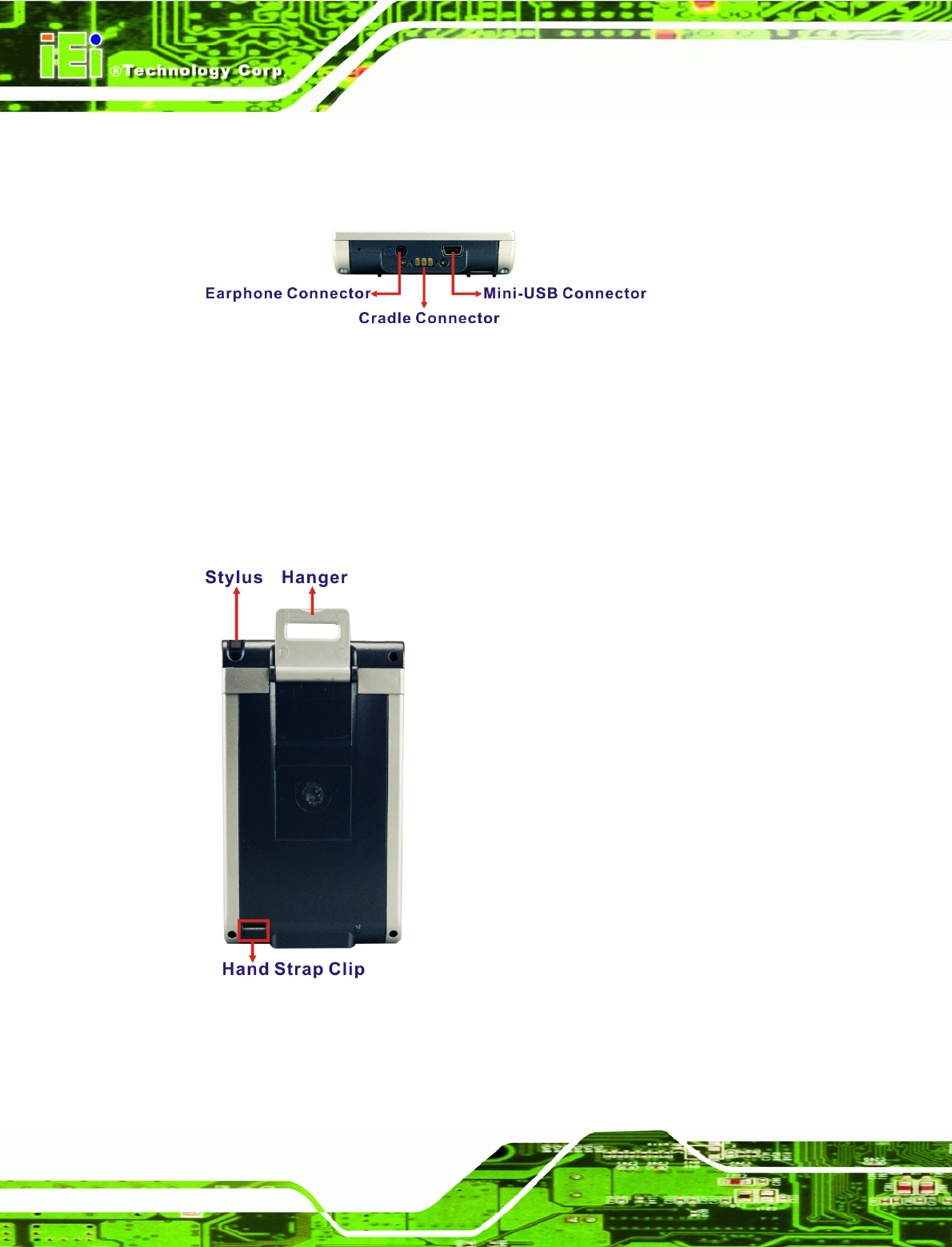

1.4.4 Bottom Panel
The bottom panel of the MODAT-200 is shown below.
Figure 1-5: MODAT-200 Bottom Panel
1 x Earphone connector
1 x Mini USB connector
1 x Power charging cradle connector
1.4.5 Rear Panel
The rear panel of the MODAT-200 is shown below.
Figure 1-6: MODAT-200 Rear Panel
1 x Hanger
1 x Hand strap clip
![](/img.php?id=1427524&img=bgf.png)
MODAT-200
Page 7
1.5 Specifications
The technical specifications for the MODAT-200 systems are listed in Table 1-1.
Specification MODAT-200
Microprocessor Samsung 6410 ARM11 667 MHz
OS Windows Mobile 6.5
Memory 128 MB SDRAM
128 MB NAND Flash
Display 3.5” (89mm) TFT LCD
QVGA (240 x 320)
64 K color
LED backlight
Resistive touchscreen
Communication Wi-Fi 802.11 b/g
Bluetooth 2.0 + EDR
USB client
Storage One MicroSD slot (customer-accessible)
Audio 1 x Speaker
1 x Microphone
1 x Audio jack for the earphone with microphone
Buttons/Keys 1 x Power on/off button
1 x Rolling key
4 x Touch keys on front panel (calendar, start, OK, message)
Indicators 1 x Message/charging LED
1 x Wi-Fi/Bluetooth connection LED
Vibrator Yes
Power 3.7 V 1880 mAh battery (built-in, non-swappable)
Power Adapter Input: 90 V AC to 264 V AC
Output: 5 V DC, 1 A (max.)
![](/img.php?id=1427524&img=bg10.png)
MODAT-200
Page 8
Specification MODAT-200
Temperature Operating: -10C ~ +50C
Storage: -20C ~ +70C
Humidity 5%~95%, non-condensing
Drop Survival 1.2 m
Protection IP 54
Electrostatic Discharge +/- 15 kVdc air discharge
+/- 8 kVdc contact discharge
Dimensions (LxWxD) 125 mm x 174 mm x 18.7 mm
Net Weight 200 g
Certifications UL, CE, FCC
Table 1-1: MODAT-200 System Specifications
![](/img.php?id=1427524&img=bg11.png)
MODAT-200
Page 9
1.6 Dimensions
Figure 1-7: MODAT-200 Dimensions (units in mm)
![](/img.php?id=1427524&img=bg12.png)
MODAT-200
Page 10
Chapter
2
2 Installation
![](/img.php?id=1427524&img=bg13.png)
MODAT-200
Page 11
The installation steps below should be followed in order.
Step 1: Unpack the device
Step 2: Check all parts are included
Step 3: Charge the MODAT-200.
Step 4: Power up the system Step 0:
2.1 Unpack the Device
WARNING!
Only remove the protective plastic cover stuck to the front screen after
installation. The plastic layer protects the screen surface during
installation process.
To unpack the MODAT-200, follow these steps:
Step 1: Cut the sealing tape. Only cut deep enough cut the tape.
Step 2: Open the box.
Step 3: Lift out the device.
Step 4: Remove all the peripheral parts from the box. Step 0:
![](/img.php?id=1427524&img=bg14.png)
MODAT-200
Page 12
2.2 Packing List
The MODAT-200 is shipped with the following components:
Quantity Item Image
1 MODAT-200
1 USB cable
1 AC-DC Adapter
90 V~264 V AC input
5 V DC output, 1 A (max.)
1 Earphone with microphone
1 Leather bag
1 Stylus
![](/img.php?id=1427524&img=bg15.png)
MODAT-200
Page 13
Quantity Item Image
1 Hand strap
1 Charging cradle (optional)
(P/N: Modat-200-CR1-R10)
Table 2-1: Packing List
2.3 Charging the System
To start using the MODAT-200, the user must charge the MODAT-200 by the power
adapter. To charge the MODAT-200, please follow the steps below.
Step 1: Connect the mini-USB plug of the USB cable to the mini-USB connector on the
bottom panel of the MODAT-200.
Figure 2-1: MODAT-200 Mini-USB connector
Step 2: Connect the USB cable to the USB connector of the power adapter (Figure 2-2).
Then, plug the power adapter to a power source.
Or connect the USB cable to a computer directly.
![](/img.php?id=1427524&img=bg16.png)
MODAT-200
Page 14
Figure 2-2: Power Adapter USB Connector
Step 3: The battery LED lights up in orange and indicates the battery is being charged.
When the battery is fully charged, the battery LED will turn off. Step 0:
Figure 2-3: Battery LED
2.3.1 Using Cradle
To charge the MODAT-200 using the optional charging cradle, follow the steps below.
Step 1: Connect the mini-USB plug of the USB cable to the mini-USB connector on the
rear side of the charging cradle.
![](/img.php?id=1427524&img=bg17.png)
MODAT-200
Page 15
Figure 2-4: Mini-USB Connector of the Cradle
Step 2: Connect the USB cable to the USB connector of the power adapter. Then, plug
the power adapter to a power source.
Or connect the USB cable to the USB connector of a computer.
Figure 2-5: Power Adapter USB Connector
Step 3: Place the MODAT-200 on the cradle and start charging the battery. Step 0:
Figure 2-6: Connect the MODAT-200 to the Charging Cradle
![](/img.php?id=1427524&img=bg18.png)
MODAT-200
Page 16
2.4 Power-On/Off Procedure
To power-on/off the MODAT-200 please follow the steps below:
Power-On: Push the power button until the screen shows up.
Figure 2-7: Power Button
Power-Off: Push the power button for around 6 seconds until the screen shuts off. 0
![](/img.php?id=1427524&img=bg19.png)
MODAT-200
Page 17
Appendix
A
A Safety Precautions
![](/img.php?id=1427524&img=bg1a.png)
MODAT-200
Page 18
WARNING:
The built-in 1880mAh Li-ion battery of the MODAT-200 is a
non-swappable battery. The user can not open the back cover and
remove the battery.
WARNING:
The precautions outlined in this chapter should be strictly followed.
Failure to follow these precautions may result in permanent damage to
the MODAT-200.
A.1 Safety Precautions
Please follow the safety precautions outlined in the sections that follow:
A.1.1 General Safety Precautions
Please ensure the following safety precautions are adhered to at all times.
Follow the electrostatic precautions outlined below whenever the
MODAT-200 is opened.
Make sure the power is turned off and the power cord is disconnected
whenever the MODAT-200 is being installed, moved or modified.
Do not apply voltage levels that exceed the specified voltage range.
Doing so may cause fire and/or an electrical shock.
Electric shocks can occur if the MODAT-200 chassis is opened when the
MODAT-200 is running.
Do not drop or insert any objects into the ventilation openings of the
MODAT-200.
If considerable amounts of dust, water, or fluids enter the MODAT-200,
turn off the power supply immediately, unplug the power cord, and contact the
MODAT-200 vendor.
![](/img.php?id=1427524&img=bg1b.png)
MODAT-200
Page 19
DO NOT:
o Drop the MODAT-200 against a hard surface.
o Strike or exert excessive force onto the LCD panel.
o Touch any of the LCD panels with a sharp object
o In a site where the ambient temperature exceeds the rated temperature
A.1.2 Anti-static Precautions
WARNING:
Failure to take ESD precautions during the installation of the
MODAT-200 may result in permanent damage to the MODAT-200 and
severe injury to the user.
Electrostatic discharge (ESD) can cause serious damage to electronic components,
including the MODAT-200. Dry climates are especially susceptible to ESD. It is therefore
critical that whenever the MODAT-200 is opened and any of the electrical components are
handled, the following anti-static precautions are strictly adhered to.
Wear an anti-static wristband: Wearing a simple anti-static wristband can
help to prevent ESD from damaging any electrical component.
Self-grounding: Before handling any electrical component, touch any
grounded conducting material. During the time the electrical component is
handled, frequently touch any conducting materials that are connected to the
ground.
Use an anti-static pad: When configuring or working with an electrical
component, place it on an antic-static pad. This reduces the possibility of ESD
damage.
Only handle the edges of the electrical component: When handling the
electrical component, hold the electrical component by its edges.
![](/img.php?id=1427524&img=bg1c.png)
MODAT-200
Page 20
A.1.3 Product Disposal
CAUTION:
Risk of explosion if battery is replaced by and incorrect type.
Dispose of used batteries according to instructions and local
regulations.
Outside the European Union - If you wish to dispose of used electrical and
electronic products outside the European Union, please contact your local
authority so as to comply with the correct disposal method.
Within the European Union:
EU-wide legislation, as implemented in each Member State, requires that
waste electrical and electronic products carrying the mark (left) must be
disposed of separately from normal household waste. This includes
monitors and electrical accessories, such as signal cables or power cords.
When you need to dispose of your display products, please follow the
guidance of your local authority, or ask the shop where you purchased the product. The
mark on electrical and electronic products only applies to the current European Union
Member States.
Please follow the national guidelines for electrical and electronic product disposal.
A.2 Maintenance and Cleaning Precautions
When maintaining or cleaning the MODAT-200, please follow the guidelines below.
A.2.1 Maintenance and Cleaning
Prior to cleaning any part or component of the MODAT-200, please read the details below.
Except for the LCD panel, never spray or squirt liquids directly onto any other
components. To clean the LCD panel, gently wipe it with a piece of soft dry
cloth or a slightly moistened cloth.
![](/img.php?id=1427524&img=bg1d.png)
MODAT-200
Page 21
The interior of the MODAT-200 does not require cleaning. Keep fluids away
from the MODAT-200 interior.
Be cautious of all small removable components when vacuuming the
MODAT-200.
Turn the MODAT-200 off before cleaning the MODAT-200.
Never drop any objects or liquids through the openings of the MODAT-200.
Be cautious of any possible allergic reactions to solvents or chemicals used
when cleaning the MODAT-200.
Avoid eating, drinking and smoking within vicinity of the MODAT-200.
A.2.2 Cleaning Tools
Some components in the MODAT-200 may only be cleaned using a product specifically
designed for the purpose. In such case, the product will be explicitly mentioned in the
cleaning tips. Below is a list of items to use when cleaning the MODAT-200.
Cloth – Although paper towels or tissues can be used, a soft, clean piece of
cloth is recommended when cleaning the MODAT-200.
Water or rubbing alcohol – A cloth moistened with water or rubbing alcohol
can be used to clean the MODAT-200.
Using solvents – The use of solvents is not recommended when cleaning the
MODAT-200 as they may damage the plastic parts.
Vacuum cleaner – Using a vacuum specifically designed for computers is
one of the best methods of cleaning the MODAT-200. Dust and dirt can
restrict the airflow in the MODAT-200 and cause its circuitry to corrode.
Cotton swabs - Cotton swaps moistened with rubbing alcohol or water are
excellent tools for wiping hard to reach areas.
Foam swabs - Whenever possible, it is best to use lint free swabs such as
foam swabs for cleaning.
![](/img.php?id=1427524&img=bg1e.png)
MODAT-200
Page 22
Appendix
B
B Hazardous Materials
Disclosure
![](/img.php?id=1427524&img=bg1f.png)
MODAT-200
Page 23
B.1 Hazardous Materials Disclosure Table for IPB Products
Certified as RoHS Compliant Under 2002/95/EC Without
Mercury
The details provided in this appendix are to ensure that the product is compliant with the
Peoples Republic of China (China) RoHS standards. The table below acknowledges the
presences of small quantities of certain materials in the product, and is applicable to China
RoHS only.
A label will be placed on each product to indicate the estimated “Environmentally Friendly
Use Period” (EFUP). This is an estimate of the number of years that these substances
would “not leak out or undergo abrupt change.” This product may contain replaceable
sub-assemblies/components which have a shorter EFUP such as batteries and lamps.
These components will be separately marked.
Please refer to the table on the next page.
![](/img.php?id=1427524&img=bg20.png)
MODAT-200
Page 24
Part Name Toxic or Hazardous Substances and Elements
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalen
t
Chromium
(CR(VI))
Polybrominated
Biphenyls
(PBB)
Polybrominated
Diphenyl
Ethers
(PBDE)
Housing X O O O O X
Display X O O O O X
Printed Circuit
Board
X O O O O X
Metal
Fasteners
X O O O O O
Cable
Assembly
X O O O O X
Fan Assembly X O O O O X
Power Supply
Assemblies
X O O O O X
Battery O O O O O O
O: This toxic or hazardous substance is contained in all of the homogeneous materials for the part is
below the limit requirement in SJ/T11363-2006
X: This toxic or hazardous substance is contained in at least one of the homogeneous materials for
this part is above the limit requirement in SJ/T11363-2006
![](/img.php?id=1427524&img=bg21.png)
MODAT-200
Page 25
此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符
合中国 RoHS 标准规定的限量要求。
本产品上会附有”环境友好使用期限”的标签,此期限是估算这些物质”不会有泄漏或突变”的
年限。本产品可能包含有较短的环境友好使用期限的可替换元件,像是电池或灯管,这些元
件将会单独标示出来。
部件名称 有毒有害物质或元素
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(CR(VI))
多溴联苯
(PBB)
多溴二苯
醚
(PBDE)
壳体 X O O O O X
显示 X O O O O X
印刷电路板 X O O O O X
金属螺帽 X O O O O O
电缆组装 X O O O O X
风扇组装 X O O O O X
电力供应组装 X O O O O X
电池 O O O O O O
O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。
