In Motion Technologies P1 INMOTION E-BIKE User Manual
INMOTION TECHNOLOGIES CO., LTD. INMOTION E-BIKE Users Manual
Users Manual
![](/img.php?id=3262363&img=bg1.png)
![](/img.php?id=3262363&img=bg2.png)
1 / 17
Content
1. Overview .............................................................................................................................................................................................. 3
1.1. About this manual ................................................................................................................................................................. 3
1.2. Related document and data ................................................................................................................................................... 3
1.3. Relevant agreement ............................................................................................................................................................... 3
2. Product Overview ................................................................................................................................................................................. 4
2.1. Serial No. .............................................................................................................................................................................. 4
2.2. Product dimension figure ...................................................................................................................................................... 4
2.3. Product parameter ................................................................................................................................................................. 5
2.4. Product components .............................................................................................................................................................. 7
2.5. Check the package box ......................................................................................................................................................... 8
2.6. Assemble INMOTION E-bike .............................................................................................................................................. 8
2.7. APP ..................................................................................................................................................................................... 10
3. Charging ............................................................................................................................................................................................. 11
3.1. Charging method ................................................................................................................................................................. 11
3.2. Safety tips when charging ................................................................................................................................................... 11
4. Ride INMOTION E-bike .................................................................................................................................................................... 12
4.0. Ride INMOTION E-bike .................................................................................................................................................... 12
4.1. Precautions before riding .................................................................................................................................................... 12
5. Precautions of safe riding ................................................................................................................................................................... 13
6. Maintenance ....................................................................................................................................................................................... 14
2 / 17
6.1. Storage ................................................................................................................................................................................ 14
6.2. Clean ................................................................................................................................................................................... 15
6.3. Treatment ............................................................................................................................................................................ 15
6.4. Inflation & Exchange Inner and Outer Tires ....................................................................................................................... 16
6.5. Brake Maintenance ............................................................................................................................................................. 16
7. Contacts & Legal Information ............................................................................................................................................................ 17
7.1. Feedback ............................................................................................................................................................................. 17
7.2. Contact us ........................................................................................................................................................................... 17
7.3. Version ................................................................................................................................................................................ 17
![](/img.php?id=3262363&img=bg5.png)
3 / 17
1. Overview
1.1. About this manual
For your safety, please read over this manual before riding INMOTION E-bike, and carefully watch the instructional video to
correctly ride INMOTION E-bike.
∙ Knowing all the listed safety warnings and precautions will help you better ride the INMOTION E-bike.
∙ This manual is applicable of all INMOTION E-bikes manufactured by INMOTION TECHNOLOGIES CO., LTD.
∙ Any questions or any information you cannot get from this manual, please immediately contact INMOTION authorized
agency or INMOTION after-sales department.
1.2. Related document and data
The PDF Manual, video about the Safety, APP as well as the Help document can be downloaded from the official website of
INMOTION TECHNOLOGIES CO., LTD: www.imscv.com.
1.3. Relevant agreement
The following instructions are applicable for this Manual. Please pay more attention to the related Warning, Notes and
Prompts.
Warning: Your motion or action may result in personal injury.
Prompt: Matters or functions prompt users need to pay attention to.
Warning
Prompt
![](/img.php?id=3262363&img=bg6.png)
4 / 17
2. Product Overview
INMOTION E-bike is a kind of compact, effective and economic personal transport tool. Its fashionable and light structure
design, as well as the lithium-ion power battery (high configuration) will provide you with joyful riding experience.
2.1. Serial No.
Serial No. is the only TAG of this product, which is used for quality tracking, after-sales services, insurance claim and loss and
confirmation etc. of the product. Please well record and keep the Serial No that can be obtained from the followings: external
packing, warranty card, E-bike body(on the side of the controller box).

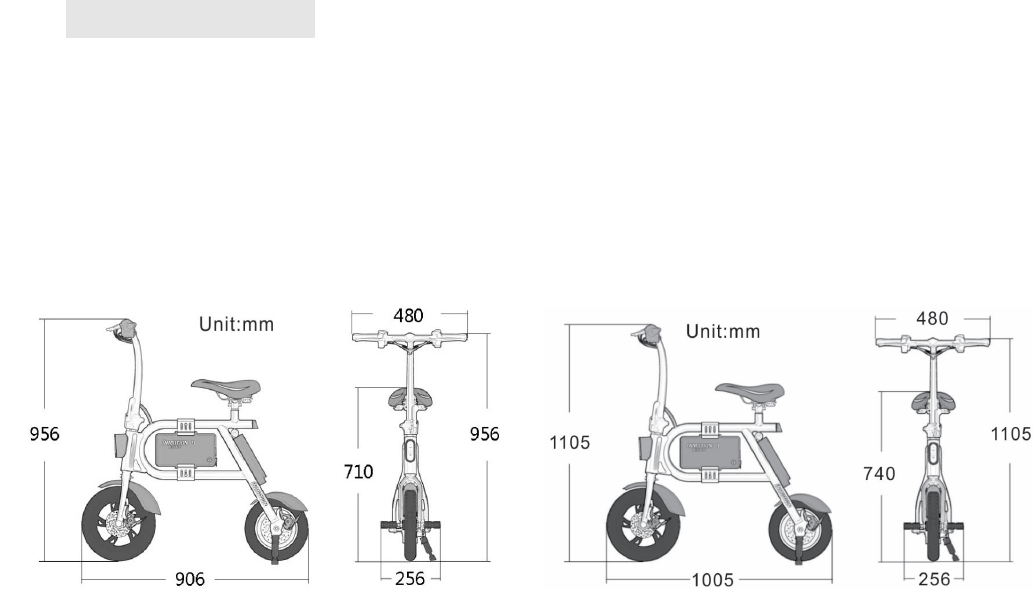

2.2. Product dimension figure
![](/img.php?id=3262363&img=bg7.png)
5 / 17
2.3. Product parameter
Name Value Value Notes
Model INMOTION E-bike P1 INMOTION E-bike P1L/P1F ① This speed is measured
under 70kg of the
human body. The max.
cruising speed can be
set at 30km/h through
the APP once its total
riding mileage reached
10km.
② Endurance mileage is
25 ℃
, 70kg load,
measured under flat
road. Riding habit,
environment, temp.,
road condition, load
and other factors will
affect the endurance
mileage. Different
E-bike
types and
battery models will
Max. speed The factory default of 20 km/h can be
adjusted to 30km/h①
The factory default of 20 km/h can be
adjusted to 30km/h①
Endurance
Mileage
About45-50km(high configuration)/
about 20km(low configuration)②
About45-50km(high configuration)/
about 20km(low configuration)②
Climbing
Angle 12° 12°
Net Weight 12.5 kg (high configuration)/
12.0 kg (low configuration)
13 kg (high configuration)/
12.5 kg (low configuration)
Load 120 kg 120 kg
Overall size 900*480*945mm 1000*480*1035mm
Battery
Specification
(lithium
battery)
36V 10 Ah (high configuration)/
36V 4.4 Ah (low configuration)
36V 10 Ah (high configuration)/
36V 4.4 Ah (low configuration)
Charging
Demand 100~240V 50~60Hz 100~240V 50~60Hz
Charging
Time
About 6.0 hours (high configuration)
/about 2.5 hours (low configuration)
About 6.0 hours (high configuration)
/about 2.5 hours (low configuration)
![](/img.php?id=3262363&img=bg8.png)
6 / 17
Tire type
Pneumatic tire, front 12 inch, back 10
inch.
Pneumatic tire, front 12 inch, back 10
inch.
result in different
endurance mileage.
③
Waterproof and
dust-proof grade is
IP54.
Brake type
Front-rear wheel disc
brake (high
configuration) / Rear disc brake (low
configuration)
Front-rear wheel disc brake
for two
configurations
USB Discharge
Dust & Water
Proof Level IP54③ IP54③
![](/img.php?id=3262363&img=bg9.png)
7 / 17

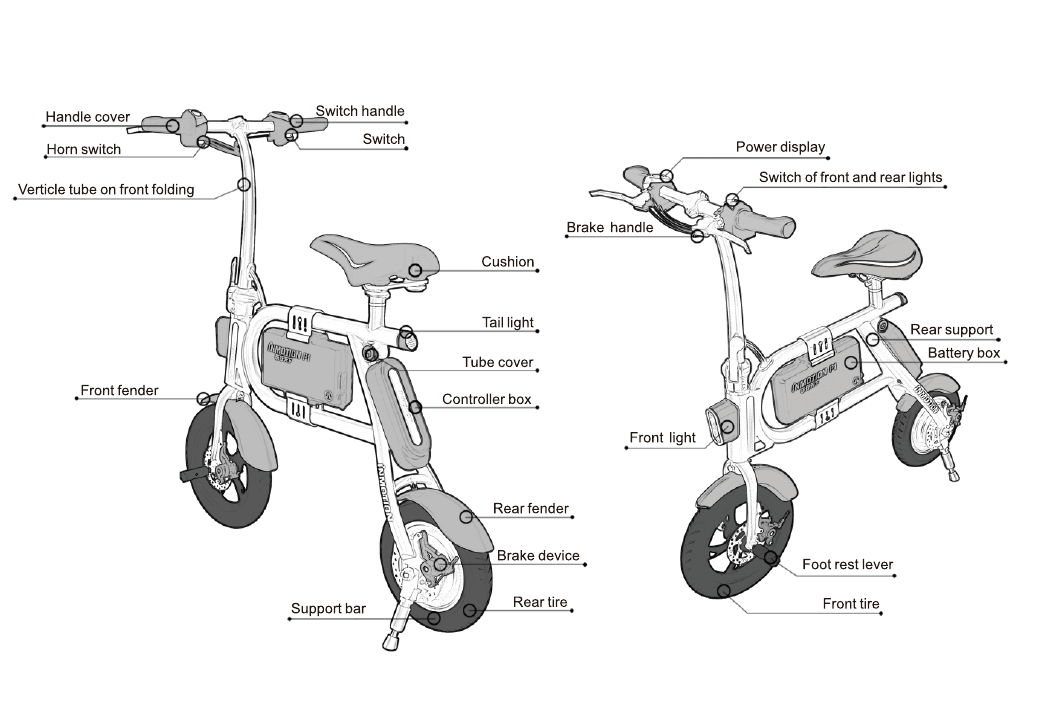

2.4. Product components
![](/img.php?id=3262363&img=bga.png)
8 / 17
2.5. Check the package box
INMOTION E-bike-The original includes the following parts. Please check when opening. Any lack or loss, please contact the
agency or INMOTION after-sales department.
E-bike body Foot lever * 2
Product manual, warranty card, quality certificate Charger
∙ Using non-recognized parts, or wrongly install the parts will damage the INMOTION E-bike, even cause personal injury.
In order to guarantee the quality and safety, all parts of INMOTION E-bike will be authorized by INMOTION
TECHNOLOGIES CO., LTD, and should be ensured to correctly installed in the E-bike.
∙ Please do not try to ride the INMOTION E-bike that is not correctly and completely installed.
∙ Please do not dismantle or modify the E-bike without authorization, otherwise it will lead to unrecoverable damage to the
E-bike, and may even lead to the personal injury.
2.6. Assemble INMOTION E-bike

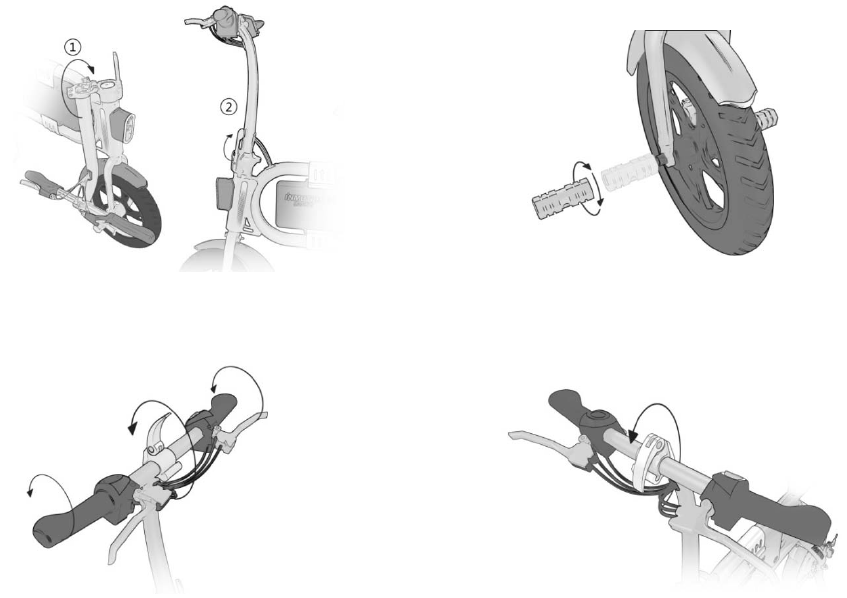

Step 1: Hold well the direction bar as the picture shows, and lock the folding handle as the picture shows .(See picture①②)
Step 2: Install the foot lever on the E-bike as the picture shows (Note: Screw tightly)
Step 3: Move the head of the direction bar as the picture shows, and then well adjust the cross handle (to the comfortable point you
need)
Step 4: Try to fasten the folding wrench (Completely installed, and you can ride it now)
Warning
![](/img.php?id=3262363&img=bgb.png)
9 / 17
Step 1 Step 2
Step 3 Step 4
![](/img.php?id=3262363&img=bgc.png)
10 / 17
2.7. APP
This APP is specially designed for users by INMOTION based on the manufactured products, which
can realize such functions as controlling the vehicle, making friends,releasing INMOTION articles,
taking part in INMOTION activities, buying INMOTION accessories etc. Chinese name of
INMOTION E-bike APP is: 乐行。
You can get this APP from our website or corresponding APP Store.
Through this APP, you can realize the following functions:
•E-bike control: Lock, unlock, auto cruise
•E-bike body status display: It can display the speed, mileage, electric quantity etc.
•Parameter setting: Max. speed.
•Failure detection: It can realize the evaluation and detection to the status of INMOTION E-bike.
•After-sales service: We can arrange our workers for you to deal with the after-sales services.
•For more detailed functions of this APP, please download the product manual of the latest APP with reference to the prompts
and Help document. We regularly promote new functions on the APP.
•INMOTION E-bike connects with the mobile through wireless bluetooth4.0 BLE, and is suitable for systems such as
Android 4.3 or above, iphone4s, IOS 7.0 or above.
Prompt
![](/img.php?id=3262363&img=bgd.png)
11 / 17
3. Charging
3.1. Charging method
Step 1: The charge port is on the tail of the battery, see picture1
Step 2: Inset the charging port of the charger to that of the batter (please make sure the
charge port is dry).
Step 3: When the charger indicator turns red, it is charging; when it turns green, it is
fully charged. After fully charged, please stop charging, as long-term charge
will affect the service life of the battery.
Step 4: After charging, please cover the charging port in case water in.
3.2. Safety tips when charging
∙ Please charge at least 5 hours before first use.
∙ In order to maximum extend the battery life, please charge it every one month or two days after riding it. Please charge it
under proper temperature and environment.
∙ Not charging timely may cause battery damage. As time goes by, battery capacity will gradually run out, and eventually lead
to battery over-discharge.
∙ Please use the battery, charger and cable provided by original manufacturer, to avoid dangers caused by battery overcharge .
∙ Please ensure correct connection of the charger and the cable, as well as enough ventilation environment.
∙ Please use it under dry condition. It is NOT allowed to make the charger or cable connect with water, as it may result in
electric shock. Please do not tough with wet hands. If there is any failure during charging, please immediately pull up the
power plug.
∙ Please guarantee to pull it up from the plug, not from the cable.
![](/img.php?id=3262363&img=bge.png)
12 / 17
∙ Please do not make the charger or cable contact sharp or high temp. articles.
∙ Please regularly make sight check to the charger and its cable
∙ If there is obvious damage of the charger or cable, in order to avoid further damage, please do not use the charger any more,
and contact for exchange.
∙ Please do not personally repair the battery, charger or cable. Any questions, please contact us.
4. Ride INMOTION E-bike
4.0. Ride INMOTION E-bike
INMOTION E-bike is a kind of technological travel tool. Riding without better understanding of the operation specification will
result in unpredictable injury. The following instructions are explained in details on how to correctly ride the INMOTION E-bike
for green hands, especially those who ride it for the first time, and list all precautions during the riding. Please carefully read it
and ride INMOTION E-bike as required.
4.1. Precautions before riding
When riding or parking INMOTION E-bike, it will cause loss and affect the using performance of the product. Therefore, before
riding, please pay attention to the following notes:
∙ Please check if all parts of the E-bike are well installed without damage.
∙ Please check if the brake is well.
∙ Please check if the folding mechanism is locked.
∙ Please check if there is enough power.
∙ Please check if the tire is well.
∙ Please check if the handle is fixed. Once loose, please screw it down.
![](/img.php?id=3262363&img=bgf.png)
13 / 17
∙ You need to find an open and flat place with the square of at least4m * 20m to practice riding, indoor and outdoor are OK.
∙ You need to have a deep understanding to the surrounding riding condition, in order to ensure not to be disturbed by the cars,
pedestrians, pets, bikes or other obstacles.
∙ You need a skilled assistant who is familiar to ride INMOTION E-bike and knows about all precautions and riding methods in
this manual.
∙ Please do not test on smooth and wet ground.
∙ Please wear a helmet or other protectors to avoid possible injury.
∙ Moisture will make the brake react slowly, therefore, after cleaning the E-bike, please dry and brake it in a safe place.
∙ Please do not use this product under bad weather (such as: rainy, snowy or icy condition)
∙ Before using this product under any environment, please ensure if the brake is OK.
5. Precautions of safe riding
INMOTION E-bike is a kind of personal transport tool with certain speed, which has been strictly inspected on the technology
and manufacture. Please use it according to the safety warnings in this manual, otherwise, it may bring risks. Any time or places,
it may hurt you or even cause death due to the reasons such as falling, loss of control, collision etc., including that you do not ride
INMOTION E-bike according to the manual. Therefore, in order to reduce risks and avoid injury, you MUST carefully read this
manual and watch the related safety video, and obey the following precautions:
Warning
![](/img.php?id=3262363&img=bg10.png)
14 / 17
∙ When riding, please wear the helmet and protectors.
∙ Please do not climb slope over 12°, and do not sharply speed up or slow down on the slope.
∙ Be cautious to the obstacles and wet and smooth road, do not ride on grass or pebble road.
∙ Please do not ride in water over30mm.
∙ DO NOT ride up and down the steps.
∙ DO NOT ride in motorway.
∙ DO NOT soak in water.
∙ INMOTION E-bike belongs to single-use vehicle, please DO NOT ride by several people.
∙ Beginners under 18 or over 45 years old, please practice under someone's help.
∙ Before using, please confirm if the power is full, and if the tire is in normal inflation.
∙ Before familiar to the E-bike, please DO NOT ride with higher speed, instead please ride slowly.
∙ As for the special property of lithium battery, users should charge it at least one time one month. It is not within the warranty
range if the battery is damaged due to irregular maintenance.
∙ INMOTION E-bike is only used as daily transport tool, therefore, please DO NOT use it in extreme sports or other dangerous
riding methods.
6. Maintenance
6.1. Storage
∙ Please keep the E-bike out of direct sun (even it is in trunk of your car), because after some time, the temperature of the after
carriage and battery will reach50℃, which will decrease the function and shorten the lifespan.
∙ Please do not place INMOTION E-bike in moisture condition.
15 / 17
∙ It will automatically discharge when the INMOTION E-bike is not in use. The battery power should be checked at least every
3 month, and should be timely charged until it is full. Please do not keep it for long time, as it will cause invocatable loss
(such as deep discharge of the battery) due to the battery without power.
∙ In winter, the battery will lose power faster due to the low temperature.
∙ Unreasonable storage will lead to the life loss of the battery in the E-bike or other risks, therefore, please keep the
INMOTION E-bike indoor in a dry place with proper humiture. If the INMOTION E-bike is not used for long time, please
fully charge it and charge it at least one time every month.
∙ Please fully charge the E-bike if you do not use it for long time.
6.2. Clean
∙ Before cleaning, please make sure the E-bike powers off, pull up the cable, and close the charging port. When cleaning,
please notice not to make water in the port.
∙ Please use soapy water or clean water to wipe the shell of INMOTION E-bike with soft cloth. Please DO NOT use high
pressure water gun to wash it.
∙ Water and dust proof grade if INMOTION E-bike isIP54, namely, it is spilling and dust proof. Therefore, please do not soak
the INMOTION E-bike in water, as it will lead to permanent damage.
6.3. Treatment
Please do not treat the battery and power device as general wastes. You have made great contribution to the environmental
protection undertaking through riding INMOTION E-bike, so in order to further avoid unnecessary pollution:
∙ Please deal with your E-bike and all related components (battery) through the authorized treatment facilities.
∙ Please obey the latest user guide. Any questions, please consult our dealers or contact INMOTION after-sales department.
![](/img.php?id=3262363&img=bg12.png)
16 / 17
6.4. Inflation & Exchange Inner and Outer Tires
Once there is insufficient air pressure, or there are different air pressures of the two tires, please timely inflate until both have the
same air pressure. Factory default tire pressure of INMOTION E-bike is 2.8Bar of the front wheel, and 2.5Bar the rear.
If the tire needs to exchange due to tire burst or other reasons, please contact INMOTION authorized agencies or INMOTION
after-sales department (Also you can repair it in a bicycle maintenance shop)

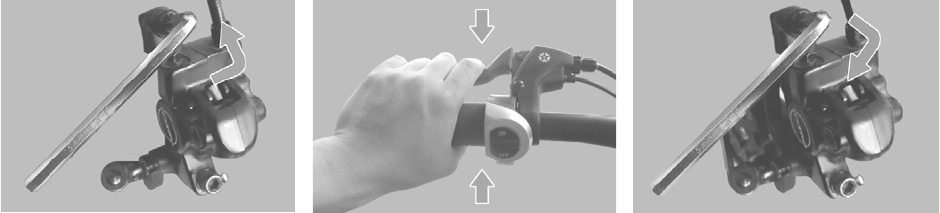

6.5. Brake Maintenance
① Insert the elbow to the brake, and fix it on the screw of the frame. According to the: direction of Left Loose and Right Tight,
please lightly turn left to make the brake a little loose.
② Then clench the brake with one of your hands, in order to make the rear brake close to the brake pad. Keep clenching.
③ Right press the brake with the elbow until fix and tighten the brake. Then loose the E-bike brake, the brake returns
automatically. It is not abrasive once the brake pad is correctly fixed.
① ② ③
![](/img.php?id=3262363&img=bg13.png)
17 / 17
7. Contacts & Legal Information
7.1. Feedback
Any questions or improvement advice from you or people around you when riding INMOTION E-bike, please feel free to contact
us. We will listen to your advice and do our best to serve you.
7.2. Contact us
∙ INMOTION TECHNOLOGIES CO., LTD.
∙ Tel:4000-1000-12
∙ Email:service@imscv.com
7.3. Version
Version1
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
![](/img.php?id=3262363&img=bg16.png)
