Technical Document

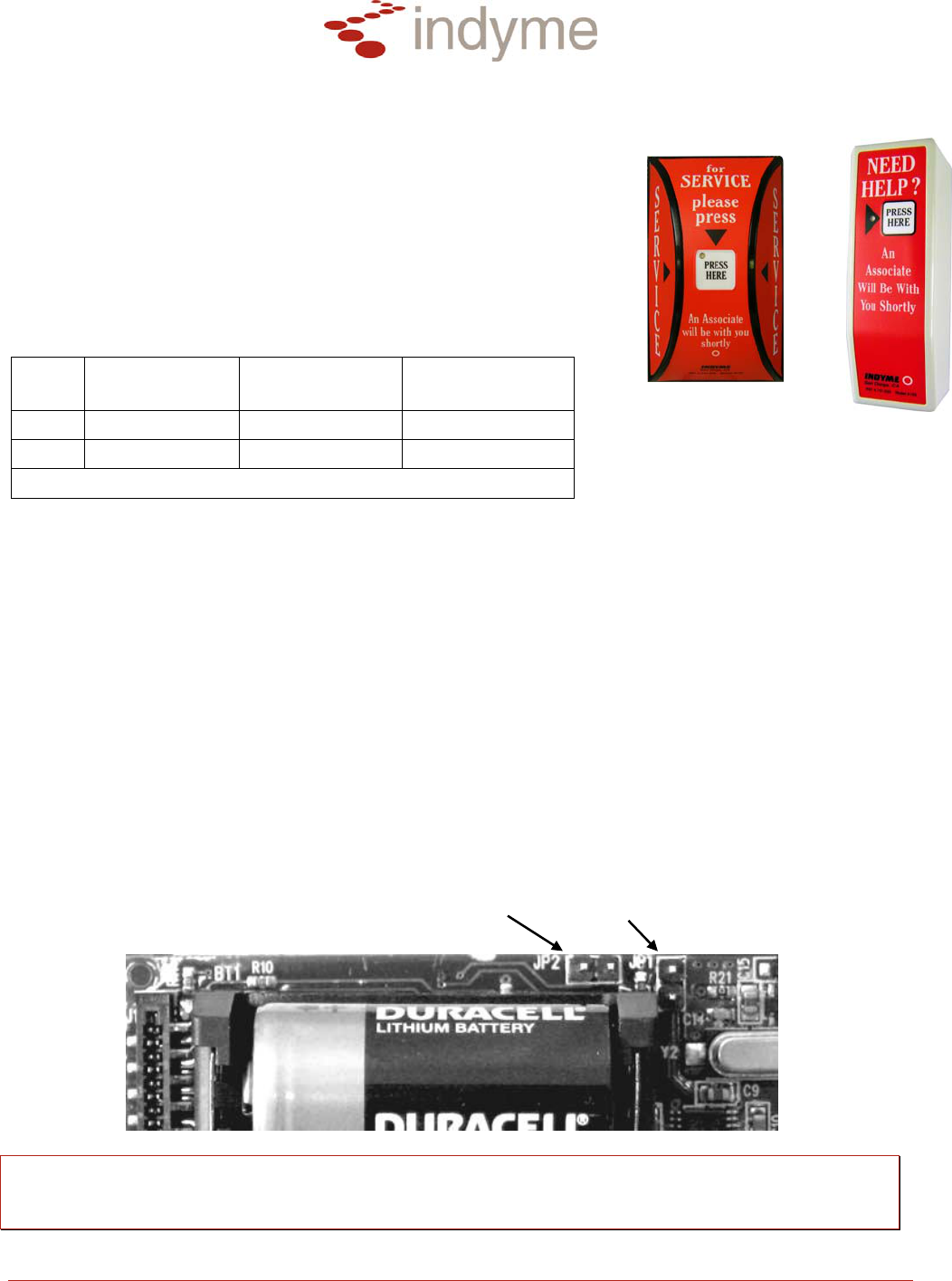

CB440/511 Programming and Install Instructions 1 P/N: 430223-00 Rev R
CB440/511 Programming and Installation Instructions
Determine individual call box addresses prior to starting the
installations. Un-programmed call boxes default to address 001
(Alarm Code-1). Triggering a call box at this address may trigger an
advisory message or no action at all.
Programming the CB440/CB511 Call Box Address
1. Set the internal programming jumpers for
Address Programming:
Address
Programming
Mode
Programming
Disable
Programming CB440
JP1 OFF ON ON CB511
JP2 OFF ON OFF
HELP = “PRESS HERE” RESET = “small white circle”
2. Press and hold RESET until the LED flashes one time. (approximately 8-seconds). The unit is now
in address programming mode.
3. The HELP and RESET buttons are used to program the 3-digit address. Leading zeros are
required. HELP = digits 1-9, RESET = digit 0 and SAVE.
4. For example, program Alarm-802 as follows:
• Press HELP 8-times, RESET once to save. (8)
• Press RESET once to represent the zero. (0)
• Press HELP 2-times, RESET once to save. (2)
Note: The LED will flash with each press of the HELP button. When the RESET button is pressed
to save the 3rd digit, the LED will flash to indicate the address that was entered. The LED will
indicate digit zero by a long flash. (approximately 1-sec.)
5. Program each call box according to the mounting location.
6. Set the jumpers to “Disable” to prevent accidental changes and install the call box module.
JP1JP2
CB440/511 PCA
NOTE: In both Address and Mode programming, if no buttons are pressed for 30 seconds, the
unit will timeout and return to normal operating mode. The LED will flash five times upon
exit of either mode and any changes made will be lost.
![](/img.php?id=1573816&img=bg2.png)
Technical Document
CB440/511 Programming and Install Instructions 2 P/N: 430223-00 Rev R
Mode Summary
The new Call Box PCA has several different operating modes. For normal installation, each call box is
programmed to mode-1 at the factory. (Standard Call Box with 8 minute LED timeout) If it becomes
necessary to re-program the call box, please contact Indyme Support at 800-829-6141 for additional
programming information.
Location Considerations
Call boxes are typically located at cash registers, service counters or other areas in which customers
require assistance. Stores and installers should be aware of the Americans with Disabilities Act (ADA)
requirements (48” height to the HELP button) for accessibility.
Call boxes use a low powered transmitter, and operate best with a clear line of sight to the nearest
receiver. Tall shelving, merchandise and metal signs can block or reduce the call box signal.
Install the Call Box
1. Verify call box placement with the Store Manager and according to provided instructions. Determine
the appropriate mounting hardware and location.
• To mount the call box to a glass display case, affix the double-sided foam tape to the back
panel of the call box.
• To mount the call box to the wall, affix the Velcro tape to the back panel of the call box.
• To mount the call box to a wood surface, open the call box and use the included hardware
to secure the call box to the wooden surface. (CB440 only)
2. From the final mounting location, press the HELP button on the call box and verify the appropriate
message is broadcast over the desired output device.
FCC Notice of Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The user is cautioned that changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Le présent appareil est
conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur
de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Class B statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an ex
p
erienced radio/TV technician for hel
p
.
