CB961 Wireless Help Button
Programming and Installation Instructions
Overview
The CB961 is a member of the Global Solutions Family. Indyme GSF products
operate in the 800MHz – 900MHz frequency spectrum. The CB961 help button is
designed for use at various customer service locations. GSF help buttons
communicate with an Indyme GSF Access Point. GSF products are not compatible
with legacy Indyme infrastructure and devices.
Hardware
(3) #6 x 3/4 Phillips screw
(3) #6 plastic wall anchor
Programming Parameters
GSF products MUST be properly programmed to establish communication.
Programming parameters MUST match your configuration. The default settings are for
testing purposes only and should not be used. Failure to properly program your help
button and access point will prevent your devices from working.
GSF help buttons have three primary programming parameters; Netcode, Address and Operating Mode. These
MUST be programmed in the correct order to establish communication and ensure proper operation. Identify the
parameters for your configuration before you begin programming.
Using the programming instructions below set the following parameters in order.
Netcode – unique identification code for the installation environment.
Address – alarm number associated with a control unit alarm event.
Operating Mode – defines how the help button will respond when activated.
Programming a help button requires a series of button presses. The specific buttons vary by help button type.

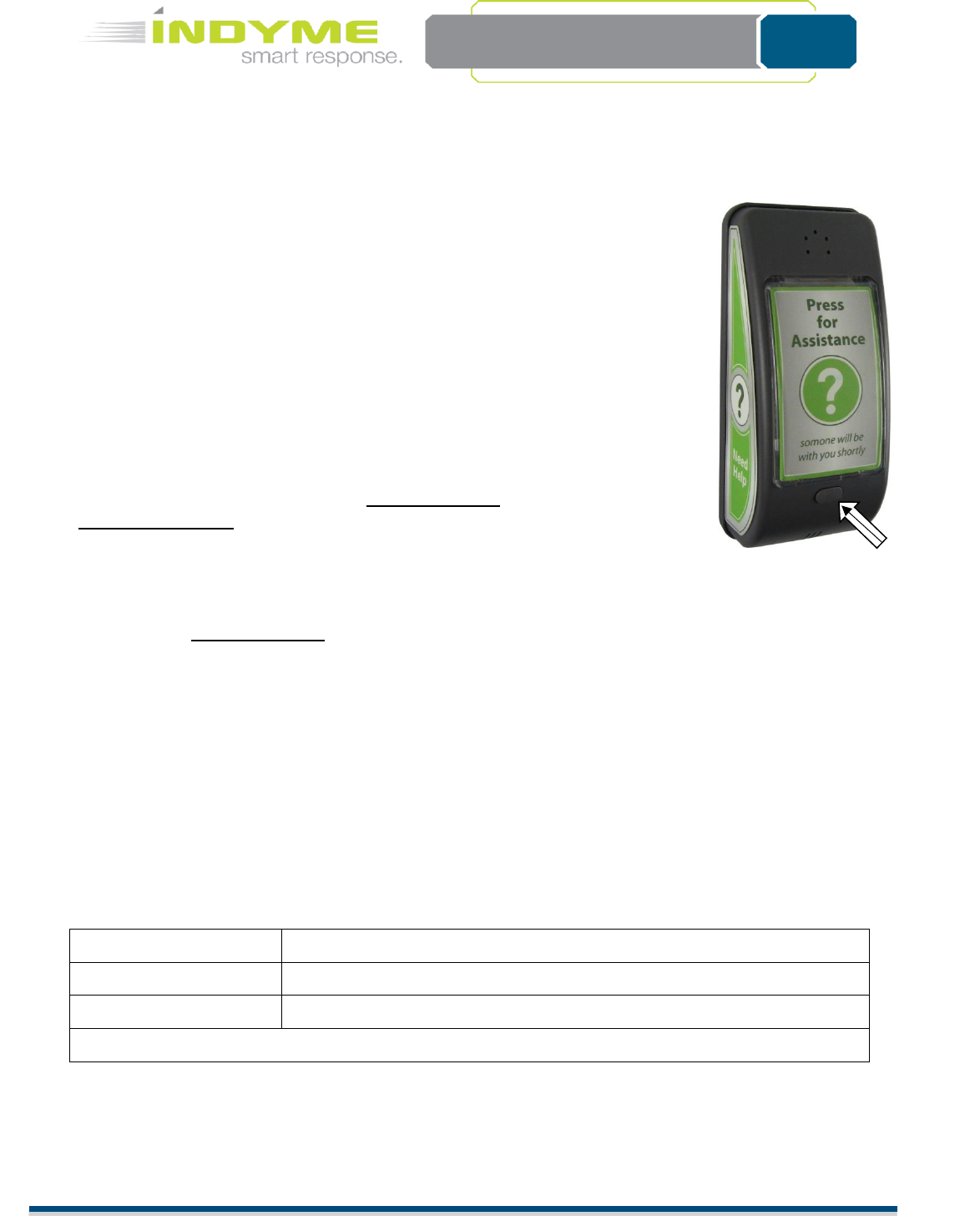

On the CB961, SET is the “Press for Assistance” button and RESET is a small oval below the SET button. The
assurance LED is red and is located BEHIND the SET button. This LED will flash during programming to indicate
your progress.
Netcode
*00000001
Address
*0001
Operating Mode
*1
* Default parameters are for testing purposes only.
RESET
![](/img.php?id=2055621&img=bg2.png)
Technical Document
<Tag Here>
Indyme Solutions, Inc. 8295 Aero Place San Diego, CA 92123 USA +1.858.268.0717 +1.800.829.6141 Page 2 of 5
GSF Help Button Programming
GSF help buttons function in the 800MHz – 900MHz frequency spectrum. These wireless transceivers
communicate with the Indyme CB951 Access Point. Each help button MUST be programmed with the correct
parameters to match the CB951 Access Point(s). Help buttons use a hierarchy based menu structure. You must
enter the Programming Menu first, to select the desired submenu. Each submenu may have one or more
options available. These options are used to assign specific operational characteristics to the help button.
Review the submenus/options before you begin programming. The submenus/options will vary by help button
model.
Enter the Programming Menu
Press and hold the RESET button until the assurance LED flashes one time.
Press and hold the SET button, until the assurance LED flashes two times.
Press and hold the RESET button, until the assurance LED flashes three times.
The help button is now in the Programming Menu mode, proceed to the desired submenu. (***)
Menu-1: Address Programming
Assigns the help button to a corresponding alarm event programmed in the control unit. A help button address
is a four digit number from 0001 to 4095. Leading zeros are required.
After entering the Programming Menu;
Press the SET button one time for Menu-1, RESET once to save.
The assurance LED will flash one time to indicate Menu-1 was selected.
Use SET and RESET to program the 4-digit address as follows;
SET = digits 1-9, RESET = digit 0 and SAVE. Leading zeros are required
For example, program Alarm-0802 as follows:
Press RESET once to represent the zero. (0)
Press SET eight times, RESET once to save. (8)
Press RESET once to represent the zero. (0)
Press SET two times, RESET once to save. (2)
Note: When the RESET button is pressed to save the 4th digit, the assurance LED will flash to indicate the
address that was entered. The assurance LED will indicate digit zero by a long flash. (approximately 1-sec.)
Menu-2: Learn Mode
Allows the help button to capture the Netcode from another GSF device; (help button or access point). All help
buttons and access points must have the same Netcode to communicate.
After entering the Programming Menu;
Press the SET button two times for Menu-2, RESET once to save.
The LED will flash twice to indicate Menu-2 was selected.
The LED will then begin flashing. ¼ second on, 1 second off. This indicates that the help button is
requesting a Netcode. When the help button receives a Netcode, it will flash the assurance LED rapidly
for approximately 3 seconds and then it will exit Menu-2. If no Netcode is received within 5 minutes,
the help button will exit Menu-2.
Programming
Menu
Address
Learn
Operation
Clone
Menu-1
Menu-2
Menu-3
Menu-7
![](/img.php?id=2055621&img=bg3.png)
Technical Document
<Tag Here>
Indyme Solutions, Inc. 8295 Aero Place San Diego, CA 92123 USA +1.858.268.0717 +1.800.829.6141 Page 3 of 5
Menu-3: Operating Mode
Assigns the help button operating characteristics; timeout duration, RESET signal and number of active
buttons. Although set at the help button, the Operating Mode can be reset and overridden by the control unit.
Operating Modes will vary by help button type, below are the default modes for this help button.
After entering the Programming Menu;
Press the SET button three times for Menu-3, RESET once to save.
The assurance LED will flash three times to indicate Menu-3 was selected.
Press the SET button to select a Help Button Operating Mode: <1, 2, >, RESET once to save.
The assurance LED will flash to indicate the selected Operating Mode.
Mode 1 - 1-Button 5-min timeout, No Reset (Single VA Message)
Press any channel button to trigger the alarm state; the corresponding LED will flash and the first voice
assurance message will play. The LED will flash for 5 minutes, then extinguish with no reset sent. The
RESET button will sent a reset signal for all active channels.
Mode 2 - 1-Button 5-min timeout, No Reset (Dual VA Message)
Same as above, first and second voice assurance message will play.
Menu-7: Clone Mode
Allows the help button to broadcast the Netcode to other GSF help buttons. All help buttons and access points
must have the same Netcode to communicate.
After entering the Programming Menu;
Press the SET button seven times for Menu-7, RESET once to save.
The assurance LED will flash seven times to indicate Menu-7 was selected.
The assurance LED will now flash a cadence of 4-pause, 4-pause… etc. The help button will stay in
Clone mode for 5-minutes or until the RESET button, is pressed.
Installation and Trouble shooting
1. Identify all programming characteristics before you begin programming or installation.
Netcode
Help Button Addresses
Help Button Modes
2. Program the required parameters into the CB951 Access Points first.
3. Use the first CB951 Access Point to clone the Netcode to all of the help buttons. This will ensure the
same Netcode is being assigned to all devices. You may also clone the Netcode from a known working
help button to all other help buttons.
4. Program the Alarm Address and Mode of each help button.
5. The help button will automatically exit any programming menu if no buttons are pressed for 30-
seconds.
6. Install the help button in accordance with store policy, Indyme work order and/or Americans with
Disabilities Act guidelines where applicable.
The CB961 help button uses two 2/3A-size 3.0-volt lithium batteries. Always use the
same type of battery for optimum performance, DO NOT use rechargeable batteries in
the help button. To replace the batteries, remove the help button from its mounting
location. Turn the help button over so the back is exposed. Remove the old batteries
from the battery holders. Install the new lithium batteries, making sure to insert them
according to the markings. The help button does not lose the programmed
characteristics when the batteries are removed.
![](/img.php?id=2055621&img=bg4.png)
Technical Document
<Tag Here>
Indyme Solutions, Inc. 8295 Aero Place San Diego, CA 92123 USA +1.858.268.0717 +1.800.829.6141 Page 4 of 5
Location Considerations
Help buttons are typically located at cash registers, service counters or other areas in which customers may
require assistance. Stores and installers should be aware of the Americans with Disabilities Act (ADA)
requirements for accessibility.
Help buttons use a low powered transmitter, and operate best with a clear line of sight to the nearest receiver. Tall
shelving, merchandise and metal signs can block or reduce the help button signal.
Install the Help Button
1. Verify help button placement with the Store Manager and according to provided instructions. Determine
the best mounting method before installing the help button, verify address programming.
2. The CB961 has different mounting options available; wall, counter top, pole mount, etc. If using an
optional stand or mounting bracket, please refer to the installation instructions included
Wall Mounting

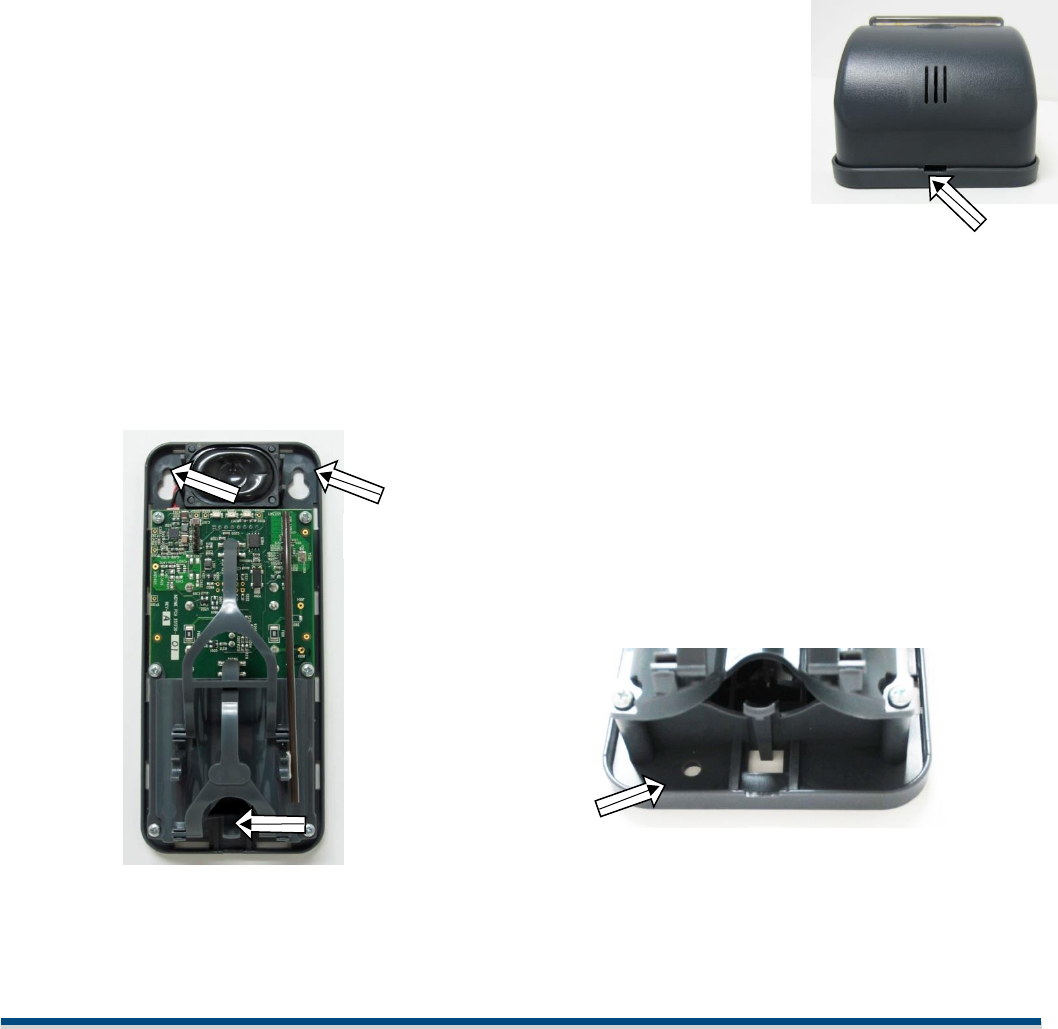

1. Remove the Top Cover of the help button by inserting a flat-blade
