Intermatic H0014 In-Wall Dimmer Switch User Manual HA14 ENGLISH indd
Intermatic Inc In-Wall Dimmer Switch HA14 ENGLISH indd
User Manual
![](/img.php?id=838922&img=bg1.png)
To manually turn ON the light, press and release the top rocker.•
To manually turn OFF the light, press and release the bottom rocker.•
To manually DIM the light, press and hold the top or bottom rocker.•
1 – Wire and Install the HA14 In-Wall Dimmer
With HomeSettings devices, you can reliably and remotely con-
trol your lighting and appliances. The outstanding features of
the HomeSettings HA14 600W In-Wall Dimmer Switch include:
Feedback that will allow you to see whether your device has •
received the ON/OFF/DIM signal.
Wireless signal reliability — HomeSettings produts have a •
special feature that virtually guarantees that wireless signals
are received.
Manual override.
•
Can be used with decorator-style wall plates (not included)•
Compatible with multiple location • ON/OFF control using
conventional 3-way or 4-way wiring devices.
Because the HA14 In-Wall Dimmer is a Z-Wave™ device, it is
compatible with any HomeSettings network, other Z-Wave
networks, and all HomeSettings or other devices displaying the
Z-Wave logo, regardless of manufacturer.
Each module in a Z-Wave network com-
municates with every other module,
acting as a “repeater” and routing your
commands to their destination by the
most reliable pathway. When Z-Wave
devices (regardless of manufacturer)
are installed throughout the house,
signals are automatically routed around
obstacles or dead spots, strengthening the network as more
devices are added.
Thank you for purchasing an Intermatic HomeSettings device
The most basic installation procedure is to use the HA14 in a
Single Pole application—a circuit where a single switch con-
trols a light, as shown in the wiring diagram below.
Other installation diagrams are shown on the next page.
Turn off power at the service panel by REMOVING THE
1.
CORRECT FUSE or TURNING THE CIRCUIT BREAKER OFF.
Remove existing wall switch from the box if necessary.2.
Trim building wires to 7/16”.3.
Connect the BLACK wire of the HA14 to the hot build-4.
ing wire (the wire leading to the circuit breaker or
fuse box), using a twist connector (provided).
NOTE: Twist connectors provided are suitable for
copper wire only. For aluminum wire, consult an
electrician.
NOTE: Insert wires straight into twist connector,
then twist clockwise. Make sure all twist connec-
tors are tight. Secure each twist connector with
electrical tape. Make sure no bare wire shows
below the wire connector.
Connect the BLUE wire of the HA14 to the load wire, using
5.
a twist connector (provided).
Connect the ground wire from the box to the bare copper
6.
wire on the HA14 In-Wall Dimmer. If there is no ground
wire, ground the HA14 unit to the box. If the box is plastic,
connect the bare copper wire to ground as supplied or
contact an electrician.
Remove the semi-stripped end of the RED wire and apply 7.
the twist connector to this wire. The RED wire is not used in
the single-pole application.
Tuck wires into wall box leaving room for the 8.
HA14 unit.
Using screws provided, mount the HA14 unit
9.
to the wall box, then install the decorator wall
plate (not provided).
Turn power back on at the service panel.10.
NOTE: Before operating the switch, check to
make sure the small switch below the rocker
is in the ON or left position. A vertical-line ON
symbol should be visible next to the switch, as
shown (right, top).
NOTE: When changing a light bulb, slide the
switch to OFF or right position, with the “O”
OFF symbol visible, as shown (right, bottom).
This prevents chance of electric shock dur-
ing the bulb change. When fi nished, slide the
switch back to the ON or left position, again
showing the vertical-line ON symbol.

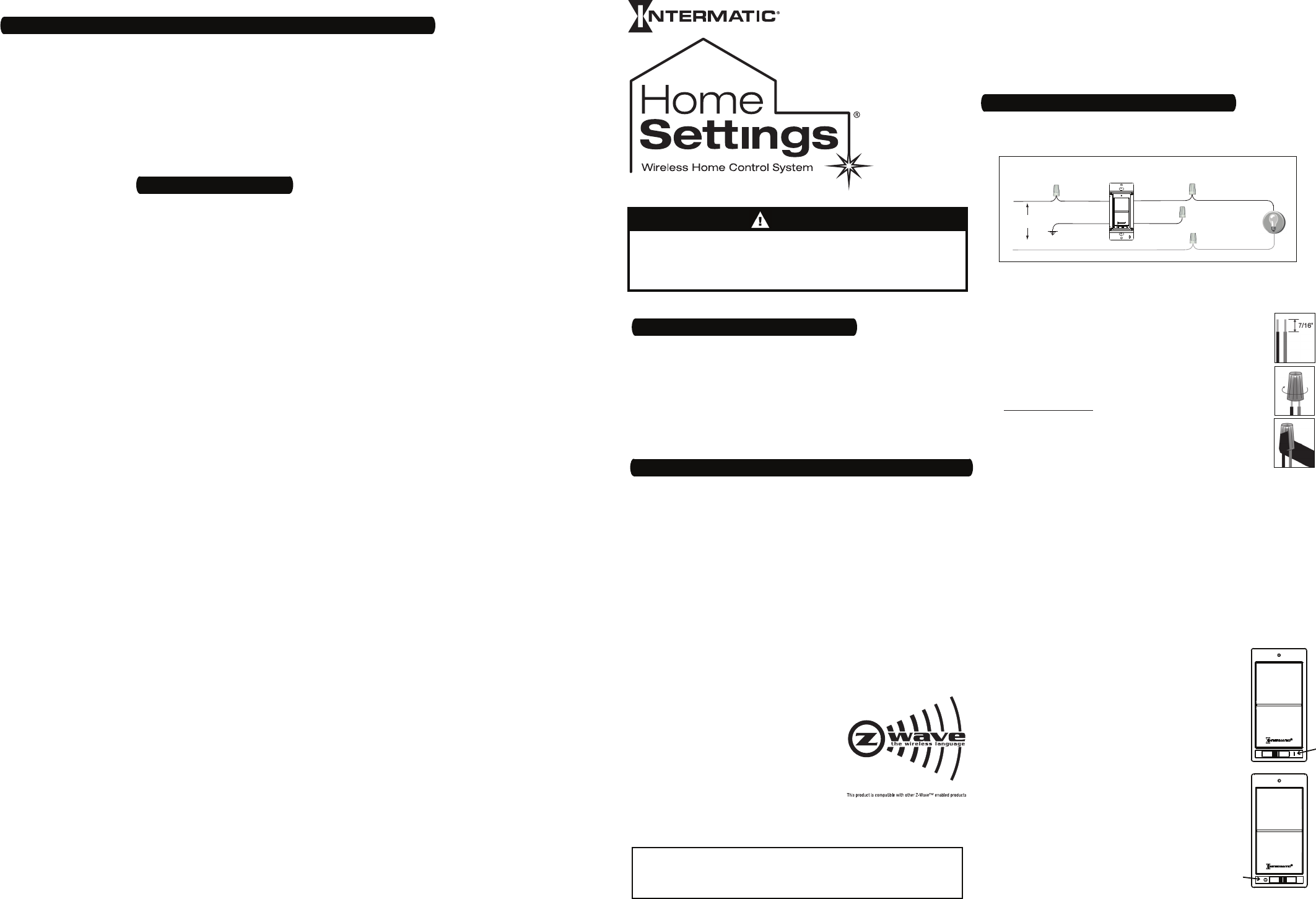

Single Pole Application
NEUTRAL
HOT BLACK BLUE
RED
120VAC
50/60 Hz
Incandescent
Lighting Load
BARE
COPPER
HA14
LOAD
600 Watt In-Wall Dimmer
MODEL HA14
Understand basic wiring principles and techniques•
(IF NOT, USE A QUALIFIED ELECTRICIAN FOR THIS INSTALLATION.)
Can interpret wiring diagrams•
Have circuit-wiring experience•
Read all instructions and documentation and save for future reference•
Are prepared to test your work, making sure you have wired the recep-•
tacle according to your local electrical code
Before installing, make sure that you…
If within six (6) years from the date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This war-
ranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or
any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modifi ed; (c) units not used in accordance with instructions; (d) damages exceeding the cost
of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the fi nish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit
damage, initial installation costs, removal costs, or reinstallation costs.
INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSE-
QUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRAN-
TIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIS LIMITED
WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE DURATION OF AN IMPLIED WARRANTY, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
This warranty service is available by either (a) returning the product to the dealer from whom the unit was purchased, or (b) mailing the product, along with proof of purchase, postage prepaid to the
authorized service center listed below. This warranty is made by: Intermatic Incorporated/After Sales Service/7777 Winn Rd., Spring Grove, Illinois 60081-9698/815-675-7000 http://www.homesettings.com
Please be sure to wrap the product securely to avoid shipping damage.
INTERMATIC INCORPORATED
SPRING GROVE, ILLINOIS 60081-9698
Limited Six-Year Warranty
Federal Communications Commission Statement / Industry Canada Statement
This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference, including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna or device.•
Increase the separation between the equipment and receiver.•
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.•
Consult the dealer or an experienced radio/TV technician for help.•
NOTICE — Changes or modifi cations not expressly approved by Intermatic Inc., could void the user’s authority to operate the equipment.
THE term “IC” before the radio certifi cation number only signifi es that Industry Canada technical specifi cations were met.
158HA13315
Installation and Programming Instructions
Electrical shock hazard. Risk of injury or death. Remove electrical •
power at service panel before installing.
Follow local electrical codes during installation.•
For indoor use only.•
WARNING
![](/img.php?id=838922&img=bg2.png)
2 Switch/3-way Application with
Single-Pole Remote Switch
NEUTRAL
HOT BLACK BLUE
120VAC
50/60 Hz
BARE
COPPER
SINGLE
POLE
SWITCH
Incandescent
Lighting Load
RED
HA14
3 Switch Application
NEUTRAL
HOT BLACK BLUE
120VAC
50/60 Hz COMMON
3-WAY
SWITCH
RED
HA14
3-WAY
SWITCH
Incandescent
Lighting Load
ADDITIONAL WIRE
BARE
COPPER
COMMON
Multi-Way Application
NEUTRAL
HOT BLACK BLUE
120VAC
50/60 Hz
3-WAY
SWITCH
RED
Incandescent
Lighting Load
4-WAY
SWITCH 4-WAY
SWITCH 3-WAY
SWITCH
HA14
BARE
COPPER
COMMON
COMMON
ADDITIONAL WIRE
2 Switch / 3-way Application with 3-way Remote Switch
NEUTRAL
HOT BLACK BLUE
18 ga. MIN (not supplied)
120VAC
50/60 Hz
3-WAY
SWITCH Incandescent
Lighting Load
RED
HA14
COMMON
NOT
USED
BARE
COPPER
4 Switch Application
NEUTRAL
HOT BLACK BLUE
120VAC
50/60 Hz
3-WAY
SWITCH
RED
HA14
4-WAY
SWITCH
ADDITIONAL WIRE
3-WAY
SWITCH
COMMON COMMON
BARE
COPPER
Incandescent
Lighting Load

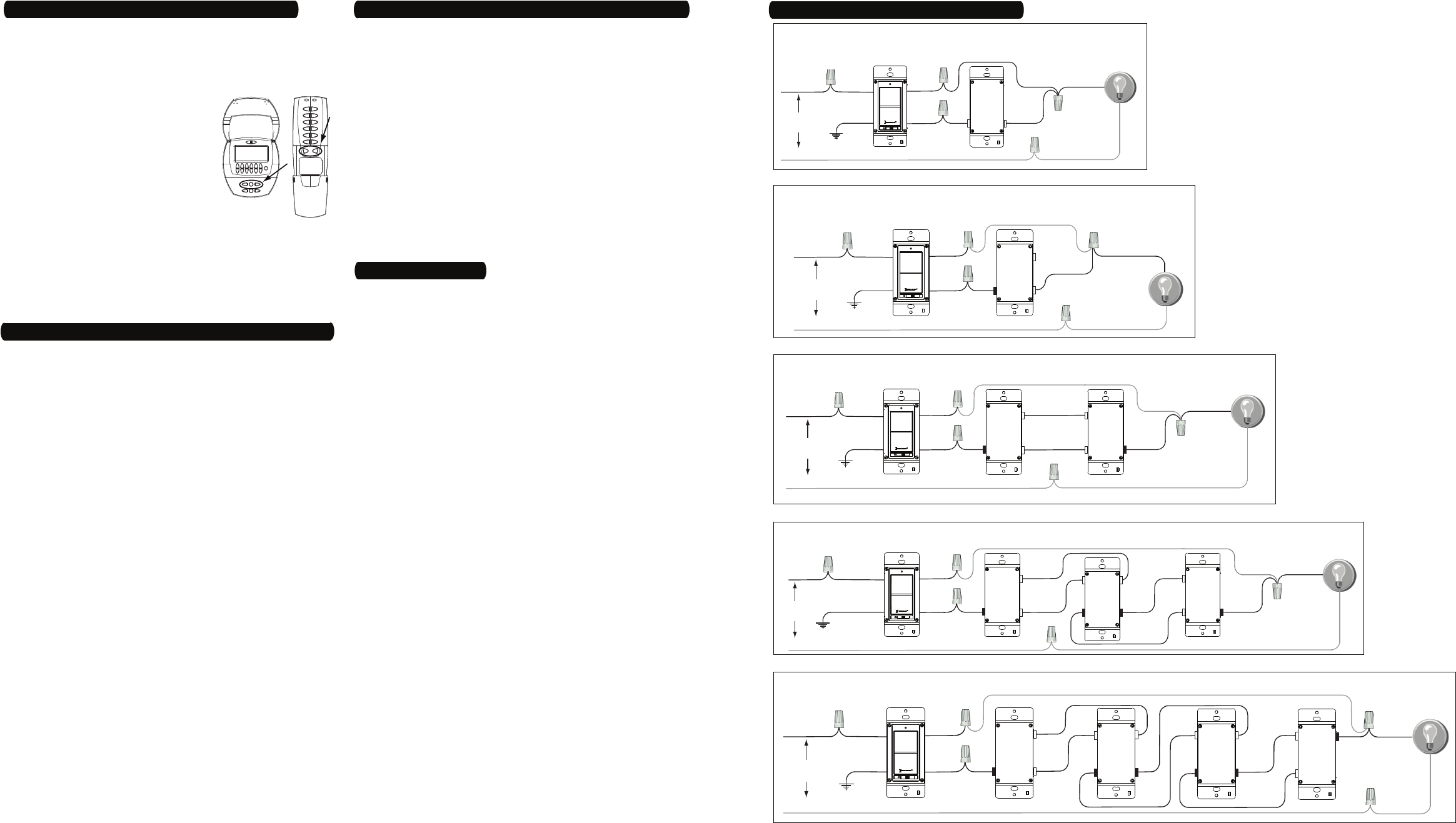

Additional Wiring and Installation Diagrams
After including your HA14 In-Wall Dimmer Switch with your
HomeSettings network, you must associate it with a specifi c
control channel (or button) so you can operate it by remote con-
trol. For a non-HomeSettings network, follow controller instruc-
tions provided by the manufacturer.
Decide which pair of 1. ON/OFF buttons you want to use to con-
trol the In-Wall Dimmer. Each pair represents a channel.
Press and hold (at the same time) both
2. ON and OFF buttons
on the HA07 Master Controller or the HA09 Handy Controller.
After about 3 seconds:
The Master Controller screen will display LEARN. -
The Handy Controller lights will rapidly fl ash GREEN and -
RED at the same time.
Release the 3. ON and OFF buttons on the controller.
Press and hold the 4. INCLUDE button on the Master Controller
or the Handy Controller
The Master Controller screen will display INCL. -
The Handy Controller will show a solid GREEN light only. -
While still holding the 5. INCLUDE button, press the top or bot-
tom ROCKER button on the In-Wall Dimmer to adjust the light
to the desired level.
Release the 6. INCLUDE button. If the association is successful:
The Master Controller screen will display SUCCESSFUL. -
The Handy Controller GREEN light will simply turn off. -
Test the channel you have just programmed by pressing its 7.
ON and OFF buttons. The light should power ON or OFF at the
level you have set.
If the screen displays NOT SUCCESSFUL or the light is RED,
the association has failed. Try again. If the procedure contin-
ues to fail, contact Intermatic Customer Service.
3 – ASSOCIATE the In-Wall Dimmer with a Control Channel
If necessary, you can delete the HA14 In-Wall Dimmer Switch
from your HomeSettings network—or any network that sup-
ports Z-Wave devices—through a process called EXCLUSION.
Put the controller into EXCLUSION mode. On the HA07 1.
Master Controller or the HA09 Handy Controller, press and
release the DELETE button. For other manufacturers’ control-
lers, follow the instructions provided by the manufacturer.
Press and release the top or bottom 2. ROCKER button of the
HA14 In-Wall Dimmer. If the exclusion is successful:
The HA07 screen will display SUCCESSFUL. -
The HA09 will show a solid GREEN light for 2 seconds. -
If the screen displays NOT SUCCESSFUL or the light is RED,
the exclusion has failed. Try again. If the procedure contin-
ues to fail, contact Intermatic Customer Service.
Optional: EXCLUDE the In-Wall Dimmer from your Network
After hard-wiring the HA14 into place, the device is ready to join
your HomeSettings network—or any network that supports Z-
Wave™ devices—through a process called INCLUSION.
Put the controller into INCLUSION mode. On the HA07 1.
Master Controller or the HA09 Handy Controller, press and
release the INCLUDE button. For other
manufacturers’ controllers, follow the
instructions provided by the manu-
facturer.
Press and release the top or bottom
2.
ROCKER button of the HA14 In-Wall
Dimmer. If the inclusion is successful:
The HA07 screen will display SUC- -
CESSFUL.
The HA09 will show a solid GREEN light for 2 -
seconds.
If the screen displays NOT SUCCESSFUL or the light is RED,
the inclusion has failed. Try again. If the procedure continues
to fail, contact Intermatic Customer Service.
2 – INCLUDE the In-Wall Dimmer in your Network
For control of permanently installed incandescent lamp •
fi xtures only
Ratings: 600 Watts tungsten, 40 Watts minimum•
120 VAC, 50/60 Hz
Derating: 500 Watts Double Gang, 400 Watts Triple Gang•
Operating Temperature Range: 32°F to 104°F / 0°C to 40°C•
Radio Operating Frequency: 908.42 MHz @ 9.6 kbps•
908.40 MHz @ 40 kbps
RF (wireless) Range: 100 ft. under normal operating conditions•
Made in China•
Technical Information
Our products are constantly evolving. To see if advanced functionality is
possible with your product, look it up at www.homesettings.com.
