User Manual
![](/img.php?id=1888642&img=bg1.png)
von-S2 Manual Instruction
![](/img.php?id=1888642&img=bg2.png)
von-S2 Information
This confidential information is not supposed to disclosed and misused to the third party
1
•Certified Business Name: Jastec Co.,Ltd.
•Device (model): Vehicle Fleet Management Service System
•Manufacture date: Jan, 2013
•Manufacturer/country : Jastec Co,Ltd./Korea
•Certified code : JS0
•A radio interference of this wireless module is not providing a service related the safety of life.
![](/img.php?id=1888642&img=bg3.png)
This confidential information is not supposed to disclosed and misused to the third party
2
We kindly recommend you to be fully aware of using a product accurately and for safety of user. All liabilities by
uncomplying cautions are not supposed to be responsible to manufacturer.
1. This product into water or prolonged exposure to moisture can cause failure resulting in no charge for broken A/S.
2. Do not disassemble or repair this product if the label seal is broken or damaged, free A/S will not be received.
3. Do not separate or equip von-F module while driving vehicle or ignition off. – This causes to car accident and defective of it.
4. Please note that on the surface of the product carefully to avoid strong detergent or chemicals.
5. This product works under the proper temperature -30~+70℃.
6. Do not impact the product. It’s the cause of product defective.
7. Using other products rated voltage is the cause of the crush. Rated voltage state must be sure to use the product.
8. After parking vehicle in a safe place, install von-F module then drive.
9. When installing or removing product on the vehicle as the vehicle peripheral device could be due to injury, Please be careful.
10. Incorrect installation of the product by the vehicle’s shock and vibration and can cause data loss, after the installation, please check
it properly.
11. Products by shock or vibration of the vehicle is released from the car because it can cause data loss if the installation status checks
on a regular basis. This product is equipped with a breakdown of the car by the impact of accidents, damage, of driving record, we are
not responsible for missing.
Cautions For Safety
![](/img.php?id=1888642&img=bg4.png)
1. von-S2 Descriptions
This confidential information is not supposed to disclosed and misused to the third party
3

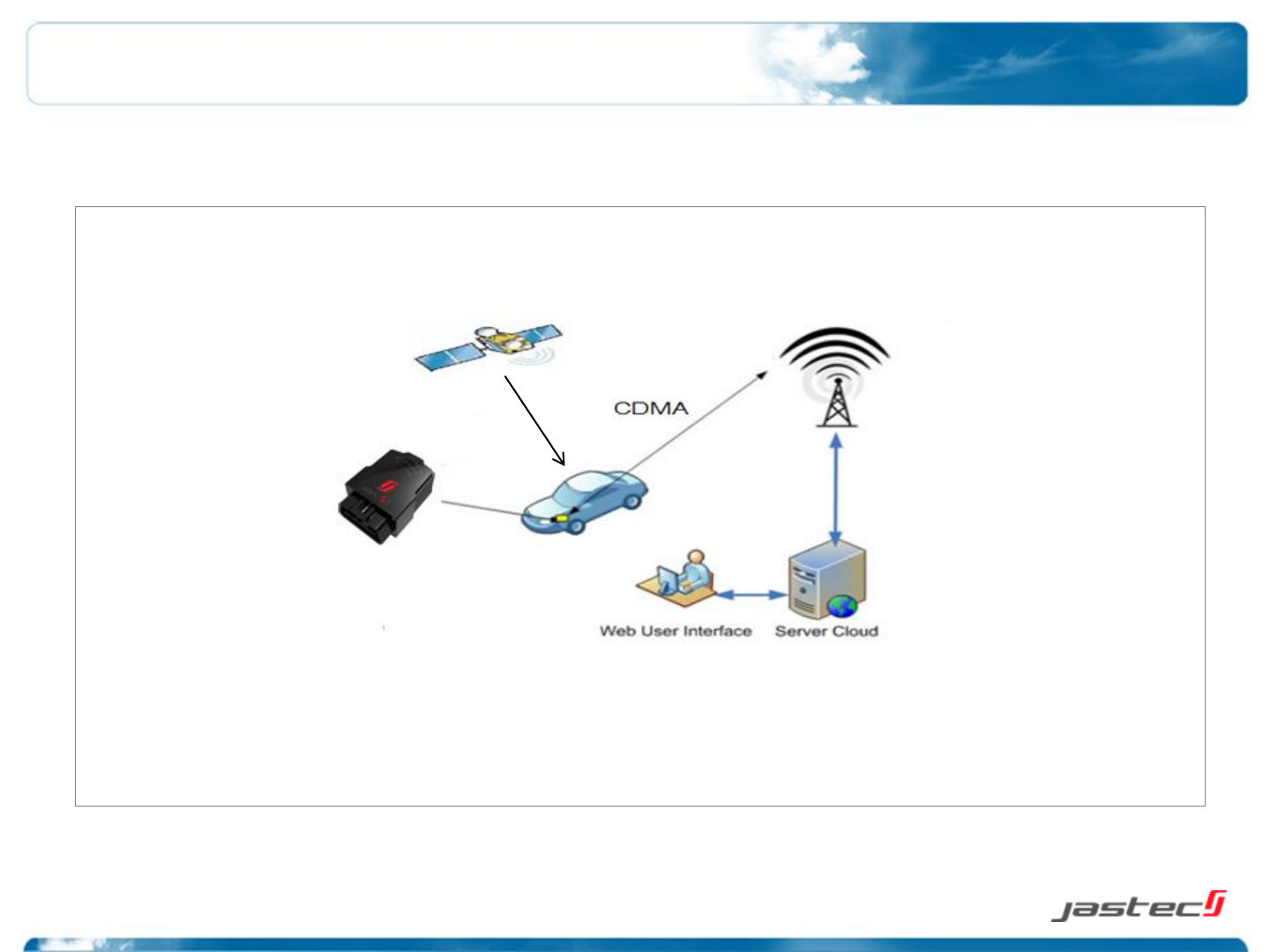

1.1 Overview
von-S2 as vehicle Fleet Management Service System designed to collect a vehicle driving information from ECU(Electronic
Control Unit) By OBD standard protocol communication and can be saved a driving logs by connecting to PC.
Von-S2
GPS
![](/img.php?id=1888642&img=bg5.png)
This confidential information is not supposed to disclosed and misused to the third party
4
1.2 Specifications
1. von-S2 Descriptions
Item Description
CPU Processor
External Memory
In-Vehicle Protocol
Status
Supported Functions
Vehicle Interface
USB Port
CDMA or GSM/GPRS
G-Sensor
GPS
MIC Function
Internal Battery
Operational Voltage
Power Consumption
Dimensions
Weight
Operating Temperature
Storage Temperature
32-bit ARM Cortex-M3(256KB Flash, 64KB SRAM)
4MB Serial Flash Memory
ISO 9141-2, ISO 14230-4(KWP-2000), ISO 15765-4(CAN), SAE J1850(PWM/VPWM)
2-LEDs (Power, CDMA)
SAE J1979 Mode $01~$0A
SAE J1962 Standard OBD-II 16 PIN Connector
USB 2.0 Compatible, VCP(Vitural COM Port) Supported
800/1900 MHz 1xRTT, GSM/GPRS/EDGE 850/900/1800/1900MHz
Bosch 3-Axis 10-Bit Resolution, BMA150
SGPS, AGPS, gpsOneXTRA-tm
Microphone (Emergency Call)
500mAh
DC 8V ~16V or USB 5V Support
TBD
Max. 46mm(W) x 25mm(D) x 66mm(H)
54g
-30 ~ 70℃
-55 ~ 100℃
![](/img.php?id=1888642&img=bg6.png)
This confidential information is not supposed to disclosed and misused to the third party
5
1.3 Functions
Driving logs record
Saving vehicle information.
Collecting and saving driving logs information.
Vehicle identification information / module certification / module serial number information / driving
data starting time and ending time / ignition On and Off time /
Accumulated driving distance / module connection and disconnection time / driving information
transmitting time / acceleration pedal or throttle valve open angle
Driving information security
Encoded saving data to not modify a driving recorded information.
Driving information upload
CDMA 1x transmitter preferred.
Power saving function
Automatically power will be off when ignition off.
Self diagnostic
Supporting self diagnostic function through von-F module operating check (Indicator).
Firmware upgrade support
Supporting firmware upgrade
1. von-S2 Descriptions
![](/img.php?id=1888642&img=bg7.png)
This confidential information is not supposed to disclosed and misused to the third party
6

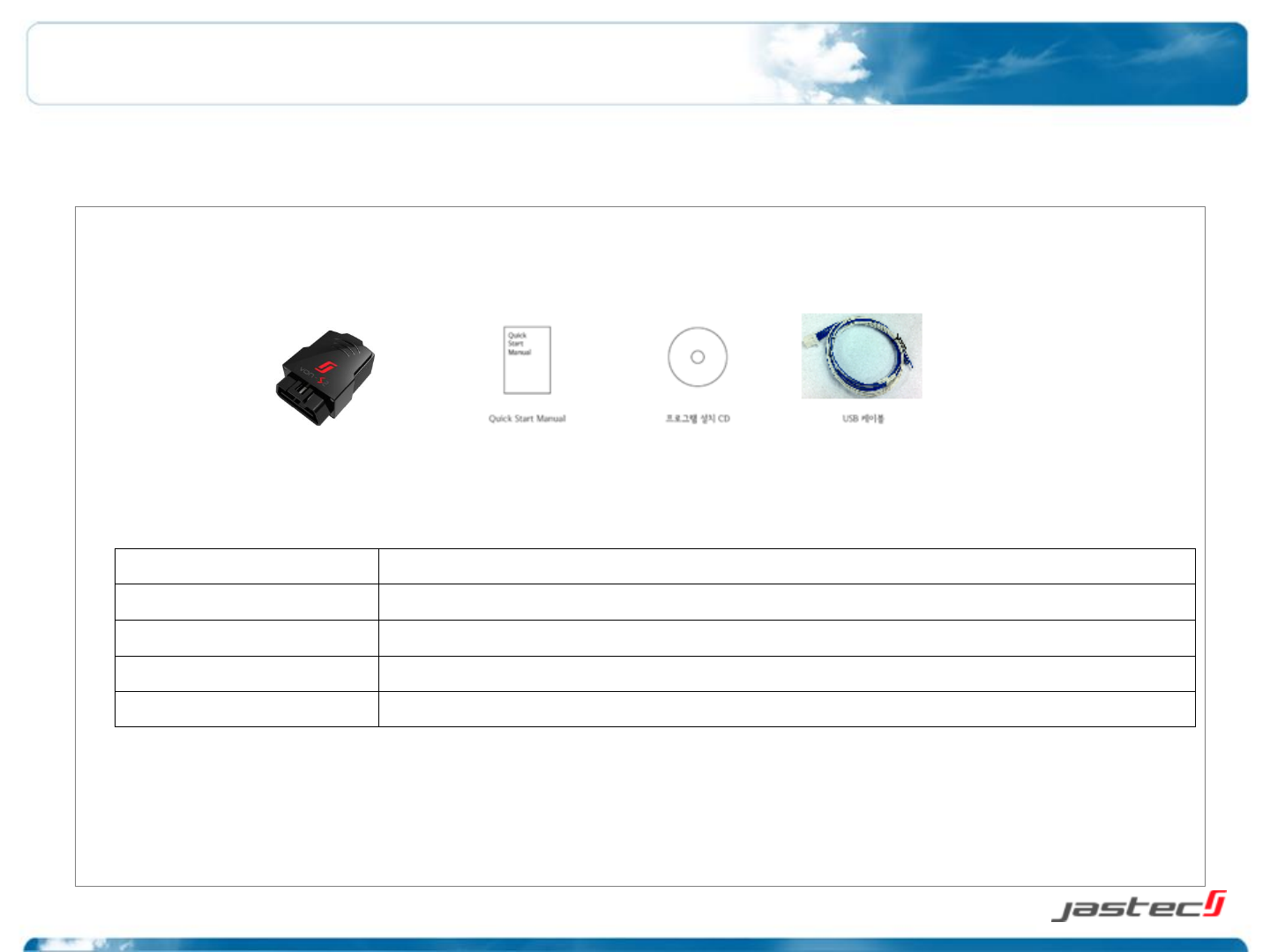

1.4 Composition
Name
Function
von-S2 module
Connection to vehicle OBD diagnostic port.
USB cable
Firmware Update
Quick Start Manual
Quick guide manual
Program installation CD
von-S2 PC Manager installation program
1. von-S2 Descriptions
![](/img.php?id=1888642&img=bg8.png)
This confidential information is not supposed to disclosed and misused to the third party
7

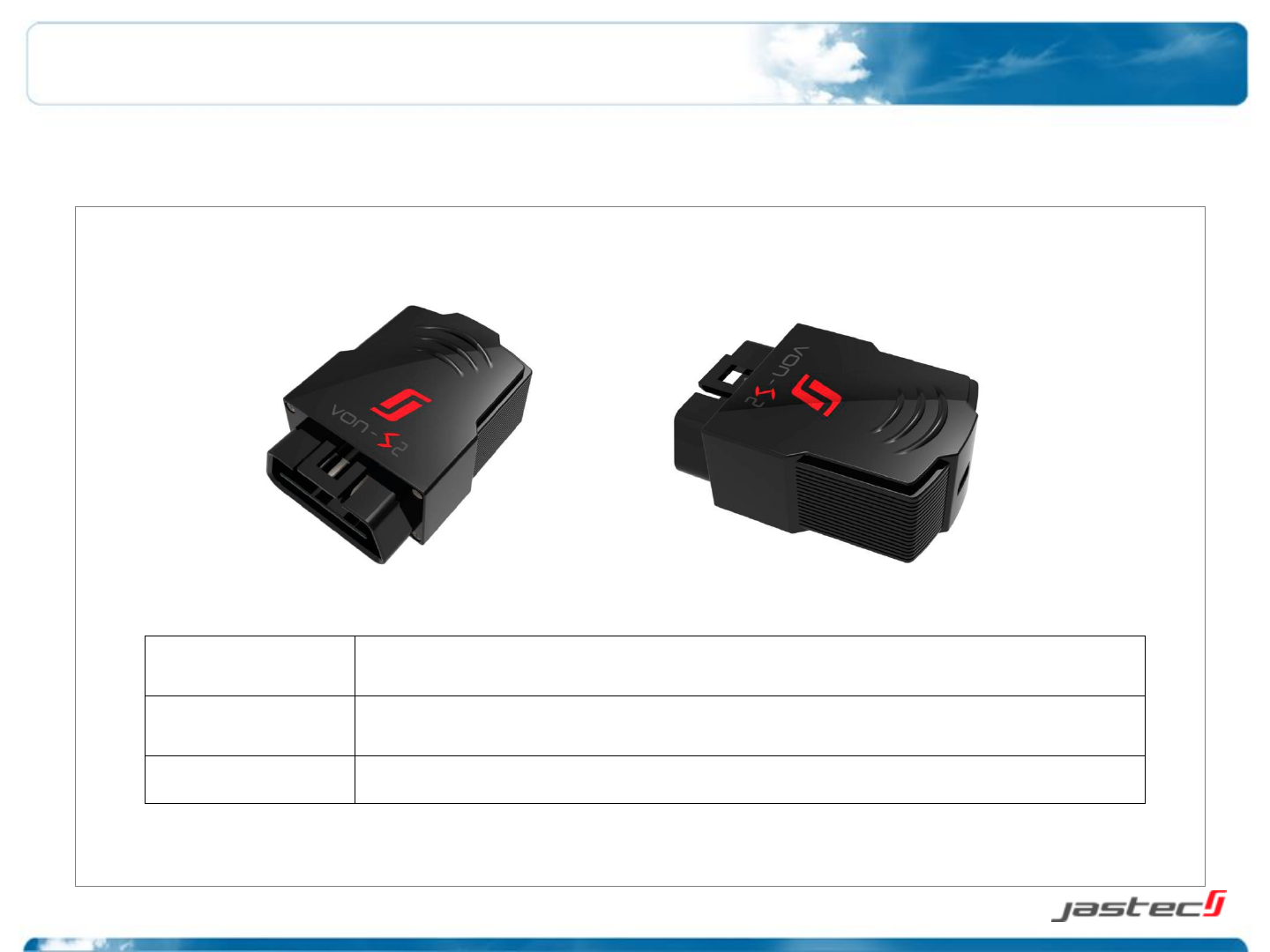

1.5 Body description
display LED
2-Indicator display LED
DLC connector
Connect to vehicle OBD diagnostic port.
USB Connector
F/W Update Connector
1. von-S2 Descriptions
![](/img.php?id=1888642&img=bg9.png)
This confidential information is not supposed to disclosed and misused to the third party
8

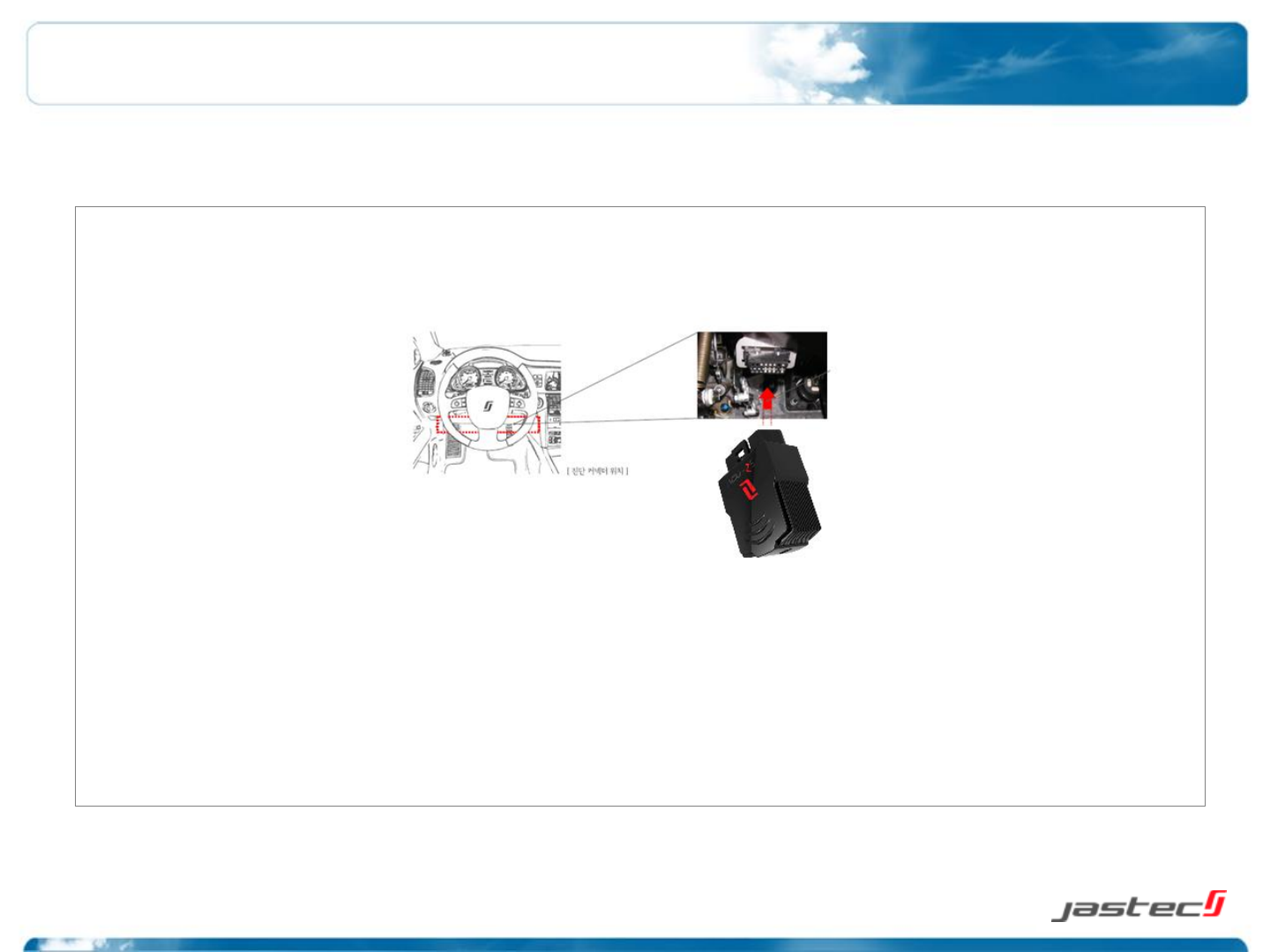

2.1 von-S2 module installation
von-S2 module installation is following below order.
1. von-F module installation requires after vehicle parking in safety area.
** Caution : A side brake or foot brake should be locked and shift also checked on the parking position.
2. Please check vehicle engine should be off when if ignition on
2. Product Instructions
![](/img.php?id=1888642&img=bga.png)
This confidential information is not supposed to disclosed and misused to the third party
9
2.3 von-S2 module separation
** Caution : von-F module separation should be performed at safety area after parking.
** Caution : The separation from vehicle is prohibited if not the purpose of driving data saving or transmitting.
** Caution : Performing von-F module separation on ignition on may be caused to data loss or module damaged.
1. Turn vehicle ignition off.
2. Pull von-F module from vehicle OBD diagnostic Cable then separating it.
2. Product Instructions
![](/img.php?id=1888642&img=bgb.png)
This confidential information is not supposed to disclosed and misused to the third party
10
3.2 Warranty Service
1. Warranty Period : 1 year
2. Warranty Details
1) Any defective or damage within warranty period can be repaired free A/S service or exchanged as free of charge.
2) Any damage or defective by customer’s misuse is not allowed free exchange or free charged A/S service.
3. Exchange and Return
1) An exchange or return is possible within 1 week after purchase if not opening box.
2) A shipping charge against retuning product because of just customer’s changed mind may be paid by customer.
4. Others
1) Warranty period is valid only for 12 months from manufacturing date if not checking a purchasing date.
2) Repair charge will be billed even though it’s warranty period as below.
- Defective by user’s misuse (impact/flooded/fault)
- Dismantle or alteration by user’s intention.
- Defective by natural disaster.
- Repaired not in official After Sales service centre.
3) Please contact to A/S call service centre for repair charges.
A/S call service : (031-719-5170 Extension : 206)
3. Warranty & After Sale Service
![](/img.php?id=1888642&img=bgc.png)
FCC ID : UK4JTCM1000
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications (including the antennas) made to this device that are not expressly approved
by the manufacturer may void the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
** This device must not be installed in cars where the module would be less than 10cm from the legs or body of driver or passenger.
