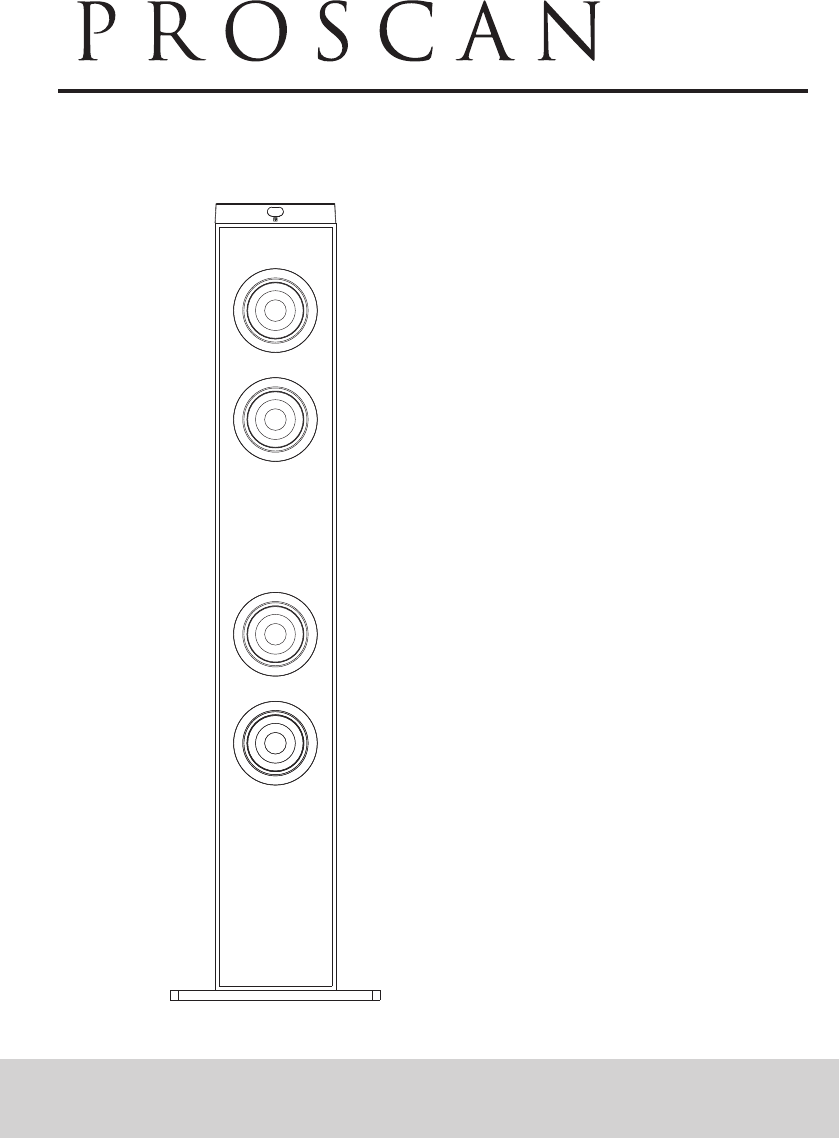

TOWER STEREO SYSTEM
USER MANUAL
Model:PSP288-PL
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
![](/img.php?id=1931187&img=bg2.png)
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the presence of
uninsulated “dangerous voltage” within
the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
DANGER:
Invisible and hazardous laser
radiation when open and interlock
failed or defeated. Avoid direct exposure to
beam.
This symbol indicates that this
product incorporates double
insulation between hazardous
mains voltage and user accessible parts.
• CAUTION: TO PREVENT ELECTRIC
SHOCK, MATCH WIDE BLADE OF PLUG
TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire
or electric shock, do not expose this
apparatus to rain or moisture.
• CAUTION: Use of controls or adjustments
or performance of procedures other than
those specified may result in hazardous
radiation exposure.
• WARNING: Changes or modifications
to this unit not expressly approved by the
party responsible for compliance could
void the user’s authority to operate the
equipment.
• WARNING: Do not place the unit on top
of any soft, porous, or sensitive surfaces
to avoid damaging the surface. Use a
protective barrier between the unit and
surface to protect the surface.
• WA RNI NG: Use of this unit near
fluorescent lighting may cause interference
regarding use of the remote. If the unit
is displaying erratic behavior move away
from any fluorescent lighting, as it may be
the cause.
• CAUTION: Danger of explosion if battery
is incorrectly replaced. Replace only with
the same or equivalent type.
• WARN ING : There is a danger of
explosion if you attempt to charge standard
Alkaline batteries in the unit. Only use
rechargeable NiMH batteries.
• WARNING: Lithium batteries, like all
rechargeable batteries are recyclable
and should be recycled or disposed of in
normal household waste. Contact your
local government for disposal or recycling
practices in your area. They should never
be incinerated since they might explode.
• WARNING: Shock hazard - Do Not Open.
Main plug is used as disconnect device
and it should remain readily operable
during intended use. In order to disconnect
the apparatus from the main completely,
the main plug should be disconnected form
the main socket outlet completely.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNINGS AND PRECAUTIONS
1
![](/img.php?id=1931187&img=bg3.png)
2
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7.Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources
such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding - type plug. A
polarized plug has two blades with one
wider than the other. A grounding type
plug has two blades and a third grounding
prong. The wide blade or the third prong
are provided for your safety. When the
provided plug does not fit into your outlet,
consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being
walked on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with a cart,
stand, tripod, bracket,
or table specified by the
manufacturer, or sold with
the apparatus. When a cart
is used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.
13.Unplug this apparatus during lightning
storms or when unused for long periods of
time.
14. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
Additional Warnings
• The apparatus shall not be exposed to
dripping or splashing and that no objects
filled with liquids, such as vases, shall be
placed on apparatus.
• Main plug is used as disconnect device
and it should remain readily operable
during intended use. In order to disconnect
the apparatus from the main completely,
the main plug should be disconnected from
the main socket outlet completely.
• Battery shall not be exposed to excessive
heat such as sunshine, fire or the like.
• Caution marking is located at the rear or
bottom of the apparatus.
• The marking information is located at the
rear or bottom of apparatus.
FCC Warnings
This device complies with part 15 0f the
FCC Rules. Operation is subject to the
following two conditions: 1) this device
may not cause harmful interference, and 2)
This device must accept any interference
received, including interference that may
cause undesired operation.
Warning: Changes or modifications to this
unit not expressly approved by the party
responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested
and found to comply with the limits for a
Class B digital device, pursuant to Part 15
of the FCC Rules.
IMPORTANT SAFETY INSTRUCTION
![](/img.php?id=1931187&img=bg4.png)
3
When you unpack your new unit, make sure that you have removed all the
accessories and information papers:
-Speaker tower
-User manual
-Remote Control
-1 piece of Stereo audio connection cable with 3.5 stereo plug
-2 pieces of Assembly screws / washers
INSTALLATION
Assemble the wooden base to the main body by the supplied screws and washers
PACKAGE CONTENTS
1. Remote Sensor
2. Tweeters
3. Loud Speakers
4. Base
5. Screws
6. Washers
Note:
1
32
4
5
6
![](/img.php?id=1931187&img=bg5.png)
4
8.
TUNE- button
9.
VOL- button
10. /TUNE+ button
11.
12. STANDBY button
LOCATION AND DESCRIPTION OF CONTROLS
MAIN UNIT
1. USB port
2. SD CARD slot
3. AUX IN jack
4. USB charger
5. SOURCE indicators
6. /
1 2 3 4
5
6
7
8
9
10
11
12
PLAY/PAUSE/FM SCAN button
MODE button
/
7. VOL+ button
ANT
OFF
ON
POWER
13
14
15
13. ACCESSORY bag
14. POWER ON/OFF switch
15. ANTENNA
![](/img.php?id=1931187&img=bg6.png)
5
REMOTE CONTROL
1. STANDBY Button
2. (TUNE -) Button
3. VOL (Volume)+/- Buttons
4. MODE Button
5. (MUTE) Button
6. (TUNE+) Button
7. (Play/Pause) Button
8. STOP Button
9. FM SCAN Button
10. EQ Button
11. Numeric Buttons
MODE
1 2 3
6
98
5
4
7
0SCA N
FM
PRE V NEX T PLAY/PA USE
VOL +VOL
-
1
2
3
4
5
6
7
8
9
10
11
E Q
“1” “2” “3”
The remote control operates on 1pc “CR2025” lithium battery
(included). To power up the remote control, remove the insulation
tab from the back of unit.
Replacing battery for the remote control
1. Push and slide out the battery door.
2. Replace the battery with a new CR2025 button cell with the polarity “+” facing up.
3. Slide the cover back.
Notes on batteries
• Never recharge the batteries, apply heat to them or take them apart.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Do not throw the batteries in fire!
• Attention should be drawn to the environmental aspects of battery disposal.
• If the remote control is not going to be used for a long time, remove the battery
to avoid damage caused by battery leakage corrosion.
• Please respect the environment. Before throwing any batteries away, consult
your distributor who may be able to take them back for specific recycling.
CAUTION:
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
LOCATION AND DESCRIPTION OF CONTROLS
![](/img.php?id=1931187&img=bg7.png)
6
POWER SOURCE
Inert the AC plug into a conveniently located AC outlet having AC 120V~60Hz.
WARNING: This unit has a long AC cord that can easily be tripped on or pulled
on, causing injury. Please make sure it is arranged so it will not drape over a
tabletop, etc. where it can be pulled on by children or tripped over accidentally.
GENERAL OPERATION
2. Press button to turn on or turn off the unit.
3. Press the MODE button repeatedly to select the playback source. The source
Note: If no USB device or CARD was inserted, USB or CARD mode cannot
be selected by MODE button.
4. Press the VOL(Volume)+/- Buttons to adjust volume level.
5. Press the EQ button to set EQ (equalizers) mode as desired.
6 Press the Button on the remote control to turn off the sound. Press it again
to turn it back.
7. If the unit is not used for a long period of time, pull out the plug to turn off the
unit completely.
PLAY RADIO
Press the button to turn on the unit.
1. Press button repeatedly until the FM Indicator turns green.
stations then stored into the memory automatically.
3. After finished FM SCAN, press numeric buttons then wait for approx 3
seconds, you can select 1-20 preset stations. eg: pressing “1”, means preset
station 1. pressing “2” + “0” means preset station 20. Or press to cycle through
To enhance radio reception ability:
FM: Fully unwind the antenna wire. Extend the antenna wire and place it in the
1. Move on the rear of the unit to ON position.
POWER ON/OFF SWITCH
indicator will light green accordingly.
MODE
and listen to the preset stations.
all available
2. Press the FM SCAN button or press and hold button and then the unit will start
to search
LISTENING TO AUXILIARY SOURCE
1. Connect your auxiliary source (e.g. iPod / iPad / MP3 player) to the AUX jack.
2. Press button to turn on the unit.Press the Button repeatedly until
the AUX indicator turns green.
3. Start playback from your auxiliary source.
4. Adjust the volume to desired level.
5. To stop playback, disconnect your auxiliary source from the AUX jack.
MODE
USB charger for iPhone/iPod/iPad
There is a USB charger on the top of the unit to charge iPhone/iPod/iPad.
Note:
This USB charger is for iPod/iPhone/iPad ONLY.
![](/img.php?id=1931187&img=bg8.png)
7
USB OR SD CARD PLAYBACK
You can connect a USB flash drive (not included) to the USB port or a SD card
(not included) to the memory expansion card slot on the unit to play MP3 files.
1. Press button to turn on the unit. Press the Button repeatedly until
the USB Indicator or SD indicator turns green.
2. Press to suspend momentarily the playing track. Press again to resume
playing.
3. Press button to skip forward to next track and to skip backward to
previous track. Press and hold or to search quickly within a track.
4. Using numeric buttons to your desired track. eg: pressing “1”, means track 1.
pressing “2”+“0”+”9 means track 209.
Note:
• Supporting format: MP3 (32kbps-320kbps)
• The total number of MP3 files on the Memory Device should not exceed 999.
• If you can not easily insert the memory card, you may have inserted it incorrectly.
Try to turn over the card and then insert again.
• For playing files on USB flash drive or SD card, you should plug in the
• There are many USB devices in the market. We cannot guarantee to support all
different models. Please try another USB device if your device is not supported.
• Some SD cards may be incompatible.
MODE
Wait for a few seconds, the unit
will play the music files automatically.
USB flash
drive or SD card when the unit is in standby mode. Turn ON the unit and use MODE
button to select USB or SD card mode.
BLUETOOTH PAIRING & LINKING OPERATION
1. Turn off the Bluetooth functionality of other devices that were paired with your unit.
2. Press button to turn on the unit.
3. Press MODE button to select Bluetooth mode. The Bluetooth indicator will
turn green.
4. Turn on Bluetooth functionality on your Bluetooth device. Typically, Bluetooth
controls are found on the device’s tools or settings menu (see your user manual).
Turn on Bluetooth connectivity and make your device “discoverable”.
5. Clean out the paring list on your Bluetooth device.
6. Choose “add a new Bluetooth device” or “setup Bluetooth device” on your device.
It will start to search. Once “PSP288-PL” shows on your device, select it. If your
device prompts you for a pass code, please enter 0000. If the pairing attempt fails
or times out, please start pairing procedure again (see steps 2-6).
7. After your device and the “PSP288-PL” have connected each other, a “Du”
sound can be heard.
Play MUSIC from Bluetooth devices.
Make sure the Bluetooth connection between the unit and the device is active.
1. Press to suspend momentarily the playing track. Press again to resume
playing.
2.Press button to skip forward to next track and to skip backward to
previous track.
![](/img.php?id=1931187&img=bg9.png)
8
TROUBLESHOOTING GUIDE
Symptom Cause Solution
No power AC plug not plugged into
wall outlet.
Plug it to the wall outlet
properly.
No sound
Volume in minimum. Adjust volume to a
desired level.
The connected device is
not in playback mode.
Play the music in the
connected device.
Sound output of the
connected device weak.
(AUX IN & BLUETOOTH
mode)
Adjust volume of connected
device.
Sound
distortion
Volume level too high Reduce the volume level
by press the VOL- button.
Volume level of the
connected device too high.
(AUX IN & BLUETOOTH
mode)
Reduce the volume level of
the connected device.
Bluetooth
reception
failure
Not in the Bluetooth
mode.
Try to do connection
again.
SPECIFICATIONS
Power source: AC 120V~60Hz
Audio Power: 20W(RMS)
Radio Coverage: FM 87.5 -108.0 MHz
Bluetooth working distance: Up to 10 meters measured in open space. (Wall
and structures may affect range of device)
Remote working distance: Up to 5 meters, +/- 30 degree.
Impedance of Speakers:
Loud speakers 8 Ohm, 10W x 2
Tweeters 8 Ohm, 5W x2
