Instruction Manual

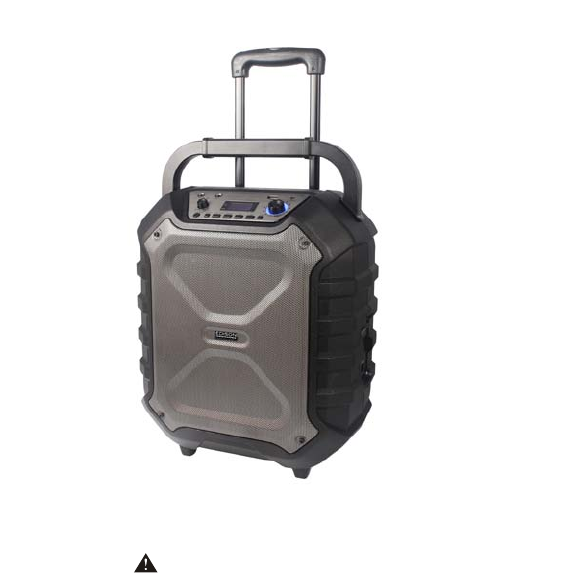

PORTABLE BLUETOOTH MUSIC SPEAKER
Model No.: KP698(本厂型号)
Model No.: EP-3000(本厂型号)
Read this booklet thoroughly before using and save it for future reference
Unit must be fully charged before use
![](/img.php?id=3500126&img=bg2.png)
1
Safety information and Warnings
CAUTION
Symbol Definitions
DANGER- Indicates an imminently hazardous situation, which, if not avoided, will result in
death or serious injury. This symbol appears only in the most extreme situations.
WARNING - Indicates a potentially hazardous situation which could result in death or
serious injury.
CAUTION- Indicates a potentially hazardous situation, which, if not avoided, may result in
minor/moderate injury or product/property/damage. It also warns against unsafe practices
The lightning flash with arrowhead symbol, within an equilateral triangle is intended to
alert the user to the presence of insulated ‘dangerous voltage’ within the product’s
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER (OR BACK), NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
READ ALL INSTRUCTIONS BEFORE USE
Always follow basic safety precautions when using this Bluetooth speaker system,
especially when children are present.
SAFETY INSTRUCTIONS
1) Read this Instruction Manual before you attempt to connect or operate the
appliance.
2) Keep these instructions in good condition. Heed all warnings. Follow all
instructions.
3) Save this Instruction Manual for future reference.
4) The apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the product. Dry location
use only.
5) No naked flame source, such as candles, should be placed on the product.
2
6) Children should be supervised to ensure that they do not play with the
appliance.
7) Ventilation should not be impeded by covering the ventilation openings.
8) Ensure that the unit is plugged into an AC 100-240V 50Hz power outlet. Using
higher voltage may cause the unit to malfunction or even fire catching. Turn
off the unit before unplugging it from power source to completely switch it off.
9) Do not plug/ unplug the power plug into/from an electrical outlet with wet
hands.
10) If the power plug does not fit into your outlet, do not force the plug into an
electrical socket if it does not fit.
11) Use replacement parts, which are specified by the manufacturer.
12) Install the unit in accordance with the manufacturer’s instructions.
13) Place the unit where there is good ventilation. Place the system on a flat, hard
and stable surface. Do not expose to temperatures above 40°C. Allow at least
30 cm clearance from the rear and the top of the unit and 5 cm from each
side.
14) Press the buttons of the unit gently. Pressing them too hard can damage the
unit.
15) Dispose of used batteries in an environmental-responsible manner.
16) Always ensure that the product is unplugged from the electrical outlet before
moving or cleaning. Clean it with dry cloth only.
17) Unplug the product during lightning, storms or when it will not be used for long
periods of time.
18) This product has no user-serviceable parts. Do not attempt to repair this
product yourself. Only qualified service personnel should perform servicing.
Take the product to the electronics repair shop of your choice for inspection
and repair.
19) NEVER let anyone, especially children, push anything into holes, slots or any
other openings in the unit’s casing as this could result in a fatal electric shock.
20) Don’t mount this product on a wall or ceiling.
21) Do not place the unit near TVs, speakers and other objects that generate
strong magnetic fields.
22) Do not leave the unit unattended when it is in use.
NOTE: To disconnect the system completely if it not to be used for a long time,
remove the AC power plug from the wall outlet.
FCC Warnings
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class b digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
may cause harmful interference to radio communications. HOWEVER, there is no
3
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
additional Warnings and Precautions
• CAUTON: To PREVENT ELECTRIC SHOCK, MATCH WIDE NLADE OF PLUG
TO WIDE SLOT, FULLY INSERT.
• mains plug is used as disconnect device and it should remain readily operable
during intended use. In order to disconnect the apparatus from the mains
completely, the mains plug should be disconnected from the mains socket outlet
completely.
• Warning: shock hazard - Do not open.
• Warning: To reduce the risk of fire or electric shock, do not expose this apparatus
to rain, moisture, dripping, or splashing.
• Objects filled with liquids, such as vases, shall not be placed on the apparatus.
• CAUTION: use of controls or adjustments or performance of procedures other
than those specified may result in hazardous radiation exposure.
• Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
• Warning: Do not place this unit directly onto furniture surfaces with any type of soft,
porous, or sensitive finish. As with any rubber compound made with oils, the feet
![](/img.php?id=3500126&img=bg5.png)
4
could cause marks or staining where the feet reside. We recommend using a
protective barrier such as a cloth or a piece of glass between the unit and the
surface to reduce the risk of damage and/or staining.
•Caution: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type.
• Warning: There is a danger of explosion if you attempt to charge standard alkaline
batteries in the unit. only use rechargeable NIMH batteries.
• Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Caution marking is located at the rear or bottom of the apparatus.
• The marking information is located at the rear or bottom of the apparatus.
• Keep new and used batteries away from children. If the battery compartment does
not close securely, stop using the product and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
• Do not mix old and new batteries.
• Completely replace all old batteries with new ones.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc)
batteries.
•Batteries should be recycled or disposed of per state and local guidelines.
• WARNING: This product may contain chemicals known to the state of California to
cause birth defects, or other reproductive harm (California Prop 65). Wash hands
after handling.
• This product meets and complies with all Federal regulations.
Warning: Do NOT INGEST BSTTERY,
Warning: To reduce the risk of electric shock, do not remove cover (or
![](/img.php?id=3500126&img=bg6.png)
5
back). NO user-serviceable parts inside. Refer RISK servicing to qualified service
personnel
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol indicates that this product incorporates double insulation
between hazardous mains voltage and user accessible parts.
This product utilizes a Class 1 laser to read Compact Discs. This laser
Compact Disc Player is equipped with safety switches to avoid exposure when the
CD door is open and the safety interlocks are defeated. Invisible laser radiation is
present when the CD Player’s lid is open and the system’s interlock has failed or
been defeated. It is very important that you avoid direct exposure to the laser beam
at all times. Please do not attempt to defeat or bypass the safety switches.
![](/img.php?id=3500126&img=bg7.png)
6
WARNING:
- Remove batteries if exhausted or if they will not be used for a long period.
- The incorrect use of batteries can cause electrolyte leakage and will corrode the
compartment or cause the batteries to burst. Therefore:
- Do not mix battery types, e.g. alkaline with zinc carbonate.
- When inserting new batteries, replace all batteries at the same time.

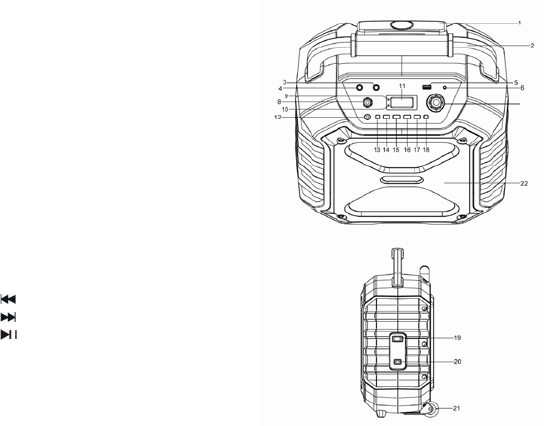

Guide to the Appliance
1. DRAW BAR
2. HANDLE
3. 6.3mm MIC JACK 2
4. 6.3mm MIC JACK 1
5. USB PORT
6.3.5mm AUX IN JACK
7. VOLUME KNOB
8. MIC VOL. KNOB
9. PAIR INDICATOR
10. CHARGE INDICATOR
11. LCD DISPLAY
12. FUNCTION BUTTON
13. P-MODE BUTTON
14. FOLD/10.+ BUTTON
15. EQ/ECHO BUTTON
16. BUTTON
17. BUTTON
18. /PAIR BUTTON
19. POWER ON/OFF SWITCH
20. AC SOCKET
21. WHEELS
22. SPEAKER GRILL
Getting Started
POWER SOURCE
This unit works with rechargeable lead-acid battery (the battery capacity 4500mAh).
Fully charge the unit (around 7 hours) before using the product for the first time. The
playback time has about 3 hours after full charging. Unplug the AC Power cord from
the AC socket to work on the battery pack after fully charged. Plugging the AC
Power cord while the battery pack is attached initiates the charging of this battery,
the charge LED indicator lights red during charging, when the battery is fully
charged the indicator will turn to green. When the unit is with low battery, the LED
indicator will flash in red.
Warning: Do not change the battery, only high-qualified personnel can perform this
operation.
![](/img.php?id=3500126&img=bg8.png)
5
OPERATION INSTRACTION
BASIC FUNCTION
TURNING THE UNIT ON/OFF
Press the power ON/OFF switch to turn the unit on/off.
SETTING THE FUNCTION MODE
To change the function modes, press the FUNCTION button repeatedly to choose
USB/BLUETOOTH/AUX function.
ADJUSTING THE VOLUME
1. Rotate the VOLUME knob on the unit to increase or decrease the music volume.
2. Rotate the MIC VOL. knob on the unit to increase or decrease the microphone
volume.
EQUALIZER (EQ) FUNCTION
This unit has a built-in equalizer system, press the EQ/ECHO button on unit to
select a setting that best matches the music style: FLAT, POP, CLASSIC, JAZZ,
ROCK and Bass.
MICROPHONE ECHO ADJUSTMENT
Press and hold the EQ/ECHO button on unit turn on or off the microphone echo
effect (only work after connect the microphone).
USB OPERATION
1. Press the FUNCTION button on unit to select USB mode.
2. Plug the USB memory stick to the USB port on top of the unit. Playback will start
automatically from Track 1.
3. To pause playback, press the /PAIR button on unit. The playing time will flash
on the display.
4. To resume playback, press the /PAIR button again.
5. To select a desired track, press the or button respectively during playing
until the desired track appears on the display.
6. To search for a particular passage during playback, press and hold the or
button to scan the current playing track at high speed until desired point (passage)
appears, then release the button for normal playback mode.
7. To select a song which track number exceeds 10, press the FOLD/10.+ BUTTON
each time to skip forward/backward 10 tracks, then press the or button
to select desired track.
8. To select a desired folder (if the USB contains more than one folder), press and
hold the FOLD/10.+ button each time to skip forward/backward a folder, then
press the or button to select desired track.
Important: The USB port is intended for data transfer only, other devices
can not be used with this USB connection. The use of USB extension cords is
not recommended. Don’t plug the USB from the unit when playing or reading
![](/img.php?id=3500126&img=bg9.png)
6
the USB device.
REPEAT PLAY
You can play one track or all tracks on the USB repeatedly.
To repeat a single track
1. Press P-MODE button on unit during play, the display will show “ ” and the
current track will be played over an over again.
2. To cancel repeat play, press P-MODE button on unit until “ ” disappears from
the display.
To repeat all the tracks
1. Press P-MODE button on unit until the “ ” shows steadily on the display, all
tracks on the USB will be played over and over again.
2. To cancel repeat play, press the P-MODE button on unit until “ ” disappears
from the display.
To repeat a folder (only for USB which contains more than one folder)
1. Press the P-MODE button on unit until “ FOLDER” shows steadily on the
display, the current folder will be repeated over and over again.
2. To cancel repeat play, press the P-MODE button on unit until “ FOLDER”
disappears from the display.
RANDOM PLAY
Press the P-MODE button on unit in play mode till the “RAND” shows steadily on
the display, the random play will start from next track automatically. Press the
P-MODE button on unit again until the “RAND” disappears from the display to
cancel.
BLUETOOTH OPERATION
1. Press the FUNCTION button on unit to switch to BLUETOOTH function, the LCD
will display “bt” and the pair indicator will flash at high speed.
2. Turn on the Bluetooth function on the device, scan the unit “KP698BT” and
connect, then input the password 0000 if required, the pair indicator keep light up
to indicate connection done, and the display will show “bt”. Press Play to start
playback.
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device
to increase or decrease the music volume to your desired level.
4. Press and hold the /PAIR button to disconnect Bluetooth.
Note: The Bluetooth works best within 10 meters in open air.
AUX-IN OPERATION
1. Press the FUNCTION button on unit to select the “AUX” mode.
2. Connect your audio device to the AUX IN jack on the top panel of the unit with an
AUX IN cable.(audio cable is not included)
3. Rotate the VOLUME knob on the unit or adjust the volume on the external device
to increase or decrease the music volume to your desired level.
4. Control the playback with your audio device.
7
MIC JACK OPERATION
Microphone input is available in all modes.
1. Connect your microphone to the 6.3mm MIC JACK found on the side panel of
the unit.
2. Rotate the MIC VOL. knob on the unit to increase or decrease the microphone
volume.
3. Press and hold the EQ/ECHO button to turn on or off the echo effect of the
microphone when it’s connected.
Technical Specifications
GENERAL
Power Requirements ……………………………………………… AC100-240V~60/50Hz
Power consumption ……………………………………………… 36W
Power output ……………………………………………… ……… 50W
AUX in jack……………………………………………… …………3.5mm
2 x Microphone jack……………………………………………… 6.3mm
Work temperature………………………………………………… 5°C - +40°C
Bluetooth
Communication system Bluetooth Standard Version 2.1+EDR
Reception Range 10 meter (line-of-sight distance)
Compatible Bluetooth profiles Advanced Audio Distribution Profile (A2DP)
ACCESSORIES
Instruction Manual x 1pc
AC Cord x 1pc
Note: Specifications are subject to change for continuous improvement without
prior notice.
