User Manual
![](/img.php?id=2567113&img=bg1.png)
TABLET PC1015 USER MANUAL
(English)
Content
1. Preface
2. Safety Notices
3. Ready to Use
3.1 Packing List
3.2 Product Appearance
3.3 Instructions on Keys
3.4 Features Overview
4. Quick guides
4.1 Switch on/off
4.2 Battery management and charging
4.3 Operation of the Function Icons
5. Operation details
5.1.1 Music
5.1.2 Video
5.1.3 Picture
5.1.4 Sound Recorder
5.1.5 File Manager
5.1.6 IE browser
![](/img.php?id=2567113&img=bg2.png)

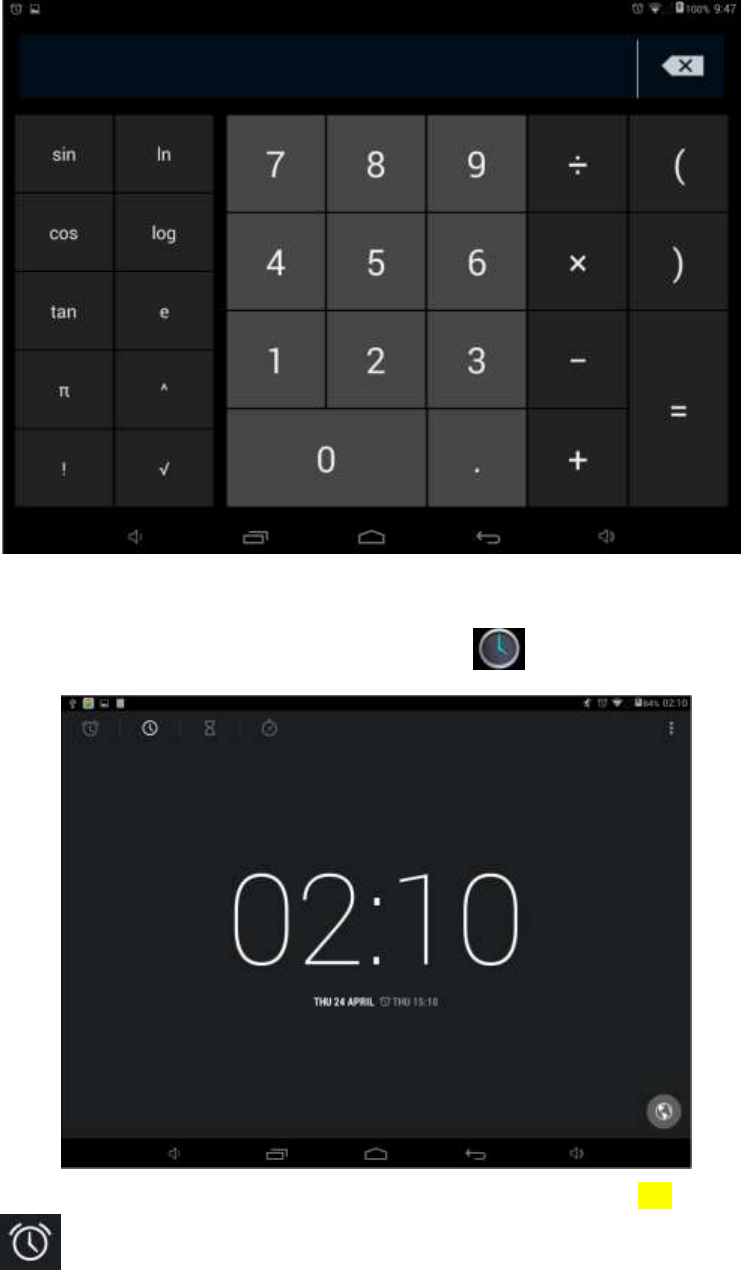

5.1.7 Calculator
5.1.8 Clock
5.1.9 Camera
5.2.0 TF (Micro SD) Card Storage
5.2.2 External Mouse and Keyboard
6. System setting

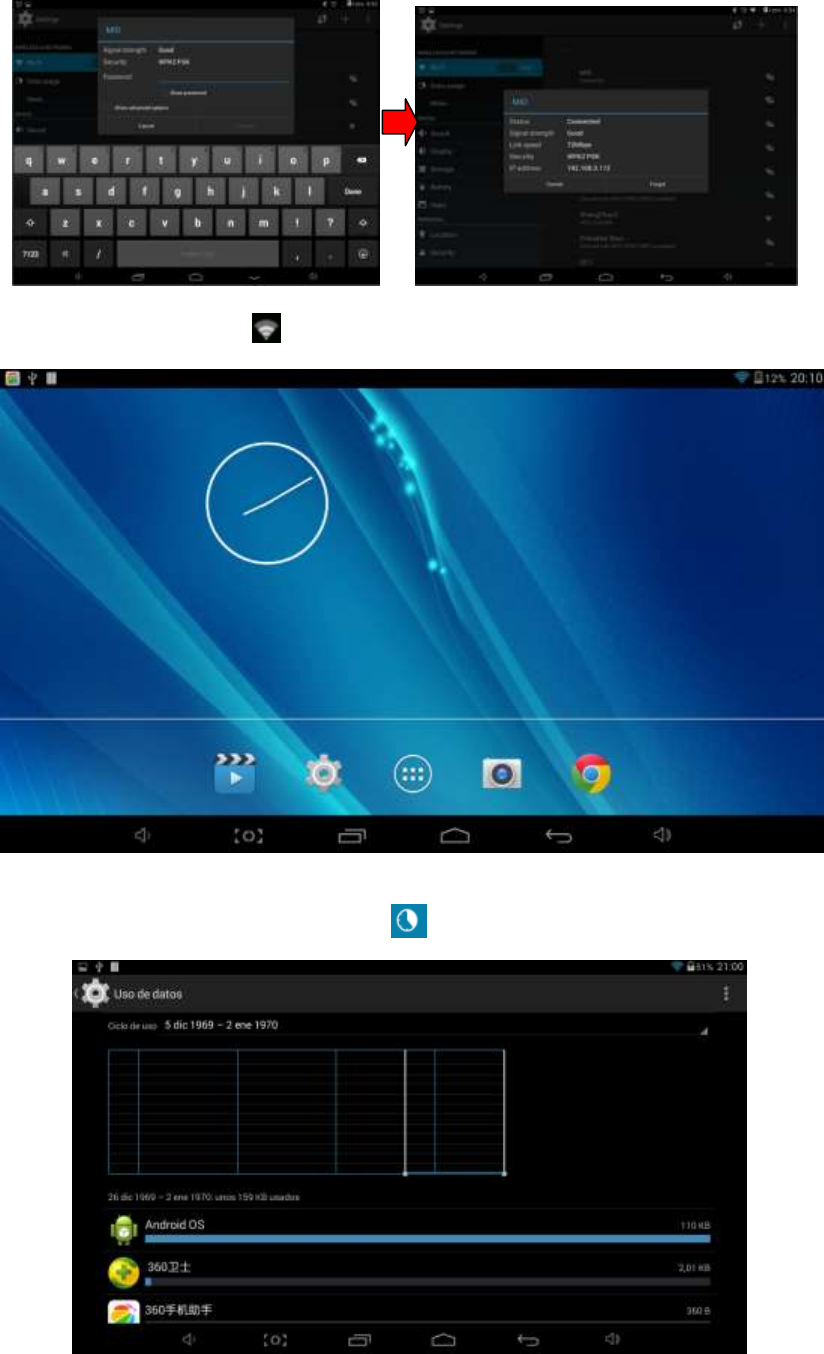

6.1.1 Wi-Fi Setting

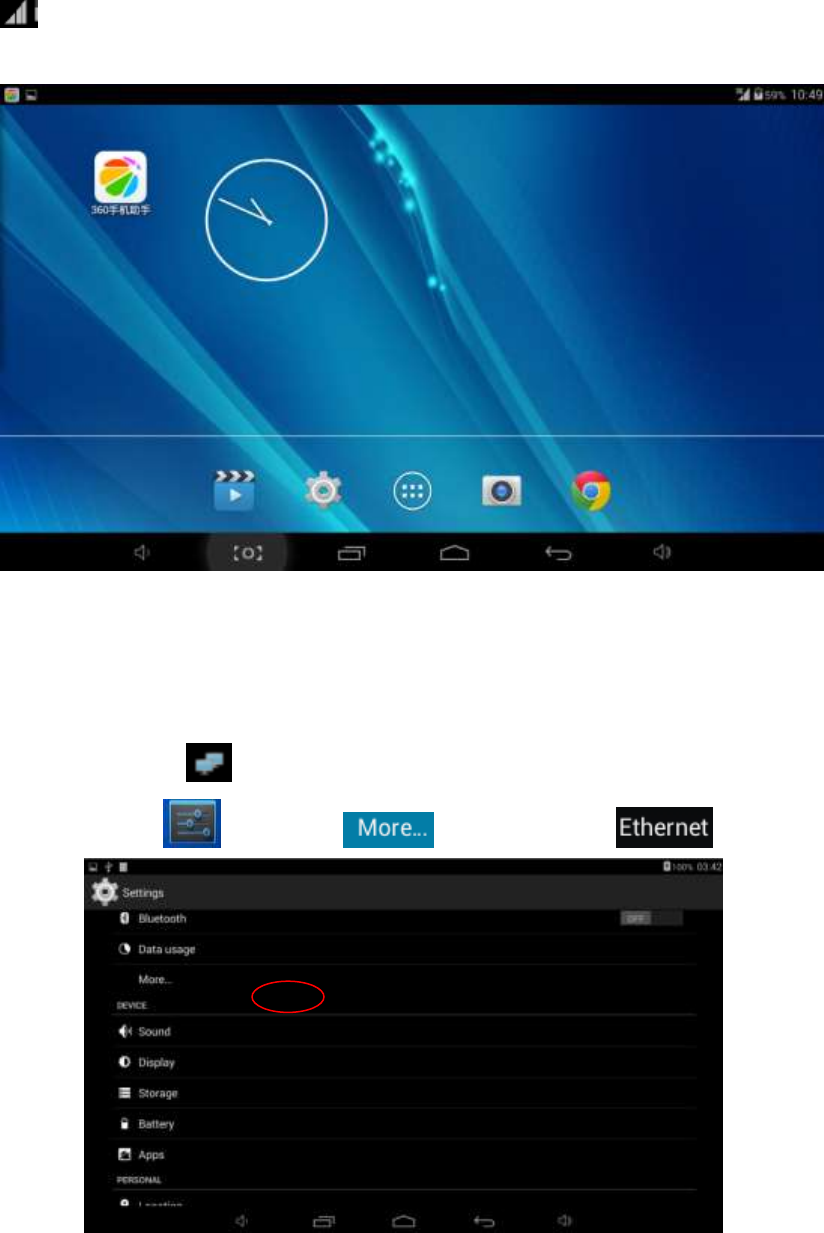

6.1.2 External 3G USB Dongle function
6.1.3 External RJ45 USB Dongle function
6.1.4 Sound
6.1.5 Display wallpaper Settings

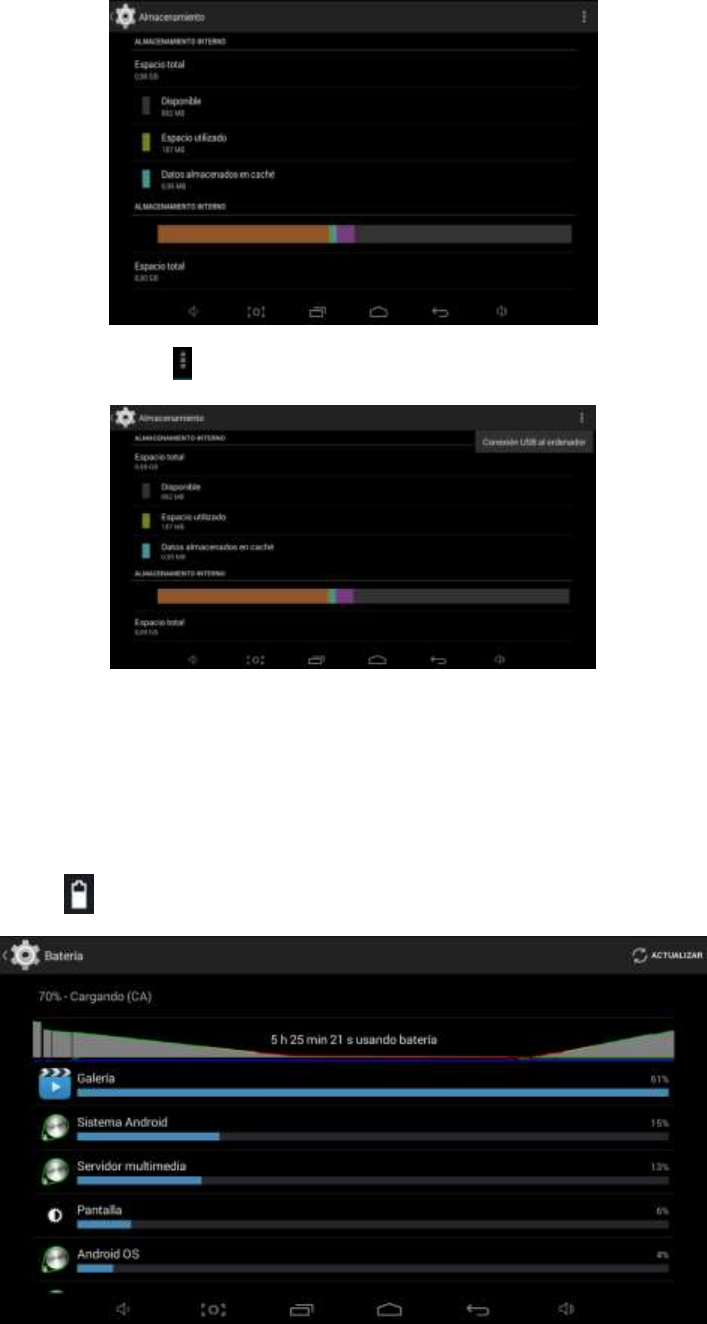

6.1.6 Storage
6.1.7Battery
6.1.8Apps

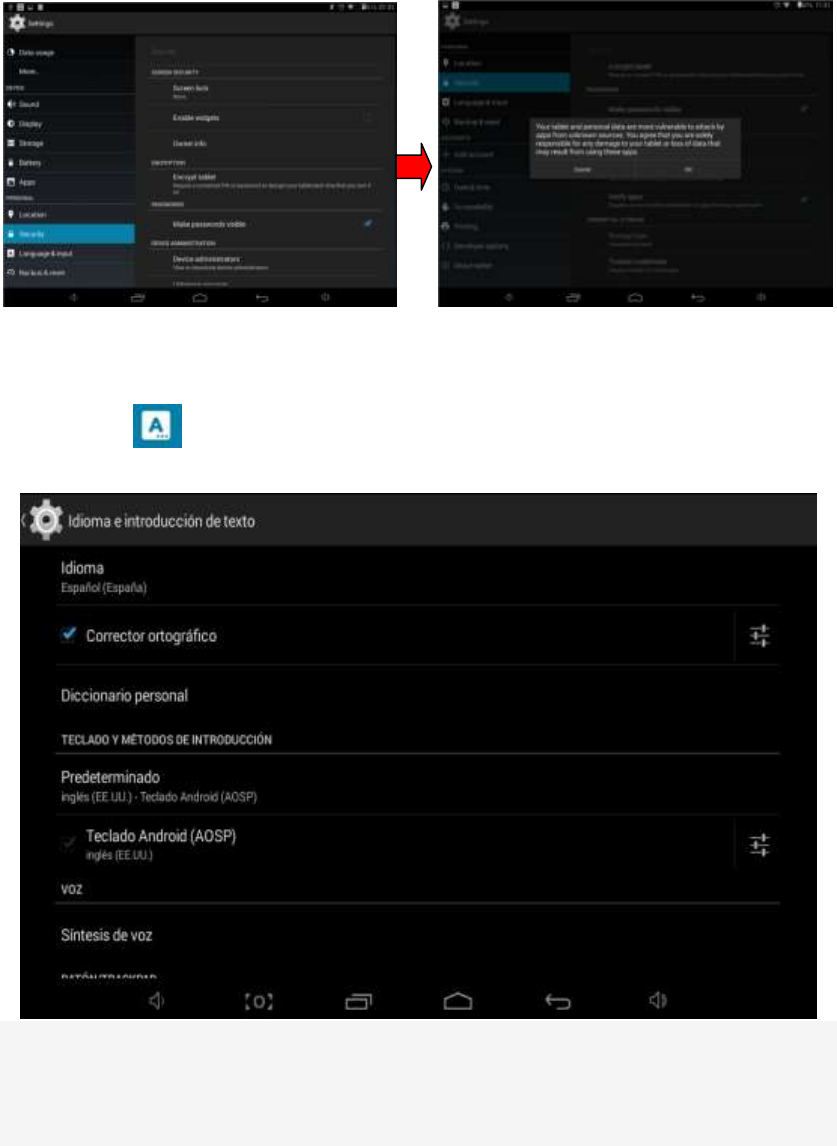

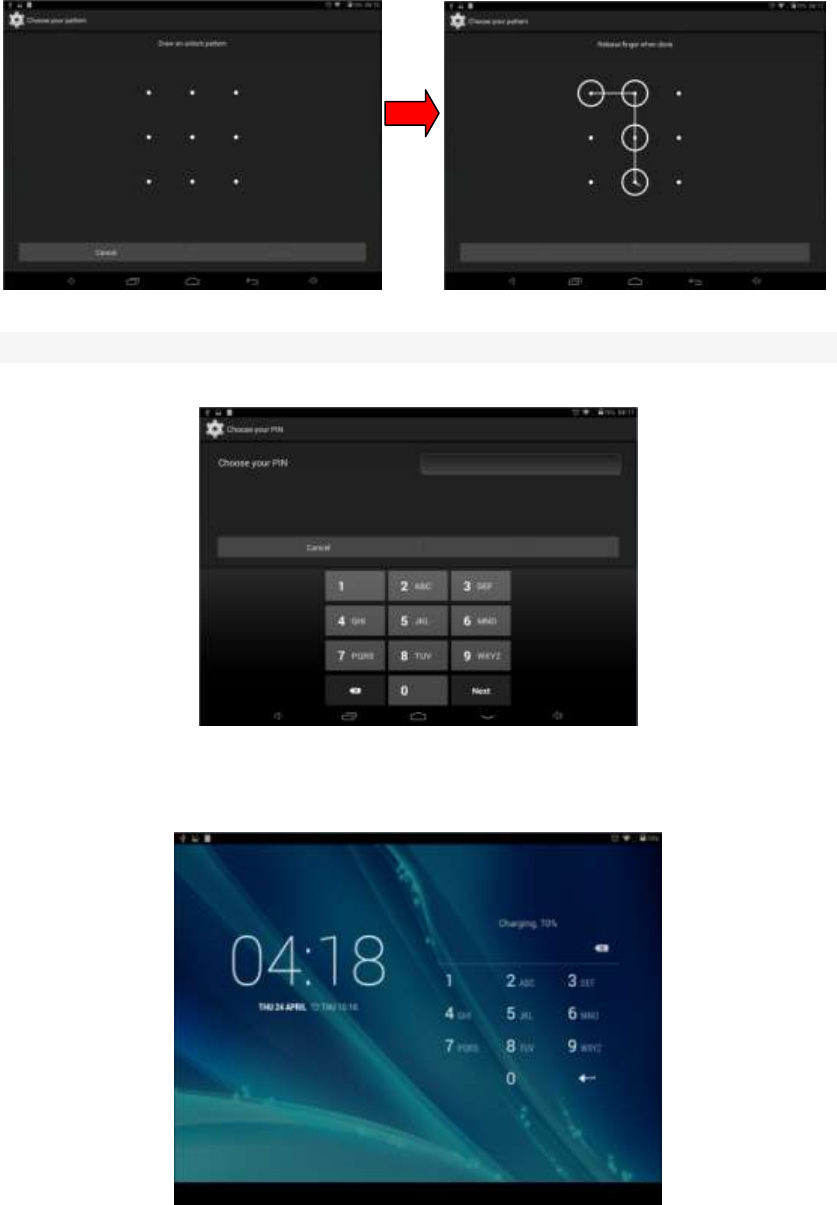

6.1.9Location & security services

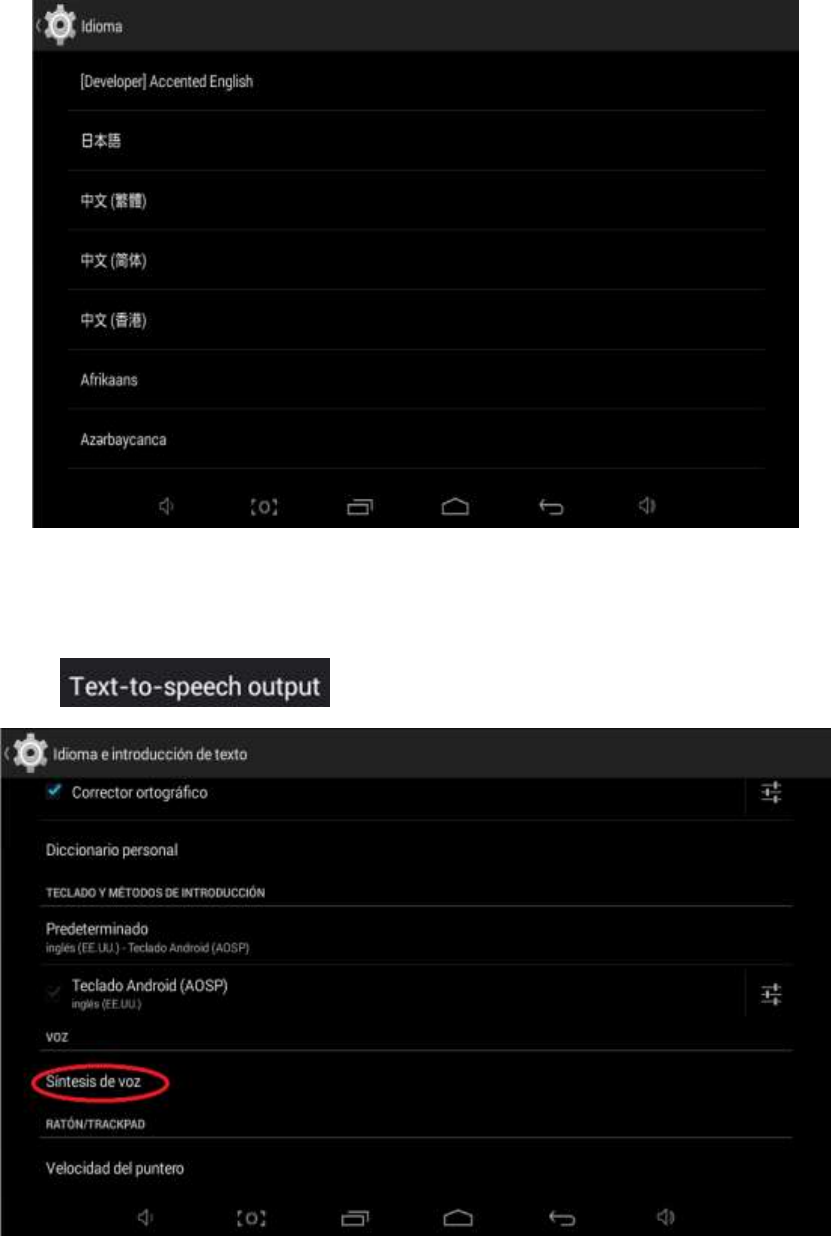

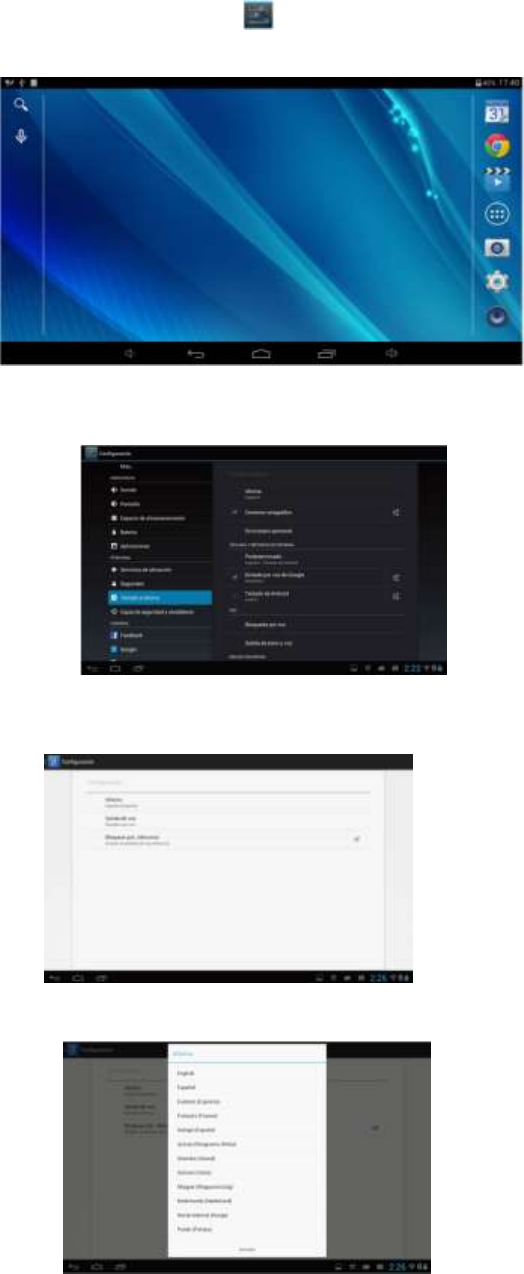

6.2.0Language & input
6.2.1Backup & reset

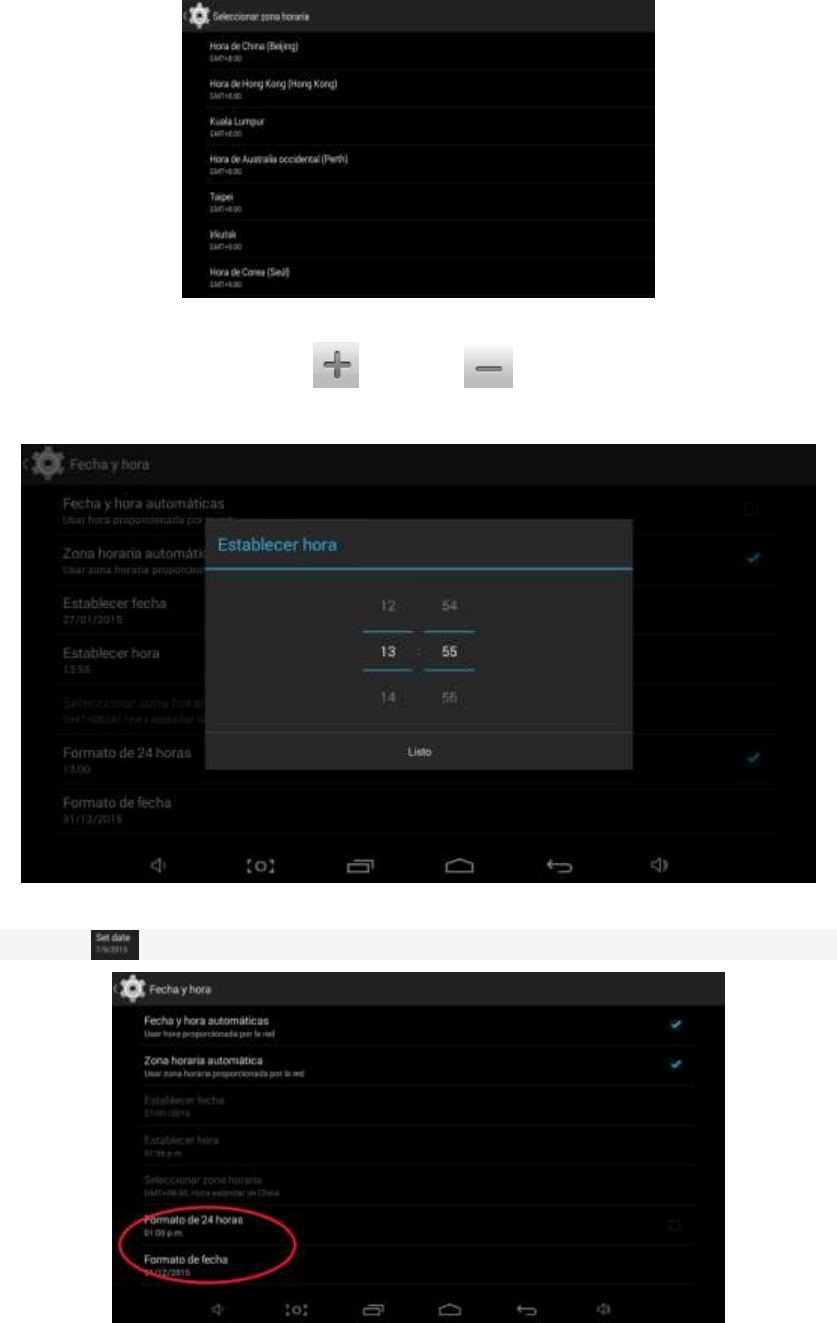

6.2.2 Date & time

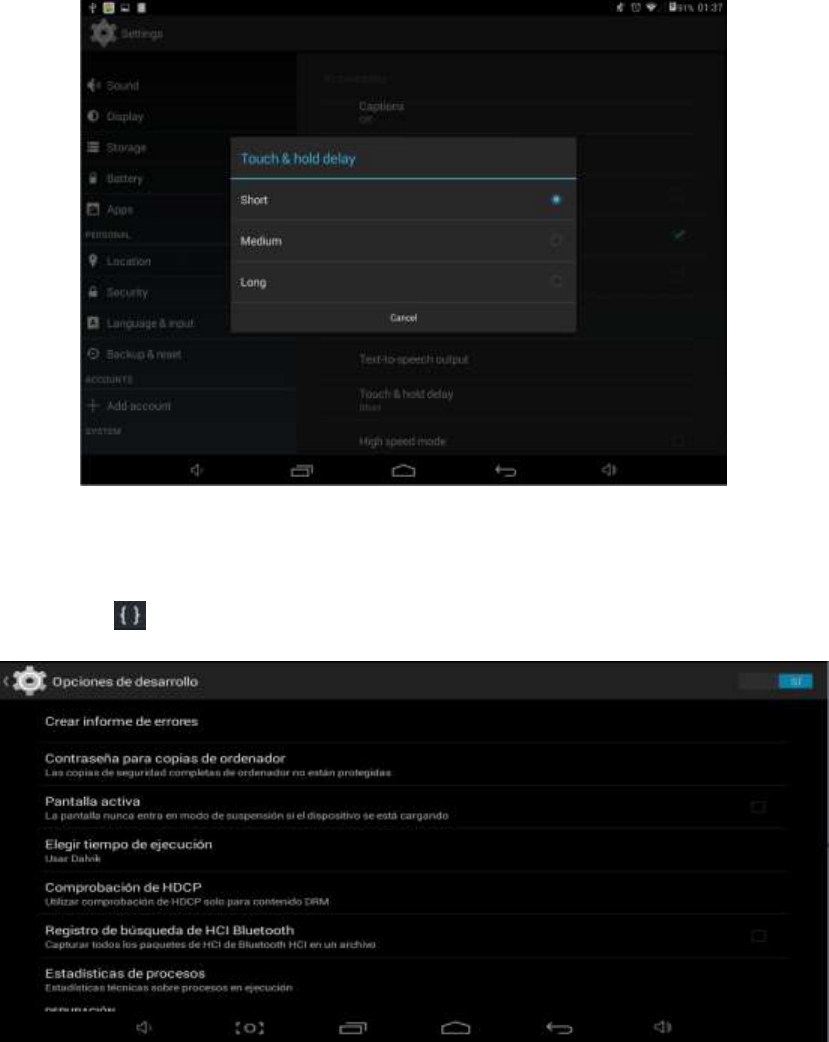

6.2.3 Accessibility
6.2.4 Developer options

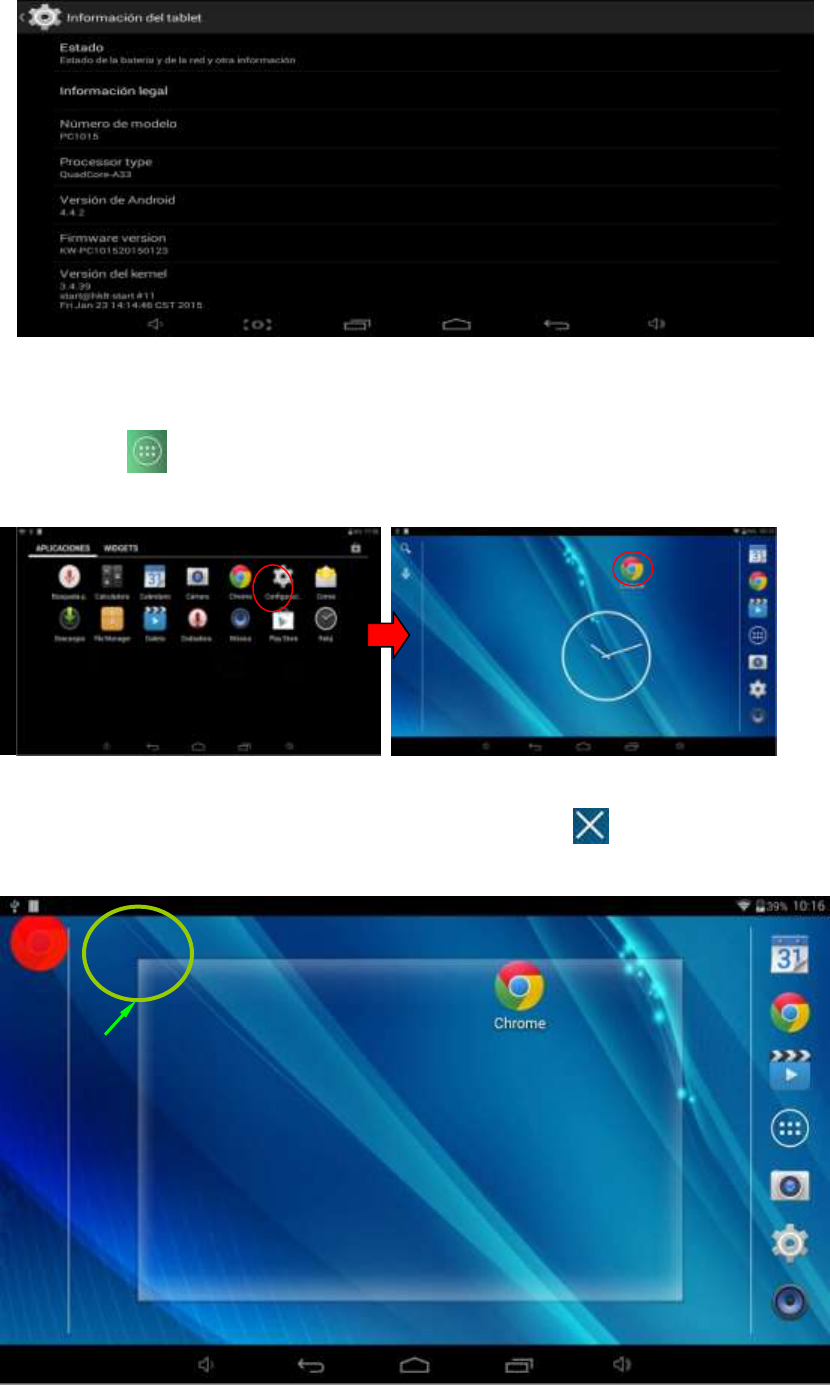

6.2.5 about Tablet
6.3 Add, Move or Delete Desktop Icon

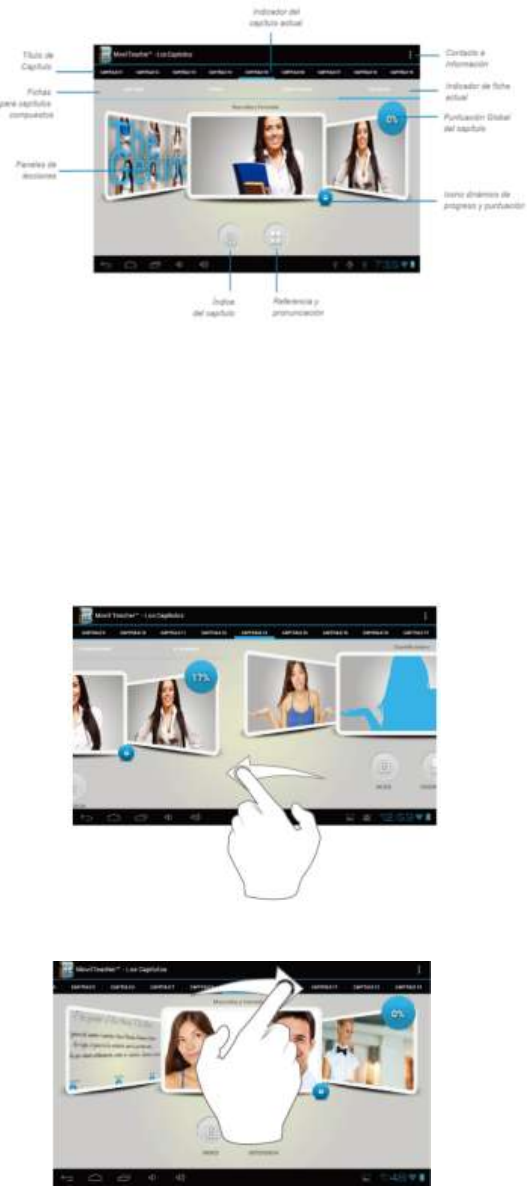

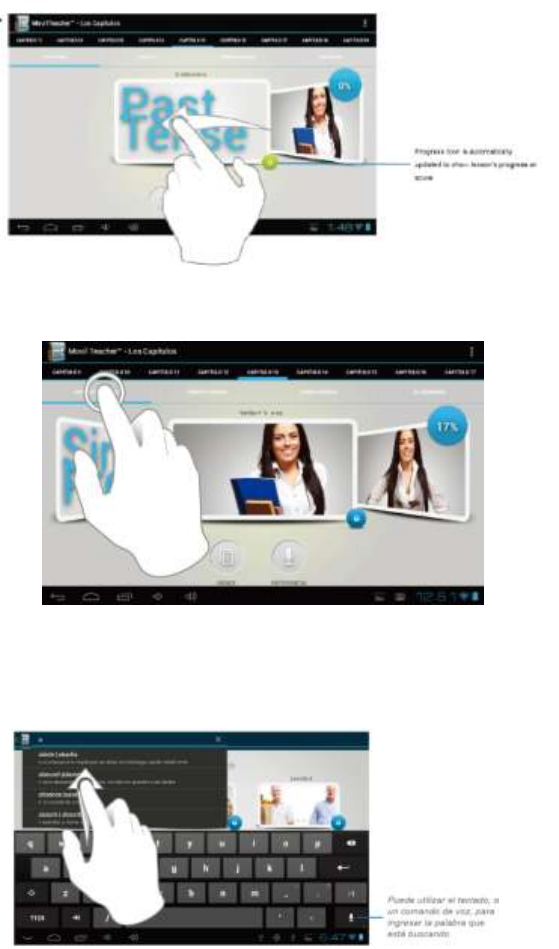

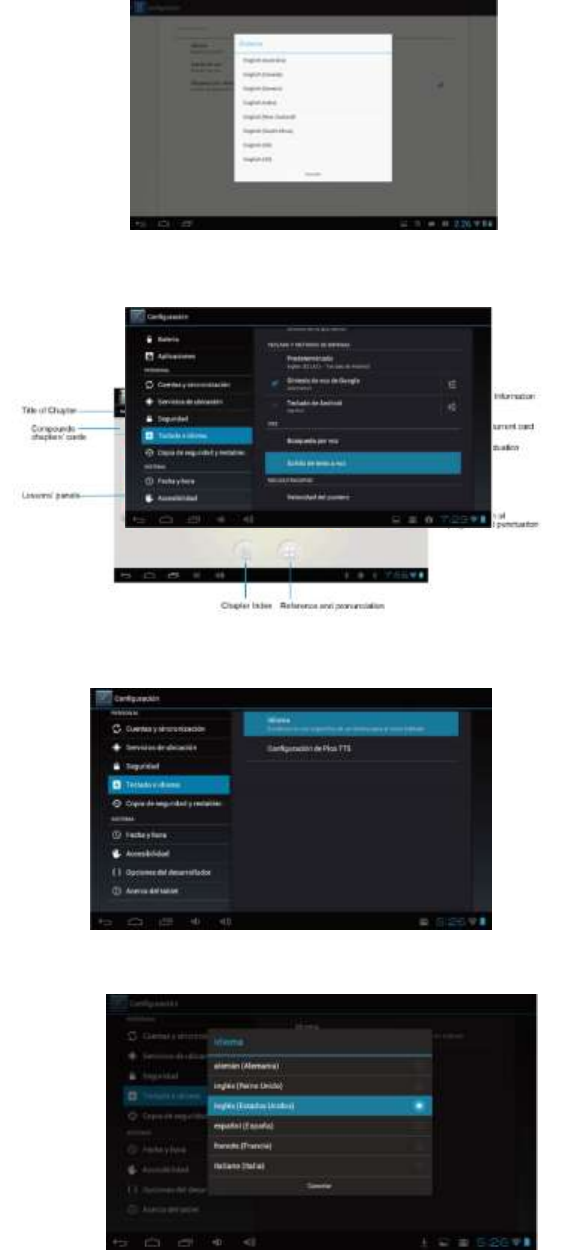

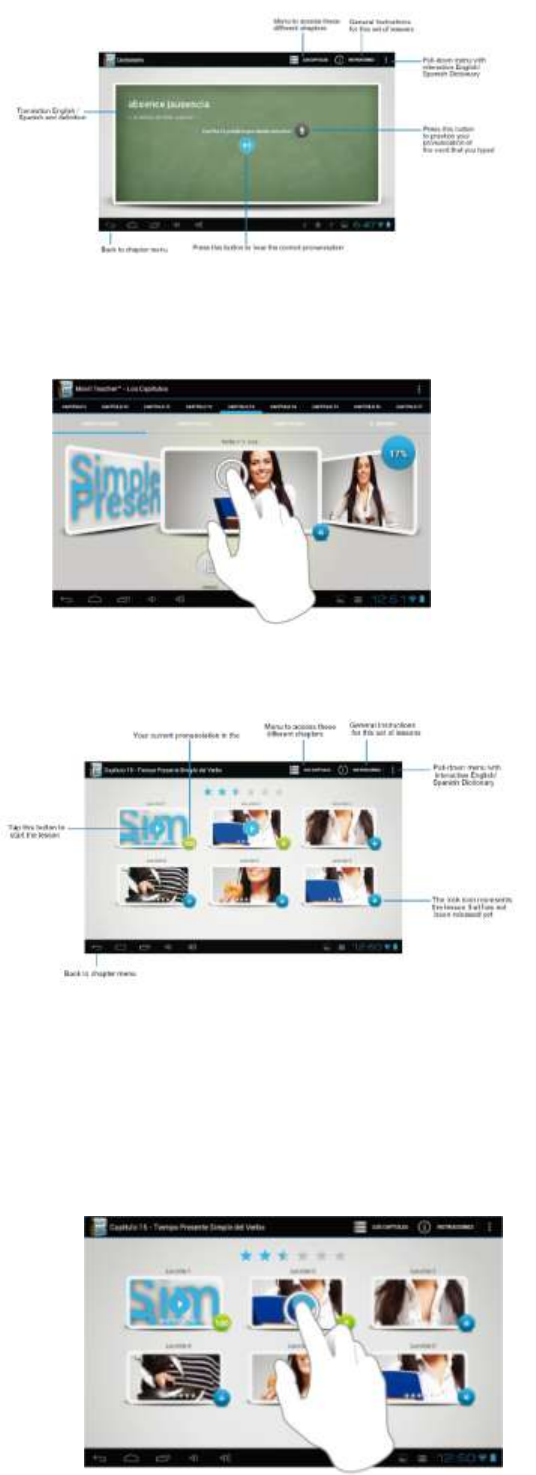

7. Movil Teacher (Optional)

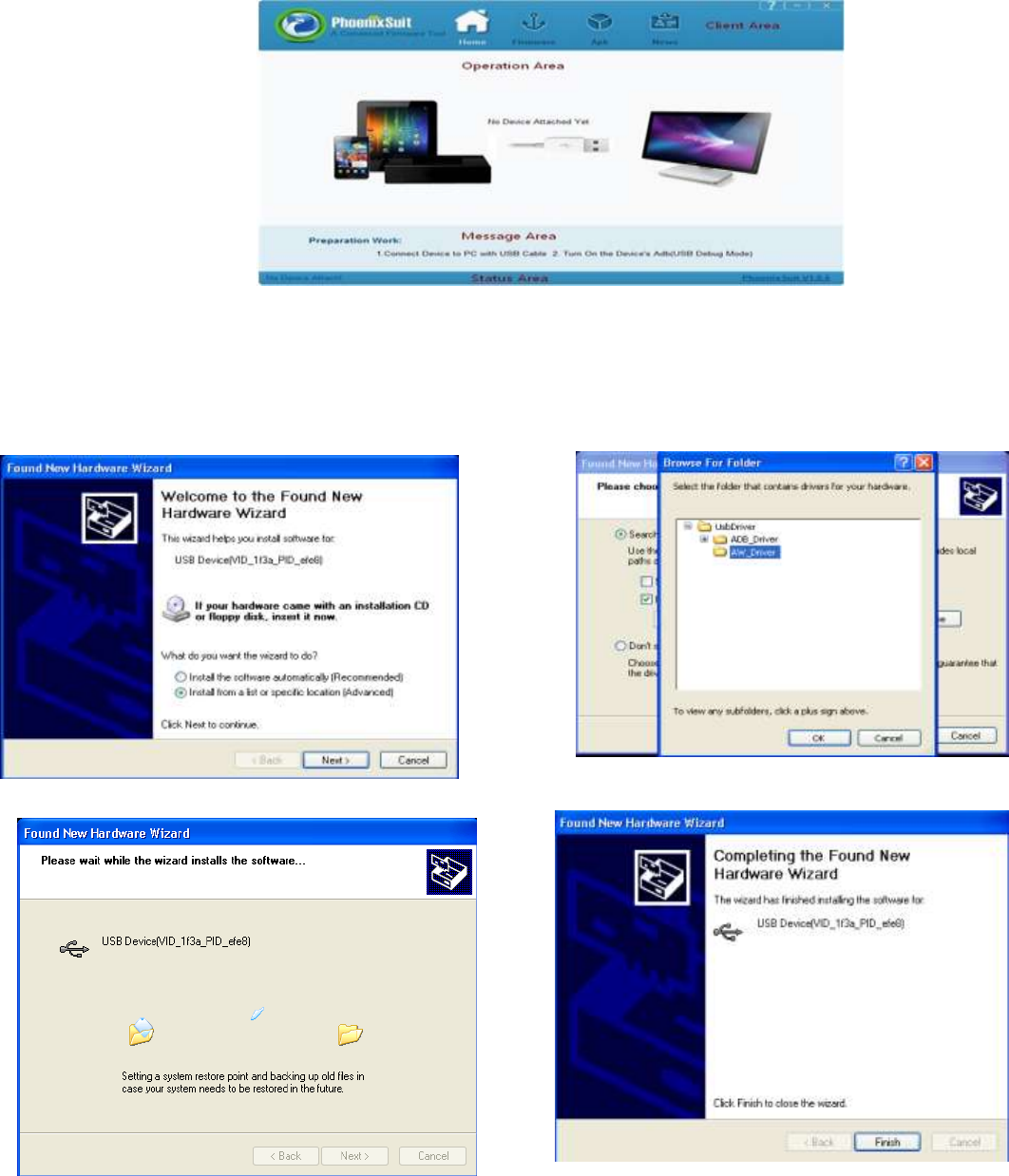

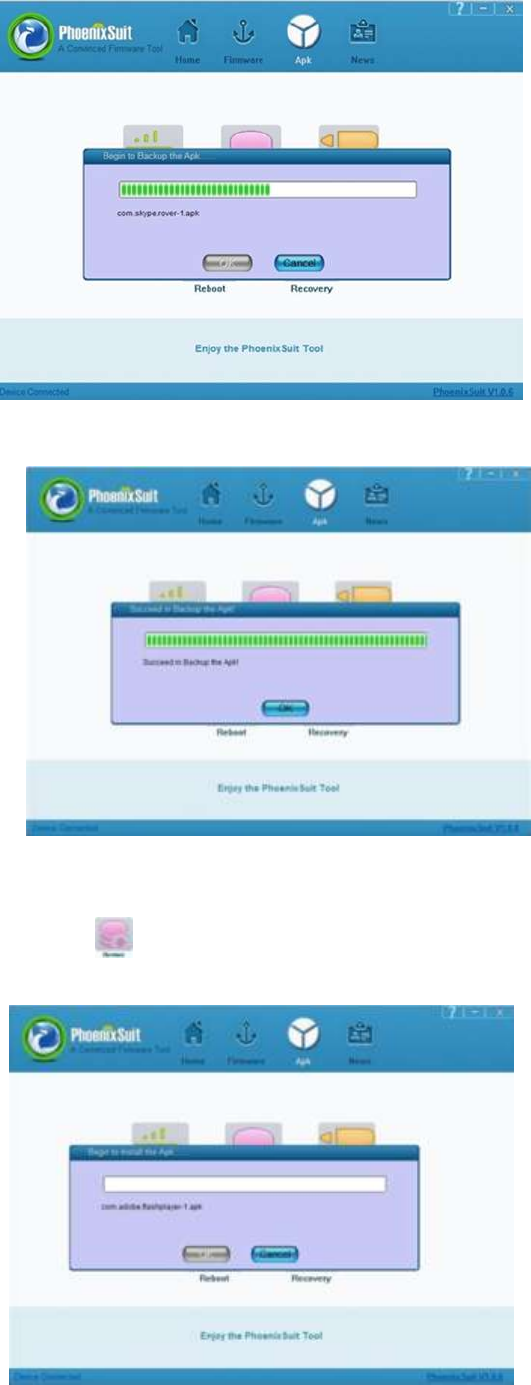

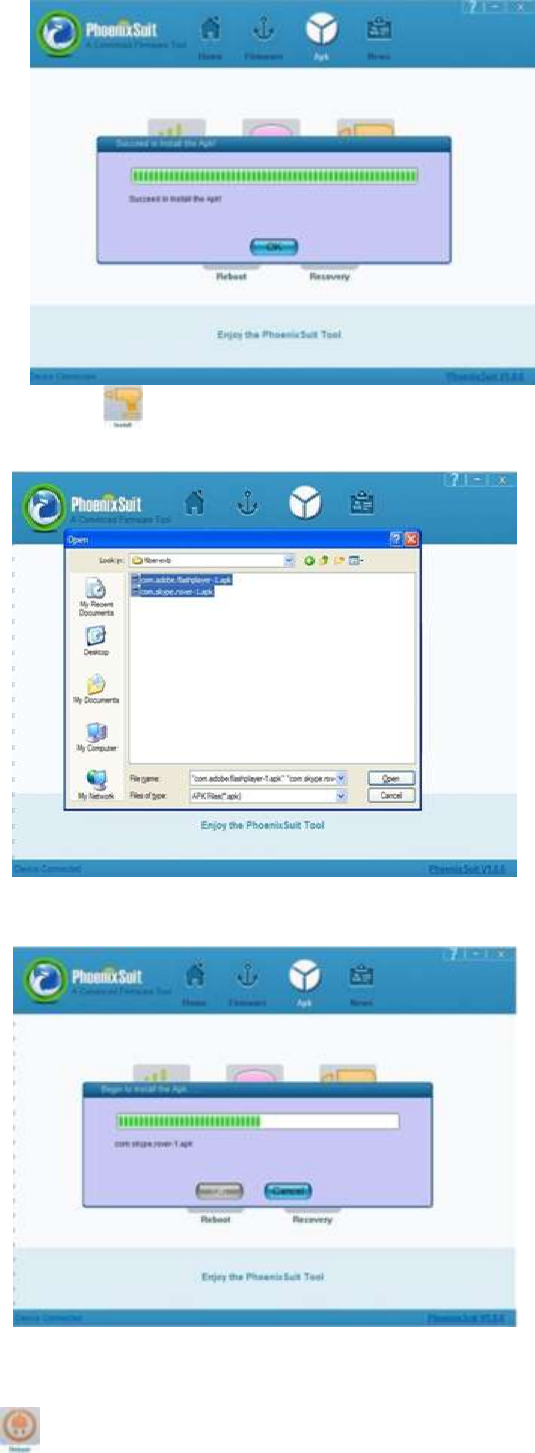

8. Firmware upgrade
9. Troubleshooting and FAQ
1. Preface
Dear Customers,
Thanks very much for purchasing our product!
This Tablet PC is a built-in high performance Wi-Fi receiver module, supporting an
external 3G USB-DONGLE wireless network card, using broadband wireless networks,
breaking through the restraint of network cables; it will bring you into the portable media
player world and fulfill your entertainment needs. It also supports picture browsing, e-book
reading, games, online chat and other functions; various settings will fully show your
individuality.
To operate this player easily, first, please read this User Manual included with the player.
Then you will have a better understanding of the operations. Before operating this player,
please carefully read all data we provide about the player, so that you will have a better
understanding of the product and its operations.
The Company will not be responsible for any loss of personal data and damage caused by
incorrect operation of the Software/Hardware, artificial damages, replacement of batteries
or any other accident. To avoid loss of your data, please backup your data to your
computer at all times.
Also, since we cannot control any dispute from users’ misunderstanding or incorrect
operation against the manual, the Company will not take any relevant responsibility for
any accidental loss potentially occurring in the process of using this manual.
Due to constant product development, the information in this manual is subject to change
without any prior notice.
This manual is protected by copyright and no part is permitted to be copied or reproduced
in any way without prior written permission of the Company.
The Company reserves the final explanation right of this manual, warranty as well as its
related information.
(Note: When compiling this manual, we are very careful to provide you completely reliable
information. However, there is inevitably some error and oversight, please understand,
and we welcome your suggestions. If any problem occurs during your use of this product,
please immediately contact your local seller)
Thanks for your support and please pay attention to our other products.
2. Safety Notices
1) Please keep the Tablet PC away from strong magnetic fields in order to avoid damage
to the product.
2) Please do not let the Tablet PC fall onto, rub against or knock against hard objects
during use, because this may cause surface scratches on the Tablet PC, battery damage,
data loss or other damage to the hardware with the result that it can’t start up.
3) Never let this product be exposed to a humid environment or rain as the water leaking
into the Tablet PC could disable it to the extent of being beyond repair.
4) Never clean the Tablet PC with any chemicals or detergent, these will damage the
product surface and corrode the finish.
5) You are recommended not to use the headset with the volume at its highest settings,
please adjust the volume to an appropriate safe level and limit the amount of time you
spend using headphones to avoid possible damage to your hearing. Excessive volume
will cause permanent hearing damage.
6) Please do not cut off the power abruptly during software updates or downloading,
because this may cause data loss or system errors.
7) Over-voltage, power cable strain and bending or squeezing of the power cable by
heavy objects must be avoided to prevent the possibility of overheating or fire.
8) In order to eliminate the risk of electric shock, do not touch the cable power plug with
wet hands.
9) Some movies, music and pictures are under the protection of copyright, unauthorized
usage is deemed as an infringement to the laws of copyright.
10) Please don’t turn on the Tablet PC on in locations where wireless equipment is
forbidden or when the usage of the Tablet PC will cause interference and possible danger.
11) All the wireless equipment is subject to external interference and this can affect its
performance.
12) Please comply with any related restrictions and rules, wireless equipment can
influence the flight of the plane; please consult the relevant airline company if you intend
to use the Tablet PC on a plane. You must be very careful when using electronic
equipment in flight.
13) Please don’t use the Tablet PC in a petrol station, or near to fuel or chemicals.
14) Please comply with any related restrictions and rules; do not use the Tablet PC where
blasting operations are in progress.
15) Only qualified maintenance personnel can install or repair the Tablet PC.
16) Please use the original accessories and battery provided with the Tablet PC, do not
use the incompatible products.
17) The Tablet PC is not waterproof, please keep it dry.
18) For the sake of data safety, please back up any important information stored in MID or
keep a handwritten record.
19) When the Tablet PC is connecting with other devices, please read the user manual for
detailed safety instructions. Don’t connect the Tablet PC to incompatible products.
20) Please upgrade device with enclosed optical disk when the practical usage of the
device is inconsistent with this manual caused by the loss of firmware.
Note: Android4.4.2 system using the MTP protocol transfer files, rather than the original
MSC agreement (ordinary U-disk), currently supports the MTP protocol only (10) and (11)
in Windows Media Player or above version. If there are no updates to the above two
versions of the Player, the computer will not recognize MID or existing file cannot be
copied down, etc., please correct in the computer, which is connected with the MID above
installed version of the Player, can be installed to the computer, do not need to run for
connection to the MID.
3. Ready to Use
3.1 Packing list
![](/img.php?id=2567113&img=bg5.png)
3.2 Product Appearance
3.3 Instructions on Keys
Symbol
Name
Description
A
POWER
Short press this button to enter sleeping/wake
up mode, press long to switch ON/OFF
B
Reset
Short press reset button to boot
C
Earphone hole
3.5 headphone cable port
3.5 headphone cable port
D
Micro USB
USB/OTG external connection equipment
E
DC
external connection 5V DC port
F
ESC
Short press ESC button to up page
G
MIC
Recording transfer holes
H
Front Camera
Static and dynamic camera (Pixels optional)
I
Rear Camera
Static and dynamic camera (Pixels optional)
J
TF card
TF (Micro SD) Card Slot
K
Speaker
Left/right speaker sound output
Components
Quantity
MID Device
1
Leather Case (Optional)
1
Keyboard/Mouse (Optional)
1
TF Card (Optional)
1
Power Adaptor
1
Earphone
1
USB Cable
1
USB HOST Cable (Optional)
1
3G USB Dongle(Optional)
1
RJ45 USB Dongle (Optional)
1
Manual
1
CD
1
Warranty Card
1
![](/img.php?id=2567113&img=bg6.png)
3.4 Features Overview
Adopt allwinner A33 processor,CPU Quad-Core 1.5GHZ, GPU Mail-400MP2 support OPENGL
ES2.0/VG1.1 STANDARDS,support ANDROIED 4.4 OS;
support RAM 512M/1G DDR3(optional);
support built-in ROM Flash 4GB/8GB/16GB(optional),
external TF card 1G~32GB storage
support 10.1 inch LCD screen 1024*600(optional),Multipoint capacitive touch
Support high-definition Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, WMV9/VC-1, and
VP8. Supporting video high-definition 1080@60fps.
Support JPG、JPEG、BMP、GIF forma image browsing.
Support MP2、MP3、WMA、WAV、OGG、FLAC、M4A、AAC、APE、3GP audio Forma,
Various EQ modes, supporting the lyrics synchronization and the showing of whole
page of lyrics.
Support TXT、LRC、PDF、Html、Htm、EPUB,e book format, supporting automatic
browsing, scaling, bookmarks, flip, and other functions.
Support built-in WIFI access to broadband wireless Internet access, working software
on ANDROIED operating system are colorful, some of the commonly used software
system preset: Google Internet browser (IE), online video, e-books, etc.
Support built-in microphone recording function, can realize voice recording and video
call function.
Support USB (1XOTG 1XHOST), can be in external connection U disk,mouse,keyboard,
3G Dongle and other equipment.
Support built-in front and rear two cameras 0.3MP+2MP.
Support G-Sensor Screen direction rotation function
Support stereo headphones and two speakers sound output.
support language: many languages
USB mobile disk, WIN_2000 drive system free from above
3.4.1 Technical Specifications
Overall dimensions
Weight
Display
Size
10.1inch LCD screen
resolution
1024*600
PC Interface
USB port,USB OTG 2.0/USB Host2.0 (MIC 5PIN shift 4PIN HOST)
CPU
Allwinner A33, Quad-Core 1.5GHZ
Built-in Flash
Flash Memory :8GB
Built-in RAM
ROM:DDRIII 1GB
Capacity Expansion
Support TF Card 1GB~32GB
Power Supply
Built-in 3.7V@5000mAH output DC5V/2A Adaptor
Music Function
Play format
MP2、MP3、WMA、WAV、OGG、FLAC、M4A、
AAC、APE、3GP
Headset max.
output
(L)5mW+(R)5mW(32Ohm)
![](/img.php?id=2567113&img=bg7.png)
MP3 Bit rate
8Kbps ~ 392 Kbps
WMA 、WMV Bit
rate
5Kbps ~ 192 Kbps
Frequency
response
20Hz~20KHz
SN ratio
90dB
Distortion
<0.05%
Video Function
Play format
Mpeg1/2, Mpeg4 SP/ASP GMC, H.263,
H.264,WMV9/VC-1, VP8,etc
Max Resolution
1280*800
Photo Browse
Support JPG、JPEG、BMP、GIF
E-book
Format
TXT、LRC、PDF、Html、Htm、EPUB etc.
Max. capacity
5M
WIFI
Main core group
ESP8188
Transmission
rate
Max54Mbps
Transmission
range
Max100m
WI-FI agreement
b/g/n
record
Support format
Support WAV record
Supported OS
Windows2000/XP/WIN7/Vista Mac OS V9.0/10.0
4 Quick guides
4.1 Switch on/off

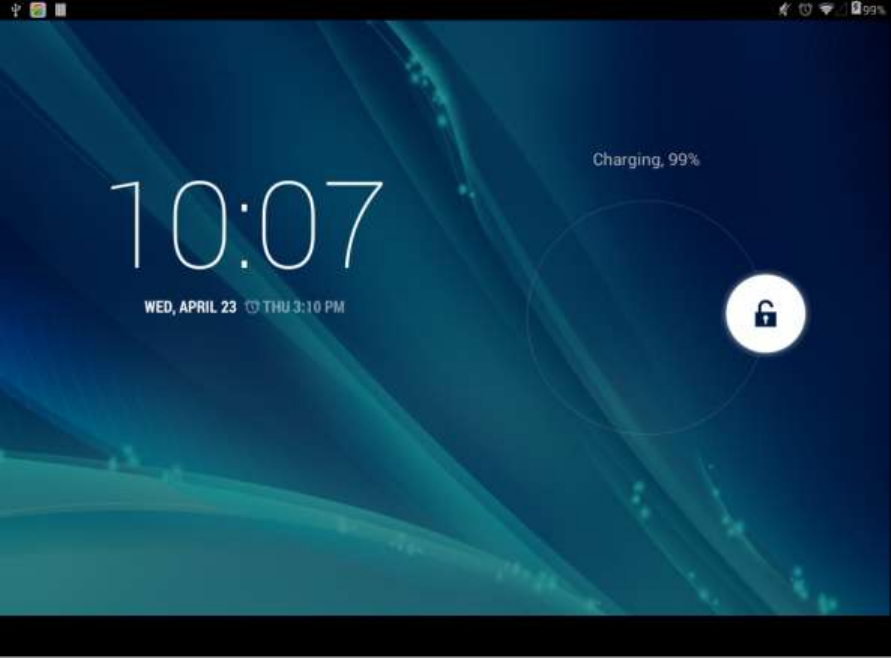

Switch on and unlocked:

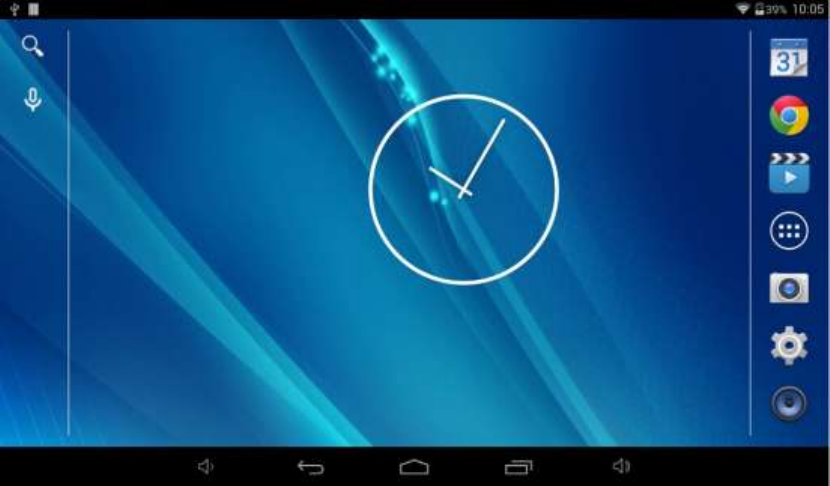

When the devices is in powered OFF mode, press and hold the Power key for 5 seconds
to enter the Android startup process. The device will take about 30 seconds to enter the
system desktop, with the display in locked mode, please press and move the icon

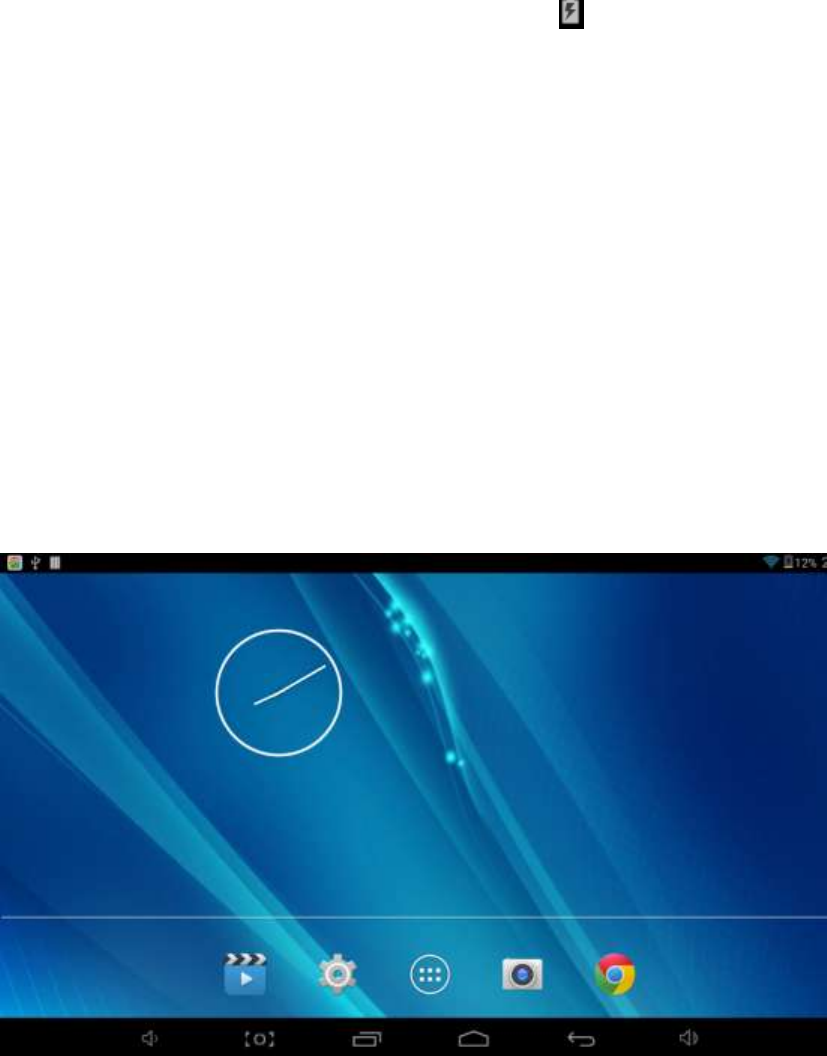

by the white circle, the display will unlock automatically, see the image below:
![](/img.php?id=2567113&img=bg8.png)
Sleep mode and lock screen:
After the device turns on, press and hold the POWER key shortly to enter into the SLEEP
power-saving mode. The screen comes into black and locks at the same time. Press the
POWER key again to wake up the screen. The system will restore bright screen within 1S
and then drag up to unlock.
Note: under the sleep mode, the operation of the original function will not be interrupted,
it will continue to work. At this time only close the screen with the black screen state. For
example: play the music, movies, etc.
Switch off:
When the device is in use, press and hold the POWER key for 3 seconds, the screen will
display the power off interface; choose the power off option to confirm your selection and
the system will shut down automatically.
Note: If the device is in crash or blank screen, please press and hold the POWER key
for 6 seconds to let the system power off automatically, and then turn it on.
[Note]: When the device is running low on battery power, it will sound an alarm and then
shut down automatically if it isn’t plugged into a power source to start charging. If the
device cannot start up please check if the battery power is too low by charging the device.
![](/img.php?id=2567113&img=bg9.png)
4.2 Battery management and charging
a. Charge the battery about 8-12 hours to make sure the battery is fully charged for
the first time.
Insert the adaptor into the DC slot on the Tablet PC, and connect the other side
with the power socket. The desktop icon of the battery keeps rolling to show it is
charging, please wait until the battery is fully charged.
b. When the battery is exhausted completely, please charge at least one minute
before starting it up.
Note: In order to keep the battery working to its full potential, please pay attention to the
following advice:
Don’t charge the power in excessively high temperatures.
There is no need to run down the power for this Li-ion battery, you can charge the
battery even when there is still power left in the battery without it affecting the lifespan
of the battery.
In order to keep the battery in good condition, Make sure you charge it at least once
every two weeks if the Tablet PC hasn’t been used for a long time
4.3 Operation of the Function Icons
Definition of the Function Icons
![](/img.php?id=2567113&img=bga.png)
Icon
Function
Icon
Function
Back to main menu
Notifications
Power Status
Reduce the volume
Return
Increase the volume
Recent Browse
Function Menu
Wi-Fi Status
Screenshot
5. Operation Details
5.1.1 Music
In the application menu or on the desktop, tap the icon to enter the main interface
of the Music Player as below:
If there are no music files in the audio player playlist, the system will automatically
load any music files from the micro SD card to the audio player playlist after the audio
player is launched. The device supports the following audio file formats: mp3, wav,
midi and wma.
If there are many videos available, slide up/down the list by using the touch screen.
Double-click the song you want from the list to start playing.
![](/img.php?id=2567113&img=bgb.png)
When in playing, click can enter into play list.
Drag the playback progress bar to adjust video playback
progress.
Music Player Icons Description:
Icons
description
Icons
description
Albums
song
Playing music list
Current Playing
Artist
Play mode(adjustable)
Volume adjustment
Pause
Editor or more options
Music switch
Play Audio
Note: Audio player can play WAV audio files.
5.1.2 Video
In the application menu or on the desktop, tap the icon to enter the video player
interface and picture browsing as below.
![](/img.php?id=2567113&img=bgc.png)
Tap the icon to enter the video browsing:
Tap the icon will play your favorite movie.
This device supports the following video file formats:Mpeg1/2, Mpeg4 SP/ASP GMC,
H.263, H.264, WMV9/VC-1 etc.
The system will automatically load any video files from the TF card to the playlist after
the video player has been launched.
Drag the playback progress bar, to adjust video playback
progress.
In the process of playing video, tap you can increase or decrease the
volume, Can switch the video, can play or pause the video,
can return to the last interface. Is the menu, it includes subtitles
selection, audio and video scaling model.
5.1.3 Picture
In the application menu or on the desktop, tap the icon to enter the picture browser
as below:
![](/img.php?id=2567113&img=bgd.png)
Picture Player Icons Description:
icon
description
icon
description
Enter into camera
Click to check the details of
the picture, such as place、
people
Choose and edit picture
Add images:(The Tablet PC supports the BMP, JPG, JPEG, PNG and GIF format)
The system will automatically load the image files from the TF card to the photo
browsing list after the photo browser has launched.
Tap icon to slide show, browse images, set the image as wallpaper, edit,
rotate,
![](/img.php?id=2567113&img=bge.png)
Picture can be selected by long press manages as shown above, this can add new
options: sent to nearby people or sent by Email
Icon
Function
Icon
Function
Select the picture
Share the picture
Delete the picture
See more functions
5.1.4 Sound Recorder
In the application menu or on the desktop, tap the icon to enter into the sound
recorder.
Tap the record icon to start recording, to stop recording, and to
playback.
Once you finish the recording, you will be asked if you want to “Discard” or “Save” the
recording.
More details in 5.1.1(Music )
![](/img.php?id=2567113&img=bgf.png)

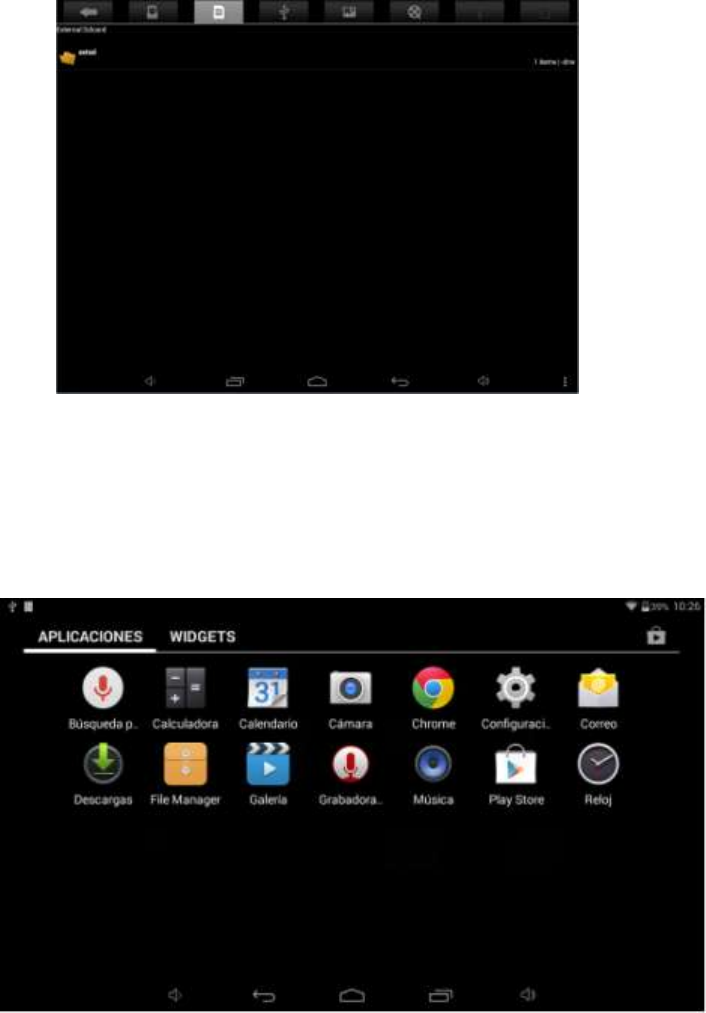

5.1.5 File Manager
Tap icon on the menu or desktop to enter the interface of File Manager as shown
below: Long press the file or folder if you want to manage; the system will pop up the file
or folder operations window, then you can choose to Copy, Delete, Move, Rename etc.
See picture below:
5.1.6 IE Browser
Under WIFI connected, (see chapter6.1.1 Wi-Fi), tap icon enter to the Web
Browser interface; tap the address bar of the browser and input the website and enter.
![](/img.php?id=2567113&img=bg10.png)
Note: The IE Explorer uses the popular third-party IE Explorer software; please follow the
IE Explorer's standard operating mode to operate.
Voice Search:
In the application menu or on the desktop, tap the icon and enter into the voice
search page: Once you have entered in, you can speak out the content to the device with
standard language, and then the device will recognize your voice and automatically
search what you have said.
5.1.7 Calculator
In the application menu or on the desktop, tap the icon and enter into the
calculator:
![](/img.php?id=2567113&img=bg11.png)
5.1.8 Clock
In the application menu or on the desktop, tap the icon to the interface of clock
In the clock interface, you can choose time zone and set the alarm clock, etc.
Tap set up accordingly, as shown below:
![](/img.php?id=2567113&img=bg12.png)
Repeating: choose accordingly the day that the clock is expected to ring-down.
Flexible time: you can choose the date to set, such as Monday to Friday in 7 o’clock, and
then alarm will repeat at 7 o’clock from Monday to Friday. The time and date are set as
you need. Once you set ok, the front color of the set time will be turn in white and other will
be gray.
5.19 Camera:
In the applications menu or on the desktop, tap the icon to enter into the camera
function interface as below:
Icons
Description
Icons
Description
Camera mode
Video mode
Front and rear Camera
switch
Photo debugging
Shutter
Panoramic camera
![](/img.php?id=2567113&img=bg13.png)
5.2.0 TF (Micro SD) Card Storage
This Tablet PC supports reading files on TF card. Insert the card into the card slot by the
right way. Take out the TF card, please push the card into the slot, and then released. TF
card will automatically pop up, and then remove the card.
a. Insert the memory card into the card slot on the left.
b. Please do not pull out the card when it is in use (reading, copying), otherwise, it may
cause data errors.
c. Please do not use the memory card in high temperature conditions.
d. Keep the memory card away from the liquid and erosive materials.
5.2.1 External Mouse and Keyboard
Connect the USB mouse to the Tablet PC by USB OTG cable。The left mouse
button is confirmation key, right is the return key, middle pulley key is moving up and
down:
![](/img.php?id=2567113&img=bg14.png)
Note: For the standard keyboard some buttons are not available, it needs to reset the
keyboard software according to ANDROIED system. We suggest you can use the default
USB keyboard.
6 System setting

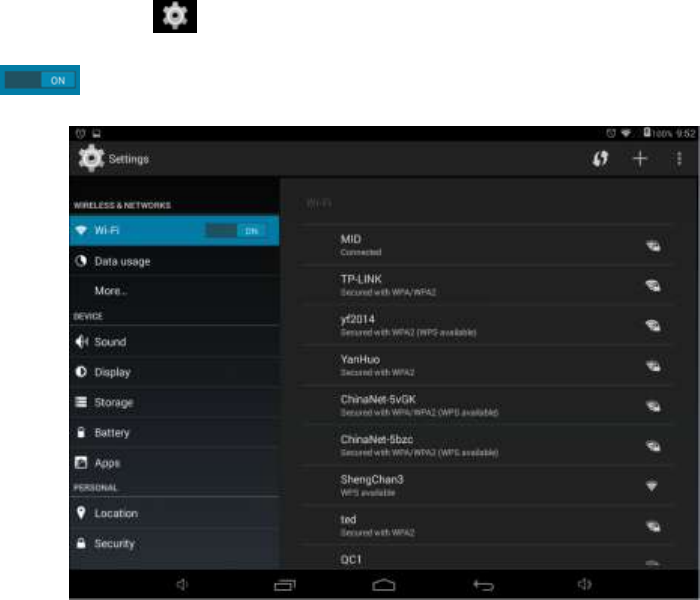

6.1.1:Wi-Fi Setting
On the desktop, tap to enter into the setting interface,enter WIFI function,and then
tap
a. Press WIFI and the system will search wireless networks automatically. Shown as
above picture.
b. Connection ( It is dynamic IP address and needn’t set the IP address)
The dynamic IP address is assigned by WIFI router. If it is automatically assigned the
IP address, and then click the Wi-Fi network name. For example, click “Test II” it will pop
up a connection window where you can input the correct security code and then tap
“connect”. The system will connect to the network automatically, and once connected will
show a Status of “Connected” You can see the network connection status by pressing the
network name, see the figure below:
![](/img.php?id=2567113&img=bg15.png)
There will be a WIFI icon in the top right corner once it connected successfully.
Date usage statue checking: tap the icon to check the date usage
![](/img.php?id=2567113&img=bg16.png)
6.1.2 :External 3G USB Dongle function:
Connect the 3G USB-Dongle to the Tablet PC by USB HOST cable. The 3G network icon
will be showed in the top right corner of the screen when Tablet PC connects the 3G
successfully:
6.1.3 External RJ45 USB Dongle function
If Router Automatically get the IP address
1、Connected RJ45USB Dongle to the tablet PC by USB HOST cable, MID will
automatically get the IP address. When it is connect well, and then the network is
available. The icon appears in the right lower corner.
Click this setting icon,click , on the right click , as below:
![](/img.php?id=2567113&img=bg17.png)

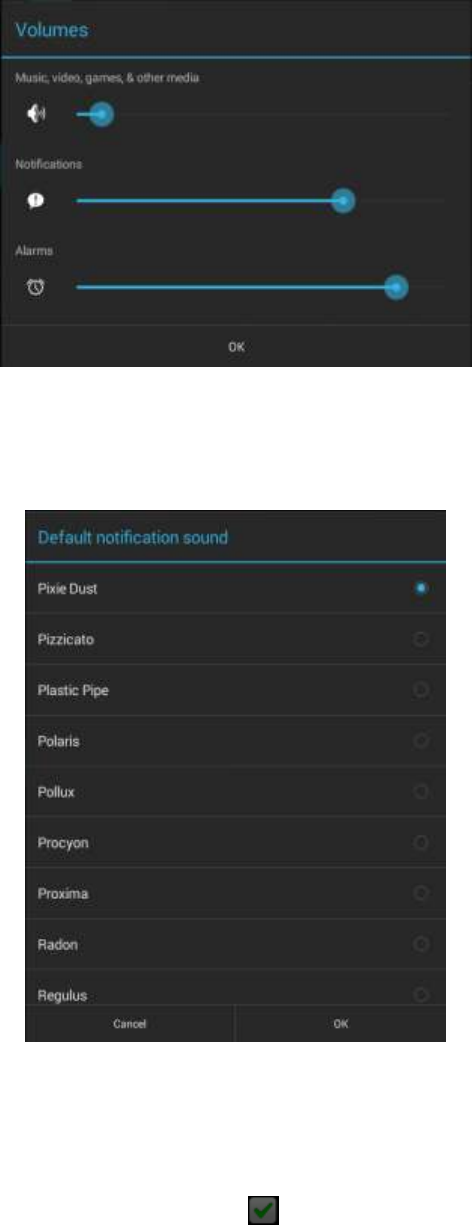

6.1.4 Sound
Tap the icon to enter the sound setting interface as below:
a. Tap to enter into sound setting tap which includes below functions:
b. Tap to increase or reduce Media sound, Notifications sound and the Alarms
sound by dragging the .
![](/img.php?id=2567113&img=bg18.png)
C Ring setting
In the setting interface, tap “Ring notice” to enter into Ring setting interface:
System indicator sound setting
touch indicator sound ( tap the touch screen)
Lock indicator sound (lock and unlock the screen broadcast voice
These two functions are optional, press to enter mute state if you do not want
those functions.
6.1.5 Display wallpaper Settings
![](/img.php?id=2567113&img=bg19.png)
A
b 【wallpaper Settings】 Tap “setting” Appsdisplaywallpaper, and then You can
choose the wallpaper as you like, such as live wallpaper - gallery (custom) - wallpaper
(system) - video wallpaper, as shown in picture:
Change also can grow in any desktop wallpaper the position of a blank, the menu screen
appears below:
![](/img.php?id=2567113&img=bg1a.png)
C Brightness: Tap “Brightness” to increase or reduce the brightness of the system by
dragging the , click ok and return to main menu.
D【Choose sleep time】Choose tablet sleep time
6.1.6 Storage
Click in the setting application interface, it will show all the storages status:
It can check the flash storage, SD storage, available storage and so on.
![](/img.php?id=2567113&img=bg1b.png)
Click right corner icon ( ) enter USB connected to computer interface.
1: media device mode;
2: the camera model;
3: storage mode ;( PS: capture the machine connected to the computer so only one
option)
6.1.7 Battery
Tap the icon to check the battery using status
![](/img.php?id=2567113&img=bg1c.png)

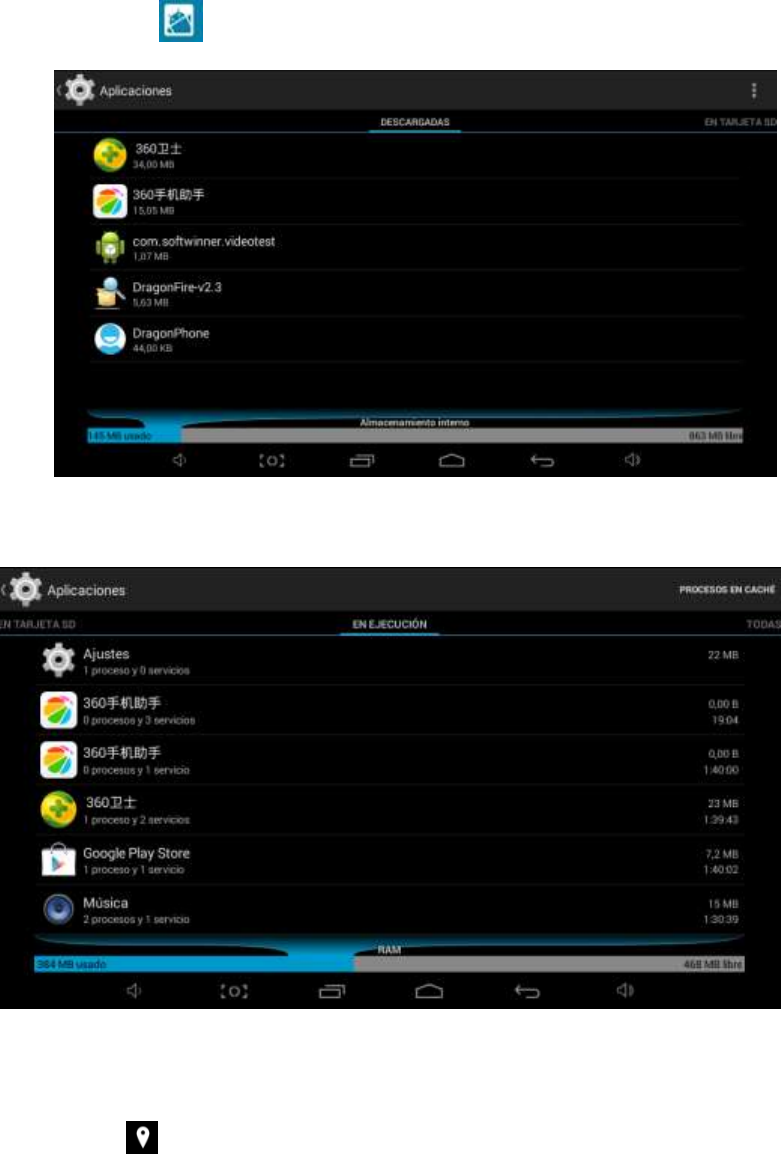

6.1.8 Apps
Tab the icon to enter the Application setting interface as below:
Running service settings:
Tap the “RUNNING” to check and control the running apps as below:

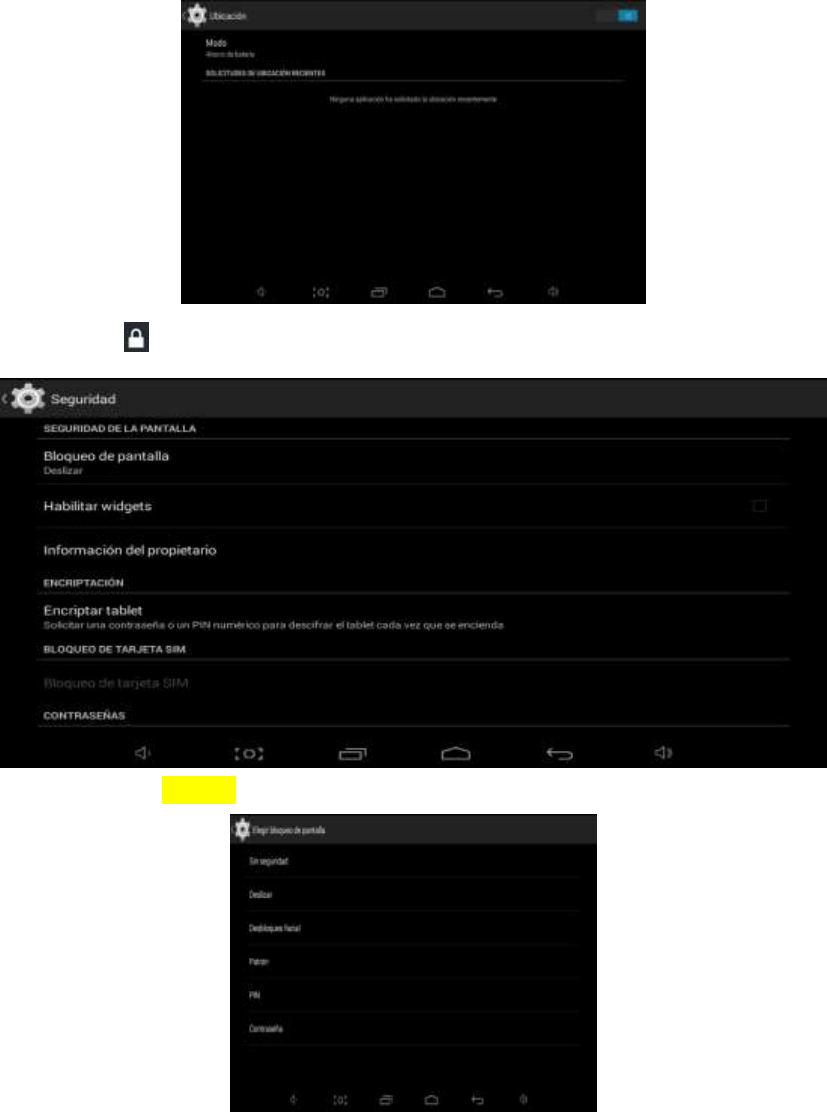

6.1.9 Location & security services
Tap the icon to enter the location service interface as below:
![](/img.php?id=2567113&img=bg1d.png)
Tap the icon to enter the security settings interface as below:
Screen Lock 1. Slide 2. Face Unlock 3.Pattern 4.PIN 5.Password
【Setting unlock pattern】unlock pattern for the screen password. Enter setup interface of
the safety lock screen click [pattern] according to prompt setting as below:
![](/img.php?id=2567113&img=bg1e.png)
Slide the recorded pattern to unlock
Set up unlock PIN password
Tap “PIN” — input PIN password with 4 characters —click OK. The screen has been locked.
(Remember this password)
When the standby machine after open will prompt you to set the password:
Choose pattern according to your own needs screen lock mode:
Equipment management Settings:
Equipment management in the security interface stopped the unknown source after
checked, the user can install other APK format of the software to the machine, otherwise
can't install:
![](/img.php?id=2567113&img=bg1f.png)
6.2.0 Language & input
Tap the icon to enter the language and input method settings interface to choose
the language as you need as below
Language settings.
The Tablet PC supports multi-languages. You can select an operation interface of
corresponding language according to your needs. Tap the corresponding language
options
![](/img.php?id=2567113&img=bg20.png)
Keyboard and input settings
According to your needs to set the corresponding input method:
Click enter font voice input:
![](/img.php?id=2567113&img=bg21.png)
6.2.1 Backup & reset
Tab the icon to enter the settings interface as below:
Note: Remember to copy your own file when you reset tablet pc.
6.2.2 Date & time
Tap the icon to enter the date and time setting interface, click the box
behind the “Automatic” (click date & time) to modify the system date and time by manual
as below
Set Date: tap up and down button to select Day, Month and Year or click the
right numbers
Select time zone: Cancel the automatically determined time zone:
![](/img.php?id=2567113&img=bg22.png)
Set time
Tap “set time” to enter up and down button to do the time setting as
below
Date format
Tap to enter date format, Total three formats for your option as below:
![](/img.php?id=2567113&img=bg23.png)
6.2.3 Accessibility
Can set the Auto-rotate screen and so on
Touch & hold delay
6.2.4 Developer options
It is recommended to use the factory default developer options setting, or some changes
may affect the functions of the Tablet PC.
Tab the icon to enter the developer options setting interface as below:
6.2.5 about Tablet
Check System updates, Status, Legal information and software version as below:
![](/img.php?id=2567113&img=bg24.png)
6.3 Add, Move or Delete Desktop Icon
Tap the icon on the desktop to enter the app menu list. Lay out all the application
icons with paging display, Tap and drag the application icon to the current desktop.
Long tap the app icon on the desktop to enter the editing mode and you can remove the
icon and set its location. When you drag the icon to the it turns into the delete
function, release the icon to delete it as below:
![](/img.php?id=2567113&img=bg25.png)
7 Movil Teachers (Optional)
7.1 Device setting
1, Click the "Setting" icon to enter in the setting panel.
Locate and choose "Language and keyboard" and select "Voice Search"
Select "Language"
Select “English”
![](/img.php?id=2567113&img=bg26.png)
Under "Dialect" choose, select English (US)
Select "Keyboard and Language", and select "Output of Voice Text" on the right
Select “Language”
Select in the menu that appears "English (United States)"
![](/img.php?id=2567113&img=bg27.png)
7.2 User’s interface
7.3 Navigation
The main screen contains the Main Menu of each chapter.
From here you can enter all of the chapters of course.
There are two methods of navigation between chapters.
You can move forwards and back from one chapter to another as shown in the following
image.
Drag the tabs to navigate between chapters.
![](/img.php?id=2567113&img=bg28.png)
Drag lessons’ panels for details of that lesson
In compounds chapters touch tabs to access that section
Once you enter a letter or a word in the "search query" in the dictionary, you can scroll
through all the words in the dictionary, or choose the word that interests you to access
more options
Once you choose a word from the list, you will see the dictionary.
From here you can:
• See the translation of the word.
• See the definition of the word.
• Practice writing.
• Listen to the pronunciation.
• Practice your pronunciation of the word.
![](/img.php?id=2567113&img=bg29.png)
Touch the panels to access the main menu of the lessons in this chapter
The main menu of the lessons allows access to each individual lesson and also displays
information about your score and progress in each lesson.
To unlock the padlock and enter the next lesson, you should get 50% or more in the
previous lesson
Once the lock is opened, you will see the blue button 'play' to begin the next lesson
As you progress through the chapter, you will have access to more lessons.
You can always go back and review the finished lesson to review topics or improve your
score.
![](/img.php?id=2567113&img=bg2a.png)
The lessons have several different types of activities, all complete
With instructions and guidance. In all the lessons you can find the
Same functionality and continuity of concepts of user's interface.
8 Upgrade the firmware
Note:
1) Do not run Phoenix Suit together with other firmware tools such as Live Suit, etc.
2) Do not run Phoenix Suit together with software such as Peapod or 91 Mobile
Phone Assistance.
3) You must Copying firmware (PC7810H XXXX) to PC desktop.
8.1 Install
Phoenix Suit
Click to install
Phoenix Suit
,
Can be installed by default as below:
![](/img.php?id=2567113&img=bg2b.png)
8.2 Run
Phoenix Suit
:
The main interface of Phoenix Suit is shown below:
8.3
USB Device Installation
1) New driver installation
When the software is installed for the first time, you will be prompted to
install a driver, as shown below. Following steps can be followed.
![](/img.php?id=2567113&img=bg2c.png)
8.4 Phoenix Suit Operations
8.5 Phoenix Suit Interface
The Client Area on the top has four function buttons, and you can access
each function by clicking on corresponding button. PhoenixSuit stays in
Home interface after running by default;
There are three command buttons on the right of the client area, you
Can click on for help; click on to minimize the window to the system task
Bar, and click on to exit the Phoenix Suit.
8.6 Firmware
After the device is connected, firmware can be loaded to it. You can click on to enter
the firmware flash interface, as shown below:
Click on to select the target firmware file, as shown below:
After select the firmware, click on to load firmware into the
Device, as shown below:
![](/img.php?id=2567113&img=bg2d.png)
]
Note that:
1) Do not disconnect the device during the firmware loading;
2) If the firmware fails to be loaded to the device, following steps can be taken to make it:
a. Select the target firmware;
b. Press and hold the power key for above 10 seconds to power the
device off, then release the power key;
c. Press and hold any key (except the power key), connect the
device to PC, and
press and release the power key for five to ten times,
and then release all keys, you will find that the device automatically enters
the upgrade mode;
d. If it doesn’t work, repeat Step a to c again;
8.
7
APK
The Phoenix Suit supports apk backup, restore, installation, device reboot and recovery.
Click on to enter the APK interface, as shown below:
1) Backup: click on for APK backup, and you can also click on Cancel
to exit the backup.
![](/img.php?id=2567113&img=bg2e.png)
After the backup finishes, you can see following interface:
The original APK will be stored at My Documents\ Phoenix Suit\Backup.
2) Restore: Click on to reload the backup APK into the device. You can also
Click on Cancel to exit the restore.
After the restore finishes, you can see following interface:
![](/img.php?id=2567113&img=bg2f.png)
3) Installation: Click on and select the APKs you want to install (multiple
APKs can be selected once), as shown below:
The installation interface is shown below:
You can also click on Cancel to exit the installation.
4) Reboot: When the smart device is dead, you can restart it
by click on
![](/img.php?id=2567113&img=bg30.png)
5) Recovery: the device can enter Recovery mode by
clicking on. If the device doesn’t support Recovery mode,
it will directly go to Android mode after restart.
9. Troubleshooting and FAQ
1. Device doesn’t turn on
1) You cannot turn on the device when the battery charge is below the critical level, please
charge the battery.
2) Press the RESET button on the top of the device and check if it is restarting normally or
not.
3) Check if the charger is connected correctly.
2. the stand-by time of the device is too short
1) The duration of the lithium battery varies with environmental temperature changes and
the service conditions. If the environment temperature is too low or too high, the duration
of the battery will be affected. It is recommended to use this device at normal temperature.
2) Battery life is dependent on usage. High volume, WIFI, and the frequent use may cause
the battery to be drained at a higher rate.
3. No sound via earphone
1) Please check if the volume setting is 0.
2) Please check if audio file is broken, and try to play another audio file to confirm. If the
audio file is broken, it may cause severe noise or static.
4. Cannot copy files
1) Please check if the device is connected to the computer correctly.
2) Please check if the memory space is full.
3) Please check if the USB cable is broken.
FCC statement
This device complies with Part 15 of the FCC Rules: Operation is subject to
the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference that is received, including any interfer
ence that may cause undesired operation.
*RF warning for Portable device: The device has been evaluated to meet general
RF exposure requirement. The device can be used in portable exposure condition
without restriction.
This device is acting as slave and operating in the 2.4 GHz (2412 ~2462 MHz)
band.
Ad Hoc function is supported but not able to operate on non-US frequencies.
Do not use the device with the environment which below minimum -10 ℃ or maximum
over 50℃ .
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
