Kirisun Communication PT420001 Two Way Radio User Manual
Kirisun Communications Co., Ltd Two Way Radio
User Manual
![](/img.php?id=692463&img=bg1.png)
FM HANDHELD TRANSCEIVER
INSTRUCTION MANUAL
PT4200-01
![](/img.php?id=692463&img=bg2.png)
We are very grateful for your purchasing brand two-
way radios produced by Kirisun Electronics (Shenzhen) Co.,
Ltd.
We believe two-way radio, which always incorporates
the latest technology, can bring great convenience to your life
and work;
we also believe that the quality and function of two-
way radio can meet your demands for reliable communication.
PRECAUTIONS
Please observe the following precautions to prevent fire,
personal injury, and radio damage.
Do not operate your radio while taking on fuel, or being
charged.
Do not expose the radio for a long period to direct sunlight,
nor place the radio close to heating appliances.
Do not place the radio in excessively dusty areas, humid
INSTRUCTION MANUAL
FM HANDHELD TRANSCEIVER
NOTE
17
PT4200-01
![](/img.php?id=692463&img=bg3.png)
areas or on unstable surfaces.
Do not modify this radio for any reason.
Refer service to qualified licensed or certificated technicians
only.
Notice to the User:
Government laws prohibit radio communication without
permission in government districts.
Illegal operation is subject to punishment by fine and/or
imprisonment.
Refer service to the well-trained professional technicians only.
Safety
It is important that the user is aware of and understands hazards
common to the operation of any radios.
Warning!
Turn off your radio before entering any area with a potentially
explosive atmosphere (where the air contains gas, dust and
smog, etc.), such as while taking on fuel, or while parking at a
gasoline service station.
Precautions in Use
Please comply with the following attentions to avoid fire, bodily
injury and damage to the radio.
The radio is recommended to transmit for 1 minute and
![](/img.php?id=692463&img=bg4.png)
receive for 4 minutes. Long time transmitting or continuous working in
high power mode will make the rear side of the radio generate heat.
Please don't disassemble or assemble the radio under any
circumstances.
Please don't expose the radio to direct sunlight for a long time;
don't place the radio near any heating devices, either.
Please don't put the radio in extremely dusty, moist or dabbling
places; don't place it on any unstable surfaces, either.
If the radio emits smoke or strange odors, turn it off and remove
the battery from the radio and promptly contact your local authorized
Kirisun dealer.
CONTENTS
UNPACKING AND CHECKING ..............................1
SUPPLIED ACCESSORIES .........................................................1
PREPARATION..............................................................................2
CHARGING THE BATTERY PACK ... ...........................................2
INSTALLING/REMOVING THE BATTERY PACK..........................3
INSTALLING THE ANTENNA........................................................4
INSTALLING THE OPTIONAL SPEAKER/MICROPHONE...........4
INSTALLING/REMOVING THE BELT CLIP...................................4
RADIO OVERVIEW........................................................................5
BASIC OPERATION......................................................................6
SCAN FUNCTION..........................................................................7
STARTING SCAN...........................................................................7
STOPPING SCAN......................................................................7
AUXILIARY FUNCTIONS............................................................10
TIME-OUT TIMER........................................................................10
BATTERY SAVING.......................................................................10
LOW BATTERY WARNING..........................................................10
MONITOR..................................................................................10
CTCSS/DCS ................................................................................11
VOICE ANNUNCIATION OF CURRENT CHANNEL NUMBER..11
WIRED CLONE.............................................................................12
EMERGENCY ALERT...................................................................13
TROUBLESHOOTING GUIDE ....................................................14
STTINGS .....................................................................................15
EQUIPMENT
![](/img.php?id=692463&img=bg5.png)
ITEM QUANTITY
1
1
1
1
1
1
1

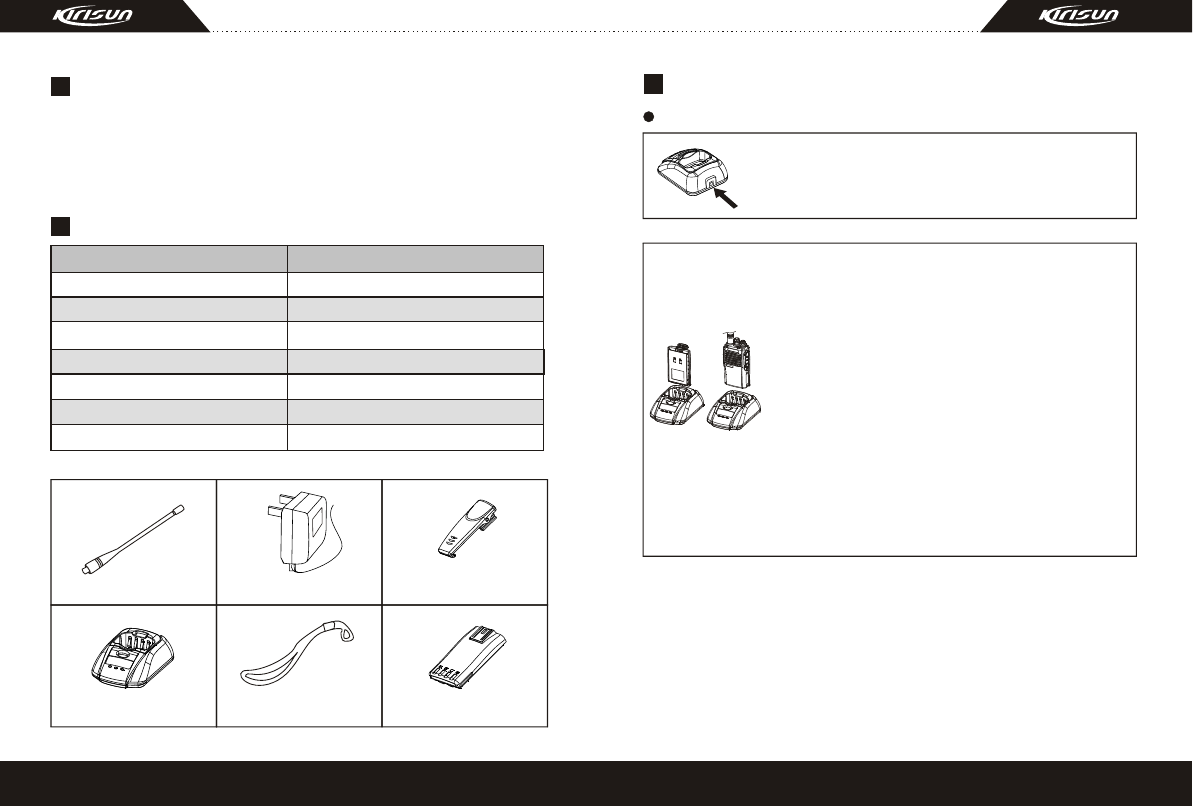

UNPACKING AND CHECKING EQUIPMENT
Carefully unpack the radio. We recommend that you
identify the items listed in the following table before dis-carding the
packing material. If any damage has occurred during shipment,
please contact the dealer immediately .
SUPPLIED ACCESSORIES
Hand strap
Belt clip
Li-ion battery pack
Charger
Power adapter
Instruction manual
Belt clip
Charger
Battery
Antenna
2
Antenna
PREPARATION
CHARGING THE BATTERY PACK
*
*
Notice:
A new battery or a battery whose power appears
low (power indicator displays one bar or no bar)
needs charging before using.
The battery is not fully charged in the factory, and probably the
new battery is falsely indicated as full charge. Before the initial use,
please charge the new battery.
Kirisun KB-58L Li-ion battery is supplied.
When charge the battery for the first time after purchase or long-
time storage (over 2 months), please repeat charging several times to
1) Plug the adapter into an AC wall outlet;
connect the power adapter with the battery
charger, and then the indicator lights yellow.
2) Place the battery or radio into the charger
slot. Make sure the battery is well connected
with the charger. The indicator turns red, and
then the charger gets in the state of charging
automatically. Charging time is about 5 hours.
When battery is fully charged the indicator turns
green.
While in green light state, keep the battery
remain in the charger for 1~2 hours, which will
give you the best battery performance. And then
disconnect the adapter from the AC outlet.
*
1
Hand Strap
Power Adapter
![](/img.php?id=692463&img=bg6.png)

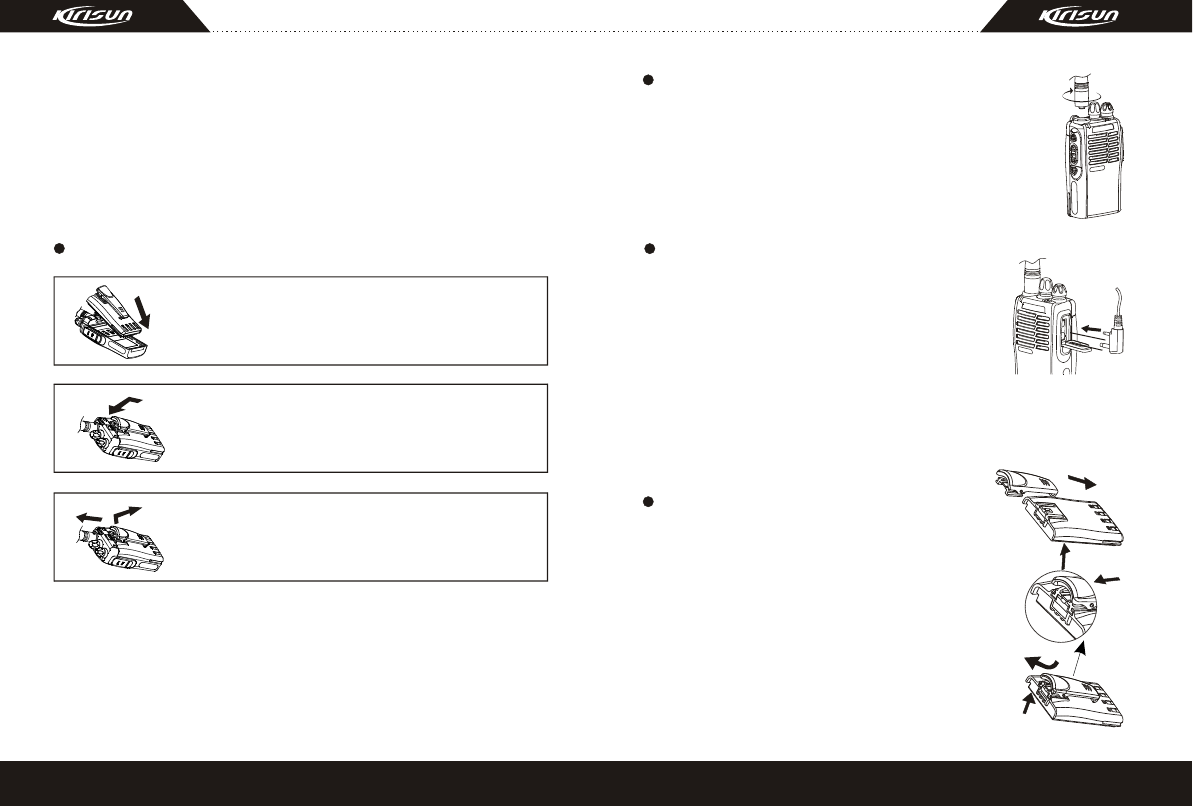

INSTALLING /REMOVING THE BATTERY PACK
4
3
*
resume the battery normal capacity.
Do not charge the battery again if it has been fully charged or it
is not in the low battery warning state, otherwise, its life will be
shortened or it will be damaged.
Take the battery away from the charger after charging.
If the battery is charged after all the power has been exhausted,
the red indicator will light about 1 minute later.
Match the guides of the battery pack with the
corresponding grooves in the bottom of the radio,
and insert the battery in.
Press downward the battery pack until the
release latch locks.
To remove the battery pack, push the release
latch upwards and then slide the battery pack
away from the radio.
Notice:
Do not short-circuit the battery terminals or dispose exhausted
battery in fire.
Do not disassemble the battery casing.
*
INSTALLING THE OPTIONAL
SPEAKER /MICROPHONE
INSTALLING THE ANTENNA
Screw the antenna into the connector at
the top of the radio by holding the
bottom of the antenna and turn it
clockwise until secure.
Insert the Speaker/Microphone plug into
the jacks of the versatile connector.
Note:
When use the optional Speaker/
Microphone, the radio will not be
waterproof.
Match the grooves of the belt clip with
those on the rear of the battery.
Then press the belt clip downwards to
lock it in place.
To remove the belt clip, use your nail or
a tool to lift the metal spring piece in the
belt clip from the topside, and then pull
the belt clip away from the radio.
INSTALLING /REMOVING
THE BELT CLIP
*
*
*
