Kobian Canada MINIKB 2.4GHz Mini Keyboard User Manual
Kobian Canada Inc., 2.4GHz Mini Keyboard
15_MINIKB UserMan
![](/img.php?id=2827913&img=bg1.png)

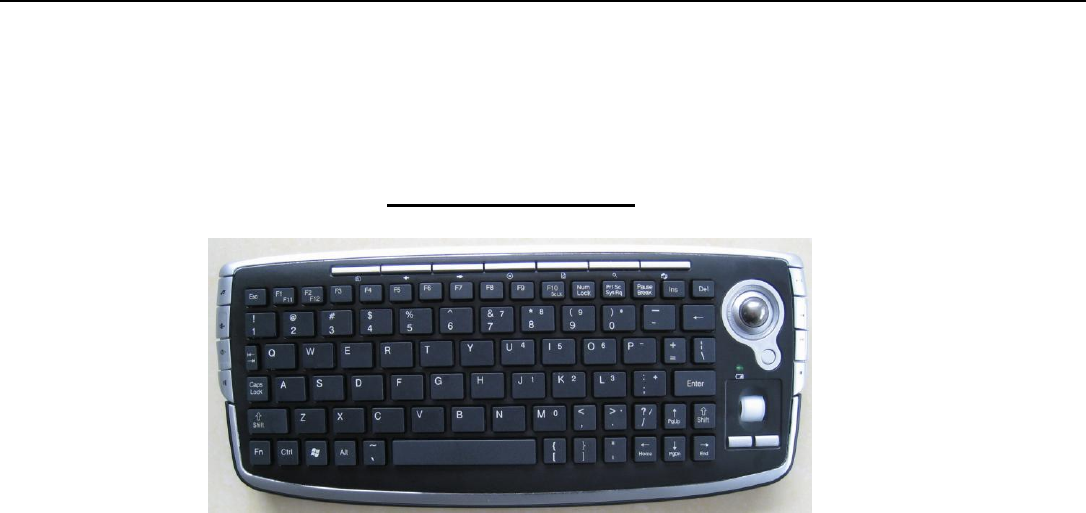

KEYBOARD SPECS
Features:
2.4GHZ Media centre keyboard with 78 keys, plus 15 multimedia keys and trackball
mouse
2.4GHZ wireless technology-up to 9 m range
Intelligent indicator lamps indicates the battery power can be consumable
Ultra responsive trackball mouse
USB Wireless adaptor
Supports Windows 2000/XP/Vista /7 /8
Model:MINIKB
Frequency range:: 2403-2478MHz
FCC ID:YH5MINIKB
Kobian Canada Inc.
![](/img.php?id=2827913&img=bg2.png)
Multi-media key description:
Physical and mechanical property:
Working Voltage +3 V
Static Current 50uA
Keycaps
Dynamic Current
1.5mA
Trackball
Dynamic Current
15mA
Keyboard Size 261mm×112mm×30mm
Keyboard Weight 302g (Battery weight is not included)
Keycaps 78keys 15 Hotkeys
Key Elasticity 50±8g
Pre-travel
Distance of Key buttons
0.5±0.2mm
Total Travel Distance of Key buttons 1.7±0.5mm
Web/Home Starts the default Web browser and goes to the home Web page.
If the Web browser window is active, it opens the home Web
page
Front Page Backwards to Front pictures
Next Page Forwards to next pictures
Stop (Picture) Stops browsing pictures upload
Refresh Refreshes Internet content and windows content
Search Opens the Internet Explorer Search pane
E-mail Starts the default E-mail program
Play (Media) Starts playing the media in the media player
Volume Up Pushes the button to increase the volume time to time
Volume Down Push the button to decrease the volume time to time
Mute Mutes (turns off) the computer's sound. Press it again to turn the
system sound back on.
Play/Pause Switches between playing and pausing media in a media player.
After pressing to pause the media, press this button again to
resume play.
Previous Track Switches to the previous media track within a media player.
Each press moves to a preceding media track in the sequence.
Next Track Switches to the next media track. Press once for each
subsequent media track.
Stop(Media) Stops playing the media in the media player. Press Play/Pause
to start playing the media again.
Kobian Canada Inc.
![](/img.php?id=2827913&img=bg3.png)
Valid Distance 9M
Battery Type 2*AAA
Frequency 2.403-2.478GHz
Key Switch Life 5 Millions
Silicon Material Constitute cymene ethylene, silica gel rubber
no.110-2 and mixed refine gelXC941
PCB Material Kb94v0 material
Casing Material ABS
Working Environment
Working Temperature 0℃~45℃
Storage Temperature -20℃~60℃
Working Humidity 20%~90%
Frequency Testing 10Hz~55Hz~10Hz 0.75mm range
Strike Testing 100m/second 1000times
Dropping Testing Drop from 80cm with full package
Kobian Canada Inc.
![](/img.php?id=2827913&img=bg4.png)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
