Users Manual
![](/img.php?id=320462&img=bg1.png)
1021550-5-A
Bath Whirlpool
Remote Control
Homeowners Guide
K-1703
![](/img.php?id=320462&img=bg2.png)
1021550-5-A2Kohler Co.

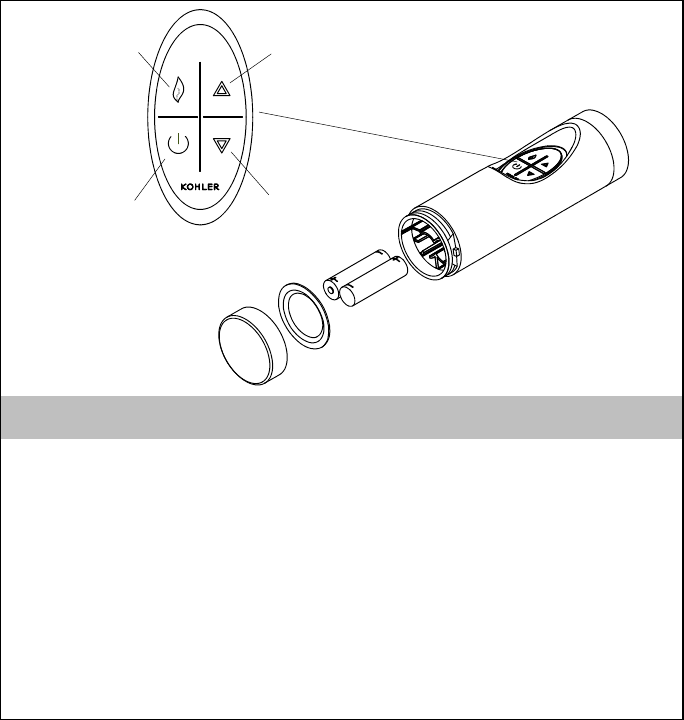

Heater
On/Off Increases
Flow
Decreases
Flow
Power
On/Off
Remote Control
The remote control places the whirlpool functions at your fingertips
to further enhance your bathing experience. The functions of the
remote are identical to the user keypad. You may turn the whirlpool
on and off, turn the heater on and off, and increase or decrease the
water flow by the press of a button.
The waterproof remote control is designed to be used in the bath and
will float in the water.
Two AAA batteries are used in the remote control. To replace, simply
unscrew the end cap and insert the batteries, as shown above.
Tighten the end cap securely, making sure the end cap makes contact
with the seal.
![](/img.php?id=320462&img=bg3.png)
1021550-5-A
3
Kohler Co.
FCC Compliance
FCC ID : N82-KOHLER001
Canada ID : 4554A-KOHLER001
Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules and with
RSS-210 of Industry Canada. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
Warning (Part 15.21)
Changes or modifications not expressly approved by the party
responsible for compliance could void the users authority to operate
the equipment.
Programming Your Remote Control
NOTE: Programming of the remote control is normally not required.
If more than one device in your home, or in the near vicinity of your
home, uses a remote control, it may be necessary to program this
remote control to the user keypad. If you replace your remote
control, or replace the pump control, it may be necessary to program
the remote control.
-Turn power on to the whirlpool.
-Turn off all modes of operation. Wait approximately one minute
until the keypad darkens (sleep mode).
-On the user keypad, press the up arrow, down arrow and the heater
button simultaneously. The bottom LED, on the keypad’s indicator
bar, will begin flashing.
-While the LED is flashing, press the heater button on the keypad. A
light sequence will illuminate up and down the indicator bar.
-While the indicator bar light sequence is active, press any button on
the remote control. The program will download and the user keypad
will darken. The user keypad will now respond only to this remote
control.
![](/img.php?id=320462&img=bg4.png)
1021550-5-A4Kohler Co.
Homeowners Guide
Bath Whirlpool Remote Control
E2003 Kohler Co.
1021550-5-A
USA: 1-800-4-KOHLER
Canada: 1-800-964-5590
Mexico: 001-877-680-1310
kohler.com
