LG Electronics USA 52DC2DUC DLP Projection Monitor User Manual U0570A
LG Electronics USA DLP Projection Monitor U0570A
User Manual
![](/img.php?id=651660&img=bg1.png)
© Copyright 2005, LG Electronics USA, Inc.
Installation and Operating Guide |Warranty
Model Numbers |Z52DC2D/Z56DC1D/Z62DC1D |DLP PROJECTION
As an ENERGY STAR
Partner LGE U.S.A., Inc.
has determined that this
product meets the ENER-
GY STAR guidelines for
energy drriciency.
![](/img.php?id=651660&img=bg2.png)
2 DLP Projection TV
WARNING/CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi-
cient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the appli-
ance.
WARNING/CAUTION:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
POWER CORD POLARIZATION:
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE
DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding system of the building, as close to the point of the
cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized mod-
ification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is:
Zenith Electronics Corporation
1-201-816-2000
Marked and Distributed in the United States by LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632
http://www.zenith.com
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
/CAUTION
W
Warning/Caution
arning/Caution
Warning/Caution
![](/img.php?id=651660&img=bg3.png)
Owner’s Manual 3
Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate booklet or
sheet, or be located before any operating instructions in an instruction for installation for use and supplied with the appara-
tus. This information shall be given in a language acceptable to the country where the apparatus is intended to be used. The
important safety instructions shall be entitled “Important Safety Instructions”. The following safety instructions shall be includ-
ed where applicable, and, when used, shall be verbatim as follows. Additional safety information may be included by adding
statements after the end of the following safety instruction list. At the manufacturer’s option, a picture or drawing that illus-
trates the intent of a specific safety instruction may be placed immediately adjacent to that safety instruction :
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli-
fiers)that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Safety Instructions
Safety Instructions
PORTABLE CART WARNING
![](/img.php?id=651660&img=bg4.png)
4 DLP Projection TV
Safety Instructions
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has exposed to rain or moisture, does not operate normally, or has been dropped.
15. CAUTION concerning the Power Cord :
Most appliances recommend they be placed upon a dedicated circuit; that
is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of
this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of these conditions could
result in electric shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being
twisted, kinked, pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and the point where the
cord exits the appliance.
16. Outdoor Use Marking :
WARNING - To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Appliance To Rain Or Moisture.
17. Wet Location :
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall
be placed on the apparatus.
![](/img.php?id=651660&img=bg5.png)
Owner’s Manual 5
Contents
After reading this manual, keep it handy for future reference.
Warnings/Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4
Introduction
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

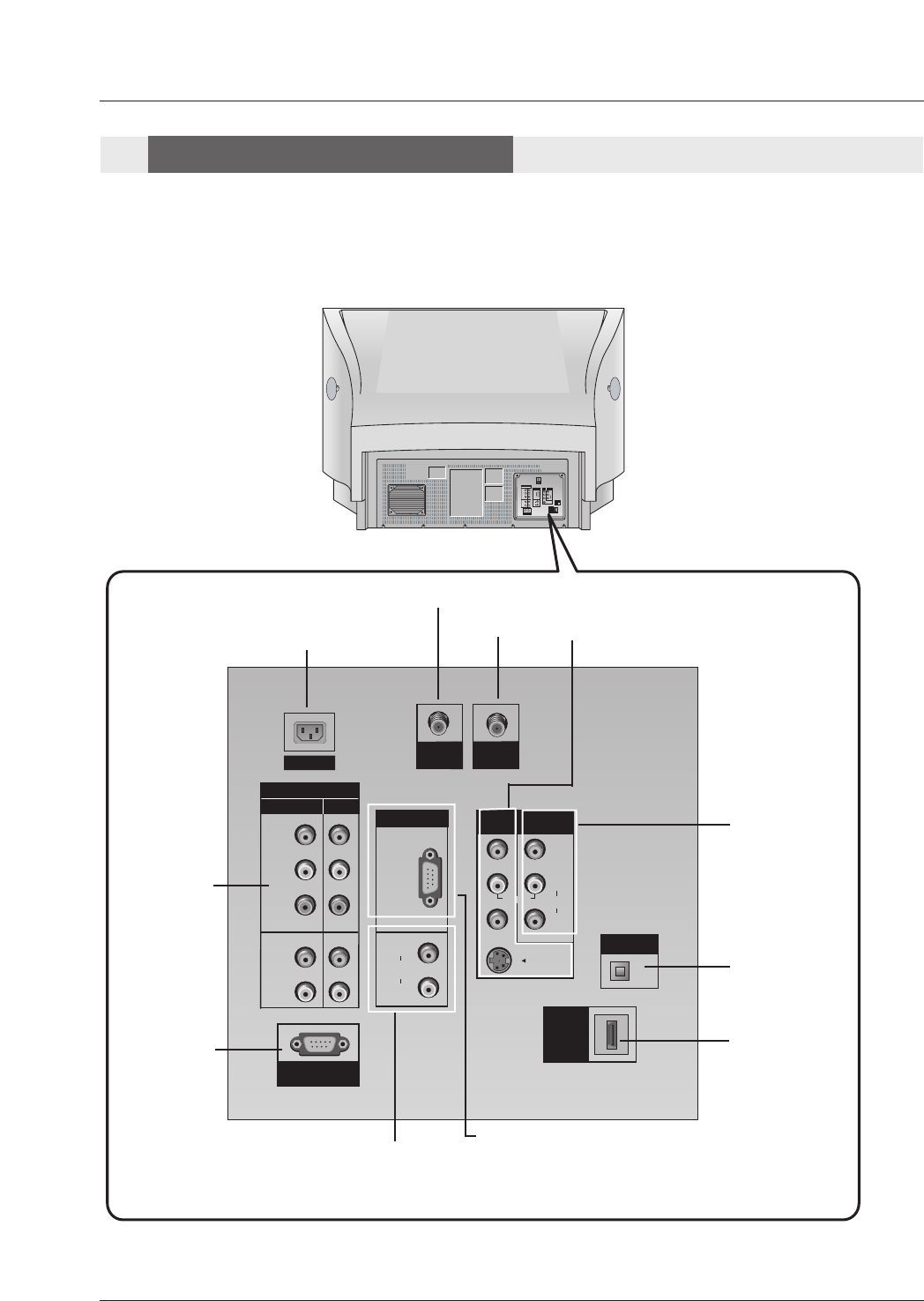

Connection Options . . . . . . . . . . . . . . . . . . . .7~8

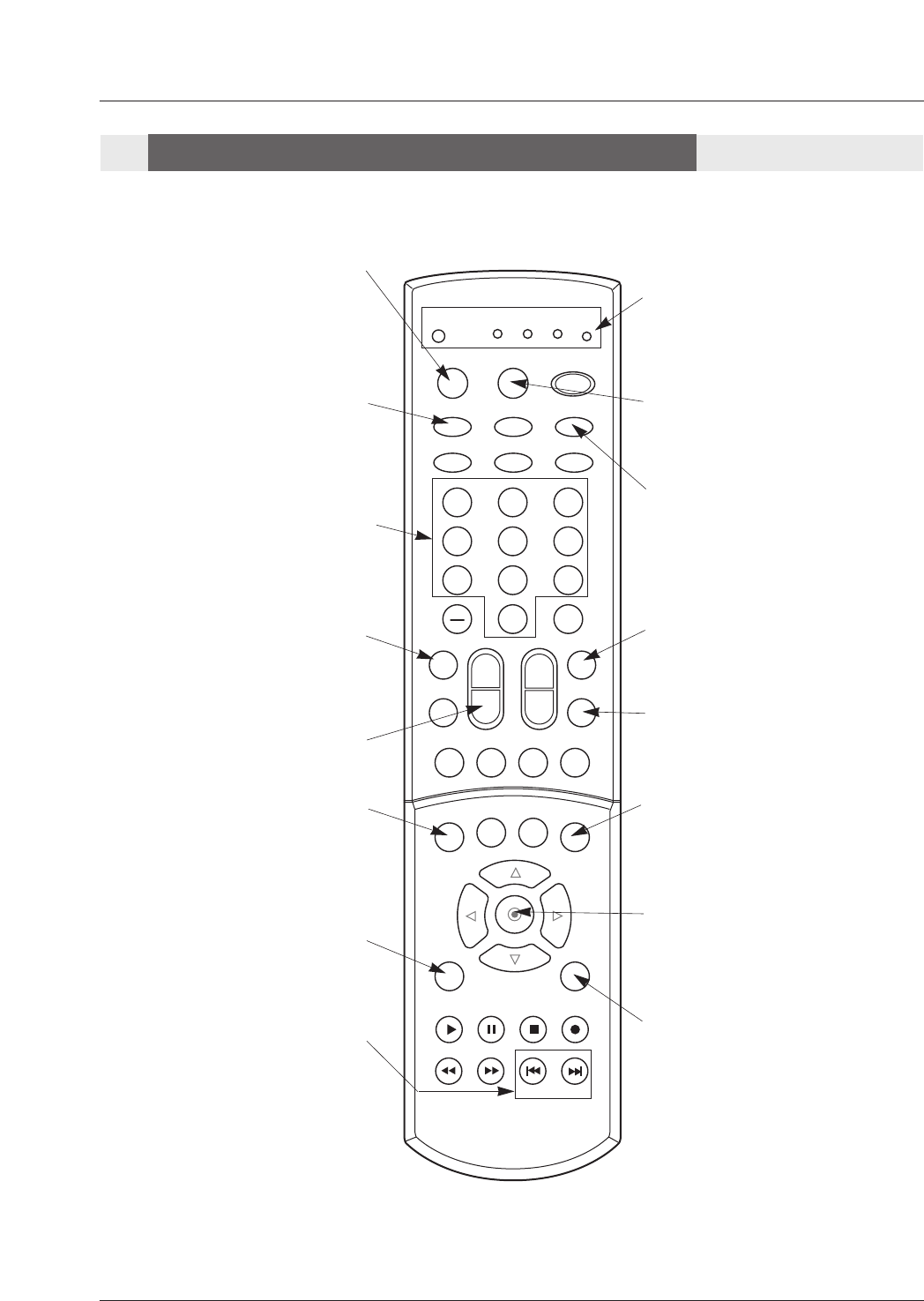

Remote Control Key Functions . . . . . . . . . . .9~10
Installation
External Equipment Connections . . . . . . . . . .11~16

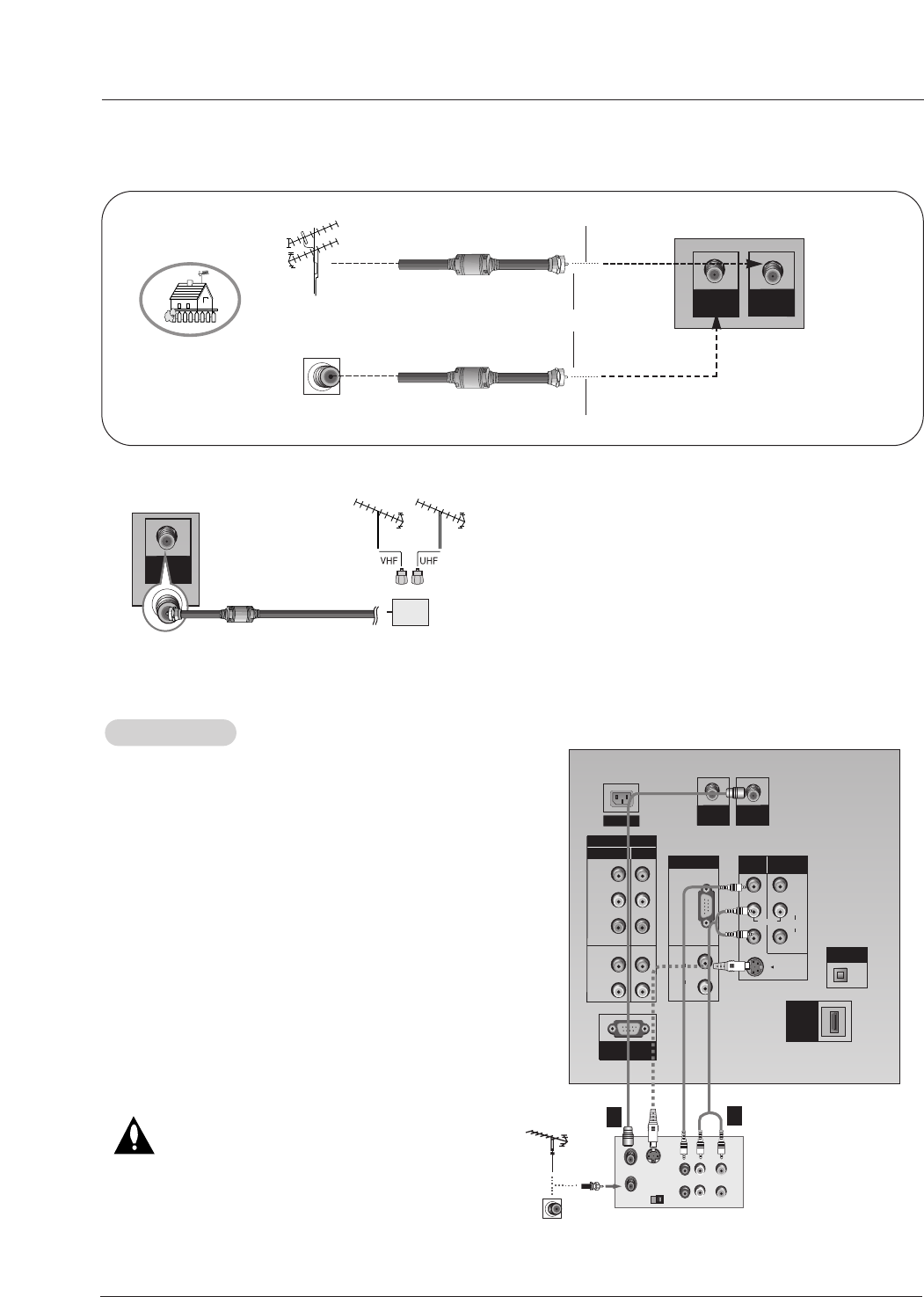

Antenna Connection . . . . . . . . . . . . . . . . . . . . .11
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .12

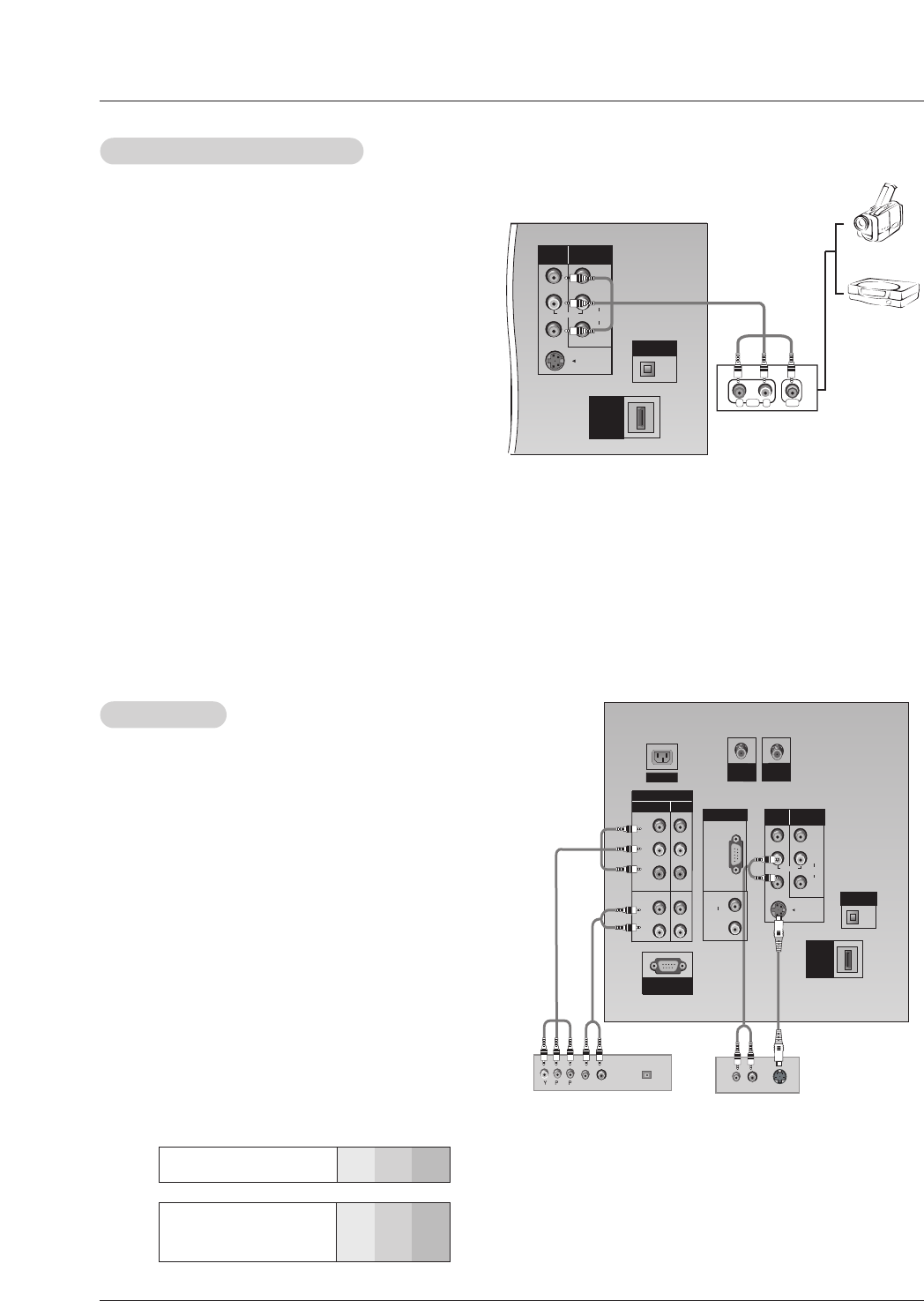

External A/V Source Setup . . . . . . . . . . . . . . . .13
DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HDSTB Setup . . . . . . . . . . . . . . . . . . . . . . . . . .14
AV Out Setup . . . . . . . . . . . . . . . . . . . . . . . . . .14

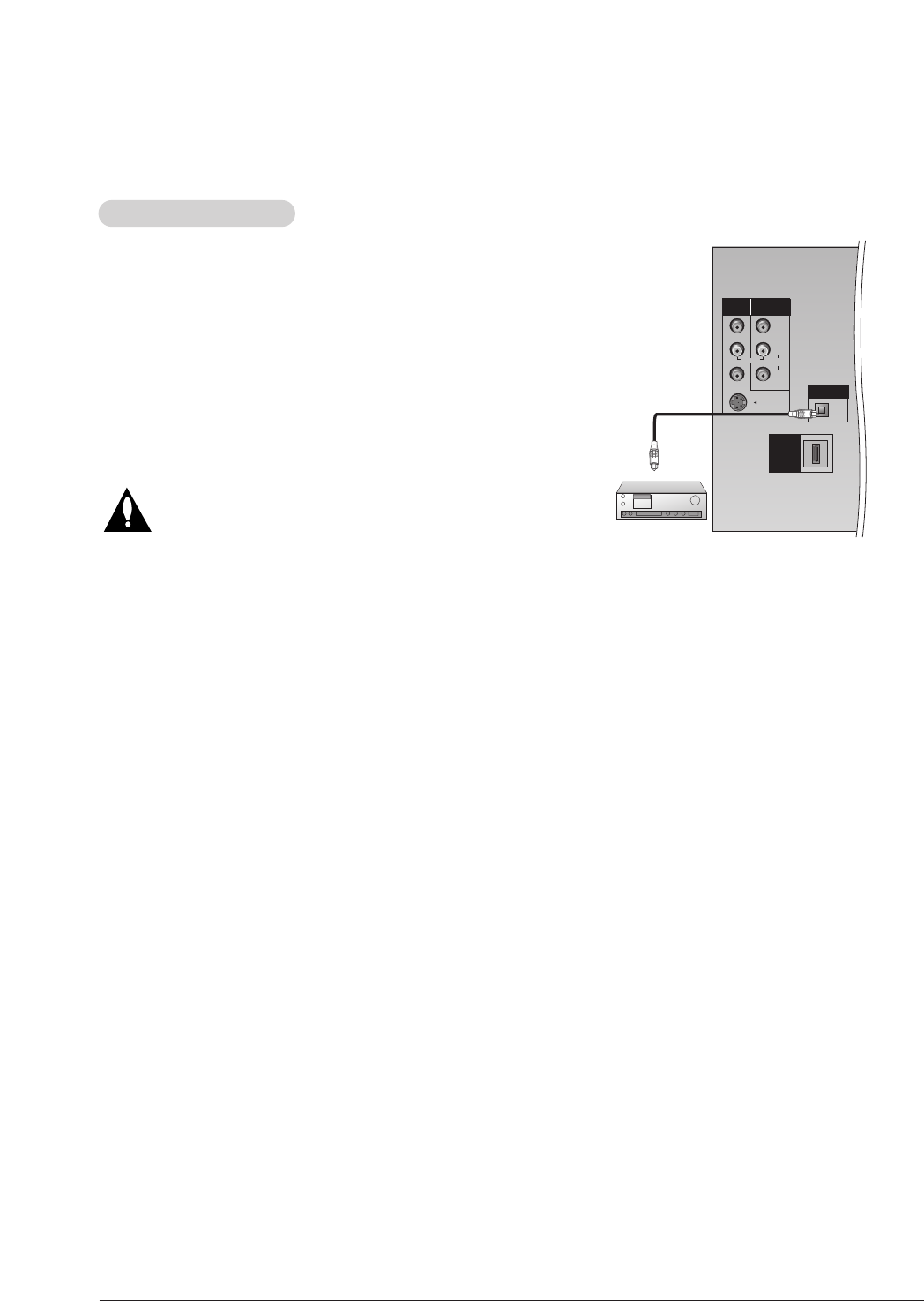

Digital Audio Output . . . . . . . . . . . . . . . . . . . . .15

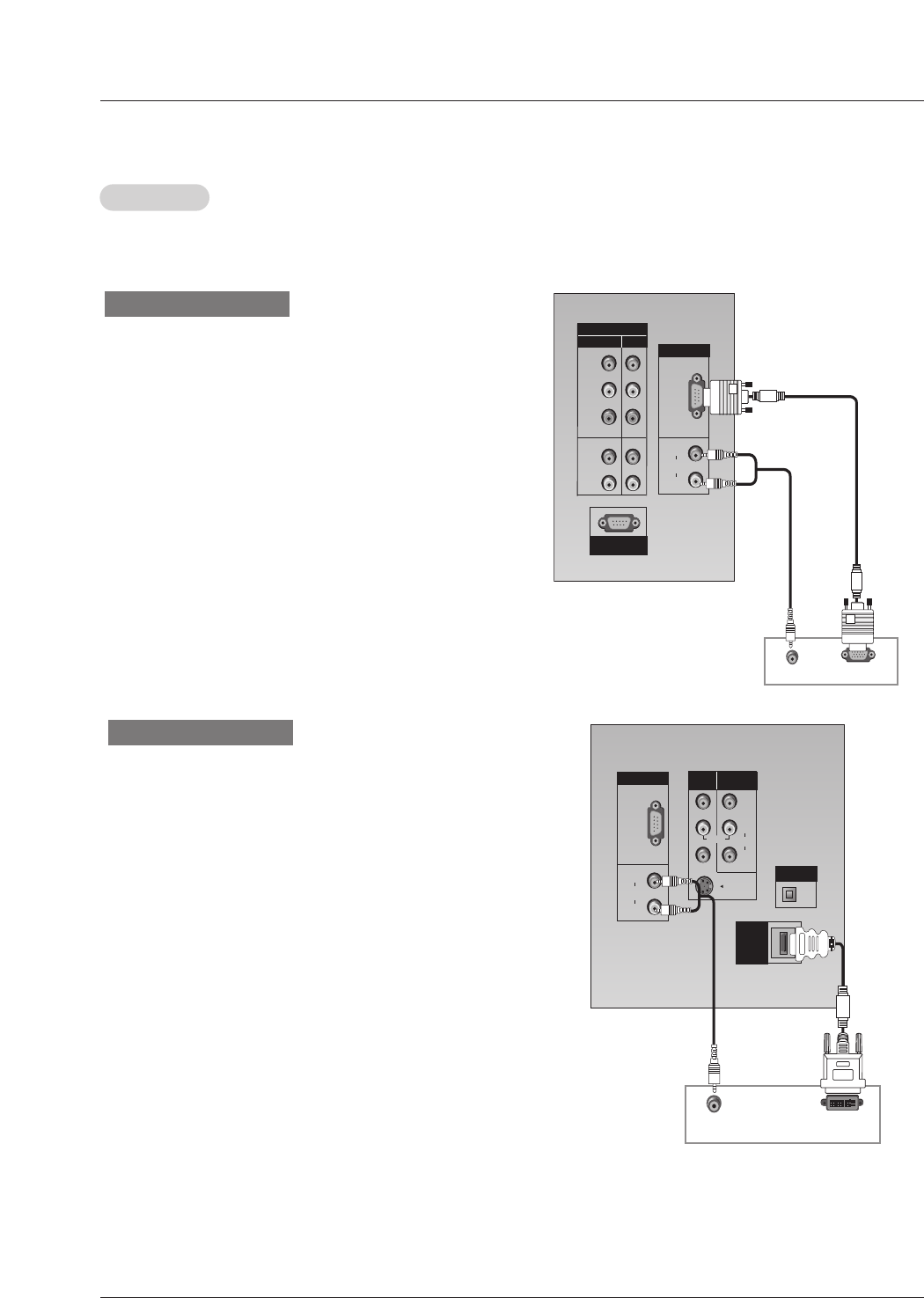

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .16~18
Operation
Turning the TV On . . . . . . . . . . . . . . . . . . . . . .19
TV Setup
On-screen Menus Language Selection . . . . . . .20
Channel Selection . . . . . . . . . . . . . . . . . . . . . . .20
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . .20
Setup Menu Options
EZ Scan (Channel Search) . . . . . . . . . . . . . . . .21
Manual Scan . . . . . . . . . . . . . . . . . . . . . . . . . .21
Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . .22
DTV Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Input Source Selection . . . . . . . . . . . . . . . . . . .23
Input Label . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Video Menu Options
Auto Picture Control (EZ Picture) . . . . . . . . . . .24

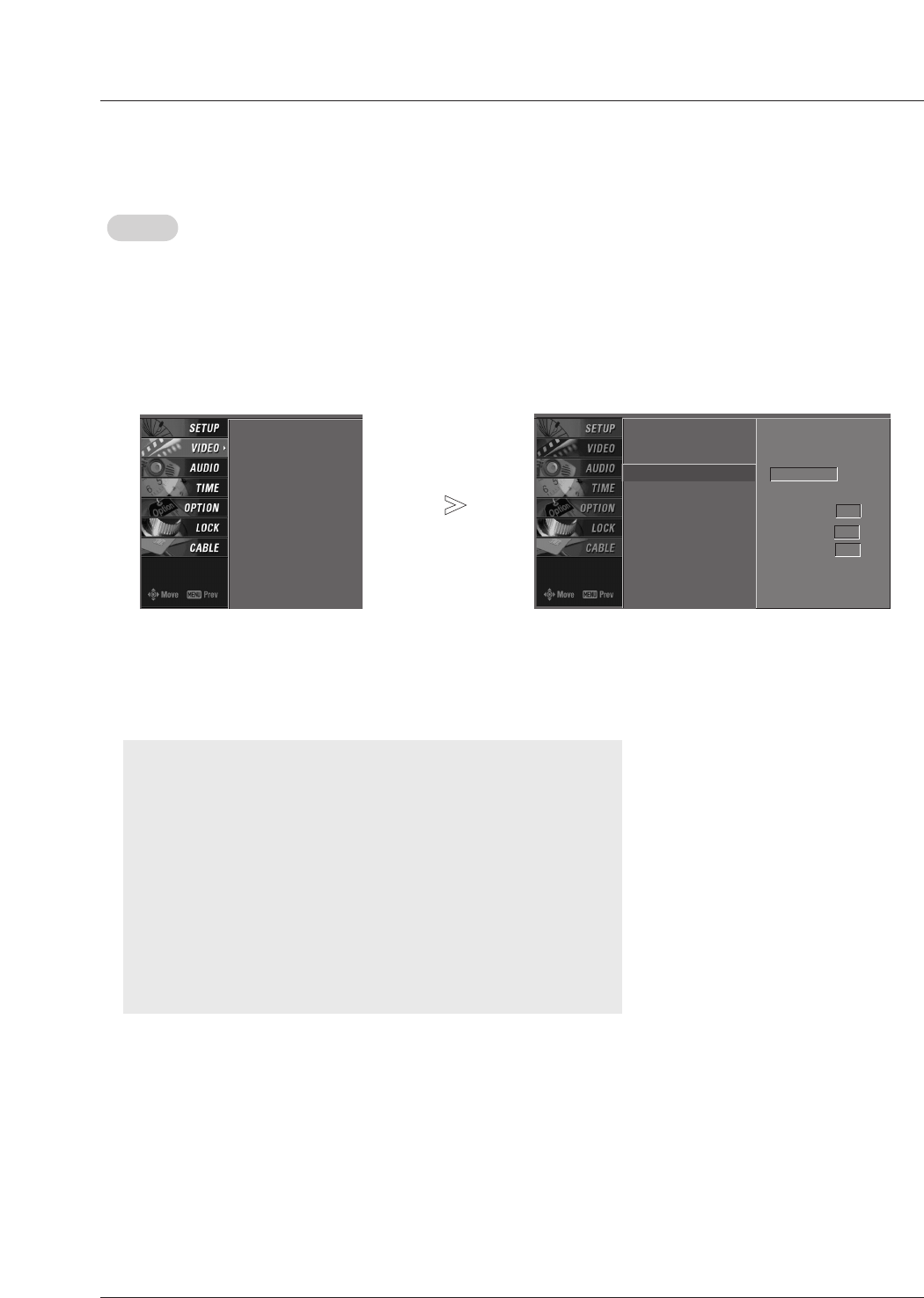

Color Temperature Control . . . . . . . . . . . . .24~25
XD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Advanced-Cinema 3:2 Mode / Black Level . . . .27
Video Reset . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Audio Menu Options
Audio Language . . . . . . . . . . . . . . . . . . . . . . . .29
Auto Volume Leveler (EZ SoundRite) . . . . . . . .29
Auto Sound Control (EZ Sound) . . . . . . . . . . . .29
Manual Sound Control (EZ sound-User Option) . . .30
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
TV Speakers On/Off Setup . . . . . . . . . . . . . . . .31
Time Menu Options

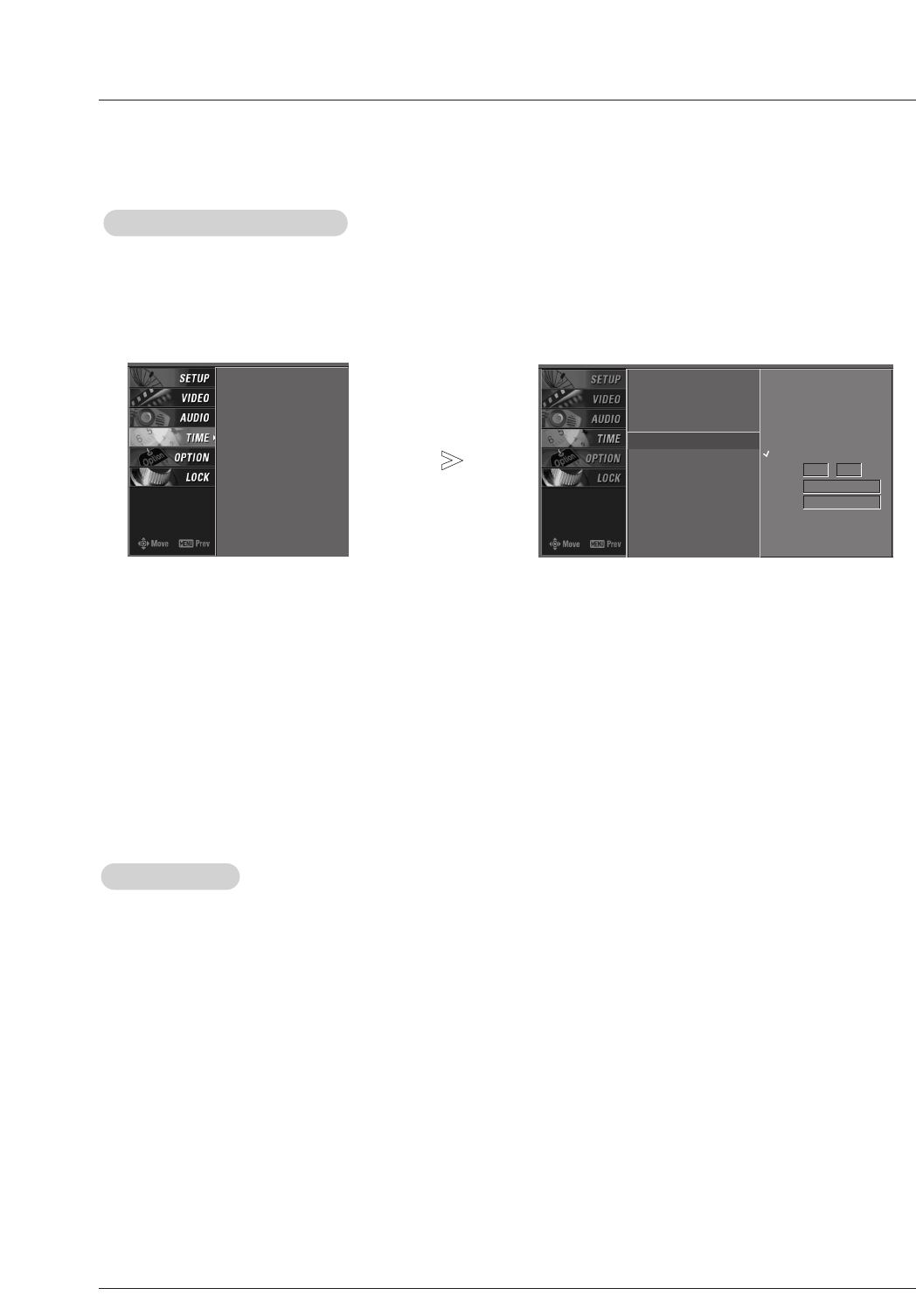

Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . .32
Manual Clock Setup . . . . . . . . . . . . . . . . . . . . .32
On/Off Timer Setup . . . . . . . . . . . . . . . . . . . . .33
Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Option Menu Options

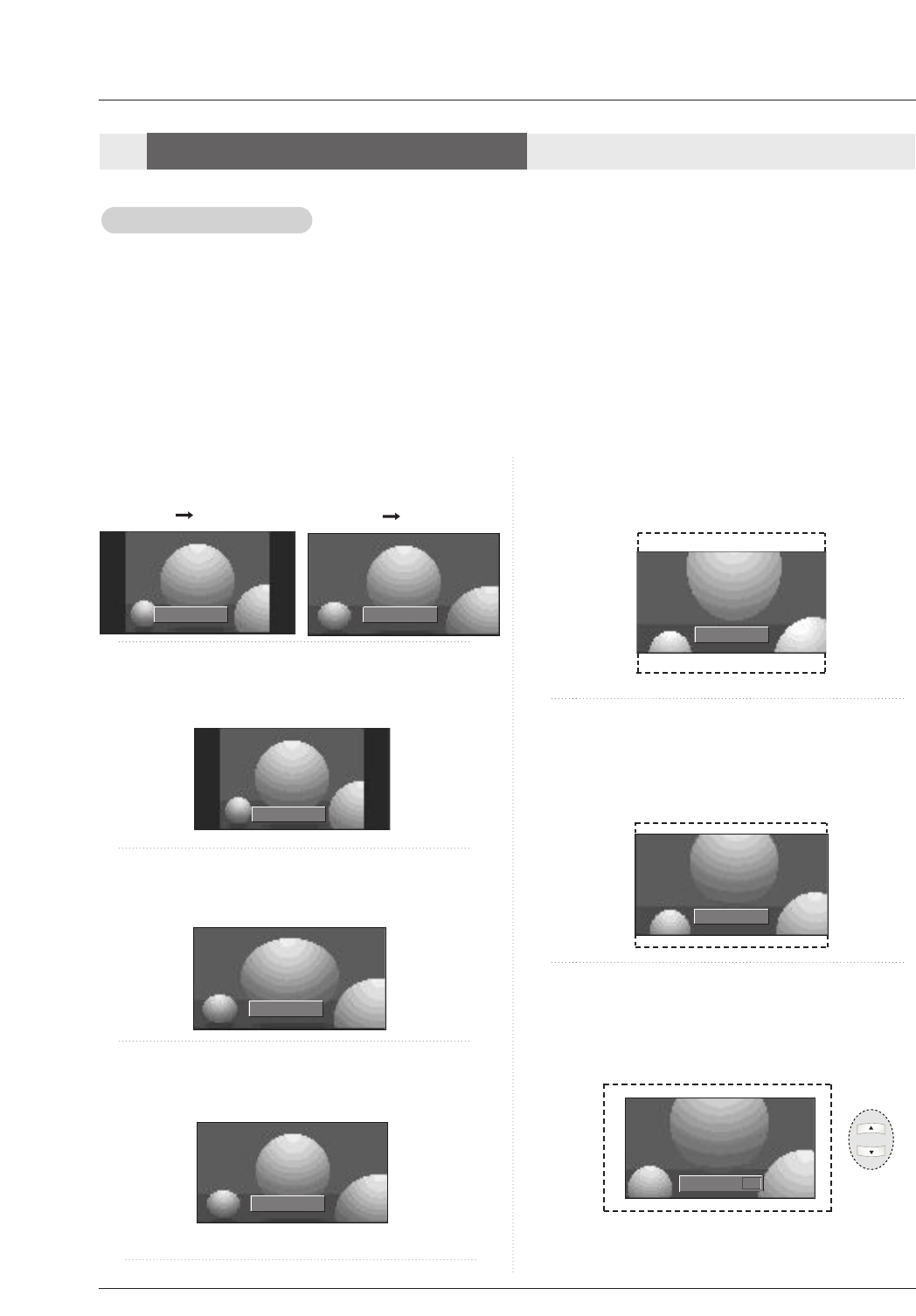

Aspect Ratio Control . . . . . . . . . . . . . . . . . . . . .35
Caption / Text . . . . . . . . . . . . . . . . . . . . . . . . . .36
Caption Option . . . . . . . . . . . . . . . . . . . . . . . . .37
Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Lock Menu Options
Parental Lock Setup . . . . . . . . . . . . . . . . . . . . .39
Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Brief Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

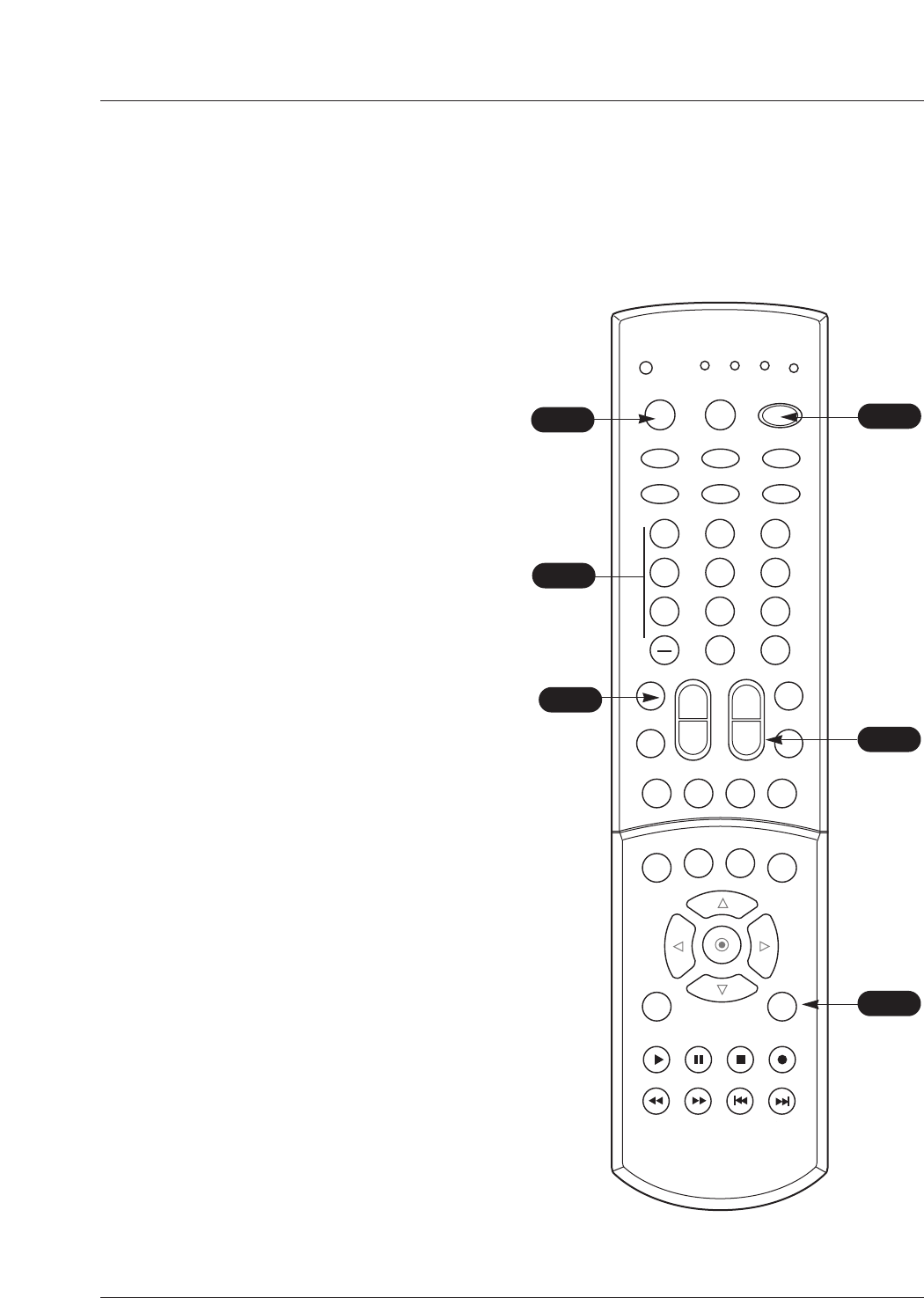

Programming the Remote . . . . . . . . . . . . . . . . . . . . . .42
Programming Codes . . . . . . . . . . . . . . . . . . . . . . .43~45
Troubleshooting Checklist . . . . . . . . . . . . . . . . . . .46~47
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . .49
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Contents
Contents
![](/img.php?id=651660&img=bg6.png)
6 DLP Projection TV
Introduction
Introduction
Introduction
INPUT VOL CH
ENTER
MENU
- Lamp indicator, operation indicator, and temperature indicator located below the front panel controls, reveal the
operating status of the DLP projection TV.
Function Status Indicators
Function Status Indicators
Controls
Controls
Front Panel Controls
Front Panel Controls
Off Power cord is not connected.
Red Power Cord is connected, TV is in standby mode.
Green TV turns on.
Orange (blinking) Preparing operation in standby mode.
Red (blinking) There is a problem with the lamp or around it. Contact an
authorized service center.
Green (blinking) The lamp cover is not closed.
Orange The projection TV is overheating. Check for blocked vents on
the projection TV.
Red The projection TV shut down due to overheating.
Red (blinking) The projection TV shut down, check the cooling fan. Contact
your service center.
Operation Indicator
Lamp Indicator
Temperature Indicator
- This is a simplified representation of a front panel.
- Image shown may be somewhat different from your TV.
POWER Button
MENU Button
ENTER Button
VOLUME (FF,GG)
Buttons
CHANNEL (EE, DD)
Buttons
Operation Indicator/
Lamp Indicator/
Temperature Indicator
INPUT Button
![](/img.php?id=651660&img=bg7.png)
Owner’s Manual 7
Introduction
RGB
(PC/DTV)
S-VIDEO
PR
PB
Y
MONO
RGB IN
COMPONENT IN
2
1
(L)
(R)
AUDIO
RGB/DVI
(L)
(R)
AUDIO
VIDEO
(L)
(R)
AV IN 1 AV OUT
DIGITAL AUDIO
OPTICAL OUTPUT
CABLE
IN
SERVICE ONLY
VIDEO
AUDIO
HDMI
/DVI IN
RGB
(PC/DTV)
S-VIDEO
PR
PB
Y
MONO
RGB IN
COMPONENT IN
21
(L)
(R)
AUDIO
RGBDVI
(L)
(R)
AUDIO
VIDEO
(L)
(R)
AV IN 1 AV OUT
DIGITAL AUDIO
OPTICAL OUTPUT
ANTENNA
SERVICE ONLY
VIDEO
AUDIO
HDMI
/DVI IN
ANTENNA
IN
AC IN
Back Connection Panel
Back Connection Panel
Connection Options
Connection Options
CABLE IN
COMPONENT
IN 1/2
SERVICE
ONLY
HDMI/DVI
IN
DIGITAL AUDIO
OPTICAL OUT
AV IN 1
AV OUT
RGB/DVI
AUDIO IN
ANTENNA
IN
AC IN
RGB(PC/DTV)
VIDEO IN
![](/img.php?id=651660&img=bg8.png)
8 DLP Projection TV
Introduction
LEFT/RIGHT
AUDIO
Used for stereo
sound from vari-
ous types of
equipment.
S-VIDEO
A connection
available on
some very high-
end equipment
that provides bet-
ter picture quality
than video input.
VIDEO
Connects the
video signals
from any piece of
equipment.
AV IN 2 AV IN 2
AV IN 2
/

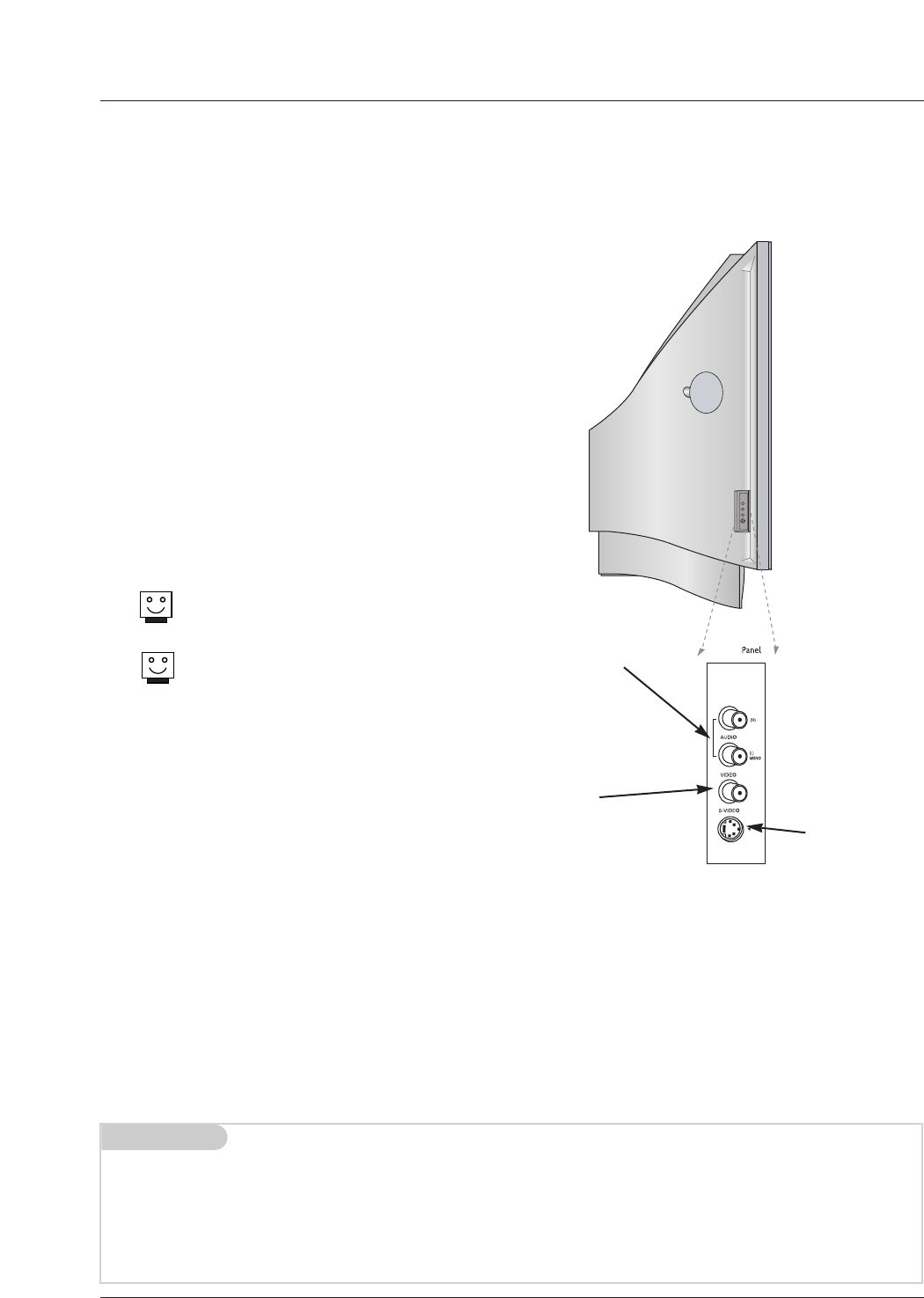

There are four jacks on the left side on your projection TV
that make connecting Audio/Video devices like video
games and camcorders very simple.
The jacks are like those found on the back jack connection
panel. This means that most equipment that connects to
those types of jacks on the rear jackpack, may be connect-
ed to the front connection panel.
To use the side jacks as the signal source, select them
using Main Input menu as described on page 22. They will
be named “AV 2” in the Main Input menu.
If you input both AV 2 and S-
Video, only the S-Video will work.
If you’re connecting a video game
device, make sure to change the
picture settings with the EZ
Picture option in the Video menu
(see page 24).
Mini glossary
A/V CABLES Audio/Video cables. Three cable connector—Right audio (red), Left audio (white), and Video (yellow). A/V cables
are used for stereo playback of videocassettes and for higher quality picture and sound from other A/V devices.
A/V DEVICE Any device that produces video or sound (VCR, DVD, cable box, or television).
Front Connection Panel
Front Connection Panel
![](/img.php?id=651660&img=bg9.png)
Owner’s Manual 9
Introduction
1 2 3
4 5 6
7 8 9
0
TV
MODE LIGHT POWER
INPUT INFO
HDMI/DVI
VCR
CABLE
DVD SAT
MUTE
EZ PICSRS APM
EZ SOUND
RATIO
MENU EXIT
CC FREEZE
GUIDE
VOL CH
FAV
SAP ADJUST
TIMER
RGB PC/DTV
TV INPUT
FLASHBK
+
-
ENTER
- When using the Remote Control, aim it at the remote control sensor on the TV.
Remote Control Key Functions
Remote Control Key Functions
INDICATOR LIGHTS
Show active remote mode
every time any button is
pressed.
MODE
Selects the remote operating mode:
TV, VCR, Cable, DVD and Satellite.
Select other operating modes, for the
remote to control external devices.
LIGHT
Illuminates the Remote
Control keys.
INPUT
Selects: Antenna, Cable, AV1, AV2,
Component1-2, RGB and HDMI/DVI
input sources.
FAV
Scrolls the Favorite channels.
INFO
When you watch the TV, information dis-
plays on top of the screen.
MUTE
Switches the sound on or off.
(Refer to
p.20)
ADJUST
Adjusts screen position, size, and phase
in RGB-DTV/PC mode.
VOLUME UP/DOWN
Increases/decreases the sound level.
NUMBER KEYPAD
For direct channel selection and
programming functions.
RATIO
Changes the screen format or aspect
ratio.
GUIDE
Shows program schedule.
ENTER
When in the menu system and other
on-screen displays, selects highlighted
options.
MENU
Brings up the main menu to the
screen.
EXIT
Clears all on-screen displays and returns
to TV viewing from any menu.
SKIP
Playing CDs: Selects songs.
Playing DVDs: Selects movie chapters.
![](/img.php?id=651660&img=bga.png)
10 DLP Projection TV
Introduction
• Open the battery compartment cover on the back side and install the batteries
matching correct polarity (+ with +, - with -).
• Install two 1.5V AA batteries. Don’t mix old or used batteries with new ones.
Close cover.
Installing Batteries
Installing Batteries
1 2 3
4 5 6
7 8 9
0
TV
MODE LIGHT POWER
INPUT INFO
HDMI/DVI
VCR
CABLE
DVD SAT
MUTE
EZ PICSRS APM
EZ SOUND
RATIO
MENU EXIT
CC FREEZE
GUIDE
VOL CH
FAV
SAP ADJUST
TIMER
RGB PC/DTV
TV INPUT
FLASHBK
+
-
ENTER
back of
remote
TV INPUT
• Rotates the input mode between Antenna
and Cable.
• AV1-2, Component 1-2, RGB-DTV (or
RGB-PC) and HDMI/DVI input sources, TV
will return to the last TV channel.
CC
Selects a closed caption mode for dis-
playing captioning information if avail-
able on program.
POWER
Turns your TV or any other programmed
equipment on or off, depending on mode.
TIMER
Lets you select the amount of time
before your TV turns itself off auto-
matically.
RGB PC/DTV
Rotates the RGB input mode
between DTV and PC.
In other input sources, change to the
RGB -DTV(or PC) mode.
Remote Control Key Functions
Remote Control Key Functions
HDMI/DVI
SAP
Selects MTS sound: Mono, Stereo, and
SAP in Analog mode. Change the audio
language in DTV mode.
CHANNEL UP/DOWN
Scrolls through available channels in
EZ Scan memory.
FLASHBK
Tunes to the last channel viewed.
APM(Adaptive Picture Mode)
Concurrently, compare with the Daylight,
Normal, Night Time.and Custom on the
screen.
EZ PIC
Adjusts the factory preset picture
depending on the viewing environ-
ment.
SRS
Selects the sound appropriate for the
Select the desired sound (Off, 3D
EchoSound System or SRS TruSu
rround XT)
in Front Surround function.
EZ SOUND
Selects the sound appropriate for the
program's character.
FREEZE
Freezes the currently-viewed picture.
Main picture is frozen in PIP/Twin picture
mode.
THUMBSTICK
Allows you to navigate the on-screen
menus and to adjust the system settings
and preferences, by moving to an option
with
F G
and selecting the highlighted
option with .
D
E
RECORD, PAUSE, REW, FFWD,
PLAY, STOP
Control the functions on your VCR.
![](/img.php?id=651660&img=bgb.png)
Owner’s Manual 11
Installation
- Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections
- For optimum picture quality, adjust antenna direction if needed.
Antenna Connection
Antenna Connection
1. Analog and Digital TV signals provided on one antenna
2. Analog and Digital TV signals provided on cable
CABLE
IN
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
Wall Antenna
Socket
VHF Antenna
UHF Antenna
RF Coaxial Wire (75 ohm)
Bronze Wire
Turn clockwise to tighten.
Bronze Wire
Be careful not to bend the Copper Wire when
connecting the antenna.
Bronze Wire
Cable TV Wall
Jack RF Coaxial Wire (75 ohm)
ANTENNA
IN
Installation
Installation
External Equipment Connections
External Equipment Connections
Turn clockwise to tighten.
![](/img.php?id=651660&img=bgc.png)
12 DLP Projection TV
Connection Option 1
Set VCR output switch to channel 3 or 4 and then tune the
TV to the same channel number.
Connection Option 2
1. Connect the audio and video cables from the VCR's output
jacks to the TV input jacks, as shown in the figure.
When connecting the TV to VCR, match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
If you connect an S-VIDEO output from VCR to the S-VIDEO
input, the picture quality is improved; compared to connecting
only the Video input.
2. Insert a video tape into the VCR and press PLAY on the
VCR. (Refer to the VCR owner’s manual.)
3. Select the input source with using the INPUT button on the
remote control. Note that this TV finds the connected input
sources automatically for AV 1-2 and Component 1-2.
Do not connect to both AV1-2 and S-Video at the
same time. In the event that you connect both AV and
the S-Video cables, only the S-Video will work.
VCR Setup
VCR Setup
S-VIDEO
(R) AUDIO (L)
OUT
IN
VIDEO
34
OUTPUT
SWITCH
ANT OUT
ANT IN
RGB
(PC/DTV)
S-VIDEO
PR
PB
Y
MONO
RGB IN
COMPONENT IN
2
1
(L)
(R)
AUDIO
RGB/DVI
(L)
(R)
AUDIO
VIDEO
(L)
(R)
AV IN 1 AV OUT
DIGITAL AUDIO
OPTICAL OUTPUT
SERVICE ONLY
VIDEO
AUDIO
HDMI
/DVI IN
CABLE
IN
AC IN
ANTENNA
IN
VCR Rear
12
Installation
Note: The TV will let you know when the TV(analog antenna), DTV(digital antenna), CATV(analog cable) and CADTV(digital
cable) channel scans are complete.
•In a poor signal area to improve picture quality, purchase
and install a signal amplifier.
•If the antenna or cable needs to be split for two TV’s,
install a “2-Way Signal Splitter” in the connections.
•If the antenna or cable is not installed properly, contact
your dealer for assistance.
CABLE
IN
Signal
Amplifier
3. Analog and Digital TV signals provided on cable and antenna
Antenna
RF Coaxial Wire (75 ohm)
Bronze Wire
Turn clockwise to tighten.
Cable TV Wall
Jack RF Coaxial Wire (75 ohm)
CABLE
IN ANTENNA
IN
![](/img.php?id=651660&img=bgd.png)
Owner’s Manual 13
Installation
•Component Input ports
To get better picture quality, connect a DVD player to the
component input ports as shown below.
Component ports
on the TV Y PBPR
Video output ports
on DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
How to connect
1. Connect the DVD video outputs (Y, PB, PR) to the COMPO-
NENT (Y, PB, PR) INPUT jacks on the TV and connect the
DVD audio outputs to the AUDIO INPUT jacks on the TV, as
shown in the figure.
2. If your DVD only has an S-Video output jack, connect this to
the S-VIDEO input on the TV and connect the DVD audio out-
puts to the AUDIO INPUT jacks on the TV, as shown in the fig-
ure.
Note: If your DVD player does not have component video output,
use S-Video.
How to use
1. Turn on the DVD player, insert a DVD.
2. Use the INPUT button on the Remote Control to select
Component 1 or Component 2. (If connected to S-VIDEO,
select the AV 1 or AV 2 external input source.)
3. Refer to the DVD player's manual for operating instructions.
DVD Setup
DVD Setup
(R) AUDIO (L)
S-VIDEO
BR
(R) AUDIO (L) DIGITAL AUDIO
OPTICAL
RGB
(PC/DTV)
S-VIDEO
P
R
P
B
Y
MONO
RGB IN
COMPONENT IN
2
1
(L)
(R)
AUDIO
RGB/DVI
(L)
(R)
AUDIO
VIDEO
(L)
(R)
AV IN 1 AV OUT
DIGITAL AUDIO
OPTICAL OUTPUT
SERVICE ONLY
VIDEO
AUDIO
HDMI
/DVI IN
CABLE
IN
AC IN
ANTENNA
IN
DVD
or
How to connect
Connect the audio and video cables from the external equip-
ment's output jacks to the TV input jacks, as shown in the
figure.
When connecting the TV to external equipment, match the
jack colors (Video = yellow, Audio Left = white, and Audio
Right = red).
How to use
1. Select the input source by using the INPUT button on the
Remote Control. Note that this TV finds the connected input
sources automatically for AV 1-2 and Component 1-2. It is pre-
sumed that RGB and HDMI/DVI sources are
connected.
2. Operate the corresponding external equipment.
External
External A/V Source Setup
A/V Source Setup
(L)
(R)
S-VIDEO
(L)
(R)
AUDIO
VIDEO
AV IN 1 AV OUT
DIGITAL AUDIO
OPTICAL OUTPUT
HDMI
/DVI IN
RL
AUDIO VIDEO
MONO
Camcorder
Video Game
Set
![](/img.php?id=651660&img=bge.png)
14 DLP Projection TV
Installation
The TV has a special signal output capability which allows you to
hook up a second TV or monitor.
Connect the second TV or monitor to the TV’s MONITOR OUTPUT.
See the Operating Manual of the second TV or monitor for further
details regarding that device’s input settings.
Note
• Component, RGB-PC/RGB-DTV, HDMI/DVI, DTV input sources
cannot be used for AV out.
A
AV Out Setup
V Out Setup
(L)
(R)
S-VIDEO
(L)
(R)
AUDIO
VIDEO
AV IN 1 AV OUT
DIGITAL AUDIO
OPTICAL OUTPUT
HDMI
/DVI IN
S-VIDEO IN
(R) AUDIO (L) VIDEO
MONO

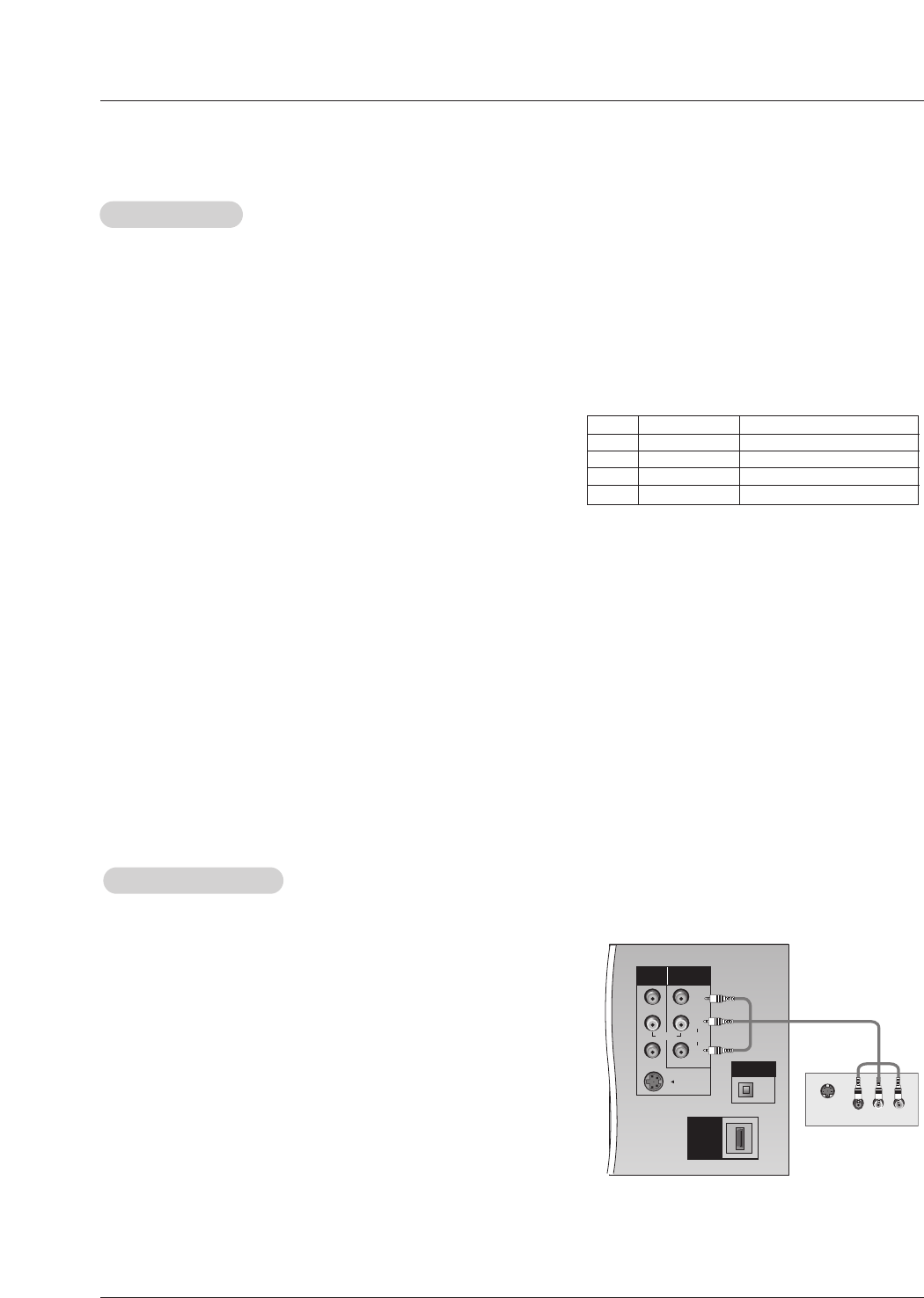

How to connect
Use the TV’s COMPONENT (Y, PB, PR) INPUT, RGB, HDMI/DVI jack for
video connections, depending on your set-top box connector. Then, make
the corresponding audio connections.
Note: HDMI(High Definition Multimedia Interface): Input that accepts uncom-
pressed digital signal and multi channel digital audio signal.
How to use
1. Turn on the digital set-top box. (Refer to the owner’s manual for the digital
set-top box.)
2. Use INPUT on the Remote Control to select Component 1, Component
2, RGB-DTV or HDMI/DVI source.
HDSTB Setup
HDSTB Setup
- This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you want to receive
Digital signals from a digital set-top box or other digital external device, refer to the figure as shown below.
- This TV supports HDCP (High-bandwidth Digital Contents Protection) protocol for Digital Contents (480p,720p,1080i).
Signal
480i
480p
720p
1080i
Component 1/2
Yes
Yes
Yes
Yes
RGB-DTV,HDMI/DVI
No
Yes
Yes
Yes
![](/img.php?id=651660&img=bgf.png)
Owner’s Manual 15
Send the TV’s audio to external audio equipment (stereo system) via
the Digital Audio Output (Optical) port.
How to connect
1. Connect one end of an optical cable to the TV Digital Audio
(Optical) Output port.
2. Connect the other end of the optical cable to the digital audio (opti-
cal) input on the audio equipment.
3. Set the “ TV Speaker option - Off”in the AUDIO menu. Refer to
page 26.
See the external audio equipment instruction manual for operation.
Caution: Do not look into the optical output port. Looking
at the light may damage your vision.
Digital
Digital Audio Output
Audio Output
C
A
B
L
E
C
A
R
D
DVI
HDMI
S-VIDEO
MONO
(L)
(R)
AUDIO
VIDEO
AV IN 1 AV OUT
DIGITAL AUDIO
OPTICAL OUTPUT
HDMI
/DVI IN
![](/img.php?id=651660&img=bg10.png)
16 DLP Projection TV
Installation
PC Setup
PC Setup
- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
- The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card, change the screen scanning rate for the graphic
card accordingly.
RGB-PC OUTPUT
AUDIO
RGB
(PC/DTV)
PR
PB
Y
RGB IN
COMPONENT IN
2
1
(L)
(R)
AUDIO
RGB/DVI
(L)
(R)
SERVICE ONLY
VIDEO
AUDIO
How to connect
1. Connect the PC to RGB INPUT port of this TV with a RGB cable.
2. If the PC(or the sound card of the PC) has an analog audio out-
put connector, connect the PC's audio output to AUDIO INPUT
port located on the right side of RGB INPUT port.
How To Use
1. To get the best picture quality, adjust the PC graphics card to
1024x768, 60 Hz.
2. Select RGB-PC input source in main input option of SETUP
menu.
Once you select RGB-PC in main input option of SETUP menu,
INPUT button is also available for this purpose.
When supporting RGB
DVI-PC OUTPUT
AUDIO
RGB
(PC/DTV)
S-VIDEO
RGB IN
(L)
(R)
AUDIO
RGB/DVI
(L)
(R)
AUDIO
VIDEO
AV IN 1 AV OUT
DIGITAL AUDIO
OPTICAL OUTPUT
HDMI
/DVI IN
MONO
How to connect
1. Connect the PC to HDMI/DVI port of this TV with an HDMI-to-DVI
cable(not supplied with this product).
2. If the PC(or the sound card of the PC) has an analog audio output
connector, connect the PC's audio output to AUDIO INPUT port
located on the right side of RGB INPUT port.
How To Use
1. To get the best picture quality, adjust the PC graphics card to
1024x768, 60Hz.
2. Select HDMI/DVI input source in main input option of SETUP
menu.
INPUT button is also available for this purpose.
When supporting DVI
Note:
-Check the image on your TV. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC output to another resolution, change the refresh rate to
another rate, adjust Phase Calibration using the ADJUST button or adjust the brightness and contrast on the
VIDEO menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the
PC graphic card or consult the manufacturer of the PC graphic card.
![](/img.php?id=651660&img=bg11.png)
Owner’s Manual 17
Installation
Resolution
800x600
Horizontal
Frequency(KHz)
70.09
59.94
72.80
75.00
48.363
56.476
60.023
Vertical
Frequency(Hz)
1024x768
Monitor Display Specifications (RGB-PC or HDMI/DVI Mode)
35.156
37.879
48.077
46.875
56.25
60.31
72.18
75.00
60.00
70.06
75.02
31.468
31.469
37.861
37.500
640x350
640x480
RGB-PC
Mode Only
Notes:
- Depending on the graphics card, DOS mode may not
work if a HDMI1 to DVI Cable is in use.
- When Source Devices connected with HDMI/DVI Input,
output PC Resolution(VGA, SVGA, XGA), Position and
Size may not fit to Screen. As shown the picture below,
press the ADJUST button to adjust the screen Position of
TV SET and contact an PC graphics card service center.
- When Source Devices connected with HDMI/DVI Input,
output TV SET Resolution(480p, 720p, 1080i) and TV
SET Display fit EIA/CEA-861-B Specification to Screen.
If not, refer to the Manual of HDMI/DVI Source Devices
or contact your service center.
- In case HDMI/DVI Source Devices is not connected
Cable or poor cable connection, "No signal" OSD dis-
play in HDMI/DVI Input. In case that Video Resolution is
not supported TV SET output in HDMI/DVI Source
Devices, "Invalid Format" OSD display. Refer to the
Manual of HDMI/DVI Source Devices or contact your
service center.
1280x768 47.78 59.87
![](/img.php?id=651660&img=bg12.png)
18 DLP Projection TV
Close
POSITION GG
SIZE
PHASE
RESET
Adjust
DD
FFGG
EE
Previous
POSITION
SIZE
PHASE
RESET
Adjust
Close
POSITION
SIZE GG
PHASE
RESET
Adjust
DD
FFGG
EE
Previous
POSITION
SIZE
PHASE
RESET
Adjust
DD
FFGG
EE
Previous
POSITION
SIZE
PHASE
RESET
Adjust
Initialize Settings
Yes No
Control Move Select
FFGG
FFGG
Move
Phase 0
FFGG
• When RGB connect to PC input and select the RGB-PC in Main Input, this function is used.
• In RGB-PC mode, POSITION, SIZE, PHASE, RESET is available.
• In RGB-DTV mode, SIZE, PHASE is not available.
• In HDMI/DVI mode, POSITION, SIZE, RESET is available (When PC format is inputted) or any function is not
available (When DTV format is inputted).

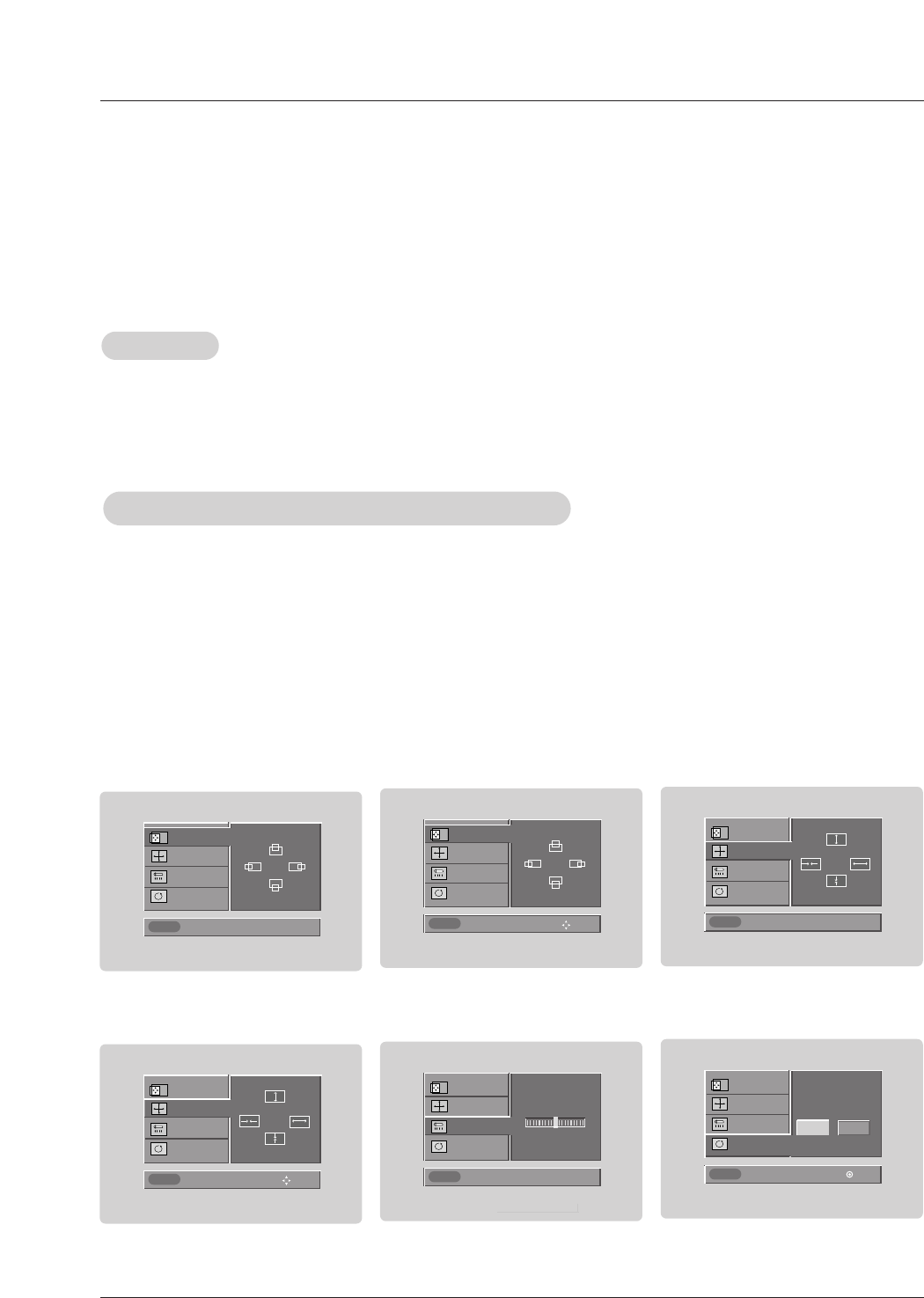

Screen Setup for PC mode
•After connecting RGB-PC to PC input and checking the screen quality.
- Display PC Adjust Menu using ADJUST button.
- Position : Adjust the screen position. After displaying the Adjust, select the screen position.
- Size : Adjust the screen size.
- Phase : Adjust the phase of Pixel clock.
- Reset : Initializating Size, Position, Phase adjustment .
Operation
Operation
Adjustment for screen Position, Size, Phase, Reset
Adjustment for screen Position, Size, Phase, Reset
Previous
POSITION
SIZE
PHASE
RESET
Adjust
DD
FFGG
EE
Size
![](/img.php?id=651660&img=bg13.png)
Owner’s Manual 19
Note: If you intend to be away on vacation, disconnect the power plug from the wall power outlet.
Operation
Operation
T
Turning the TV On
urning the TV On
* In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just an
example to help you with the TV operation.
Turning on the TV just after installation
Turning on the TV (power cord is still connected)
1. Connect power cord correctly. At this moment, the TV is switched to standby mode.
2. Press the POWER or CH (DD/ EE) buttons on the TV front panel or press the POWER, INPUT, TV INPUT,
CH (DD/ EE) or Number (0 ~ 9) buttons on the Remote Control to turn the TV on.
•Check the power cable.
1. If the TV is off without indicators on the TV
2. If the TV was turned off with the remote control and the POWER button on the TV
•Press the POWER button on the TV or press the POWER, INPUT, TV INPUT, CH (DD/ EE) or
Number (0 ~ 9) button on the Remote Control to turn the TV on.
![](/img.php?id=651660&img=bg14.png)
20 DLP Projection TV

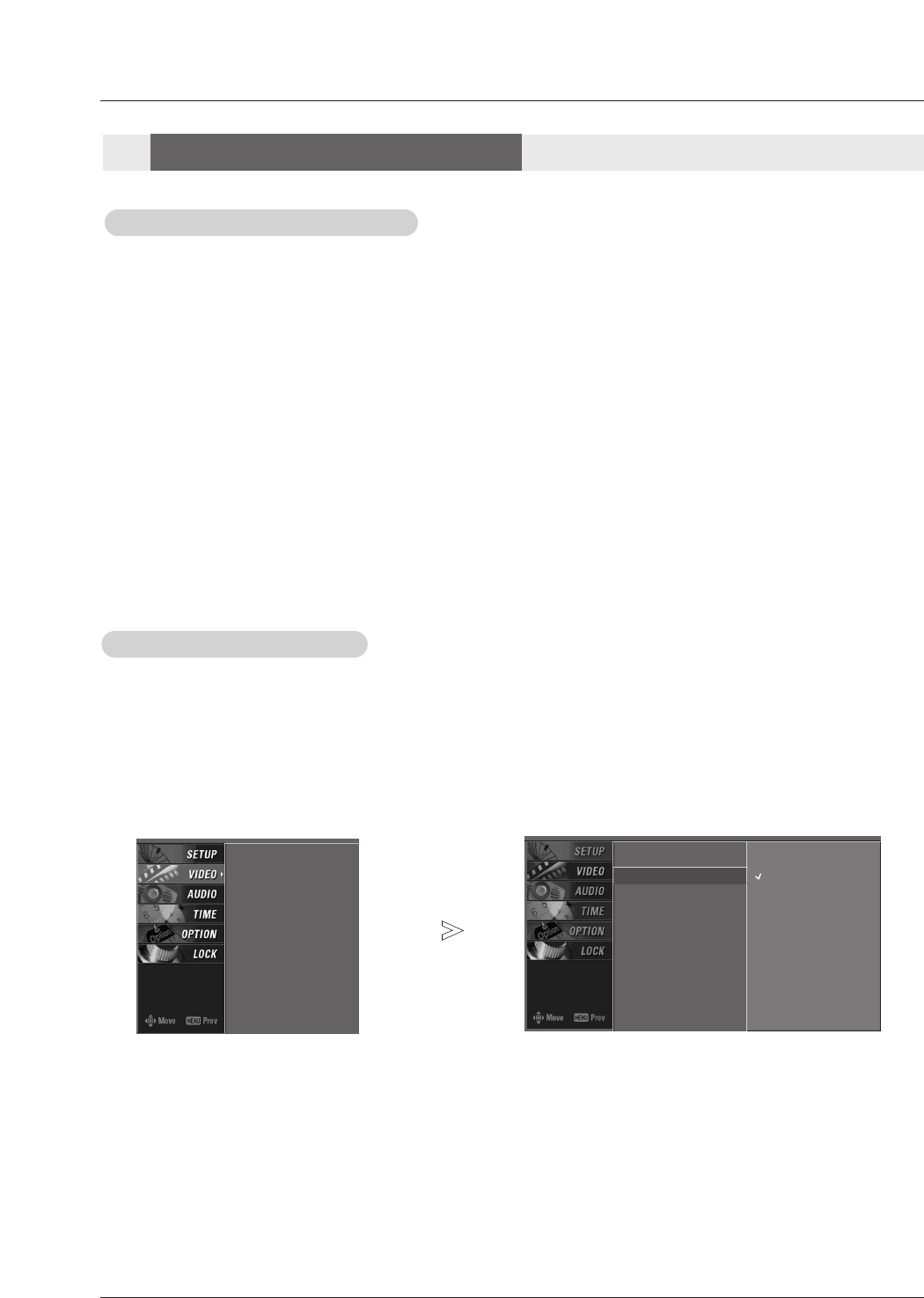

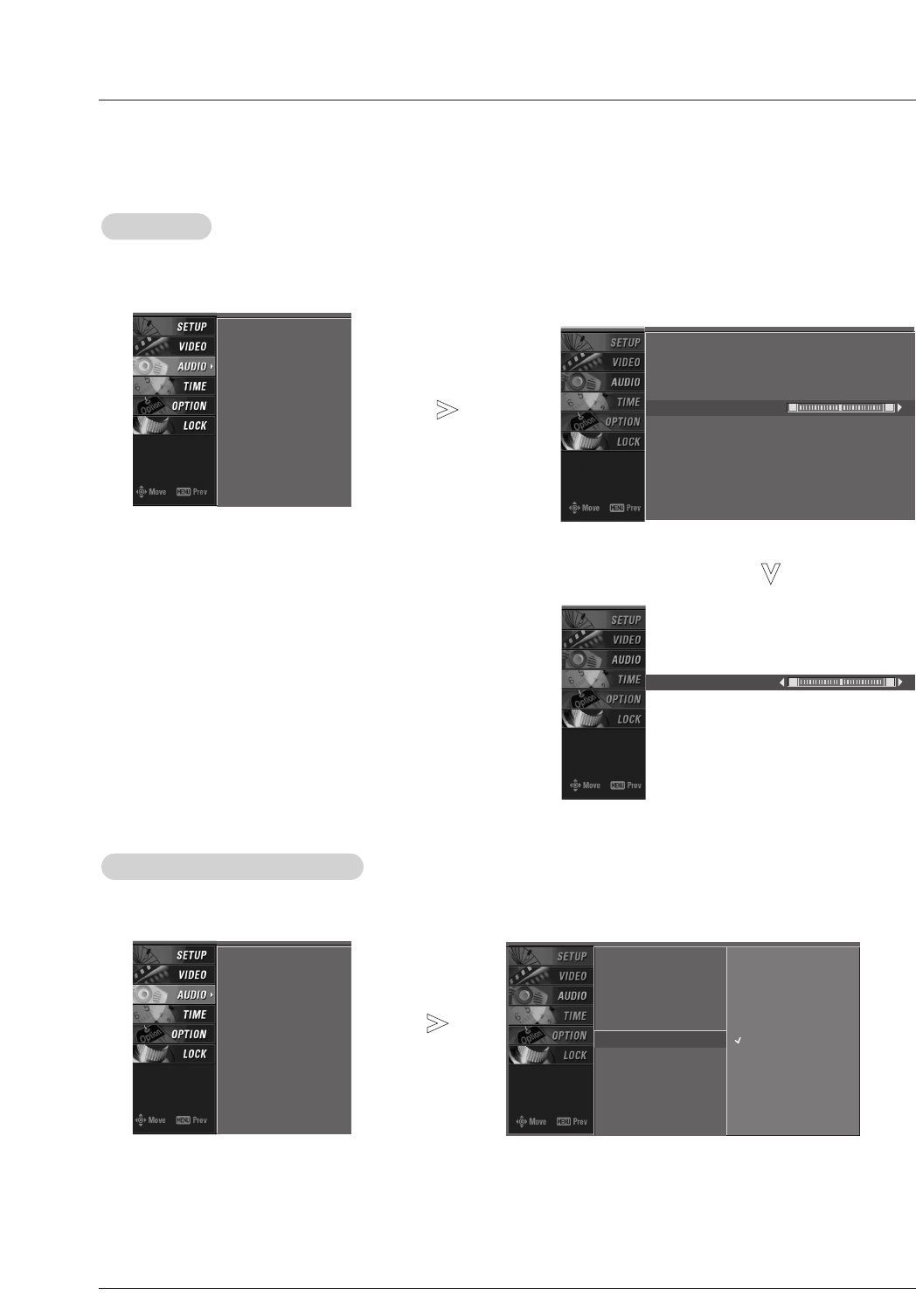

TV Setup
TV Setup
-The menus can be shown on the screen in the selected language. First select your language.
1. Press the MENU button and then use DD/ EEbutton to select the OPTION menu.
2. Press the GGbutton and then use DD/ EEbutton to select Language.
3. Press the GGbutton and then use DD/ EEbutton to select your desired language.
From this point on, the on-screen menus will be shown in the selected language.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
On-screen Menus Language Selection
On-screen Menus Language Selection
1. Press the VOL DD/ EEbutton to adjust the volume.
2. If you want to switch the sound off, press the MUTE button.
3. You can cancel this function by pressing the MUTE or VOL DD/ EEbutton.
V
Volume
olume Adjustment
Adjustment
Press the CH DD/ EEor NUMBER buttons to select a channel number.
Channel Selection
Channel Selection
Aspect Ratio
Caption/Text
Caption Option
Language G
Low Power
English
Español (Spanish)
Français (French)
Aspect Ratio
Caption/Text
Caption Option
Language
Low Power
![](/img.php?id=651660&img=bg15.png)
Owner’s Manual 21

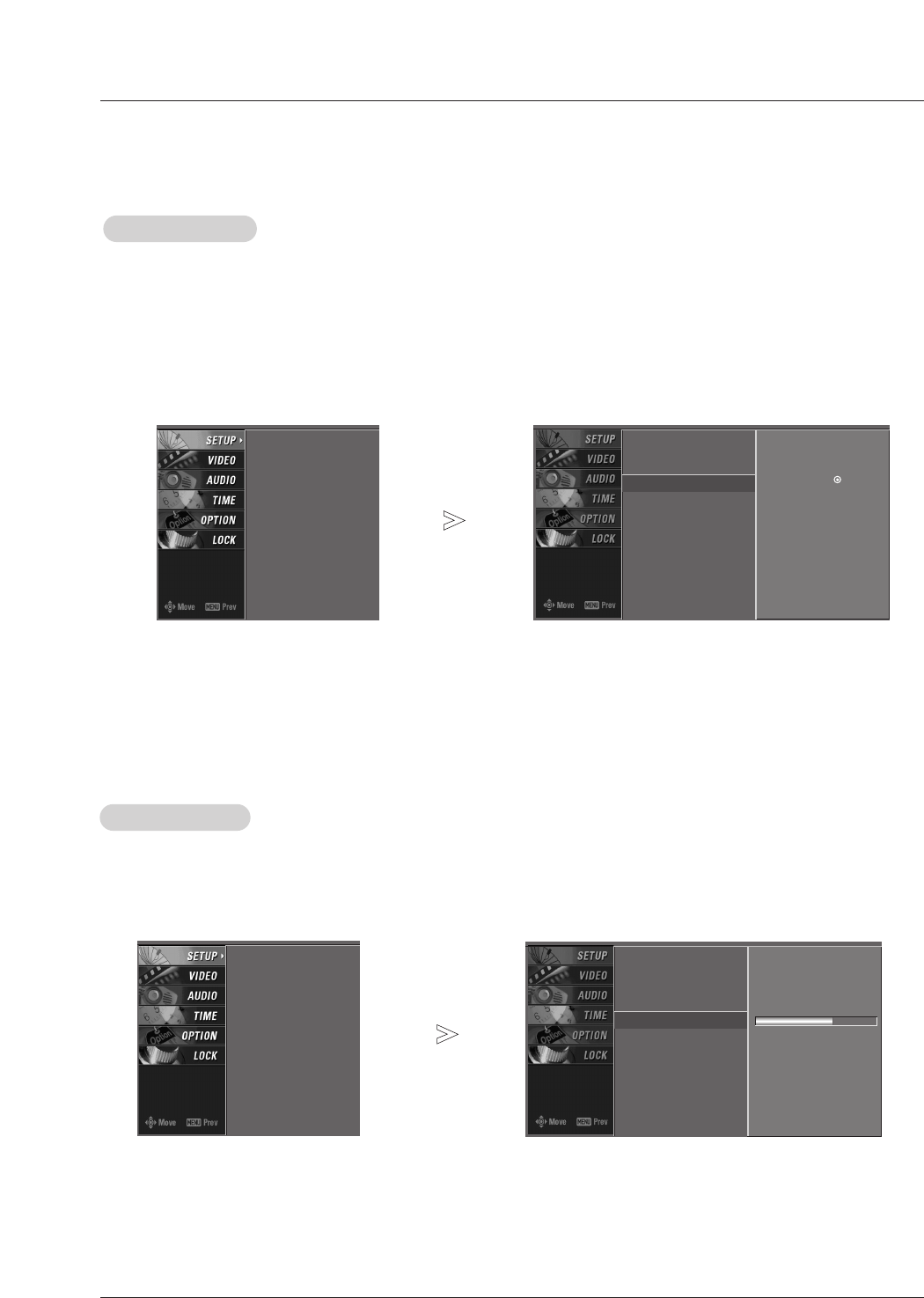

- A password is required to gain access to Manual Scan menu if the Lock System is turned on.
1. Press the MENU button and then use DD / EEbutton to select the SETUP menu.
2. Press the GGbutton and then use DD / EEbutton to select Manual Scan.
3. Press the GGbutton and then use DD / EEbutton to select TV/CADTV/CATV/DTV.
4. Press the GGbutton and then use DD / EEbutton to select channel number you want to add or delete.
5. Press the ENTER button to add or delete for the channel number.
6. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.

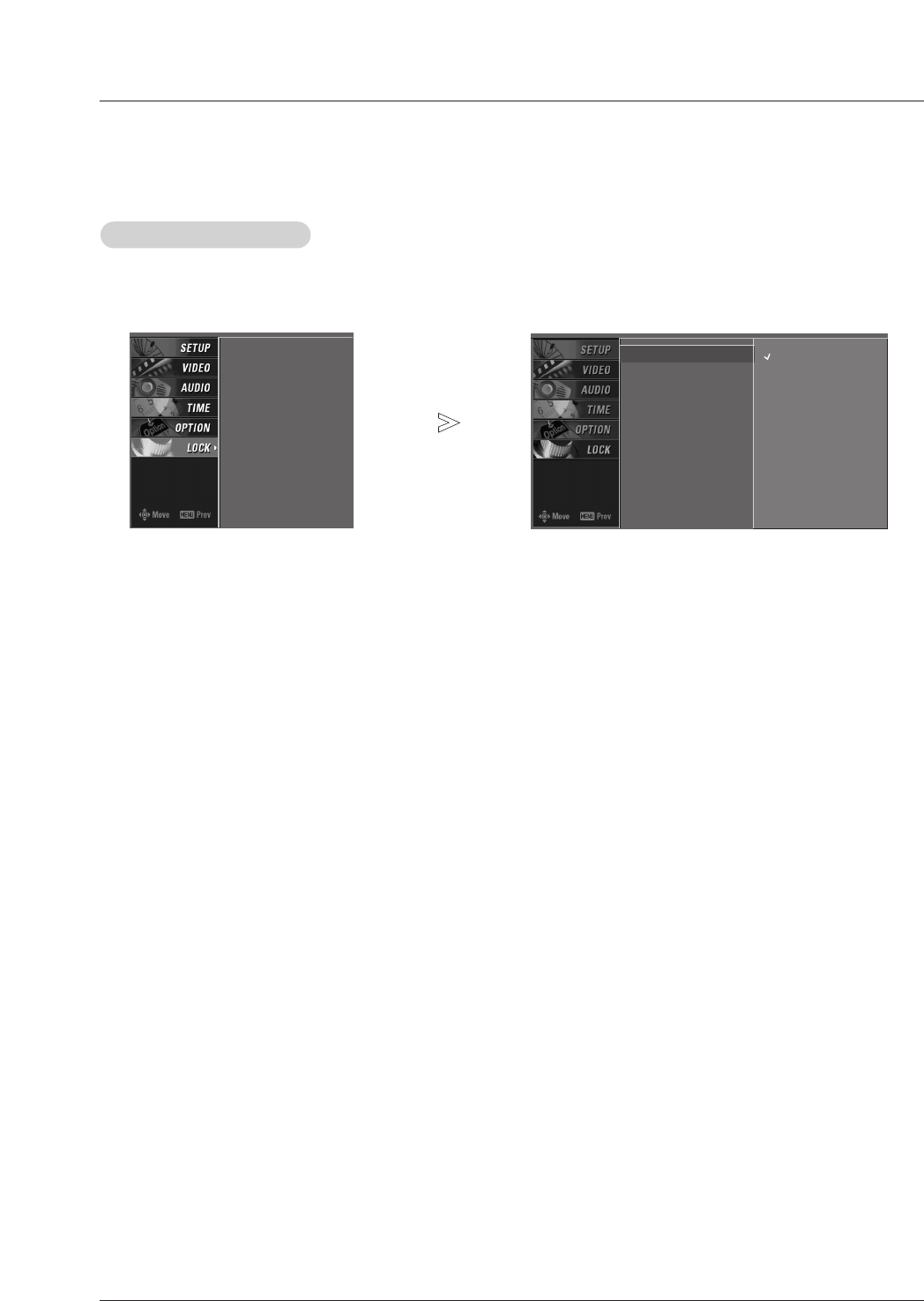

Manual Scan
Manual Scan
- Automatically finds all channels available through antenna and cable inputs, and stores them in a channel list in the memory.
- Run EZ Scan again after any Antenna/Cable connection changes.
1. Press the MENU button and then use DD / EEbutton to select the SETUP menu.
2. Press the GGbutton and then use DD / EEbutton to select EZ Scan.
3. Press the GGbutton or ENTER button to begin the channel search.
Allow EZ Scan to complete the channel search cycle for TV, DTV, CATV, and CADTV.
EZ Scan (Channel Search)
EZ Scan (Channel Search)
Setup Menu Options
Setup Menu Options
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input
Input Label
EZ Scan G
Manual Scan
Channel Edit
DTV Signal
Input
Input Label
Selection ( Gor )
leads you to the EZ
scan screen.
Processing EZ scan...
ANTENNA Ch.20
channel(s) found
Press to stop the
current scan and start
DIGITAL ANTENNA
channel scan.
MENU Previous
Next
EZ Scan
Manual Scan G
Channel Edit
DTV Signal
Input
Input Label
Select channel type and
RF-channel number.
TV GG2
Press to delete the
channel
TV 2-0
DD
EE
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input
Input Label
![](/img.php?id=651660&img=bg16.png)
22 DLP Projection TV
This feature displays the DTV signal levels being received and indicates whether you need to adjust your antenna or digital
cable input. The higher the signal strength, the less likely you are to experience picture degradation.
DTV Signal: This function is only available when the input signal is DTV or CADTV.
DTV Signal
DTV Signal
EZ Scan
Manual Scan
Channel Edit
DTV Signal G
Input
Input Label
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input
Input Label
Bad Normal Good
1. Press the MENU button and then use DD / EEbutton to select the SETUP menu.
2. Press the GGbutton and then use DD / EEbutton to select DTV Signal.
3. View the on-screen signal strength monitor to see the quality of the signal being received.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
- You can create two different types of channel lists in memory: “Custom List” and “Favorite List” from the default channel list cre-
ated from the EZ Scan channel search.
- A Custom List can be created by toggling each channel on or off with ENTER button. The channels in the Custom List are dis-
played in black color, and the channels deleted from the Custom List are displayed in gray color. Once a channel is highlighted
you can add or delete the channel by referring to the small window at the top-left corner of the screen.You can also create your
own Favorite List.
Use the FAV button on the Remote Control when a channel is highlighted and then you can add or delete the channel to/from
the Favorite List.
1. Press the MENU button and then use DD / EEbutton to select the SETUP menu.
2. Press the GGbutton and then use DD / EEbutton to select Channel Edit.
3. Press the GGbutton. You will now see a screen filled with channel numbers and a preview picture.
4. Use DD / EE/ FF / GG button to select a channel and then use the ENTER button to add or delete it. Press FAV to
add or delete the channel to the Favorite List.
5. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Channel Edit
Channel Edit
EZ Scan
Manual Scan
Channel Edit G
DTV Signal
Input
Input Label
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input
Input Label
Selection ( Gor ) leads
you to the channel edit
screen.
![](/img.php?id=651660&img=bg17.png)
Owner’s Manual 23

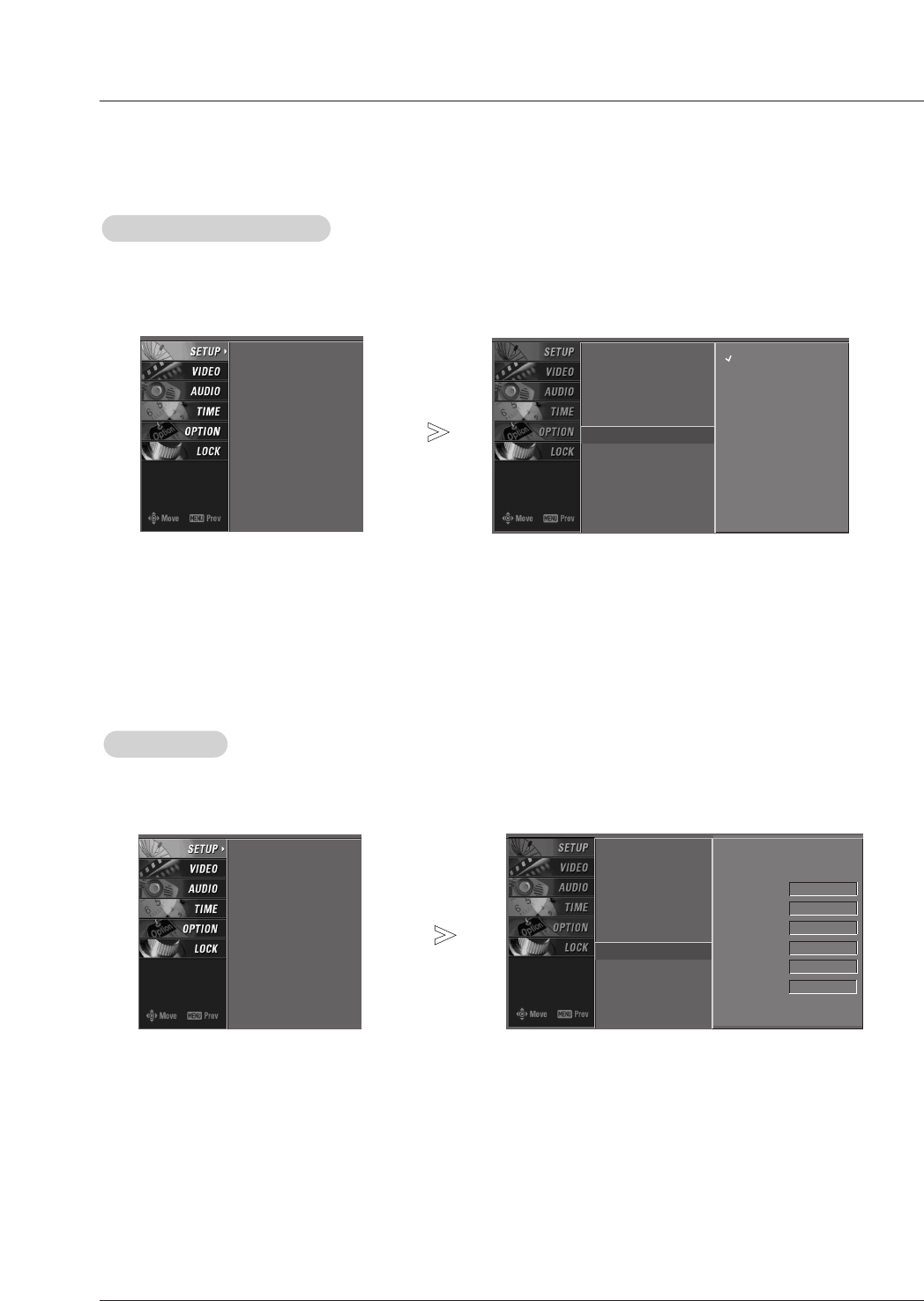

- Changes the picture source so you can watch your off-air TV, cable TV, VCR, DVD, or any other devices
that are connected to your TV.
1. Press the MENU button and then use DD / EEbutton to select the SETUP menu.
2. Press the GGbutton and then use DD / EEbutton to select Input.
3. Press the GGbutton and then use DD / EEbutton to select the source: Antenna, Cable, AV1, AV2,
Component1, Component2, RGB-DTV (or RGB-PC) or HDMI/DVI.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Input Source Selection
Input Source Selection
1. Press the MENU button and then use DD / EEbutton to select the SETUP menu.
2. Press the GGbutton and then use DD / EEbutton to select Input Label.
3. Press the GGbutton and then use DD / EEbutton to select the source: AV1, AV2, Component1, Component2, RGB or
HDMI/DVI.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Input Label
Input Label
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input
Input Label
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input G
Input Label
Antenna
Cable
AV1
AV2
Component1
Component2
RGB-PC
HDMI/DVI
Sets a label to each input source which is in use when you press INPUT button.
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input
Input Label G
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Input
Input Label
AV1 Cable Box
AV2 VCR
Component1 DVD
Component2 Set Top Box
RGB PC
HDMI/DVI Game
![](/img.php?id=651660&img=bg18.png)
24 DLP Projection TV
Auto Color Temperature Control
Choose one of three automatic color adjustments. Set to warm to enhance hotter colors such as
red, or set to cool to see less intense colors with more blue.
1. Press the MENU button and then use DD / EEbutton to select the VIDEO menu.
2. Press the GGbutton and then use DD / EEbutton to select Color Temperature .
3. Press the GGbutton and then use DD / EEbutton to select either Cool, Medium, Warm,or User.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
1. Press the EZ Video button repeatedly to select the picture appearance setup option as shown below:
Daylight, Normal,Night Time, User 1, and User 2 (your own settings).
• You can also use the VIDEO menu to adjust EZ Picture.
2. Press the EXIT button to save and return to TV viewing.
Auto Picture Control (EZ Picture)
Auto Picture Control (EZ Picture)
Color
Color T
Temperature Control
emperature Control
EZ Picture adjusts the TV for the best picture appearance. Select the preset value in the EZ Picture menu based on the
program category.
Daylight, Normal,Night Time Settings are preset for optimum picture quality at the factory and are not adjustable.
In the User 1, and User 2 modes only, user can directly adjust the contrast, brightness, color, sharpness, tint.
V
Video Menu Options
ideo Menu Options
EZ Picture
Color Temperature G
XD
Advanced
Video Reset
EZ Picture
Color Temperature
XD
Advanced
Video Reset
Cool
Medium
Warm
User
![](/img.php?id=651660&img=bg19.png)
Owner’s Manual 25
Red 0 G
EE
EZ Picture
Color Temperature
XD
Advanced
Video Reset
EZ Picture
Color Temperature
XD
Advanced
Video Reset
Press to confirm.
MENU
Selection ( Gor ) leads you
to the detailed setting
screen.
Cool
Medium
Warm
User G
User
Red 0 G
Green 0
Blue 0
Manual Color Temperature Control
You can also adjust the detailed settings(Red, Green, Blue) by selecting the User menu.
1. Press the MENU button and then use DD / EEbutton to select the VIDEO menu.
2. Press the GGbutton and then use DD / EEbutton to select Color Temperature
3. Press the GGbutton and then use DD / EEbutton to select User.
4. Press the GGbutton and then use DD / EEbutton to select Red, Green, or BBlluuee.
5. Press the GGbutton and then use FF / GGbutton to make appropriate adjustments.
■The adjustment range of Red, Green, or BBlluueeis -20~ +20.
6. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
![](/img.php?id=651660&img=bg1a.png)
26 DLP Projection TV
XD
XD
EZ Picture
Color Temperature
XD G
Advanced
Video Reset
EZ Picture
Color Temperature
XD
Advanced
Video Reset
Manual
XD Contrast On
XD Color On
XD Noise On
XD is LG Electronic’s unique picture improving technology to display a real HD source through an advanced dig-
ital signal processing algorithm.
When selecting EZ Picture options (Daylight, Normal and Night time), XD is automatically change to Auto.
When selecting EZ Picture options (User 1 and User 2), you can choose the Auto / Manual and when selecting
Manual, you can adjust the XD Contrast, XD color and XD Noise.
1. Press the MENU button and then use DD / EEbutton to select the VIDEO menu.
2. Press the GGbutton and then use DD / EEbutton to select XD
3. Press the GGbutton and then use DD / EEbutton to select Auto or Manual.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
* Selecting the Manual
1. Press the GGbutton and then use FF / GGbutton to select XD
Contrast, XD Color or XD Noise.
XD Contrast : Optimizing the contrast automatically according to the
brightness of the reflection.
XD Color : Adjusting the colors of the reflection automatically to repro-
duce as closely as possible to the natural colors.
XD Noise : Removing the noise up to the point where it does not damage
the original picture.
2.Use the DD / EEbutton to select On or Off.
![](/img.php?id=651660&img=bg1b.png)
Owner’s Manual 27

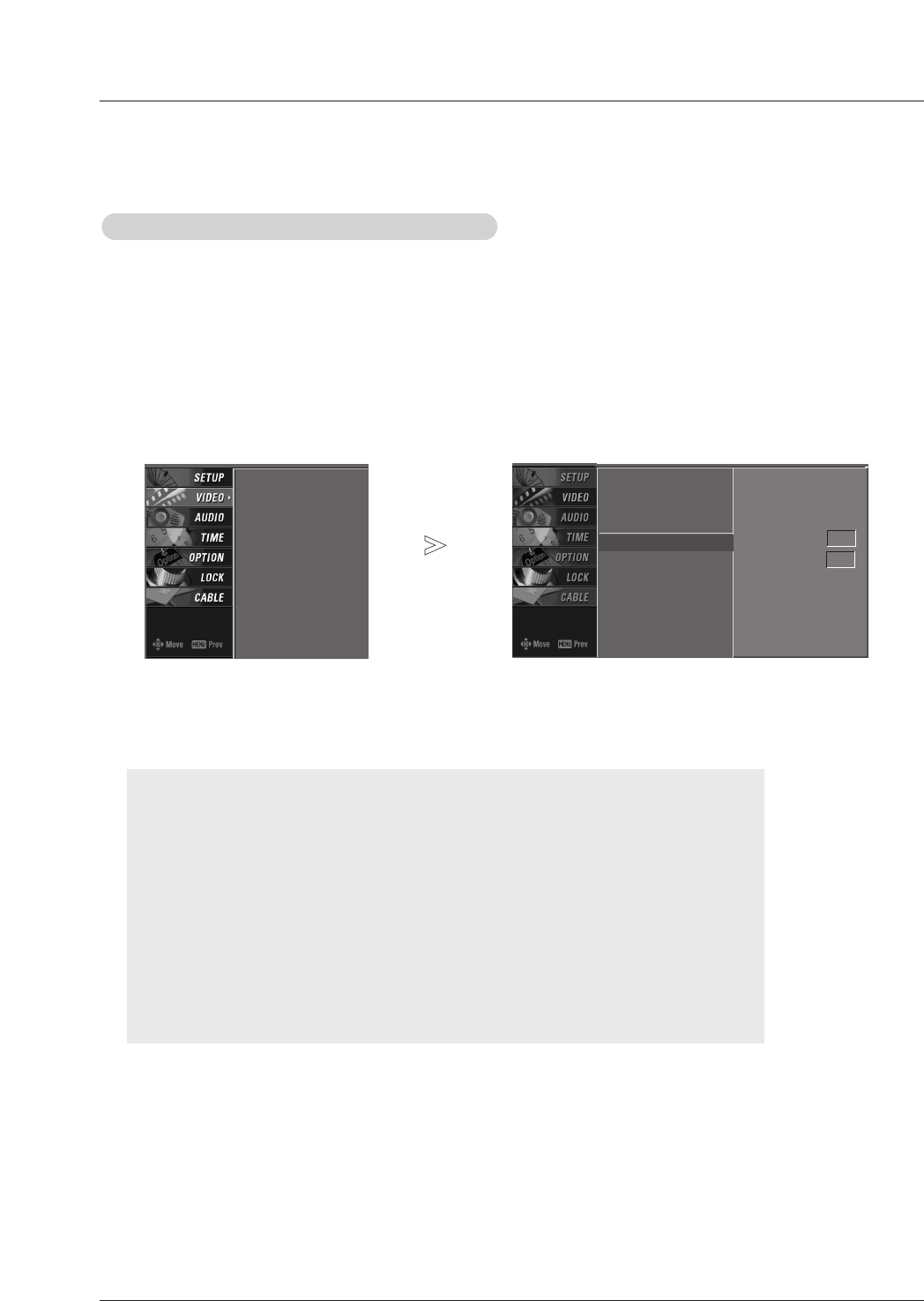

Advanced-Cinema 3:2 Mode / Black Level
Advanced-Cinema 3:2 Mode / Black Level
•Cinema 3:2 Mode
- Set up the TV for the best picture appearance for viewing movies.
When you operate Cinema (3:2 Pull-Down Mode or Cinema Correction Mode),the TV will
adjust 24 fps video from movies to 30 fps video for display (This function is only available
in Analog,AV1,AV2,Component 480i mode.)
• Black level
- Adjusting the contrast and the brightness of the screen using the black level of the screen.
This feature operates only in HDMI/DVI or AV1, AV2 mode.
1. Press the MENU button and then use DD / EEbutton to select the VIDEO menu.
2. Press the GGbutton and then use DD / EEbutton to select Advanced.
3. Press the GGbutton and then use DD / EEbutton to select Cinema 3:2 Mode or Black Level.
5. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
* Selecting the Cinema 3:2 Mode
4. Press the GGbutton and then use DD / EE
button to select On or Off.
* Selecting the Black Level
4. Press the GGbutton and then use DD / EE
button to select Auto, Low or High.
Auto
Realizing the black level of the screen
and set it to High or Low automatically.
Low
The reflection of the screen gets darker.
High
The reflection of the screen gets brighter.
EZ Picture
Color Temperature
XD
Advanced
Video Reset
EZ Picture
Color Temperature
XD
Advanced G
Video Reset
Cinema 3:2 Mode Off
Black Level Auto
![](/img.php?id=651660&img=bg1c.png)
28 DLP Projection TV
- Use to quickly reset all the Video menu options to their original factory preset values.
1. Press the MENU button and then use DD / EEbutton to select the VIDEO menu.
2. Press the GGbutton and then use DD / EEbutton to select Video Reset .
3. Press the GGbutton to reset the Video menu options to original values.

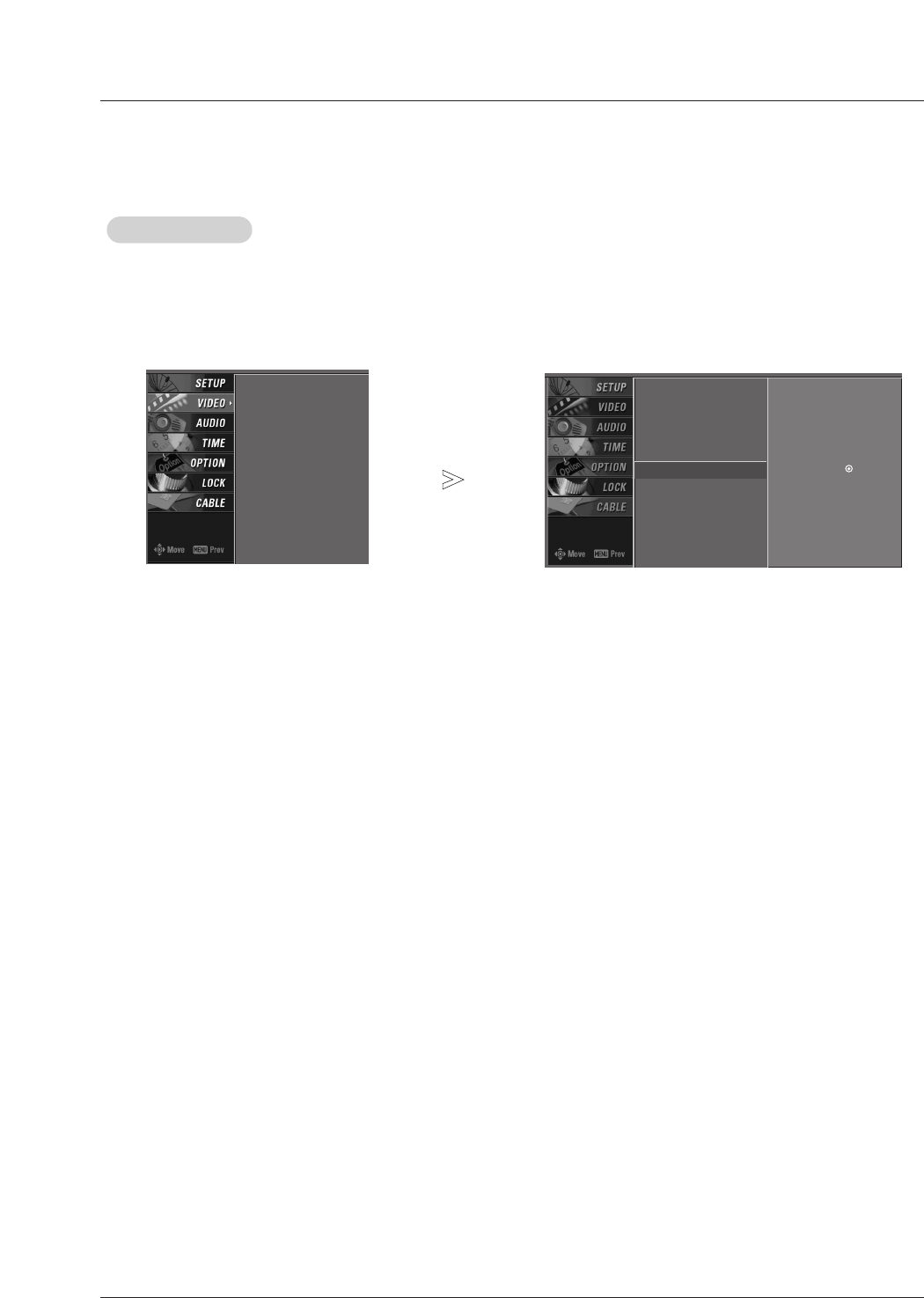

V
Video Reset
ideo Reset
EZ Picture
Color Temperature
XD
Advanced
Video Reset G
EZ Picture
Color Temperature
XD
Advanced
Video Reset Selection ( Gor ) resets
to the factory settings
(default).
![](/img.php?id=651660&img=bg1d.png)

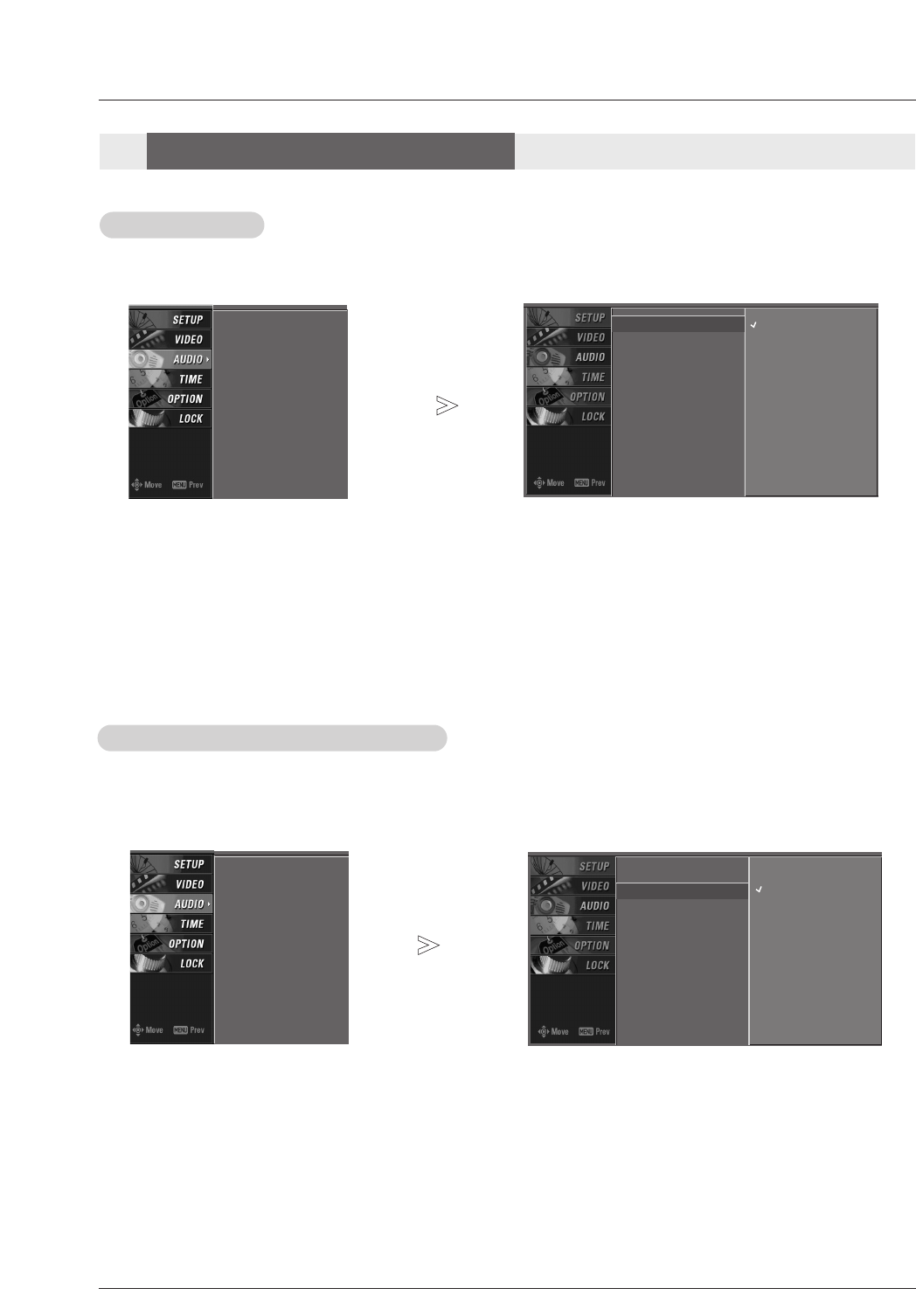

Owner’s Manual 29
- Other languages may be available if a digital signal is provided by the broadcasting station.
1. Press the MENU button and then use DD / EEbutton to select the AUDIO menu.
2. Press the GGbutton and then use DD / EEbutton to select Audio Language.
3. Press the GGbutton and then use DD / EEbutton to select: English, Spanish, or French.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Audio Language
Audio Language
- Scans for changes in sound level during commercials, then adjusts the sound to match the specified audio
level. SoundRite makes sure that the volume level remains consistent whether you are watching a commer-
cial or a regular TV program.
1. Press the MENU button and then use DD / EEbutton to select the AUDIO menu.
2. Press the GGbutton and then use DD / EEbutton to select EZ SoundRite.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Auto V
Auto Volume Leveler (EZ SoundRite)
olume Leveler (EZ SoundRite)
Audio Menu Options
Audio Menu Options
Audio Language G
EZ SoundRite
EZ Sound
Balance
TV Speaker
English
Spanish
French
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
Audio Language
EZ SoundRite G
EZ Sound
Balance
TV Speaker
Off
On
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
![](/img.php?id=651660&img=bg1e.png)
30 DLP Projection TV
1. Press the EZ Sound button repeatedly to select the appropriate sound setup as shown below :
Normal, Stadum, News, Music, Theater, Theater and User (your own settings) .
• You can also adjust EZ Sound in the AUDIO menu.
2. Press EXIT button to save and return to TV viewing.

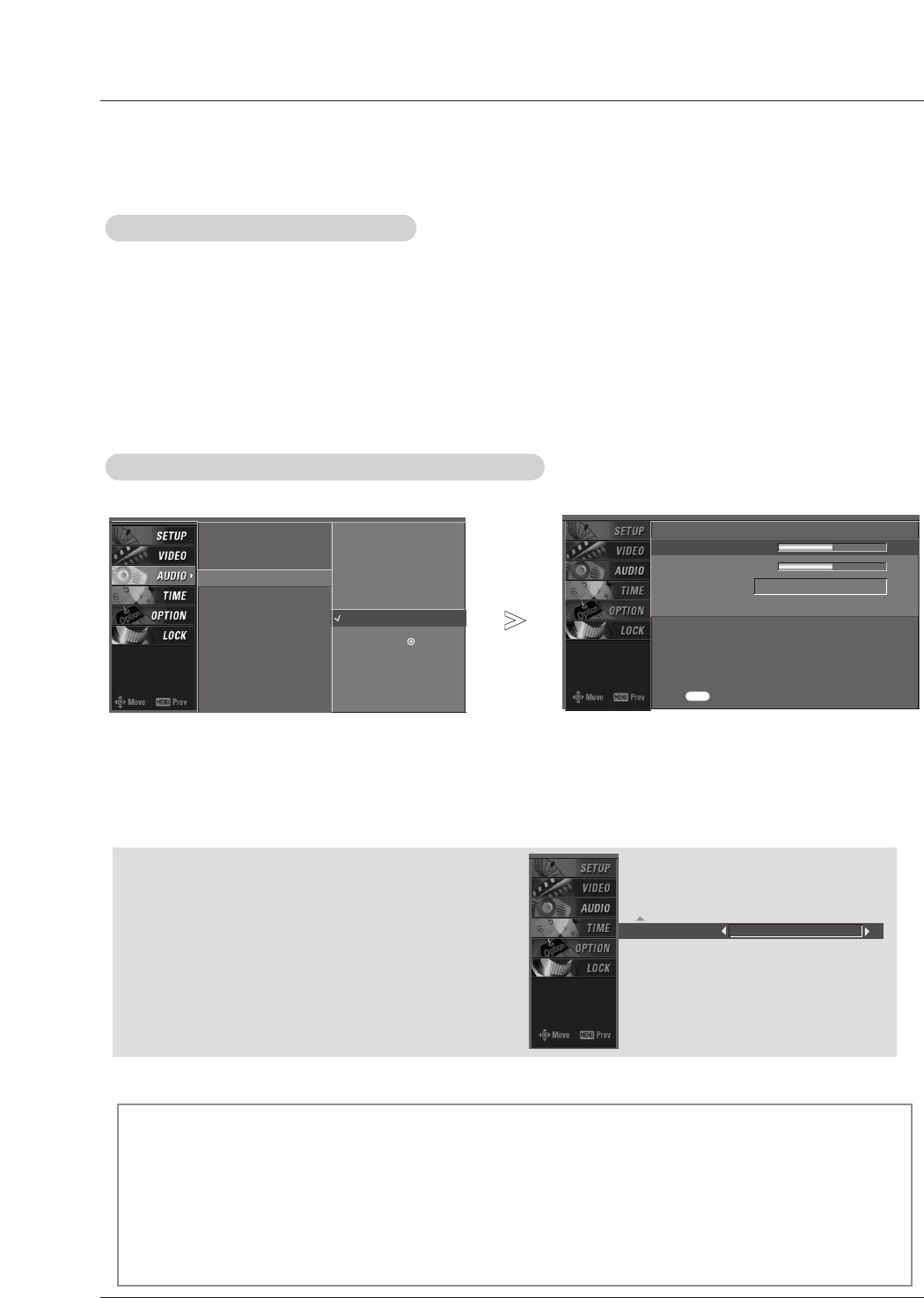

Auto Sound Control (EZ Sound)
Auto Sound Control (EZ Sound)
1. Press the MENU button and then use DD / EEbutton to select the AUDIO menu.
2. Press the GGbutton and then use DD / EEbutton to select EZ Sound.
3. Press the GGbutton and then use DD / EEbutton to select User.
4. Press the GGbutton and then use DD / EEbutton to select the desired sound option (Balance,Treble, or Bass).
5. Press the GGbutton and then use FF / GGbutton to make appropriate adjustments.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Manual Sound Control (
Manual Sound Control (EZ Sound - User option)
option)
- EZ Sound lets you enjoy the best sound without any special adjustment because the TV sets the appropriate sound
options based on the program content.
- Normal,Stadium,News,Music and Theater are preset for good sound quality at the factory and are not adjustable.
- Adjust the sound to suit your taste and room situations.
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
Selection ( Gor ) leads you
to the detailed setting
screen.
Normal
Stadium
News
Music
Theater
User G
Treble 50 G
Bass 50
Front Surround Off
Press to confirm.
MENU
* Selecting the Front Surround
Press the GGbutton and then use FF / GGbutton to
select Off,3D EchoSound System or SSRRSS (Sound
Retrieval System) TTrruuSSuurrrroouunndd XXTT.
Front Surround 3D EchoSound System
SRS TruSurround XT
Takes advantage of any multi-channel format without needing to add extra speakers or equipment. Dialog clarity, bass
enrichment, and the addition of stereo audio enhancement produces an immersive sound experience from standard stereo
material.
3D EchoSound System
Creates a stunning simulated stereo effect from any mono sound and a realistic three-dimensional sound with a very wide
and deep sound stage.
![](/img.php?id=651660&img=bg1f.png)
Owner’s Manual 3131 DLP Projection TV
1. Press the MENU button and then use DD / EEbutton to select the
AUDIO menu.
2. Press the GGbutton and then use DD / EEbutton to select Balance.
3. Press the GGbutton and then use FF / GGbutton to make appropriate
adjustments.
4. Press EXIT button to return to TV viewing or press MENU button
to return to the previous menu.
Balance
Balance
1. Press the MENU button and then use DD / EEbutton to select the AUDIO menu.
2. Press the GGbutton and then use DD / EEbutton to select TV Speaker.
3. Press the GGbutton and then use DD / EEbutton to select On or Off .
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
TV Speaker On/Of
TV Speaker On/Off Setup
f Setup
- Turn TV speakers off if using external audio equipment. Feature turns the TV Speakers option On or Off.
Adjust the left/right sound of speaker to suit your taste and room situations.
L R
Balance 0
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
Audio Language
EZ SoundRite
EZ Sound
Balance 0
TV Speaker
L R
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker GOff
On
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
![](/img.php?id=651660&img=bg20.png)
32 DLP Projection TV
Auto Clock Setup
Auto Clock Setup
- The time is set automatically from a digital channel signal.
- The digital channel signal includes information for the current time provided by the broadcasting station.
- Set the clock manually, if the current time is set incorrectly by the auto clock function through Digital Channel
Service problem.
1. Press the MENU button and then use DD / EEbutton to select the TIME menu.
2. Press the GGbutton and then use DD / EEbutton to select Auto Clock.
3. Press the GGbutton and then use DD / EEbutton to select On.
4. Press the GGbutton and then use DD / EEbutton to select your viewing area time zone: Eastern, Central,
Mountain, Pacific, Alaska, or Hawaii.
5. Press the GGbutton and then use DD / EEbutton to set Daylight Saving Auto, Off or On, depending on
whether or not your viewing area observes Daylight Savings Time.
6. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Manual Clock Setup
Manual Clock Setup
- If current time setting is wrong, reset the clock manually.
1. Press the MENU button and then use DD / EEbutton to select the TIME menu.
2. Press the GGbutton and then use DD / EEbutton to select Manual Clock.
3. Press the GGbutton and then use FF / GGbutton to select either the year, date, or time option. Once
selected, use the DD / EEbutton to set the year, date, and time options.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
T
Time Menu Options
ime Menu Options
Auto Clock G
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Off
On
Time Zone Eastern
Auto
Daylight
Saving
Auto Clock
Manual Clock G
Off Timer
On Timer
Sleep Timer
Auto Off
Year - - - -
Date - - / - -
Time - - : - - - -
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
![](/img.php?id=651660&img=bg21.png)
Owner’s Manual 33
Sleep
Sleep T
Timer
imer
- The Sleep Timer turns the TV off after a preset amount of time. Note that this setting is cleared when the TV is turned off.
- You can also set up the Sleep Timer in the TIME menu.
1. Press the SLEEP button repeatedly to select the number of minutes. First the Off option appears on the screen,
followed by the following sleep timer options: 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
2. When the number of minutes you want is displayed on the screen, press the ENTER button. The timer begins to
count down from the number of minutes selected.
3. To check the remaining minutes before the TV turns off, press the SLEEP button once.
4. To cancel the Sleep Timer, press the SLEEP button repeatedly to select Off.
- Timer function operates only if current time has been set.
- Off-Timer function overrides On-Timer function if they are both set to the same time.
- The TV must be in standby mode for the On-Timer to work.
- If you do not press any button within 2 hours after the TV turns on with the On Timer function, the TV will automatically revert to
standby mode.
On/Of
On/Off
f T
Timer Setup
imer Setup
1. Press the MENU button and then use DD / EEbutton to select the TIME menu.
2. Press the GGbutton and then use DD / EEbutton to select Off Timer or On Timer.
3. Press the GGbutton and then use DD / EEbutton to select On.
• To cancel On/Off timer function, select Off.
4. Press the GGbutton and then use DD / EEbutton to set the hour.
5. Press the GGbutton and then use DD / EEbutton to set the minutes.
6. For only On timer function
Press the GGbutton and then use DD / EEbutton to select the channel at turn-on.
Press the GGbutton and then use DD / EEbutton to set the sound level at turn-on.
7. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Auto Clock
Manual Clock
Off Timer
On Timer G
Sleep Timer
Auto Off
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Off
On
Time 6 : 30 AM
Ch. TV 2-0
Vol 17
![](/img.php?id=651660&img=bg22.png)
34 DLP Projection TV

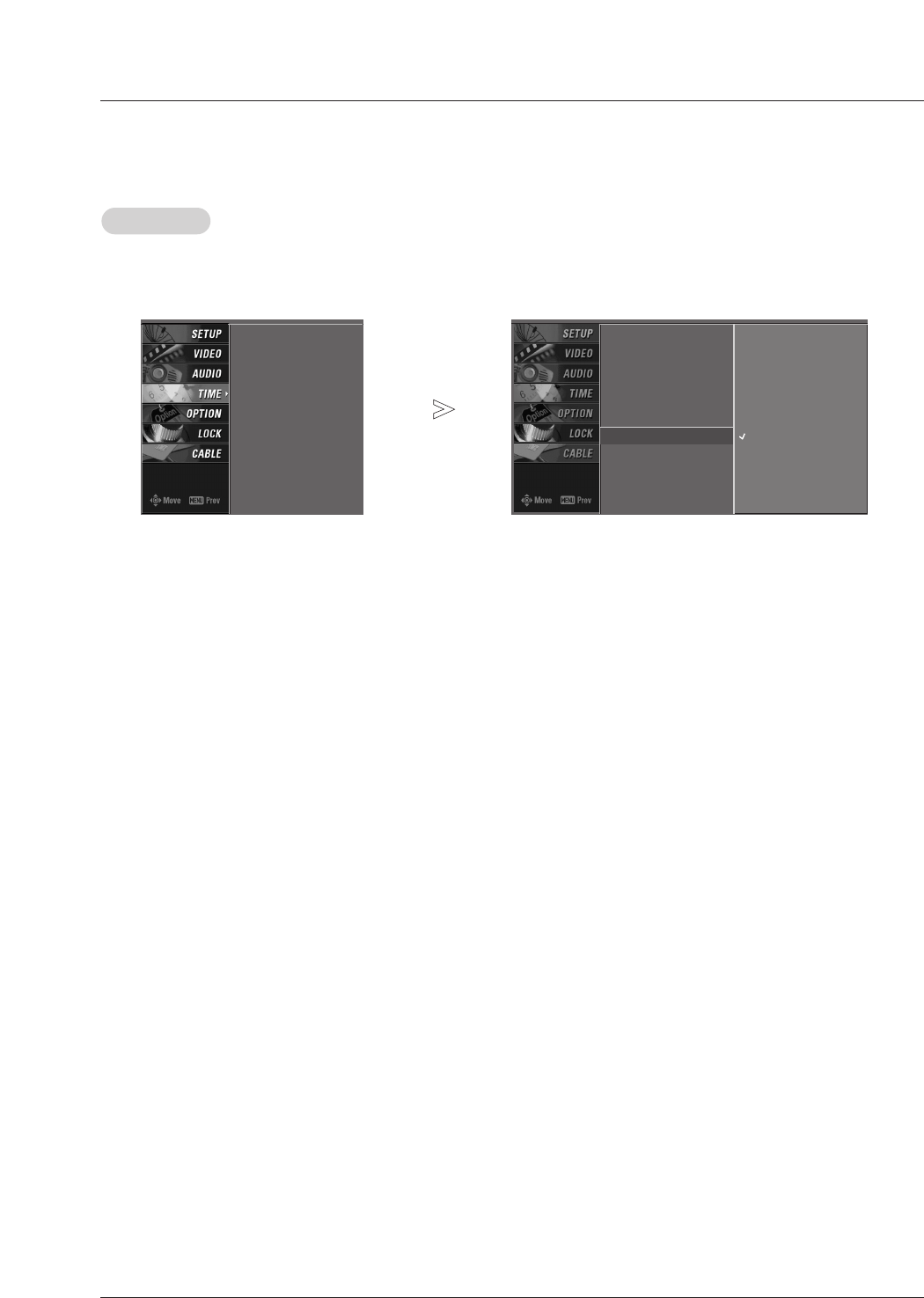

Auto Of
Auto Off
f
- If set to on and there is no input signal, the TV turns off automatically after 10 minutes.
1. Press the MENU button and then use DD / EEbutton to select the TIME menu.
2. Press the GGbutton and then use DD / EEbutton to select Auto Off.
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off G
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Off
On
TV will be automatically turned
off, in case of No Signal for
10 minutes.
![](/img.php?id=651660&img=bg23.png)
Owner’s Manual 35
Operation
Aspect Ratio Control
Aspect Ratio Control
This feature lets you choose the way an analog picture with a 4:3 aspect ratio is displayed on your TV.When you receive an
analog picture with a 4:3 aspect ratio on your 16:9 TV,you need to specify the picture is to be displayed.
RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.
1. Press the RATIO button repeatedly to select the desired picture format.
You can also adjust the Aspect Ratio in the OPTION menu.
Option Menu Options
Option Menu Options
Set by program
Selects the proper picture proportion to match the
source’s image.
4:3
Choose 4:3 when you want to view a picture with an origi-
nal 4:3 aspect ratio.
16:9
Adjust the picture horizontally, in a linear proportion to fill
the entire screen.
Horizon
The screen size is, more enlarged at both sides, to create
a spectacular view.
Zoom 1
Choose Zoom 1 when you want to view the picture with-
out any alteration. However, the top and bottom portions
of the picture will be cropped.
Zoom 2
Choose Zoom 2 when you want the picture to be altered,
both vertically extended and cropped. The picture taking a
halfway trade off between alteration and screen coverage.
Cinema Zoom
Choose Cinema Zoom when you want to enlarge the pic-
ture in correct proportion. Note: When enlarging or reduc-
ing the picture, the image may become distorted.
■The adjustment range is 1-16.
Set By Program
4:3
16:9
Horizon
Zoom 1
Zoom 2
Cinema Zoom
DD
1
Set By Program
(4:3 4:3) (16:9 16:9)
![](/img.php?id=651660&img=bg24.png)
36 DLP Projection TV
Operation
Digital Broadcasting System Captions
- Choose the language you want the DTV/CADTV Captions to appear in.
- Languages can be chosen for digital sources only if they are included on the program.
1. Press the MENU button and then use DD / EEbutton to select the OPTION menu.
2. Press the GGbutton and then use DD / EEbutton to select Caption/Text.
3. Press the GGbutton and then use DD / EEbutton to select available caption languages: English, Spanish, or French.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Caption/T
Caption/Text
ext
Analog Broadcasting System Captions
- Select a caption mode for displaying captioning information if provided on a program.
- Analog caption displays information at any position on the screen usually the program's dialog.
- Text displays information, usually at the bottom position and is used for a data service, generally not program related.
- Caption/Text, if provided by the broadcaster, would be available for both digital and analog channels on the Antenna/Cable.
- This TV is programmed to remember the caption/text mode it was last set to, when you turn the power off.
1. Use the CC button repeatedly to select Caption Off, CC1, CC2, CC3, CC4, Text1, Text2, Text3, or Text4.
2. Press EXIT button to save and return to TV viewing.
• You can also use the OPTION menu to select Caption/Text.
1. Press the MENU button and then use DD / EEbutton to select the OPTION menu.
2. Press the GGbutton and then use DD / EEbutton to select Caption/Text.
3. Press the GGbutton and then use DD / EEbutton to select caption: Off,CC1, CC2, CC3, CC4, Text1, Text2, Text3, or Text4.
• CAPTION
The term for the words that scroll across the bottom of the TV screen; usually the audio portion of the program provided for
the hearing impaired.
• TEXT
The term for the words that appear in a large black frame and almost cover the entire screen; usually messages provided by
the broadcaster.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Aspect Ratio
Caption/Text G
Caption Option
Language
Low Power
Aspect Ratio
Caption/Text
Caption Option
Language
Low Power
Off
CC 1
CC 2
CC 3
CC 4
Text 1
Text 2
Text 3
Text 4
Aspect Ratio
Caption/Text G
Caption Option
Language
Low Power
Aspect Ratio
Caption/Text
Caption Option
Language
Low Power
Off
English
Spanish
French
![](/img.php?id=651660&img=bg25.png)
Owner’s Manual 37
Caption Option
Caption Option
- Customize the DTV/CADTV captions that appear on your screen.
1. Press the MENU button and then use DD / EEbutton to select the OPTION menu.
2. Press the GGbutton and then use DD / EEbutton to select Caption Option.
3. Press the GGbutton and then use FF / GGbutton to select Custom.
4. Use DD / EEbutton to customize the Style, Font, etc., to your preference. A preview icon is provided at the bottom of the screen, use
it to see the caption language.
• Size: Set the size the words will appear in.
• Font: Select a typeface for the words.
• Text Color: Choose a color for the text.
• Text Opacity: Specify the opacity for the text color.
• Bg (Background) Color: Select a background color.
• Bg (Background) Opacity: Select the opacity for the background color.
• Edge Type: Select an edge type.
• Edge Color: Select a color for the edges.
5. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu.
Low Power
Low Power
Low power reduces the set power consumption.
1. Press the MENU button and then use DD / EEbutton to select the OPTION menu.
2. Press the GGbutton and then use DD / EEbutton to select Low Power,
3. Press the GGbutton and then use DD / EEbutton to select On or Off.
■When you select On,the screen darkens.
4. Press EXIT button to return to TV viewing or press MENU button to return to the previous menu..
Aspect Ratio
Caption/Text
Caption Option G
Language
Low Power
Aspect Ratio
Caption/Text
Caption Option
Language
Low Power
Style Custom
Size A Standard
Font Font 0
Text Color White
Text Opacity
Solid
Bg Color Black
Bg Opacity Solid
Edge Type None
Edge Color Black
Aspect Ratio
Caption/Text
Caption Option
Language
Low Power G
Aspect Ratio
Caption/Text
Caption Option
Language
Low Power Off
On
![](/img.php?id=651660&img=bg26.png)
38 DLP Projection TV
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings sent by the broadcasting station.
The default setting is to allow all programs to be viewed. Viewing can be blocked by the type of program and by the categories
chosen to be blocked. It is also possible to block all program viewing for a time period. To use this function, the following must be
done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV
Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to-video movies use the Movie Rating
System (MPAA) only.
Ratings for Movies previously shown in theaters:
Movie Ratings :
• Blocking Off (Permits all programs)
• G (General audience)
• PG (Parental guidance suggested)
• PG-13 (Parents strongly cautioned)
• R (Restricted)
• NC-17 (No one 17 and under admitted)
• X (Adult only)
If you set PG-13 : G and PG movies will be available , PG-13, R, NC-17 and X will be blocked.
Ratings for Television programs including made-for-TV movies :
• TV-G (General audience)
• TV-PG (Parental guidance suggested)
• TV-14 (Parents strongly cautioned)
• TV-MA (Mature audience only)
• TV-Y (All children)
• TV-Y7 (Children 7 years older)
TV Rating Children:
• Age (applies to TV-Y, TV-Y7)
• Fantasy Violence (applies to TV-Y7)
TV Rating General:
• Age (applies to TV-G, TV-PG, TV-14, TV-MA)
• Dialogue - sexual dialogue (applies to TV-PG, TV-14)
• Language - adult language (applies to TV-PG, TV-14, TV-MA)
• Sex - sexual situations (applies to TV-PG, TV-14, TV-MA)
• Violence (applies to TV-PG, TV-14, TV-MA)
Input Block
• AV1, 2, (On, Off)
• Component 1, 2 (On, Off)
• RGB or HDMI/DVI (On, Off)
Lock Menu Options
Lock Menu Options
![](/img.php?id=651660&img=bg27.png)
Owner’s Manual 39
Parental Lock Setup
Parental Lock Setup
1. Press the MENU button and then use DD / EEbutton to select the LOCK menu. Then, press the GG
button
• Enter the password as requested.
• The TV is set up with the initial password “0-0-0-0”.
2. Use the DD /EEbutton to choose from the following Lock Menu options. Once the option is selected,
change the settings to your preference.
• Lock System: Enables or disables the blocking scheme you set up previously.
• Set Password: Change the password by inputting a new password twice.
• Block Channel: Blocks any channels that you do not want to watch or that you do not
want your children to watch.
• Movie Rating (MPAA): Blocks movies according to the movie ratings limits specified, so chil-
dren cannot view certain movies. You can set the ratings limit by blocking out all the movies
with the ratings above a specified level. Keep in mind that the movie ratings limit only applies
to movies shown on TV, not TV programs, such as soap operas.
• TV Rating-Children: Prevents children from watching certain children's TV programs, accord-
ing to the ratings limit set. The children rating does not apply to other TV programs. Unless
you block certain TV programs intended for mature audiences in the TV Rating - sub menu,
your children can view those programs.
• TV Rating-General: Based on the ratings, blocks certain TV programs that you and your fam-
ily do not want to view.
• Input Block: Enables you to select a source to block from the external source devices you
have hooked up.
3. Press EXIT button to return to TV viewing or press MENU button to return to the previous
menu.
Note : If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’ on the Remote Control.
- Set up blocking schemes to block specific channels, ratings, and external viewing sources.
- A password is required to gain access to this menu.
Lock System G
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Off
On
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
![](/img.php?id=651660&img=bg28.png)
40 DLP Projection TV Owner’s Manual 40
1. Press the FREEZE button in DTV 720p, or 1080i modes.
2. Use the DD / EE/ FF / GGbuttons to select the screen split zoom section.
3. To return to normal viewing, press the FREEZE button again.
- Enlarges the picture with correct proportions.
- When enlarging the picture, the image may become distorted.
Split Zoom (DTV 720p, or 1080i mode only)
![](/img.php?id=651660&img=bg29.png)
Owner’s Manual 4141 DLP Projection TV

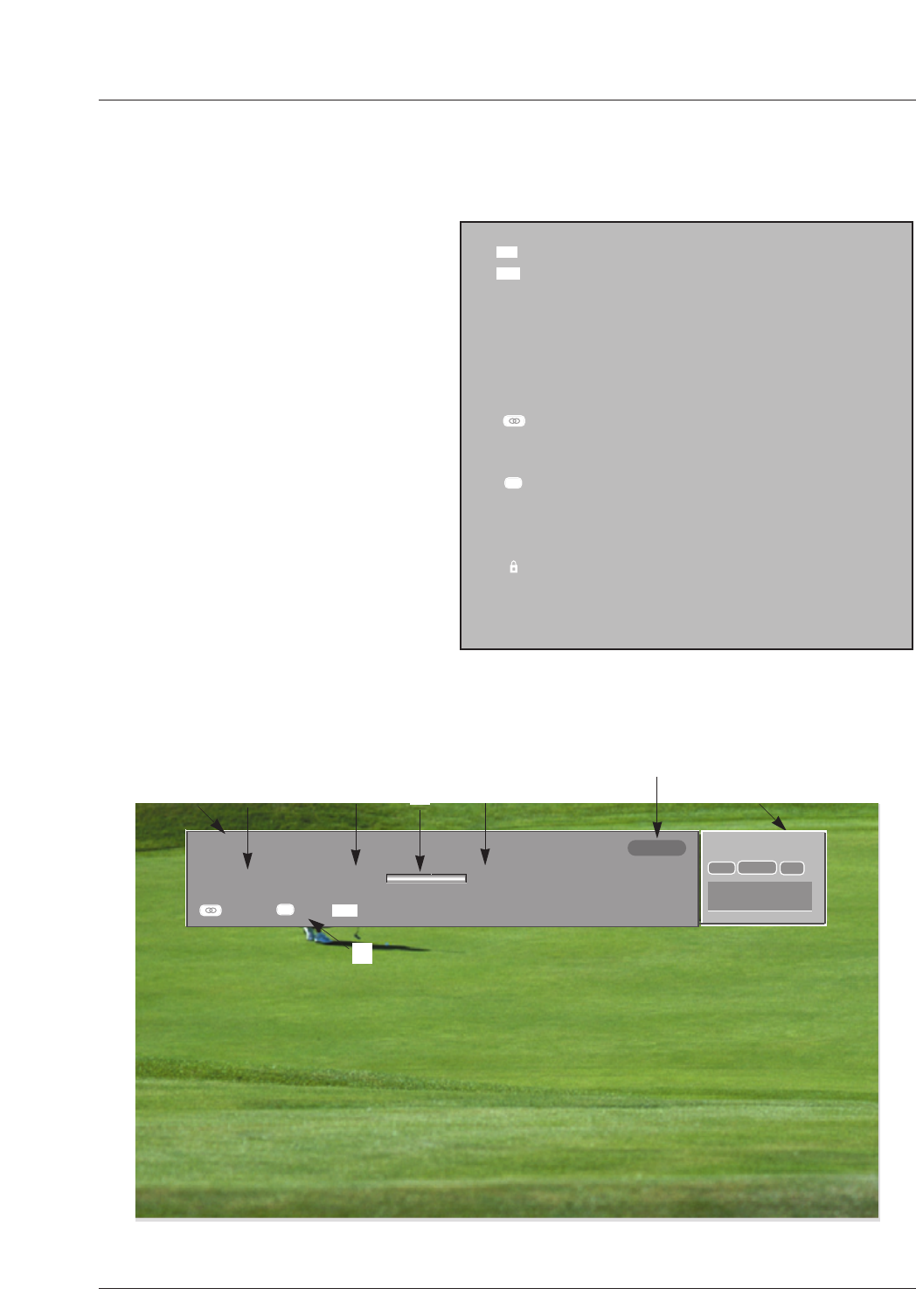

4 : 3
16 : 9
Screen Ratio of Input Signal 4:3
Screen Ratio of Input Signal 16:9
Resolution of Input Signal 720x480i
Resolution of Input Signal 720x480p
Resolution of Input Signal 1280x720p
Resolution of Input Signal 1920x1080i
Multilingual : Input Signal have over two Audio
information. Press the SAP button to select
wanted Audio.
Caption: Input Signal have over one Close ser-
vice. Press the CC button to select wanted
Closed caption.
Input Signal has rating information . Refer to the
<Lock Menu>.
D (Dialogue), L (Language), S (Sex), V
(Violence), FV (Fantasy Violence)
480i
480p
720p
1080i
CC
Function: • Show the present screen information.
• On Watching with the upper Input signal,
press the INFO button.
• Press the INFO button or EXIT button to
exit.
A: Banner information
B: Program title
C: Day, Month, Year
D: Program start time
E: Program finish time
F: Show the prosessing rate
G: Present time
H: Added information. Refer to the icon
explanation.
Brief Info.
Live Eden 1080I
Sat, Dec 20, 2003 7:00PM 9:00PM
Caption
CC 16 : 9 Wide
BCDFA
E
H
Multilingual
TV 6-0
CNBC
MONO STEREO
3:11AM
G
SAP
![](/img.php?id=651660&img=bg2a.png)
42 DLP Projection TV
Programming the Remote
Programming the Remote
1. Test your Remote Control.
To find out whether your remote control can operate the device
with out programming, turn on the device such as a the VCR
and press the corresponding mode button (VCR) on the remote
control while pointing at the device. Test the POWER and
CH +/- buttons to see if the device responds properly. If not, the
remote requires programming to operate the device.
2. Turn on the device to be programmed. Then press the cor
responding mode button on the Remote Control.
3. Press the POWER button and the MUTE button simulta
neously. Now the Remote Control is ready to program the
code for the corresponding device.
4. There are two ways to find the right code for the device.
A. If you press the CH +/- buttons repeatedly, the codes will
change one at a time. Press the POWER button after each
code change. If the right code is found, the device will turn off.
B. Enter a code number using the number buttons on the Remote
Control. The right code numbers for the corresponding compo-
nent can be found on the following pages.
Again, if the code is correct, the device will turn off.
5. Press the EXIT button to store the program.
6. Test the Remote Control functions to see if the device
responds properly. If not, repeat from step 2.
1 2 3
4 5 6
7 8 9
0
TV
MODE LIGHT POWER
INPUT INFO
HDMI/DVI
VCR
CABLE
DVD SAT
MUTE
EZ PICSRS APM
EZ SOUND
RATIO
MENU EXIT
CC FREEZE
GUIDE
VOL CH
FAV
SAP ADJUST
TIMER
RGB PC/DTV
TV INPUT
FLASHBK
+
-
ENTER
2
4
5
3
4
The Remote Control for your HD receiver is a multi-brand or universal Remote Control that can
be programmed to operate most remote-controllable devices of other manufacturers.
Note: The Remote Control may not be able to control all models of other brands.
3
![](/img.php?id=651660&img=bg2b.png)
Owner’s Manual 43
Programming Codes
Programming Codes
TVs
TVs
Brand Codes
A MARK 112 143
ADMIRAL 072 081 161
AKAI 006 146
AMPRO 073 167
AMSTRAD 052
ANAM 043 054 056
080 104 108
112 115 118
121 131
AOC 004 006 058
112
BLAUPUNKT 088
CANDLE 002 003 004
006
CAPEHART 058
CETRONIC 043
CITIZEN 002 003 004
006 043 101
103 143
CLASSIC 043
CONCERTO 004
CONTEC 039 043 050
051
CORONADO 143
CRAIG 043 054
CROWN 043 143
CURTIS MATHES 004 006 101
116 143
CXC 043
DAEWOO 004 016 017
043 044 055
071 076 103
107 111 114
117 120 123
125 127 128
136 143
DAYTRON 004 116 143
DYNASTY 043
DYNATECH 062
ELECTROHOME 024 077 143
EMERSON 004 005 006
028 043 047
048 050 051
096 116 143
151 153 154
155
FISHER 007 057
FUNAI 028 043
FUTURETECH 043
GE 004 006 008
009 034 056
073 074 091
116 130 144
155 160 161
165
Brand Codes
GOLDSTAR 004 102 106
110 112 113
116 119 122
127 137 143
HALL MARK 004 116
HITACHI 004 006 009
010 011 012
023 041 075
143 158 163
166
INFINITY 164
INKEL 129
JBL 164
JCPENNY 004 006 008
009 024 030
065 101 143
156 160
JENSEN 013
JVC 034 038 070
083 145
KEC 043
KENWOOD 006 070
KLOSS 002 059
KMC 143
KTV 006 043 143
154
LG 255
LODGENET 072
LOGIK 072
LUXMAN 004
LXI 007 015 052
081 160 164
166
MAGNAVOX 003 004 006
022 059 060
061 063 064
127 143 160
164
MARANTZ 006 077 164
MATSUI 164
MEMOREX 004 007 072
116
METZ 088
MGA 004 006 024
028 042 049
077 116
MINERVA 088
MITSUBISHI004 006 024
028 040 042
109 116 124
146
MTC 004 006 062
101
NAD 015 025
NEC 006 007 016
Brand Codes
019 024 040
056 130 132
134
NIKEI 043
ONKING 043
ONWA 043
OPTONICA 019 081
PANASONIC 034 056 080
092 164
PHILCO 003 004 006
024 043 056
059 060 063
064 127 143
164
PHILIPS 003 004 005
006 038 059
070 093 143
160 164
PIONEER 006 018 023
025 027 116
135 176
PORTLAND 004 143
PROSCAN 144 160 161
165 167
PROTON 004 058 116
131 143 171
173
QUASAR 034 056 092
RADIO SHACK 019 043 047
116 127 143
RCA 004 006 023
024 056 065
074 144 152
156 160 161
165
REALISTIC 007 019 043
047
ROCTEC 186
RUNCO 168 169
SAMPO 004 006 058
116
SAMSUNG 004 050 089
101 105 113
116 127 133
137 143 160
SANYO 007 020 021
033 039 053
057 082 166 SCOTT
004 028 043
048 116 143 SEARS
004 007 015
028 030 057
082 094 101
116 143 160
Brand Codes
Sharp 004 014 019
022 028 029
081 143 170
175
SIEMENS 088
SIGNATURE 072
SONY 041 070 079
085 126 139
147 185
SOUNDESIGN 003 004 028
043 116
SPECTRICON 112
SSS 004 043
SUPRE MACY 002
SYLVANIA 003 004 006
044 059 060
063 064 116
127 140 160
164
TANDY 081
TATUNG 056 062
TECHNICS 034 080 084
TECHWOOD 004
TEKNIKA 002 003 004
006 024 028
031 043 072
077 101 103
143
TELEFUNKEN037 046 086
087
TELERENT 072
TERA 172
TMK 004 116
TOSHIBA 007 015 030
040 051 062
101 138
TOTEVISION 143
UNIVERSAL 008 009
VIDEO CONCEPTS 146
VIDIKRON 174
VIDTECH 004 116
WARDS 004 008 009
019 028 060
061 063 064
072 074 116
143 164
YAMAHA 004 006
YORK 004 116
YUPITERU 043
ZENITH 001 072 073
095 103 157
ZONDA 112
![](/img.php?id=651660&img=bg2c.png)
44 DLP Projection TV
Audio
Audio
SA
SAT
T
Brand Codes
ALPHASTAR DSR 123
AMPLICA 050
BIRDVIEW 051 126 129
BSR 053
CAPETRONICS 053
CHANNEL MASTER 013 014 015
018 036 055
CHAPARRAL 008 009 012
077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007
010 011 052
112 116 141
DX ANTENNA 024 046 056
076
ECHOSTAR 038 040 057
058 093 094
095 096 097
098 099 100
122
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022
027 133 134
Brand Codes
GENERAL INSTRUMENT 003 004 016
029 031 059
101
HITACHI 139 140
HOUSTON TRACKER 033 037 039
051 057 104
HUGHES 068
HYTEK 053
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 255
LUTRON 132
LUXOR 062 144
MACOM 010 059 063
064 065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE 143
PANASONIC 060 142
PANSAT 121
Brand Codes
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO 028 035 047
057 085
SCIENTIFIC ATLANTA 032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075
087 088 090
107 130 137
TOSHIBA 002 127
UNIDEN 016 025 042
043 044 045
048 049 078
079 080 086
101 135 136
Brand Codes
VIEWSTAR 115
WINEGARD 128 146
ZENITH 001 081 082
083 084 091
120
Brand Codes
APEX DIGITAL 022
DENON 020 014
GE 005 006
GOLDSTAR 010 016 025
HARMAN KARDON 027
JVC 012
LG 001 010 016
Brand Codes
025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
Brand Codes
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
Brand Codes
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
![](/img.php?id=651660&img=bg2d.png)
Owner’s Manual 45
DVD
DVD
Brand Codes
APEX DIGITAL 022
DENON 020 014
GE 005 006
GOLDSTAR 010 016 025
HARMAN KARDON 027
JVC 012
LG 001 010 016
Brand Codes
025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
Brand Codes
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
Brand Codes
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
Brand Codes Brand Codes Brand Codes Brand Codes
AIWA 014 028 070 096
125 129 139 229
230
AKAI 163
ANAM 003 014 017 023
059 106 189 216
217 235 236
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 084
102 148 198 221
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029
087 107 108 110
190 191 192 210
211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
INKEL 037 058 062 069
078 079 095 121
122 149 150 151
152 153 154 155
157 158 159 160
189 207 222 224
225 226 227 243
247
JVC 004 013 141
KEC 185 186 187
KENWOOD 038 050 067 089
170 171 197 206
215 222
KOHEL 030
NAD 045 046
LOTTE 014 016 036 098
100 172 173 174
175 176 177 178
179 180 181 183
201 202 208 213
214 219 223 232
238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025
034 041 081 090
097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047
048 056 057 132
133 140
OPTIMUS 158
PANASONIC 007 033 064 113
142 220 241 251
PENNEY 104
PHILIPS 026 112 143
PIONEER 039 042 043 063
065 091 093 094
115 123 127 250
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182
193 194 195 203
204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052
072 082 117 119
156 184 199 200
206 209
SHERWOOD 005 006 158
SONY 044 045 109 114
118 126 248 249
TAEKWANG 012 020 073 074
076 077 105 161
162 163 164 165
166 167 168 169
205 231 233 242
TEAC 010 085 106 136
185 187 237
TECHNICS 101 113 128 134
147 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092
199
Brand Codes Brand Codes Brand Codes Brand Codes
![](/img.php?id=651660&img=bg2e.png)
46 DLP Projection TV
No picture &
No sound
•Check whether the TV is turned on.
•Is the power cord inserted into wall power outlet?
; Is the power cord connected to the TV set properly?
•Test the wall power outlet, plug another product’s power cord into the outlet
No or poor color
or poor picture
•Select Color in the Picture menu and press the Gbutton.
(Refer to p.24)
•Keep a sufficient distance between the TV and the VCR.
•Activate any function to restore the brightness of the picture.
The Remote Control
doesn’t work
•Check to see if there is any object between the TV and the Remote Control
causing obstruction.
•Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.10)
•Correct remote operating mode set: TV, VCR etc.?
•Install new batteries. (Refer to p.10)
Picture OK &
No sound
•Press the VOLUME (G) button.
•Sound muted? Press MUTE button.
Picture appears slowly
after switching on
•This is normal, the image is muted during the TV startup process. Please
contact your service center, if the picture has not appeared after five minutes.
Horizontal/vertical bars
or picture shaking •Check for local interference such as an electrical appliance or power tool.
T
Troubleshooting Checklist
roubleshooting Checklist
![](/img.php?id=651660&img=bg2f.png)
Owner’s Manual 47
Poor TV input
signal •Check ANTENNA and CABLE connection.
No channel or a few
channel •Start EZ Scan.
Poor Video
signal •Check ANTENNA and CABLE connection.
Unsuitable
Aspect Ratio •You can adjust the RATIO button or Aspect Ratio in the OPTION menu.
No output from one of
the speakers •Adjust Balance in the AUDIO menu. (Refer to p.25)
Unusual sound from
inside the TV
•A change in ambient humidity or temperature may result in the unit turning off
and does not indicate a fault with the TV.
![](/img.php?id=651660&img=bg30.png)
48 DLP Projection TV
1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.
2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.
If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Cleaning the Screen
Cleaning the Cabinet
Cleaning the Cabinet
Extended
Extended Absence
Absence
Maintenance
Maintenance
![](/img.php?id=651660&img=bg31.png)
Owner’s Manual 49
•The specifications shown above may be changed without prior notice for quality improvement.
Product Specifications
Product Specifications
MODEL
Horizontal Size (inches)
Height (inches)
Depth (inches)
Weight (lbs.)
Power requirement
Television System
Program Coverage
Power Consumption (W)
Antenna
Audio Output (W)
Supplied Accessories
AC120V ~ 60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2 ~ 13, UHF 14 ~ 69, CATV 1 ~ 135, CADTV 1 ~ 135. DTV 2 ~ 69
210W
75 ohm External Terminal for VHF/UHF
15Wx2
Remote Control, 2 size AA batteries, D-sub 15 pin Cable, Power Cord
Z56DC1D
58.1
36.7
17.5
57.3
Z62DC1D
63.3
40.1
19.5
90.4
![](/img.php?id=651660&img=bg32.png)
50 DLP Projection TV
Notes
Notes
![](/img.php?id=651660&img=bg33.png)
Owner’s Manual 51
Notes
Notes
![](/img.php?id=651660&img=bg34.png)
ZENITH ELECTRONICS CORPORATION
DLP Projection TV Limited Warranty - USA
Zenith will repair or replace your product, at Zenith’s option, if it proves to be defective in material or
workmanship under normal use, during the warranty period ("Warranty Period") listed below, effective
from the date ("Date of Purchase") of original consumer purchase of the product. This warranty is
good only to the original purchaser of the product and effective only when used in the United States,
excluding U.S. Territories.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUD-
ING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW,
IT IS LIMITED IN DURATION TO THE EXPRESSED WARRANTY PERIOD ABOVE. ZENITH
WILL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL OR PUNI-
TIVE DAMAGES OF ANY NATURE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAM-
AGES, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, LOST OR COR-
RUPTED PROGRAMMING OR DATA, OR ANY OTHER DAMAGE WHETHER BASED IN CON-
TRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of incidental
or consequential damages or limitation on how long an implied warranty lasts, so the above exclu-
sion or limitation may not apply to you. This warranty gives you specific legal rights and you may also
have other rights that may vary from state to state.
WARRANTY PERIOD:
LABOR: One Year from the Date of Purchase.
Parts: One Year from the Date of Purchase.
Halogen Bulb: One Year from the Date of Purchase.
*Parts replaced are warranted for the remaining por-
tion of the original warranty period.
HOW SERVICE IS HANDLED:
In-Home Service: Please retain dealer’s dated bill of
sale or delivery ticket as evidence of the Date of
Purchase for proof of warranty, and submit a copy of the
bill of sale to the service person at the time warranty ser-
vice is provided.
Please call 1-877-9Zenith (1-877-993-6484) to
locate your nearest Zenith Authorized Service
Center.
Replacement parts may be new or factory remanufac-
tured.
LG Customer Interactive Center
201 James Record Road
Huntsville, Alabama 35824
http://www.zenithservice.com
1. Damages or operating problems that result from shipping, installation, adjustment of user con-
trols, calibration, maintenance or failure to maintain, or separate system components; and
2. Damages or operating problems that result from normal wear and tear, misuse, abuse, operation out-
side environmental specifications or contrary to the requirements or precautions in the Operating Guide,
accident, lightning strikes or other natural causes, unauthorized modification or alteration, incorrect electri-
cal current or voltage, reception problem caused by inadequate home antenna or faulty antenna con-
nections, computer software, institutional or commercial use, or other causes not arising out of defect in
material or workmanship.
3. Therefore, the cost of repair or replacement of such a defective product shall be borne by the con-
sumer.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
CUSTOMER INTER-ACTIVE CENTER NUMBERS:
For nearest Authorized Service
Center, Where to buy, Product
Assistance, or Customer Assistance
Call 1-877-9Zenith (1-877-993-6484) (24 hours a day, 365
days per year) and select an appropriate option from the
menu.
Or visit our website at http://www.zenithservice.com
P/N: 38289U0570A
