LG Innotek REPETZ21A Electronic Shelf Label User Manual
LG Innotek Co., Ltd. Electronic Shelf Label
User Manual
![](/img.php?id=2935666&img=bg1.png)
Copyright ⓒ 2015. All Rights Reserved.
LG Innotek
Confidential
LG Innotek
Confidential

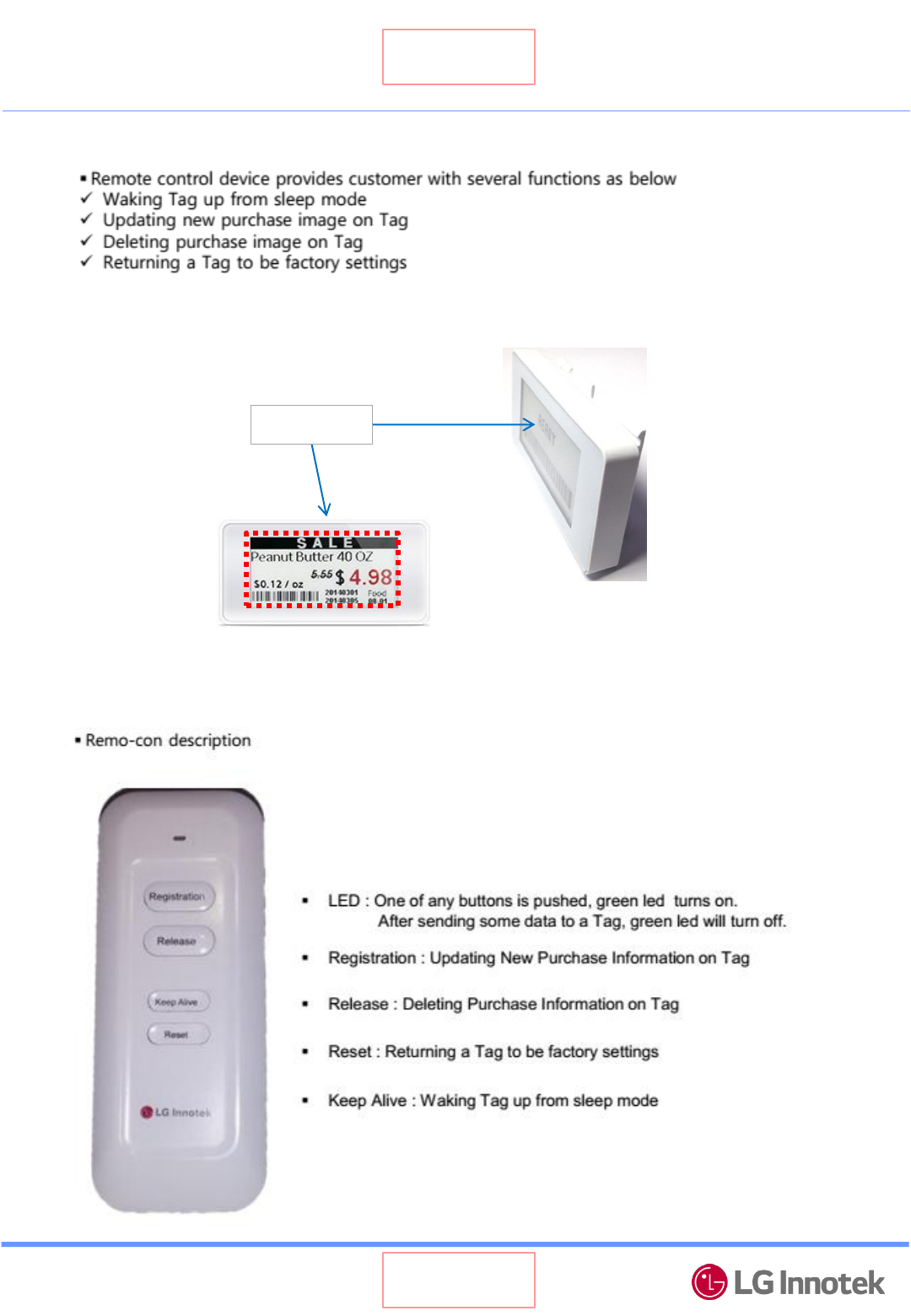

1. ESL Description & Key Function
Display Area
![](/img.php?id=2935666&img=bg2.png)
Copyright ⓒ 2015. All Rights Reserved.
LG Innotek
Confidential
LG Innotek
Confidential

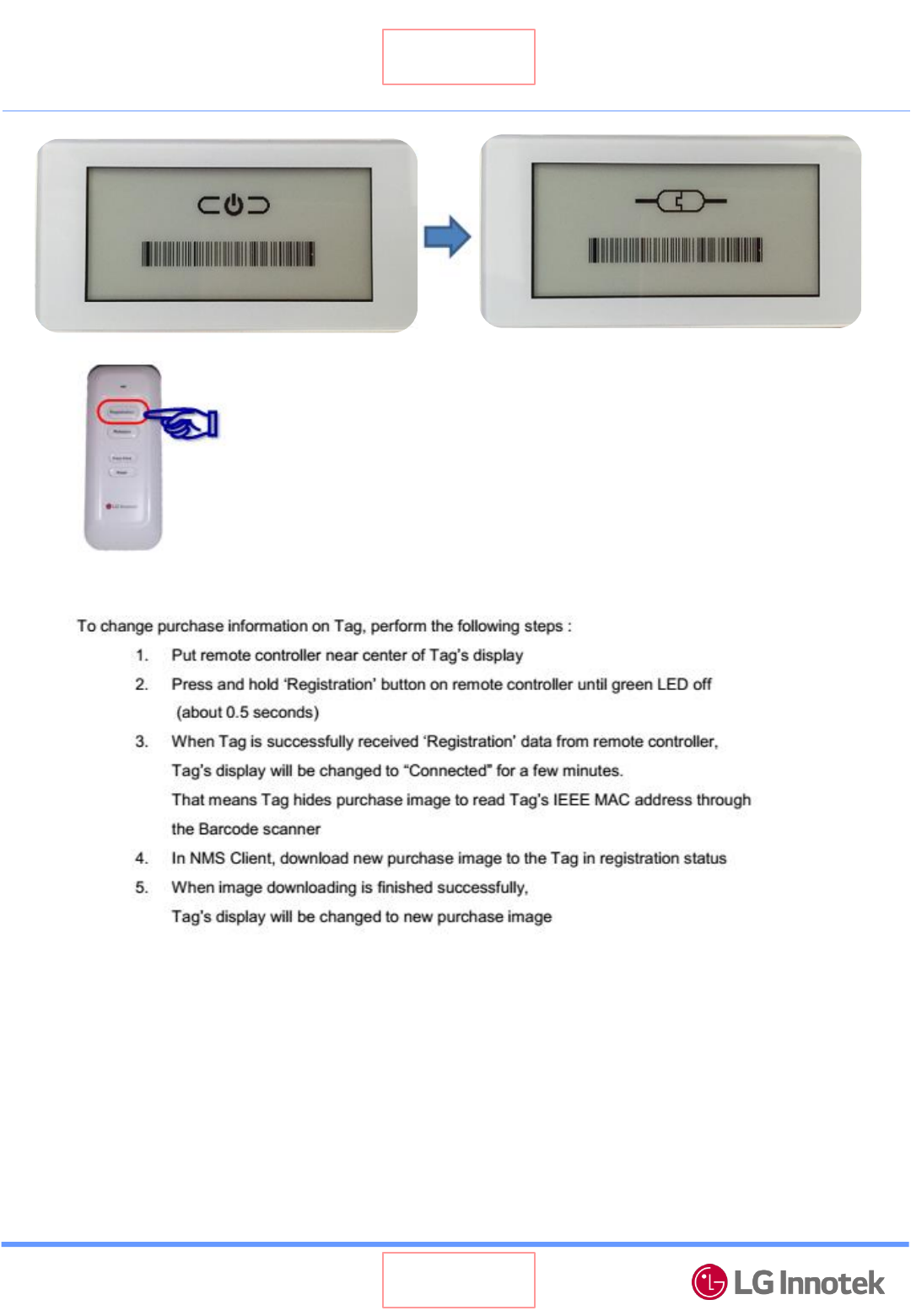

2. "Registration" Key Function
![](/img.php?id=2935666&img=bg3.png)
Copyright ⓒ 2015. All Rights Reserved.
LG Innotek
Confidential
LG Innotek
Confidential
3. "Release" Key Function
![](/img.php?id=2935666&img=bg4.png)
Copyright ⓒ 2015. All Rights Reserved.
LG Innotek
Confidential
LG Innotek
Confidential
4. "Keep Alive" Key Function
Case 1
![](/img.php?id=2935666&img=bg5.png)
Copyright ⓒ 2015. All Rights Reserved.
LG Innotek
Confidential
LG Innotek
Confidential

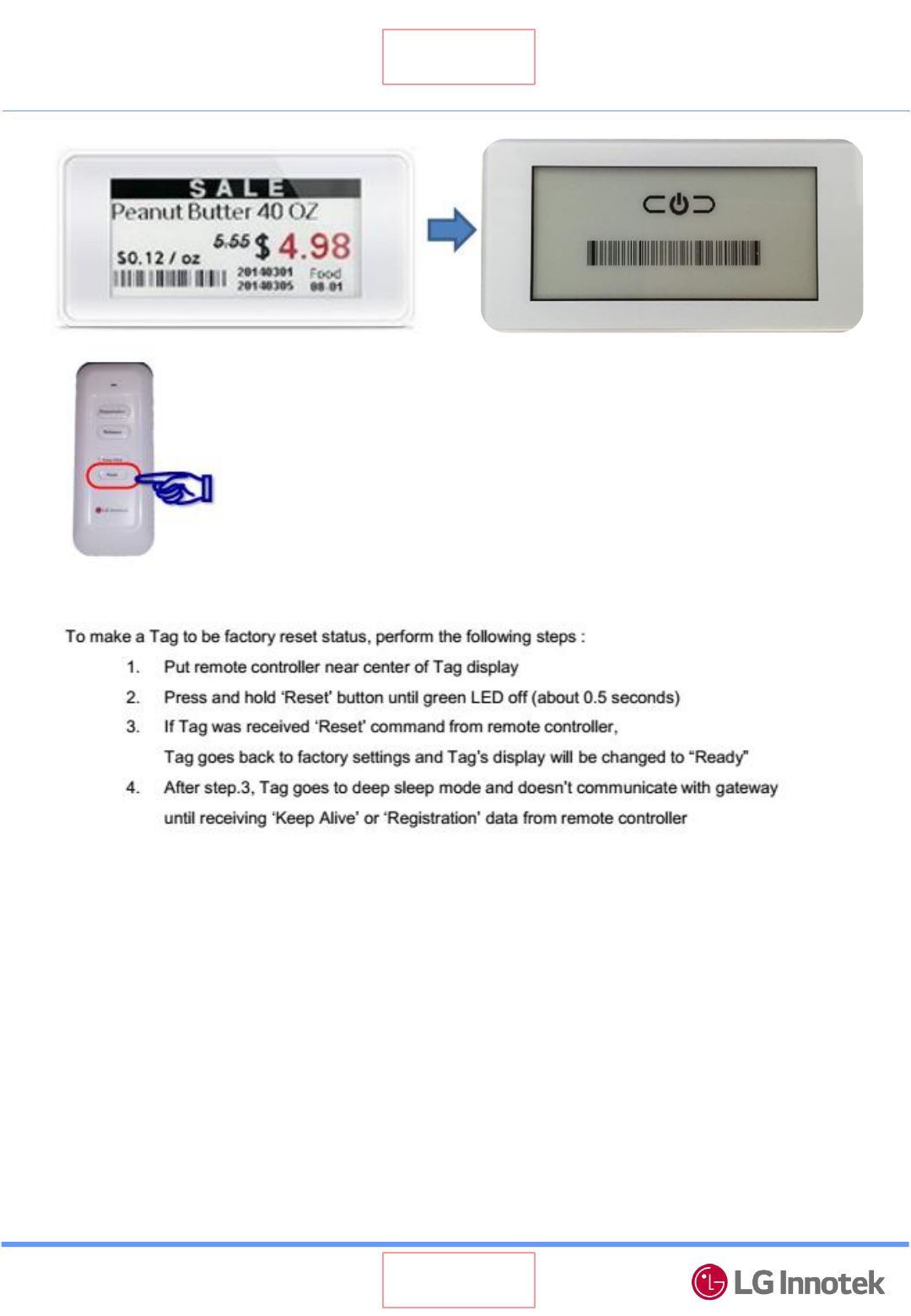

5. "Reset" Key Function
![](/img.php?id=2935666&img=bg6.png)
Copyright ⓒ 2015. All Rights Reserved.
LG Innotek
Confidential
LG Innotek
Confidential

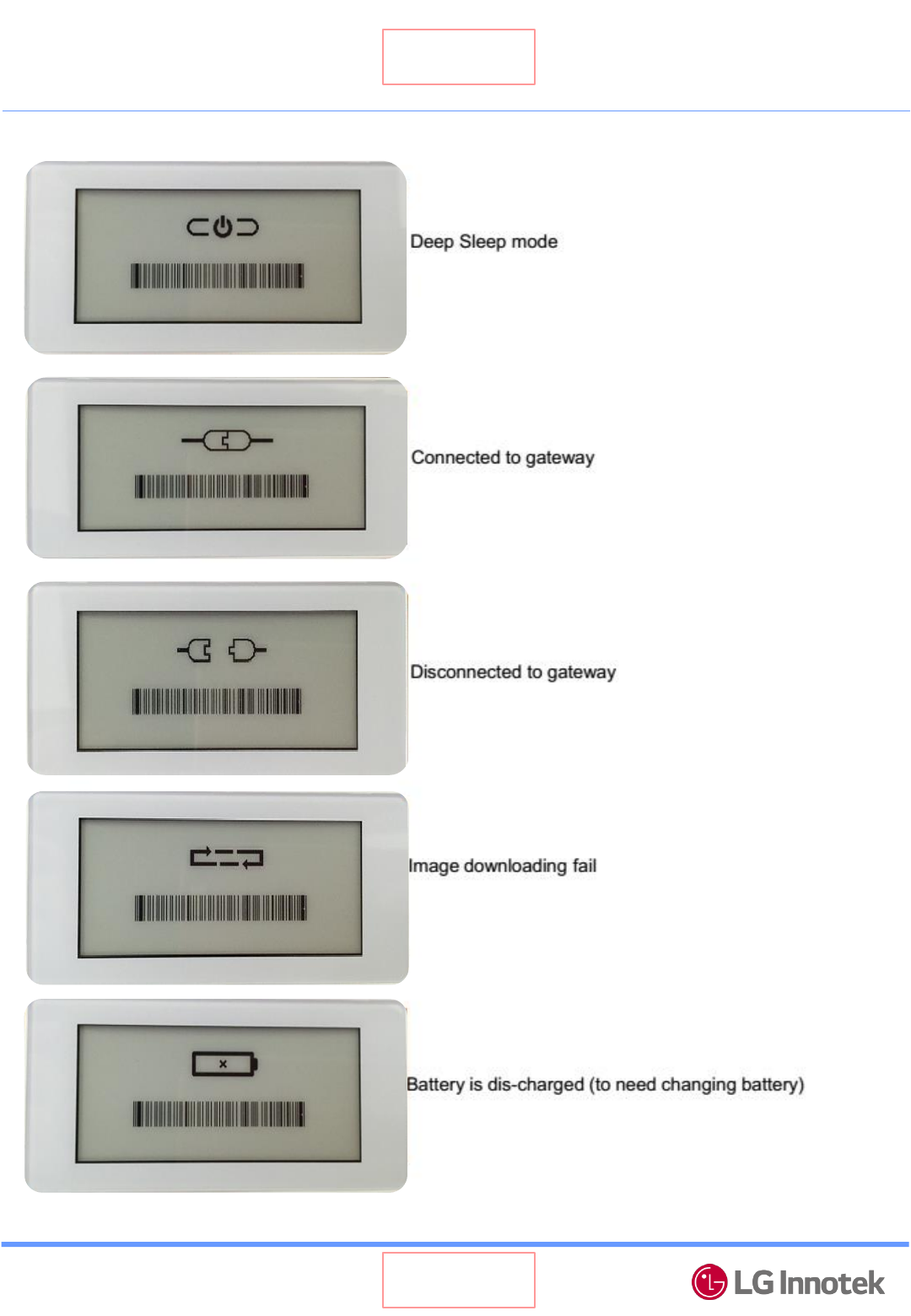

6. Status Display
![](/img.php?id=2935666&img=bg7.png)
Copyright ⓒ 2015. All Rights Reserved.
LG Innotek
Confidential
LG Innotek
Confidential

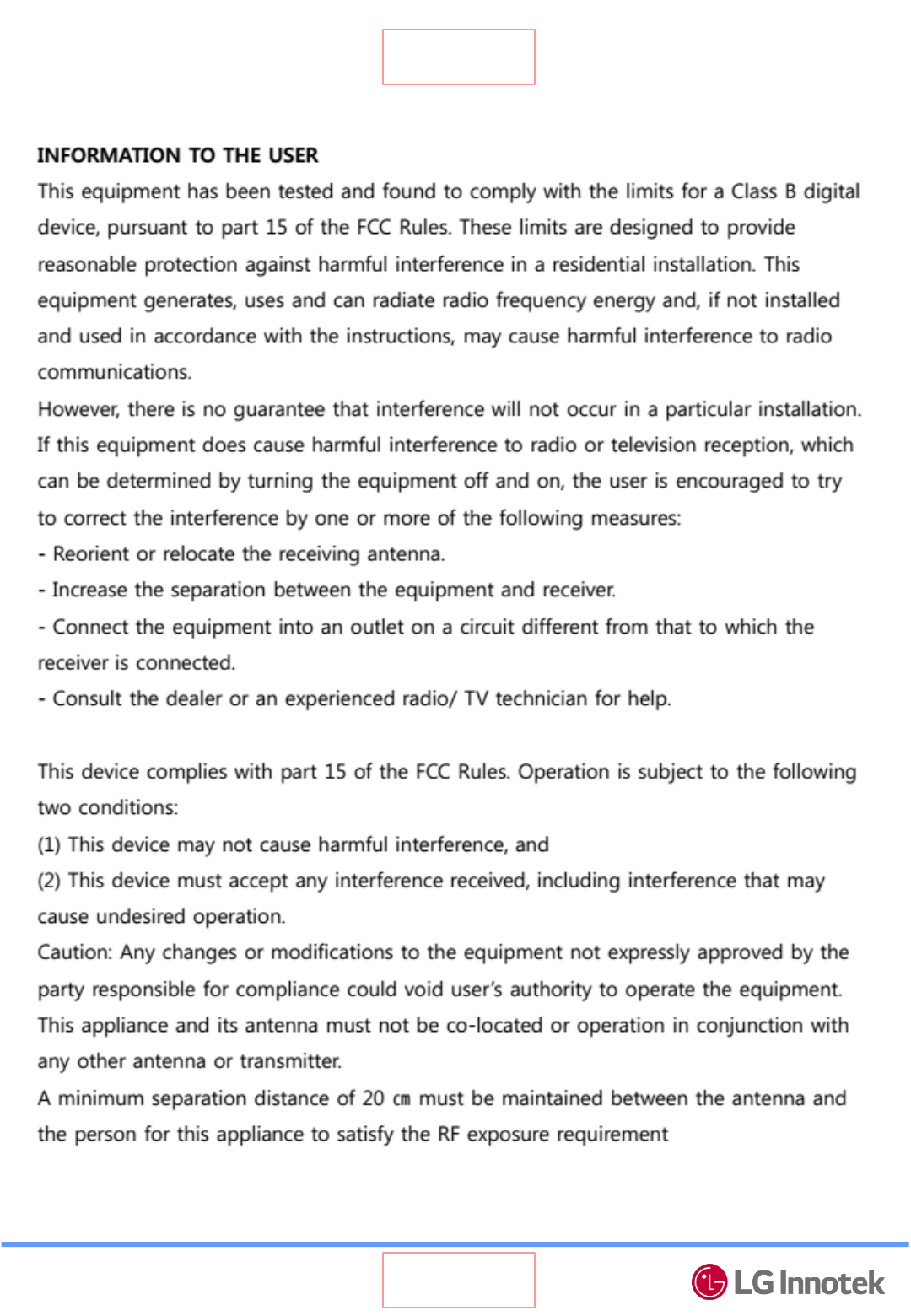

7. Regulation Information
