ZigBee
4Keys Remote Controller
Remote Control & Connected Bulb
User Guide
6A-RC-ZAB-H0
![](/img.php?id=3703128&img=bg2.png)
•
•
•
Working frequency range:2400-2483.5MHz
Max.RF output power:8dBm

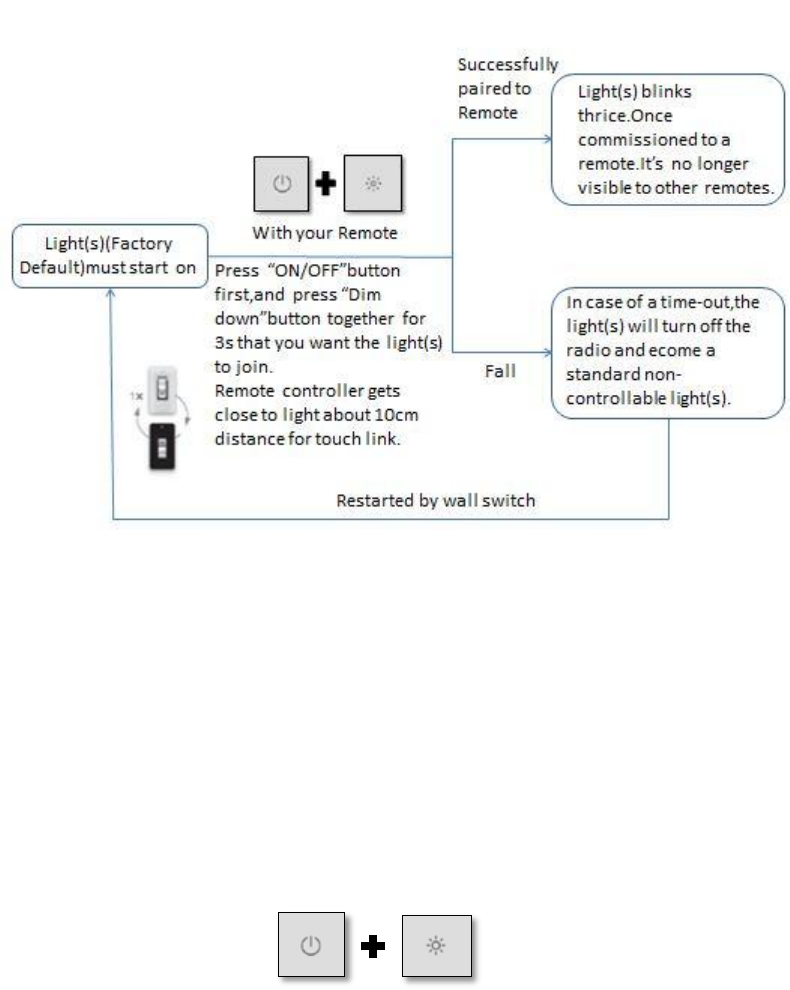

1. Commissioning(Pairing)Light(s)
Follow instruction bellow to commission new smart light(s).In case you buy new
smart light(s) or the current smart light(s) are set to Factory Default.

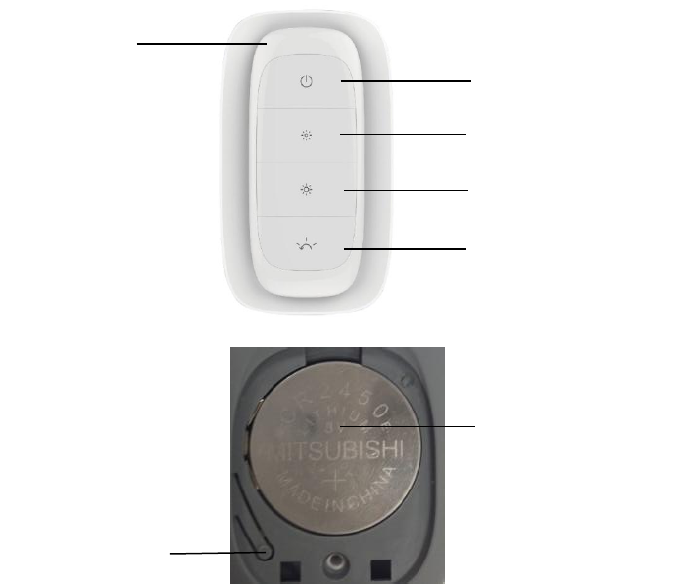

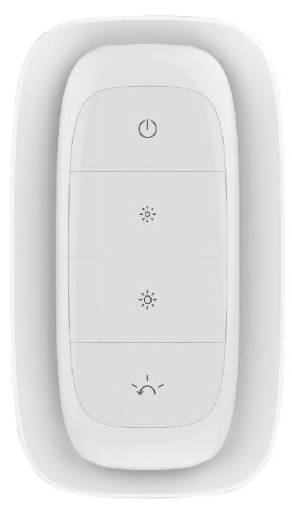

Indicator
ON/OFF

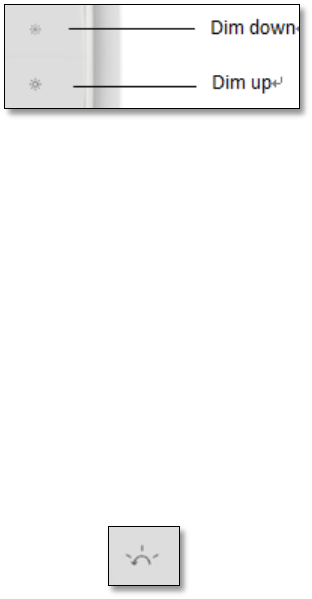

Dim down
Dim up
Quick scene
Reset button
CR 2450 battery
![](/img.php?id=3703128&img=bg3.png)
2. Unpairing light(s)
Press “ON/OFF”button first,and press”Dim up”button together for 3
seconds that you want the light(s) to unpair.When the light(s) blink thrice,
means that the operation is successful.
Remote controller gets close to light about 10cm distance for touch link.
Note:After remove the light(s)from the Remote Controller,user need to reopen
this light(s) if wants to touch link the Remote Controller again.
3. ON/OFF
Every press turns the light ON or OFF.
![](/img.php?id=3703128&img=bg4.png)
4. Dimming
Dimming:Dim the light(s) which is touched link the Remote Controller.
Up(“+”)/Down(“-”)button:
Every press:dims the lumen step by step.
Keep pressing:dims until max./min. in one time.
5. Quick scene
Long press”quick scene”button to memory the lumen that you want,so you
can press it to launch the scene at the next time.When bulb blink once,it means
remote memory successfully.
Remote Controller will remove the lumen memory after memory other lumen.
6. Reset remote controller to factory default
Press pin hole for 3 seconds. After relax the pin hole,the remote controller will
be reset to factory default and search ZigBee which can be added
automatically.If user press anyother button on Remote Controller,searching will
stop.Remote Controller will reset again if wants to added to the gateway.
![](/img.php?id=3703128&img=bg5.png)
Reseting Bulb(s)

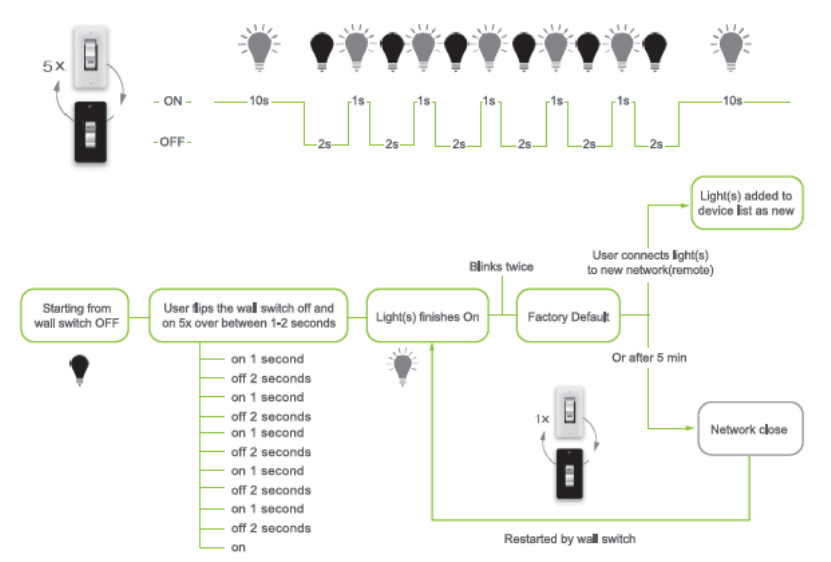

1. Restored to factory default by switch
Bulb(s) could be restored to factory default status either by remote controller or by
wall switch.Factory default by remote controller is same as un-pairing Bulb(s),while
by wall switch is as following.
