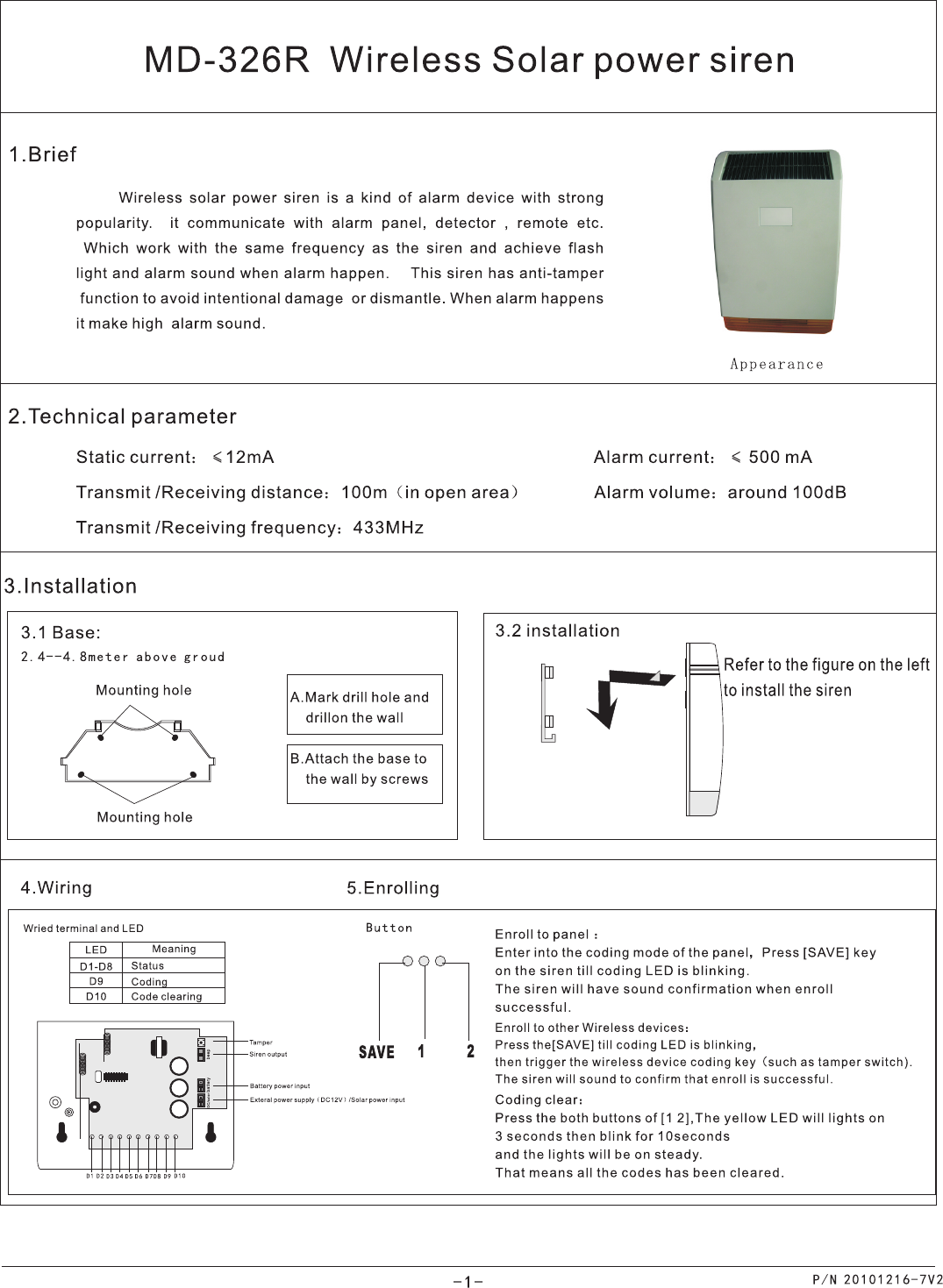

MEIAN Technology MD-326R Wireless 2-ay solar siren User Manual
Shenzhen Meian Technology Co.,Ltd . Wireless 2-ay solar siren
user manual
![](/img.php?id=3498575&img=bg1.png)
Normal mode: receiving mode.
Alarm mode: transmitting mode.
![](/img.php?id=3498575&img=bg2.png)
![](/img.php?id=3498575&img=bg3.png)
MD - 326R wireless siren is with receiving and transmitting function, two kinds of model
can't work at the same time, the signal in normal work most of the time is in the
receiving work mode, received signal communication relies on the "MICRF211"
receiving module,
The signal needs to be transmitted only in the following three states:
1. Enrolling status: When the siren receives the signal sent from the hub for enrolling , it
will transmit a response signal to the hub within 3 seconds, and the signal timing is
less than 2 seconds.
2. When the siren tamper is triggered, the siren will send an alarm message with tamper
alarm to send the signal time is less than 2 seconds.
In normal work, the siren will send a heartbeat report to the hub which was enrolled every
two hours , the signal time duration is is less than two seconds
Md-326r function description:
1, working with hub. After enrolled to the hub. after once the hun receives the alarm signal
will send a signal to the signal, signal receiving signal after start flashing a chirping
and sounding, when the hub send signal to cancel alarm ,warning signal to stop
flashing.
2, working with the RF remote control and RF detector , when the RF remote and RF
detector is enrolled to the siren, when the remote control to send protection signal to
alarm signal will have a response to sound, the alarm in the protection state, in this
state if receives the paired with a light detector alarm signal sent to come over,
warning lights and the buzzer will alarm The Times, in the case of sending removal
with the remote control signal to stop the alarm, when the remote control to send
emergency set alarm information, alarm will report to the police.
Operation instructions of md-326r:
For code Settings:
1 with the remote control code, long press the SAVE button, when the light is red light
flashing and PCB when singing hit the buzzer for short rang of cloth button or key machine,
when the MD - 326 r a reply from the alarm buzzer born after let go of the SAVE button, at
this point the remote control and the MD - 326 r to code successfully.
2 and detector for code, long press the SAVE button, when the light is red light flashing
and PCB, chirping trigger detector alarm, buzzer for short rang when MD - 326 r began to
report to the police, the detector with the MD - 326 r code successfully
3 with the host to code, set the host in the signal to the code mode, long press the SAVE
button, when the light is red light flashing buzzer and PCB for short loud singing, when the
MD - 326 r sound alarm buzzer give a reply of the PCB, and continue to wait until after the
buzzer example, the host will display a police number nine ID, host and signal for code
success at this time.
Clear code setting:
The code setting will clear all the codes in md-326r. Please note that the operation is as
![](/img.php?id=3498575&img=bg4.png)
follows:
Holding down the qing code button 1 and 2 at the same time, this time the yellow light on
the PCB began to regular twinkle and PCB buzzer interval, when the yellow light about 10
seconds after long bright or not bright and PCB buzzer sirens, the qing code successfully.
MD-326R is both Receiver and Transmitter. Receiving and Transmitting can't work at the
same time.
Receiver(MICRF211 module): Normal working status of siren is receiving signal(Normal
mode). The siren can receive signal from the control panel and the RF accessories(keyfob
and PIR detector).
1)From the control panel:
When the siren is enrolled to the control panel, once alarm trigger, the control panel will
send ASK signal to the siren, the siren will sound and flash light after receiving ASK alarm
signal from the control panel. After receiving the ASK disarm signal from the control panel,
the siren will stop sounding and the flash light.
2)From the RF accessories:
When is RF keyfob and PIR detector is enrolled to the siren, the siren will be armed status
after receiving armed signal ASK from the keyfob. During armed status, the siren will be
set off if it received alarmed signal from the PIR detector enrolled. Then the siren will
sound and flash light. The siren will stop alarm and flash light when receiving disarm
signal from keyfob.
Transmitter:
The siren will transmit signal as below three case
1)When the siren receives a signal from the control panel enrolled, it will send a response
signal to the control pael after 3 seconds , signal time duration is less than 2s.
2)When the tamper of siren is triggered, the siren will send a tamper alarm signal to the
control panel, signal time duration is less than 2s.
3)Heatbeat every 2 hours to the control panel, signal time duration is less tahn 2s.
