Midea Kitchen Appliances EM234AYYPV4 Microwave Oven User Manual
Guangdong Midea Kitchen Appliances Manufacturing Co.,Ltd Microwave Oven Users Manual
Users Manual
![](/img.php?id=3588942&img=bg1.png)
SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven,and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
Model:EM234AJY-PVH
![](/img.php?id=3588942&img=bg2.png)
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since
operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particular important that
the oven door close properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
open door
S
ly
Specifications
120V~60Hz
1350 Watt
1200 Watt
1.2Cu.ft
12.4 inches
20.4X16.7X12.4 inches
Approx.
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
EM234AJY-PVH
25.4Lbs
2
WARNING -
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
combustible materials are placed inside the oven to facilitate cooking.
only to properly grounded outlet. See
found on page
accordance with the provided installation
instructions.
To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
3. This appliance must be grounded. Connect
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
"GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
by qualified service personnel.
Contact nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do not immerse cord or plug in water.2
1 . Keep cord away from heated surface.
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
IMPORTANT SAFETY INSTRUCTIONS
precautions should be followed, including
When using electrical appliances basic safety
following:the
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
or
4.
3
This device complies with PART 18 of FCC rules.
stand in the microwave oven for a short time
before removing the container. spoon or other utensil into the container.
This appliance must be grounded. In the event of an electrical short circuit, grounding
of electric shock by providing an escape wire for the
appliance is equipped with a cord having a
plugged into an outlet that is properly installed and grounded.
GROUNDING INSTRUCTIONS
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a
grounding wire with a grounding plug.
reduces the risk electric current. This
The plug
WARNING - Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely or if doubt exists as to whether the appliance is properly grounded.
extension cord, use only a 3-wire extension cord that has a
The marked rating of the extension cord shall be equal to or greater than the electrical
appliance.
understood,
If it is necessary to use an
3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance.
rating of the
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
disassemble this appliance.
DANGER -
Do not
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
WARNING -
1. A short power supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.
SA E THESE INSTRUCTIONS
-
must be
V
4
1. Operation of the microwave oven may cause interference to your radio, TV
or similar
2. When there is interference, it may be reduced or eliminated by taking the
following
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
are on different branch circuits.
RADIO INTERFERENCE
equipment.
measures:
and receiver
Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave
4. Do not exceed 1 minute cooking time.
UTENSILS
See the instructions on "Materials you can use in microwave oven or to be avoided in
There may be certain non-metallic utensils that are not safe to use for microwaving. If
utensil in question following the procedure below.
CAUTION -
pouches should be
microwave oven."
in doubt, you can test the
utensil in question.
cooking.
5
![](/img.php?id=3588942&img=bg6.png)
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer* instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short*erm cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer* instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
6
![](/img.php?id=3588942&img=bg7.png)

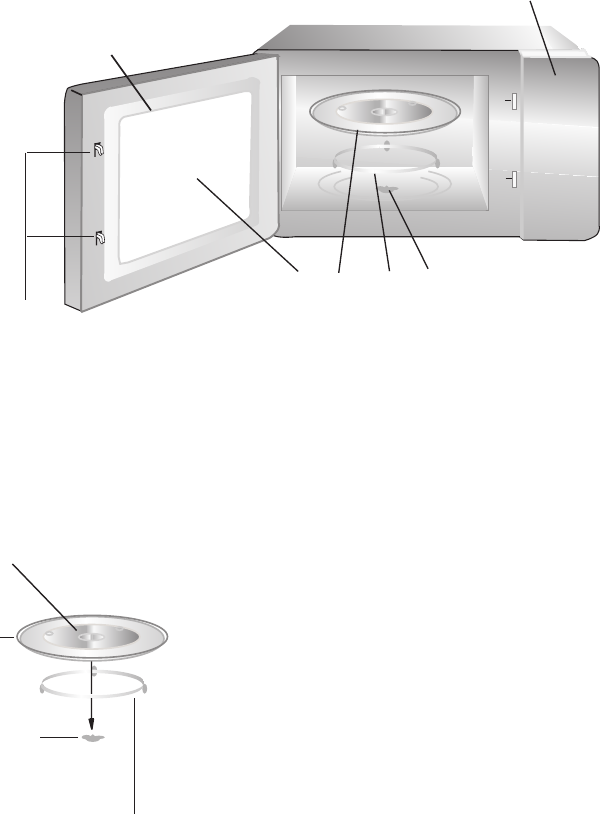

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
7
![](/img.php?id=3588942&img=bg8.png)
Installation

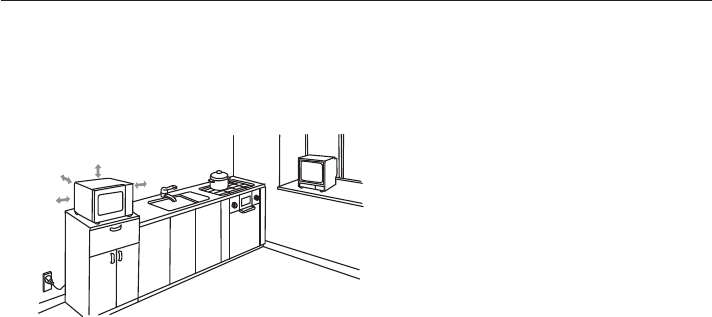

A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
8
![](/img.php?id=3588942&img=bg9.png)
OPERATION
1. Power Level
11 power levels are available.
Level
10
9
8
7
6
5
4
3
2
1
Power
P100
P90
P80
P70
P60
P50
P40
P30
P20
P10
Display
PL10
PL9
PL8
PL7
PL6
PL5
PL4
PL3
PL2
PL1
2. Clock Setting
(1) Press " CLOCK ", " 00:00 " will display. The first hour figure will flash.
The " : " will be lighted.
(2) Press the number keys and enter the current time. For example, time is 12:10 now,
please press "1, 2, 1, 0 "in turn. If the numbers input are not within the range
of 1:00--12:59, the setting will be invalid until valid numbers are input.
(3) Press " CLOCK " to finish clock setting. ":" will flash and the clock will be lighted.
(4) If the clock need to be reset, please repeat step 1 to step 3.
Note:
(1) In the process of clock setting, if the "STOP/CANCEL" button is pressed or
if there is no operation within 1 minute, the oven will go back to the former
setting automatically.
(2) The clock will not work if it is not set when powered.
3. Kitchen Timer
(1) Press " TIMER", will display "00:00". the screen
(2) Press the number keys and enter the timer time.(The maximum cooking time is 99 minutes
and 99 seconds)
(3) Press "START/+30SEC. " to confirm setting.
(4) When the timer time arrives, the buzzer will ring 5 times. If the clock has been set (12-hour
system), the screen will display the current time.
Note: 1)The kitchen time is different from 12-hour system. Kitchen Timer is a timer.
2) In the process of timer setting, any program cannot be set.
P0
0
0
9
4. Microwave cook
(1) Press "COOK TIME " once, the screen will display "00:00".
(2) Press number keys to input the cooking time; the maximum cooking time is 99
minutes and 99 seconds.
(3) Press "POWER LEV EL" once, the screen will display "PL10". The default power is P100
Now you can press number keys to adjust the power level.
(4) Press "START/+30SEC." to start cooking.
Example: to cook the food with 50% microwave power for 15 minutes.
a. Press " " once. "00:00" displays.
b. Press "1", "5", "0", "0" in order.
c. Press " " once, then press "5" to select 50% microwave power.
d. Press "START/+30SEC." to start cooking.
Note:1) In the process of ing, if the " STOP/CANCEL " button is pressed or if there is sett
no operation within 1 minute, the oven will go back to the former setting automatically.
5. Speedy Cooking
(1) In waiting state, instant cooking at 100% power level can be started by pressing number
pads 1 to 6. Press " START/+30SEC
The maximum cooking time is 99 minutes and 99 seconds.
." to increase the cooking time.
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can be
started by pressing " START/+30SEC
cooking time by 30 seconds. The maximum cooking time is 99 minutes and 99 seconds.
. ". Each press on the same button will increase
Note: During microwave cooking time defrost , time
"START/+30SEC
, , multi-stage cooking and favorite
." button.
POWER LEV EL
(3) Press " " and then input the cooking time. Press " " can start
COOK TIME
COOK TIME START/+30SEC.
cooking with 100% microwave power.
added by pressing
power.
6. Weight Defrost Function
(1) Press " " once, oven will display "WEIGHT DEFROST 0".
(2) Press number pads to input weight to be defrosted.
(3) Press " START/+30SEC displayed.
. " to start defrosting and the cooking time remained will be
Note:
work until valid numbers are input.
If the weight input is not within 4-100 Oz, the input will be invalid. The oven will not
can be
10
7. Time Defrost Function
(1) Press " TIME DEFROST " once, oven will display "00:00".
(2) Press number pads to input defrosting time. The effective time range is 0:01~99:99
(3) The default microwave power is power level 3.
(4) Press "START/+30SEC." to start defrosting. The remained cooking time will be displayed.
8. Popcorn
(1) In waiting state, press " ", the screen will show "3.0 Oz" .
(2) Press " " repeatedly to select the appropriate weight."3.0","3.5"."1.75" will display.
(3) Press " START/+30SEC. " to cook. The remained cooking time will be displayed.
9. Sensor Cooking
In waiting state, put the food in the oven , then press the relevant menu key in the sensor cook,
"SENSOR REHEAT"
(1)
、"FROZEN PIZZA"、"FISH"
. And the screen will display
Press "START/+30SEC to start sensor cooking function and no need to set time.
If the sensor receive the humidity signal,
the buzzer will sound 2 beeps, and the remaining
"SC-1"、"SC-2"…
、"MEAT" 、"FRESH VEGGIE"
"FROZEN VEGGIE" 、"POTATO"
、"FROZEN ENTREE"
8".
time will display. The buzzer will sound 5 times to remind you when cooking is finished.
."
POPCORN
Note:
When cooking or reheating food, you should do these in order to have the best effect.
a. The room temperature cannot be over 35 degrees.
b. The weight of food must be more than 110g (4 Oz).
c. The cavity, glass tray and utensils must kept drying before putting the food in.
d. The reheat food can be covered with the lid. But the lid must has vent hole in order to
emanate the steam. Sealed utensil is forbidden.
e. If the cavity is too hot, the sensor cook can not be started.
POPCORN
or "SC-
(2)
(1)
11
(2) During cooking process, following points must be done.
a. Keep the door close when the remaining time is not displays or the buzzer does not
sound twice.
b. When the buzzer sound twice , the time will count down and display the rem ing time,
you can open the door to mix the food up ,turn over or replace the food. And then go
on the next operation.
ain
(3) Please leave the food alone for a while after cooking have been finished.
door or press " " key. Otherwise, the sensor will make mistakes.
(4) During sensor cooking process, if the time not count down, please do not open the oven
5) After 35 seconds sensor cooking, the buzzer sound 1 beep to start self-checking. If (
the sensor do not work, the oven will go back to waiting state after 40seconds.
10. Muti-stage cooking
At most 2 stages can be set for cooking. In multi-stage cooking, if one stage is
defrosting, then defrosting shall be placed at the first stage automatically.
Note: Auto menu cooking cannot work in the multi-stage cooking
STOP/CANCEL
Example: if you want to cook with 80% microwave power for 5 minutes + 60% microwave
power for 10 minutes. The cooking steps are as following:
(1) Press " " once, then press "5", "0", "0" to set the cooking time;
(2) Press " " once, then press "8" to select 80% microwave power.
(3) Press " " once, then press "1", "0", "0", "0" to set the cooking time;
(4) Press " " once, then press "6" to select 60% microwave power.
(5) Press "START/ +30SEC ." to start cooking.
COOK TIME
COOK TIME
POWER LEV EL
POWER LEV EL
11. Memory Function
(1) In waiting state, press "
“1”,
" to choose memory 1-3 procedure. The
“2”, “3”.
(2) If the procedure has been set, press " START/ +30SEC
procedure. Only one or two stages can be set.
." to use it. If not, continue to set the
(3) After finishing the setting, press " " to save the procedure
START/ +30SEC." , it will save the procedure and start
FAV ORITE
FAV ORITE
"
display
and the oven will go
back to waiting state. If press
repeatedly
screen will
cooking.
12
![](/img.php?id=3588942&img=bgd.png)
Example: To set the following procedure as the second memory, that is memory 2. To
cook the food with 80% microwave power for 3 minutes and 20 seconds.
The steps are as follow:
a. In waiting state, press " " twice, stop pressing until the screen displays"2".
b. Press " " once, then press "3", "2", "0" in order.
c. Press " " once, "PL10" display, then press "8" and "PL8" displays.
d. Press " " to save the setting. Buzzer sounds once and "2" displays.
If you press "START/+30SEC." again, the procedure will be saved as the memory 2
and operated.
12. Inq uiring Function
(1) In cooking state, press " CLOCK ", the screen will display clock for three seconds, if the clock
(2) In the microwave cooking state, press " " to inquire microwave power level,
to the previous state. In multi-stage state, the inquiring way can be done by the same way
as above.
and the current microwave power will be displayed. After three seconds, the oven will turn back
has been set.
FAV ORITE
COOK TIME
POWER LEV EL
POWER LEV EL
13. Lock Function For Children
Lock: In waiting state, press " " for 3 seconds, there will be a long "beep"
denoting the entering into the children-lock state; meanwhile, oven will display " " or
Lock quitting: In locked state, press "
"beep" denoting that lock is released.
" for 3 seconds, there will be a long
14. Cooking End Reminding Function
When the cooking is over, the buzzer will sound 5 "beep" to alert user the cooking is finished.
current time.
STOP/CANCEL
STOP/CANCEL
FAV ORITE
e. If you want to run the saved procedure, in waiting state, press "
then press "START/+30SEC." to run.
" twice, screen
FAV ORITE
displays "2",
15. Power Saving Function
In waiting state or locked state, press " " once to turn off the screen. And the
STOP/CANCEL
oven will enter power saving state.
13
![](/img.php?id=3588942&img=bge.png)
Sensor Cook Chart
Menu Weight
SC-1
(110g~450g)
Inicial Temp.
5 degrees
8~12 Oz
SC-2
FROZEN PIZZA
SENSOR REHEAT
SC-3
FISH
SC-4
MEAT
SC-5
FRESH VEGGIE
SC-6
FROZEN VEGGIE
SC-7
POTATO
SC-8
FROZEN ENTREE
6~12 Oz
4~16 Oz
8~24 Oz
4~16 Oz
(170g~450g)
6~16 Oz
1 - 4
potatoes
8~32Oz
(225g~900g)
Room
Temp.
Room
Temp.
minus
18 degrees
minus
18 degrees
5 degrees
5 degrees
minus
18 degrees
14
![](/img.php?id=3588942&img=bgf.png)
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suit ble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable. Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
MAINTENANCE
a
PN:
