SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
Model:EM245A5L-PV
![](/img.php?id=2692151&img=bg2.png)
120V~ 60Hz
1350W
1250W
1.6 Cu.ft.
Specifications
EM245A5L
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door closes properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
14.2 inch
21.8X18.9X12.8 inch (553X480X326mm)
Approx. Lbs(1 kg)635.5
2
-PV
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specific: "PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"
found on page 2.
3. As with most cooking appliances, close
supervision is necessary to reduce the risk
of a fire in the oven cavity.
4.To reduce the risk of fire in the oven
cavity:
i). Do not overcook food. Carefully attend
the appliance when paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
ii).Remove wire twist-ties and metal
handles from paper or plastic
containers/bags before placing them in
the oven.
iii). If materials inside the oven ignite,
keep the oven door closed. Turn the
oven off, and unplug the appliance.
Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.
iv). Do not use the oven cavity for storage
purposes. Do not leave paper products,
cooking utensils, or food in the cavity
when not in use.
5. This oven must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found
on page 4.
6. Install or locate this oven only in
accordance with the installation
instructions provided.
7. Some products such as whole eggs
and sealed containers-for example,
closed glass jars-are able to explode
and should not be heated in the oven.
8. Use this appliance only for its intended
uses as described in this manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is
specifically designed to heat or cook
or dry food. It is not designed for
industrial or laboratory use.
9. As with any appliance, close
supervision is necessary when used
by children.
10. Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
11. This appliance should be serviced only
by qualified service technicians.
Contact the nearest authorized service
facility for examination, repair or
adjustment.
12. Do not cover or block any openings on
the oven.
13. Do not store or use this appliance
outdoors.
14. Do not use this oven near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or
similar locations.
15. Do not immerse cord or plug in water.
16. Keep cord away from heated surfaces.
17. Do not let cord hang over edge of
table or counter.
18. When cleaning surfaces of door and
oven that comes together on closing
the door, use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth.
3
![](/img.php?id=2692151&img=bg4.png)
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the container.
19. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for the
electric current. This appliance is equipped with a
cord having grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
has a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING
DANGER
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
Electric Shock Hazard
Improper use of the grounding
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
(grounding) plug
Three-pronged
The marked rating of the extension cord shall be
equal to or greater than the electrical rating of the
appliance.
4
CAUTION
Personal Injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic pouches should be
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
UTENSILS See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Radio Interference
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in
or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if cared is exercised in
their use.
3. If a long cord sets or extension cord is used:
1) The marked electrical rating of the cord set or extension marked electrical rating of the cord
set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop
where it can be pulled on by children or tripped over unintentionally.
1. Operation of the microwave oven may cause interference to your radio, TV
or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the
following measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
and receiver are on different branch circuits.
5
![](/img.php?id=2692151&img=bg6.png)
Materials you can use in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
6
![](/img.php?id=2692151&img=bg7.png)

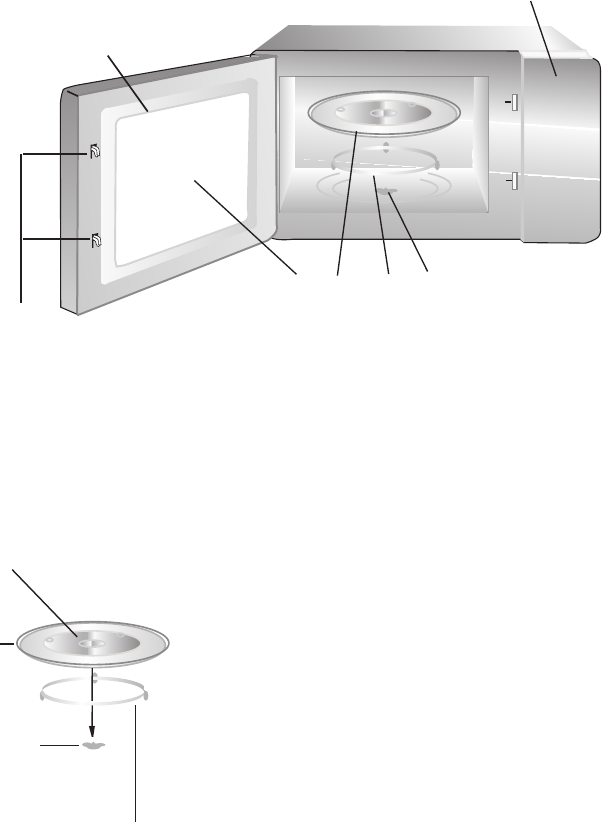

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the
glass tray
upside down. The glass
tray should never be restricted.
b. Both
glass tray
and
turntable ring assembly
must
always be used during cooking.
c. All food and containers of food are always placed
on the
glass tray
for cooking.
d. If
glass tray
or
turntable ring assembly
cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
7
![](/img.php?id=2692151&img=bg8.png)
Installation

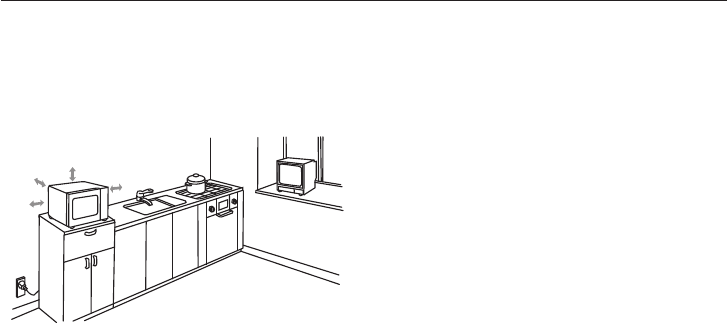

A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
(3) Blocking the intake and/or outlet openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and
the warranty would be void.
3.0 inch(7.5cm)
3.0 inch(7.5cm)
12 inch(30cm)
OPEN
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
8
![](/img.php?id=2692151&img=bg9.png)
1. Power Level
power levels are available.
Level 10 9 8 7 6 5 4 3 2 1
2. Clock Setting
When the microwave oven is plugged into a outlet, will display " WELCOME ".
(1) Press "Clock", LCD will display "00:00". The first hour figure will flash. ":" and other
"0" will light. If there is no operation or invalid number is input in 3 seconds, LCD will
(2) Press the number keys to input the time of day.
(3) Press "Clock and the will light.
( ) If the numbers input are not within the range of 1:00--12:59, the setting will be invalid
until valid numbers are input.
Note: In the process of clock setting, if the " STOP/C " button is pressed or if there is
3. Kitchen Timer
(1) Press " T", LCD will display "00:00". If there is no operation in 2 seconds, LCD will
(2) Press the number keys to input the time. The maximum time is 99 minutes 99 seconds.
(3) Press " START/+30sec. " to confirm the setting. If there is no operation in 3 seconds,
(4) When the kitchen time arrives, buzzer sounds 5 times. If the clock has been set, L D
will display the current time by counting down.
Note: 1) Kitchen time is different from the clock. Kitchen Timer is a timer.
That is to say it poccesses the function of alarming clock.
PL10 PL9 PL8 PL7 PL6 PL5 PL4 PL3 PL2 PL1
2) During timer process, any program cannot be set.
4. Microwave cook
(1) Press " " once, LCD will display "00:00". " " will light.
OPERATION
Display PL0
0
11
" " will light. Buzzer sounds once. If there is no operation in 10 seconds, it will
n LCD
display " ENTER THE TIME OF DAY " , and then turn back to display "00:00".
" to finish clock setting. ":" will flash time of day
If there is no operation in 3 seconds after enter the time of day, LCD will display
" PRESS CLOCK ".
4
no operation within 1 minute, the oven will go back to the former state automatically.
once
ancel
imer
LCD will display "PRESS START".
C
Cook Time If there is no
enter into waiting state. And LCD will display "0:00".
display "ENTER TIME IN MINUTES AND SECONDS" once, and then turn back to
display "00:00".
operation in 2 seconds, LCD will display "ENTER TIME IN MINUTES AND SECONDS"
once, and then turn back to display "00:00".
9
![](/img.php?id=2692151&img=bga.png)
(3) Press " Power " once, LCD will display "PL10". If there is no operation in 2 seconds,
LCD will display " ENTER NEW LEVEL OR PRESS START". Press the number
(4) Press " START/+30 ." to start cooking.
Note: In the process of cooking, if the " STOP/C " button is pressed or if there is no
operation within 1 minute, the oven will go back to the former setting automatically.
(2) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can
be started by pressing " START/+30sec.". Each press on the same button will increase
cooking time by 30 seconds. he maximum cooking time is 99 minutes 99 seconds.
Note: Under microwave and time defrost function, "START/+30sec." can be pressed to
increase cooking time by 30 seconds.
5. Speedy Cooking
(1) In waiting state, instant cooking at 100% power level can be started by select a cooking
time from 1 to 3 minutes by pressing number pads 1 to 3. "START/+30sec." can be
minutes 99 seconds.
6. Weight Defrost Function
(1) Press "D " once, LED will display " ". If there is no operation in 3 seconds,
(2) Press number keys to input weight to be defrosted between 0.1-6.0 Lbs. If there is no
7. Time Defrost Function
(2) Press number keys to input the cooking time. The maximum cooking time is 99
minutes 99 seconds. If there is no operation in 3 seconds, LCD will display "PRESS
START OR CHANGE NEW LEVEL" once, and then turn back to dispaly the cooking
time.
keys to input power level.
sec
(3) During cooking, " " can be pressed to change the power level. Press " ",
LCD will display the power level for about 3 seconds. Press the number keys to input
new power level.
Power Power
The oven will cooking with new power level for rest time.
ancel
pressed to increase the cooking time during cooking. The maximum cooking time is 99
" " will flash.
T
efrost WEIGHT
LCD will display " PRESS AGAIN TO SELECT DEFROST TYPE OF ENTER
COOKING WEIGHT " once. Then LCD display "0.0 LBS".
operation in 3 seconds, LCD will display " PRESS START ".
( Press " START/+30 ." to start ng.sec3) defrosti " " and " " will flash.
(1) Press "D " twice, LED will display " ". If there is no operation in 3 seconds, efrost
LCD will display " ENTER TIME IN MINUTES AND SECONDS" once, and then turn
TIME
back to display "00:00". " " and " " will .
light
(2) Press number keys to input the cooking time. The maximum cooking time is 99
minutes 99 seconds. If there is no operation in 3 seconds, LCD will display "PRESS
START ."
( Press " START/+30 ." to start ng.sec3) defrosti " " and " " will flash.
10
![](/img.php?id=2692151&img=bgb.png)
Once
Twice
Thrice
3.0 Oz
1.75 Oz
3.5 Oz
Times( Press "
Popcorn
") Weight Display
8.
(1) Press " P ", LCD display "1.75 Oz".
3.0 Oz
1.75 Oz
3.5 Oz
Auto Menu
a) Popcorn
opcorn " " and " " will .
Continue to press " Popcorn " to choose the weight. If there is no operation in 3
seconds, LCD will display " PRESS AGAIN TO SELECT SERVING SIZE OR
PRESS START" . once And then turn back to display the weight.
( Press " START/+30 ." to start ng.sec defrosti " " and " " will flash.
light
2)
) b Menu
(1) Press " ", " ", " Sensor Reheat Prozen Pizza Fresh Vegetable Potato
Meat
", " ", and
" " keys, LCD will display "SENSOR REHEAT", "PROZEN PIZZA", "FRESH
VEGGIES", "POTATO" and "MEAT" for two times, then stop 3 seconds. If there
is no operation in 3 seconds, LCD will display "PRESS START". " " and "
"
will .
light
sensor will sound once when the steaming is emanated. The surplus time will
( Press " START/+30 ." to start ng.sec " " and " " will flash.
2) cooki
LCD will display "S-01", "S-02"...."S-05" before the steaming is emanated. The
display.
2) During cooking process, following points must be done.
a.Keep the door closed when the surplus time is not displayed.
b.When the surplus time is displayed and begins to count down, the door can be
opened to mix the food up, turn over or replace the food. And then go
on the next
3) Please leave the food alone for a while after cooking have been finished.
4) During sensor cooking process, if the time does not count down, please do not
door or press "STOP/Cancel" key. Otherwise, the sensor will make
d.The reheat food can be covered with the lid. But the lid must have venthole in order
to emanate the steam. Sealed utensil is forbidden.
Note:
1)When cooking or reheating food, you should do these in order to have the best effect.
a.The room temperature cannot be over 35 degrees.
b.The weight of food must be more than 110g (4 Oz).
c.The cavity, glass tray and utensils must be kept drying before putting the food in.
operation.
open the oven
mistakes.
11
. Multi-section cooking
At most 2 sections can be set for cooking. In multi-section cooking, if one section is
defrosting, then defrosting shall be placed in the first section. When the first stage finish ,
the buzzer will sound once and the next stage will begin cooking.
Note: auto menu cannot be set as one of the multi-section.
es
10. Memory Function
(1) Press " F" to choose memory 1-3 procedure. 1, 2, 3 will display. If there is no
(2) If the procedure has been set, press " START/+30sec. " to use it. If not, continue to set
the procedure. Only one or two stages can be set.
(3) After finishing the setting, press " " to save the procedure.
If press " START/+30sec. ", it can be saved and operated.
Note: Auto menu cannot be set as memory cooking.
9
0/ avorite
operation or invalid number key is input within 3 seconds, LCD will display "ENTER A
NEW COOKING OR PRESS 0 KEY AGAIN" once, and then turn back to display "1",
"2" or "3".
START/+30sec.
1 . I
1) In cooking state, press " Clock ", the clock will display for three seconds. Then the
oven will turn back to cooking state.
2) In the microwave cooking state, press " Power" to inquire the microwave power level
oven will turn back to the previous state. In the two-stage cooking state, the power
level can be checked by the same way.
nquiring Function1
The current microwave power will be displayed for about three seconds. Then the
1 . L
Lock: In waiting state, press " STOP/Cancel" for 3 seconds, there will be a long "beep"
denoting entering into the children-lock state. LCD will display the current time or 0:00
Lock quitting: In locked state, press " STOP/C " for 3 seconds, there will be a long
"beep" denoting that lock is released.
.
ancel
2
When the cooking is over, 5 long "beep" will sound to remind the user that the cooking is
finished.
13. Cooking End Reminding Function
ock Function for Children
LCD will display "FINISH".
12
1 . O
(2) In working or pause state, the surplus cooking time displays.
4 ther Specifications
(3) The buzzer sounds once by efficient press, inefficient press will be no responce.
(1) "START/+30sec." must be pressed to continue cooking if the door is opened
during cooking.
(4) Once the cooking programme has been set , "START/+30sec." is not pressed
in 1 minute. The current time will be displayed. The setting will be cancelled.
13
![](/img.php?id=2692151&img=bge.png)
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable.
Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
Maintenance
14
