SXTG-5HPacD
QuickSetupGuideandWarrantyInformation

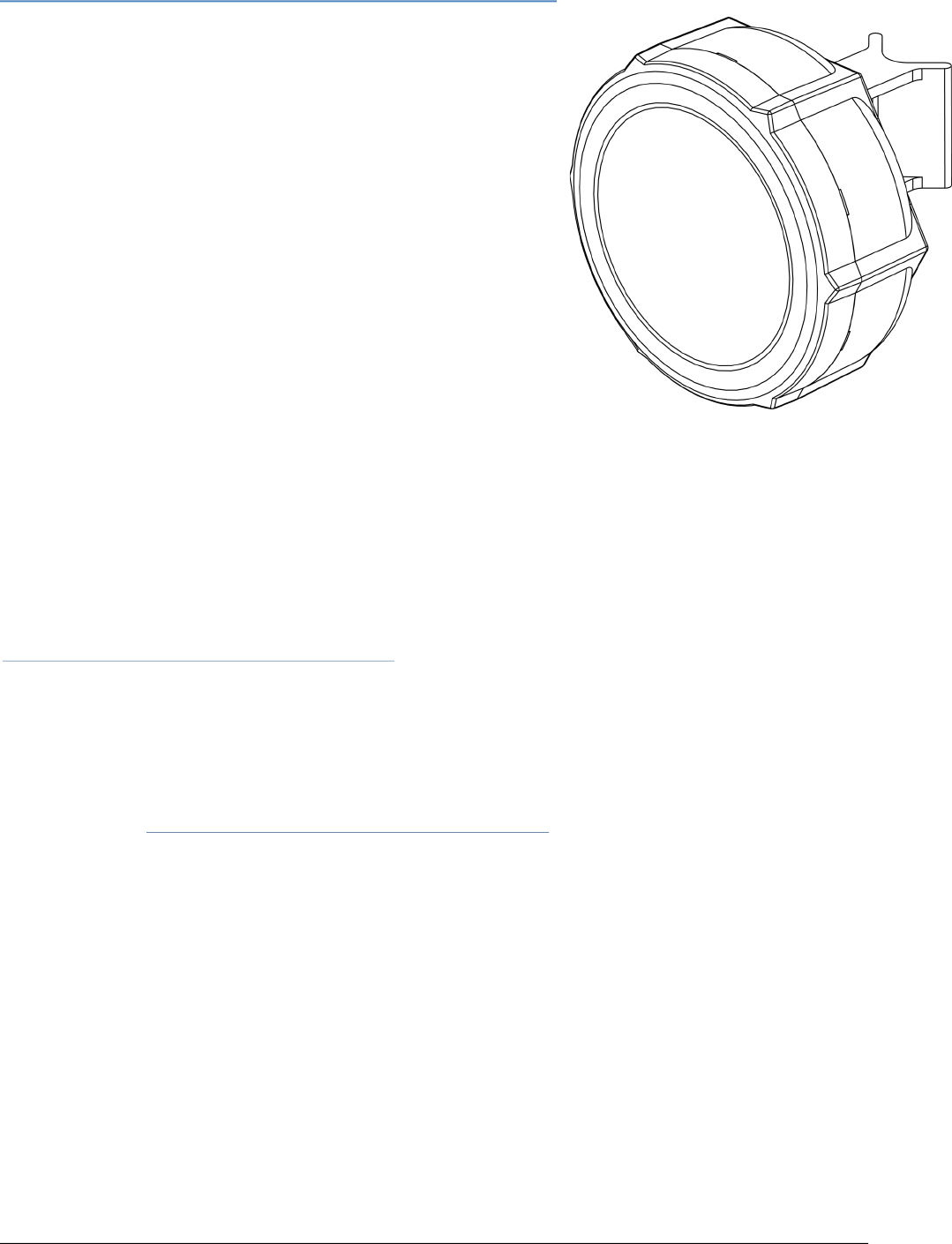

TheSXTG-5HPacDcomesasacompleteset,andincludesabuiltin
802.11acdualchainwirelessdevice,andadualpolarization16dBi
sectorantenna.IthasoneGigabitEthernetconnectorwhichsupports
MDI-Xautodetection.
Firstuse
1. ConnectanEthernetcabletotheportbehind
thesmallplasticdoor
2. TheSXTaccepts24VPassivePoEfromthe
suppliedPoEinjector
3. ThedefaultIPaddressfromLANis192.168.88.1
forconfiguration
4. Usernameisadminandthereisnopassword
Powering
TheboardacceptspoweringfromtheEthernetport(PassivePoE)8-30VDC.Packagecontainsa24Vadapter.
Bootingprocess
RouterOSistheoperatingsystemofallRouterBOARDrouters.Pleaseseedetailedconfigurationguidehere:
http://wiki.mikrotik.com/wiki/Category:Manual
Thisdevicedoesn'tcomefittedwithaSerialPortconnector,soinitialconnectionhastobedoneviatheEthernet
cable,usingtheMikroTikWinboxutility.WinboxshouldbeusedtoconnecttothedefaultIPaddressof
192.168.88.1withtheusernameadminandnopassword.
IncaseIPconnectionisnotavailable,WinboxcanalsobeusedtoconnecttotheMACaddressofthedevice.More
informationhere:http://wiki.mikrotik.com/wiki/First_time_startup
Incaseyouwishtobootthedevicefromnetwork,forexampletouseMikroTikNetinstall,holdtheRESETbutton
ofthedevicewhenstartingituntiltheLEDlightturnsoff(behindthesmalldoor),andSXTwillstarttolookfor
Netinstallservers.
Mounting
Withtheclippointedforward,slidethemountingbracketintotherailonthebottomofthecase,untiltheclip
clicksintoplace.TheSXTcomesbundledwithahoseclamp-guidetheclampthroughtheopeninginthebracket
andaroundthepolewhereitwillbemounted.Tightenthehoseclampscrewwhenalignmentiscomplete.Two
screwholesareprovidedasadditionalsecurityagainstaccidentalbracketmovement.
TheSXTdevicehasaslidingdoor,behindwhichtheEthernetportandtheresetjumpersarelocated.Thisdoor
canbealsosecuredshutwithascrewintheprovidedscrewhole.
![](/img.php?id=2313338&img=bg2.png)
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. 19/05/14
ButtonsandJumpers
• RouterOSresetjumperhole(accessthroughtheplasticdoor)–resetsRouterOSsoftwaretode-
faults.Mustshortcircuitthemetallicsidesofthehole(withascrewdriver,forexample)andboot
thedevice.HoldscrewdriverinplaceuntilRouterOSconfigurationiscleared.
• RouterBOOTresetbutton(accessthroughtheplasticdoor)hastwofunctions:
ü HoldthisbuttonduringboottimeuntilLEDlightstartsflashing,
releasethebuttontoresetRouterOSconfiguration(sameresultaswithresethole)
ü Holdthisbuttonduringboottimelonger,untilLEDturnsoff,
andthenreleaseittomakethedevicelookforNetinstallservers.
OperatingSystemSupport
CurrentlytestedoperatingsystemisMikroTikRouterOS(startingfromversionv6.6).
CopyrightandWarrantyinformation
CopyrightMikroTiklsSIA.Thisdocumentcontainsinformationprotectedbycopyrightlaw.Nopartofitmaybereproducedor
transmittedinanyformwithoutpriorwrittenpermissionfromthecopyrightholder.RouterBOARD,RouterOS,RouterBOOT
andMikroTikaretrademarksofMikroTiklsSIA.Alltrademarksandregisteredtrademarksappearinginthisdocumentarethe
propertyoftheirrespectiveholders.
Hardware.MikroTikwarrantsallRouterBOARDseriesequipmentforthetermoftwelve(12)monthsfromtheshippingdate
tobefreeofdefectsinmaterialsandworkmanshipundernormaluseandservice,exceptincaseofdamagecausedbyme-
chanical,electricalorotheraccidentalorintendeddamagescausedbyimproperuseorduetowind,rain,fireorotheractsof
nature.
ToreturnfailedunitstoMikroTik,youmustperformthefollowingRMA(ReturnMerchandiseAuthorization)procedure.Fol-
lowtheinstructionsbelowtosavetime,efforts,avoidcosts,andimprovethespeedoftheRMAprocess.
1. IfyouhavepurchasedyourproductfromaMikroTikReseller,pleasecontacttheResellercompanyregard-
ingallwarrantyandrepairissues,thefollowinginstructionsapplyONLYifyoupurchasedyourequipmentdirectly
fromMikroTikinLatvia.
2. MikroTikdoesnotofferrepairsforproductsthatarenotcoveredbywarranty.Exceptionscanbemadefor:
CCR1016-12G,CCR1016-12G-BU,CCR1036-12G-4S,RB1100,RB1100AH,RB1100AHx2,RB1200,RB600,RB600Aand
RB800asapaidservice(feesapply).
3. Out-of-warrantydevicesanddevicesnotcoveredbywarrantysenttoMikrotikwillbereturnedtothesend-
eratsender'scost.Ifthecustomerhasnotorganizedreturnofsuchrejecteddeviceswithin12monthsfromtheday
ofarrival,MikroTikhastherighttodiscardthem.
RMAInstructionsarelocatedonourwebpagehere:http://rma.mikrotik.com
Thisdocumentisprovided“asis”withoutawarrantyofanykind,expressedorimplied,including,butnotlimitedto,theim-
pliedwarrantyofmerchantabilityandfitnessforaparticularpurpose.Themanufacturerhasmadeeveryefforttoensurethe
accuracyofthecontentsofthisdocument,however,itispossiblethatitmaycontaintechnicalinaccuracies,typographicalor
othererrors.Noliabilityisassumedforanyinaccuracyfoundinthispublication,norfordirectorindirect,incidental,conse-
quentialorotherdamagesthatmayresultfromsuchaninaccuracy,including,butnotlimitedto,lossofdataorprofits.
