MobiWireS SAKARI 3G Feature Phone User Manual UM V1
MobiWire SAS 3G Feature Phone UM V1
UM-V1
![](/img.php?id=3421700&img=bg1.png)
1

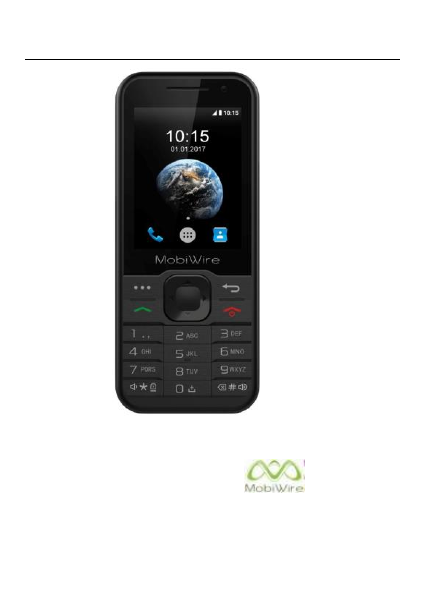

Moblie Appearance picture
Manufacturer:Mobiwire
Manufacturer trademark:
Model:Mobiwire Sakari
![](/img.php?id=3421700&img=bg2.png)
2
Technical Specifications
Weight: 80g(with battery)
Size: 119.4*49.95*11.75mm
Battery: 4.2 Li-on
For the network: 2G : 850/900/1800/1900Mhz
3G: 900/2100 Mhz
Battery refer to the following table:
Battery
Type
Battery
Capacit
y
Talk time
Standby
time
Li-battery
1000m
Ah
4hours
200hours
Battery Manufacturer: Veken
Battery model: 5C-1000
Hardware Version: V01
Software Version: Vodafone_Sakari_SKU3_L_V03_170509_MP
Max. Of Transmit power:
GSM850: PCL = 5, PWR = 30.5dbm ± 0.5 dBm(1up,1down for
gprs test)
GSM900: PCL = 5, PWR = 30.5dbm ± 0.5 dBm(1up,1down for
gprs test)
DCS1800: PCL = 0, PWR = 30.5dbm ± 0.5 dBm(1up,1down
for gprs test)
PCS1900: PCL = 0, PWR = 30.5dbm ± 0.5 dBm(1up,1down
for gprs test)
![](/img.php?id=3421700&img=bg3.png)
3
WCDMA2100: PWR =22.0 ± 0.5 dBm
WCDMA900: PWR = 22.0±0.5 dBm
Bluetooth:5dBm ±1 dBm (Basic Rate)
BLE:-3 dBm ±1 dBm (BLE)
Wi-Fi:
802.11 b:11.5±1dBm;
802.11 g:11.5±1dBm;
802.11 n(20):11.5±1dBm;
GPS:no TX
Notice:
The actual condition for mobile phones using has the
relation to the network of the local environmental
conditions, SIM card and the way using.
Warning:
For the consequences result by violating the following
recommendations or using mobile phones In accurately,
the manufacturers has no responsibility.
Explain: If relate to the upgrades, without notice. The
Company has the right for the final interpretation of this
statement.
![](/img.php?id=3421700&img=bg4.png)
4
Table of Contents
Moblie Appearance picture ................................. 1
1. Quick start ............................... 9
Keypad Explain ..................................................... 9
Install SIM card ..................................................... 9
Install T-flash card ............................................... 10
Installing Battery ................................................. 10
Battery Charging ................................................. 10
Switching on ........................................................11
2. Call function .......................... 12
Dialing ................................................................ 12
Receiving ............................................................ 12
3. Menu functions ...................... 13
Contacts ............................................................. 13
Message ............................................................. 13
Call history .......................................................... 13
Email .................................................................. 13
Browser .............................................................. 14
Settings............................................................... 14
Camera ............................................................... 14
Music .................................................................. 14
FM radio ............................................................. 15
Gallery ................................................................ 15
File manager ....................................................... 15
Bluetooth ............................................................ 15
Calendar ............................................................. 16
Alarm .................................................................. 16
Calculator ........................................................... 16
![](/img.php?id=3421700&img=bg5.png)
5
SIM ..................................................................... 16
4. Accessories ........................... 18
5. SAR ........................................ 19
![](/img.php?id=3421700&img=bg6.png)
6
Foreword
Honorific mobile phones user, thank you for choosing our mobile
phone!
Our cellular phones is according with the communication
industry standards of PRC, and also according with the
standards of European, and are approved for GSM networks.
Your phone may be used internationally with various networks
depending on your roaming arrangements with your service
provider.
To use this phone you must subscribe to a GSM service from a
provider. We have included many features in this device but their
function depends on the features available with your subscribed
wireless network. Please contact your service provider for more
information.
We strongly recommend you carefully read and understand this
manual before using your phone in order to keep it under best
conditions for your effective usage and utmost satisfaction.
Safety
Never attempt to disassemble your phone. You alone are
responsible for how you use your phone and any consequences
of its use.
As a general rule, always switch off your phone wherever the
use of a phone is prohibited.
Use of your phone is subject to safety measures designed to
protect users and their environment.
Do not use your phone in damp areas (bathroom, swimming
pool…). Protect it from liquids and other moisture.
Do not expose your phone to extreme temperatures lower than -
10°C and higher than + 55°C.
The physicochemical processes created by chargers impose
temperature limits when charging the battery. Your phone
automatically protects the batteries in extreme temperatures.
Do not leave your phone within the reach of small children
![](/img.php?id=3421700&img=bg7.png)
7
(certain removable parts may be accidentally ingested).
Electrical safety
Only use the chargers listed in the manufacturer’s catalogue.
Using any other charger may be dangerous; it would also
invalidate your warranty. Line voltage must be exactly the one
indicated on the charger’s serial plate.
Aircraft safety
When traveling by plane, you will need to switch your phone off
when so instructed by the cabin crew or the warning signs.
Using a mobile phone may be dangerous to the operation of the
aircraft and may disrupt the phone network.
Its use is illegal and you could be prosecuted or banned from
using cellular networks in the future if you do not abide by these
regulations.
Explosive materials
Please comply with warning signs at petrol station when
personnel asking you to switch your phone off. You will need to
comply with radio equipment usage restrictions in places such
as chemical plants, fuel depots and at any location where
blasting operations are under way.
Electronic equipment
To avoid the risk of demagnetization, do not let electronic
devices close to your phone for a long time.
Electronic medical equipment
Your phone is a radio transmitter which may interfere with
electronic medical equipment or implants, such as hearing aids,
pacemakers, insulin pumps, etc. It is recommended that a
minimum separation of 15 cm be maintained between the phone
and an implant. Your doctor or the manufacturers of such
equipment will be able to give you any advice you may need in
this area.
Hospitals
Always make sure that your phone is switched off in hospitals
when so instructed by warning signs or by medical staff.
Road safety
Do not use your phone when driving. In order to give your full
![](/img.php?id=3421700&img=bg8.png)
8
attention to driving, stop and park safely before making a call.
You must comply with any current legislation.
Distance of operation
This phone model has been tested and meets radiofrequency
exposure guidelines when used
As follows:
·Against the ear: place or receive a phone call and hold the
phone as you would a wire line telephone.
·Body worn: when transmitting, place the phone in a carry
accessory that contains no metal and positions the phone a
minimum of 2.5cm form your body. Use of other accessories
may not ensure compliance with radiofrequency exposure
guidelines. If you do not use a body worn accessory and are not
holding the phone at the ear, position the phone a minimum of
2.5 cm from your body,
·Data operation: when using a data feature, position the phone a
minimum of 2.5cm from your body for the whole duration of the
data transmission.
![](/img.php?id=3421700&img=bg9.png)
9
1. Quick start
Keypad Explain
Key
Function description
Left softkey
Enter the settings menu
Right softkey
In home screen, Long press the key
enter recent app, other screens, back to
home screen.
Green key
Answer the incoming call, and in the
home screen, press the key enter the
call history direct.
Red key
Reject the incoming call, and in the
home screen, short press screen off,
long press to power off.
Navigation key
Up/Down/Left/Right move the high light
Center key
Confirm the select to enter function
Number key
Input the corresponding character
*key
Dial pad input star character
# key
Press to input # character
Install SIM card
This phone supports one GSM SIM cards. Find SIM card’s
groove in the back of the phone and slide it completely there.
During installation, please make sure the chip is facing
![](/img.php?id=3421700&img=bga.png)
10
downwards and pay attention to slot direction.
Note:
1. Keep SIM card out of children’s touch.
2. Any abrasion or folding could easily damage SIM card,
so please be extremely careful when you insert, Remove
and preserve it.
3. Please make sure that you have cut off the power
supply and have taken out battery before you remove
SIM card.
Install T-flash card
1. First switch off the phone and remove the battery.
2. Push the metal card holder toward the bottom of the phone
and lift the released end of the holder.
3. Place the memory card into the holder with the metal contacts
face down and push the holder until it locks into place.
Note:
1.To avoid damaging memory card, please do not plug
memory card fast or frequently.
2. Please regularly backup information in the cards on
other equipment when you use Cards like T-flash!
Improper use or other uncertain factors may cause the
damage or loss to the content in the cards.
Installing Battery
Align the battery chip with the metallic salient point in battery jar,
insert the battery until it is inserted into the battery jar. Slide
battery cover into back of the phone until it is locked.
Battery Charging
Unclose dustproof soft gum of attachment mode on the bottom
of the phone, insert one end of the charger, i.e., the charging
plug into attachment mode and the other end into electrical
outlet, Screen will display the charging sign. After charging is
finished, just pull out the plug.
Note:
1. Please use the standard battery and charger, or may
explode.
![](/img.php?id=3421700&img=bgb.png)
11
2. If the battery is completely discharged, the battery
icon should be in charge after 2 to 3 minutes to appear.
Generally based on the current state of the phone (if
boot, call, etc.) of different charging time for 2 to 5 hours.
3. Please use the charger, charging as much as possible
to avoid using USB cable.
4. To ensure optimal battery performance, the
completion of two to three times the battery charge and
discharge cycles. Several new battery initial charge,
please charge more than 10 hours straight.
Switching on
Long press the Red key to switch your phone on
![](/img.php?id=3421700&img=bgc.png)
12
2. Call function
Dialing
1. Direct dial
In standby mode, press the corresponding number keys to enter
the phone number that you want to dial, including necessary
area codes. Short Press the Right soft key [Clear] to delete one
character, and Long Press delete all inputs, press the Green key
to dial.
2. Making an International Call:
To make an international call, long press [0] key until the prefix
symbol "+" of international call displays in screen.
3. Dialing from Phonebook
Enter the Phonebook via the menu, use the Up/Down Navigator
keys to scroll to the desired contact, or press the first letter of the
name of the desired contact as saved in your phonebook for
quick access to names beginning with the letter then scroll to the
desired, press the green key to dial.
4. Dialing from Call history
Enter the Call center (press the Green key from standby or via
the menu), use the Up/ Down navigation keys to scroll to the
desired contact, press the green key to dial.
5. Dial emergency service
You can directly dial the emergency service number without SIM
card. Different networks use different urgency service numbers,
so for details please inquire the network operation company.
Receiving
When there is an incoming call, the phone will give
corresponding alert, if your network supports caller ID, the
screen will display caller’s name or number (depending on
whether there is information of the caller in your phonebook).
Press the green key to answer the incoming call, and press the
red key to reject the incoming call.
![](/img.php?id=3421700&img=bgd.png)
13
3. Menu functions
Contacts
The Phone for your well-prepared high-capacity phone storage
space. You can use the phone's contacts feature to save the
contact name, number and caller ring-tone.
Enter the contacts screen, there have three labels on the
screen,press the left/right navigation key to switch the label.
Message
Message service is a network dependent function, which allows
you to send, receive and edit all kinds of messages. Please
contact the network operator for more details.
Edit a new message, save or send it to the recipient.
Note:
To send SMS, you need to set the correct SMS service
center number which can be obtained from network
provider.
Call history
This phone can record all received, dialed and missed calls as
well as their call time. Only when related function is supported
by network and phone is switched on and in network service
area, it can record the answered and missed calls. Call records
may be accessed by pressing the Green key from standby.
In the call history list, press the left/right navigation key, switch to
Display list of all /dialed/missed/received calls.
Once on the call records list, press the Green key to make a call;
press the Center key to view the details of current call record.
Email
Your cell phone for your built-in E-mail function, you do not take
any action anywhere to view internal documents, e-mail through
the mobile network, approval, reply, forward, etc. operating
![](/img.php?id=3421700&img=bge.png)
14
Browser
The Internet is the combination of wireless communicate -on
and Internet application platform that enables you to get rich by
phone and ecommerce and other Internet information
resources application.
Note:
1. Your ISP may not support some features, in order to
ensure the normal operation of the browser, make sure
your SIM card is supported and open Internet access.
2. If you browse the web, you need to charge fees
related to traffic.
Settings
Wireless& network: include SIM management, wifi, bluetooth,
data usage etc. you can enter the corresponding menu to opera.
Device: include audio profiles, display, storage and battery, you
can enter the corresponding menu to opera.
Personal: include location, security, language& input, backup&
reset, you can enter the corresponding menu to opera.
Accounts: you can add personal account to use.
System: you can set the date and time, and set the scheduled
power on&off.
Camera
Your phone is fitted with camera allows you to take photos
whenever possible. You can store the pictures in phone or
customize the wallpaper.
Press the center key to take photo, press the left/right navigation
key switch to video record.
Music
Your music is organized into four categories: Artists, Albums,
Songs, and Play lists. Select a category to view the lists within
each. Once in a category, keep selecting until you reach the
music you want to play.
![](/img.php?id=3421700&img=bgf.png)
15
FM radio
FM radio is supported by the phone. You just pull the bottom of
the antenna and no need plug in your headphones to listen to
FM Channel
Note: Quality of radio subscription is possible influenced
by environment like indoor or under shield. You can
improve this situation as following: stand closer to the
window, adjust the position of earphone line or adjust the
channel manually
Gallery
You use Gallery to view pictures that you’ve taken with Camera,
downloaded, or copied onto your SD card or USB storage; you
can also view pictures in a Picasa web album. You can perform
basic editing tasks on pictures and set them as your wallpaper
or contact picture. You can also share your pictures with friends,
via email or messaging, or by uploading them to the Picasa and
YouTube web sites.
File manager
In document management, you can open files in the Phone or
Memory card, you can select file or folder to view.
This phone supports movable storage, i.e., the U-disk function.
When the phone is switched on, you see the icon in the status
bar on the top of the screen when its connected to a PC by a
data line. Select [USB connected] and touch [Turn on USB
storage] to confirm, you can use the phone as a U-disk.
Bluetooth
The phone supports Bluetooth (BT) functions, you can establish
a wireless connection between the phone with other compatible
devices, and data transmission, you can establish a wireless
connection between devices in the phone with a distance of up
to 10 meters. Bluetooth connection may be interference by
obstacles, such as walls or other electronic device.
1. Enter the setting menu, Touch the Bluetooth to open the
![](/img.php?id=3421700&img=bg10.png)
16
function, idle screen will display BT icon in the status bar.
2. Open the BT discoverable, and other devices can search the
phone.
3. Before using the phone as a Bluetooth device, you need to
pair the phone with the target device as follows:
-Sure your phone has Bluetooth-enabled.
-Touch "Scan for devices." Bluetooth devices within the range of
the phone will start scanning.
-Touch the device you want to pair, to confirm password to
complete the pairing
You can use Bluetooth to share the pictures, videos or music
files with family and friends
Calendar
Choose to enter the calendar, the screen will display the system
date on the calendar month, and have a background box
marked the current date.
Alarm
You can use the phone as alarm clock, this feature allows you to
set time arrives, make the phone ring or vibrate to remind issue.
When the alarm is turned on state, the alarm symbol is
displayed in the top of the screen.
Calculator
Into the calculator, the calculator interface:
Press 0 - 9 number keys to enter the number to be calculated,
press the navigation key to select the location on the screen
corresponding to add, subtract, multiply and divide symbols for
computing.
SIM
The phone supports value-added services provided by the SIM,
different network operators to provide different types of services,
and the menu is shown only if your SIM card supports. The
name and contents of the menu depend on the available
![](/img.php?id=3421700&img=bg11.png)
17
services. Ask your network availability, price, and information on
the SIM card service operators Advisory.
![](/img.php?id=3421700&img=bg12.png)
18
4. Accessories
Use only batteries, chargers, and accessories approved by the
manufacturer with this device. Use of any other types will
invalidate the warranty and may be dangerous. Check with your
dealer for available accessories. You may opt to buy:
Charger Plug, charger cable
Charger plug used to connect with the charger cable for
charging on wall outlets. Also you can use the charger cable to
connect with the other devices such as the personal computers
to charge the phone.
Charging time is about 2 to 3 hours. The charging condition is
displayed on screen. You may use your phone while charging.
Earphone
A mini, practical, hands-free device; you can use its button to
answer and end calls. Some models may also come with a
volume control knob.
Do not plug or unplug the earphone when connecting dialed or
incoming calls.
Please to adjust the incoming call alert volume to the
felicitousness before you plug in the earphone.
![](/img.php?id=3421700&img=bg13.png)
19
5. SAR
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
FCC ID: QPN-SAKARI
NOTE: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
---Reorient or relocate the receiving antenna.
---Increase the separation between the equipment and receiver.
---Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
---Consult the dealer or an experienced radio/TV technician for
help.
Body-worn Operation
This device was tested for typical body-worn operations. To
comply With RF exposure requirements, a minimum separation
distance of 10mm must be maintained between the user’s body
![](/img.php?id=3421700&img=bg14.png)
20
and the handset, including the antenna.
Third-party belt-clips, holsters, and similar including the antenna.
Third-party belt-clips, holsters, and similar accessories used by
this device should not contain any metallic components.
Body-worn accessories that do not meet these requirements
may not comply with RF exposure requirements and should be
avoided.
Specific Absorption Rate (SAR) information:
This wireless phone meets the government's requirements for
exposure to radio waves. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons regardless
of age or health.
FCC RF Exposure Information and Statement The SAR limit of
USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device types: MobiWire Sakari/ Mobiwire has also been tested
against this SAR limit. The highest SAR value reported under
this standard during product certification for use at the head and
the body. This device was tested for typical body-worn
operations with the back of the handset kept 10mm from the
body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 10mm separation
distance between the user's body and the back of the handset.
The use of belt clips, holsters and similar accessories should not
contain metallic components in its assembly. The use of
accessories that do not satisfy these requirements may not
comply with FCC RF exposure requirements, and should be
avoided.
