NIDEC MOBILITY RJ333N-A Remote engine starter (Antenna-M function) User Manual Short Term Confidential
OMRON Automotive Electronics Co. Ltd. Remote engine starter (Antenna-M function) Short Term Confidential
(Short-Term Confidential) User Manual
![](/img.php?id=2645101&img=bg1.png)
We recommend that you replace the batteries after one year's use as a guide.
Batteries: CR2032 x 2
1. Pressing the Engine control button for more than 1 second.
2. Release the Engine control button, and then press the Unlock/Start button.
(The vehicle engine will start.)
3. If a response signal from the vehicle is properly received, the LED indicators
will be blinked.
1. Pressing the Engine control button for more than 1 second.
2. Release the Engine control button, and then press the Lock/Stop button.
(The vehicle engine will stop.)
3. If a response signal from the vehicle is properly received, the LED indicators
will be blinked.
・Pressing the Lock/Stop button, the vehicle door will be locked.
・Pressing the Unlock/Start button, the vehicle door will be unlocked.
Remocon Engine Starter operation manual
FCC / IC CAUTION
Chan
ges or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Tout changement ou toute modification effectués par l’utilisateur et dont la
conformité n’est pas expressément a
pprovée par l’organisme responsable de
sa conformité peut entraîner l’annulation de droit de cet utilisateur de se servir
de l’équipment.
This transmitter must not be co-
located or operated in conjunction with any
other antenna or transmitter.
This device
complies with part 15 of FCC Rules and Industry Canada’s
licence-
exempt RSSs. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept
any interference received, including in
terference that may cause undesired
operation.
Le présent appareil est conforme à la partie 15 des règles de la FCC et aux
normes des CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditio
ns suivantes :
(1)l'appareil ne doit pas produire de brouillage, et (2)l'appareil doit accepter tout
brouillage subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
After sales service
4
Transmission frequency 902 MHz
~
928MHz band
Transmission power
< 20mW
Antenna
chip antenna
Switches
Lock/Stop, Unlock/Start, Engine control
Link state acknowledgment
LED indicators
Battery
Lithium battery (CR2032 x 2)
Operation temperature range
-20 ℃ to +60 ℃ (-4°F to 140°F)
Dimensions
81.5 mm x 30 mm x 13 mm ( not including protrusion)
Weight
37 g
Antenna module
Transmission frequency 902 MHz
~
928MHz band
Transmission power
< 20mW
Power supply
4.2 V
Current consumption
3 mA (for receiving)
Antenna
1/4 lambda printed antenna
Operation temperature range
-30 ℃ to +85 ℃ (-22°F to 185°F)
Dimensions
52 mm x 25 mm x 52 mm
Weight
35 g
Main specification
3
Door lock / unlock
Remote engine stop
Remote engine start
How to use
2
1. Remove the battery cover
Battery cover
Remove the screw and
the battery cover.
Lithium batteries
(CR2032 x 2)
Screw
2. Take out the old batteries
Insert the flathead screw driver
which put cloth and take
out
the
old batter
ies.
3. Replace the new batteries
Insert the new batteries (CR2032)
with the
positive ( + ) side facing up.
4. Place the battery cover
Place the battery cover and
fasten the screw.
How to replace the batteries
Battery replacement
Key fob
LED indicators
Lock/Stop
button
Unlock/Start
button
Engine control
button
Ring
Battery
cover
Product
label

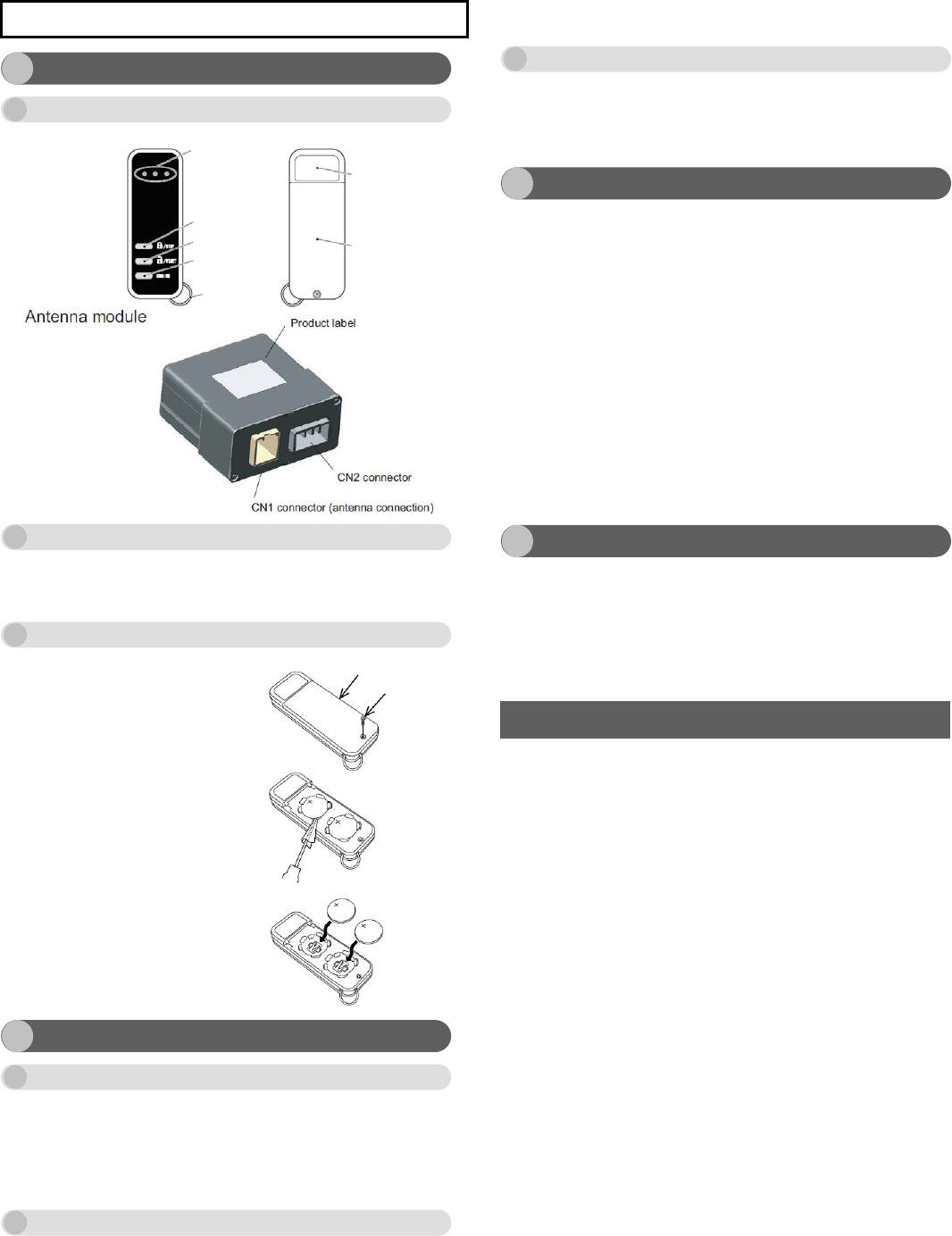

Parts names
Configuration
1
For after sales service, contact :
OMRON Automotive Electronics Co. Ltd.
6368 nenjyozaka, okusa
Komaki, Aichi 485
-0802 JAPAN
URL: http://www.oae.omron.co.jp
