3G/4G Dual Band AC WiFi
Router
4GM3W-01
USER GUIDE
![](/img.php?id=2305985&img=bg2.png)
2
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Copyright
Copyright©2014 NetComm Wireless Limited. All rights reserved.
The information contained herein is proprietary to NetComm Wireless Limited. No part of this document may be translated,
transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless Limited.
Note: This document is subject to change without notice.
Save Our Environment
When this equipment has reached the end of its useful life, it must be taken to a recycling centre and processed separately
from domestic waste.
The cardboard box, the plastic contained in the packaging, and the parts that make up this device can be recycled in
accordance with regionally established regulations. Never dispose of this electronic equipment along with your household
waste. You may be subject to penalties or sanctions under the law. Instead, ask for disposal instructions from your municipal
government.
Please be responsible and protect our environment.
This manual covers the following products:
NetComm Wireless 4GM3W 3G/4G Dual Band AC WiFi Router
DOCUMENT VERSION DATE
1.0 - Initial document release November2013
1.1 – Updated Safety and product care
section June 2014
![](/img.php?id=2305985&img=bg3.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
3
Table of Contents
Overview .............................................................................................................................................5
Introduction ....................................................................................................................................................................................................... 5
Target Audience................................................................................................................................................................................................ 5
Prerequisites ..................................................................................................................................................................................................... 5
Notation............................................................................................................................................................................................................. 5
Product Introduction ...............................................................................................................................6
Product Overview.............................................................................................................................................................................................. 6
Package Contents............................................................................................................................................................................................. 6
Product Features .............................................................................................................................................................................................. 6
Physical Dimensions and Indicators..............................................................................................................7
LED Indicators .................................................................................................................................................................................................. 7
Physical Dimensions......................................................................................................................................................................................... 8
4GM3W Default Settings .................................................................................................................................................................................. 8
Interfaces ............................................................................................................................................9
Safety and Product Care......................................................................................................................... 10
Transport and Handling.......................................................................................................................... 10
Installation and Configuration of the 4GM3W ................................................................................................ 11
Placement of your 4GM3W............................................................................................................................................................................. 11
Avoid obstacles and interference.................................................................................................................................................................... 11
Cordless Phones............................................................................................................................................................................................. 11
Choose the “Quietest” Channel for your Wireless Network ............................................................................................................................ 11
Hardware installation ...................................................................................................................................................................................... 12
Connecting via Ethernet cable........................................................................................................................................................................ 12
Connecting wirelessly ..................................................................................................................................................................................... 12
Web Based Configuration Interface............................................................................................................ 13
First-time Setup Wizard .................................................................................................................................................................................. 13
Basic View ...................................................................................................................................................................................................... 18
Status...................................................................................................................................................................................................... 18
Wireless 2.4GHz / 5GHz......................................................................................................................................................................... 20
Mobile Broadband................................................................................................................................................................................... 21
Advanced configuration .................................................................................................................................................................................. 22
Network Setup ........................................................................................................................................................................................ 24
DHCP Server .......................................................................................................................................................................................... 28
Wireless 2.4GHz..................................................................................................................................................................................... 30
Wireless 5GHz........................................................................................................................................................................................ 31
Forwarding Rules.................................................................................................................................................................................... 33
Port Triggering ........................................................................................................................................................................................ 34
Miscellaneous ......................................................................................................................................................................................... 35
Security Settings ............................................................................................................................................................................................. 36
Status...................................................................................................................................................................................................... 36
Packet Filters .......................................................................................................................................................................................... 36
Domain Filters......................................................................................................................................................................................... 38
URL Blocking .......................................................................................................................................................................................... 39
MAC Control ........................................................................................................................................................................................... 40
Miscellaneous ......................................................................................................................................................................................... 41
Advanced Settings .......................................................................................................................................................................................... 42
Status...................................................................................................................................................................................................... 42
System Log............................................................................................................................................................................................. 43
Dynamic DNS ......................................................................................................................................................................................... 44
QoS......................................................................................................................................................................................................... 45
SNMP...................................................................................................................................................................................................... 50
Routing.................................................................................................................................................................................................... 51
System Time........................................................................................................................................................................................... 52
Scheduling .............................................................................................................................................................................................. 53
IPv6......................................................................................................................................................................................................... 55
NAS Settings................................................................................................................................................................................................... 56
Disk Utility ............................................................................................................................................................................................... 56
File Sharing............................................................................................................................................................................................. 56
Access Control........................................................................................................................................................................................ 58
Download Assistant ................................................................................................................................................................................ 59
![](/img.php?id=2305985&img=bg4.png)
4
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Download Status..................................................................................................................................................................................... 61
Web HDD................................................................................................................................................................................................ 61
Toolbox ........................................................................................................................................................................................................... 62
System Info............................................................................................................................................................................................. 62
Routing Table.......................................................................................................................................................................................... 62
Restore Settings ..................................................................................................................................................................................... 62
Firmware Upgrade .................................................................................................................................................................................. 63
Backup Settings...................................................................................................................................................................................... 63
Reset to Default ...................................................................................................................................................................................... 63
Reboot .................................................................................................................................................................................................... 63
Startup Wizard ........................................................................................................................................................................................ 63
Miscellaneous ......................................................................................................................................................................................... 63
Logout..................................................................................................................................................................................................... 63
Additional Product Information................................................................................................................. 64
Establishing a wireless connection ................................................................................................................................................................. 64
Windows XP (Service Pack 3)................................................................................................................................................................ 64
Windows Vista ........................................................................................................................................................................................ 64
Windows 7 .............................................................................................................................................................................................. 64
Mac OSX 10.6......................................................................................................................................................................................... 64
Troubleshooting .............................................................................................................................................................................................. 65
Using the indicator lights (LEDs) to Diagnose Problems ........................................................................................................................ 65
Technical Data .................................................................................................................................... 67
Electrical Specifications .................................................................................................................................................................................. 67
Environmental Specifications / Tolerances..................................................................................................................................................... 67
Legal & Regulatory Information ................................................................................................................ 68
Intellectual Property Rights ............................................................................................................................................................................. 72
Customer Information ..................................................................................................................................................................................... 72
Consumer Protection Laws............................................................................................................................................................................. 72
Product Warranty ............................................................................................................................................................................................ 73
Limitation of Liability........................................................................................................................................................................................ 73
Contact............................................................................................................................................. 75
![](/img.php?id=2305985&img=bg5.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
5
Overview
Introduction
This guide provides information related to the installation, operation, and use of the 4GM3W.
Target Audience
The individual reading this guide is presumed to have a basic understanding of telecommunications terminology and concepts.
Prerequisites
Before continuing with the installation of your 4GM3W, please confirm that you comply with the minimum system requirements
below.
An activated ADSL, activated 3G/4G, or configured WAN connection.
Computer with Windows, Macintosh, or Linux-based operating systems with a working Ethernet adapter with
TCP/IP Protocol installed.
A Web Browser such as Internet Explorer, Netscape Navigator, Mozilla Firefox, Opera, Safari etc.
Wireless Computer System Requirements:
Computer with a working 802.11b, 802.11g or 802.11n wireless adapter.
Notation
The following symbols are used in this guide:
Indicates a note requiring attention.
Indicates a note providing a warning.
Indicates a note providinguseful information.
![](/img.php?id=2305985&img=bg6.png)
6
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Product Introduction
Product Overview
Stylish and compact mobile broadband router
Creates an instant WiFi hotspot to share the Internet connection of a 3G/4G USB1modem or DSL/Cable modem
Supports 802.11ac WiFi with data speeds up to 433Mbps1
Supports 802.11n WiFi standard with data speeds up to 300Mbps1
1 x Gigabit Ethernet port that can operate as a WAN or LAN port
USB 2.0 host port supports 3G and 4G modems
Supports file sharing from a USB hard drive
Ensures connectivity and business continuity with auto Internet failover from WANport to 3G/4G USB modem
Package Contents
The 4GM3W package consists of:
1x 4GM3W 3G/4G Dual Band AC WiFi Router
1 x Power supply
1 x Ethernet cable
1 x WiFi security card
1 x Warranty sheet
1 x Quick start guide
If any of these items are missing or damaged, please contact NetComm Wireless Support immediately by visiting the
NetComm Wireless Support website at: http://www.netcommwireless.com/contact-forms/support
Product Features
The pocket-sized 4GM3W is packed with the latest connection, sharing and security features for reliable broadband access
without boundaries. Ideal for travel, the device offers flexible 3G/4G or ADSL2+ broadband Internet connection options.
Sharing the connection is easy. Create a fast, instant and portable dual band WiFi zone for multiple devices such as laptops,
PCs, gaming consoles, tablets and smart phones from public areas using a 3G/4G USB modem; or connect to an in-room
service via the Ethernet port. When connecting your USB modem you are able to position the router in your home where you
get the best possible signal and can also share the connection with multiple devices with the WiFi capability.
This router, with its small size and ability to work with the fastest available mobile broadband modems will appeal to many
users. Some practical applications include:
Ideal for sharing with family and friends on holidays
Share a 3G/4G connection with colleagues on a business trip
Temporary Internet connectivity at events and functions
Use the Ethernet port to connect to a hotel room cable to create your own WiFi hotspot
.
1Maximum wireless signal rate and coverage values are derived from IEEE Standard 802.11g, 802.11n and 802.11acspecifications. Actual wireless speed and
coverage are dependent on network and environmental conditions included but not limited to volume of network traffic, building materials and construction/layout.
![](/img.php?id=2305985&img=bg7.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
7

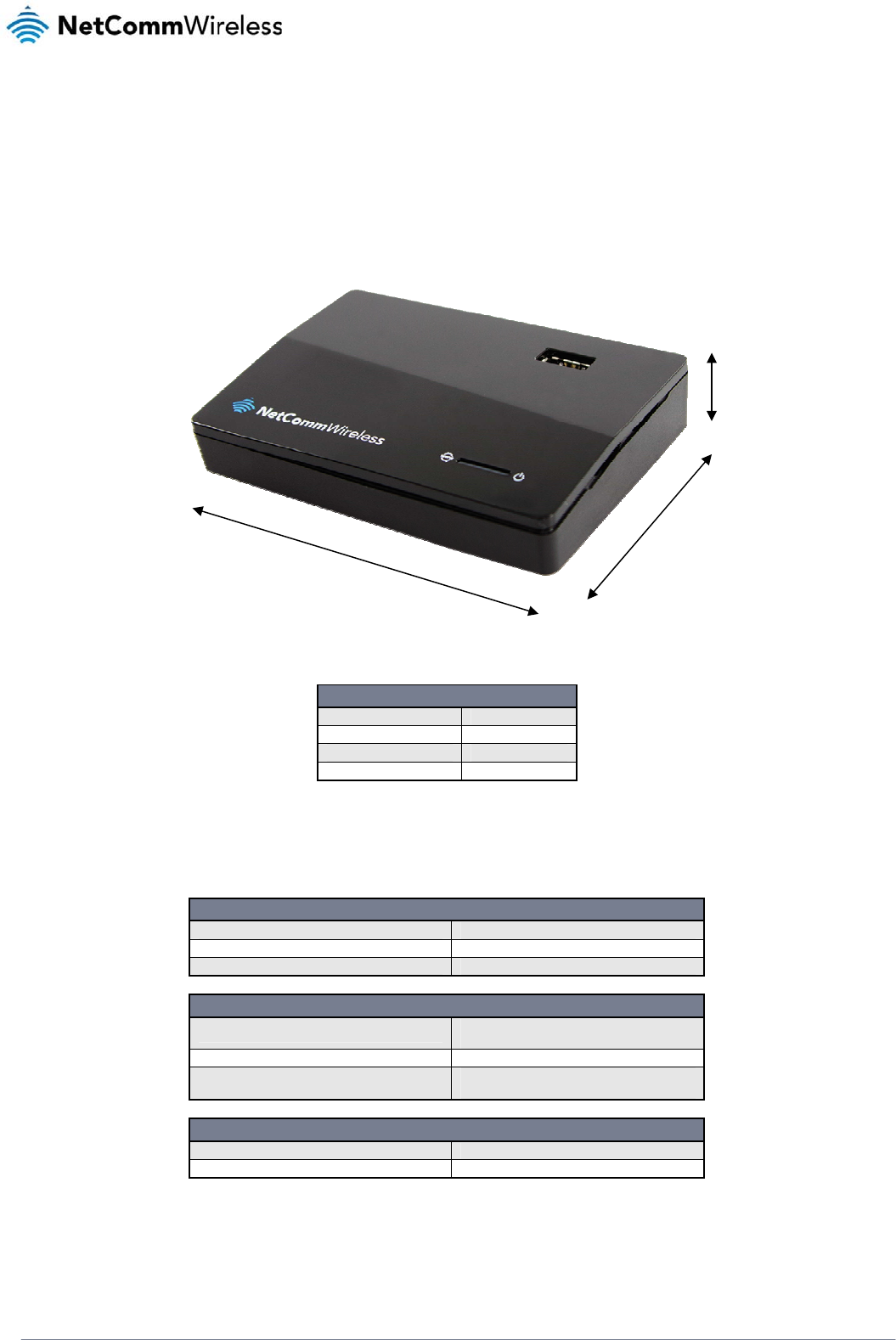

Physical Dimensions and
Indicators
LED Indicators
The 4GM3W has been designed to be placed on a desktop. All of the cables exit from the rear for easy organization. The
display is visible on the front of the 4GM3W to provide you with information about network activity and the device status. See
below for an explanation of each of the indicator lights.
FRONT
PANEL ICON COLOUR ACTIVITY DEFINITION
Blinking
Slowly Router is powered on
Green Blinking
Quickly Device is in WPS mode
POWER
None Off Router is powered off
Red Solid Power on with connection configuration problem
Green Solid Connected to internet successfully
WWW
None N/A Power off
![](/img.php?id=2305985&img=bg8.png)
8
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Physical Dimensions
The following table lists the physical dimensions of the 4GM3W.
4GM3W DIMENSIONS
Length 98mm
Width 68mm
Height 20.5mm
Weight 74grams
4GM3W Default Settings
The following tables list the default settings for the 4GM3W.
LAN (MANAGEMENT)
Static IP Address 192.168.20.1
Subnet Mask 255.255.255.0
Default Gateway 192.168.20.1
WIRELESS (WIFI)
SSID (Refer to the included Wireless Security
Card)
Security WPA2-PSK (AES)
Security Key (Refer to the included Wireless Security
Card)
4GM3W WEB INTERFACE ACCESS
Username admin
Password admin
Height
Width
Length
![](/img.php?id=2305985&img=bg9.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
9
Interfaces
BOTTOM
PANEL DESCRIPTION
1 Reset button
(not pictured) By using a paper clip, hold this button down for more than 10 seconds to reset to factory
defaults.
REAR PANEL DESCRIPTION
2 DC IN Power connector, connects to a DC 5V 2.0A Power Adapter
3 4G/WAN switch
Toggles the function of the Ethernet port between LAN and WAN mode.
Switch to 4G for LAN connection or to WAN for WAN connection
4 WPS Hold this button down for 3 seconds and then release to enable the WPS push-button
connect function.
5 Ethernet port RJ45 LAN port for wired Ethernet clients (computers, laptops, etc)
2 3 4 5
![](/img.php?id=2305985&img=bga.png)
10
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Safety and Product Care
With reference to unpacking, installation, use and maintenance of your electronic device, the following basic guidelines are
recommended:
Do not use or install this product near water to avoid fire or shock hazard. For example, near a bathtub, kitchen
sink, laundry tub, or near a swimming pool. Also, do not expose the equipment to rain or damp areas (e.g. a wet
basement).
Do not connect the power supply cord on elevated surfaces. Allow it to lie freely. There should be no obstructions
in its path and no heavy items should be placed on the cord. In addition, do not walk on, step on or mistreat the
cord.
To safeguard the equipment against overheating, make sure that all openings in the unit that offer exposure to air
are unobstructed.
WARNING
Disconnect the power line from the device before servicing.
Transport and Handling
When transporting the 4GM3W, it is recommended to return the product in the original packaging. This ensures the product
will not be damaged.
In the event the product needs to be returned, ensure it is securely packaged with appropriate padding to prevent
damage during courier transport.
![](/img.php?id=2305985&img=bgb.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
11
Installation and Configuration
of the 4GM3W
Placement of your 4GM3W
The wireless connection between your 4GM3W and your WiFi devices will be stronger the closer your connected devices are
to your 4GM3W. Your wireless connection and performance will degrade as the distance between your 4GM3W and
connected devices increases. This may or may not be directly noticeable, and is greatly affected by the individual installation
environment.
If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the
computer to a position between three to five meters from the 4GM3W in order to see if distance is the problem.
Note: While some of the items listed below can affect network performance, they will not prohibit your wireless
network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this
checklist may help.
If you experience difficulties connecting wirelessly between your WiFi Devices and your 4GM3W, please try the following
steps:
In multi-storey homes, place the 4GM3W on a floor that is as close to the centre of the home as possible. This
may mean placing the 4GM3W on an upper floor.
Try not to place the 4GM3W near a cordless telephone that operates at the same radio frequency as the 4GM3W
(2.4GHz).
Avoid obstacles and interference
Avoid placing your 4GM3W near devices that may emit radio “noise,” such as microwave ovens. Dense objects that can inhibit
wireless communication include:
Refrigerators
Washers and/or dryers
Metal cabinets
Large aquariums
Metallic-based, UV-tinted windows
If your wireless signal seems weak in some spots, make sure that objects such as those listed above are not
blocking the signal’s path (between your devices and the 4GM3W).
Cordless Phones
If the performance of your wireless network is impaired after considering the above issues, and you have a cordless phone:
Try moving cordless phones away from your 4GM3W and your wireless-enabled computers.
Unplug and remove the battery from any cordless phone that operates on the 2.4GHz band (check
manufacturer’s information). If this fixes the problem, your phone may be interfering with the 4GM3W.
If your phone supports channel selection, change the channel on the phone to the farthest channel from your
wireless network. For example, change the phone to channel 1 and move your 4GM3W to channel 11. See your
phone’s user manual for detailed instructions.
If necessary, consider switching to a 900MHz or 5GHz cordless phone.
Choose the “Quietest” Channel for your Wireless Network
In locations where homes or offices are close together, such as apartment buildings or office complexes, there may be
wireless networks nearby that can conflict with your wireless network. Use the Site Survey capabilities found in the Wireless
Utility of your wireless adapter to locate any other wireless networks that are available (see your wireless adapter’s user
manual), and switch your Router and computers to a channel as far away from other networks as possible.
Experiment with more than one of the available channels, in order to find the clearest connection and avoid interference from
neighbouring cordless phones or other wireless devices.
![](/img.php?id=2305985&img=bgc.png)
12
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Hardware installation
1. Connect the power adapter to the Power socket on the back of the 4GM3W.
2. Plug the power adapter into the wall socket and switch on the power.
3. Wait approximately 60 seconds for the 4GM3W to power up.
Connecting via Ethernet cable
1. Connect the yellow Ethernet cable provided to the port marked ‘WAN/LAN’ at the back of the 4GM3W.
2. Connect the other end of the yellow Ethernet cable to your computer.
3. Wait approximately 30 seconds for the connection to establish.
4. Open your Web browser, and enter http://192.168.20.1 into the address bar and press enter.
5. Follow the steps to set up your 4GM3W.
Connecting wirelessly
1. Ensure Wi-Fi is enabled on your device (e.g. computer/laptop/smartphone).
2. Scan for wireless networks in your area and connect to the network name that matches the Wireless network name
configured on the 4GM3W.
Note: Refer to the included Wireless Security Card for the default SSID and wireless security key of your 4GM3W
3. When prompted for your wireless security settings, enter the Wireless security key configured on the 4GM3W. If you
have already configured your 4GM3W and changed the WiFi password, enter it here instead of the default password
provided on the wireless security card.
4. Wait approximately 30 seconds for the connection to establish.
5. Open your Web browser, and enter http://192.168.20.1 into the address bar and press Enter.
6. Follow the steps to set up your 4GM3W.
![](/img.php?id=2305985&img=bgd.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
13
Web Based Configuration
Interface
First-time Setup Wizard
Please follow the steps below to configure your 4GM3W Wireless router via the web based configuration wizard.
Open your web browser (e.g. Internet Explorer/Firefox/Safari) and type http://192.168.20.1/ into the address bar at the top of
the window.
At the login screen, type admin in the username and password field,then click the Login button.
Note:admin is the default username and password of the router.
Click Yes, let’s get started with the wizard to begin configuring your 4GM3W router.

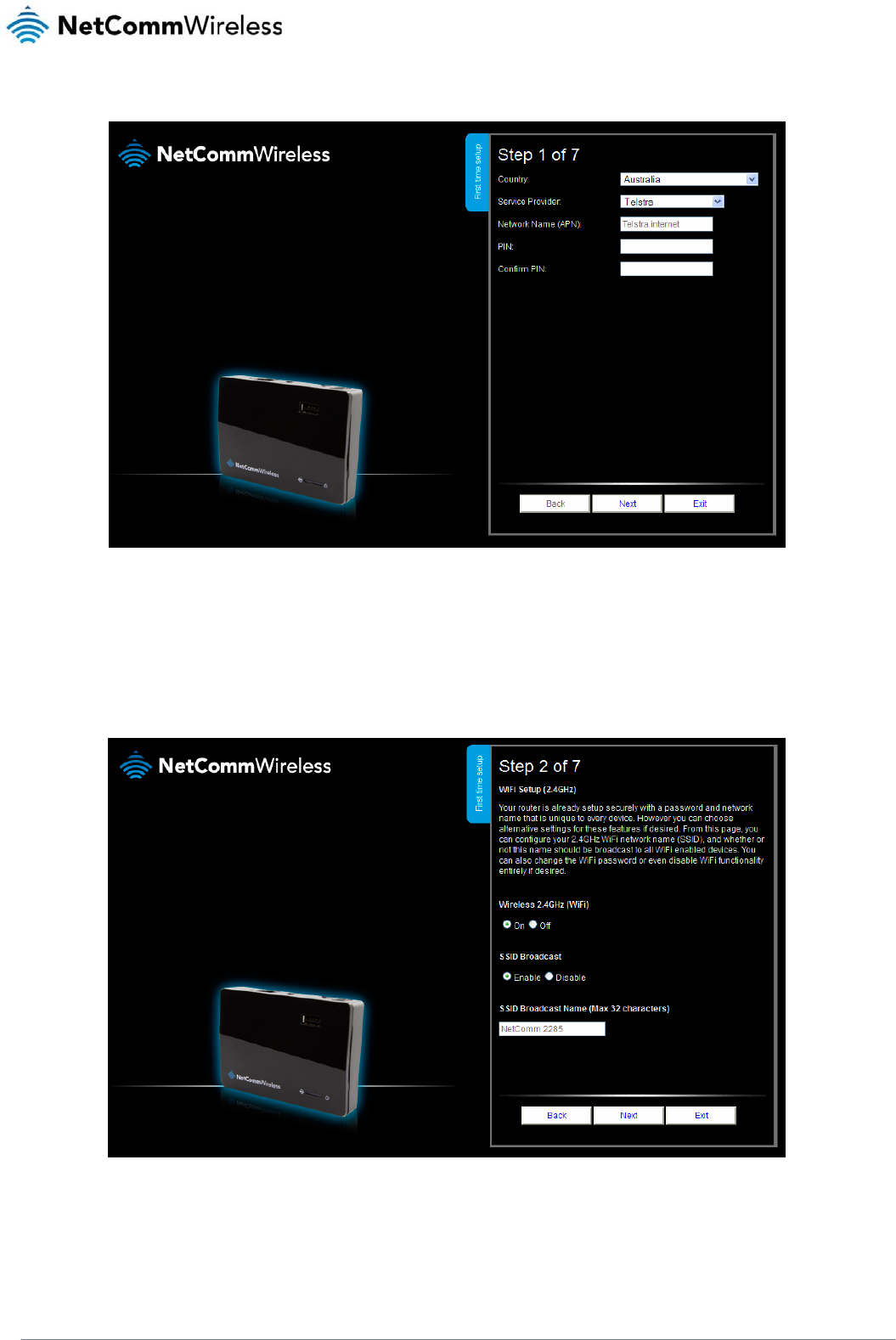

Step 1
Use the drop down menus to select the country and service provider with which you will be using your router. In the PIN and
Confirm PIN fields, enter the PIN number provided to you by your carrier to unlock the SIM card.
Note: If you are using the BigPond service in Australia, you are required to enter the username and password provided to you
by BigPond to access the service.
Click the Next button to continue.
![](/img.php?id=2305985&img=bge.png)
14
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Step 2
In this step, you are able to configure the 2.4GHz WiFi network. By default, the 2.4GHz wireless radio is on but you may turn it
off by setting the Wireless 2.4GHz (WiFi) option to Off. If you intend to use the wireless function, set the SSID Broadcast
option to Enable if you want the wireless network to show up when devices perform a network scan when in range, or set it to
Disable to hide the network from scans. Finally, if you wish to customise the network name, enter it into the SSID Broadcast
Name field. The network name may not exceed 32 characters.
Click the Next button to continue.
![](/img.php?id=2305985&img=bgf.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
15
Step 3
The router is preconfigured with wireless security on the 2.4GHz radio but if you wish to change these settings use the
Security Key Type drop down menu to select a wireless security key type and then enter a security key in the Security Key
field.
Click the Next button to continue.
Step 4
In this step, you are able to configure the 5GHz WiFi network. By default, the 5GHz wireless radio is on but you may turn it off
by setting the Wireless 5GHz (WiFi) option to Off. If you intend to use the wireless function, set the SSID Broadcast option to
Enable if you want the wireless network to show up when devices perform a network scan when in range, or set it to Disable
to hide the network from scans. Finally, if you wish to customise the network name, enter it into the SSID Broadcast Name
field. The network name may not exceed 32 characters.
Click the Next button to continue.
![](/img.php?id=2305985&img=bg10.png)
16
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Step 5
The router is preconfigured with wireless security on the 5GHz radio but if you wish to change these settings use the Security
Key Type drop down menu to select a wireless security key type and then enter a security key in the Security Key field.
Click the Next button to continue.
Step 6
For security, we recommend that you change the username and password used to access the administration settings of the
router. Enter the desired username and password. Remember to make a note of your chosen username and password and
click the Next button to continue.
![](/img.php?id=2305985&img=bg11.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
17

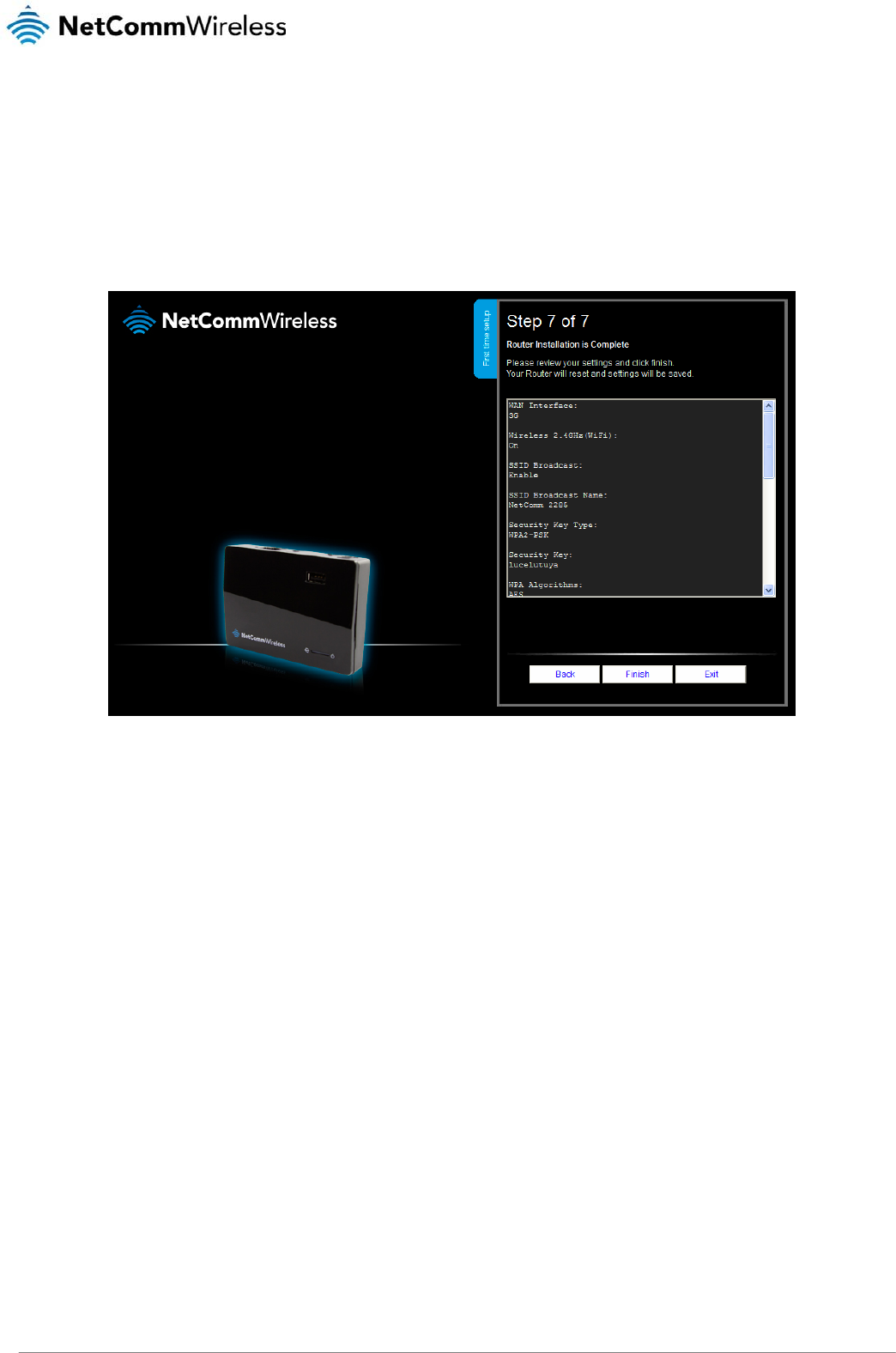

Step 7
A summary of the settings you have chosen is displayed. If you are happy with these settings, click the Finish button,
otherwise, click the Back button to make the necessary changes or to cancel the wizard, click the Exit button.
The Internet light on the router illuminates green indicating a successful connection to the Internet. If the Internet light is red or
not illuminated, check your settings and try again.
The router setup is complete.
![](/img.php?id=2305985&img=bg12.png)
18
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com
Basic View
When you have completed the First time setup wizard, you are presented with the login screen. If you have not changed the
administrator account details, type admin in the Username and Password fields then click the Loginbutton, otherwise, enter
your new login credentials and click the Login button.The Basic view of the web configuration interface gives you a summary
of the most important information about your router and its connections.
Status
When you log in to the router, the Status page is displayed in Basic view, displaying WAN type, IP Address, Subnet Mask,
Gateway, 3G/4G Status. 3G/4G Signal Strength and the number of clients connected to both the 2.4GHz and 5GHz wireless
networks.
![](/img.php?id=2305985&img=bg13.png)
www.netcommwireless.comNetComm Wireless 4GM3W User Guide
19
![](/img.php?id=2305985&img=bg14.png)
20
NetComm Wireless 4GM3W User Guidewww.netcommwireless.com

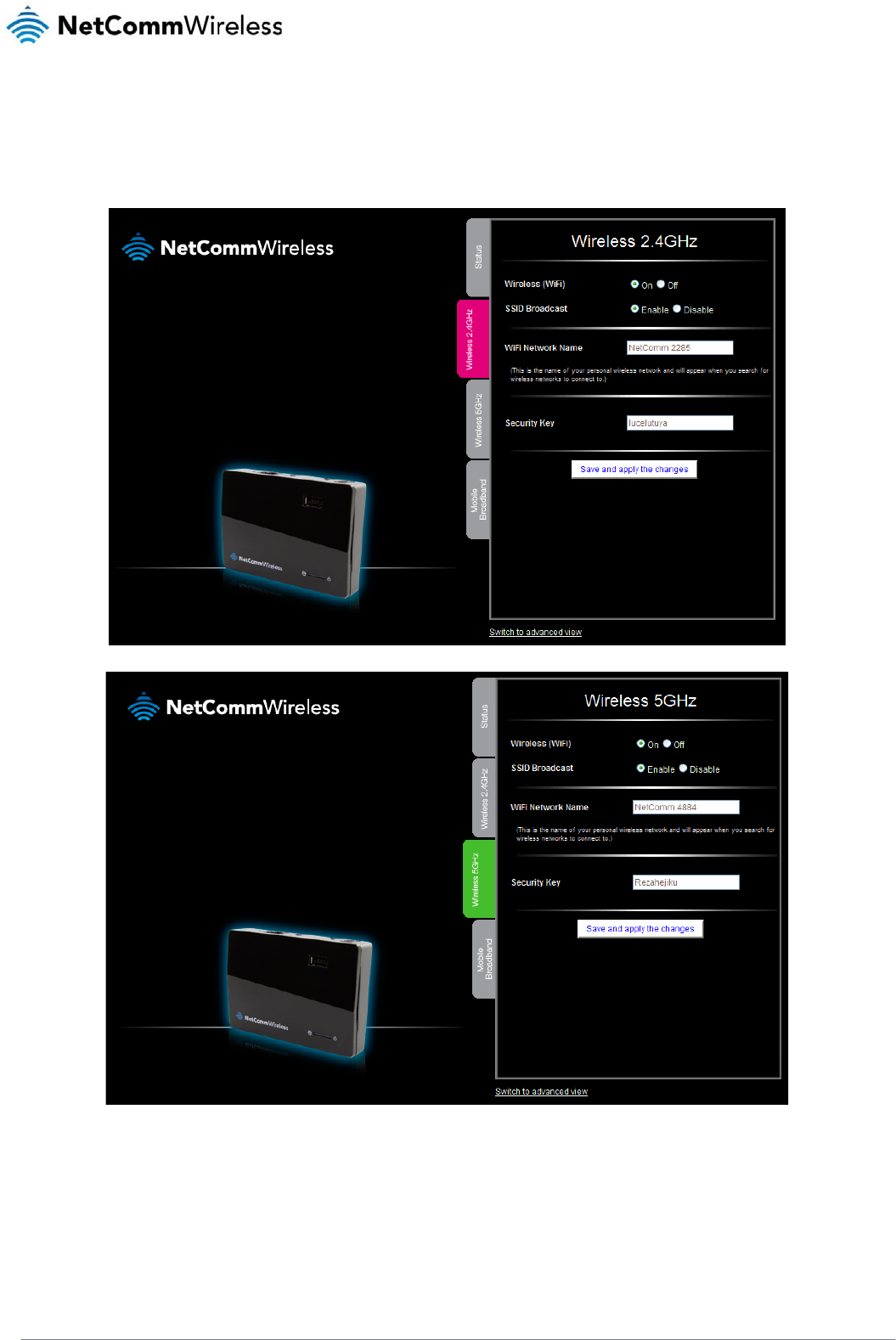

Wireless 2.4GHz / 5GHz
The Wireless 2.4GHz and Wireless 5GHz tabs in Basic view display the status of the WiFi radio, the status of SSID
Broadcasting, the WiFi network name and the Wireless security key. You can enable or disable the WiFi radio, broadcast/hide
the SSID of your network, set the wireless network name and set the wireless security key using these tabs.
If you make any changes to the Wireless configuration, Click the‚Save and apply the changes button to make these changes
active.
