NetComm Wireless NWL224 Vodafone MachineLink 4G Lite User Manual
NetComm Wireless Limited Vodafone MachineLink 4G Lite
User Manual
![](/img.php?id=4082336&img=bg1.png)
Quick Start Guide
and Safety Manual
Vodafone
MachineLink
4G Lite
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 1 13/11/2018 10:38:55 AM
![](/img.php?id=4082336&img=bg2.png)
Welcome
to the world of mobile communications
Thank you for choosing a Vodafone MachineLink 4G Lite IoT
router. This guide will help you set up, connect and congure your
device quickly and easily.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 2 13/11/2018 10:38:56 AM
![](/img.php?id=4082336&img=bg3.png)
1
Package
contents
This package includes
• 1x Vodafone MachineLink
4G Lite IoT router
• 2 x LTE Tube Antennas
• 1 x Six-way terminal block
• 1 x 1.5m Yellow Ethernet
cable 8P8C
• 1 x DIN rail mounting
bracket
• 1 x Quick start guide
2 Getting started
3 Device overview
5 Installing your device
8 Mounting your device
12 Overview of LED indicators
14 Advanced conguration and troubleshooting
17 Verifying connection status
18 Safety and product care
Chapters
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 1 13/11/2018 10:38:56 AM
![](/img.php?id=4082336&img=bg4.png)
2
Getting
started
Depending on your individual setup, you may need certain
components to congure your device correctly.
• External power supply unit for the Vodafone MachineLink 4G Lite
router (not included).
• Flathead screwdriver for terminating power input wires.
• Laptop or PC for advanced conguration.
• Additional fasteners and screwdrivers for specic wall or rail
mounting.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 2 13/11/2018 10:38:56 AM
![](/img.php?id=4082336&img=bg5.png)
3

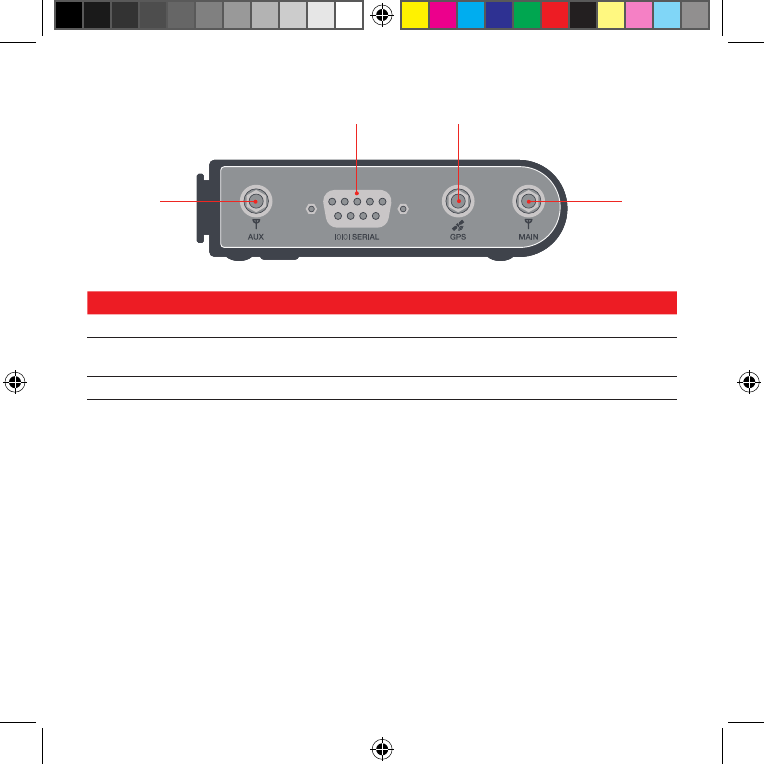

ITEM DESCRIPTION
1 Aux antenna socket SMA female connector for auxiliary antenna (receive diversity).
2 Serial port Female DE-9 port supporting 9-wire RS-232, RS-485 or RS-422
(software selectable).
3 GPS antenna socket SMA female connector for GPS antenna.
4 Main antenna socket SMA female connector for main antenna.
1
Device
overview 2 3
4
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 3 13/11/2018 10:38:56 AM
![](/img.php?id=4082336&img=bg6.png)

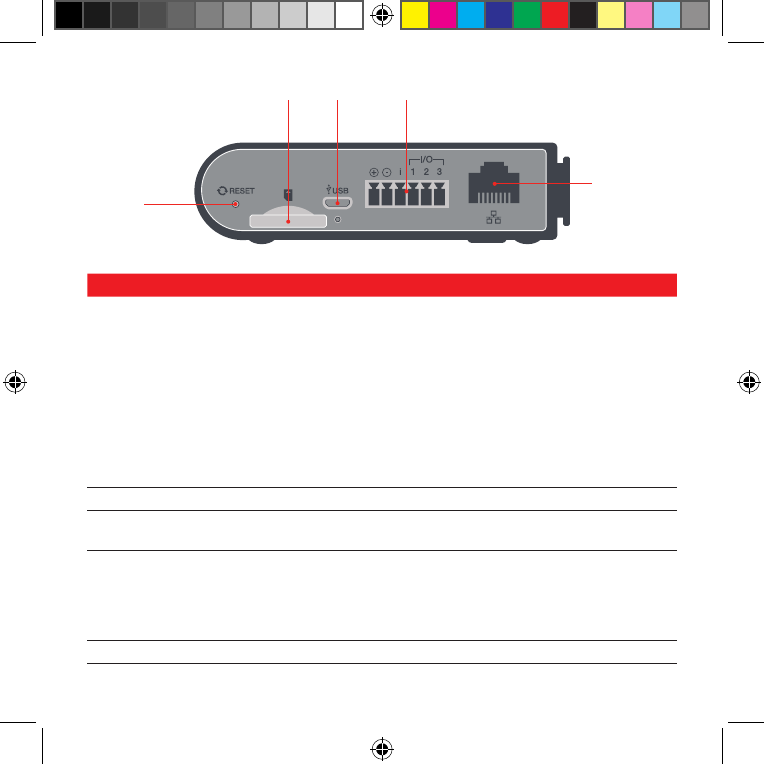

4
ITEM DESCRIPTION
5 Reset button • Press and hold for less than 5 seconds to reboot to normal mode. The
LEDs are green and extinguish in sequence to indicate that the router
will reboot normally if the button is released during this period.
• Press and hold for 5 to 15 seconds to reboot to recovery mode.
The LEDs are amber and extinguish in sequence to indicate that the
router will reboot to recovery mode if the button is released during
this period.
• Press and hold for 15 to 20 seconds to reset the router to factory
default settings. The LEDs are red and extinguish in sequence to
indicate that the router will reset to factory default settings if the
button is released during this period.
6 SIM card slot Insert SIM card here.
7 Micro USB 2.0 OTG port
Provides connectivity for optional external storage or a USB Ethernet
dongle. Supplies up to 0.5A to connected device.
8 Six-way terminal block
connector
Connect power source, ignition and I/O wires here. Power, ignition and I/O
wires may be terminated on the supplied terminal block and connected
to a power source. Refer to the diagram and table under Step 5 of the
Installing your device section for correct wiring of the terminal block.
Operates in the 8-40V DC range.
9 RJ45 Fast Ethernet port Connect one or several devices via a network switch here.
5
6 7 8
9
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 4 13/11/2018 10:38:56 AM
![](/img.php?id=4082336&img=bg7.png)
5
Installing
your device
Step 1
The Vodafone MachineLink 4G Lite router comes equipped with an
internal soldered-down GDSP SIM which is ready for use. If you have an
additional SIM card that you would like to use, you can insert it in the SIM
card tray. To eject the SIM card tray, use the end of a paper clip to press
the SIM Eject button. Place the SIM card in the tray and then insert the
loaded tray into the SIM slot with the gold side facing up, as shown below.
Push to eject
Sim tray
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 5 13/11/2018 10:38:56 AM
![](/img.php?id=4082336&img=bg8.png)
6
Step 2

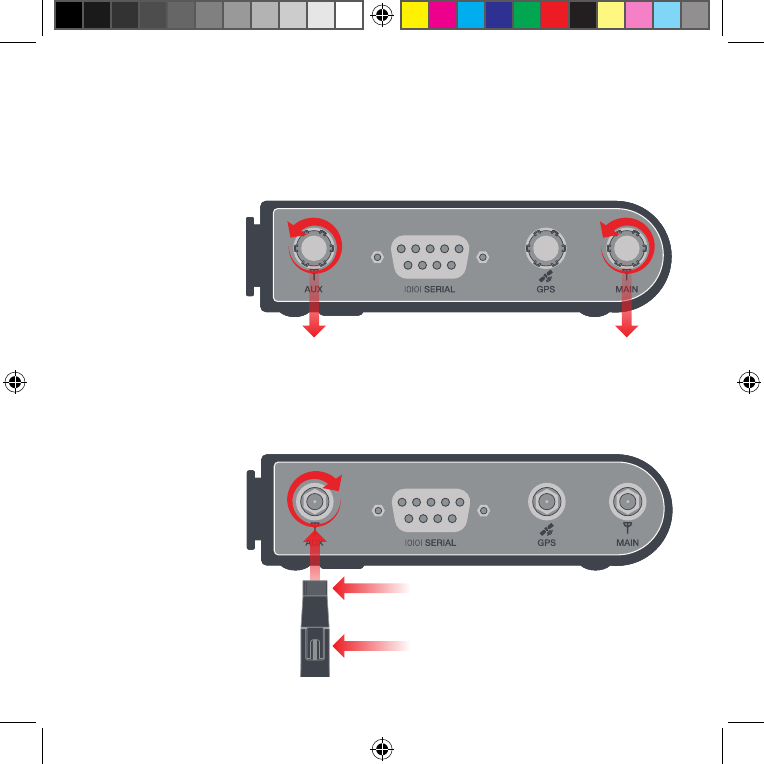

The MachineLink 4G Lite router is shipped with caps on the Main,
Auxiliary and GPS antenna sockets. To attach the supplied antennas,
rst remove the antenna socket caps from the Main and Auxiliary
antenna sockets by turning them in an anti-clockwise direction.
Then screw the antennas onto the sockets, turning them by the
collar in a clockwise direction.
When the collar has been sufciently
tightened, turn the antenna in a clockwise direction until it has
reached the desired orientation.
Unscrew Unscrew
Collar
Turn from here
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 6 13/11/2018 10:38:57 AM
![](/img.php?id=4082336&img=bg9.png)
7
Step 3
Mount your router in a suitable location using the options listed in the
Mounting options section.
When selecting a location to mount the MachineLink 4G Lite router,
keep in mind that it features high performance antennas designed to
provide optimum signal strength in a wide range of environments. You
can check the signal strength by observing the colour and number of
LEDs illuminated on the front of the device. For a precise reading of
the signal strength, refer to the Status page on the web user interface.
If you nd the signal strength is weak, try moving the router to a
different place, mounting it differently or changing the orientation of
the antennas.
The signal strength LEDs update within a few seconds with a rolling
average signal strength reading. When selecting a location for the
router, please allow up to 20 seconds for the signal strength LEDs to
update before repositioning.
Please refer to the Device overview section for the antenna socket
layout. If you have purchased a GPS antenna, remove the socket cap
from the GPS antenna socket and attach the antenna to the socket in
the same manner.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 7 13/11/2018 10:38:57 AM
![](/img.php?id=4082336&img=bga.png)
8

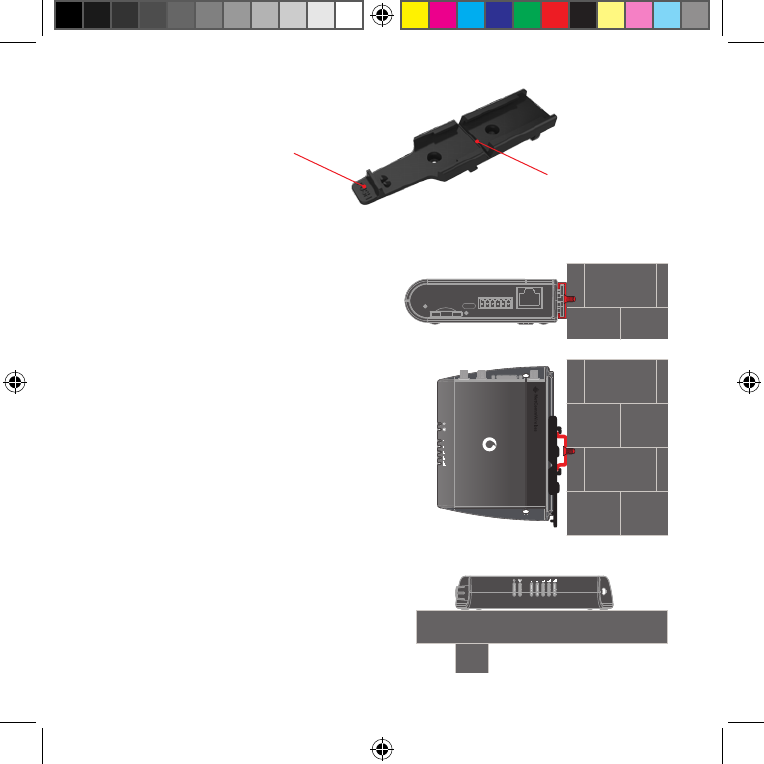

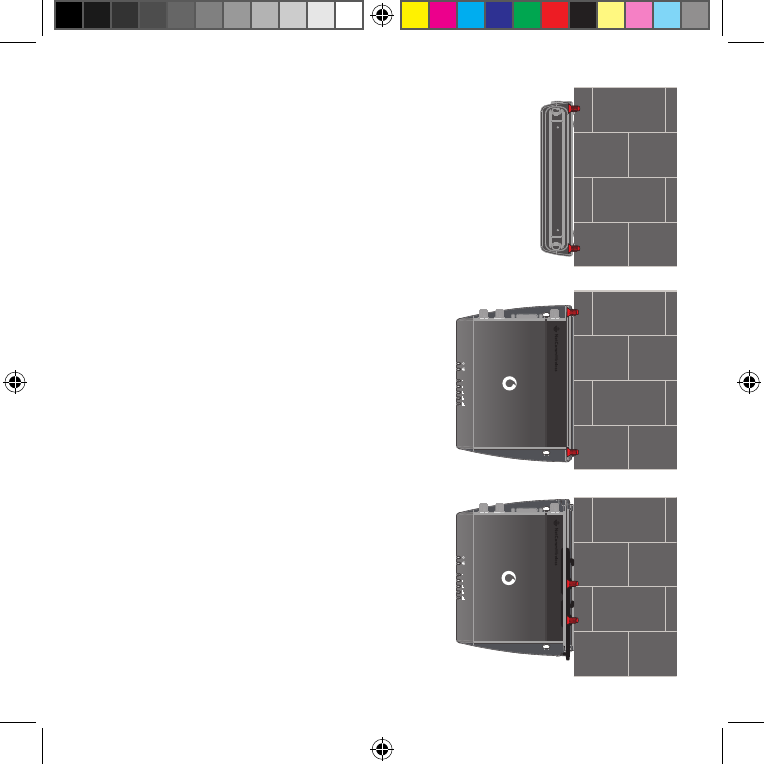

Wall mount 1. Flat against the wall
2. Perpendicular to the wall
3. Mounted via DIN Rail Bracket
Use a minimum of 2 screws (3.5mm
diameter) through the holes on the side of
the device.
Use a minimum of 2 screws (3.5mm
diameter) through the holes on the
DIN rail bracket.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 8 13/11/2018 10:38:57 AM
![](/img.php?id=4082336&img=bgb.png)
9
C Section DIN
rail mount
Top hat DIN rail
mount
Desk mount
Push to release
V Bend allows you to snap the DIN
bracket onto the middle of a DIN rail,
rather than sliding it onto the end
DIN Rail
mounting
bracket
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 9 13/11/2018 10:38:58 AM
![](/img.php?id=4082336&img=bgc.png)
10
Step 4
Connect power to your router using one of the following options.
1. DC power via the the six-way connector
Remove the attached green terminal block from your router and
connect to the router’s power socket using a DC power supply, sold
separately.

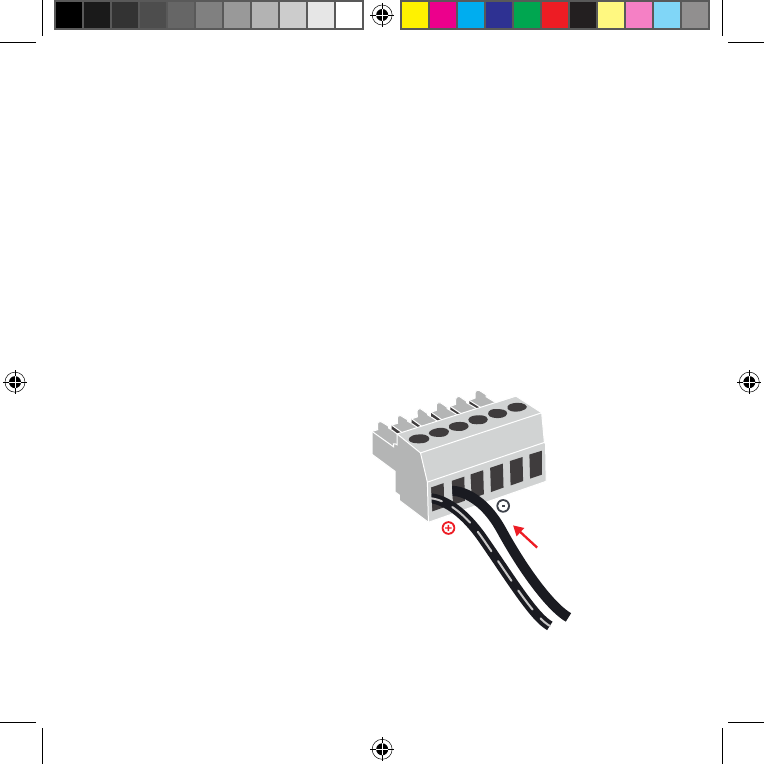

2. DC power via eld terminated power source
If an 8-40V DC power supply is available, you can insert the wires
into the supplied terminal block to power your router. Use a athead
screwdriver to tighten the terminal block screws and secure the power
wires, making sure that you have correctly wired the terminal block as
illustrated below.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 10 13/11/2018 10:38:58 AM
![](/img.php?id=4082336&img=bgd.png)
11
The green power LED on the router lights up when a power source is
connected. Attach the supplied yellow Ethernet cable 8P8C to the
LAN Ethernet port on your router and the other end to your computer.
Step 5
Connect equipment that requires network access to the LAN port of
your router. You can connect one device directly, or several devices
using a network switch. Switch on your power supply and wait 2
minutes for your Vodafone MachineLink 4G Lite to start up and
connect to the mobile network. Your router comes with precongured
settings that should suit most customers.
Your router is now connected.
To check the status of your router, compare the LED indicators on the
device with those listed opposite.

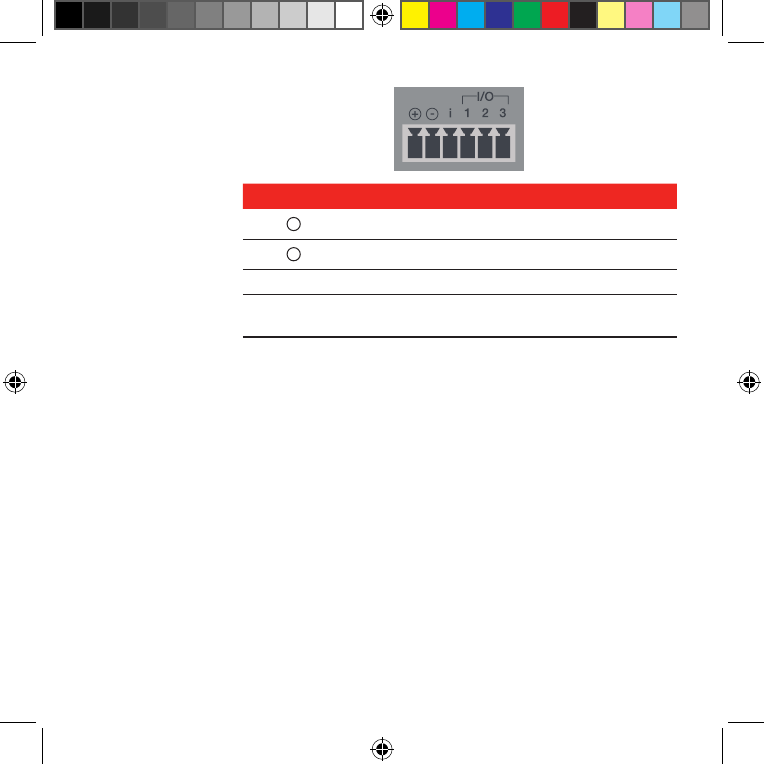

TERMINAL DESCRIPTION
+Positive wire for power
-Ground Wire
iDedicated terminal for ignition detection
I/O Three terminals used for input/output detection. (Please refer
to the User Guide and SDK Guide for more information).
Push to eject
Sim tray
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 11 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bge.png)
12

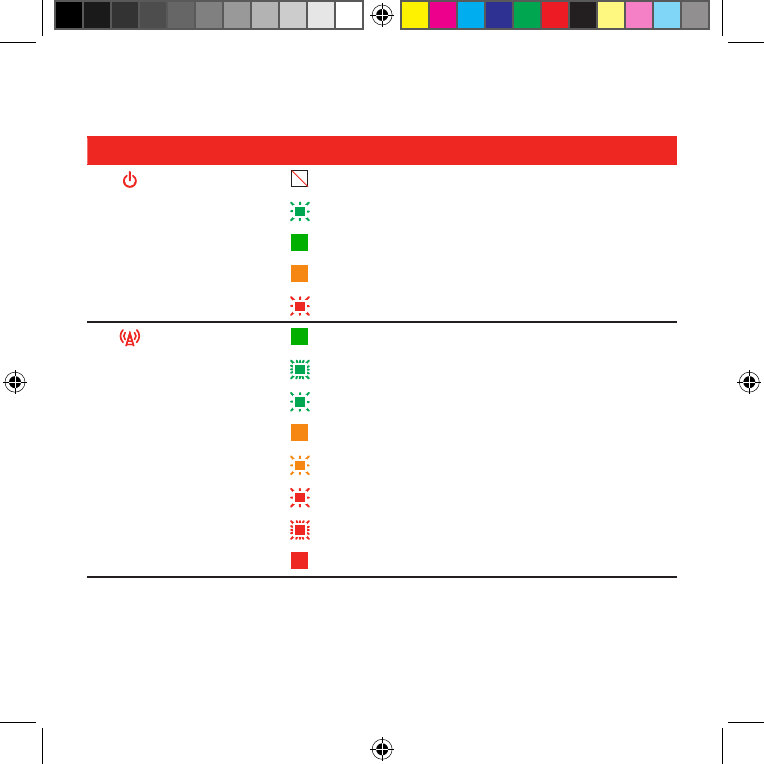

LED ICON LED COLOUR STATE DESCRIPTION
Power Off Power off
Double ash Powering up
On Power on
On Power on in recovery mode
Slow ashing Hardware error
Network On Connected via WWAN
Blinking1Trafc via WWAN
Slow ashing Connecting PDP
On Registered network
Slow ashing Registering network
Slow ashing SIM PIN locked
Fast ashing SIM PUK locked
On Can’t connect
Overview of
LED indicators
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 12 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bgf.png)
13

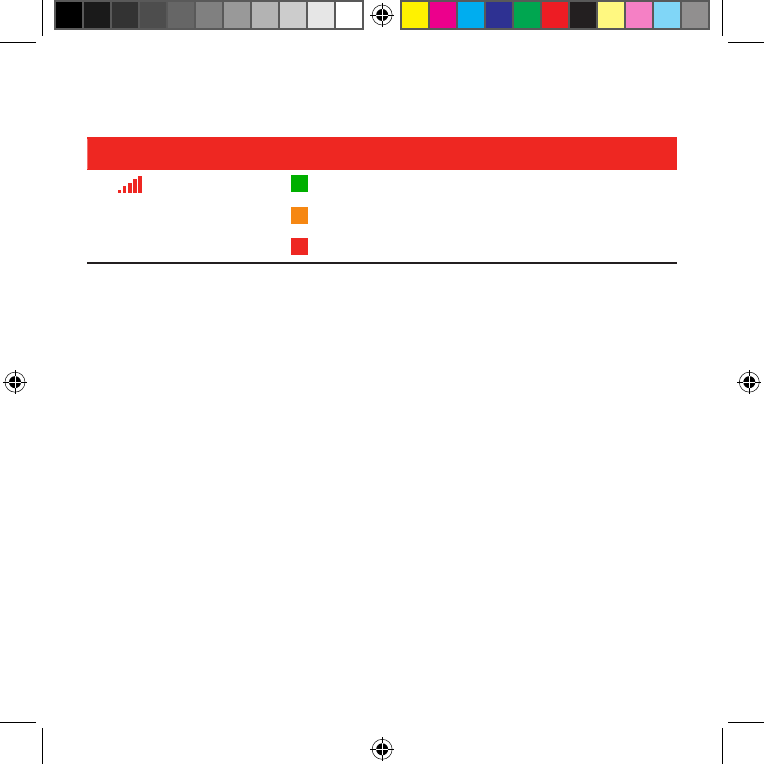

LED ICON LED COLOUR STATE DESCRIPTION
Signal
strength
On LTE signal
On WCDMA signal
On GSM signal
1 The term “blinking” means that the LED may pulse, with the intervals that the LED is on and
off not being equal. The term “ashing” means that the LED turns on and off at equal intervals.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 13 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg10.png)
14
Advanced
conguration
and
troubleshooting
Depending on what you’re using your router for, you may need to log
into it via the web based conguration interface for status monitoring,
troubleshooting or advanced conguration.
To access this interface, you’ll need a computer with an Ethernet
port and web browser (such as Internet Explorer, Chrome or Safari)
installed.
Step 1
Make sure your Vodafone MachineLink 4G Lite is turned on and
disconnect any Ethernet connections.
Step 2
Attach the supplied yellow Ethernet cable 8P8C to the LAN Ethernet
port on your router and the other to your computer. Access the user
interface by entering https://192.168.1.1 into your web browser. The
landing page is displayed.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 14 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg11.png)
15

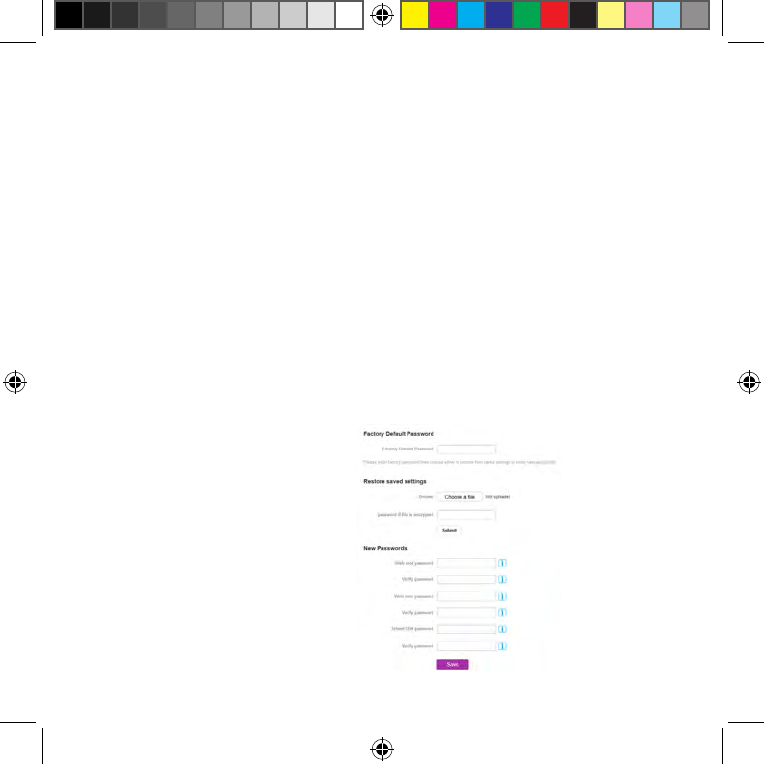

From this page, you must congure a secure administrator password
for future access to the device or provide a conguration backup le to
restore to a previous conguration.
Step 3
In the Factory Default Password eld, enter the factory default
password printed on the device label.
Restoring from a previous conguration
a) Click on the Choose a le button, select the le you want to restore
from, then click Open. b) If the backup le is encrypted, enter the
password then click Submit. The router reboots with the previously
saved conguration.
Setting up the router as a new device
a) Enter secure passwords for the web root, web user and Telnet/SSH
logins. Click on the icon for the password requirements.
b) Click the Save button. The router is now operational. Click on the
Status menu item to continue.
For more information on advanced conguration, refer to the
full product User Guide available from the Help link in the web
conguration interface or from the NetComm Wireless website at
http://vodafone.netcommwireless.com
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 15 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg12.png)
16
Step 4

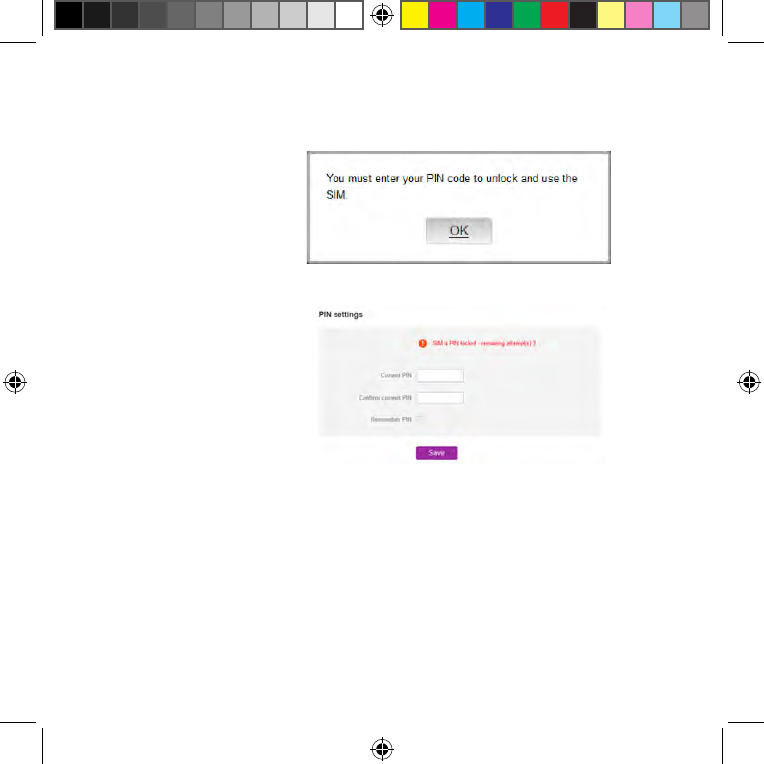

If the inserted SIM card is PIN locked, a pop-up window is displayed
informing you that you must unlock the SIM before use.
Click the OK button. The SIM Security page is displayed.
In the Current PIN eld, enter the SIM PIN and then enter it again in
the Conrm current PIN eld. If you do not want to enter the PIN code
each time the SIM is inserted, select the Remember PIN option. Click
the Save button. The router displays “Success! The SIM unlock was
successful”.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 16 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg13.png)
17
Step 5
If the SIM Status is OK, the Vodafone MachineLink 4G Lite router
automatically attempts to connect to the Internet by detecting the
correct APN and connection details.
If automatic conguration was unsuccessful, you must manually enter
the connection details.
To manually congure the connection prole:
1. From the top menu bar, select the Networking option.
2. Next to Prole1, click the button. The Data connection
prole settings screen is displayed.
3. Ensure that the Automatic APN selection toggle key is set to the
OFF position. (Not required when using a Vodafone GDSP SIM)
4. In the APN eld, enter the APN name that your carrier requires for
mobile broadband connection. If required, enter the Username
and Password in the Username and Password elds. Click the Save
button.
The connection prole is now congured.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 17 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg14.png)
18
Click on the Status menu item from the top menu bar. The Status
page is displayed. The mobile broadband connection is established
successfully if the Status eld in the Packet data connection status
section displays Connected.
Verifying the
connection
status
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 18 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg15.png)
19
Safety and Product Care
Vodafone MachineLink 4G Lite
Please read this safety information before you use the device. Following the warnings will help
prevent injury to yourself or others and damage to your device.
Additional safety warnings may be given for the operation of specic Apps on your device, you
should also follow these instructions.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 19 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg16.png)
20
OPEN SOURCE DISCLAIMER 21
SAFETY AND PRODUCT CARE 22
Electrical safety 22
Accessories 22
Connection to a car 22
Distraction 22
Operating machinery 22
Driving 22
Product handling 22
Small Children 23
Demagnetisation 23
Electrostatic discharge (ESD) 24
Air Bags 24
Emergency & other situations 24
requiring continuous connectivity
Device heating 24
Faulty and damaged products 24
Interference 24
Pacemakers 24
Hearing aids 24
Medical devices 25
Hospitals 25
Aircraft 25
Interference in cars 25
Explosive environments 25
Petrol stations and explosive atmospheres 25
Blasting caps and areas 25
REGULATORY COMPLIANCE 26
FCC statement 26
FCC compliance 26
FCC regulations 26
RF exposure 27
External antenna 27
IC Regulations 28
RF Exposure Information (MPE) 28
External Antenna - RSS-Gen 8.3 29
NWL-224 29
CE Regulation 29
Maximum RF Power 28
WEEE Regulation 28
Communications Regulations 33
Table of contents
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 20 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg17.png)
21
Open Source Disclaimer
This product contains Open Source software that has been released by the developers of that
software under specic licensing requirements such as the “General Public License“ (GPL)
Version 2 or 3, the “Lesser General Public License“ (LGPL), the “Apache License“ or similar
licenses. For detailed information on the Open Source software, the copyright, the respective
licensing requirements and ways of obtaining the source code, please log in to the web
conguration interface and click on the Help section.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 21 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg18.png)
22
Safety and product care
Electrical
safety
Accessories
Only use approved accessories.
Do not connect with incompatible products or accessories.
Connection to a car
Seek professional advice when connecting a device interface to the vehicle electrical system.
Distraction Operating machinery
Full attention must be given to operating the machinery in order to reduce the risk of an
accident.
Driving
Full attention must be given to driving at all times in order to reduce the risk of an accident.
Using the device in a vehicle can cause distraction and can lead to an accident. You must
comply with local laws and regulations restricting the use of mobile communication devices
while driving.
Product
handling
You alone are responsible for how you use your device and any consequences of its use.
You must always switch off your device wherever the use of a mobile phone is prohibited. Do
not use the device without the clip-on covers attached, and do not remove or change the
covers while using the device. Use of your device is subject to safety measures designed to
protect users and their environment.
Always treat your device and its accessories with care and keep it in a clean and dust-free place.
Do not expose your device or its accessories to open ames or lit tobacco products.
Do not expose your device or its accessories to liquid, moisture or high humidity.
Do not drop, throw or try to bend your device or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its
accessories.
Do not paint your device or its accessories.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 22 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg19.png)
23
Do not attempt to disassemble your device or its accessories, only authorised personnel must
do so.
Do not expose your device or its accessories to extreme temperatures. Ensure that the device is
installed in an area where the temperature is within the supported operating temperature range
of -30°C to +70°C.
Do not use your device in an enclosed environment or where heat dissipation is poor.
Prolonged use in such space may cause excessive heat and raise ambient temperature, which
will lead to automatic shutdown of your device or the disconnection of the mobile network
connection for your safety. To use your device normally again after such shutdown, cool it in a
well-ventilated place before turning it on.
Please check local regulations for disposal of electronic products.
Do not operate the device where ventilation is restricted
Installation and conguration should be performed by trained personnel only.
Do not use or install this product near water to avoid re or shock hazard. Avoid exposing the
equipment to rain or damp areas.
Arrange power and Ethernet cables in a manner such that they are not likely to be stepped on
or have items placed on them.
Ensure that the voltage and rated current of the power source match the requirements of the
device. Do not connect the device to an inappropriate power source.
Small Children
Do not leave your device and its accessories within the reach of small children or allow them
to play with it.
They could hurt themselves or others, or could accidentally damage the device.
Your device contains small parts with sharp edges that may cause an injury or which could
become detached and create a choking hazard.
Demagnetisation
To avoid the risk of demagnetisation, do not allow electronic devices or magnetic media close
to your device for a long time.
Avoid other magnetic sources as these may cause the internal magnetometer or other
sensors to malfunction and provide incorrect data.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 23 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg1a.png)
24
Electrostatic discharge (ESD)
Do not touch the SIM card’s metal connectors.
Air Bags
Do not place the device in the area near or over an air bag or in the air bag deployment area
Mount the device safely before driving your vehicle.
Emergency & other situations requiring continuous connectivity
This device, like any wireless device, operates using radio signals, which cannot guarantee
connection in all conditions. Therefore, you must never rely solely on any wireless device for
emergency communications or otherwise use the device in situations where the interruption of
data connectivity could lead to death, personal injury, property damage, data loss, or other loss.
Device heating
Your device may become warm during normal use.
Faulty and
damaged
products
Do not attempt to disassemble the device or its accessory.
Only qualied personnel should service or repair the device or its accessory.
If your device or its accessory has been submerged in water or other liquid, punctured, or
subjected to a severe fall, do not use it until you have taken it to be checked at an authorised
service centre
Interference Care must be taken when using the device in close proximity to personal medical devices,
such as pacemakers and hearing aids.
Pacemakers
Pacemaker manufacturers recommend that a minimum separation of 15cm be maintained
between a device and a pacemaker to avoid potential interference with the pacemaker.
Hearing aids
People with hearing aids or other cochlear implants may experience interfering noises when
using wireless devices or when one is nearby.
The level of interference will depend on the type of hearing device and the distance from the
interference source, increasing the separation between them may reduce the interference.
You may also consult your hearing aid manufacturer to discuss alternatives.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 24 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg1b.png)
25
Medical devices
Please consult your doctor and the device manufacturer to determine if operation of your
device may interfere with the operation of your medical device.
Hospitals
Switch off your wireless device when requested to do so in hospitals, clinics or health care facilities.
These requests are designed to prevent possible interference with sensitive medical equipment.
Aircraft
Switch off your wireless device whenever you are instructed to do so by airport or airline staff.
Consult the airline staff about the use of wireless devices on board the aircraft, if your device offers a
‘ight mode’ this must be enabled prior to boarding an aircraft.
Interference in cars
Please note that because of possible interference to electronic equipment, some vehicle
manufacturers forbid the use of devices in their vehicles unless an external antenna is
included in the installation.
Explosive
environments
Petrol stations and explosive atmospheres
In locations with potentially explosive atmospheres, obey all posted signs to turn off wireless
devices such as your device or other radio equipment.
Areas with potentially explosive atmospheres include fuelling areas, below decks on boats,
fuel or chemical transfer or storage facilities, areas where the air contains chemicals or
particles, such as grain, dust, or metal powders.
Blasting caps and areas
Turn off your device or wireless device when in a blasting area or in areas posted turn off “two-
way radios” or “electronic devices” to avoid interfering with blasting operations.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 25 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg1c.png)
26
Regulatory compliance
FCC Statement FCC compliance
Federal Communications Commission Notice (United States): Before a wireless device model
is available for sale to the public, it must be tested and certied to the FCC that it does not
exceed the limit established by the government-adopted requirement for safe exposure.
FCC regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorientate or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 26 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg1d.png)
27
RF Exposure Your device contains a transmitter and a receiver. When it is on, it receives and transmits RF
energy. When you communicate with your device, the system handling your connection
controls the power level at which your device transmits.
• This device meets the government’s requirements for exposure to radio waves.
• This device is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
• This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. To ensure compliance with RF exposure guidelines the device must be
used with a minimum of 20 cm separation from the body. Failure to observe these
instructions could result in your RF exposure exceeding the relevant guideline limits.
External antenna
Any optional external antenna used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operated
in conjunction with any other antenna or transmitter. Please consult the health and safety
guide of the chosen antenna for specic body separation guidelines as a greater distance of
separation may be required for high-gain antennas.
Any external antenna gain must meet RF exposure and maximum radiated output power
limits of the applicable rule section. The maximum antenna gain for this device as reported
to the FCC is:
NANT-00001 DIPOLE ANTENNA GAIN FOR NWL-224
Frequency (MHz) Gain (dBi)
WCDMA Band 2 3.42
WCDMA Band 4 3.28
WCDMA Band 5 3.13
LTE Band 2 3.42
LTE Band 4 3.28
LTE Band 12 4.71
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 27 13/11/2018 10:38:59 AM
![](/img.php?id=4082336&img=bg1e.png)
28
IC regulations This Class B digital apparatus complies with Canadian ICES-003. /
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: /
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) this device may not cause interference, and /
(1) l’appareil ne doit pas produire de brouillage, et
(2) this device must accept any interference, including interference that may cause undesired
operation of the device. /
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
RF Exposure Information (MPE):
This device has been tested and meets applicable limits for Radio Frequency (RF) exposure. /
Cet appareil a été testé et répond aux limites applicables en matière d’exposition aux
radiofréquences (RF).
This equipment should be installed and operated with minimum distance 20 cm between the
radiator & your body. /
Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le
radiateur et votre corps.
External antenna - RSS-Gen 8.3
(transmitters equipped with detachable antennas)
This radio transmitter has been approved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain and required antenna impedance for
each antenna type indicated. /
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les
types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance
Company Contact Details
Name: NetComm Wireless Inc.
US Address: 1000 Sawgrass Corporate Parkway, Suite 500, Sunrise, Florida 33323, USA
Website: https://netcommwireless.com/contact/general-enquiries
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 28 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg1f.png)
29
requise pour chaque type d’antenne.
Antenna types not included in this list, having a gain greater than the maximum gain indicated
for that type, are strictly prohibited for use with this device. /
Les types d’antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal
indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
Antenna types / Types d’antennes: Dipole antenna
Antenna gain (in dBi) / Gain d’antenne (en dBi):
NANT-00001 DIPOLE ANTENNA GAIN FOR NWL-224
Frequency (MHz) Gain (dBi)
WCDMA Band 2 3.42
WCDMA Band 4 3.28
WCDMA Band 5 3.13
LTE Band 2 3.42
LTE Band 4 3.28
LTE Band 12 4.71
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 29 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg20.png)
30
RF Exposure Information (MPE)
This device meets the EU requirements and the International Commission on Non-
Ionizing Radiation Protection (ICNIRP) on the limitation of exposure of the general public
to electromagnetic elds by way of health protection. To comply with the RF exposure
requirements, this equipment must be operated in a minimum of 20 cm separation distance
to the user.
NWL-222 RF General Information
Evalution Mode Frequency
Range (MHz)
Operating
Frequency
(MHz)
Modulation Type
GSM 900 880 - 915 925 - 960 GSM / GPRS: GMSK
DCS 1800 1710 - 1785 1805 - 1880 EDGE: GMSK / 8PSK
WCDMA B1: 1920 - 1980
B8: 880 - 915
B1: 2110 - 2170
B8: 925 - 960
WCDMA: BPSK /
QPSK
HSDPA: 16QAM
HSUPA: QPSK
LTE B1: 1920 - 1980
B3: 1710 - 1785
B7: 2500 - 2570
B8: 880 - 915
B20: 832 - 862
B1: 2110 - 2170
B3: 1805 - 1880
B7: 2620 - 2690
B8: 925 - 960
B20: 791 - 821
QPSK / 16QAM
CE Regulation
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 30 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg21.png)
31
NWL-222 Maximum RF Power
Functions Gain (dBi)
GSM 900 36.11
DCS 1800 32.57
WCDMA Band 1 25.78
WCDMA Band 8 26.25
LTE Band 1 25.78
LTE Band 3 25.48
LTE Band 7 25.48
LTE Band 8 26.10
LTE Band 20 25.80
WEEE Regulation
Waste Electrical and Electronic Equipment (WEEE)
This symbol means that according to local laws and regulations your product and/or its
battery shall be disposed of separately from household waste. When this product reaches its
end of life, take it to a collection point designated by local authorities. Proper recycling of your
product will protect human health and the environment.
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 31 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg22.png)
32
Communications Regulations
The following is a list of communications regulations that apply to the Vodafone MachineLink 4G
Lite (NWL-222).
Conformité Européenne (European Conformity)
Hereby, Vodafone declares that MachineLink 4G Lite (NWL-222) is in compliance with Directive 2014/53/EU. The
full text of the EU declaration of conformity is available at the following internet address: http://www.vodafone.
com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Европейско съответствие)
С настоящото Vodafone декларира, че MachineLink 4G Lite (NWL-222) е в съответствие с Директива
2014/53/ЕС. Пълният текст на ЕС декларацията за съответствие е на разположение на следния интернет
адрес: http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Evropská shoda)
Společnost Vodafone tímto prohlašuje, že zařízení MachineLink 4G Lite (NWL-222) odpovídá požadavkům
směrnice 2014/53/EU. Úplný text EU prohlášení o shodě je k dispozici na následující internetové adrese:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Europæisk standard)
Vodafone erklærer hermed, at MachineLink 4G Lite (NWL-222) er i overensstemmelse med direktivet 2014/53/
EU. Den fulde tekst i EU-overensstemmelseserklæringen kan læses på følgende internetadresse:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Europäische Konformität)
Hiermit erklärt Vodafone, dass MachineLink 4G Lite (NWL-222) der Richtlinie 2014/53/EU entspricht. Der
vollständige Text der EU-Konformitätserklärung steht unter der folgenden Internetadresse zur Verfügung:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Ευρωπαϊκή Συμμόρφωση)
Η Vodafone δηλώνει, διά του παρόντος, ότι το MachineLink 4G Lite (NWL-222) βρίσκεται σε συμμόρφωση με
την Oδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης για την Ευρωπαϊκή Ένωση είναι
διαθέσιμο στην ακόλουθη διαδικτυακή διεύθυνση:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
EN
CS
BG
DA
DE
EL
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 32 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg23.png)
33
Conformité Européenne (Conformidad Europea)
Por la presente, Vodafone declara que MachineLink 4G Lite (NWL-222) cumple la Directiva 2014/53/UE. El texto
completo de la Declaración de Conformidad UE está disponible en la siguiente dirección de Internet:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Euroopa vastavusmärgis)
Käesolevaga kinnitab Vodafone, et seade MachineLink 4G Lite (NWL-222) vastab direktiivi 2014/53/EL nõuetele.
EL-i vastavusdeklaratsiooni täistekst on saadaval järgmisel internetiaadressil:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (eurooppalainen vaatimustenmukaisuus)
Vodafone vakuuttaa täten, että tämän radiolaitteen USB-laite (MS2131) vastaa direktiivin 2014/53/EU
vaatimuksia. EU vaatimustenmukaisuusvakuutuksen koko teksti on saatavissa seuraavasta Internet-osoitteesta:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne
Par la présente, Vodafone déclare que MachineLink 4G Lite (NWL-222) est conforme à la directive 2014/53/UE.
Le texte intégral de la déclaration UE de conformité est disponible à l’adresse Internet suivante:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Sukladnost s europskim normama)
Tvrtka Vodafone ovime izjavljuje da je MachineLink 4G Lite (NWL-222) sukladan odredbama direktive 2014/53/
EU. Cijeli tekst europske izjave o sukladnosti dostupan je na sljedećoj internetskoj stranici:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Európai megfelelőség)
A Vodafone ezúton kijelenti, hogy ezek az MachineLink 4G Lite (NWL-222) típusú rádióberendezések
megfelelnek a 2014/53/EU irányelvnek. Az EU megfelelőségi nyilatkozat teljes szövege elérhető a következő
internetes címen:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
ES
ET
FI
FR
HR
HU
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 33 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg24.png)
34
Conformité Européenne (Conformità europea)
Con il presente documento, Vodafone dichiara che MachineLink 4G Lite (NWL-222) è conforme alla Direttiva
2014/53/EU. Il testo completo della dichiarazione UE di conformità è disponibile su Internet al seguente
indirizzo:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Evrópsk samræmisyrlýsing)
Vodafone lýsir því hér með yr að MachineLink 4G Lite (NWL-222) samræmist tilskipun 2014/53/ESB. Finna má
ESB-samræmisyrlýsinguna í heild sinni á eftirfarandi vefsvæði:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Europos atitiktis)
„Vodafone“ pareiškia, kad įrenginys „USB Connect“ (MS2131) atitinka Direktyvos 2014/53/ES reikalavimus. Visas
ES atitikties deklaracijos tekstas pateikiamas šiuo interneto adresu:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (atbilstība Eiropas Savienības prasībām)
Ar šo Vodafone paziņo, ka MachineLink 4G Lite (NWL-222) atbilst Direktīvas 2014/53/ES prasībām. Pilns ES
atbilstības deklarācijas teksts ir pieejams tālāk norādītajā interneta adresē:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Konformità Ewropea)
B’dan, Vodafone tiddikjara li l-Mudelli tat-Tagħmir tar-Radju MachineLink 4G Lite (NWL-222) huma konformi
mad-Direttiva 2014/53/UE. It-test sħiħ tad-dikjarazzjoni ta’ konformità tal-UE hu disponibbli f’dan l-indirizz fuq
l-Internet:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Europese conformiteit)
Hierbij verklaart Vodafone dat MachineLink 4G Lite (NWL-222) in overeenstemming is met Richtlijn 2014/53/EU.
De volledige tekst van de Europese conformiteitsverklaring is te vinden op de website:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
IT
IS
LV
LT
MT
NL
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 34 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg25.png)
35
Conformité Européenne (europeisk samsvar)
Vodafone erklærer herved at MachineLink 4G Lite (NWL-222) er i samsvar med direktiv 2014/53/EU. Den
fullstendige teksten i EU-samsvarserklæringen er tilgjengelig på følgende internettadresse:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (zgodność z normami Unii Europejskiej)
Firma Vodafone deklaruje niniejszym, że to urządzenie radiowe, model MachineLink 4G Lite (NWL-222),
spełnia wymogi określone w dyrektywie 2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny pod
następującym adresem internetowym:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Conformidade Europeia)
A Vodafone declara por este meio que o MachineLink 4G Lite (NWL-222) está em conformidade com a Diretiva
2014/53/UE. O texto completo da declaração de conformidade da UE está disponível no seguinte endereço:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Conformitate europeană)
Prin prezenta, Vodafone declară că echipamentele radio modelele MachineLink 4G Lite (NWL-222) sunt în
conformitate cu Directiva 2014/53/EU. Textul complet al declarației de conformitate UE poate găsit la
următoarea adresă de internet:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Europeisk standard)
Härmed intygar Vodafone att MachineLink 4G Lite (NWL-222) överensstämmer med direktiv 2014/53/EU. Den
fullständiga texten för EU-försäkran om överensstämmelse nns på följande Internetadress:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Evropska skladnost)
Družba Vodafone izjavlja, da je oprema MachineLink 4G Lite (NWL-222) v skladu z Direktivo 2014/53/EU. Celotno
besedilo izjave EU o skladnosti je na voljo na tem spletnem naslovu:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
NO
PL
PT
RO
SE
SI
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 35 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg26.png)
36
Conformité Européenne (Zhoda s požiadavkami EÚ)
Spoločnosť Vodafone týmto vyhlasuje, že rádiové zariadenia modelov MachineLink 4G Lite (NWL-222) sú v
súlade so smernicou 2014/53/EÚ. Úplné znenie vyhlásenia o zhode so smernicami EÚ je k dispozícii na webovej
stránke:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
Conformité Européenne (Avrupa Uygunluğu))
Vodafone, MachineLink 4G Lite (NWL-222) ürününün 2014/53/AB Yönetmeliği’ne uygun olduğunu beyan eder.
AB uygunluk beyanının tam metni aşağıdaki internet adresinde mevcuttur:
http://www.vodafone.com/business/VF_Media_C/Vodafone_MachineLink_4G_Lite_RED-DoC.pdf
SK
TR
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 36 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg27.png)
37
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 37 13/11/2018 10:39:00 AM
![](/img.php?id=4082336&img=bg28.png)
38
© Vodafone 2018. Vodafone and the Vodafone
logos are trade marks of the Vodafone Group.
Other product names mentioned herein may be
the trade marks of their respective owners. MPRT-00005-000 Rev 8
MPRT-00005-000 rev 8 - MachineLink 4G Lite QSG.indd 38 13/11/2018 10:39:00 AM
