Netgear orporated 05300021 RangeMax Wireless Router User Manual Wireless SM 28Feb05
Netgear Incorporated RangeMax Wireless Router Wireless SM 28Feb05
Manual
![](/img.php?id=598751&img=bg1.png)
February 2005
Version 1.0
February 2005
NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA
NETGEAR Wireless
Router Setup Manual
![](/img.php?id=598751&img=bg2.png)
ii
February 2005
© 2005 by NETGEAR, Inc. All rights reserved. February 2005.
Trademarks
NETGEAR is a trademark of Netgear, Inc.
Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
Other brand and product names are registered trademarks or trademarks of their respective holders.
Statement of Conditions
In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.
Federal Communications Commission (FCC) Compliance Notice: Radio Frequency Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. The user must maintain at least 20cm distance from this device.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
NOTE:Changes or modifications not expressly approved by NETGEAR, Inc. could void the user's authority to operate
this equipment.
EN 55 022 Declaration of Conformance
This is to certify that the Wireless Router is shielded against the generation of radio interference in accordance with the
application of Council Directive 89/336/EEC, Article 4a. Conformity is declared by the application of EN 55 022 Class
B (CISPR 22).
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
![](/img.php?id=598751&img=bg3.png)
February 2005
iii
Bestätigung des Herstellers/Importeurs
Es wird hiermit bestätigt, daß das Wireless Router gemäß der im BMPT-AmtsblVfg 243/1991 und Vfg 46/1992
aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch
gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung.
Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt
gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.
Certificate of the Manufacturer/Importer
It is hereby certified that the Wireless Router has been suppressed in accordance with the conditions set out in the
BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in
accordance with the regulations may, however, be subject to certain restrictions. Please refer to the notes in the operating
instructions.
Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.
Customer Support
Refer to the Support Information Card that shipped with your Wireless Router.
World Wide Web
NETGEAR maintains a World Wide Web home page that you can access at the universal resource locator (URL)
http://www.netgear.com. A direct connection to the Internet and a Web browser such as Internet Explorer
or Netscape are required.
![](/img.php?id=598751&img=bg4.png)
February 2005
iv
Contents v
February 2005
Contents
Chapter 1
About This Guide
Audience, Conventions, and Formats ............................................................................1-1
Tips for Printing This Manual ..........................................................................................1-2
Chapter 2
Getting to Know Your NETGEAR Wireless Router
Package Contents ..........................................................................................................2-1
The Front Panel .......................................................................................................2-2
The Rear Panel ........................................................................................................2-3
Chapter 3
Connecting the Router to the Internet
Prepare to Install Your Wireless Router ..........................................................................3-1
First, Connect the Wireless Router to the Internet .........................................................3-1
Now, Set Up a Computer for Wireless Connectivity .......................................................3-6
Troubleshooting Tips ......................................................................................................3-7
Overview of How to Access the Wireless Router ...........................................................3-8
How to Log On to the Wireless Router After
Configuration Settings Have Been Applied ..............................................................3-9
How to Bypass the Configuration Assistant ...........................................................3-10
How to Manually Configure Your Internet Connection ..................................................3-10
Using the Smart Setup Wizard .....................................................................................3-12
NETGEAR Product Registration, Support, and Documentation ...................................3-13
Chapter 4
Optimizing Wireless Connectivity and Security
Observe Performance, Placement, and Range Guidelines ............................................4-1
Implement Appropriate Wireless Security ......................................................................4-2
Understanding Wireless Settings ...................................................................................4-3
Information to Gather Before Changing Basic Wireless Settings .............................4-6
Default Factory Settings ...........................................................................................4-7
February 2005
vi Contents
How to Set Up and Test Basic Wireless Connectivity ..............................................4-7
How to Configure WEP ............................................................................................4-9
How to Configure WPA-PSK Wireless Security ............................................................4-11
How to Restrict Wireless Access by MAC Address ...................................................... 4-11
Chapter 5
Doing Basic Router Housekeeping
Changing the Administrator Password ...........................................................................5-1
Configuration File Management .....................................................................................5-2
Restoring and Backing Up the Configuration ...........................................................5-2
Erasing the Configuration .........................................................................................5-3
Upgrading the Wireless Router Software .......................................................................5-3
Chapter 6
Troubleshooting Common Problems
Basic Functioning ...........................................................................................................6-1
Power Light Not On ..................................................................................................6-1
Lights Never Turn Off ...............................................................................................6-2
LAN or Internet (WAN) Port Lights Not On ...............................................................6-2
Troubleshooting the Web Configuration Interface ..........................................................6-2
Troubleshooting the ISP Connection ..............................................................................6-3
Troubleshooting a TCP/IP Network Using a Ping Utility .................................................6-5
Testing the LAN Path to Your Router .......................................................................6-5
Testing the Path from Your Computer to a Remote Device .....................................6-6
Restoring the Default Configuration and Password ........................................................6-7
Appendix A
Technical Specifications
Glossary
List of Glossary Terms ...................................................................................................G-1
![](/img.php?id=598751&img=bg7.png)
About This Guide 1
February 2005
Chapter 1
About This Guide
This chapter describes the intended audience, scope, conventions, and formats of this manual.
Audience, Conventions, and Formats
This reference manual assumes that the reader has basic computer and Internet skills. However,
tutorial information is provided in the Appendices and on the Netgear Web site.
This guide uses the following typographical conventions:
This guide uses the following format to highlight special messages:
This manual is written for NETGEAR wireless routers.
Table 1-1. Typographical Conventions
italics Emphasis, books, CDs, URL names
bold User input
SMALL CAPS Screen text, file and server names, extensions, commands, IP addresses
Note: This format is used to highlight information of importance or special interest.
Table 1-2. Manual Publication Details
Product Version Wireless Router
Manual Publication Date February 2005
Note: Product updates are available on the NETGEAR Web site at
http://kbserver.netgear.com.
![](/img.php?id=598751&img=bg8.png)
NETGEAR Wireless Router Setup Manual
2About This Guide
February 2005
![](/img.php?id=598751&img=bg9.png)
Getting to Know Your NETGEAR Wireless Router 2-1
February 2005
Chapter 2
Getting to Know Your NETGEAR Wireless Router
This chapter introduces the NETGEAR Wireless Router.
Package Contents
The product package should contain the following items:
• The Wireless Router.
• An AC power adapter.
• Feet for standing the router up.
• A Category 5 (CAT5) Ethernet cable.
• The Setup CD, including: Documentation, Application Notes and other helpful information.
• Registration, Warranty Card, and Support Information Card.
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the
carton, including the original packing materials, in case you need to return the router for repair.
The Top Panel
The top of the wireless router includes a dome with status lights that identify which of the seven
internal antennas are active. The lights flash according to the direction of the wireless signal.
Figure 2-1: wireless router top panel
![](/img.php?id=598751&img=bga.png)
NETGEAR Wireless Router Setup Manual
2-2 Getting to Know Your NETGEAR Wireless Router
February 2005

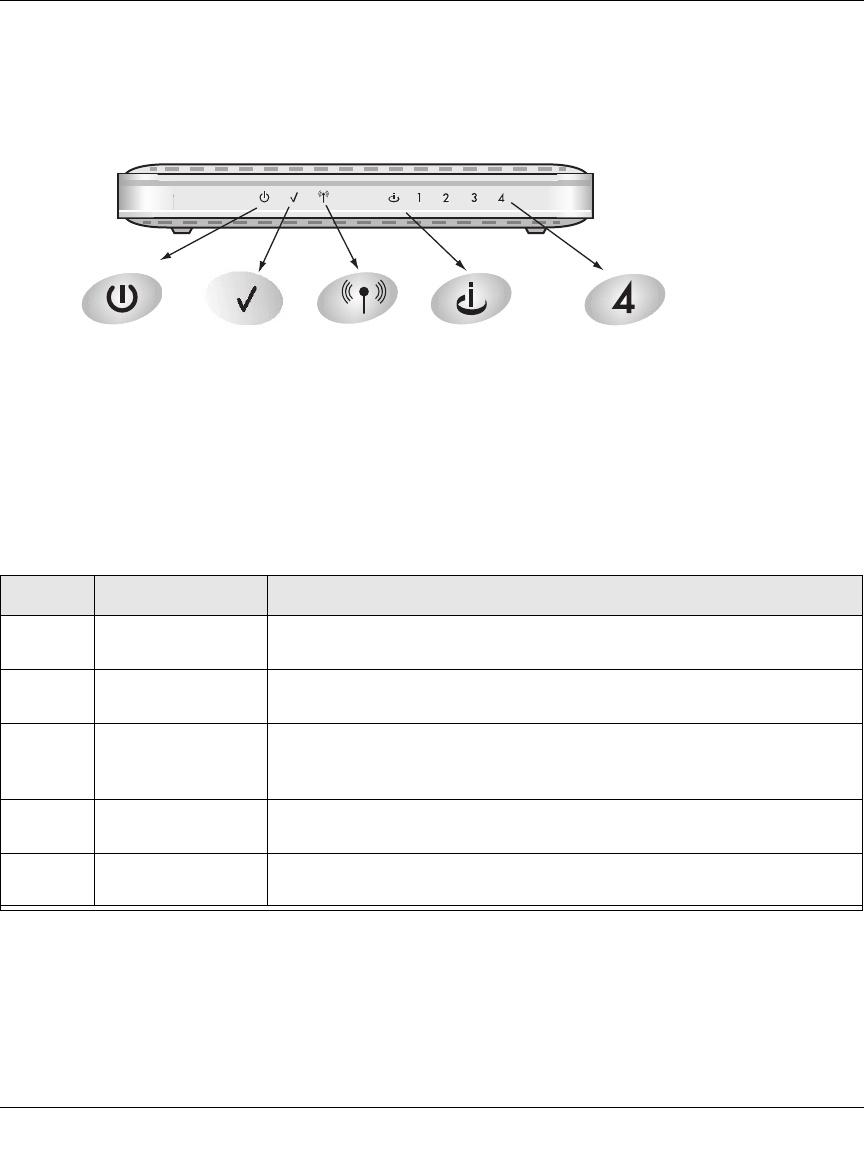

The Front Panel
The front panel of the wireless router includes these status lights.
Figure 2-2: wireless router Front Panel
You can use the status lights to verify connections. Viewed from left to right, the table below
describes the lights on the front panel of the router.
Table 2-1. Status Light Descriptions
Label Activity Description
Power On Green Solid
Off Power is supplied to the router.
Power is not supplied to the router.
Test On
Off The router is performing its power on self test diagnostic.
The router successfully completed its power on self test diagnostic.
Wireless On
Off
Blink
The wireless interface is enabled.
The wireless interface is turned off.
Data is being communicated over the wireless network.
Internet
Port On
Blink The Internet port has detected a link with an attached device.
Data is being transmitted or received by the Internet port.
LAN Ports Green
Amber The LAN port has detected a 100 Mbps link with an attached device.
The LAN port has detected a 10 Mbps link with an attached device.
.%4'%!2
0OWER )NTERNET0ORT
7IRELESS ,!.0ORT
4EST
![](/img.php?id=598751&img=bgb.png)
NETGEAR Wireless Router Setup Manual
Getting to Know Your NETGEAR Wireless Router 2-3
February 2005

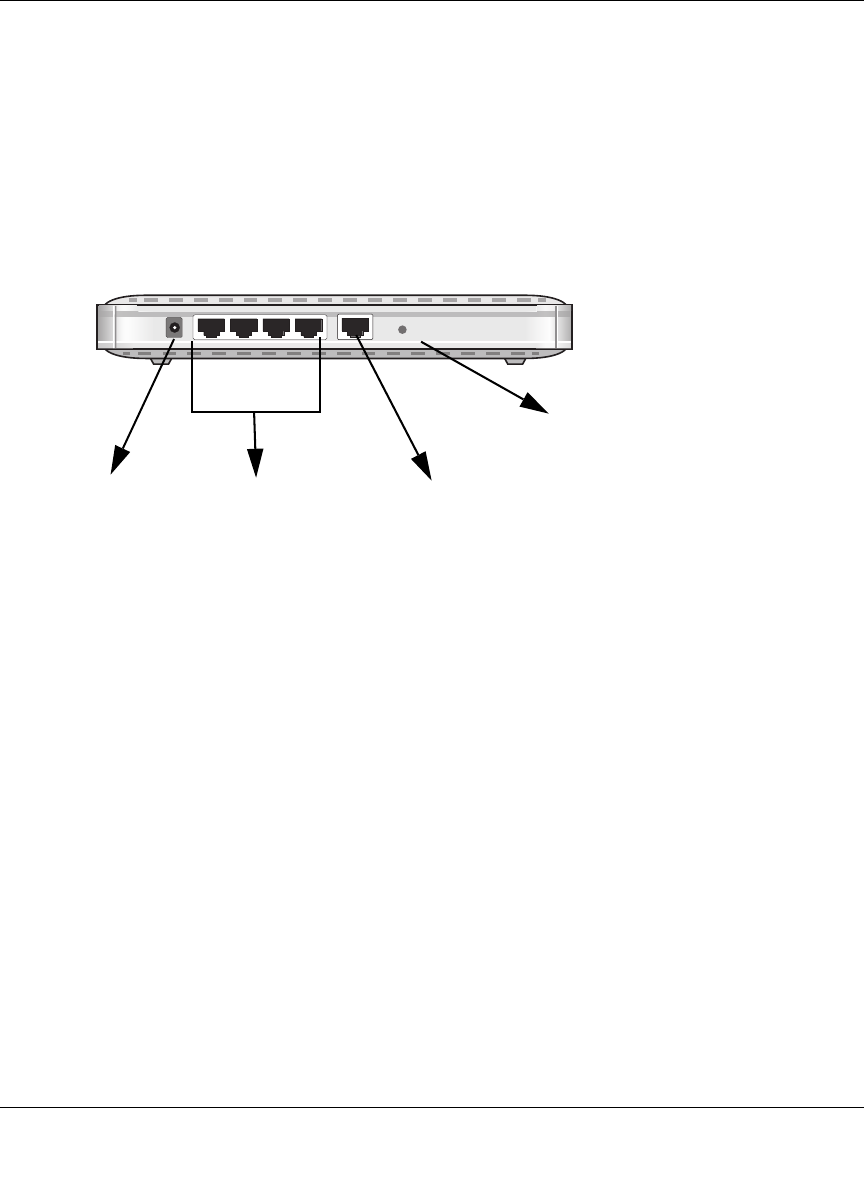

The Rear Panel
The rear panel of the wireless router router contains the items listed below.
Figure 1-2: wireless router Rear Panel
Viewed from left to right, the rear panel contains the following features:
• AC power adapter outlet for 12 V DC @ 1A output
• Four Ethernet LAN phone ports
• Internet (WAN) Ethernet port for connecting the router to a cable or DSL modem
• Factory default reset push button for Restoring the Default Configuration and Password
• The seven wireless antennas are inside the case
Power 4 LAN Ports Internet Port
Reset
4321
Button
![](/img.php?id=598751&img=bgc.png)
NETGEAR Wireless Router Setup Manual
2-4 Getting to Know Your NETGEAR Wireless Router
February 2005
![](/img.php?id=598751&img=bgd.png)
Connecting the Router to the Internet 3-1
February 2005
Chapter 3
Connecting the Router to the Internet
This chapter describes how to set up the router on your local area network (LAN) and connect to
the Internet. You will find out how to configure your wireless router for Internet access using the
Setup Wizard configuration assistant. Alternatively, you can use other procedures in this chapter to
manually configure your Internet connection.
Follow these instructions to set up your router.
Prepare to Install Your Wireless Router
•For Cable Modem Service: When you perform the wireless router setup steps be sure to use
the computer you first registered with your cable ISP.
•For DSL Service: You may need information such as the DSL login name/e-mail address and
password in order to complete the wireless router setup.
Before proceeding with the wireless router installation, familiarize yourself with the contents of
the Setup CD, especially this manual and the tutorials for configuring computers for networking.
First, Connect the Wireless Router to the Internet
1. CONNECT THE WIRELESS ROUTER, THE COMPUTER, AND THE MODEM
a. Turn off your computer.
b. Unplug and turn off the cable or DSL broadband modem.
Note: Use the Smart Wizard Installation Assistant on the Setup CD to take advantage of
automated setup tools. Otherwise, follow these instructions to manually set up your
NETGEAR wireless router.
![](/img.php?id=598751&img=bge.png)
NETGEAR Wireless Router Setup Manual
3-2 Connecting the Router to the Internet
February 2005
c. Locate the Ethernet cable (cable 1 in the diagram) that connects your PC to the modem.
Figure 3-1: Disconnect the Ethernet cable from the computer
d. Disconnect the cable at the computer end only, point A in the diagram above.
e. Look at the label on the bottom of the wireless router. Locate the Internet port. Securely
insert the Ethernet cable from your modem (Cable 1 in the diagram below) into the
Internet port of the wireless router as shown in point B of the diagram below.
Figure 3-2: Connect the wireless router to the modem
Note: Place the wireless router in a location which conforms to the “Observe
Performance, Placement, and Range Guidelines” on page 4-1.
PRGHP
&DEOH
,QWHUQHW
FRPSXWHU
A
0RGHP
&DEOH
,QWHUQHW
,QWHUQHW3RUW
5RXWHU
B
![](/img.php?id=598751&img=bgf.png)
NETGEAR Wireless Router Setup Manual
Connecting the Router to the Internet 3-3
February 2005
f. Securely insert the blue cable that came with your wireless router (the blue NETGEAR
cable in the diagram below) into a LAN port on the router such as LAN port 4 (point C in
the diagram), and the other end into the Ethernet port of your computer (point D in the
diagram).
Figure 3-3: Connect the computer to the wireless router
Your network cables are connected and you are ready to restart your network.
2. RESTART YOUR NETWORK IN THE CORRECT SEQUENCE
Warning: Failure to restart your network in the correct sequence could prevent you from
connecting to the Internet.
a. First, plug in then turn on the broadband modem. Wait about 2 minutes.
b. Now, plug in the wireless router power adapter into a power outlet, and plug the other end
of the cord into your wireless router. Wait 1 minute.
c. Last, turn on your computer.
Note: For DSL customers, if software logs you in to the Internet, do not run that software. You
may need to go to the Internet Explorer Tools menu, Internet Options, Connections tab page
where you can select “Never dial a connection.”
/$13RUWV
%OXH1(7*($5
&DEOH
,QWHUQHW
0RGHP
5RXWHU
&RPSXWHU
C
D
![](/img.php?id=598751&img=bg10.png)
NETGEAR Wireless Router Setup Manual
3-4 Connecting the Router to the Internet
February 2005
Figure 3-4: Verify the connections according to the status lights on the wireless router
d. Check the wireless router status lights to verify the following:
•Power: The power light should turn solid green. If it does not, see “Troubleshooting
Tips” on page 3-7.
•Test: The test light should turn off after completing the power on self test diagnostic. If
it does not, see “Troubleshooting Tips” on page 3-7.
•Internet: The Internet port light should be lit. If not, make sure the Ethernet cable is
securely attached to the wireless router Internet port and the modem, and the modem
is powered on.
•Wireless: The wireless light should be off. The Smart Wizard configuration assistant
turns on and sets up the wireless feature of your router.
•LAN: A LAN light should be lit. If a LAN light is not lit, check that the Ethernet cable
from the computer to the router is securely attached at both ends, and that the
computer is turned on.
3. USE THE SMART WIZARD TO CONFIGURE THE WIRELESS ROUTER
a. From the Ethernet connected PC you just set up, open a browser such as Internet Explorer
or Netscape® Navigator.
.%4'%!2
0OWER )NTERNET0ORT
7IRELESS ,!.0ORT
4EST
![](/img.php?id=598751&img=bg11.png)
NETGEAR Wireless Router Setup Manual
Connecting the Router to the Internet 3-5
February 2005
Figure 3-5: Router welcome screen
In its factory default state, the wireless router will automatically display the NETGEAR
Smart Wizard configuration assistant welcome page.
Note: If you do not see this page, clear the browser cache by going to the Internet Explorer
Tools menu, Internet Options, and clicking Delete Files, then selecting the Delete all
offline files check box and clicking OK.
If you still do not connect, type http://www.routerlogin.net in the browser address bar and
click Enter. Otherwise, to bypass this screen, see “How to Bypass the Configuration
Assistant” on page 3-11 and the “How to Manually Configure Your Internet Connection”
on page 3-11 topics in this chapter.

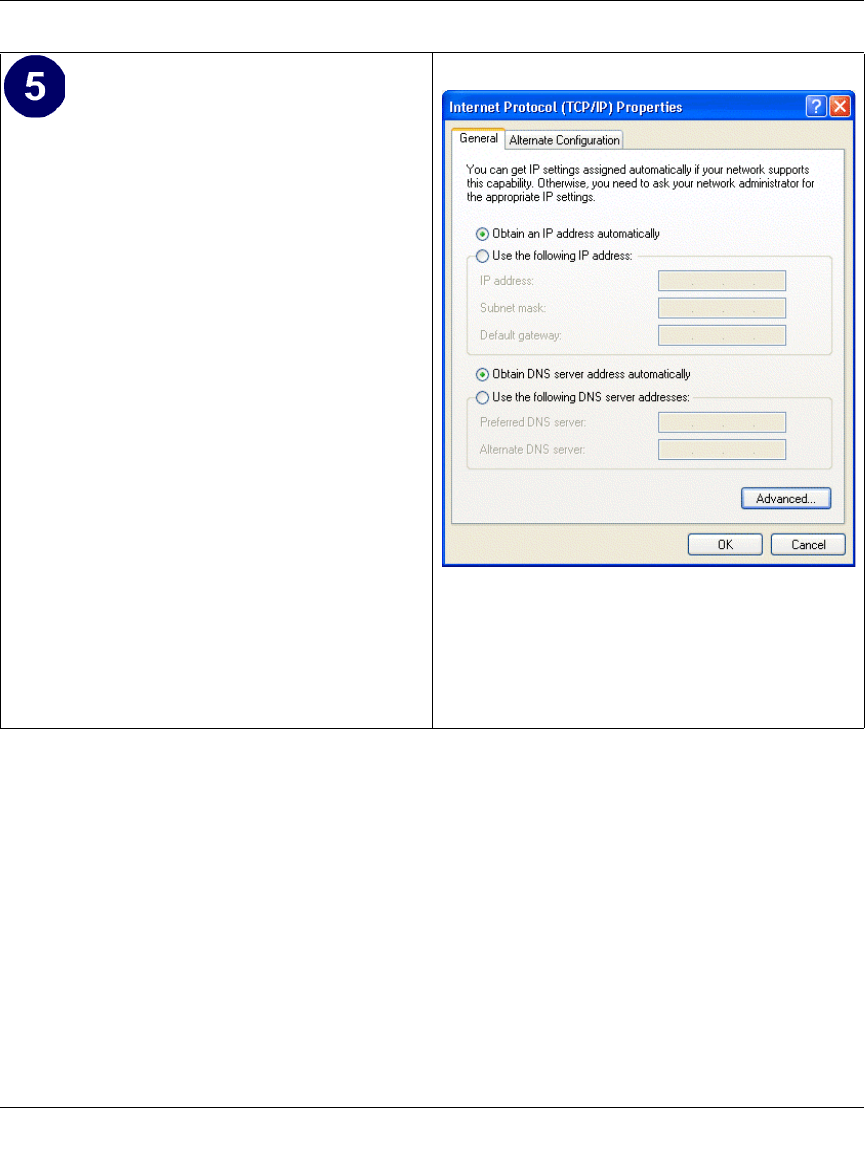

If you cannot connect to the wireless router, verify your computer networking setup. It
should be set to obtain both IP and DNS server addresses automatically, which is usually
so. For help with this, see Appendix B, “Preparing Your Network” or the animated
tutorials on the CD.
b. Click OK. Follow the prompts to proceed with the Smart Wizard configuration assistant to
connect to the Internet.
c. Follow the instructions on the screen to enable the wireless feature.
d. Enable your wireless network, click Next to proceed, then click Done to finish. If you
have trouble connecting to the Internet, see “Troubleshooting Tips” on page 3-7 to correct
basic problems.
![](/img.php?id=598751&img=bg12.png)
NETGEAR Wireless Router Setup Manual
3-6 Connecting the Router to the Internet
February 2005
Note: The Smart Wizard configuration assistant only appears when the router is in its
factory default state. After you configure the wireless router, it will not appear again. You
can always connect to the router to change its settings. To do so, open a browser such as
Internet Explorer and go to http://www.routerlogin.net. Then, when prompted, enter
admin as the user name and password for the password, both in lower case letters.
You are now connected to the Internet and the wireless feature of the wireless router is enabled!
Next, configure your wireless computer.
Now, Set Up a Computer for Wireless Connectivity
You are now connected to the Internet and the wireless feature of the wireless router is enabled!
Next, configure your wireless computer.
1. CONFIGURE THE COMPUTER’S WIRELESS ADAPTER SETTINGS

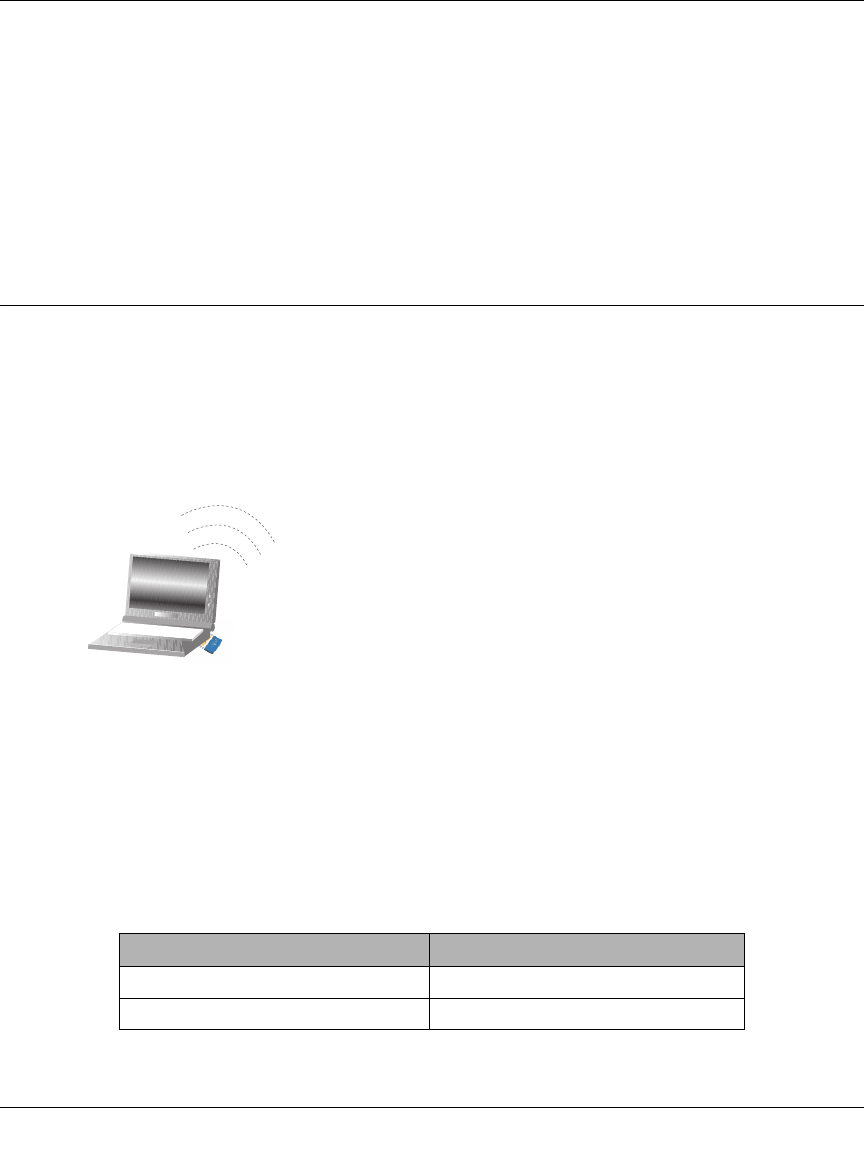

Figure 3-6: Configure wireless computer
NETGEAR, Inc. wireless adapters display a list of available wireless networks, and, when
wireless security is disabled, you simply choose yours from the list and connect.
For a non-NETGEAR wireless adapter, configure it to match your settings exactly. If you
changed the default Network Name (SSID), be sure to use the correct Network Name (SSID)
you set in the wireless router.
Warning: The Network Name (SSID) is case sensitive. Typing nETgear for the SSID will not
work.
WIRELESS FEATURE DEFAULT SETTING
Wireless Network Name (SSID) NETGEAR
WPA or WEP Security Not Enabled
:LUHOHVV$GDSWHULQD
1RWHERRN&RPSXWHU
![](/img.php?id=598751&img=bg13.png)
NETGEAR Wireless Router Setup Manual
Connecting the Router to the Internet 3-7
February 2005
2. VERIFY WIRELESS CONNECTIVITY
Verify wireless connectivity. Connect to the Internet or log in to the wireless router from a
computer with a wireless adapter. For wireless connectivity problems, see “Troubleshooting
Tips” on page 3-7.
You are now wirelessly connected to the Internet! Implement wireless security according to the
instructions in “Implement Appropriate Wireless Security” on page 4-2.
Troubleshooting Tips
Here are some tips for correcting simple problems you may have.
Be sure to always restart your network in this sequence:
1. Turn off the wireless router, computer, and turn off and unplug the modem.
2. Plug in and turn on the modem. Wait for the modem to synchronize with the network, usually
about two minutes.
3. Turn on the wireless router. Wait for the router to complete its power on self test, usually about
1 minute.
4. Turn on the computer.
Make sure the Ethernet cables are securely plugged in.
• The Internet status light on the wireless router will be lit if the Ethernet cable from the modem
is plugged in securely and the modem and wireless router are turned on.
• For each powered on computer connected to the wireless router with a securely plugged in
Ethernet cable, the corresponding wireless router LAN port status light will be lit. The label on
the bottom of the wireless router identifies the number of each LAN port.
Make sure the wireless settings in the computer and router match exactly.
The Wireless Network Name (SSID) and WEP or WPA settings of the router and wireless
computer must match exactly.
Make sure the network settings of the computer are correct.
• LAN and wirelessly connected computers must be configured to obtain IP and DNS addresses
automatically via DHCP. For help with this, please see the tutorials on the CD.
![](/img.php?id=598751&img=bg14.png)
NETGEAR Wireless Router Setup Manual
3-8 Connecting the Router to the Internet
February 2005
• Some cable modem ISPs require you to use the MAC address of the computer registered on
the account. If so, in the Router MAC Address section of the Basic Settings menu, select “Use
this Computer’s MAC Address.” The router will then capture and use the MAC address of the
computer that you are now using. You must be using the computer that is registered with the
ISP. Click Apply to save your settings. Restart the network in the correct sequence.
Check the router status lights to verify correct router operation.
• If the Power light does not turn solid green within 2 minutes after turning the router on, reset
the router according to the instructions in “Restoring the Default Configuration and Password”
on page 6-7.
• If the Wireless light does not come on, verify that the wireless feature is turned on according to
the instructions in “Understanding Wireless Settings” on page 4-3.
![](/img.php?id=598751&img=bg15.png)
NETGEAR Wireless Router Setup Manual
Connecting the Router to the Internet 3-9
February 2005
Overview of How to Access the Wireless Router
The table below describes how you access the wireless router, depending on the state of the
wireless router.
Table 3-1. Ways to access the router
Router State Access Options Description
Factory Default
Note: The wireless
router is supplied
in the factory
default state. Also,
the factory default
state is restored
when you use the
factory reset button.
See “Restoring the
Default Configuration
and Password” on
page 6-7 for more
information on this
feature.
Automatic Access
via the Smart Wizard
Configuration
Assistant
Any time a browser is opened on any computer connected to
the wireless router, the wireless router will automatically
connect to that browser and display the Configuration
Assistant welcome page.
There is no need to enter the wireless router URL in the
browser, or provide the login user name and password.
Manually enter a
URL to bypass the
Smart Wizard
Configuration
Assistant
You can bypass the Smart Wizard Configuration Assistant
feature by typing
http://www.routerlogin.net/basicsetting.htm
in the browser address bar and clicking Enter. You will not be
prompted for a user name or password.
This will enable you to manually configure the wireless router
even when it is in the factory default state. When manually
configuring the router, you must complete the configuration
by clicking Apply when finished entering your settings. If you
do not do so, a browser on any PC connected to the router
will automatically display the router's Configuration Assistant
Welcome page rather than the browser’s home page.
Configuration
Settings Have Been
Applied
Enter the standard
URL to access the
wireless router
Connect to the wireless router by typing either of these URLs
in the address field of your browser, then click Enter:
•http://www.routerlogin.net
•http://www.routerlogin.com
The wireless router will prompt you to enter the user name of
admin and the password. The default password is password.
Enter the IP address
of the wireless
router to access the
wireless router.
Connect to the wireless router by typing the IP address of the
wireless router in the address field of your browser, then click
Enter. 192.168.1.1 is the default IP address of the wireless
router. The wireless router will prompt you to enter the user
name of admin and the password. The default password is
password.
![](/img.php?id=598751&img=bg16.png)
NETGEAR Wireless Router Setup Manual
3-10 Connecting the Router to the Internet
February 2005
How to Log On to the Wireless Router After
Configuration Settings Have Been Applied
1. Connect to the wireless router by typing http://www.routerlogin.net in the address field of
your browser, then click Enter.
Figure 3-7: Login address
2. For security reasons, the router has its own user name and password. When prompted, enter
admin for the router user name and password for the router password, both in lower case
letters. To change the password, see “Changing the Administrator Password” on page 5-1.
Note: The router user name and password are not the same as any user name or password you
may use to log in to your Internet connection.
Figure 3-8: Login window
Once you have entered your user name and password, your Web browser should find the
wireless router and display the home page as shown in below.
The browser will then display the settings home page.
When the wireless router is connected to the Internet you can use the following links in the settings
home page to view up to date support or documentation on the NETGEAR Web site:
• Click the Knowledge Base link under the Web Support menu to view support information for
this router.
• Click the Documentation link under the Web Support menu to view the documentation for this
router.
If you do not click Logout, the wireless router will wait 5 minutes after there is no activity before it
automatically logs you out.
![](/img.php?id=598751&img=bg17.png)
NETGEAR Wireless Router Setup Manual
Connecting the Router to the Internet 3-11
February 2005
How to Bypass the Configuration Assistant
1. When the wireless router is in the factory default state, type
http://www.routerlogin.net/basicsetting.htm in the address field of your browser, then click
Enter.
When the wireless router is in the factory default state, a user name and password are not
required.
2. The browser will then display the wireless router settings home page.
If you do not click Logout, the wireless router will wait for 5 minutes of no activity before it
automatically logs you out.
How to Manually Configure Your Internet Connection
You can manually configure your router using the menu below, or you can allow the Setup Wizard
to determine your configuration as described in the previous section.
Figure 3-9: Browser-based configuration Basic Settings menus
You can manually configure the router using the Basic Settings menu shown in Figure 3-9 using
these steps:
1. Connect to the wireless router by typing http://www.routerlogin.net in the address field of
your browser, then click Enter.
ISP Does Not Require Login ISP Does Require Login
![](/img.php?id=598751&img=bg18.png)
NETGEAR Wireless Router Setup Manual
3-12 Connecting the Router to the Internet
February 2005
2. For security reasons, the wireless router has its own user name and password. When prompted,
enter admin for the router user name and password for the router password, both in lower
case letters.
3. Click Basic Settings on the Setup menu.
4. If your Internet connection does not require a login, click No at the top of the Basic Settings
menu and fill in the settings according to the instructions below. If your Internet connection
does require a login, click Yes, and skip to step 5.
a. Enter your Account Name (may also be called Host Name) and Domain Name.
These parameters may be necessary to access your ISP’s services such as mail or news
servers.
b. Internet IP Address:
If your ISP has assigned you a permanent, fixed (static) IP address for your computer,
select “Use static IP address”. Enter the IP address that your ISP assigned. Also enter the
netmask and the Gateway IP address. The Gateway is the ISP’s router to which your router
will connect.
c. Domain Name Server (DNS) Address:
If you know that your ISP does not automatically transmit DNS addresses to the router
during login, select “Use these DNS servers” and enter the IP address of your ISP’s
Primary DNS Server. If a Secondary DNS Server address is available, enter it also.
Note: If you enter an address here, restart the computers on your network so that these
settings take effect.
d. Router’s MAC Address:
This section determines the Ethernet MAC address that will be used by the router on the
Internet port. Some ISPs will register the Ethernet MAC address of the network interface
card in your computer when your account is first opened. They will then only accept
traffic from the MAC address of that computer. This feature allows your router to
masquerade as that computer by “cloning” its MAC address.
To change the MAC address, select “Use this Computer’s MAC address.” The router
will then capture and use the MAC address of the computer that you are now using. You
must be using the one computer that is allowed by the ISP. Or, select “Use this MAC
address” and type it in here.
e. Click Apply to save your settings.
5. If your Internet connection does require a login, fill in the settings according to the instructions
below. Select Yes if you normally must launch a login program such as Enternet or WinPOET
in order to access the Internet.
![](/img.php?id=598751&img=bg19.png)
NETGEAR Wireless Router Setup Manual
Connecting the Router to the Internet 3-13
February 2005
Note: After you finish setting up your router, you will no longer need to launch the ISP’s login
program on your computer in order to access the Internet. When you start an Internet
application, your router will automatically log you in.
a. Select your Internet service provider from the drop-down list.
Figure 3-10: Basic Settings ISP list
Note: Not all ISPs are listed here. The ones on this list have special requirements.
b. The screen will change according to the ISP settings requirements of the ISP you select.
c. Fill in the parameters for your Internet service provider.
d. Click Apply to save your settings. Click the Test button to verify you have Internet access.
Using the Smart Setup Wizard
You can use the Smart Setup Wizard to assist with manual configuration or to verify the Internet
connection. The Smart Setup Wizard is not the same as the Smart Wizard configuration assistant
that only appears when the router is in its factory default state. After you configure the wireless
router, the Smart Wizard configuration assistant will not appear again.
To use the Smart Setup Wizard to assist with manual configuration or to verify the Internet
connection settings, follow this procedure.
1. Connect to the wireless router by typing http://www.routerlogin.net in the address field of
your browser, then click Enter.
![](/img.php?id=598751&img=bg1a.png)
NETGEAR Wireless Router Setup Manual
3-14 Connecting the Router to the Internet
February 2005
2. For security reasons, the router has its own user name and password. When prompted, enter
admin for the router user name and password for the router password, both in lower case
letters. To change the password, see “Changing the Administrator Password” on page 5-1.
Note: The router user name and password are not the same as any user name or password you
may use to log in to your Internet connection.
Once you have entered your user name and password, your Web browser should find the
wireless router and display the home page.
3. Click Setup Wizard on the upper left of the main menu.
4. Click Next to proceed. Input your ISP settings, as needed.
5. At the end of the Setup Wizard, click the Test button to verify your Internet connection. If you
have trouble connecting to the Internet, use the Troubleshooting Tips “Troubleshooting Tips”
on page 3-7 to correct basic problems, or refer to Chapter 6, “Troubleshooting Common
Problems.”
NETGEAR Product Registration, Support, and Documentation
Register your product at http://www.NETGEAR.com/register. Registration is required before
you can use our telephone support service.
Product updates and Web support are always available by going to:
http://kbserver.netgear.com.
When the wireless router is connected to the Internet, click the Knowledge Base or the
Documentation link under the Web Support menu to view support information or the
documentation for the wireless router.
![](/img.php?id=598751&img=bg1b.png)
Optimizing Wireless Connectivity and Security 4-1
February 2005
Chapter 4
Optimizing Wireless Connectivity and Security
This chapter describes how to configure the wireless features of your wireless router. In planning
your wireless network, you should consider the level of security required. You should also select
the physical placement of your firewall in order to maximize the network speed.
The full manual with detailed how to instructions is available on line at
http://kbserver.netgear.com/ and via the Documentation link in the configuration utility of the
wireless router.
Observe Performance, Placement, and Range Guidelines
The operating distance or range of your wireless connection can vary significantly based on the
physical placement of the wireless firewall. The latency, data throughput performance, and
notebook power consumption of wireless adapters also vary depending on your configuration
choices.
For best results, place your firewall:
• Near the center of the area in which your computers will operate.
• In an elevated location such as a high shelf where the wirelessly connected computers have
line-of-sight access (even if through walls).
• Away from sources of interference, such as computers, microwaves, and 2.4 GHz cordless
phones.
• Away from large metal surfaces.
• Place the router where ventilation is not blocked. Do not stack the router on other electronic
equipment or stack items on top of the router.
The time it takes to establish a wireless connection can vary depending on both your security
settings and placement. WEP connections can take slightly longer to establish.
Note: Failure to follow these guidelines can result in significant performance
degradation or inability to wirelessly connect to the router.
![](/img.php?id=598751&img=bg1c.png)
NETGEAR Wireless Router Setup Manual
4-2 Optimizing Wireless Connectivity and Security
February 2005
Implement Appropriate Wireless Security
Unlike wired network data, your wireless data transmissions can be received well beyond your
walls by anyone with a compatible adapter. For this reason, use the security features of your
wireless equipment. The wireless router provides highly effective security features which are
covered in detail in this chapter. Deploy the security features appropriate to your needs.
Figure 4-1: wireless router wireless data security options
There are several ways you can enhance the security of your wireless network.
•Restrict Access Based on MAC Address. You can restrict access to only trusted computers
so that unknown computers cannot wirelessly connect to the wireless router. MAC address
filtering adds an obstacle against unwanted access to your network, but the data broadcast over
the wireless link is fully exposed.
•Turn Off the Broadcast of the Wireless Network Name SSID. If you disable broadcast of
the SSID, only devices that have the correct SSID can connect. This nullifies the wireless
network ‘discovery’ feature of some products such as Windows XP, but the data is still fully
exposed to a determined snoop using specialized test equipment like wireless sniffers.
•WEP. Wired Equivalent Privacy (WEP) data encryption provides data security. WEP Shared
Key authentication and WEP data encryption will block all but the most determined
eavesdropper.
Note: Indoors, computers can connect over 802.11b/g wireless networks at ranges of up
to 300 feet. Such distances can allow for others outside of your immediate area to access
your network.
:LUHOHVV'DWD
6HFXULW\2SWLRQV
5DQJHXSWRIRRWUDGLXV
2SHQV\VWHPHDV\EXWQRVHFXULW\
0$&DFFHVVOLVWQRGDWDVHFXULW\
:(3VHFXULW\EXWVRPHSHUIRUPDQFHLPSDFW
:3$36.YHU\VWURQJVHFXULW\
.%4'%!2
![](/img.php?id=598751&img=bg1d.png)
NETGEAR Wireless Router Setup Manual
Optimizing Wireless Connectivity and Security 4-3
February 2005
•WPA-PSK. Wi-Fi Protected Access (WPA) data encryption provides strong data security.
WPA-PSK will block eavesdropping. Because this is a new standard, wireless device driver
and software availability may be limited.
•Turn Off the Wired LAN. If you disable the wireless LAN, wireless devices cannot
communicate with the router at all. You might choose to turn off the wireless the LAN when
you are away and the others in the household all use wired connections.
Understanding Wireless Settings
To configure the Wireless settings of your firewall, click the Wireless link in the main menu of the
browser interface.
•Name (SSID). The SSID is also known as the wireless network name. Enter a value of up to
32 alphanumeric characters. In a setting where there is more than one wireless network,
different wireless network names provide a means for separating the traffic. Any device you
want to participate in a particular wireless network will need to use this SSID for that network.
•Channel. This field determines which operating frequency will be used. It should not be
necessary to change the wireless channel unless you notice interference problems with another
nearby access point.
•Mode. This field determines which data communications protocol will be used.
•Security Options. These options are the wireless security features you can enable. The table
below identifies the various basic wireless security options.
•Allow Broadcast of Name (SSID). If you disable broadcast of the SSID, only devices that
have the correct SSID can connect. Disabling SSID broadcast nullifies the wireless network
‘discovery’ feature of some products such as Windows XP.
•Enable Wireless Access Point. If you disable the wireless access point, wireless devices
cannot connect to the wireless router.
•Wireless Card Access List. When the Trusted PCs Only radio button is selected, the wireless
router checks the MAC address of the wireless station and only allows connections to
computers identified on the trusted computers list.
![](/img.php?id=598751&img=bg1e.png)
NETGEAR Wireless Router Setup Manual
4-4 Optimizing Wireless Connectivity and Security
February 2005
Table 4-1. Basic Wireless Security Options
Field Description
Automatic No wireless security.
WEP WEP offers the following options:
• Open System
With Open Network Authentication and 64- or 128-bit WEP Data Encryption, the wireless
router does perform 64- or 128-bit data encryption but does not perform any authentication.
• Shared Key
Shared Key authentication encrypts the SSID and data.
Choose the Encryption Strength (64- or 128-bit data encryption). Manually enter the key
values or enter a word or group of printable characters in the Passphrase box. Manually
entered keys are case sensitive but passphrase characters are not case sensitive.
Note: Not all wireless adapter configuration utilities support passphrase key generation.
•Auto
WPA-PSK WPA-Pre-shared Key does perform authentication, uses 128-bit data encryption and
dynamically changes the encryption keys making it nearly impossible to circumvent.
Enter a word or group of printable characters in the Password Phrase box. These characters
are case sensitive.
Note: Not all wireless adapter configuration utilities support WPA. Furthermore, client software
is required on the client. Windows XP and Windows 2000 with Service Pack 3 do include the
client software that supports WPA. Nevertheless, the wireless adapter hardware and driver
must also support WPA.
![](/img.php?id=598751&img=bg1f.png)
NETGEAR Wireless Router Setup Manual
Optimizing Wireless Connectivity and Security 4-5
February 2005
Information to Gather Before Changing Basic Wireless Settings
Before customizing your wireless settings, print this form and record the following information.
•Wireless Network Name (SSID): ______________________________
The SSID, identifies the wireless network. You can use up to 32 alphanumeric characters. The
SSID is case sensitive. The SSID in the wireless adapter card must match the SSID of the
wireless router. In some configuration utilities (such as in Windows XP), the term “wireless
network name” is used instead of SSID.
•If WEP Authentication is Used. Circle one: Open System, Shared Key, or Auto.
Note: If you select Shared Key, the other devices in the network will not connect unless they
are set to Shared Key as well and are configured with the correct key.
–WEP Encryption key size. Choose one: 64-bit or 128-bit. Again, the encryption key size
must be the same for the wireless adapters and the wireless router.
–Data Encryption (WEP) Keys. There are two methods for creating WEP data encryption
keys. Whichever method you use, record the key values in the spaces below.
•Passphrase method. ______________________________ These characters are case
sensitive. Enter a word or group of printable characters and click the Generate Keys
button. Not all wireless devices support the passphrase method.
•Manual method. These values are not case sensitive. For 64-bit WEP, enter 10 hex
digits (any combination of 0-9 or a-f). For 128-bit WEP, enter 26 hex digits.
Key 1: ___________________________________
Key 2: ___________________________________
Key 3: ___________________________________
Key 4: ___________________________________
•If WPA-PSK Authentication is Used.
–Passphrase: ______________________________ These characters are case sensitive.
Enter a word or group of printable characters. When you use WPA-PSK, the other devices
in the network will not connect unless they are set to WPA-PSK as well and are configured
with the correct Passphrase.
Use the procedures described in the reference manual to configure the wireless router. The
reference manual is available on line at http://kbserver.netgear.com.
![](/img.php?id=598751&img=bg20.png)
NETGEAR Wireless Router Setup Manual
4-6 Optimizing Wireless Connectivity and Security
February 2005
Default Factory Settings
When you first receive your wireless router, the default factory settings are shown below. You can
restore these defaults with the Factory Default Restore button on the rear panel. After you install
the wireless router, use the procedures below to customize any of the settings to better meet your
networking needs.
Warning: The Network Name (SSID) is case sensitive. Typing nETgear for SSID will not work.
WIRELESS FEATURE DEFAULT SETTING
Wireless Access Point Disabled
Wireless Access List (MAC Filtering) All wireless stations allowed
SSID broadcast Enabled
Wireless Network Name (SSID) NETGEAR
Security Not Enabled
![](/img.php?id=598751&img=bg21.png)
Doing Basic Router Housekeeping 5-1
February 2005
Chapter 5
Doing Basic Router Housekeeping
This chapter describes how to use some of the maintenance features of your Wireless Router.
These features can be found by clicking on the Maintenance heading in the Main Menu of the
browser interface. Other maintenance features not presented in this chapter can be found accessed
via links in the browser interface of the wireless router to the User Guide and in the help screens.
Changing the Administrator Password
The default password for the wireless router’s Web Configuration Manager is password. Change
this password to a more secure password.
From the Main Menu of the browser interface, under the Maintenance heading, select Set
Password to bring up the menu shown below.
Figure 5-1: Set Password menu
Note: Before changing the wireless router password, follow the instructions under
“Configuration File Management” on page 5-2 to save your configuration settings. If you
forget the new password, you will have to reset the wireless router back to the factory
defaults to be able to log in using the default password of password. This means you will
have to restore all the wireless router configuration settings. If you ever have to reset the
wireless router back to the factory defaults, you can restore your settings from the
backup configuration file.
![](/img.php?id=598751&img=bg22.png)
NETGEAR Wireless Router Setup Manual
5-2 Doing Basic Router Housekeeping
February 2005
To change the password, first enter the old password, then enter the new password twice. Click
Apply.
Configuration File Management
The configuration settings of the wireless router are stored within the wireless router in a
configuration file. This file can be saved (backed up) to a user’s PC, retrieved (restored) from the
user’s PC, or cleared to factory default settings.
From the Main Menu of the browser interface, under the Maintenance heading, select the Settings
Backup heading to bring up the menu shown below.

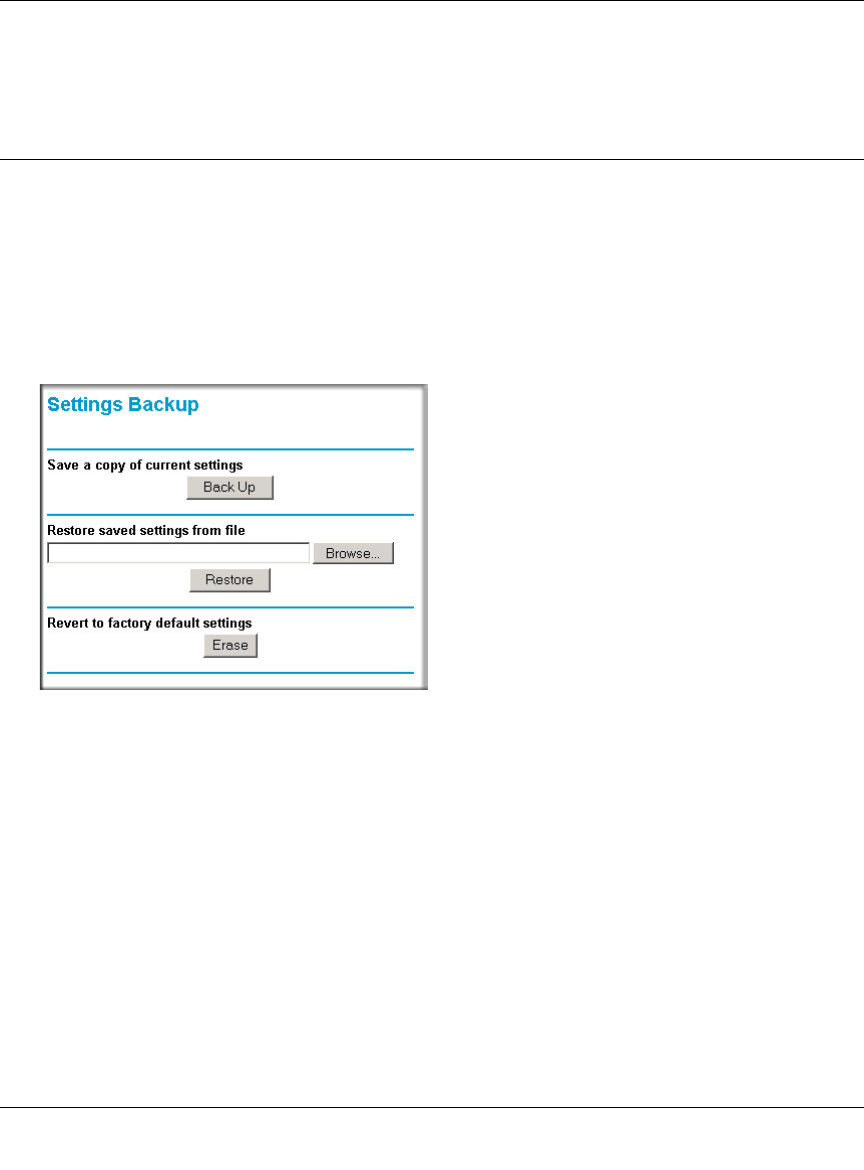

Figure 5-2: Settings Backup menu
Three options are available, and are described in the following sections.
Restoring and Backing Up the Configuration
The Restore and Backup options in the Settings Backup menu allow you to save and retrieve a file
containing your wireless router’s configuration settings.
To save your settings, click the Backup button. Your browser will extract the configuration file
from the wireless router and will prompt you for a location on your PC to store the file. You can
give the file a meaningful name at this time, such as pacbell.cfg.
![](/img.php?id=598751&img=bg23.png)
NETGEAR Wireless Router Setup Manual
Doing Basic Router Housekeeping 5-3
February 2005
To restore your settings from a saved configuration file, enter the full path to the file on your PC or
click the Browse button to browse to the file. When you have located it, click the Restore button to
send the file to the wireless router. The wireless router will then reboot automatically.
Warning: Do not interrupt the reboot process.
Erasing the Configuration
It is sometimes desirable to restore the wireless router to original default settings. This can be done
by using the Erase function, which will restore all factory settings. After an erase, the wireless
router's password will be password, the LAN IP address will be 192.168.1.1, and the wireless
router's DHCP client will be enabled.
To erase the configuration, click the Erase button.
To restore the factory default configuration settings without knowing the login password or IP
address, you must use the Default Reset button on the rear panel of the wireless router. See
“Restoring the Default Configuration and Password” on page 6-7.
Upgrading the Wireless Router Software
The routing software of the wireless router is stored in FLASH memory, and can be upgraded as
new software is released by NETGEAR. Upgrade files can be downloaded from the NETGEAR
Web site. If the upgrade file is compressed (.ZIP file), you must first extract the file before sending
it to the wireless router. The upgrade file can be sent to the wireless router using your browser.
Note: Erasing the configuration will restore the factory default settings. When the router
is in the factory default state, the Smart Wizard installation assistant will automatically
connect to your browser. You can either go through the installation wizard again, or you
can bypass the wizard by following the instructions at “How to Bypass the Configuration
Assistant” on page 3-11.
Note: Before upgrading the wireless router software, use the wireless router backup
utility to save your configuration settings. Any wireless router upgrade will revert the
wireless router settings back to the factory defaults. After completing the upgrade, you
can restore your settings from the backup.
![](/img.php?id=598751&img=bg24.png)
NETGEAR Wireless Router Setup Manual
5-4 Doing Basic Router Housekeeping
February 2005
Note: The Web browser used to upload new firmware into the wireless router must support HTTP
uploads. NETGEAR recommends using Microsoft Internet Explorer or Netscape Navigator 3.0 or
above.
From the Main Menu of the browser interface, under the Maintenance heading, select the Router
Upgrade link display the menu shown below.
Figure 5-3: Router Upgrade menu
To upload new firmware:
1. Download and unzip the new software file from NETGEAR.
2. In the Router Upgrade menu, click the Browse button and browse to the location of the
upgrade file
3. Click Upload.
Note: When uploading software to the wireless router, it is important not to interrupt the Web
browser by closing the window, clicking a link, or loading a new page. If the browser is
interrupted, it may corrupt the software. When the upload is complete, your wireless router
will automatically restart. The upgrade process will typically take about one minute.
In some cases, you may need to reconfigure the wireless router after upgrading.
![](/img.php?id=598751&img=bg25.png)
Troubleshooting Common Problems 6-1
February 2005
Chapter 6
Troubleshooting Common Problems
This chapter gives information about troubleshooting your Wireless Router. After each problem
description, instructions are provided to help you diagnose and solve the problem.
Basic Functioning
After you turn on power to the router, the following sequence of events should occur:
1. When power is first applied, verify that the Power light is on.
2. After approximately 10 seconds, verify that:
a. The power light is solid green.
b. The LAN port lights are lit for any local ports that are connected.
c. The Internet port light is lit.
If a port’s light is lit, a link has been established to the connected device. If a LAN port is
connected to a 100 Mbps device, verify that the port’s light is green. If the port is 10 Mbps, the
light will be amber.
If any of these conditions does not occur, refer to the appropriate following section.
Power Light Not On
If the Power and other lights are off when your router is turned on:
• Make sure that the power cord is properly connected to your router and that the power supply
adapter is properly connected to a functioning power outlet.
• Check that you are using the power adapter supplied by NETGEAR for this product.
If the error persists, you have a hardware problem and should contact technical support.
![](/img.php?id=598751&img=bg26.png)
NETGEAR Wireless Router Setup Manual
6-2 Troubleshooting Common Problems
February 2005
Lights Never Turn Off
When the router is turned on, the lights turns on for about 10 seconds and then turn off. If all the
lights stay on, there is a fault within the router.
If all lights are still on one minute after power up:
• Cycle the power to see if the router recovers.
• Clear the router’s configuration to factory defaults. This procedure is explained in “Restoring
the Default Configuration and Password” on page 6-7.
If the error persists, you might have a hardware problem and should contact technical support.
LAN or Internet (WAN) Port Lights Not On
If either the LAN lights or Internet light do not light when the Ethernet connection is made, check
the following:
• Make sure that the Ethernet cable connections are secure at the router and at the hub or
workstation.
• Make sure that power is turned on to the connected hub or workstation.
• Be sure you are using the correct cable:
— When connecting the router’s Internet port to a cable or DSL modem, use the cable that
was supplied with the cable or DSL modem. This cable could be a standard
straight-through Ethernet cable or an Ethernet crossover cable.
Troubleshooting the Web Configuration Interface
If you are unable to access the router’s Web Configuration interface from a computer on your local
network, check the following:
• Check the Ethernet connection between the computer and the router as described in the
previous section.
• Make sure both your computer’s IP address and DNS server address is acquired automatically
via DHCP. Refer to the tutorials on the CD for assistance with configuring your computer for
DHCLP.
![](/img.php?id=598751&img=bg27.png)
NETGEAR Wireless Router Setup Manual
Troubleshooting Common Problems 6-3
February 2005
Note: If your computer’s IP address is shown as 169.254.x.x, the computer is not configured
correctly for your network. Recent versions of Windows and MacOS will generate and assign
a 169.254.x.x IP address if the computer cannot reach a DHCP server. These auto-generated
addresses are in the range of 169.254.x.x. If your IP address is in this range, check the
connection from the computer to the router and reboot your computer.
• Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet
Explorer, click Refresh to be sure the Java applet is loaded.
• Try quitting the browser and launching it again.
• Make sure you are using the correct login information. The URL for the router is
http://www.routerlogin.net or http://www.routerlogin.com. The factory default login name is
admin and the password is password, both in lower case letters. Make sure that CAPS LOCK
is off when entering this information.
If the router does not save changes you have made in the Web Configuration Interface, check the
following:
• When entering configuration settings, be sure to click the APPLY button before moving to
another menu or tab, or your changes are lost.
• Click the Refresh or Reload button in the Web browser. The changes may have occurred, but
the Web browser may be caching the old configuration.
Troubleshooting the ISP Connection
If your router is unable to access the Internet, you should first determine whether the router is able
to obtain a WAN IP address from the ISP. Unless you have been assigned a static IP address, your
router must request an IP address from the ISP. You can determine whether the request was
successful using the Web Configuration Manager.
To check the WAN IP address:
1. Launch your browser and select an external site such as www.netgear.com
2. Access the Main Menu of the router’s configuration at http://www.routerlogin.net. When
prompted, enter admin for the user name and password for the password, both in lower case
letters.
3. Under the Maintenance heading, select Router Status
4. Check that an IP address is shown for the WAN Port
If 0.0.0.0 is shown, your router has not obtained an IP address from your ISP.
![](/img.php?id=598751&img=bg28.png)
NETGEAR Wireless Router Setup Manual
6-4 Troubleshooting Common Problems
February 2005
If your router is unable to obtain an IP address from the ISP, you may need to force your cable or
DSL modem to recognize your new router by performing the following procedure:
1. Turn off power to the cable or DSL modem.
2. Turn off power to your router.
3. Wait five minutes and reapply power to the cable or DSL modem.
4. When the modem’s lights indicate that it has reacquired sync with the ISP, reapply power to
your router.
5. Then restart your computer.
If your router is still unable to obtain an IP address from the ISP, the problem may be one of the
following:
• Your ISP may require a login program.
Ask your ISP whether they require PPP over Ethernet (PPPoE) or some other type of login.
• If your ISP requires a login, you may have incorrectly set the login name and password in the
router.
• Your ISP may check for your computer's host name.
Assign the computer Host Name of your ISP account as the Account Name in the Basic
Settings menu.
• Your ISP only allows one Ethernet MAC address to connect to Internet, and may check for
your computer’s MAC address. In this case:
Inform your ISP that you have bought a new network device, and ask them to use the router’s
MAC address.
OR
Configure your router to spoof your computer’s MAC address. This can be done in the Basic
Settings menu.
If your router can obtain an IP address, but your computer is unable to load any Web pages from
the Internet:
• Your computer may not recognize any DNS server addresses.
A DNS server is a host on the Internet that translates Internet names (such as www addresses)
to numeric IP addresses. Typically your ISP will provide the addresses of one or two DNS
servers for your use. If you entered a DNS address during the router’s configuration, reboot
your computer and verify the DNS address as described in “Install or Verify Windows
Networking Components” on page B-9. Alternatively, you may configure your computer
manually with DNS addresses, as explained in your operating system documentation.
![](/img.php?id=598751&img=bg29.png)
NETGEAR Wireless Router Setup Manual
Troubleshooting Common Problems 6-5
February 2005
• Your computer may not have the router configured as its TCP/IP gateway.
If your computer obtains its information from the router by DHCP, reboot the computer and
verify the gateway address as described in “Install or Verify Windows Networking
Components” on page B-9.
Troubleshooting a TCP/IP Network Using a Ping Utility
Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request packet
to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP
network is made very easy by using the ping utility in your computer or workstation.
Testing the LAN Path to Your Router
You can ping the router from your computer to verify that the LAN path to your router is set up
correctly.
To ping the router from a running Windows 95 or later:
1. From the Windows toolbar, click on the Start button and select Run.
2. In the field provided, type Ping followed by the IP address of the router, as in this example:
ping www.routerlogin.net
3. Click on OK.
You should see a message like this one:
Pinging <IP address> with 32 bytes of data
If the path is working, you see this message:
Reply from < IP address >: bytes=32 time=NN ms TTL=xxx
If the path is not working, you see this message:
Request timed out
If the path is not functioning correctly, you could have one of the following problems:
• Wrong physical connections
— Make sure the LAN port LED is on. If the LED is off, follow the instructions in “LAN
or Internet (WAN) Port Lights Not On” on page 6-2.
![](/img.php?id=598751&img=bg2a.png)
NETGEAR Wireless Router Setup Manual
6-6 Troubleshooting Common Problems
February 2005
— Check that the corresponding Link LEDs are on for your network interface card and
for the hub ports (if any) that are connected to your workstation and router.
• Wrong network configuration
— Verify that the Ethernet card driver software and TCP/IP software are both installed
and configured on your computer or workstation.
— Verify that the IP address for your router and your workstation are correct and that the
addresses are on the same subnet.
Testing the Path from Your Computer to a Remote Device
After verifying that the LAN path works correctly, test the path from your computer to a remote
device. From the Windows run menu, type:
PING -n 10 <IP address>
where <IP address> is the IP address of a remote device such as your ISP’s DNS server.
If the path is functioning correctly, replies as in the previous section are displayed. If you do not
receive replies:
— Check that your computer has the IP address of your router listed as the default gateway. If
the IP configuration of your computer is assigned by DHCP, this information will not be
visible in your computer’s Network Control Panel. Verify that the IP address of the router
is listed as the default gateway as described in “Install or Verify Windows Networking
Components” on page B-9.
— Check to see that the network address of your computer (the portion of the IP address
specified by the netmask) is different from the network address of the remote device.
— Check that your cable or DSL modem is connected and functioning.
— If your ISP assigned a host name to your computer, enter that host name as the Account
Name in the Basic Settings menu.
— Your ISP could be rejecting the Ethernet MAC addresses of all but one of your computers.
Many broadband ISPs restrict access by only allowing traffic from the MAC address of
your broadband modem, but some ISPs additionally restrict access to the MAC address of
a single computer connected to that modem. If this is the case, you must log in to the
router and use the Basic Settings menu to configure your router to “clone” or “spoof” the
MAC address from the authorized computer.
![](/img.php?id=598751&img=bg2b.png)
NETGEAR Wireless Router Setup Manual
Troubleshooting Common Problems 6-7
February 2005
Restoring the Default Configuration and Password
This section explains how to restore the factory default configuration settings, changing the
router’s administration password to password. You can erase the current configuration and restore
factory defaults in two ways:
• Use the Erase function of the router (see “Erasing the Configuration” on page 5-3).
• Use the Default Reset button on the rear panel of the router. Use this method for cases when
the administration password or IP address is not known.
To restore the factory default configuration settings without knowing the administration password
or IP address, you must use the Default Reset button on the rear panel of the router.
1. Press and hold the Default Reset button until the power light blinks on (about 10 seconds).
2. Release the Default Reset button and wait for the router to reboot.
If the wireless router fails to restart or the power light continues to blink or turns solid amber,
the unit may be defective. If the error persists, you might have a hardware problem and should
contact technical support.
Note: Erasing the configuration will restore the factory default settings. When the router
is in the factory default state, the Smart Wizard installation assistant will automatically
connect to your browser. You can either go through the installation wizard again, or you
can bypass the wizard by following the instructions at “How to Bypass the Configuration
Assistant” on page 3-11.
![](/img.php?id=598751&img=bg2c.png)
NETGEAR Wireless Router Setup Manual
6-8 Troubleshooting Common Problems
February 2005
![](/img.php?id=598751&img=bg2d.png)
Technical Specifications A-1
February 2005
Appendix A
Technical Specifications
This appendix provides technical specifications for the Wireless Router.
Network Protocol and Standards Compatibility
Data and Routing Protocols: TCP/IP, RIP-1, RIP-2, DHCP PPP over Ethernet (PPPoE)
Power Adapter
North America: 120V, 60 Hz, input
United Kingdom, Australia: 240V, 50 Hz, input
Europe: 230V, 50 Hz, input
Japan: 100V, 50/60 Hz, input
All regions (output): 12 V DC @ 1A output
Environmental Specifications
Operating temperature: 0° to 40° C (32º to 104º F)
Operating humidity: 90% maximum relative humidity, noncondensing
Electromagnetic Emissions
Meets requirements of: FCC Part 15 Class B
Interface Specifications
LAN: 10BASE-T or 100BASE-Tx, RJ-45
WAN: 10BASE-T or 100BASE-Tx, RJ-45
Wireless
Frequency 2.4-2.5Ghz
Data Encoding: 802.11b: Direct Sequence Spread Spectrum (DSSS)
802.11g: Orthogonal Frequency Division Multiplexing (OFDM)
802.11 Security: 40-bits (also called 64-bits) and 128-bits WEP and WPA
![](/img.php?id=598751&img=bg2e.png)
NETGEAR Wireless Router Setup Manual
A-2 Technical Specifications
February 2005
![](/img.php?id=598751&img=bg2f.png)
Preparing Your Network B-1
February 2005
Appendix B
Preparing Your Network
This appendix describes how to prepare your network to connect to the Internet through the
Wireless Router and how to verify the readiness of broadband Internet service from an Internet
service provider (ISP).
What You Need To Use a Router with a Broadband Modem
You need to prepare these three things before you begin:
Cabling and Computer Hardware
To use the wireless router on your network, each computer must have an 802.11g or 802.11b
wireless adapter or an installed Ethernet Network Interface Card (NIC) and an Ethernet cable. If
the computer will connect to your network using an Ethernet NIC at 100 Mbps, you must use a
Category 5 (Cat 5) cable such as the one provided with your router. For an explanation of Ethernet
cabling, see “Ethernet Cabling“ on page B-11. The cable or DSL broadband modem must provide
a standard 10 Mbps (10BASE-T) or 100 Mbps (100BASE-Tx) Ethernet interface.
Computer Network Configuration Requirements
The wireless router includes a built-in Web Configuration Manager. To access the configuration
menus on the wireless router, your must use a Java-enabled Web browser program which supports
HTTP uploads such as Microsoft Internet Explorer or Netscape Navigator. Use Internet Explorer
or Netscape Navigator 4.0 or above.
Note: If an ISP technician configured your computer during the installation of a
broadband modem, or if you configured it using instructions provided by your ISP, you
may need to copy the current configuration information for use in the configuration of
your firewall. Write down this information before reconfiguring your computers. Refer
to “Obtaining ISP Configuration Information for Windows Computers” on page B-21 or
“Obtaining ISP Configuration Information for Macintosh Computers” on page B-22 for
further information.
![](/img.php?id=598751&img=bg30.png)
NETGEAR Wireless Router Setup Manual
B-2 Preparing Your Network
February 2005
For the initial setup of your router, you will need to connect a computer to the router. This
computer has to be set to automatically get its TCP/IP configuration from the router via DHCP.
Note: For help with DHCP configuration, please use the Windows TCP/IP Configuration
Tutorials on the NETGEAR Wireless Router Setup CD, or in this appendix.
Internet Configuration Requirements
Depending on how your Internet service set up your account, you may need one or more of these
configuration parameters to connect your router to the Internet:
• Host and Domain Names
• ISP Login Name and Password
• ISP Domain Name Server (DNS) Addresses
• Fixed IP Address which is also known as Static IP Address
Where Do I Get the Internet Configuration Parameters?
There are several ways you can gather the required Internet connection information.
• Your Internet service provides all the information needed to connect to the Internet. If you
cannot locate this information, you can ask your Internet service to provide it or you can try
one of the options below.
• If you have a computer already connected using the Internet, you can gather the configuration
information from that computer.
— For Windows 95/98/ME, open the Network control panel, select the TCP/IP entry for the
Ethernet adapter, and click Properties. Record all the settings for each tab page.
— For Windows 2000/XP, open the Local Area Network Connection, select the TCP/IP entry
for the Ethernet adapter, and click Properties. Record all the settings for each tab page.
— For Macintosh computers, record the settings in the TCP/IP or Network control panel.
• You may also refer to the NETGEAR Wireless Router Setup CD for the NETGEAR Router ISP
Guide which provides Internet connection information for many ISPs.
Once you locate your Internet configuration parameters, you may want to record them on the page
below.
![](/img.php?id=598751&img=bg31.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-3
February 2005
Record Your Internet Connection Information
Print this page. Fill in the configuration parameters from your Internet Service Provider (ISP).
ISP Login Name: The login name and password are case sensitive and must be entered exactly as
given by your ISP. Some ISPs use your full e-mail address as the login name. The Service Name is
not required by all ISPs. If you connect using a login name and password, enter the following:
Login Name: ______________________________
Password: ____________________________
Service Name: _____________________________
Fixed or Static IP Address: If you have a static IP address, record the following information. For
example, 169.254.141.148 could be a valid IP address.
Fixed or Static Internet IP Address: ______ ______ ______ ______
Gateway IP Address: ______ ______ ______ ______
Subnet Mask: ______ ______ ______ ______
ISP DNS Server Addresses: If you were given DNS server addresses, fill in the following:
Primary DNS Server IP Address: ______ ______ ______ ______
Secondary DNS Server IP Address: ______ ______ ______ ______
Host and Domain Names: Some ISPs use a specific host or domain name like CCA7324-A or
home. If you haven’t been given host or domain names, you can use the following examples as a
guide:
• If your main e-mail account with your ISP is aaa@yyy.com, then use aaa as your host name.
Your ISP might call this your account, user, host, computer, or system name.
• If your ISP’s mail server is mail.xxx.yyy.com, then use xxx.yyy.com as the domain name.
ISP Host Name: _________________________ ISP Domain Name: _______________________
For Wireless Access: See the configuration worksheet at “Information to Gather Before Changing
Basic Wireless Settings“ on page 4-5.
Preparing Your Computers for TCP/IP Networking
Computers access the Internet using a protocol called TCP/IP (Transmission Control Protocol/
Internet Protocol). Each computer on your network must have TCP/IP installed and selected as its
networking protocol. If a Network Interface Card (NIC) is already installed in your computer, then
TCP/IP is probably already installed as well.
![](/img.php?id=598751&img=bg32.png)
NETGEAR Wireless Router Setup Manual
B-4 Preparing Your Network
February 2005
Most operating systems include the software components you need for networking with TCP/IP:
•Windows
® 95 or later includes the software components for establishing a TCP/IP network.
• Windows 3.1 does not include a TCP/IP component. You need to purchase a third-party TCP/
IP application package such as NetManage Chameleon.
• Macintosh Operating System 7 or later includes the software components for establishing a
TCP/IP network.
• All versions of UNIX or Linux include TCP/IP components. Follow the instructions provided
with your operating system or networking software to install TCP/IP on your computer.
In your IP network, each computer and the firewall must be assigned a unique IP addresses. Each
computer must also have certain other IP configuration information such as a subnet mask
(netmask), a domain name server (DNS) address, and a default gateway address. In most cases,
you should install TCP/IP so that the computer obtains its specific network configuration
information automatically from a DHCP server during bootup. For a detailed explanation of the
meaning and purpose of these configuration items, refer to “Appendix B, “Network, Routing, and
Firewall Basics.”
The wireless router is shipped preconfigured as a DHCP server. The firewall assigns the following
TCP/IP configuration information automatically when the PCs are rebooted:
• PC or workstation IP addresses—192.168.1.2 through 192.168.1.254
• Subnet mask—255.255.255.0
• Gateway address (the firewall)—192.168.1.1
These addresses are part of the IETF-designated private address range for use in private networks.
Configuring Windows 95, 98, and Me for TCP/IP Networking
As part of the PC preparation process, you need to manually install and configure TCP/IP on each
networked PC. Before starting, locate your Windows CD; you may need to insert it during the
TCP/IP installation process.
Install or Verify Windows Networking Components
To install or verify the necessary components for IP networking:
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
![](/img.php?id=598751&img=bg33.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-5
February 2005
2. Double-click the Network icon.
The Network window opens, which displays a list of installed components:
You must have an Ethernet adapter, the TCP/IP protocol, and Client for Microsoft Networks.
If you need to install a new adapter, follow these steps:
a. Click the Add button.
b. Select Adapter, and then click Add.
c. Select the manufacturer and model of your Ethernet adapter, and then click OK.
If you need TCP/IP:
a. Click the Add button.
b. Select Protocol, and then click Add.
Note: It is not necessary to remove any other network components shown in the
Network window in order to install the adapter, TCP/IP, or Client for Microsoft
Networks.
![](/img.php?id=598751&img=bg34.png)
NETGEAR Wireless Router Setup Manual
B-6 Preparing Your Network
February 2005
c. Select Microsoft.
d. Select TCP/IP, and then click OK.
If you need Client for Microsoft Networks:
a. Click the Add button.
b. Select Client, and then click Add.
c. Select Microsoft.
d. Select Client for Microsoft Networks, and then click OK.
3. Restart your PC for the changes to take effect.
Enabling DHCP to Automatically Configure TCP/IP Settings in
Windows 95B, 98, and Me
After the TCP/IP protocol components are installed, each PC must be assigned specific
information about itself and resources that are available on its network. The simplest way to
configure this information is to allow the PC to obtain the information from a DHCP server in the
network.
You will find there are many similarities in the procedures for different Windows systems
when using DHCP to configure TCP/IP.
The following steps will walk you through the configuration process for each of these
versions of Windows.
![](/img.php?id=598751&img=bg35.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-7
February 2005

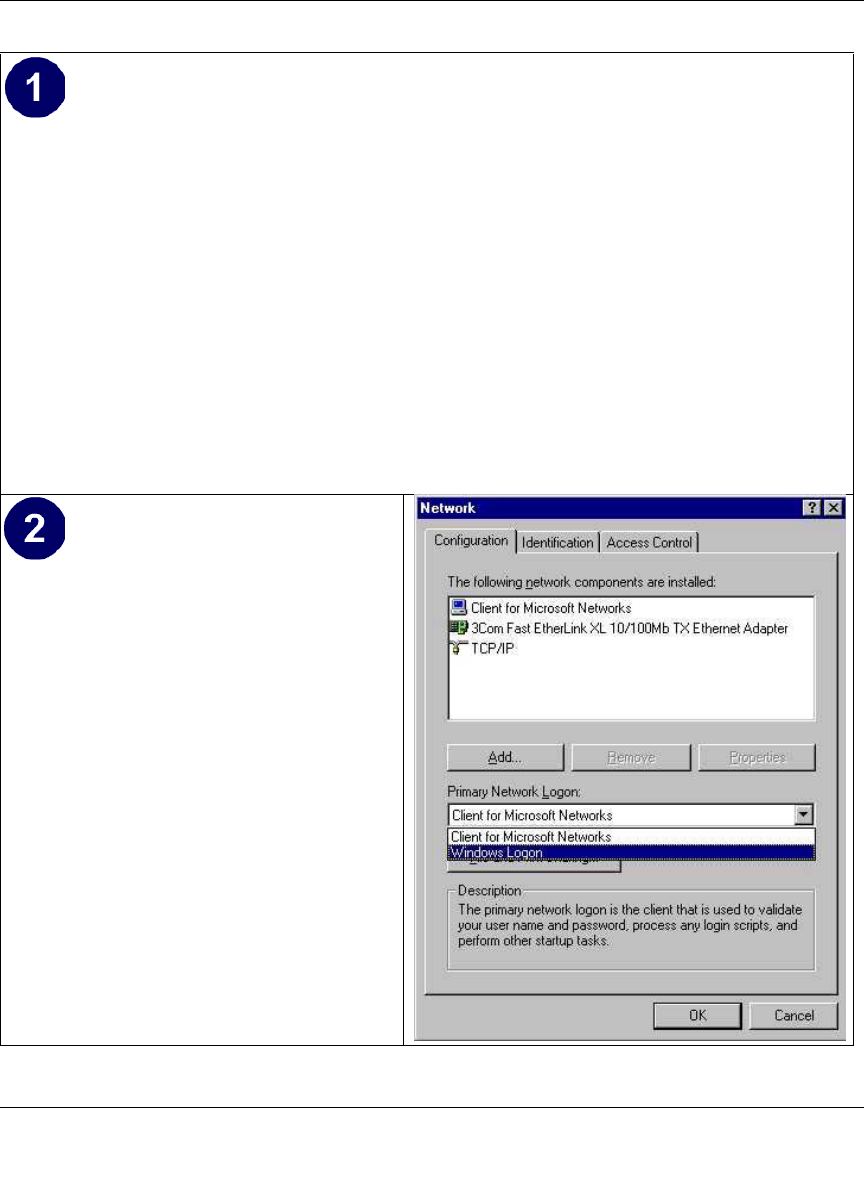

Locate your Network Neighborhood icon.
• If the Network Neighborhood icon is on the Windows desktop, position your mouse
pointer over it and right-click your mouse button.
• If the icon is not on the desktop,
• Click Start on the task bar located at the bottom left of the window.
• Choose Settings, and then Control Panel.
• Locate the Network Neighborhood icon and click on it. This will open the Network
panel as shown below.
Verify the following settings as shown:
• Client for Microsoft Network exists
• Ethernet adapter is present
• TCP/IP is present
•Primary Network Logon is set to
Windows logon
Click on the Properties button. The
following TCP/IP Properties window will
display.
![](/img.php?id=598751&img=bg36.png)
NETGEAR Wireless Router Setup Manual
B-8 Preparing Your Network
February 2005
Selecting Windows’ Internet Access Method
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Internet Options icon.
3. Select “I want to set up my Internet connection manually” or “I want to connect through a
Local Area Network” and click Next.
4. Select “I want to connect through a Local Area Network” and click Next.
5. Uncheck all boxes in the LAN Internet Configuration screen and click Next.
6. Proceed to the end of the Wizard.
Verifying TCP/IP Properties
After your PC is configured and has rebooted, you can check the TCP/IP configuration using the
utility winipcfg.exe:
1. On the Windows taskbar, click the Start button, and then click Run.
• By default, the IP Address tab is open on
this window.
• Verify the following:
Obtain an IP address automatically is
selected. If not selected, click in the radio
button to the left of it to select it. This
setting is required to enable the DHCP server
to automatically assign an IP address.
• Click OK to continue.
Restart the PC.
Repeat these steps for each PC with this
version of Windows on your network.
![](/img.php?id=598751&img=bg37.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-9
February 2005
2. Type winipcfg, and then click OK.
The IP Configuration window opens, which lists (among other things), your IP address, subnet
mask, and default gateway.
3. From the drop-down box, select your Ethernet adapter.
The window is updated to show your settings, which should match the values below if you are
using the default TCP/IP settings that NETGEAR recommends for connecting through a
router or gateway:
• The IP address is between 192.168.1.2 and 192.168.1.254
• The subnet mask is 255.255.255.0
• The default gateway is 192.168.1.1
Configuring Windows NT4, 2000 or XP for IP Networking
As part of the PC preparation process, you may need to install and configure
TCP/IP on each networked PC. Before starting, locate your Windows CD; you may need to insert
it during the TCP/IP installation process.
Install or Verify Windows Networking Components
To install or verify the necessary components for IP networking:
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Network and Dialup Connections icon.
3. If an Ethernet adapter is present in your PC, you should see an entry for Local Area
Connection. Double-click that entry.
4. Select Properties.
5. Verify that ‘Client for Microsoft Networks’ and ‘Internet Protocol (TCP/IP)’ are present. If
not, select Install and add them.
6. Select ‘Internet Protocol (TCP/IP)’, click Properties, and verify that “Obtain an IP address
automatically is selected.
7. Click OK and close all Network and Dialup Connections windows.
8. Then, restart your PC.
![](/img.php?id=598751&img=bg38.png)
NETGEAR Wireless Router Setup Manual
B-10 Preparing Your Network
February 2005
DHCP Configuration of TCP/IP in Windows XP, 2000, or NT4
You will find there are many similarities in the procedures for different Windows systems when
using DHCP to configure TCP/IP.
The following steps will walk you through the configuration process for each of these versions of
Windows.

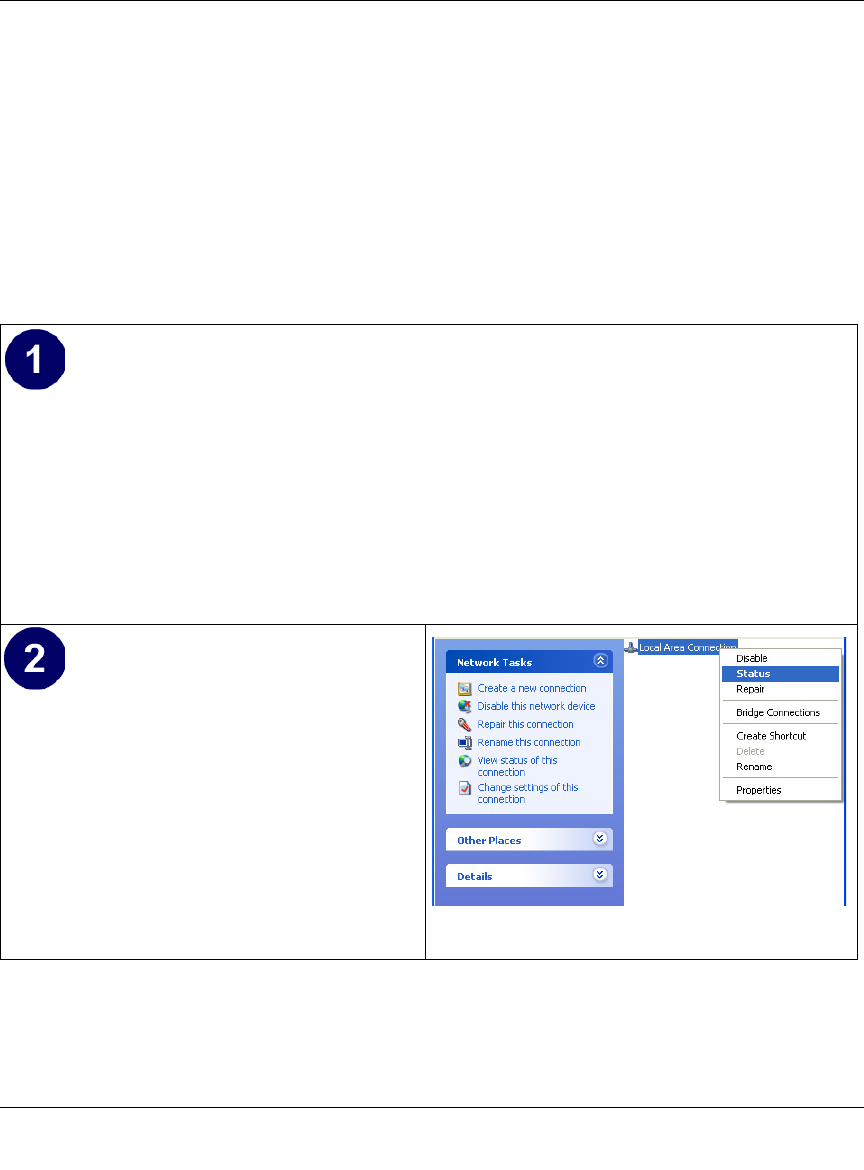

DHCP Configuration of TCP/IP in Windows XP
Locate your Network Neighborhood icon.
• Select Control Panel from the Windows XP new Start Menu.
• Select the Network Connections icon on the Control Panel. This will take you to the next
step.
• Now the Network Connection window
displays.
The Connections List that shows all the
network connections set up on the PC,
located to the right of the window.
• Right-click on the Connection you will
use and choose Status.
![](/img.php?id=598751&img=bg39.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-11
February 2005
• Now you should be at the Local Area
Network Connection Status window. This
box displays the connection status, duration,
speed, and activity statistics.
• Administrator logon access rights are needed
to use this window.
• Click the Properties button to view details
about the connection.
• The TCP/IP details are presented on the
Support tab page.
• Select Internet Protocol, and click
Properties to view the configuration
information.
![](/img.php?id=598751&img=bg3a.png)
NETGEAR Wireless Router Setup Manual
B-12 Preparing Your Network
February 2005
DHCP Configuration of TCP/IP in Windows 2000
Once again, after you have installed the network card, TCP/IP for Windows 2000 is configured.
TCP/IP should be added by default and set to DHCP without your having to configure it.
However, if there are problems, follow these steps to configure TCP/IP with DHCP for Windows
2000.
• Verify that the Obtain an IP address
automatically radio button is selected.
• Verify that Obtain DNS server address
automatically radio button is selected.
• Click the OK button.
This completes the DHCP configuration of TCP/
IP in Windows XP.
Repeat these steps for each PC with this version
of Windows on your network.
![](/img.php?id=598751&img=bg3b.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-13
February 2005
• Click on the My Network Places icon on the Windows desktop. This will bring up a window
called Network and Dial-up Connections.
• Right click on Local Area Connection and select Properties.
•The Local Area Connection Properties
dialog box appears.
• Verify that you have the correct Ethernet
card selected in the Connect using: box.
• Verify that at least the following two items
are displayed and selected in the box of
“Components checked are used by this
connection:”
• Client for Microsoft Networks and
• Internet Protocol (TCP/IP)
• Click OK.
![](/img.php?id=598751&img=bg3c.png)
NETGEAR Wireless Router Setup Manual
B-14 Preparing Your Network
February 2005
• With Internet Protocol (TCP/IP) selected,
click on Properties to open the Internet
Protocol (TCP/IP) Properties dialogue box.
• Verify that
•Obtain an IP address automatically is
selected.
•Obtain DNS server address
automatically is selected.
• Click OK to return to Local Area
Connection Properties.
• Click OK again to complete the
configuration process for Windows 2000.
Restart the PC.
Repeat these steps for each PC with this version
of Windows on your network.
![](/img.php?id=598751&img=bg3d.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-15
February 2005

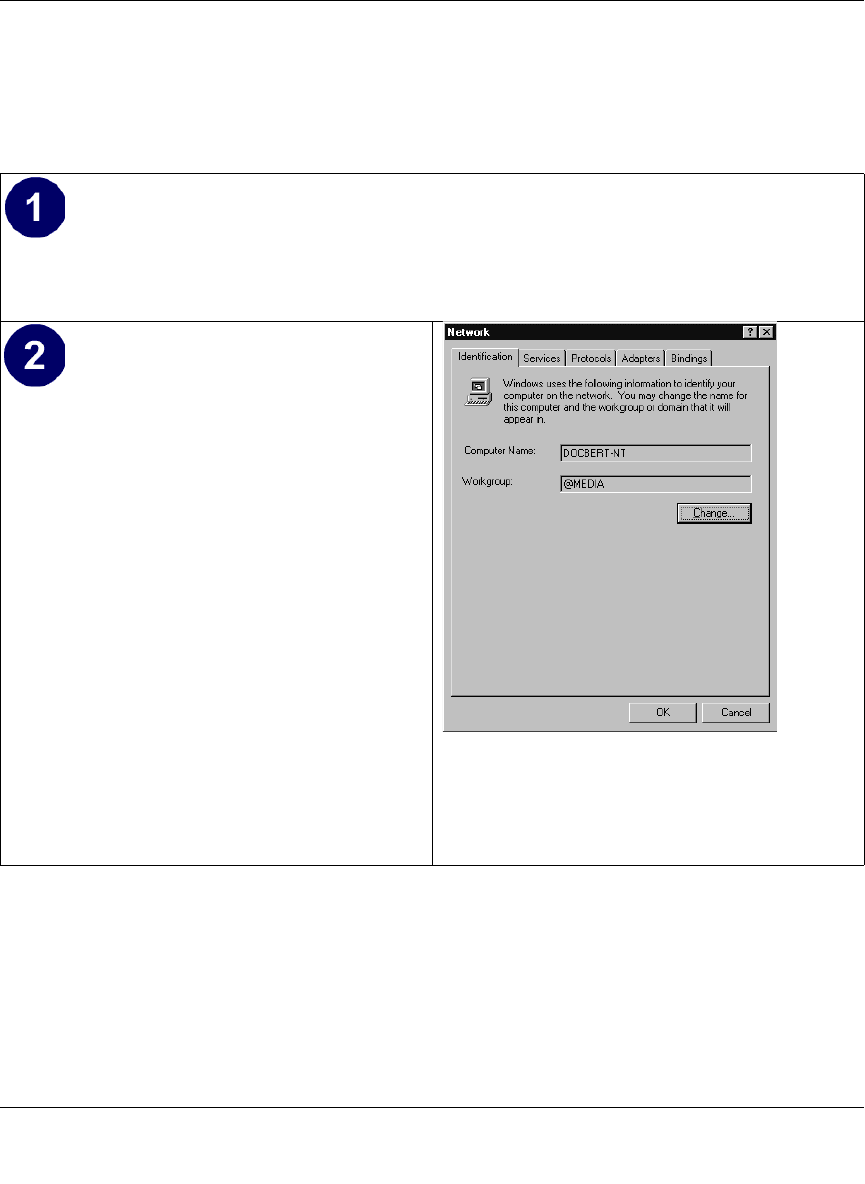

DHCP Configuration of TCP/IP in Windows NT4
Once you have installed the network card, you need to configure the TCP/IP environment for
Windows NT 4.0. Follow this procedure to configure TCP/IP with DHCP in Windows NT 4.0.
• Choose Settings from the Start Menu, and then select Control Panel.
This will display Control Panel window.
• Double-click the Network icon in the
Control Panel window.
The Network panel will display.
• Select the Protocols tab to continue.
![](/img.php?id=598751&img=bg3e.png)
NETGEAR Wireless Router Setup Manual
B-16 Preparing Your Network
February 2005

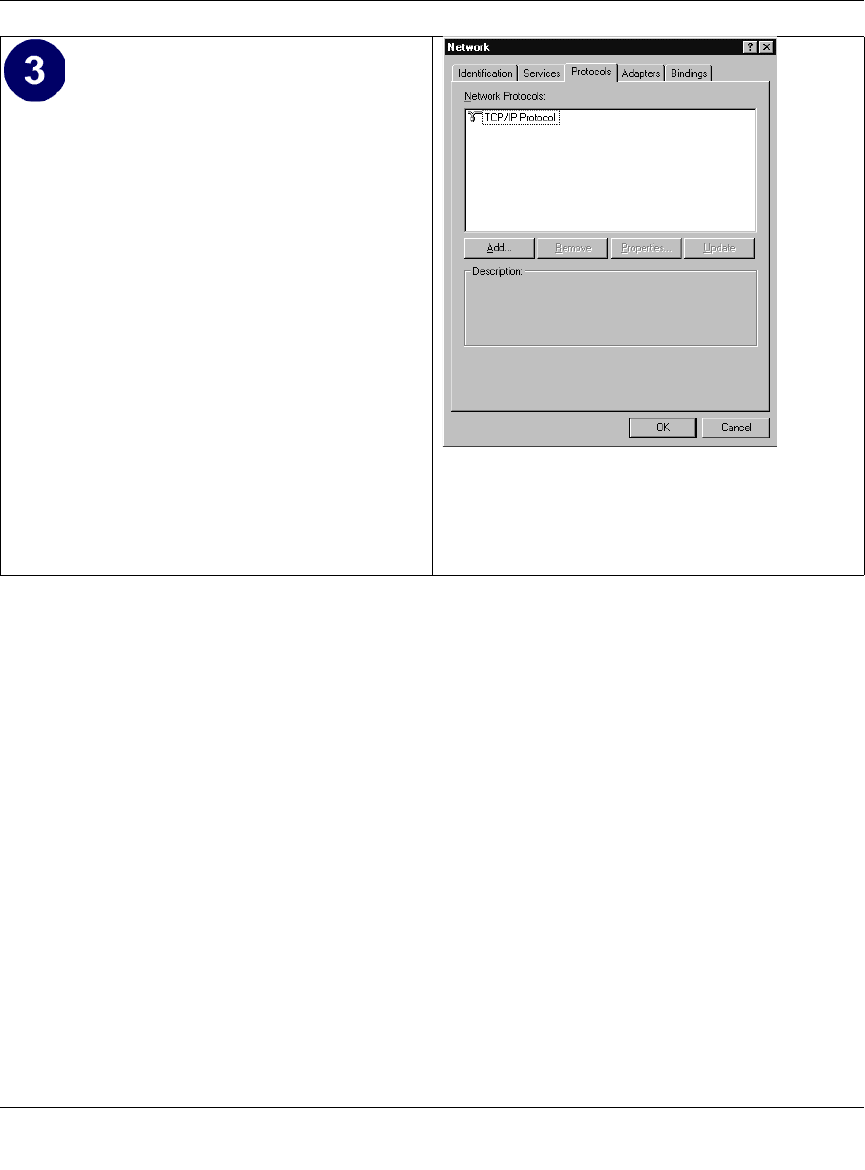

• Highlight the TCP/IP Protocol in the
Network Protocols box, and click on the
Properties button.
![](/img.php?id=598751&img=bg3f.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-17
February 2005
Verifying TCP/IP Properties for Windows XP, 2000, and NT4
To check your PC’s TCP/IP configuration:
1. On the Windows taskbar, click the Start button, and then click Run.
The Run window opens.
2. Type cmd and then click OK.
A command window opens
3. Type ipconfig /all
Your IP Configuration information will be listed, and should match the values below if you are
using the default TCP/IP settings that NETGEAR recommends for connecting through a
router or gateway:
• The IP address is between 192.168.1.2 and 192.168.1.254
• The subnet mask is 255.255.255.0
•The TCP/IP Properties dialog box now
displays.
• Click the IP Address tab.
• Select the radio button marked Obtain an IP
address from a DHCP server.
• Click OK. This completes the configuration
of TCP/IP in Windows NT.
Restart the PC.
Repeat these steps for each PC with this version
of Windows on your network.
![](/img.php?id=598751&img=bg40.png)
NETGEAR Wireless Router Setup Manual
B-18 Preparing Your Network
February 2005
• The default gateway is 192.168.1.1
4. Type exit
Configuring the Macintosh for TCP/IP Networking
Beginning with Macintosh Operating System 7, TCP/IP is already installed on the Macintosh. On
each networked Macintosh, you will need to configure TCP/IP to use DHCP.
MacOS 8.6 or 9.x
1. From the Apple menu, select Control Panels, then TCP/IP.
The TCP/IP Control Panel opens:
2. From the “Connect via” box, select your Macintosh’s Ethernet interface.
3. From the “Configure” box, select Using DHCP Server.
You can leave the DHCP Client ID box empty.
4. Close the TCP/IP Control Panel.
5. Repeat this for each Macintosh on your network.
MacOS X
1. From the Apple menu, choose System Preferences, then Network.
![](/img.php?id=598751&img=bg41.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-19
February 2005
2. If not already selected, select Built-in Ethernet in the Configure list.
3. If not already selected, Select Using DHCP in the TCP/IP tab.
4. Click Save.
Verifying TCP/IP Properties for Macintosh Computers
After your Macintosh is configured and has rebooted, you can check the TCP/IP configuration by
returning to the TCP/IP Control Panel. From the Apple menu, select Control Panels, then TCP/IP.
The panel is updated to show your settings, which should match the values below if you are using
the default TCP/IP settings that NETGEAR recommends:
• The IP Address is between 192.168.1.2 and 192.168.1.254
• The Subnet mask is 255.255.255.0
• The Router address is 192.168.1.1
If you do not see these values, you may need to restart your Macintosh or you may need to switch
the “Configure” setting to a different option, then back again to “Using DHCP Server”.
![](/img.php?id=598751&img=bg42.png)
NETGEAR Wireless Router Setup Manual
B-20 Preparing Your Network
February 2005
Verifying the Readiness of Your Internet Account
For broadband access to the Internet, you need to contract with an Internet service provider (ISP)
for a single-user Internet access account using a cable modem or DSL modem. This modem must
be a separate physical box (not a card) and must provide an Ethernet port intended for connection
to a Network Interface Card (NIC) in a computer. Your firewall does not support a USB-connected
broadband modem.
For a single-user Internet account, your ISP supplies TCP/IP configuration information for one
computer. With a typical account, much of the configuration information is dynamically assigned
when your PC is first booted up while connected to the ISP, and you will not need to know that
dynamic information.
In order to share the Internet connection among several computers, your firewall takes the place of
the single PC, and you need to configure it with the TCP/IP information that the single PC would
normally use. When the firewall’s Internet port is connected to the broadband modem, the firewall
appears to be a single PC to the ISP. The firewall then allows the PCs on the local network to
masquerade as the single PC to access the Internet through the broadband modem. The method
used by the firewall to accomplish this is called Network Address Translation (NAT) or IP
masquerading.
Are Login Protocols Used?
Some ISPs require a special login protocol, in which you must enter a login name and password in
order to access the Internet. If you normally log in to your Internet account by running a program
such as WinPOET or EnterNet, then your account uses PPP over Ethernet (PPPoE).
When you configure your router, you will need to enter your login name and password in the
router’s configuration menus. After your network and firewall are configured, the firewall will
perform the login task when needed, and you will no longer need to run the login program from
your PC. It is not necessary to uninstall the login program.
What Is Your Configuration Information?
More and more, ISPs are dynamically assigning configuration information. However, if your ISP
does not dynamically assign configuration information but instead used fixed configurations, your
ISP should have given you the following basic information for your account:
![](/img.php?id=598751&img=bg43.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-21
February 2005
• An IP address and subnet mask
• A gateway IP address, which is the address of the ISP’s router
• One or more domain name server (DNS) IP addresses
• Host name and domain suffix
For example, your account’s full server names may look like this:
mail.xxx.yyy.com
In this example, the domain suffix is xxx.yyy.com.
If any of these items are dynamically supplied by the ISP, your firewall automatically acquires
them.
If an ISP technician configured your PC during the installation of the broadband modem, or if you
configured it using instructions provided by your ISP, you need to copy the configuration
information from your PC’s Network TCP/IP Properties window or Macintosh TCP/IP Control
Panel before reconfiguring your PC for use with the firewall. These procedures are described next.
Obtaining ISP Configuration Information for Windows Computers
As mentioned above, you may need to collect configuration information from your PC so that you
can use this information when you configure the wireless router. Following this procedure is only
necessary when your ISP does not dynamically supply the account information.
To get the information you need to configure the firewall for Internet access:
1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.
2. Double-click the Network icon.
The Network window opens, which displays a list of installed components.
3. Select TCP/IP, and then click Properties.
The TCP/IP Properties dialog box opens.
4. Select the IP Address tab.
If an IP address and subnet mask are shown, write down the information. If an address is
present, your account uses a fixed (static) IP address. If no address is present, your account
uses a dynamically-assigned IP address. Click “Obtain an IP address automatically”.
5. Select the Gateway tab.
![](/img.php?id=598751&img=bg44.png)
NETGEAR Wireless Router Setup Manual
B-22 Preparing Your Network
February 2005
If an IP address appears under Installed Gateways, write down the address. This is the ISP’s
gateway address. Select the address and then click Remove to remove the gateway address.
6. Select the DNS Configuration tab.
If any DNS server addresses are shown, write down the addresses. If any information appears
in the Host or Domain information box, write it down. Click Disable DNS.
7. Click OK to save your changes and close the TCP/IP Properties dialog box.
You are returned to the Network window.
8. Click OK.
9. Reboot your PC at the prompt. You may also be prompted to insert your Windows CD.
Obtaining ISP Configuration Information for Macintosh
Computers
As mentioned above, you may need to collect configuration information from your Macintosh so
that you can use this information when you configure the wireless router. Following this procedure
is only necessary when your ISP does not dynamically supply the account information.
To get the information you need to configure the firewall for Internet access:
1. From the Apple menu, select Control Panels, then TCP/IP.
The TCP/IP Control Panel opens, which displays a list of configuration settings. If the
“Configure” setting is “Using DHCP Server”, your account uses a dynamically-assigned IP
address. In this case, close the Control Panel and skip the rest of this section.
2. If an IP address and subnet mask are shown, write down the information.
3. If an IP address appears under Router address, write down the address. This is the ISP’s
gateway address.
4. If any Name Server addresses are shown, write down the addresses. These are your ISP’s DNS
addresses.
5. If any information appears in the Search domains information box, write it down.
6. Change the “Configure” setting to “Using DHCP Server”.
7. Close the TCP/IP Control Panel.
![](/img.php?id=598751&img=bg45.png)
NETGEAR Wireless Router Setup Manual
Preparing Your Network B-23
February 2005
Restarting the Network
Once you’ve set up your computers to work with the firewall, you must reset the network for the
devices to be able to communicate correctly. Restart any computer that is connected to the firewall.
After configuring all of your computers for TCP/IP networking and restarting them, and
connecting them to the local network of your wireless router, you are ready to access and
configure the firewall.
![](/img.php?id=598751&img=bg46.png)
NETGEAR Wireless Router Setup Manual
B-24 Preparing Your Network
February 2005
![](/img.php?id=598751&img=bg47.png)
February 2005
Glossary 1
Glossary
Use the list below to find definitions for technical terms used in this manual.
List of Glossary Terms
802.11b
IEEE specification for wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS)
technology and operating in the unlicensed radio spectrum at 2.5GHz.
802.11g
A soon to be ratified IEEE specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.5GHz. 802.11g is
backwards compatible with 802.11b.
Cat 5
Category 5 unshielded twisted pair (UTP) cabling. An Ethernet network operating at 10 Mbits/second
(10BASE-T) will often tolerate low quality cables, but at 100 Mbits/second (10BASE-Tx) the cable must be
rated as Category 5, or Cat 5 or Cat V, by the Electronic Industry Association (EIA).
This rating will be printed on the cable jacket. Cat 5 cable contains eight conductors, arranged in four
twisted pairs, and terminated with an RJ45 type connector. In addition, there are restrictions on maximum
cable length for both 10 and 100 Mbits/second networks.
DHCP
An Ethernet protocol specifying how a centralized DHCP server can assign network configuration
information to multiple DHCP clients. The assigned information includes IP addresses, DNS addresses, and
gateway (router) addresses.
DNS
Short for Domain Name System (or Service), an Internet service that translates domain names into IP
addresses.
Because domain names are alphabetic, they're easier to remember. The Internet however, is really based on
IP addresses. Every time you use a domain name, therefore, a DNS service must translate the name into the
corresponding IP address. For example, the domain name www.example.com might translate to
198.105.232.4. The DNS system is, in fact, its own network. If one DNS server doesn't know how to
translate a particular domain name, it asks another one, and so on, until the correct IP address is returned.
![](/img.php?id=598751&img=bg48.png)
NETGEAR Wireless Router Setup Manual
2Glossary
February 2005
Domain Name
A descriptive name for an address or group of addresses on the Internet. Domain names are of the form of a
registered entity name plus one of a number of predefined top level suffixes such as .com, .edu, .uk, etc. For
example, in the address mail.NETGEAR.com, mail is a server name and NETGEAR.com is the domain.
DSL
Short for digital subscriber line, but is commonly used in reference to the asymmetric version of this
technology (ADSL) that allows data to be sent over existing copper telephone lines at data rates of from 1.5
to 9 Mbps when receiving data (known as the downstream rate) and from 16 to 640 Kbps when sending data
(known as the upstream rate).
ADSL requires a special ADSL modem. ADSL is growing in popularity as more areas around the world
gain access.
Dynamic Host Configuration Protocol
DHCP. An Ethernet protocol specifying how a centralized DHCP server can assign network configuration
information to multiple DHCP clients. The assigned information includes IP addresses, DNS addresses, and
gateway (router) addresses.
Gateway
A local device, usually a router, that connects hosts on a local network to other networks.
IP
Internet Protocol is the main internetworking protocol used in the Internet. Used in conjunction with the
Transfer Control Protocol (TCP) to form TCP/IP.
IP Address
A four-byte number uniquely defining each host on the Internet, usually written in dotted-decimal notation
with periods separating the bytes (for example, 134.177.244.57).
Ranges of addresses are assigned by Internic, an organization formed for this purpose.
ISP
Internet service provider.
Internet Protocol
The main internetworking protocol used in the Internet. Used in conjunction with the Transfer Control
Protocol (TCP) to form TCP/IP.
local area network
LAN. A communications network serving users within a limited area, such as one floor of a building.
A LAN typically connects multiple personal computers and shared network devices such as storage and
printers. Although many technologies exist to implement a LAN, Ethernet is the most common for
connecting personal computers.
![](/img.php?id=598751&img=bg49.png)
NETGEAR Wireless Router Setup Manual
Glossary 3
February 2005
MAC address
The Media Access Control address is a unique 48-bit hardware address assigned to every network interface
card. Usually written in the form 01:23:45:67:89:ab.
Mbps
Megabits per second.
Point-to-Point Protocol
PPP. A protocol allowing a computer using TCP/IP to connect directly to the Internet.
PPPoA
PPPoA. PPP over ATM is a protocol for connecting remote hosts to the Internet over an always-on
connection by simulating a dial-up connection.
PPPoE
PPPoE. PPP over Ethernet is a protocol for connecting remote hosts to the Internet over an always-on
connection by simulating a dial-up connection.
PPP over ATM
PPPoA. PPP over ATM is a protocol for connecting remote hosts to the Internet over an always-on
connection by simulating a dial-up connection.
PPTP
Point-to-Point Tunneling Protocol. A method for establishing a virtual private network (VPN) by embedding
Microsoft’s network protocol into Internet packets.
router
A device that forwards data between networks. An IP router forwards data based on IP source and
destination addresses.
SSID
A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless
local area network. For the wireless devices in a network to communicate with each other, all devices must
be configured with the same SSID.
This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the
wireless Access Point and to the wireless network name. See also Wireless Network Name and ESSID.
Subnet Mask
A mask used to determine what subnet an IP address belongs to. Subnetting enables a network administrator
to further divide an IP address into two or more subnets.
An IP address has two components, the network address and the host address. For example, consider the IP
address 150.215.017.009. Assuming this is part of a Class B network, the first two numbers (150.215)
represent the Class B network address, and the second two numbers (017.009) identify a particular host on
this network.
![](/img.php?id=598751&img=bg4a.png)
NETGEAR Wireless Router Setup Manual
4Glossary
February 2005
Subnetting enables the network administrator to further divide the host part of the address into two or more
subnets. In this case, a part of the host address is reserved to identify the particular subnet. This is easier to
see if we show the IP address in binary format. The full address is: 10010110.11010111.00010001.00001001
The Class B network part is: 10010110.11010111
and the host address is 00010001.00001001
If this network is divided into 14 subnets, however, then the first 4 bits of the host address (0001) are
reserved for identifying the subnet.
The subnet mask is the network address plus the bits reserved for identifying the subnetwork. (By
convention, the bits for the network address are all set to 1, though it would also work if the bits were set
exactly as in the network address.) In this case, therefore, the subnet mask would be
11111111.11111111.11110000.00000000. It's called a mask because it can be used to identify the subnet to
which an IP address belongs by performing a bitwise AND operation on the mask and the IP address. The
result is the subnetwork address: Subnet Mask 255.255.240.000 11111111.11111111.11110000.00000000
IP Address 150.215.017.009 10010110.11010111.00010001.00001001
Subnet Address 150.215.016.000 10010110.11010111.00010000.00000000
The subnet address, therefore, is 150.215.016.000.
TCP/IP
The main internetworking protocols used in the Internet. The Internet Protocol (IP) used in conjunction with
the Transfer Control Protocol (TCP) form TCP/IP.
WAN
Wide Area Network. A long distance link used to extend or connect remotely located local area networks.
The Internet is a large WAN.
WEP
Wired Equivalent Privacy is a data encryption protocol for 802.11b wireless networks.
All wireless nodes and access points on the network are configured with a 64-bit or 128-bit Shared Key for
data encryption.
Wi-Fi
A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility
Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among
802.11b devices.
Wireless Network Name (SSID)
Wireless Network Name (SSID) is the name assigned to a wireless network. This is the same as the SSID or
ESSID configuration parameter.
WPA
Wi-Fi Protected Access (WPA) is a specification of standards-based, interoperable security enhancements
that increase the level of data protection and access control for existing and future wireless LAN systems.
FCC caution:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20cm between the radiator & your
body.
