Nikko Co RP7370H Radio Controlled Toy Receiver User Manual KMNA143520L01 A indd
Nikko Co Ltd Radio Controlled Toy Receiver KMNA143520L01 A indd
Nikko Co >
User Manual
![](/img.php?id=820870&img=bg1.png)
- 1 -
1/14 RADIO CONTROL TRUCK
Owner's Manual
• 2 channel Full Function
--- Runs forward, backward, turns left & right and stops.
• 3 Band Selector Switch.
• Oversized Off-Road tires.
• Impact resistant bumper.
FEATURES
- 3 -- 2 -
1. HOW TO ATTACH ANTENNA TUBE
PREPARATION FOR STARTING OPERATION
Pass the antenna wire through the antenna tube,
then insert the tube into the antenna tube holder.
If the antenna tube cannot be successfully inserted
into the antenna tube holder, try holding the root of
the antenna wire with fingers of one hand and ex-
tending the wire with fingers of the other hand.
2. HOW TO INSTALL THE BATTERY
To remove the battery lid, press the point
marked “OPEN” and pull the lid downward.
Transmitter
Vehicle When installing a Ni-Cd battery pack,
make sure that the power switch of the vehicle is OFF.
* Do not charge Battery Pack immediately after use. Wait until it is cooled before charging.
* Avoid short circuits. Short circuits will cause overheating, burning of the cords and other
damages to the Battery Pack and Charger.
* The Ni-Cd Battery Charger should be used for charging one Battery Pack. Do not use the
charger for charging other types of batteries and battery packs.
* Do not use the Charger as a direct current outlet for other electrical appliances or
machines.
* Make sure that the Battery Pack and Charger are kept out of the hands of infants and small
children while charging.
* Do not charge near fires, where the temperature is extremely high, or where it is wet or
damp.
* The charger will become slightly heated while charging. Allow sufficient free space around
the Charger.
* If the power of the battery pack is weak in spite of proper charging. The batteries may be
worn out from repeated use. Replace it with a new Ni-Cd battery pack.
* Dispose of use Ni-Cd battery packs correctly.
* Disconnect the supply before making or breaking connections to the battery.
* Only use batteries or accumulators of the recommended type or a similar type.
* WARNING AGAINST RECHARGING NON-RECHARGEABLE BATTERIES.
* Please use this battery charger only for the charge of the rechargeable battery pack.
* The Ni-Cd battery pack should be recharged under the supervision of an adult.
* This power unit is intended to be correctly orientated in a vertical or floor mount position.
Check the batteries regularly for leakage.
Remove empty batteries from the toy.
Never try to charge non-rechargeable batteries.
Rechargeable batteries may only be charge under the supervision of an adult.
When inserting the batteries take care not to reverse their polarity.
Never use batteries of different manufacturers, and do not mix old and new batteries.
Use only the recommended batteries or batteries of equal quality.
Never short-circuit the terminals.
Removable batteries which can be recharged must be removed from the toy prior to
charging.
CAUTION :
CAUTION :
NOT RECOMMENDED FOR CHIL-
DREN UNDER 8 YEARS OF AGE.
AS WITH ALL ELECTRIC PROD-
UCTS, PRECAUTIONS SHOULD BE
OBSERVED DURING HANDLING
AND USE TO PREVENT ELECTRIC
SHOCK.
INPUT: 120VAC, 60HZ,
OUTPUT: 7.25VDC, 180mA
ATTENTION PARENTS
I
t is recommended that this toy
and all accessories be periodically
examined for potential hazards and
that any potential hazardous parts
be repaired or replaced.
CAUTION: ELECTRIC TOY
BATTERY REQUIREMENTS
Vehicle: Ni-Cd battery energy
pack (6.0V, 600-800mAh)
Transmitter: 1x9V(006P) battery
Repair and Parts Department
Monday to Friday 8:30AM-5:30PM Central Time
Repair :(800)736-4556
Parts :(800)776-4556
Fax :(972)578-7059
e-mail :help@nikkoamerica.com
* Recharge the Battery
Before You
Start to Operate
PRINTED IN CHINA
© NIKKO
BATTERY CHARACTERISTICS AND RECHARGING TIPSBATTERY CHARACTERISTICS AND RECHARGING TIPS
When playing for the first time after purchase, or after a long interval, the battery power may
be weak. Even after recharging, the playing time can be relatively short. The battery will
gradually regain power after 2 or 3 repetitions of usage and recharging.
Install the Ni-Cd battery pack into the battery compartment of the battery charger.
Plug the charger into an ordinary household outlet.
* The (LED) light on charger should light up when the battery pack is being charged.
* Average recharging time is approximately 4 to 5 hours.
When the recharging is over, remove the charger from the household outlet.
Push the lever of battery charger and disconnect the battery pack from the battery charger.
“WARNING! USE UNDER THE DIRECT SUPERVISION OF AN ADULT.”
* The newly purchased Ni-Cd pack is not charged. Recharge before operate.
1
Battery charger
2
3
4
1
2
3
4
Battery pack
Household outlet Push the level
HOW TO RECHARGE
*Please read carefully before starting to operate.
*Keep the display box and the manual for future reference.
*WARNING! Use under the direct supervision of an adult.
*Actual product may vary from illustration of this manual.
Antenna
tube holder
Antenna wire
Antenna Tube
Use a coin to turn the battery stopper to the
“OPEN” position.
Install the Ni-Cd battery pack into the
battery compartment of the vehicle.
Replace the battery stopper.
1
2
3
* Note: Be careful not to pull antenna wire too strong.
1
Battery stopper
2
3
Power switch
OPEN
One 9 volt (006P) battery
Install battery making sure that (+) and (-) poles
are positioned properly.
* Dispose the used battery separately from other trash.
CAUTION:
* Install battery make sure that (+) and (-)
poles are positioned properly.
Ni-Cd battery
energy pack (6.0V)
![](/img.php?id=820870&img=bg2.png)

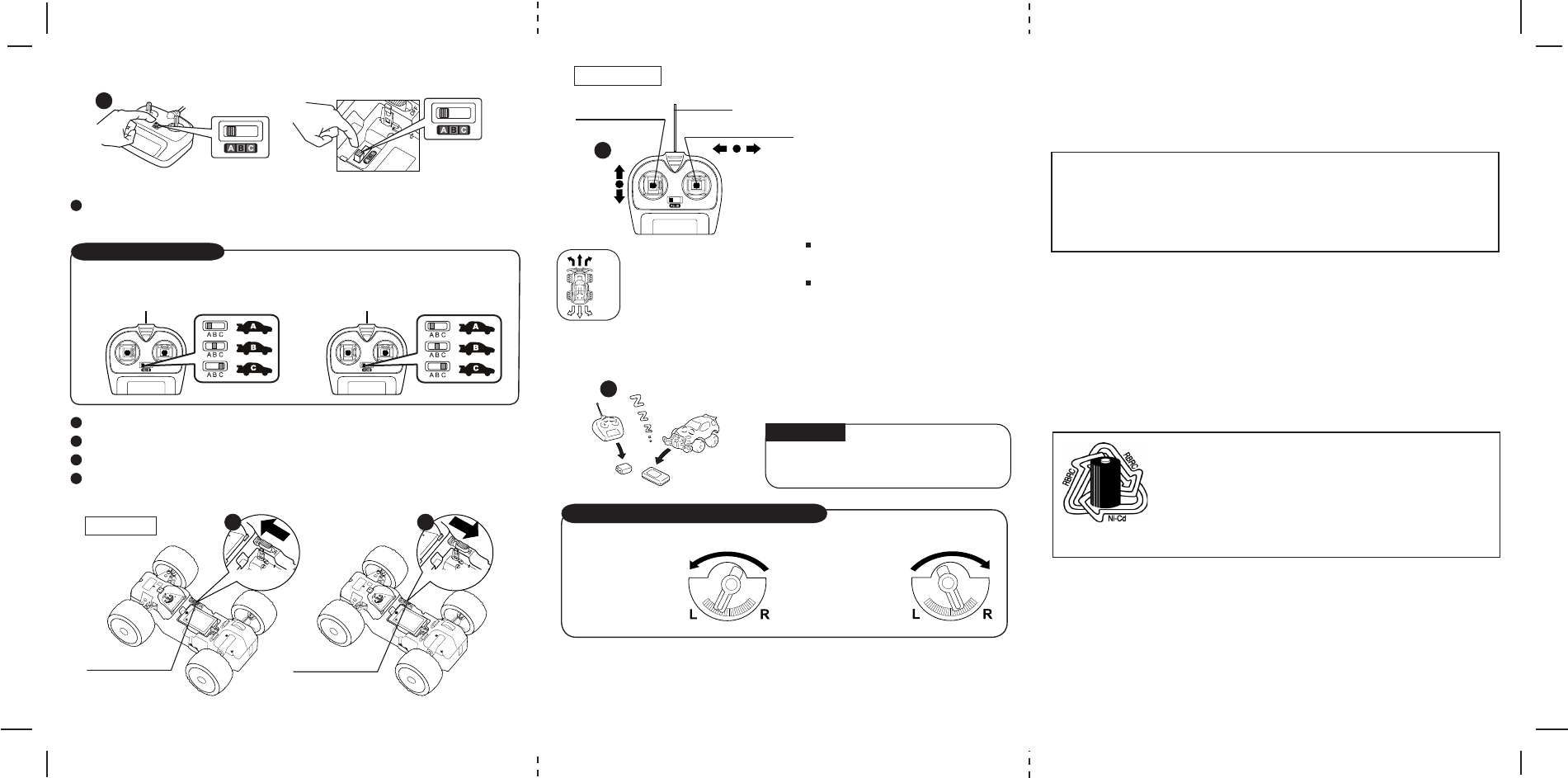

- 4 - - 5 -
Adjust the steering alignment when the vehicle does not run straight forward.
Turn the steering
alignment lever
towards “L” if the
vehicle runs towards
right.
Turn the steering
alignment lever
towards “R” if the
vehicle runs towards
left.
TO ADJUST STEERING ALIGNMENT
- 6 -
KMNA143520L01(A) (KYP5326-00)
THE FCC WANTS YOU KNOW
This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Your R/C car might cause TV or radio interference even when it is operating properly.
To determine whether your R/C car is causing the interference, turn off your R/C car.
If the interference goes away, your R/C car is causing the interference.
Try to eliminate the interference by:
* Moving your R/C car away from the receiver.
* Contacting your local store for help.
If you cannot eliminate the interference, the FCC requires that you stop using your R/C car.
THE RBRCTMSeal on the nickel cadmium battery pack
indicates that NikkoAmerica is voluntarily participating in an industry program
to collect and recycle these batteries at the end of their useful life. The RBRC
program provides a convenient alternative to disposing nickel-cadmium batteries
into the trash or municipal waste stream, which is illegal in some areas.
Nikko America's payments to RBRC makes it easy for you to drop off the spent
battery pack at local retailers who sell replacement nickel-cadmium batteries.
You may also contact your local recycling center for information on where to return
the spent battery pack.
RBRC is a trademark of the Rechargeable Battery Recycling Corporation.
OPERATING SAFETY RULES
Select a SAFE place to operate your vehicle. Do not drive in the street. Avoid driving on SAND or through puddles
of WATER. These hazards can impair performance. Check the surface ahead of you and watch for obstacles.
The radio receiver in your vehicle and transmitter are sensitive instruments. Do not leave Vehicle or Transmit-
ter near sources of HEAT or under DIRECT SUNLIGHT for long periods of time.
Avoid leaving Vehicle or Transmitter OUTSIDE OVERNIGHT. NIGHT DAMPNESS IS HARMFUL TO INTE-
RIOR MECHANISM.
Cleaning and maintenance:
This toy vehicle needs periodic maintenance and cleaning.
Warning to the parents:
The charger for the Ni-Cd battery pack needs periodic inspection to see that the lead wires, plugs,
outer case, and other parts are not damaged in any way. If any of the parts are damaged, do not use
the charger until it is completely repaired.
Caution:
Keep out of reach of small children under 36 months old as there is danger of getting hurt.
IT IS A VIOLATION OF THE FCC REGULATIONS TO REMODEL OR ALTER THIS
DEVICE IN ANY WAY WITHOUT PERMISSION. ANYONE WHO VIOLATES THE
REGULATIONS WILL LOSE THE RIGHT TO OPERATE THE DEVICE.
Caution: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
MANUFACTURER FOR COMPLIANCE COULD VOID THE USER’S
AUTHORITY TO OPERATE THE EQUIPMENT.
RADIO INTERFERENCE: Sometimes erratic behavior or loss of control of vehicle is the result of interference
caused by high tension wires, high voltage transformers, certain types of building, concreate walls or narrow
places where RADIO SIGNALS sent from your transmitter MAY BE SCATTERED thus making it DIFFICULT
for your vehicle to receive a GOOD RADIO SIGNAL. If you encounter this type of behavior or loss of control,
CHANGE TO A DIFFERENT LOCATION.
You will encounter INTERFERENCE if ANOTHER radio controlled vehicle or CB radio is operating in the vicin-
ity on your SAME FREQUENCY.
DO NOT operate your vehicle on thick-piled carpets. It can be dangerous since the carpet
fiber may twine round a shaft and cause a motor overheated.
ANTI-POWER LOSS TRANSMITTER
(To prevent unnecessary power loss)
The transmitter power is automatically
turned ON when the speed control stick
is operated either to the forward run-
ning or reverse running positions, When
the stick is returned to the neutral posi-
tion, the transmitter power is turned
OFF. When the transmitter power is
turned OFF, the vehicle can be jammed
by other transceiver radio waves and
start to move abnormally.
Check to see that the batteries have been
INSTALLED in the CORRECT position.
*
STOP
IMPORTANT:
When speed control stick is in
NEUTRAL, Steering Wheel WILL
NOT produce any steering action.
Please follow the above sequence of operation.
*
Band selector switch on transmitter. Band selector switch on vehicle chassis.
Ensure that band selector switch on transmitter and vehicle are set to the same
letter - A, B or C.
27MHz 49MHz
Race 6 cars at once!
3 bands for frequency 27MHz and 49MHz, allows up to 6 cars to race at once.
Speed control stick
FORWARD
NEUTRAL
REVERSE
Antenna
Steering control stick
LEFT/STRAIGHT/RIGHT
To prevent damage from battery leakage, remove all
the batteries from transmitter and vehicle after playing.
*
To protect the racer’s motor, let it cool for at
least 20 minutes after you use up a battery
pack.
CAUTION :
3. HOW TO OPERATE Transmitter
Vehicle
NOTE:
You can control the vehicle at a longer
distance by holding the transmitter
higher with the antenna straight up.
When the vehicle slows down or
starts moving erratically, replace all
the vehicle's batteries with fresh or
fully charged ones.
1
1
3
Turn ON the vehicle.
Operate the vehicle with transmitter.
Turn OFF the vehicle after operating.
Remove all the batteries both from the vehicle and the transmitter.
2
3
4
5
5
ON/OFF switch
ON OFF
←→
24
ON/OFF switch
ON OFF
←→
