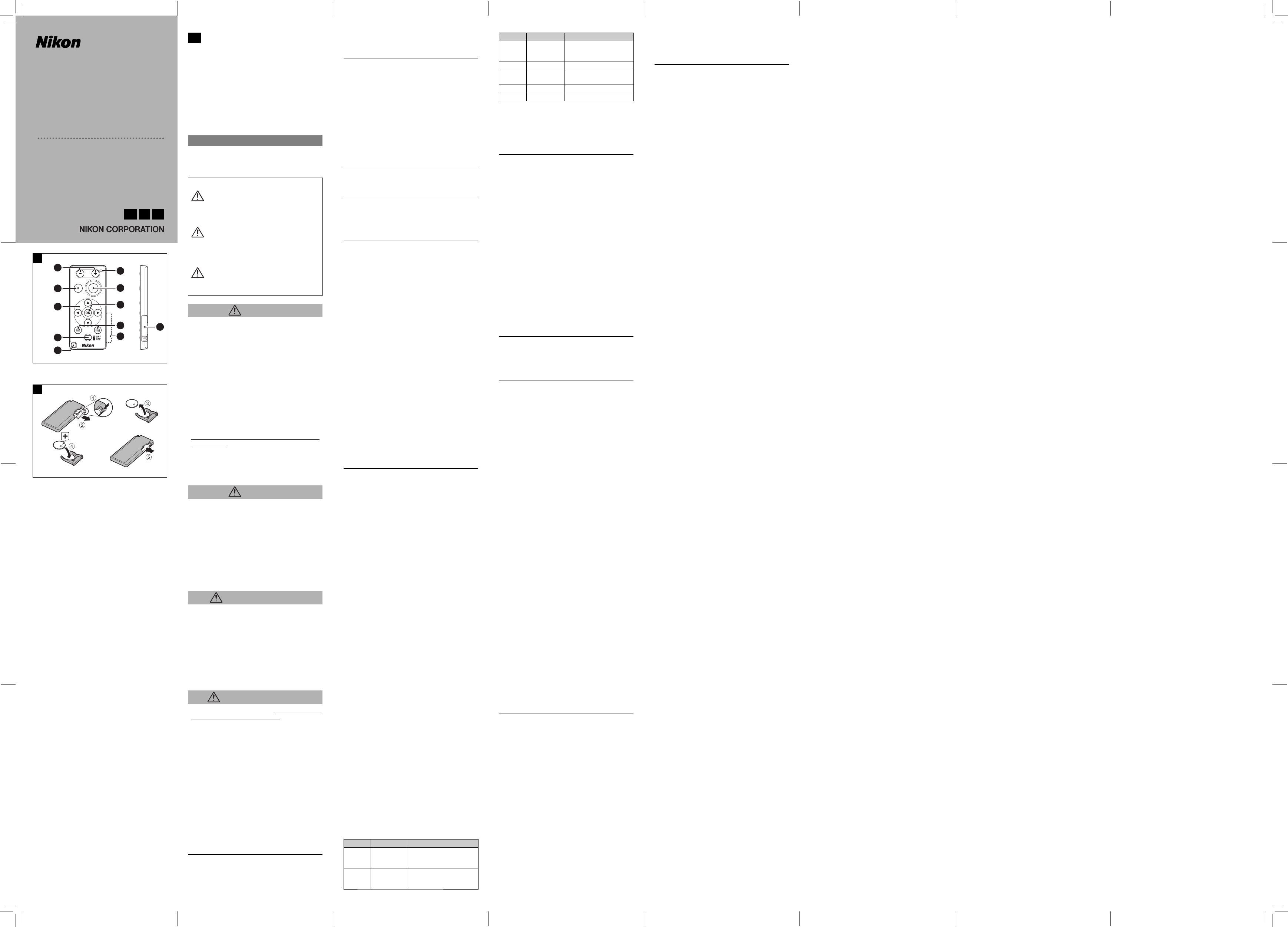

![](/img.php?id=3755096&img=bg1.png)
Remote Control
N16F1
User’s Manual
Model Name: N16F1
En Fr Es
Printed in Japan
YP7H01(30)
6MAJ0830-01
En
You can perform remote operations such as recording movies or
taking pictures by connecting the N16F1 Remote Control and a
camera via Bluetooth® wireless technology. The operations that
can be performed with the N16F1 Remote Control vary
depending on the camera. For details, refer to the Reference
Manual (PDF format) of your camera.
The Reference Manual can be downloaded from our Download
Center at the URL below:
http://downloadcenter.nikonimglib.com
Compatible Cameras
See our website or brochures for information about the
cameras that are compatible with the N16F1 Remote
Control.
For Your Safety
To prevent damage to property or injury to yourself or to others,
read “For Your Safety” in its entirety before using this product.
Keep these safety instructions where all those who use this
product will read them.
DANGER
Failure to observe the
precautions marked with
this icon carries a high risk
of death or severe injury.
WARNING
Failure to observe the
precautions marked with
this icon could result in
death or severe injury.
CAUTION
Failure to observe the
precautions marked with
this icon could result in
injury or property
damage.
WARNING
• Do not use while walking or operating a vehicle. Failure to
observe this precaution could result in accidents or other injury.
• Do not disassemble or modify this product. Do not touch
internal parts that become exposed as the result of a fall or
other accident. Failure to observe these precautions could result
in electric shock or other injury.
• Should you notice any abnormalities such as the product
producing smoke, heat, or unusual odors, immediately
disconnect the batteries. Continued operation could result in
fire, burns or other injury.
• Keep dry. Do not handle with wet hands. Failure to observe
these precautions could result in fire or electric shock.
• Do not use this product in the presence of flammable dust or
gas such as propane, gasoline or aerosols. Failure to observe
this precaution could result in explosion or fire.
• Keep this product out of reach of children. Failure to observe
this precaution could result in injury or product malfunction. In
addition, note that small parts constitute a choking hazard.
Should a child swallow any part of this product, seek immediate
medical attention.
• Do not entangle, wrap or twist the straps around your neck.
Failure to observe this precaution could result in accidents.
• Do not use batteries not specifically designated for use with
this product. Failure to observe this precaution could result in
fire or electric shock.
CAUTION
• Turn this product off when its use is prohibited. Disable
wireless features when the use of wireless equipment is
prohibited. The radio-frequency emissions produced by this
product could interfere with equipment onboard aircraft or in
hospitals or other medical facilities.
• Remove the batteries if this product will not be used for an
extended period. Failure to observe this precaution could result
in fire or product malfunction.
• Do not leave the product where it will be exposed to
extremely high temperatures, for an extended period such as
in an enclosed automobile or in direct sunlight. Failure to
observe this precaution could result in fire or product
malfunction.
DANGER for Batteries
• Do not mishandle batteries. Failure to observe the following
precautions could result in the batteries leaking, overheating,
rupturing, or catching fire:
–Do not expose batteries to flame or excessive heat.
–Do not disassemble.
–Do not short-circuit the terminals by touching them to
necklaces, hairpins, or other metal objects.
–Do not expose batteries or the products in which they are
inserted to powerful physical shocks.
• If battery liquid comes into contact with the eyes, rinse with
plenty of clean water and seek immediate medical attention.
Delaying action could result in eye injuries.
WARNING for Batteries
• Keep batteries out of reach of children. Should a child swallow
a battery, seek immediate medical attention.
• Do not immerse batteries in water or expose to rain. Failure to
observe this precaution could result in fire or product
malfunction. Immediately dry the product with a towel or similar
object should it become wet.
• Discontinue use immediately should you notice any changes
in the batteries, such as discoloration or deformation. Failure
to observe this precaution could result in the batteries leaking,
overheating, rupturing, or catching fire.
• Insert batteries in the correct orientation. Failure to observe
this precaution could result in the batteries leaking, overheating,
rupturing, or catching fire.
• Prior to disposal, insulate battery terminals with tape.
Overheating, rupture, or fire may result should metal objects
come into contact with the terminals. Recycle or dispose of
batteries in accord with local regulations.
• If battery liquid comes into contact with a person’s skin or
clothing, immediately rinse the affected area with plenty of
clean water. Failure to observe this precaution could result in
skin irritation.
Notices
• No part of this manual may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any
language in any form, by any means, without Nikon’s prior
written permission.
• While every effort has been made to ensure that the information
in this manual is accurate and complete, we would appreciate it
Remote Control
User’s Manual (with Warranty)
Nikon Inc.,
1300 Walt Whitman Road, Melville, New York 11747-3064, U.S.A.
Tel: 631-547-4200
Notice for Customers in Canada
CAN ICES-3 B / NMB-3 B
Color Status Description
Green Flashing about
every 3 seconds
Connection is established
between remote control and
camera.
Orange Flashes once Still image shooting starts.
Orange Flashes twice Still image shooting ends (e.g.
shooting with the Time setting).
Red Flashes once Movie recording starts.
Red Flashes twice Movie recording ends.
* The information may vary depending on the camera.
Replacing the Battery
As shown in Figure 2, pull out the battery holder and replace the
battery while making sure that the positive and negative sides of
the battery are in the correct orientation.
Specifications
N16F1 Remote Control
Compatible battery1: 3V CR2032 (DL2032/5004L) lithium battery
Battery life: About 1 year (200 remote shooting operations per
day)2
Bluetooth
Communication protocols: Bluetooth Specification Version 4.1
Communication distance (line of sight): Approx. 10 m (10 yd)3
Operating frequency: 2402–2480 MHz
Maximum output power: 4.17 dBm (EIRP)
Operating environment
Temperature: 0°C–40°C (32°F–104°F)
Humidity: 85% or less (no condensation)
Dimensions (W × H × D): Approx. 80.0 × 35.0 × 7.3 mm (3.2 × 1.4 ×
0.3 in.) (excluding projections)
Weight: Approx.18 g (0.7 oz) (including battery)
1 The included battery is for trial use.
2 Varies with the operating environment, operating conditions, and
storage conditions.
3 No interference is assumed; range may vary with signal strength
and presence or absence of obstacles.
• Nikon will not be held liable for any errors this manual may
contain.
• The appearance of this product and its specifications are subject
to change without notice.
Trademark Information
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by Nikon
Corporation is under license.
Notes About Wireless Communication
Functions
Restrictions on Wireless Devices
The wireless transceiver included in this product conforms to
wireless regulations in the country of sale and is not for use in
other countries (products purchased in the EU or EFTA can be used
anywhere within the EU and EFTA). Nikon does not accept liability
for use in other countries. Users who are unsure as to the original
country of sale should consult with their local Nikon service center
or Nikon-authorized service representative. This restriction applies
to wireless operation only and not to any other use of the product.
Precautions when Exporting or Carrying This
Product Abroad
This product is controlled by the United States Export
Administration Regulations (EAR). The permission of the United
States government is not required for export to countries other
than the following, which as of this writing are subject to embargo
or special controls: Cuba, Iran, North Korea, Sudan, and Syria (list
subject to change).
Notice for Customers in the U.S.A. and Canada
Federal Communications Commission (FCC) and Innovation,
Science and Economic Development Canada (ISED)
Declaration of Conformity
This device complies with Part 15 of FCC Rules and Innovation,
Science and Economic Development Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that
may cause undesired operation of this device.
FCC/ISED RF Exposure Statement
This transmitter must not be co-located or operated in conjunction
with any other antenna or transmitter.
The available scientific evidence does not show that any health
problems are associated with using low power wireless devices.
There is no proof, however, that these low power wireless devices
are absolutely safe. Low power wireless devices emit low levels of
radio frequency energy (RF) in the microwave range while being
used. Whereas high levels of RF can produce health effects (by
heating tissue), exposure of low-level RF that does not produce
heating effects causes no known adverse health effects. Many
studies of low-level RF exposures have not found any biological
effects. Some studies have suggested that some biological effects
might occur, but such findings have not been confirmed by
additional research. This product has been tested and found to
comply with FCC/ISED radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the ISED radio frequency (RF)
Exposure rules. Please refer to the SAR test report that was
uploaded to FCC website.
Notices for Customers in the U.S.A.
Federal Communications Commission (FCC) Radio Frequency
Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician
for help.
CAUTIONS
Modifications
The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved
by Nikon Corporation may void the user’s authority to operate the
equipment.
were you to bring any errors or omissions to the attention of the
Nikon representative in your area (address provided separately).
Precautions for Use
• Do not drop the remote control, strike it against a hard object
such as a rock, or expose it to water.
• Do not insert a wet battery in the remote control. Do not pull out
the battery holder when the remote control or your hands are
wet. Doing so may cause water to seep inside the remote control
and result in a malfunction.
• If moisture such as water droplets or a foreign substance adheres
to the outside of the remote control or the battery holder,
immediately wipe it off with a soft dry cloth.
• Make sure that the battery holder is securely inserted.
• Do not leave the remote control in cold conditions or in hot
conditions of 40°C (104°F) or more for a long period of time.
• Do not suddenly bring the remote control to high-humidity
environment if it is exposed to extreme cold for an extended
period. Condensation may form inside the remote control.
About Radio Wave Interference
If there is any radio wave interference, the response of the remote
control may be delayed.
Caring for the Product
• If moisture such as water droplets or a foreign substance adheres
to the remote control, wipe it off with a soft dry cloth.
• Do not use alcohol, thinner or other volatile chemicals.
Parts and Functions of the Remote
Control (Figure 1)
1 – button/+ button: Performs operations such as zoom control.
2 Movie record button: Starts/stops movie recording.
3 Multi selector: Functions similarly to the multi selector on the
camera. Can be used for manual focus adjustment or item
selection.
4 Power button: Press the button to turn on the remote control
and search for the camera that has already been paired. Keep
holding down the button (for at least 3 seconds) to search for a
camera that is not currently paired with the remote control.
While the remote control is on, press the button to turn it off.
5 Strap eyelet (straps not included)
6 Status lamp: Indicates the remote control status or shooting
session status, based on the color and behavior of the lamp. See
“Status Lamp on the Remote Control” for more information.
7 Shutter-release button: Functions similarly to the shutter-
release button on the camera.
• Half-press and press-and-hold operations are not available.
• When using the self-timer, you can press the button during the
countdown to cancel shooting.
8 k (apply selection) button: Functions similarly to the k button
on the camera.
9 w1 button/w2 button: Functions assigned to the w1
button/w2 button on the remote control via the camera can
be used. (These buttons are not equivalent to the w buttons
on the camera.)
0 Battery insulation sheet: Remove this when using the remote
control for the first time.
a Battery holder
C About the Remote Control
The functions that you can perform using the remote control may
vary depending on the camera. See the manual of your camera for
further details.
How to Use
This section describes how to use the product with the COOPIX
Digital Camera as an example. Since operations may vary
depending on the camera, see the manual of your camera for
further details.
Pairing the Remote Control and Camera
Before using the remote control for the first time, it must be paired
with the camera.
* In this manual, “pairing” refers to the process of mutual
authentication that is performed between Bluetooth devices to
establish a connection.
• Only one camera can be paired with the remote control at a time.
When another camera is paired with the remote control, the
pairing information kept on the remote control is replaced by
that of the newly paired camera.
1 Enable pairing on the camera.
• Network menu on the camera M Choose connection M
Remote control M k button M Network menu on the camera
M Connection to remote M k button
2 Press and hold (for at least 3 seconds) the power
button on the remote control.
• Pairing starts for the remote control and camera. While the
process is being performed, the status lamp on the remote
control flashes quickly (about every 0.5 second).
• When pairing is complete, the remote control and camera are
connected. The Z icon is displayed on the shooting screen of the
camera.
• If a pairing failure message is displayed, perform the procedure
again from step 1.
• To turn off the remote control, press the power button on the
remote control.
Connecting to a Paired Camera
If the camera has already been paired with the remote control, a
connection can be established simply by pressing the power
button on the remote control. In this case, do not press and hold
the button.
• Before establishing the connection, turn on the camera and
select Remote control in Choose connection in the network
menu.
• If the connection is not established properly, check the camera
settings and turn the remote control off and back on again.
• A camera that was previously paired with the remote control
needs to be paired again if another camera is paired with the
remote control or if the camera settings are reset.
Auto Off Function of the Remote Control
The remote control automatically turns off in the following
situations:
–When no pairing device has been detected for 1 minute
–When the wireless connection is interrupted and not restored
within 1 minute
–When another device is selected as the pairing device on the
camera
Press and hold the power button to try re-pairing or check the
pairing settings on the camera.
Status Lamp on the Remote Control
Color Status Description
Green Flashing about
every second
Remote control is searching for
device that has already been
paired.
Green
Flashing quickly
(about every 0.5
second)
Pairing process is being
performed.
1
16
10
11
7
8
9
2
3
4
5
2
