Owner’s Guide
PROCOMP
IMPORTANT NOTE: The operation of the Security and Convenience System as described in this manual is
applicable to most vehicles. However, due to the configuration of some vehicles, some functions AND/OR
SAFETY PRECAUTIONS may not apply. Please see your installing dealer for more information.
Deluxe Vehicle Security and Remote
Start System with 900 Mhz 2 Way
Confirming OLED Remote Control
![](/img.php?id=1682296&img=bg2.png)
2 2012 Audiovox Electronics Corporation. All rights reserved.
Table of Contents
Using Your Remote Control ............................................................... 3
Using the 2 Way Remote Control for the First Time ........................ 3
Arming the Security System ............................................................ 3
Bypassing the Shock Sensor .......................................................... 3
Disarming the Security System ........................................................ 4
Two Stage Door Unlock (optional) ................................................... 4
Eliminating Arm / Disarm Notification Chirps .................................... 4
Using the Progressive Car Finder Feature ...................................... 4
Using the Personal Protection Alarm ............................................... 4
Activating Trunk Release (optional) ................................................ 5
Activating Optional AUX 1 (optional) ............................................... 5
Activating Optional AUX 2 (optional) ............................................... 5
Activating Optional AUX 3 (optional) ............................................... 5
Activating Optional AUX 4 (optional) ............................................... 5
Turning On the Vehicle’s Headlights ............................................... 5
Valet Mode ........................................................................................ 6
2 Car Mode ........................................................................................ 6
Manually Overriding the Security System ....................................... 6
Programming Your Personal Override Code ................................... 7
Using Your Remote Vehicle Starter ................................................. 8
Remote Starting Your Vehicle .......................................................... 8
Entering Your Vehicle while it is Running via Remote Start ........... 8
Preheating or Precooling the Vehicle’s Interior ............................... 8
Using the “Quick-Stop” Feature ....................................................... 8
Turbo Timer Mode (optional) ............................................................ 9
Operating the Daily Start Timer ........................................................ 9
Operating the 2 / 4 Hour Start Up Timer Mode .............................. 10
Manual Transmission Mode ........................................................... 11
Fuel Saver Mode ............................................................................ 11
Temp Start ....................................................................................... 11
Remote Start Valet Mode ................................................................ 12
Remote Start Safety Features ....................................................... 12
Additional 2 Way OLED Remote Control Features ...................... 13
Activating 1 Way Remote Control Features ................................. 15
Activating 2 Way Remote Control Features ................................. 17
LED and Siren/Horn Indications ....................................................... 21
Replacing Remote Control Batteries ............................................. 22
Warranty Information ......................................................................... 23
![](/img.php?id=1682296&img=bg3.png)
32012 Audiovox Electronics Corporation. All rights reserved.
Arming the Security System
To arm the system, exit the vehicle, close all doors, then press the button. The
parking lights will flash 2 times, indicating the system is armed, has locked the
doors (if equipped and connected) and activated the starter disable feature. The
LED status indicator will blink steadily, once per second.
NOTE: The system is defaulted with Silent Choice enabled, which requires a
second press of the button to activate an audible arming response from the
vehicle.
Bypassing The Shock Sensor
There are 3 additional modes of operation in which your system will react to the
shock sensor, FULL TRIGGER ONLY, ALL OFF, or CITY MODE.
Standard Shock - Press once to arm the system, the shock sensor will
be fully active.
Full Trigger Only - Pressing & together within 5 seconds will set the
system to Full Trigger Only in which the system will ignore the light touch
setting.
All Off - Pressing & again within 5 seconds will set the system to
All Off. In this mode the system will not react to the shock sensor and
the 2 way LCD remote will display the shock sensor icon.
City Mode - Pressing & again within 5 seconds will set the system
to City Mode. In this mode the light touch horn output is extended to a full
10 seconds and full trigger horn output is shortened to 15 seconds, no icon
is displayed.
NOTE: The system will only change the shock sensor setting for one arm cycle
and will be defaulted back to normal operation the next time the system is armed.
*Throughout this manual, ‘press’ refers to pressing for less than 1 second; ‘press and hold’ refers to pressing for more
than 2 seconds.
Using Your Remote Control
Using the 2 Way Remote Control for the First Time.
The 2 way remote control has been shipped in Battery Save Mode to conserve
battery power and will be necessary for you to turn off battery save mode before
using the remote for normal operation. It is also recommended that you fully charge
the battery before use. Refer to the additional 2 way remote control features
section of this manual for details.
![](/img.php?id=1682296&img=bg4.png)
4 2012 Audiovox Electronics Corporation. All rights reserved.
Using the Progressive Car Finder Feature
Use the car finder feature to locate your vehicle. The system will sound 5 times at
low volume, increasing in volume each time the button is pressed.
1 Way Transmitter - Press and release .
2 Way Transmitter - Press and release + .
Using the Personal Protection Alarm (Panic)
Press and hold the button(s) shown below for 3 seconds to activate the personal
protection alarm . During panic mode, the normal function of the transmitter buttons
will be suspended. The transmitter’s and buttons can be used to lock and
unlock the door (if the option is installed). To stop the alarm, press and hold the
button(s) on the transmitter again for 3 seconds. The system will automatically
stop after 30 seconds.
1 Way Transmitter - Press and hold for 3 seconds.
2 Way Transmitter - Press and hold + for 3 seconds.
Two Stage Door Unlock (Optional)
If this feature is enabled on your system, pressing the button one time will
unlock only the driver’s door. Press again to unlock the remaining doors.
Eliminating Arm / Disarm Notification Chirps
System ARM/DISARM chirps can be toggled ON or OFF without entering the
programming feature banks.
1. Turn the ignition ON then OFF.
2. Press and release the valet/programming button 3 times. The system will
respond with 1 chirp for ON or 2 chirps for OFF.
Disarming the Security System
To disarm the system press the button. The parking lights will flash 1 time,
indicating the system is disarmed and has unlocked the doors (if equipped and
connected).
NOTE: The system is defaulted with Silent Choice enabled, which requires a
second press of the button to activate an audible arming response from the
vehicle.
![](/img.php?id=1682296&img=bg5.png)
52012 Audiovox Electronics Corporation. All rights reserved.
Activating the Trunk Release Feature (Optional)
If this feature is enabled on your system, pressing and holding the button for 3
seconds will open the vehicle’s trunk or hatch.
Activating Optional AUX 1 (Optional)
This feature can be programmed for a wide range of functions like power window
or sunroof automation, please consult your installing dealer to determine the
functionality of your system.
1 Way Transmitter - Press and hold for 3 seconds.
2 Way Transmitter - Press and hold + for 3 seconds.
Activating Optional AUX 2 (Optional)
This feature can be programmed for a wide range of functions like power window
or sunroof automation, please consult your installing dealer to determine the
functionality of your system. Press and hold + for 3 seconds to activate.
Activating Optional AUX 3 (Optional)
This feature can be programmed for a wide range of functions like power window
or sunroof automation, please consult your installing dealer to determine the
functionality of your system. Press and hold + for 3 seconds to activate.
Activating Optional AUX 4 (Optional)
This feature can be programmed for a wide range of functions like power window
or sunroof automation, please consult your installing dealer to determine the
functionality of your system. Press and hold + for 3 seconds to activate.
Turning on the Vehicle’s Headlights (Optional)
If this feature is enabled on your system, pressing and holding the button for 3
seconds will turn on the vehicle’s headlights for 30 seconds. Press and hold
again for 3 seconds to turn off the headlights prior to the 30 second time limit.
![](/img.php?id=1682296&img=bg6.png)
6 2012 Audiovox Electronics Corporation. All rights reserved.
Manually Overriding the Security System
If your transmitter is lost or disabled, it will be necessary use the emergency
override button to turn the security system off. There are two types of
emergency override procedures. Check with your installing dealer to find out
what has been activated on your system.
Standard Emergency Override Procedure:
1. Open the vehicle door. The alarm will sound.
2. Turn the ignition key to the ON position.
3. Within 5 seconds, press and release the valet button.
The alarm system will stop sounding and enter the (by-passed) mode. You can
now start and operate the vehicle normally.
2 Car Mode
It is possible for your remote transmitter to control 2 vehicles provided the both
are equipped with compatible security or remote start systems and your
transmitter has been programmed to the additional vehicle’s system. To operate
the additional vehicle you must first enter 2 car mode from the remote control.
Once in 2 car mode, the remote control will operate only the second vehicle, the
original vehicle will have no response from the remote. To enter or exit 2 car
mode, refer to the transmitters advanced functions menu section of this manual.
Valet Mode
To engage valet mode:
1. Turn the ignition key to the ON position.
2. Press and hold the valet button for 5 seconds.
3. The LED will light solid indicating that the system is in valet mode.
When valet mode is activated the status LED will light solid, and all security
functions will be disabled.
To disengage valet mode:
1. Turn the ignition key to the ON position.
2. Press and release the valet button.
3. The LED will turn off indicating that the system has exited valet mode.
![](/img.php?id=1682296&img=bg7.png)
72012 Audiovox Electronics Corporation. All rights reserved.
Programming Your Personal Override Code
1. Make sure the security system is disarmed.
2. Turn the ignition key to the ON position.
3. Within 10 seconds press and release the valet button 3 times.
4. Within 10 seconds turn the ignition key OFF then ON 3 times (The
horn will honk and the lights will flash 1 time).
5. Within 10 seconds press and release the valet button the
number of times corresponding with the first digit of your personal
code (1-9).
6. Within 10 seconds turn the ignition key OFF then ON.
7. Within 10 seconds press and release the valet button the number of
times corresponding with the second digit of you personal code (1-9).
8. Within 5 seconds turn the ignition key OFF.
9. You will notice the LED flash a number of times corresponding with the
code you entered.
Note: If 15 seconds of inactivity passes the system will abort programming.
Note: Do not lose your “Personal Override Code”. Reprogramming a
new code without the original code can only be performed by an
authorized dealer.
Coded Emergency Override Procedure:
The system has an optional override mode that allows you to program a 2 digit
personal code using the emergency override button offering a higher level of
security. This feature must be enabled by your installing dealer, the default
override code is 11.
1. Enter the vehicle (the security system will trigger).
2. Turn the ignition switch to the ON position.
3. Within 5 seconds press the valet button the number of times
corresponding to the first digit of your personal code (Default digit is
1).
4. Within 5 seconds turn the ignition key OFF, then ON.
5. Within 5 seconds press the valet button the number of times
corresponding to the second digit of your personal code (Default digit
is 1).
6. Within 5 seconds turn the ignition key OFF, then ON.
7. If entered correctly the security system will turn off.
8. Turn the ignition key to the OFF position.
![](/img.php?id=1682296&img=bg8.png)
8 2012 Audiovox Electronics Corporation. All rights reserved.
Preheating or Precooling the Vehicle’s interior
Before exiting the vehicle, set the temperature controls to the desired setting and
operation. After the system starts the vehicle, the heater or air conditioner will
activate and heat or cool the vehicle’s interior to your setting.
Using the “Quick-stop” Feature
If you want to make a short stop and keep your vehicle running (to keep the
interior warm or cool), the quick-stop feature allows you to do this while keeping
your vehicle secure and your keys with you.
To engage quick stop:
1. Stop the vehicle and place the transmission in PARK.
2. With your foot off the brake pedal, press and release the button 2
times within 2 seconds. The LED will flash 3 times to confirm quick stop is
entered. If your vehicle has a manual transmission, set the parking brake
after this step to prevent activating manual transmission ready mode.
3. Remove the keys from the ignition and exit the vehicle. Press the
button to lock the vehicle’s doors if desired.
NOTE: Do not leave children or animals unattended in the vehicle when using the
quick-stop feature.
Using Your Remote Vehicle Starter
Remote Starting Your Vehicle
To activate the remote vehicle start function, press and release the button 2
times within 2 seconds. The system will sound, the parking lights will flash 1 time
and the system will check the vehicle to ensure it is safe to start. If all safety
parameters are correct, the vehicle will start within 5 seconds. The vehicle’s
parking lights will turn on (or flash depending on system settings) as a visual
indication that the vehicle has started and is running. Press and hold the button
for 3 seconds to turn the vehicle off.
If your vehicle stalls or does not start, the system will pause 3 seconds, then try 3
more times to start the vehicle (a total of 4 attempts). The system will pause 3
seconds between each start attempt. If the vehicle does not start after the 4th
attempt, the system will abort the remote vehicle start process.
Entering the Vehicle while it is Running via Remote Vehicle Start
1. Unlock the vehicle’s doors.
2. Enter the vehicle. DO NOT PRESS THE BRAKE PEDAL!
3. Insert the key into the ignition switch and turn to the ON or RUN position.
4. Press the brake pedal. The remote vehicle starter will disengage and
the vehicle will operate normally.
![](/img.php?id=1682296&img=bg9.png)
92012 Audiovox Electronics Corporation. All rights reserved.
Turbo Timer
This option will keep the engine running to allow the vehicle’s turbo to properly cool
down before shutting the engine off.
To engage the turbo timer feature:
1. With the vehicle running via the ignition key and your foot off of the
brake pedal.
2. Engage the vehicle’s parking brake and press the valet button 2 times.
3. The vehicle’s parking lights will turn on to verify the Turbo Timer
feature has been activated.
4. Turn the ignition key OFF, the vehicle will continue to run until the pre-
programmed time has elapsed (1, 2, or 3 minutes)
To disengage the turbo timer feature, press the vehicle’s brake pedal.
Operating the Daily Start Timer
The system has the ability to start your vehicle based on a 24-hour countdown
timer. This feature requires a two-part activation sequence. First enter the
transmitter’s advanced level menu and select daily start timer (refer to the
activating remote features section), this will activate the 24 hour countdown timer
(the vehicle will start 24 hours from this time). Next, When you are finished
operating the vehicle for the day, perform the following steps to complete the
process.
1. Turn the ignition ON/OFF (vehicle must be disarmed).
2. Within 10 seconds, while pressing the brake, press and release the
valet button 1 time.
3. The vehicle will emit 2 chirps.
![](/img.php?id=1682296&img=bga.png)
10 2012 Audiovox Electronics Corporation. All rights reserved.
Operating the 2 / 4 Hour Start Up Timer Mode
The system has the ability to start the vehicle every 2 or 4 hours over a 48
hour period. This feature is especially useful in cold climates where the only
means to keep the engine and engine fluids warm is to periodically start the
engine.
WARNING!
Be certain that the vehicle is outdoors before using this or any remote starting
device. A running engine produces dangerous carbon monoxide fumes which
can be harmful or fatal if prolonged exposure occurs. DO NOT remote start
the vehicle if it is garaged.
Selecting between 2 and 4 hour start up: (default 4 hour)
1. Press and hold the valet button.
2. Turn the ignition switch ON then OFF. (10 second window begins)
3. Release the valet button
4a. 2 Hour Start - Press and release the valet button 1 time then press
and hold until the 10 seconds window ends, the system will chirp 2
times and the parking lights will flash 2 times.
Or
4b. 4 Hour Start - Press and release the valet button 3 times then
press and hold until the 10 seconds window ends, the system will
chirp 4 times and the parking lights will flash 4 times.
5. Release the valet button.
To begin the 2 / 4 hour start up timer mode:
1a. Turn the ignition key ON then OFF
OR
1b. Remote start the vehicle and shut it down with the remote control
2. Within 10 seconds activate the 2/4 hour start timer from the remote
control. Refer to the activating remote control features section.
The parking lights will flash and the system will sound 4 times indicating the 2 /
4 hour start up timer mode has been activated. The vehicle will start every 2
or 4 hours and run for the preset time limit (5, 10, 15 or 20 minutes) and then
shutdown. This will continue for 48 hours unless the 2 / 4 hour start up
timer is cancelled.
To cancel the 2 / 4 hour start up timer mode:
1. Start the vehicle using the ignition key, then press the brake pedal.
Or
2. Activate the remote vehicle start feature using the remote control.
![](/img.php?id=1682296&img=bgb.png)
112012 Audiovox Electronics Corporation. All rights reserved.
Manual Transmission Mode
Remote starting a vehicle equipped with a manual transmission will require a 2
step safety sequence, Enter Ready Mode and Activate Ready Mode. The steps for
entering and activating ready mode are programmable, see your installing dealer
for details.
1 - Manual Transmission - Enter Ready Mode: Manual transmission enter
ready mode is step 1 of 2 required to allow remote start activation. Perform 1 of
the following steps to Enter Ready Mode.
Parking Brake + Start Button - Parking brake on then activate the
remote start via the transmitter. (default)
Parking Brake Twice - Parking brake on, off, on.
Parking Brake + Brake - Parking brake on then press the brake pedal.
2 - Manual Transmission - Activate Ready Mode: Manual transmission
activate ready mode is step 2 of 2 required to allow remote start activation.
Perform 1 of the following steps to Activate Ready Mode, once complete the
remote start will shutdown and the transmitter can then be used to remote start
the vehicle.
Last Door Closed + Lock - Ready after last door is closed then lock
is pressed on the transmitter. (default)
Last Door Closed - Ready after last door is closed.
Fuel Saver Mode
By default the remote start will run for a set period of time, to give the system added
flexibility you can adjust this time from the remote control. The selectable run times
are 5, 10, 15, 20, 45, and 60 minutes. To adjust the run time refer to the activating
remote control features sections of this manual.
Temp Start
Temp Start allows automatic remote start activation once the ambient temperature
of the vehicle drops to the preset threshold of 0 degrees Fahrenheit. It is required
that the feature be set to ON in the remote start installation feature bank and will
only operate when activated from the remote control. To activate the feature from
the remote control refer to the activating remote control features sections of this
manual.
NOTE: The security system must be armed for this feature to operate.
![](/img.php?id=1682296&img=bgc.png)
12 2012 Audiovox Electronics Corporation. All rights reserved.
Remote Start Safety Features
For safety and security reasons, the system will shutdown or prevent the remote
vehicle starter from activating if any of the following occur:
1. The vehicle hood is open.
2. The brake pedal is pressed prior to turning the ignition key to the ON
position.
3. The engine is over-revved (tach checking only).
4. Remote Start Valet Mode is active.
Remote Start Valet Mode
Remote Start Valet Mode is used to disable the system from remote starting. To enter
or exit remote start valet mode simply follow the 4 steps outlined below:
1. Push and hold the programming/valet button.
2. Cycle the ignition ON/OFF, ON/OFF, ON/OFF.
3. Release the programming/valet button.
4. The LED will flash 2 short flashes and 1 long flash when in remote start
valet mode
![](/img.php?id=1682296&img=bgd.png)
132012 Audiovox Electronics Corporation. All rights reserved.
Additional 2 Way OLED Remote Control Feature
Descriptions
The following features / menus are activated through the 2 way remote control’s
additional advanced level menus, refer to the activating 2 way remote control
features section of this manual.
AUX Menu
Controls the 4 optional auxiliary outputs
Battery Save Mode
While in Battery Save Mode the 2 way remote control will NOT look for any
incoming signals from the main unit until battery save mode is turned off. In addition
to the menu screen, you can manually turn battery save on/off as follows:
Battery save OFF: Press and hold for 2 seconds.
Battery save ON: Press and hold + for 2 seconds.
Melody / Vibration Mode
The remote control can play a melody tone, vibrate or both each time it receives a
response from the vehicle.
Status Check
The remote control will update the vehicle’s current status.
Temp Check
The remote control will display the vehicle’s interior temperature.
Parking Meter Timer
The remote control will countdown time based on the amount of time set by the
user.
Alarm Clock
Alarm clock with selectable alarm tones.
Stop Watch
Displays time counting forward in seconds, minutes and hours.
![](/img.php?id=1682296&img=bge.png)
14 2012 Audiovox Electronics Corporation. All rights reserved.
Fahrenheit / Celsius
Display the current temperature in Fahrenheit or Celsius.
Clock Set
Adjust the clock displayed on the screen.
Alarm Tones
Selectable tones used for the alarm clock feature.
Remote Start Tones
Selectable tones used to indicate remote start activation.
Remote Start Shutdown Tones
Selectable tones used to indicate remote start has shutdown.
Page Call Out
With the ignition OFF, press the valet button for 2 seconds, the 2 way remote will
sound the paging tone and display CALL on the screen.
![](/img.php?id=1682296&img=bgf.png)
152012 Audiovox Electronics Corporation. All rights reserved.

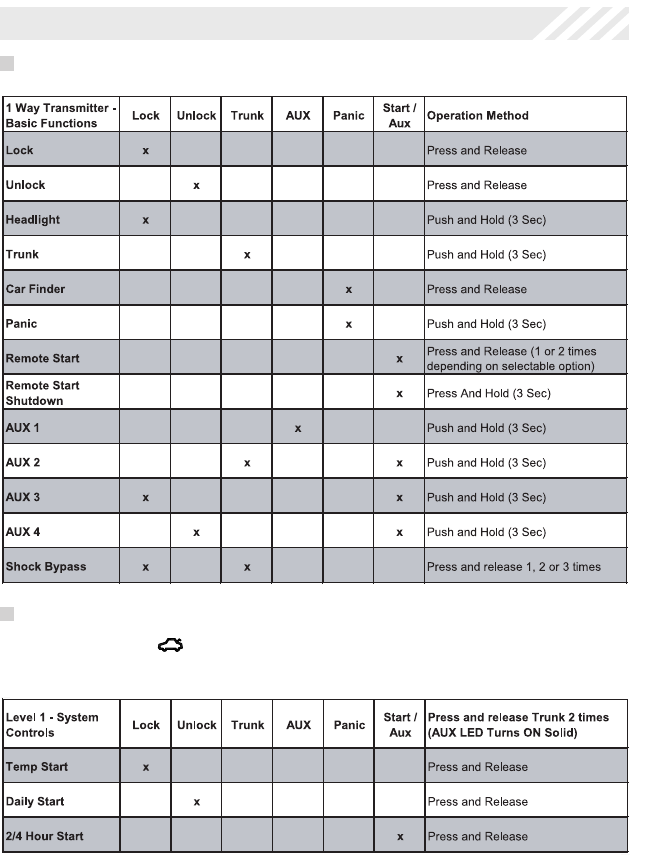

Activating 1 Way Remote Control Features
Basic Remote Control Functions
Advanced Level 1 Remote Control Functions
Press and release 2 times to access level 1 menu functions, the AUX LED will
turn on solid. The menu will time out after 3 seconds on inactivity.
![](/img.php?id=1682296&img=bg10.png)

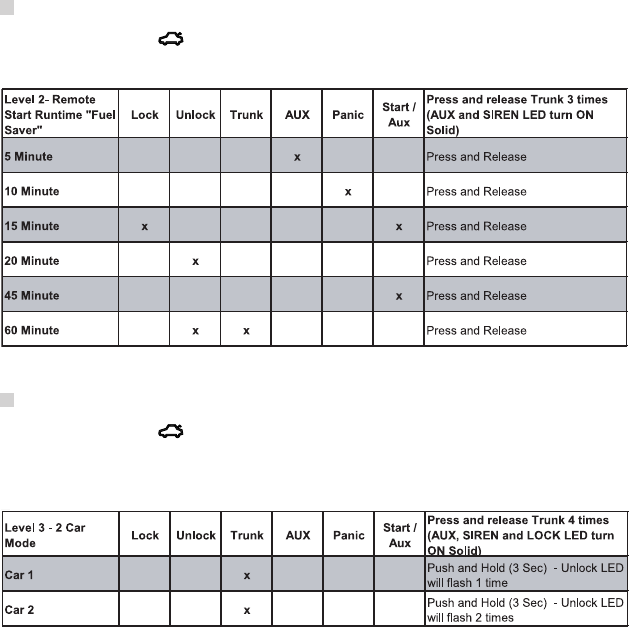

16 2012 Audiovox Electronics Corporation. All rights reserved.
Advanced Level 2 Remote Control Functions
Press and release 3 times to access level 2 menu functions, the AUX and
Siren LED will turn on solid. The menu will time out after 3 seconds on inactivity.
Advanced Level 3 Remote Control Functions
Press and release 4 times to access level 3 menu functions, the AUX, Siren
and Lock LED will turn on solid. The menu will time out after 3 seconds on
inactivity. When in 2 car mode, the LED will flash 2 times after activating a feature.
![](/img.php?id=1682296&img=bg11.png)
172012 Audiovox Electronics Corporation. All rights reserved.
Activating 2 Way OLED Remote Control Features
Basic Remote Control Functions
2 Way OLED
Transmitter - Basic
Functions
Lock Unlock Trunk Function
Start /
Aux
Operation Method
Lock x Press and Release
Unlock x Press and Release
Headlight x Press and Hold (3 Sec)
Trunk x Press and Hold (3 Sec)
Car Finder x x Press and Release
Panic x x Press and Hold (3 Sec)
Remote Start x
Press and Release (1 or 2 times
depending on selectable option)
Remote Start
Shutdown
xPress and Hold (3 Sec)
AUX 1 x x Press and Hold (3 Sec)
AUX 2 x x Press and Hold (3 Sec)
AUX 3 x x Press and Hold (3 Sec)
AUX 4 x x Press and Hold (3 Sec)
Shock Bypass x x Press and release 1, 2 or 3 times
2 Car Mode - Car 1 x x Press and Hold (1 Sec)
2 Car Mode - Car 2 x x Press and Hold (1 Sec)
Power / Battery
ON x
Press and Hold (1 Sec)
Power / Battery
OFF
xx
Press and Hold (1 Sec)
Vibrate / Tone x x Press and Hold (1 sec)
![](/img.php?id=1682296&img=bg12.png)
18 2012 Audiovox Electronics Corporation. All rights reserved.
Advanced Level 1 Remote Control Functions
Press and release 2 times to access level 1 menu functions, AUX Controls will
be displayed on the screen. The menu will time out after 10 seconds on inactivity.
Level 1 - AUX
Controls
Lock Unlock Trunk Function
Start /
Aux
Press and release "F" 2 times -
AUX Controls will be displayed
AUX 1 Scroll
Up Return
Scroll
Dow n
Select
Push and Hold Start to Select (3
Sec)
AUX 2 Scroll
Up Return
Scroll
Dow n
Select
Push and Hold Start to Select (3
Sec)
AUX 3 Scroll
Up Return
Scroll
Dow n
Select
Push and Hold Start to Select (3
Sec)
AUX 4 Scroll
Up Return
Scroll
Dow n
Select
Push and Hold Start to Select (3
Sec)
![](/img.php?id=1682296&img=bg13.png)
192012 Audiovox Electronics Corporation. All rights reserved.
Advanced Level 2 Remote Control Functions
Press and release 3 times to access level 2 menu functions, System Controls
will be displayed on the screen. The menu will time out after 10 seconds on
inactivity.
Level 2 - System
Controls
Lock Unlock Trunk Function
Start /
Aux
Press and release "F" 3 times -
System Controls will be
displayed
Temp Start Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Daily Start Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
2/4 Hour Start Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Power Saver Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Silent /
(Vibrate/Melody)
Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Status Check Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Temp Check Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Parking Meter
Timer
Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Alarm Clock Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Stop Watch Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
F or C Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Clock Set Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Alarm Tones Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
Remote Start
Tones
Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
RS Shutdown
Tones
Scroll
Up Return
Scroll
Dow n
Select /
Set
Press and Release
![](/img.php?id=1682296&img=bg14.png)
20 2012 Audiovox Electronics Corporation. All rights reserved.
Advanced Level 3 Remote Control Functions
Press and release 4 times to access level 3 menu functions, Fuel Saver will be
displayed on the screen. The menu will time out after 10 seconds on inactivity.
Advanced Level 4 Remote Control Functions
Press and release 5 times to access level 4 menu functions, Level 4 will be
displayed on the screen. The menu will time out after 10 seconds on inactivity.
Level 3 - Remote
Start Runtime
"Fuel Saver"
Lock Unlock Trunk Function
Start /
Aux
Press and release "F" 4 times -
Fuel Saver will be displayed
5 Minute Scroll
Up Return
Scroll
Dow n
SET Press and Release
10 Minute Scroll
Up Return
Scroll
Dow n
SET Press and Release
15 Minute Scroll
Up Return
Scroll
Dow n
SET Press and Release
20 Minute Scroll
Up Return
Scroll
Dow n
SET Press and Release
45 Minute Scroll
Up Return
Scroll
Dow n
SET Press and Release
60 Minute Scroll
Up Return
Scroll
Dow n
SET Press and Release
Level 4 - 2 Car
Mode - Edit
Displa y
Lock Unlock Trunk Function
Start /
Aux
Press and release "F" 5 times -
2 Car Mode will be displayed
Car 1 Scroll
Up Return
Scroll
Dow n
SET
Press and Release - Car will display
on LCD Screen
Car 2 Scroll
Up Return
Scroll
Dow n
SET
Press and Release - Car 2 will
display on LCD Screen
![](/img.php?id=1682296&img=bg15.png)
212012 Audiovox Electronics Corporation. All rights reserved.
LED and Siren/Horn Indications
LED Display Indications
LED Function
OFF DISARMED
SLOW FLASH ARMED
FAST FLASH PASSIVE ARMING
ON (SOLID) VALET MODE
1 FLASH... PAUSE ZONE 1 TRIGGER, SHOCK
2 FLASH... PAUSE ZONE 2 TRIGGER, TRUNK
3 FLASH... PAUSE ZONE 3 TRIGGER, DOOR
4 FLASH... PAUSE ZONE 4 TRIGGER, IGNITION
5 FLASH... PAUSE ZONE 5 TRIGGER, HOOD
Siren/Horn Indications
Chirps Function
1 DISARM
2 ARM
3 DOOR AJAR UPON ARMING
4 DISARM / TRIGGERED
5 CAR LOCATOR
Parking Light Flash Indications
Flashes Function
1 DISARM
2 ARM
4 DISARM / TRIGGERED
5 CAR LOCATOR
ON (SOLID) REMOTE STARTED
![](/img.php?id=1682296&img=bg16.png)
22 2012 Audiovox Electronics Corporation. All rights reserved.
Replacing Remote Control Batteries
CAETX91 1 Way 6 Button Remote Control:
The battery (model CR2032) inside each remote control should last approximately 1
year under normal use. When the battery becomes weak you will notice the remote
control range (the distance from the vehicle the remote control will work) deteriorate
and the small LED on the remote control will dim. To replace the remote control
batteries:
1. Remove 2 side panels and 1 screw then disassemble the halves of the remote
control.
2. Remove the old battery, observing the +/- symbols on the batteries and
replace with new CR2032 battery.
3. Reassemble the halves of the remote control and install the 2 side panels and 1
screw.
4. Test operation of the remote control.
Replacement remote control part number: CAETX91
CATXCOMP 2 Way OLED Remote Control:
The battery inside the 2 way OLED remote control is rechargeable, use the supplied
battery charger to charge the battery until the battery icon on the OLED screen
shows charging is complete. It is recommended that the battery be fully charged
before normal use.
Replacement remote control part number: CATXCOMP
232012 Audiovox Electronics Corporation. All rights reserved.
Code Systems, Inc. Limited Lifetime Warranty
Code Systems Inc. (“CODE”) warrants to the ORIGINAL PURCHASER of this CODE
vehicle security product (the “Product”), purchased from an authorized CODE dealer, that (except as
provided below) should this Product under normal use and conditions, be proven defective in
material or workmanship DURING THE LIFETIME OF THE VEHICLE IN WHICH IT WAS ORIGI-
NALLY INSTALLED, such defect(s) will be repaired or replaced (at CODE’s option) without charge for
parts directly related to repairs of the defect(s).
Switches, indicator lights, and transmitter cases are similarly warranted to the original
purchaser for a period of one (1) year from the date of purchase of the Product.
CODE accessories, sold separately, are covered by the applicable warranty accompa-
nying the accessory.
This warranty is non-transferable, non-assignable and is voided when: (1) the Product is
removed from the vehicle in which it was originally installed; or (2) the vehicle in which the Product
was originally installed is transferred to another party.
This warranty does not apply to any product damaged by accident, physical or electrical
abuse, improper installation, alteration, or use contrary to its intended function, fire, flood, or other
natural acts.
In order for the Product to be repaired or replaced under the terms of this warranty, the
defective Product must be returned to an authorized CODE dealer and accompanied by a copy of
the retail sales receipt. The date of purchase and year, make and model of the vehicle in which the
Product was originally installed must be clearly indicated on the sales receipt.
This warranty is exclusive and CODE MAKES NO OTHER WARRANTIES EXPRESSED
OR IMPLIED. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MER-
CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE
DURATION OF THIS WRITTEN WARRANTY. IN NO CASE SHALL CODE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WAR-
RANTY, EXPRESS OR IMPLIED, WHATSOEVER.
CODE does not warrant that the Product cannot be compromised or circumvented. THE EXTENT OF
CODE’S LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE AND, IN NO EVENT SHALL CODE’S LIABILITY EXCEED THE PURCHASE
PRICE PAID BY THE ORIGINAL PURCHASER OF THE PRODUCT WITHOUT INSTALLATION
LABOR.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from state to state
![](/img.php?id=1682296&img=bg18.png)
24 2012 Audiovox Electronics Corporation. All rights reserved.
Audiovox Electronics Corporation.
Customer Service 1-800-421-3209
WWW.CODE-ALARM.COM
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of
Industry Canada. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference
that may cause undesired operation.
Warning!
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
