Model PRO9776E
Owner’s Manual
![](/img.php?id=2348092&img=bg2.png)
128-9307
2 of 16
Page 2
5 Button Remote Start Security System With
Plug-In Shock Sensor and Starter Disable
FEATURES:
2 Five Button Programmable RF Transmitters
Seven Channel Code Learning Receiver (capable of accepting 4 transmitters)
Code Hopping Technology
Selectable Manual Override Mode
Remote Panic in All Modes
Protected Push Button Valet/Override Switch In Windshield Receiver
External Superheterodyne Receiver Antenna w/Push Button Switch & LED
Selectable Automatic Timed Start Mode
User Programmable Manual Override Code
7 Function LED - Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming
Intrusion Alert With Memory
Audible Arm / Disarm / Defective Zone / Tamper Conrmation
Instant Siren Activation All Entry Points
Starter Disable When Armed
True Last Door Arming
Defective Zone By-Pass
Active or Passive Arming Selectable
Programmable Auto Lock On / Off
Programmable Auto Unlock / Off/Drivers Door / All Doors
Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds/1 Sec L/ Dbl. U/L
Channel 4, 5, 6, & 7 Output to Control Optional Accessories
Programmable Active or Passive Door Locks
User Programmable Permanent Chirp Delete
On Command RF Chirp Delete from Transmitter Or Selectable Through Software
6 Tone Multi Tone Siren
Car Horn Activation for additional alarm response
Additional Negative Trigger Input
RF Inhibit with ignition on
Parking Light Flasher
Remote Keyless Entry With Optional Access Guard (must have power door locks)
Illuminated Entry
Plug In Dual Stage Shock Sensor
OPTIONS :
Telematic Upgrade Ready
Plug In Flash Logic By-Pass Capable
Remote Trunk Release (must have electronic trunk release)
Multiple Vehicle Capable
Remote Power Window Roll Up
WARNING ! Be certain that the vehicle is outdoors before using this or any remote vehicle
starting device. A running engine produces dangerous carbon monoxide fumes
which can be harmful or fatal if prolonged exposure occurs.
DO NOT remote start the vehicle if it is garaged.
![](/img.php?id=2348092&img=bg3.png)
128-9307
3 of 16
Page 3

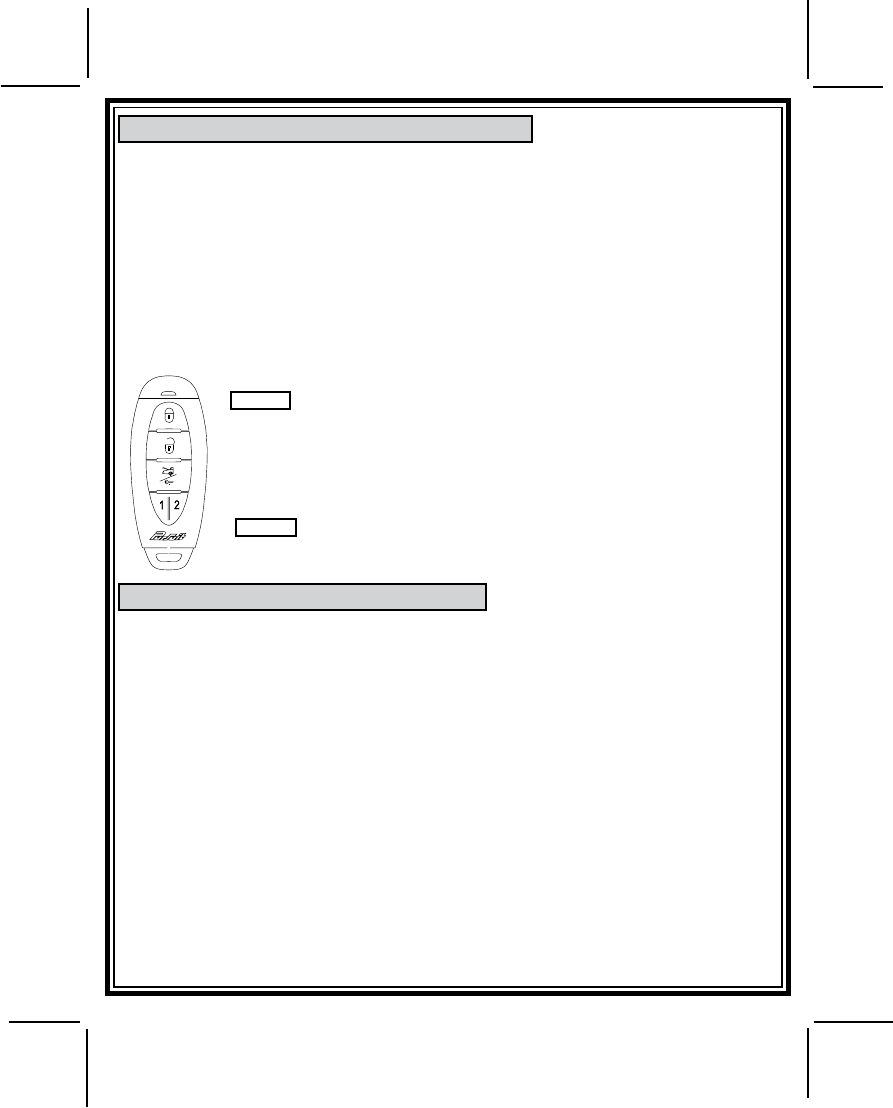

YOUR “SPREAD SPRECTUM" TRANSMITTERS
The transmitters included with your new security system use the most advanced and
secure form of radio frequency transmission available on any current automotive
security system. Some of today’s sophisticated auto thieves use a device known as
a code grabber, which will receive and store the signal from your keychain transmitter
and re-transmit at a later time to disarm your system.
Your Spread Spectrum transmitters will shift frequencies making it impossible for a
theif to grab and rebroadcast your code.
If your transmitter button is pressed more than fty times while it is out of range of
the vehicle (children playing with your keys), the transmitter will not operate when
you return to the vehicle, and will need to be re-aligned to the receiver. To do this,
simply press button 1, (lock), two times within a one second time period. The system
will now respond to that transmitter each time a button is pressed.
NOTE: This system is custom congurable and can be set up to op-
erate with a number of options controlled from any transmitter button
or button combination. For reference, we will describe operation as-
suming that your system is programmed for separate lock and unlock
buttons. Also reference will be made to the icons as shown on the
buttons of the transmitter to the left.
NOTE: Your system has the option of using a siren, the vehicle horn,
or both for the sounding device. Where the siren is referenced below,
the horn or both may in fact chirp, or beep.
ARMING THE SYSTEM - ACTIVE
1. Turn off the engine, exit the vehicle, and close all doors, hood lid and trunk lid.
2. Press and release Lock/Arm button on the keychain transmitter.
The dash mounted LED begins to ash slowly.
Parking Lights ash one time.
Siren sounds one chirp.
If the siren/horn sounds 3 chirps, then you have left a door, trunk, or hood
lid ajar. Simply close the opened entry point to provide full protection. If the
siren "chirped" three times, sometime after arming, the exclusive delayed
dome light learn circuit has been programmed and the system detected a
open entry point after the learned delay expired. Again, closing the hood,
trunk, or doors will correct the problem and you do not need to disarm
the system to make the correction. If the siren/horn did not sound when
arming, then the chirps have been turned off and you should refer to the
section titled "ELIMINATING THE ARM/DISARM CHIRPS" in this manual.
Doors Lock - Optional
NOTE: If the optional Headlamp illumination feature has been added, and has been
selected for operation when arming, as an added convenience, the system
will turn on the headlights when the system is armed.
![](/img.php?id=2348092&img=bg4.png)
128-9307
4 of 16
Page 4
SILENT ARMING - ACTIVE (Feature must be activated during programming)
During step 2 above, hold the transmitter button for 2 seconds then release.
The unit will arm without the chirps for this one lock cycle.
ARMING THE SYSTEM - PASSIVE (AUTOMATIC)
(Must be activated during programming)
1. Turn off the engine, exit the vehicle and close and lock all doors, hood lid and
trunk lid.
The dash mounted LED begins to ash rapidly, indicating 30 second passive
arming has begun.
2. Opening any protected entry point during the 30 second passive arming cycle will
immediately suspend automatic arming and the 30 second passive arming cycle
will restart when all doors are closed. At the end of the passive arming cycle;
The dash mounted LED begins to ash slowly.
Parking Lights ash one time.
Siren sounds one chirp
If the siren did not sound when arming, then the chirps have been turned off and
you should refer to the section titled “ELIMINATING THE ARM / DISARM CHIRPS“
in this manual.
Doors Lock - Optional
Door locking during passive arming is a selectable feature. The alarm can be
programmed to allow the doors to lock only when arming using the keychain
transmitter and they will not automatically lock during passive arming.
PROTECTION WHILE THE SYSTEM IS ARMED
Opening any protected door, hood or trunk lid will cause the alarm to immediate-
ly sound. The alarm will continue to sound for 30 seconds, then stop and continue
to monitor all protected entry points. If the thief left a door opened, the alarm will
sound for six 30 second cycles, remain armed and ignore that triggered zone.\
Whenever the system is armed, the dash mounted LED indicator will slowly
ash. This serves as a visual deterrent to the potential thief. The LED is a very
low current bulb and will not cause the vehicle’s battery to drain, even when left
unattended for extended periods.
Whenever the system is triggered, the vehicle’s parking lights will ash for the
full 30 second alarm cycle, attracting visual attention to the vehicle.
Optional - Whenever the system is armed, the vehicle’s starting circuit will be
bypassed. If the thief should choose to ignore the siren, the vehicle can not be
started.
![](/img.php?id=2348092&img=bg5.png)
128-9307
5 of 16
Page 5
Any mild impact to the vehicle’s glass will cause the alarm to sound a short
series of warning tones.
Any strong impact to the vehicle’s glass will cause the alarm to trigger for the
full 30 second alarm cycle.
NOTE: If the optional interior illumination circuit was installed, the interior light will
ash as well for the full 30 second alarm cycle.
DISARMING THE SYSTEM
As you approach the vehicle, press and release the Disarm button on the keychain
transmitter.
The parking lights will ash two times, the siren will chirp twice, and the dash mounted
LED will turn off.
If you have the optional door lock/unlock circuit installed, the doors will unlock. If you
have the optional entry illumination circuit installed, the interior light will turn on for 30
seconds or until the ignition key is switched on.
NOTE: If the passive arming mode was selected at time of installation, the dash mounted
LED will start ashing rapidly indicating that the system is rearming. Opening any
door will suspend the automatic arming.
If the parking lights ashed three times, and the siren chirps four times, this indicates
that the alarm system was triggered during your absence. Before turning on the ignition
key, examine the dash mounted LED's ash pattern. The number of ashes identies
the triggered zone. For additional information, refer to INTRUSION WARNING SIGNALS
found later in this manual.
If the siren did not sound upon disarm, then the chirps have been turned off. Refer to
the section titled ELIMINATING THE ARM/DISARM CHIRPS.
NOTE: If the optional 2 step door unlock circuit is installed, when the unlock transmitter
button is activated, the drivers door only will unlock, pressing the unlock button a
second time will cause all doors to unlock. If your transmitter has a sperate lock
unlock buttons, pressing the unlock button anytime after the rst unlock command
will cause all the vehicle doors to unlock.
SILENT DISARMING (Feature must be activated during programming)
During step 1 above, hold the transmitter button for 2 seconds then release. The
unit will arm without the chirps for this one lock cycle.
WHILE THE SYSTEM IS SOUNDING
If during a triggered state, you wish to shut off the siren without disarming your security
system, simply press and release any transmitter button other than the disarm button.
This action will turn off the siren yet leave the vehicle fully armed and protected. This
feature is particularly useful if you are aware of children playing near your vehicle that may
accidently trigger your security system. In this case you can cancel the siren sounding.
INTRUSION WARNING SIGNAL
This system will inform you if an intrusion attempt has occurred while you were away
![](/img.php?id=2348092&img=bg6.png)
128-9307
6 of 16
Page 6
from the vehicle. Upon disarm, the siren will chirp 4 times and the parking lights will
ash 3 times. Enter the vehicle and before turning on the ignition switch, observe the
LED ash pattern.
If the LED ashes one time...pause, one time...pause etc., then an intrusion attempt was
made by impact or a strong vibration that the shock sensor detected. Check the vehicle
for possible damage to the glass or body panels.
If the LED ashes two times...pause, two times...pause etc., then an intrusion attempt was
made to open the hood, trunk, or by an accessory triggering device. Check the vehicle
for indications of forced entry to these openings.
If the LED ashes three times...pause, three times...pause etc., then an intrusion attempt
was made to the vehicle doors. Check all doors for indications of forced entry.
NOTE: The LED intrusion warning indications are stored in the system's memory and
will be erased when the ignition switch is turned on.
PUSH-BUTTON LED RECEIVER VALET/OVERRIDE/SAFETY CONTROLSWITCH
The Push-Button LED switch located in the receiver allows you to temporarily bypass all
alarm functions, eliminating the need to hand your transmitter to parking attendants or
garage mechanics. When the system is in valet mode, all alarm functions are bypassed,
however the remote panic feature and remote door locks will remain operational. To use
the valet mode, the system must rst be disarmed either by using your keychain trans-
mitter, or by activating your personalized manual override code.
1. Enter the vehicle, and turn the ignition key to the on position.
2. Press and hold the Push-Button switch until the LED turns on solid. The system will
remain in the valet mode.
3. To return to normal operation, press and release the Push-Button switch any time the
ignition is on.
NOTE: Always remember to return the vehicle to the valet off position. This will ensure
that the vehicle remains protected at all times.
MANUALLY OVERRIDING YOUR SYSTEM:
Using The Receivers Push-Button Override Switch
Your Security System can be disarmed without the use of the keychain transmitter. This
is necessary, since you will need the ability to operate your vehicle if the transmitter is
lost or its battery fails. If your system has been selected for Valet Switch manual override
as indicated on the last page of this manual, to bypass the alarm system;
1. Open the vehicle door. The alarm will sound.
2. Turn the ignition key to the on position.
3. Within 5 seconds, press and release the push-button override switch.
The alarm system will stop sounding and enter the (bypassed) mode. You can now start
and operate the vehicle normally.
Typically this override mode is used only if the transmitter has become inoperative.
![](/img.php?id=2348092&img=bg7.png)
128-9307
7 of 16
Page 7
Programming Your Custom Override Code:
Unlike override switches easily found, and defeated, this security system allows the
consumer to program a personal override code, offering a higher level of security.
To take advantage of this option, programmable feature # 9 must be selected for the
Custom Code Option. Consult your installation center for programming details. The
system comes from the factory with a pre-programmed override code of 11. To change
this default override code, do the following:
1. Disarm the system by use of the transmitter, or by use of the emergency override
sequence. Turn the ignition switch to the on position.
2. Within 10 seconds, press and release the Receivers Push-button switch, 3 times.
3. Within 10 seconds turn the ignition switch off, on, off, on, off, on.
(The siren or horn will beep and the lights will ash one time.)
4. Within 10 seconds, begin to enter your chosen 10ths digit by pressing and releasing
the Receivers Push-button switch from 1 up to 9 times.
5. Within 10 seconds of the last entered 10ths digit, turn the ignition switch off then on.
6. Within 10 seconds, begin to enter your chosen units digit by pressing and releasing
the Receivers Push-button switch from 1 up to 9 times.
7. Finish by turning the ignition switch to the off position.
If the new code was accepted, the unit will report back the newly entered code, by
ashing the LED, rst indicating the 10ths digit, pause and then the units digit. The
unit will report the new code three times with a one second pause between each code,
then the system will begin arming. If the LED ash pattern reports the previously stored
code, the new code was not entered correctly. Please repeat steps 1 through 7 above
considering the following.
NOTE: Acceptable digits 10ths or units are 1 through 9. The unit will not recognize
a 0 (Zero), or no digit entered in any place, units or tenths.
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for more
then 5 seconds during any of the above steps, the unit will revert back to the
last successfully stored code.
Custom Code Programming Example:
To Change the code from the factory pre-assigned code of 11 to “52” you would do the
following:
1. Disarm the system by use of the transmitter or by use of the emergency override
sequence.
2. Turn the ignition switch to the on position.
3. Within 10 seconds, press and release the Receivers Push-button switch, 3 times.
4. Within 10 seconds turn the ignition switch off, on, off, on, off, on.
(The siren or horn will beep and the lights will ash one time.)
5. Within 10 seconds, begin to press and release the Receivers Push-button switch to
set the tenths digit. (As per the example, press and release 5 times to set the tenths
digit to 5).
6. Within 10 seconds of the last press of the push-button, turn the ignition switch off
then on.
7. Within 10 seconds, begin to press and release the Receivers Push-button switch to
set the units digit.
(As per the example, press and release 2 times to set the units digit to 2).
![](/img.php?id=2348092&img=bg8.png)
128-9307
8 of 16
Page 8
8. Turn the ignition switch to the off position. Immediately observe the LED ash pattern.
You will notice the LED ashing ve times, pause, and then ash two times, pause.
This pattern will be repeated three times indicating the new code (52) has been ac-
cepted and stored in memory.
NOTE: If after step 7, the LED ashes a code other than what was just entered, this
indicates that the code has not been changed. You will have to repeat steps 1
through 7 above being certain to note the following:
Acceptable digits 10ths or units are 1 through 9. The unit will not recognize a 0 (Zero),
or no digit entered in any place, units or tenths.
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for more
then 5 seconds during any of the above steps, the unit will revert back to the
last successfully stored code.
MANUALLY OVERRIDING YOUR SYSTEM:
USING THE CUSTOM CODE OVERRIDE
Assuming the override code programmed has not been changed and the default override
code of 11 is in the system's memory.
1) Enter the vehicle and turn the ignition switch to the on position.
NOTE: The siren will sound.
2) Within 5 seconds, press and release the Receivers Push-button switch 1 time.
3) Within 5 seconds, turn the ignition switch off then on.
4) Within 5 seconds, press and release the Receivers Push-button switch 1 time.
5) Turn the ignition switch off then on and start the vehicle.
NOTE: If you have changed the programmed override code then substitute your new
code tenths for step 2 above, and units for step 5 above.
ELIMINATING THE NORMAL ARM/DISARM CHIRPS
You can selectively eliminate the normal arm and disarm chirps by holding the transmitter
button slightly longer when arming or disarming. This will prevent the siren chirps for
one arm or disarm cycle. If you nd this inconvenient and wish to eliminate these chirps
permanently,
1. Turn the ignition switch 'on" then 'off".
2. Within 10 seconds of turning off the ignition, press and release the Receivers Push-but-
ton switch 3 times.
3. If the chirps were on before you started, the siren will emit 2 short chirps indicating
that the chirps are now off. If the chirps were off before you started, the siren will emit
one short chirp indicating that the chirps are now on.
NOTE: If the vehicle battery is disconnected then reconnected, the unit will return to
the default setting of chirps on. Repeat the above procedure to eliminate the
arm/disarm chirps.
REMOTE PANIC OPERATION
The Lock or Unlock button on your keychain transmitter also functions as a panic switch
![](/img.php?id=2348092&img=bg9.png)
128-9307
9 of 16
Page 9
for use in emergency situations. To use remote panic,
1. Press and hold the Lock or Unlock button on the keychain transmitter for 3 or more
seconds. The alarm will immediately sound.
2. To stop the alarm, press and hold the Lock or Unlock button on the transmitter again
for 3 seconds. If the button is not pressed, the alarm will automatically stop after 30
seconds. Also if any transmitter button other than the Lock or Unlock button is pressed
and released, the Panic mode will be turned off immediately. The normal function of
this transmitter button will be suspended during the Panic sounding period.
NOTE: While in the Panic mode, pressing and releasing the Lock, or the Unlock buttons
will, if the option is installed, lock and unlock the doors respectively. While in
the panic mode, anytime the unlock button is pressed, the panic feature will
continue for the allotted 30 seconds, however, the security system will be dis-
armed allowing the vehicle to start.
PUSH BUTTON LED RECEIVER SAFETY CONTROL SWITCH
The Push Button LED control switch allows you to temporarily disable the remote starting
function of the system. This recommended whenever the vehicle is being serviced. To
place the system in the service mode:
1) With the system disarmed/unlocked, and the ignition switch off press and hold the
Push Button, found on the windsheild receiver, in.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED begins to ash two short ashes followed by one long ashes and
continues this pattern until returned to normal mode of operation.
This puts the unit into the R/S Override mode indicating that the remote start is in
the service mode and will not start from RF or any other input Posse or otherwise.
To Exit R/S Override Mode
1) With the system disarmed, Press and Hold the Push Button, found on the
windsheild receiver, in.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED turns off indicating that the R/S unit is fully functional one again.
TURBO TIMER MODE
This system provides a means to cool down the vehicles turbo charger, if so equipped, by
allowing the vehicle to continue to run for a prescribed period of time every time the vehicle's
engine is turned off. This feature requires the system to be set up for turbo timer during instal-
lation. Consult with your installation center to be certain this feature was activated and how
long the vehicle will continue to run, 3, 5, or 10 minutes after the ignition switch is turned off.
To activate the turbo timer:
Anytime the ignition key is in the on position for more than 15 seconds:
1) Place the gear selector in park.
2) Set the parking, (hand), brake.
3) Be certain your foot is off the brake pedal.
4) Press the receiver's program/Push-Button switch 2 times within 5 seconds.
The parking lights will ash two times indicating the mode was successfully entered.
If your parking lights ashed four times, this indicates the turbo mode was on and is now
turned off.
![](/img.php?id=2348092&img=bga.png)
128-9307
10 of 16
Page 10
With the turbo timer mode selected on, after you've arrived at your destination, while the
engine is still running, set the parking brake, pause 2 seconds, then turn the ignition switch
to the off position. The engine will continue to run the allotted time according to the selection
during installation.
If you do not want the vehicle to continue to run for one cycle, simply step on the vehicle's brake,
or release the parking brake, or activate the transmitter's start button two times in succession.
Any of these will cause the engine to turn off.
REMOTE STARTING THE VEHICLE
The unit WILL NOT start the vehicle if any one of the following conditions exists:
1. The Vehicle Hood Is Opened.
2. The Gear Selector Is In Any Gear Other Then Park.
3. The Brake Is Depressed.
4. The System is in the Remote Start Override mode
WARNING! Be certain that the vehicle is outdoors before using this or any remote vehicle
starting device. A running engine produces dangerous carbon monoxide
fumes which can be harmful or fatal if prolonged exposure occurs. DO NOT
remote start the vehicle if it is garaged.
To Remote Start The Vehicle:
Press and release the trunk/key button of your keychain transmitter two times within 2
seconds. The vehicle will start and remain running for the pre-programmed 5, 10, 15, or
20 minutes. As a visual indication, the parking lights will ash or turn on depending on
the programming set up by your installation center.
When you arrive at your vehicle, disarm the alarm system by pressing and releasing the
Disarm button of your keychain transmitter. Enter the vehicle and turn the ignition key
to the on position.
NOTE: This system has the ability to be congured to a single press start if you so desire.
Please check with your installation center if your system was changed from the default safe
start setting of two press start or if you wish to change your conguration.
CAUTION ! Do not turn the key to the start position. This will cause the starter motor
to engage with the already running engine which could result in damage.
Step on the brake pedal to disengage the remote start unit. The vehicle will
continue to run but now on it's own power.
NOTE: The engine will stop running before the expiration of the pre-programmed
run timer if you complete any of the following:
1. Press and release trunk/key button of your keychain transmitter two times within 2
seconds.
2. Depress the brake pedal.
3. Open the hood.
4. Place the system in Remote Start Override Mode.
5. Race the engine to above 4000 RPM.
![](/img.php?id=2348092&img=bgb.png)
128-9307
11 of 16
Page 11
OPERATING ON AUTOMATIC START UP TIMER MODE
This unit has the ability to automatically start the vehicle every 2 or 4 hours over a 48 hour
period. This feature is especially useful in cold climates where the only means to keep
the engine and engine uids warm is to periodically start the engine.
WARNING ! Be certain that the vehicle is outdoors before using this or any remote
vehicle starting device. A running engine produces dangerous carbon mon-
oxide fumes which can be harmful or fatal if prolonged exposure occurs. DO
NOT remote start the vehicle if it is garaged.
TO BEGIN THE AUTOMATIC START UP TIMER
1. Turn the ignition key on then off.
2. Within 10 seconds, activate the RF start command two times. (Push the trunk/key
button of your keychain transmitter 4 times).
The parking lights will ash and the siren will chirp 4 times indicating the timed start
mode is activated.
The vehicle, on a 2 or 4 hour interval basis, will automatically start, run for the pre-pro-
grammed time (5,10,15 or 20 minutes), and then shut off. This will continue for 48 hours.
NOTE: The automatic start up timer can also be initiated from the keychain transmitter.
To do this:
1. Start the vehicle using the keychain transmitter by pressing and releasing the trunk/
key button 2 times.
2. Shut off the vehicle using the keychain transmitter by pressing and releasing the trunk/
key button 2 times.
3. Within 10 seconds of step 2, activate the RF start command two times. (Push the trunk/
key button of your keychain transmitter 4 times).The parking lights will ash and the
siren will chirp 4 times indicating the timed start mode is activated.
CANCELING THE AUTOMATIC START UP TIMER
To cancel the automatic start up timer do one of the following:
1. Start the vehicle manually with the use of the ignition key and depress the brake pedal.
2. Remote start the vehicle using your keychain RF transmitter.
ADDITIONAL REMOTE FUNCTION (CHANNEL 3)
This system has an additional feature that can be connected to a number of different optional
accessories. Some of the more common uses for this channel are:
Remote Trunk Release
Remote Window Closure
Remote Garage Door Interface
To activate the optional accessory, press and hold the trunk/key button on the keychain trans-
mitter for four seconds.
NOTE: The feature that has been added to channel 3 will always be activated using the same
transmitter button that remotely starts the vehicle. There is no way to move the channel
3 function to a different transmitter button.
![](/img.php?id=2348092&img=bgc.png)
128-9307
12 of 16
Page 12
ADDITIONAL REMOTE FUNCTION (CHANNEL 4)
This system has an additional feature that can be connected to a number of different optional
accessories. Some of the more common uses for this channel are:
Can Be Set Up To Activate Rear Window Defogger During Remote
Start If Vehicle Is So Equipped
Remote Window Closure
Rear Hatch Release
Right Or Left Slider Doors in An Equipped Van
To activate the optional accessory, press the option button on the keychain transmitter. The
optional accessory will immediately engage.
ADDITIONAL REMOTE FUNCTION (CHANNEL 5)
This system has an additional feature that can be connected to a number of different optional
accessories. Some of the more common uses for this channel are:
Remote Trunk Release
Remote Window Closure
Rear Hatch Release
Right Or Left Slider Doors in An Equipped Van
To activate the optional accessory, press the option button on the keychain transmitter. The
optional accessory will immediately engage.
ADDITIONAL REMOTE FUNCTION (CHANNEL 6)
This system has an additional feature that can be connected to a number of different optional
accessories. Some of the more common uses for this channel are:
Rear Hatch Release
Right Or Left Slider Doors in An Equipped Van
Driver Priority Settings In Vehicles So Equipped
To activate the optional accessory, press the option button on the keychain transmitter. The
optional accessory will immediately engage.
ADDITIONAL REMOTE FUNCTION (CHANNEL 7)
This system has an additional feature that can be connected to a number of different optional
accessories. Some of the more common uses for this channel are:
Rear Hatch Release
Right Or Left Slider Doors in An Equipped Van
Driver Priority Settings In Vehicles So Equipped
Second Driver Priority Settings In Vehicles So Equipped
To activate the optional accessory, press the option button on the keychain transmitter. The
optional accessory will immediately engage.
NOTE: If your system utilizes the transmitter shown, the second option button may be
congured to operate additional accessories. Please consult your installing retailer for more
information concerning the options available.
![](/img.php?id=2348092&img=bgd.png)
128-9307
13 of 16
Page 13
TELEMATIC UPGRADE:
This system has the ability to have a telematic upgrade module connected to it. This
is an upgrade that can give you control of certain functions of your vehicle from a
telephone or in some cases a computer interface. Please check with your instal-
lation center for most recent Telematic Upgrades. If you had a Telematic Upgrade
installed, the manual supplied with the upgrade unit will provide a operators manual
advising of the features of the system and means available to control these features
of your vehicle.
PROGRAMMED TRANSMITTER NOTIFICATION (PTN)
Every time after Disarm when the ignition key is turned on, the unit's LED will report the
number of transmitters programmed into the system. This safety feature will alert you if an
unauthorized transmitter has been programmed into your vehicle's security system without
your knowledge. Typical from the factory, there will be a 2 ash, pause, repeated 3 times
indicating that two transmitters are programmed into the system. If you note additional ash-
es, there may heve been an additional transmitter added without your knowledge or authori-
zation. If you notice a change in the transmitter LED report pattern, you can correct this by
looking up how to erase and reprogram your transmitters found in the transmitter program-
ming guide. This reprogram operation will erase all unauthorized or unwanted transmitters.
PROGRAMMING NEW OR REPLACEMENT TRANSMITTERS (BANK 1)
Transmitter Model Name 145SPR Is Also Found On Back Of
Transmitter Case. Use Battery CR2032
1) Turn the ignition key to the on position.
2) Press and release the valet/programming switch 3 times (Siren Chirps).
3) Press the Lock Button of each transmitter you want programmed until you hear
a chirp from the horn or siren.
4) Turn the ignition switch off.
The above action programs the Lock, Unlock, Start/Trunk, and Option 1 buttons
which are typical for most systems.
For additional channel programming beyond the option 1 button, you can use any
unused button or combination of buttons not in use.
In other words, to access option channel 5, 6, 7, you would do the following:
From step 3 above:
a) Press and release the valet/programming button 4 additional times to get to channel
5, then Press any unused transmitter button or button combination to program.
b) From a, press and release the valet/programming button 1 time to get to channel
6, then press any unused transmitter button or button combination to program.c)
From b, press and release the valet/programming button 1 time to get to channel
7, then press any unused transmitter button or button combination to program.
Note: Not all systems have channels above 3, check with your installation center for
options your system may or may not have.
![](/img.php?id=2348092&img=bge.png)
128-9307
14 of 16
Page 14
To purchase replacement transmitters
or to get additional product information go to:
www.pursuitcarsecurity.com
Note: Certain systems have the ability to utilize channels 6 and 7 for driver priority
programming. For driver priority, the vehicle must be equipped with this feature,
and the optional feature must be set up and installed by your installation center.
Once this feature is added when the unlock button of transmitter 1 is used, it will set
driver 1 priority and when the unlock button of transmitter 2 is used it will set driver
2 priority. In this situation, the unlock button can be programmed into two receiver
channels, unlock, channel 2 and driver priority 6 or 7. In no other circumstance will
the system allow a transmitter button to be programmed into 2 receiver channels
at the same time.
This remote has the ability to operate 2 similar Alarms From A Single
Transmitter. To toggle on and off vehicle one or two,,,
Press the Trunk/Key button + the Lock button for 5 seconds.
The LED ashes 2 times. Release the buttons, to select 2nd vehicle mode.
Program this transmitter into the second vehicle's system. Any time you
are in 2nd vehicle when the transmitter is operated, the LED will ash twice for
each function. When in in the prime vehicle mode, the LED will ash once for each
function.
Transmitter Battery Replacement
1) Remove the 00 philips head screw from the rear case.
2) Separate the case halves by inserting a small plastic tool in the top right slot.
3) Carefully slide the CR2032 battery out from under the battery clip and dispose
of properly.
4) Insert a fresh CR2032 battery with the (+) side up away from the PCB.
5) Close the case in reverse of disassembly.
FCC COMPLIANCE
This device complies with Part 15 of the FCC rules and with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including any interference that may
cause undesired operation.
Warning!
Changes or modications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment
NOTE:The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications to this equipment. Such modications could void the user’s
authority to operate the equipment
![](/img.php?id=2348092&img=bgf.png)
128-9307
15 of 16
Page 15
ALARM DASH LED INDICATORS
RAPID FLASHING = PASSIVE ARMING
SLOW FLASHING = ARMED
OFF = DISARMED
ON SOLID = VALET MODE
3 FLASH... PAUSE = INTRUSION ZONE 3
2 FLASH...PAUSE = INTRUSION ZONE 2
1 FLASH...PAUSE = INTRUSION ZONE 1
ALARM SIREN CHIRP INDICATION
1 CHIRP* = ARM
2 CHIRPS* = DISARMED
3 CHIRPS = ARMING WITH ENTRY POINT OPENED
4 CHIRPS = DISARM AFTER INTRUSION
5 CONTINUOUS = TRIGGERED/PANIC
ALARM PARKING LAMP INDICATIONS
1 FLASH = ARM
2 FLASH = DISARM
3 FLASH = DISARM AFTER INTRUSION
CONTINUOUS FLASH = TRIGGERED/PANIC
REMOTE START SIREN INDICATIONS
1 LONG/1SHORT = RF START COMMAND ISSUED
(IF SELECTED ON)
REMOTE START PARKING LAMP INDICATIONS
1 FLASH = RF START COMMAND ISSUED
ON = RUNNING UNDER REMOTE START
CONTROL (IF SELECTED)
CONTINUOUS FLASH = RUNNING UNDER REMOTE START
CONTROL (IF SELECTED)
PRO9776E
SYSTEM FUNCTIONS AT A GLANCE
![](/img.php?id=2348092&img=bg10.png)
128-9307
16 of 16
Page 16
NOTES
© 2014 Voxx Electronics Corporation, Hauppauge, NY 11788 128-9307
