Nutek ATRQE Two Way Remote Control Unit User Manual
Nutek Corporation Two Way Remote Control Unit
Nutek >
User Manual
![](/img.php?id=3218398&img=bg1.png)
128-8774c
1 of 24
Page 1
Model APS-997C
Owners Guide
2 Way LCD Vehicle Security
& Remote Start System
PATENTED: www.voxxintl.com/company/patents
Rev b New Format 5/2013
Rev c New FCC Disclaimer 9/2016
Features and Options Pages 2-3
Arming Your System-Active Page 4
Protection While The System is Armed Page 5
Disarming The System Page 5
Intrusion Warning Signals Page 6
Valet Override, Programming & Safety Control Switch Page 7
Programming Custom Override Code Page 7
Eliminating the Normal Arm/Disarm Chirps Page 9
Remote Panic Operation Page 9
RF Sensor Selection Page 10
Pushbutton LED Receiver Safety Control Switch Page 11
Remote Starting The Vehicle Page 11
Automatic Start Timer Operation Page 12
Optional Device Channels Page 13
Turbo Timer Operation Page 14
Telematic Upgrade Page 14

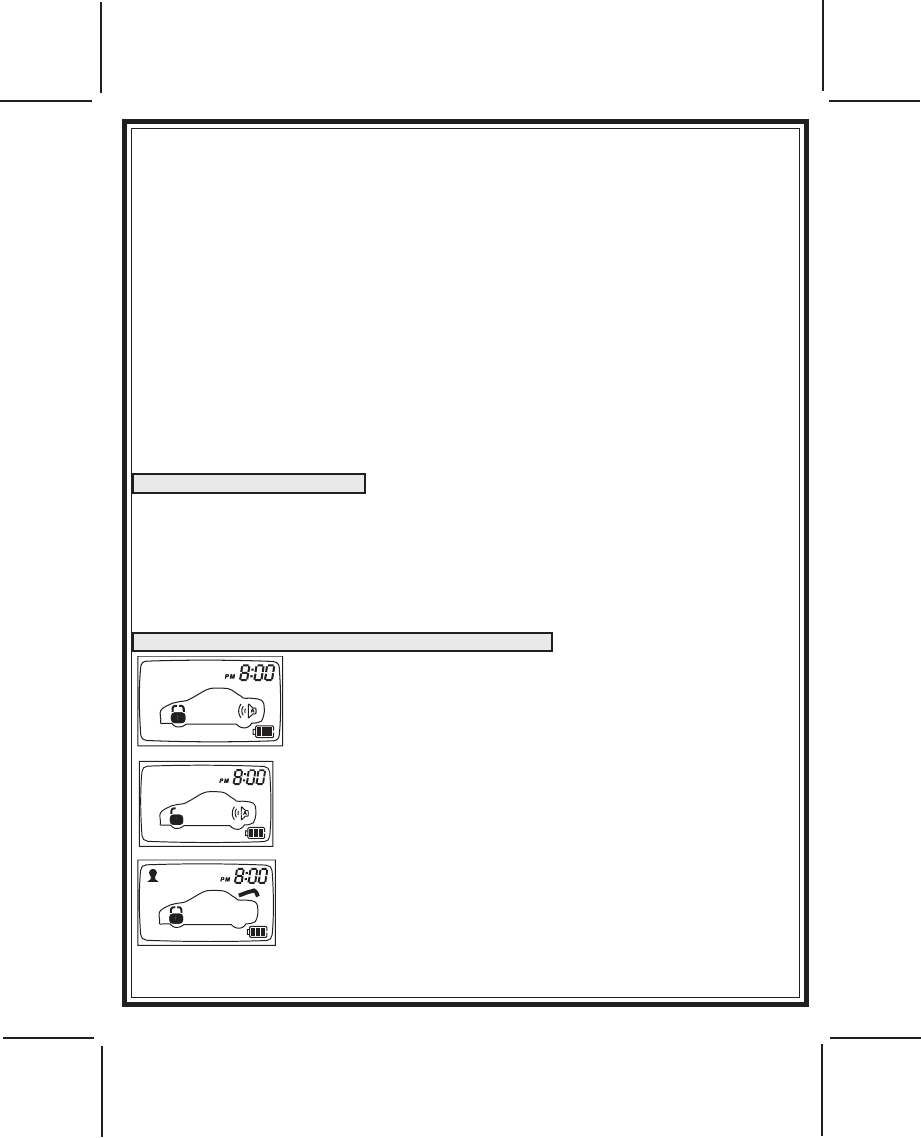

Transceiver Screen Icons And Indications Page 15
Two Way Remote Features and Functions Page 18
24 Hour Timed Start Setup, Operation, and Use Page 21
Temperature Start Mode Operation Page 21

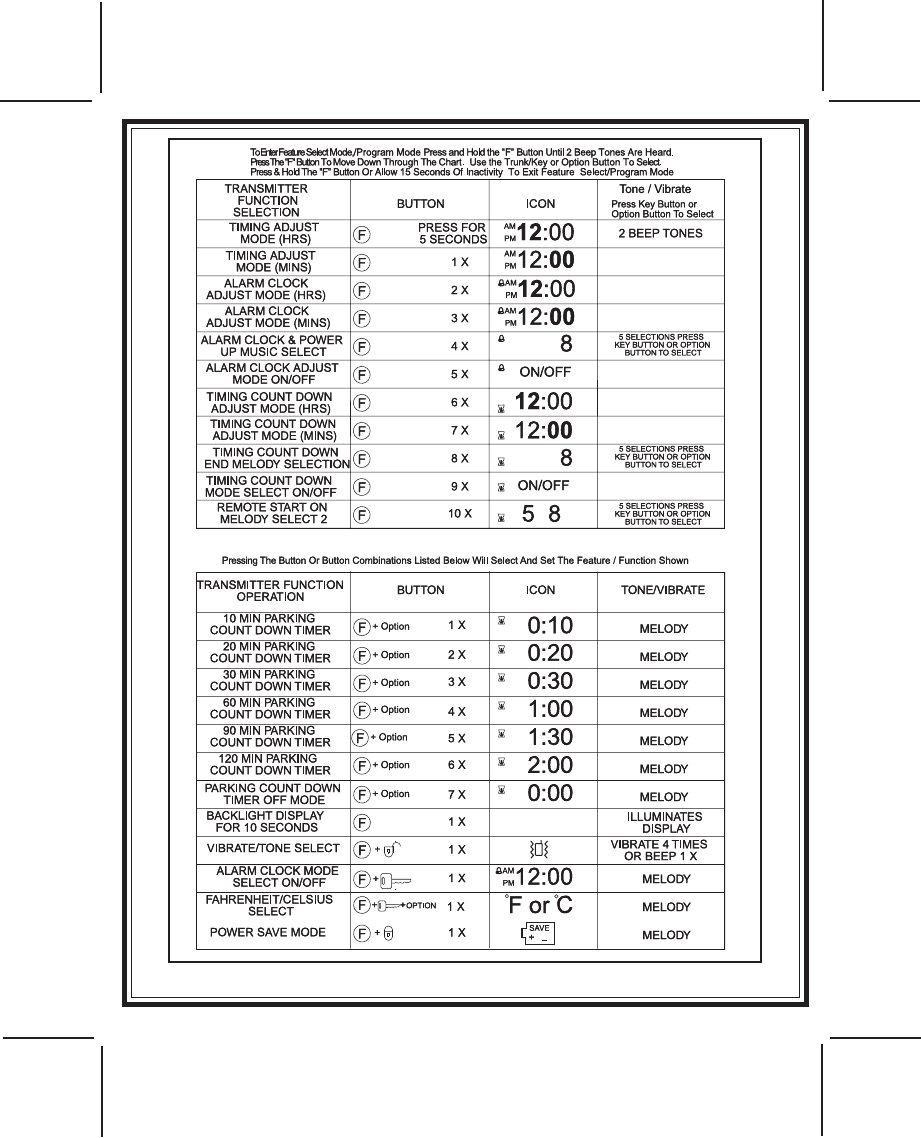

Two Way Remote Function Program Chart Page 21
Functions At A Glance Page 22
Programming New Or Replacement Transmitters Page 23
![](/img.php?id=3218398&img=bg2.png)
128-8774c
2 of 24
Page 2
IMPORTANT! In order to provide you with the highest level of security to your vehi-
cle, this system is equipped with selectable manual override circuitry. It is possible
that you will need to override you security system if the transmitter becomes lost
or inoperative due to battery failure. Reading the sections on "Manually Overriding
Your System" is necessary to fully understand the procedure required to enable your
vehicle in such situations. In addition, the chart on page 23 of this manual has a
section for the particular features and options installed in your vehicle as well as the
override method selected. Although the default mode is "Valet Switch" operation,
the system can be congured for "Custom Code" operation for enhanced security.
Conrm the override mode selected on page 23 of this manual and familiarize
yourself with the section on it's operation.
FEATURES:
1 Two Way 5 Button Remote Control And 1 One Way 5 Button Remote Control
Six Channel Code Learning Programmable Receiver
External Superheterodyne Transceiver Antenna w/Pushbutton Switch & LED
Single Or Two User Programmable W/Separate Control Outputs
Single Button Lock/Unlock or Separate Button Lock/Unlock or Both
Remote Keyless Entry With Optional Access Guard (must have power door
locks)
Selectable Manual Override Mode
New Enhanced Panic Feature (Any button other than unlock stops siren, no
change to the units state)
Smart Disarm (If triggered, elect to shut off siren, or disarm entire unit )
Adjustable Shock Sensor Via The Transmitter (Pre-Detect Off, Pre & Full Detect
Off, City Mode)
Safe Start Output Controlled From Channel 3 (Option Channel 3 For Trunk, Or
For Remote Start)
24 Hour Time Start Mode
Cold Temperature Start Mode
2 or 4 Hour Automatic Start Mode
Parking Meter Count Down Timer On LCD Remote
Additional Count Down Timer Mode
Remote Panic In All Modes (Press & Hold Lock /Unlock Button For 3 Seconds
To Engage)
Improved Custom Code Override, User Selectable and Programmable
Protected Push Button Valet/Override Switch In Windshield Receiver
7-Function LED-Arm / Disarm / Zone 1 / Zone 2 / Zone 3 / Valet / Arming
Intrusion Alert With Memory
Instant Siren Activation
Starter Disable Output
Additional Engine Immobilizer Output, (Optional Relay Required)
5 Button Remote Start Security System With
Plug-In Shock Sensor & Starter Disable
![](/img.php?id=3218398&img=bg3.png)
128-8774c
3 of 24
Page 3
True Last Door Arming (Hardwire Only)
Defective Zone By-Pass
Defective Zone Chirp Conrmation (Unit Chirps To Report Zone Cleared)
6 Tone Mini Siren
Car Horn Output For Additional Alarm Response (Improved Timing To Minimize
RF Interference)
Additional Negative Trigger Input (Hood and Trunk)
RF Inhibit With Ignition On
Parking Light Flasher (Relay On Board)
Plug In Dual Stage Shock Sensor (Pre-detect, Full Trigger and “City Mode”)
Audible Arm, Disarm, Defect, and Tamper Chirp Indications
Headlight Control Output
Illuminated Entry Control Output
Active or Passive Arming Selectable
Programmable Auto Lock On / Off
Programmable Auto Unlock On / Off/Drivers Door/All Doors
Programmable Door Lock Pulse Duration 1 Second / 3.5 Seconds/1 Sec L/
Dbl. U/L
Programmable Active or Passive Door Locks
User Programmable Permanent Chirp Delete
On Command RF Chirp Delete from Transmitter Or Selectable Through Soft-
ware
Dome Delay Learn Circuitry
OPTIONS :
Remote Trunk Release (must have electric trunk release)
Remote Keyless Entry (must have power door locks)
Multiple Vehicle Capable
Remote Power Window Roll Up
Remote Garage Door Interface
WARNING! Be certain that the vehicle is outdoors before using this or any remote
vehicle starting device. A running engine produces dangerous carbon
monoxide fumes which can be harmful or fatal if prolonged exposure
occurs. DO NOT remote start the vehicle if it is garaged.
YOUR “CODE HOPPING“ TRANSMITTERS
The transmitters included with your new security system use the most advanced and
secure form of radio frequency transmission available on any current automotive
security system. Some of today’s sophisticated auto thieves use a device known
as a code grabber, which will receive and store the signal from your keychain
transmitter and re-transmit at a later time to disarm your system.
Your Keeloq Code Hopping transmitters will change their signal every time the
button is pressed, so when a thief grabs then re-transmits your signal, the alarm
system will not respond.
![](/img.php?id=3218398&img=bg4.png)
128-8774c
4 of 24
Page 4
If your transmitter button is pressed more than fty times
while it is out of range of the vehicle (children playing with
your keys), the transmitter will not operate when you return
to the vehicle, and will need to be re-aligned to the receiver.
To do this, simply press button 1, (lock), two times within a
one second time period. The system will now respond to that
transmitter each time a button is pressed.
NOTE:This system is custom congurable and can be set up
to operate with a number of options controlled from any trans-
mitter button or button combination. For reference, we will
describe operation assuming that your system is programmed
for separate lock and unlock buttons. Also reference will be
made to the icons as shown on the buttons left.
NOTE: The LCD based remote will be explained in detail fur-
ther in this manual See "System Status" described later in this manual. Con-
sult your installation center if your system has been congured differently.
NOTE: Your system has the option of using a siren, the vehicle horn, or both for
the sounding device. Where the siren is referenced below, the horn or both
may in fact chirp, or beep.
ARMING THE SYSTEM - ACTIVE
1. Turn off the engine, exit the vehicle, and close all doors, hood lid and trunk lid.
2. Press and release Lock/Arm button on the keychain transmitter.
The dash mounted LED begins to ash slowly.
Parking Lights ash one time.
Siren sounds one chirp.
If the siren/horn sounds 3 chirps, then you have left a door, trunk, or hood
lid ajar. Simply close the opened entry point to provide full protection. If the
siren "chirped" three times, sometime after arming, the exclusive delayed
dome light learn circuit has been programmed and the system detected a
open entry point after the learned delay expired. Again, closing the hood,
trunk, or doors will correct the problem and you do not need to disarm
the system to make the correction. If the siren/horn did not sound when
arming, then the chirps have been turned off and you should refer to the
section titled "ELIMINATING THE ARM/DISARM CHIRPS" in this manual.
Doors Lock - Optional
NOTE: If the optional Headlamp illumination feature has been added, and has been
selected for operation when arming, as an added convenience, the system
will turn on the headlights when the system is armed.
SILENT ARMING - ACTIVE (Feature must be activated during programming)
During step 2 above, hold the transmitter button for 2 seconds then release. The
unit will arm without the chirps for this one lock cycle.
ARMING THE SYSTEM - PASSIVE (AUTOMATIC)
(Must be activated during programming)
1. Turn off the engine, exit the vehicle and close and lock all doors, hood lid and
trunk lid.
![](/img.php?id=3218398&img=bg5.png)
128-8774c
5 of 24
Page 5
The dash mounted LED begins to ash rapidly, indicating 30 second passive
arming has begun.
2. Opening any protected entry point during the 30 second passive arming cycle
will immediately suspend automatic arming and the 30 second passive arming
cycle will restart when all doors are closed. At the end of the passive arming
cycle;
The dash mounted LED begins to ash slowly.
Parking Lights ash one time.
Siren sounds one chirp
If the siren did not sound when arming, then the chirps have been turned off and
you should refer to the section titled “ELIMINATING THE ARM / DISARM CHIRPS“
in this manual.
Doors Lock - Optional
Door locking during passive arming is a selectable feature. The alarm can be
programmed to allow the doors to lock only when arming using the keychain
transmitter and they will not automatically lock during passive arming.
PROTECTION WHILE THE SYSTEM IS ARMED
Opening any protected door, hood or trunk lid will cause the alarm to immediately
sound. The alarm will continue to sound for 30 seconds, then stop and continue
to monitor all protected entry points. If the thief left a door opened, the alarm will
sound for six 30 second cycles, remain armed and ignore that triggered zone.\
Whenever the system is armed, the dash mounted LED indicator will slowly
ash. This serves as a visual deterrent to the potential thief. The LED is a very
low current bulb and will not cause the vehicle’s battery to drain, even when left
unattended for extended periods.
Whenever the system is triggered, the vehicle’s parking lights will ash for the
full 30 second alarm cycle, attracting visual attention to the vehicle.
Optional - Whenever the system is armed, the vehicle’s starting circuit will be
bypassed. If the thief should choose to ignore the siren, the vehicle can not be
started.
Any mild impact to the vehicle’s glass will cause the alarm to sound a short
series of warning tones.
Any strong impact to the vehicle’s glass will cause the alarm to trigger for the
full 30 second alarm cycle.
NOTE: If the optional interior illumination circuit was installed, the interior light will
ash as well for the full 30 second alarm cycle.
DISARMING THE SYSTEM
NOTE: If the optional 2 step door unlock circuit is installed, when the unlock
transmitter button is activated, the drivers door only will unlock, pressing the
unlock button a second time will cause all doors to unlock.
NOTE: If your transmitter has been congured with single button Lock/Unlock, to
activate the all door unlock feature operate the Lock/Unlock button a second
time within 3 seconds of the rst unlock command.
![](/img.php?id=3218398&img=bg6.png)
128-8774c
6 of 24
Page 6
1. As you approach the vehicle, press and release the Unlock/Disarm button on the
keychain transmitter.
The dash mounted LED turns off.
The LED will start ashing rapidly, indicating that the system is re-arming
automatically. Open any door to suspend the automatic arming.
Parking Lights ash two times.
If the parking lights ashed three times, then the alarm was triggered in your
absence. Before turning the key on, examine the LED to identify which zone was
triggered.
Siren sounds two chirps.
If the siren sounds 4 chirps, then the alarm was triggered in your absence. Before
turning the key on, examine the LED and refer to the INTRUSION WARNING
SIGNALS section of this manual to identify which zone was triggered.
If the siren did not sound when disarming, then the chirps have been turned off
and you should refer to the section titled “ELIMINATING THE ARM / DISARM
CHIRPS“ in this manual.
Doors Unlock - Optional
2 Step Doors Unlock - Optional
NOTE: If the optional Headlamp illumination feature has been added and has
been selected for operation when disarming, as an added convenience, the
system will turn on the headlights when the system is disarmed.
SILENT DISARMING (Feature must be activated during programming)
During step 1 above, hold the transmitter button for 2 seconds then release. The
unit will arm without the chirps for this one lock cycle.
WHILE THE SYSTEM IS SOUNDING
If during a triggered state, you wish to shut off the siren without disarming your
security system, simply press and release any transmitter button other than the
Unlock/Disarm button. This action will turn off the siren yet leave the vehicle fully
armed and protected. This feature is particularly useful if you are aware of children
playing near your vehicle that may accidently trigger your security system. In this
case you can cancel the siren sounding without disarming your alarm.
INTRUSION WARNING SIGNALS
This system will inform you if an intrusion attempt has occurred while you were away
from the vehicle. If an intrusion attempt has occurred, the siren will chirp 4 times and
the parking lights will ash 3 times when disarming the system. Enter the vehicle
and observe the red dash mounted LED to identify which zone was triggered.
If the LED is ashing one time...pause...one time...pause...etc., then an
intrusion attempt was made to the shock sensor, or an accessory triggering
device that may have been added to the system.
If the LED is ashing two times...pause...two times...pause...etc., then an
intrusion attempt was made to a hood or trunk pin switch that was added
to the system or to a light activated entry point if the alarm was installed
using the voltage sensing feature.
![](/img.php?id=3218398&img=bg7.png)
128-8774c
7 of 24
Page 7
If the LED is ashing three times...pause...three times...pause...etc., then
an intrusion attempt was made through one of the vehicle’s doors.
These intrusion warning indicators are stored in the system’s memory and will only
be erased when the ignition key is turned on.
PUSH-BUTTON LED RECEIVER VALET/OVERRIDE/SAFETY CONTROL
SWITCH
The Pushbutton LED switch located in the receiver allows you to temporarily by-
pass all alarm functions, eliminating the need to hand your transmitter to parking
attendants or garage mechanics. When the system is in valet mode, all alarm
functions are bypassed, however the remote panic feature and remote door locks
will remain operational. To use the valet mode, the system must rst be disarmed
either by using your keychain transmitter, or by activating your personalized manual
override code.
1. Enter the vehicle, and turn the ignition key to the on position.
2. Press and hold the Push-Button switch until the LED turns on solid. The system
will remain in the valet mode.
3. To return to normal operation, press and release the Push-Button switch any
time the ignition is on.
NOTE: Always remember to return the vehicle to the valet off position. This will
ensure that the vehicle remains protected at all times.
MANUALLY OVERRIDING YOUR SYSTEM:
USING THE RECEIVERS PUSHBUTTON OVERRIDE SWITCH
Your Security System can be disarmed without the use of the keychain transmit-
ter. This is necessary, since you will need the ability to operate your vehicle if the
transmitter is lost or its battery fails. If your system has been selected for Valet
Switch manual override as indicated on the last page of this manual, to bypass
the alarm system;
1. Open the vehicle door. The alarm will sound.
2. Turn the ignition key to the on position.
3. Within 5 seconds, press and release the push-button override switch.
The alarm system will stop sounding and enter the (bypassed) mode. You can
now start and operate the vehicle normally.
Typically this override mode is used only if the transmitter has become inoperative.
PROGRAMMING YOUR CUSTOM OVERRIDE CODE
Unlike override switches easily found, and defeated, this security system allows the
consumer to program a personal override code, offering a higher level of security.
To take advantage of this option, programmable feature # 10 must be selected for
the Custom Code Option. Consult your installation center for programming details.
The system comes from the factory with a pre-programmed override code of 11.
To change this default override code, do the following:
1. Disarm the system by use of the transmitter, or by use of the emergency override
sequence. Turn the ignition switch to the on position.
2. Within 10 seconds, press and release the Receivers push-button switch, 3
times.
3. Within 10 seconds turn the ignition switch off, on, off, on, off, on.
(The siren or horn will beep and the lights will ash one time.)
![](/img.php?id=3218398&img=bg8.png)
128-8774c
8 of 24
Page 8
4. Within 10 seconds, begin to enter your chosen 10ths digit by pressing and
releasing the Receivers push-button switch from 1 up to 9 times.
5. Within 10 seconds of the last entered 10ths digit, turn the ignition switch off then
on.
6. Within 10 seconds, begin to enter your chosen units digit by pressing and re-
leasing the Receivers push-button switch from 1 up to 9 times.
7. Finish by turning the ignition switch to the off position.
If the new code was accepted, the unit will report back the newly entered code, by
ashing the LED, rst indicating the 10ths digit, pause and then the units digit. The
unit will report the new code three times with a one second pause between each
code, then the system will begin arming. If the LED ash pattern reports the previ-
ously stored code, the new code was not entered correctly. Please repeat steps 1
through 7 above considering the following.
NOTE: Acceptable digits 10ths or units are 1 through 9. The unit will not recognize
a 0 (Zero), or no digit entered in any place, units or tenths.
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for
more then 5 seconds during any of the above steps, the unit will revert back
to the last successfully stored code.
CUSTOM CODE PROGRAMMING EXAMPLE
To change the code from the factory pre-assigned code of 11 to “52” you would do
the following:
1. Disarm the system by use of the transmitter, or by use of the emergency override
sequence.
2. Turn the ignition switch to the on position.
3. Within 10 seconds, press and release the Receivers push-button switch, 3 times.
4. Within 10 seconds turn the ignition switch off, on, off, on, off, on.
(The siren or horn will beep and the lights will ash one time.)
5. Within 10 seconds, begin to press and release the Receivers push-button switch
to set the tenths digit. (As per the example, press and release 5 times to set the
tenths digit to 5)
6. Within 10 seconds of the last press of the pushbutton, turn the ignition switch
off then on.
7. Within 10 seconds, begin to press and release the Receivers Push-button switch
to set the units digit.
(As per the example, press and release 2 times to set the units digit to 2).
8. Turn the ignition switch to the off position. Immediately observe the LED ash
pattern.
You will note the LED ashing ve times, pause, and then ash two times, pause.
This pattern will be repeated three times indicating the new code (52) has been
accepted and stored in memory.
NOTE: If after step 7, the LED ashes a code other than what was just entered,
this indicates that the code has not been changed. You will have to
repeat steps 1 through 7 above being certain to note the following:
Acceptable digits 10ths or units are 1 through 9. The unit will not recognize a 0
(Zero), or no digit entered in any place, units or tenths.
NOTE: If 15 seconds of inactivity expire, or if the ignition switch is turned off for more
then 5 seconds during any of the above steps, the unit will revert back to the last
successfully stored code.
![](/img.php?id=3218398&img=bg9.png)
128-8774c
9 of 24
Page 9
MANUALLY OVERRIDING YOUR SYSTEM:
USING THE CUSTOM CODE OVERRIDE
Assuming the override code programmed has not been changed, and the default override
code of 11 is in the system's memory.
1) Enter the vehicle and turn the ignition switch to the on position.
NOTE: The siren will sound.
2) Within 5 seconds, press and release the Receivers push-button switch 1 time.
3) Within 5 seconds, turn the ignition switch off then on.
4) Within 5 seconds, press and release the Receivers push-button switch 1 time.
5) Turn the ignition switch off then on and start the vehicle.
NOTE: If you have changed the programmed override code then substitute your new
code tenths for step 2 above, and units for step 5 above.
ELIMINATING THE NORMAL ARM/DISARM CHIRPS
You can selectively eliminate the normal arm & disarm chirps by holding the trans-
mitter button slightly longer when arming or disarming. This will prevent the siren
chirps for one arm or disarm cycle. If you nd this inconvenient and wish to eliminate
these chirps permanently,
1. Turn the ignition switch 'on" then 'off".
2. Within 10 seconds of turning off the ignition, press and release the Receivers
push-button switch 3 times.
3. If the chirps were on before you started, the siren will emit 2 short chirps indicating
that the chirps are now off. If the chirps were off before you started, the siren
will emit one short chirp indicating that the chirps are now on.
NOTE: If the vehicle battery is disconnected then reconnected, the unit will re
turn to the default setting of chirps on. Repeat the above procedure to
eliminate the arm/disarm chirps.
NOTE: Your system must be programmed by the installation center to enable this
feature.
NOTE: Whenever the chirps are bypassed, the 4-chirp intrusion indicator and 3
chirp defective zone indicator will always operate. Since these are important
warnings to you that something has happened, they cannot be eliminated.
NOTE: Your system must be programmed by the installation center to enable this
feature.
REMOTE PANIC OPERATION
The Lock or Unlock button on your keychain transmitter also functions as a panic
switch for use in emergency situations. To use remote panic,
1. Press and hold the Lock or Unlock button on the keychain transmitter for 3 or
more seconds. The alarm will immediately sound.
2. To stop the alarm, press and hold the Lock or Unlock button on the transmitter
again for 3 seconds. If the button is not pressed, the alarm will automatically stop
after 30 seconds. Also if any transmitter button other than the Lock or Unlock
button is pressed and released, the Panic mode will be turned off immediately.
The normal function of this transmitter button will be suspended during the
Panic sounding period.
3. During the panic mode, the Lock and Unlock buttons can be used to lock and
![](/img.php?id=3218398&img=bga.png)
128-8774c
10 of 24
Page 10
unlock the doors, (if the option is installed), however once the unlock/disarm
button is pressed, the vehicle's starter inhibit device, (where installed) will be
disabled allowing the vehicle to start.
NOTE: While in the Panic mode, pressing and releasing the Lock or Unlock buttons
will, if the option is installed, lock and unlock the doors respectively. While in the
panic mode, anytime the Unlock button is pressed, the panic feature will continue
for the allotted 30 seconds, however, the security system will be disarmed allowing
the vehicle to start.
RF SHOCK SENSOR MODE SELECTION
The way in which your alarm system reacts to threatening vibrations, created by
attempts to enter the vehicle by breaking a window, is adjustable by the transmitter
immediately after arming. There are 4 modes of operation that can be selected
by the operator:
1. Normal Operation (default mode)
In this mode, any strong vibrations will cause the siren to sound (full
detect) for 30 seconds. Any lesser vibration will cause the siren to emit
about 6 short warn away chirps, (pre-detect).
2. Stage 1 (Omit pre-detect)
In this mode, the warn away chirps created by the lesser vibration will be
deleted. If strong vibration occurs, the siren will sound.
3. Stage 2 (Omit pre & full detect)
In this mode, both the pre-detect stage and the full trigger stage of the sensor
are defeated. The unit will not react to vibration of any magnitude.
NOTE: Shock Sensor Icon Is Displayed On The LCD Panel.
4. Stage 3 (City Mode)
In this mode, the pre-detect chirps will change from six pre-warning tones to
a full 10 seconds of warning chirps.
The full detect trigger duration will be reduced from 30 seconds to 15 seconds.
NOTE: Setting the stage of the shock sensor will be effective for one arming cycle
only. Once the system has been disarmed, the very next arming cycle will
cause the sensor to default to the normal operation stage.
To change or adjust the shock sensor, press and release the ARM button of you
keychain transmitter.
1. Within 2 seconds of arming, press and release the ARM button 1 time, to
defeat the pre-detect stage of the shock sensor. (The lights will ash and the
siren will chirp once.)
2. Within 2 seconds of step 1, press and release the ARM button 2 times, to
defeat the pre and full detect stages of the shock sensor. (The lights will
ash and the siren will chirp twice.)
3. Within 2 seconds of step 1, press and release the ARM button 3 times to
enter the "City Mode" of operation. (The lights will ash and the siren will
chirp three times.)
While under control of the remote start the system can be programmed to allow
you to shunt the shock sensor from the transmitter. If the system has been such
![](/img.php?id=3218398&img=bgb.png)
128-8774c
11 of 24
Page 11
programmed, simply press the lock button of your keychain transmitter anytime
during the remote start cycle. The shock sensor will be shunted for the entire run
cycle and will resume normal operation after the remote start unit shuts off.
Check with your installation center to determine if this feature has been programmed
into your system.
PUSH-BUTTON LED RECEIVER SAFETY CONTROL SWITCH
The Push-Button LED control switch allows you to temporarily disable the remote
starting function of the system. This recommended whenever the vehicle is being
serviced. To place the system in the service mode:
1) With the system disarmed/unlocked, and the ignition switch off Press and Hold
the Push-Button, found on the windsheild receiver, in.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED begins to ash two short ashes followed by one long ashes and
continues this pattern until returned to normal mode of operation.
This puts the unit into the R/S Override mode indicating that the remote start is in
the service mode and will not start from RF or any other input Posse or other-
wise.
To Exit R/S Override Mode
1) With the system disarmed, Press and Hold the Push-Button, found on the
windsheild receiver, in.
2) Turn the ignition switch on, off, on, off, on, off.
3) The LED turns off indicating that the R/S unit is fully functional one again.
REMOTE STARTING THE VEHICLE
The system WILL NOT start the vehicle if any one of the following conditions exists:
1. The Vehicle Hood Is Opened.
2. The Gear Selector Is In Any Gear Other Then Park.
3. The Brake Is Depressed.
4. The Safety Control Switch Is In The Off Position.
WARNING! Be certain that the vehicle is outdoors before using this or any re-
mote vehicle starting device. A running
engine produces dangerous carbon
monoxide fumes which can be harmful or fatal if prolonged exposure
occurs. DO NOT remote start the vehicle if it is garaged.
TO REMOTE START THE VEHICLE
Press and release the programmed channel of your keychain transmitter two times
within 2 seconds. The vehicle will start and remain running for the pre-programmed
5, 10, 15, or 20 minutes. As a visual indication, the parking lights will ash or turn
on depending on the programming set up by your installation center.
When you arrive at your vehicle, disarm the alarm system by pressing and releasing
the arm/disarm button of your keychain transmitter. Enter the vehicle and turn the
ignition key to the on position.
![](/img.php?id=3218398&img=bgc.png)
128-8774c
12 of 24
Page 12
NOTE: This system has the ability to be congured to a single press start if you
so desire. Please check with your installation center if your system was changed
from the default safe start setting of two press start or if you wish to change your
conguration.
WARNING! Do not turn the key to the start position. This will cause the starter
motor to engage with the already running engine which could result in
damage. Step on the brake pedal to disengage the remote start unit.
The vehicle will continue to run but now on it's own power.
NOTE: The engine will stop running before the expiration of the pre-programmed
run timer if you complete any of the following:
1. Press and release the programmed channel of your keychain transmitter two
times within 2 seconds.
2. Depress the brake pedal.
3. Open the hood.
4. Move the red handled control switch to the off position.
5. Race the engine to above 4000 RPM.
OPERATING ON AUTOMATIC START UP TIMER MODE
Your system has the ability to automatically start the vehicle every 2 or 4 hours over
a 48 hour period. This feature is especially useful in cold climates where the only
means to keep the engine and engine uids warm is to periodically start the engine.
WARNING! Be certain that the vehicle is outdoors before using this or any remote
vehicle starting device. A running engine produces dangerous carbon
monoxide fumes which can be harmful or fatal if prolonged exposure
occurs. DO NOT remote start the vehicle if it is garaged.
TO BEGIN THE AUTOMATIC START UP TIMER
1. Turn the ignition key on then off.
2. Within 10 seconds, activate the RF start command two times. (Push the
programmed channel button of your keychain transmitter 4 times).
The parking lights will ash and the siren will chirp 4 times indicating the timed
start mode is activated.
The vehicle, on a 2 or 4 hour interval basis, will automatically start, run for the
pre-programmed time (5,10,15 or 20 minutes), and then shut off. This will con-
tinue for 48 hours.
NOTE: The automatic start up timer can also be initiated from the keychain
transmitter. To do this:
1. Start the vehicle using the keychain transmitter by pressing and releasing the
second channel transmitter button 2 times.
2. Shut off the vehicle using the keychain transmitter by pressing and releasing
the second channel transmitter button 2 times.
3. Within 10 seconds of step 2, activate the RF start command two times. (Push
the second channel button of your keychain transmitter 4 times).
The parking lights will ash and the siren will chirp 4 times indicating the timed
start mode is activated.
![](/img.php?id=3218398&img=bgd.png)
128-8774c
13 of 24
Page 13
CANCELING THE AUTOMATIC START UP TIMER
To cancel the automatic start up timer do one of the following;
1. Start the vehicle manually with the use of the ignition key and depress the
brake pedal.
2. Remote start the vehicle using your keychain RF transmitter.
NOTE: Option button used in combination is only available on the alternate remote
transmitter and not available on the LCD Transmitter.
OPTIONAL DEVICE OUTPUT ( CHANNEL 3 )
Controlled By: Trunk/Key Button
Other Transmitter button congurations are also available. Consult your installation
center for other congurations not listed above that may have been programmed
to operate a specic feature of your system.
This security system is equipped with an output which will activate when the ap-
propriate transmitter button is depressed for 4 seconds. Although this output is
intended to activate the trunk release option, any other optional devices may be
connected to this channel. Consult your installation center for more information
about this output.
ADDITIONAL REMOTE FUNCTION ( CHANNEL 4 )
Controlled By: Trunk/Key Button Option Button Lock +
Unlock Buttons Lock + Trunk/Key Buttons Unlock + Trunk/
Key Buttons
Other Transmitter button congurations are also available. Consult your installation
center for other congurations not listed above that may have been programmed
to operate a specic feature of your system.
This security system has an additional feature that can be connected to a number of
different optional accessories. Some of the more common uses for this channel are;
Remote Car Starter
Remote Window Closure
Remote Garage Door Interface
To remotely operate the device indicated, momentarily press, or press and hold
the appropriate transmitter button(s) as indicated above.
ADDITIONAL REMOTE FUNCTION ( CHANNEL 5 )
Controlled By: Trunk/Key Button Option Button Lock + Unlock Buttons
Lock + Trunk/Key Buttons Unlock + Trunk/Key Buttons
Other Transmitter button congurations are also available. Consult your installation
center for other congurations not listed above that may have been programmed
to operate a specic feature of your system.
This security system has an additional feature that can be connected to a number of
different optional accessories. Some of the more common uses for this channel are:
![](/img.php?id=3218398&img=bge.png)
128-8774c
14 of 24
Page 14
Remote Car Starter
Remote Window Closure
Remote Garage Door Interface
To remotely operate the device indicated, momentarily press, or press and hold the
appropriate transmitter button(s) as indicated above.
ADDITIONAL REMOTE FUNCTION ( CHANNEL 6 )
Channel 6 is an alternate output that can be controlled by the unlock button of the
transmitter, or by and independent button or combination of buttons. For your vehicle
this output is:
Controlled By: Trunk/Key Button Option Button Lock + Unlock Buttons
Lock + Trunk/Key Buttons Unlock + Trunk/Key Buttons
Other Transmitter button congurations are also available. Consult your installation
center for other congurations not listed above that may have been programmed to
operate a specic feature of your system.
This security system has an additional feature that can be connected to a number of
different optional accessories. Some of the more common uses for this channel are:
Remote Car Starter
Remote Window Closure
Remote Garage Door Interface
To remotely operate the device indicated, momentarily press, or press and hold
the appropriate transmitter button(s) as indicated above.
ADDITIONAL REMOTE FUNCTION ( CHANNEL 7 )
Channel 7 is an alternate output that can be controlled by the unlock button of the
transmitter or by any independent button or combination of buttons. For your vehicle
this output is:
Controlled By: Trunk/Key Button Option Button Lock + Unlock Buttons
Lock + Trunk/Key Buttons Unlock + Trunk/Key Buttons
Other Transmitter button congurations are also available. Consult your installation
center for other congurations not listed above that may have been programmed to
operate a specic feature of your system.
This security system has an additional feature that can be connected to a number of
different optional accessories. Some of the more common uses for this channel are:
Remote Window Closure
Remote Garage Door Interface
To remotely operate the device indicated, momentarily press, or press and hold the
appropriate transmitter button(s) as indicated above.
TURBO TIMER MODE
This system provides a means to cool down the vehicles turbo charger, if so equipped,
by allowing the vehicle to continue to run for a prescribed period of time every time
the vehicle's engine is turned off. This feature requires the system to be set up for
![](/img.php?id=3218398&img=bgf.png)
128-8774c
15 of 24
Page 15
turbo timer during installation. Consult with your installation center to be certain
this feature was activated and how long the vehicle will continue to run, 3, 5, or 10
minutes after the ignition switch is turned off.
To activate the turbo timer:
Anytime the engine is running for more than 15 seconds:
1) Place the gear selector in park.
2) Set the parking, (hand), brake.
3) Be certain your foot is off the brake pedal.
4) Press the receiver's program/Push-Button switch 2 times within 5 seconds.
The parking lights will ash two times indicating the mode was successfully entered.
If your parking lights ashed four times, this indicates the turbo mode was on and
is now turned off.
With the turbo timer mode selected on, after you've arrived at your destination, while
the engine is still running, set the parking brake, pause 2 seconds, then turn the
ignition switch to the off position. The engine will continue to run the allotted time
according to the selection during installation.
If you do not want the vehicle to continue to run for one cycle, simply step on the
vehicle's brake, or release the parking brake, or activate the transmitter's start button
two times in succession. Any of these will cause the engine to turn off.

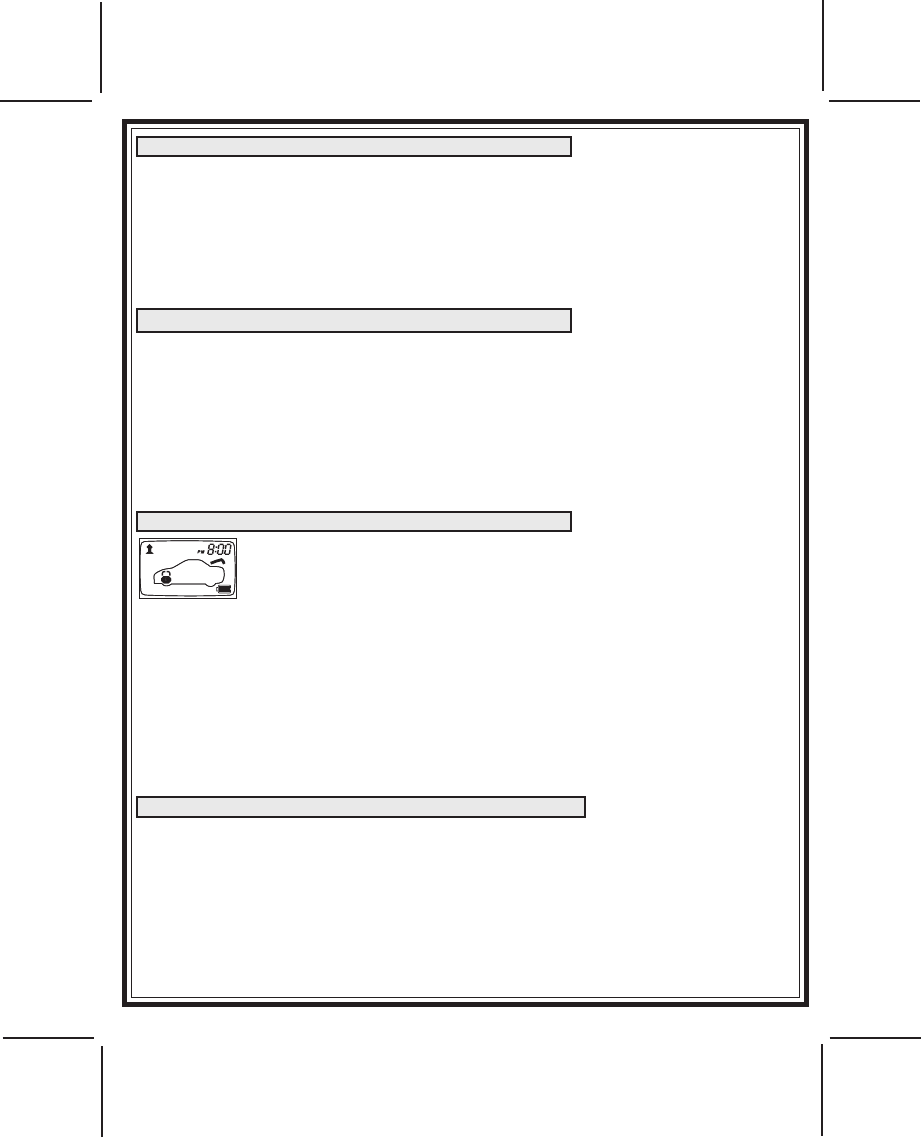

TELEMATIC UPGRADE
This system has the ability to have a telematic upgrade module connected to it.
This is a upgrade that can give you control of certain functions of your vehicle from
a Telephone, or in some cases a computer interface. Please check with your
installation center for most recent Telematic Upgrades. If you had a Telematic Up-
grade installed, the manual supplied with the upgrade unit will provide a operators
manual advising of the features of the system and means available to control these
features of your vehicle.
TRANSCEIVER ICONS AND THEIR INDICATIONS
When Disarmed, Press the Arm/Lock button to Lock and Arm
the System. The Lock Icon is displayed on the LCD panel & the
parking lights ash once.
When Armed, Press the Disarm/Unlock button to
Unlock and Disarm the System. The Unlock Icon is displayed
on the LCD panel & the parking lights ash twice.
When the Key Icon Button Has Been Operated for 3 seconds
the trunk open icon will ash on the LED Screen. If text mode
was selected, the words Trunk Open will appear and remain on
the screen until the trunk is shut.
![](/img.php?id=3218398&img=bg10.png)
128-8774c
16 of 24
Page 16

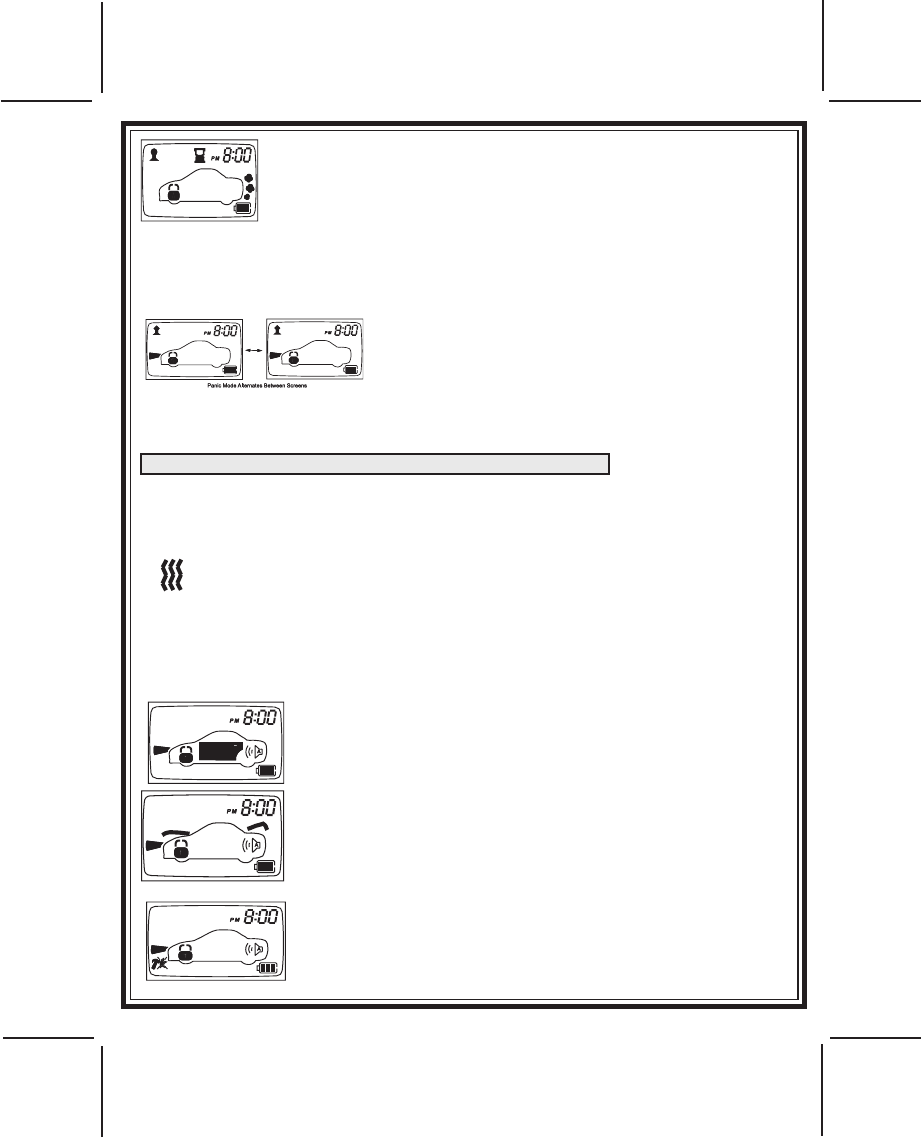

When the Key Icon Button is pressed 2 times in succession The
three puffs of smoke are displayed on the LCD screen while the
vehicle is running. The exhaust indication will ash and the hour
glass will indicate count down timer based on the 5, 10, 15, or 20
minute run time set up by your installation center. When the unit
shuts off the exhaust indication will turn off and the transmitter
will play a melody.
NOTE: Engine can be started in many modes armed, disarmed, valet, etc... The
screen shown is Locked/Armed and running.
When the Panic Mode has been activated and
the system is armed the vehicle's lights will ash,
the siren and lock icon will be displayed on the
LCD screen and the siren will beep. If the system
is disarmed and the Panic Mode is activated, the
lights will ash unlock icon will be displayed and
the siren will beep on the LCD screen.
TURNING OFF BEEP TONES AT THE TRANSCEIVER
When ever the vehicle is operated from the two way transmitter, the unit will beep
responsive to the function executed at the vehicle. 1 beep when armed, 2 beeps
when disarmed, etc... at times It may be inconvenient or too noisy to hear the
beep tones, so the system allows you to set the unit for vibrate mode.
To toggle on or off beep tones/vibrate, Simultaneously press the "F" and
unlock buttons. The icons shown left will appear in the upper left hand
corner of the screen to indicate vibrate.
If the alarm system has been triggered, the icon displayed on the transmitter LCD
will indicate which zone has been activated, as well sound the beep tones, or vi-
brate dependent upon the setting as shown above. The following trigger patterns
will be displayed.
Triggered and the entry attempt was made to one of the vehi-
cle Doors.
Triggered and entry attempt was made to the vehicles Hood
or Trunk.
Triggered and entry attempt was made to the vehicles glass,
or the vehicle has been hit or bumped hard enough to cause a
response from the vibration detector.
![](/img.php?id=3218398&img=bg11.png)
128-8774c
17 of 24
Page 17
ADDITIONAL ICONS THAT MAY BE DISPLAYED ARE
If the arm/disarm chirp tones have been turned off at the
vehicle, when you arm, or disarm, the display will indicate
this as shown and there will be no arm/disarm chirps at the
transmitter. This is true if the transmitter is set for vibrate mode.
When the vehicle is armed, and a door is opened, or ajar, the transmitter will
chirp 3 times, the lights will ash, and the display will indicate a door trigger as
shown on the previous page. When the door is closed or the zone clears, the
transmitter will chirp 1 time, and the display will clear.
When the vehicle is armed, and the hood or trunk, is opened or ajar, the
transmitter will chirp 3 times, the lights will ash, and the display will indicate a
hood or trunk trigger as shown on the previous page. When the hood or trunk
is closed, or the zone clears, the transmitter will chirp 1 time, and the display
will clear.
PROGRAMMED TRANSMITTER NOTIFICATION (PTN)
Every time after Disarm when the ignition key is turned on, the unit's LED will
report the number of transmitters programmed into the system. This safety
feature will alert you if an unauthorized transmitter has been programmed
into your vehicle's security system without your knowledge. Typical from the
factory, there will be a 2 ash, pause, repeated 3 times indicating that two
transmitters are programmed into the system. If you note additional ashes,
there may heve been an additional transmitter added without your knowledge
or authorization. If you notice a change in the transmitter LED report pattern,
you can correct this by looking up how to erase and reprogram your transmit-
ters found in the transmitter programming guide. This reprogram operation will
erase all unauthorized or unwanted transmitters.
ADDITIONAL REMOTE FEATURES:
The two way remote control unit allows you to access status
information from the vehicle, check temperature, light the
display, toggle the transmitter from beep tones to vibrate
mode, initiate daily start timer, and temperature start. Selec-
tion of these and other features are shown below:
NOTE: Transmitter must be within operating range of the
vehicle, approximately 1000 ft.

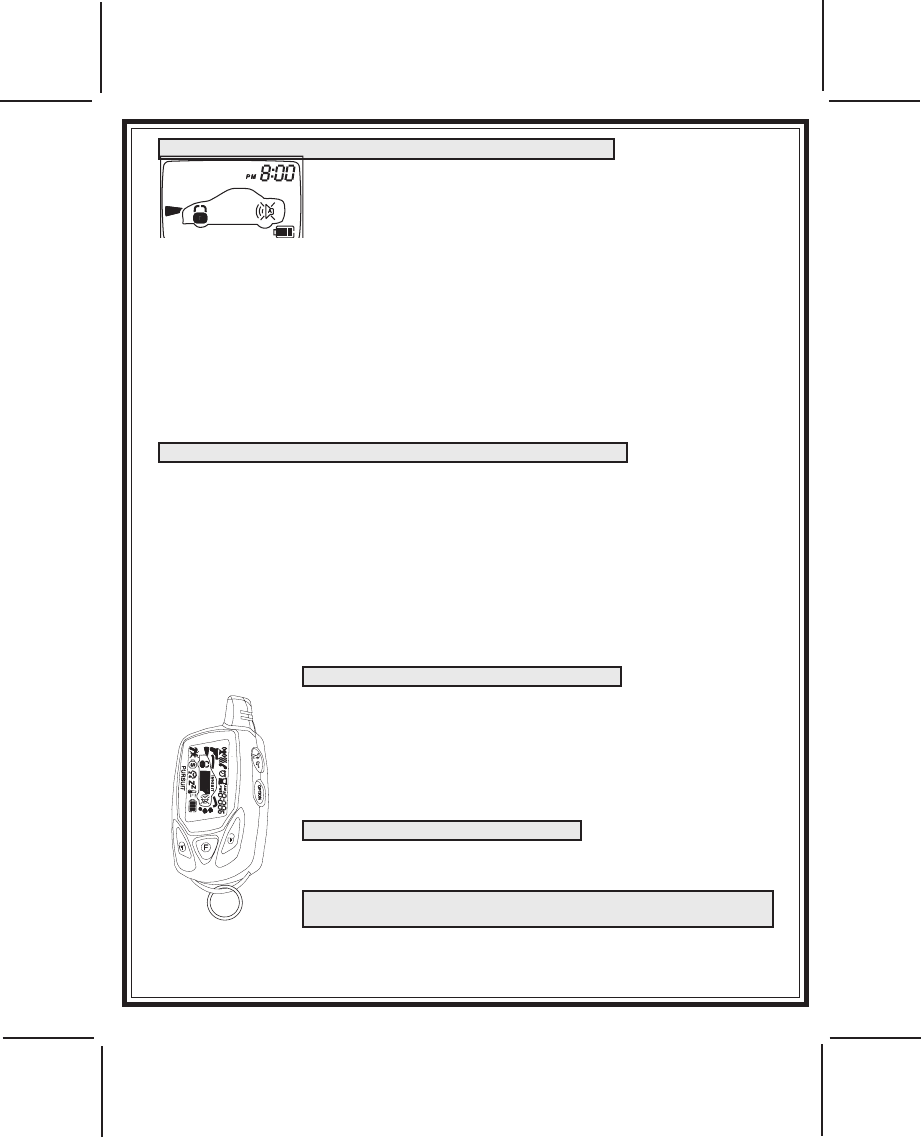

Check Vehicle Status
Press the lock+key+option buttons simultaneously for 1
second. The vehicle's alarm will display the systems current
status.
Check Temperature (Only available on certain remote
start units)
Press the option+key buttons simultaneously for 1 second.
The vehicle's alarm will display the temperature. Tempera-
ture is read from the alarm's module located below the dashboard.
![](/img.php?id=3218398&img=bg12.png)
128-8774c
18 of 24
Page 18
This reading may be higher than actual ambient temperature due to the green-
house and is relative only to the inside vehicle temperature.

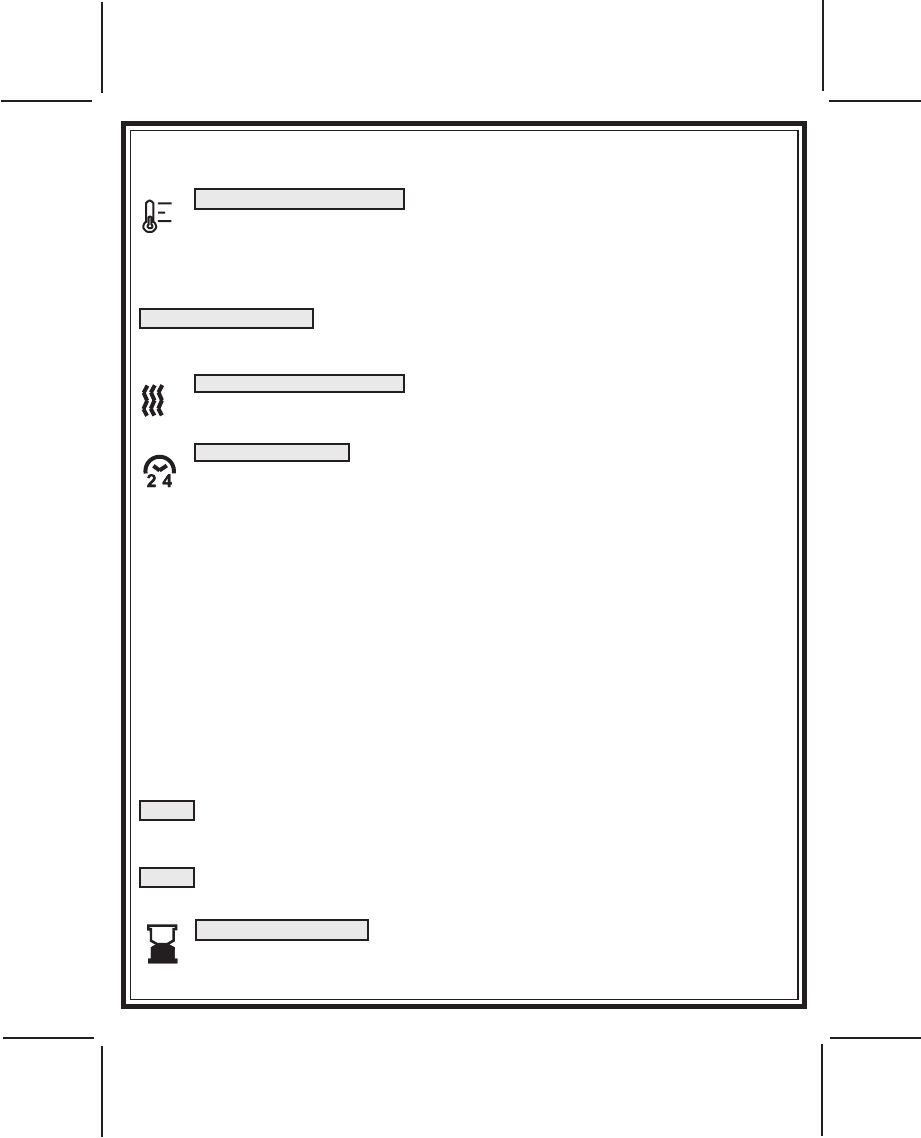

Temperature Start Mode (Available on certain models)
To toggle this feature on or off, from the armed mode, press the Option and
Unlock Buttons simultaneously, the temperature icon appear on, or disap-
pear from the display, and the transmitter will emit a tone.
NOTE: This feature must be active in the feature selection menu of your system.
Check with your installing dealer to insure this feature is set to the on position.
Light The Display
Press and release the "F" (Function) button one time. The display will illuminate
for 10 seconds.
Vibrate Or Tones
Press the "F" and unlock buttons simultaneously to toggle this feature on
and off.
Daily Start Timer (Only available on certain remote start units)
24 Hour Start Timer. Standing at the vehicle at the time you want it to
start, press the option + lock buttons simultaneously for 1 seconds. The
transmitter will beep and display the 24 hr timer. This is the time the
vehicle will start when you follow the exit procedure. In other words, if you want
the vehicle to start 6AM, at 6AM of any morning, standing at the vehicle, press
and hold the option + lock buttons until you hear a beep and the 24 hr timer is
displayed. This establishes a starting time. The Remote Start unit will start at
the prescribed time once only. This function must be activated by following the
proceedure below each time you want the vehicle to start at the prescribed time.
To activate this function:
(a) Turn the ignition switch off.
(b) Within 10 seconds of step (a), depress and hold the brake pedal, while press-
ing the key icon transmitter button 2 times.
(c) the unit will emit 2 chirps, the transmitter will beep and the start timer icon on
the display will remain on.
The vehicle will start at the set time.
To toggle this feature off, press the option + lock buttons simultaneously until a
beep is heard and the 24 hr timer turns off.
NOTE: The unit will start once and run for the prescribed time. If you require
more frequent starting please refer to auto start up timer mode shown earlier in
this guide.
NOTE: To insure accurate 24 Hour Start up, it is advisable to reset the start time
periodically as time may drift slightly each day.
Timing Count Down
The unit offers an additional count down timer for situations where an alert
tone may be needed to remind you of something important. For instance
you may have a meeting 4 hours from now and you want a reminder in 3 Hrs and
![](/img.php?id=3218398&img=bg13.png)
128-8774c
19 of 24
Page 19
45 Mins. This additional count down timer allows you to set the count down up 19
Hours and 59 Minutes from the current time and when the timer reaches zero, the
transmitter will emit a tone or vibrate dependent on your preferred setting. See
chart for setting the count down time for this feature.

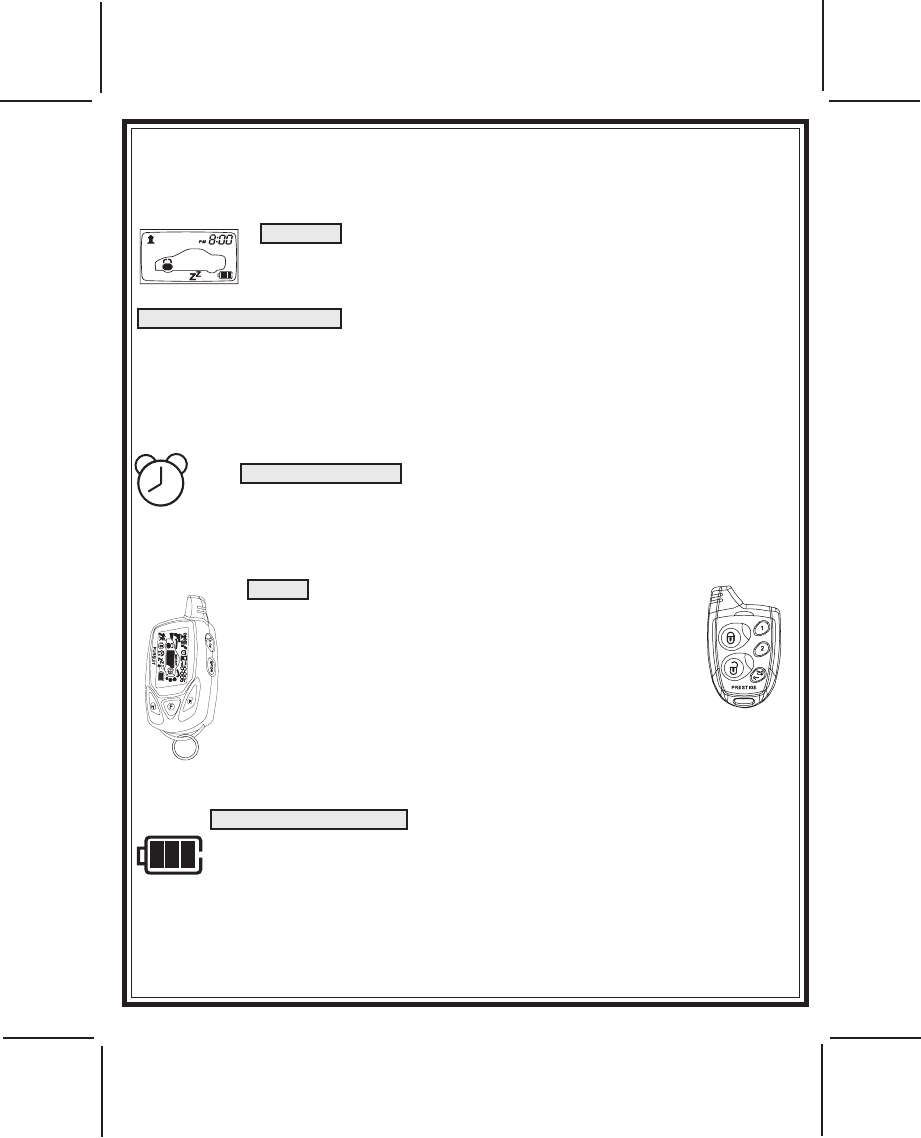

Valet
When the System is in the valet mode, the icon shown will show
in the display when the status check buttons are activated.
Parking Meter Counter
The transmitter has a built in clock that can count down from 10, 20, 30, 60, 90,
or 120 minutes. This feature is useful when parking the vehicle in a metered
parking lot. If the time on the parking meter is 30 minutes, you can set the count
down timer to 20 minutes. The transmitter will emit a beep tone when the timer
expires to remind you to get back to your vehicle. See following chart for setting
the parking meter count down timer feature.
Alarm Clock Mode
The transmitter has a built in alarm clock that can be set to beep at
a certain time each day. The alarm clock mode must be set, and the
feature turned on. To use this feature please refer to the chart shown later in this
guide.

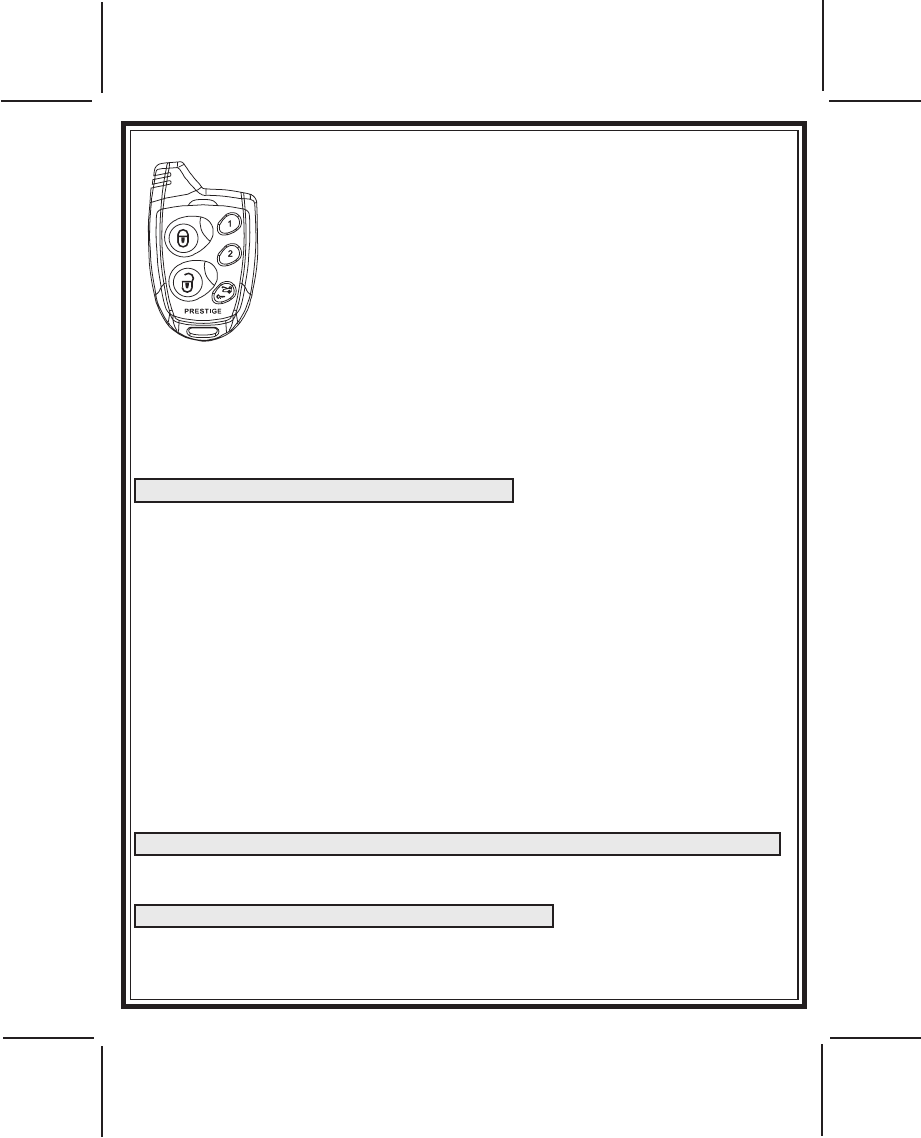

NOTE: Your system is shipped with two transmitters, 1
two way, shown on the left and the one way transmitter,
shown right. The one and two way transmitters are
programmed from the factory with separate lock and
unlock buttons, the trunk/key icon button operates re-
mote start and remote trunk release where applicable.
The option button and any button combination may be
programmed to operate various options. Consult your
installation center for button programming and options
that may have been added to your vehicle. Although
this is the default programming from the factory, this
can be changed for you to any conguration you prefer. Please
refer to the transmitter program guides included with your kit.
A maximum of two of either style transmitter may be programmed to your unit.
BATTERY INDICATOR
Your transmitter has a battery indicator that is shown in the upper right
corner of the screen as shown left. This icon indicates a new battery
shown with 3 bars. As the battery deteriorates, the bars will disappear.
1 bar indicates the battery should be replaced. Replace battery with a
fresh 1.5V AAA battery and dispose of the used battery properly.
Other icons that will be displayed at times when certain functions and features
are active in the vehicle or on the remote.
![](/img.php?id=3218398&img=bg14.png)
128-8774c
20 of 24
Page 20
RANGE INDICATOR
The range indicator will have bars to the side of the icon if the unit is out of
range.
VIBRATE MODE ON
This icon will be displayed if you select vibrate instead of tones. To toggle
vibrate on and off, press "F" + Unlock simultaneously.
ALARM CLOCK
This icon will be toggled on and off when the "F" + Trunk/Key buttons are
pressed simultaneously. The feature must be set in the feature selection
menu of the transmitter.
COUNT DOWN TIMER
The unit offers an additional count down timer for situations where an alert
tone may be needed to remind you of something important. Setting infor-
mation shown on previous page.
POWER SAVE FEATURE While Unlocked, Press the "F" and Lock buttons
simultaneously to toggle this feature on and off. With this mode on, the
battery in the transmitter will go into a power down mode and display the
save indicator as shown.
24 HOUR START TIMER
Standing at the vehicle at the time you want it to start, press the option +
lock buttons simultaneously for 1 seconds. The transmitter will beep and
display the 24 hr timer. This is the time the vehicle will start when you follow the
exit procedure. In other words, if you want the vehicle to start 6AM, at 6AM of any
morning, standing at the vehicle, press and hold the option + lock buttons until
you hear a beep and the 24 hr timer is displayed. This establishes a starting time.
The unit will start at the prescribed time once only. This function must be select-
ed each time you want the vehicle to start. To activate this function, (a) Turn the
ignition switch off. (b) Within 10 seconds of step (a), depress and hold the brake
pedal, while pressing the key icon transmitter button 2 times. (c) the unit will emit 2
chirps, the transmitter will beep and the start timer icon on the display will remain
on. The vehicle will start at the set time. To toggle this feature off, press the option
+ lock buttons simultaneously until a beep is heard and the 24 hr timer turns off.
TEMPERATURE START MODE
This icon will appear when the temp start mode is activated. The vehicle
will start one time automatically when the temperature reaches 0*.
WARNING! Be certain vehicle is outside before activating this mode.
To toggle this feature on of off, from the Locked/Armed mode, press the Option
and Lock buttons simultaneously. (Available on certain remote start models only).
Throughout this manual you will nd screen shots where they apply if using the
two way transmitter. If using the one way transmitter while the two way transmitter
is within range of the vehicle, the two way transmitter will update it's screen.
![](/img.php?id=3218398&img=bg15.png)
128-8774c
21 of 24
Page 21
![](/img.php?id=3218398&img=bg16.png)
128-8774c
22 of 24
Page 22
APS 997C
SYSTEM FUNCTIONS AT A GLANCE
DASH LED INDICATORS
RAPID FLASHING = PASSIVE ARMING/ACTIVE
REARMING
SLOW FLASHING = ARMED
OFF = DISARMED
ON SOLID = VALET MODE
3 FLASH...PAUSE = INTRUSION ZONE 3
2 FLASH...PAUSE = INTRUSION ZONE 2
1 FLASH...PAUSE = INTRUSION ZONE 1
SIREN CHIRP INDICATORS
1 CHIRP * = ARM
2 CHIRPS * = DISARM
3 CHIRPS = ARM / DOOR OPENED
4 CHIRPS = DISARM / INTRUSION
* These chirps are optional, and can be de - activated.
PARKING LAMP INDICATORS
1 FLASH = ARM
2 FLASHES = DISARM
3 FLASHES = DISARM / INTRUSION
![](/img.php?id=3218398&img=bg17.png)
128-8774c
23 of 24
Page 23
PROGRAMMING NEW OR REPLACEMENT TRANSMITTERS (BANK 1)
Transmitter Model Name Is Found On Back Of Transmitter Case
1) Turn the ignition key to the on position.
2) Press and release the valet/programming switch 3 times (Siren Chirps).
3) Press the Lock Button of each transmitter you want programmed until you hear
a chirp from the horn or siren.
4) Turn the ignition switch off.
The above action programs the Lock, Unlock, Start/Trunk, and Option 1 buttons
which are typical for most systems.
For additional channel programming beyond the option 1 button, you can use any
unused button or combination of buttons not in use.
In other words, to access option channel 5, 6, 7, you would do the following:
From step 3 above:
a) Press and release the valet/programming button 4 additional times to get to chan-
nel 5, then Press any unused transmitter button or button combination to program.
b) From a, press and release the valet/programming button 1 time to get to channel
6, then press any unused transmitter button or button combination to program.
c) From b, press and release the valet/programming button 1 time to get to channel
7, then press any unused transmitter button or button combination to program.
Note: Not all systems have channels above 3, check with your installation center
for options your system may or may not have.
Note: Certain systems have the ability to utilize channels 6 & 7 for driver priority
programming. For driver priority, the vehicle must be equipped with this feature,
and the optional feature must be set up and installed by your installation center.
Once this feature is added when the unlock button of transmitter 1 is used, it will
set driver 1 priority, and when the unlock button of transmitter 2 is used it will set
driver 2 priority. In this situation, the unlock button can be programmed into two
receiver channels, unlock, channel 2 and driver priority 6 or 7. In no other circum-
stance will the system allow a transmitter button to be programmed into 2 receiver
channels at the same time.
![](/img.php?id=3218398&img=bg18.png)
128-8774c
24 of 24
Page 24
© 2016 Voxx Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-8774c
To purchase replacement transmitters
or to get additional product information go to:
www.prestigecarsecurity.com
PATENTED: www.voxxintl.com/company/patents
FCC COMPLIANCE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
Warning!
Changes or modications made to this equipment not expressly approved by the part responsible for compliance could
void the use's authority to operate the equipment
NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modications to this
equipment. Such modications could void the user's authority to operate the equipment.
