User Manual
![](/img.php?id=1279278&img=bg1.png)
WS-LD
water Sensor
Item 001

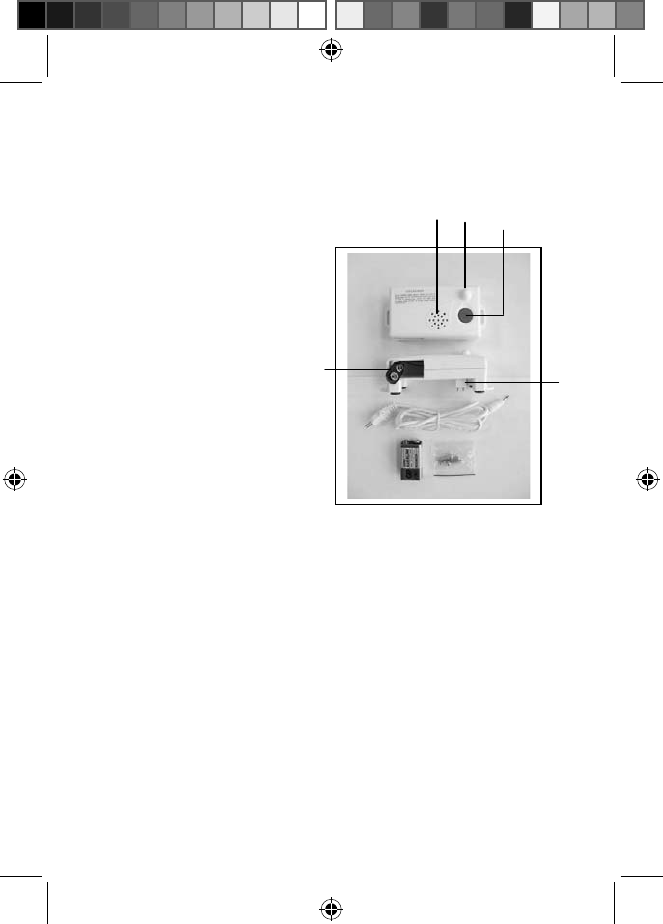

Identifying the Parts:
1. Antenna
2. Learn ITest Button
3. Probe (Water Detection)
4. Battery Lid
5. Buzzer
Accessories:
1 Probe cable
1 Set of mounting screws
1 Battery
Getting Started
.Remove battery lid by sliding it the direction of the arrow
on the bottom of the water sensor.
.Pull battery clip out and connect to battery then re-insert into
the water sensor.
* Programming Sensor to Receiving Devices:
Put the receiving device in to Learning mode (see
instruction for your particular receiving device). Press Red
Button on Sensor being learned. If additional sensors need
to be learned press Red button on next device.
Ϥ
˄Ϥ
2
Ϥ
3
Ϥ
4
Ϥ
5
Page 1
XT.MExbufstfotpsnbovbm/qeg!!!2XT.MExbufstfotpsnbovbm/qeg!!!2 312105026!!!Πϱ!14;42;3:312105026!!!Πϱ!14;42;3:
![](/img.php?id=1279278&img=bg2.png)
Programming the Water Sensor directly to a Motorized Valve
Control Unit:
.Enter VCU's in to learning mode by holding the red button
Located on the bottom panel for 5 seconds. A short beep will sound
release the button, the VCU will sound a long beep and the LED will
turn on.
.Now on the Sensor press the Red Button, two beeps indicate
Successful learning. Press VCU's red button to exit Learning mode.

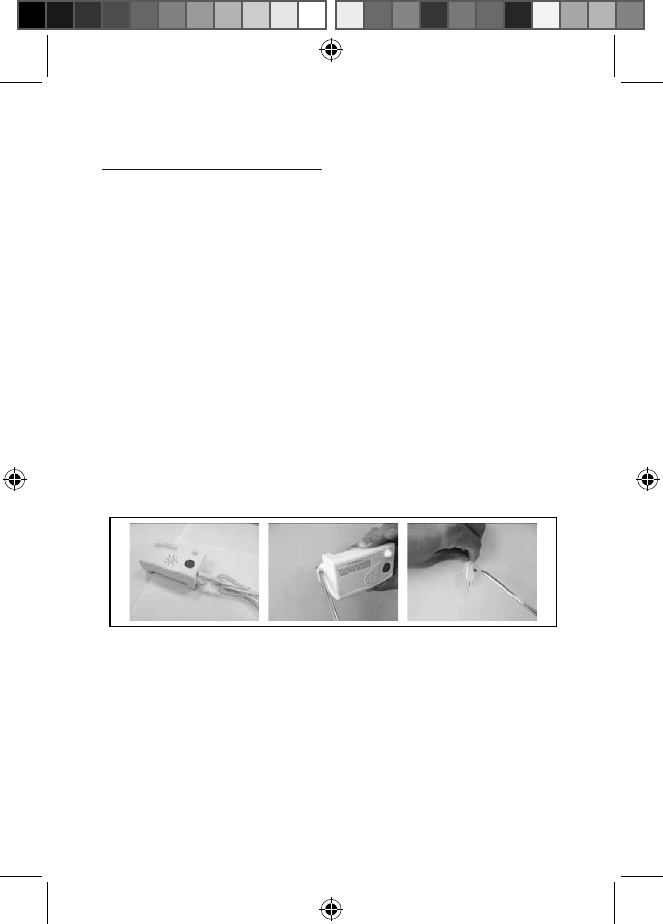

Positioning the Water Sensor in place on level surface or wall
Mount using the provided screws.
* Probe Extender may be used to monitor hard-to-reach places.
Or when the unit is mounted high up on the wall, or when a pad
is required to cover a larger radius space.
To activate the extender, insert probe extender plug into the
socket on the Sensor's probe and mount using the screws
provided
ʳ
Page 2
XT.MExbufstfotpsnbovbm/qeg!!!3XT.MExbufstfotpsnbovbm/qeg!!!3 312105026!!!Πϱ!14;42;55312105026!!!Πϱ!14;42;55
![](/img.php?id=1279278&img=bg3.png)
Normal Operation: .
.When the probe touches water, the sensor will sound an alarm
and send a signal to a receiving device. If the signal is sent to a VCU
unit, it will close the valve. Sensor will continue alert until the probe
is dry. Sensor can be reset or alarm silenced by pressing the Red
Button.
