Wireless Programmer (WP) – Quick Reference Cat No. 817420910, Ver A1
Wireless Programmer (WP) – Quick Reference
1.1. General
The Wireless Programmer (WP) is a portable device (see Figure 1).
There are two WP types:
Wireless Programmer Home-Base, Cat No. 800920910
Wireless Programmer Retail, Cat No. 800920930
It is a device manufactured for on-the-spot vehicle units issuing for
RFID based fueling. The home base version can also configure
station equipment such as the Nozzle Reader (NR).
An authorized installer can install and program the FuelOpass/
DP/µDP/NR on the customer’s premises using this wireless,
programmer (see Figure 1, Figure 2).
The WP is used for Programming the following vehicles units:
FuelOpass
DataPass / µDataPass
And for:
Programming NR (only for 800920910)
Downloading data via RS232 (only for 800920910)
Downloading data via GPRS (only for 800920930)
WARNING !
Programming using the WP should be done in
safe area (Non-Hazardous location). Therefore,
it should be done prior to Fuel ring installation!
2
![](/img.php?id=1406616&img=bg2.png)
Wireless Programmer (WP) – Quick Reference Cat No. 817420910, Ver A1
2

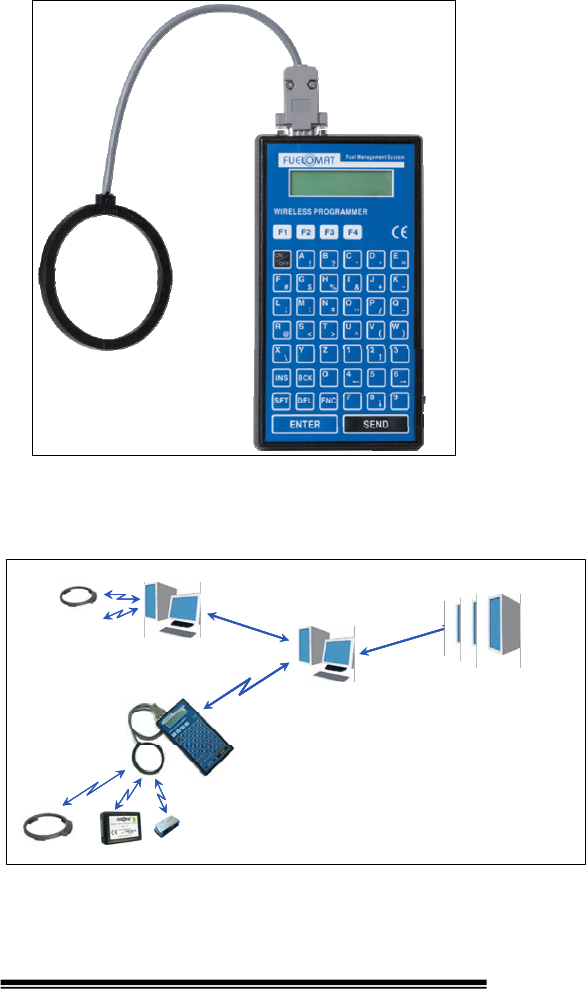

Figure 1. Wireless Programmer – General View
Fixed programming stations
Portable Wireless Programming
Terminal Centralized
Programming
Server
Security Access Server
protected at Orpak premises
FuelOpass
GPRS network
VPN
secured channel
DataPass
FP
Fixed programming stations
Portable Wireless Programming
Terminal Centralized
Programming
Server
Security Access Server
protected at Orpak premises
FuelOpass
GPRS network
VPN
secured channel
DataPass
FP
Figure 2. Programming System in Retail
![](/img.php?id=1406616&img=bg3.png)
Wireless Programmer (WP) – Quick Reference Cat No. 817420910, Ver A1
1.2. WP SPECIFICATIONS
Communication
Interfaces: 1. RF communication method Single
IEEE802.15.4 wireless channel:
Frequency: 2.405-2.485 GHz
Wireless Antenna: Built in PCB
Antenna
Typical Range: 50 meter at open
space
2. RFID Reader method with Fuel Ring:
Frequency: 125 kHz
Two loop (coil) antenna diameters
available
Reading distance: Up to 8cm
3. Modem GPRS (only for p/n 800920930)
4. RS232
Supply Voltage
7.2V, 2000mAh Lithium Ion internal Battery
(Battery pack made of two CGR18650C
Panasonic batteries)
Battery Charging current 550mA@12VDC
Battery Charging Voltage 12V to 28V DC input
Charging Temperature
Batteries should be charged at temperatures
between 10°C and 45°C
1.3. Charging the WP Battery Pack
CAUTION !
Don't switch on or operate your Wireless
Programmer while its battery is charging!
Charging the WP battery takes 8 hours (fully charged); this is done
by connecting the batteries charger to the mains and observing the
WP Charging LEDs on the WP right hand side:
1. Upon connecting the charger, the LED lights red
2. When the battery is almost full, it turns weak red and the
second LED lights green
3. At this stage the batteries continue charging for additional
three hours.
4. After three hours the red LED turns Off and only the second
LED lights green (end of charging)
3
![](/img.php?id=1406616&img=bg4.png)
Wireless Programmer (WP) – Quick Reference Cat No. 817420910, Ver A1
3
1.4. Disposing the Battery
Properly dispose a used battery in full compliance with the
manufacturer's hazardous waste rules!
Do and don't do:
Don't toss, drop, or abuse the battery.
Don't short-circuit the battery.
Don't open and expose the cell contents.
Don't modify the battery casing and/or housing
Don't expose it to rain or excessive moisture.
Don't dispose of batteries in a fire
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference and:
(2) This device must accept any interference received,
including interference that may cause undesired
operation
THE FCC WANTS YOU TO KNOW:
This equipment has been tested and found to comply with the limits or a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
FCC Warning
Modifications not expressly approved by the manufacturer responsible could void the
user’s authorit
y
to o
p
erate the e
q
ui
p
ment under FCC rules.
