1. INTRODUCTION
Thank you for purchasing the Bluetooth Keyboard with Touchpad.
This User’s Manual contains information that will help you to operate
your keyboard as well as answer questions about certain special
keys and buttons.
MCE Buttons: My Music, My Videos, My Pictures, My TV,
My Radio, DVD.
Internet Buttons: WWW, E-mail, Back, Forward
Multimedia Buttons: Volume down, Volume up, Mute, Pre
track, Next track, Play/Pause and Stop
Note: 1. All the MCE buttons need to work under MCE
application. If press in Windows XP or Vista, will not work.
2. The MCE, Internet, Multimedia hotkeys, Start, and
Window key can not work under Linux.
2. SYSTEM REQUIREMENTS
Microsoft Windows® XP with MCE/ Vista/Windows
7operating system
Microsoft Internet Explorer 6.0 or later.
![](/img.php?id=1527373&img=bg6.png)
5
3. DEVICE PAIRING
Widcomm software:

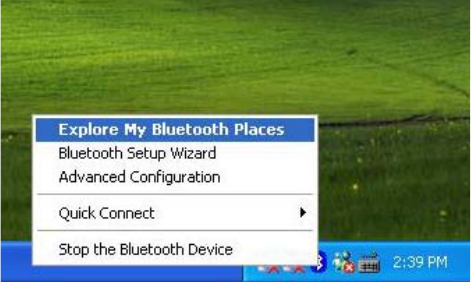

1. Right click on the BT icon and choose “Explore My Bluetooth
Places”
2. Press the ID button at back of the Bluetooth Mine Keyboard,
then the led will start flashing.
3. Click the “Search for devices in range” option, the “Bluetooth
Keyboard” will be found.
Double click on the “Bluetooth Keyboard” icon, it will pop-up
another windows. Just follow the screen display to input the Pin
Code then press “enter”.
![](/img.php?id=1527373&img=bg7.png)
6
4. The Found New Hardware Wizard appears and the OS will
install the driver automatically. No other steps are necessary.
5. The Bluetooth icon will become to . The Bluetooth Mini
Keyboard is ready to use.
Toshiba software:

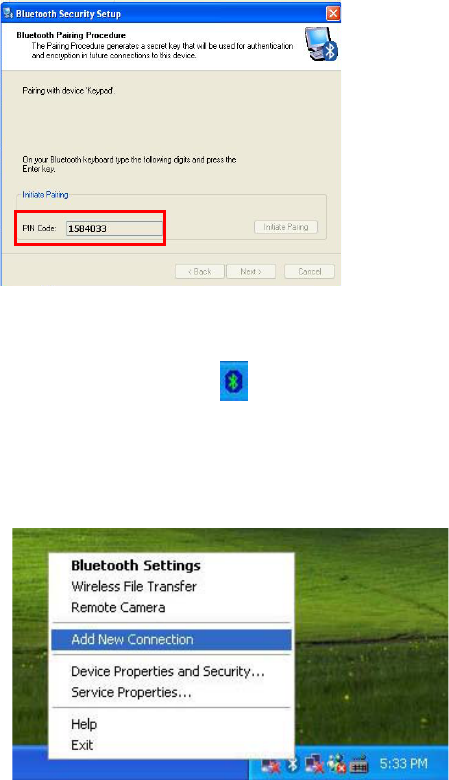

1. Right click on the BT icon and choose “Add New Connection”
2. Press the ID button at back of the Bluetooth Mini Keyboard,
then the led will start flashing.
![](/img.php?id=1527373&img=bg8.png)
7

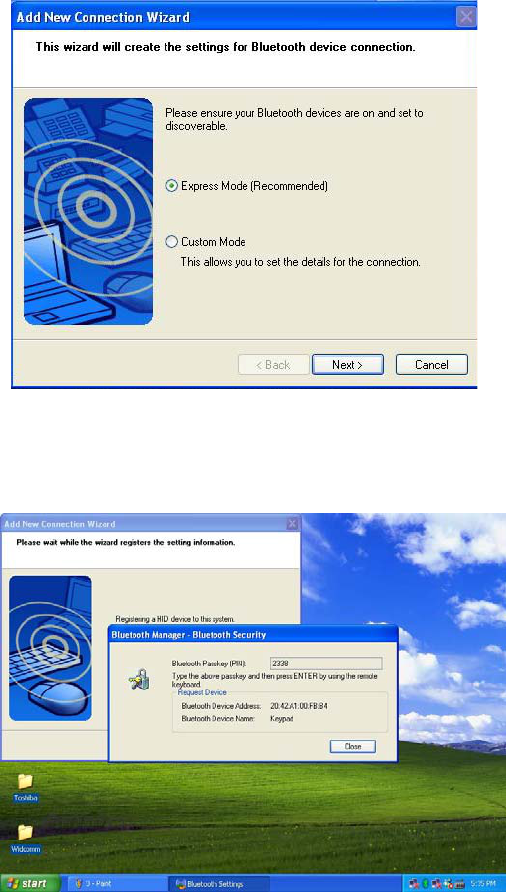

3. Click “Next”
4. Choose the “Bluetooth Keyboard” device and click “Next”
5. Just follow the screen display to input the Pin Code then press
“enter”
![](/img.php?id=1527373&img=bg9.png)
8
6. The Found New Hardware Wizard appears and the OS will
install the driver automatically. No other steps are necessary.
7. The Bluetooth icon will become to . The Bluetooth Mini
Keyboard is ready to use.
IVT Software:
1. Press the ID button at back of the Bluetooth Mini Keyboard, then
the led will start flashing.

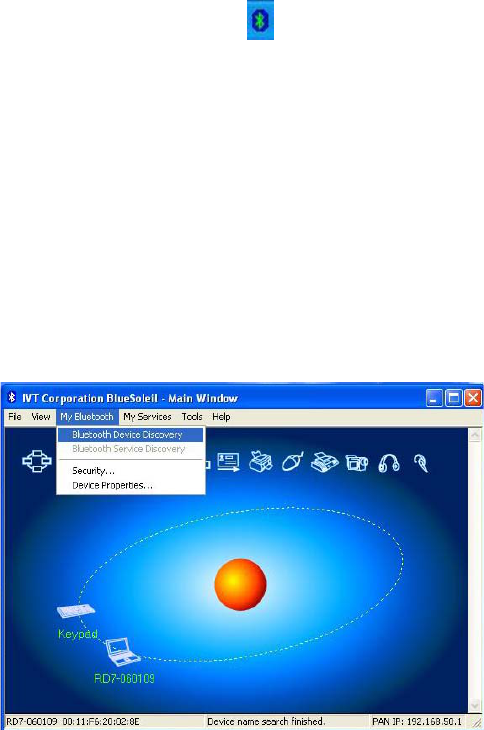

2. Double click the BT icon on the system tray and it wills pop-up a
windows. Choose “My Bluetooth” → ” Bluetooth Device
Discovery”
![](/img.php?id=1527373&img=bga.png)
9
3. It will find the “Bluetooth Keyboard” device. Right click on the
Keyboard icon and choose “”Connect” → ” Bluetooth Human
Interface Device Service”
4. Just follow the screen display to input the Passkey then press
“enter”
5. The Found New Hardware Wizard appears and the OS will
install the driver automatically. No other steps are necessary.
6. The Bluetooth icon will become to . The Bluetooth
Keyboard is ready to use.
Note: After 30 minutes non-operation, the keyboard will go to
sleep mode. Please press any key to wake up.
![](/img.php?id=1527373&img=bgb.png)
10
4. Keyboard Button Functions

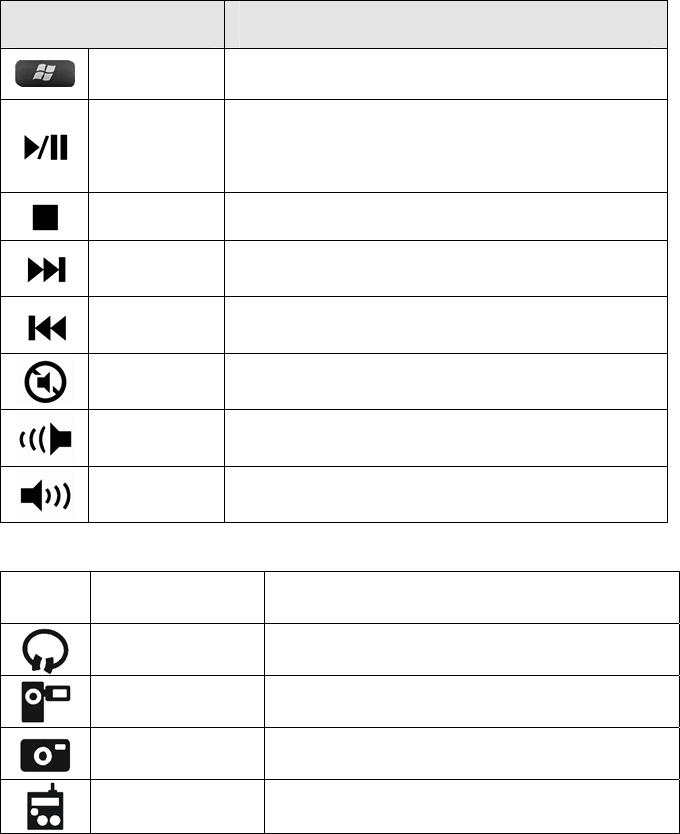

Function Name Function Description
Start Open the MCE application.
Play/Pause
Switches between Play and Pause of
DVD/VCD/MP3/Audio media. Once Pause is
pressed, pressing this button again resumes
play.
Stop Stops playing the media.
Next track Switches to the next media track. Press once
for each subsequent media track.
Pre-track Switches to the previous media track. Press
once for each preceding media track.
Mute Mutes the computer’s sound volume. Press it
again to turn the system volume back on.
V- Decreases the computer’s sound volume.
Hold down to decrease volume more quickly.
V+ Increases the computer’s sound volume.
Hold down to increase volume more quickly.
20 Enhanced Function Keys: (12 Embedded MCE Hotkeys+4 Internet
hotkeys+4 addition hotkeys that are controlled by the “Fn Key”)
Fn Fn key Enables the 20 Embedded Keys, press the
Fn key to enable the hotkey.
1: My Music Open My Music application
2: My Video Open My Videos application.
3: My Picture Open My Pictures application.
4: My Radio Open My Radio application.
![](/img.php?id=1527373&img=bgc.png)
11

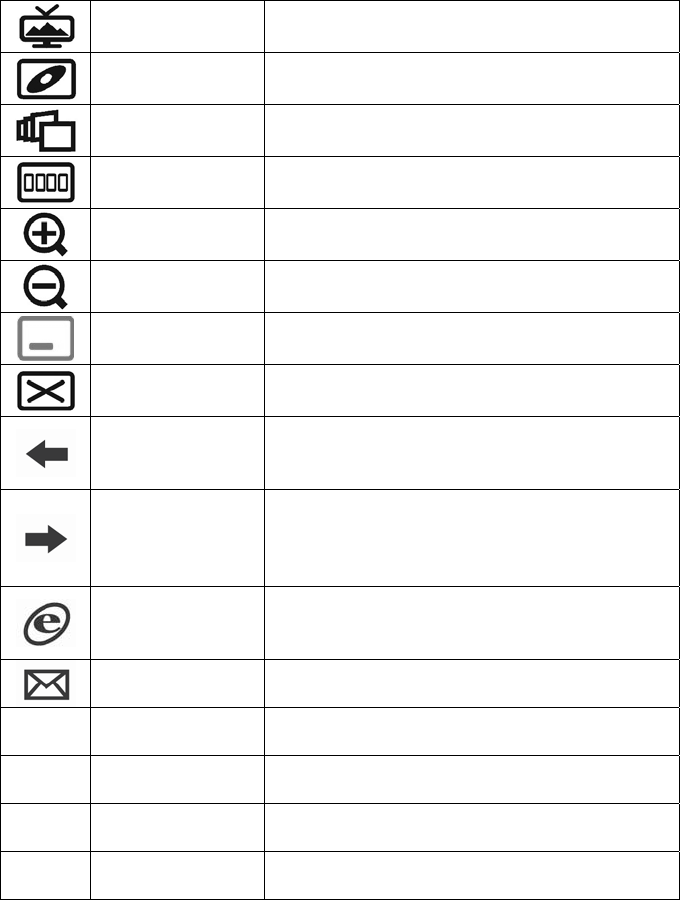

5: My TV Open My TV application.
6: DVD Open DVD menu application.
7: Flip 3D Call the Flip 3D function
8: Win Select Call the Win Select function.
9:Zoom in Zoom in the picture.
0:Zoom out Zoom out the picture.
-: Minimum Minimum all current windows. Press again to
recover.
=: Close Close the active Windows® application.
Back
Goes back to a previous item that was
already viewed in programs that support the
“Back” command, such as a Web browser
Forward
Goes to the next item—if it was previously
viewed in the same session, in programs
that support the “Forward” command, such
as a Web browser.
WWW
Starts the default Web browser and goes to
the home page. If the Web browser is active,
it opens the home page.
Email Starts the default e-mail program.
PgUp Page Up Keyboard “Page Up” function.
PgDn Page Down Keyboard “Page Down” function.
Home Home Keyboard “Home” function.
End End Keyboard “End” function.
![](/img.php?id=1527373&img=bgd.png)
12
5. Touch pad

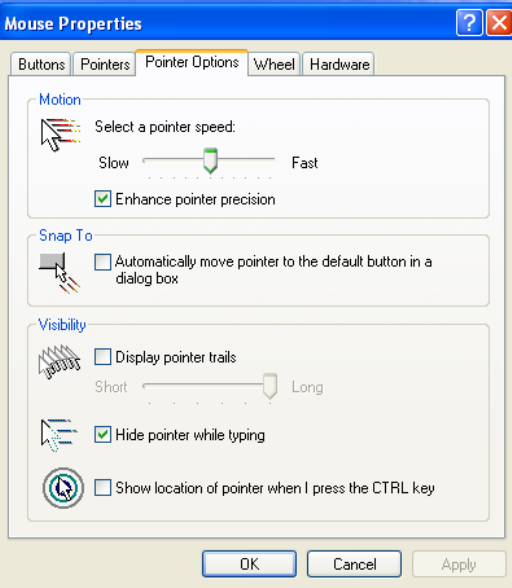

To adjust the touchpad, you can go to 【Control Panel】→
【Mouse】→【Pointer Options】to select a pointer speed.
![](/img.php?id=1527373&img=bge.png)
13
Scroll function: Using two fingers on the touchpad up and down.
6. Troubleshooting
Wireless Product Does Not Work
Make sure you have connected the receiver correctly.
Make sure you have installed the batteries correctly. Check
to make sure the batteries you have installed are not dead.
Try the batteries in another device.
Try unplugging then reconnecting the receiver to the
computer and press the ID button at back of the keyboard.
When it connected, the led of the receiver will start flashing.
14
RF Distance Does Not Reach 10M
It is possible that computer monitor (or a large metal object)
may be interfering with the receiver's radio reception. Also, the
batteries may be low. Check the batteries status. You may also
need to re-establish the connection between the keyboard and
receiver.
The touchpad can not work normally when power on
To avoid this issue, please use the touchpad after 2 seconds.
Because the touchpad need correction by itself when power on.
