Bluetooth Ultra Keyboard for
iPad mini
Version 1.0 2013/03
ID NO:
1
About This Manual
This manual is designed to assist you in installing and
using the Bluetooth Keyboard. Information in this
document has been carefully checked for accuracy;
however, no guarantee is given to the correctness of
the contents. The information in this document is
subject to change without notice.
Edition
1st Edition,
Copyright
© Copyright 2013
This document contains proprietary information
protected by copyright. All rights are reserved. No part
of this manual may be reproduced by any mechanical,
electronic or other means, in any form, without prior
written permission of the manufacturer.
Trademarks
All trademarks and registered trademarks are the
property of their respective owners.
2
FEDERAL COMMUNICATIONS COMMISSION STATEMENT
You are cautioned that changes or modifications not
expressly approved by the part responsible for
compliance could void the user’s authority to operate
the equipment.
This Equipment has been tested and found to comply
with the limits for a class B digital device, pursuant to
Part 15 of the Federal Communications Commission
(FCC) rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to
3
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into and outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
4
2) this device must accept any interference, including
interference that may cause undesired operation of
the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. End
users must follow the specific operating instructions
for satisfying RF exposure compliance. This
transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
![](/img.php?id=2083767&img=bg6.png)
5
Introduction
Thank you for purchasing the Bluetooth Ultra Keyboard.
This User’s Manual contains information that will help to
operate the device as well as answering questions about
certain special keys and buttons. Please keep this manual in
a safe place for future reference.
System Requirements
iPad mini
Installation Process

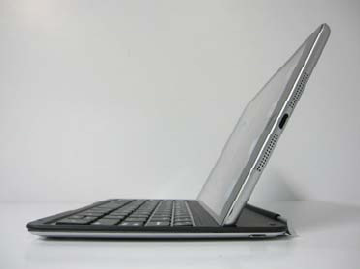

Place iPad mini into the holding bar for viewing
pleasure:
6
Bluetooth Pairing Method
1. Turn on the Bluetooth from iPad mini.
2. Turn on the keyboard power and press the
“CONN” button. (Please make sure the blue LED
is flashing)
3. The device” Bluetooth Keyboard” displays on
iPad mini. Then, choose “Connect”.
4. Input the code that generate by iPad mini and
then press “Enter”.
5. Start to use Bluetooth keyboard.
Note: 1. After 30 minutes non-operation, keyboard
will go to sleep mode. Please press any
key to wake up and wait until the blue LED
turn off before using.
2. Please press any key to re-establish the
connection between keyboard and iPad
mini after turning the Power Switch On.
![](/img.php?id=2083767&img=bg8.png)
7
Hot Key Function:
Note: The buttons print in blue that all need to
press the “Fn” key with the hot key to enable the
function.
Function Name Function Description
Home Back to main screen.
Search Search iPad file.
Language Change the input
language.
Photo Launch photo program.
Screenshot Screenshot current
window.
Keyboard Call the virtual keyboard.
Pre-track
Switches to the previous
media track. Press once
for each preceding media
track.
![](/img.php?id=2083767&img=bg9.png)
8
Play/Pause
Switches between Play
and Pause. Once Pause
is pressed, pressing this
button again resumes
play.
Next track
Switches to the next
media track. Press once
for each subsequent
media track.
Mute
Mutes the device’s sound
volume. Press it again to
turn the system volume
back on.
V-
Decreases the device’s
sound volume. Hold
down to decrease volume
more quickly.
V+
Increases the device’s
sound volume. Hold
down to increase volume
more quickly.
Screen
Lock
Press once to lock/unlock
the screen.
![](/img.php?id=2083767&img=bga.png)
9
The “Control”, “Option” and “ ” are no function
under US layout.
Rechargeable Battery:
◆ Please charge the battery before using until the
red LED turn off.
◆ Power on: Press any key to connect and wait until
the blue LED turn off before using.
◆ When the keyboard behaves erratically check the
power-low indicator LED for battery power stats,
i.e. blue LED light flashing means power is low.
Please charge the battery.
