Bluetooth Calculator Keypad
WKP-3020A
User’s Manual
1
About This Manual
This manual is designed to assist you in installing an d using the Bluetooth
Keypad. Information in t his do cument has be en carefully ch ecked for
accuracy; howeve r, no guarantee is given to the corre ctness of the
contents. The information in this docu ment is subject to chan ge witho ut
notice.
Edition
1st Edition,
Copyright
© Copyright 2012
This document contains proprietary information protected by cop yright. All
rights are re served. No part of this m anual m ay b e rep roduced by any
mechanical, elect ronic or other me ans, in any form, without prio r written
permission of the manufacturer.
Trademarks
All trademarks and re gistered trademarks are the p roperty of their
respective owners.
2
Warnings
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions (1) This device may not cause harmful interference
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
3
Notice 1
You are ca utioned that ch anges or mo difications no t expressly a pproved
by the pa rt resp onsible fo r complia nce coul d void t he u ser’s authority to
operate the equipment.
Caution:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
4
System Requirements
Hardware: Bluetooth-enabled computer (with either built-in Bluetooth
capability or external Bluetooth dongle )
Operating System: Windows 2000/XP/Vista/7/8 ; MAC OS X v10.4.6 or
later.
Selecting Your Operating System
This keypad is desi gned to work with bo th Windows and Maci ntosh OS’s.
Please sele ct OS at this point by s liding the OS switch locat ed at the
bottom of the keypad to PC or Mac mode
Package Contents
Bluetooth calculator keypad
2 x AAA batteries
U ser’s manual
![](/img.php?id=1900728&img=bg6.png)
5
Device pairing on MAC

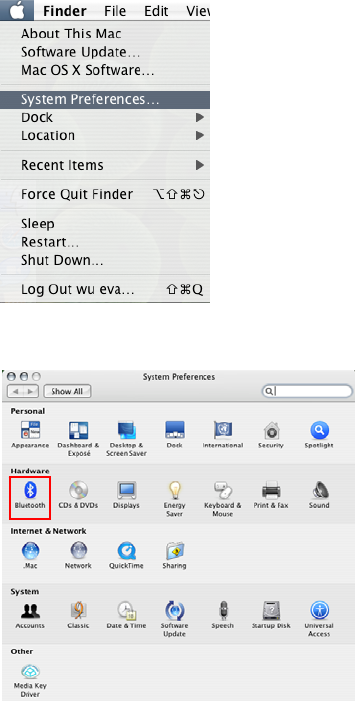

1. Click on the Apple icon and choose “System Preferences”
2. Click on the Bluetooth option.
![](/img.php?id=1900728&img=bg7.png)
6

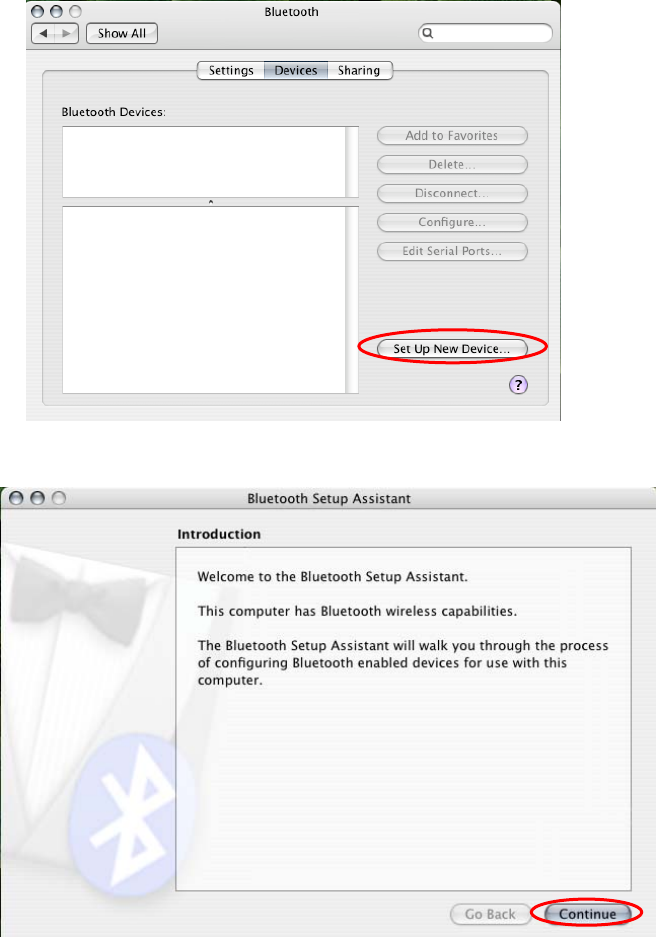

3. Click the “Set Up New Device” .
4. Click the “Continue” button.
![](/img.php?id=1900728&img=bg8.png)
7

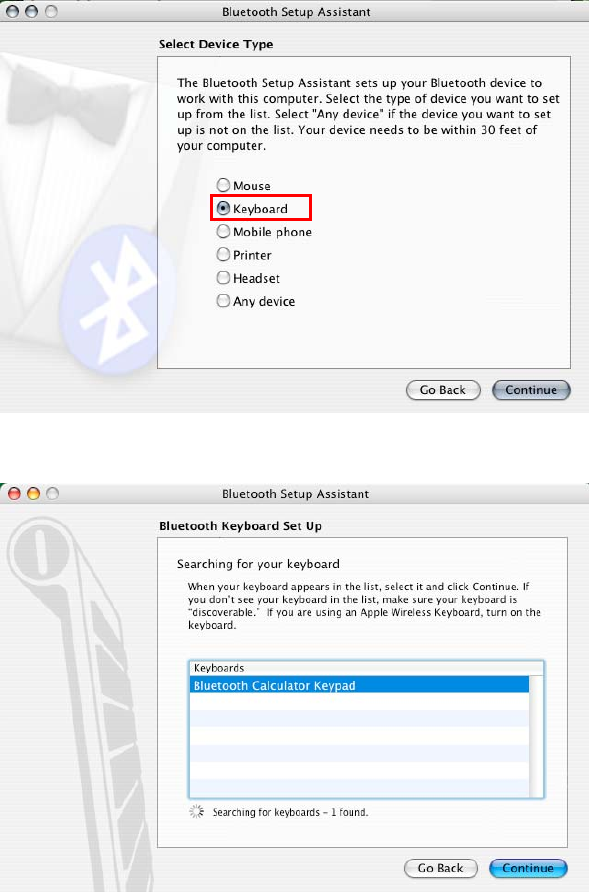

5. Press the ’Conn’ button at back of the Bluetooth keypad, then the led
will start flashing. Choose “Keyboard” and click the “Continue” button.
6. Choose “Bluetooth Calculator Keypad” and click the “Continue” button.
![](/img.php?id=1900728&img=bg9.png)
8

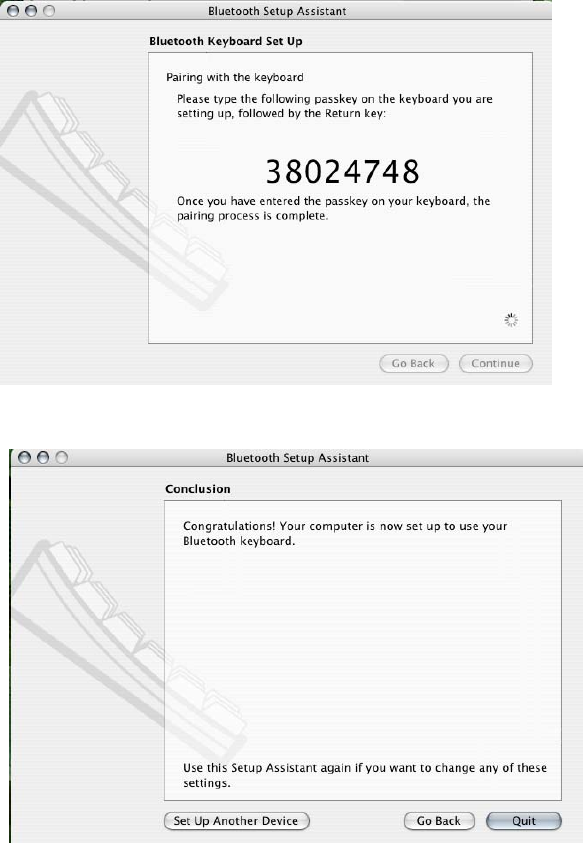

7. Just follow the screen display to input the Passkey then press “enter”
(the keypads enter)
8. Click the “Quit” button. The Bluetooth keypad is ready to use.
![](/img.php?id=1900728&img=bga.png)
9
Device pairing
Widcomm software:

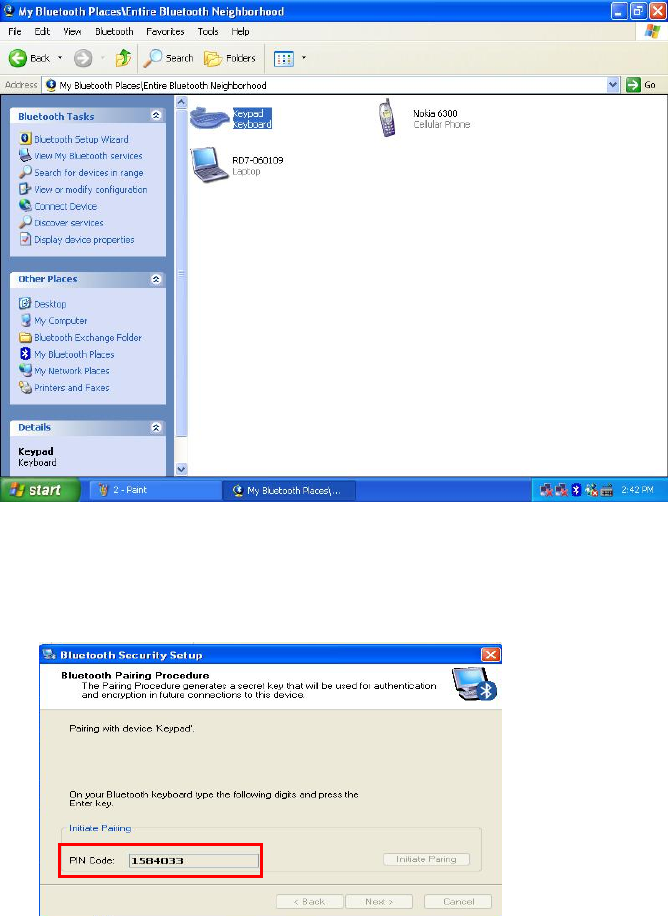

1. Right click on the BT icon and choose “Explore My Bluetooth Places”
2. Press the ‘Conn’ button at back of the Bluetooth keypad, then the led
will start flashing.
![](/img.php?id=1900728&img=bgb.png)
10
3. Click the “Search for devices in range” option, the “keypad” will be
found.
4. Double click on the “Keypad” icon, it will pop-up another windows. Just
follow the screen display to input the Pin Code then press “enter” (the
keypads enter).
![](/img.php?id=1900728&img=bgc.png)
11
5. The Found New Hardware Wizard appears and the OS will install the
driver automatically. No other steps are necessary.
6. The Bluetooth icon will become to . The Bluetooth keypad is ready
to use.
Toshiba software:

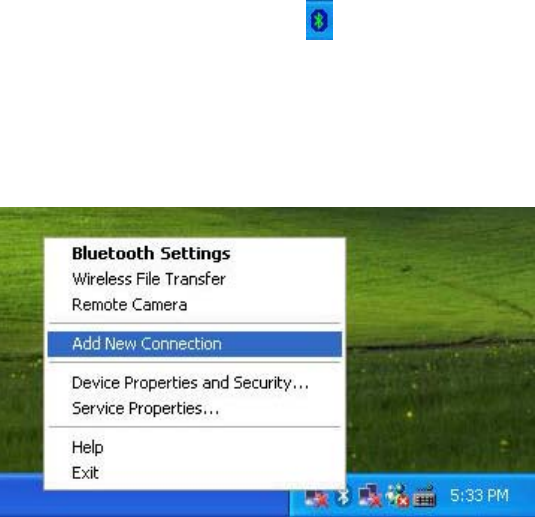

1. Right click on the BT icon and choose “Add New Connection”
2. Press the ‘Conn’ button at back of the Bluetooth keypad, then the led
will start flashing.
![](/img.php?id=1900728&img=bgd.png)
12

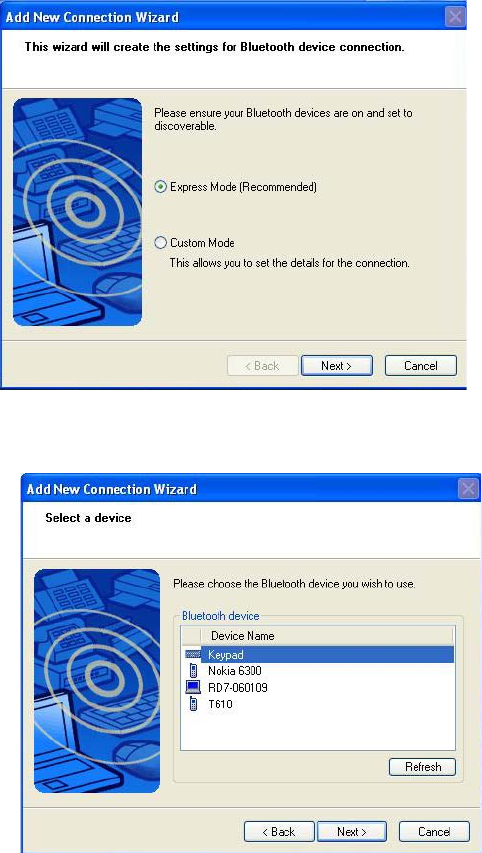

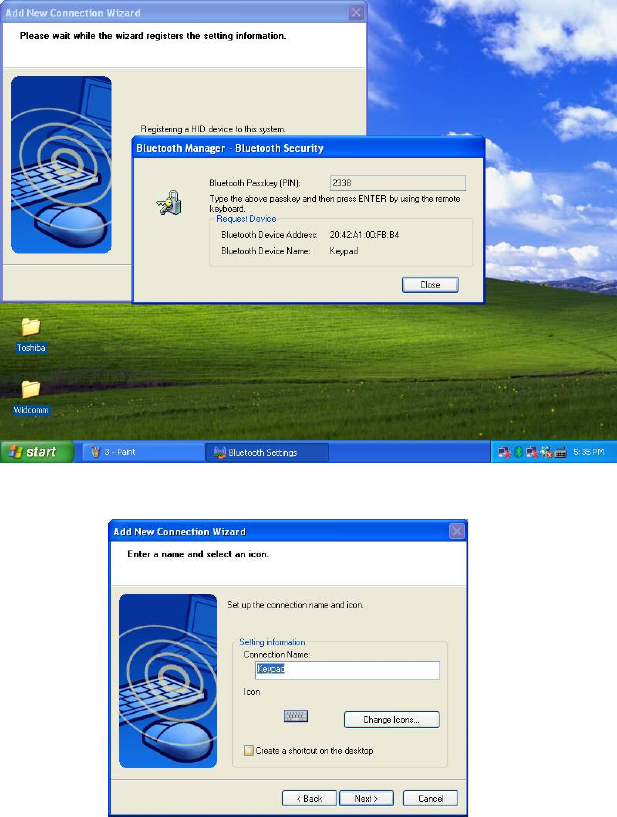

3. Click “Next”
4. Choose the “Keypad” device and click “Next”
![](/img.php?id=1900728&img=bge.png)
13
5. Just follow the screen display to input the Pin Code then press “enter”
(the keypads enter).
6. Click “Next”
7. The Found New Hardware Wizard appears and the OS will install the
driver automatically. No other steps are necessary.
![](/img.php?id=1900728&img=bgf.png)
14
8. The Bluetooth icon will become to . The Bluetooth keypad is ready
to use.
IVT Software:
1. Press the ‘Conn’ button at back of the Bluetooth keypad, then the led
will start flashing.

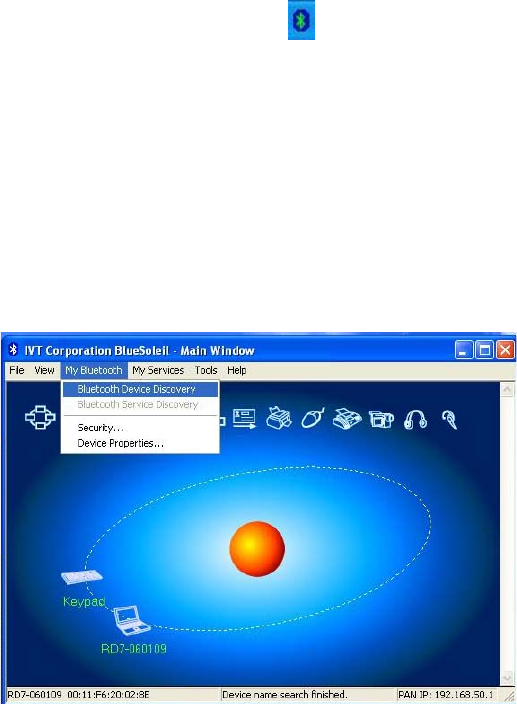

2. Double click the BT icon on the system tray and it wills pop-up a
windows. Choose “My Bluetooth” → ” Bluetooth Device Discovery”
![](/img.php?id=1900728&img=bg10.png)
15
3. It will find the “Keypad” device. Right click on the keypad icon and
choose “”Connect” → ” Bluetooth Human Interface Device Service”
4. Just follow the screen display to input the Passkey then press “enter”
(the keypads enter).
5. The Found New Hardware Wizard appears and the OS will install the
driver automatically. No other steps are necessary.
![](/img.php?id=1900728&img=bg11.png)
16
6. The Bluetooth icon will become to . The Bluetooth keypad is ready
to use.
Key function
Calculator mode
Key Functions Definition
M+ Adds the current display from the content of memory.
M- Subtracts the current display from the content of
memory.
MRC
i. First push, as MR key, transfers the contents of the
memory register into the display register.
ii. Second push, as MC key, clears the memory.
DECI Calculator mode: Specifies the number of decimal
places for rounding.
+/- Switches the sign of the displayed value between
positive (+) and negative (-).
% Use this key in combi nation with a rithmetic o perator
keys to perform percent
MODE Change mode between the calculator and the keypad
status.
SEND Send the calculation result to PC when the device is in
calculator mode or in keypad mode.
![](/img.php?id=1900728&img=bg12.png)
17
About the Display
The display shows the number you input, calculation results, and various
indicators showing the status of the calculator.
-MINUS Negative value indicator
MEMORY Independent memory indicator
ERROR Error indicator
‘ 3-digit separator (apostrophe)
CALC Indicate you are in calculator status
KEYPAD Indicate you are in keypad status
GT Grant total
Rounding Selector & Decimal Place Selector
¾ Press TAB To Rounding Selector
Specified the rounding system
F Floating decimal point system, which displays the value
without rounding.
0,2,4 Number of decimal places for the 5/4 setting of the Rounding
Selector.
A
The “Add Mode” automatically adds a decimal point and two
decimal places to all values, even if you don’t input a decimal
point. This mode is very useful when performing calculations
in dollars or other monetary systems that require two decimal
places. Two decimal places are not added in this mode if you
press the DEL key while inputting a value, or for any operation
other than addition and subtraction.
Wake up Function:
When the keypad’s LCD turns off or the Bluetooth disconnect, just press
the “Wake” key to wake it up.
