Users Manual
![](/img.php?id=860533&img=bg1.png)
Contents
Getting Started
OPERATING INSTRUCTIONS
Personal Computer
Model No. CF-30 series
Introduction ................................................................. 2
Read Me First ............................................................. 3

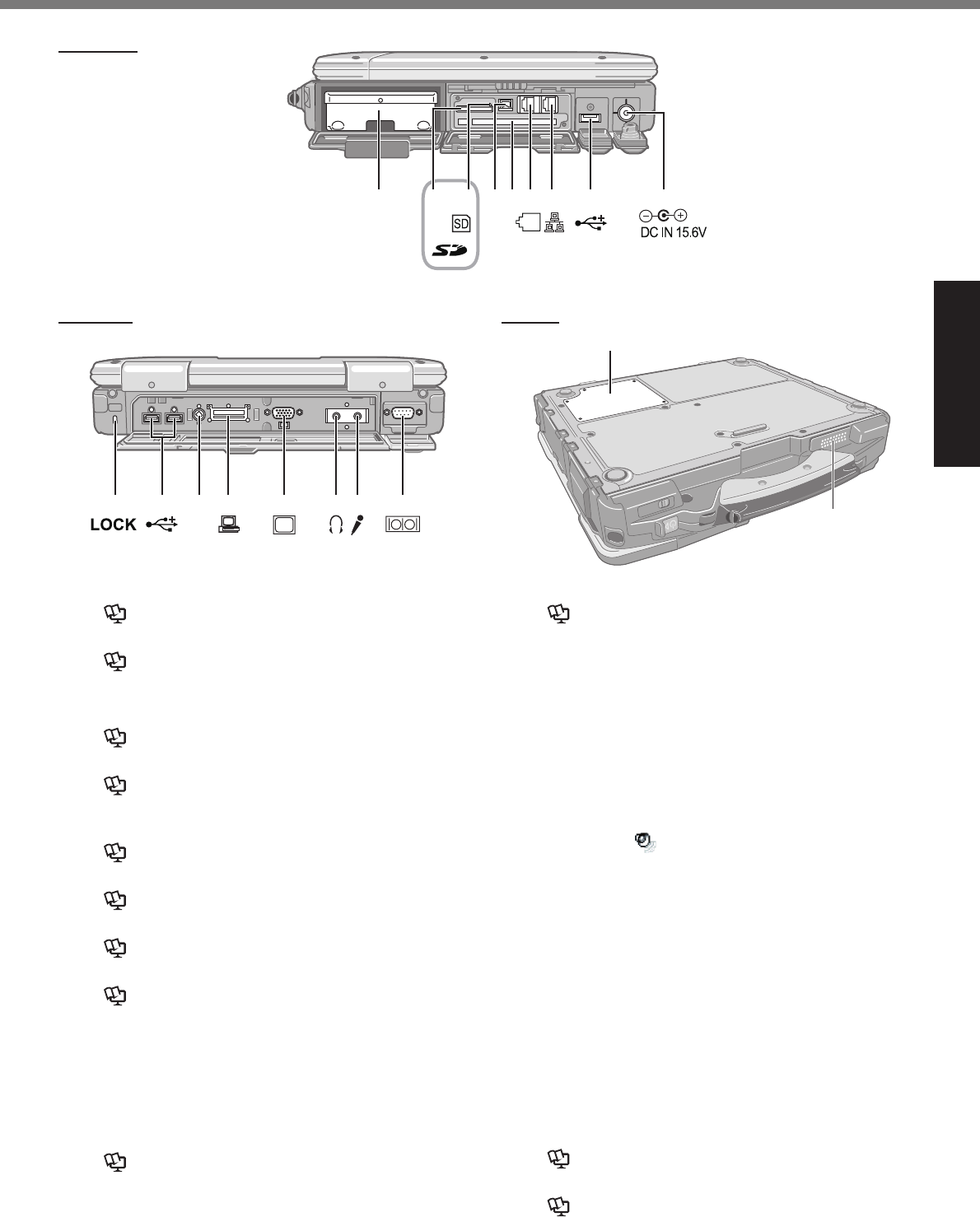

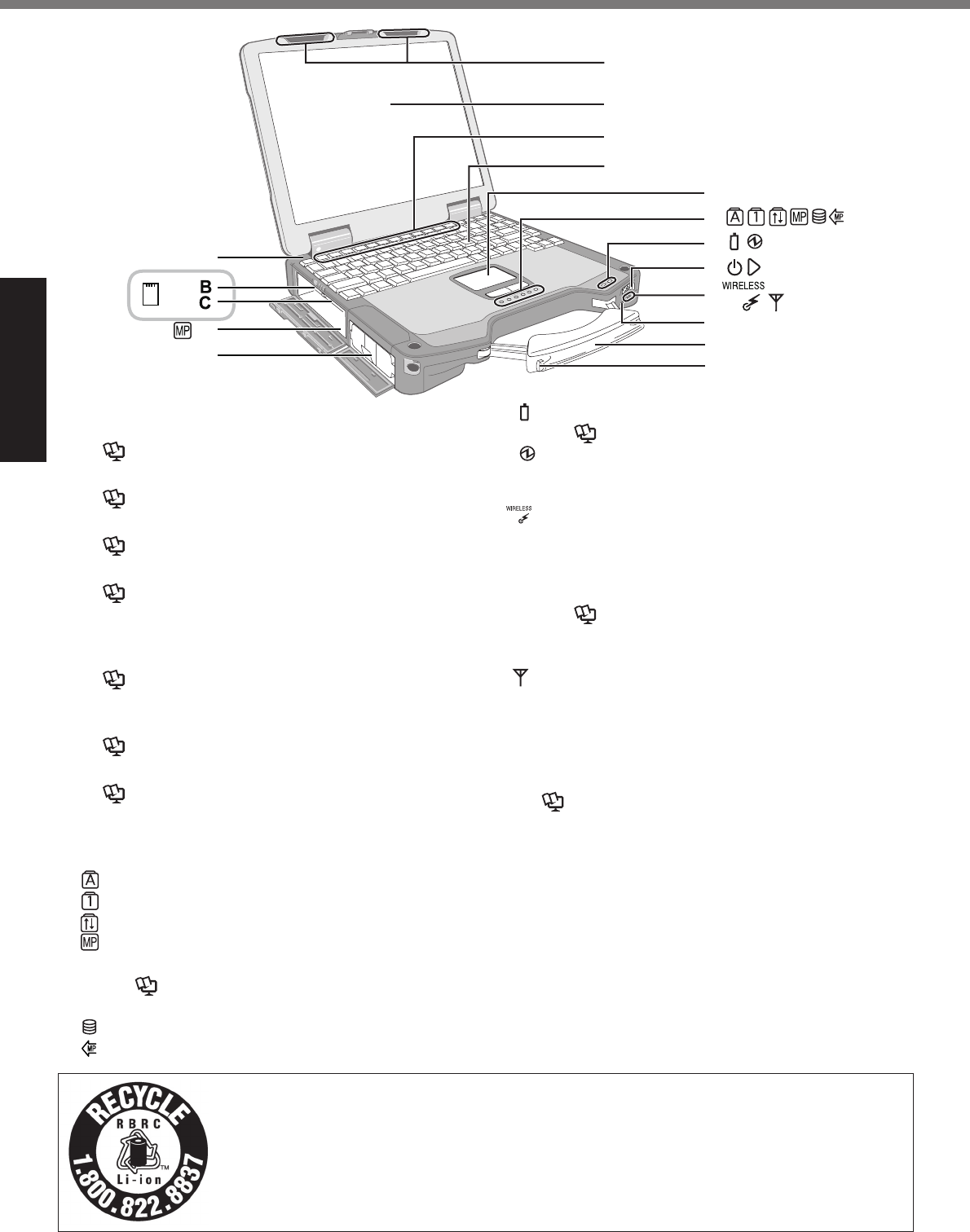

Description of Parts ..................................................10

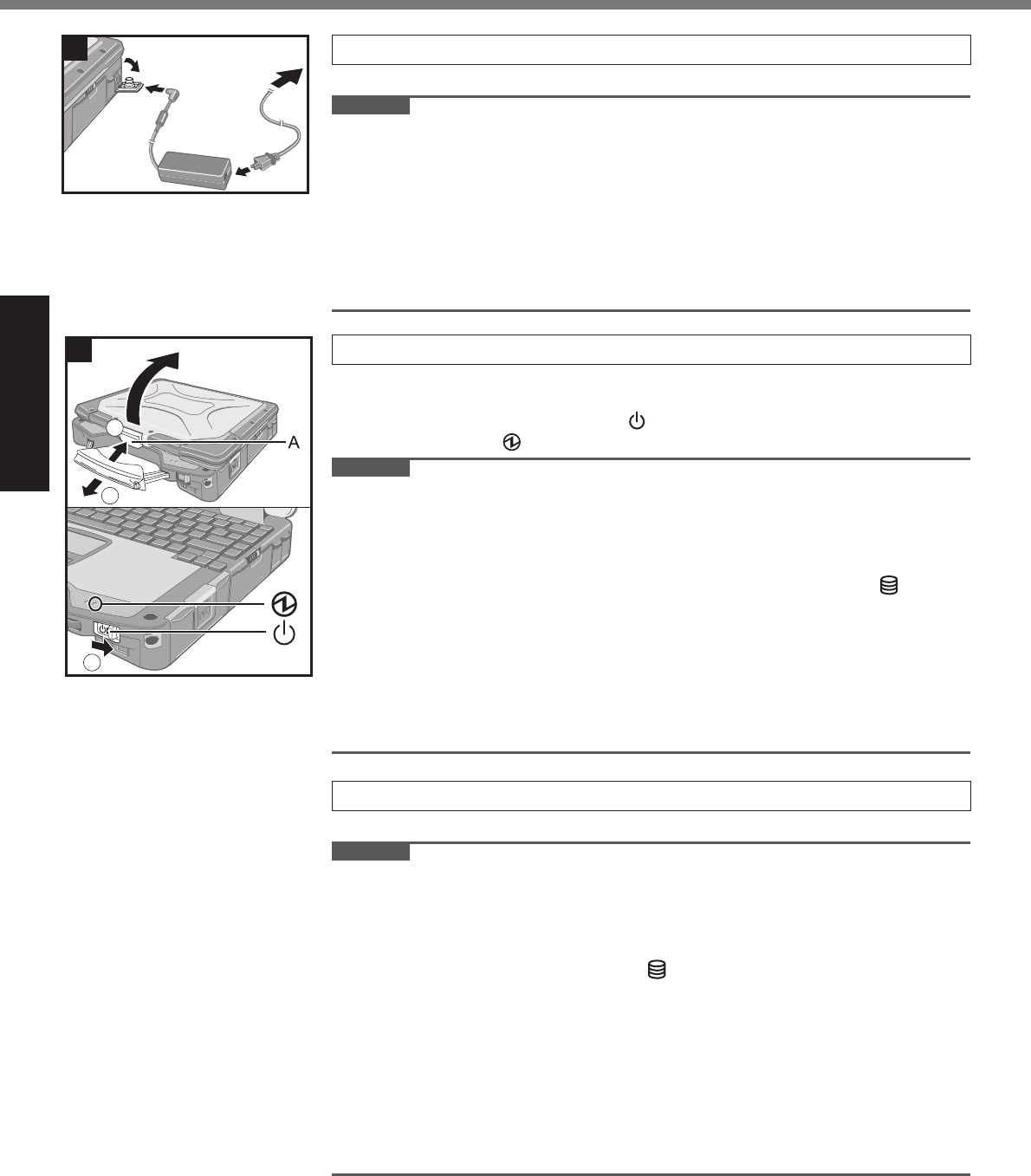

First-time Operation ..................................................13
Useful Information
On-screen Manual ....................................................16
Handling and Maintenance .......................................17
Hard Disk Backup Function (Recover Pro) ..............19
Hard Disk Data Erase Utility .....................................21
Reinstalling Software ................................................22
Troubleshooting
Error Code/Message ................................................24
Troubleshooting (Basic) ............................................25
Hardware Diagnostics ..............................................29
Appendix
LIMITED USE LICENSE AGREEMENT ...................32
Specifi cations ...........................................................34
LIMITED WARRANTY ..............................................37
Please read these instructions carefully before using this product and save this manual for future use.
For further information about the com-
puter, you can refer to the on-screen
manual.
To access the on-screen manual
page 16 “On-screen Manual”
Getting StartedUseful InformationTroubleshootingAppendix
![](/img.php?id=860533&img=bg2.png)
2
Getting Started
Introduction
Thank you for purchasing this Panasonic computer. For optimum performance and safety, please read these instruc-
tions carefully.
Terms and illustrations in these instructions
CAUTION : Conditions that may result in minor or moderate injury.
NOTE : Useful and helpful information.
Enter
: Press [Enter] key.
Fn
+
F5
: Press and hold [Fn] key, and then press [F5] key.
[start] - [Run] : Click [start], and then click [Run]. You may need to double-click in some cases.
: Page in these Operating Instructions or in the Reference Manual.
: Reference to the on-screen manuals.
Some illustrations are simplifi ed to help your understanding and may look different from the actual unit.
If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
Refer for the latest information about optional products to the catalogs, etc.
In these instructions, the names and terms are referred as follows.
“Microsoft® Windows® XP Professional Service Pack 2 with Advanced Security Technologies” as “Windows”, “Win-
dows XP” or “Windows XP Professional”
DVD-ROM & CD-R/RW drive, and DVD MULTI drive as “CD/DVD drive”
Circular media including DVD-ROM and CD-ROM as “discs”
The display modes are referred as follows. ( ) indicates the terms in [Intel® Graphics Media Accelerator Driver for
Mobile] screen. To display the screen, click [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA
Driver for Mobile].
Internal LCD (Notebook): The computer’s display
External display (Monitor): External display
Simultaneous display (Intel® Dual Display Clone): The same screen is displayed on the internal LCD and the ex-
ternal display.
Extended desktop: The extended working area across the internal LCD and the external display.
Copyright
This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual
may be reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
© 2007 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Disclaimer
Computer specifi cations and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. as-
sumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the com-
puter and the manuals.
Trademarks
Microsoft®, Windows®, the Windows logo and IntelliMouse are registered trademarks of Microsoft Corporation of the
United States and/or other countries.
Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.
SDHC Logo is a trademark.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorpo-
rated in the United States and/or other countries.
PhoenixBIOS, Phoenix Always and Recover Pro are trademarks and/or registered trademarks of Phoenix Technolo-
gies Ltd.
Bluetooth
™
is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Matsushita Electric Industrial Co., Ltd.
Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.
![](/img.php?id=860533&img=bg3.png)
3
Getting Started
Read Me First
Models for U.S.A.
Federal Communications Commission Radio Fre-
quency Interference Statement
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
Consult the Panasonic Service Center or an experi-
enced radio/TV technician for help.
Warning
To assure continued compliance, use only shielded inter-
face cables when connecting to a computer or peripheral.
Also, any changes or modifi cations not expressly ap-
proved by the party responsible for compliance could void
the user’s authority to operate this equipment.
FCC RF Exposure Warning:
This equipment is provided with PC Card slot that could
be used with wireless transmitters, which will be specifi -
cally recommended when they become available.
Other third-party wireless transmitters have not been
RF exposure evaluated for use with this computer and
may not comply with FCC RF exposure requirements.
<Only for model with wireless LAN/Bluetooth>
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
This equipment has been approved for mobile operation,
and unless otherwise advised in separate supplemental
instructions for individual wireless transmitter(s), requires
minimum 20 cm spacing be provided between antenna(s)
and all person’s body (excluding extremities of hands,
wrist and feet) during wireless modes of operation.
This equipment may use multiple installed transmitters,
which may be capable of simultaneous transmission.
This equipment is provided with external antenna
connector(s) for connection to optional Car Mounter or
Port Replicator for mobile external mounted antenna(s).
External antenna(s) must be professionally installed and
cannot exceed recommended maximum antenna gain as
described in individual provided supplement instructions
for wireless transmitters. Also, user must maintain mini-
mum 20 cm spacing between external antenna(s) and all
person’s body (excluding extremities of hands, wrist and
feet) during wireless modes of operation.
25-M-3-1
<Only for model with wireless LAN>
This product is restricted to indoor use due to its operation
in the 5.15 to 5.25 GHz frequency range. FCC requires this
product to be used indoors for the frequency range 5.15 to
5.25 GHz to reduce the potential for harmful interference
to co-channel Mobile Satellite systems. High power radars
are allocated as primary users of the 5.25 to 5.35 GHz and
5.65 to 5.85 GHz bands. These radar stations can cause
interference with and/or damage this product.
25-M-W-1
This device complies with Part 15 of the FCC Rules. Op-
eration is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired op-
eration.
Responsible Party: Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Tel No:1-800-LAPTOP5 (1-800-527-8675)
6-M-1
FCC Regulation Notice for modem
This equipment contains a FCC approved modem.
1. This equipment complies with CFR47 Part 68 rules.
On the computer is a label that contains, among other
information, the FCC registration number and ringer
equivalence number (REN) for this equipment. If re-
quired, this information must be provided to the tele-
phone company.
2. An FCC compliant telephone cord and modular plug
is provided with this equipment. This equipment is
designed to be connected to the telephone network
or premises wiring using a compatible modular jack
which is Part 68 compliant. See Installation Instruc-
tions for details.
3. The REN is used to determine the quantity of devices
which may be connected to the telephone line. Ex-
cessive RENs on the telephone line may result in the
devices not ringing in response to an incoming call. In
most, but not all area, the sum of RENs should not ex-
ceed fi ve (5.0). To be certain of the number of devices
that may be connected to a line, as determined by the
total RENs, contact the local telephone company.
4. If your telephone equipment cause harm to the tele-
phone network, the telephone company will notify you
in advice that temporary discontinuance of service
may be required. But if advice notice isn’t practical, the
telephone company will notify the customer as soon
as possible. Also, you will be advised of your right to
fi le a complaint with the FCC if you believe it is neces-
sary.
5. The telephone company may take changes in its facili-
ties, equipment, operations or procedures that could
affect the operation of the equipment. If this happens
the telephone company will provide advance notice
in order for you to make necessary modifi cations to
maintain uninterrupted service.
6. If trouble is experienced with this equipment, for repair
or warranty information, please contact Panasonic
Corporation of North America at DIAL TOLL FREE
1-800-LAPTOP5 (1-800-527-8675). If the equipment is
causing harm to the telephone network, the telephone
company may request that you disconnect the equip-
ment until the problem is resolved.
7. There are no user serviceable parts contained in this
equipment.
8. This equipment may not be used on coin service pro-
vided by the telephone company. Connection to party
lines is subject to state tariffs.
![](/img.php?id=860533&img=bg4.png)
4
Getting Started
Read Me First
9.
The Telephone Consumer Protection Act of 1991 makes
it unlawful for any person to use a computer or other
electronic device to send any message via a telephone
fax machine unless such message clearly contains in a
margin at the top or bottom of each transmitted page or
on the fi rst page of the transmission, the date and time
it is sent and an identifi cation of the business or other
entry, or other individual sending the message and
the telephone number of the sending machine or such
business, other entity, or individual. In order to program
this information into your fax software, you should refer
to the manual of the Fax software being used.
10. According to the FCC’s electrical safety advisory, we
recommend that you may install an AC surge arrestor
in the AC outlet to which this equipment is connected.
Telephone companies report that electrical surges,
typically lightning transients, are very destructive to
customer terminal equipment connected to AC power
sources and that this is a major nationwide problem.
“Caution : To reduce the risk of fi re, use only No.26 AWG or
larger telecommunication line cord.”
“ATTENTION : Pour réduire le risque d’incendie, utiliser
uniquement des conducteurs de télécommunications 26
AWG ou de section supérieure.”
16-M-1
Notice for the products using LCD
This product has a fl uorescent lamp that contains mercury.
Disposal may be regulated in your community due to envi-
ronmental considerations.
For disposal or recycling information, please contact your
local authorities, or the Electronic Industries Alliance:
<http://www.eiae.org/>
24-M-2
Models for Canada
Industry Canada (IC) Notice for modem
This equipment contains an Industry Canada approved
modem unit.
The Industry Canada label is affi xed on the modem unit.
EQUIPMENT ATTACHEMENT LIMITATIONS
“NOTICE: The Industry Canada label identifi es certifi ed
equipment. This certifi cation means that the equipment
meets telecommunications network protective, opera-
tional and safety requirements as prescribed in the ap-
propriate Terminal Equipment Technical Requirements
document(s). The Department does not guarantee the
equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that
it is permissible to be connected to the facilities of the
local telecommunications company. The equipment must
also be installed using an acceptable method of connec-
tion. The customer should be aware that compliance with
the above conditions may not prevent degradation of
service in some situations.
Repairs to certifi ed equipment should be coordinated by a
representative designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equipment
malfunctions, may give the telecommunications company
cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the elec-
trical ground connections of the power utility, telephone
lines and internal metallic water pipe system, if present,
are connected together. This precaution may be par-
ticularly important in rural areas. Caution: Users should
not attempt to make such connections themselves, but
should contact the appropriate electric inspection author-
ity, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned
to each terminal device provides an indication of the maxi-
mum number of terminals allowed to be connected to a tele-
phone interface. The termination on an interface may consist
of any combination of devices subject only to the require-
ment that the sum of the Ringer Equivalence Numbers of all
the devices does not exceed 5.”
REN: See bottom of the computer
RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL
“AVIS: L’étiquette d’Industrie Canada identifi e le matériel
homologué. Cette étiquette certifi e que le matériel est
conforme aux normes de protection, d’exploitation et de
sécurité des réseaux de télécommunications, comme
le prescrivent les documents concernant les exigences
techniques relatives au matériel terminal. Le Ministère
n’assure toutefois pas que le matériel fonctionnera à la
satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est
permis de le raccorder aux installations de l’entreprise locale
de télécommunication. Le matériel doit également être installé
en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la con-
formité aux conditions énoncées ci-dessus n’empêche
pas la dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être coor-
données par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à
l’utilisateur de débrancher un appareil à la suite de répa-
rations ou de modifi cations effectuées par l’utilisateur ou
à cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que
tous les fi ls de mise à la terre de la source d’énergie
électrique, des lignes téléphoniques et des canalisations
d’eau métalliques, s’il y en a, sont raccordés ensemble.
Cette précaution est particulièrement importante dans les
régions rurales. Avertissement: L’utilisateur ne doit pas
tenter de faire ces raccordements lui-même; il doit avoir
recours à un service d’inspection des installations élec-
triques, ou à un électricien, selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné
à chaque dispositif terminal indique le nombre maximal de
terminaux qui peuvent être raccordés à une interface. La
terminaison d’une interface téléphonique peut consister en
une combinaison de quelques dispositifs, à la seule condi-
tion que la somme d’indices d’équivalence de la sonnerie de
touts les dispositifs n’excède pas 5.”
IES: Voir sous le fond de l’ordinateur 17-Ca-1
![](/img.php?id=860533&img=bg5.png)
5
Getting Started
Canadian ICES-003
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada. 7-M-1
<Only for model with wireless LAN/Bluetooth>
Industry Canada
This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference, including in-
terference that may cause undesired operation of the
device. 30-Ca-1-1
<Only for model with wireless LAN>
This product (local network devices) for the band
5150-5250 MHz is only indoor usage to reduce potential
for harmful interference to co-channel Mobile Satellite
systems.
High power radars are allocated as primary users (mean-
ing they have priority) of 5250-5350 MHz and 5650-5850
MHz and these radars could cause interference and/or
damage to LELAN devices. 30-Ca-2-1
This device has been designed to operate with an anten-
na having a maximum gain of 2.15 dB. Antenna having a
higher gain is strictly prohibited per regulations of Industry
Canada. The Required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the
antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more
than that required for successful communication. 25-Ca-1-1
<Only for model with wireless LAN>
RF Exposure Warning
This equipment has been approved for mobile operation,
and unless otherwise advised in separate supplemental
instructions for individual wireless transmitter(s), requires
minimum 20 cm spacing be proved between antenna(s)
and all person’s body (excluding extremities of hands,
wrist and feet) during wireless modes of operation.
<Pour modèles LAN sans fi l uniquement>
Mise en garde concernant l’exposition à l’énergie
radiofréquence
Cet équipement a été homologué pour un fonctionnement
sans fi l et, sauf avis contraire inclus dans la notice d’utili-
sation d’un autre émetteur sans fi l, une distance minimale
de 20 cm doit être assurée entre l’antenne et le corps
de toute personne (à l’exclusion des mains, poignets et
pieds) pendant le fonctionnement sans fi l. 25-M-5-1
Models for Europe
<Only for model with a “CE” mark on the bottom of the computer>
Declaration of Conformity (DoC)
“Hereby, we declare that this Personal Computer is in compliance with the essential requirements
and other relevant provisions of the Directive 1999/5/EC.”
Hint:
If you want to get a copy of the original DoC of our products which relates to the R&TTE, please con-
tact our web address: http://www.doc.panasonic.de
Contact:
Panasonic Services Europe
A Division of Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Network connection.
The terminal equipment is intended for connection to the following public network;
In all the countries of European Economical Area;
- Public Switched Telephony Networks
Technical Features.
The terminal equipment includes the following features;
- DTMF dialing
- Maximum bitrate receiving mode: 56 kbit/s
- Maximum bitrate sending mode: 33.6 kbit/s
This product is designed to interwork with the Public Switched Telecommunication Networks in UK, Ireland, Nether-
lands, Sweden, Denmark, Finland, Switzerland, Luxembourg, Belgium, France, Germany, Spain, Portugal, Iceland,
Greece, Italy, Norway and Austria. 18-E-1
![](/img.php?id=860533&img=bg6.png)
6
Getting Started
Read Me First
When using your telephone equipment, basic safety
precautions should always be followed to reduce the risk
of fi re, electric shock and injury to persons, including the
following:
1. Do not use this product near water, for example, near
a bath tub, wash bowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the
vicinity of the leak.
4. Use only the power cord and batteries indicated in this
manual. Do not dispose of batteries in a fi re. They may
explode. Check with local codes for possible special
disposal instructions.
SAVE THESE INSTRUCTIONS
19-E-1
Certaines mesures de sécurité doivent être prises pen-
dant l’utilisation de matérial téléphonique afi n de réduire
les risques d’incendie, de choc électrique et de blessures.
En voici quelquesunes:
1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’
une baignoire, d’un lavabo, d’un évier de cuisine, d’un
bac à laver, dans un sous-sol humide ou près d’une
piscine.
2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un ap-
pareil sans fi l) pendant un orage électrique. Ceci peut
présenter un risque de choc électrique causé par la
foudre.
3. Ne pas utiliser l’appareil téléphonique pour signaler
une fuite de gaz s’il est situé près de la fuite.
4. Utiliser seulement le cordon d’alimentation et le type
de piles indiqués dans ce manual. Ne pas jeter les
piles dans le feu: elles peuvent exploser. Se conform-
er aux règlements pertinents quant à l’élimination des
piles.
CONSERVER CES INSTRUCTIONS
19-F-1
Information to the User
<Only for model with wireless LAN/Bluetooth>
This product and your Health
This product, like other radio devices, emits radio fre-
quency electromagnetic energy. The level of energy
emitted by this product however is far much less than the
electromagnetic energy emitted by wireless devices like
for example mobile phones.
Because this product operates within the guidelines found
in radio frequency safety standards and recommenda-
tions, we believe this product is safe for use by consum-
ers. These standards and recommendations refl ect the
consensus of the scientifi c community and result from
deliberations of panels and committees of scientists who
continually review and interpret the extensive research
literature.
In some situations or environments, the use of this prod-
uct may be restricted by the proprietor of the building or
responsible representatives of the organization. These
situations may for example include:
Using this product on board of airplanes, or
In any other environment where the risk of interference
to other devices or services is perceived or identifi ed
as harmful.
If you are uncertain of the policy that applies on the use
of wireless devices in a specifi c organization or environ-
ment (e.g. airports), you are encouraged to ask for autho-
rization to use this product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interfer-
ence caused by unauthorized modifi cation of this product.
The correction of interference caused by such unauthor-
ized modifi cation will be the responsibility of the user. We
and its authorized resellers or distributors are not liable
for damage or violation of government regulations that
may arise from failing to comply with these guidelines.
26-M-1
Lithium Battery / Pile au lithium
Lithium Battery!
This computer contains a lithium battery to enable the
date, time, and other data to be stored. The battery
should only be exchanged by authorized service person-
nel.
Warning!
A risk of explosion from incorrect installation or misappli-
cation may possibly occur.
15-E-1
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui
permet de sauvegarder certaines données, notamment la
date et l’heure. La pile ne doit être remplacée que par un
technicien qualifi é.
Danger ! Risque d’explosion en cas de non respect de
cette mise en garde!
15-F-1
Important Safety Instructions / Importantes Mesures De Sécurité
![](/img.php?id=860533&img=bg7.png)
7
Getting Started
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS
PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAF-
FIC CONTROL EQUIPMENT/SYSTEMS, OR AIRCRAFT
COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL
NOT BE RESPONSIBLE FOR ANY LIABILITY RESULT-
ING FROM THE USE OF THIS PRODUCT ARISING OUT
OF THE FOREGOING USES.
*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include
Class2 Electrical Flight Bag (EFB) Systems and Class1
EFB Systems when used during critical phases of fl ight
(e.g., during take-off and landing) and/or mounted on to
the aircraft. Class1 EFB Systems and 2 EFB Systems are
defi ned by FAA: AC (Advisory Circular) 120-76A or JAA:
JAA TGL (Temporary Guidance Leafl ets) No.36.
Panasonic cannot guarantee any specifi cations, technolo-
gies, reliability, safety (e.g. Flammability/Smoke/Toxic-
ity/Radio Frequency Emission, etc) requirements related
to aviation standards that exceed the specifi cations of our
COTS (Commercial-Off-The-Shelf) products. 39-E-1
This computer is not intended for use in medical equipment
including life-support systems, air traffi c control systems, or
other equipment, devices or systems that are involved with
ensuring human life or safety. Panasonic cannot be held re-
sponsible in any way for any damages or loss resulting from
the use of this unit in these types of equipment, devices or
systems, etc.
The CF-30 was developed based on thorough research into
the real-world portable computing environments. Exhaustive
pursuit of usability and reliability under harsh conditions led
to innovations such has the magnesium alloy exterior, vibra-
tion damped hard disk drive and fl oppy disk drive, fl exible
internal connections. The CF-30’s outstanding engineering
has been tested using the strict MIL-STD- 810F (for vibration
and shock) and IP (for dust and water) based procedures.
As with any portable computer device precautions should be
taken to avoid any damage. The following usage and han-
dling procedures are recommended.
Before putting the computer away, be sure to wipe off any
moisture.
If a Malfunction Occurs, Immediately Unplug the AC
Plug and the Battery Pack
This product is damaged
Foreign object inside this product
Smoke emitted
Unusual smell emitted
Unusually hot
Continuing to use this product while any of the above condi-
tions are present may result in fi re or electric shock.
If a malfunction occurs, immediately turn the power off and
unplug the AC plug, and then remove the battery pack.
Then, contact your technical support offi ce.
Do Not Touch This Product and Cable When It Starts
Thundering
Electric shock may result.
Do Not Connect the AC Adaptor to a Power Source
Other Than a Standard Household AC Outlet
Otherwise, a fi re due to overheating may result. Connecting
to a DC/AC converter (inverter) may damage the AC adap-
tor. On an airplane, only connect the AC adaptor/charger to
an AC outlet specifi cally approved for such use.
Do Not Do Anything That May Damage the AC Cord, the
AC Plug, or the AC Adaptor
Do not damage or modify the cord, place it near hot tools,
bend, twist, or pull it forcefully, place heavy objects on it, or
bundle it tightly.
Continuing to use a damaged cord may result in fi re, short
circuit, or electric shock.
Do Not Pull or Insert the AC Plug If Your Hands Are Wet
Electric shock may result.
Clean Dust and Other Debris of the AC Plug Regularly
If dust or other debris accumulates on the plug, humidity,
etc. may cause a defect in the insulation, which may result in
a fi re.
Pull the plug, and wipe it with a dry cloth.
Pull the plug if the computer is not being used for a long
period of time.
Insert the AC Plug Completely
If the plug is not inserted completely, fi re due to overheating
or electric shock may result.
Do not use a damaged plug or loose AC outlet.
Close the Connector Cover Tightly When Using the
Computer Where Is a Lot of Water, Moisture, Steam,
Dust, Oily Vapors, etc.
The entry of foreign matter may cause a fi re or electric
shocks.
If foreign matter has found its way inside, immediately turn
the power off and unplug the AC cord, and then remove
the battery pack. Then contact your technical support of-
fi ce.
Do Not Disassemble the Computer
There are high-voltage areas inside which may give you an
electric shock if you should touch them. Do not touch the
pins and circuit boards inside, and do not allow foreign mat-
ter to enter inside.
Also, remodeling or disassembly may cause a fi re.
Keep SD Memory Cards Away from Infants and Small
Children
Accidental swallowing will result in bodily injury.
In the event of accidental swallowing, see a doctor immedi-
ately.
Do Not Place the Computer on Unstable Surface
If balance is lost, the computer may fall over or drop, result-
ing in an injury.
Avoid Stacking
If balance is lost, the computer may fall over or drop, result-
ing in an injury.
Do Not Leave the Computer in High Temperature Envi-
ronment Such as in a Sun-Heated Car, for a Long Period
of Time
Leaving the computer where it will be exposed to extremely
high temperatures such as in a sun-heated car or in direct
sunlight may deform the cabinet and/or cause trouble in the
internal parts. Continued use in such a resulting condition
may lead to short-circuiting or insulation defects, etc. which
may in turn lead to a fi re or electric shocks.
Hold the Plug When Unplugging the AC Cord
Pulling on the cord may damage the cord, resulting in a fi re
or electric shock.
Do Not Move the Computer While the AC Plug Is Con-
nected
The AC cord may be damaged, resulting in fi re or electric
shock.
If the AC cord is damaged, unplug the AC plug immedi-
ately.
Use Only the Specifi ed AC Adaptor With Your Computer
Using an AC adaptor other than the one supplied (attached
to your computer or supplied by Panasonic) may result in a
fi re.
Do Not Subject the AC Adaptor to Any Strong Impact
Using the AC adaptor after a strong impact such as being
dropped may result in electric shock, short circuit, or fi re.
Take a Break of 10-15 Minutes Every Hour
Using the computer for long periods of time may have detri-
mental health effects on the eyes or hands.
Precautions
![](/img.php?id=860533&img=bg8.png)
8
Getting Started
Read Me First
Do Not Turn the Volume Up to Loud When Using Head-
phones
Listening at high volumes that overstimulate the ear for long
periods of time may result in loss of hearing.
Use the Modem with a Regular Telephone Line
Connection to an internal phone line (on-premise switches)
of a company or business offi ce, etc. or to a digital public
phone or use in a country or area not supported by the com-
puter may result in a fi re or electric shocks.
Do Not Connect a Telephone Line, or a Network Cable
Other Than the One Specifi ed, into the LAN Port
If the LAN port is connected to a network such as the ones
listed below, a fi re or electric shock may result.
Precautions (Battery Pack)
Do Not Use with Any Other Computer
The battery pack is rechargeable and was intended for the
specifi ed computer. If it is used with a computer other than
the one for which it was designed, electrolyte leakage, gen-
eration of heat, ignition or rupture may result.
Do Not Charge the Battery Using the Methods Other
Than Those Specifi ed
If the battery is not charged using one of the specifi ed
methods, electrolyte leakage, generation of heat, ignition or
rupture may result.
Do Not Throw the Battery Pack into a Fire or Expose It
to Excessive Heat
Generation of heat, ignition or rupture may result.
Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for
Example)
Electrolyte leakage, generation of heat, ignition or rupture
may result.
Do Not Insert Sharp Objects into the Battery Pack, Ex-
pose It to Bumps or Shocks, Disassemble, or Modify It
Electrolyte leakage, generation of heat, ignition or rupture
may result.
Do Not Short the Positive (+) and Negative (–) Contacts
Generation of heat, ignition or rupture may result. Do not
place the battery pack together with articles such as neck-
laces or hairpins when carrying or storing.
Do Not Use This Computer with a Battery Pack Other
Than the One Specifi ed
Use only the specifi ed battery pack (CF-VZSU46U) with your
CF-30. Use of battery packs other than those manufactured
and supplied by Panasonic may present a safety hazard
(generation of heat, ignition or rupture).
Do not touch the terminals on the battery pack. The bat-
tery pack may no longer function properly if the contacts
are dirty or damaged.
Do not expose the battery pack to water, or allow it to
become wet.
If the battery pack will not be used for a long period of
time (a month or more), charge or discharge (use) the
battery pack until the remaining battery level becomes
30% to 40% and store it in a cool, dry place.
This computer prevents overcharging of the battery by
recharging only when the remaining power is less than
approx. 95% of capacity.
The battery pack is not charged when the computer is
fi rst purchased. Be sure to charge it before using it for
the fi rst time. When the AC adaptor is connected to the
computer, charging begins automatically.
Should the battery leak and the fl uid get into your eyes,
do not rub your eyes. Immediately fl ush your eyes with
clear water and see a doctor for medical treatment as
soon as possible.
Networks other than 1000BASE-T, 100BASE-TX or
10BASE-T
Phone lines (Telephone lines, internal phone lines (on-
premise switches), digital public phones, etc.)
Do Not Use with Exposing the Skin to the Computer for
a Long Period of Time
Using the computer with exposing the skin to the heat source
of the computer or AC adaptor for a long period of time can
cause a low-temperature burn.
Do not place the computer near a television or radio re-
ceiver.
Keep the computer away from magnets. Data stored on
the hard disk may be lost.
NOTE
The battery pack may become warm during recharg-
ing or normal use. This is completely normal.
Recharging will not commence if internal temperature
of the battery pack is outside of the allowable temper-
ature range (0 °C to 50 °C {32°F to 122 °F}).
( Reference Manual “Battery Power”) Once the
allowable range requirement is satisfi ed, charging
begins automatically. Note that the recharging time
varies based on the usage conditions. (Recharging
takes longer than usual when the temperature is 10 °
C {50 °F} or below.)
If the temperature is low, the operating time is short-
ened. Only use the computer within the allowable
temperature range.
This computer has a high temperature mode function
that prevents the degradation of the battery in high
temperature environments. ( Reference Manual
“Battery Power”) A level corresponding to a 100%
charge for high temperature mode is approximately
equivalent to an 80% charge level for normal tempera-
ture mode.
The battery pack is a consumable item. If the amount
of time the computer can be run by using a particular
battery pack becomes dramatically shorter and re-
peated recharging does not restore its performance,
the battery pack should be replaced with a new one.
When transporting a spare battery inside a package,
briefcase, etc., it is recommended that it be placed in
a plastic bag so that its contacts are protected.
Always power off the computer when it is not in use.
Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity.
![](/img.php?id=860533&img=bg9.png)
9
Getting Started
For Used in Motor Vehicle /Pour L’utilisation Dans Un Véhicule Motorisé
Warning: Notebook Computer may be installed in a mo-
tor vehicle and visible to the driver only if used to support
vehicle related functions such as vehicle information,
system control, rear or side observation and navigation. If
used for entertainment purpose, such as television recep-
tion or video play, it must be installed to the rear of the
driver’s seat where it will not be
visible, directly or indirectly, to the operator of the motor
vehicle. Check with individual state/provincial laws to de-
termine lawful use of this product while operating within a
motor vehicle.
Information on Disposal for Users of Waste Electrical & Electronic Equipment
(private households)
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct
method of disposal.
36-M-1
Avertissement : L’ordinateur bloc-notes peut être installé
dans un véhicule motorisé et dans le champ de vision du
conducteur uniquement en tant que dispositif d’aide aux
fonctions du véhicule, comme par exemple pour fournir
des informations sur le véhicule, comme dispositif de
contrôle de système, pour l’observation à l’arrière ou sur
les côtés du véhicule, ainsi que pour fournir de l’informa-
tion routière. Pour toute utilisation à fi n de divertissement,
comme par exemple pour regarder la télévision ou jouer
à des jeux vidéo, il doit être installé à l’arrière du siège du
conducteur, en un emplacement où il ne sera pas visible,
ni directement ni indirectement, pour le conducteur du
véhicule motorisé. Vérifi ez les lois fédérales et nationales
qui régissent l’utilisation légale de cet appareil à l’intérieur
d’un véhicule motorisé.
35-M-1
![](/img.php?id=860533&img=bga.png)
10
Getting Started
Description of Parts
D
A
E
F
G
M
O
J
K
K
K
L
N
H
I
EX
PC
A: Bluetooth Antenna
<Only for model with Bluetooth>
Reference Manual “Bluetooth”
B: ExpressCard Slot
Reference Manual “PC Card / ExpressCard”
C: PC Card Slot
Reference Manual “PC Card / ExpressCard”
D: Multimedia Pocket
Reference Manual “Multimedia Pocket”
E: Battery Pack
F: Wireless LAN Antenna
<Only for model with wireless LAN>
Reference Manual “Wireless LAN”
G: LCD
<Only for model with touchscreen>
Reference Manual “Touchscreen”
H: Function Key
Reference Manual “Key Combinations”
I: Keyboard
J: Touch Pad
K: LED Indicator
: Caps lock
: Numeric key (NumLk)
: Scroll lock (ScrLk)
: Multimedia pocket device status or the second
battery status
Reference Manual “Multimedia Pocket”
“Battery Power”
: Hard disk drive status
: Power status of the multimedia pocket
: Battery status
Reference Manual “Battery Power”
: Power status
(Off: Power off/Hibernation, Green: Power on,
Blinking green: Standby)
: Wireless ready*1
This indicator lights when Wireless LAN, Blue-
tooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
Reference Manual “Wireless LAN” “Blue-
tooth” “Disabling / Enabling Wireless Commu-
nication”
: Wireless WAN status
<Only for model with wireless WAN>
Refer to the instruction manual of the wireless
device
L: Power Switch
M: Wireless Switch*1
Reference Manual “Disabling / Enabling Wire-
less Communication”
N: Carrying Handle
O: Stylus Holder
*1
<Only for model without both wireless LAN and Bruetooth>
Both Wireless Switch and Wireless ready indicator are
equipped with models without Wireless device as well.
Wireless ready indicator lights up when Wireless Switch
is turned on, or [Wireless Switch] is set to [Disable] ([En-
able] in the default setting) on Setup Utility [Advanced]
menu, but Wireless function does not work. (Do not
change [Wireless Switch] setting.)
A lithium ion battery that is recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.
Pour des renseignements sur le recyclage de la batterie, veuillez composer le
1-800-8-BATTERY.
![](/img.php?id=860533&img=bgb.png)
11
Getting Started
Right side
A B C D F E G H I
1394
J K M N O PLH
Q
R
Rear side Bottom
A: Hard Disk Drive
Reference Manual “Hard Disk Drive”
B: SD Memory Card Slot
Reference Manual “SD Memory Card”
C: SD Memory Card Indicator
(Blinking: During access)
Reference Manual “SD Memory Card”
D: IEEE 1394 Interface Connector
Reference Manual “IEEE 1394 Devices”
E: Smart Card Slot
<Only for model with Smart Card slot>
Reference Manual “Smart Card”
F: Modem Port
Reference Manual “Modem”
G: LAN Port
Reference Manual “LAN”
H: USB Port
Reference Manual “USB Devices”
I: DC-IN Jack
J: Security Lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
K: Ext Antenna Connector
L: Expansion Bus Connector
Reference Manual “Port Replicator”
M: External Display Port
Reference Manual “External Display”
N: Headphone Jack
You can connect headphones or amplifi ed speakers.
When they are connected, audio from the internal
speakers is not heard.
O: Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be pos-
sible, or malfunctions may occur as a result.
When recording in stereo using a stereo micro-
phone:
Double-click in the notifi cation area, click [Op-
tions] - [Properties], and add a check mark for [Re-
cording], click [OK] - [Options] - [Advanced Controls]
- [Advanced], remove a check mark for [Mono Micro-
phone], and then click [Close].
When using a monaural microphone with a 2-termi-
nal plug:
With the settings outlined above, only audio on the
left track will be recorded.
When monitoring the microphone audio using head-
phones, sounds on the left track cannot be heard,
regardless of the above settings. This is a result of
the computer’s specifi cations, and is not a malfunc-
tion.
P: Serial Port
Q: RAM Module Slot
Reference Manual “RAM Module”
R: Speaker
Reference Manual “Key Combinations”
![](/img.php?id=860533&img=bgc.png)
12
Getting Started
Description of Parts

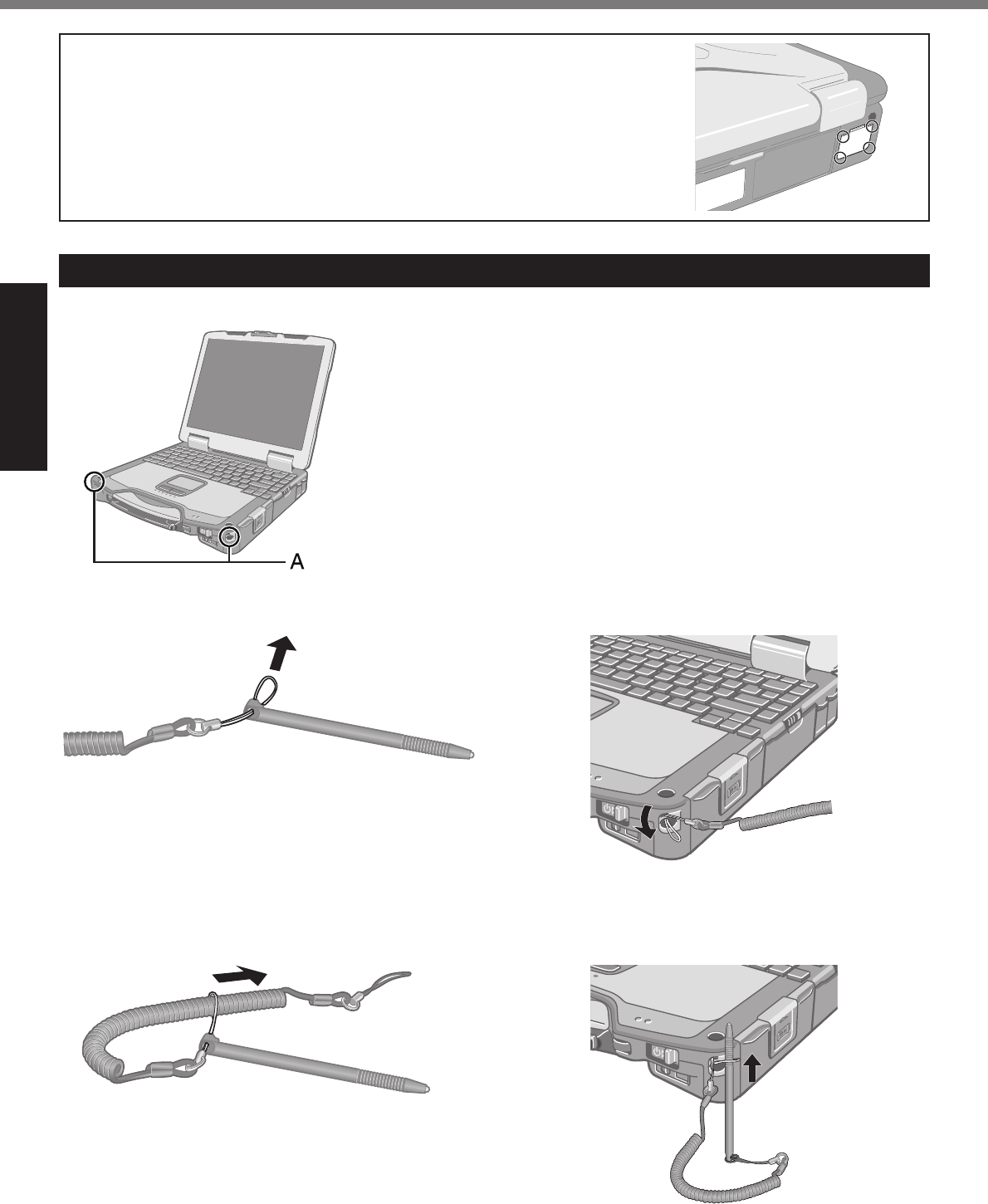

Attaching the stylus to the computer (only for model with touchscreen)
Use the tether to attach the stylus to the computer so you will not lose it.
There are holes (A) to attach it.
1
2
3
4
To ensure waterproof integrity, close the connector covers completely. When
closing the covers, push the four corners and make sure that the cover fi ts in
completely. (The illustration is an example.)
![](/img.php?id=860533&img=bgd.png)
13
Getting Started
Preparation

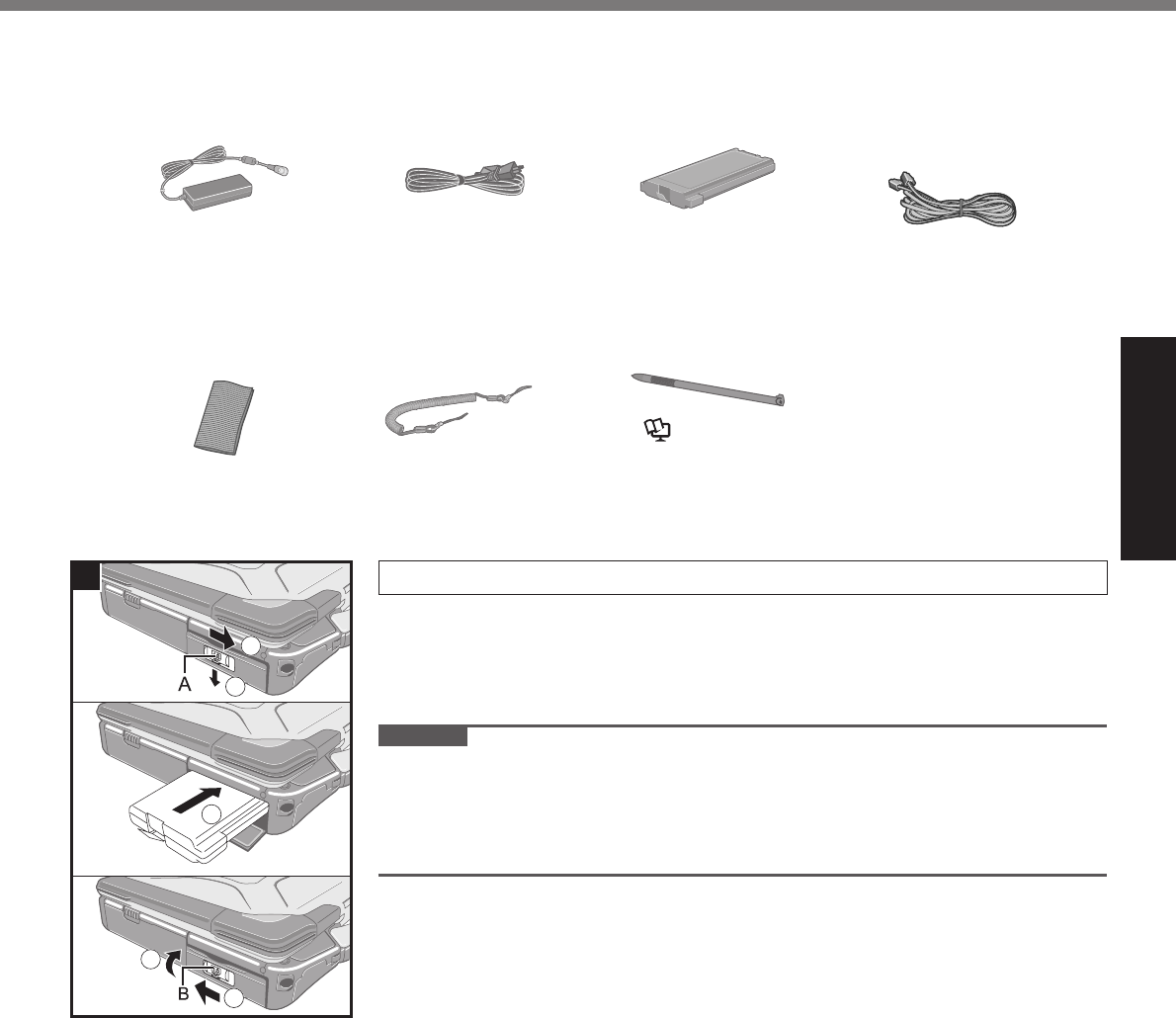

A Check and identify the supplied accessories.
If you do not fi nd the described accessories, contact Panasonic Technical Support ( page 38).
• AC Adaptor . . . . . 1
Model No: CF-AA1653A
• AC Cord . . . . . . . 1 • Battery Pack . . . 1
Model No: CF-VZSU46
• Modem Telephone
Cable . . . . . . . . . 1
• Operating Instructions (This book) . . .1
• Product Recovery DVD-ROM . . . . . . . .1
• Windows® Book . . . . . . . . . . . . . . . . . . .1
<Only for model with touchscreen>
• Soft Cloth . . . . . . 1 • Tether . . . . . . . . . 1 • Stylus . . . . . . . . . 1
(
Reference Manual “Touchscreen”)
B Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging
( page 32).
1 Insert the battery pack.
A Slide the latch (A) to the right to unlock the cover.
B Slide the latch (A) down, and open the cover.
C Insert the battery pack until it securely fi ts the connector.
D Close the cover until it clicks.
E Slide the latch (B) to the left to lock the cover.
CAUTION
Make sure the latch is securely locked. Otherwise the battery pack may fall
when you carry the computer.
Do not touch the terminals of the battery pack and the computer. Doing so can
make the terminals dirty or damaged, and may cause malfunction of the battery
pack and the computer.
1
3
5
1
2
4
First-time Operation
![](/img.php?id=860533&img=bge.png)
14
Getting Started
First-time Operation
2 Connect your computer to a power outlet.
The battery charging starts automatically.
CAUTION
Do not disconnect the AC adaptor and do not switch the wireless switch to on
until the fi rst-time operation procedure is completed.
When using the computer for the fi rst time, do not connect any peripheral device
except the battery pack and AC adaptor.
Handling the AC adaptor
Problems such as sudden voltage drops may arise during periods of thunder
and lightning. Since this could adversely affect your computer, an uninter-
ruptible power source (UPS) is highly recommended unless running from the
battery pack alone.
3 Turn on the computer.
A Pull the carrying handle forward.
B Push and hold the latch (A), and lift open the display.
C Slide and hold the power switch for approximately one second until the
power indicator lights.
CAUTION
Do not slide the power switch repeatedly.
The computer will forcibly be turned off if you slide and hold the power switch for
four seconds or longer.
Once you turn off the computer, wait for ten seconds or more before you turn on
the computer again.
Do not perform the following operation until the hard disk drive indicator turns off.
Connecting or disconnecting the AC adaptor
Sliding the power switch
Touching the keyboard, touch pad or touchscreen (only for model with touchscreen)
Closing the display
When the CPU temperature is high, the computer may not start up to prevent
overheating of the CPU. Wait until the computer cools down, and then turn the
power on again. If the computer does not power on even after cooling down,
contact Panasonic Technical Support ( page 38).
4 Setup Windows.
A Follow the on-screen instructions.
CAUTION
When you set date/time/time zone and click [Next], the screen may not go to the
next step for a few minutes. Do not touch the keyboard or touch pad, and wait
until the screen changes.
If “An unexpected error has occurred…” (or a similar message) is displayed,
click [OK]. This is not a malfunction.
Wait until the hard disk drive indicator has turned off.
This computer periodically records the management information including the
hard disk information such as number of hours powered-on, number of times
powered-on, internal temperature, replacement sector. The maximum data vol-
ume for each record is 750 byte. These information are only used for estimating
the cause when the hard disk goes down by any possibility. They are never sent
to outside via network nor used for any other purpose except for the purpose
described the above.
To disable the function, add the check mark for [Disable the automatic save
function for management information history] in [Hard Disk Status] of PC Infor-
mation Viewer, and click [OK].
1
2
3
3
2
![](/img.php?id=860533&img=bgf.png)
15
Getting Started
NOTE
Regarding Windows XP
You can select the Classic view of Control Panel or the Classic Start menu. You can also change the way a user logs on
or off. This manual explains using the Windows XP default setting (not Classic view or Classic Start menu etc.).
Windows Update
You can update to the latest patches and service packs for Windows with the following menus.
[start] - [All Programs] - [Windows Update]
Do not apply “Driver Updates” even if a message to update a driver appears. If a driver update is required,
contact Panasonic Technical Support ( page 38).
If the message “Your computer might be at risk” is displayed
Select on the notifi cation area and make the appropriate settings. The Windows Security Center regularly gives
you notice so that you can make the optimum settings. This is not an error message and you can use the computer.
However, making appropriate measures is recommended to reduce the risk of virus and other attacks.
To conserve power, the following power saving methods are set at the time of purchase.
The screen automatically turns off after 15 minutes of inactivity.
The computer automatically enters standly*1 after 20 minutes of inactivity.
*1: Refer to Reference Manual “Standby and Hibernation Functions” about resuming from standby.
Power consumption in each mode is as follows. (When AC adaptor is connected)
When the screen is off Approx. ●●● W
In standby Approx. ●●● W
The battery pack is fully charged (or not being charged) and the computer is off Approx. ●●● W
Note that the computer consumes electricity even when the computer power is off. If the battery pack is
fully charged, the battery will be fully discharged in the following period of time:
When power is off: ●● weeks
In standby: ●● days
In hibernation: ●● days
If “Wake Up from wired LAN” is disabled, the period of time in standby will become slightly longer, and the period of time
in hibernation will become about the same as during power-off.
If “Wake Up from wireless LAN” is enabled, the period of time in standby, in hibernation and when power is off will be-
come shorter.
5 Create a new account.
A Click [start] - [Control Panel] - [User Accounts] - [Create a new account].
CAUTION
Remember your password. If you forget the password, you cannot use the Windows
operation system. Creating a password reset disk beforehand is recommended.
6 <Only for model with touchscreen>
Perform the touchscreen calibration.
A Click [start] - [All Programs] - [Fujitsu Touch Panel (USB)] - [Touch Screen
Calibration Utility].
B Using the stylus, touch each of the 12 “+” target marks one by one until it
blinks, and then press
Enter
.
C Press
Enter
.
![](/img.php?id=860533&img=bg10.png)
16
Useful Information
On-screen Manual
You can access the Reference Manual and the Important Tips on the computer screen.
When you access the Reference Manual and the Important Tips for the fi rst time, the License Agreement of the Adobe
Reader may be displayed. Read it carefully and select [Accept] to proceed.
Reference Manual
The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.
To access the Reference Manual:
A Click [start] - [Reference Manual].
Contents
Key Combinations
Touchscreen
Panasonic Hand Writing
Standby and Hibernation Functions
Saving Power
Security Measures
Battery Power
Multimedia Pocket
PC Card / ExpressCard
SD Memory Card
SD Security
Smart Card
RAM Module
Port Replicator
External Display
USB Devices
IEEE 1394 Devices
Modem
LAN
Disabling / Enabling Wireless
Communication
Wireless LAN
Bluetooth
Hard Disk Drive
Setup Utility
Icon Enlarger
Loupe Utility
DMI Viewer
Recover Pro
Technical Information
Troubleshooting (Advanced)
Important Tips
The Important Tips will provide you with the helpful information about the battery and touchscreen. Read to use the
battery pack in the optimum condition to obtain longer operation time.
To access the Important Tips:
A Double-click on the desktop.
Alternatively click [start] - [All Programs] - [Panasonic] - [Battery] - [Important Tips] or click [start] -
[All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].
NOTE
When Adobe Reader update notice is displayed, we recommend you follow the on-screen procedure to update.
See http://www.adobe.com/ for the latest version of Adobe Reader.
![](/img.php?id=860533&img=bg11.png)
17
Useful Information
Handling and Maintenance
Operation environment
Place the computer on a fl at stable surface. Do not place the computer upright or turn it over. If the computer is
exposed to an extremely strong impact, it may become inoperable.
Temperature: Operation : 5 °C to 35 °C {41 °F to 95 °F}
Storage : -20°C to 60 °C {- 4 °F to 140 °F}
Humidity: Operation : 30% to 80% RH (No condensation)
Storage : 30% to 90% RH (No condensation)
Even within the above temperature/humidity ranges, using for a long time in an extreme environment will result in
the product deterioration and will shorten the product life.
Do not place the computer in the following areas, otherwise the computer may be damaged.
Near electronic equipment. Image distortion or noise may occur.
In extremely high or low temperature.
As the computer can become hot during operation, keep it away from items that are sensitive to heat.
Handling cautions
This computer is designed to minimize shock to parts such as the LCD and the hard disk drive and equipped with a
drip-proof keyboard, but no warranty is provided against any trouble caused by shock. Be extremely careful when han-
dling the computer.
When carrying the computer:
Turn off the computer.
Remove all external devices, cables, cards and other protruding things.
Do not drop or hit the computer against solid objects.
Do not leave the display open.
Do not grip the display part.
Do not put anything (e.g., a piece of paper) between the display and keyboard.
When you board an airplane, take the computer with you and never put it in your checked luggage. When using the
computer on airplane, follow the airline’s instructions.
When carrying a spare battery, put it in a plastic bag to protect its terminals.
The touch pad is designed to be used with a fi nger tip. Do not place any object on its surface and do not press
down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
Avoid any harmful substances such as oil from getting into the touch pad. The cursor may not work correctly.

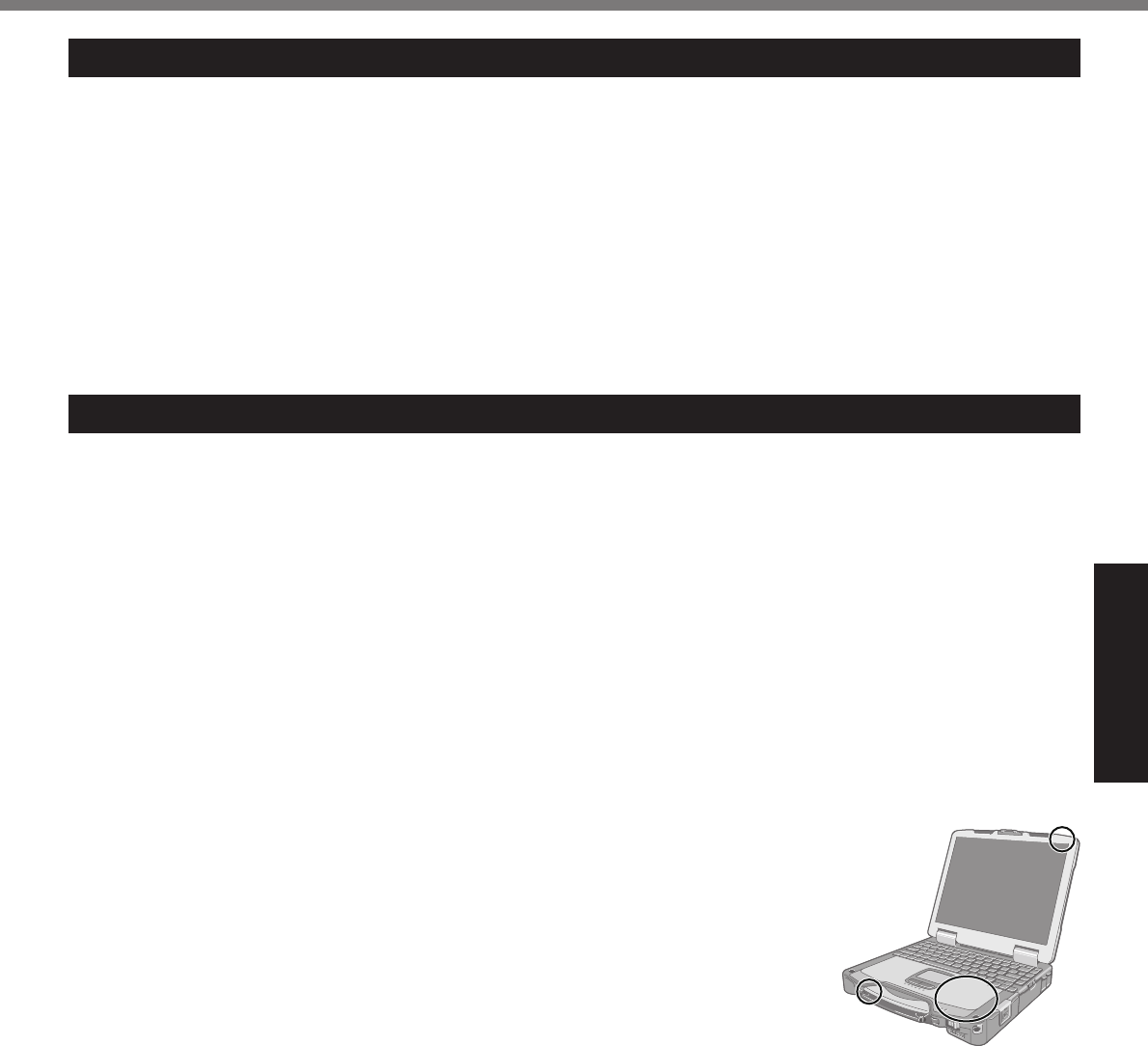

This computer contains a magnet and magnetic products at the locations circled in the
illustration at right. Avoid leaving metallic object or magnetic media in contact with these
areas.
<Only for model with touchscreen>
Use only the included stylus to touch the touchscreen. Do not place any object on its
surface and do not press down strongly with sharp-pointed or hard objects that may
leave marks (e.g., nails, pencils and ball point pens).
Do not use the stylus when dust or dirt (e.g., oil) is on the screen. Otherwise foreign
particles on the screen/stylus can scratch the screen surface or obstruct the stylus op-
eration.
Use the stylus only for touching the screen. Using it for any other purpose may damage the stylus and result in
scratches on the screen.
When using peripheral devices
Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction
manuals of the peripheral devices.
Use the peripheral devices conforming to the computer’s specifi cations.
Connect to the connectors in the correct direction.
If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.
If screws are included, fasten them securely.
Remove the cables when you carry the computer. Do not pull the cables forcibly.
Preventing your computer from unauthorized use via wireless LAN
<Only for model with wireless LAN>
Before using wireless LAN, make the appropriate security settings such as data encryption.
![](/img.php?id=860533&img=bg12.png)
18
Useful Information
Computrace® Software
Computrace® software tracks your stolen computer.
Perform the following steps before installing Computrace® software.
Computrace® software is not included or installed in this computer.
CAUTION
You will be unable to set [Computrace (R) BIOS Module] to [Disable] once you have set to [Enable]. Do not change
the setting when not used.
Even if you have set [Computrace (R) BIOS Module] to [Enable], this setting may return to [Disable] after repairs
to the motherboard, etc. have been made.
NOTE
Consult Absolute Software Corp. before disposal.
Refer to the following URL for Computrace® software for installation and available service regions. Note that this
service is only available in certain regions.
http://www.absolute.com
1 Turn on or restart the computer, and press
F2
while [Panasonic] boot screen is dis-
played.
The Setup Utility starts up.
If the password is requested, enter the Supervisor Password.
2 Select the [Security] menu, then select [Computrace (R) Sub-Menu] and press
Enter
.
3 Select [Computrace (R) BIOS Module], and set to [Enable].
4 At the confi rmation message, select [Execute] and press
Enter
.
5 At the reconfi rmation message, select [Execute] and press
Enter
.
6 Press
F10
.
At the confi rmation message, select [Yes] and press
Enter
.
The computer restarts.
Maintenance
To clean the LCD panel
<Only for model with touchscreen>
Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD
Surface” that comes with the soft cloth.)
<Only for model without touchscreen>
Wipe with a soft dry cloth such as gauze.
To clean areas other than the LCD panel
Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it
thoroughly.
CAUTION
Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.
Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to
the surface.
Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause
malfunction or damage.
Handling and Maintenance
![](/img.php?id=860533&img=bg13.png)
19
Useful Information
Hard Disk Backup Function (Recover Pro)
The Recover Pro creates a backup area (storage area) on the hard disk to back up (store) the hard disk data, and re-
stores the backup data to its original location when it is lost or corrupted by operational errors or other factors. You do
not need external media or peripheral devices to back up or restore hard disk data on this computer.
At purchase, the Recover Pro is not installed. Install using the instructions below.
The Recover Pro cannot back up or restore data correctly if a hard disk problem occurs during data backup or re-
storing. If an error occurs due to an unexpected malfunction, incorrect operation, or other reason while data is being
restored, the hard disk data (data before restoration) may be lost.
Matsushita Electric Industrial Co., Ltd. will bear no responsibility for any damage suffered (including loss of data) as a
result of the use of this function.
The Recover Pro provides 3 types of backup as follows:
Quick Backup: Scheduled backup of the updated data
File Backup: File backup at fi le save and change
Complete Backup: Backup of the entire data on the internal hard disk
Here, we will explain the procedures for installation, complete backup (backing up hard disk contents in case Windows
cannot be booted), and complete restore (recovering the hard disk data to its condition at the time of the complete
backup).
For further information, refer to the software’s online manual ( page 20).
CAUTION
All operations should be executed with the AC adaptor connected. Do not turn the power off while operations are
in progress. If the power is turned off while installation, backup, or restore operations are in progress, these opera-
tions may not function properly, and it may be impossible to start Windows. Also, do not press any keys or slide any
switches, including hot keys.
When restarting the computer, the message “Check fi le system on C:” may appear. Follow the on-screen instruc-
tions. Do not skip the check process.
Make sure you allow enough space on the hard disk when choosing settings during installation. To change these
settings you must reinstall Recover Pro.
To execute Complete Backup reliably, we recommend performing [Typical] installation in the following cases.
Hard disk with a single partition
Immediately after reinstalling software (when more than half of the entire space of the hard disk is available)
( page 22)
Be sure to use the internal hard disk drive to create the backup area. Never use disk or device other than the inter-
nal hard disk drive.
Some software (security software, backup software, encryption software, or hard disc accessible specifi c software,
etc.) may be incompatible with Recover Pro.
For further information, refer to:
http://www.phoenix.com/en/Customer+Services/White+Papers-Specs/Recover+Pro/default.htm
When using Personal Secure Drive ( Installation Manual of “Trusted Platform Module (TPM)”), do not execute
File Backup for Personal Secure Drive.
The “Create recovery CD-DVD” function in Recover Pro is designed to help you save complete backup data to CD
or DVD. When using the “Create recovery CD-DVD”, you can view the complete backup data on the hard disk, but
take care to avoid accidentally deleting this data.
After installing the Recover Pro, do not use the IEEE1394 network connection. If any problem occurred, stop the
IEEE1394 network connection and restart the computer.
Installation
Preparation
Connect the AC adaptor.
1 Log on to Windows as an administrator.
2 Close all programs.
3 Disable anti-virus software.
4 Click [start] - [Run], enter [c:\util\rcvpro\setup.exe], and click [OK].
The InstallShield Wizard screen appears.
5 Click [Next].
Follow the on-screen instructions.
Carefully read the License Agreement, and click [I accept the agreement.]
The computer restarts several times to complete installation. appears in the notifi cation area.
![](/img.php?id=860533&img=bg14.png)
20
Useful Information
CAUTION
During the installation, the screen may become black (no display) momentarily. This is not a malfunction.
If you select [Typical] in installation, approximately 40% (max.) of the hard disk drive space is allocated as the back-
up area.
You cannot change the size of backup area after creation.
Complete Backup
Backs up all data on the hard disk.
Preparation
Connect the AC adaptor.
1 Log on to Windows as an administrator.
2 Close all programs.
3 Click [start] - [All Programs] - [Phoenix Applications] - [Phoenix Recover Pro 6].
“Recover Pro 6” screen appears.
4 Click [Complete Backup], and click [Yes].
The computer restarts, and “Recover Pro 6” screen appears.
Follow the on-screen instructions.
NOTE
You can completely backup only one set of the whole data in the hard disk to the backup area.
Do not touch the power switch while using the Recover Pro.
Complete Restore
This function uses the data created during complete backup. It restores the hard disk data to the condition when you
performed the complete backup. Files created and changes made to settings after the latest complete backup is made
will be deleted.
Preparation
Connect the AC adaptor.
1 Click [start] - [All Programs] - [Phoenix Applications] - [Phoenix Always Launcher], and
click [Run].
The computer restarts, and “Phoenix Always” screen appears.
Alternatively turn on or restart the computer, and hold down
F4
while [Panasonic] boot screen is displayed until
“Phoenix Always” screen appears.
2 Click [Protect / Recover], and click [Phoenix Recover Pro 6].
“Recover Pro 6” screen appears.
3 Click [Complete Restore].
Follow the on-screen instructions.
NOTE
Do not touch the power switch while using the Recover Pro.
To access the online manual
A Click [start] - [All Programs] - [Phoenix Applications] - [Docs], and double-click [UserGuides].
B Double-click the fi le of Recover Pro user’s guide or Phoenix Always user’s guide.
Hard Disk Backup Function (Recover Pro)
![](/img.php?id=860533&img=bg15.png)
21
Useful Information
Hard Disk Data Erase Utility
When disposing the computer or transferring the ownership, erase all hard disk data in order to avoid data leakage.
Even if you erase the data or initialize the hard disk using normal Windows commands, the data can be read with
some special software. Use the hard disk data erase utility to erase the data completely.
Note that transferring of the ownership without uninstalling the commercial software will be a violation of the software’s
license agreement.
The hard disk data erase utility erases data using an overwriting method, but there is a possibility that due to mal-
functions or other operational errors, data may not be completely erased. There are also specialized devices that
may be able to read data that has been erased using this method. If you need to erase highly confi dential data, we
recommend that you contact a company that specializes in this process. Matsushita Electric Industrial Co., Ltd. will
bear no responsibility for losses or damages suffered as a result of the use of this utility.
CAUTION
When the hard disk contains the Recover Pro backup data, the Recover Pro backup area is lost as well.
NOTE
This utility cannot erase data for specifi c partitions.
Preparation
Prepare the following items:
The Product Recovery DVD-ROM
(included)
Panasonic CD/DVD drive for the multimedia pocket (optional) (refer to recent catalogs and other sources
for information about the products available)
Remove all peripherals (except for the CD/DVD drive).
Connect the AC adaptor and do not remove it until hard disk data erase is complete.
1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket
( Reference Manual “Multimedia Pocket”).
2 Turn on the computer, and press
F2
several times while [Panasonic] boot screen is dis-
played.
The Setup Utility starts up.
If the password is requested, enter the Supervisor Password.
3 Select the [Boot] menu, then select [IDE MP] and press
F6
until [IDE MP] is at the top
of the boot priority order.
4 Select the [Security] menu and set [DVD Operation] to [Enable].
5 Set the Product Recovery DVD-ROM into the CD/DVD drive.
6 Press
F10
.
At the confi rmation message, select [Yes] and press
Enter
.
The computer restarts.
7 Press
2
to execute [2. [Erase HDD]].
To cancel this operation, press
0
.
8 At the confi rmation message, press
Y
.
9 When [<<< Start Menu >>>] is displayed, press
Enter
.
The approximate time required for erasing data will be displayed.
10 Press
Space
.
At the confi rmation message, press
Enter
.
The hard disk erase process starts. When the operation is completed, the [Hard disk data has been deleted.]
message will appear. If a problem has occurred during the operation, an error message will appear.
To cancel partway, press
Ctrl
+
C
. The data erasure will be up to that point.
11 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-
puter.
![](/img.php?id=860533&img=bg16.png)
22
Useful Information
Reinstalling Software
Reinstalling software will return the computer to the default condition. When you reinstall the software, the hard disk
data including the backup data of the Recover Pro will be erased.
Back up important data to other media or an external hard disk before reinstallation.
Preparation
Prepare the following items:
The Product Recovery DVD-ROM (included)
Panasonic CD/DVD drive for the multimedia pocket (optional) (refer to recent catalogs and other sources
for information about the products available)
Remove all peripherals (except for the CD/DVD drive).
Connect the AC adaptor and do not remove it until reinstallation is complete.
NOTE
If you have installed the Recover Pro ( page 19),
Select [1] or [2] in the step 10 below. If you select [3], the Recover Pro will no longer function properly.
Only when you want to save the data which you stored in the separate partitions other than the fi rst partition and
the Recover Pro backup area, select [3] in the step 10 below and perform the following steps.
A After reinstallation, backup the data to external media (e.g., removable disk).
B Perform the reinstallation procedure again, and select [1] or [2] in the step 10.
C Return the data backed up in external media to the internal hard disk.
1 Turn off the computer and insert the CD/DVD drive into the multimedia pocket
( Reference Manual “Multimedia Pocket”).
2 Turn on the computer, and press
F2
several times while [Panasonic] boot screen is dis-
played.
The Setup Utility starts up.
If the password is requested, enter the Supervisor Password.
3 Write down all of the contents of the Setup Utility and press
F9
.
At the confi rmation message, select [Yes] and press
Enter
.
4 Select the [Boot] menu, then select [IDE MP] and press
F6
until [IDE MP] is at the top
of the boot priority order.
5 Select the [Security] menu and set [DVD Operation] to [Enable].
6 Set the Product Recovery DVD-ROM into the CD/DVD drive.
7 Press
F10
.
At the confi rmation message, select [Yes] and press
Enter
.
The computer will restart.
8 Press
1
to execute [1. [Recovery]].
The License Agreement screen appears.
To cancel partway, press
0
.
9 Press
1
to select [1. Yes, I agree to the provisions above and wish to continue!].
10 Select the settings.
[2]: Enter the size of operating system partition and press
Enter
.
(The size of data partition will be determined by subtracting the operating system partition size from the
maximum size.)
[3]: Windows will be installed in the fi rst partition.
(The size of the fi rst partition must be 20 GB or more. If smaller, installation will not be possible.)
At the confi rmation message, press
Y
.
Reinstallation starts automatically. (It will take approximately 20 minutes.)
Do not interrupt reinstallation, for example by turning off the computer or pressing
Ctrl
+
Alt
+
Del
. Oth-
erwise reinstallation may become unavailable as Windows may not start up or the data may be corrupted.
11 Remove the Product Recovery DVD-ROM, and then press any key to turn off the com-
puter.
![](/img.php?id=860533&img=bg17.png)
23
Useful Information
12 Turn on the computer, and press
F2
several times while [Panasonic] boot screen is dis-
played.
The Setup Utility starts up.
If the password is requested, enter the Supervisor Password.
13 Press
F9
.
At the confi rmation message, select [Yes] and then press
Enter
.
The Setup Utility settings excluding the password(s) will return to the default values.
14 Select the [Exit] menu and then select [Save Current Values], then press
Enter
.
At the confi rmation message, select [Yes] and press
Enter
.
15 Turn the computer off by using the power switch.
If additional instructions are included with the computer, be sure to read them. It may be necessary to per-
form additional operations during the following procedure.
16 Perform the fi rst-time operation ( page 13).
17 Start the Setup Utility and change the settings as necessary.
To change the drive letter of hard disk or CD/DVD drive
NOTE
Drive letters of hard disk can be changed only when two or more partitions have been created on the hard disk
drive.
The name of the C: drive cannot be changed.
Change the drive letters before installing applications.
A Click [start] - [Control Panel] - [Performance and Maintenance] - [Administrative Tools], and double-click [Com-
puter Management].
B Click [Disk Management] from [Storage].
C Right-click the hard disk partition or the CD/DVD drive name, and click [Change Drive Letter and Paths...].
D Click [Change...].
E Click [Assign the following drive letter] and the new drive letter, and then click [OK].
At the confi rmation message, click [Yes].
![](/img.php?id=860533&img=bg18.png)
24
Troubleshooting
Error Code/Message
Follow the instructions below when an error message or code appears. If the problem persists or if the error code/mes-
sage is not shown here, contact Panasonic Technical Support ( page 38).
Error Code/Message Solution
0211 Keyboard error Disconnect external keyboard or mouse.
0251 System CMOS
checksum bad -
Default confi guration
used
An error has occurred in the memory of Setup Utility settings. This occurs when the memory
content is changed by an unexpected program operation, etc.
Start the Setup Utility and return the settings to the default values, and then change the
settings as necessary.
If the problem persists, the internal clock battery may need to be replaced. Contact
Panasonic Technical Support ( page 38).
0271 Check date and
time settings
The date and time settings are not correct.
Start the Setup Utility and set the correct date and time.
If the problem persists, the internal clock battery may need to be replaced. Contact
Panasonic Technical Support ( page 38).
0280 Previous boot
incomplete - Default
confi guration used
Startup has failed repeatedly, so the Setup Utility settings have been returned to the default
values to startup the computer.
Start the Setup Utility and return the settings to the default values, and then change the
settings as necessary.
Press <F2> to Setup Write down the error details and press
F2
to start the Setup Utility. Change the settings
if necessary.
0613: Serial Port*1 con-
fi guration changed
0614: Serial Port*1
confi g. error - device
disabled
*1 “A” or “B” appears
here to indicate the
name of the confl ict-
ing port.
The I/O and IRQ settings of the serial ports are in confl ict.
Run the Setup Utility and in the [Advanced] menu, change the port’s settings so there is
no confl ict.
Operating System not
found
The operating system is not installed in the fl oppy disk or the hard disk that you are going to
boot from.
If using a fl oppy disk, change the disk to the one you can use for boot.
If using the hard disk, check if the hard disk is recognized in [Information] menu of the
Setup Utility. If the hard disk is recognized, perform the reinstallation ( page 22). If not,
contact Panasonic Technical Support ( page 38).
If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.
If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard slot] to [Disable] in the [Advanced] menu of the Setup Utility.
RAM Module Failed When the RAM module is not inserted correctly or the RAM module is not conforming to the
computer’s specifi cations, a beep will sound and the “RAM Module Failed” message will be
displayed when you turn the power on.
Slide the power switch for four seconds or longer to turn off the computer, confi rm that
the RAM module conforms to the specifi cations, and reinsert it.
To start the Setup Utility
A Restart the computer.
B Press
F2
several times while [Panasonic] boot screen is displayed.
![](/img.php?id=860533&img=bg19.png)
25
Troubleshooting
Troubleshooting (Basic)
Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the
“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact
Panasonic Technical Support ( page 38). You can also check the computer’s status in the PC Information Viewer
( Reference Manual “Troubleshooting (Advanced)”).
Starting Up
Cannot start up.
The power indicator or bat-
tery indicator is not lit.
Connect the AC adaptor.
Insert a fully charged battery.
Remove the battery pack and the AC adaptor, then connect them again.
If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.
If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard slot] to [Disable] in the [Advanced] menu of the Setup Utility.
The power is turned on but
“Warming up the system (up
to 32 minutes)” appears.
The computer is warming up before start up. Wait for the computer to start up (takes
up to 32 minutes). If, “Cannot warm up the system” is displayed, the computer failed
to warm up and does not start. In this case, turn off the computer, leave it in an envi-
ronment of 5 °C {41 °F} or higher temperature for about an hour, and then turn on the
power again.
Cannot turn on the comput-
er.
The computer does not re-
sume from standby.
(The power indicator blinks
quickly in green.)
Leave it in an environment of 5 °C {41 °F} or higher temperature for about an hour, then
turn on the power again.
You have forgotten the pass-
word.
Supervisor Password or User Password: Contact Panasonic Technical Support ( page
38).
Administrator password:
If you have a password reset disk, you can reset the administrator password. Set the
disk and enter any wrong password, then follow the on-screen instructions and set a
new password.
If you do not have a password reset disk, reinstall ( page 22) and set up Windows,
and then set a new password.
“Remove disks or other
media. Press any key to
restart” or a similar message
appears.
A fl oppy disk is in the drive and it does not contain system startup information. Remove
the fl oppy disk and press any key.
If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.
If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard slot] to [Disable] in the [Advanced] menu of the Setup Utility.
If the problem persists after removing the disk, it may be a hard disk failure. Contact
Panasonic Technical Support ( page 38).
Windows startup and opera-
tion is slow.
Press
F9
in the Setup Utility ( page 24 “To start the Setup Utility”) to return the Setup
Utility settings (excluding the passwords) to the default values. Start the Setup Utility
and make the settings again. (Note that the processing speed depends on the applica-
tion software, so this procedure may not make Windows faster.)
If you installed a resident software after purchase, turn off the residence.
Disable Indexing Service in the following menu.
Click [start] - [Search] - [Change preferences] - [Without Indexing Service]
The date and time are incor-
rect.
Make the correct settings. Click [start] - [Control Panel] - [Date, Time, Language, and
Regional Options] - [Date and Time].
If the problem persists, the internal clock battery may need to be replaced. Contact
Panasonic Technical Support ( page 38).
When the computer is connected to LAN, check the date and time of the server.
The 2100 A.D. or later year will not be correctly recognized on this computer.
[Executing Battery Recali-
bration] screen appears.
The Battery Recalibration was canceled before Windows was shut down last time. To
start up Windows, turn off the computer by the power switch, and then turn on.
![](/img.php?id=860533&img=bg1a.png)
26
Troubleshooting
Starting Up
[Enter Password] does not
appear when resuming from
standby/hibernation.
The password you have set in the Setup Utility is not requested at resuming. To use the
password security at resuming, set the Windows password.
A Click [start] - [Control Panel] - [User Accounts] and select the account, and set the
password.
B Click [start] - [Control Panel] - [Performance and Maintenance] - [Power Options] -
[Advanced] and add a check mark for [Prompt for password when computer resumes
from standby].
Cannot resume. An error may occur when the computer automatically enters the standby or hibernation
mode while the screensaver is active. In this case, turn off the screensaver or change
the pattern of the screensaver.
Other startup problems. Press
F9
in the Setup Utility ( page 24 “To start the Setup Utility”) to return the Setup
Utility settings (excluding the passwords) to the default values. Start the Setup Utility
and make the settings again.
Remove all peripheral devices.
Check to see if there was a disk error.
A Click [start] - [My Computer] and right-click [Local Disk(C:)], and click [Properties].
B Click [Tools] - [Check Now].
C Select the option in [Check disk options] and click [Start].
Start the computer in Safe Mode and check the error details. When the [Panasonic] boot
screen disappears*1 at startup, press and hold
F8
until the Windows Advanced Options
Menu is displayed.
*1 When [Password on boot] is set to [Enable] in the [Security] menu of the Setup Utility,
[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you
enter the password and press
Enter
, press and hold
F8
.
Entering Password
On the [Enter Password]
screen, a beep sounds and
the password cannot be
entered.
The computer may be in ten-key mode.
If the NumLk indicator lights, press
NumLk
to disable the ten-key mode, and then
input.
Even after entering the pass-
word, [Type your password]
is displayed again.
The computer may be in ten-key mode.
If the NumLk indicator lights, press
NumLk
to disable the ten-key mode, and then
input.
The computer may be in Caps Lock mode.
If the Caps Lock indicator lights, press
Caps Lock
to disable the Caps Lock
mode, and then input.
Shutting down
Windows does not shut
down.
Remove the USB device and the ExpressCard.
Wait one or two minutes. It is not a malfunction.
Display
No display. The external display is selected. Press
Fn
+
F3
to switch the display. Wait until the
display has been switched completely before pressing
Fn
+
F3
again.
When using an external display,
Check the cable connection.
Turn on the display.
Check the settings of external display.
The display is turned off by the power-saving function. To resume, do not press the
direct selection keys, but press any other key like
Ctrl
.
The computer entered standby or hibernation by the power-saving function. To resume,
slide the power switch.
The screen is dark. The screen is darker when the AC adapter is not connected. Press
Fn
+
F2
and adjust
the brightness. As you increase the brightness, battery consumption increases.
You can separately set the brightness for when the AC adaptor is connected and when
not connected.
Troubleshooting (Basic)
![](/img.php?id=860533&img=bg1b.png)
27
Troubleshooting
Display
The screen does not be-
come bright even if pressing
Fn
+
F2
.
The brightness is set low to avoid malfunction where surrounding temperature is high.
Use it in an environment of between 5°C and 35°C.
The LCD brightness chang-
es a number of times when
the AC adaptor is discon-
nected.
Intel(R) Display Power Saving Technology is active and automatically changes the LCD
brightness. This is not a malfunction.
Image colors are not repro-
duced as expected when
displaying photographs or
other images.
Remove the check mark of [Intel(R) Display Power Saving Technology].
A Click [start] - [Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver
for Mobile].
B Click [Display Settings] - [Power Settings].
The screen is disordered. Changing the number of display colors and resolution may affect the screen. Restart the
computer.
Connecting/disconnecting an external display may affect the screen. Restart the com-
puter.
During simultaneous display,
one of the screens becomes
disordered.
When using the Extended Desktop, use the same display colors for the external display
as those used by the LCD.
If you continue to experience problems, try changing the display by clicking [start] -
[Control Panel] - [Other Control Panel Options] - [Intel(R) GMA Driver for Mobile] - [Dis-
play Devices
].
When the [Command Prompt] is set to “Full Screen” by pressing
Alt
+
Enter
, the
picture is displayed on one of the screens only. When the window display is restored by
pressing
Alt
+
Enter
, the picture is displayed on both screens.
Simultaneous display cannot be used until Windows startup is complete (during Setup
Utility, etc.)
.
The external display does
not work normally.
If the external display does not support the power saving function, it may not work nor-
mally when the computer enters the power saving mode. Turn off the external display.
Touch Pad / Touchscreen (only for model with touchscreen)
The cursor does not work. When using the external mouse, connect it correctly.
Restart the computer using the keyboard.
(Press ,
U
, and
R
to select [Restart].)
If the computer does not respond to keyboard commands, read “No response” ( page
28).
Cannot input using the touch
pad.
Set [Touch Pad] to [Enable] in the [Main] menu of the Setup Utility.
The drivers for some mice may disable the touch pad. Check your mouse’s operating
instructions.
Cannot point the correct
position using the included
stylus.
Perform the touchscreen calibration ( page 15).
Reference Manual
The Reference Manual is
not displayed.
Install Adobe Reader.
A Log on to Windows as an administrator.
B Click [start] - [Run], input [c:\util\reader\AdbeRdr70_enu_full.exe], then click [OK].
Follow the on-screen instructions.
C Update Adobe Reader to its latest version.
If your computer is connected to the internet, start up Adobe Reader and click [Help]
- [Check for updates now].
![](/img.php?id=860533&img=bg1c.png)
28
Troubleshooting
Recover Pro
Cannot install Recover Pro Recover Pro cannot be installed when four primary partitions exist. Reduce the number
of primary partitions to three or less before installation. You can check the number of
the primary partitions in the order of [start] - [Control Panel] - [Performance and Mainte-
nance] - [Administrative Tools] - [Computer Management] - [Disk Management].
Recover Pro cannot be installed when a backup area is remaining on the hard disk.
Try one of the following methods:
If the backup area has complete backup data and you want to restore that data:
Follow the “Complete Restore” instructions in “Hard Disk Backup Function (Recover
Pro)” ( page 20) to restore the data.
To return the computer to its condition at the time of shipment:
Reinstall the software ( page 22).
In step 10, do not select “3. Reinstall Windows to the fi rst partition.”
If you do not need the data in the backup area, or if it is corrupted, or if does not in-
clude complete backup data:
A Access [http://www.phoenix.com/en/Customer+Services/Utilities/
Recover+Pro+6.htm#Where], and download/install “Cleanup Utility for Recover
Pro 6”.
B Delete the backup area using “Cleanup Utility for Recover Pro 6”.
C Reinstall Recover Pro.
In this case, all data in the backup area will be lost.
An unnecessary backup
area is present (is left) when
Recover Pro is not installed.
Perform the following steps.
A Access [http://www.phoenix.com/en/Customer+Services/Utilities/
Recover+Pro+6.htm#Where], and download/install “Cleanup Utility for Recover Pro 6”.
B Delete the backup region using “Cleanup Utility for Recover Pro 6”.
Some parts of the hard disk
cannot be File Backed up.
The hard disk area encrypted by security software may not be backed up. Exclude the
area from the File Backup object.
Others
No response. Press
Ctrl
+
Shift
+
Esc
to open Task Manager and close the software application
that is not responding.
An input screen (e.g., password input screen at startup) may be hidden behind another
window. Press
Alt
+
Tab
to check.
Slide the power switch for four seconds or longer to shut down the computer, and then
slide the power switch to turn it on. If the application program does not work normally,
uninstall and reinstall the program. To uninstall, click [start] - [Control Panel] - [Add or
Remove Programs].
Troubleshooting (Basic)
![](/img.php?id=860533&img=bg1d.png)
29
Troubleshooting
Hardware Diagnostics
If it appears that the hardware installed in this computer is not operating properly, you can use the PC-Diagnostic Utility
to determine whether or not there is a problem.
If the utility discovers a problem in the hardware, contact Panasonic Technical Support.
Hardware that can be checked using the PC-Diagnostic Utility
Software cannot be checked using this utility.
CPU
Memory
Hard Disk
CD/DVD Drive
Video Controller
Sound*1
Modem
LAN
Wireless LAN*2
Wireless WAN*3
Bluetooth*4
GPS*5
USB
IEEE 1394
PC Card Controller
SD Card Controller
Smart Card*6
Serial Port
Keyboard
Touch Pad
Touchscreen
*7
*1 When the diagnostic utility is running, a loud beep will sound, so do not use headphones at this time. (The beep will
not sound if mute is using Windows.)
*2 Only for model with wireless LAN
*3 Only for model with wireless WAN
*4 Only for model with Bluetooth
*5 Only for model with GPS
*6 Only for model with Smart Card
*7 Only for model with Touchscreen
Regarding the PC-Diagnostic Utility
NOTE
Run this utility using the default settings in the Setup Utility. If the Setup Utility or other settings will not allow a hard-
ware to be executed, the hardware icon will be displayed in gray.
For the hard disk and memory only, you can select standard diagnostic check or extended diagnostic check.
When the PC-Diagnostic Utility starts up, it will run the standard diagnostic check. The extended diagnostic check is
more detailed, and so requires a longer period of time to run.
When the video diagnostic check is running, the display may be distorted, and when the audio diagnostic check is
running, sounds may be generated from the speakers. These are not malfunctions.
You can check the status of the diagnostic check by the display color (A) on the left side of the hardware icon.
Aqua: Not running diagnostic check
Alternating blue and yellow: Currently running diagnostic check. The interval of the alternating colors dif-
fers depending on the type of diagnostic check currently running.
During memory diagnostic check, the display may freeze for a long period of time. Wait until the process
is complete.
Green: No problems discovered
Red: Problems discovered
A
![](/img.php?id=860533&img=bg1e.png)
30
Troubleshooting
We recommend that you use the touch pad for operations. When not using the touch pad, you can operate using
the internal keyboard instead.
Operations Touch pad operations Internal keyboard operations
Select icon Place the cursor above the icon Press
Space
, and then press
( (close) cannot be selected)
Click the icon Tap or click (right click cannot be used) Press
Space
above the icon
Complete the PC- Diagnos-
tics Utility and then restart
the computer
Click (close) Press
Ctrl
+
Alt
+
Del
.
By clicking the icon, you can execute the following operations:
: Start the diagnostic check from the beginning
: Stop the diagnostic check (You cannot restart the check partway through by clicking )
: Display help (click the screen or press
Space
to return to the original diagnostic check screen)
Running the Diagnostic Check
Disconnect any peripheral devices (e.g., storage device) before running the diagnostic check.
1 Connect the AC adaptor and turn on the wireless switch. ( page 10)
During the diagnostic check, do not remove the AC adaptor, or attach any peripheral devices.
2 Turn on or restart the computer, and press
F2
for several times while [Panasonic] boot
screen is displayed.
The Setup Utility starts up.
If the password is requested, enter the Supervisor Password.
If you are using the computer after changing the settings from the status at the time of purchase, we recom-
mend that you make a note of the settings that are changed.
3 Press
F9
.
At the confi rmation message, select [Yes] and press
Enter
.
4 Press
F10
.
At the confi rmation message, select [Yes] and press
Enter
.
The computer will restart.
5 Press
Ctrl
+
F7
while [Panasonic] boot screen is displayed.
When the PC-Diagnostic Utility starts up, it will automatically begin the diagnostic check for all hardware compo-
nents.
If the password is requested, enter the password.
The touch pad and the internal keyboard cannot be used until alternating blue and yellow colors are dis-
played on the left side of the hardware icon ( page 29). If the touch pad does not operate properly, press
Ctrl
+
Alt
+
Del
to restart the computer, or slide the power switch to turn the power off, and then restart the
PC-Diagnostic Utility.
NOTE
Using the following procedure, you can run a diagnostic check on a specifi ed hardware component,
or run an extended diagnostic check on the hard disk.
A Click to stop the diagnostic check.
B Click the icon for the hardware that is not to be checked, so that the icon is displayed in gray (B).
When running a check on the hard disk, clicking the icon once will turn on the extended diagnostic
check (“FULL” (C) will be displayed below the icon); click again, and the icon will be displayed in
gray.
C Click to start the diagnostic check. C
Hardware Diagnostics
![](/img.php?id=860533&img=bg1f.png)
31
Troubleshooting
6 When all the hardware has been checked, confi rm the diagnostic check results.
If the display is red and the message “Check Result TEST FAILED” is displayed, you can assume that there is
a problem with the computer’s hardware. Confi rm which hardware component is displayed as red, and contact
Panasonic Technical Support.
If the display is green and the message “Check Result TEST PASSED” is displayed, the computer’s hardware
is operating normally. Continue using the computer as is. If the computer still does not operate properly, reinstall
the software. ( page 22)
NOTE
If you run a memory diagnostic check after installing a new RAM module (sold separately) and the message "Check
Result TEST FAILED" is displayed:
Remove the additional RAM module and run the diagnostic check again. If the message "Check Result TEST
FAILED" is still displayed, you can assume that there is a problem with the internal RAM module.
7 After the diagnostic check is complete, click (close), or press
Ctrl
+
Alt
+
Del
to re-
start the computer.
![](/img.php?id=860533&img=bg20.png)
