150Mbps Wireless N Access Point
FWA-600ND
User Manual
User Manual / V2.0
2
Copyright Statement
PHICOMM is the registered trademark of Shanghai Feixun Communication Co., Ltd. Other
trademark or trade name mentioned herein are the trademark or registered trademark of the
company. Copyright of the whole product as integration, including its accessories and software,
belongs to Shanghai Feixun Communication Co., Ltd. Without the permission of Shanghai
Feixun Communication Co., Ltd., individual or party is not allowed to copy, plagiarize, imitate or
translate it into other languages.
All the photos and product specifications mentioned in this manual are for references only, as
the upgrading of software and hardware, there will be changes. And if there are changes,
PHICOMM is not responsible for informing in advance. If you want to know more information
about our products, please visit our website at www.phicomm.com.
![](/img.php?id=1616603&img=bg3.png)
i
Table of Contents
150Mbps Wireless N Access Point
www.phicomm.com
CONTENTS
Chapter 1: Introduction
.............................................. 1
Product Overview ............................................................................................... 1
LED and Button Descriptions ......................................................................... 1
Main Features ....................................................................................................... 3
Chapter 2: Operation Mode Introduction
......................... 4
Chapter 3: Hardware Installation
................................... 6
Physical Connection .......................................................................................... 6
Configure Your Computer ............................................................................... 6
Login ..................................................................................................................... 14
Chapter 4: Software Configuration
............................... 16

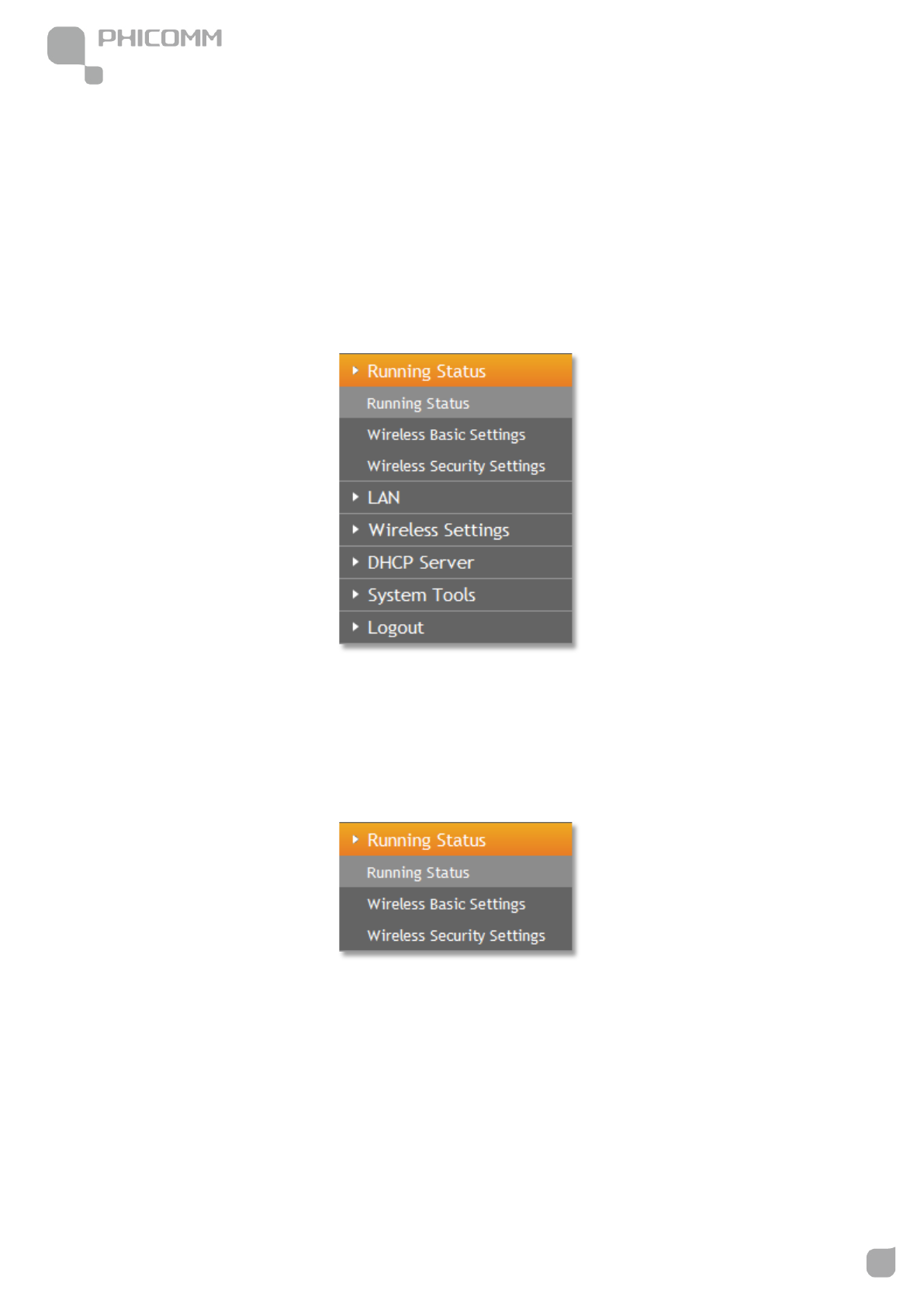

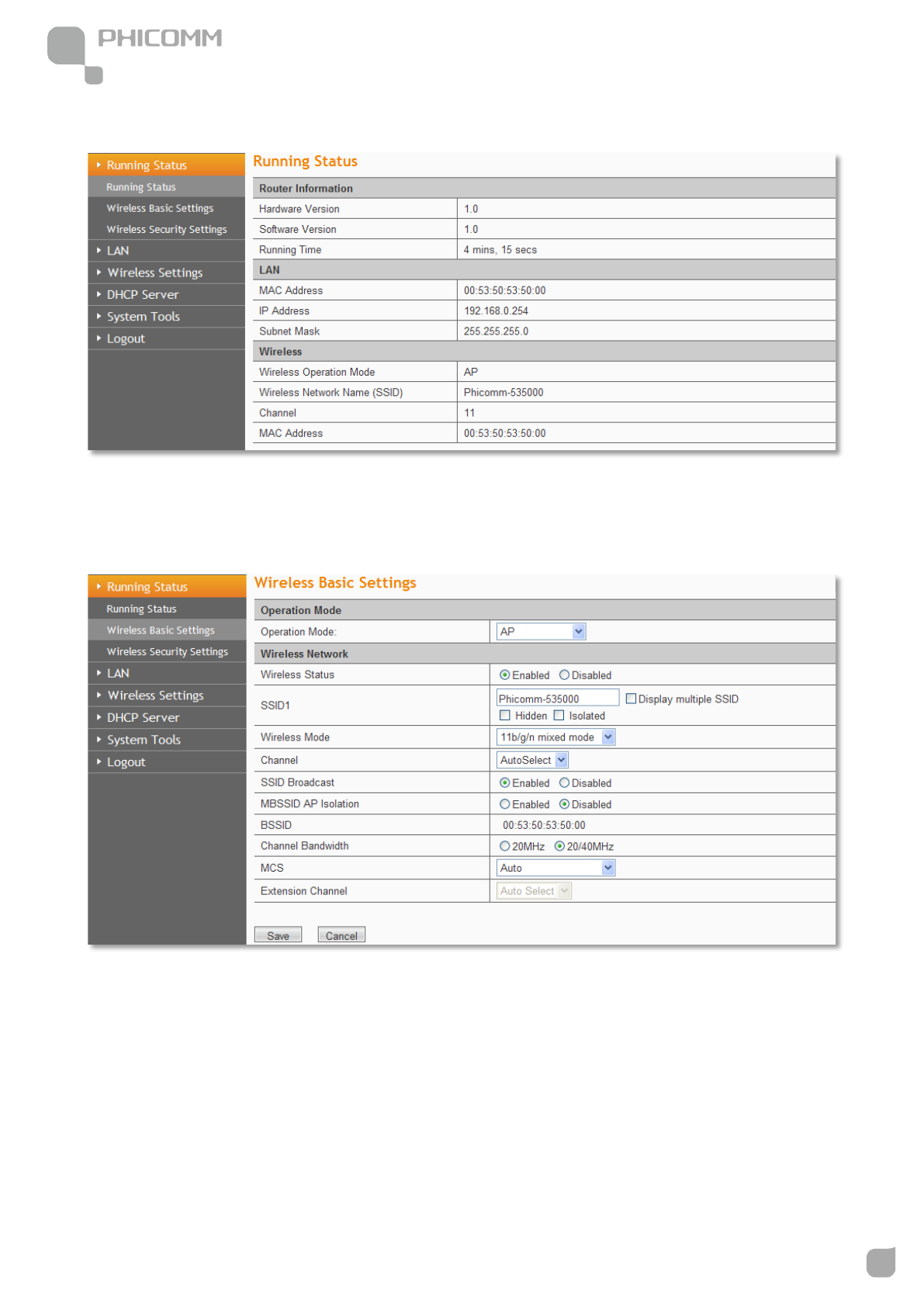

Running Status ................................................................................................. 16
Running Status ..................................................................................................................... 17
Wireless Basic Settings ....................................................................................................... 17

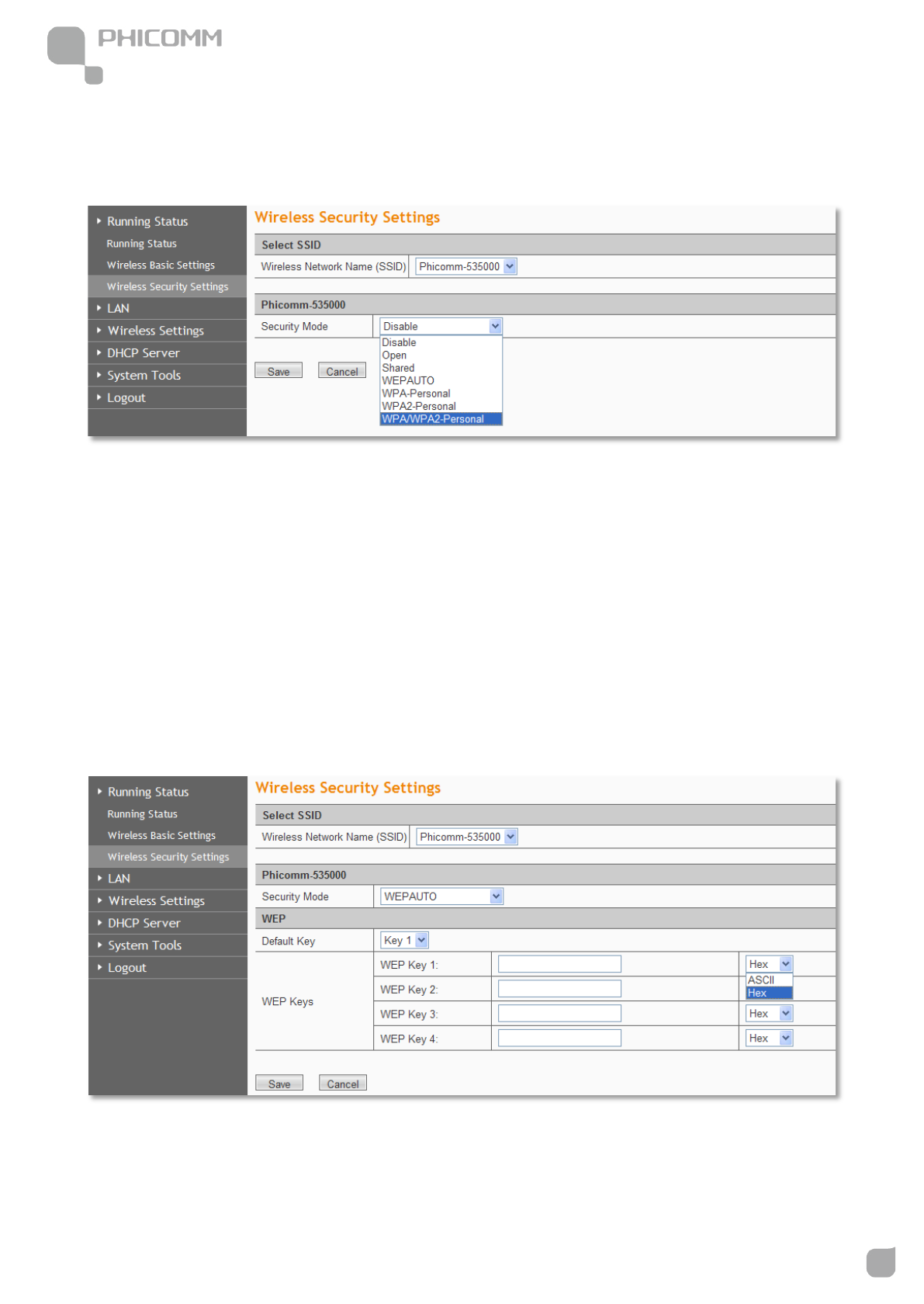

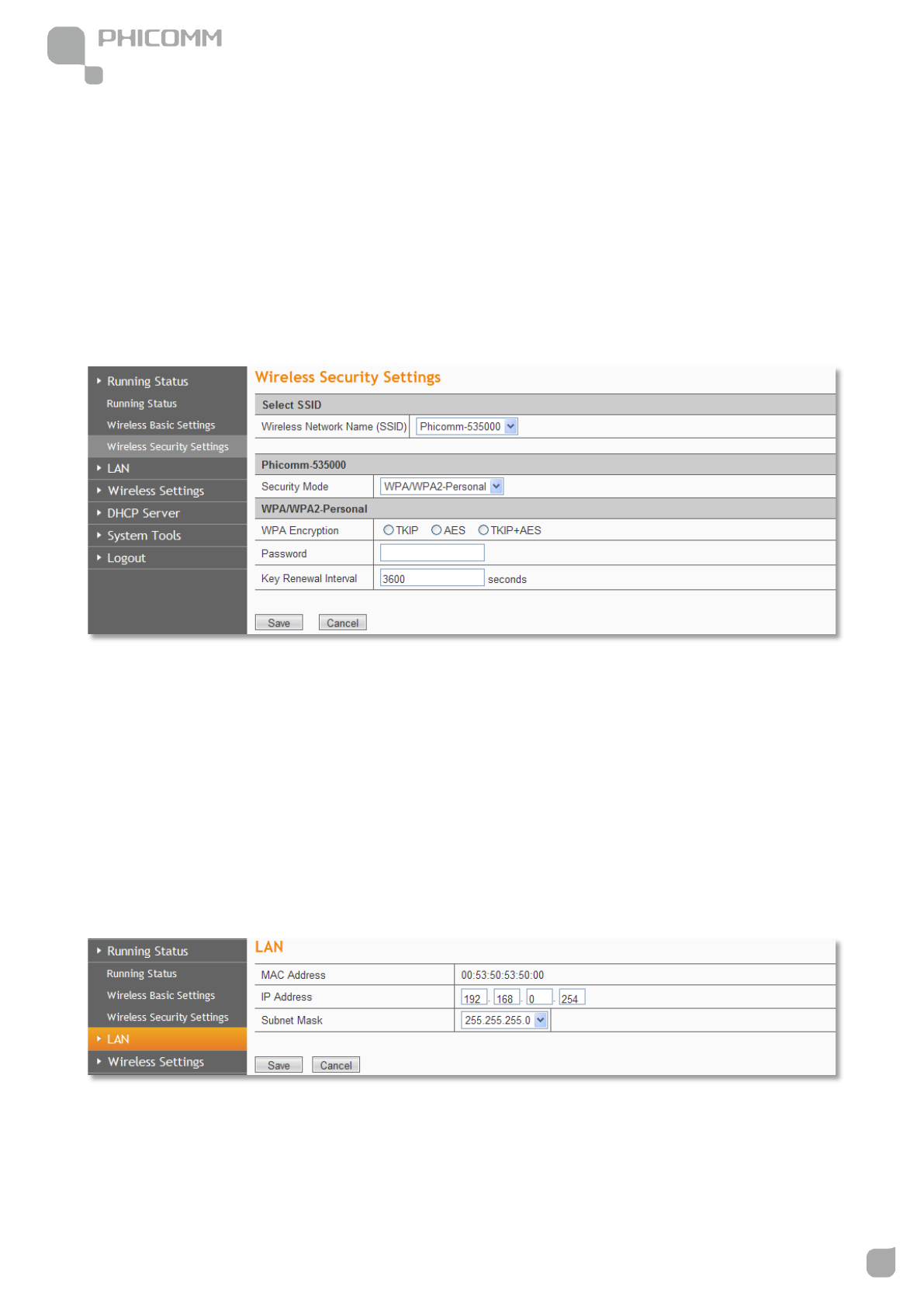

Wireless Security Settings ................................................................................................. 22
LAN ........................................................................................................................ 23
Wireless Settings .............................................................................................. 24
Wireless Basic Settings ....................................................................................................... 24
Wireless Security Settings ................................................................................................. 24

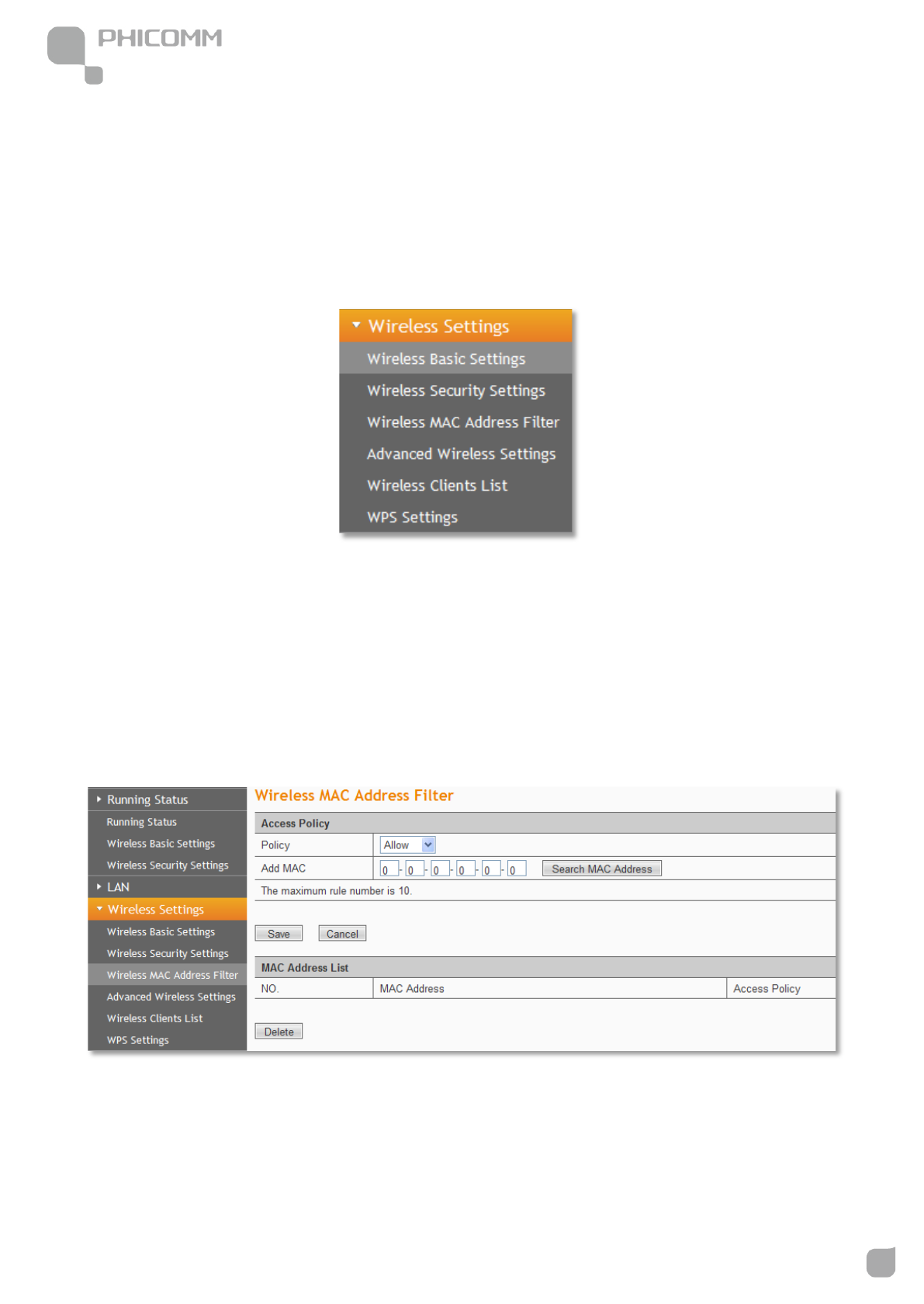

Wireless MAC Address Filter ............................................................................................ 24
![](/img.php?id=1616603&img=bg4.png)
ii
Table of Contents
150Mbps Wireless N Access Point
www.phicomm.com

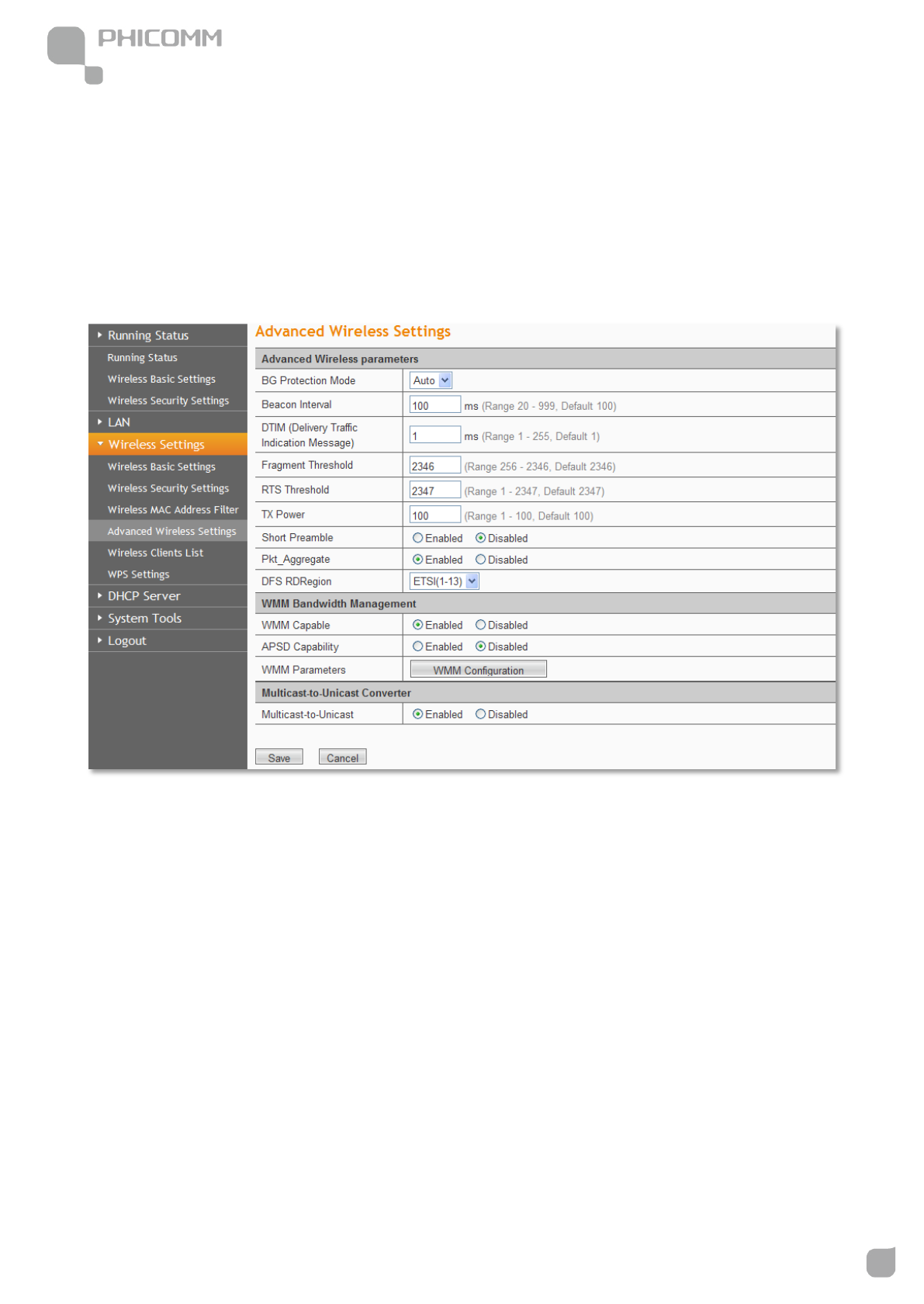

Advanced Wireless Settings ............................................................................................ 25

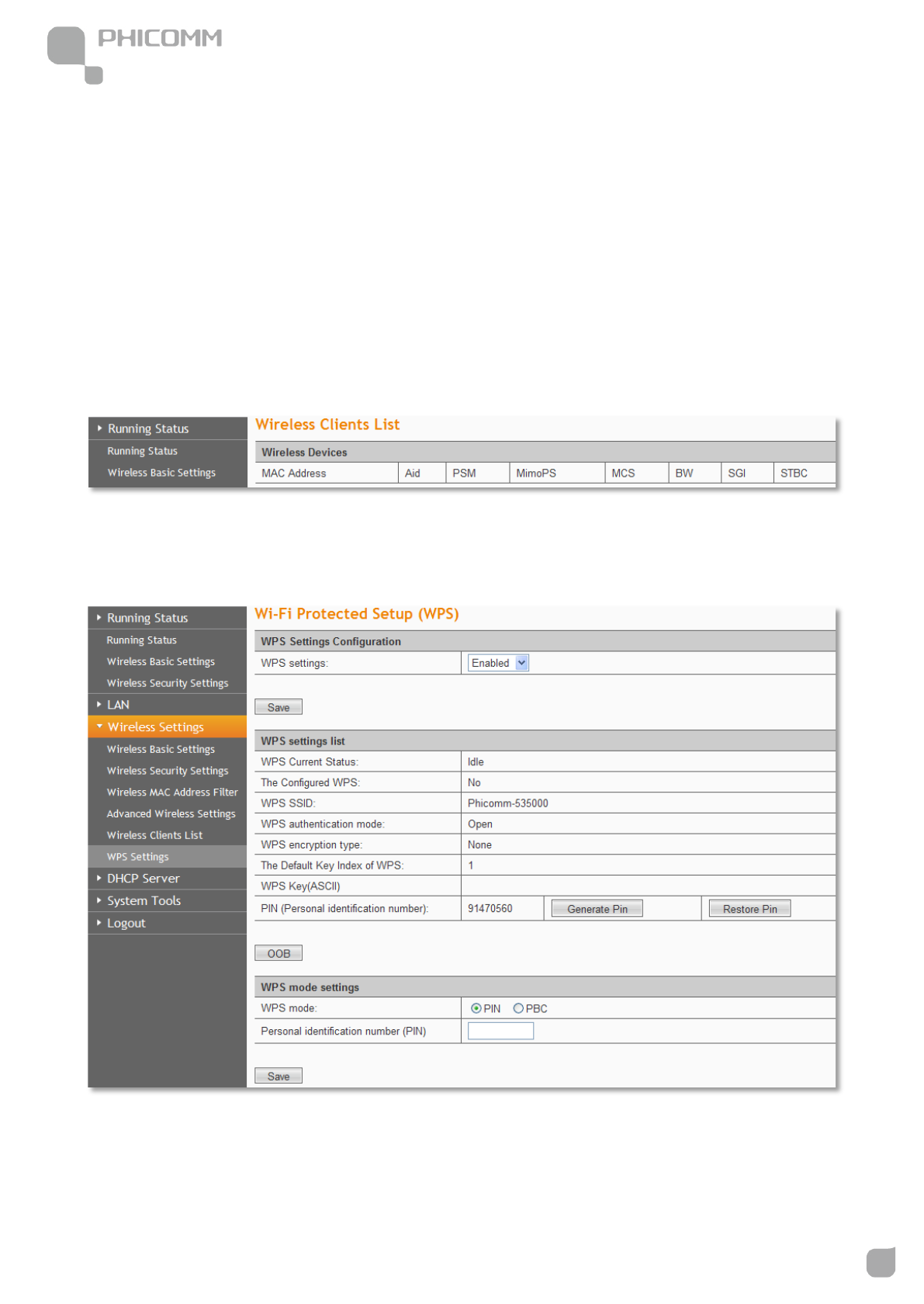

Wireless Clients List ............................................................................................................. 26
WPS Settings .......................................................................................................................... 26

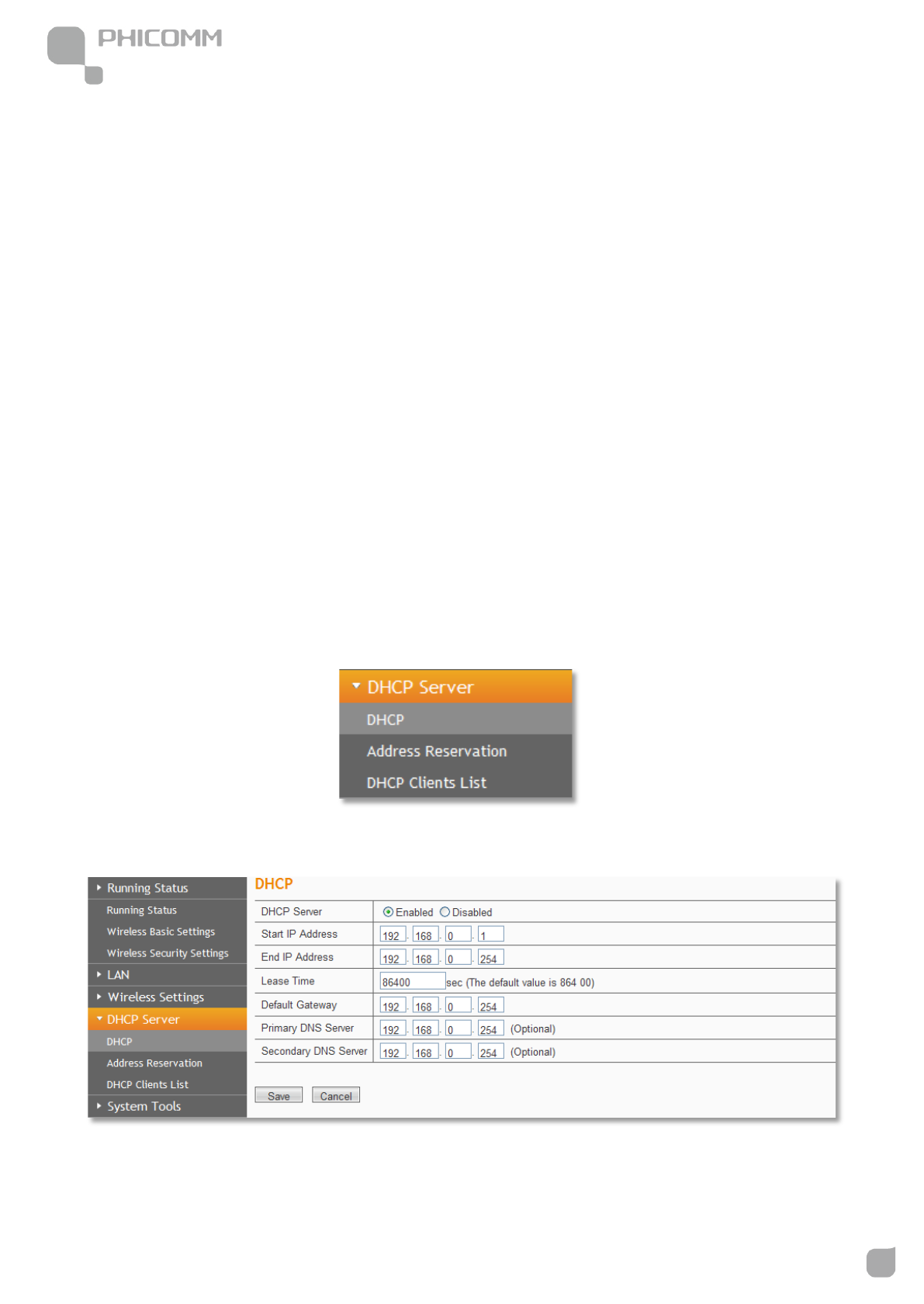

DHCP Server ....................................................................................................... 27
DHCP ........................................................................................................................................ 27

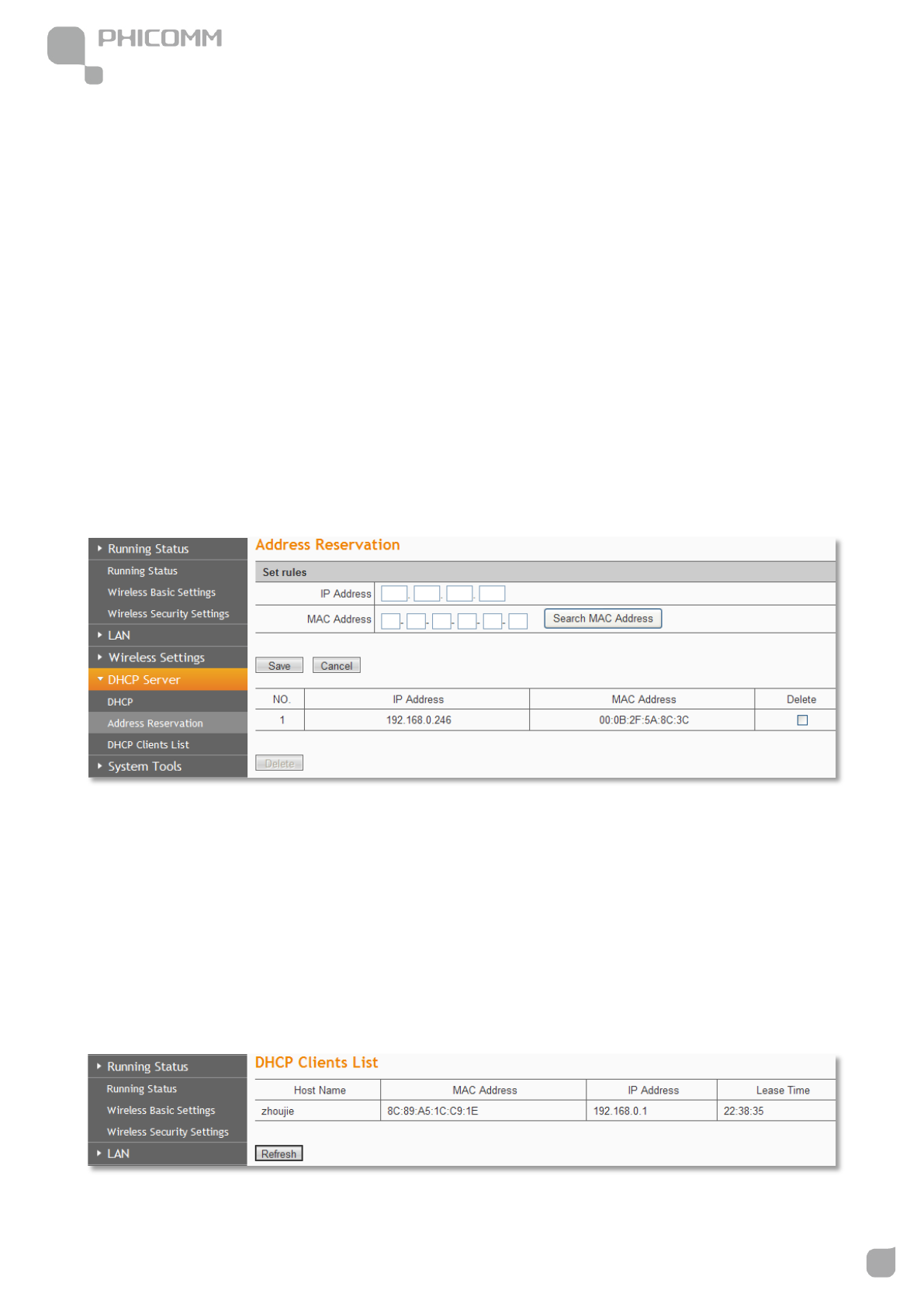

Address Reservation ........................................................................................................... 28
DHCP Client List ................................................................................................................... 28

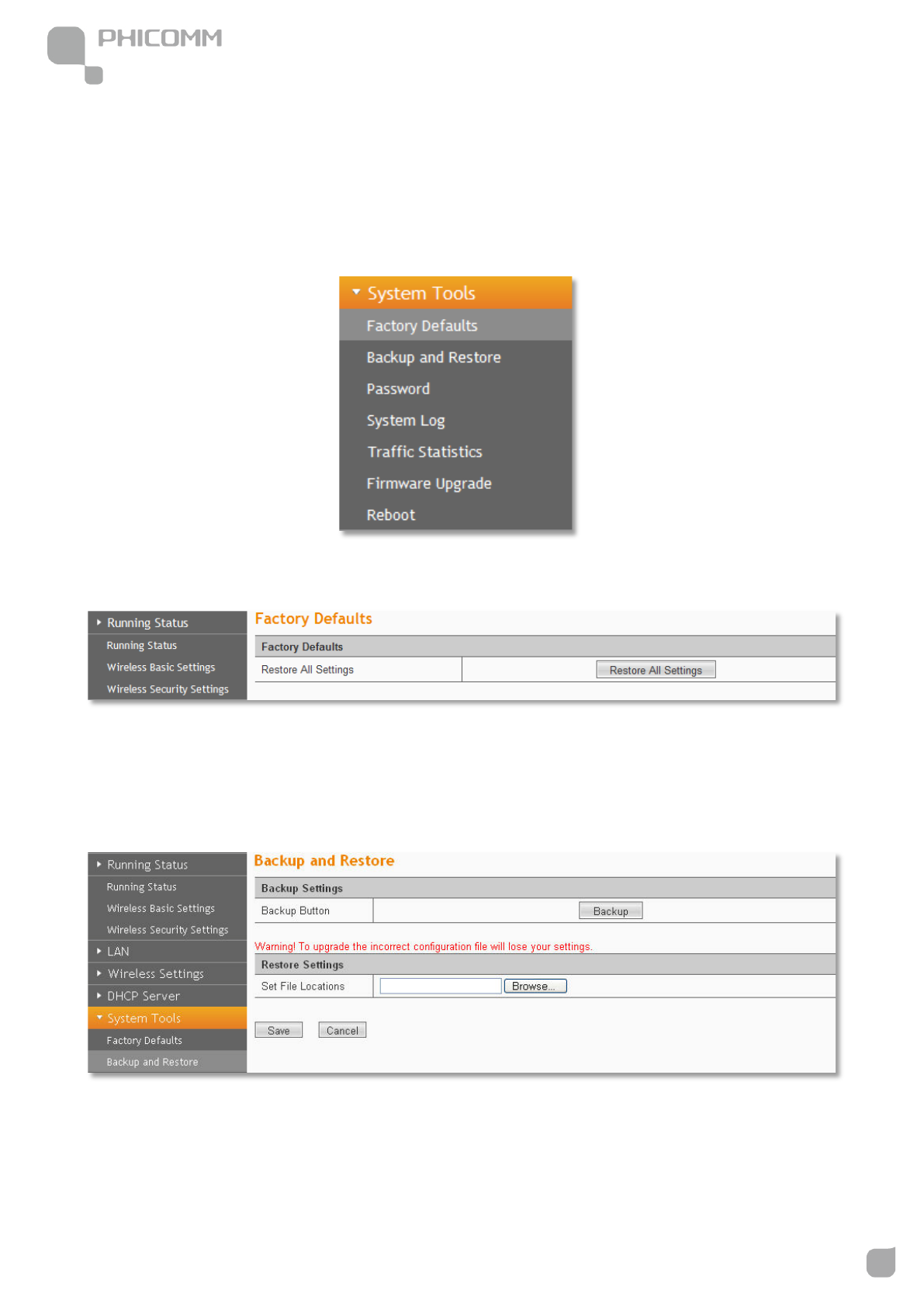

System Tools ...................................................................................................... 29
Factory Defaults ................................................................................................................... 29
Backup and Restore ............................................................................................................ 29

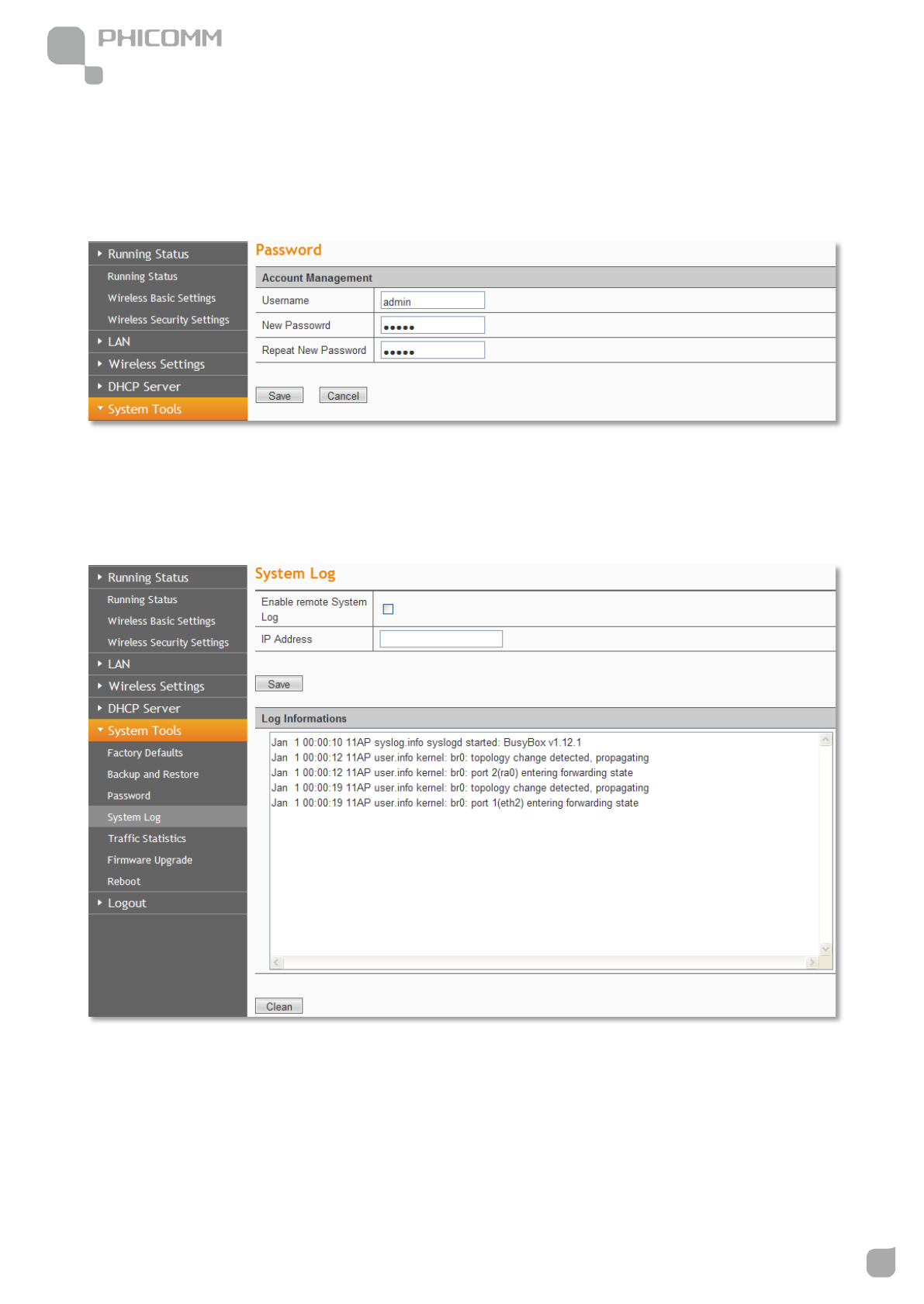

Password ................................................................................................................................. 30
System Log ............................................................................................................................. 30

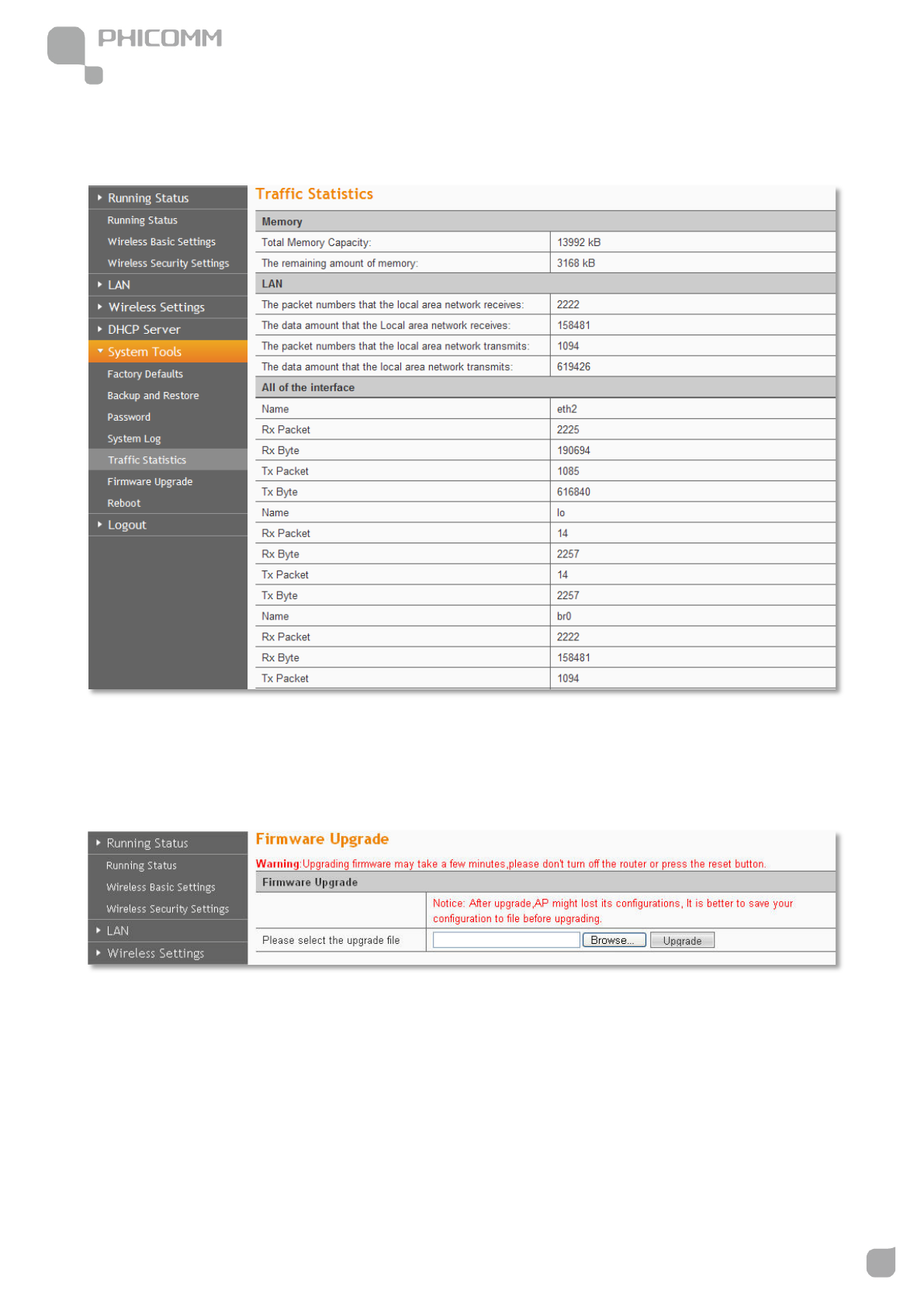

Traffic Statistics ..................................................................................................................... 31
Firmware Upgrade .............................................................................................................. 31

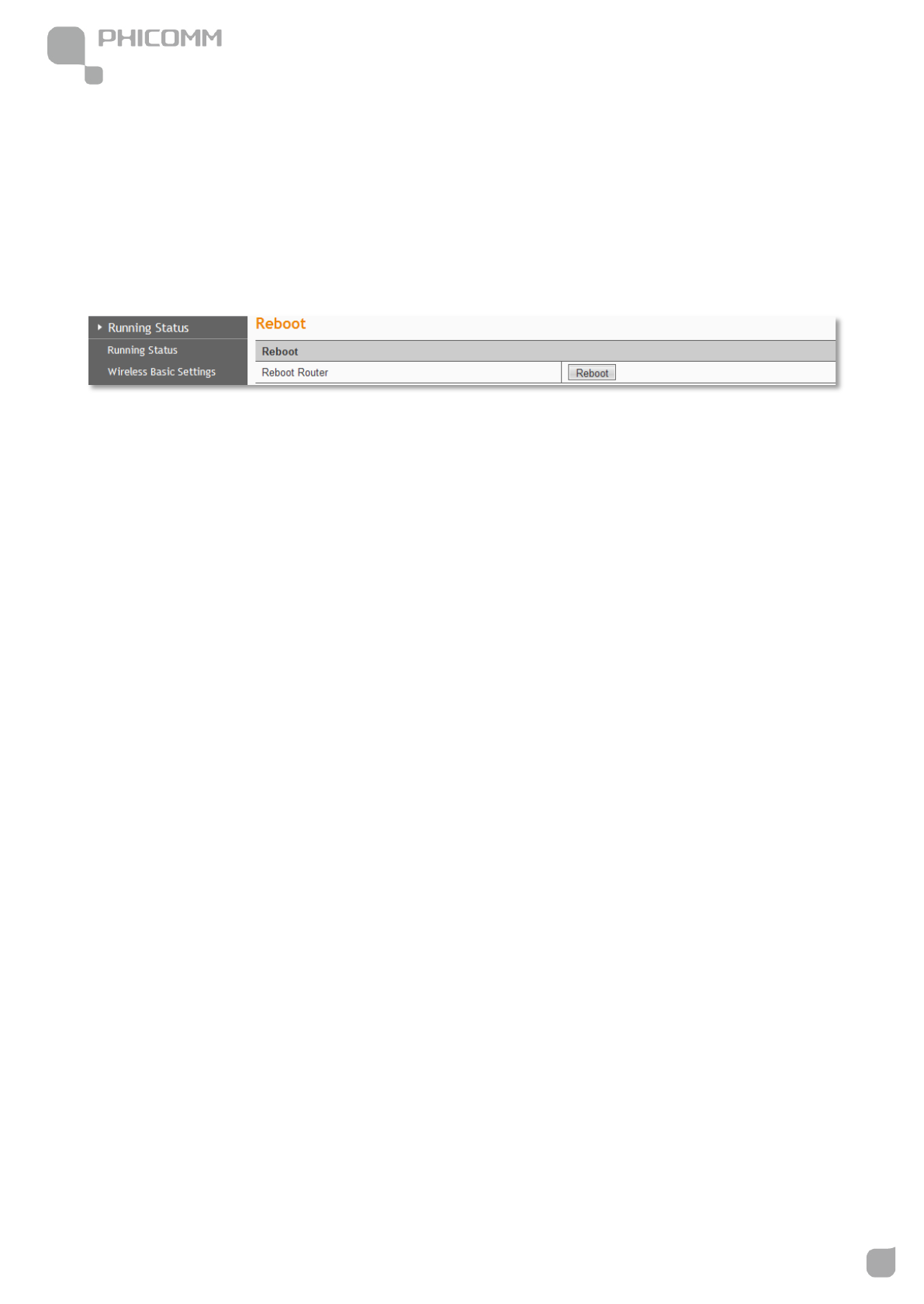

Reboot ..................................................................................................................................... 32
Logout .................................................................................................................. 32
Chapter5: PoE (Power over Ethernet)
........................... 33

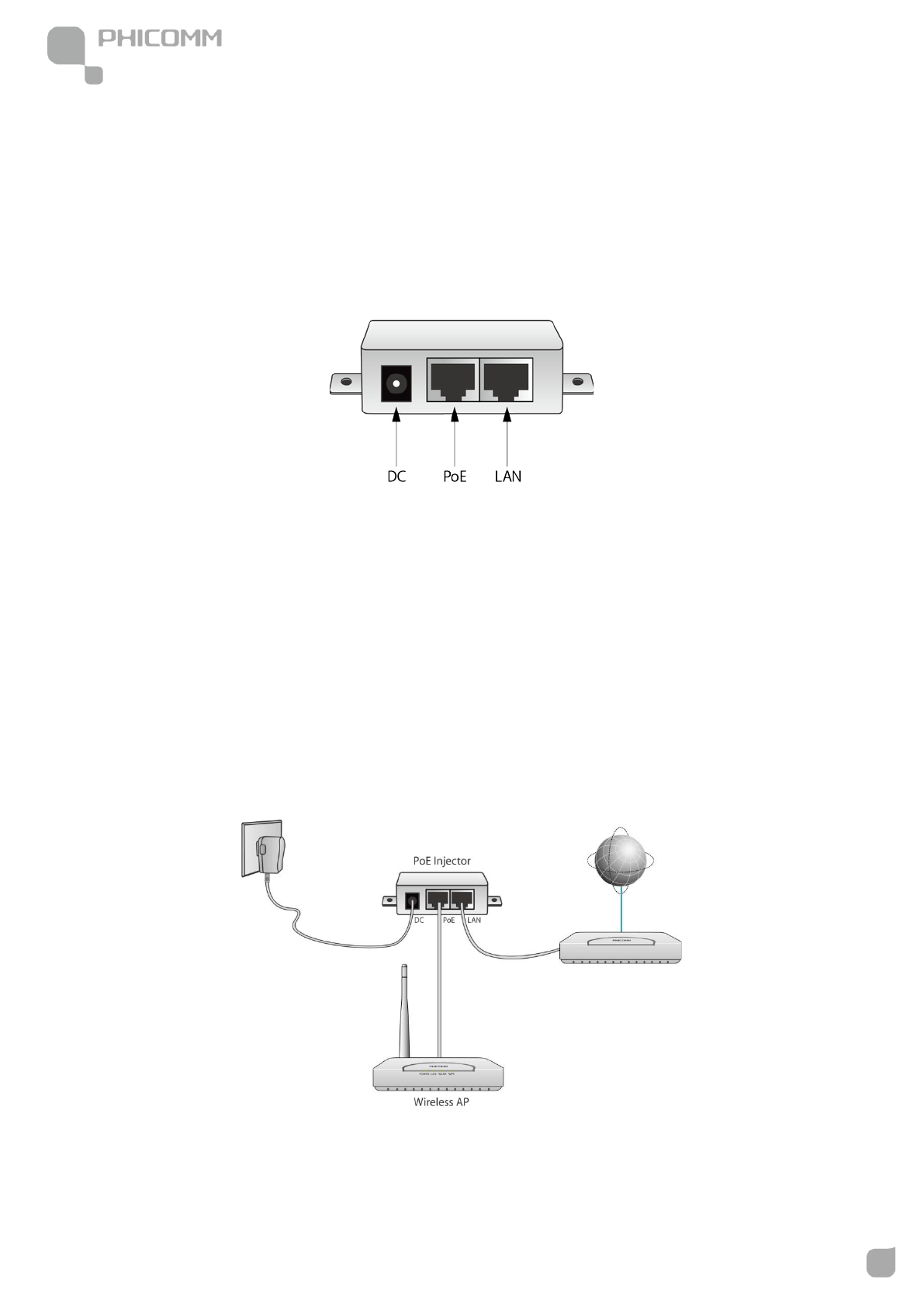

Hardware Overview of PoE .......................................................................... 33
Installation with PoE Injector ...................................................................... 33
Chapter6: Specification
............................................ 34
Appendix A: Troubleshooting
..................................... 35
![](/img.php?id=1616603&img=bg5.png)
iii
Table of Contents
150Mbps Wireless N Access Point
www.phicomm.com
Appendix B: Certification
.......................................... 36
FCC Statement .................................................................................................. 36
CE Mark Warning ............................................................................................. 37
Appendix C: Glossary
................................................ 38
![](/img.php?id=1616603&img=bg6.png)
150Mbps Wireless N Access Point
www.phicomm.com
1
Chapter 1: Introduction
Chapter 1: Introduction
Product Overview
Thank you for choosing FWA-600ND 150Mbps Wireless N Access Point. It is dedicated to Small
Office/Home Office (SOHO) wireless network solutions. It allows for greater range and mobility
within your wireless network while allowing you to connect the wireless devices to a wired
environment. Increased mobility and the absence of cable will be beneficial for your network.
With IEEE 802.11n wireless technology, your device can transmit wireless data at the rate of up
to 150Mbps. With multiple protection measures including SSID broadcast control and advanced
firewall protections, the product delivers complete data privacy. Wireless security type of
WPA/WPA2-Enterprise as well as WPA/WPA2-Personal ensures transmission safety. Supporting a
simple web-based setup wizard for installation and management, even novice users can easily
configure it with the help of this manual.
LED and Button Descriptions
Front Panel
![](/img.php?id=1616603&img=bg7.png)
150Mbps Wireless N Access Point
www.phicomm.com
2
Chapter 1: Introduction
The front panel of the wireless Access Point includes 4 LED indicators, as explained in table
below:
LED Status Indication
POWER On Power is on
Off Power is off
LAN
On There is a successful connection on the LAN port
Off There is no connection on the LAN port
Blinking Data is being transferred over the LAN port
WLAN
On The wireless function is enabled
Off The wireless function is disabled
Blinking Sending or receiving data over wireless network
WPS
On A wireless device is successfully connected to the network by WPS function
Off WPS function is deactivated
Blinking A wireless device is connecting to the network by WPS function

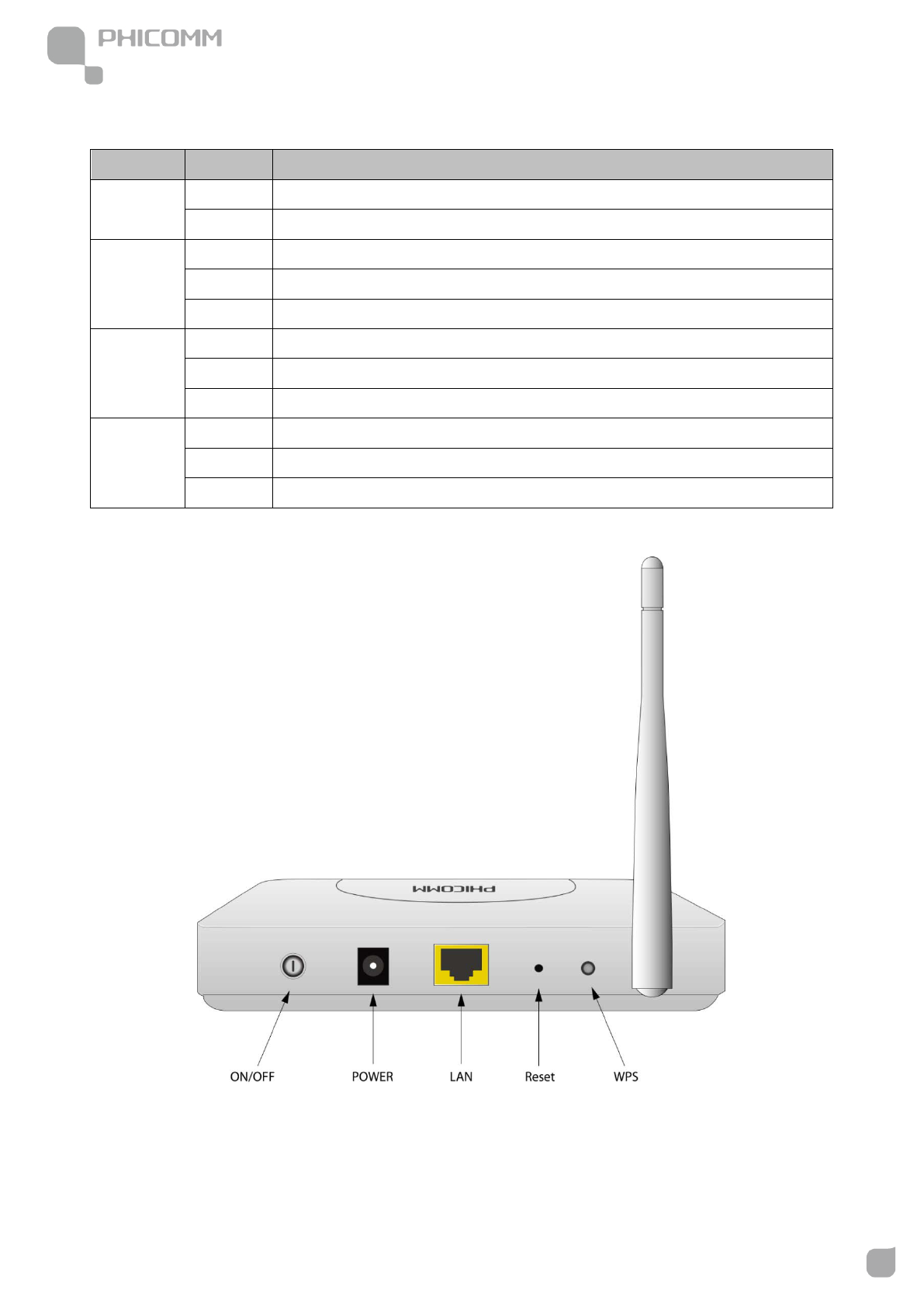

Rear Panel
The rear panel of the wireless Access Point includes 1 power ON/OFF switch, 1 power connector,
1 LAN port, 1 Reset button, 1 WPS button and 1 antenna, as explained in table below:
![](/img.php?id=1616603&img=bg8.png)
150Mbps Wireless N Access Point
www.phicomm.com
3
Chapter 1: Introduction
Interface/Button Function
ON/OFF Used to power on or power off the wireless Access Point
PWR Connect with a power adapter
LAN Connect to your network devices
Reset Used to restore the product to factory default settings
WPS Used to create a secured wireless network automatically by pressing the WPS button
Main Features
Complies with IEEE 802.11n to provide a wireless data rate of up to 150Mbps
Supports 1 RJ45 LAN port which also allows Power over Ethernet (PoE)
Provides multiple encryption security Types including: 64/128-bit WEP, WPA/WPA2-personal
Easily setup a WPA2 encrypted secure connection at a push of the WPS button
Wireless MAC address filtering allows you to control the access rights of the wireless clients
according to the MAC addresses
Supports built-in DHCP server
Supports operation modes including: AP, Client, Bridge, Bridge with AP, and Repeater
Supports Multiple SSID
Firmware upgrade allows you to update the firmware to the latest version through the
configuration page
External detachable antenna allows better alignment and stronger antenna upgrade
![](/img.php?id=1616603&img=bg9.png)
150Mbps Wireless N Access Point
www.phicomm.com
4
Chapter 2: Operation Mode Introduction
Chapter 2: Operation Mode Introduction

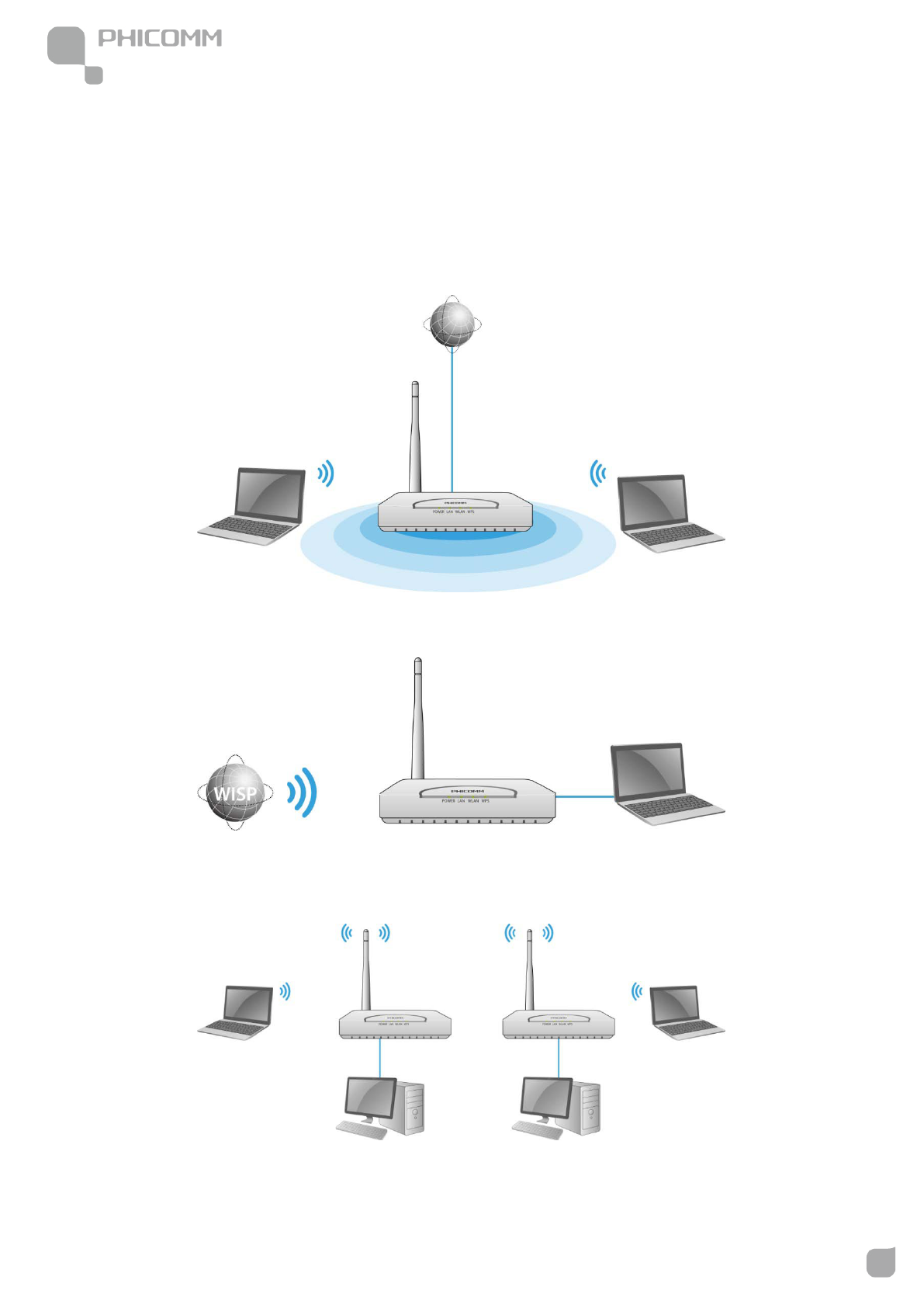

The Wireless Access Point supports five operation modes: AP (Access Point), Client, Bridge,
Bridge with AP and Repeater. By default, the operation mode is AP.
In AP mode, it extends your existing hardwired network to your wireless clients.

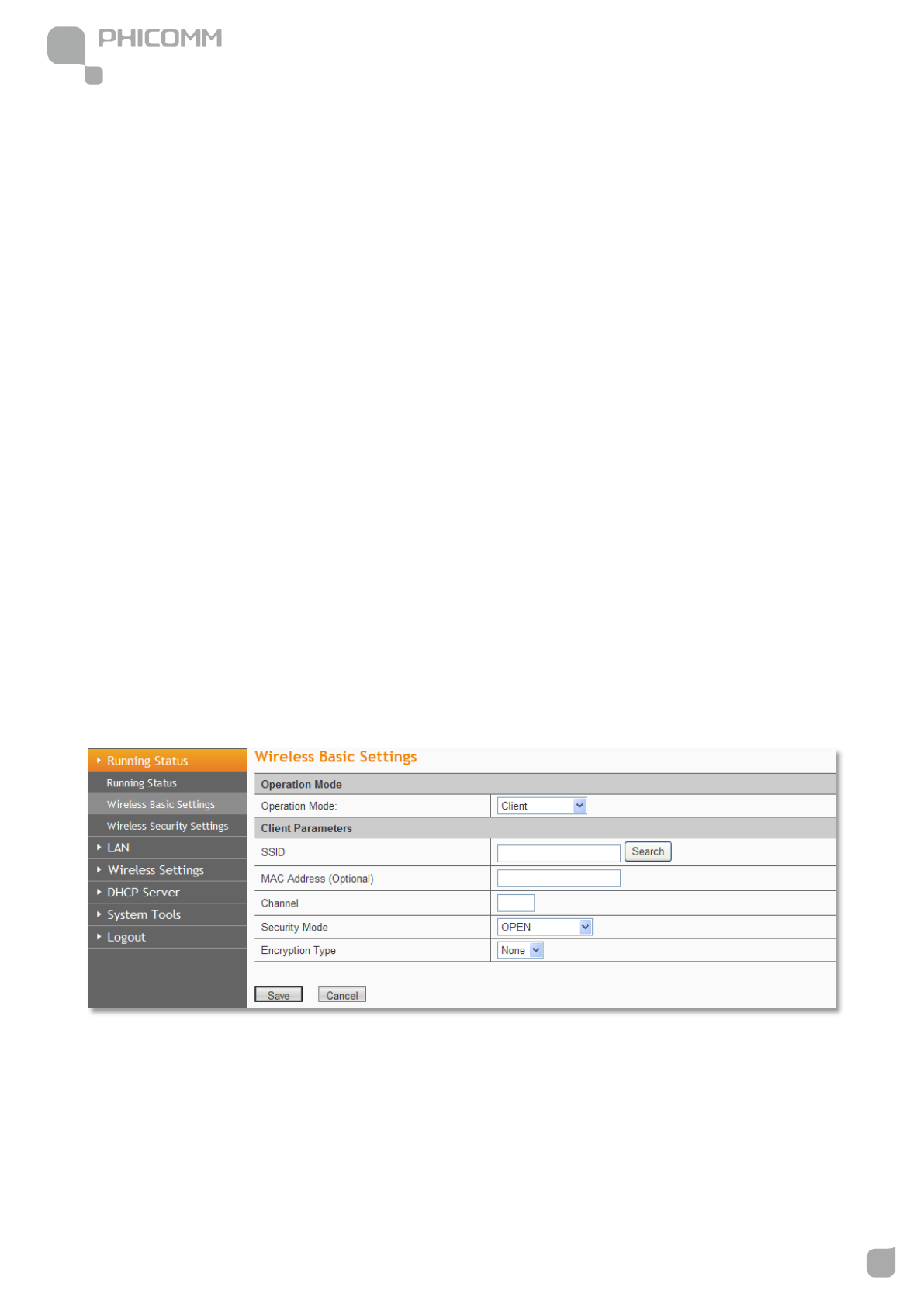

In Client mode, it acts as a wireless network adapter.

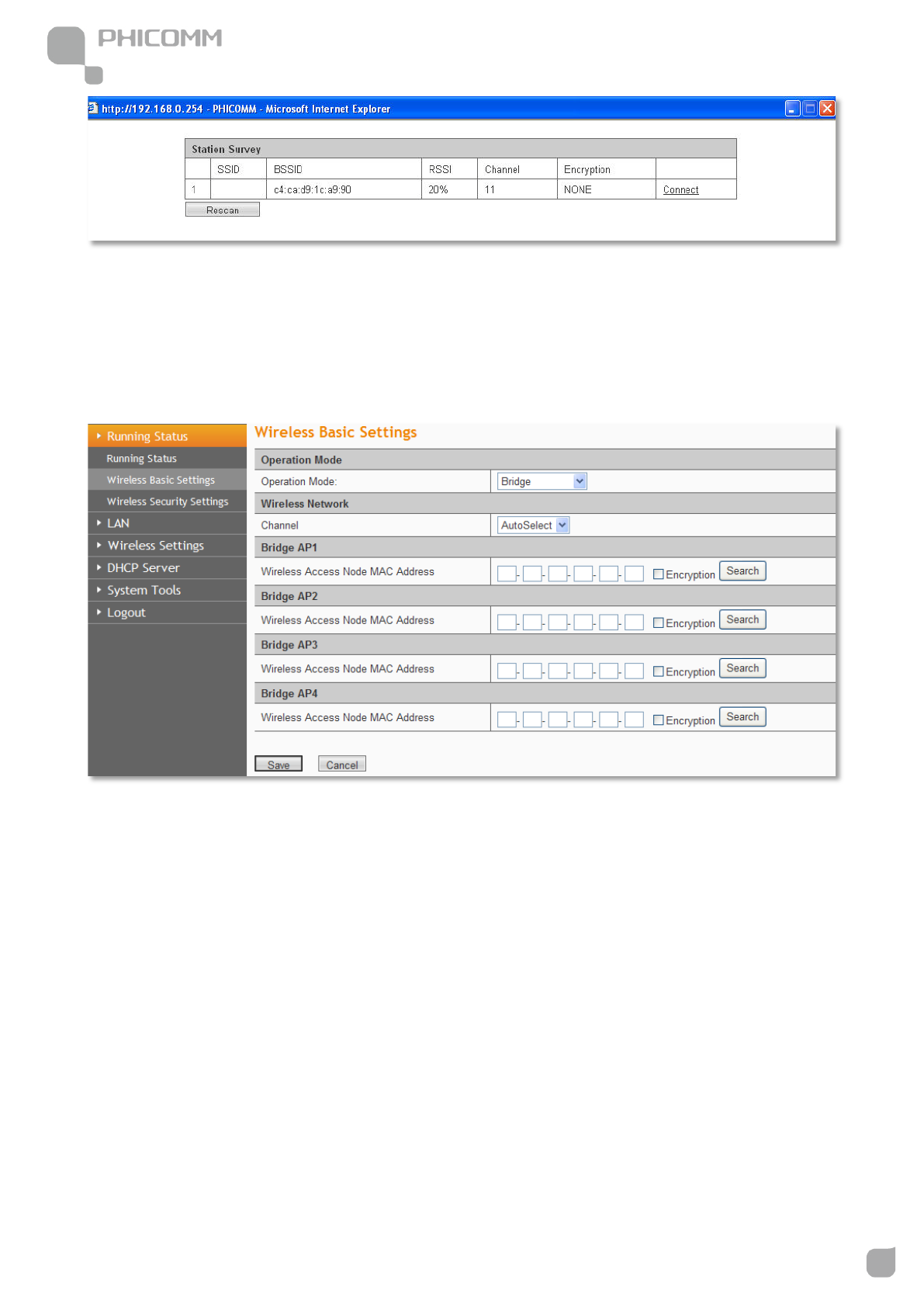

In Bridge/Bridge with AP mode, it can wirelessly connect two or more remote LANs which also
support Bridge mode together.
![](/img.php?id=1616603&img=bga.png)
150Mbps Wireless N Access Point
www.phicomm.com
5
Chapter 2: Operation Mode Introduction

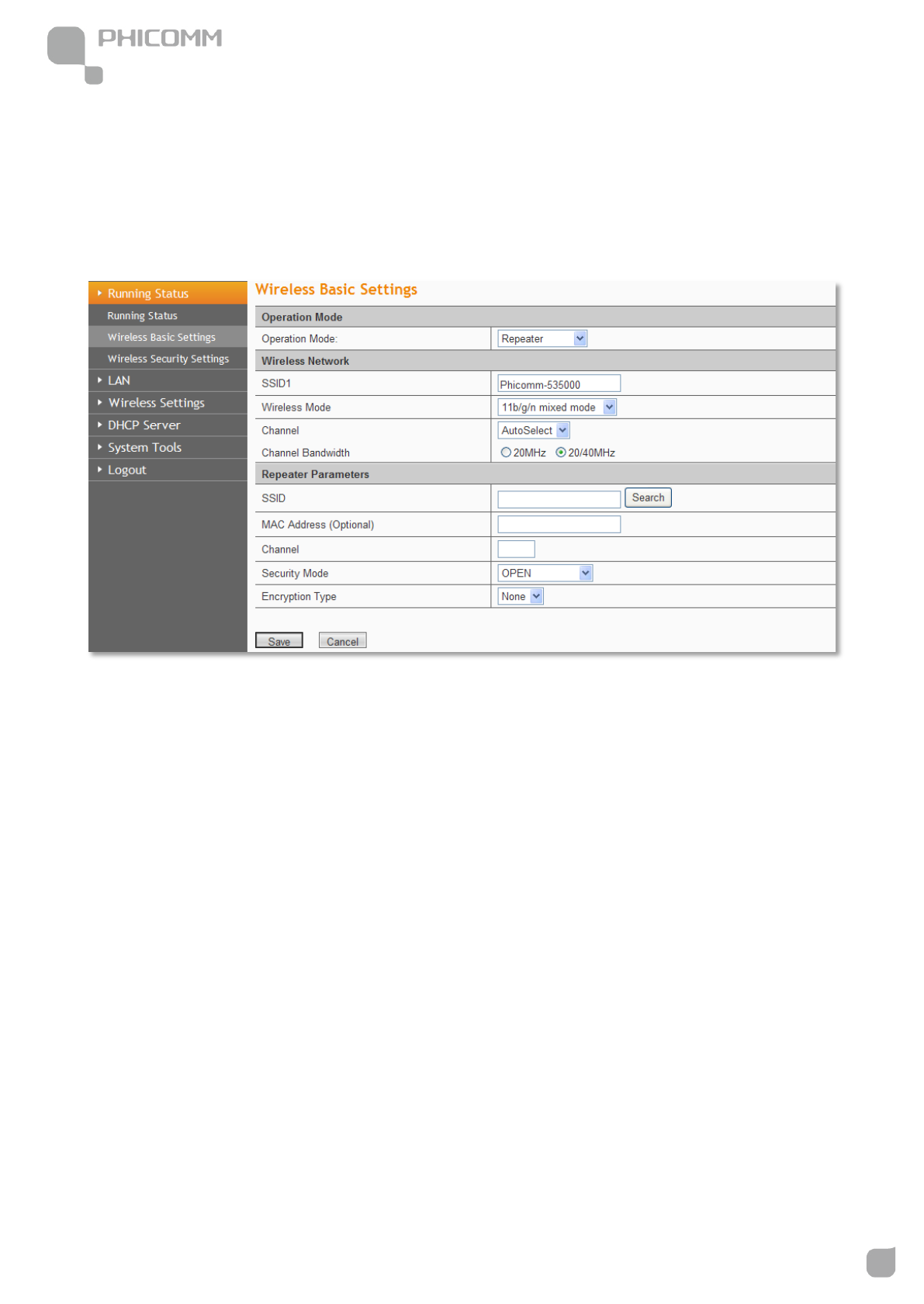

In Repeater mode, it can extend the coverage of your root wireless router, boost the wireless
signal strength.
![](/img.php?id=1616603&img=bgb.png)
150Mbps Wireless N Access Point
www.phicomm.com
6
Chapter 3: Hardware Installation
Chapter 3: Hardware Installation

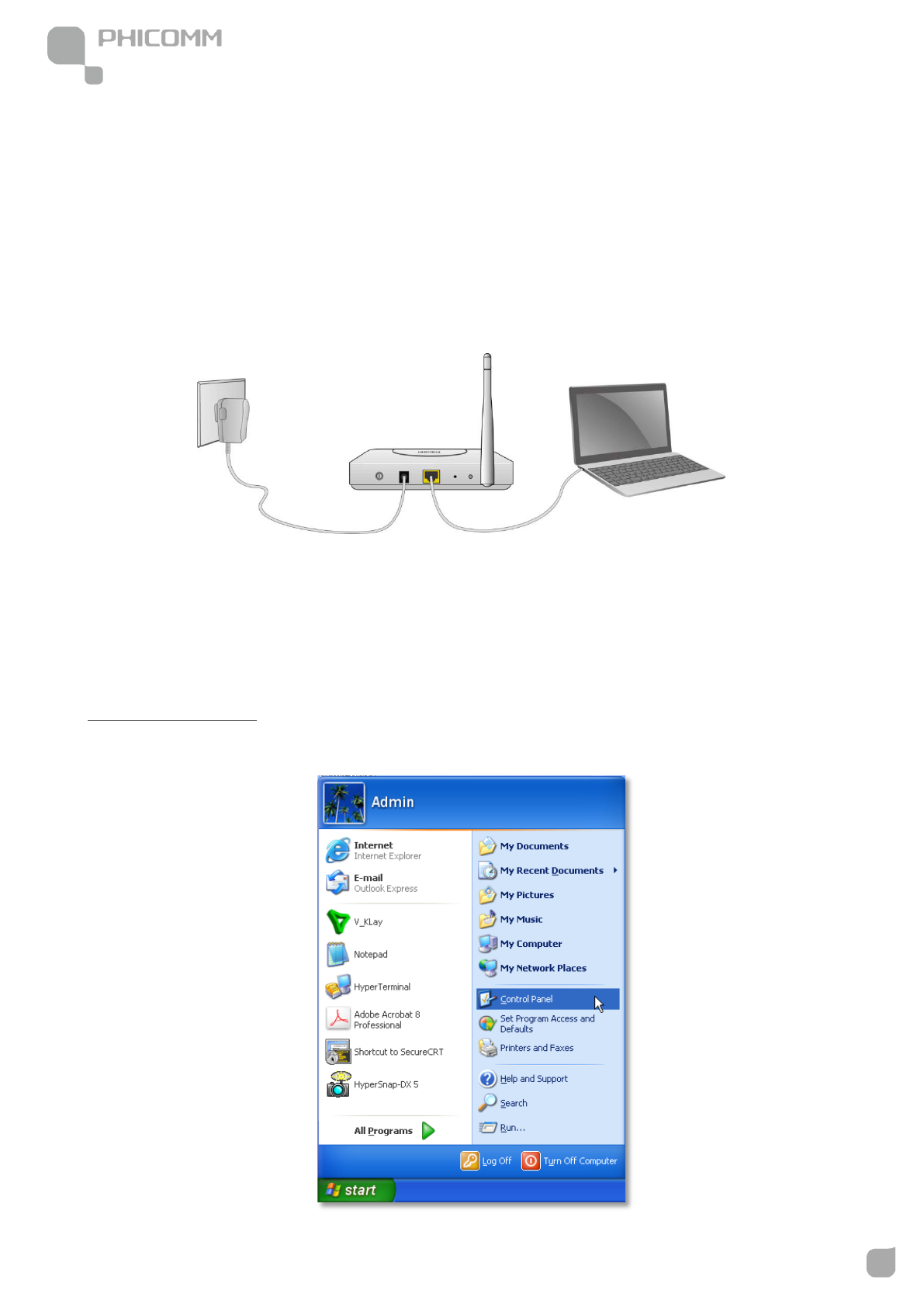

Physical Connection
Before installing the device, please make sure that the broadband service provided by your ISP is
available. Connect your computer to the Wireless Access Point with an Ethernet cable when
trying to configure it.
Configure Your Computer
By default, the DHCP server of FWA-600ND is enabled. It can assign an IP address to your
computer automatically. So we suggest you set your computer to obtain IP address
automatically after the physical connection.
1) Click Start > Control Panel.
For Windows XP/2000
![](/img.php?id=1616603&img=bgc.png)
150Mbps Wireless N Access Point
www.phicomm.com
7
Chapter 3: Hardware Installation

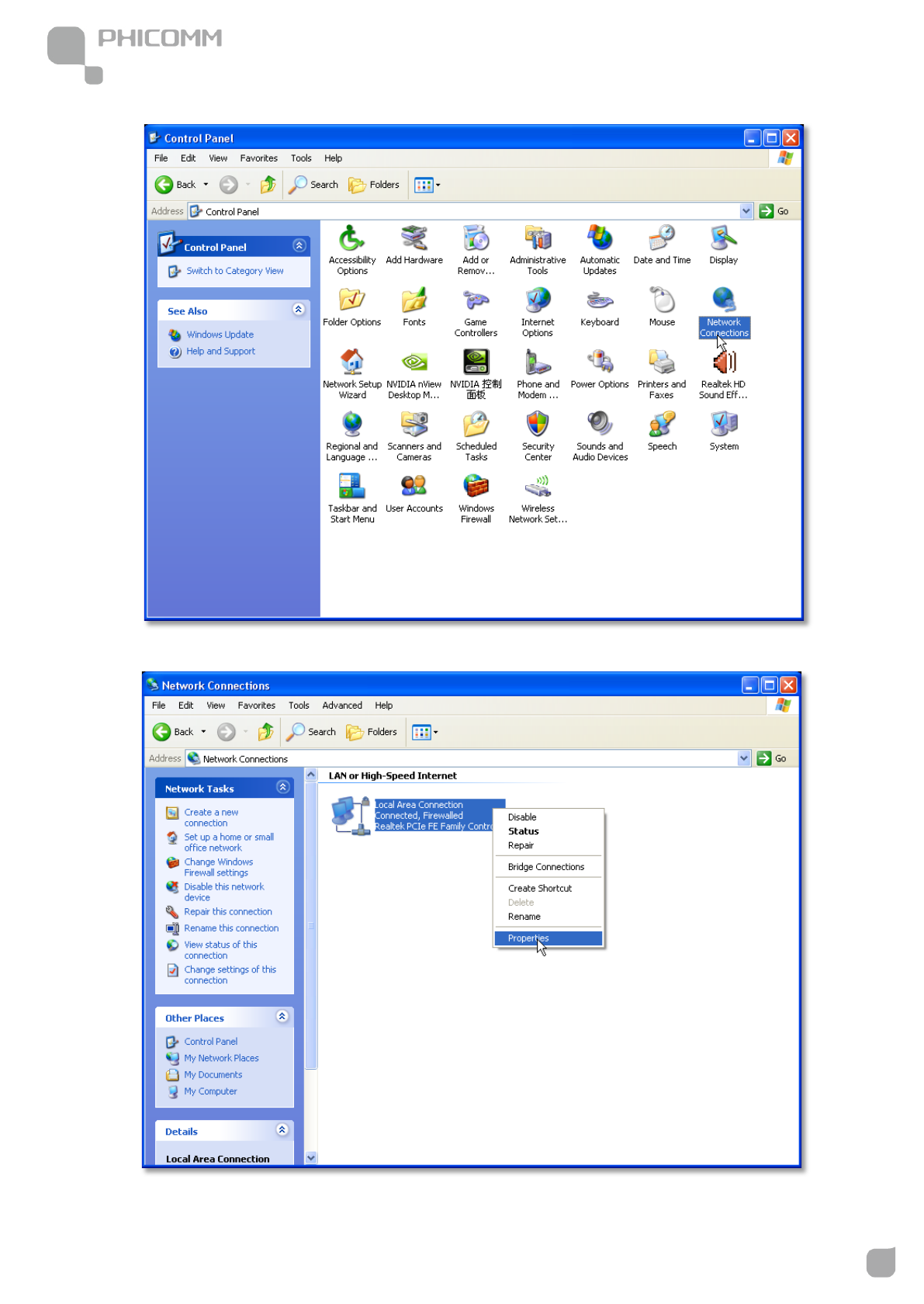

2) Select and double click Network Connections.
3) Right click Local Area Connection and then select Properties.
![](/img.php?id=1616603&img=bgd.png)
150Mbps Wireless N Access Point
www.phicomm.com
8
Chapter 3: Hardware Installation

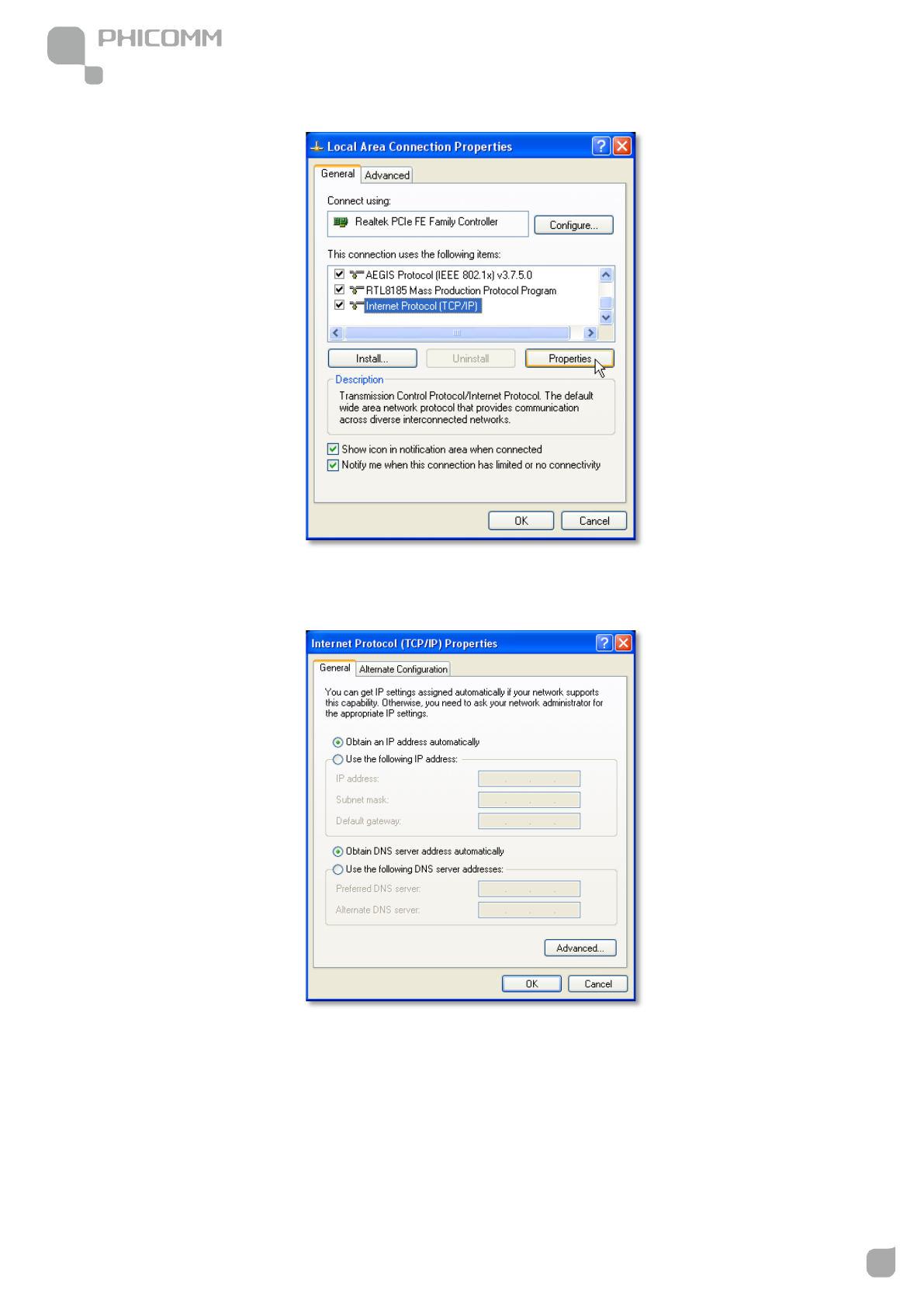

4) Select Internet Protocol (TCP/IP) and click Properties.
5) Select Obtain an IP address automatically and Obtain DNS server address automatically.
Then click OK.
![](/img.php?id=1616603&img=bge.png)
150Mbps Wireless N Access Point
www.phicomm.com
9
Chapter 3: Hardware Installation

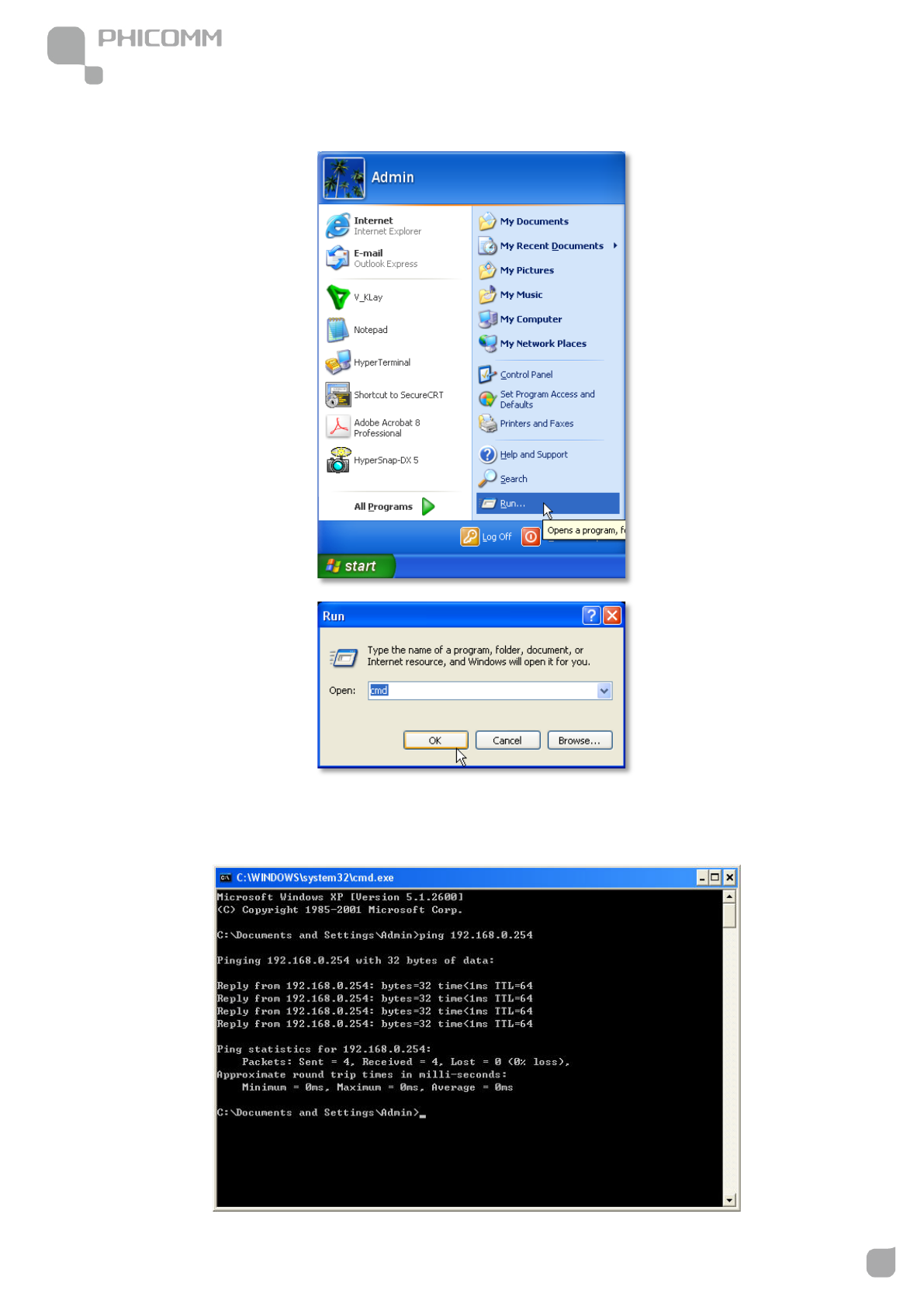

6) Run the Ping command in the command prompt to verify the network connection. Please
click the Start menu on your desktop, select Run tab, type cmd in the field.
7) Then type ping 192.168.0.254 on the next screen, press Enter.
If you can receive reply from that IP address that means you has succeeded.
![](/img.php?id=1616603&img=bgf.png)
150Mbps Wireless N Access Point
www.phicomm.com
10
Chapter 3: Hardware Installation

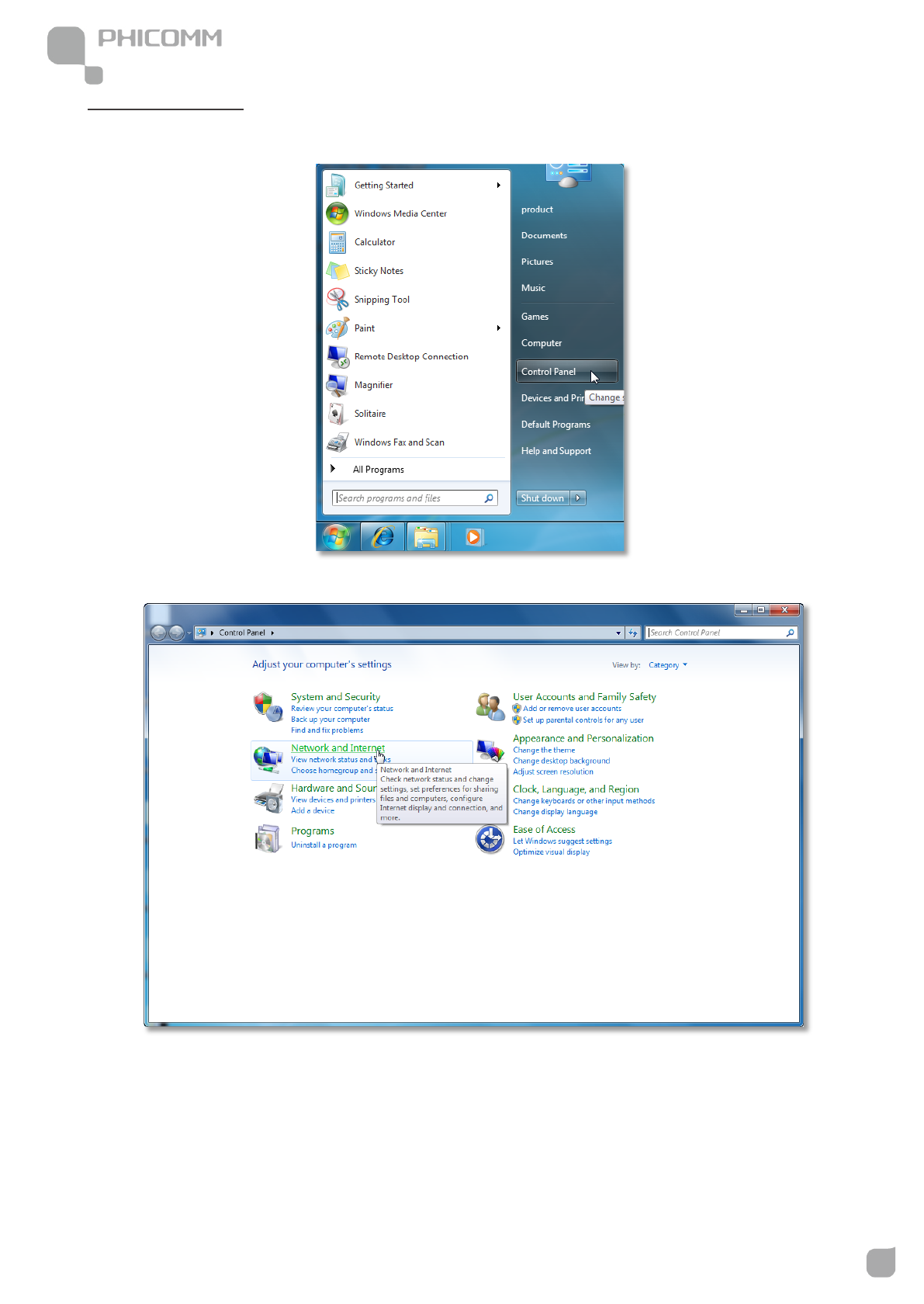

For Windows Vista/7
1) Click Start>Control Panel.
2) Click Network and Internet.
![](/img.php?id=1616603&img=bg10.png)
150Mbps Wireless N Access Point
www.phicomm.com
11
Chapter 3: Hardware Installation

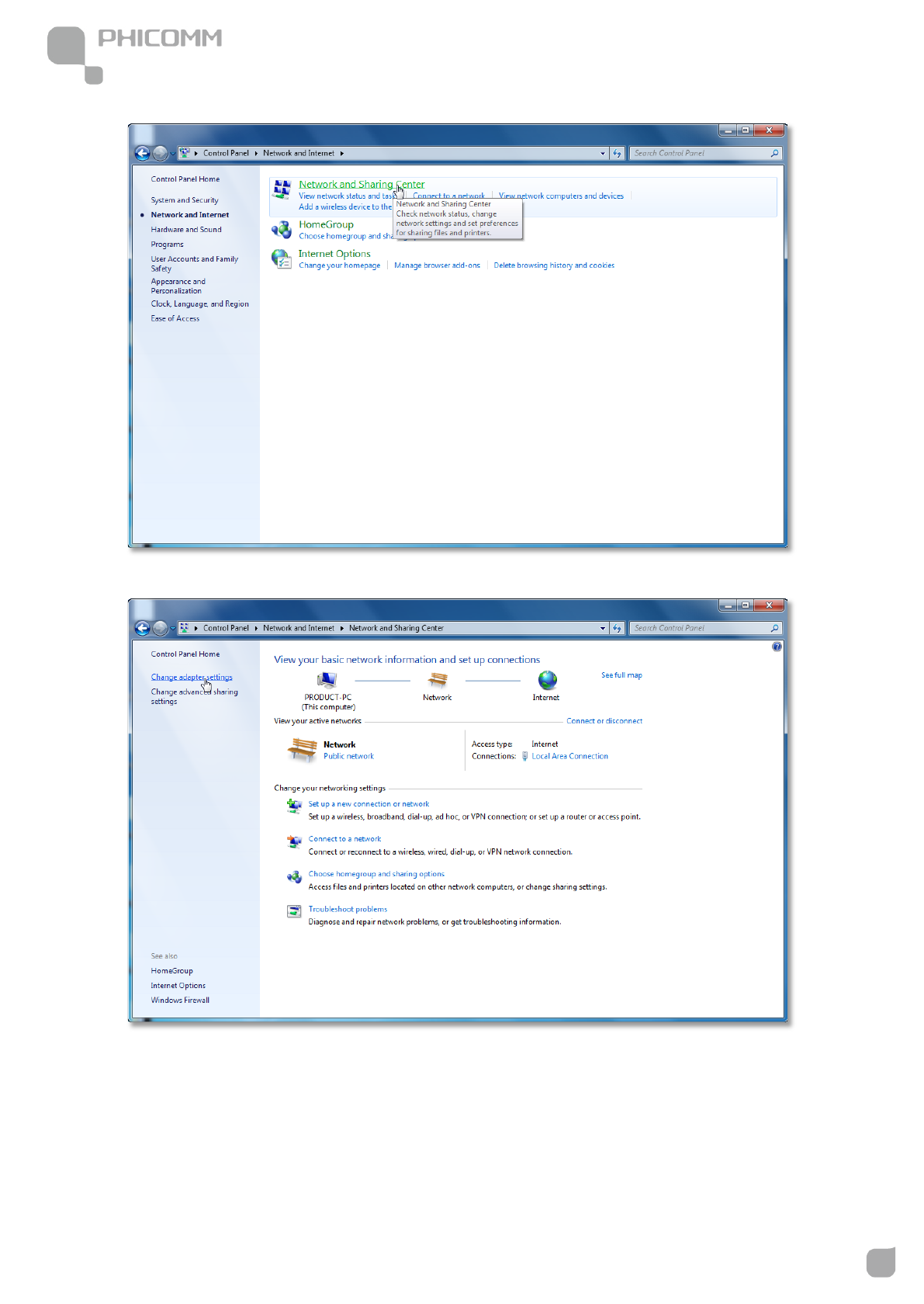

3) Click Network and Sharing Center.
4) Go to Change Adapter Settings (win7)/Manage Network Connections (Vista).
![](/img.php?id=1616603&img=bg11.png)
150Mbps Wireless N Access Point
www.phicomm.com
12
Chapter 3: Hardware Installation
5) Right click Local Area Connection, choose Properties.
6) Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
![](/img.php?id=1616603&img=bg12.png)
150Mbps Wireless N Access Point
www.phicomm.com
13
Chapter 3: Hardware Installation

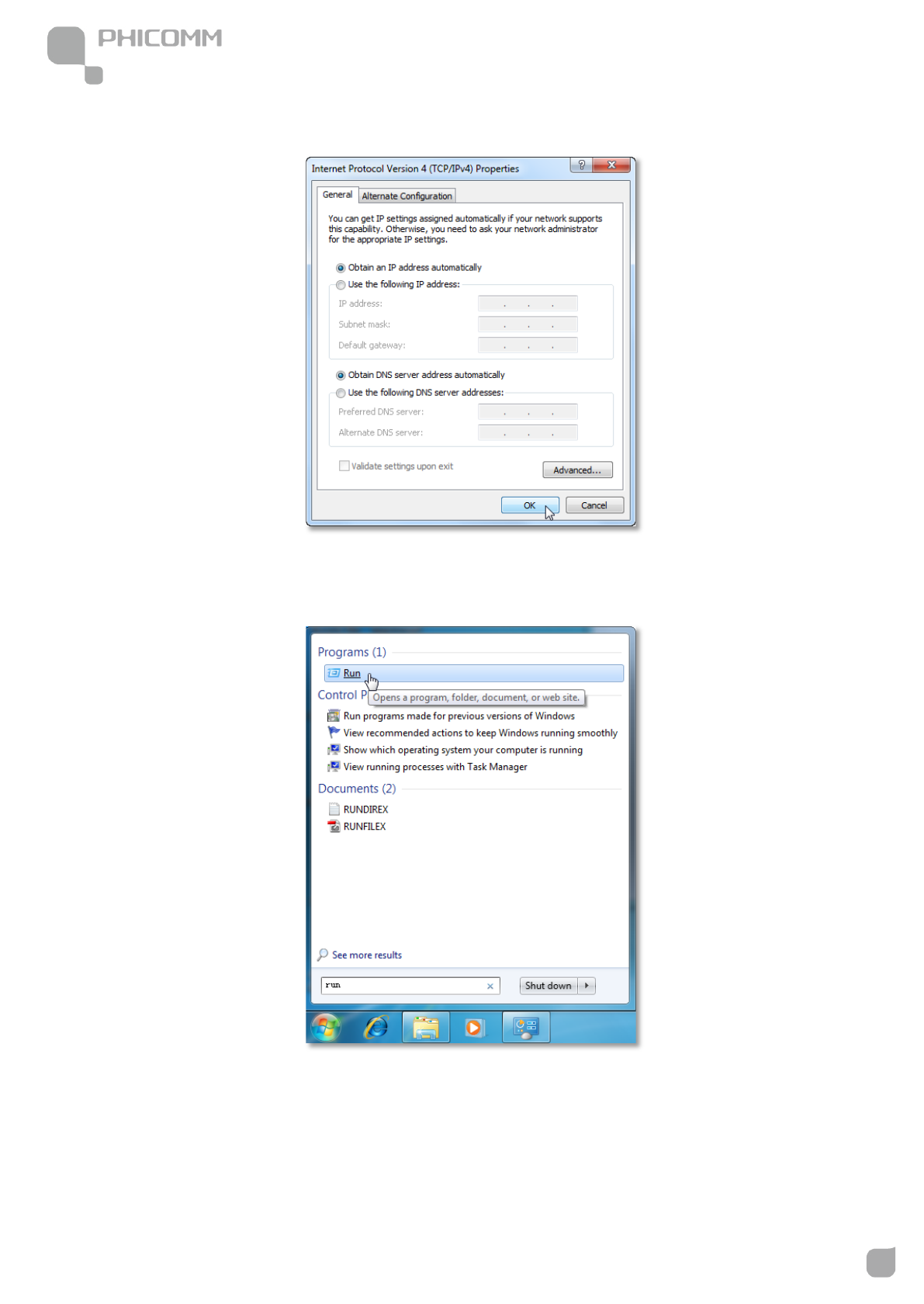

7) Select Obtain an IP address automatically and Obtain DNS server address automatically.
Then click OK.
8) Run the Ping command in the command prompt to verify the network connection. Please
click the Start menu on your desktop, select Run tab, type cmd in the field,
![](/img.php?id=1616603&img=bg13.png)
150Mbps Wireless N Access Point
www.phicomm.com
14
Chapter 3: Hardware Installation
9) Then type ping 192.168.0.254 on the next screen, press Enter. If you can receive reply from
that IP address, that means you have succeeded.
Login
Now we can login to the Web-based Setup Wizard to do advanced configuration.
Step 1: Open your web browser, type the default IP address 192.168.0.254 in the address bar,
press enter.
![](/img.php?id=1616603&img=bg14.png)
150Mbps Wireless N Access Point
www.phicomm.com
15
Chapter 3: Hardware Installation
Step 2: Enter the default Username admin and Password admin.
![](/img.php?id=1616603&img=bg15.png)
150Mbps Wireless N Access Point
www.phicomm.com
16
Chapter 4: Software Configuration
Chapter 4: Software Configuration
After the successful login, you can configure and manage the device. There are six main menus
on the left side of the web management page: Running Status, LAN, Wireless Settings, DHCP
Server, System Tools and Logout. Submenus will be available after clicking one of these main
menus. On the right of the web management page you can see the detailed explanations and
instructions for the corresponding page.
Running Status
Running Status includes three submenus: Running Status, Wireless Basic Settings and
Wireless Security Settings. Click any of them, you will be able to configure the corresponding
function.
![](/img.php?id=1616603&img=bg16.png)
150Mbps Wireless N Access Point
www.phicomm.com
17
Chapter 4: Software Configuration
Running Status
Running Status page shows the current status of the wireless access point.
Wireless Basic Settings
a) AP Mode
By default, the operation mode is AP.
Operation Mode: It displays the current operation mode. Choose the operation mode in the
drop-down list, the corresponding configuration page will pop up.
Note: Since the DHCP server of your original router is enabled and it assigns IP addresses to you
computers automatically so you have to disable the DHCP service on the wireless Access Point
after the settings.
Wireless Status: Choose Enable to enable the wireless function, choose Disable to disable the
![](/img.php?id=1616603&img=bg17.png)
150Mbps Wireless N Access Point
www.phicomm.com
18
Chapter 4: Software Configuration
wireless function.
SSID1: The wireless network name of AP, you can change it to whatever you want.
Display multiple SSID: It supports up to 4 SSIDs. If you enable other SSIDs and tick the Isolated
radio button then computers that connected to different SSIDs become logically separated.
Hidden: Select it to disable SSID broadcast. We do not suggest you tick it.
Isolated: Get different SSIDs become logically separated.
Wireless Mode: If all of the wireless devices connected with this wireless router are in the same
transmission mode (e.g. 802.11b), you can choose "Only" mode (e.g. 11b only). If you have some
devices which use a different transmission mode, choose the appropriate "Mixed" mode.
Channel: The router can choose the best channel automatically in most cases. Please try to
change the wireless channel if you notice interference problems with another nearby access
point, or the wireless performance is not as good as you expected.
SSID Broadcast: If you choose Enabled, the wireless router will broadcast its name (SSID).
MBSSID AP Isolation: Leave it as disable.
BSSID: The physical address of the AP.
Channel Bandwidth: The bandwidth of the wireless channel, you can select 20MHz or
20/40MHz.
MCS: You can leave it as Auto.
Extension Channel: There is assistant channel if frequency bandwidth 20/40 is chosen.
b) Client Mode
SSID/MAC Address: Please click Search then a Station Survey page will pop up. Choose your
wireless network of your main AP/Router and click Connect button. After that you can see that
the SSID and MAC Address of your main AP/Router appeared in the box automatically.
![](/img.php?id=1616603&img=bg18.png)
150Mbps Wireless N Access Point
www.phicomm.com
19
Chapter 4: Software Configuration
Security Mode: You can choose open, shared, WPA-Personal, WPA2-Personal. Please make
sure it matches with the settings in your main AP/Router.
Encryption Type: You can choose WEP, TKIP, and AES. Please make sure it matches with the
settings in your main AP/Router.

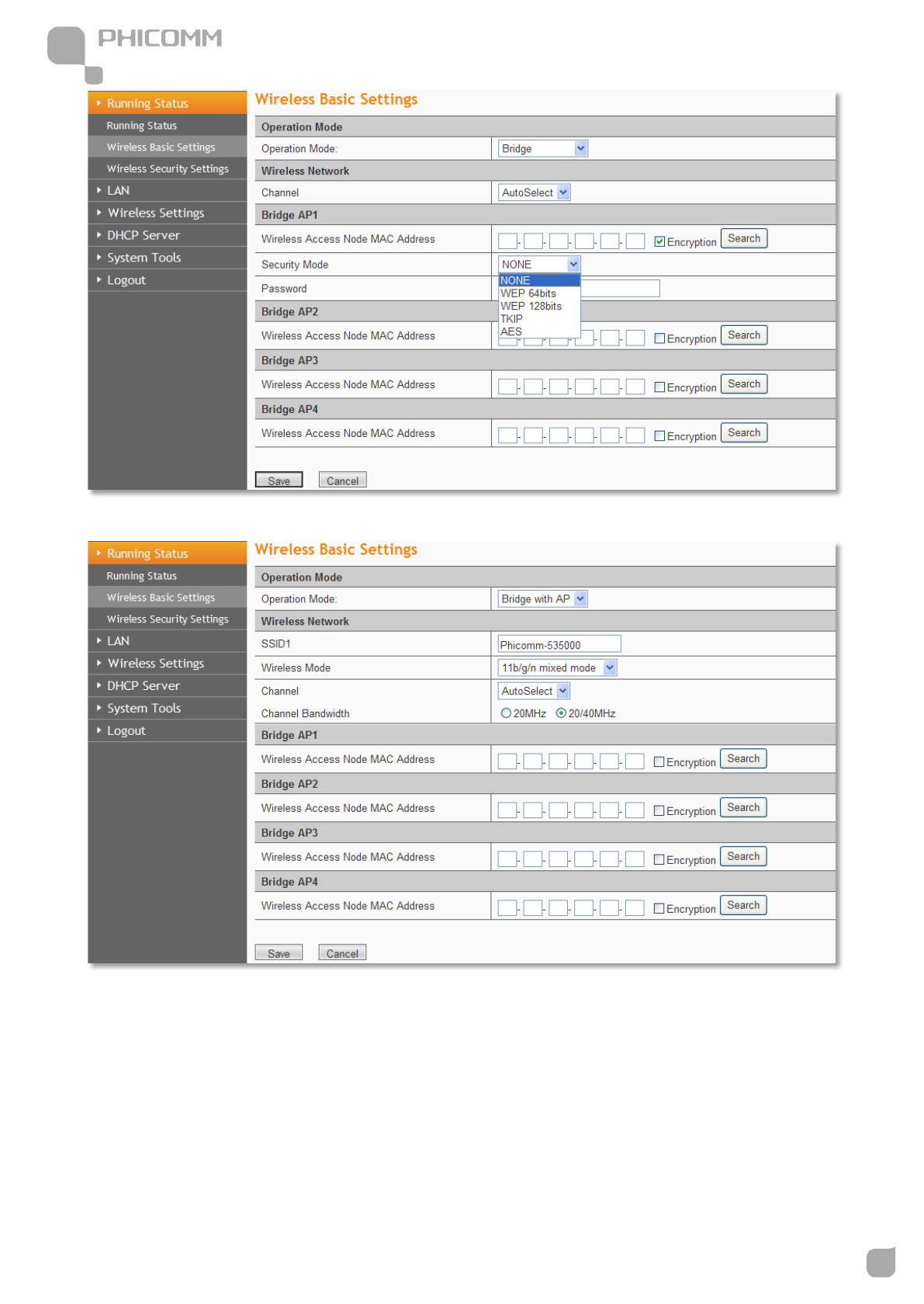

c) Bridge Mode
Wireless Access Node MAC Address: Click search then the Site Survey page pops up.
Choose the wireless network which you’d like to bridge, then click Connect. The Wireless Access
Node Mac Address will be filled in automatically.
Encryption: Tick encryption, then a new page including encryption type and encryption key
pops up. Choose the correct encryption type and enter the key according to the original wireless
network.
![](/img.php?id=1616603&img=bg19.png)
150Mbps Wireless N Access Point
www.phicomm.com
20
Chapter 4: Software Configuration
d) Bridge with AP Mode
SSID1: Show the wireless network name, you can change it to whatever you want.
Wireless Mode: If all of the wireless devices connected with this wireless router are in the same
transmission mode (e.g. 802.11b), you can choose "Only" mode (e.g. 11b only). If you have some
devices which use a different transmission mode, choose the appropriate "Mixed" mode.
Channel: The router can choose the best channel automatically in most cases. Please try to
change the wireless channel if you notice interference problems with another nearby access
point, or the wireless performance is not as good as you expected.
![](/img.php?id=1616603&img=bg1a.png)
150Mbps Wireless N Access Point
www.phicomm.com
21
Chapter 4: Software Configuration
Channel Bandwidth: The bandwidth of the wireless channel, you can select 20MHz or
20/40MHz.
Wireless Access Node Mac Address: The following operations are the same as setting it as
Bridge. Click Search then the Site Survey page pops up. Choose the wireless network which
you’d like to bridge, then click Connect.
e) Repeater Mode
SSID1: If you configured it as a repeater successfully, the SSID1 would be the same with your
main AP/Router.
Wireless Mode: If all of the wireless devices connected with this wireless router are in the same
transmission mode (e.g. 802.11b), you can choose "Only" mode (e.g. 11b only). If you have some
devices which use a different transmission mode, choose the appropriate "Mixed" mode.
Channel: If you configured it as a repeater successfully, the channel would be the same with
your main AP/Router.
Channel Bandwidth: The bandwidth of the wireless channel, you can select 20MHz or
20/40MHz.
SSID: Click Search, the Site Survey page will pop up, please connect to the wireless network
name of your main AP/Router.
MAC Address: The Mac Address will be automatically put in after the above operations.
Channel: The channel will pop up automatically. It is the same as the wireless channel of your
main AP/Router.
Security Mode/Encryption Type: Choose the security mode and encryption type according to
the wireless network you’d like to connect, and enter the password.
![](/img.php?id=1616603&img=bg1b.png)
150Mbps Wireless N Access Point
www.phicomm.com
22
Chapter 4: Software Configuration
Note: If you have no idea about the wireless network, security mode or encryption type please
login to the configuration page of your main AP/Router to check the information.
Wireless Security Settings
Wireless Network Name (SSID): Show the current wireless network name.
Security Mode:
You can choose Disable, Open, Shared, WEPAUTO, WPA-Personal, WPA2-Personal, WPA-
Personal/ WPA2-Personal.
Mode 1: Security Mode > Disable
If you do not want to use wireless security, highlight on this option. That means other people
can connect to your wireless network without entering any password, so it may slow down your
internet speed, it’s recommended strongly to choose one of the following modes to enable
security.
Mode 2: Security Mode > Open/Shared/ WEPAUTO
Open System: Select 802.11 Open System authentications.
Shared Key: Select 802.11 Shared Key authentications.
WEPAUTO: Select Shared Key or Open System authentication type automatically based on the
![](/img.php?id=1616603&img=bg1c.png)
150Mbps Wireless N Access Point
www.phicomm.com
23
Chapter 4: Software Configuration
wireless station's capability and request.
You can select ASCII or Hex format. ASCII Format stands for any combination of keyboard
characters in the specified length. Hex format stands for any combination of hexadecimal digits
(0-9, a-f, A-F) in the specified length.
You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, and null key is not
permitted) or 5 ASCII characters. Or enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F,
and null key is not permitted) or 13 ASCII characters. Or enter 32 hexadecimal digits (any
combination of 0-9, a-f, A-F, and null key is not permitted) or 16 ASCII characters.
Mode 3: Security Mode > WPA-Personal, WPA2-Personal, WPA- Personal/ WPA2-Personal
WPA-Personal: Pre-shared key of WPA.
WPA2-Personal: Pre-shared key of WPA2.
WPA- Personal/ WPA2-Personal: Select WPA-Personal or WPA2-Personal automatically based on
the wireless station's capability and request.
Encryption: You can select TKIP, AES or TKIP+AES.
Password: The password should be between 8 and 63 characters.
Note: You can set different wireless security for each SSID if you have enabled multiple SSIDs.
LAN
MAC Address: The physical address of the router.
IP Address: The LAN IP Address of the router.
Subnet Mask: The Subnet Mask associated with the LAN IP Address.
![](/img.php?id=1616603&img=bg1d.png)
150Mbps Wireless N Access Point
www.phicomm.com
24
Chapter 4: Software Configuration
Note: If you changed the LAN IP Address of the router, please log in this web management page
by the new IP address.
Wireless Settings
Wireless Settings includes six submenus: Wireless Basic Settings, Wireless Security Settings,
Wireless MAC Address Filter, Advanced Wireless Settings, Wireless Clients List and WPS
Settings. Click any of them, you will be able to configure the corresponding function.
Wireless Basic Settings
Please refer to introduction in Running Status (page 17).
Wireless Security Settings
Please refer to introduction in Running Status (page 22).
Wireless MAC Address Filter
You can allow/deny the computers connecting to the router wirelessly by entering the MAC
address with this feature.
If you only want MAC address (00:0A:EB:00:07:5F) to access the Wireless Network while others
cannot:
![](/img.php?id=1616603&img=bg1e.png)
150Mbps Wireless N Access Point
www.phicomm.com
25
Chapter 4: Software Configuration
1: Choose Allow for the security policy.
2: Fill MAC address 00:0A:EB:00:07:5F in and click Save.
If you want MAC address (00:0A:EB:00:07:5F) cannot access the Wireless Network while others
can:
1: Choose Reject for the security policy.
2: Filling MAC address 00:0A:EB:00:07:5F in and click Save.
Advanced Wireless Settings
This section is to configure the advanced wireless setting of the Router, if you are not familiar
with the setting items in this page, it’s strongly recommended to keep the provided default
values, otherwise it may result in lower wireless network performance.
BG Protection Mode: Leave it as Auto.
Beacon Interval: The interval for sending packets of the Beacon frame. Its value range is
20-1000 in unit of ms. The default is 100.
DTIM: It indicates the interval of the delivery traffic indication message (DTIM). The value range
is between 1 and 255 milliseconds. The default value is 1.
Fragment Threshold: Set the fragmentation threshold. Packets larger than the size set in this
field will be fragmented. Too many data packets will lower the Wireless Network performance.
The Fragment Threshold value should not be set too low. The default value is 2346.
RTS Threshold: Set the RTS (Request to send threshold.) threshold. When the packet size is
larger than the preset RTS size, the wireless router will send a RTS to the destination station to
start a negotiation. The default value is 2347.
![](/img.php?id=1616603&img=bg1f.png)
150Mbps Wireless N Access Point
www.phicomm.com
26
Chapter 4: Software Configuration
TX Power: Wireless transmission power. You can choose from 1 to 100.
Short Preamble: Leave it as enable.
Pkt_Aggregate: Leave it as disable.
DFS RD Region: Choose the region for the wireless network.
Enable WMM: If you select it, the router will process the packets with the priority first. You are
recommended to select this option.
APSD Capable: It is used for auto power-saved service. It is Disabled by default.
Multicast-to-Unicast: Leave it as enable.
Wireless Clients List
You can check the wireless clients of the access point in this page.
WPS Settings
The WPS function can help you add a new device to the network quickly. If the client device
supports Wi-Fi Protected Setup and is equipped with a WPS button, you can add it to the
network by pressing the WPS button on the device and then press the button on the router
![](/img.php?id=1616603&img=bg20.png)
150Mbps Wireless N Access Point
www.phicomm.com
27
Chapter 4: Software Configuration
within two minutes. The status LED on the router will light green for five minutes if the device
has been successfully added to the network; If your client asks for the Router’s PIN number, enter
the router’s PIN number into your client device; If your client device has a WIFI Protected Setup
PIN number, enter that number in the PIN box.
WPS (Wi-Fi Protected Setting): Easy and quick to establish the connection between wireless
network client and the router through encrypted contents. The users only enter the PIN code to
configure without selecting encryption method and entering secret keys by manual.
WPS Mode: Supports two ways to configure WPS settings: PBC (Push-Button Configuration) and
PIN code.
PBC: Select the PBC button or press the WPS button on the panel of the Router. (Press WPS
button and WPS LED will blink, which means the WPS function is enabled. During the blinking
time, press the WPS button on another network device, WPS LED light will become solid when
the connection succeeds.)
PIN: If this option is enabled, you need to enter a wireless clients PIN code in the blank and keep
the same code in the client.
DHCP Server
There are three submenus under the DHCP menu: DHCP, Address Reservation and DHCP
Clients List. Click any of them, and you will be able to configure the corresponding function.
DHCP
If you enable DHCP server of the router, the DHCP server automatically configures the TCP/IP
protocol for each computer in the LAN.
![](/img.php?id=1616603&img=bg21.png)
150Mbps Wireless N Access Point
www.phicomm.com
28
Chapter 4: Software Configuration
DHCP Server: If you disable the server, please make sure you have another DHCP server in your
network.
Start IP Address: The first address in the IP Address pool.
End IP Address: The last address in the IP Address pool.
Lease Time: It is the time interval that server will change to use another DHCP address.
Default Gateway: (Optional) Suggest to input the IP Address of the LAN port of the Router.
Primary DNS Server: (Optional) Input the DNS IP address provided by your ISP. Or consult your
I S P.
Secondary DNS Server: (Optional) You can input the IP Address of another DNS server if your
ISP provides two DNS servers.
Note: To use the DHCP server function of the router, please configure all computers in the LAN
as Obtain an IP Address automatically mode. This function will take effect after the router
rebooted.
Address Reservation
When you specify a reserved IP address for a PC in the LAN, that PC will always receive the same
IP address each time when it accesses the DHCP server. Reserved IP addresses could be assigned
to servers that require permanent IP settings.
IP Address: The IP address that the Router reserved.
MAC Address: The MAC Address of the PC that you want to reserve for an IP address.
Note: This function takes effect only when the DHCP service is enabled.
DHCP Client List
Here you can see the information of DHCP Clients.
![](/img.php?id=1616603&img=bg22.png)
150Mbps Wireless N Access Point
www.phicomm.com
29
Chapter 4: Software Configuration
Refresh: Click Refresh button to refresh the DHCP clients list.
System Tools
There are seven submenus under the System Tools: Factory Defaults, Backup and Restore,
Password, System Log, Traffic Statistics, Firmware Upgrade and Reboot. Click any of them,
and you will be able to configure the corresponding function.
Factory Defaults
Click Restore All Settings button to reset all configuration settings to their default values.
Note: All changed settings will be lost when defaults are restored.
Backup and Restore
In the Export Settings column, click Backup button to save all configuration settings to your
local computer as a file.
To restore the Router's configuration, follow these instructions:
1) Click Browse button to find the configuration file which you want to restore.
![](/img.php?id=1616603&img=bg23.png)
150Mbps Wireless N Access Point
www.phicomm.com
30
Chapter 4: Software Configuration
2) Click Save button to update the configuration with the file whose path is the one you have
input or selected in the blank.
Note: Keep the power on during the process, in case of any damage.
Password
You can change the log in password for this web management page, not your ISP password or
the wireless password.
System Log
The system log is a detailed record of the websites that users on your network have accessed or
attempted to access. You can enable remote System Log function to view the log in remote
place.
Enable remote System Log: Check the radio button to enable remote System Log.
Save: Click Save button to save your Log.
![](/img.php?id=1616603&img=bg24.png)
150Mbps Wireless N Access Point
www.phicomm.com
31
Chapter 4: Software Configuration
Clean: Click Clean button to clear all shown information.
Traffic Statistics
This page displays the current system memory usage, WLAN, LAN and WAN networks to send
and receive data packets to the number.
Firmware Upgrade
You can upgrade the router to the lasted version in this page, please download a most recent
firmware upgrade file from our website. After downloading the file, you need to extract the zip
file before upgrading the router. Browse for the upgrade file, then click Upgrade button.
Caution! Once you click Upgrade button, do not interrupt the process, loss of power during the
upgrade could damage the Router.
![](/img.php?id=1616603&img=bg25.png)
150Mbps Wireless N Access Point
www.phicomm.com
32
Chapter 4: Software Configuration
Note:
• Router might be changed to factory default settings after upgrade, please backup in
advance.
• During the updating, please do not turn off the power.
• Please make sure the software version is matching with the existing hardware.
Reboot
Click Reboot button to reboot the Router.
Logout
Click to logout from the router’s web management page.
.
![](/img.php?id=1616603&img=bg26.png)
150Mbps Wireless N Access Point
www.phicomm.com
33
Chapter 5: PoE (Power over Ethernet)
Chapter5: PoE (Power over Ethernet)
Equipped with Power Injector, the Access Point can be placed at any position regardless of the
location of the Power Adapter (within a certain distance range).
Hardware Overview of PoE
DC: Connect to the provided power adapter.
PoE: Connect to the LAN port of AP.
LAN: Connect to the Ethernet device with CAT5 Ethernet cable to transmit data.
Installation with PoE Injector
1. Turn off all your network devices, including the Switch, power injector and the AP.
2. Connect your Modem Router to the LAN port on the power injector with an Ethernet cable.
3. Plug the provided power adapter into the DC jack on the power injector, and the other end to
a standard electrical wall socket.
4. Connect your AP to the PoE (LAN) port on the power injector with an Ethernet cable.
Note: Provided with the power of DC 5V/1A, the cable between PoE port of passive PoE Injector
and the LAN port on Access Point is not more than 30m long, and all cables connected to the
passive PoE Injector should be no more than 100m long.
![](/img.php?id=1616603&img=bg27.png)
150Mbps Wireless N Access Point
www.phicomm.com
34
Chapter 6: Specification
Chapter6: Specification
Wireless
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Data Rate 11n: 150Mbps, 11g: 54Mbps, 11b: 11Mbps
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power < 20dBm
Modulation Type OFDM/CCK/16-QAM/64-QAM
Receive Sensitivity 150M: -68dBm@10% PER, 108M: -68dBm@10% PER, 54M: -68dBm@10% PER,
11M: -85dBm@8% PER, 6M: -88dBm@10% PER
Wireless Security 64/128-bit WEP, WPA/WPA2-Enterprise, WPA/WPA2-Personal (TKIP/AES)
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista and Windows 7, MAC® OS, NetWare®,
UNIX® or Linux
Hardware
Interface 1 x 10/100Mbps LAN port with passive PoE supported
Buttons ON/OFF Button, WPS Button, Reset Button
Antenna 1 x3dBi Detachable Omni-directional Antenna
Power Supply DC 12V 0.5A
Dimensions(W x D x H) 165mm x 106mm x 26.5mm
Others
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -40°C~70°C (-40°F~158°F)
Relative Humidity 10%~90%, non-condensing
Storage Humidity 5%~95%, non-condensing
Certifications CE, RoHS
Package Contents
1 x Wireless N Access Point
1 x Power Adapter
1 x Resource CD
1 x Quick Installation Guide
1 x Ethernet Cable
1 x Passive PoE Injector
*All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without
notice, and actual product appearance may differ from that depicted herein.
![](/img.php?id=1616603&img=bg28.png)
150Mbps Wireless N Access Point
www.phicomm.com
35
Appendix A: Troubleshooting
Appendix A: Troubleshooting
1. How do I restore the Wireless Access Point to factory default settings?
When the Wireless Access Point is powered on, press and hold the reset button on the rear
panel for 8~10 seconds, after all the lights start flashing, release it.
2. What can I do if I forget my password?
Restore the wireless Access Point to factory default settings. If you do not know how to do it,
please refer to the answer for question 1.
Use the default username and password: admin, admin.
Reconfigure the wireless Access Point since you have ever reset it.
3. I cannot login the web management page.
Check the computer’s IP address, make sure the IP address is correct, for details please refer
to the section of Configure the Computers IP Address in this manual.
Make sure you put 192.168.0.254 into the address bar, not the search bar.
Check your web browser, make sure the Proxy server is unchecked. Take Internet Explorer as
an example, go to Tools>Internet Options>Connections>LAN Settings, uncheck Use a
proxy server for your LAN.
If it tells you the username or password is error, and you cannot remember the new one,
please reset router by pressing reset button for at least 6 seconds, and then try to login with
default username and password (admin/admin).
![](/img.php?id=1616603&img=bg29.png)
150Mbps Wireless N Access Point
www.phicomm.com
36
Appendix B: Certification
Appendix B: Certification
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
• Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
FCC Caution
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
• For product available in the USA market, only channel 1~11 can be operated. Selection of
other channels is not possible.
• This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
• This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
![](/img.php?id=1616603&img=bg2a.png)
150Mbps Wireless N Access Point
www.phicomm.com
37
Appendix B: Certification
• This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
CE Mark Warning
Marking with the above symbol indicates compliance with the Essential Requirements of the
R&TTE Directive of the European Union (1999/5/EC).
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU Directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and public
service
France
Outdoor use limited to 10 mW
e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz band has
been ongoing in recent years to allow current relaxed
regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area within
a radius of 20 km from the centre of Ny-Ålesund
Russian
Federation None Only for indoor applications
Note: Please don’t use the product outdoors in France.
![](/img.php?id=1616603&img=bg2b.png)
150Mbps Wireless N Access Point
www.phicomm.com
38
Appendix C: Glossary
Appendix C: Glossary
802.11b: The 802.11b standard specifies a wireless networking at 11 Mbps using
direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio
spectrum at 2.4GHz, and WEP encryption for security. 802.11b networks are also referred to as
Wi-Fi networks.
802.11g: Specification for wireless networking at 54 Mbps using direct-sequence
spread-spectrum (DSSS) technology, using OFDM modulation and operating in the unlicensed
radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP
encryption for security.
Access Point (AP): A wireless LAN transceiver or base station that can connect a wired LAN to
one or many wireless devices. Access points can also bridge to each other.
DNS (Domain Name System): An Internet Service that translates the names of websites into IP
addresses.
Domain Name: A descriptive name for an address or group of addresses on the Internet.
DoS (Denial of Service): A hacker attack designed to prevent your computer or network from
operating or communicating.
DSL (Digital Subscriber Line): A technology that allows data to be sent or received over
existing traditional phone lines.
ISP (Internet Service Provider): A company that provides access to the Internet.
MTU (Maximum Transmission Unit):The size in bytes of the largest packet that can be
transmitted.
SSID: A Service Set Identification is a thirty-two character (maximum) alphanumeric key
identifying a wireless local area network. For the wireless devices in a network to communicate
with each other, all devices must be configured with the same SSID. This is typically the
configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access
Point and to the wireless network name.
WEP (Wired Equivalent Privacy): A data privacy mechanism based on a 64-bit or 128-bit or
152-bit shared key algorithm, as described in the IEEE 802.11 standard.
Wi-Fi: A trade name for the 802.11b wireless networking standard, given by the Wireless
Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group
promoting interoperability among 802.11b devices.
WLAN (Wireless Local Area Network): A group of computers and associated devices
communicate with each other wirelessly, which network serving users are limited in a local area.
![](/img.php?id=1616603&img=bg2c.png)
150Mbps Wireless N Access Point
www.phicomm.com
39
Appendix C: Glossary
WPA (Wi-Fi Protected Access): WPA is a security technology for wireless networks that improves
on the authentication and encryption features of WEP (Wired Equivalent Privacy). In fact, WPA
was developed by the networking industry in response to the shortcomings of WEP. One of the
key technologies behind WPA is the Temporal Key Integrity Protocol (TKIP). TKIP addresses the
encryption weaknesses of WEP. Another key component of WPA is built-in authentication that
WEP does not offer. With this feature, WPA provides roughly comparable security to VPN
tunneling with WEP, with the benefit of easier administration and use. This is similar to 802.1x
support and requires a RADIUS server in order to implement. The Wi-Fi Alliance will call this,
WPA-Enterprise. One variation of WPA is called WPA Pre Shared Key or WPA-PSK for short, this
provides an authentication alternative to an expensive RADIUS server. WPA-PSK is a simplified
but still powerful form of WPA most suitable for home Wi-Fi networking. To use WPA-PSK, a
person sets a static key or "passphrase" as with WEP. But, using TKIP, WPA-PSK automatically
changes the keys at a preset time interval, making it much more difficult for hackers to find and
exploit them. The Wi-Fi Alliance will call this WPA-Personal.
![](/img.php?id=1616603&img=bg2d.png)
Shanghai Feixun Communication Co., Ltd.
E-mail: support@phicomm.com
Website: www.phicomm.com
Copyright © 2011 Shanghai Feixun Communication Co., Ltd. All rights reserved.
