150Mbps Wireless N
ADSL2/2+ Modem Router
FD-364N
User Manual
User Manual / V2.0
2
Copyright Statement
PHICOMM is the registered trademark of Shanghai Feixun Communication Co., Ltd. Other
trademark or trade name mentioned herein are the trademark or registered trademark of the
company. Copyright of the whole product as integration, including its accessories and software,
belongs to Shanghai Feixun Communication Co., Ltd. Without the permission of Shanghai
Feixun Communication Co., Ltd., individual or party is not allowed to copy, plagiarize, imitate or
translate it into other languages.
All the photos and product specifications mentioned in this manual are for references only, as
the upgrading of software and hardware, there will be changes. And if there are changes,
PHICOMM is not responsible for informing in advance. If you want to know more information
about our products, please visit our website at www.phicomm.com.
![](/img.php?id=1660420&img=bg3.png)
i
Table of Contents
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
CONTENTS
Chapter 1: Introduction
.............................................. 1
Product Overview ............................................................................................... 1
Main Features ....................................................................................................... 2
Chapter 2: Hardware Installation
................................... 3
Front Panel ............................................................................................................ 3
Rear Panel .............................................................................................................. 4
Physical Connection .......................................................................................... 5
Chapter 3: Quick Installation
........................................ 7
Configure Your PC .............................................................................................. 7
Install Your Modem Router .......................................................................... 13
Chapter 4: Software Configuration
............................... 17

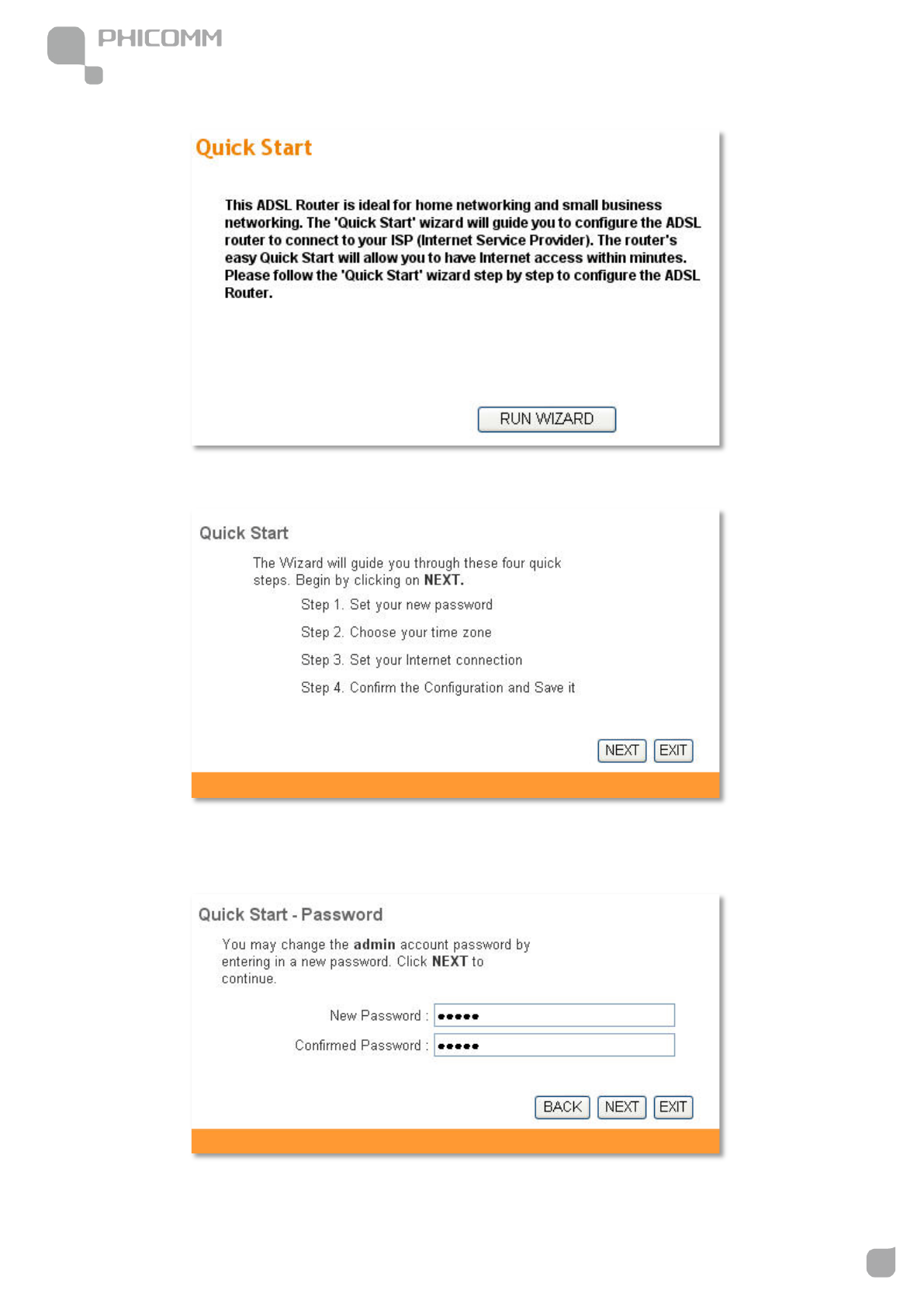

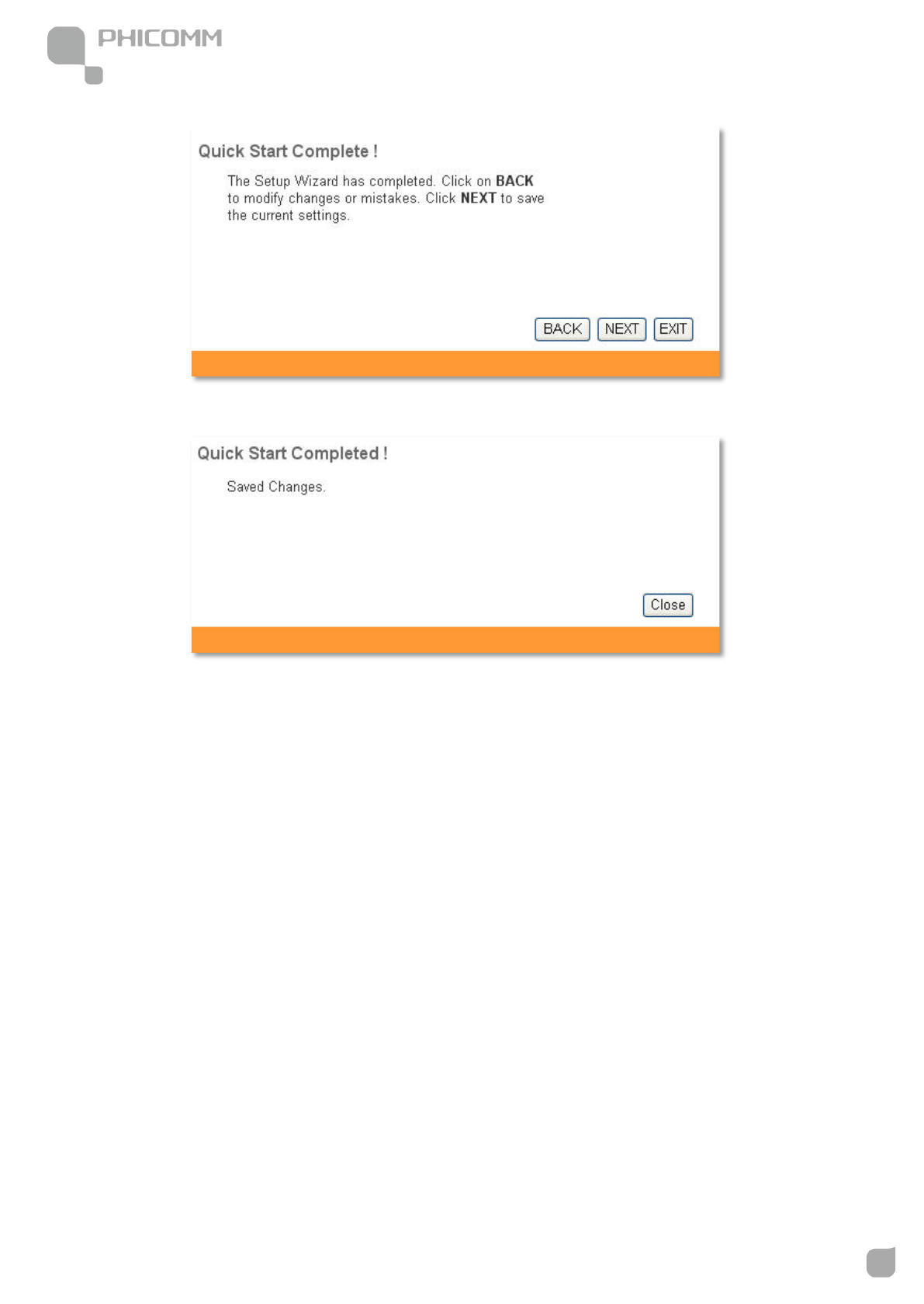

Quick Start .......................................................................................................... 17

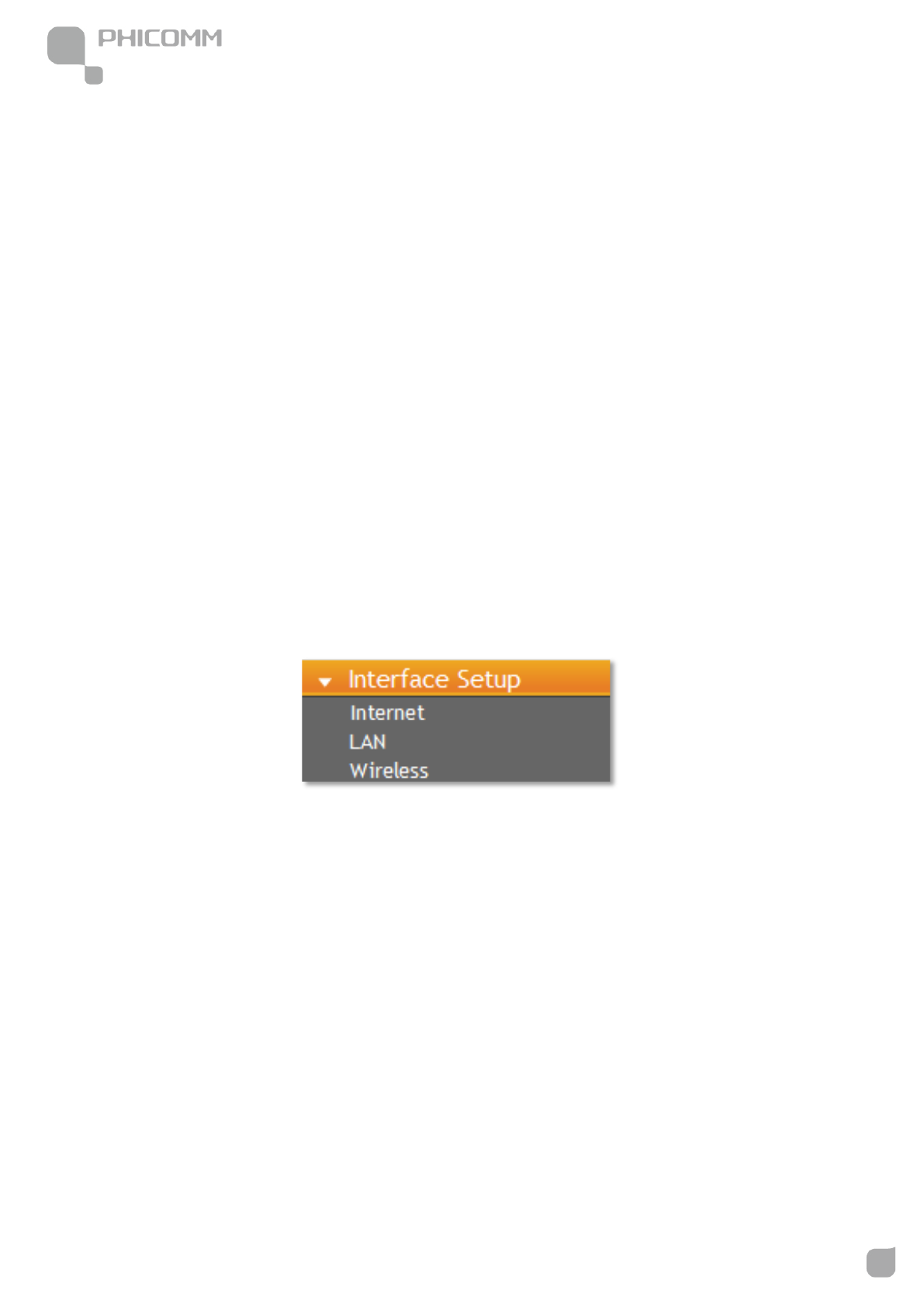

Interface Setup ................................................................................................. 17

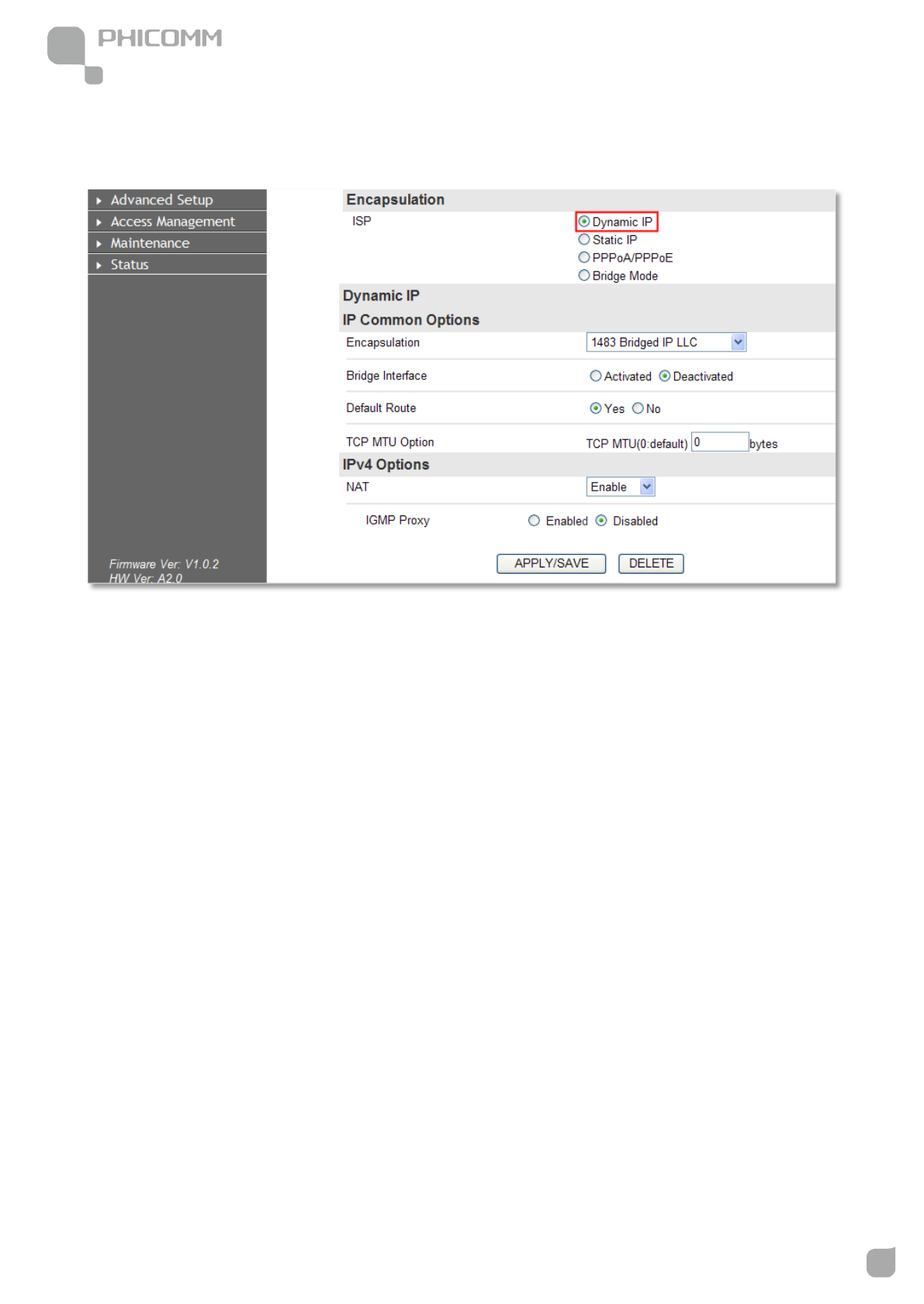

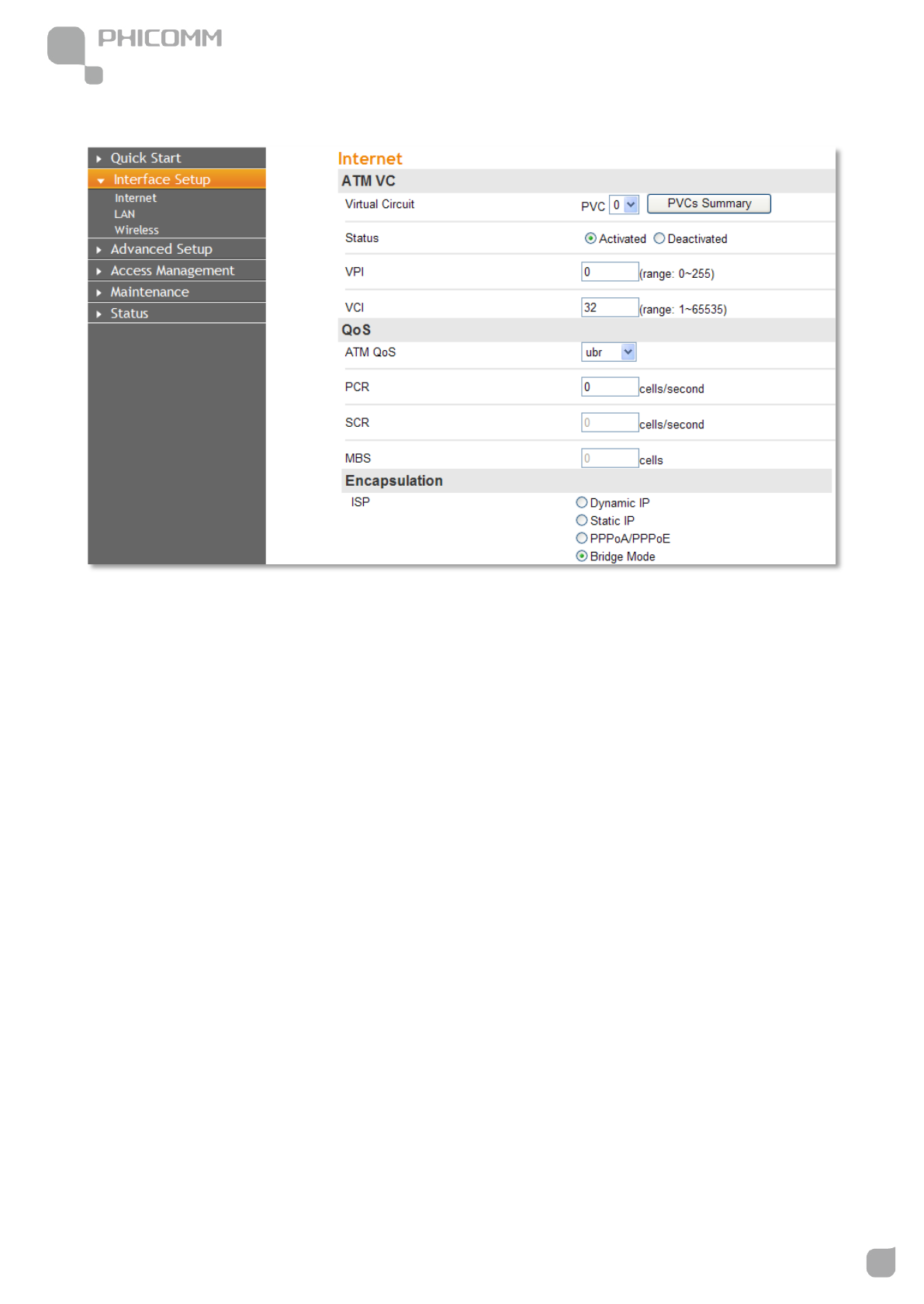

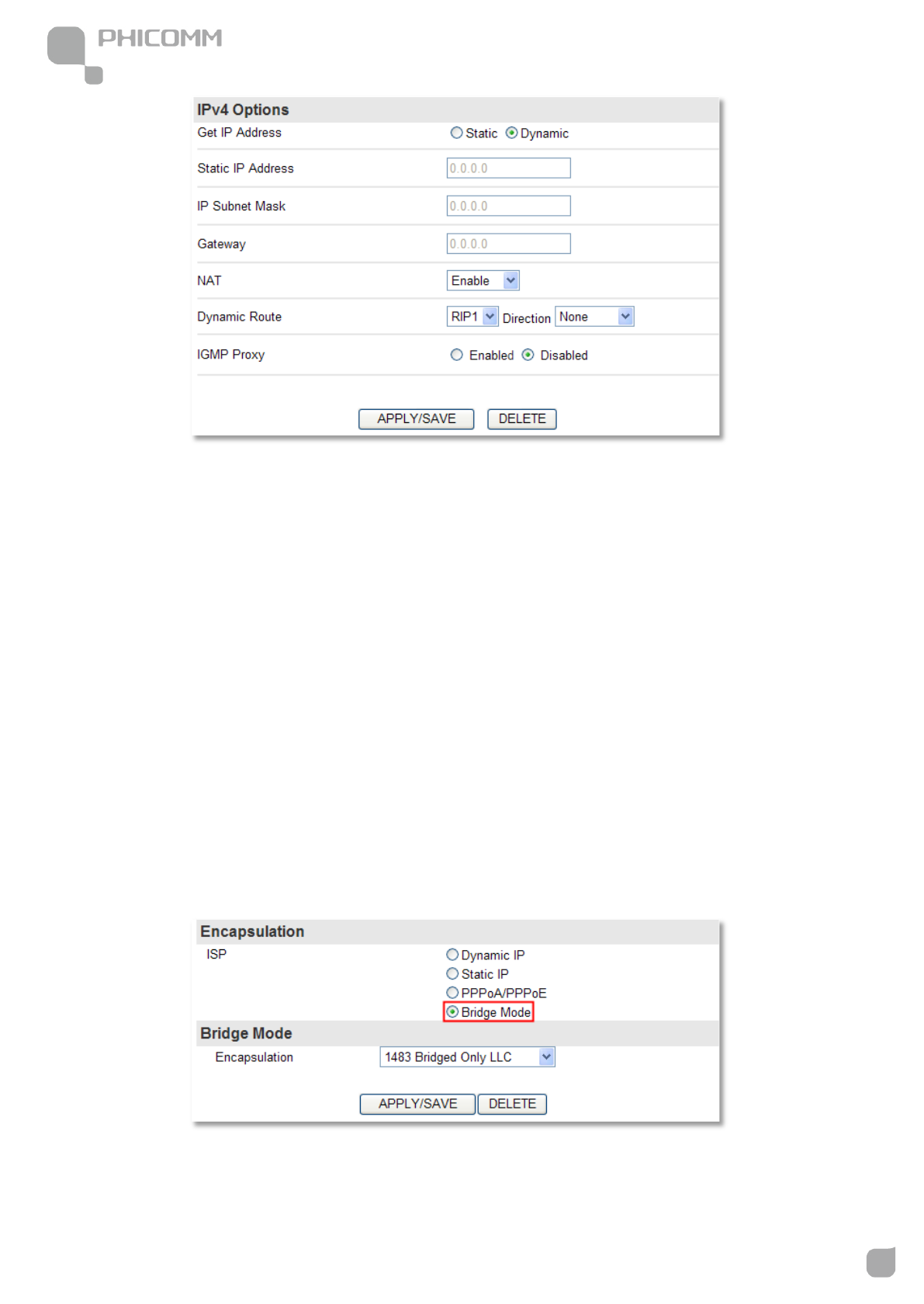

Internet .................................................................................................................................... 18

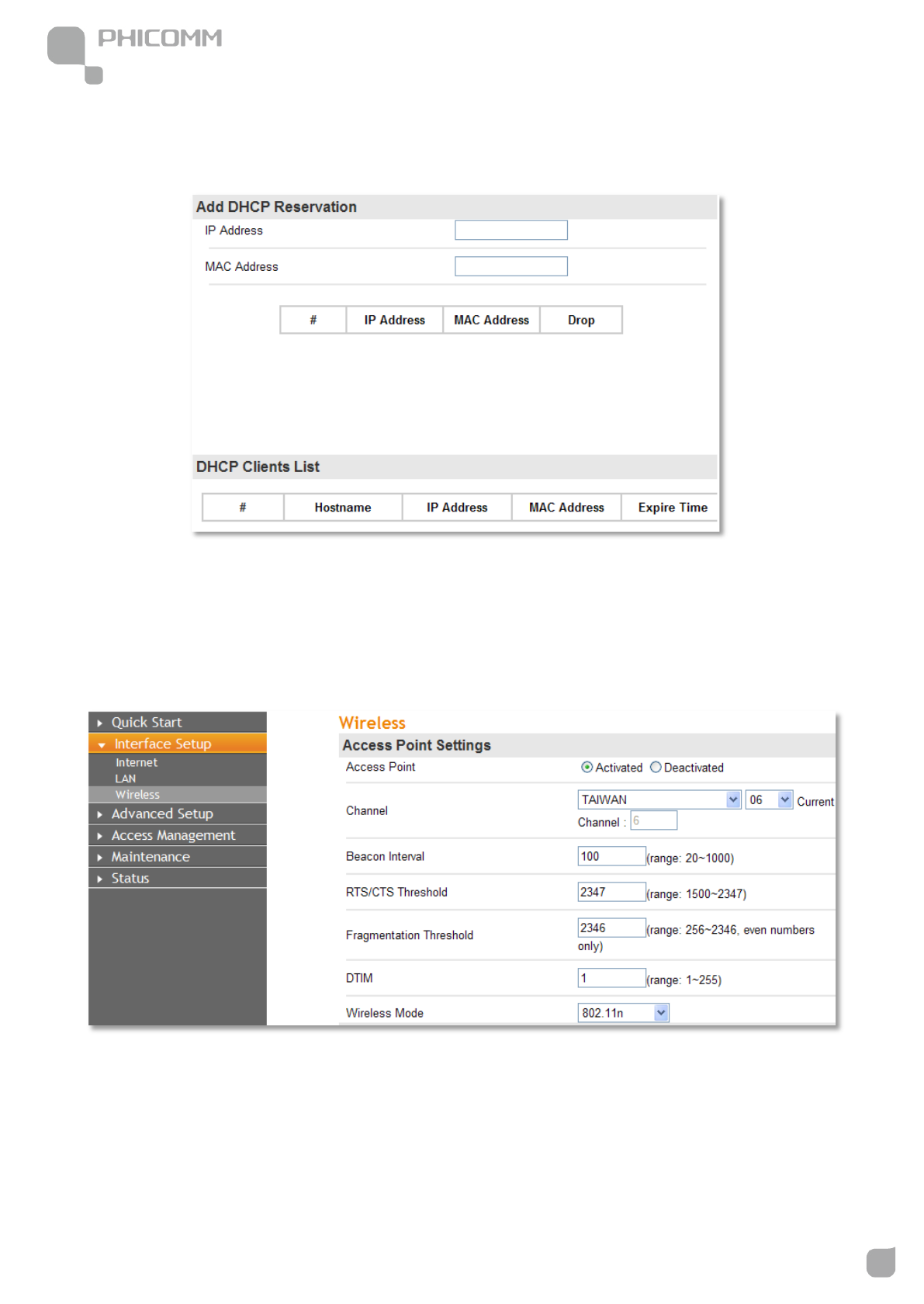

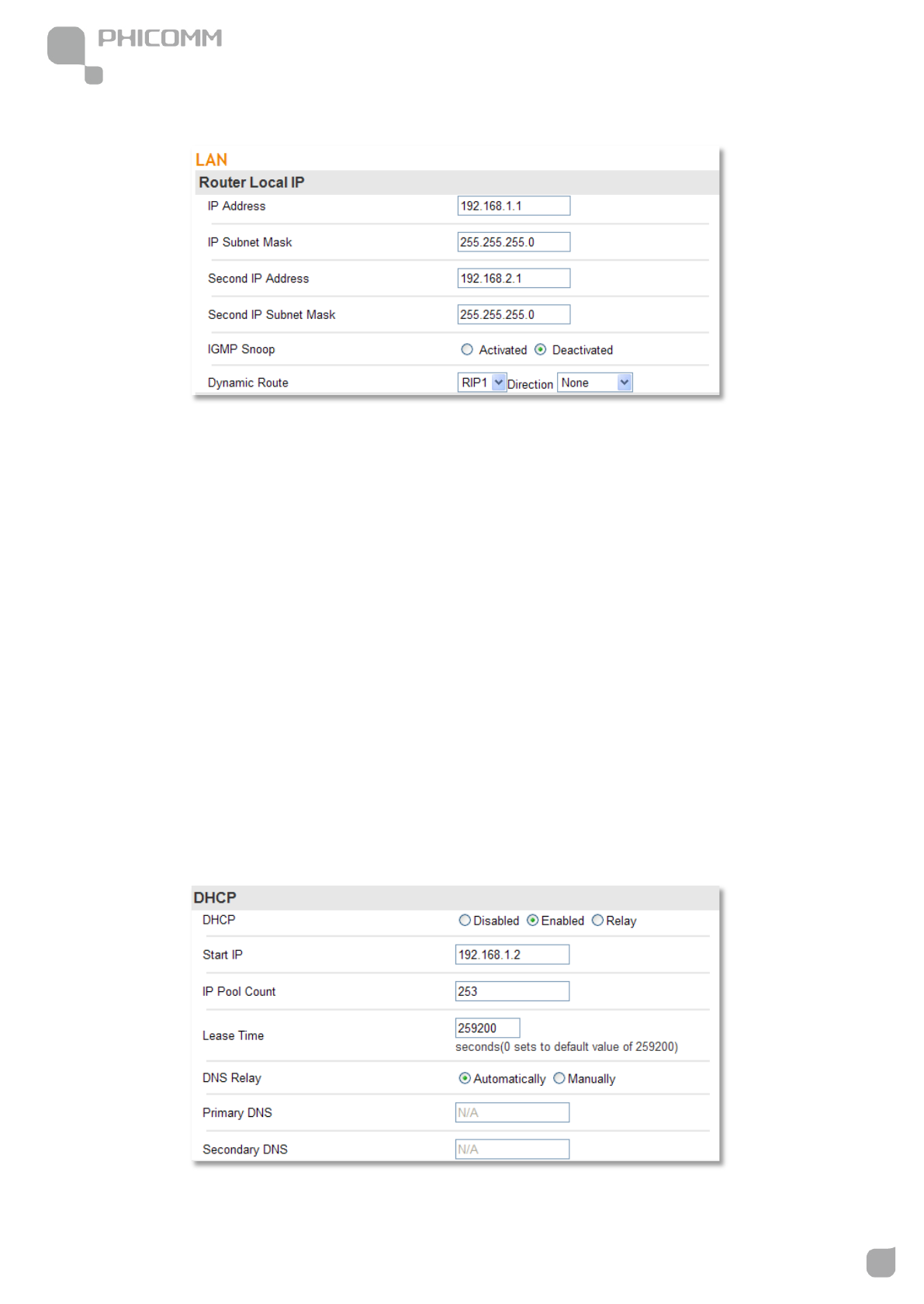

LAN ............................................................................................................................................ 23
Wireless ................................................................................................................................... 25
Advanced Setup ............................................................................................... 29
Firewall .................................................................................................................................... 30
Routing .................................................................................................................................... 30
![](/img.php?id=1660420&img=bg4.png)
ii
Table of Contents
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com

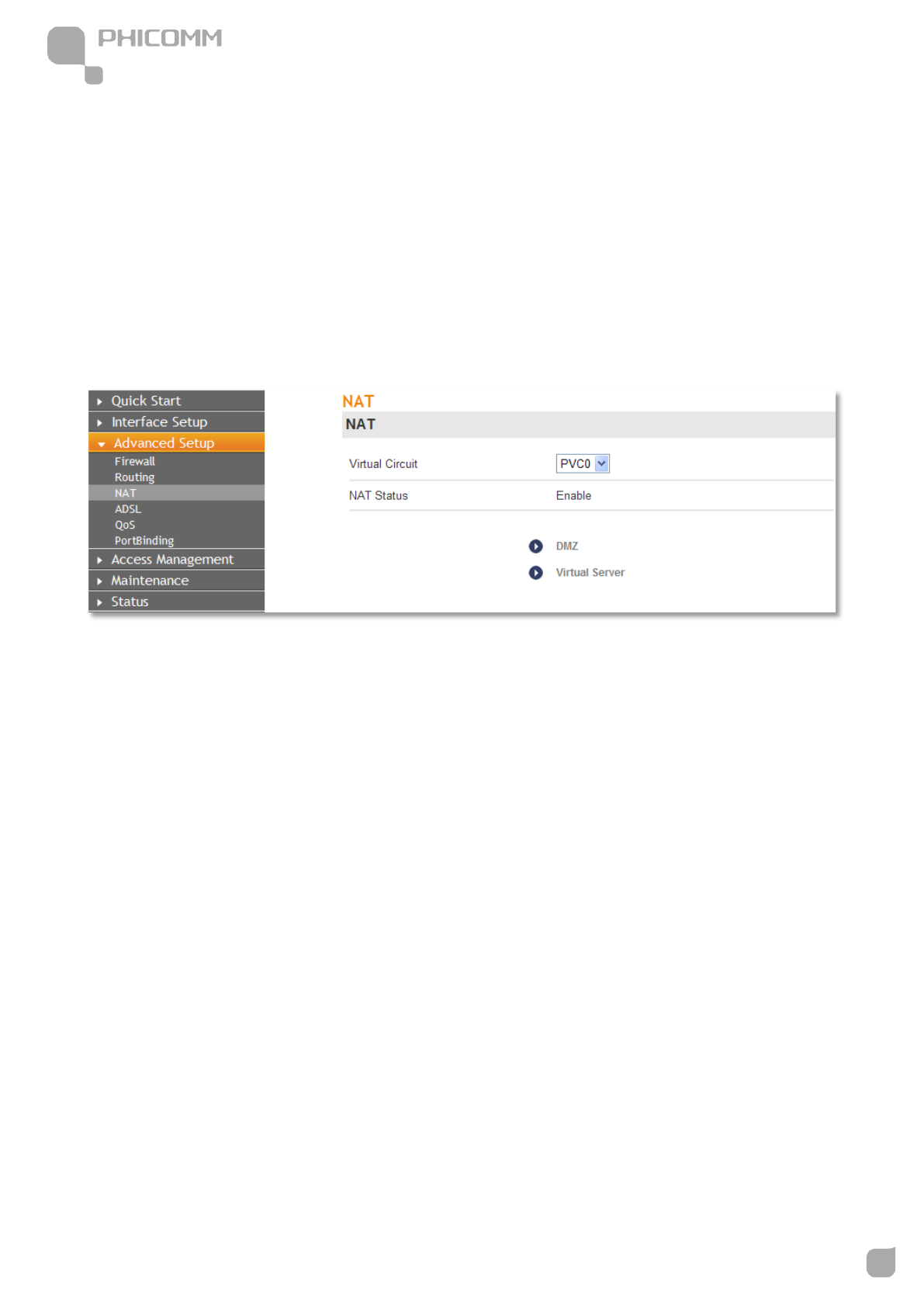

NAT ............................................................................................................................................ 31

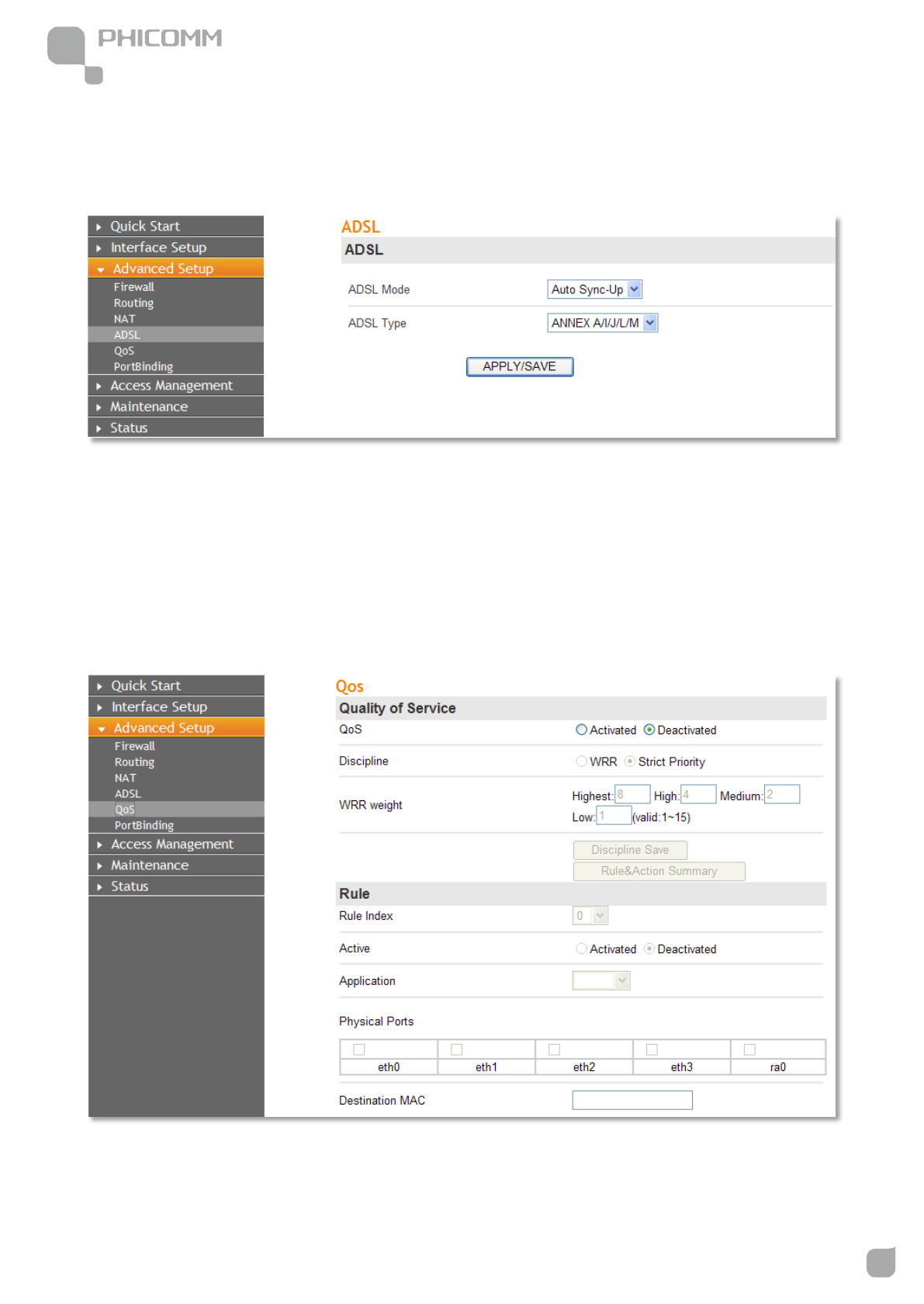

ADSL ......................................................................................................................................... 33

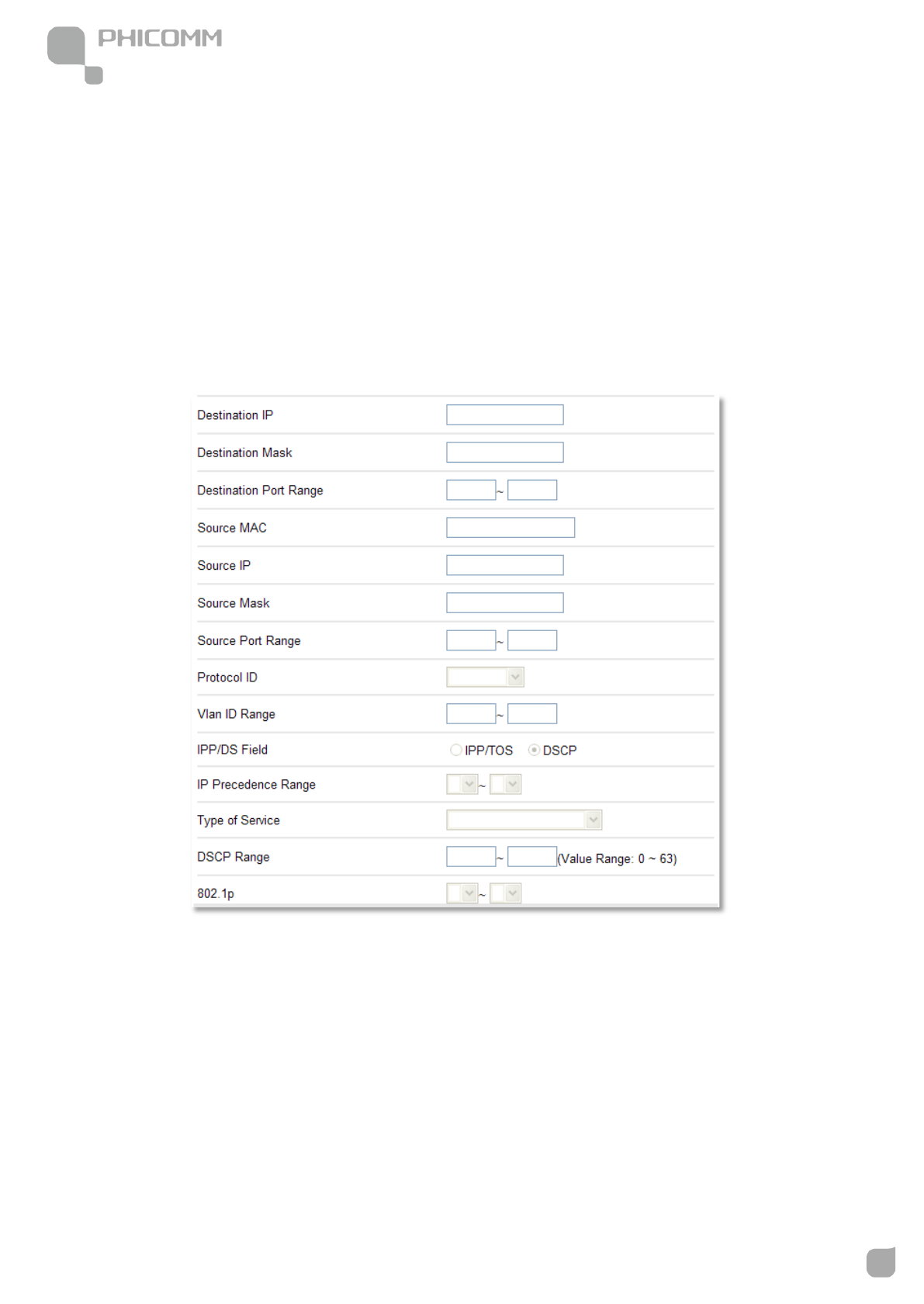

QoS ............................................................................................................................................ 33

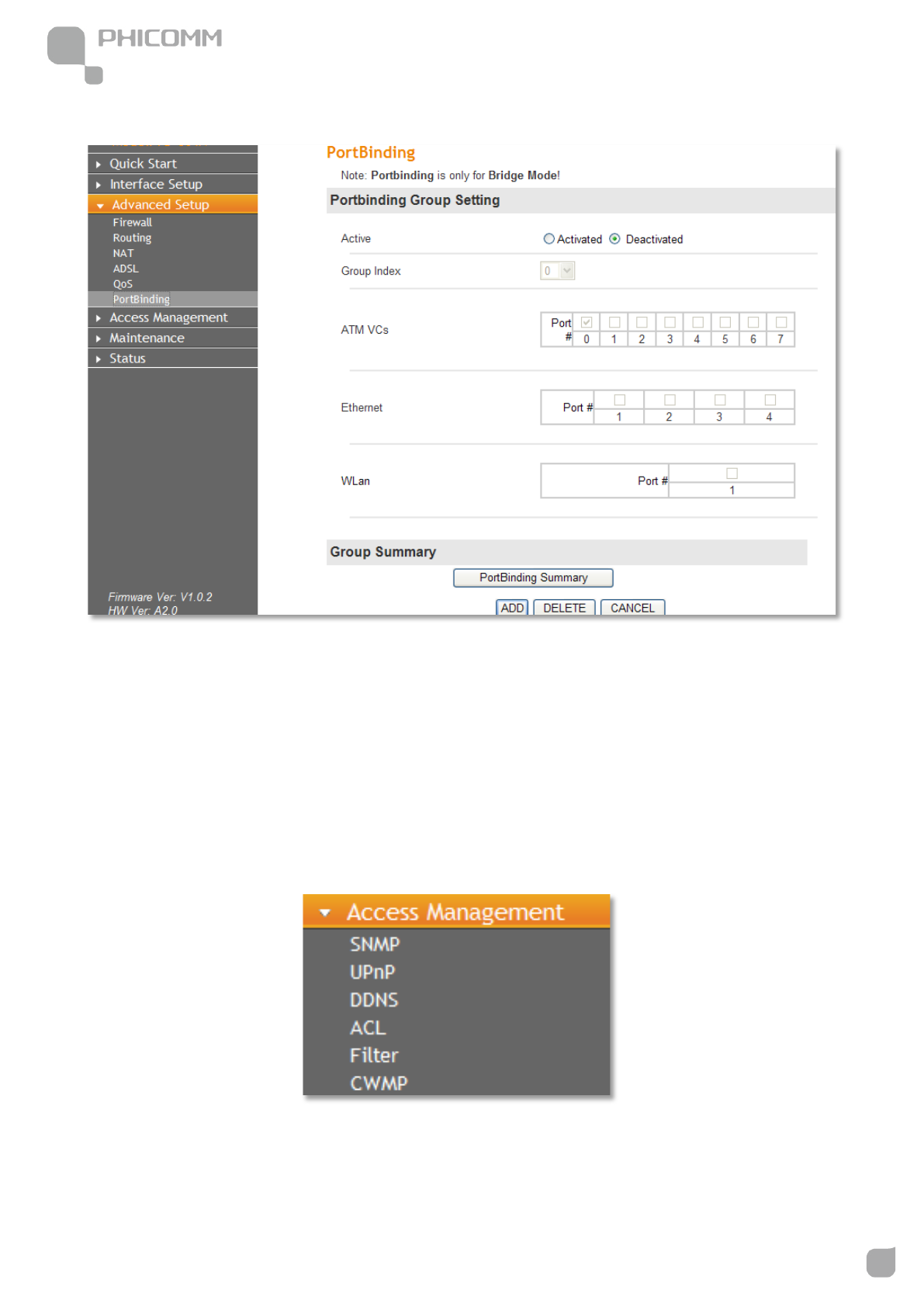

PortBinding ............................................................................................................................ 36
Access Management ...................................................................................... 36

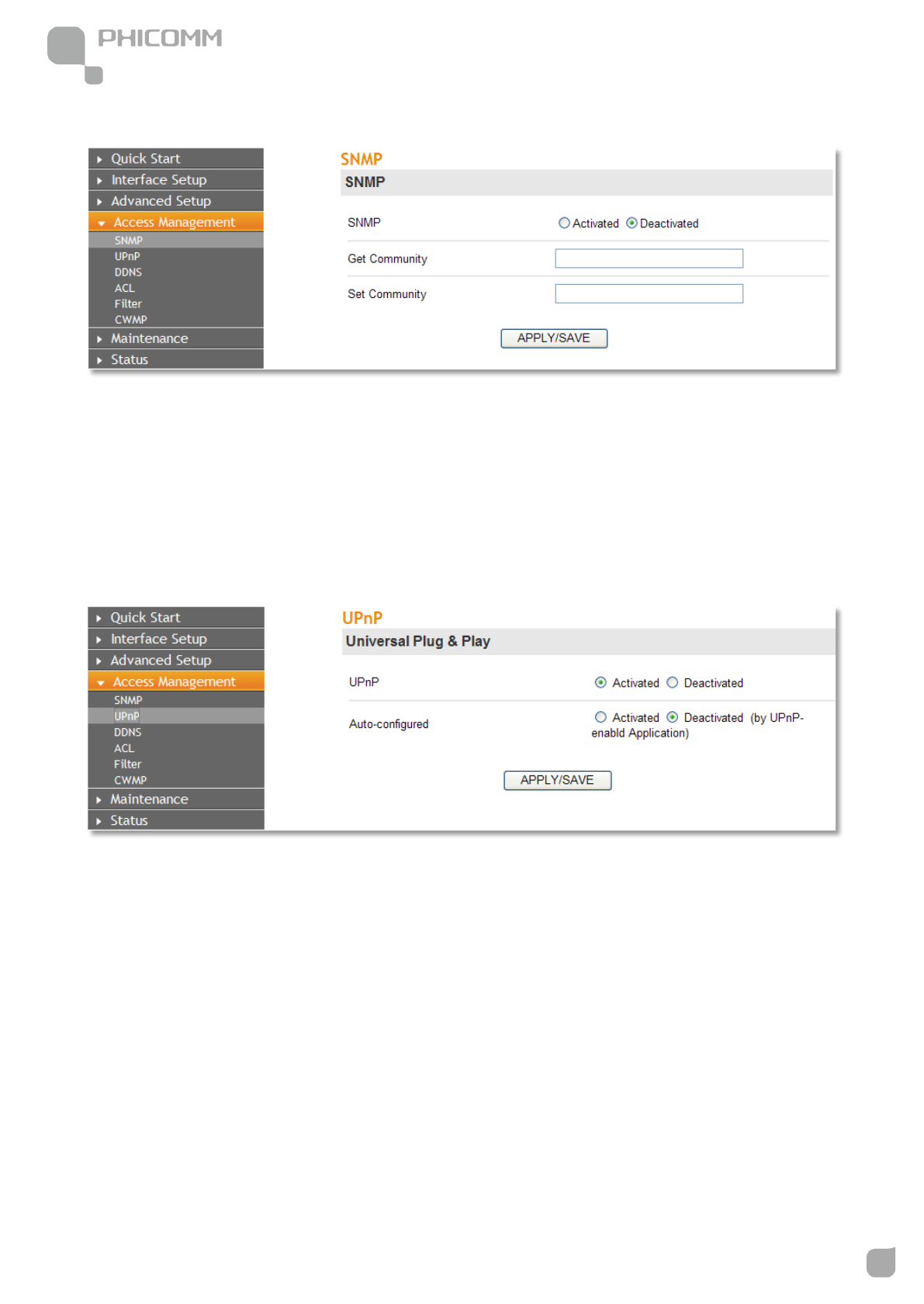

SNMP ........................................................................................................................................ 37
UPnP ......................................................................................................................................... 37
DDNS ........................................................................................................................................ 38
ACL ............................................................................................................................................ 39
Filter .......................................................................................................................................... 40

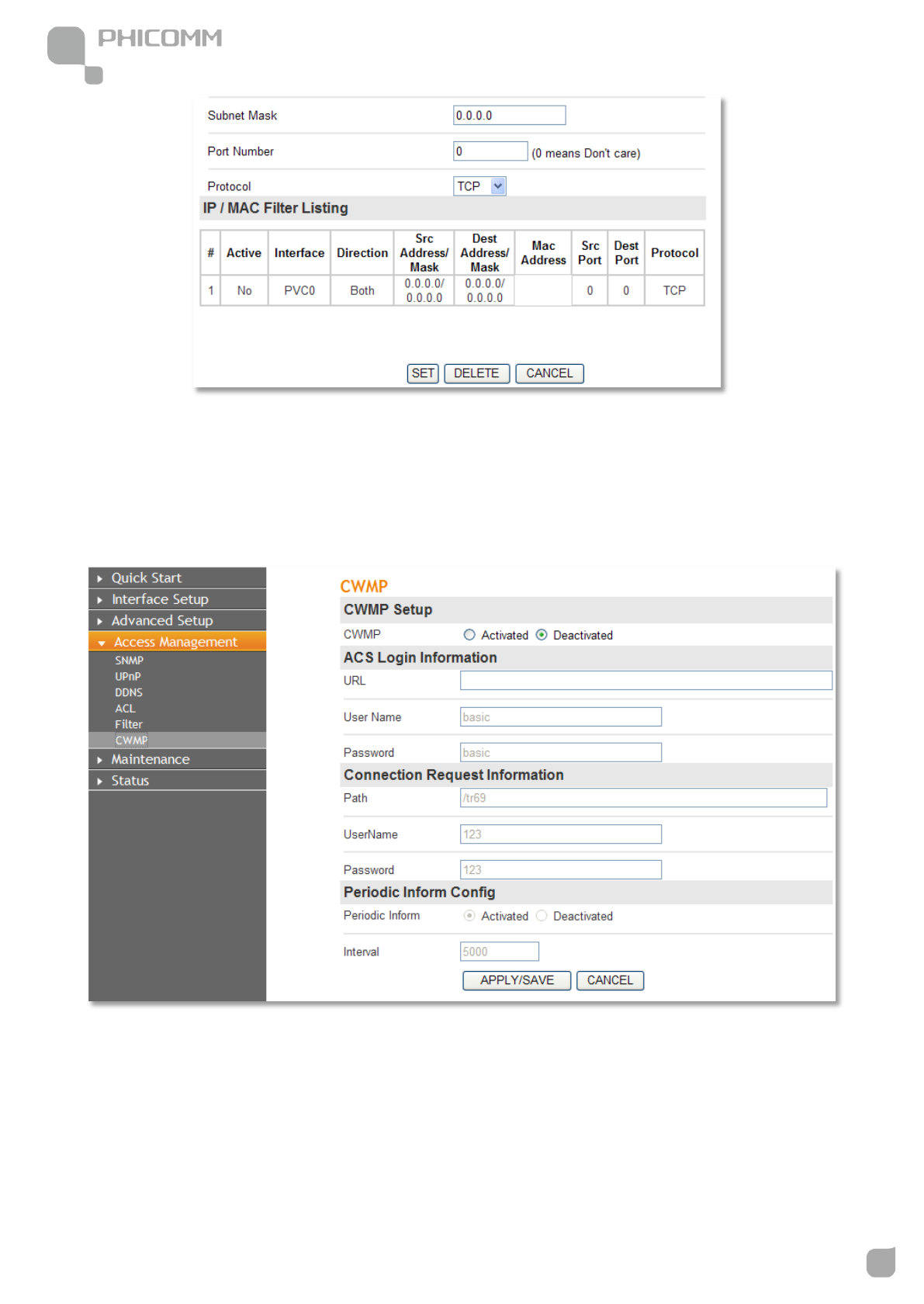

CWMP ....................................................................................................................................... 41

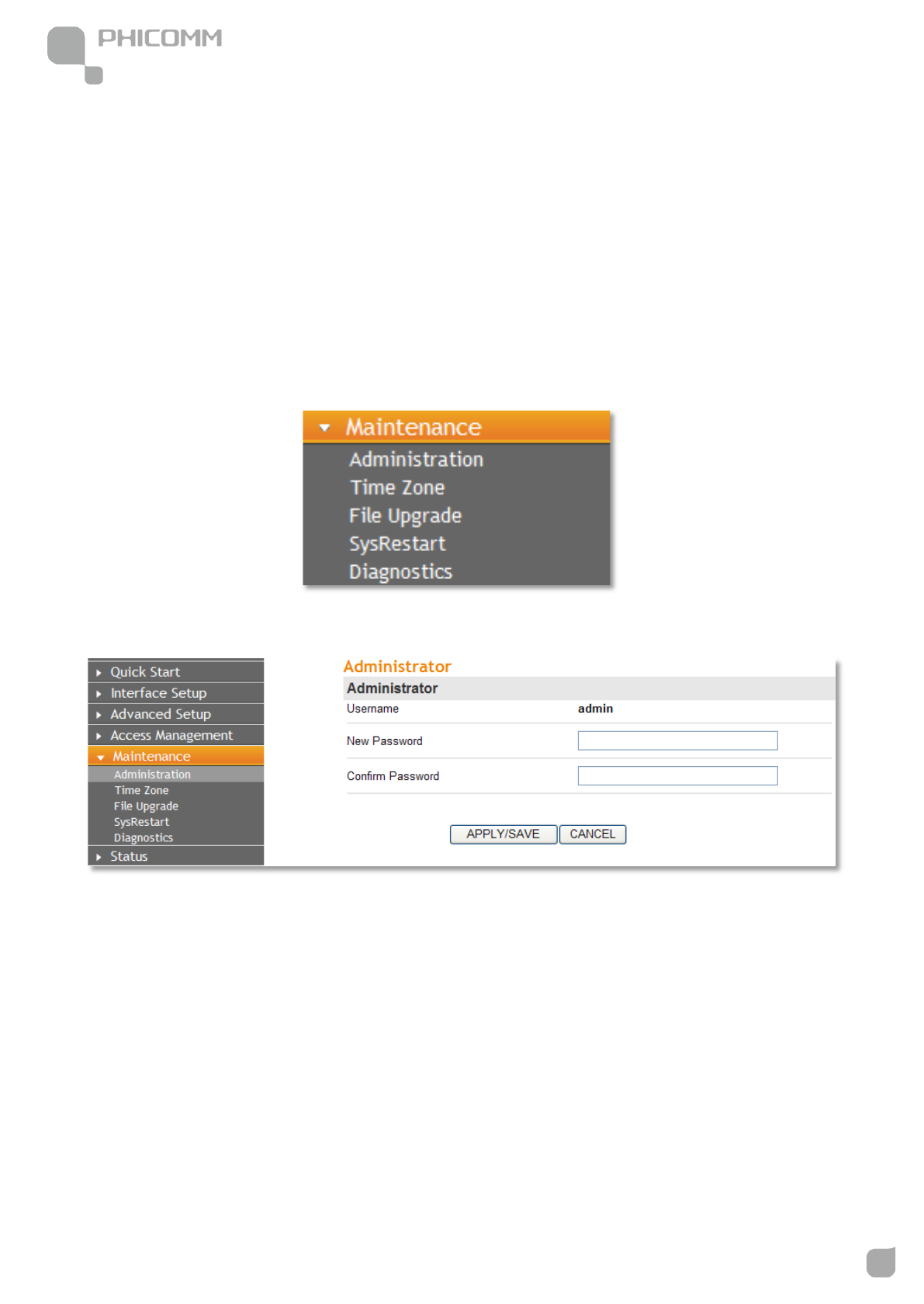

Maintenance ...................................................................................................... 42
Administration ...................................................................................................................... 42

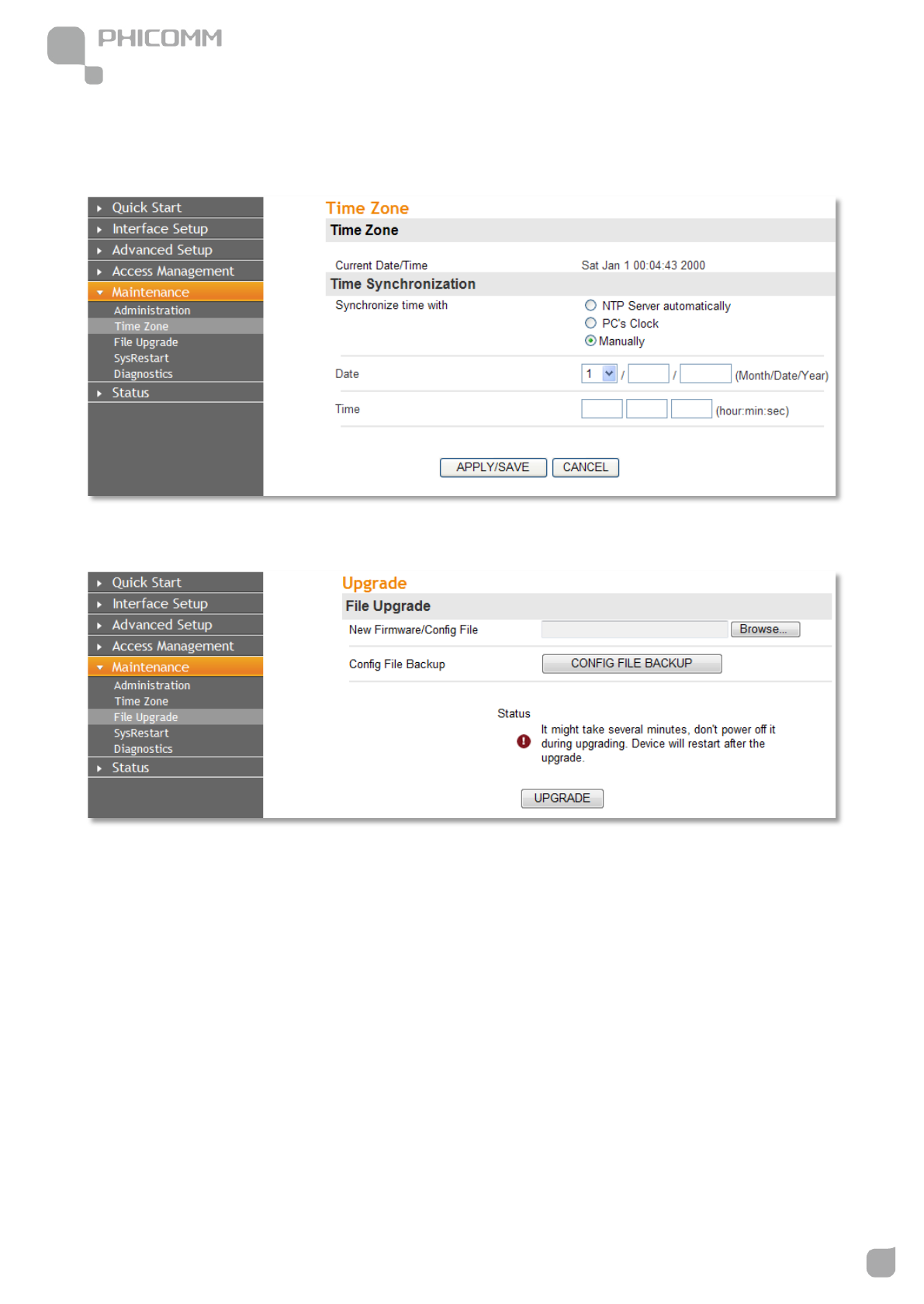

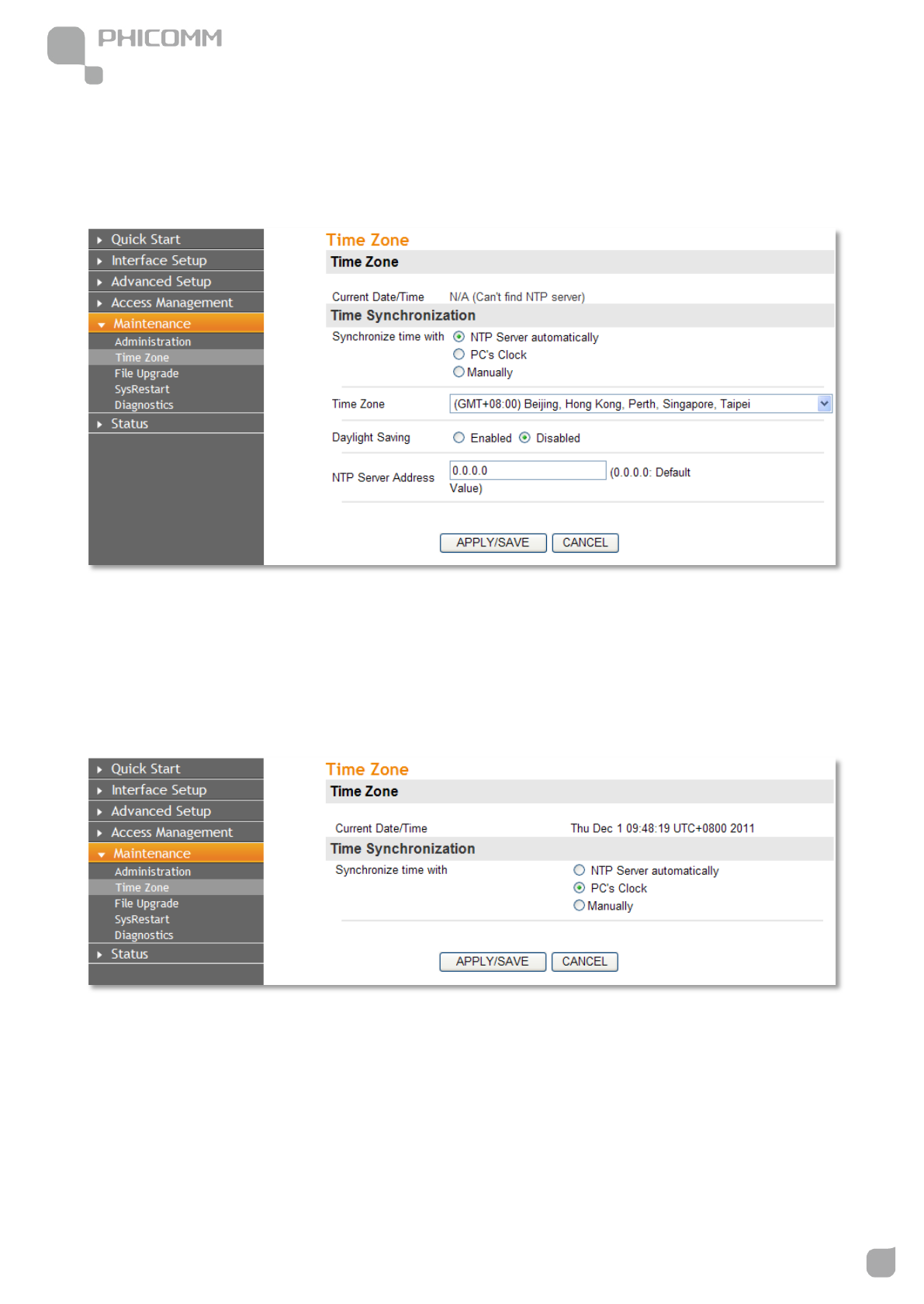

Time Zone ............................................................................................................................... 42
File Upgrade .......................................................................................................................... 44

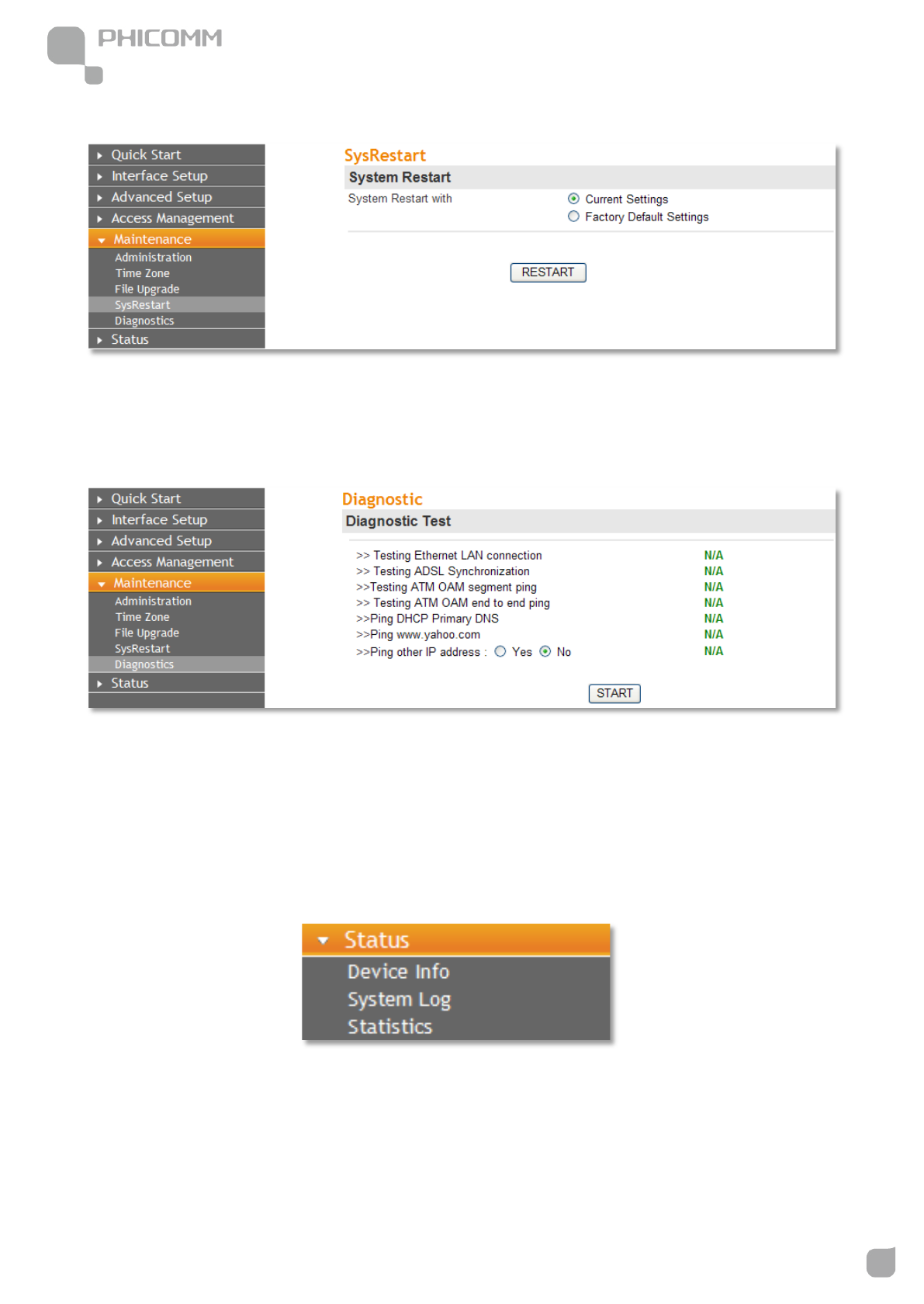

SysRestart ............................................................................................................................... 46
Diagnostic ............................................................................................................................... 46
Status .................................................................................................................... 46

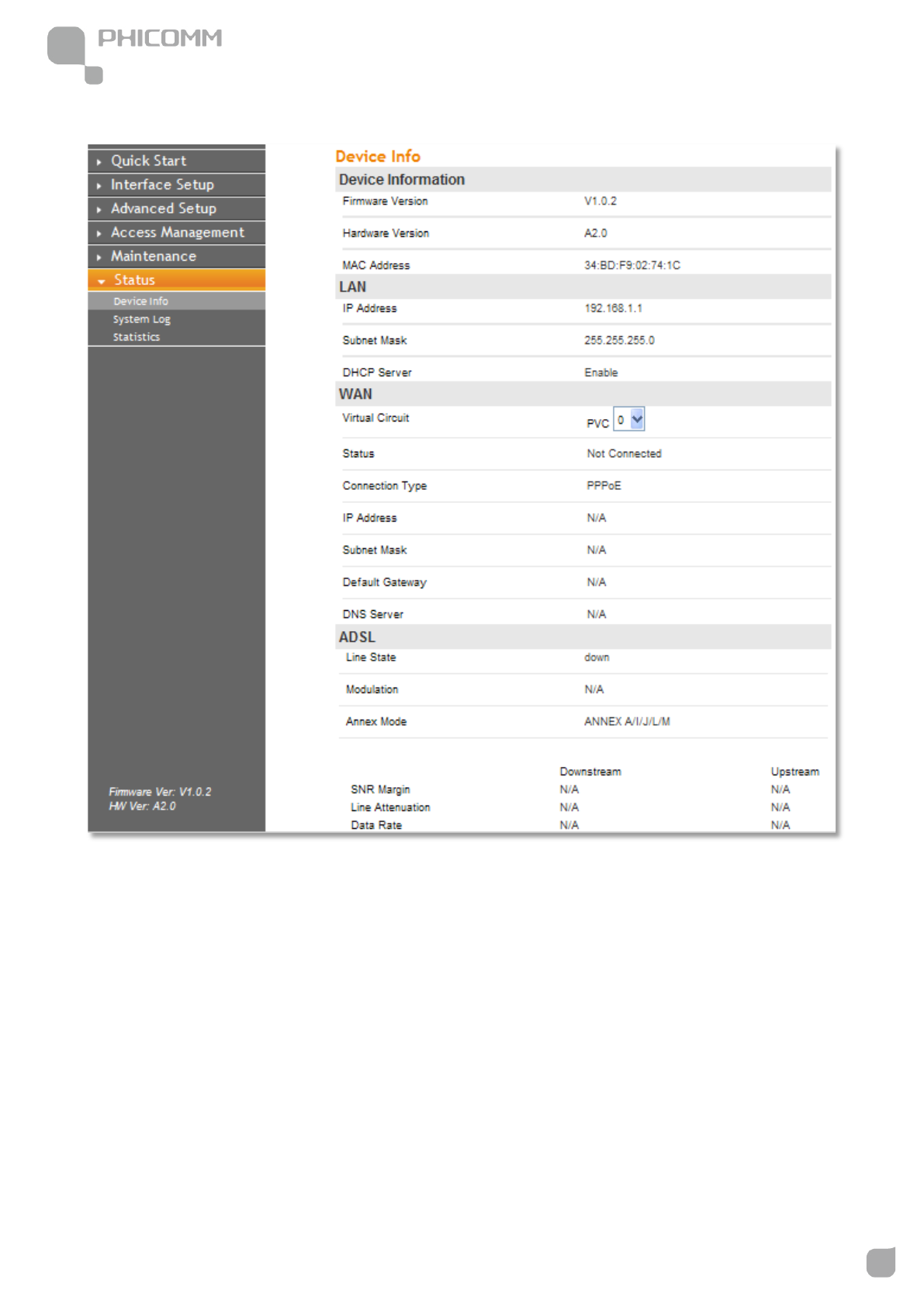

Device Info ............................................................................................................................. 47

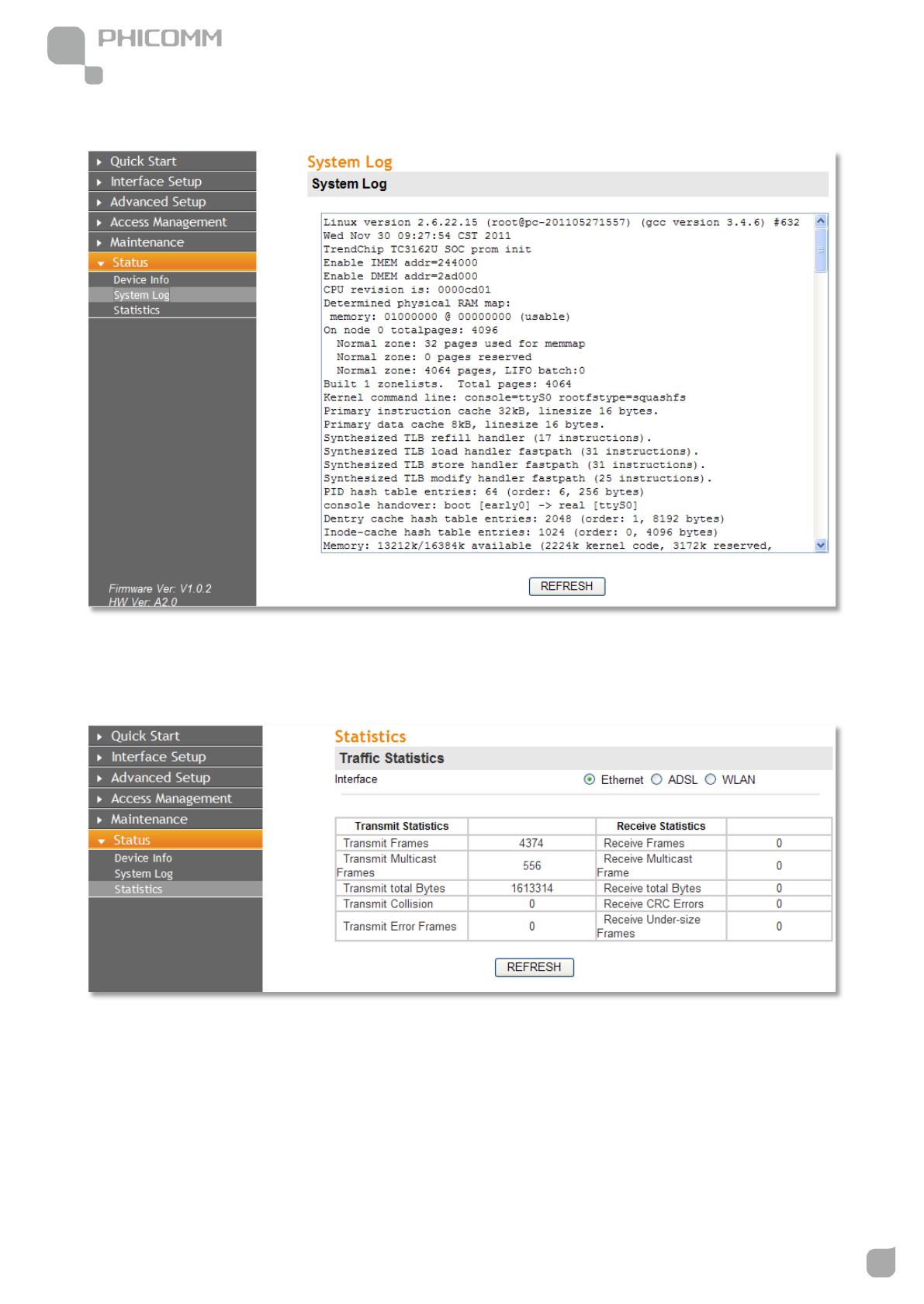

System Log ............................................................................................................................. 48
Statistics .................................................................................................................................. 48
![](/img.php?id=1660420&img=bg5.png)
iii
Table of Contents
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
Chapter5: Specification
............................................ 49
Appendix A: Troubleshooting
..................................... 50
Appendix B: Certification
.......................................... 52
FCC Statement .................................................................................................. 52
CE Mark Warning ............................................................................................. 53
Appendix C: Glossary
................................................ 54
![](/img.php?id=1660420&img=bg6.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
1
Chapter 1: Introduction
Chapter 1: Introduction
Product Overview
Thank you for choosing PHICOMM FD-364N Wireless N ADSL2+ Modem Router. This product is
designed to provide a simple and cost-effective ADSL internet connection for a private Ethernet
network. It is connected to network devices via standard Ethernet ports. The ADSL connection is
made using ordinary telephone line with standard connectors. Multiple workstations can be
networked to internet using a single Digital Subscriber Line (DSL) and single global IP address.
The Wireless Modem Router provides up to 150Mbps wireless connection with other 802.11n
wireless clients. The incredible speed makes it ideal for handling multiple data streams at the
same time, which ensures your network stable and smooth. The performance of this wireless
Modem Router will give you the unexpected network experience. It is also compatible with all
IEEE 802.11g and IEEE 802.11b products. With multiple protection measures, including SSID
broadcast control and wireless LAN 64/128-bit WEP encryption, Wi-Fi protected Access
(WPA2-PSK, WPA-PSK), as well as advanced Firewall protections, this Wireless N ADSL2+ Modem
Router provides complete data privacy.
Quick Start of the Web-based Utility is supplied and friendly help messages are provided for the
configuration. Network and router management is done through the Web based Setup Wizard
which can be accessed through local Ethernet using any web browser.
FD-364N supports full-rate ADSL2+ connectivity conforming to the ITU and ANSI specifications.
In addition to the basic DMT physical layer functions, the ADSL2+ PHY supports dual latency
ADSL2+ framing (fast and interleaved) and the I.432 ATM Physical Layer.
![](/img.php?id=1660420&img=bg7.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
2
Chapter 1: Introduction
Main Features
Complies with IEEE 802.11n to provide a wireless data rate of up to 150Mbps
Provides 1 RJ11 DSL port, 4 RJ45 LAN ports
Up to 24Mbps downstream speed
Reach of 6.5Km from your ISP DSLAM
Supports Build-in PPPoE
DHCP Server/Relay/Client, UPnP, DDNS
NAT, static routing, and DMZ host
QoS prioritization based on IP type of service
Easy Setup Assistant provides quick & hassle free installation
Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control List)
Supports web management
Supports firmware upgrade
Supports flow statistics
Supports WPS (Wi-Fi Protected Setup)
Built-in firewall supporting IP address filtering, MAC address filtering
Built-in DHCP server
![](/img.php?id=1660420&img=bg8.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
3
Chapter 2: Hardware Installation
Chapter 2: Hardware Installation
Front Panel
The front panel of the wireless ADSL2+ Modem Router includes one power indicator and eight
function indicators, as explained in table below:
LED Status Indication
Power
On Power is on
Off Power is off
LAN(1-4)
On There is a successful connection on the corresponding LAN port
Off There is no connection on the corresponding LAN port
Blinking Data is being transferred over the corresponding LAN port
WPS
On A wireless device is successfully connected to the network by WPS function
Off WPS function is deactivated
Blinking A wireless device is connecting to the network by WPS function
![](/img.php?id=1660420&img=bg9.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
4
Chapter 2: Hardware Installation
WLAN
On The wireless function is enabled
Off The wireless function is disabled
Blinking Sending or receiving data over wireless network
DSL
On The Modem Router is synchronized
Blinking The Modem Router is synchronizing
Internet
Green A successful PPP connection has been built
Off The DSL port is linked down or the Modem Router works in Bridge mode
Red The PPP connection failed to be established

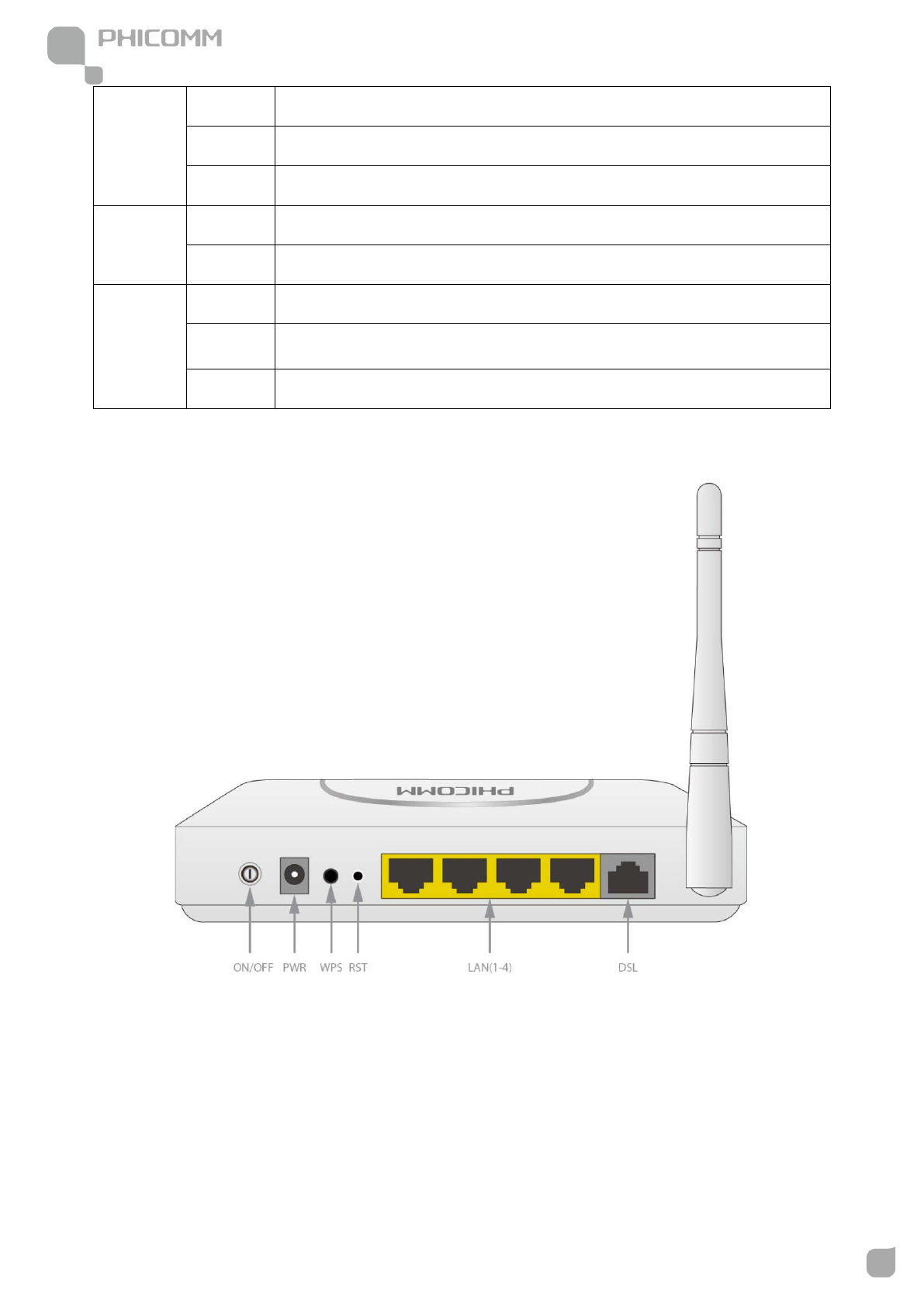

Rear Panel
The rear panel of the wireless ADSL2+ Modem Router includes 1 power ON/OFF switch, 1 PWR
connector, 1 WPS button, 1 RST button, 4 LAN interfaces, 1 DSL interface, 1 antenna, as
explained in table below:
![](/img.php?id=1660420&img=bga.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
5
Chapter 2: Hardware Installation
Interface/Button Indication
DSL Connect to the Modem port of splitter or directly to the wall jack
LAN (1-4) Connect to your network devices
RST Restore to factory default settings by pressing and holding for 5 seconds
WPS Used to create a secured wireless network quickly by pressing the WPS button
PWR Connect with a power adapter
ON/OFF Turn on/off the power of Modem Router

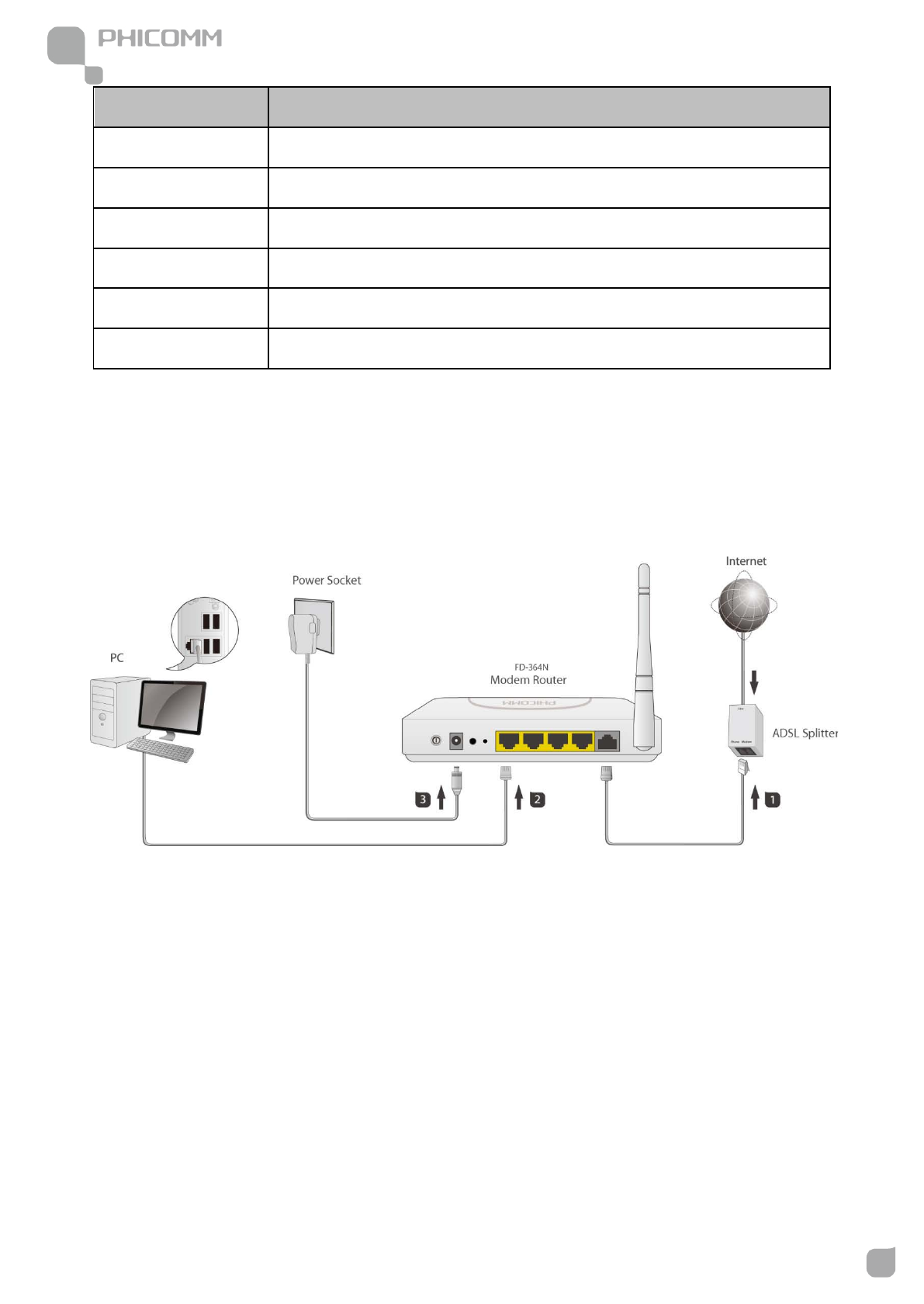

Physical Connection
Before installing the device, please make sure your broadband service provided by your ISP is
available. If there is any problem, please contact your ISP. You need to connect the device to the
phone jack, the power outlet, and your computer or network. Before cable connection, turn off
the power supply and keep your hands dry. You can follow the steps below to install it.
Step 1: Connect the ADSL Line.
Method one: Plug one end of the twisted-pair ADSL cable into the DSL port on the rear panel of
FD-364N, and insert the other end into the wall socket.
Method two: You can use a separate splitter. External splitter can divide digital data and voice,
and then you can access internet and make calls at the same time. The external splitter has three
ports:
• LINE: Connect to the wall jack.
• PHONE: Connect to the phone sets.
• MODEM: Connect to the DSL port of FD-364N. Plug one end of the twisted-pair ADSL line into
the DSL port on the rear panel of FD-364N. Connect the other end to the MODEM port of the
external splitter.
![](/img.php?id=1660420&img=bgb.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
6
Chapter 2: Hardware Installation
Step 2: Connect the Ethernet cable. Attach one end of a network cable to your computer’s
Ethernet port or a regular hub/switch port, and the other end to the LAN port on the FD-364N.
Step 3: Attach the power adapter. Connect the AC power adapter to the PWR connector on the
rear of the device and plug in the adapter to a wall outlet or power extension.
Step 4: Turn on your computers and power on the Modem Router.
Note:
• If you currently use a modem, disconnect it now. The Modem Router will replace your old
modem.

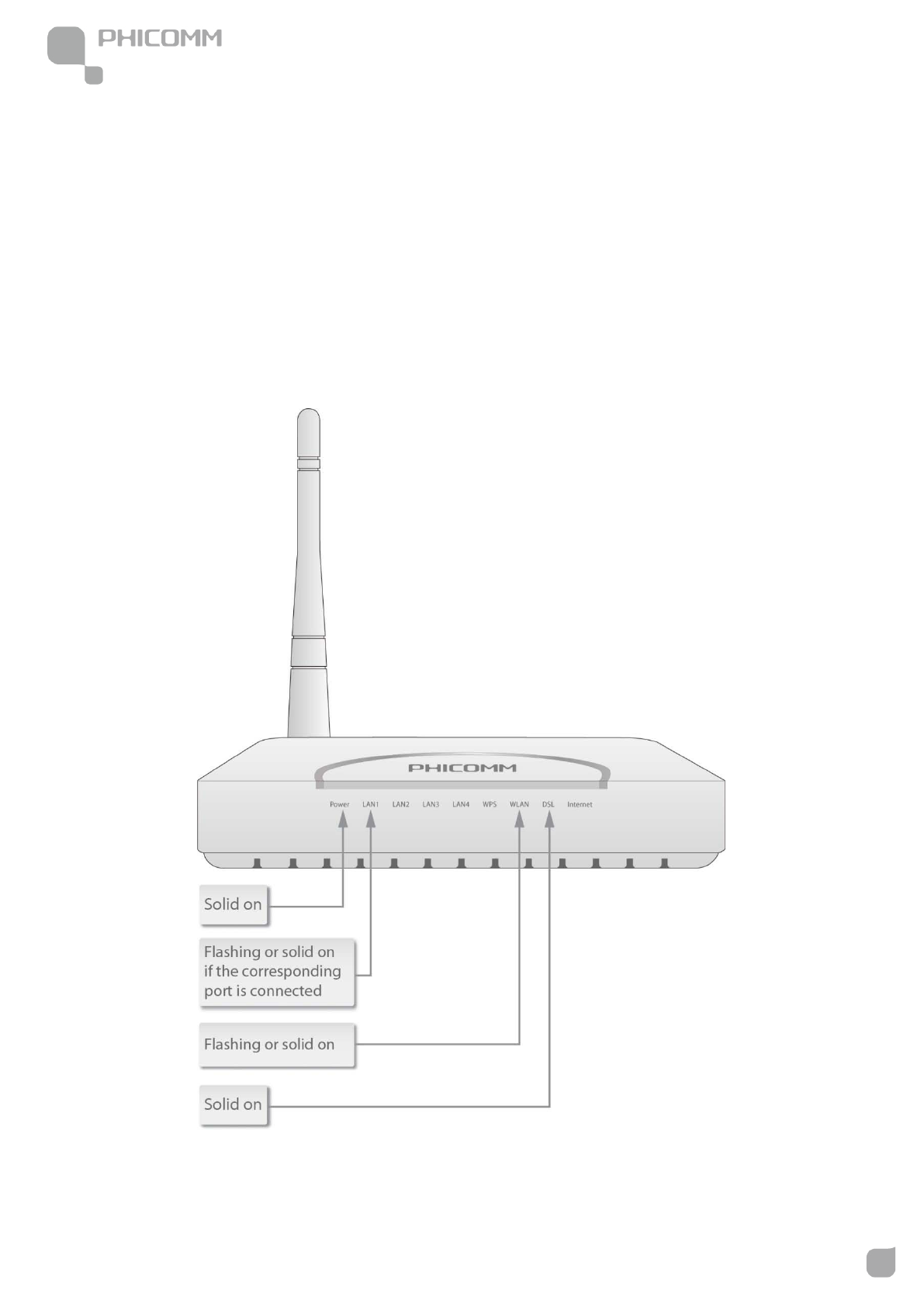

• After the physical connection, please check whether the LEDs of the Wireless Modem Router
display normally as the diagram below describes.
![](/img.php?id=1660420&img=bgc.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
7
Chapter 3: Quick Installation
Chapter 3: Quick Installation
Configure Your PC
After you directly connect your PC to FD-364N or a Hub/Switch which has connected to the
Wireless Modem Router, we suggest you set your computer to obtain IP address automatically.

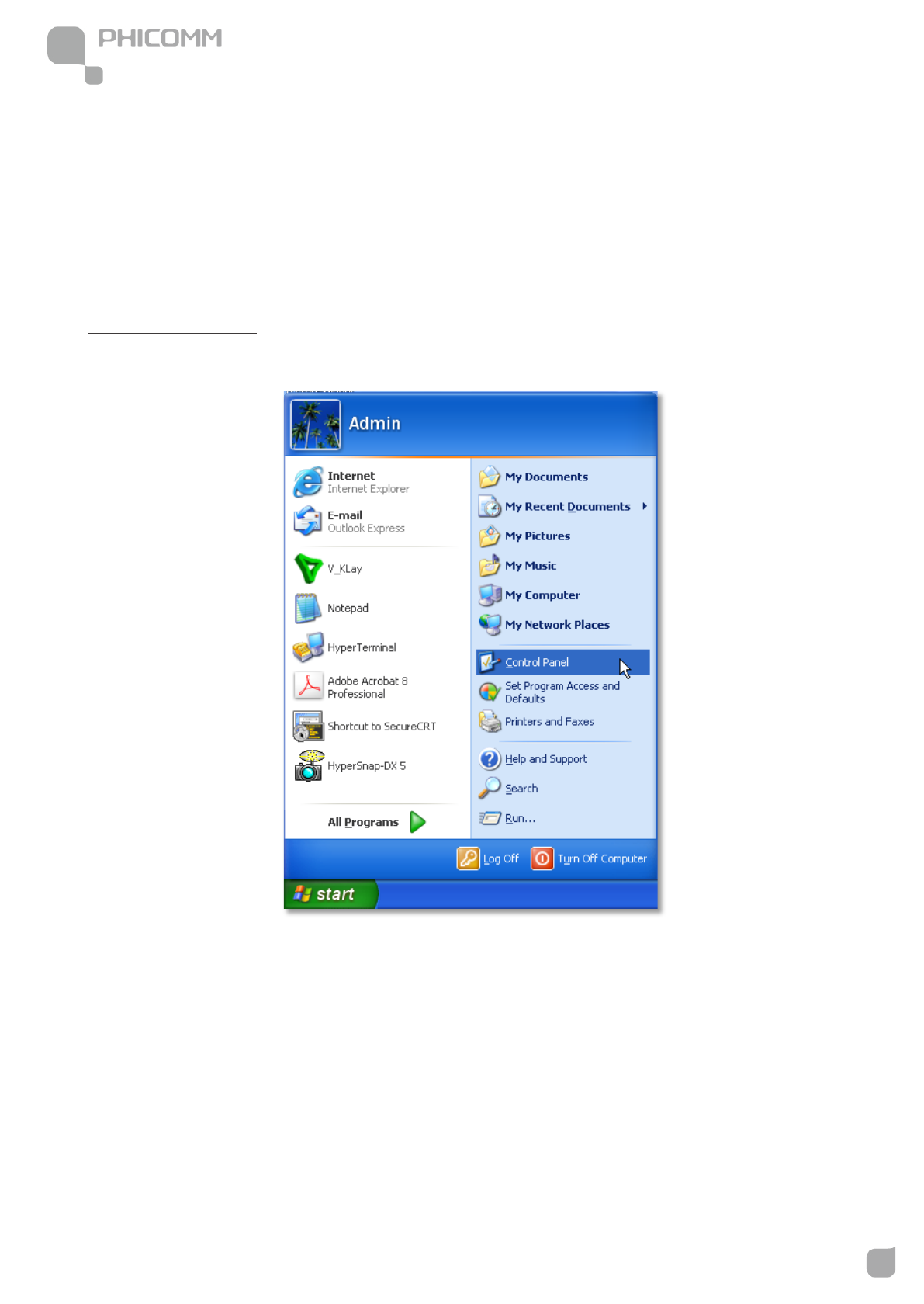

1) Click Start > Control Panel.
For Windows XP/2000
![](/img.php?id=1660420&img=bgd.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
8
Chapter 3: Quick Installation
2) Select and double click Network Connections.

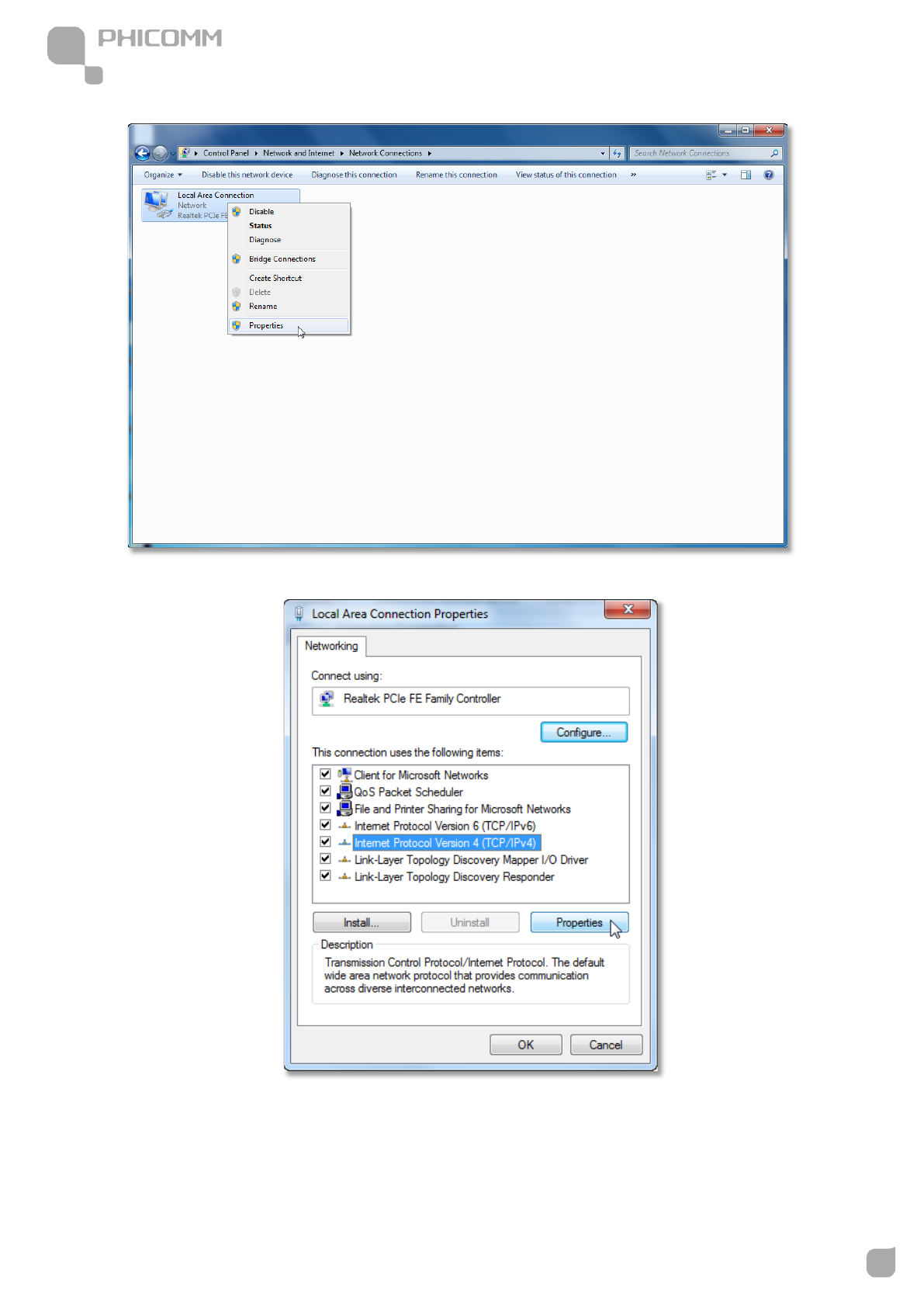

3) Right click Local Area Connection and then select Properties.
![](/img.php?id=1660420&img=bge.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
9
Chapter 3: Quick Installation

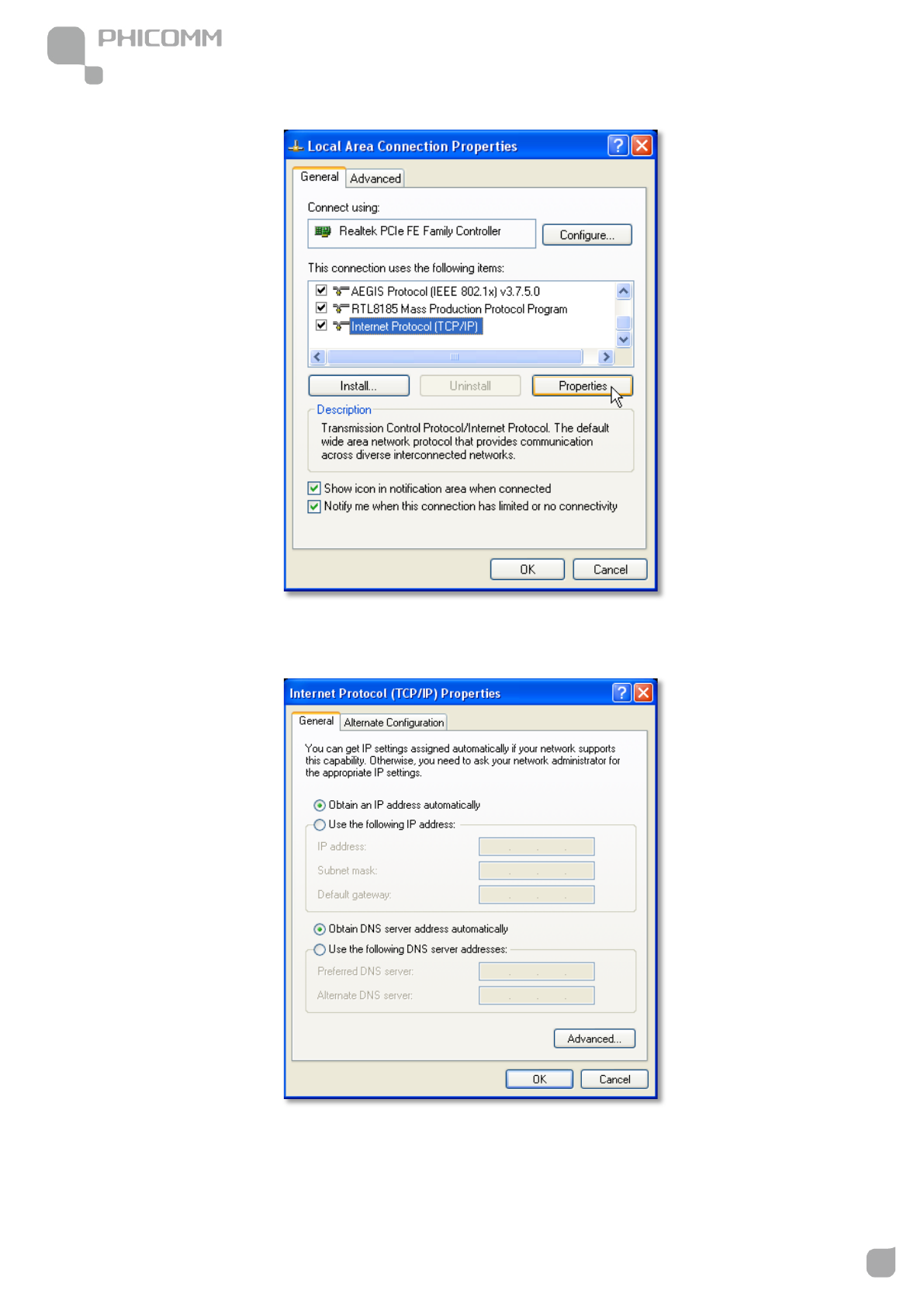

4) Select Internet Protocol (TCP/IP) and click Properties.
5) Select Obtain an IP address automatically and Obtain DNS server address automatically.
Then click OK.
![](/img.php?id=1660420&img=bgf.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
10
Chapter 3: Quick Installation

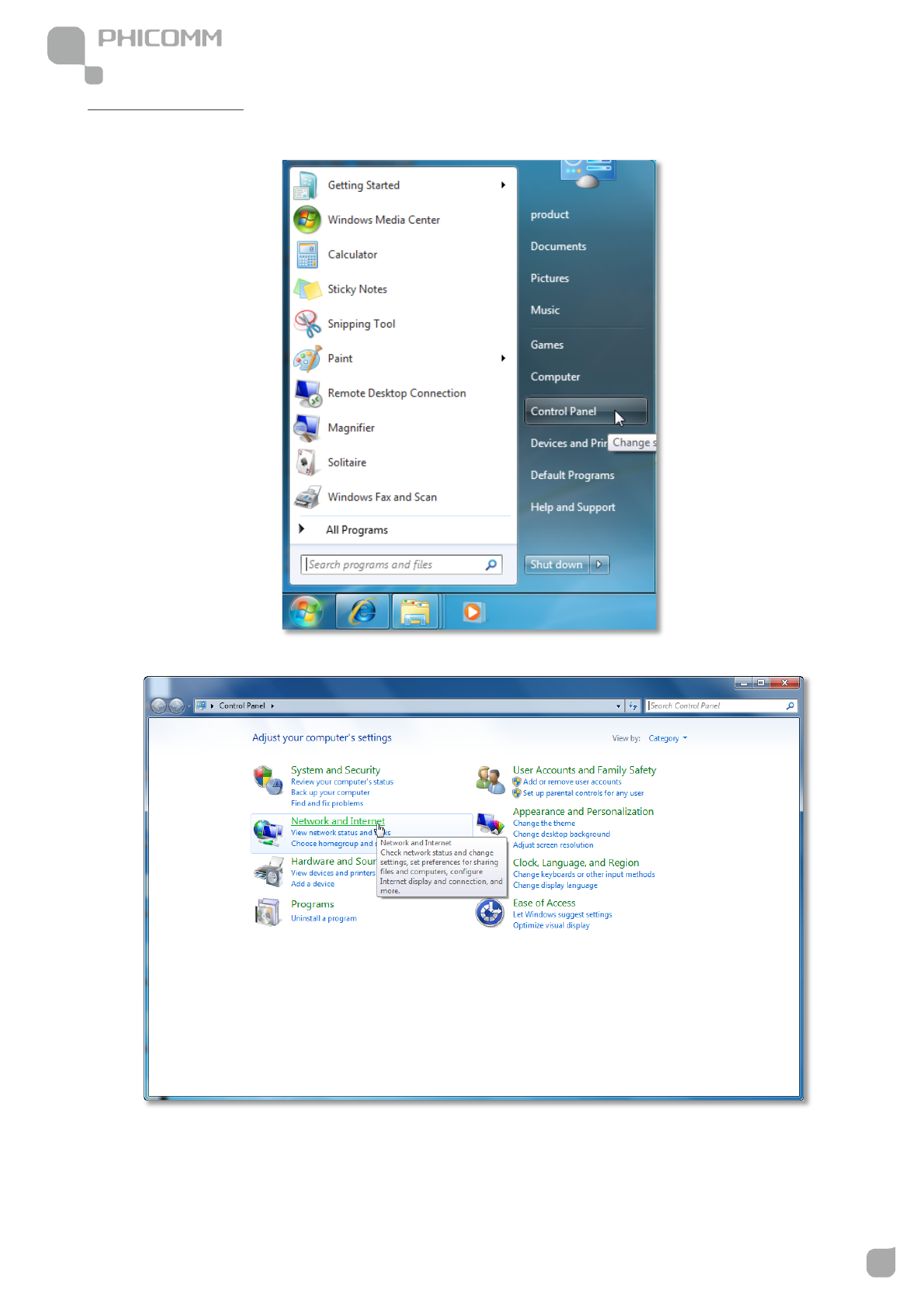

For Windows Vista/7
1) Click Start>Control Panel.
2) Click Network and Internet.
![](/img.php?id=1660420&img=bg10.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
11
Chapter 3: Quick Installation

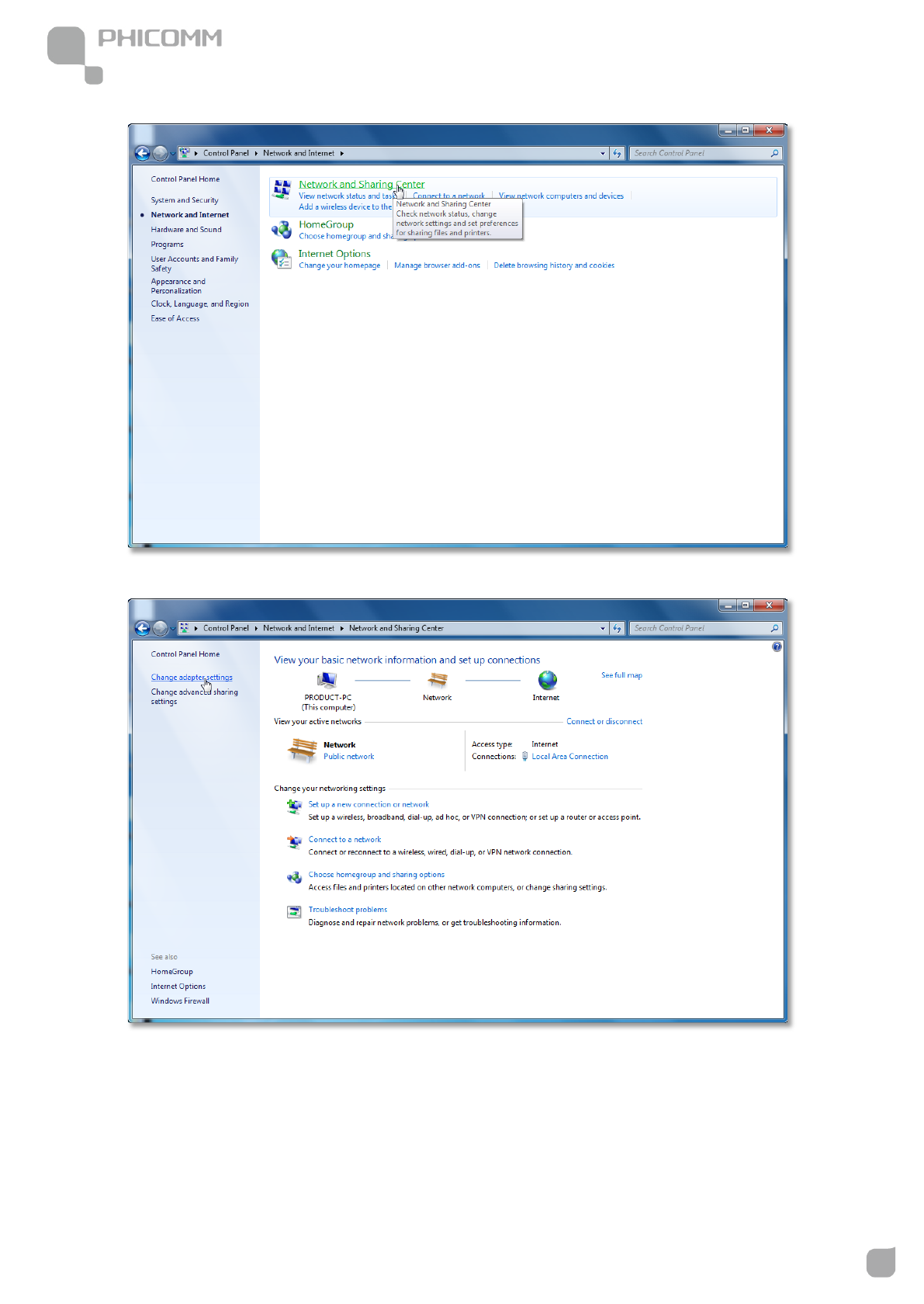

3) Click Network and Sharing Center.
4) Go to Change Adapter Settings (win7)/Manage Network Connections (Vista).
![](/img.php?id=1660420&img=bg11.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
12
Chapter 3: Quick Installation
5) Right click Local Area Connection, choose Properties.
6) Select Internet Protocol Version 4 (TCP/IPv4) and click Properties.
![](/img.php?id=1660420&img=bg12.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
13
Chapter 3: Quick Installation
7) Select Obtain an IP address automatically and Obtain DNS server address automatically.
Then click OK.
Install Your Modem Router
To configure the device, you can either run the Resource CD or run the Web based Setup Wizard.
For first-time installation we recommend running the Resource CD, follow the step-by-step
instructions to finish the installation. After the initial configuration is done, you can login to the
Web based Setup Wizard to do some additional settings. Here we introduce how to set it up via
Web based Setup Wizard.
Step 1: Open your web browser, in the address bar, type in 192.168.1.1
Step 2: You are prompt to enter the Username/Password (preset as admin/admin) which you
can found on the label attached to your Wireless Modem Router, and then click OK.
![](/img.php?id=1660420&img=bg13.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
14
Chapter 3: Quick Installation
Step 3: Go to Quick Start tab, and then click RUN WIZARD.
Step 4: Click NEXT.
Step 5: If you want to change the login password, put in the new password in this page.
Otherwise just leave it blank, and then click NEXT.
![](/img.php?id=1660420&img=bg14.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
15
Chapter 3: Quick Installation

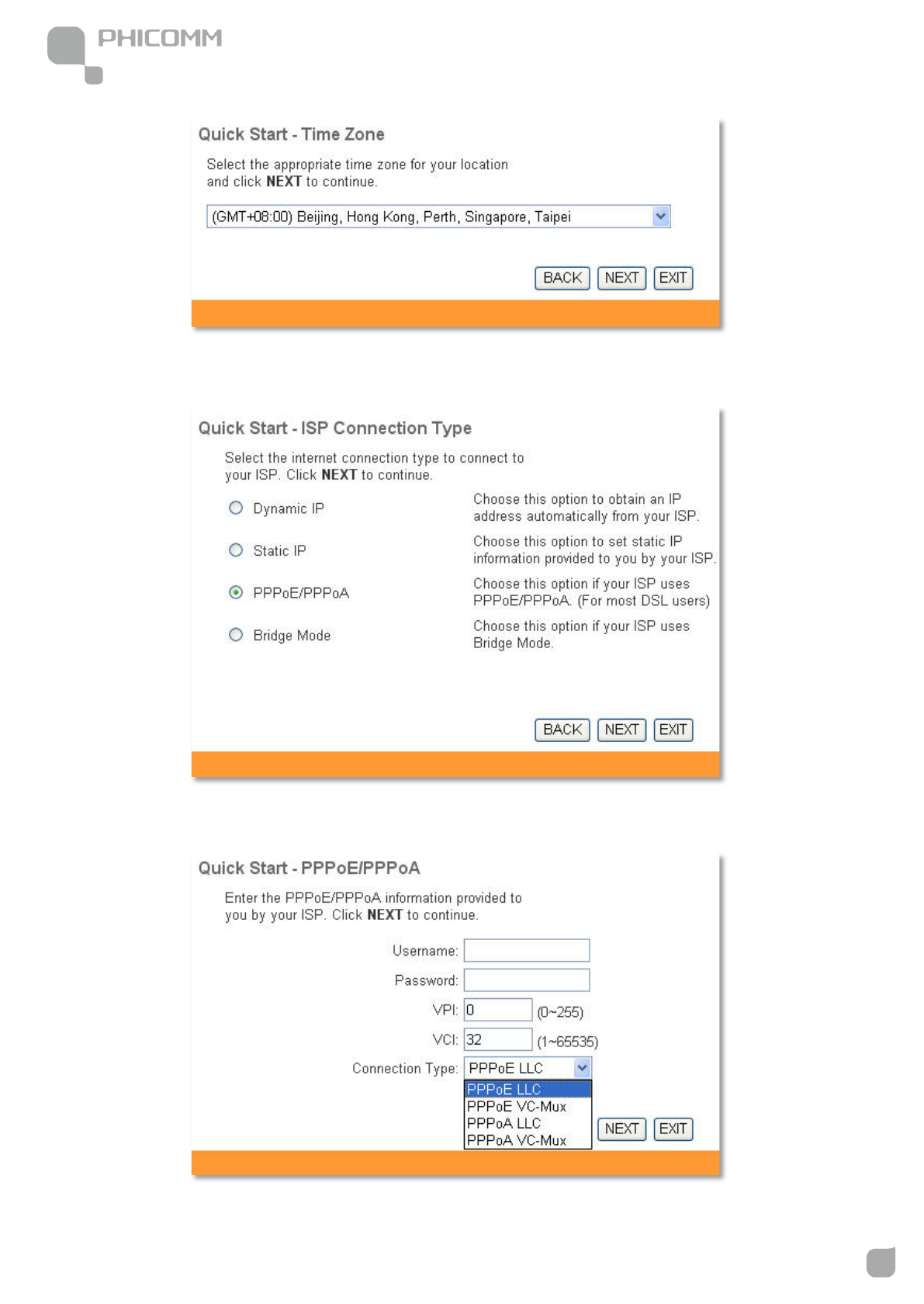

Step 6: Choose your time zone, and then click NEXT.
Step 7: Choose the connection type provided by your ISP (take PPPoE/PPPoA as an example
here), and then click NEXT.
Step 8: Put in Username, Password, VPI, VCI and Connection Type provided by your ISP. If you
are not sure about the information, please confirm with your ISP. Then click NEXT.
![](/img.php?id=1660420&img=bg15.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
16
Chapter 3: Quick Installation
Step 9: Click NEXT.
Step 10: Click CLOSE.
Note:
Wait a moment, if the configuration is successful, the Internet LED light will finally turn
green.
The Internet light will not light on if the Wireless Modem Router works as bridge, please
set up a broadband connection on your computer in that condition.
![](/img.php?id=1660420&img=bg16.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
17
Chapter 4: Software Configuration
Chapter 4: Software Configuration
This User Manual recommends using the Quick Installation Guide for first-time installation. For
advanced users, if you want to know more about this device and make use of its functions
adequately, maybe you will get help from this chapter to configure the advanced settings
through the Web based Setup Wizard. After your successful login, you can configure and
manage the device. There are main menus on the left of the Web based Setup Wizard, submenus
will be available after you click one of the main menus. On the center of the Web based Setup
Wizard, there are the detailed configurations or status information. To apply any settings you
have altered on the page, please click APPLY/SAVE button.
Quick Start
Please refer to Install Your Modem Router.
Interface Setup
Choose Interface Setup, you can see three submenus: Internet, LAN and Wireless. Click any of
them, and you will be able to configure the corresponding function.
![](/img.php?id=1660420&img=bg17.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
18
Chapter 4: Software Configuration
Internet
ATM VC: ATM settings are used to connect to your ISP. Your ISP provides VPI (Virtual Path
Identifier), VCI (Virtual Channel Identifier) settings to you. In this Device, you can totally setup 8
VCs on different encapsulations, if you apply 8 different virtual circuits from your ISP. You need to
activate the VC to take effect. For PVCs management, you can use ATM QoS to setup each PVC
traffic priority.
Virtual Circuit: Select the VC number you want to setup, PVC0~PVC7.
Status: If you want to use a designed VC, you should activate it.
VPI: Identify the virtual path between endpoints in an ATM network. The valid range is from 0 to
255. Please input the value provided by your ISP.
VCI: Identify the virtual channel endpoints in an ATM network. The valid range is from 32 to
65535 (1 to 31 is reserved for well-known protocols). Please input the value provided by yo u r I SP.
PVCs Summary: You can view the summary information about the PVCs.
QoS: Select the Quality of Service types for this Virtual Circuit, including CBR (Constant Bit Rate),
UBR (Unspecified Bit Rate) and VBR (Variable Bit Rate). These QoS types are all controlled by the
parameters specified below, including PCR (Peak Cell Rate), SCR (Sustained Cell Rate) and MBS
(Maximum Burst Size), please configure them according to your needs.
Encapsulation: There are four connection types: Dynamic IP, Static IP, PPPoA/PPPoE and Bridge
Mode. Please choose the designed type that you want to use. After that, you should follow the
configuration below to proceed.
![](/img.php?id=1660420&img=bg18.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
19
Chapter 4: Software Configuration
1. Dynamic IP·
Select this option if your ISP provides you an IP address automatically. This option is typically
used for Cable services. Please enter the Dynamic IP information accordingly.
Encapsulation: Select the encapsulation mode for the Dynamic IP Address, it is provided by
your internet service provider.
Bridge Interface: Activate the option, and the Router can also work in Bridge mode.
Default Route: If enable this function, the current PVC will be considered as the default gateway
to internet.
TCP MTU Option: Enter the TCP MTU as your desire.
NAT: Select this option to Enable/Disable the NAT (Network Address Translation) function for
this VC. The NAT function can be activated or deactivated per PVC basis.
IGMP Proxy: Choose to enable or disable this function.
![](/img.php?id=1660420&img=bg19.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
20
Chapter 4: Software Configuration
2.Static IP
Select this option if your ISP provides static IP information to you. You should set Static IP
Address, IP Subnet Mask, and Gateway on the screen below.
Note: Each IP address entered in the fields must be in the appropriate IP form, which is four IP
octets separated by a dot (x.x.x.x), such as 192.168.1.100. The Router will not accept the IP
address if it is not in this format.
![](/img.php?id=1660420&img=bg1a.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
21
Chapter 4: Software Configuration

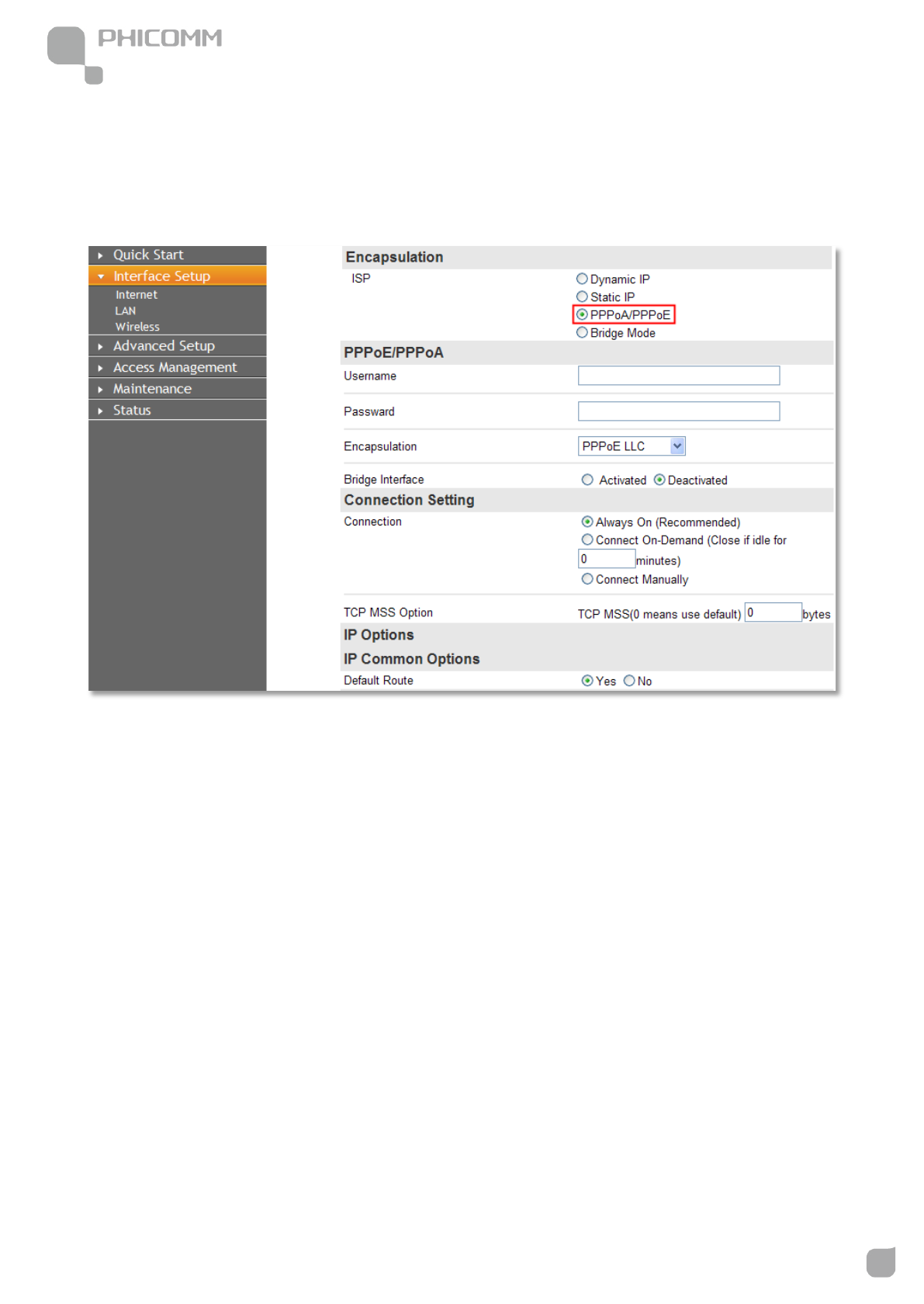

3. PPPoA/PPPoE
Select this option if you have a username and password to access internet. This option is
typically used for DSL services. Select Dynamic to obtain an IP address automatically for your
PPP connection. Select Static to use a static IP address for your PPP connection. Please enter the
information accordingly.
Username: Enter your username for your PPPoA/PPPoE connection.
Password: Enter your password for your PPPoA/PPPoE connection.
Encapsulation: For both PPPoA/PPPoE connection, you need to specify the type of Multiplexing,
either LLC or VC -Mux.
Bridge Interface: Activate the option, the Wireless Modem Router can also work in Bridge
mode.
Connection Setting: For PPPoA/PPPoE connection, you can select Always on or Connect
on-Demand or Connect Manually. Connect on demand is dependent on the traffic. If there is no
traffic (or Idle) for a pre-specified period of time), the connection will tear down automatically.
And once there is traffic sending or receiving, the connection will be automatically on.
TCP MSS Option: Enter the TCP MSS as you desire.
Default Route: You should select Yes to configure the PVC as the default gateway to internet.
![](/img.php?id=1660420&img=bg1b.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
22
Chapter 4: Software Configuration
Static/Dynamic IP Address: For PPPoA/PPPoE connection, you need to specify the public IP
address for this ADSL Router. The IP address can be either dynamically (via DHCP) or given IP
address provided by your ISP. For Static IP, you need to specify the IP address, Subnet Mask and
Gateway address.
Dynamic Route: Select this option to specify the RIP (Routing Information protocol) version for
WAN interface, including RIP1, RIP2-B and RIP2-M. RIP2-B and RIP2-M are both sent in RIP2
format, the difference is that RIP2-M using Multicast, while RIP2-B using Broadcast format.
Direction: Select this option to specify the RIP direction. None is for disabling the RIP function.
Both means the ADSL Router will periodically send and accept routing information, and then
incorporate them into routing table. IN only means the ADLS router will only accept but will not
send RIP packet. OUT only means the ADSL router will only send but will not accept RIP packet.
4. Bridge Mode
If you select this type of connection, the modem can be configured to act as a bridging device
between your LAN and your ISP. Bridges are devices that enable two or more networks to
communicate as if they are two segments of the same physical LAN.
Note: After you finish the internet configuration, please click APPLY/SAVE to make the settings
take effect.
![](/img.php?id=1660420&img=bg1c.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
23
Chapter 4: Software Configuration
LAN
Router Local IP: These are the IP settings of the LAN interface for the device. These settings may
be referred to as private settings. You may change the LAN IP address if necessary. The LAN IP
address is private to your internal network and cannot be seen over internet.
IP Address: Enter the Router’s local IP Address, then you can access to the Web based Setup
Wizard via the IP Address, the default value is 192.168.1.1.
IP Subnet Mask: Enter the Wireless Modem Router’s Subnet Mask, the default value is
255.255.255.0.
Second IP Address: Show another LAN IP address that you can use to login to the Wireless
Modem Router.
Second IP Subnet Mask: The default value is 255.255.255.0, you do not need to change it if
unnecessary.
IGMP Snoop: Active the IGMP Snoop function if you need.
Dynamic Route: Select this option to specify the RIP (Routing Information protocol) version for
LAN interface, including RIP1, RIP2-B and RIP2-M. RIP2-B and RIP2-M are both sent in RIP2 format,
the difference is that RIP2-M using Multicast, while RIP2-B using Broadcast format.
![](/img.php?id=1660420&img=bg1d.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
24
Chapter 4: Software Configuration
DHCP: Select Enabled, then you will see the screen.
The Router will work as a DHCP server, it becomes the default gateway for DHCP clients
connected to it. DHCP stands for Dynamic Host Control Protocol. The DHCP Server gives out IP
addresses when a device is booting up and request an IP address to be logged on to the
network. That device must be set as a DHCP client to obtain the IP address automatically.
By default, the DHCP Server is enabled. The DHCP address pool contains the range of the IP
address that will automatically be assigned to the clients on the network.
Start IP: Enter the starting IP address for the DHCP server's IP assignment. Because the default
IP address for the Router is 192.168.1.1, the default Start IP Address is 192.168.1.2, and the Start
IP Address must be 192.168.1.2 or greater, but smaller than 192.168.1.254.
IP Pool Count: The maximum user pool size.
Lease Time: The length of time for the IP lease. After the dynamic IP address has expired, the
user will be automatically assigned a new dynamic IP address. The default is 259200 seconds.
DNS Relay: If you want to disable this feature, you just need to set both Primary and secondary
DNS IP to 0.0.0.0. If you want to use DNS relay, you can setup DNS server as 192.168.1.1 on their
computer. If not, the device will perform as no DNS relay.
Primary DNS: Type in your primary DNS server.
Secondary DNS: Type in your secondary DNS server.
Note: If Automatically is selected in DNS Relay, this router will accept the first received DNS
assignment from one of the PPPoA, PPPoE or MER/DHCP enabled PVC(s) during the connection
establishment. If Manually is selected in DNS Relay, it is necessary for you to enter the primary
and optional secondary DNS server IP addresses. After type in the address, click APPLY/SAVE
button to save it and invoke it.

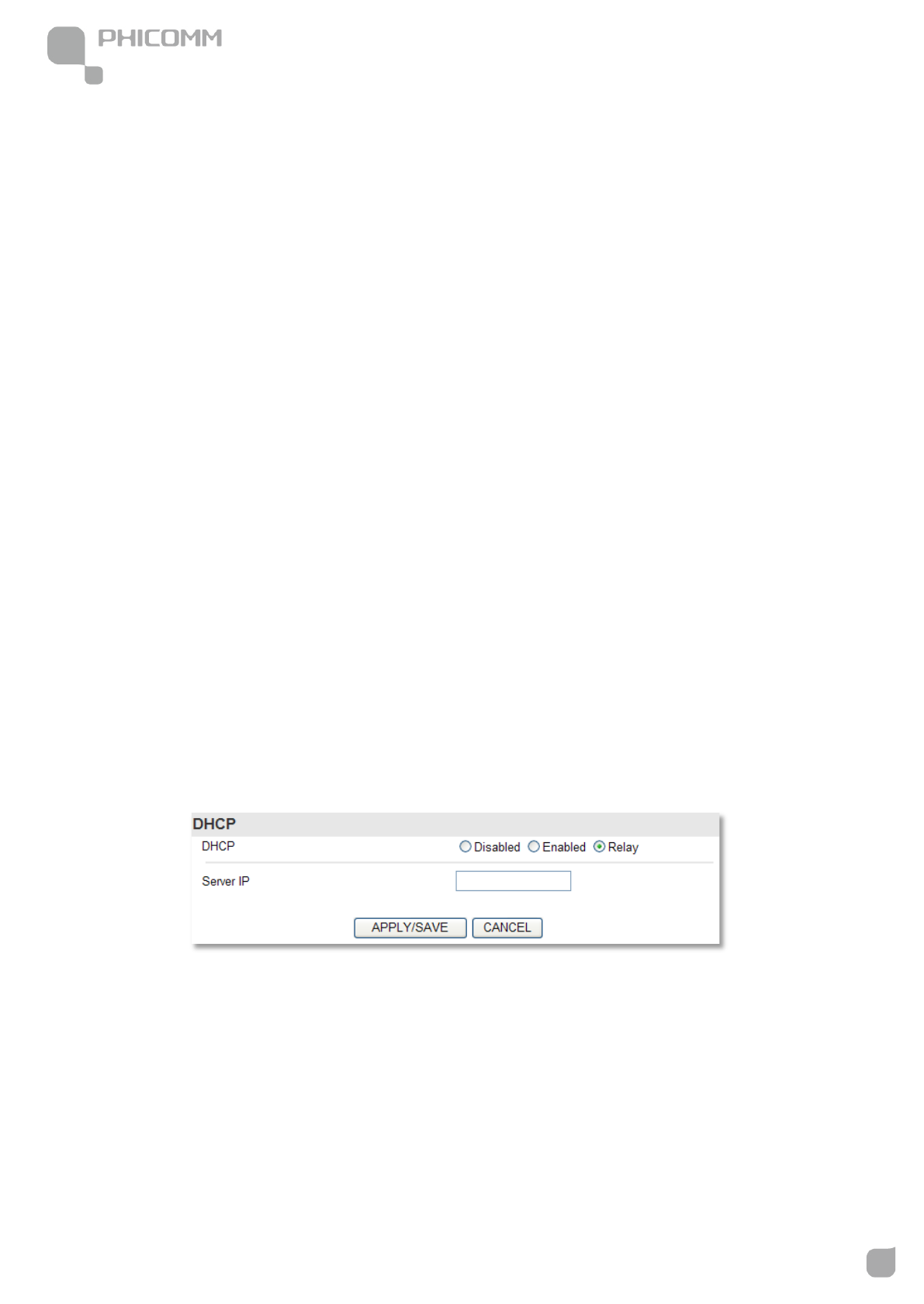

DHCP Relay: Select Relay, then you will see this screen, the Wireless Modem Router will work as
a DHCP Relay. A DHCP relay is a computer that forwards DHCP data between computers that
request IP addresses and the DHCP server that assigns the addresses. Each of the device's
interfaces can be configured as a DHCP relay. If it is enabled, the DHCP requests from local PCs
will forward to the DHCP server runs on WAN side. To have this function working properly,
please run on router mode only, disable the DHCP server on the LAN port, and make sure that
the routing table has the correct routing entry.
![](/img.php?id=1660420&img=bg1e.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
25
Chapter 4: Software Configuration
Server IP: Enter the DHCP server IP address runs on WAN side.
Note: If you select Disabled, the DHCP function will not take effect. DHCP Relay may be no use if
default route is not dynamic or static routing mode!
Add DHCP Reservation: Assign a static IP for some certain computer.
DHCP Clients List: Show the current clients’ information which are connected to this Wireless
Modem Router.
Wireless
Access Point Settings: These are the settings of the access point. You can configure the rules to
allow wireless-equipped computers and other devices to communicate with a wireless network.
Access point: Select Activated to allow wireless station to associate with the wireless access
point
![](/img.php?id=1660420&img=bg1f.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
26
Chapter 4: Software Configuration
Channel: Select the channel you want to use from the drop-down List of channel. This field
determines which operating frequency will be used. It is not necessary to change the wireless
channel unless you notice interference problems with another nearby access point.
Beacon Interval: Enter a value between 20-1000 milliseconds. The Beacon Interval value
indicates the frequency interval of the beacon. A beacon is a packet broadcast by the Router to
synchronize the wireless network. The default value is 100.
RTS/CTS Threshold: Should you encounter inconsistent data flow, only minor reduction of the
default value 2347 is recommended. If a network packet is smaller than the preset RTS threshold
size, the RTS/CTS mechanism will not be enabled. The Router sends Request to Send (RTS)
frames to a particular receiving station and negotiates the sending of a data frame. After
receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge
the right to begin transmission. In most cases, keep its default value of 2347.
Fragmentation Threshold:
The threshold (number of bytes) for the fragmentation boundary for
directed messages. It is the maximum data fragment size that can be sent. Enter a value
between 256 and 2432
DTIM: This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication
Message.
Wireless mode: In the drop-down list you can select the wireless mode. For example: 802.11
b+g+n allow 802.11b/802.11g and 802.11n wireless clients to connect to this Wireless Modem
Router.
Channel Bandwidth: Select the Bandwidth you want to use from the drop-down List. If bigger
bandwidth is selected, device could transmit and receive data with higher speed.
Guard Interval: You can leave it as AUTO.
MCS: leave it as AUTO.
![](/img.php?id=1660420&img=bg20.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
27
Chapter 4: Software Configuration
SSID: Refer to your wireless network name, you can change it to anything you want. The SSID
must be identical for all devices in the wireless network. It is case-sensitive and must not exceed
32 characters. Make sure this setting is the same for all stations in your wireless network. Type
the desired SSID in the space provided.
Broadcast SSID: When wireless clients survey the local area for wireless networks to associate
with, they will detect the SSID broadcast by the Wireless Modem Router. To broadcast the
Router’s SSID, keep the default setting. If you don’t want to broadcast the Router’s SSID, select
Disabled.
Use WPS: It allows you to add a new wireless device to an existing network quickly by pushing
WPS button if your wireless adapter also supports Wi-Fi Protected Setup.
WPS Settings: These are the settings of WPS. It shows only when this function is enabled. In this
condition, you can just leave the Authentication Type as OPEN.
WPS state: Show the configuration states of WPS function.
WPS mode: You can set the WPS either via pressing the WPS button or enter the PIN number
manually.
1. PIN code
Please write down the PIN code of your wireless network adapter and enter it into the bar of
enrollee PIN code.
Then push the WPS button on your adapter. The WPS light will first get flashing then solid on if
the operation succeeds.
2. PBC
First, push the button of WPS on this Wireless Modem Router, release it. Then turn to your
wireless network adapter, push the WPS button and release it. Wait a moment, the WPS will
become flashing then finally get solid on if the connection is successful.
![](/img.php?id=1660420&img=bg21.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
28
Chapter 4: Software Configuration
Note:
• This feature is available only when OPEN, WPA-PSK, WPA2-PSK or WPA/WPA2-PSK mode is
configured.
• To build a successful connection by WPS, you should also do the corresponding
configuration of the new device for WPS function meanwhile.
WPS progress: Idle or in progress, shows the progress of WPS
Authentication Type: Select an authentication type from the drop-down list, which allows you
to configure security features of the wireless LAN interface. Options available are: Disabled,
WEP-64Bits, WEP-128Bits, WPA-PSK, and WPA2-PSK.
WEP-64 Bits
To configure WEP-64Bits settings, select the WEP-64Bits option from the drop-down list. The
menu will change to offer the appropriate settings. WPA-64Bits is a data privacy mechanism
based on a 64-bit shared key algorithm, as described in the IEEE 802.11g standard.
WEP-128 Bits
Select WEP-128 Bits, the menu will change to offer the appropriate settings. 128-bit is stronger
than 64-bit.
WPA-PSK
To configure WPA-PSK settings, select the WPA-PSK option from the drop-down list. The menu
will change to offer the appropriate settings. WPA-PSK requires a shared key and does not use a
separate server for authentication. PSK keys can be ASCII or Hex type.
WPA2-PSK
To configure WPA2-PSK settings, select the WPA2-PSK option from the drop-down list. The menu
will change to offer the appropriate settings. WPA2-PSK requires a shared key and does not use a
separate server for authentication. PSK keys can be ASCII or Hex type.
Encryption: Select the encryption you want to use: Automatic, TKIP or AES (AES is an encryption
method stronger than TKIP).
TKIP (Temporal Key Integrity Protocol): A wireless encryption protocol that provides dynamic
encryption keys for each packet transmitted.
AES (Advanced Encryption Standard): A security method that uses symmetric 128-bit blocks
data encryption.
Pre-Shared Key: Enter the key shared by the Wireless Modem Router and your other network
devices. It must be 8-63 ASCII characters or 64 Hexadecimal digits.
![](/img.php?id=1660420&img=bg22.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
29
Chapter 4: Software Configuration

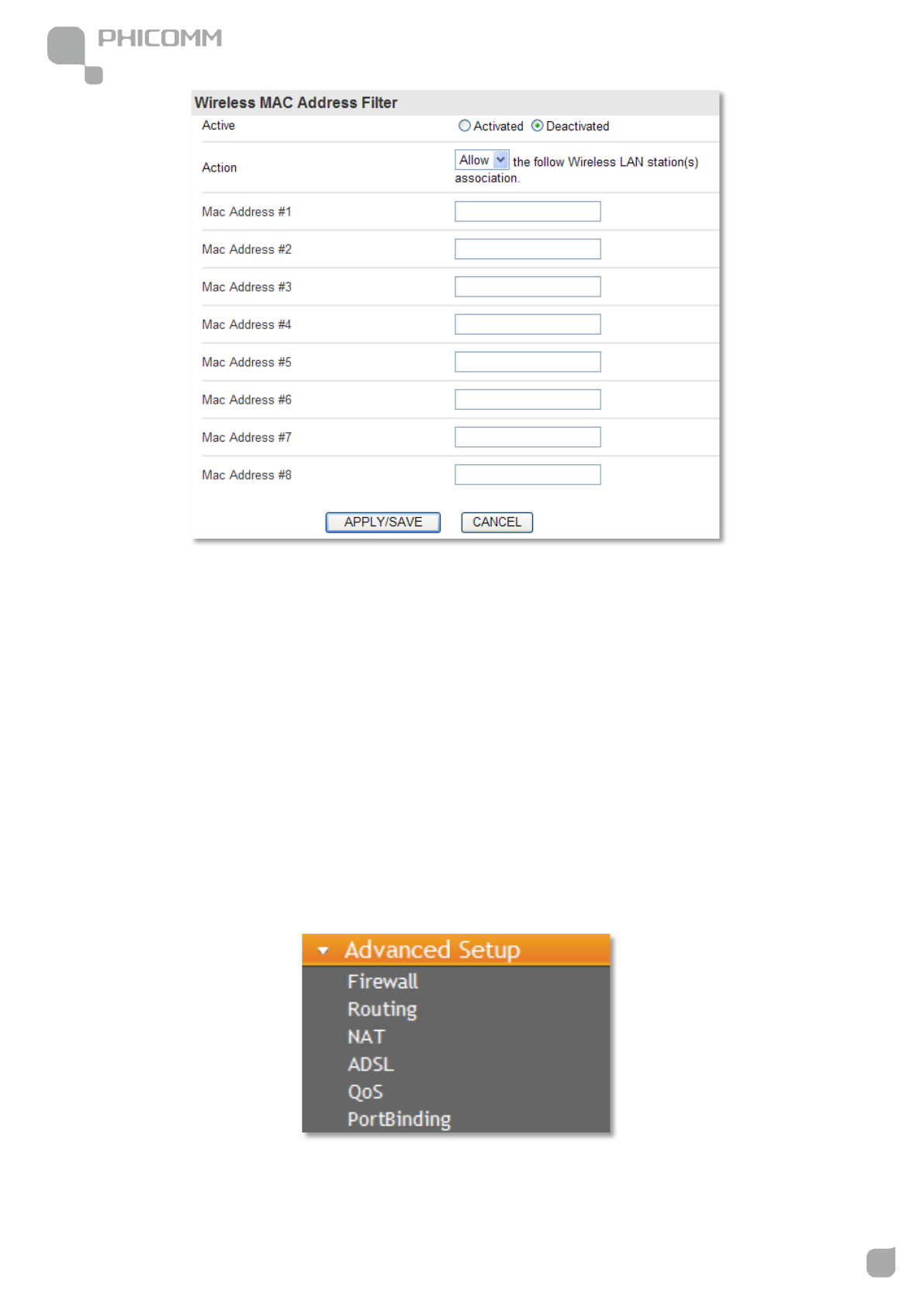

Wireless MAC Address Filter: Wireless access can be filtered by using the MAC addresses of the
wireless devices transmitting within your network’s radius. To filter wireless clients by MAC
Address, either deny or allow access. If you do not wish to filter users by MAC Address, select
Deactivated.
Active: Used to enable or disable this wireless Mac filter function.
Action: Choose Allow or Deny to allow or block wireless access from the devices listed on the
screen.
Mac Address: Enter the MAC Address you wish to filter in the field.
Advanced Setup
Choose Advanced Setup, you can see six submenus. Click any of them, and you will be able to
configure the corresponding function.
![](/img.php?id=1660420&img=bg23.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
30
Chapter 4: Software Configuration

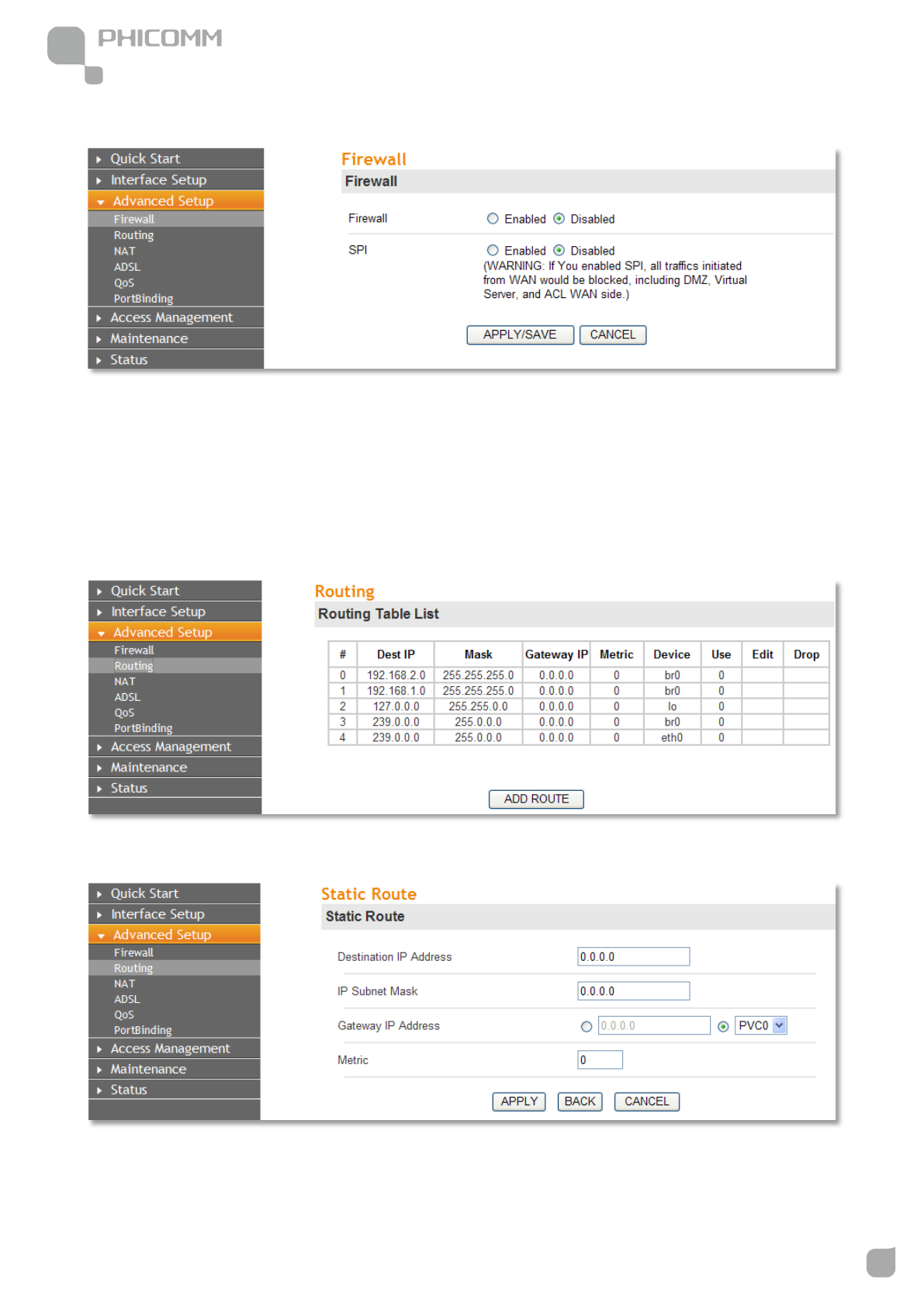

Firewall
Firewall: Select this option can automatically detect and block Denial of Service (DoS) attacks,
such as Ping of Death, SYN Flood, Port Scan and Land Attack.
SPI: If you enable SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual
Server, and ACL WAN side.
Routing
Click ADD ROUTE button to add a new route on the next screen.
Destination IP Address: This parameter specifies the IP network address of the final destination.
IP Subnet Mask: Enter the subnet mask for this destination.
![](/img.php?id=1660420&img=bg24.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
31
Chapter 4: Software Configuration
Gateway IP Address: Enter the IP address of the gateway. The gateway is an immediate
neighbor of your ADSL Router that will forward the packet to the destination. On the LAN, the
gateway must be a router on the same segment as your Router; over Internet (WAN), the
gateway must be the IP address of one of the remote nodes.
Metric: Metric represents the cost of transmission for routing purposes. IP Routing uses hop
count as the measurement of cost, with a minimum of 1 for directly connected networks. Enter a
number that approximates the cost for this link. The number need not to be precise, but it must
between 1 and 15. In practice, 2 or 3 is usually a good number.
NAT
Virtual Circuit: Enter Virtual Circuit Index that you plan to setup for the NAT function.
NAT Status: This field shows the current status of the NAT function for the current VC. You can
go to the previous screen to activate the function.
Number of IPs: This field specifies how many IPs are provided by your ISP for current VC. It can
be single IP or multiple IPs.
Note: For VCs with single IP, they share the same DMZ and Virtual Servers; for VCs with multiple
IPs, each VC can set DMZ and Virtual Servers. Furthermore, for VCs with multiple IPs, they can
define the Address Mapping rules; for VCs with single IP, since they have only one IP, there is no
need to individually define the Address Mapping rule.
DMZ
A DMZ (demilitarized zone) is a host between a private local network and the outside public
network. Users of the public network outside the company can access to the DMZ host. It allows
you to expose one network user to the internet for some special-purpose service such as
internet gaming or video conferencing. DMZ hosting forwards all the ports at the same time to
one computer. You should assign a static IP address to the destination computer before you use
this feature.
![](/img.php?id=1660420&img=bg25.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
32
Chapter 4: Software Configuration
DMZ Host IP Address: Enter the specified IP Address for DMZ host on the LAN side.
Note: For security reasons, you should avoid using the default DMZ server feature. When a
computer is designated as the default DMZ server, it loses much of the protection of the firewall,
and is exposed to many exploits from the Internet. If compromised, the computer can be used
to attack your network
.
Virtual Server
The Virtual Server is the servers behind NAT (on the LAN), for example, Web server or FTP server,
that you can make visible to the outside world even though NAT makes your whole inside
network appear as a single machine to the outside world. Please assign a static IP address to the
destination computer before you use this feature.
Start & End port number: Enter the specific start and end port number you want to forward. If
it is one port only, you can enter the end port number the same as start port number. For
example, you want to set the FTP virtual server, you can set the start and end port number to 21.
![](/img.php?id=1660420&img=bg26.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
33
Chapter 4: Software Configuration
Local IP Address: Enter the IP Address for the virtual server in LAN side.
Virtual Server Listing: This displays the information about the virtual servers you establish.
ADSL
You can select the ADSL Mode and ADSL Type on the next screen. The ADSL feature can be
selected when you meet the physical connection problem. Please confirm the settings with your
Internet Service Provider.
ADSL Mode: Select the ADSL operation mode which your ADSL connection uses.
ADSL Type: Select the ADSL operation type which your ADSL connection uses.
QoS
Quality of Service: This option will provide better service of selected network traffic over
various technologies. By attaching special identification marks or headers to incoming packets,
QoS determines which queue the packets enter, based on priority.
![](/img.php?id=1660420&img=bg27.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
34
Chapter 4: Software Configuration

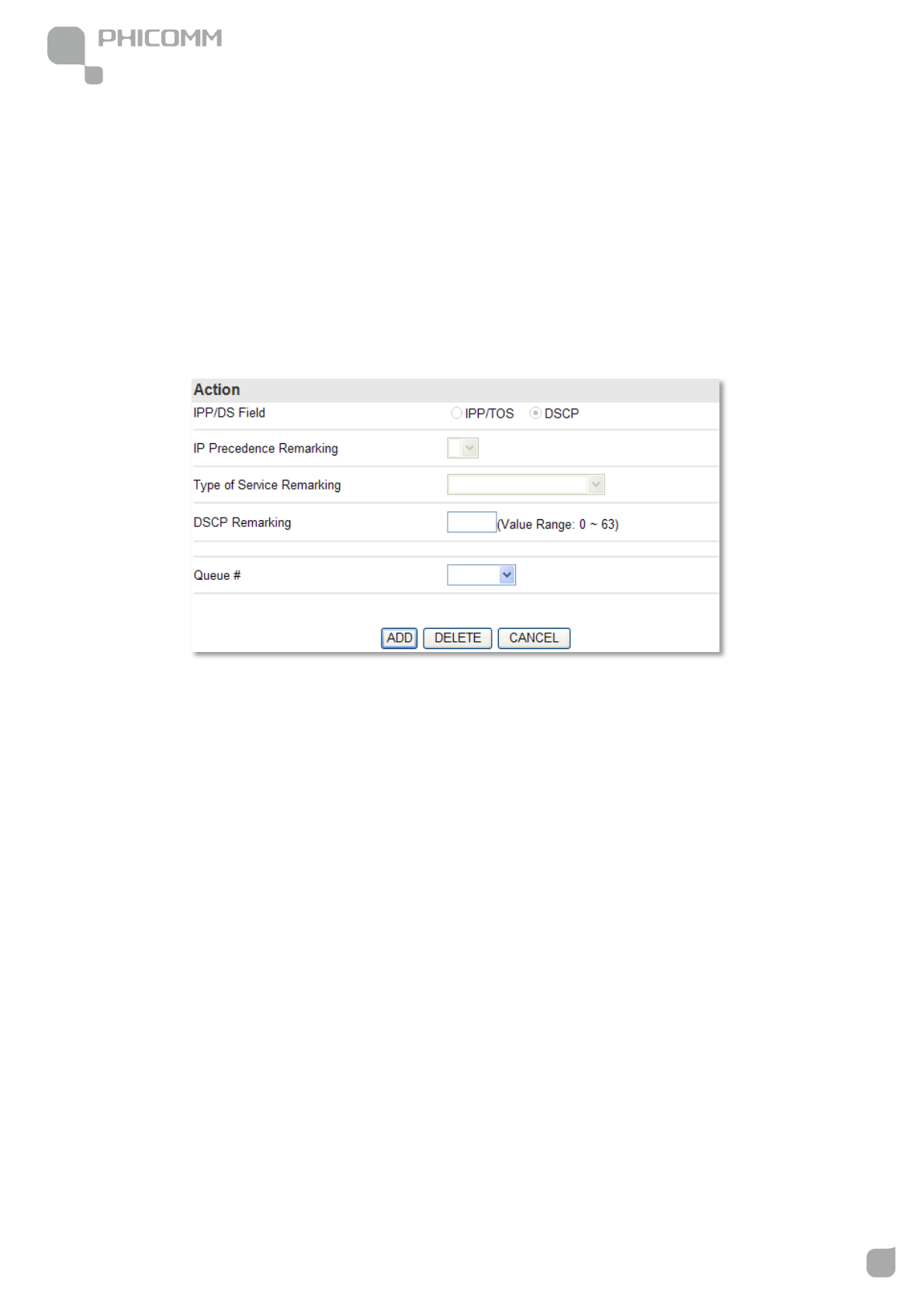

QoS: Select this option to Activate/Deactivate the IP QoS on different types.
Discipline: Choose WRR or Strict Priority
WRR weight: Set the priority weight.
Rule: Configure the rules for QoS. If the traffic complies with the rule, then the Wireless Modem
Router will take the corresponding action to deal with it.
Rule Index:
Destination MAC & IP & Mask & Port Range: Enter the information about the Destination host
for the rule.
Source MAC & IP & Mask & Port Range: Enter the information about the Source host for the
rule.
Select the index for the rule you want to configure.
Active: You can active or deactive this function, the rule can take effect only when it is activated.
Application: Select the application that the rule aimed at.
Physical Ports: Select the port whose traffic flow are controlled by the rule.
Protocol ID: Select one among TCP/UDP, TCP, UDP or ICMP protocols for the application.
Vlan ID Range: Enter the Vlan range, and the rule will be effective to the selected Vlans.
IPP/DS Field: Select the type of the action to assign the priority. When you select IPP/TOS, you
can assign the priority via IP information. IP QoS function is intended to deliver guaranteed as
![](/img.php?id=1660420&img=bg28.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
35
Chapter 4: Software Configuration
well as differentiated Internet services by giving network resource and usage control to the
network operator.
IP Precedence Range: Enter the IP precedence range that the Router takes to differentiate the
traffic.
Type of Service: Select the type of service that the Wireless Modem Router takes to deal with
the traffic.
DSCP Range: Enter the DSCP range to differentiate the traffic.
802.1p: Select the priority range for the rule. When you select DSCP, you can assign the priority
via DHCP (the header of IP group). It maps the IP group into corresponding service class.
IP Precedence Remarking: Select the number to remark the priority for IP precedence.
Type of Service Remarking: Select the type to remark the service.
DSCP Remarking: Enter the number to remark the DSCP priority.
802.1p Remarking: Select the type to remark the 802.1p priority.
Queue: Select the priority type for the action.
![](/img.php?id=1660420&img=bg29.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
36
Chapter 4: Software Configuration
PortBinding
Active: To active or deactive this function.
Group Index: Show the index of rules.
ATM VCs & Ethernet & WLan: Choose the PVCs, Ethernet port, WLan that controlled by the rule.
PortBinding Summary: Display the summary of PortBinding.
Access Management
Choose Access Management, you can see six submenus. Click any of them, and you will be able
to configure the corresponding function.
![](/img.php?id=1660420&img=bg2a.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
37
Chapter 4: Software Configuration
SNMP
The SNMP (Simple Network Management Protocol) is used for exchanging information between
network devices.
Get Community: Set the password for the incoming get and get next requests from the
management station.
Set Community: Set the password for incoming set requests from the management station.
UPnP
UPnP (Universal Plug and Play) is a distributed, open networking standard that uses TCP/IP for
simple peer-to-peer network connectivity between devices. An UPnP device can dynamically
join a network, obtain an IP address, convey its capabilities and learn about other devices on the
network. In turn, a device can leave a network smoothly and automatically when it is no longer
in use. UPnP broadcasts are only allowed on the LAN.
UPnP: Activate or Deactivate the UPnP function. Only when activated is chosen can the UPnP
take effect.
Auto-Configured: If you activate the function, then the UPnP network devices can
automatically configure network addressing, announce their presence in the network to other
UPnP devices and enable exchange of simple product and service descriptions.
![](/img.php?id=1660420&img=bg2b.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
38
Chapter 4: Software Configuration
DDNS
The router offers a DDNS (Dynamic Domain Name System) feature. The feature lets you use a
static host name with a dynamic IP address. Please type the host name, user name and password
assigned to your ADSL Router by your Dynamic DNS provider. User also can decide to turn on
DDNS Wildcard or not.
Dynamic DNS: Activate the DDNS function or not.
Service Provider: This field displays the service provider of DDNS.
My Host Name: Enter your host name here.
Username & Password: Type the User Name and Password for your DDNS account.
Wildcard support: Select the option to use Wildcard function.
![](/img.php?id=1660420&img=bg2c.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
39
Chapter 4: Software Configuration
ACL
You can specify the client to access the ADSL Router once setting its IP as a Secure IP Address
through selected applications.
ACL: If Activated, the IP addresses which are contained in the Access Control List can access to
the Router. If Deactivated, all IP addresses can access to the Router.
ACL Rule Index: Select the ACL rule index for the entry.
Active: Enable the ACL rule.
Secure IP Address: Select the IP addresses which are permitted to access to the Router remotely.
With the default IP 0.0.0.0, any client would be allowed to remotely access the ADSL Router.
Application: Select the application for the ACL rule, and then you can access the Router through
it.
Interface: Select the interface for access: LAN, WAN or Both.
Access Control Listing: This displays the information about the ACL Rules.
![](/img.php?id=1660420&img=bg2d.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
40
Chapter 4: Software Configuration

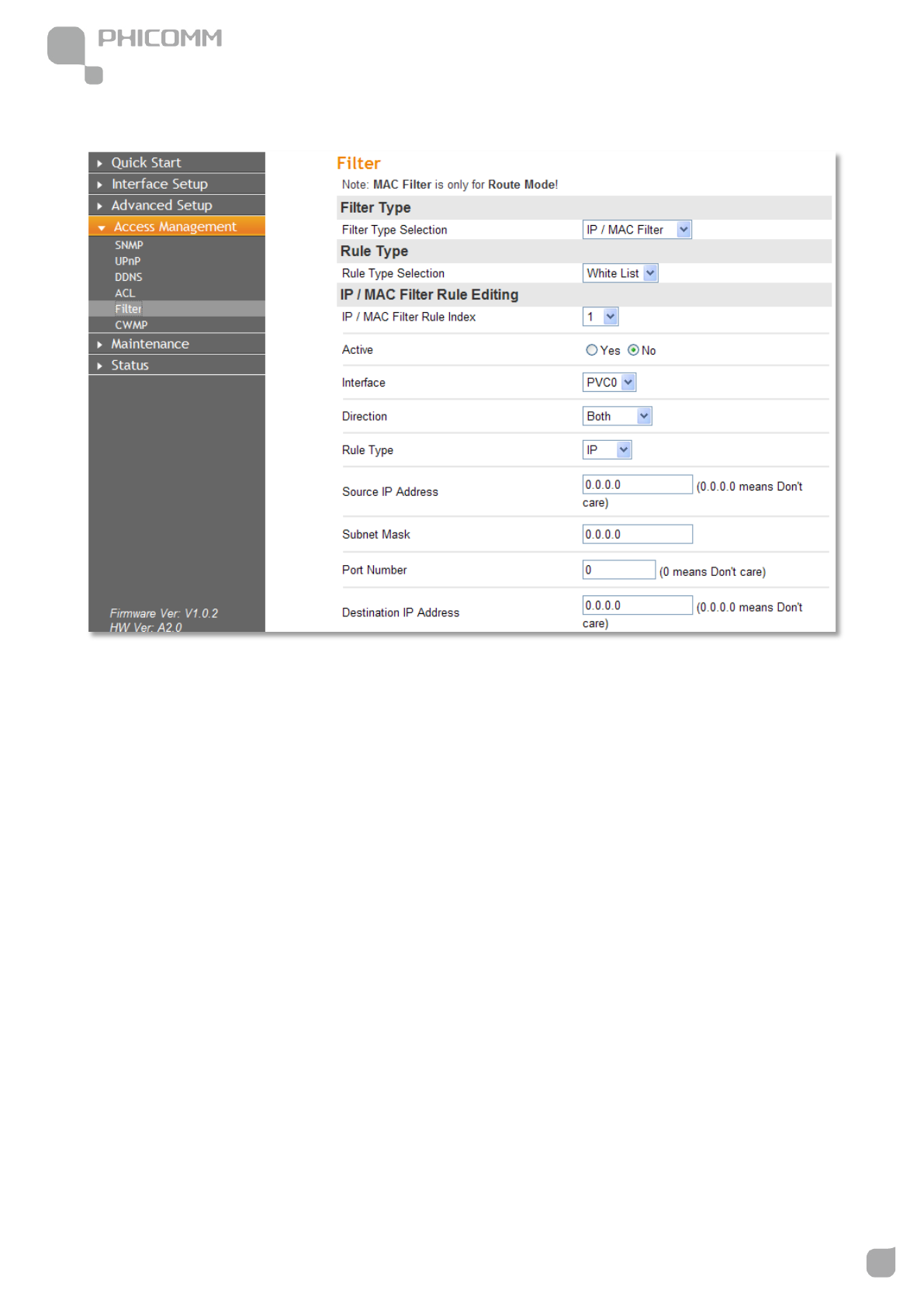

Filter
The filtering feature includes IP/MAC Filter, Application Filter and URL Filter. The feature makes it
possible for administrators to control user's access to internet, protect the networks.
Filter Type Selection: Select the filter type for the configuration below.
Rule Type Selection: White list and black list.
IP/MAC Filter Rule Index: Select the Set index for the IP Filter entry. This index can match with
sixteen IP / MAC Filter Rule Indexes.
Active: Select Yes to make the rule to take effect.
Interface: Select the interface for the entry.
Direction: Select the direction for this IP/Mac Filter rule. There are three filtering directions: Both,
Incoming, Outgoing.
Rule Type: Choose to set the filter rules according to IP or Mac.
Source IP address & Subnet Mask & Port Number: Enter the source IP address for the rule. You
can enter 0.0.0.0, it means that all IP addresses are controlled by the rule.
Destination IP Address & Subnet Mask & Port Number:Enter the destination IP address for the
rule. You can enter 0.0.0.0, it means that all IP addresses are controlled by the rule. The set of
Subnet Mask and Port Number are same as Source IP Address.
![](/img.php?id=1660420&img=bg2e.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
41
Chapter 4: Software Configuration
Protocol: TCP, UDP or ICMP in the drop-down list for the connection between the Source IP
address and Destination IP address.
IP/MAC Filter Listing: This displays the information about the IP Filter rules.
CWMP
The router offers CWMP feature. The function supports TR-069 protocol which collects
information, diagnoses the devices and configures the devices automatically via ACS
(Auto-Configuration Server).
CWMP: Select Activated to activate the CWMP function.
URL: Enter the website of ACS which is provided by your ISP.
User Name/Password: Enter the User Name and Password to login the ACS server.
![](/img.php?id=1660420&img=bg2f.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
42
Chapter 4: Software Configuration
Path: Enter the path that connects to the ACS server.
User Name/Password: Enter the User Name and Password that provided the ACS server to login
the router.
Periodic Inform: Activate or deactivate the function. If Activated, the information will be
informed to ACS server periodically.
Interval: Enter the interval time here.
Maintenance
Choose Maintenance, you can see five submenus. Click any of them, and you will be able to
configure the corresponding function.
Administration
Note:
• There is only one account that can access Web-Management interface. The default account
is admin, and the password is admin. Admin has read/write access privilege.
• When you change the password, you should enter the new password twice, and then click
APPLY/SAVE to make the new password take effect.
Time Zone
The system time is the time used by the device for scheduling services. There are three methods
to configure the time. You can manually set the time, specify the PC’s Clock as the device system
time or connect to a NTP (Network Time Protocol) server. If you manually set the time, you may
also set Daylight Saving dates and the system time will automatically adjust on those dates. If a
![](/img.php?id=1660420&img=bg30.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
43
Chapter 4: Software Configuration
NTP server is set, you will only need to set the time zone. If PC’s Clock is selected, the device will
get the PC’s Clock by way of the system time.
1. NTP Server automatically
Select NTP Server automatically as the synchronize time, please choose the time zone.
Note: The ADSL Router built-in some NTP Servers, when the Wireless Modem Router connects to
internet, it will get the system time automatically from the NTP Server. You can also configure
the NTP Server address manually, and then it will get the time from the specific server firstly.
2. PC’s Clock
Select PC’s Clock as the synchronize time, you don’t need to do anything alse.
![](/img.php?id=1660420&img=bg31.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
44
Chapter 4: Software Configuration
3. Manually
Select Manually as the synchronize time, please configure the date and time corresponding to
the current time.
File Upgrade
You can upgrade the firmware of the Router in this page. Make sure the firmware or config file
you want to use is on the local hard drive of the computer. Click Browse to find the local hard
drive and locate the firmware or config file to be used for upgrade.
To upgrade the router's firmware, follow these instructions below:
Step 1: Download a more recent firmware upgrade file.
Step 2: Type the path and file name of the update file into the New Firmware/Config File field.
Or click the Browse button to locate the update file.
Step 3: Click UPGRADE.
Note:
• New firmware versions are posted at www.phicomm.com and can be downloaded for free. If
the router is not experiencing difficulties, there is no need to download a more recent
firmware version, unless the version has a new feature that you want to use.
![](/img.php?id=1660420&img=bg32.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
45
Chapter 4: Software Configuration
• When you upgrade the router's firmware, you may lose its current configurations, so please
back up the router’s current settings before you upgrade its firmware.
• Do not turn off the router or press the Reset button while the firmware is being upgraded.
• The router will reboot after the upgrading has been finished.

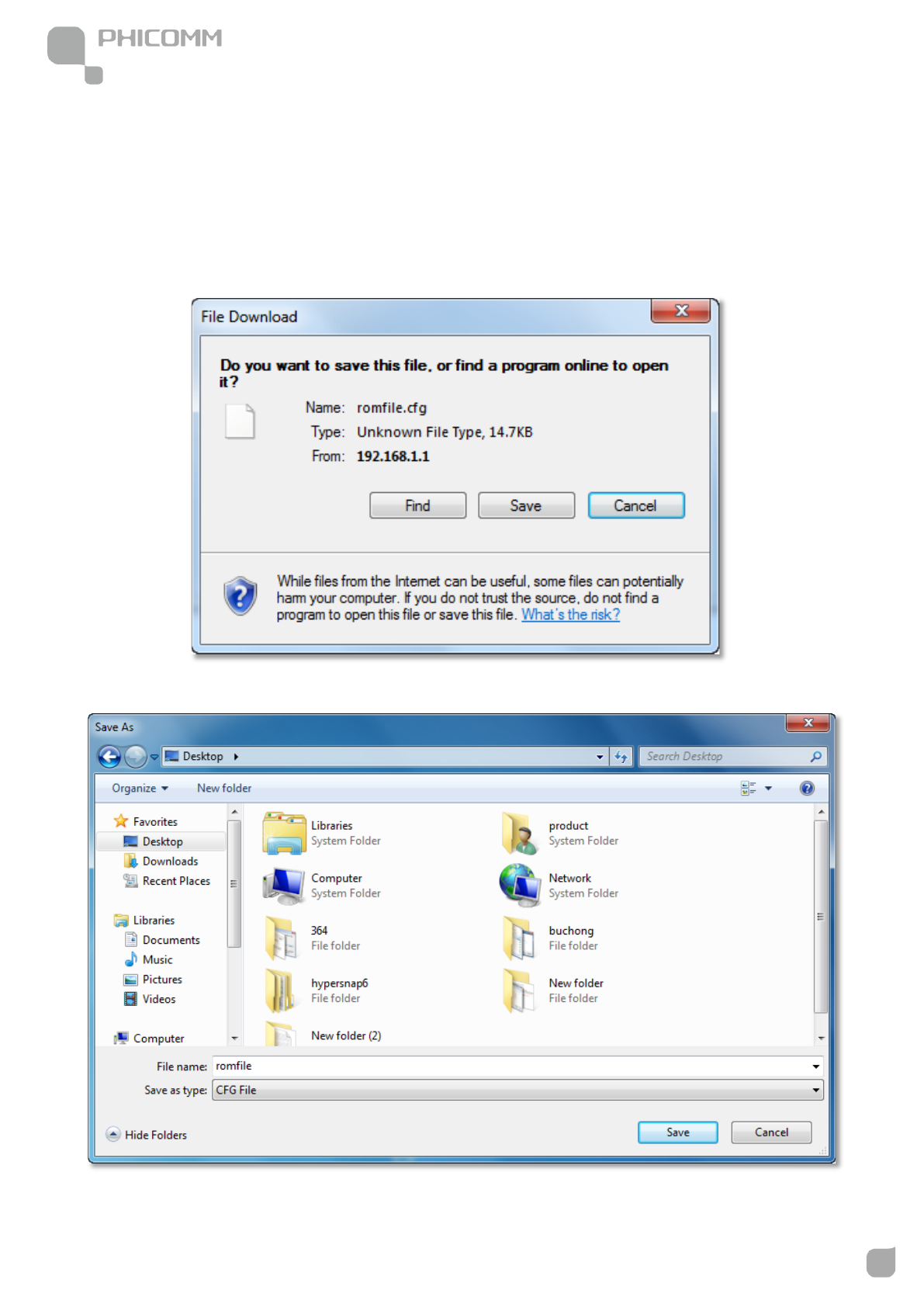

To back up the Wireless Modem Router’s current settings:
Step 1: Click CONFIG FILE BACKUP, you can see:
Step 2: Click Save to save the file as the appointed file.
![](/img.php?id=1660420&img=bg33.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
46
Chapter 4: Software Configuration
SysRestart
You can select to restart the device with current settings or restore to factory default settings in
this page.
Diagnostic
You can view the test results for the connectivity of the physical layer and protocol layer for both
LAN and WAN sides in this page.
Status
Choose Status, you can see three next submenus: Device Info, System Log and Statistics. Click
any of them, and you will be able to configure the corresponding function.
![](/img.php?id=1660420&img=bg34.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
47
Chapter 4: Software Configuration
Device Info
You can view the device information, including LAN, WAN and ADSL in this page. The
information will vary depending on the settings of the Wireless Modem Router configured on
the Interface Setup screen.
Note: Click the other submenus System Log or Statistics in figure above, you will be able to view
the system log and traffic statistics about the Wireless Modem Router.
![](/img.php?id=1660420&img=bg35.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
48
Chapter 4: Software Configuration
System Log
You can query the logs of the Wireless Modem Router in this page.
Statistics
You can view the network traffic over network in this page.
Interface: You can select Ethernet, ADSL and WLAN to view the corresponding network traffic
over different ports.
![](/img.php?id=1660420&img=bg36.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
49
Chapter 5: Specification
Chapter5: Specification
Basic
Standards IEEE 802.11n ,IEEE 802.11g, IEEE802.11b, IEEE802.3, 802.3u
Interfaces 1 x RJ11 DSL Port, 4 x RJ45 LAN Port
LED Indicators Power, LAN1-LAN4, WPS, WLAN, DSL, Internet
Data Rate Downstream: Up to 24Mbps, Upstream: Up to 1Mbps
Wireless Features Wireless speed up to 150Mbps
Provides WPA/WPA2, WPA-PSK/WPA2-PSK, TKIP/AES
Provides 64/128-bit WEP encryption security and wireless LAN ACL (Access Control
List)
Security NAT and SPI Firewall, Packet Filter
VPN Pass Through IPSec/PPTP/L2TP Pass-through
Switching Features IGMP Snooping
IEEE 802.1d transparent bridging
QoS IP Type of service(ToS)
802.1p
Device Management HTTP, Telnet
Administration and operation software (Firmware) upgradable
locally by web(HTTP)
ADSL
ADSL Features Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt), ITU-T G.992.2 (G.lite)
ITU-T G.994.1 (G.hs), ITU-T G.992.3 (G.dmt.bis)
ITU-T G.992.5, Supports Annex A/L, Max 6 kilometers
ATM Features UNI 3.1,ATM Adaptation Layer Type 5-AAL5
Multiprotocol encapsulation over ATM (RFC 1483)
UBR, CBR, VBR-rt, VBR-nrt
Supports 8 PVCs
PPP Features PPP over ATM (RFC 2364),PPP over Ethernet (RFC 2516)
Others
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -20°C~70°C (-4°F~158°F)
Operating Humidity 10% ~ 90%, non-condensing
Storage Humidity 5%~90%, non-condensing
Certifications CE, FCC, RoHS
Package Contents 1 x Wireless Modem Router
1 x Resource CD
1 x Quick Installation Guide
1 x Power Adapter
1 x Ethernet Cable
2 x Telephone Line
1 x ADSL Splitter
![](/img.php?id=1660420&img=bg37.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
50
Appendix A: Troubleshooting
Appendix A: Troubleshooting
1. How do I restore my Wireless Modem Router’s configuration to factory default settings?
With the router powered on, press the Reset button on the rear panel, keep holding it for about 5
seconds then release it.
2. Why I cannot login the Wireless Modem Router’s web management page?
• Make sure the computer goes into the LAN port of the router.
• Check the computer’s IP address; make sure the IP address is obtained automatically, for
details please refer to the section of Configure the Computers IP Address in this manual.
• Make sure you put 192.168.1.1 into the address bar, not the search bar.
• Check your web browser; make sure the Proxy server is unchecked. Take Internet Explorer as
an example, go to Tools>Internet Options>Connections>LAN Settings, uncheck Use a
proxy server for your LAN.
• If it tells you the username or password is error, and you cannot remember the new one,
please reset router by pressing reset button for at least 5 seconds, and then try to login with
default username and password (admin/admin).
3. What can I do if I forgot my login password for the Wireless Modem Router’s web
management page 192.168.1.1?
• Restore the Wireless Modem Router to its factory default settings, please refer to question 1.
• Use the default username and password: admin, admin.
• Reconfigure the Wireless Modem Router after you reset it successfully.
4. What can I do if I cannot access the Internet?
• Make sure all the connectors are connected properly, including the telephone line, Ethernet
cables and power adapter.
• Try to restart your Wireless Modem Router and computer.
• Try to login to the web management page of the Wireless Modem Router. If you can, please
check the status of DSL light on the front panel of the Wireless Modem Router:
a) DSL light is solid on, please refer to question 5.
b) DSL light is blinking or off, please contact with your Internet Service Provider to check your
ADSL service.
If you cannot open the Wireless Modem Router’s web management page, please try to reset the
Wireless Modem Router, refer to question 1.
5. What can I do if the DSL light is solid on, but the Internet light is off?
Log in the Wireless Modem Router’s web management page 192.168.1.1, consult your ISP and
![](/img.php?id=1660420&img=bg38.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
51
Appendix A: Troubleshooting
make sure the VPI/VCI, Connection Type, username and pass word are correct. If there are any
mistakes, please correct the settings and try again.
6. The computer cannot connect to the internet wirelessly.
Please make sure you can access the Internet when plug in the Ethernet cable from the Wireless
Modem Router to the computer, otherwise, please refer to Question 4. Then check the wireless
connection status on your computer:
• Search available networks and connect to your wireless network. If your wireless network
name (SSID) is not listed in, please connect to Wireless Modem Router’s LAN port by an
Ethernet cable, login Wireless Modem Router’s web management page 192.168.1.1 to make
sure the Broadcast SSID is enabled.
• If you cannot connect to your wireless network, please make sure the password is correct.
You can connect to Wireless Modem Router’s LAN port by an Ethernet cable, login router’s
web management page 192.168.1.1 to double check your password.
• If there is no wireless network found in range on your computer, please make sure the
wireless switch is turned on, and the wireless network adapter is working properly.
![](/img.php?id=1660420&img=bg39.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
52
Appendix B: Certification
Appendix B: Certification
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
• Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
FCC Caution
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
• For product available in the USA market, only channel 1~11 can be operated. Selection of
other channels is not possible.
• This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
• This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
![](/img.php?id=1660420&img=bg3a.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
53
Appendix B: Certification
• This equipment should be installed and operated with a minimum distance of 20
centimeters between the radiator and your body.
CE Mark Warning
Marking with the above symbol indicates compliance with the Essential Requirements of the
R&TTE Directive of the European Union (1999/5/EC).
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
National Restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU Directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and public
service
France
Outdoor use limited to 10 mW
e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz band has
been ongoing in recent years to allow current relaxed
regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area within
a radius of 20 km from the centre of Ny-Ålesund
Russian
Federation None Only for indoor applications
Note: Please don’t use the product outdoors in France.
![](/img.php?id=1660420&img=bg3b.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
54
Appendix C: Glossary
Appendix C: Glossary
ATM (Asynchronous Transfer Mode): ATM is a cell based transfer mode that requires variable
length user information to be segmented and reassembled to/from short, fixed length cells. It
uses two different methods for carrying connectionless network interconnect traffic, routed and
bridged Protocol Data Units (PDUs), over an ATM network.
DDNS (Dynamic Domain Name System): Allows the hosting of a website, FTP server, or e-mail
server with a fixed domain name (e.g., www.xyz.com) and a dynamic IP address.
DMZ (Demilitarized Zone): Removes the Router's firewall protection from one PC, allowing it to
be “seen” from the Internet.
DNS (Domain Name Server): The IP address of your ISP's server, which translates the names of
websites into IP addresses.
DSL (Digital Subscriber Line): An always-on broadband connection over traditional phone
lines.
Dynamic IP Address: A temporary IP address assigned by a DHCP server.
Firewall: A set of related programs located at a network gateway server that protects the
resources of a network from users from other networks.
ISP (Internet Service Provider): A company that provides access to the Internet.
Ping (Packet Internet Groper): An Internet utility used to determine whether a particular IP
address is online.
PPPoE (Point to Point Protocol over Ethernet): PPPoE stands for Point to Point protocol over
Ethernet; this protocol is used as a type of broadband connection that provides authentication
(username and password) in addition to data transport.
PPPoA (Point to Point Protocol over ATM): PPPoA stands for Point to Point protocol over ATM;
this protocol is also used as a type of broadband connection that provides authentication
(username and password) in addition to data transport.
Static IP Address: A fixed address assigned to a computer or device that is connected to a
network.
TCP (Transmission Control Protocol): A network protocol for transmitting data that requires
acknowledgement from the recipient of data sent.
UDP (User Datagram Protocol): A network protocol for transmitting data that does not require
acknowledgement from the recipient of the data that is sent.
![](/img.php?id=1660420&img=bg3c.png)
150Mbps Wireless N ADSL2/2+ Modem Router
www.phicomm.com
55
Appendix C: Glossary
VCI (Virtual Channel Identifier): The identifier of the VC contained in the ATM cell header.
VPI (Virtual Path Identifier): The identifier of the VP contained in the ATM cell header.
VLAN (Virtual Local Air Network): Logical subgroups that constitute a Local Area Network
(LAN). This is done in software rather than defining a hardware solution.
![](/img.php?id=1660420&img=bg3d.png)
Shanghai Feixun Communication Co., Ltd.
E-mail: support@phicomm.com
Website: www.phicomm.com
Copyright © 2011 Shanghai Feixun Communication Co., Ltd. All rights reserved.
