Philips Medical Systems North America 4843B INTELLIVUE 1.4 GHz CORE ACCESS POINT User Manual
Philips Medical Systems North America Co. INTELLIVUE 1.4 GHz CORE ACCESS POINT
Users Manual
![](/img.php?id=1486117&img=bg1.png)
IntelliVue Telemetry System
1.4 GHz Core Access Point/Remote Antenna
Installation Guide
Part Number: 453564238171
Printed in the U.S.A.
June, 2011
First Edition
*453564238171*

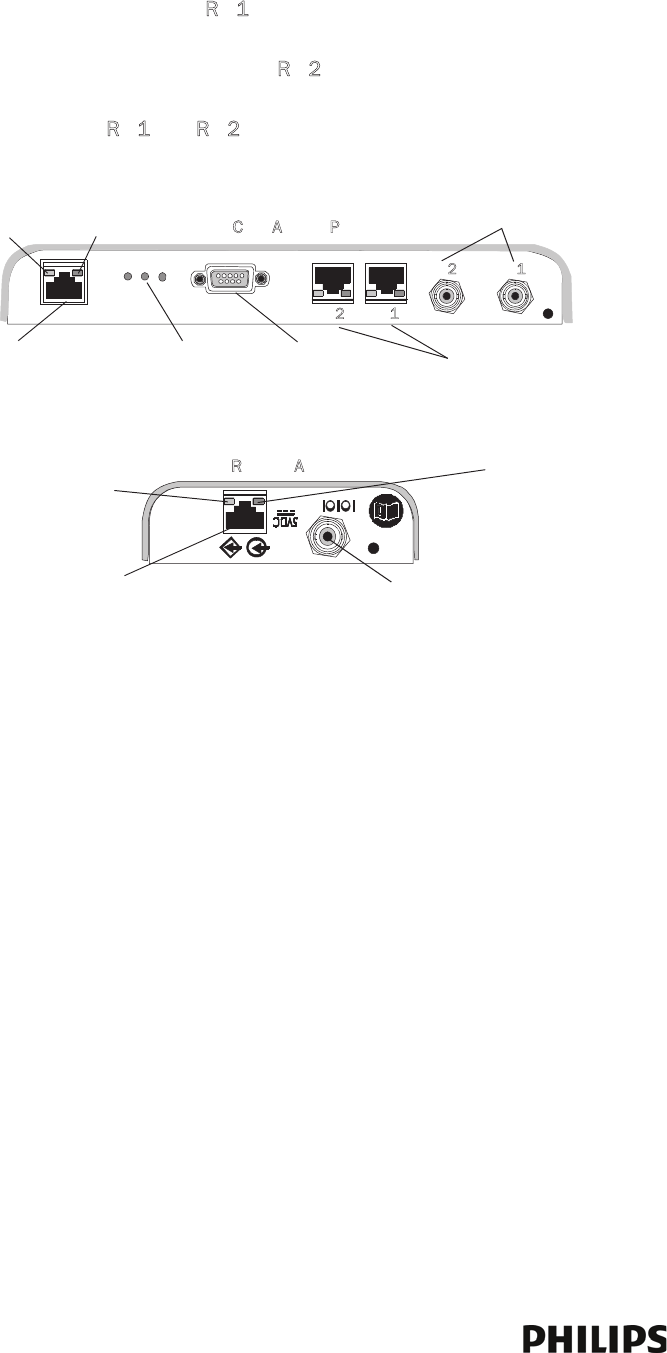

Core
Access Point
Remote
Antenna
Remote
Antenna
Network
power/Sync
Radio
Activity
Link
10/100 48 VDC
IOIOI
Serial Service Port
5VCD
IOIOI
2
2
DRAFT-3
![](/img.php?id=1486117&img=bg2.png)
ii
Proprietary Information
This document contains proprietary information that is protected by copyright.
Copyright
Copyright © 2011 Koninklijke Philips Electronics N.V. All Rights Reserved.
Manufacturer
Philips Medical Systems
3000 Minuteman Road
Andover, MA 01810-1099
(+1) 978-687-1501
This document was printed in the United States of America.
Trademark Acknowledgements
HP is a registered trademark of Hewlett-Packard Company
Cisco is a registered trademark of Cisco Systems
All other trademarks, trade names and company names referenced herein are used for identification purposes only and are
the property of their respective owners.
FCC Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) these devices may
not cause harmful interference, and (2) these devices must accept any interference received, including interference that
may cause undesired operation.
Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by Philips
Medical Systems may cause harmful radio frequency interference, and void your authority to operate this equipment.
Operation of this equipment in the United States requires the prior coordination with a frequency coordinator designated by
the Federal Communications Commission (FCC) for Wireless Medical Telemetry Service.
Warranty
The information contained in this document is subject to change without notice. Philips Medical Systems makes no warranty
of any kind with regard to this material, including, but not limited to, the implied warranties or merchantability and fitness for
a particular purpose. Philips Medical Systems shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
Printing History
New editions of this document will incorporate all material updated since the previous edition. The documentation printing
date and part number indicate its current edition. The printing date and edition number change when a new edition is
printed. The document part number changes when extensive technical changes are incorporated.
First Edition ........................................................................................................................................................................June, 2011
DRAFT-3
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide iii
Contents
About This Guide
Audience. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Document Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Notational Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vi
Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Chapter 1: Overview
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
A General Description of the ITS Core Access Point . . . . . . . . . . . . . . . . . . . . . . . 1-3
Core AP Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Synchronization Signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Transceiver Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Technical Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Firmware Updates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Management Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Connectors and Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
ITS Core AP Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Remote AP Connectors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
ITS Core AP Status LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Remote Antenna Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Access Point Placement Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
General Installation Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Mounting the ITS Core AP to a Wall (Fixed Mount) . . . . . . . . . . . . . . . . . . . . . . . . 2-6
Mounting the ITS Core AP to a Wall (CA Earthquake Rated) . . . . . . . . . . . . . . . . 2-7
Mounting the ITS Core AP Above a Ceiling Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Mounting the ITS Core AP Below a Ceiling Tile (Fixed Mount) . . . . . . . . . . . . . . 2-12
Mounting the ITS Core AP Below a Ceiling Tile (Quick Release) . . . . . . . . . . . . 2-16
Mounting the ITS Remote Antenna to a Wall (Fixed Mount) . . . . . . . . . . . . . . . 2-21
Mounting the ITS Remote Antenna to a Wall (CA Earthquake Rated) . . . . . . . . 2-22
Mounting the ITS Remote Antenna Above a Ceiling Tile (Mounting Rails) . . . . 2-23
DRAFT-3
![](/img.php?id=1486117&img=bg4.png)
iv
Contents
Mounting the ITS Remote Antenna Above a Ceiling Tile (Tether Mount). . . . . . 2-26
Mounting the ITS Remote Antenna Below a Ceiling Tile (Fixed Mount). . . . . . . 2-28
Mounting the ITS RA Below a Ceiling Tile (Quick Release) . . . . . . . . . . . . . . . . . 2-32
AP Configuration Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-35
Access Point Startup Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-35
Chapter 3: Maintaining the ITS 1.4 GHz Core Access Point
Maintenance Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Troubleshooting the Core AP Using its LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Troubleshooting the Remote Antenna Using its LEDs . . . . . . . . . . . . . . . . . . . . . 3-3
Replacing a Core AP or Remote Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Ordering Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
DRAFT-3
![](/img.php?id=1486117&img=bg5.png)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide v
About This Guide
This IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote
Antenna Installation Guide provides complete instructions and procedures
for installing the Philips IntelliVue Telemetry System ITS4843B 1.4 GHz
Core Access Point and ITS4846A Remote Antennas. This section
describes the document and includes:
• Audience
• Document Organization
• Notational Conventions
• Related Documentation
• Terminology
DRAFT-3
![](/img.php?id=1486117&img=bg6.png)
vi
About This Guide
Audience
The IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote
Antenna Installation Guide is written for trained service personnel who will
install the IntelliVue Telemetry System 1.4 GHz Core Access Point as part
of an overall IntelliVue Telemetry System deployment.
Document Organization
The information in this guide is organized and presented as follows:
•Chapter 1, Overview, describes the Model ITS4843B IntelliVue
Telemetry System 1.4 GHz Core Access Point and how it is used to
provide a bi-directional data flow between the IntelliVue Information
Center and patient-worn transceivers and wireless bedside monitors.
•Chapter 2, Installing the ITS 1.4 GHz Access Point, provides
procedures to physically install the Philips IntelliVue Telemetry System
1.4 GHz Core Access Point and includes instructions for mounting the
Core AP and Remote Antennas to a wall, above a ceiling tile, and below
a ceiling tile.
•Chapter 3, Maintaining the ITS 1.4 GHz Core Access Point, provides
procedures to maintain and troubleshoot operation of the Philips
IntelliVue Telemetry System 1.4 GHz Core Access Point.
Notational Conventions
This guide uses the following notational conventions to convey
information:
Note Notes call attention to important information.
Caution Cautionary statements call attention to a condition that could result in loss
of data or damage to equipment.
Warning Warnings call attention to a condition that could result in physical injury.
DRAFT-3
![](/img.php?id=1486117&img=bg7.png)
About This Guide
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide vii
Related Documentation
Please refer to these other documents for additional installation service
information about the IntelliVue Telemetry System:
•ITS Access Point Controller Installation Guide (453564238151) -
provides procedures to physically install and power the ITS Access
Point Controller at the clinical site.
• ITS 2.4 GHz Access Point Installation Guide (453564238161) - gives
procedures to install the model ITS4852A 2.4 GHz AP at the clinical
site to a wall, or above or below a ceiling tile.
• ITS Infrastructure Installation and Service Guide (453564238181) -
provides complete information and procedures to install, configure,
inter-connect, and deploy the ITS infrastructure at the clinical site. This
document includes site planning guidelines, procedures for use of the
APC command line and graphical user interfaces, AP configuration
procedures, and APC and AP firmware deployment procedures.
• ITS Sync Unit Installation Guide (453564238191) - lists procedures to
install the model M4844A Sync Unit at the clinical site.
• Upgrading ITS Access Point Controllers and Access Points
(453564238141) - gives procedures to use the Philips ITS APC and AP
Upgrade Wizard tool to install and synchronize the firmware version on
ITS APCs and APs.
Terminology
Please note the following terms, acronyms, and abbreviations used
throughout this document:
• IntelliVue Clinical Network (ICN) - This term refers to the entire Philips
network. In a routed topology, the ICN includes the routers and all
inter-connected Database Domain(s) and the IntelliVue Telemetry
System wireless subnet.
• Database Domain (DBSD) - This term is used to describe the
“network” that contains the Standalone IntelliVue Information Center,
or the IntelliVue Database Server and its connected Information
Centers, Clients, bedsides, and infrastructure. This term applies to
both routed and non-routed topologies.
DRAFT-3
![](/img.php?id=1486117&img=bg8.png)
viii
About This Guide
• IntelliVue Telemetry System (ITS) - Cellular wireless architecture that
provides two-way communications between patient-worn transceivers,
wireless bedside patient monitors, and the IntelliVue Information
Center.
• IntelliVue Wireless Subnet - This term is used to describe the IntelliVue
Telemetry System (ITS) “network” that contains the infrastructure
used in a routed topology to connect the IntelliVue Telemetry System
devices.
• Access Point (AP) - A network device that provides bi-directional
wireless access to the monitoring network for patient-worn
transceivers and wireless bedside monitors.
• Access Point Controller (APC) - A network device used to manage the
operation of the Access Points. One APC is elected the Master APC.
The Master APC supports the web interface to the system and
manages the master configuration.
• Access Point Group/AP Group - A logical grouping of APs. AP members
of the same AP Group will inherit common configuration settings
(defaults). AP groups will often map logically to the clinical units in
which the ITS is being installed.
• Partnered APC - Configurable element within an AP Group used to
determine which APC will manage the operation of the AP members of
a particular AP Group.
• RF Access Code - Configurable element in the Smart-hopping AP
defaults shared among APs and patient-worn transceivers to control
wireless access to the monitoring network. Portable devices will only
connect to access points with which they share access codes. The RF
Access Code allows a specific wireless client that is programmed with
a matching Access Point RF Access Code to connect to that Access
Point.
• Synchronization Unit - The Philips Sync Unit provides a necessary
common clock signal to synchronize all the IntelliVue Access Points in
the system. As patients ambulate around the hospital coverage area
their transmitted data are handed over from one AP to another
seamlessly without interruption or data loss.
• System ID - Configurable element in the APC Configuration to logically
associate Access Points and Access Point Controllers operating within
the same ITS.
DRAFT-3
![](/img.php?id=1486117&img=bg9.png)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 1-1
1
Overview
This chapter provides a high-level overview of the Philips IntelliVue
Telemetry System ITS4843B 1.4 GHz Core Access Point and includes:
• Introduction
• A General Description of the ITS Core Access Point
• Connectors and Status Indicators
• Specifications
• Ordering Information
DRAFT-3
![](/img.php?id=1486117&img=bga.png)
1-2
Chapter 1: Overview
Introduction
The Philips IntelliVue Telemetry System (ITS) uses a cellular wireless architecture to
provide two-way communications between patient-worn transceivers/monitors and
wireless bedside patient monitors, and the IntelliVue Information Center.
Using the “Smart-hopping” wireless protocol, the ITS provides monitoring
capabilities for ambulatory patients within a wide coverage area. The ITS
transceivers (portable patient-worn devices), patient-worn monitors, wireless
bedside monitors, and infrastructure operate on the 1.4 GHz US Wireless Medical
Telemetry Service (WMTS) band or on the 2.4 GHz Industrial, Scientific and Medical
(ISM) band.
The pocket-size patient-worn transceiver or monitor sends patient data, and sends
and receives control and device information to and from the IntelliVue Information
Center (bi-directional communication) for subsequent monitoring, display, analysis,
alarm detection, operator alerts, data storage and permanent recording. Displays,
settings, recordings, and alarms are controlled from the IntelliVue Information
Center. Recordings can also be initiated from the patient worn-transceivers/
monitors.

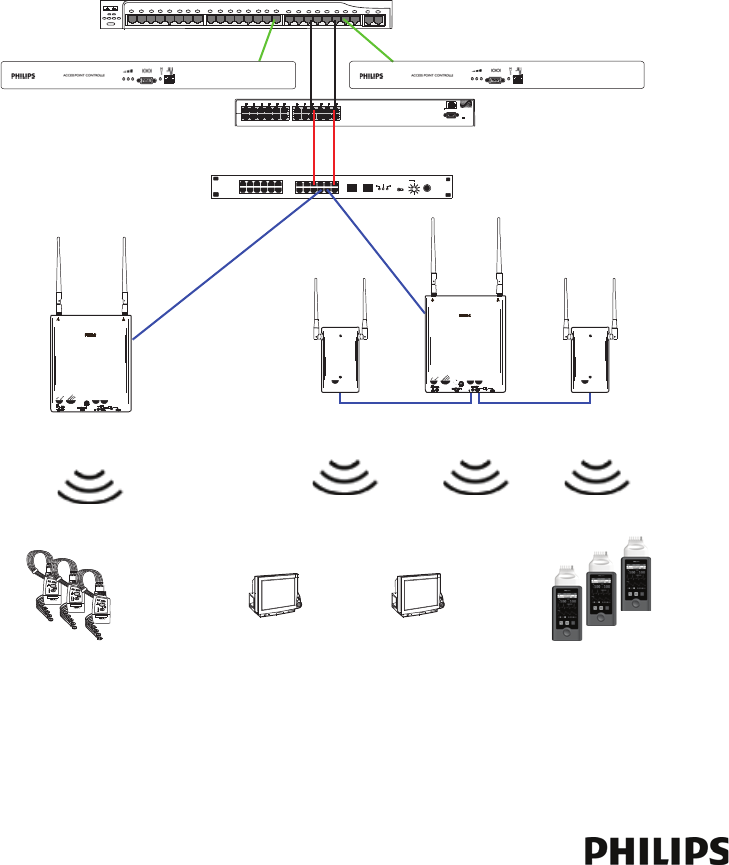

Figure 1-1: 1.4 GHz IntelliVue Telemetry System
ICN Network Switch
Power over Ethernet Unit
Synchronization Unit
1.4 GHz Smart-hopping
Access Points
1.4 GHz Wireless
Bedside Monitors
Access Point Controller
1.4 GHz
Remote Antenna
1.4 GHz
Core Access Point
Access Point Controller
1.4 GHz
Core Access Point
1.4 GHz Patient-worn
Transceivers
1.4 GHz Patient-worn
Monitors
DRAFT-3
![](/img.php?id=1486117&img=bgb.png)
A General Description of the ITS Core Access Point
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 1-3
You can configure the Access Point Controller to communicate with IntelliVue 1.4 or
2.4 GHz Smart-hopping Access Points (APs). IntelliVue 1.4 GHz APs can only
communicate with 1.4 GHz transceivers and monitors. Likewise, 2.4 GHz APs can
only communicate with 2.4 GHz transceivers and monitors. You cannot mix 1.4 GHz
and 2.4 GHz transceivers or monitors at a given ITS installation site.
Philips Smart-hopping technology utilizes a cognitive radio that senses the RF
environment and adapts to it. Dynamic wireless channel allocation ensures best
use of available wireless spectrum. When configured to operate in the 2.4 GHz
spectrum, the ITS is designed to co-exist with other 802.11 wireless deployments.
A General Description of the ITS Core Access Point
The IntelliVue Telemetry System Core Smart-hopping Access Point (AP), Model
ITS4843B (Figure 1-2), provides an air-link to transmit and receive data between
ITS wireless clients and the Philips IntelliVue Information Center via the ITS
infrastructure.
The Core AP is a modular antenna infrastructure consisting of a Core AP (CAP) with
up to two connected Model ITS4846A Remote Antennas (RAs). A 74-foot (22.6 m)
coaxial and unshielded twisted pair (UTP) cable bundle is used to connect a Remote
Antenna to a Core AP. Core APs are only available for the 1.4 GHz ITS.
The effective range of the Core AP and of each Remote Antenna is typically 32 feet.
The Core AP always supports a maximum of 18 wireless clients (i.e., patient-worn
transceivers or bedside monitors) regardless of its component configuration. A Core
AP alone supports 18 wireless clients. When used with a single RA, the Core AP
supports nine wireless clients and its connected RA supports nine wireless clients
(9+9=18). When used with two RAs, the Core AP supports six wireless clients and
its connected RAs each support six wireless clients (6+6+6=18).

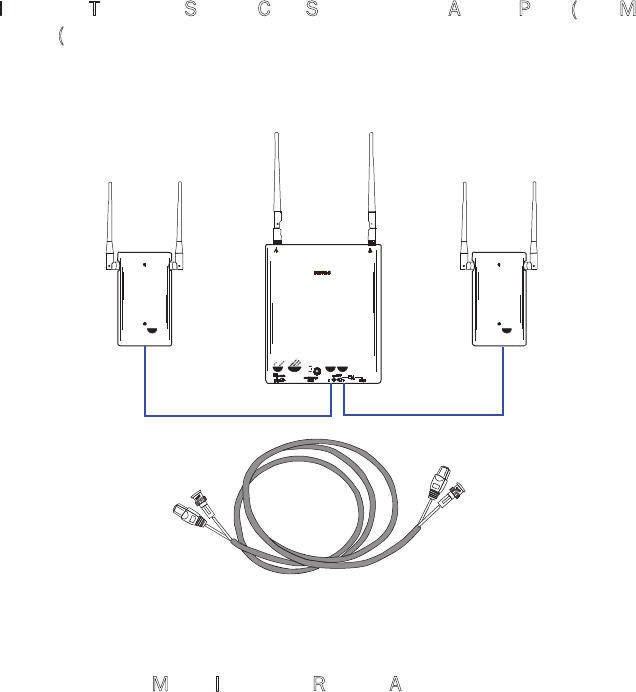

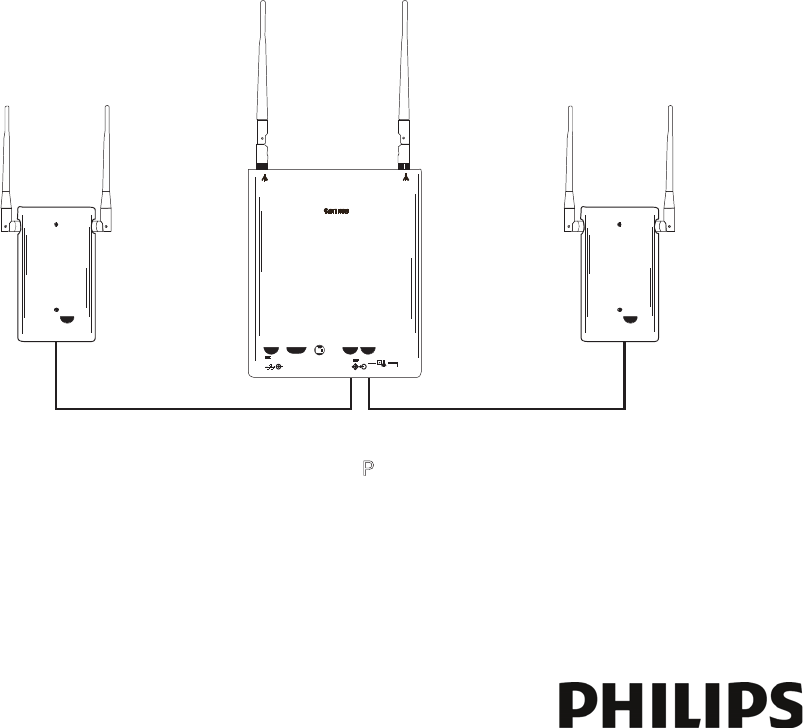

Figure 1-2: IntelliVue Telemetry System Core Access Point
Core AP
Remote
Antenna
Remote
Antenna
74 ft. Coax and
UTP Cable Bundle
DRAFT-3
![](/img.php?id=1486117&img=bgc.png)
1-4
Chapter 1: Overview
When monitored patients are ambulatory, data roaming is handled seamlessly
between the other IntelliVue Access Points in the system. The Core AP and each RA
are always used with their two supplied antennas installed. The Core AP and its
attached Remote Antennas can be mounted out of the way on corridor walls, or
above or below ceiling tiles.
Philips provides Model ITS4843B ITS Core Access Points for the 1.4 GHz US
Wireless Medical Telemetry Service (WMTS) band (P/N 989803171211) that can
be used with one or two Model ITS4846A Remote Antennas (P/N 865052).

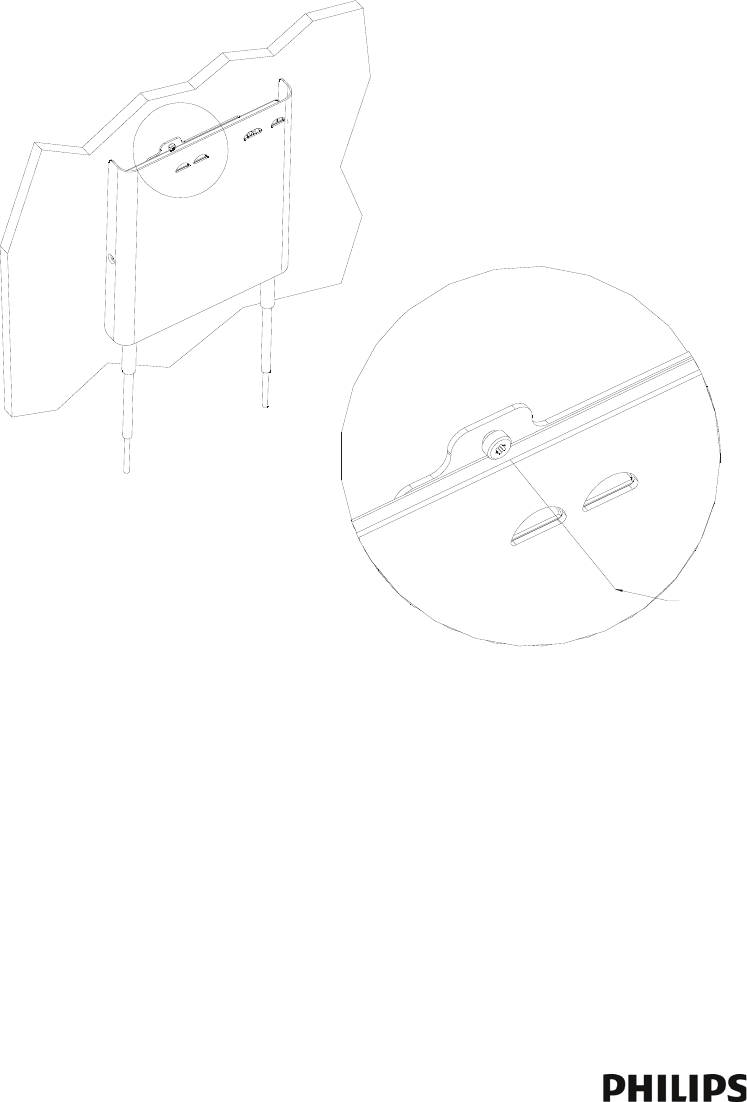

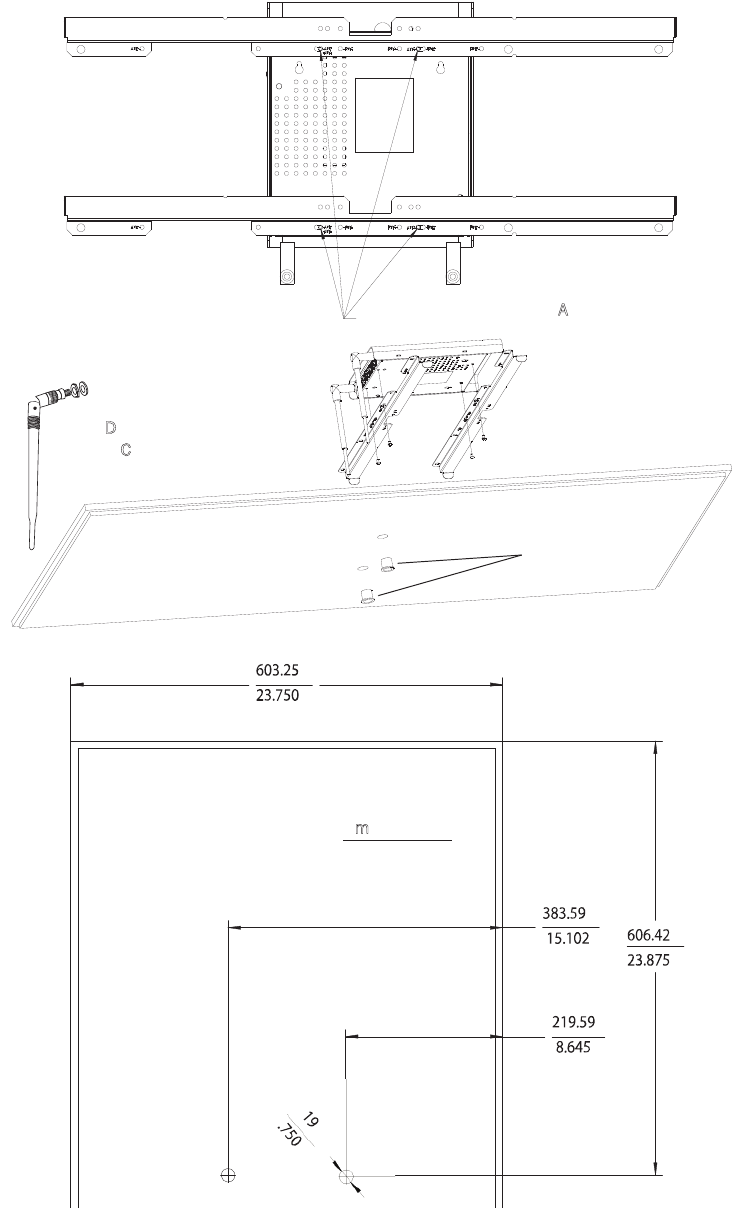

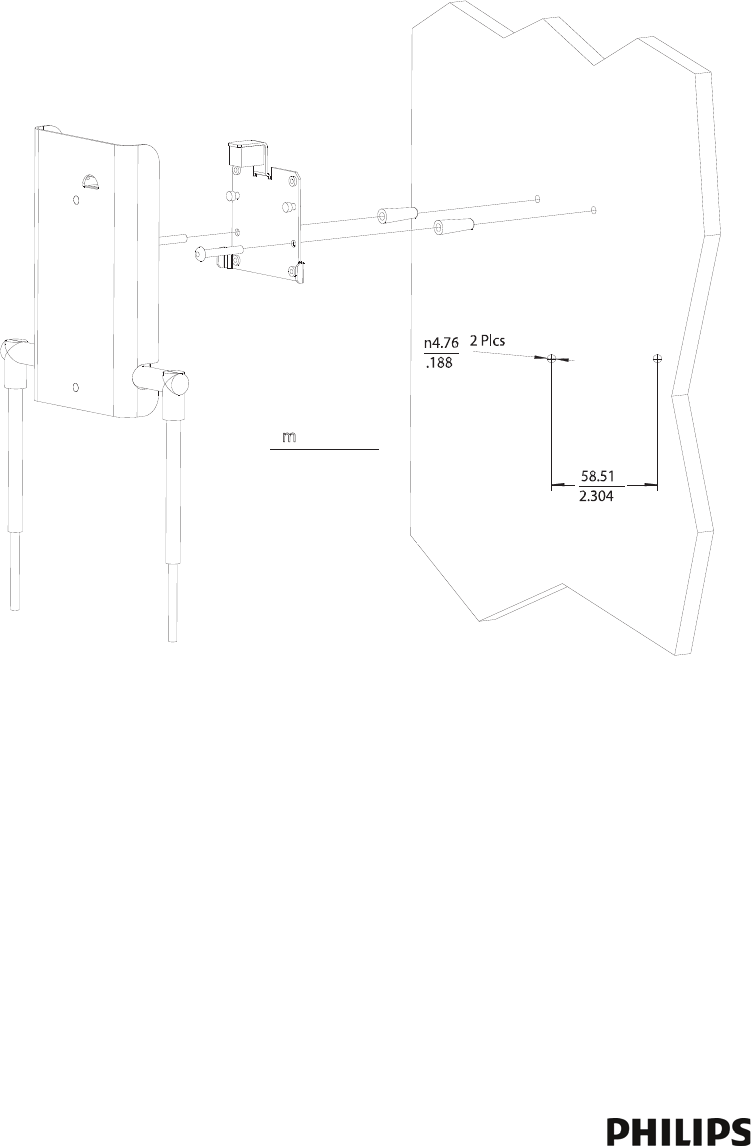

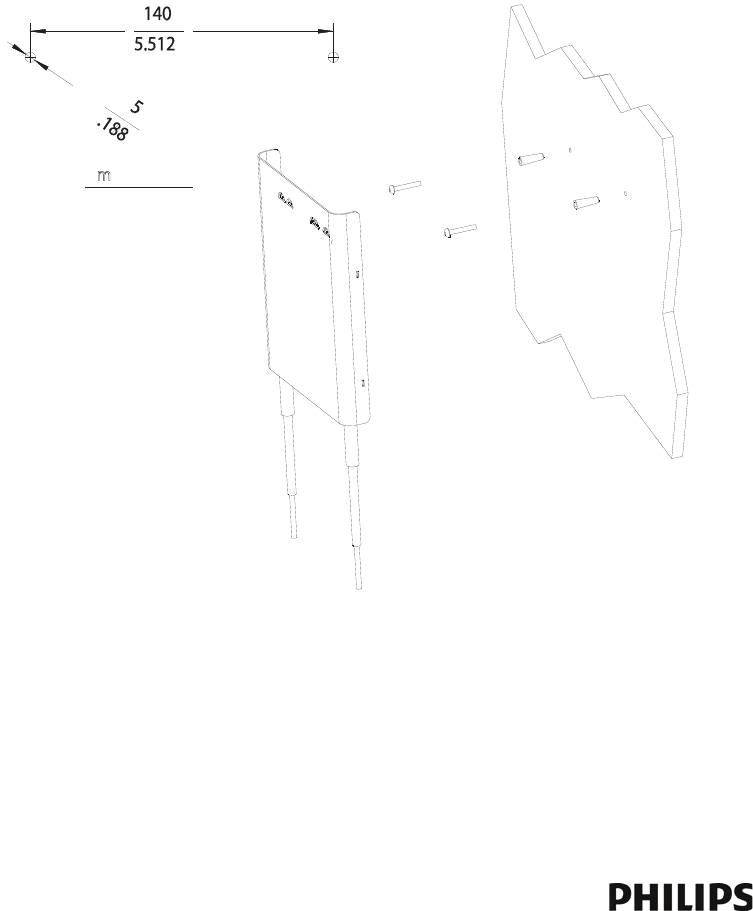

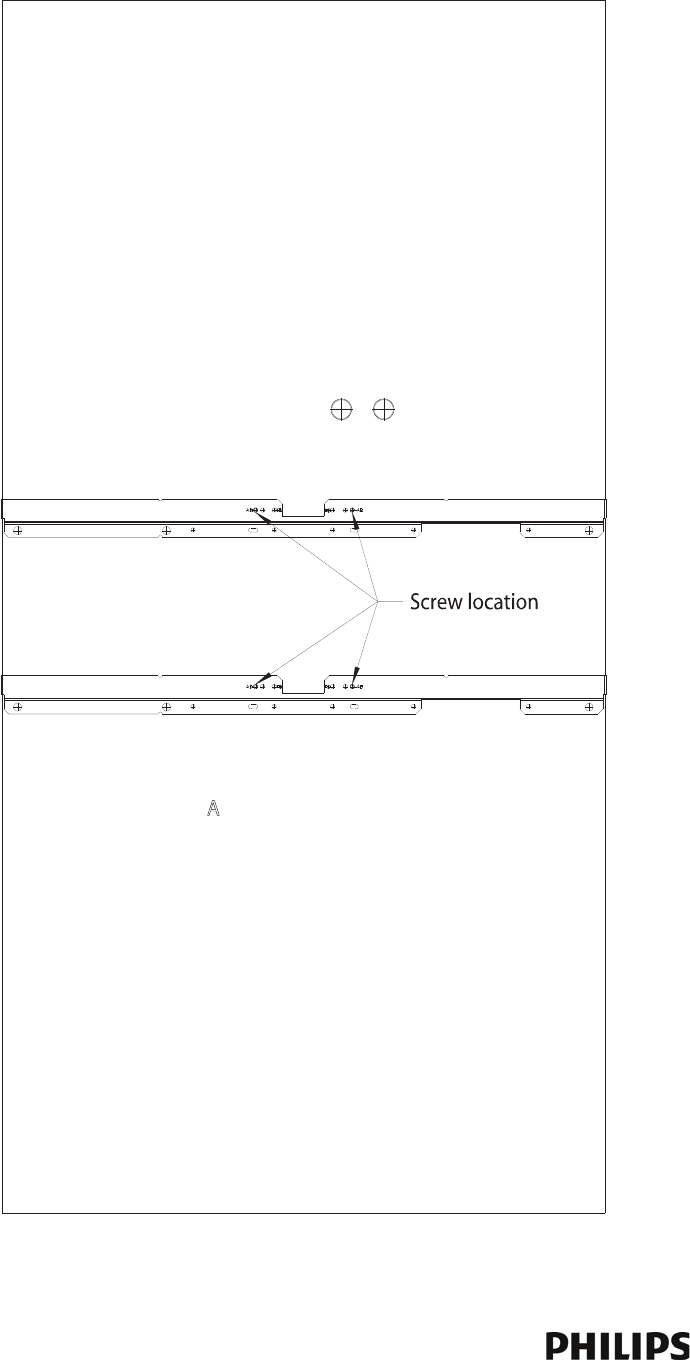

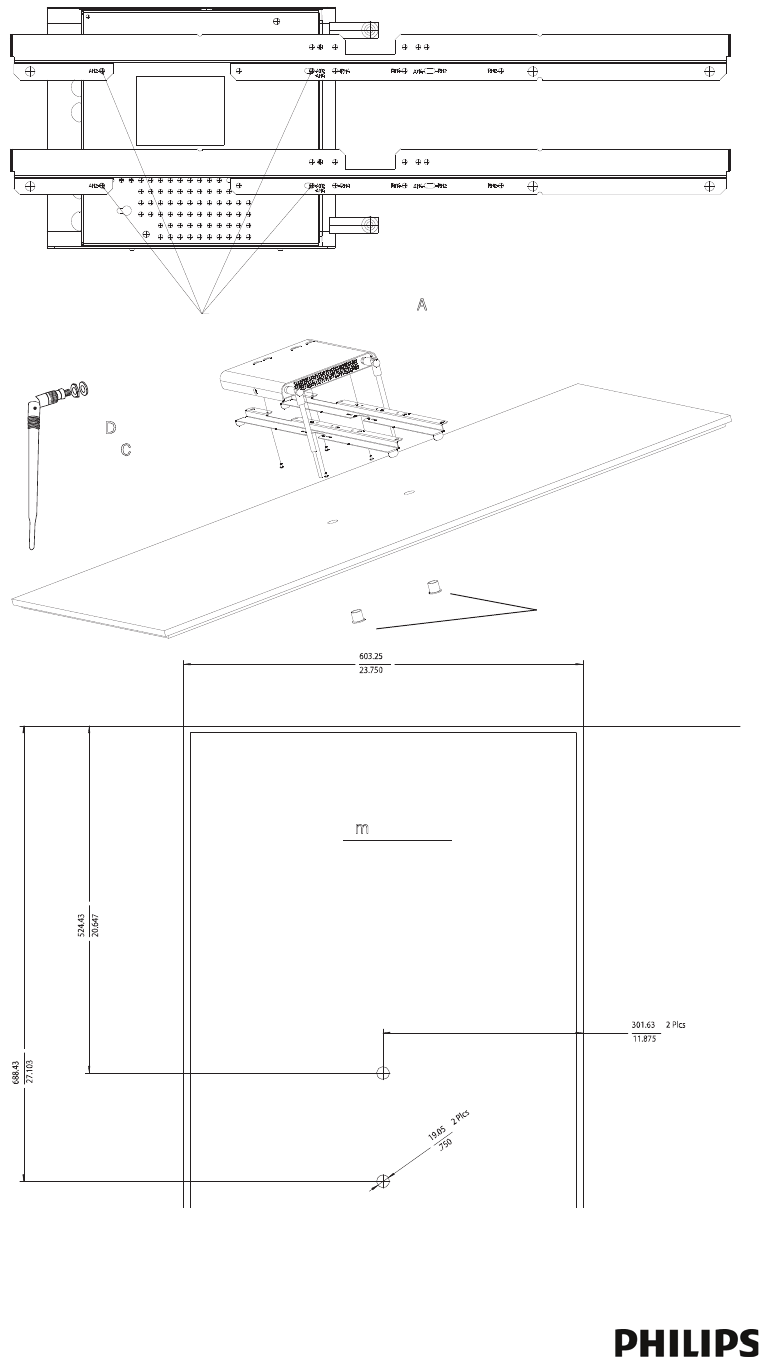

Core AP Mounting Options
Wall-mounting hardware is standard. An optional above/below ceiling tile mount kit
(P/N 862415 Option K05 (453564052201)) is available that can be used with both
the Core AP and its Remote Antennas.
Power Source
The ITS 1.4 GHz Core Access Point receives its 48 VDC operating power source via
its Ethernet LAN cabling from the ITS Power over Ethernet Unit via the ITS Sync Unit.
The AP is not equipped with a power socket. The AP consumes less than 13.8W, and
internally generates a variety of voltages used for its internal components.
The CAT-5 UTP cable within the 74 ft.-cable bundle carries 5.5 VDC power, Transmit
and Receive control signals, and Antenna Diversity signals from the Core AP to a
connected Remote Antenna.
The 75 Ohm coaxial cable within the 74 ft.-cable bundle carries RF and DC sense
signals from the Core AP to a connected Remote Antenna.
Synchronization Signal
The ITS 1.4 GHz Core Access Point receives a synchronization signal from a network
of Sync Units that enables a patient-worn transceiver to hand over data seamlessly
between APs within the coverage area when a patient is ambulatory and to transfer
data to the IntelliVue Information Center without interruption. Each Sync Unit
provides synchronization for up to 12 APs. The Sync Unit also distributes the
common reference clock signal needed by the IntelliVue Telemetry System as a
whole.
Transceiver Mobility
The Philips IntelliVue Telemetry System supports full mobility of patient-worn
transceivers within the area of coverage. This roaming is accomplished via
communications between the transceivers and the Access Points (AP) as follows.
As a patient-worn transceiver is moved around a building, it automatically monitors
the quality of the wireless link to its current AP (and it also detects the presence of
other APs). When the quality starts to deteriorate, the transceiver automatically
establishes a new connection to another AP.
The patient-worn transceiver remains connected to two APs for a finite time, and
thus the same data is received by these APs. During this time, information for
header compression and other data for the connection is routed to the new AP.
DRAFT-3
A General Description of the ITS Core Access Point
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 1-5
One of the two APs subsequently releases the radio connection. If a packet is in
progress when a handover occurs, then the packet is reassembled co-operatively
between the two APs.
The central station or other ICN central equipment sees an unbroken flow of
complete IP packets.
Technical Alarms
Each AP is configured to signal alarm conditions that are viewed at the IIC in the
wireless status log.
The IntelliVue Access Point is configured to raise alarms on error conditions. The
alarms are sent over the ITS/ICN Ethernet LAN infrastructure to a monitoring station
or Database Sever. The Access Point raises an alarm if:
• it is approaching its maximum load capacity
• if data loss exceeds the configured threshold
• it loses its synchronization signal
For small systems having only one AP and no Sync Unit, the AP can be configured to
suppress the loss of synchronization signal alarm.
Note that the ITS APC provides System Alarms such as loss of synchronization, high
data loss, AP hardware failure, and over capacity. Additionally, when redundant
APCs are installed, the APC will provide a System Alarm for APC hardware or
software failure.
Firmware Updates
You can update the firmware on the ITS 1.4 GHz Core Access Point from the Access
Point Controller by using the Philips Animation Upgrade Wizard. Refer to the service
document entitled IntelliVue Telemetry System Infrastructure Installation and
Service Guide (M3185-91934) for details. The AP firmware image is provided on the
Philips Network Infrastructure Tools CD-ROM.
Management Interfaces
The Access Point supports the full range of management interfaces via the Philips
Access Point Controller (APC). These interfaces also enable you to view the status of
the Access Point including the following information:
• System configuration such as firmware version
• Connection information such as numbers of packets received and transmitted,
and number of errors
• Wave data information such as total number of seconds of data sent and lost
The AP statistics can be read by remote devices (e.g., an ICN Database Server),
using the Scaleable Node Address Protocol (SNAP).
The following status items can be displayed using the APC’s web-accessed graphical
user interface:
• AP Name
• Physical Address
• Partnered AP Controller
DRAFT-3
![](/img.php?id=1486117&img=bge.png)
1-6
Chapter 1: Overview
• IP Address
• Subnet Mask
• Default Gateway
• AP Type
Connectors and Status Indicators
Figure 1-3 shows the controls and connectors on the 1.4 GHz ITS Core AP and
Remote Antenna.
ITS Core AP Connectors
Note the following connectors on the ITS Core AP:
• Ethernet Interface - The AP provides a 100 Base-T Ethernet interface with an
RJ-45 connector to connect the Core AP to the ITS Sync Unit.
The AP Ethernet interface provides data communications to and from the
IntelliVue Information Center over the ITS LAN infrastructure. It also presents
the 48Vdc power and synchronization signals required by the Core AP. The
synchronization signal is superimposed on the power supply voltage. You should

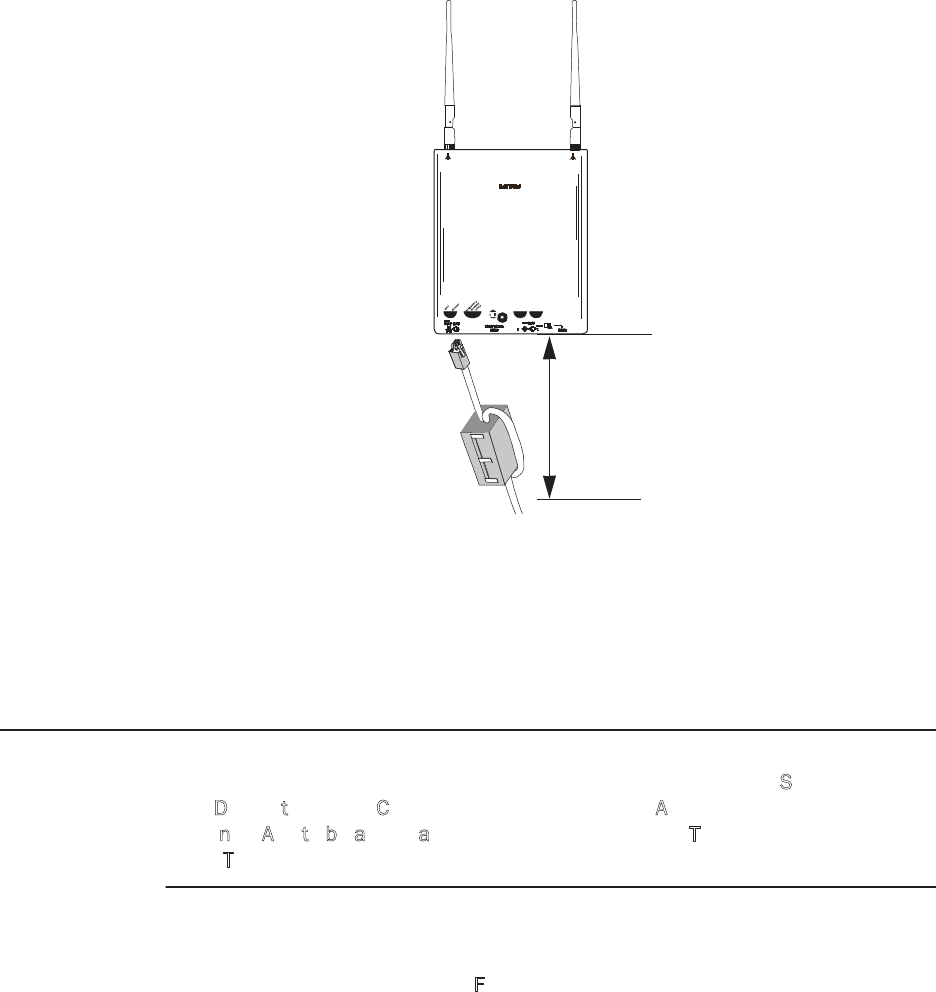

attach a ferrite block to the CAT 5 cabling (from the Sync Unit) no more than 20
inches (50 cm) from the RJ-45 connector to reduce electromagnetic (radiation)
interference. Table 1-1 lists the pin signals for the AP Ethernet interface.

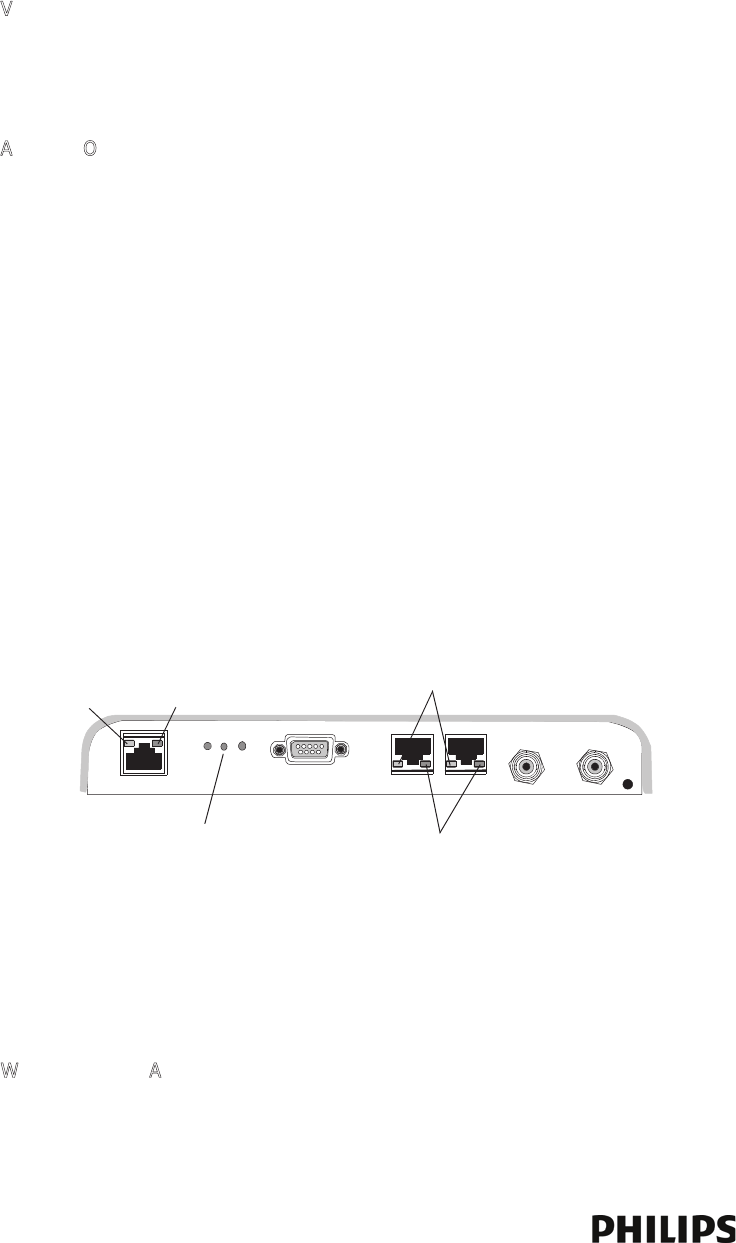

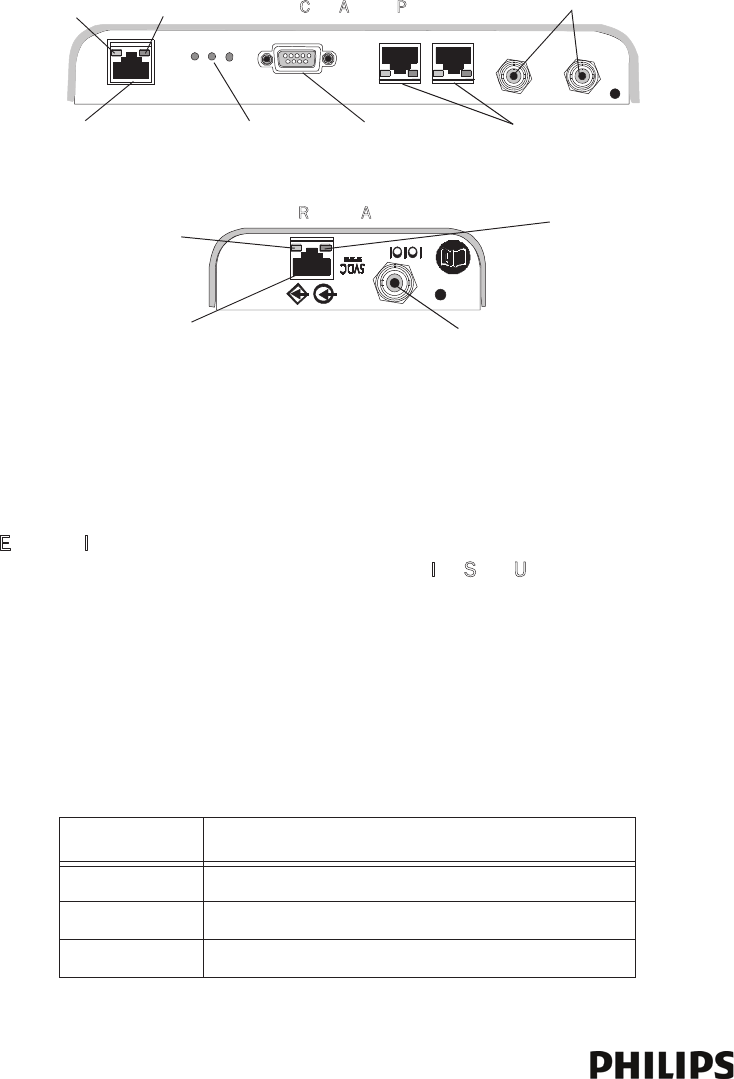

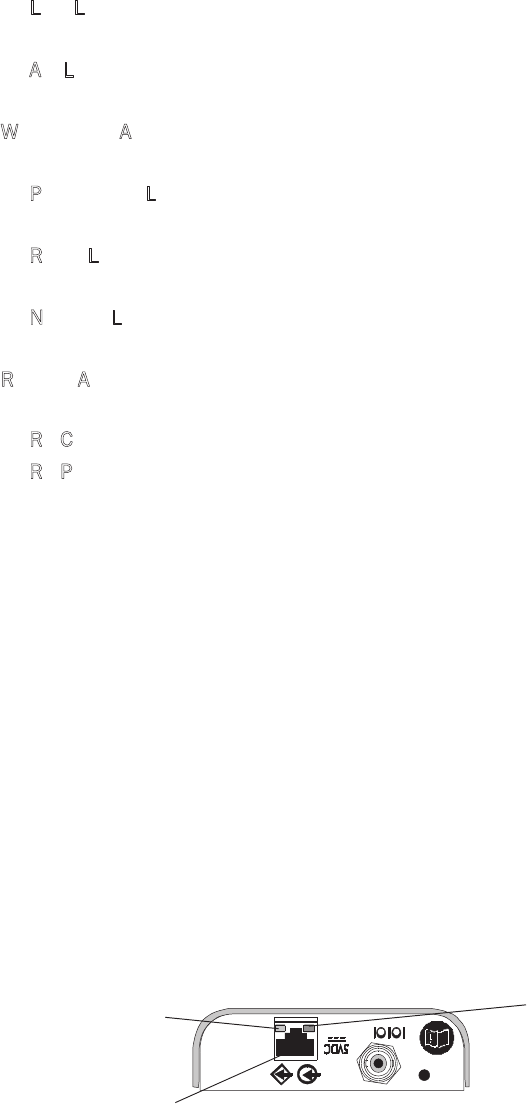

Figure 1-3: 1.4 GHz ITS Core AP and Remote Antenna Controls and Connectors
Table 1-1: AP Ethernet Interface Pin Signals
Pin Signal Description
1 Transmit Pair TX + Conductor
2 Transmit Pair TX - Conductor
3 Receive Pair RX + Conductor
Ethernet Interface to
ITS Sync Unit
ITS Core Access Point
ITS Remote Antenna
Power/Sync, Radio,
and Network
Status LEDs
Serial Port UTP Cable Connectors
to Remote Antennas (1 & 2)
with RA Status LEDs
Coaxial Cable Connector
to ITS Core Access Point
Coaxial Cable Connectors
to Remote Antennas (1 & 2)
UTP Cable Connector
to ITS Core AP
Link LED Activity LED
Connection LED
(Green)
Power LED
(Yellow)
DRAFT-3
![](/img.php?id=1486117&img=bgf.png)
Connectors and Status Indicators
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 1-7
• Serial Port - The serial port is used only for manufacturing purposes.
• UTP Cable Connectors to Remote Antennas - Two standard RJ-45 connectors
are provided for the UTP cables that connect the Core AP to its Remote
Antennas.Each UTP cable carries 5.5 VDC power, Transmit, Receive and
Antenna Diversity Control signals to the Remote Antenna.
• Coaxial Cable Connectors to Remote Antennas - Two standard 75 Ohm
connectors are provided for the coaxial cables that connect the Core AP to its
Remote Antennas. Each coaxial cable carries RF and DC sense signals from the
Remote Antenna.
Remote AP Connectors
Note the following connectors on the Remote Antenna:
• UTP Cable Connector to Core AP - A standard RJ-45 connector is provided for the
UTP cable that connect the Remote Antenna to its Core AP. The UTP cable
carries 5.5 VDC power, Transmit, Receive and Antenna Diversity Control signals
to the Remote Antenna.
• Coaxial Cable Connector to Core AP - A standard 75 Ohm connector is provided
for the coaxial cable that connects the Remote Antenna to its Core AP. The
coaxial cable carries RF and DC sense signals from the Core AP.
Note If an installed, powered Remote Antenna becomes disconnected from its Core AP
via its Coax/UTP cable bundle, you must reconnect the Coax/UTP cable bundle to
the RA and Core AP, and then cycle power to the connected Core AP before the RA
will re-establish communications with the Core AP.
4 + 48Vdc Power and Synchronization
5 + 48Vdc Power and Synchronization
6 Receive Pair RX - Conductor
7 0V Power Return
8 0V Power Return
Table 1-1: AP Ethernet Interface Pin Signals
Pin Signal Description
DRAFT-3
![](/img.php?id=1486117&img=bg10.png)
1-8
Chapter 1: Overview
ITS Core AP Status LEDs
The ITS Core AP provides the following status LEDs.
• Wired/Ethernet Activity - The Core AP provides two LEDs to indicate wired/
Ethernet activity to the ITS infrastructure. During normal operation, these LEDs
indicate the following information:
- Link LED - Link present/Ethernet connection. Lights GREEN (ON) when a
pass-through link is present - OFF when not present.
- Act LED - Wired network activity. Flashes YELLOW (ON) when there is activity
is over the wired network.
• Wireless/RF Activity - The Core AP provides three LEDs to indicate wireless/RF
activity. During normal operation, these LEDs indicate the following information:
- Power/Sync LED - GREEN (ON) when power and synchronization signal is
present.
- Radio LED - Normally OFF (not lit) - flashes green to indicate wireless network
activity.
- Network LED - Normally OFF (not lit) - flashes green to indicate wired network
activity.
At initial power on the AP runs a Power On Self-Test (POST). During the POST, the
above LEDs indicators flicker and then all three will illuminate continuously
(AMBER) to indicate correct startup operation. Then, the Power ON LED will
illuminate (GREEN) continuously to indicate that the 48Vdc power and sync
signal are being supplied, and the other two (AMBER) LEDs turn off (not lit).
• Remote Antenna - The Core AP provides two LEDs on each RJ-45 UTP cable
connector that provides status on a connected Remote Antenna:
- RA Connection - Lights GREEN to indicate a RA is connected to the Core AP.
- RA Power - Lights YELLOW to indicate connected RA is receiving power from
the Core AP.
Remote Antenna Status LEDs
The Remote Antenna provides the following status LEDs.
• Remote Antenna Status LEDs - The green and yellow LEDs above the
RJ-45 UTP cable connector to the Core AP provide status on the Remote
Antenna as summarized below.
Table 1-2: Remote Antenna Status LEDs
Green/Yellow LEDs Remote Antenna Status
Off/Off No connection to or power from Core AP/Self-test Failed.
Flash Green/Yellow Remote Antenna is running self-test/Power on.
Solid Green/Yellow Connection to Core AP is Successful/Power On.
This is the expected normal operational status.
DRAFT-3
![](/img.php?id=1486117&img=bg11.png)
Specifications
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 1-9
Specifications
Table 1-3: Model ITS4843B 1.4 GHz Core Access Point Specifications
Specification Value
Physical:
Chassis (only) Dimensions (H x W x L) 30 mm x 204 mm x 243 mm
(1.2 in x 8.0 in x 9.6 in)
Local Antenna (only) Dimensions 160 mm (6.3 inches L) Sleeve Dipole
Weight with Antenna <.79g (1.8 lb)
Mounting Above Ceiling, Below Ceiling, or Wall Mount
Environmental:
Operating Temperature 0 to +55o C (32 to 131oF)
Storage Temperature -40 to +60o C (-4 to 140oF)
Humidity Range (Operating) < 95% RH @ 40o C non-condensing
Humidity Range (Storage) < 90% RH @ 60o C
Altitude Operating and Storage up to 3048 m (10,000 ft)
Electrical:
Power 48 VDC nominal (44 - 52 VDC), from PoE Unit via Sync Unit) < 13.8Watts,
287 mA
Power Sensing Auto sensing POE, compliant with 802.3af
RF Diversity Uses Dual Antenna, selects antenna with best signal.
Frequency Diversity Dynamic, selects RF channels for best signals.
Antenna Type Sleeve Dipole > 10dB over 1395MHz to 1432MHz in 50 Ohms.
LED Indicators Two LEDs for LAN activity, part of LAN RJ-45 connector.
Three LEDs for Radio Activity, Sync, Network status.
Two LEDs on Remote Antenna Ports provide Power and Fault status (part of RA
RJ-45 connector).
Electrical Installation:
Fire Safety Model ITS4843B 1.4 GHz Core Access Points are Listed for use within "Other
Spaces Used for Environmental Air (Plenum)" per NFPA70: 2011, Article
300.22.
Note: The term "plenum" as used in Article 300.22 Section C correlates with the
use of the term "plenum" in NFPA 90A-2009, Standard for the Installation of Air-
Conditioning and Ventilating Systems, and other mechanical codes where the
plenum is used for return air purposes, as well as some other air-handling
spaces. The area above dropped ceilings is an example of plenum space.
Interface Connections:
LAN Input (Data): 1 Port; Ethernet 100
Base-T (only 100 Mbps Full Duplex)
RJ-45 Female Socket.
LAN Cable to Network Switch CAT-5 or better, up to 100m (328 ft.).
DRAFT-3
![](/img.php?id=1486117&img=bg12.png)
1-10
Chapter 1: Overview
Remote Antenna UTP Cable Connectors Two RJ-45 Female Socket Connectors are provided to connect the UTP cables
on which 5.5 VDC power, Transmit and Receive control signals, and Antenna
Diversity signals to the remote Antennas are carried. Connectors are protected
against damage from unexpected connection to LAN with PoE
Remote Antenna 75 Ohm Coaxial Cable
Connectors
Two standard 75 Ohm connectors are provided for the coaxial cables on which
RF and DC sense signals are carried to the Remote Antenna.
Local Antenna Connections (two) Two SMA-style connectors.
Table 1-3: Model ITS4843B 1.4 GHz Core Access Point Specifications
Specification Value
Table 1-4: Model ITS4846A 1.4 GHz Remote Antenna Specifications
Specification Value
Physical:
Chassis (only) Dimensions (H x W x L) 30 mm x 100 mm x 174 mm
(1.2 in x 4.0 in x 6.9 in)
Local Antenna (only) Dimensions 160 mm (6.3 inches L) Sleeve Dipole
Weight with Antenna <.32kg (0.7 lb)
Mounting Above Ceiling, Below Ceiling, or Wall Mount
Environmental:
Operating Temperature 0 to +55o C (32 to 131oF)
Storage Temperature -40 to +60o C (-4 to 140oF)
Humidity Range (Operating) < 95% RH @ 40o C non-condensing
Humidity Range (Storage) < 90% RH @ 60o C
Altitude Operating and Storage up to 3048 m (10,000 ft)
Electrical:
Power 5.0 VDC nominal input via Core AP RJ-45 Cable Connector
Power Sensing 802.3af-compliant
RF Diversity Uses Dual Antenna, selects antenna with best signal.
Antenna Type Sleeve Dipole > 10dB over 1395MHz to 1432MHz in 50 Ohms.
LED Indicators Power and Connection LED notification on RJ-45 connector.
DRAFT-3
![](/img.php?id=1486117&img=bg13.png)
Ordering Information
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 1-11
Ordering Information
Electrical Installation:
Fire Safety Model ITS4846A 1.4 GHz Remote Antennas are Listed for use within "Other
Spaces Used for Environmental Air (Plenum)" per NFPA70: 2011, Article
300.22.
Note: The term "plenum" as used in Article 300.22 Section C correlates with the
use of the term "plenum" in NFPA 90A-2009, Standard for the Installation of Air-
Conditioning and Ventilating Systems, and other mechanical codes where the
plenum is used for return air purposes, as well as some other air-handling
spaces. The area above dropped ceilings is an example of plenum space.
Interface Connections:
Control Signals RJ-45 Female Socket.
Core AP 75 Ohm Coaxial Cable
Connector
One standard 75 Ohm connector is provided for the coaxial cable on which RF
and DC sense signals are carried to the Remote Antenna.
Local Antenna Connections (two) Two SMA-style connectors.
Table 1-5: IntelliVue Telemetry System 1.4 GHz Access Point Part Numbers
Device/Option Part Number/Option Number
IntelliVue ITS4843B 1.4 GHz Enhanced Smart-Hopping Access Point 989803171211
IntelliVue ITS4846A Remote Antenna 865052
IntelliVue Telemetry System Mounting Options
• Above & Below Ceiling Tile-mount Option for 989803171211 or
865052
453564052201 or
862415/K05
Table 1-4: Model ITS4846A 1.4 GHz Remote Antenna Specifications
Specification Value
DRAFT-3
![](/img.php?id=1486117&img=bg14.png)
1-12
Chapter 1: Overview
DRAFT-3
![](/img.php?id=1486117&img=bg15.png)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-1
2
Installing the ITS 1.4 GHz Core Access Point
This chapter provides procedures to physically install the Philips IntelliVue
Telemetry System 1.4 GHz Core Access Point and includes:
• Access Point Placement Guidelines
• General Installation Procedure
• Mounting the ITS Core AP to a Wall (Fixed Mount)
• Mounting the ITS Core AP to a Wall (CA Earthquake Rated)
• Mounting the ITS Core AP Above a Ceiling Tile
• Mounting the ITS Core AP Below a Ceiling Tile (Fixed Mount)
• Mounting the ITS Core AP Below a Ceiling Tile (Quick Release)
• Mounting the ITS Remote Antenna to a Wall (Fixed Mount)
• Mounting the ITS Remote Antenna to a Wall (CA Earthquake Rated)
• Mounting the ITS Remote Antenna Above a Ceiling Tile (Mounting
Rails)
• Mounting the ITS Remote Antenna Above a Ceiling Tile (Tether Mount)
• Mounting the ITS Remote Antenna Below a Ceiling Tile (Fixed Mount)
• Mounting the ITS RA Below a Ceiling Tile (Quick Release)
• AP Configuration Information
• Access Point Startup Sequence
DRAFT-3
![](/img.php?id=1486117&img=bg16.png)
2-2
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Access Point Placement Guidelines
Note the following important guidelines when locating ITS Access Points:
• AP antennas must be more than four inches (10 cm) away from metal
structures. If the antennas are too close to the structure, antenna performance
can be degraded.
• A Core AP alone supports 18 wireless clients. When used with a single RA, the
Core AP supports nine wireless clients and its connected RA supports nine
wireless clients (9+9=18). When used with two RAs, the Core AP supports six
wireless clients and its connected RAs each support six wireless clients
(6+6+6=18).
• If there is a need to support more than 18 wireless clients within a single
Radius-of-Coverage cell, Access Points/Remote Antennas can be moved closer
together until the desired density is achieved.
• APs or Remote Antennas shall not be placed closer than three feet (1 m) from
other APs or RAs to prevent signal overload conditions.
• Each ITS Access Point requires a 100Mbps/Full Duplex switch port connection.
• Try to avoid placing APs close to other electrical devices (exit lights, light fixtures,
speakers, etc.). Devices like florescent light ballasts can create a significant
amount of interference that can impact system performance.
• Orient the antennas on ITS APs so that they are perpendicular to the floor.
DRAFT-3
![](/img.php?id=1486117&img=bg17.png)
General Installation Procedure
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-3
General Installation Procedure
To install the IntelliVue Telemetry System 1.4 GHz Core Access Point:
1. Mount the ITS 1.4 GHz Core Access Point and Remote Antennas within the clinic
where they can communicate with 1.4 GHz patient-worn transceivers and
wireless bedside monitors. Note these guidelines when installing the ITS Core
Access Point and Remote Antennas:
• You may mount each ITS Core Access Point as follows:
- to a wall (fixed mount) as described on page 2-6
- to a wall (CA earthquake rated) as described on page 2-7
- above a ceiling as described on page 2-9
- below a ceiling (fixed mount) as described on page 2-12
- below a ceiling (quick release) as described on page 2-16
• You may mount each ITS Remote Antenna as follows:
- to a wall (fixed mount) as described on page 2-21
- to a wall (ca earthquake rated) as described on page 2-22
- above a ceiling as described on page 2-23
- above a ceiling (tether mount) as described on page 2-26
- below a ceiling (fixed mount) as described on page 2-28
- below a ceiling (quick release) as described on page 2-32
• Use category 5 (or better) Unshielded Twisted Pair cable to connect each ITS
Core Access Point to the ITS infrastructure.
• The total length of UTP cable from the ITS access point-to the ITS
Synchronization Unit-to the ITS Power over Ethernet Unit-to ICN Network
Switch cannot exceed 328 ft. (100 m).
• Use only the supplied, unmodified 74 ft. (22.6m) Coax and UTP cable
bundle when connecting Remote Antennas to the Core AP.
2. Attach each supplied local antenna to the Core AP chassis by inserting the
antenna into the socket connector. Orient the antenna (either straight for wall
mounting or rotate downward for ceiling tile mounting) and then screw on its
collar until the antenna is secure to the chassis.
3. Attach each supplied antenna to the Remote Antenna chassis by inserting the
antenna into the socket connector. Orient the antenna (either straight for wall
mounting or rotate downward for ceiling tile mounting) and then screw on its
collar until the antenna is secure to the chassis.
4. If you have installed Remote Antennas, connect each ITS Core Access Point to
its installed Remote Antenna(s) using the supplied, unmodified 74 ft. (22.6m)
Coax and UTP cable bundle(s).
Caution Do not kink the RA Coax-and-UTP-cable-bundle during installation. You must
maintain a minimum 2.5-inch (64-mm) bend radius for the RA Coax-and-UTP-cable-
bundle throughout the installation.
DRAFT-3
![](/img.php?id=1486117&img=bg18.png)
2-4
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
a) Connect the first Remote Antenna to the Core AP using the UTP and Coaxial
cable connectors labeled RA 1 in Figure 2-1.
b) Connect the second Remote Antenna to the Core AP using the UTP and
Coaxial cable connectors labeled RA 2 in Figure 2-1.
c) Be sure to label the UTP cable bundles and the Remote Antennas
themselves as RA 1 and RA 2 corresponding to the cable connections you
made in steps a and b.
5. Route a Category 5 UTP cable between each ITS Core Access Point and the
equipment closet in which the ITS infrastructure devices are installed.
6. Install a ferrite block on the UTP cable within 20 inches (50 cm) of the RJ-45
connector that connects to the Core Access Point as shown in Figure 2-2.
Figure 2-1: 1.4 GHz ITS Core AP and Remote Antenna Controls and Connectors
Ethernet Interface to
ITS Sync Unit
ITS Core Access Point
ITS Remote Antenna
Power/Sync, Radio,
and Network
Status LEDs
Serial Port UTP Cable Connectors
to Remote Antennas (2 & 1)
with RA Status LEDs
Coaxial Cable Connector
to ITS Core Access Point
Coaxial Cable Connectors
to Remote Antennas (2 & 1)
UTP Cable Connector
to ITS Core AP
Link LED Activity LED
Connection LED
(Green)
Power LED
(Yellow)
RA 2 RA 1
RA 2 RA 1
DRAFT-3
![](/img.php?id=1486117&img=bg19.png)
General Installation Procedure
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-5
7. Connect the Access Point to the ITS Sync Unit only when appropriate as part of
the overall ITS installation.
a) After initially connecting and powering the Core AP, verify that the two status
LEDs on each of its connected Remote Antennas are lit. You can verify this
by viewing the AP’s Status page presented in the APC web interface.
Note If after connecting and powering the Core AP, its LEDs are lit red and the Remote
Antenna LEDs do not light at all, open the APC web interface, click System in the
View Device tree, click Configure and then select the Advanced tab. Verify that the
Allow new APs to be added automatically option is set to True. This option must be
set to True for the Core AP and Remote Antenna LEDs to light properly.
b) Reboot the Core AP.
The Core AP and its connected Remote Antennas should now be listed in the
APC web interface. Press F5 to refresh the web interface display if the Core
AP and RAs are not listed.
General AP configuration information is given on page 2-35. See page 2-35 for the
AP startup sequence.
Figure 2-2: Installing a Ferrite Block on the UTP Cable to the ITS Infrastructure
Distance = less than
20 inches (50cm)
DRAFT-3
![](/img.php?id=1486117&img=bg1a.png)
2-6
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Mounting the ITS Core AP to a Wall (Fixed Mount)
You can mount the IntelliVue Telemetry System Core Access Point to a wall using the
mounting screws and screw anchors supplied with the AP. We recommend that you
mount the Core AP high on the wall as close to the ceiling as possible.
To mount the 1.4 GHz ITS Core AP to a wall:
1. Using a 3/16-inch drill bit, drill a pilot hole .188 inches (5 mm) in diameter at
the locations shown in Figure 2-3.
2. Tap a supplied plastic screw anchor into each pilot hole until it is flush with the
wall surface.
This step is not necessary if mounting the ITS Core AP on a wood surface.
3. Screw a supplied #6 x 1 1/4 inch self-tapping screw into each screw anchor (or
pilot hole) as shown in Figure 2-3.
Tighten each screw until a 1/16-inch (2 mm) gap remains between the screw
head and the mounting surface.
4. While holding the AP chassis with its antennas pointing down as shown in
Figure 2-3, fit the holes in the back of the AP chassis over the screw heads that
protrude from the wall. Slide the AP chassis down so that the screw heads are
securely in the grooves in the back of the AP chassis.
Figure 2-3: Mounting the ITS 1.4 GHz Core AP to a Wall (Fixed Mount)
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg1b.png)
Mounting the ITS Core AP to a Wall (CA Earthquake Rated)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-7
Mounting the ITS Core AP to a Wall (CA Earthquake Rated)
You can mount the IntelliVue Telemetry System Core Access Point onto walls using
an optional California (CA) earthquake-rated wall plate. We recommend that you
mount the Core AP high on the wall as close to the ceiling as possible.
To mount the 1.4 GHz ITS Core AP to a wall:
1. Using a 3/16-inch drill bit, drill two pilot holes .188 inches (5 mm) in diameter at
the locations shown in Figure 2-4.
2. Tap a supplied plastic screw anchor into each pilot hole until flush with the wall
surface.
This step is not necessary if mounting the ITS Core AP on a wood surface.
3. Secure the quick release wall plate to the wall by screwing a supplied #6 x 1
1/4 inch self-tapping screw through the wall plate into each screw anchor (or
pilot hole) as shown in Figure 2-4.
Tighten each screw until the wall plate is fixed securely in place.
4. Using a 5/64-inch (2 mm) Allen (i.e., hexagonal) wrench, secure the four
supplied M3 X 0.5 hex-head shoulder screws to the back of the Core AP as
shown in Figure 2-4. Torque-tighten each shoulder screw to 8-inch lbs.

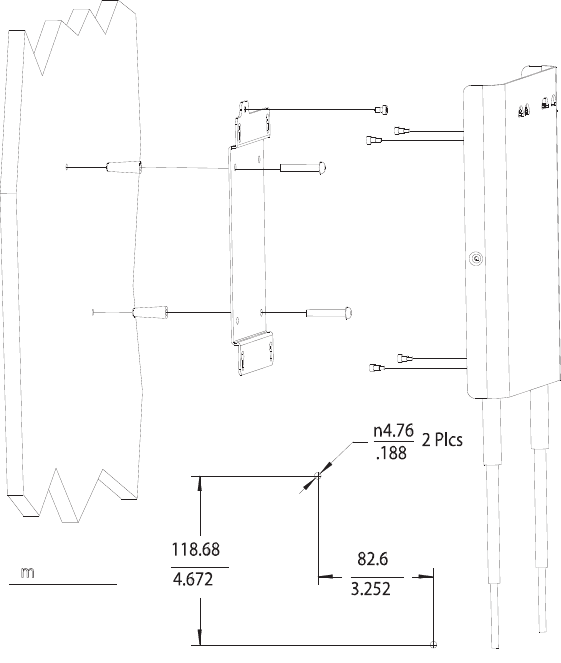

Figure 2-4: Mounting the ITS 1.4 GHz Core AP to a Wall (CA Earthquake Rated)
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg1c.png)
2-8
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
5. Mount the Core AP to the wall plate by inserting the head of each shoulder
screw into the four mounting holes provided in the wall plate and then sliding
the Core AP down so that the shoulder screw heads are securely in the grooves
of the wall plate.
6. Using a Torx T10 screw driver, secure the Core AP to the wall plate by screwing
the supplied M3.5 X 0.6 T-10 Torx Head security screw into the PEM nut in the
wall plate as shown in Figure 2-5. Torque-tighten the screw to 10-inch lbs. Note
that this safety screw is used to prevent the Core AP from sliding out of the wall
plate.
Figure 2-5: Securing the Core AP to its Quick Release Wall Plate
Insert M3.5 Security Screw
through this View Port and
Tighten Using a Torx T10
Screwdriver.
DRAFT-3
![](/img.php?id=1486117&img=bg1d.png)
Mounting the ITS Core AP Above a Ceiling Tile
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-9
Mounting the ITS Core AP Above a Ceiling Tile
You can mount the IntelliVue Telemetry System Core Access Point above a ceiling
tile by using the mounting rails provided in the Above & Below Ceiling Tile Mount Kit
(862415-K05) for the Core AP and Remote Antennas.
Caution When installing the IntelliVue Access Point onto a suspended ceiling, make certain
the ceiling grid is structurally rated to support the weight of the Core Access Point,
0.79 kg (1.8 lbs), and any extra cabling.
To mount the 1.4 GHz ITS Core AP above a ceiling tile:
1. Determine which ceiling tile the Core AP is be mounted onto, and the
approximate Core AP placement and orientation of the antennas on the tile.
Also, check for adequate clearance above the Core AP.
2. Remove the ceiling tile to which the Core AP will be mounted (and also an
adjacent tile to facilitate installation).
3. Orient the antenna(s) on the Core AP chassis so they bend downward at right
angles to the chassis. Unscrew the collar and rotate the antenna into position
and then retighten the collar to secure the antenna in place.
4. Determine where the two holes for the antennas are going to be located on the
tile and mark the centers of the holes.
The Core AP chassis can be rotated 90 degrees to the mounting rails. Choose
the best placement of the Core AP to facilitate where the antennas will go
through the ceiling tile. Note that there are additional holes in the mounting
rails to allow for tethering to other permanent structures where local building
codes require this type of installation. Refer to Figure 2-6 or Figure 2-7 for the
dimensions used to locate the antenna holes in the tile.
5. Drill out two 3/4-inch (19 mm) diameter holes in the ceiling tile for the
antennas. Lightly coat both plastic grommets with silicone adhesive and insert
them into both holes in the tile (Insert grommets from the outside of the tile).
6. Secure the mounting rails to the AP. Insert the four (4) M3 x 0.5 (8 mm LG)
screws into the Core AP mounting rail holes, and into the mating holes in the
back of the Core AP as shown in Figure 2-6 or Figure 2-7. Torque-tighten each
shoulder screw to 8-inch lbs.
7. Place the Core AP with mounting rails across the top of the tile.
8. Replace the tile back onto the ceiling frame structure with the Core AP antennas
hanging down through the ceiling. Wiring connections to the Core AP can be
accessed via the open adjacent tile.
9. Replace other adjacent ceiling tiles if necessary.
DRAFT-3
![](/img.php?id=1486117&img=bg1e.png)
2-10
Chapter 2: Installing the ITS 1.4 GHz Core Access Point

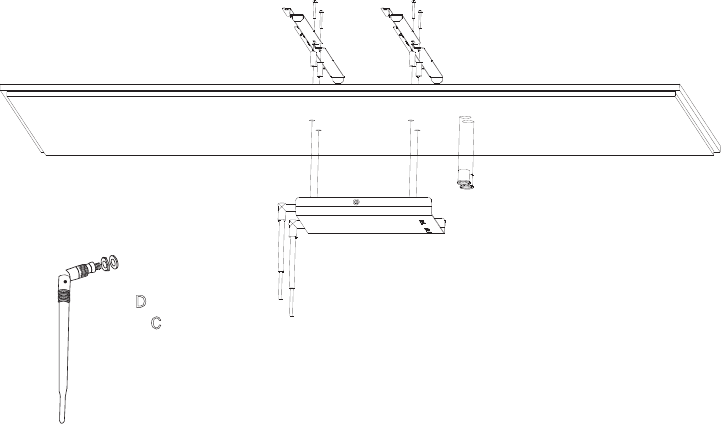

Figure 2-6: Possible Above the Ceiling Core AP Mounting Position
Use These Holes Marked AM2
Grommets
Bend Down
Tighten Collar
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg1f.png)
Mounting the ITS Core AP Above a Ceiling Tile
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-11
Figure 2-7: Alternative Above the Ceiling Core AP Mounting Position
Use These Holes Marked AM4
Grommets
Bend Down
Tighten Collar
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg20.png)
2-12
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Mounting the ITS Core AP Below a Ceiling Tile (Fixed Mount)
You can mount the IntelliVue Telemetry System Access Point below a ceiling tile by
using the mounting rails provided in the Above & Below Ceiling Tile Mount Kit
(862415-K05) for the Core AP and Remote Antennas.
Caution When installing the IntelliVue Access Point onto a suspended ceiling, make certain
the ceiling grid is structurally rated to support the weight of the Access Point, 0.7kg
(1.5 lbs), and any extra cabling.
To mount the 1.4 GHz ITS Core AP below a ceiling tile:
1. Determine which ceiling tile the Core AP is be mounted onto, and the
approximate placement of the Core AP and orientation of the antennas hanging
down from the ceiling tile.
2. Remove the ceiling tile the Core AP will be mounted to (and also the adjacent
tile to facilitate installation).
3. Refer to Figure 2-8 for all dimensions and hole locations. Place the mounting
rails across the tile (underside of tile). For ceiling tiles that are smaller than
standard 2’ x 4’ size ceiling tile, the mounting rails can be cut down in length at
the u-shaped cutouts.
4. Mark the location of the AB screw holes in the mounting rails on the ceiling tile
where the holes will be drilled through the tile as shown in Figure 2-9. Drill four
.375-inch (10 mm) diameter holes in the ceiling tile.
5. Determine where the two holes for the Remote Antenna cables are going to be
located on the tile and mark the centers of the hole.
Note that one of these holes will also be used to route the CAT 5 cable that
connects the Core AP to the Sync Unit on the ITS.
6. Drill or cut out two .813-inch (21 mm) diameter holes for the Remote Antenna
cables to be connected to the Core AP. Lightly coat a plastic grommet with
silicone adhesive and insert it into each hole in the tile (insert grommet from the
outside of the tile).
7. Insert the four (4) M3-.5 X 30 lobe screws into the Core AP mounting rail holes,
through the provided plastic spacers, through the tile, and into the mating holes
in the back of the Core AP as shown in Figure 2-10. Torque-tighten each screw
to 8-inch lbs.
Note that the Core AP mounting rails and spacers allow for sufficient airflow
between the Core AP and the ceiling tile.
8. Orient the antenna(s) on the Core AP chassis so they bend upward at right
angles to the chassis. Unscrew the collar and rotate into position and then
retighten the collar to secure the antenna in place.
9. Replace the tile back onto the ceiling frame structure with the Core AP antennas
hanging down from the ceiling. Cabling connections to the Core AP can be
accessed via the open holes in the tile.
DRAFT-3
![](/img.php?id=1486117&img=bg21.png)
Mounting the ITS Core AP Below a Ceiling Tile (Fixed Mount)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-13

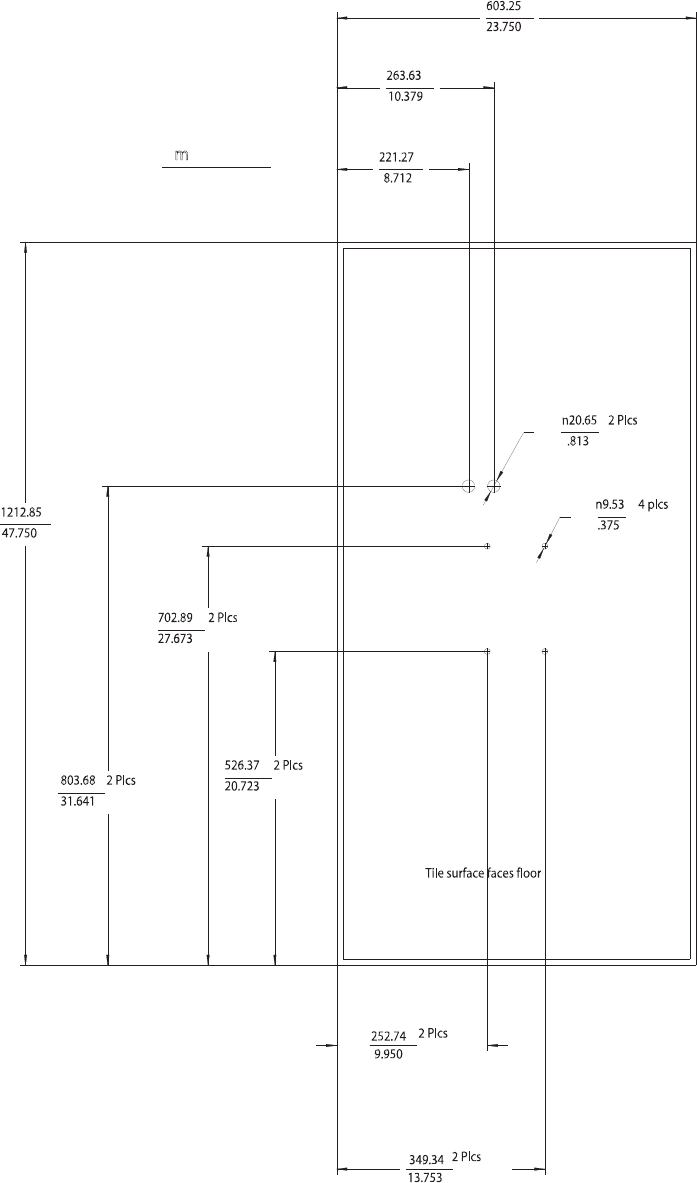

Figure 2-8: Core AP Below Ceiling Tile Hole Locations and Dimensions
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg22.png)
2-14
Chapter 2: Installing the ITS 1.4 GHz Core Access Point

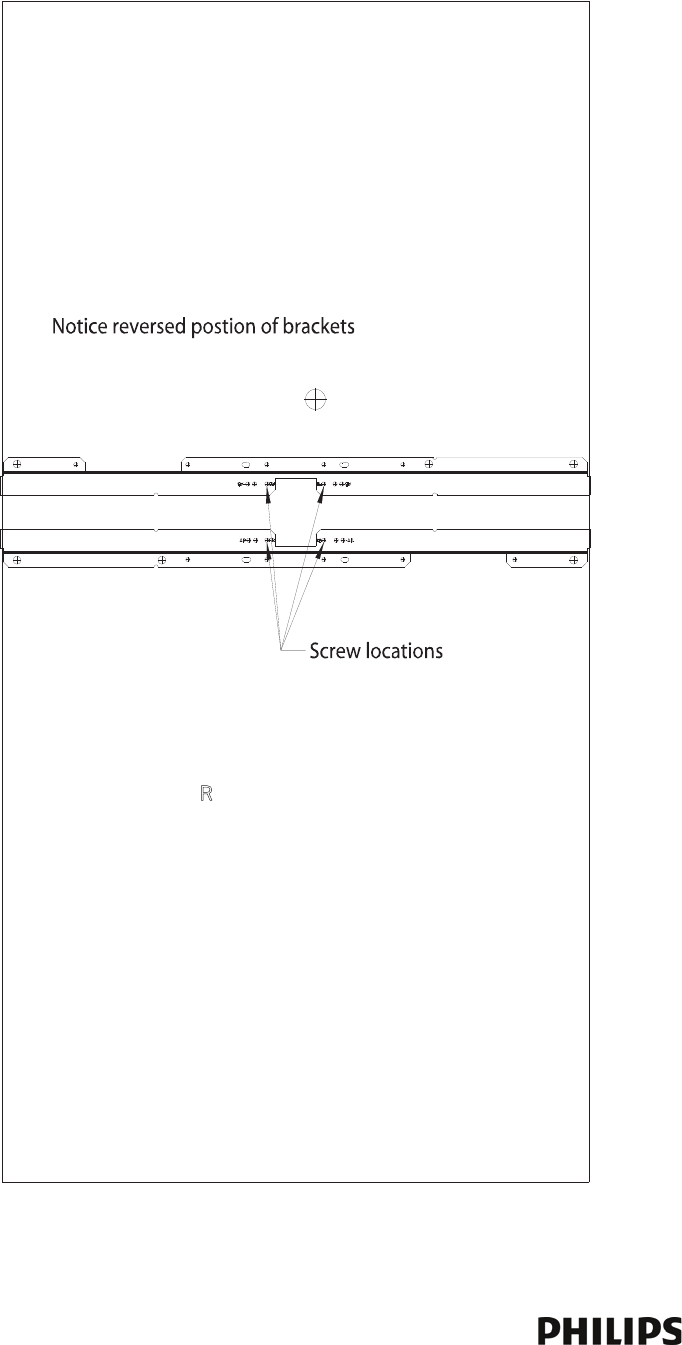

Figure 2-9: Core AP Below Ceiling Tile Mounting Rail Screw Locations
Use the Screw Locations
Marked AB
DRAFT-3
![](/img.php?id=1486117&img=bg23.png)
Mounting the ITS Core AP Below a Ceiling Tile (Fixed Mount)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-15
Note that there are additional holes in the mounting rails to allow for tethering
to other permanent structures where local building codes require this type of
installation.
10. Replace other adjacent ceiling tiles if necessary.

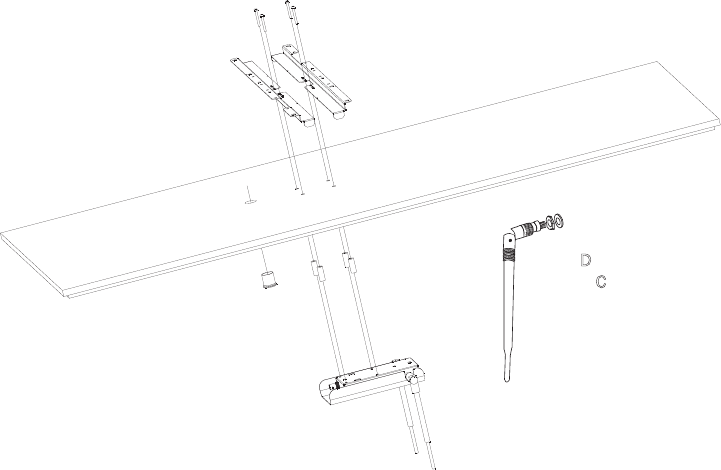

Figure 2-10: Mounting the Core AP Below a Ceiling Tile (Fixed Mount)
Bend Down
Tighten Collar
DRAFT-3
![](/img.php?id=1486117&img=bg24.png)
2-16
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Mounting the ITS Core AP Below a Ceiling Tile (Quick Release)
You can mount the IntelliVue Telemetry System Access Point below a ceiling tile by
using an optional quick release wall plate along with the mounting rails provided in
the Above & Below Ceiling Tile Mount Kit for the Core AP and Remote Antennas
(862415-K05). Use of this wall plate enables you to relocate 1.4 GHz ITS Core APs
within your facility quickly and easily.
Caution When installing the IntelliVue Access Point onto a suspended ceiling, make certain
the ceiling grid is structurally rated to support the weight of the Access Point, 0.7kg
(1.5 lbs), and any extra cabling.
To mount the 1.4 GHz ITS Core AP below a ceiling tile:
1. Determine which ceiling tile the Core AP is be mounted onto, and the
approximate placement of the Core AP and orientation of the antennas hanging
down from the ceiling tile.
2. Remove the ceiling tile the Core AP will be mounted to (and also the adjacent
tile to facilitate installation).
3. Refer to Figure 2-11 for all dimensions and hole locations. Place the mounting
rails across the tile (underside of tile). For ceiling tiles that are smaller than
standard 2’ x 4’ size ceiling tile, the mounting rails can be cut down in length at
the u-shaped cutouts.
4. Mark the location of the AB screw holes in the mounting rails on the ceiling tile
where the holes will be drilled through the tile as shown in Figure 2-12. Drill four
.375-inch (10 mm) diameter holes in the ceiling tile.
5. Determine where the two holes for the Remote Antenna cabling are going to be
located on the tile and mark the centers of the hole.
Note that one of these holes will also be used to route the CAT 5 cable that
connects the Core AP to the Sync Unit on the ITS.
6. Drill or cut out two .813-inch (21 mm) diameter holes for the Remote Antenna
cables to be connected to the Core AP. Lightly coat a plastic grommet with
silicone adhesive and insert it into each hole in the tile (insert grommet from the
outside of the tile).
7. Place the AP wall plate over the four holes drilled on the bottom of the tile. Note:
The top direction is as when the tile is in its installed position.
8. Insert the four (4) M3 .5 x 0.6 x 30mm screws into the AP wall plate, through the
tile, and into the mating holes in the mounting rails on top of the tile. Hand
tighten the four locking hex nuts onto the screws, and then torque-tighten each
nut to 10-inch lbs (#1 Pozidrive).
9. Using a 5/64-inch (2 mm) Allen (i.e., hexagonal) wrench, secure the four
supplied M3 X 0.5 hex-head shoulder screws to the back of the Core AP as
shown in Figure 2-13. Torque-tighten each shoulder screw to 8-inch lbs.
10. Mount the Core AP to the wall plate by inserting the head of each shoulder
screw into the four mounting holes provided in the wall plate and then sliding
the Core AP so that the shoulder screw heads are securely in the grooves of the
wall plate.
DRAFT-3
![](/img.php?id=1486117&img=bg25.png)
Mounting the ITS Core AP Below a Ceiling Tile (Quick Release)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-17
Figure 2-11: Core AP Below Ceiling Tile Hole Locations and Dimensions
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg26.png)
2-18
Chapter 2: Installing the ITS 1.4 GHz Core Access Point

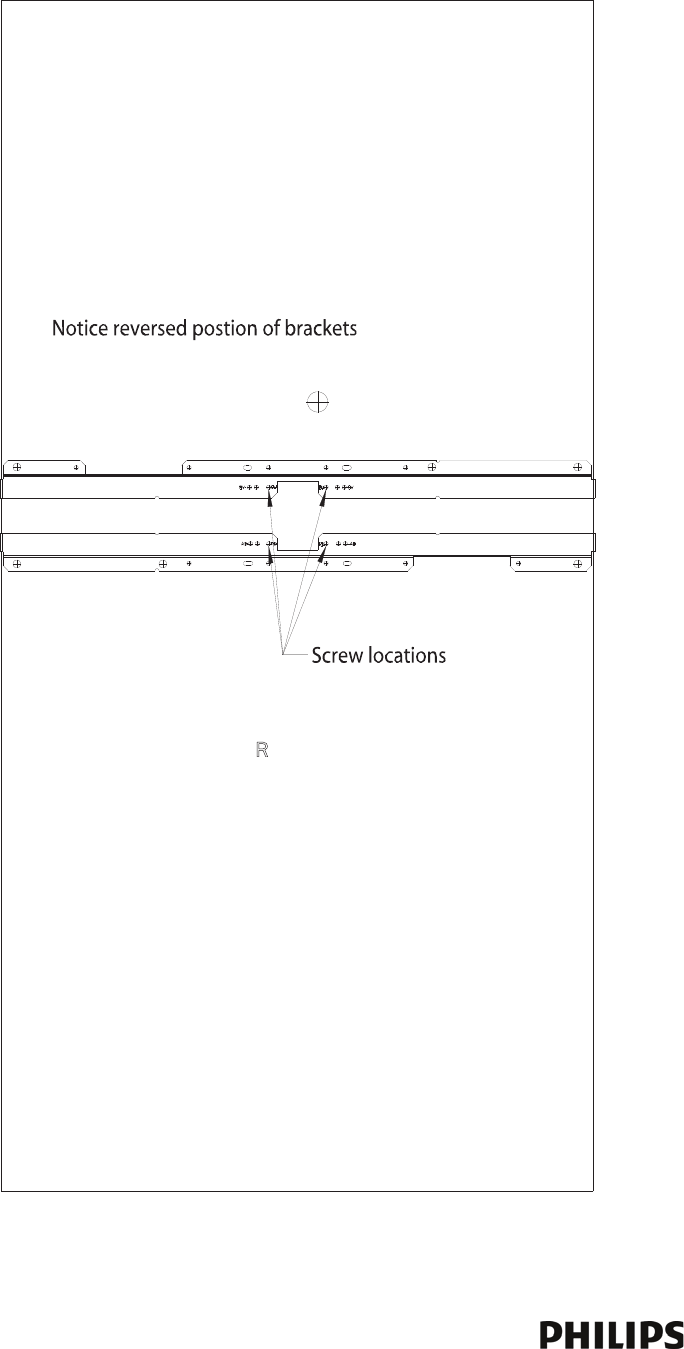

Figure 2-12: Core AP Below Ceiling Tile Mounting Rail Screw Locations
Use the Screw Locations
Marked AB
DRAFT-3
![](/img.php?id=1486117&img=bg27.png)
Mounting the ITS Core AP Below a Ceiling Tile (Quick Release)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-19

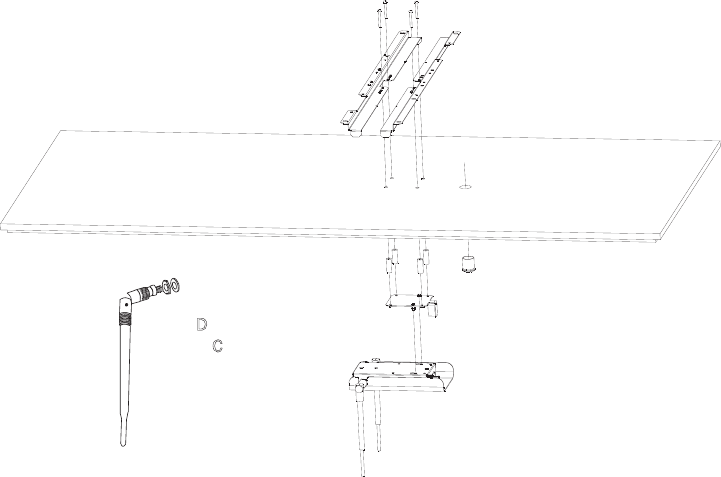

Figure 2-13: Mounting the Core AP Below a Ceiling Tile (Quick Release
Bend Down
Tighten Collar
Insert M3.5 Security Screw
through this View Port and
Tighten Using a Torx T10
Screwdriver.
DRAFT-3
![](/img.php?id=1486117&img=bg28.png)
2-20
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
11. Using a Torx T10 screw driver, secure the Core AP to the wall plate by screwing
the supplied M3 .5 X 0.6 T-10 Torx Head security screw into the PEM nut in the
wall plate as shown in Figure 2-13. Torque-tighten the screw to 10-inch lbs. Note
that this safety screw is used to prevent the Core AP from sliding out of the wall
plate.
12. Orient the antenna(s) on the Core AP chassis so they bend upward at right
angles to the chassis. Unscrew the collar, rotate the antenna into position, and
then retighten the collar to secure the antenna in place.
13. Replace the tile back onto the ceiling frame structure with the Core AP antennas
hanging down from the ceiling. Wiring connections to the Core AP can be
accessed via the open hole in the tile.
14. Replace other adjacent ceiling tiles if necessary.
DRAFT-3
![](/img.php?id=1486117&img=bg29.png)
Mounting the ITS Remote Antenna to a Wall (Fixed Mount)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-21
Mounting the ITS Remote Antenna to a Wall (Fixed Mount)
You can mount the IntelliVue Telemetry System Remote Antenna (RA) to a wall using
the mounting screws and screw anchors supplied with the RA. We recommend that
you mount the RA high on the wall as close to the ceiling as possible.
To mount the 1.4 GHz ITS RA to a wall:
1. Using a 3/16-inch drill bit, drill two pilot holes .188 inches (5 mm) in diameter at
the locations shown in Figure 2-14.
2. Tap a supplied plastic screw anchor into each pilot hole until it is flush with the
wall surface.
This step is not necessary if mounting the ITS RA on a wood surface.
3. Screw a supplied #6 x 1 1/4 inch self-tapping screw into each screw anchor (or
pilot hole) as shown in Figure 2-14.
Tighten each screw until a 1/16-inch (2 mm) gap remains between the screw
head and the mounting surface.
4. While holding the RA chassis with its antennas pointing down as shown in
Figure 2-14, fit the holes in the back of the RA chassis over the screw heads
that protrude from the wall. Slide the RA chassis down so that the screw heads
are securely in the grooves in the back of the RA chassis.

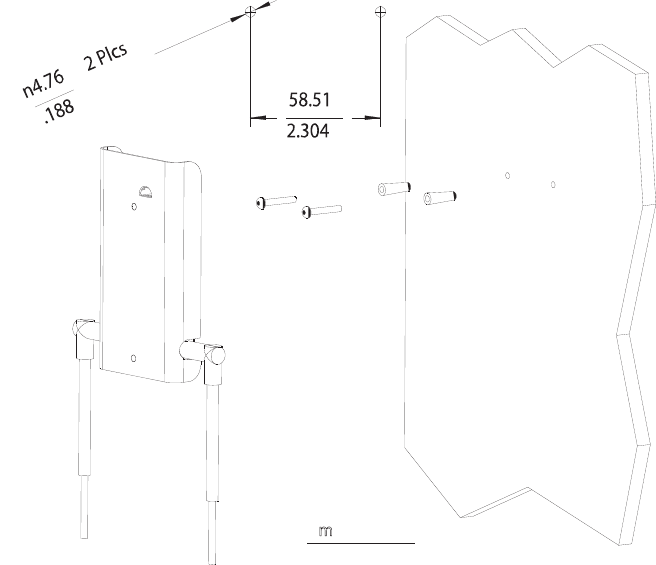

Figure 2-14: Mounting the ITS 1.4 GHz Remote Antenna to a Wall
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg2a.png)
2-22
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Mounting the ITS Remote Antenna to a Wall (CA Earthquake Rated)
You can mount the IntelliVue Telemetry System Remote Antenna onto walls using an
optional California (CA) earthquake-rated wall plate. Use of this quick release wall
plate enables you to relocate 1.4 GHz ITS RAs within your facility quickly and easily.
To mount the 1.4 GHz ITS RA to a wall:
1. Using a 3/16-inch drill bit, drill two pilot holes .188 inches (5 mm) in diameter at
the locations shown in Figure 2-15.
2. Tap a supplied plastic screw anchor into each pilot hole until flush with the wall
surface.
This step is not necessary if mounting the ITS RA on a wood surface.
3. Secure the quick release wall plate to the wall by screwing a supplied #6 x 1
1/4 inch self-tapping screw through the wall plate into each screw anchor (or
pilot hole) as shown in Figure 2-15.
Tighten each screw until the wall plate is fixed securely in place.
4. While holding the RA chassis with its antennas pointing down as shown in
Figure 2-15, fit the openings in the back of the RA chassis over the two
mounting studs that protrude from the wall plate, and then slide the RA chassis
down so that the mounting studs are securely in the grooves in the back of the
RA chassis.
Figure 2-15: Mounting the ITS 1.4 GHz RA to a Wall (CA Earthquake Rated)
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg2b.png)
Mounting the ITS Remote Antenna Above a Ceiling Tile (Mounting Rails)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-23
Mounting the ITS Remote Antenna Above a Ceiling Tile (Mounting Rails)
You can mount the IntelliVue Telemetry System Remote Antenna (RA) above a
ceiling tile by using the mounting rails provided in the Above & Below Ceiling Tile
Mount Kit (862415-K05) for the Core AP and Remote Antennas.
Caution When installing the ITS Remote Antenna onto a suspended ceiling, make certain the
ceiling grid is structurally rated to support the weight of the Remote Antenna, 0.32
kg (.7 lbs), and any extra cabling.
To mount the 1.4 GHz ITS RA above a ceiling tile:
1. Determine which ceiling tile the RA is be mounted onto, and the approximate RA
placement and orientation of the antennas on the tile. Also, check for adequate
clearance above the RA.
2. Remove the ceiling tile to which the RA will be mounted (and also an adjacent
tile to facilitate installation).
3. Orient the antenna(s) on the RA chassis so they bend downward at right angles
to the chassis. Unscrew the collar and rotate the antenna into position and then
retighten the collar to secure the antenna in place.
4. Determine where the two holes for the antennas are going to be located on the
tile and mark the centers of the holes.
The RA chassis can be rotated 90 degrees to the mounting rails. Choose the
best placement of the RA to facilitate where the antennas will go through the
ceiling tile. Note that there are two holes in the RA chassis to allow for tethering
to other permanent structures where local building codes require this type of
installation. Refer to Figure 2-16 or Figure 2-17 for the dimensions to locate the
antenna holes in the ceiling tile.
5. Drill out two 3/4-inch (19 mm) diameter holes in the ceiling tile for the
antennas. Lightly coat both plastic grommets with silicone adhesive and insert
them into both holes in the tile (insert grommets from the outside of the tile).
6. Secure the mounting rails to the RA. Insert the four (4) M3 X 0.5 (8 mm LG)
screws into the RA mounting rail holes, and into the mating holes in the back of
the RA chassis as shown in Figure 2-17 or Figure 2-18. Torque-tighten each
screw to 8-inch lbs.
7. Place the RA with mounting rails across the top of the tile.
8. Replace the tile back onto the ceiling frame structure with the RA antennas
hanging down through the ceiling. Wiring connections to the RA can be
accessed via the open adjacent tile.
9. Replace other adjacent ceiling tiles if necessary.
DRAFT-3
![](/img.php?id=1486117&img=bg2c.png)
2-24
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Figure 2-16: Possible Above the Ceiling Remote Antenna Mounting Position
Use These Holes Marked as Noted
RM2 RM2
AM2 Unmarked
Grommets
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg2d.png)
Mounting the ITS Remote Antenna Above a Ceiling Tile (Mounting Rails)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-25
Figure 2-17: Alternative Above the Ceiling Remote Antenna Mounting Position
Use These Holes Marked RM4
Grommets
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg2e.png)
2-26
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Mounting the ITS Remote Antenna Above a Ceiling Tile (Tether Mount)
You can mount the IntelliVue Telemetry System Remote Antenna (RA) above a
ceiling tile without the use of mounting rails if the following conditions are met:
• The ceiling tile can support the weight of the RA, 0.32 kg (.7 lbs), and any extra
cabling.
• The RA is tethered securely to a permanent structure within the ceiling.
• A minimum of 12-gauge galvanized soft annealed mild steel wire conforming to
ASTM A 641 is used to tether the RA chassis to a permanent structure within the
ceiling.
To mount the 1.4 GHz ITS RA above a ceiling tile:
1. Determine which ceiling tile the RA is be mounted onto, and the approximate RA
placement and orientation of the antennas on the tile. Also, check for adequate
clearance above the RA.
2. Remove the ceiling tile to which the RA will be mounted (and also an adjacent
tile to facilitate installation).
3. Orient the antenna(s) on the RA chassis so they bend downward at right angles
to the chassis. Unscrew the collar and rotate the antenna into position and then
retighten the collar to secure the antenna in place.
4. Determine where the two holes for the antennas are going to be located on the
tile and mark the centers of the holes.
Note that the RA antennas can be placed, and oriented in a variety of places to
accommodate positioning the antennas through the tile (e.g., close to a side
wall).
Also, the RA chassis can be rotated 90 degrees. Choose the best placement of
the RA to facilitate where the antennas will go through the ceiling tile. Refer to
Figure 2-16 or Figure 2-17 for the dimensions to locate the antenna holes in the
ceiling tile.
5. Drill out two 3/4-inch (19 mm) diameter holes in the ceiling tile for the
antennas. Lightly coat both plastic grommets with silicone adhesive and insert
them into both holes in the tile (insert grommets from the outside of the tile).
6. Insert the tether wire through the two holes located at the corner of the RA
chassis. The tether wire should have three tight turns of the wire within 1.5
inches of the end of the wire.
7. Connect the other end of the tether wire to a permanent structure within the
ceiling. The tether wire may be attached to any of the following:
• wood or metal stud framing
• blocking attached to wood or metal framing
• plywood adequately attached to wood or metal stud framing, reinforced
concrete, or reinforced masonry
• reinforced concrete
• reinforced masonry
8. Place the RA across the top of the tile.
DRAFT-3
Mounting the ITS Remote Antenna Above a Ceiling Tile (Tether Mount)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-27
9. Replace the tile back onto the ceiling frame structure with the RA antennas
hanging down through the ceiling. Wiring connections to the RA can be
accessed via the open adjacent tile.
10. Replace other adjacent ceiling tiles if necessary.
DRAFT-3
![](/img.php?id=1486117&img=bg30.png)
2-28
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Mounting the ITS Remote Antenna Below a Ceiling Tile (Fixed Mount)
You can mount the IntelliVue Telemetry System Remote Antenna (RA) below a
ceiling tile by using the mounting rails provided in the Above & Below Ceiling Tile
Mount Kit (862415-K05) for the Core AP and Remote Antennas.
Caution When installing the ITS Remote Antenna onto a suspended ceiling, make certain the
ceiling grid is structurally rated to support the weight of the Remote Antenna, 0.32
kg (.7 lbs), and any extra cabling.
To mount the 1.4 GHz ITS RA below a ceiling tile:
1. Determine which ceiling tile the RA is be mounted onto, and the approximate
placement of the RA and orientation of the antennas hanging down from the
ceiling tile.
2. Remove the ceiling tile the RA will be mounted to (and also the adjacent tile to
facilitate installation).
3. Refer to Figure 2-18 for all dimensions and hole locations. Place the mounting
rails across the tile (underside of tile). For ceiling tiles that are smaller than
standard 2’ x 4’ size ceiling tile, the mounting rails can be cut down in length at
the u-shaped cutouts.
4. Mark the location of the RB screw holes in the mounting rails on the ceiling tile
where the holes will be drilled through the tile as shown in Figure 2-19. Drill four
.25-inch (6 mm) diameter holes in the ceiling tile.
5. Determine where the hole for the Core AP cable is going to be located on the tile
and mark the center of the hole.
6. Drill or cut out a .813-inch (21 mm) diameter hole for the Core AP cable to be
connected to the RA. Lightly coat a plastic grommet with silicone adhesive and
insert it into the hole in the tile (insert grommet from the outside of the tile).
7. Insert the four (4) M3-.5 x 30 lobe screws into the RA mounting rail holes,
through the ceiling tile, through the provided plastic spacers, and into the
mating holes in the back of the RA chassis as shown in Figure 2-20. Torque-
tighten each screw to 8-inch lbs.
Note that the RA mounting rails and spacers allow for sufficient airflow between
the RA and the ceiling tile.
8. Orient the antenna(s) on the RA chassis so they bend upward at right angles to
the chassis. Unscrew the collar and rotate into position and then retighten the
collar to secure the antenna in place.
9. Replace the tile back onto the ceiling frame structure with the RA antennas
hanging down from the ceiling. Cabling connections to the RA can be accessed
via the open holes in the tile.
Note that there are additional holes in the mounting rails to allow for tethering
to other permanent structures where local building codes require this type of
installation.
10. Replace other adjacent ceiling tiles if necessary.
DRAFT-3
![](/img.php?id=1486117&img=bg31.png)
Mounting the ITS Remote Antenna Below a Ceiling Tile (Fixed Mount)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-29

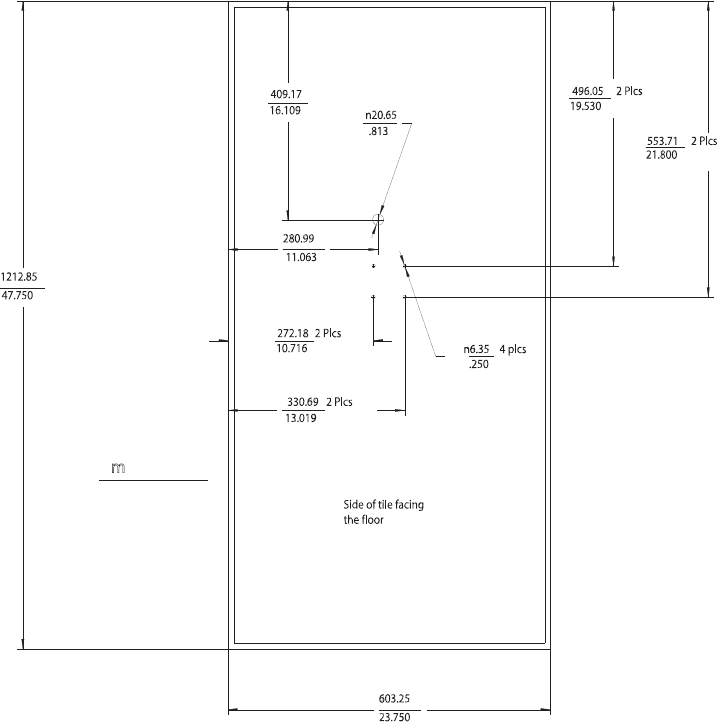

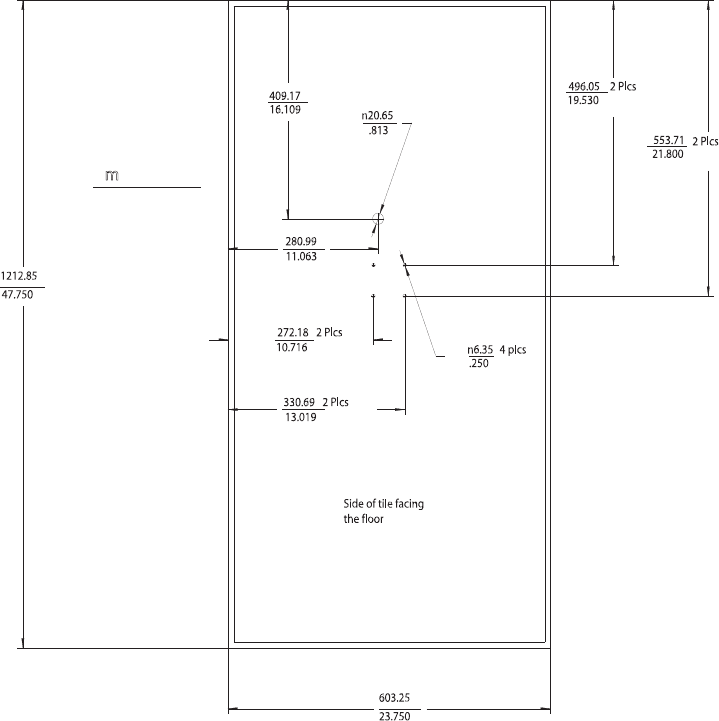

Figure 2-18: RA Below Ceiling Tile Hole Locations and Dimensions
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg32.png)
2-30
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Figure 2-19: RA Below Ceiling Tile Mounting Rail Screw Locations
Use the Screw Locations
Marked RB
DRAFT-3
![](/img.php?id=1486117&img=bg33.png)
Mounting the ITS Remote Antenna Below a Ceiling Tile (Fixed Mount)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-31
Figure 2-20: Mounting the RA Below a Ceiling Tile (Fixed Mount)
Bend Down
Tighten Collar
DRAFT-3
![](/img.php?id=1486117&img=bg34.png)
2-32
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Mounting the ITS RA Below a Ceiling Tile (Quick Release)
You can mount the IntelliVue Telemetry System Remote Antenna below a ceiling tile
by using an optional quick release wall plate along with the mounting rails provided
in the Above & Below Ceiling Tile Mount Kit (862415-K05) for the Core AP and
Remote Antennas. Use of this wall plate enables you to relocate 1.4 GHz ITS RAs
within your facility quickly and easily.
Caution When installing the IntelliVue Access Point onto a suspended ceiling, make certain
the ceiling grid is structurally rated to support the weight of the Access Point, 0.7kg
(1.5 lbs), and any extra cabling.
To mount the 1.4 GHz ITS RA below a ceiling tile:
1. Determine which ceiling tile the RA is be mounted onto, and the approximate
placement of the RA and orientation of the antennas hanging down from the
ceiling tile.
2. Remove the ceiling tile the RA will be mounted to (and also the adjacent tile to
facilitate installation).
3. Refer to Figure 2-21 for all dimensions and hole locations. Place the mounting
rails across the tile (underside of tile). For ceiling tiles that are smaller than
standard 2’ x 4’ size ceiling tile, the mounting rails can be cut down in length at
the u-shaped cutouts.
4. Mark the location of the “RB” screw holes in the mounting rails on the ceiling
tile where the holes will be drilled through the tile as shown in Figure 2-22. Drill
four .25-inch (6 mm) diameter holes in the ceiling tile.
5. Determine where the two holes for the Remote Antenna cabling are going to be
located on the tile and mark the centers of the hole.
6. Drill or cut out a .813-inch (21 mm) diameter hole for the Core AP cable to be
connected to the RA. Lightly coat a plastic grommet with silicone adhesive and
insert it into each hole in the tile (insert grommet from the outside of the tile).
7. Place the wall plate over the four holes drilled on the bottom of the tile. Note:
The top direction is as when the tile is in its installed position.
8. Insert the four (4) M3-.5 x 30 lobe screws into the RA mounting rail holes,
through the ceiling tile, through the provided plastic spacers, and into the
mating holes in the back of the wall plate.
9. Fit the openings in the back of the RA chassis over the two mounting studs that
protrude from the wall plate and then slide the RA chassis so that the mounting
studs are securely in the grooves in the back of the RA chassis.
DRAFT-3
![](/img.php?id=1486117&img=bg35.png)
Mounting the ITS RA Below a Ceiling Tile (Quick Release)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-33
Figure 2-21: RA Below Ceiling Tile Hole Locations and Dimensions
Units: millimeters
inches
DRAFT-3
![](/img.php?id=1486117&img=bg36.png)
2-34
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
Figure 2-22: RA Below Ceiling Tile Mounting Rail Screw Locations
Use the Screw Locations
Marked RB
DRAFT-3
![](/img.php?id=1486117&img=bg37.png)
AP Configuration Information
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 2-35
AP Configuration Information
Refer to the IntelliVue Telemetry System Infrastructure Installation and Service
Guide (M3185-91934) for complete details about configuring the IntelliVue
Telemetry System AP.
Access Point Startup Sequence
Upon power on/start up, the ITS Core Access Point will perform a Power-on-Self-Test
(POST) to ensure that its basic components are fully functional.
This test detects critical system failures. As the test progresses the state of the
system is displayed through a series of color combinations on the Power/Sync,
Radio, and Network LEDs on the front of the AP. All three LEDs illuminate AMBER
color, then the Power/Sync LED illuminates GREEN and the other two LEDs turn off
(not illuminated) indicating correct startup. Should a test fail the LEDs are left in a
state which indicates the point at which the test failed. When the system is
transmitting data the radio and network LEDs on the AP will flicker on and off as
data is transmitted.
Figure 2-23: Mounting the RA Below a Ceiling Tile (Quick Release
Bend Down
Tighten Collar
DRAFT-3
![](/img.php?id=1486117&img=bg38.png)
2-36
Chapter 2: Installing the ITS 1.4 GHz Core Access Point
DRAFT-3
![](/img.php?id=1486117&img=bg39.png)
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 3-1
3
Maintaining the ITS 1.4 GHz Core Access Point
This chapter provides procedures and information for maintaining the
Philips IntelliVue Telemetry System 1.4 GHz Core Access Point and
includes:
• Maintenance Procedure
• Troubleshooting the Core AP Using its LEDs
• Replacing a Core AP or Remote Antenna
• Ordering Replacement Parts
DRAFT-3
![](/img.php?id=1486117&img=bg3a.png)
3-2
Chapter 3: Maintaining the ITS 1.4 GHz Core Access Point
Maintenance Procedure
To ensure that IntelliVue Telemetry System 1.4 GHz Core Access Point (AP) and
Remote Antenna (RA) continue to operate properly, you should perform the following
maintenance tasks periodically:
• Ventilation - The IntelliVue Telemetry System 1.4 GHz Core Access Point and RA
cases are vented to provide air circulation and cooling for the devices. Keep the
immediate area around the AP and RA open to allow for natural air circulation
around the devices. Periodically, dust the AP and RA cases to keep their
ventilation holes open.
• Antenna Orientation - Under normal operation the AP or RA antennas may get
bumped by cleaning crews and/or construction crews and causing the
antennas to move from their original position set at installation.
Periodically check the antennas on all of the APs and RAs at the installation site
for correct orientation, alignment, direction, and placement. If necessary,
loosen the collar on the antenna and adjust the antenna for proper placement,
orientation, and direction. Then, re-tighten the antenna collar to secure the
antenna in place. Generally, you should orient the two local antennas on each
Core AP and RA such that they are perpendicular to the floor.
Troubleshooting the Core AP Using its LEDs
Complete test and inspection procedures for the IntelliVue Telemetry System 1.4
GHz Core Access Point are given in Chapter 5 of the IntelliVue Telemetry System
Infrastructure Installation and Service Guide. You must perform these procedures
when the Philips IntelliVue Telemetry System is initially installed and after any
service event.
Figure 3-1 shows the location of the ITS 1.4 GHz Core Access Point LEDs.
A summary of the Core AP’s system status LEDs is given below to help you
troubleshoot any AP operational problems that may arise.
The ITS Core AP provides the following status LEDs.
• Wired/Ethernet Activity - The Core AP provides two LEDs to indicate wired/
Ethernet activity to the ITS infrastructure. During normal operation, these LEDs
indicate the following information:
Figure 3-1: IntelliVue Telemetry System Core Access Point LEDs
Power/Sync, Radio, Network
Status LEDs
Link LED Activity LED
RA Connection LEDs
RA Power LEDs
DRAFT-3
![](/img.php?id=1486117&img=bg3b.png)
Troubleshooting the Remote Antenna Using its LEDs
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 3-3
- Link LED - Link present/Ethernet connection. Lights GREEN (ON) when a
pass-through link is present - OFF when not present.
- Act LED - Wired network activity. Flashes GREEN (ON) when there is activity is
over the wired network.
• Wireless/RF Activity - The AP provides three LEDs to indicate wireless/RF
activity. During normal operation, these LEDs indicate the following information:
- Power/Sync LED - GREEN (ON) when power and synchronization signal is
present.
- Radio LED - Normally OFF (not lit) - flashes green to indicate wireless network
activity.
- Network LED - Normally OFF (not lit) - flashes green to indicate wired network
activity.
• Remote Antenna - The Core AP provides two LEDs on each RJ-45 UTP cable
connector that provides status on a connected Remote Antenna:
- RA Connection - Lights GREEN to indicate a RA is connected to the Core AP.
- RA Power - Lights YELLOW to indicate connected RA is receiving power from
the Core AP.
If the Status LED indicators are not functioning properly as indicated then perform
the appropriate troubleshooting procedures. If you cannot resolve the problem with
the LEDs, then make written note of the LED lighting and sequence of colors,
replace the unit, and send the defective unit back to Philips with the explanation of
LEDs sequence and colors displayed. Refer to Chapter 4 of the IntelliVue Telemetry
System Infrastructure Installation and Service Guide for complete AP replacement
procedures.
Troubleshooting the Remote Antenna Using its LEDs
Complete test and inspection procedures for the IntelliVue Telemetry System 1.4
GHz Remote Antenna are given in Chapter 4 of the IntelliVue Telemetry System
Infrastructure Installation and Service Guide. You must perform these procedures
when the Philips IntelliVue Telemetry System is initially installed and after any
service event.
Figure 3-1 shows the location of the ITS 1.4 GHz Remote Antenna LEDs.
A summary of the Remote Antenna’s status LEDs is given below to help you
troubleshoot any operational problems that may arise.
Figure 3-2: IntelliVue Telemetry System Remote Antenna LEDs
UTP Cable Connector
to Core AP
Connection LED
(Green)
Power LED
(Yellow)
DRAFT-3
![](/img.php?id=1486117&img=bg3c.png)
3-4
Chapter 3: Maintaining the ITS 1.4 GHz Core Access Point
• Remote Antenna - The Core AP provides two LEDs on each RJ-45 UTP cable
connector that provides status on a connected Remote Antenna:
- RA Connection - Lights GREEN to indicate a RA is connected to the Core AP.
- RA Power - Lights YELLOW to indicate connected RA is receiving power from
the Core AP.
If the Status LED indicators are not functioning properly as indicated, then refer to
the sections that follow and Chapter 4 of the IntelliVue Telemetry System
Infrastructure Installation and Service Guide for complete Remote Antenna
replacement procedures.
Replacing a Core AP or Remote Antenna
The repair strategy for the ITS Core Access Point or Remote Antenna is unit
replacement. No repairs are to be made to the Core AP or RA.
Individual AP or RA components, PC assemblies, or sub-assemblies are not
available for purchase.
If an ITS Core AP or RA is determined to be defective/non-operational, call your local
Philips Field Service Engineer/Customer Engineer or the Philips Customer Care
Solutions Center for information on ordering a replacement unit and returning the
defective unit.
Use the following toll-free number to contact the Philips Customer Care Solutions
Center:
• Telephone: (+1) 800-722-9377
When replacing defective equipment on your ITS, be sure to follow the procedures
given in Chapter 4 of the IntelliVue Telemetry System Infrastructure Installation and
Service Guide.
Ordering Replacement Parts
This section contains information for ordering replaceable parts and assemblies for
the Philips IntelliVue Telemetry System 1.4 GHz Core Access Point and Remote
Antenna. The parts are listed in tables by major assemblies. Each table contains the
orderable part number (New or Exchange) and a description of the part. Only the
part numbers listed are orderable. Any unlisted part numbers and part descriptions
are not orderable from Philips.
To order a replacement part, first identify the faulty component, part, subassembly
or assembly, then look in the associated table for that major assembly and find (and
record) the part description and replaceable part number. Order replaceable parts
from your nearest Philips Sales/Service office or from the Philips Support Materials
Organization. A complete listing of the Philips Sales/Service Offices addresses with
phone numbers can be found at the end of this guide.
DRAFT-3
![](/img.php?id=1486117&img=bg3d.png)
Ordering Replacement Parts
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide 3-5
Table 3-1: Ordering Core Access Point Replacement Parts
New
Part Number Description
989803171211 IntelliVue Core Access Point, 1.4 GHz. Complete AP unit
includes the following: AP Case (top cover and shell), Main PC
Board, Radio Module PC Board, and Two External Antennas.
453564079561 1.4 GHz Antenna with SMA-style Connector
453564052201 Core AP/Remote Antenna Ceiling Mount Kit
453564090571 Ferrite Core Block
Table 3-2: Ordering Remote Antenna Replacement Parts
New
Part Number Description
453564036561 IntelliVue Remote Antenna, 1.4 GHz. Complete unit includes the
following: RA Case (top cover and shell), Main PC Board, Radio
Module PC Board, and Two External Antennas.
453564079561 1.4 GHz Antenna with SMA-style Connector
453564056081 Plenum, 74 ft. (22.6m), Coax & Data Cable Assembly
453564052201 Core AP/Remote Antenna Ceiling Mount Kit
DRAFT-3
![](/img.php?id=1486117&img=bg3e.png)
3-6
Chapter 3: Maintaining the ITS 1.4 GHz Core Access Point
DRAFT-3
IntelliVue Telemetry System 1.4 GHz Core Access Point/Remote Antenna Installation Guide Index-1
Index
A
Access points
cluster AP descriptions 1-3
Ethernet interface on cluster APs 1-6
illustration of 3-2, 3-3
illustration of cluster AP 1-3
mounting options for cluster AP 1-4
overview of Cluster APs 1-3
placement guidelines 2-2
serial port 1-7
status LEDs 1-8, 3-2
Act LED 1-8, 3-3
C
Coaxial Cable Connectors on Core AP 1-7
Coaxial Cable Connectors on remote antenna 1-7
Core AP description 1-3
Core APs
description of 1-3
E
Ethernet interface, on cluster APs 1-6
F
Ferrite block, installing on AP cable 2-4
I
IntelliVue Telemetry System (ITS)
overview of 1-2
L
LEDs
access point 1-8, 3-2
Remote Active Antenna 1-8
Link LED 1-8, 3-3
M
Mounting options, access point 1-4
Mounting the ITS Core AP
above a ceiling tile 2-9
below a ceiling tile (fixed mount) 2-12
below a ceiling tile (quick release) 2-16
DRAFT-3
![](/img.php?id=1486117&img=bg40.png)
Index-2
to a wall (CA earthquake rated) 2-7
to a wall (fixed mount) 2-6
Mounting the ITS Remote Antenna
above a ceiling tile (mounting rails) 2-23
above a ceiling tile (tether mount) 2-26
below a ceiling tile (fixed mount) 2-28
below a ceiling tile (quick release) 2-32
to a wall (CA earthquake rated) 2-22
to a wall (fixed mount) 2-21
N
Network LED 1-8, 3-3
O
Overview of the ITS 1-2
P
Philips Customer Care Solutions Center, contacting 3-4
Philips Smart-hopping technology 1-3
Power source 1-4
Power/Sync LED 1-8, 3-3
R
Radio LED 1-8, 3-3
Remote Antenna description 1-3
Replacement parts, ordering 3-4
Replacing a Core AP or Remote Antenna 3-4
S
Serial port, on AP 1-7
Startup sequence 2-35
Synchronization signal 1-4
T
Transceiver mobility 1-4
Troubleshooting the Core AP 3-2
Troubleshooting the Remote Antenna 3-3
U
UL 2043 compliance 1-9, 1-11
UTP Cable Connectors on Core AP 1-7
UTP Cable Connectors on remote antenna 1-7
W
Wireless Medical Telemetry Service (WMTS) band 1-2
DRAFT-3
