Primex Wireless
XR Transmitter
XR Transmitter with Attached Antenna
Operations Manual
Document number: 1014.200
ECN: 2.00
Revision Date: July 13, 2006
N3211 County Road H
Lake Geneva 53147
![](/img.php?id=726797&img=bg2.png)
New transmitter Model XR
Document: 1014.100 ECN: 2.00
Page 2 of 14
I. TABLE OF CONTENTS
1. INTRODUCTION ............................................................................................................................... 3
1.1 PURPOSE ............................................................................................................................................... 3
1.2 FCC INFORMATION AND REQUIREMENTS.............................................................................................. 3
1.2.1 Compliance Statement (Part 15.19) ............................................................................................. 3
1.2.2 Warning (Part 15.21) ................................................................................................................... 3
1.2.3 Federal Communication Commission Interference Statement ..................................................... 3
1.2.4 FCC Caution Statement................................................................................................................ 3
1.2.5 FCC License Requirements .......................................................................................................... 3
1.2.6 FCC Part 90 Statement................................................................................................................. 3
1.3 CANADA IC INFORMATION AND REQUIREMENTS .................................................................................. 4
1.3.1 RSS-119 Statement........................................................................................................................ 4
1.3.2 Industry Canada Statement per Section 4.0 of RSP-100.............................................................. 4
1.3.3 Section 7.1.5 of RSS-GEN............................................................................................................. 4
1.3.4 Section 7.1.4 of RSS-GEN............................................................................................................. 4
1.3.5 Section 7.1.5 of RSS-GEN............................................................................................................. 4
1.3.6 Section 2.6 of RSS-102 ................................................................................................................. 4
1.4 SAFETY PRECAUTIONS .......................................................................................................................... 4
1.5 EQUIPMENT PRECAUTIONS.................................................................................................................... 4
1.6 GENERAL OVERVIEW ............................................................................................................................ 5
2. XR TRANSMITTER PRODUCT OPERATION............................................................................. 6
2.1 XR HARDWARE DEFINITIONS ............................................................................................................... 6
2.1.1 Back Panel Picture....................................................................................................................... 6
2.1.2 Front Panel Picture...................................................................................................................... 6
2.1.3 Overall Picture of the XR Transmitter.......................................................................................... 6
2.1.4 Connector and Peripheral Definition........................................................................................... 7
2.2 XR TRANSMITTER SET UP.................................................................................................................... 9
2.2.1 General Set Up Considerations.................................................................................................... 9
2.2.2 Hardware Set up........................................................................................................................... 9
2.3 XR TRANSMITTER OPERATION ........................................................................................................... 11
2.3.1 Scope........................................................................................................................................... 11
2.3.2 Power Up Sequence and the Front Panel................................................................................... 11
2.3.3 Detailed Panel and Menu Operation.......................................................................................... 12
3. PRODUCT SPECIFICATIONS....................................................................................................... 14
![](/img.php?id=726797&img=bg3.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 3 of 14
Confidential Document
1. INTRODUCTION
1.1 Purpose
This manual documents the overall operations of the new XR synchronized clock transmitter system.
1.2 FCC Information and Requirements
1.2.1 Compliance Statement (Part 15.19)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
1.2.2 Warning (Part 15.21)
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
1.2.3 Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
1.2.4 FCC Caution Statement
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate this equipment.
1.2.5 FCC License Requirements
Operation of the XR transmitter requires an FCC operating license which must be applied for by the operator of the
equipment. The XR models with attached whip antennae require a mobile license. Prior to operating the XR
transmitter, an application must be filed with the FCC and a license granted from the FCC. The filing and receipt of
the FCC license should be complete before the transmitter is delivered whenever possible. Please contact Technical
Support at 1-800-404-8112 if you have any questions about licensing.
1.2.6 FCC Part 90 Statement
To comply with FCC’s RF exposure limits for general population / uncontrolled exposure, the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-
located or operating in conjunction with any other antenna or transmitter.
![](/img.php?id=726797&img=bg4.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 4 of 14
Confidential Document
1.3 Canada IC Information and Requirements
1.3.1 RSS-119 Statement
To comply with Industry Canada’s RF exposure limits for general population / uncontrolled exposure, the antenna(s)
used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must
not be co-located or operating in conjunction with any other antenna or transmitter.
1.3.2 Industry Canada Statement per Section 4.0 of RSP-100
The term "IC:" before the certification / registration number only signifies that the Industry Canada technical
specifications were met.
1.3.3 Section 7.1.5 of RSS-GEN
Operation is subject to the following two conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including interference that may cause undesired operation.
1.3.4 Section 7.1.4 of RSS-GEN
This device has been designed to operate with an antenna having a maximum gain of 0dB. Antenna having a higher
gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms."
1.3.5 Section 7.1.5 of RSS-GEN
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the
equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.
1.3.6 Section 2.6 of RSS-102
This portable transmitter with its antenna complies with Industry Canada RF Exposure Limits for General Population
/ Uncontrolled Exposure.
1.4 Safety Precautions
It is recommended that standard acceptance procedures be followed prior to operating the transmitter in the proximity
of life support systems or critical safety systems. Only the power supply delivered with the transmitter should be used
with the transmitter. The usage of other power supplies is not approved and may affect the transmitter’s operation.
The transmitter is designed for indoor use in a non-condensing, non-wet area. Operating the XR transmitter outdoors
is an electrical hazard and may damage the transmitter and devices attached to the transmitter, and may void the
warranty. Personnel should not come within 20cm of the attached antenna when the transmitter is operating.
1.5 Equipment Precautions
To avoid possible damage to the XR transmitter, never operate the transmitter without the antenna connected first.
Power must not be applied without first ensuring that the antenna is connected.
Operating an XR transmitter without the antenna connected can permanently damage the transmitter. Avoid touching
the antenna when the antenna is installed on the transmitter. Do not touch the antenna connector on the top of the
enclosure before the antenna is attached. Altering the antenna is prohibited by FCC regulations. FCC also requires
that the antenna be attached to the case (for attached antennae versions) and that the antenna is vertical with respect to
the earth.
Do not remove the cover of the transmitter or alter the internal electronics of the transmitter in any manner. This
could lead to an unsafe condition, a violation of FCC regulations, and a transmitter that doesn’t function, or void the
warranty.
![](/img.php?id=726797&img=bg5.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 5 of 14
Confidential Document
1.6 General Overview
This product is an enhancement of our existing 14000 Master Transmitter with GPS receiver. A basic pictorial is
provided below of our new transmitter
Acronyms:
• Compusync – NTP server for remote networks
• GPS – Global Positioning System. Precise satellite time source.
• GMT – Greenwich Mean Time, previous standard 0 time zone set at longitude = 0 also know as the prime or
Greenwich meridian. This has been replaced by UTC.
• IRIG = Inter-Range Instrumentation Group, a set of time code formats and standards
• NTP – Network Time Protocol.
• RF – Radio Frequency
• RX – Receive.
• TX – Transmit or Transmitter (referring to our XR Transmitter)
• UTC – Universal Coordinated Time, a.k.a. Coordinated Universal Time. Replaces the previous GMT standard.
• WTG = Wireless Tone Generator
Figure 1 XR System (Server is Optional):
![](/img.php?id=726797&img=bg6.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 6 of 14
Confidential Document
2. XR TRANSMITTER PRODUCT OPERATION
2.1 XR Hardware Definitions
2.1.1 Back Panel Picture
This is a picture of the back panel label that shows the input connector positions and control switch positions
described in sections 2.1.3 and 2.1.4.

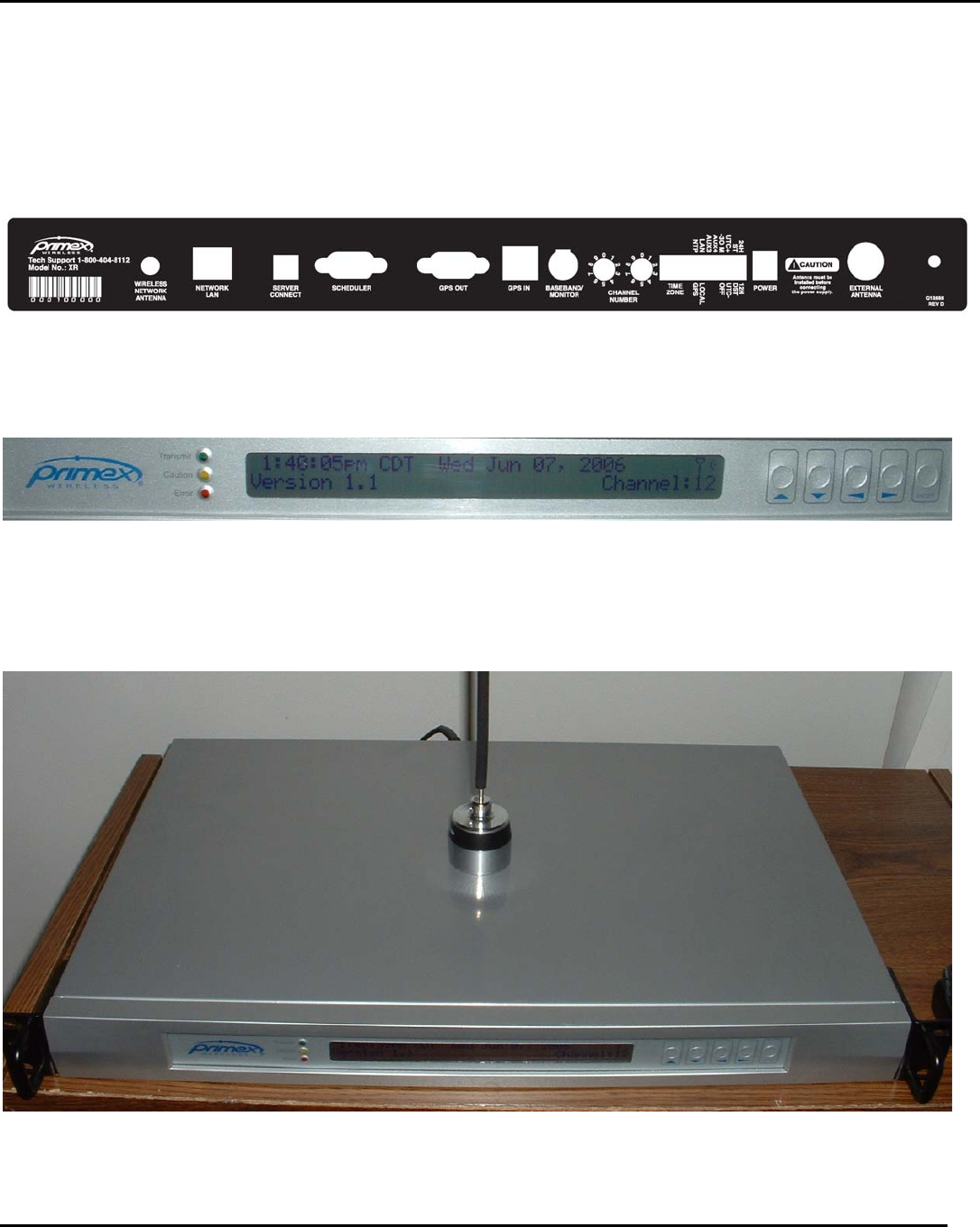

Figure 2 – Rear Panel of XR Transmitter
2.1.2 Front Panel Picture
This is a picture of the front panel that is defined section 2.3.2.
Figure 3 – Front Panel of XR Transmitter After Time Synchronization
2.1.3 Overall Picture of the XR Transmitter
This a picture of the transmitter which shows the whip antenna attached to the NMO mount on the case top.
Figure 4 – Overall Picture of XR Transmitter Showing the NMO Antenna Mounted
![](/img.php?id=726797&img=bg7.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 7 of 14
Confidential Document
2.1.4 Connector and Peripheral Definition
Figure 5 - External Hardware Connections RF Board based
Connector Description Connector type
GPS IN Input from GPS receiver 7 pin mini-DIN
NETWORK LAN Network connection, connects to Lantronix
serial port internally. This is a population
option with the next connector.
RJ45
WIRELESS
NETWORK
ANTENNA
Wireless bulkhead antenna mount. This a
population option with the previous connector. SMA
SCHEDULER Com 1/Auxiliary Port/Scheduler Programming RS232 DB9 Fem.
GPS OUT Serial port with 1PPS to drive NTP input for
the server RS232 DB9 Male
SERVER
CONNECT USB 2.0 USB Type B device
connector
BASEBAND /
MONITOR Serial JTAG in for programming the micro;
input line for monitoring a high power amp RF
power; input line for monitoring VSWR on a
high power RF amp (neither used in this
model); non-inverted baseband output – a
digital output of the pre-modulated baseband
for external systems
9 pin Mini-DIN socket
TX RF Main RF Output, found on top of the enclosure
for this model NMO antenna mount
Power Connector from wall supply. DC output is 9V
at 2.7A Two prong AC, DC is
2.5 mm pin size
EXTERNAL
ANTENNA Not populated for this model, when populated,
the TX RF NMO antenna mount on top is
depopulated
N-Type Bulk-head
All connections are intended to be industry standard but differentiated such that user error is minimized. All
connections are on the rear panel. Note – due to I/O limitations on the microprocessor, the Lantronix Serial port, the
USB port, and the Aux/Com 1 port are shared so you can connect through only one of those three connectors at a
time.
To select the Lantronix RJ45 as the input, you must flip the Network DIP switch to the “LAN” position. This option
is selected if the transmitter must talk to a remote server.
To connect to the USB or Aux/Com 1 port, you must flip that switch to the “Local” position. This option is selected
if the transmitter will run stand-alone, or connected to a local server through the USB port.
When the switch is in the “Local” position, the USB dominates because the transmitter will detect the power voltage
and automatically switch the internal connection to the USB port, so if the transmitter is connected to a server locally
through the USB connection, the Aux/COM 1 port is deactivated. If a standard RS232 cable is plugged into the
Aux/Com 1 port, that port then is the input, as long as the switch is in the “Local” position and there is no USB cable
attached.
![](/img.php?id=726797&img=bg8.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 8 of 14
Confidential Document
Figure 6 - Control Inputs
Input Description Interface type
Channel
Number Select RF Operating Frequency X2 Rotary BCD
Switches with shaft
and knob
Time Zone Needed to adjust for 24 time zone offsets Rotary Hex switch
with screwdriver
activated knob
GPS/NTP Used to switch time source from the GPS to
the Lantronix module port 2 SNTP
connection, which allows the transmitter to
synchronize with an NTP time server on it’s
network
Dip Switch
LOCAL /
LAN LAN or Local (Local means a serial
connection to the SERVER CONNECT or
SCHEDULER connector)
Dip Switch
AUX 3 Not currently assigned Dip Switch
AUX 4 Not currently assigned Dip Switch
OFF/-30M ½ hour offset for some countries when in the
-30M position Dip Switch
-UTC/+UTC -UTC = Time Zone is subtracted from UTC.
+UTC = Time Zone is added to UTC. Dip Switch
DST/ST DST = DST enabled. ST = Standard Time or
DST disabled. Dip Switch
12H/24 H Output time in 12/24 hour format Dip Switch
Diagnostics
and
configuratio
n
Menu Driven Status 5 button tactile
dome switches and
LCDs for display –
On Membrane
Note - default positions for the dip switches are all down and are:
1. GPS/NTP = GPS.
2. LAN/LOCAL = Local (through the USB or serial port DB9).
3. No ½ hour offset (-30M set to OFF).
4. –UTC offset.
5. DST/ST = DST enabled.
6. 12H/24H = 12 hour format.
![](/img.php?id=726797&img=bg9.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 9 of 14
Confidential Document
2.2 XR Transmitter Set Up
2.2.1 General Set Up Considerations
The XR transmitter should be located in an area that maximizes the propagation of the signal to the largest area in the
facility. The FCC license needs to be applied for and granted before the equipment can be set up and operated. The
channel switch setting on the back of the transmitter must match the channel authorized by the license.
Set the transmitter on the supplied shelf, if purchased, or on another rack or mounting device as desired. If the rack
mount option is used and the transmitter is mounted in a rack, the transmitter must be on the top of the rack and the
rack must not have a top cover or it will interfere with the operation of the transmitter.
For better transmission it is recommended that the XR transmitter be located a minimum of 3 feet above the floor and
away from large metal objects, such as lockers, cabinets, ladders, power distribution panels, communications or
computer racks, metal or shielded walls, etc. The antenna radiates in a circular pattern, therefore the coverage for an
area will be better when the transmitter is more centrally located than when the transmitter is in the corner of a
building. In a multi-story building, locating the transmitter nearer to the top of the building often gives the best
coverage.
2.2.2 Hardware Set up
Prior to plugging the supply into the wall outlet and the jack into the back of the transmitter, the following set up steps
must be performed:
1. Connect the 46” whip antenna to the top of the XR transmitter on the NMO antenna mount. Be very careful to
start the antenna base square and not to cross-thread the antenna base onto the connector. When connected
properly, the antenna base will seat flat against the transmitter case top.
2. Set up the time synchronization input for the transmitter to one of the following options:
a. If this is a GPS synchronized master transmitter, install the GPS receiver outside using the supplied
mounting hardware, or in a window near the transmitter if the GPS will not be mounted outside. The
GPS receiver should have a full view of the sky whenever possible to get the best signal and the quickest
synchronization time possible. NOTE – the GPS receiver will not receive a signal through Low E
Glass. Make sure the NTP/GPS switch on the back of the XR transmitter is in the GPS position. The 7-
Pin MiniDIN connector from the GPS receiver or extension cables must be plugged into the GPS IN
connector on the back of the XR transmitter.
b. If this is a satellite transmitter synchronized by a repeater, mount the repeater on the wall as far away
from the transmitter as possible. The transmitter/repeater combination should be located within receiving
distance of the master transmitter. You can determine if the repeater is receiving the signal if the master
GPS transmitter is broadcasting by powering up the repeater. After approximately 20 seconds, the green
LED on the repeater should be flashing indicating that it received the signal from the master GPS
transmitter. Make sure the NTP/GPS switch on the back of the XR transmitter is in the GPS position.
The serial cable from the repeater must be plugged into the GPS IN connector on the back of the XR
transmitter.
c. If this is a network synchronized transmitter with a wired network connection, you need only connect the
supplied CAT 5 patch cable to the NETWORK LAN connector on the back of the transmitter and then to
the RJ45 wall jack that was set up for the transmitter’s network connection. Make sure the NTP/GPS
switch on the back of the XR transmitter is in the LAN position.
d. If this is a network synchronized transmitter with a wireless connection, you need to make sure that there
is a wireless access point within receiving distance of the XR transmitter. Make sure the NTP/GPS
switch on the back of the XR transmitter is in the LAN position.
![](/img.php?id=726797&img=bga.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 10 of 14
Confidential Document
e. If this transmitter is to be locally connected to an XR server, the CAT 5 cable from the server must be
plugged into the NETWORK LAN CONNECTOR on the back of the transmitter. Make sure the
NTP/GPS switch on the back of the XR transmitter is in the LAN position.
3. Set up the communications configuration:
a. If this is a standalone transmitter with no network connection, set the LAN/LOCAL switch to LOCAL.
b. If this transmitter has a network connection, wired or wireless, and the scheduling and other
communications will be done via the network connection, then set the LAN/LOCAL switch to LAN.
4. Make sure the rotary CHANNEL NUMBER switches are set to the channel number that is authorized for this
transmitter by the FCC license.
5. Set Up the remaining switches to match your locale and desired set up for time calculations:
a. The TIME ZONE switch should be set to the time zone offset for the locale.
b. The -30M/OFF switch should normally be in the OFF position unless you want a -30 minute offset
calculation to the time.
c. The UTC+/UTC- switch should be set as follows:
i. The UTC+ position is for time zones east of the prime meridian and west of International Date
Line.
ii. The UTC – position is for time zones west of the prim meridian and east pf the International Date
Line.
d. The ST/DST switch should be set to the ST position if you are in a locale that does not follow standard
USA Daylight Savings Time practices and to the DST position if you’re in a locale that does follow
standard USA Daylight Savings Time Practices.
e. The 24H/12H switch should be set to the 24H position if you want to see time in the 24 hour military time
format and to the 12H position if you want to see time in the 12 hour time format with AM and PM
indicators.
f. Example for an XR transmitter set up in the Central Time Zone with DST enable in 12 hour format would
be:
i. The TIME ZONE switch set to 6 since Central time is UTC -6.
ii. The -30M/OFF switch is set to OFF (down).
iii. The UTC+/UTC- switch is set to UTC- (down).
iv. The ST/DST is set to DST (down).
v. The 24H/12H switch is set to 12h (down).
6. Plug the supplied AC adaptor into a 120VAC outlet, then plug the DC output jack into the POWER connector on
the back of the transmitter.
Set up is complete.
![](/img.php?id=726797&img=bgb.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 11 of 14
Confidential Document
2.3 XR Transmitter Operation
2.3.1 Scope
This manual defines the operation of the XR transmitter with case-attached whip antenna. It does not include the
operation of the following:
• High power transmitters or transmitters with external antennae.
• Clocks, timers, repeaters, or switches.
• The XR server or any of its software.
o The network connection process for the transmitter to the server.
• The Compusync switch or software.
• The Scheduler software for bell schedules or transmitter intermittent operation schedules.
2.3.2 Power Up Sequence and the Front Panel
Once power is applied, the three LEDs on the front panel shown in Figure 3 in Section 2.1.2 will all light up for
approximately two seconds. After that, they will operate as follows:
• Green LED.
o Off when the transmitter is waiting to be synchronized or the output power amplifier has failed.
o On when the transmitter is broadcasting.
o Off when the transmitter was in a blinking green situation and power is cycled.
o Flashing when the transmitter is disabled by the server or an internal schedule for intermittent operation
• Yellow LED.
o Off means the transmitter is synchronized with a time source correctly.
o Flashes when the XR transmitter has not received valid GPS, Repeater, or NTP time for 48 hours or at
initial power up until synchronization occurs.
• Red LED.
o Off means there are no errors recorded in the internal error log.
o Flashing means there is an error recorded in the internal error log. Errors can be viewed in the error logs
by following the instructions in Section 2.3.2 under Menu 1 for Diagnostic Error Codes.
After power is applied the LCD screen on the front panel of the XR transmitter will light up. The display will look
different depending on the start up conditions:
• If the XR transmitter has not recently been powered up, the time will start at 00:00:00 if in the 24 hour mode are
at 12:00:00 am if in 12 hour mode and there will be no parentheses to the right of the GPS tower symbol which
indicate that the transmitter is synchronized and the green LED will be off indicating that the transmitter is not
broadcasting.
• If the XR transmitter was recently powered up, within the last 8 hours, the internal battery back up clock will set
the time immediately, and the LCD will come up with the correct time and date, there will be parentheses to the
right of the GPS tower symbol, and the green LED will be ON, indicating the transmitter is broadcasting.
• If the XR transmitter is hooked up to a repeater, the GPS tower symbol will be replaced by an “R”.
• If the XR transmitter is loaded with a transmitter intermittent operation schedule and during this time period the
transmitter is scheduled to be disabled, then even if the transmitter is synchronized, the green LED will be
flashing, indicating that the transmitter power output is good but is not currently broadcasting.
![](/img.php?id=726797&img=bgc.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 12 of 14
Confidential Document
• If an error condition has occurred (the Red LED is flashing) the bottom line will have a scrolling error message
instructing the operator to look at the diagnostic menus or to call Technical Support.
2.3.3 Detailed Panel and Menu Operation
Normal Display – 2 rows of text:
1. Time (HH:MM:SS format) – am or pm on display if in 12 hour format
2. Date (Day of week, month, and year format)
3. Standard time (ST) or Daylight savings time (DT)
4. Time zone (P for Pacific, M for Mountain, C for Central, E for Eastern). Display would read CST for
Central Standard Time and CDT for Central Daylight Savings Time.
5. Antenna symbol when connected to GPS or an R displayed when connected to a repeater
6. Parenthesis when receiving time data
7. Channel #
8. Version #
9. LP when output power is low
10. Any error that causes a flashing Led will pop this message into the bottom line: “Call Tech Support 1-
800-404-8112 or Use Diagnostic Error Codes Menu”. This message can be on two lines and flip between
the two lines at 5 second intervals.
Navigation Buttons:
Î Pressing right arrow button of keypad while in normal display mode opens main menu.
Î Pressing the right arrow advances to the next level down of menu.
Í Pressing the left arrow backs out of the menus one level at a time.
Ï Ð Pressing the up and down arrows allows up and down scrolling within a menu.
ENTER Pressing the Enter button while in a menu acts as the Enter button, selecting an option.
Main menu:
2 rows of text including any sub-menu. Can be laid out with more than one menu item on a line if it fits and the text
is understandable. For menus with more than two lines, scrolling up and down will be used to navigate.
1. Whenever a change is being made to a variable, a dialog will open asking yes or no. If the user selects Yes,
the change is made. If no is selected, the menu goes back to its previous location.
2. After inactivity, the menu times out and returns to normal display.
3. Transmitter operation does not stop when navigating through main menu.
4. All values within a menu are dynamically updated when switch settings are changed or conditions change.
Panel Menus:
1. Diagnostic Error Codes
a. Bad output power (will show BCD value in dB here)
i. Clear Error
1. Yes or NO confirmation after clearing.
b. PLL Diagnostics
i. Clear Error
1. Yes or NO
c. No GPS or Repeater connected
i. Clear Error
1. Yes or NO
d. No GPS in 48 Hours
i. Clear Error
1. Yes or NO
e. VSWR Errors (enabled only for high power versions, not this version)
i. Clear Error
1. Yes or NO
2. Switch Settings – displays the switch position for the following switches
a. Channel
b. Time Zone
![](/img.php?id=726797&img=bgd.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 13 of 14
Confidential Document
c. DST Switch (same as the ST/DST switch)
d. 12/24 Hour Format (same as the 24H/12H switch)
e. GMT Offset (same as the UTC+/UTC- switch)
h. LAN/LOCAL
i. NTP/GPS
3. Diagnostics
a. Firmware Rev
b. Time Since Last GPS
c. Hardware Revi
d. GPS/Repeater
e. Last Rptr Update
f. Serial Number
g. MAC Address
4. GPS Setup
a. Garmin GPS 16 Garmin GPS 18
b. TBD 1
c. TBD 2
d. TBD 3
e. TBD 4
5. Tech support info
a. 1-800-404-8112
b. techsupport@primexwireless.com
Diagnostic Error Codes:
1. When an error occurs, a Diagnostic Code red LED on the front of the panel flashes, informing the user of an
error, along with the error message on the second line of the normal display. They will then have to go into
the main menu, then the diagnostic menu to determine the error code. The different error codes that are active
will be shown by highlighting the menu item such as different color, flashing, check mark, or some other
obvious means. Give us some feedback as to the easiest method of highlighting.
2. The first 10 of each type of error will be stored in the TX, along with a time and date stamp for each of these
errors.
3. The TX will transmit each occurrence of an error to the server as it occurs, with a time/date stamp.
4. Errors and the error LED can be cleared by selecting individual errors and clearing them (with yes or no
confirmation as to if they really want to clear the error)
Other LEDs:
1. Full output power (green LED lights up when transmitting correctly). This light flashes when the power
amplifier disabled by the repeater or by a transmitter OFF command or by a transmitter on/off schedule.
2. No receiver GPS or repeater (flashing yellow after 2 days of no receipt).
![](/img.php?id=726797&img=bge.png)
New transmitter
Document: 1014.100 ECN: 1.10
Page 14 of 14
Confidential Document
3. PRODUCT SPECIFICATIONS
Parameter Specification
Frequency Range 72.02 to 75.98 MHz
Transmission Range 1 mile open field
Radio Technology Narrowband FM
Modulation FSK
Number of Channels 50 Mobile under Part 90.35
48 Fixed under Part 90.257(a)
Channel Bandwidth 20KHz
Transmission Mode Simplex
Data Rate 2KBPS
Data Protocol/Duty Cycle Manchester
Operating Temperature 0° C to 70° C non-condensing environment
Transmitter Output Power +30dBm (1 Watt)
Frequency Deviation 3KHz
Carrier Frequency Stability +/- 5ppm
Transmitter Wall Adaptor Power Requirements 120VAC @ 60Hz
Internal DC Power Requirements 9VDC
Antenna Type Transmitter Case-Mounted Commercial ¼ wave Whip
Antenna Gain Unity
Antenna Polarization Vertical
