WORKABOUT PRO G2 RFID MODULE HF/LF G2
EXPANSION MODULE INSTRUCTIONS
Important: All Approval and safety information is outlined in the ‘Workabout pro G2
Handheld-computer User Manual’ – part number 8100140A. This manual is available on
our website www.psionteklogix.com through the Teknet extranet
Easily installable expansion modules for the WORKABOUT PRO G2 allow you to customise this hand-
held to meet your specific mobile computing requirements. This chapter outlines how to install the RFID
Module HF/LF G2.
Before installing a module in the WORKABOUT PRO G2, all power sources must be turned off.
• Remove the batteries. If your unit is using AC power, disconnect it.
• Slide the switch to position OFF to shut off internal battery power.
With the power shut down, you can install the RFID Module HF/LF G2.

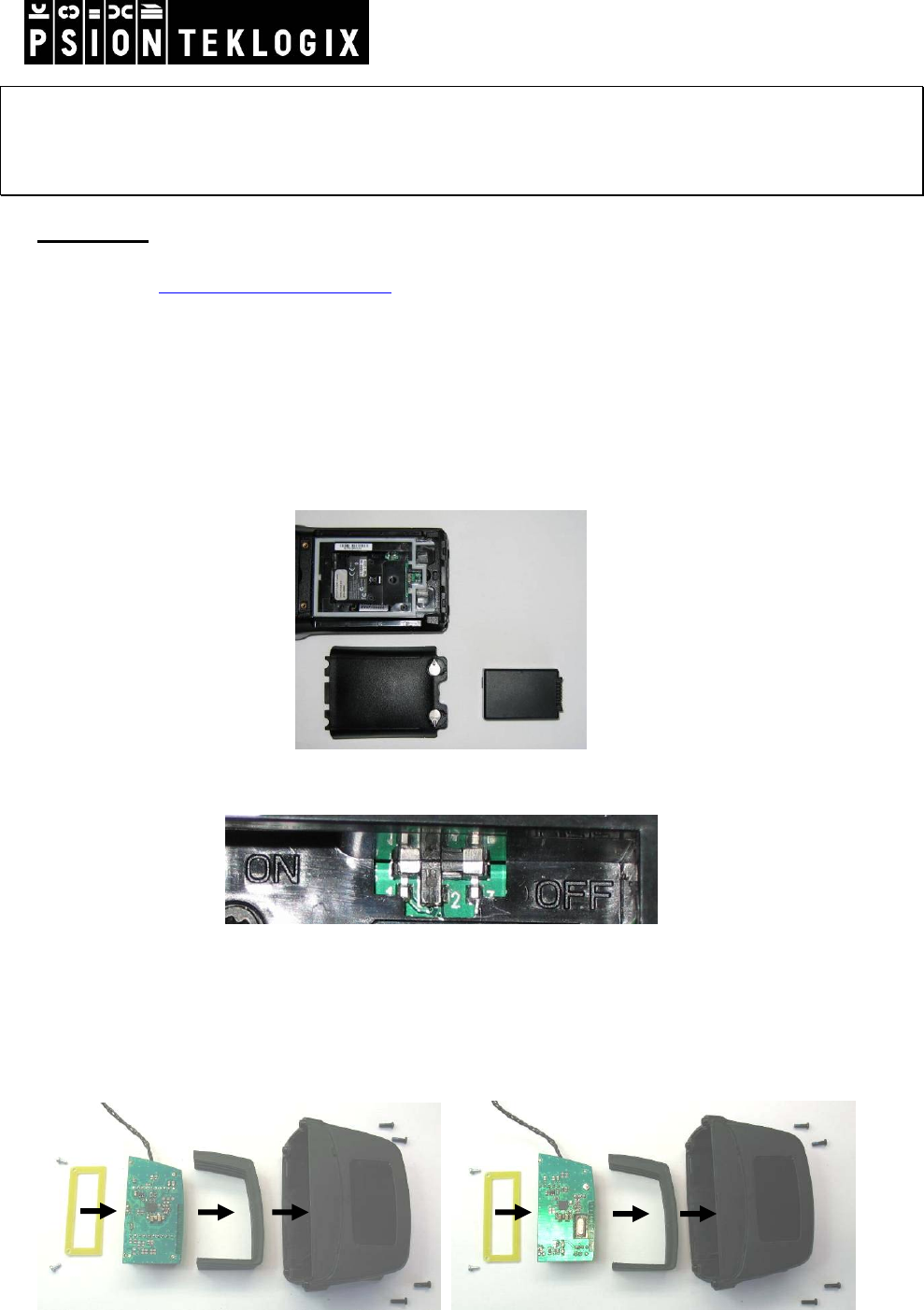

• Connect the USB connector on the RFID Module.
• Slide the PCB guide in the Multi purpose End Cap.
• Slide the RFID Module in the PCB guide.
• Screw the stopper.
RFID Module HF-AM1-G2 RFID Module HF-T2-G2
RFID Module LF-AH1-G2
![](/img.php?id=852737&img=bg2.png)
July 10, 2007
DPD A00285 A00 Sheet 2 of 5

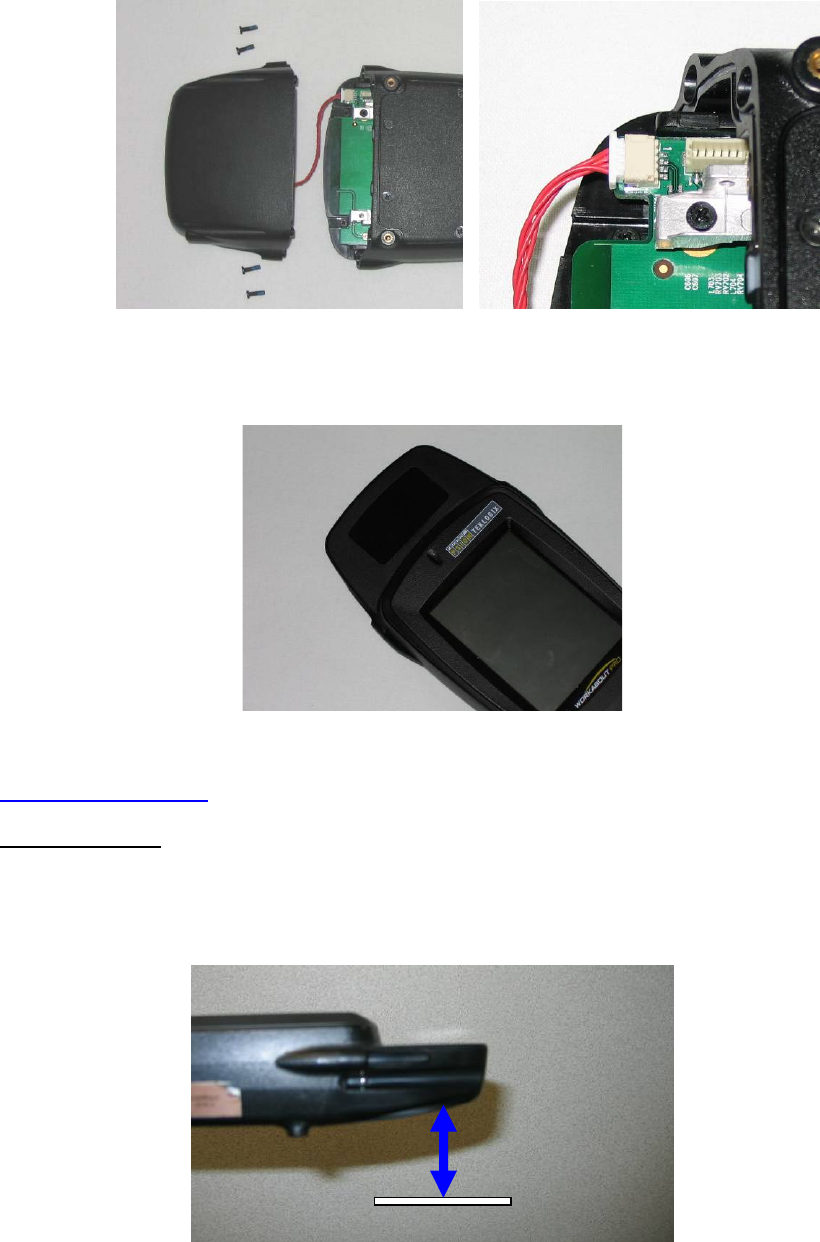

• Remove the End cap at the top of the WORKABOUT PRO G2.
• Connect the USB connector.
• Slide the switch to the position ON to turn power back on.
• Replace the end-cap and battery.
For detailed instructions, pleased refer to the WORKABOUT PRO G2 Hand-Held Computer User Manual
and to the RFID MODULE HF/LF G2 User manual. These manuals are available on our website
www.psionteklogix.com through the Teknet extranet
READING AREA:
This area depend of the TAG type, TAG packaging, configuration of the WORKABOUT PRO (scanner,
Compact flash…), environment (metallic or not).
![](/img.php?id=852737&img=bg3.png)
July 10, 2007
DPD A00285 A00 Sheet 3 of 5
WORKABOUT PRO G2 RFID MODULE HF/LF G2
EXPANSION MODULE INSTRUCTIONS

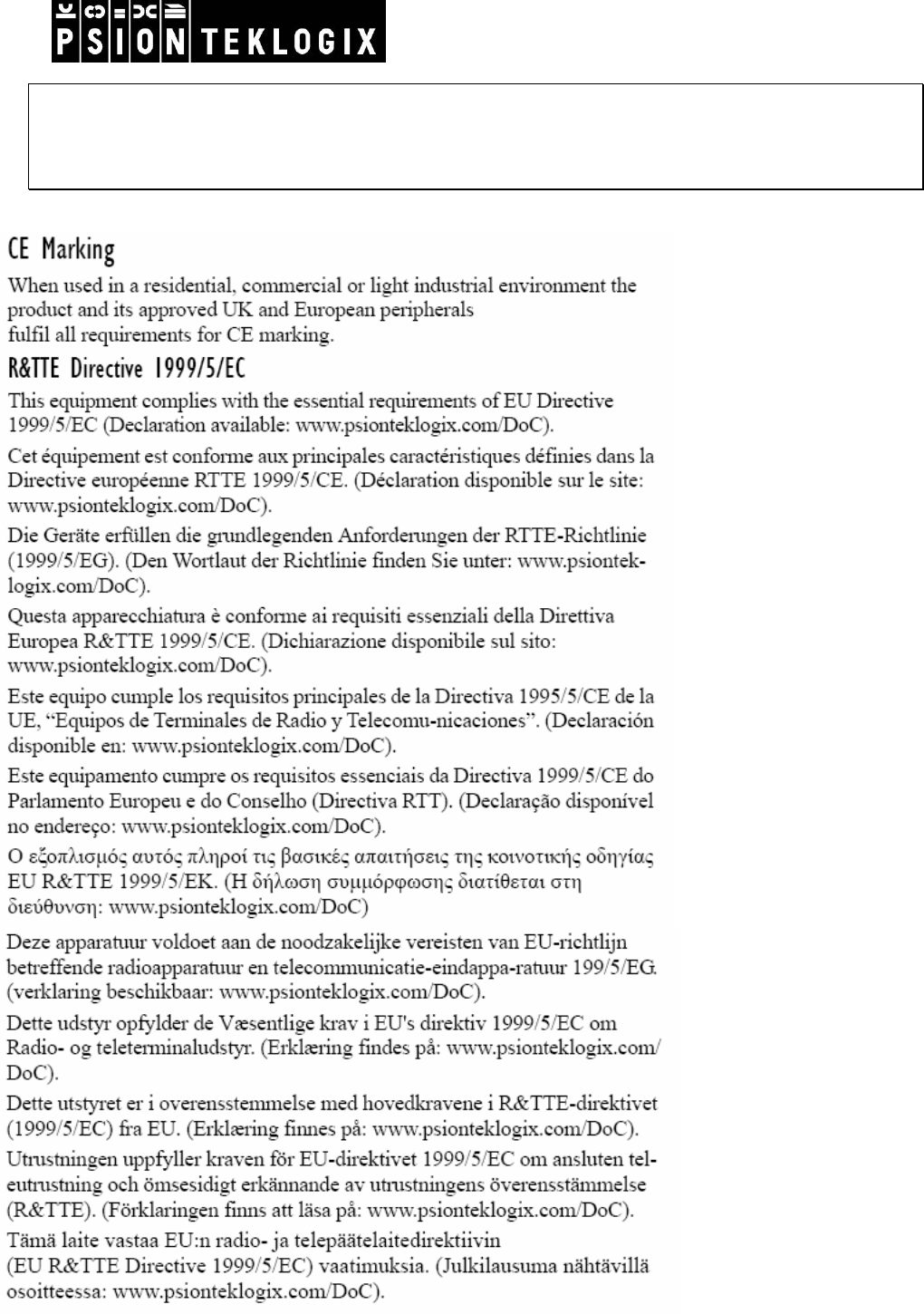

![](/img.php?id=852737&img=bg4.png)
July 10, 2007
DPD A00285 A00 Sheet 4 of 5

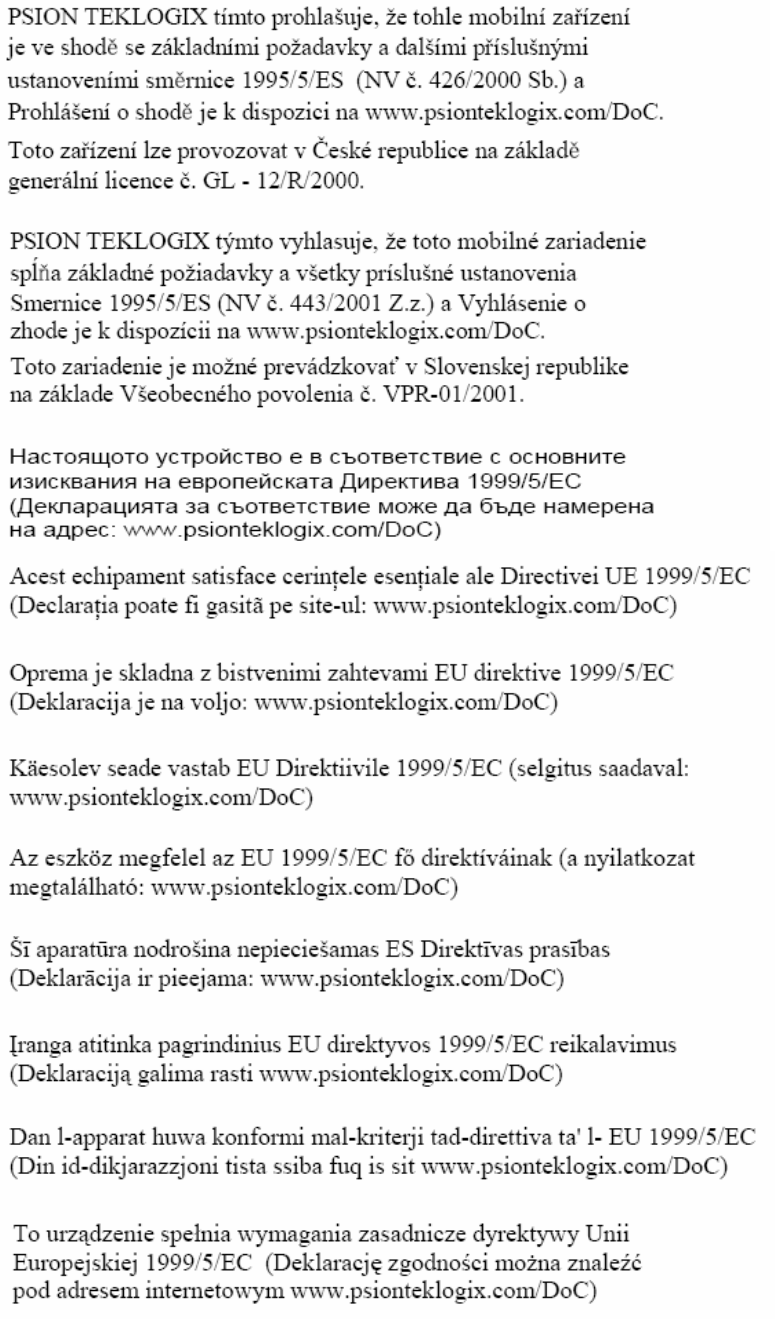

![](/img.php?id=852737&img=bg5.png)
July 10, 2007
DPD A00285 A00 Sheet 5 of 5
IMPORTANT NOTE FOR NORTH AMERICA:
The RFID must not be used whilst the host WORKABOUT PRO is being powered by the ac/dc adaptor.
