FOR USE WITH THE CMS250 WIRELESS SYSTEM
INDOOR
WIRELESS CAMERA
CA200 USER’S GUIDE

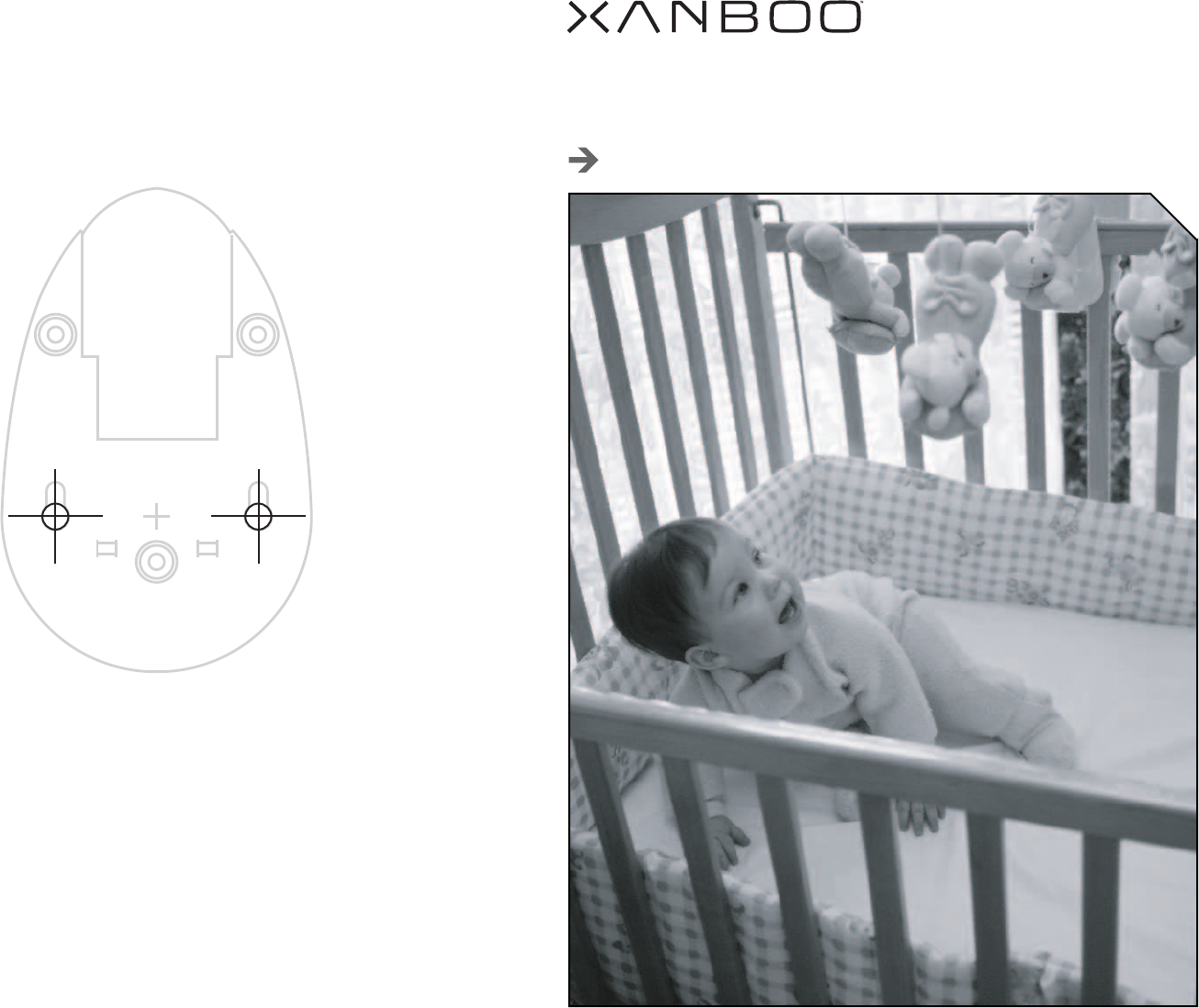

DRILLING TEMPLATE FOR WALL MOUNTING CAMERA(S) ///
For wall-mounting Camera(s), drill two holes using a 1/4" drill bit and the template below.
Insert supplied wall anchors into holes and secure camera to wall with supplied screws.
DRILL HOLES IN
THESE POSITIONS
![](/img.php?id=568210&img=bg2.png)
Congratulations on your purchase of the Xanboo™ Wireless Camera (CA200).
All Xanboo™ Wireless Cameras includes high quality video and audio components.
When combined with a Xanboo™ Wireless Video Monitor/Receiver, you have an ideal
combination for watching the baby, monitoring the porch, pets, yard or the pool. It is also
suited to many small business applications.
FEATURES ///
■2.4GHz wireless technology
■ Plug ‘n’ play installation
■ High resolution black and white video camera
■Built-in microphone transmits sound from camera
to monitor
■ High quality audio and video components for long life
■ IR LEDs for night vision
■ Audio alert when audio detected

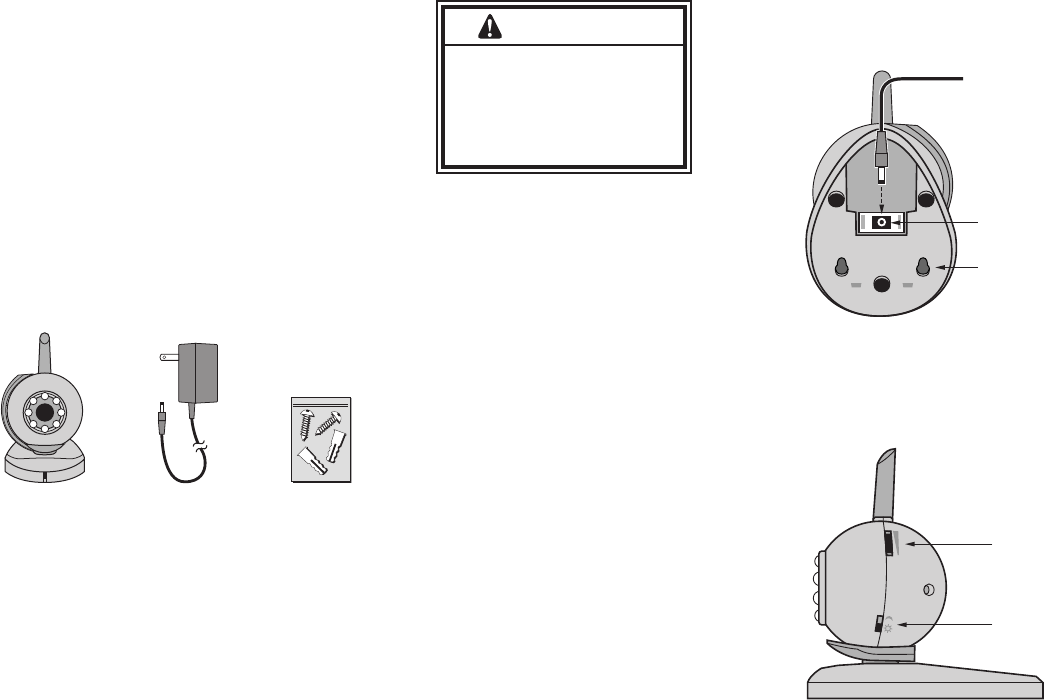

SYSTEM CONTENTS ///
Identify all parts before proceeding with installation.
THINGS TO CONSIDER BEFORE INSTALLATION ///
For best performance, follow these simple guidelines:
■Camera(s) should be installed between 8 and 13 feet above the area to be monitored
■ The Camera should be aimed accordingly to optimize viewing area
■ For best transmission, avoid installations where there are thick walls or major obstructions
between the Camera and Monitor
I
INSTALLING THE CAMERA (TRANSMITTER) ///
1.Unpack the Camera.
2.Place the Camera in an optimal position. Decide whether the Camera will be wall-mounted
or sit on a desk/table top. If wall mounting, use drilling template on the back cover of these
instructions. Once the screws are in place, align the key holes and slide the Camera down to lock
into place. The Camera can be adjusted for either mounting scenario by rotating the Camera
head to the required position.
3.To use the 12V camera power adapter, connect power jack to the input on the base of the Camera.
Make sure the Camera is positioned no more than 5 1/2 feet from an AC power outlet.
4. You can adjust the volume sensitivity for the sound alert feature by adjusting the TRIGGER dial
found on the side of the Camera.
5. The Camera (Transmitter) installation is now complete.
2
WARNING
Risk of fire
• When using an AC to DC adapter,
insure proper polarity and voltage.
Risk of electric shock
•For use in dry locations
12V CAMERA
ADAPTER
WIRELESS
CAMERA
CAMERA BASE
CONNECT POWER ADAPTER HERE
KEY HOLES FOR WALL MOUNTING
TRIGGER SENSITIVITY DIAL
NIGHT VISION ON/OFF SWITCH
CAMERA SIDE VIEW
MOUNTING SCREWS
![](/img.php?id=568210&img=bg3.png)
34
NIGHT VISION ///
The camera includes IR LEDs, which allows viewing up to 5 feet in the dark when used with
the adapter. To turn on the IR LEDs, there is a small switch on the side of the Camera. Place the switch
adjacent to the moon icon in order to activate the night vision option. Place the switch adjacent to
the sun icon in order to turn this option off.
MULTI-CAMERA OPERATION ///
The Xanboo™ Wireless Camera System is designed to work with up to (3) Cameras. Additional
Cameras are sold separately. IMPORTANT: When using more than one Camera, make sure each
Camera is assigned to a specific channel by adjusting the corresponding slide switch down.
REAR VIEW OF CAMERA
CAMERA 1’S
SLIDE SWITCH
CAMERA 2’S
SLIDE SWITCH
CAMERA 3’S
SLIDE SWITCH
APPROVALS ///
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CE directive 93/68/EEC, EMC directive 89/336/EEC, LV directive 73/23/EEC.
This class B digital apparatus complies with Canadian ICES-003.
WARRANTY ///
This product has a one year manufacturer’s warranty which covers parts and labor only. In the unlikely
event that you encounter a technical or quality issue, please contact Xanboo at 1.877.926.2661.
Xanboo will replace defective units within the warranty period.
SPECIFICATIONS ///
Camera (Transmitter) TV System EIA standard
Integrated Lens 3.6mm, F2.0 fixed focus
Resolution 300 horizontal TV lines
Signal/Noise Ratio 48db
High-Speed Electronic Shutter 1/60 - 1/15,000 sec
Image Sensor 1/4” CMOS
Min. Illumination 0.1 lux
Current Consumption IR LEDs ON:180mA
IR LEDs OFF:100mA
Overall Size 2.4” W x 4.3” H x 3.8” D
Case Finish UV resistant ABS plastic,
suited for indoor or outdoor use
Frequency Range 2.41 - 2.47 GHz
Modulation FM
Video Signal/Noise Ratio 48db
Camera (con’t) Audio Signal/Noise Ratio 45db
Channel Selection Electronic tuning with PLL
General Operating temperature -10 °C to 40 °C
14 °F to 104 °F
Humidity Less than 85%
FCC NOTE:
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.
