Users Manual
![](/img.php?id=732277&img=bg1.png)
3-In-1
Omni-Directional Wireless Presenter
User’s Manual
Model PS2400
Raytac Corporation, Tel: +886 2 8227 5596 Fax: +886 2 8227 7867
Web:http://www.raytac.com E-mail:service@raytac.com
Be sure to carefully read this User’s
Manual first for the proper use o
f
the Wireless Presenter and keep it
for future reference.
![](/img.php?id=732277&img=bg2.png)
2
Information in this document is subject to change without notice. No part of
this document may be reproduced or transmitted in any form or by any means,
electronic or mechanical, for any purpose, without the express written prior
permission of the seller.
The seller provides this document without warranty, or condition of any kind.
The seller may make improvements or change in the product described in this
documentation at any time.
Other product and company name herein may be the trademarks of their
respective owners.
○
c 2004 All rights reserved.

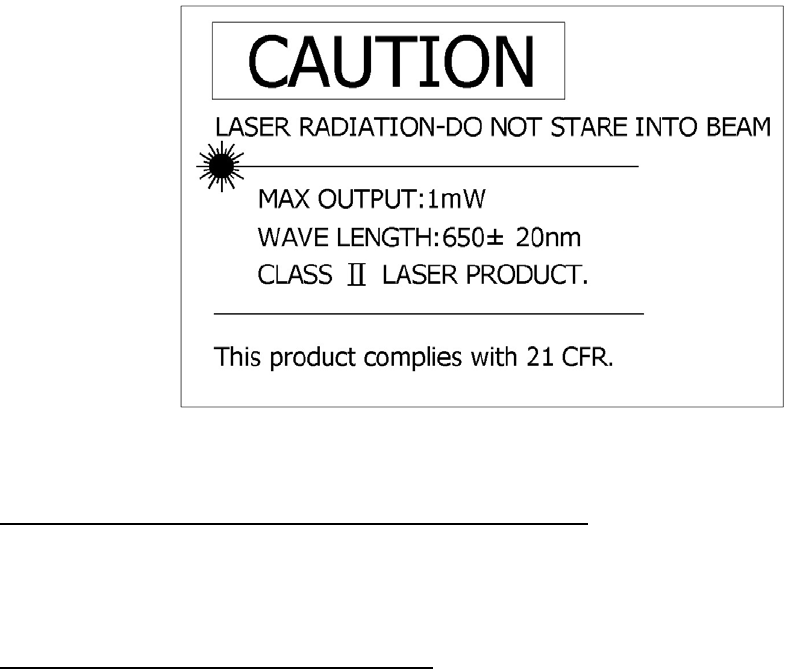

IMPORTANT SAFETY AND HEALTH INFORMATION
ARNING! RISK OF INJURY!
Laser beam can cause permanent damage to eyes. Do not look into the laser beam or
shine the laser beam into your eyes, other peoples’ eyes, or pet’s eyes.
WARNING! RISK OF INJURY!
Keep this device away from Children. This is a working tool, not a toy or entertainment
device. It should only be used by adults.
![](/img.php?id=732277&img=bg3.png)
3
Table of Contents
Chapter 1 Introduction
What’s the benefits 4
Equipment checklist 4
System requirement 5
Chapter 2 Getting Started
Inserting the battery 6
Connecting the RF receiver 6
Chapter 3 Using the 3-in-1 Wireless Presenter
Normal mode (Fig. 1) 8
Function mode (Fig. 2) 9
Chapter 4 Additional Information
Specifications 10
Care and Maintenance 10
Appendix A Regulatory Compliance
![](/img.php?id=732277&img=bg4.png)
4
Chapter 1 Introduction
Thank you for choosing Raytac’s 3-in-1 Omni-Directional Wireless Presenter
—“Enjoy Your Wireless Life With Raytac”
What’s the benefits
Making your presentation easier and more successful
With Raytac’s 3-in-1 Omni-Directional Wireless Presenter, you don’t need to stand
beside your notebook computer or have an additional person to assist you, nor do
you need to aim at the receiver of the remote control. This Wireless Presenter
provides you with a single tool to manage your presentations.
Multi-function Design
Raytac’s 3-in-1 Omni-Directional Wireless Presenter combines the features of the
presentation controller, wireless mouse and laser pointer into one ergonomic
device. Excellent 2.4GHz RF technology enables you to control the computer
mouse cursor up to 50 feet (15 meters) away from the receiver (connected to the
USB port), the laser pointer functions up to forty meters from the target.
Easy to use
Raytac’s 3-in-1 Omni-Directional Wireless Presenter is a USB plug-and-play
device with no additional software required. The laser beam safety switch provides
protection against unintentional laser beam into human eyes.
Equipment Checklist
Carefully unpack your 3-in-1 Wireless Presenter, and keep the packing materials for
future reference. Check to make sure you have all the following items:
3-in-1 Omni-Directional Wireless Presenter 1
USB Receiver 1
AAA batteries 2
User’s Manual 1
5
System Requirement
The followings are the basic system requirements:
Operating systems
Windows® 98 SE, Me, 2000, XP
Mac® OS 9.1 or later, Mac® OS X (10.1) or later
One available USB port for connecting the USB receiver dongle.
6
Chapter 2 Getting Started
Inserting the battery
Open the battery cover and insert two AAA batteries.
Notes on batteries:
Be sure that the polarity of the batteries is set properly.
Do not charge, heat, open, or short-circuit the batteries.
Do not leave dead or exhausted battery in the presenter.
If you do not intend to use this unit for a long period of time, it is advisable
to remove the batteries.
If the wireless presenter does not function correctly or if the operating
range becomes reduced, try to replace the battery with new ones.
Do not use different type of batteries together, or mix old and new
batteries.
Connecting the RF receiver
Connect the receiver to your notebook computer by plugging it into an available USB
port. If all your USB ports are occupied, you can also plug it into a connected USB hub.
Do as follows, depending on your operating system:
Windows® 98 SE/Me
The system prompts you to insert the operating system CD-ROM. Follow the
instructions on the screen to install the required drivers.
Windows® 2000/XP
The operating system identifies the receiver as a “USB Human Interface Device”
and begins installation automatically. Follow the instructions or messages on the
screen to complete the installation.
Mac® OS
The receiver is automatically detected and enabled.
7
If you have several RF devices within range and working at the same channel, the
presenter is jammed evidently, you need to change RF ID for better communication quality.
Please do as follows:
1. Press the ID link button on the receiver and the LED lights up steady. This means the
receiver is ready for linking.
2. Press the Fn and Link keys on the Presenter simultaneously for more than three
seconds. The LED on the receiver begins blinking to confirm a successful link.
Note: Whenever you change the batteries, we recommend you to implement the
procedure given above.
Now, your 3-in-1 Wireless Presenter is ready to go.
![](/img.php?id=732277&img=bg8.png)
8
Chapter 3 Using the 3-in-1 Wireless Presenter
There are two color words on the right side of the 3-in-1 Wireless Presenter:
1.White for normal mode
2.Yellow for function mode
Note: The Fn key does not function except when used simultaneously with another key.
Normal Mode: Function of each key when not used with the Fn key

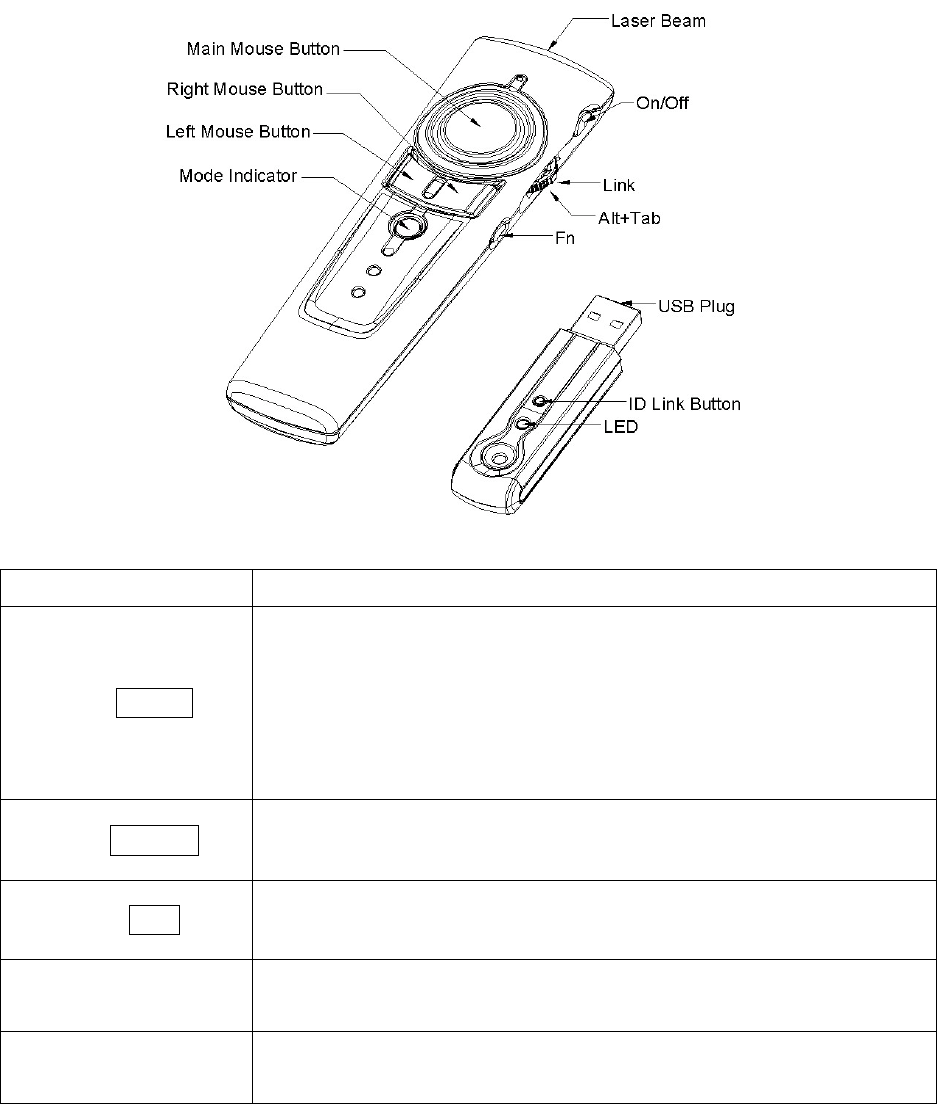

Figure 1
The function of each key is described below.
Keys Function description
Laser Press Fn + On/Off together to activate the laser function first, and
then press Laser key to shoot the laser beam.
Up Push up the switch and go back to the previous slide.
F5/ESC
Click to start the slide show.
(similar to pressing F5 in PowerPoint)
Press and hold more than three seconds to exit the slide show.
(similar to pressing Esc in PowerPoint)
Down Pull down the switch and go to the next slide.
![](/img.php?id=732277&img=bg9.png)
9
Function Mode
Function of each key when used simultaneously with the Fn key, and the Fn key
should be pressed before clicking the other key.
Figure 2
Keys Function description
Fn + On/Off
Press and hold both Fn and On/Off for two seconds to
activate the laser.
(the mode indicator flashes)
Press and hold again for two seconds to deactivate the
laser (the mode indicator flashes)
Fn + Alt+Tab Switch from one program/file to another in presentation
(similar to pressing Alt-Tab in PowerPoint)
Fn + Link Re-associates ID link with receiver.
Fn + Mouse left key Turn the screen black
Fn + Mouse right key Turn the screen white
Note: Idling over 30 minutes, the laser key will be de-activated automatically.
10
Chapter 4 Additional Information
Specifications
System
Model name: PS2400
Frequency range: 2400~2483MHz
Remote range: Approx. 50 feet (15 meters) indoors, 328 feet (100 meters) outdoors
Operating voltage: Remote control: 2.4V~3.3V, Laser: 2.6V~3.3V
Power: AAA batteries * 2
Very low power consumption: Normal operation <10mA
Laser operation < 20mA
Sleep < 10uA
Output power: Under 1mW
Physical Dimensions
Size: Tx: 130(l) x 38.2(w) x 21.2(h) mm. Rx: 68.15(l) x 18(w) x 10.3(h) mm
Weight: Approx. Tx 58 grams (include batteries) Rx 58 grams
Environmental Requirements
Temperature:
Operating: 0℃(32℉)~60℃(140℉)
Non-operation: -10℃(14℉)~65℃(149℉)
Humidity(non-condensing):
Operating: 10%~85% RH
Non-operating: 10%~95% RH
Laser: Semiconductor laser(λ= 650 nm), emission duration: continuous
Laser output power: Max.0.95 mW
Note: Design and specifications are subject to change without notice.
Care and Maintenance
For cleaning, you are advised to use a soft, slightly moistened cloth.
Avoid using solvents or abrasive substances.
Do not open the presenter: for maintenance, consult qualified staff only.
Thank you for using Raytac’s 3-in-1 Omni-Directional Wireless Presenter again.
![](/img.php?id=732277&img=bgb.png)
11
Appendix A Regulatory Compliance
FCC Statement on Class B
Note: This equipment has been tested and found to comply with the limits for a CLASS B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential installation.
This equipment generate, uses and can radiate radio frequency energy and if not installed and used
in accordance with the instruction manual may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in particular installation. If this
equipment does cause interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Re-orient or re-locate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Raytac Corporation
5F-3, No. 755, Chung Cheng Road., Chung Ho, Taipei Hsien 235, Taiwan, ROC
Tel: +886 2 8227 5596 Web:http://www.raytac.com
Fax: +886 2 8227 7867 E-mail:service@raytac.com
DOC NO. EB-A1010-201
