Wireless Touch Presenter
(PCMCIA Form Factor)
User’s Guide
Information in this document is subject to change without notice. No part of
this document may be reproduced or transmitted in any form or by any means,
electronic or mechanical, for any purpose, without the express written prior
permission of the seller.
The seller provides this document without warranty, or condition of any kind.
The seller may make improvements or change in the product described in this
documentation at any time.
Other product and company name herein may be the trademarks of their
respective owners.
○
c 2007 All rights reserved.
Be sure to carefully read this User’s
Guide first for the proper use of the
Wireless Touch Presenter and keep
it for future reference.
![](/img.php?id=927786&img=bg2.png)
2
IMPORTANT SAFETY AND HEALTH INFORMATION
WARNING! RISK OF INJURY!
Laser beam can cause permanent damage to eyes. Do not look into the laser beam or
shine the laser beam into your eyes, other peoples’ eyes, or pet’s eyes.
WARNING! RISK OF INJURY!
Keep this device away from Children. This is a working tool, not a toy or entertainment
device. It should only be used by adults.
FEDERAL COMMUNICATIONS COMMISSION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiated radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user
`s authority to operate the equipment.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or
transmitter.
![](/img.php?id=927786&img=bg3.png)
3
1. Introduction
The Wireless Touch Presenter is the mixed of RF wireless control of PowerPoint
shortcuts, 16-directional mouse and build-in laser point. The Presenter enables the user to
control presentation slides wirelessly up to 100 feet (30 meters), while the laser pointer up
to over 130 feet (40 meters) from the target.
It’s also a USB plug-and-play device with no additional software required and featured
with low-battery warning. The USB receiver is designed slim enough to snap into the main

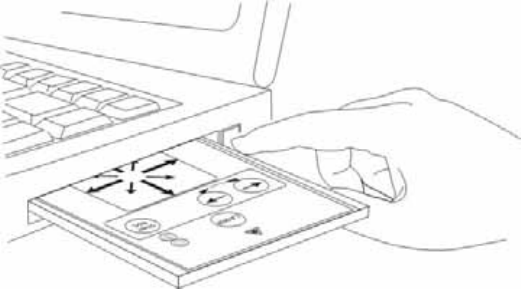

body and fit the whole wireless presenter into the PCMCIA slot of your notebook PC.
2. What’s included
Wireless Touch Presenter (with USB receiver in the back) 1
CR2032 Battery 1
User’s Guide 1
3. System Requirements
Windows® 2000/XP/Windows VistaTM PC with an available USB port
![](/img.php?id=927786&img=bg4.png)
4
4. Parts Description

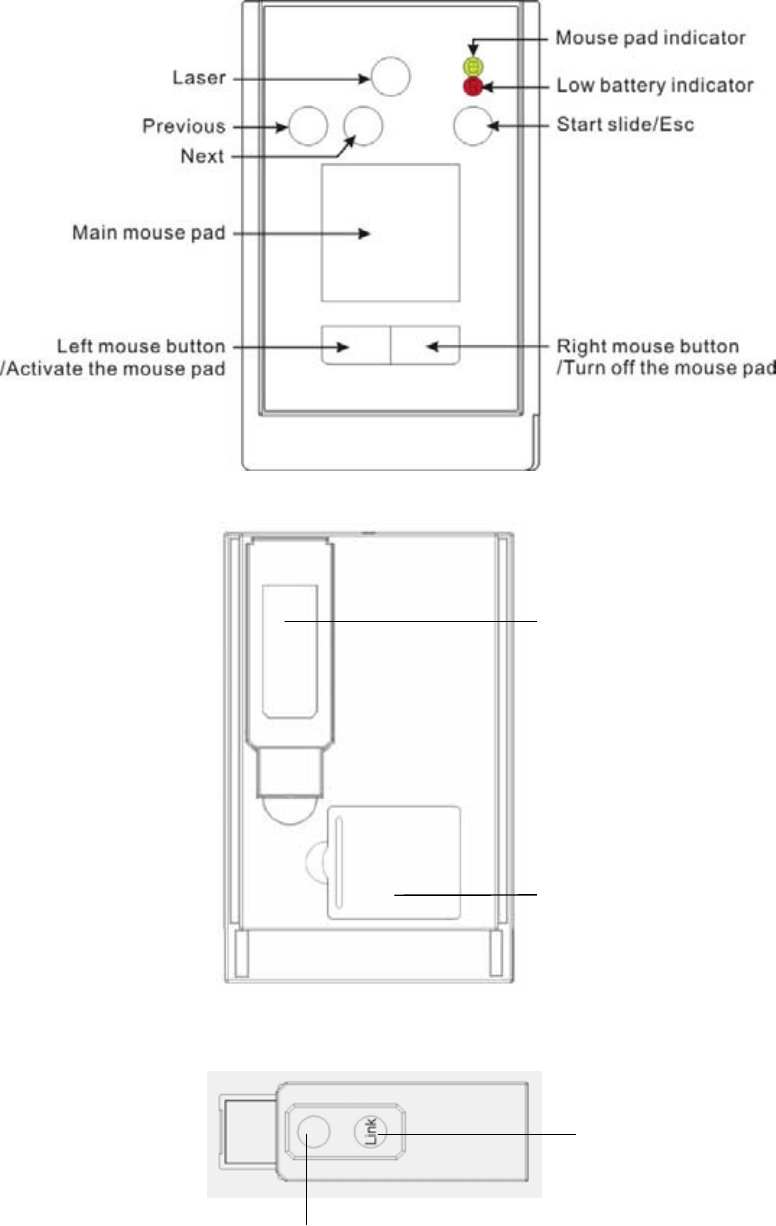

Figure 1 Front View
Figure 2 Rear View
Figure 3 USB Receiver
Link Button
Link Indictor
USB Receiver
Battery Cover
Laser beam
![](/img.php?id=927786&img=bg5.png)
5
5. Initial set up for the Wireless Touch Presenter

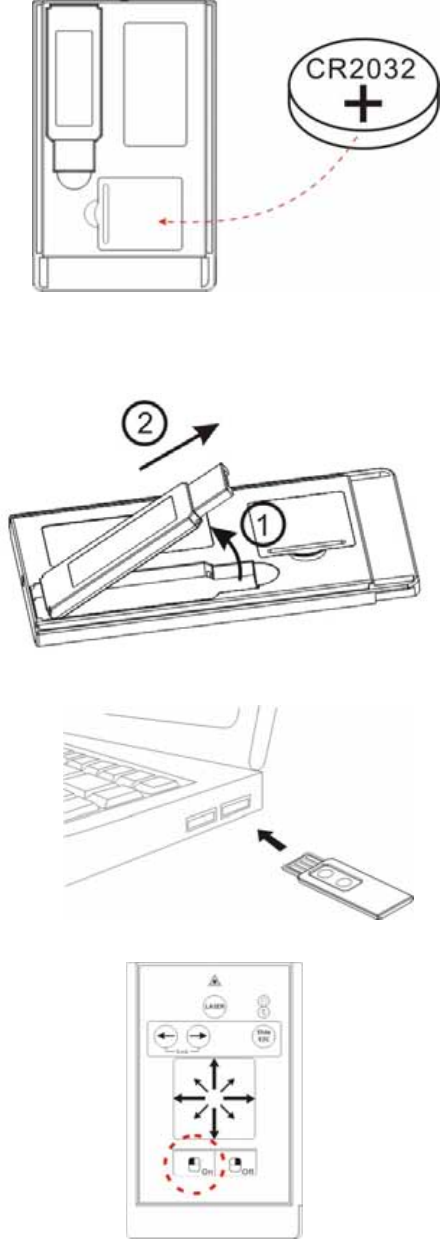

1) Installing the battery with the positive (+) side up.
2) Taking out the USB receiver
3) Connecting the USB receiver to your computer
4) Click the left mouse button to activate the mouse pad.
Note: The mouse pad will enter sleep mode after 2 minutes of inactivity, click the left mouse
button to awake the mouse pad.
6. Operating the Wireless Touch Presenter
![](/img.php?id=927786&img=bg6.png)
6

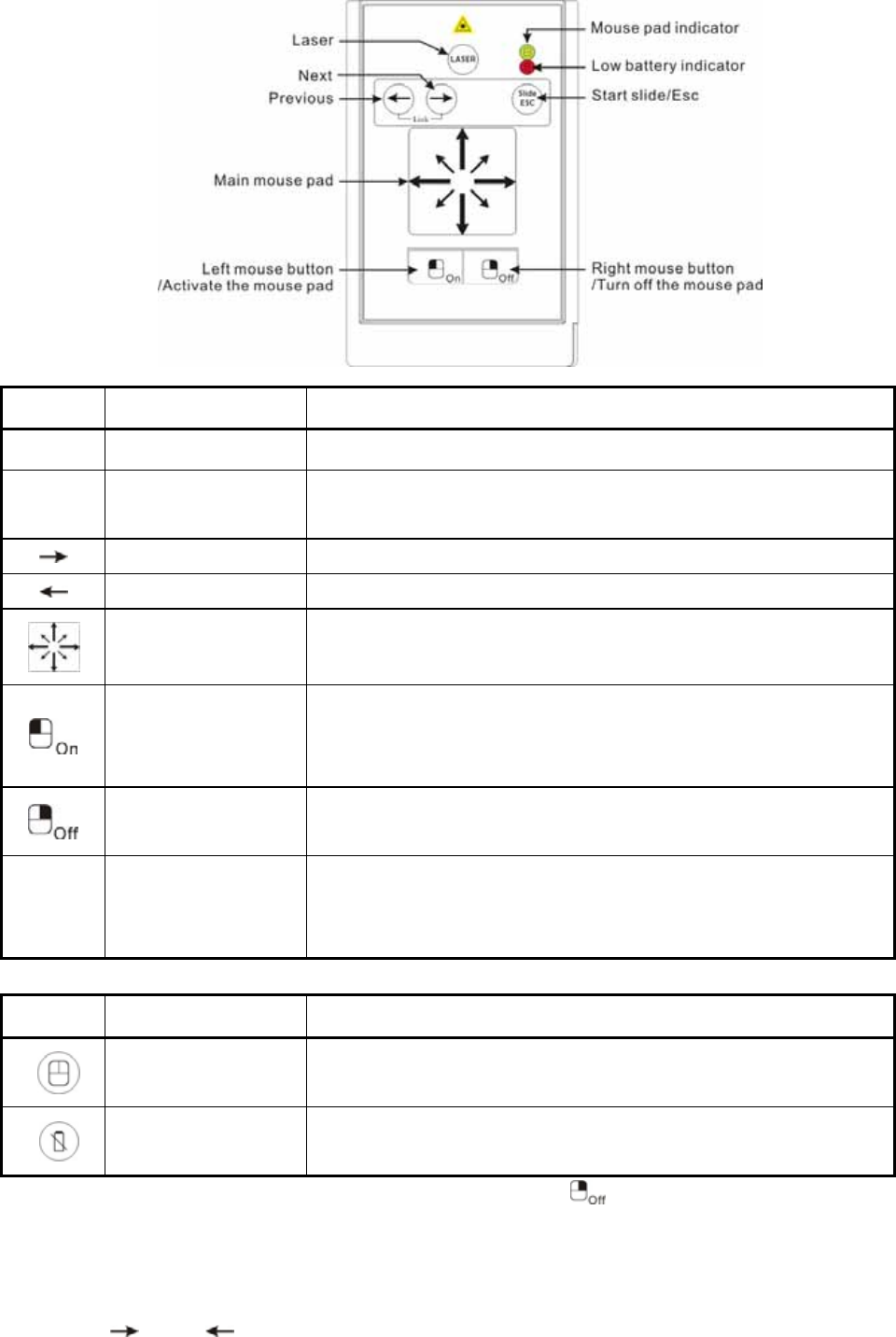

LED Indicator
LED Function Status
Mouse Pad Indicator Green LED blinks regularly: mouse works normally.
Green LED turns off: mouse goes to sleep mode.
Low Battery Indicator The red LED will light up when the battery power is running low, it is
probably time to replace the battery.
Note: Please remember to press the right mouse button for 2 seconds to turn off the
mouse when the Presenter is not in use.
7. How to pair the Wireless Touch Presenter

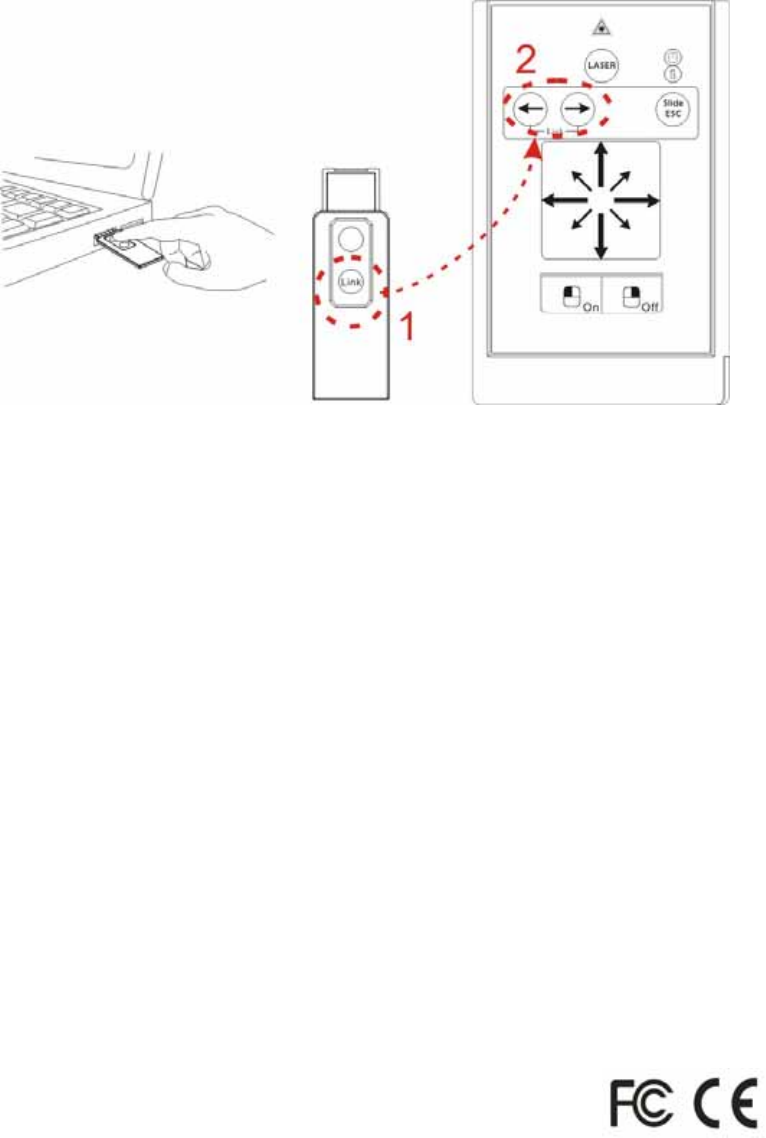

1. Click the “ID Link” button on the USB receiver first, the “Link Indicator” lights up.
2. Press “ ” and “ ” buttons (on the Presenter) simultaneously for 4 seconds until the
Button Function How to operate
LASER Laser pointer Press to emit the laser beam.
Slide
ESC Start/Exit slide show 1. Click to start slide show.
2. Press for 1 second to exit slide show.
Go to next slide Press to go to next slide.
Go to previous slide Press to go to previous slide.
Main Mouse Pad The mouse will enter sleep mode after 2 minutes of inactivity, click the
left mouse button to awake the mouse.
Left mouse button
/ Activate the mouse pad
1. Left Mouse Button.
2. The mouse will enter sleep mode after 2 minutes of inactivity, click
the left mouse button to awake the mouse.
Right mouse button
/ Turn off the mouse pad
1. Right Mouse Button.
2. Press for 2 seconds to turn off the mouse.
Link ID To change ID
Please see “How to pair the Wireless Touch Presenter”.
Note: Implement ID change ONLY when serious RF interference
causes the remote control malfunction.
![](/img.php?id=927786&img=bg7.png)
7
“Link Indicator” on the USB receiver starts blinking, the paring is completed.
8. Product Specifications
--Frequency range: 2400~2483MHz (16 multi channels and 65535 ID channels)
--Remote range: 100 feet (30 meters)
--Operating voltage: Remote control 2.4V~3.3V, Laser 2.6V~3.3V
--Power: CR2032 battery * 1
--Power consumption: Normal operation < 10mA
Laser operation < 20mA
Sleep< 10uA
--Output power: Under 1mW
--Size: 86(l) x 54(w) x 5(h) millimeters
--Weight: Approx. 23 grams (with the receiver and battery)
--Operating Temp.: 0℃(32℉)~60℃(140℉)
--Operating Humidity(non-condensing): 10%~85% RH
Note: Design and specifications are subject to change without notice.
Patent Pending
