Quick User Guide on Raytac 2.4GHz Wireless VoIP Phone
Date: Mar.21, 2006

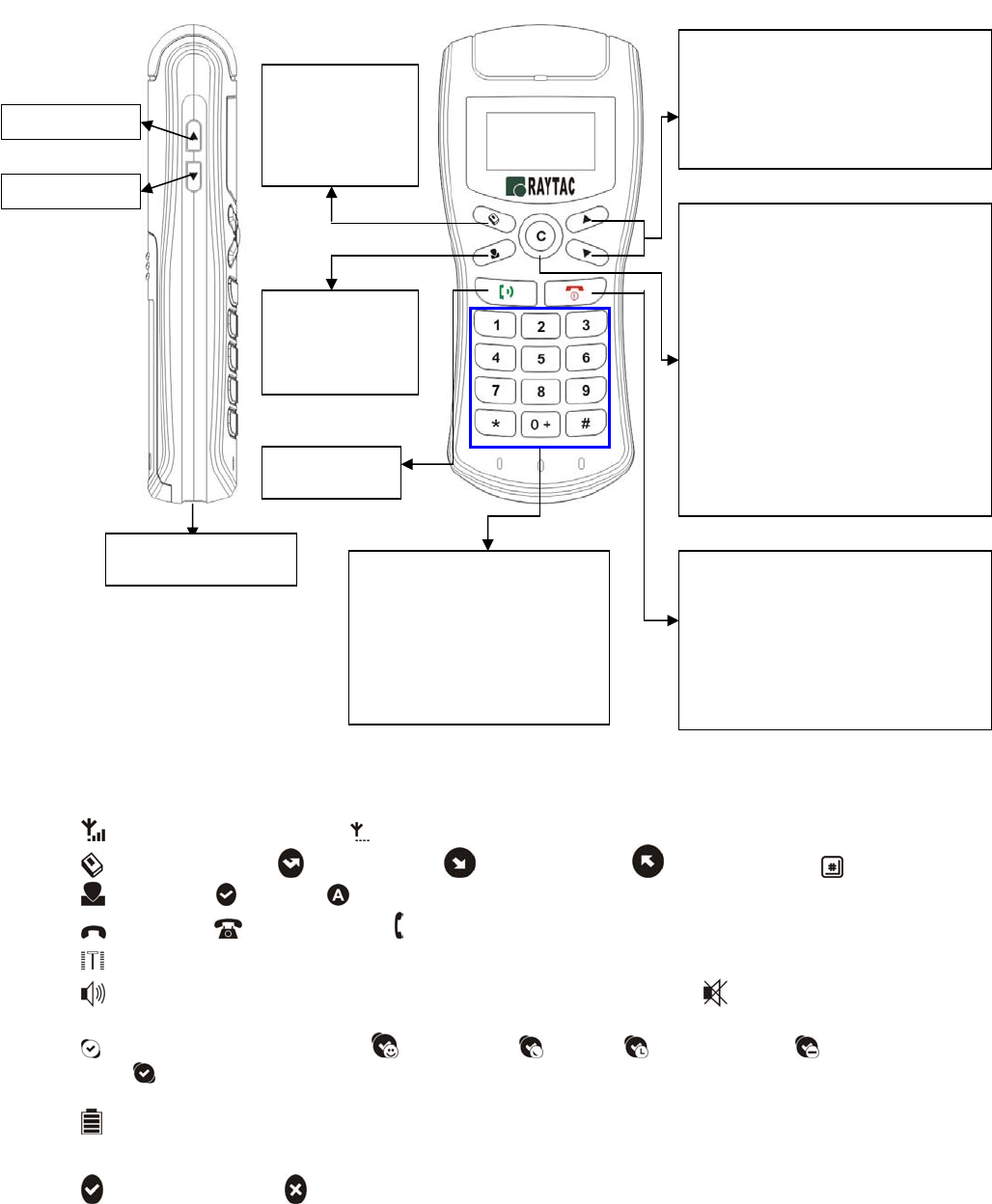

1. Operation of Handset
2. Icon meaning on LCD display
Top line on LCD display
- Phone connected to PC; - Phone disconnect to PC
- History, including - Missed calls, - Incoming calls, - Outgoing calls, - SkypeOut
- Contacts, - Online, - All (include Online and Offline)
- Hang up; - During dialing; - During speaking
- Volume indication
- Boost speaker volume (by pressing volume up key for 1 second); - Speaker mute (by pressing
volume down key for 1 second)
- Phone user’s status: Online, - Skype Me, - Away; - Not Available; - Do not disturb,
- Invisible
PS: Pressing scroll down key for one second to display and change phone user’s status.
- Battery power indication
Second line on LCD display
- Contact is Online; - Contact is Offline
PS: Function or key icon might be changed without prior notice.
To dial and
answe
r
1. When Skype Contacts is not on
PC screen, press to pop out
Skype Contacts.
2. When Skype Contacts is on PC
screen, press:
- to loop among Contacts, Dial
Pad and History on PC screen
- to clear History or Contacts
check on the LCD of this phone
- to backspace when using this
phone to make SkypeOut call
3. When Skype contacts is on PC
screen, press and hold for one
second to pop off Skype
Contacts from PC screen.
1. When Skype Contacts is not on
PC screen, press to pop out
Skype Contacts.
2. When Skype Contacts is on PC
screen, press to scroll up or
down selected items.
Volume u
p
Volume down
Dial Pad for SkypeOut.
PS:
1. Skype Contacts will
automatically pop out
when pressing any key.
2. Press and hold “0+” key
about one second to
have “+” mark.
Press to loop
among
Incoming calls,
Outgoing calls,
Missed calls
Press to loop
between On-line
contacts only
and All contacts
Connection hole for
Rechar
g
eable cable 1. Press and hold about 4 seconds
to On or Off this phone.
2. When the phone is On, press:
- to hang up call
- to clear History or Contacts
check on the LCD of this phone
- to clear all SkypeOut input no
PC and this phone
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 2.5cm between the radiator & your body.
