Users Manual
![](/img.php?id=1359556&img=bg1.png)
Camera User Guide
The serial number of this product
is given on the bottom face of the
camera.
Basic Operations
If you are using the camera for the first time, read this section.
This section provides a basic overview of how to turn on the camera, take
pictures and play back pictures.
Advanced Operations
Read this section when you want to learn more about the different camera
functions.
This section provides more detailed information about the functions used to
take pictures and play back pictures, as well as information on how to customize
the camera settings, print pictures, and use the camera with a computer.
The rechargeable battery needs to be charged before use. The battery is not
charged at the time of purchase.
*L758 2971*
From environmental friendliness to environmental conservation and
to environmental management
Ricoh is aggressively promoting environment-
friendly activities and also environment
conservation activities to solve the great subject
of management as one of the citizens on our
precious earth.
To reduce the environmental loads of digital cameras, Ricoh is also trying to solve the great subjects
of “Saving energy by reducing power consumption” and “Reducing environment-affecting chemical
substances contained in products”.
If a problem arises
First of all, see “Troubleshooting” (GP.159) in this manual. If the issues still persist, please contact a
Ricoh office.
Ricoh Offices
RICOH COMPANY, LTD. 3-2-3, Shin-Yokohama Kouhoku-ku, Yokohama City, Kanagawa 222-8530, JAPAN
http://www.ricoh.com/r_dc/
RICOH AMERICAS
CORPORATION
5 Dedrick Place, West Caldwell, New Jersey 07006, U.S.A.
1-800-22RICOH
http://www.ricoh-usa.com/
RICOH INTERNATIONAL B.V.
(EPMMC)
Oberrather Straße 6, D-40472 Düsseldorf, GERMANY
(innerhalb Deutschlands) 06331 268 438
(außerhalb Deutschlands) +49 6331 268 438
http://www.ricoh.com/r_dc/
RICOH ASIA PACIFIC
OPERATIONS LIMITED
21/F, One Kowloon, 1 Wang Yuen Street, Kowloon Bay, Hong Kong
About MediaBrowser
North America (U.S.) (Toll Free) +1-800-458-4029
Europe UK, Germany, France and Spain: (Toll Free) +800-1532-4865
Other Countries: +44-1489-564-764
Asia +63-2-438-0090
China +86-21-5385-3786
Business hours: 9:00 AM to 5:00 PM
Ricoh Company, Ltd.
Ricoh Building, 8-13-1, Ginza, Chuo-ku, Tokyo
104-8222, Japan
2010 November
EN USA GB GB AE AE
Printed in Vietnam
L7580872_0914_Cover14_En.indd 1
L7580872_0914_Cover14_En.indd 1
2010/09/14 17:55:29
2010/09/14 17:55:29
![](/img.php?id=1359556&img=bg2.png)
L7580872_0914_En.indb Cover_2
L7580872_0914_En.indb Cover_2
2010/09/14 17:56:00
2010/09/14 17:56:00
![](/img.php?id=1359556&img=bg3.png)
Telephone Support Numbers in Europe
UK (from within the UK) 0203 239 6327
(from outside the UK) +44 203 239 6327
Deutschland (innerhalb Deutschlands) 06331 268 438
(außerhalb Deutschlands) +49 6331 268 438
France (à partir de la France) 0800 88 18 70
(en dehors de la France) +33 1 60 60 19 94
Italia (dall'Italia) 02 4004 7319
(dall'estero) +39 02 4004 7319
España (desde España) 900984912
(desde fuera de España) +49 6331 268 440
http://www.service.ricohpmmc.com/
L7580872_0914_En.indb Cover_3
L7580872_0914_En.indb Cover_3
2010/09/14 17:56:00
2010/09/14 17:56:00
![](/img.php?id=1359556&img=bg4.png)
1
Preface
This manual provides information on how to use the shooting and playback
functions of this product, as well as warnings on its use.
To make the best use of this product’s functions, read this manual
thoroughly before use. Please keep this manual handy for ease of reference.
Ricoh Co., Ltd.
Safety Precautions Read all safety precautions thoroughly to ensure safe use.
Test Shooting Please be sure to do some test shooting to make sure it is recording
properly before normal use.
Copyright Reproduction or alteration of copyrighted documents, magazines,
music and other materials, other than for personal, home or similarly
limited purposes, without the consent of the copyright holder is
prohibited.
Exemption from Liability Ricoh Co., Ltd. assumes no liability for failure to record or play back
images caused by malfunction of this product.
Warranty This product is manufactured to local specifications and the warranty
is valid within the country of purchase. Should the product fail
or malfunction while you are abroad, the manufacturer assumes
no responsibility for servicing the product locally or bearing the
expenditure incurred thereof.
Radio Interference Operating this product in the vicinity of other electronic equipment
may adversely affect the performance of both devices. In particular,
operating the camera close to a radio or television may lead to
interference. If interference occurs, follow the procedures below.
• Move the camera as far away as possible from the TV, radio or other
device.
• Reorient the TV or radio antenna.
• Plug the devices into separate electrical outlets.
© 2010 RICOH CO., LTD. All rights reserved. This publication may not be reproduced in whole or in part
without Ricoh’s express written permission. Ricoh reserves the right to change the contents of this
document at any time without prior notice.
Every effort has been made to ensure the accuracy of the information in this document. Should you
nevertheless notice any errors or omissions, we would be grateful if you would notify us at the address
listed on the back cover of this booklet.
Microsoft, Windows, Windows Vista, Windows 7™, and Internet Explorer are registered trademarks of
Microsoft Corporation in the United States of America and other countries. Macintosh and Mac OS are
registered trademarks of Apple Inc. in the United States of America and other countries. Adobe, the Adobe
logo, and Adobe Reader are trademarks of Adobe Systems Incorporated in the United States and other
countries. MediaBrowser is a trademark of Pixela Corporation. SanDisk is a registered trademark of SanDisk
Corporation. SD is a trademark of SD-3C LLC. Bluetooth® is a trademark owned by Bluetooth SIG, Inc. and
licensed to Ricoh Co., Ltd. All other trade names mentioned in this document are the property of their
respective owners.
L7580872_0914_En.indb 1
L7580872_0914_En.indb 1
2010/09/14 17:56:30
2010/09/14 17:56:30
![](/img.php?id=1359556&img=bg5.png)
2
Safety Precautions
Warning Symbols
Various symbols are used throughout this instruction manual and on the
product to prevent physical harm to you or other people and damage to
property. The symbols and their meanings are explained below.
Danger This symbol indicates matters that may lead to imminent risk of death or
serious injury if ignored or incorrectly handled.
Warning This symbol indicates matters that may lead to death or serious injury if
ignored or incorrectly handled.
Caution This symbol indicates matters that may lead to injury or physical damage if
ignored or incorrectly handled.
Sample Warnings
The symbol alerts you to actions that must be performed.
The symbol alerts you to prohibited actions.
The symbol may be combined with other symbols to indicate that a specific
action is prohibited.
● Examples
Do not touch Do not disassemble
Observe the following precautions to ensure safe use of this equipment.
Danger
● Do not attempt to disassemble, repair or alter the equipment yourself. The high-
voltage circuitry in the equipment poses significant electrical hazard.
● Do not attempt to disassemble, alter or directly solder the battery.
● Do not put the battery in a fire, attempt to heat it, use it in a high temperature
environment such as next to a fire or inside a car, or abandon it. Do not put it into
water or the sea or allow it to get wet.
● Do not attempt to pierce, hit, compress, drop, or subject the battery to any other
severe impact or force.
● Do not use a battery that is significantly damaged or deformed.
L7580872_0914_En.indb 2
L7580872_0914_En.indb 2
2010/09/14 17:56:30
2010/09/14 17:56:30
![](/img.php?id=1359556&img=bg6.png)
3
Warning
● Turn off the power immediately in the event of abnormalities such as smoke
or unusual odors being emitted. Remove the battery as soon as possible,
being careful to avoid electric shocks or burns. If you are drawing power from a
household electrical outlet, be sure to unplug the power cord from the outlet to
avoid fire or electrical hazards. Discontinue use of the equipment immediately if it
is malfunctioning. Contact the nearest service center at your earliest convenience.
● Turn off the power immediately if any metallic object, water, liquid or other
foreign object gets into the camera. Remove the battery and memory card
as soon as possible, being careful to avoid electric shocks or burns. If you are
drawing power from a household electrical outlet, be sure to unplug the power
cord from the outlet to avoid fire or electrical hazards. Discontinue use of the
equipment immediately if it is malfunctioning. Contact the nearest service center
at your earliest convenience.
● Avoid any contact with the liquid crystal inside the picture display, should the
monitor be damaged. Follow the appropriate emergency measures below.
• SKIN: If any of the liquid crystal gets on your skin, wipe it off and rinse the
affected area thoroughly with water, then wash well with soap.
• EYES: If it gets in your eyes, wash your eyes with clean water for at least 15
minutes and seek medical advice immediately.
• INGESTION: If any of the liquid crystal is ingested, rinse the mouth out thoroughly
with water. Have the person drink a large amount of water and induce vomiting.
Seek medical assistance immediately.
● Follow these precautions to prevent the battery from leaking, overheating,
igniting or exploding.
• Do not use a battery other than those specifically recommended for the
equipment.
• Do not carry or store together with metal objects such as ballpoint pens,
necklaces, coins, hairpins, etc.
• Do not put the battery into a microwave or high pressure container.
• If leakage of battery fluid or a strange odor, color change, etc. is noticed during
use or during charging, remove the battery from the camera or battery charger
immediately and keep it away from fire.
● Please observe the following in order to prevent fire, electrical shock or cracking
of the battery while charging.
• Use only the indicated power supply voltage. Also avoid the use of multi-socket
adapters and extension cords.
• Do not damage, bundle or alter power cords. Also, do not place heavy objects on,
stretch or bend power cords.
• Do not connect or disconnect the power plug with wet hands. Always grip the
plug section when disconnecting a power cord.
• Do not cover equipment while charging.
● Keep the battery and SD memory card used in this equipment out of the reach
of children to prevent accidental ingestion. Consumption is harmful to human
beings. If swallowed, seek medical assistance immediately.
L7580872_0914_En.indb 3
L7580872_0914_En.indb 3
2010/09/14 17:56:30
2010/09/14 17:56:30
![](/img.php?id=1359556&img=bg7.png)
4
● Keep the equipment out of the reach of children.
● Do not touch the internal components of the equipment if they become
exposed as a result of being dropped or damaged. The high-voltage circuitry in
the equipment could lead to an electric shock. Remove the battery as soon as
possible, being careful to avoid electric shocks or burns. Take the equipment to
your nearest dealer or service center if it is damaged.
● When the camera is used in kitchens or in other locations where it will be
exposed to steam or high levels of humidity, care should be taken to prevent
moisture accumulating inside the device. Failure to observe this precaution could
result in fire or electric shock.
● Do not use the equipment near flammable gases, gasoline, benzene, thinner or
similar substances to avoid the risk of explosion, fire or burns.
● Do not use the equipment in locations where usage is restricted or prohibited as
this may lead to disasters or accidents.
● Wipe off any dust that accumulates on the electrical plug as this may lead to fire.
● Use only the specified AC adapter in household electrical outlets. Other adapters
pose the risk of fire, electric shock or injury.
● To avoid the risk of fire, electric shock or injury, do not use the battery charger or
AC adapter with commercially available electronic transformers when traveling
abroad.
Observe the following precautions to ensure safe use of this unit.
Caution
● Contact with fluid leaking from a battery can lead to burns. If part of your body
comes in contact with a damaged battery, rinse the area with water immediately
(Do not use soap).
If a battery starts to leak, remove it immediately from the equipment and wipe
the battery chamber thoroughly before replacing it with a new battery.
● Plug the power cords securely into the electrical outlets. Loose cords pose a fire
hazard.
● Do not expose the interior of the camera to moisture or allow water to enter
the camera when handling the device with wet hands. Failure to observe these
precautions could result in electric shock.
● Do not fire the flash at drivers of vehicles, as this may cause the driver to lose
control and result in a traffic accident.
Safety Precautions
for Accessories
When using optional products, carefully read the instructions provided
with the product before using that product.
L7580872_0914_En.indb 4
L7580872_0914_En.indb 4
2010/09/14 17:56:30
2010/09/14 17:56:30
![](/img.php?id=1359556&img=bg8.png)
5
Using the Manuals
The following two manuals are included with your G700SE.
“Camera User Guide” (This booklet)
This guide explains the usage and functions of the camera.
It also explains how to install the provided software on your
computer.
“Software User Guide” (PDF file)
The “Software User Guide” is available in the following folders
on the provided CD-ROM.
This guide explains how to download images from the
camera to your computer.
Each language has its own
“Software User Guide” in the
respective folder.
To copy the User Guide onto your hard disk, copy the PDF file
from the respective folder directly to your hard disk.
“MediaBrowser” image viewing and editing software (for Windows only)
is also included with the camera. For how to use MediaBrowser, see the
displayed “Help”.
For more information on MediaBrowser, contact the Customer Support
Center below.
North America (U.S.) TEL: (Toll Free) +1-800-458-4029
Europe
UK, Germany, France and Spain: TEL: (Toll Free) +800-1532-4865
Other Countries: TEL: +44-1489-564-764
Asia TEL: +63-2-438-0090
China TEL: +86-21-5385-3786
Business hours: 9:00 AM to 5:00 PM
L7580872_0914_En.indb 5
L7580872_0914_En.indb 5
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bg9.png)
6
Contents
Safety Precautions ................................................................................................2
Using the Manuals ................................................................................................ 5
Contents ...................................................................................................................6
Basic Operations 15
Packing List ...........................................................................................................16
Optional Accessories .................................................................................................................16

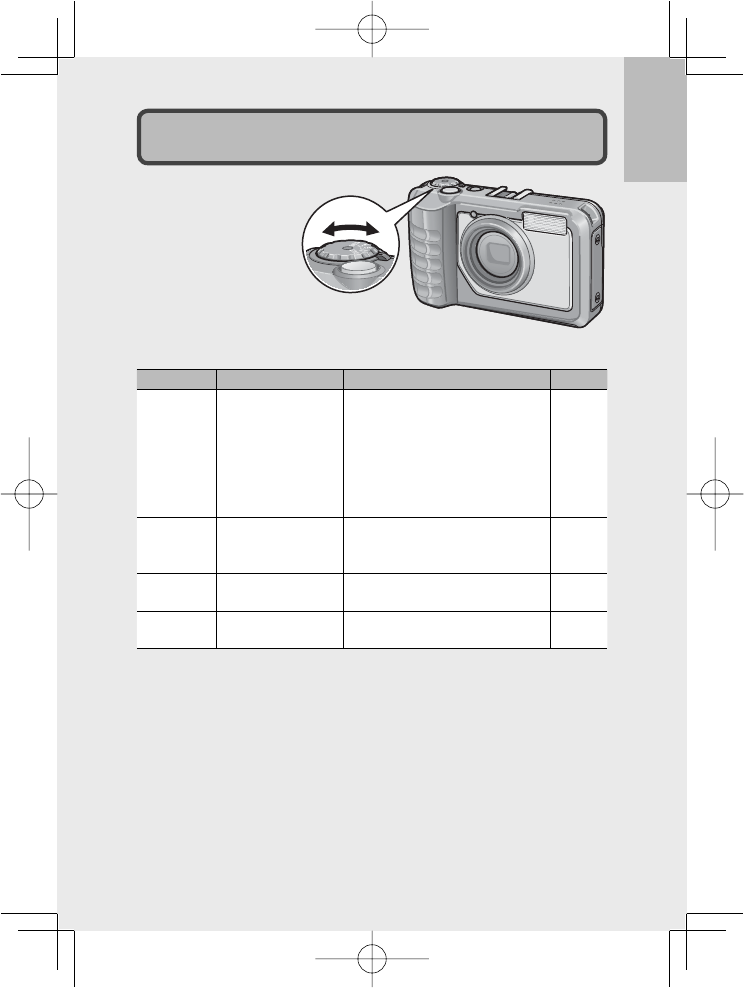

How to Use the Mode Dial ...............................................................................17
Names of Parts .....................................................................................................18
Picture Display .....................................................................................................20
Getting Ready ......................................................................................................23
About the Battery ........................................................................................................................23
About the SD Memory Card (available in stores) .................................................... 24

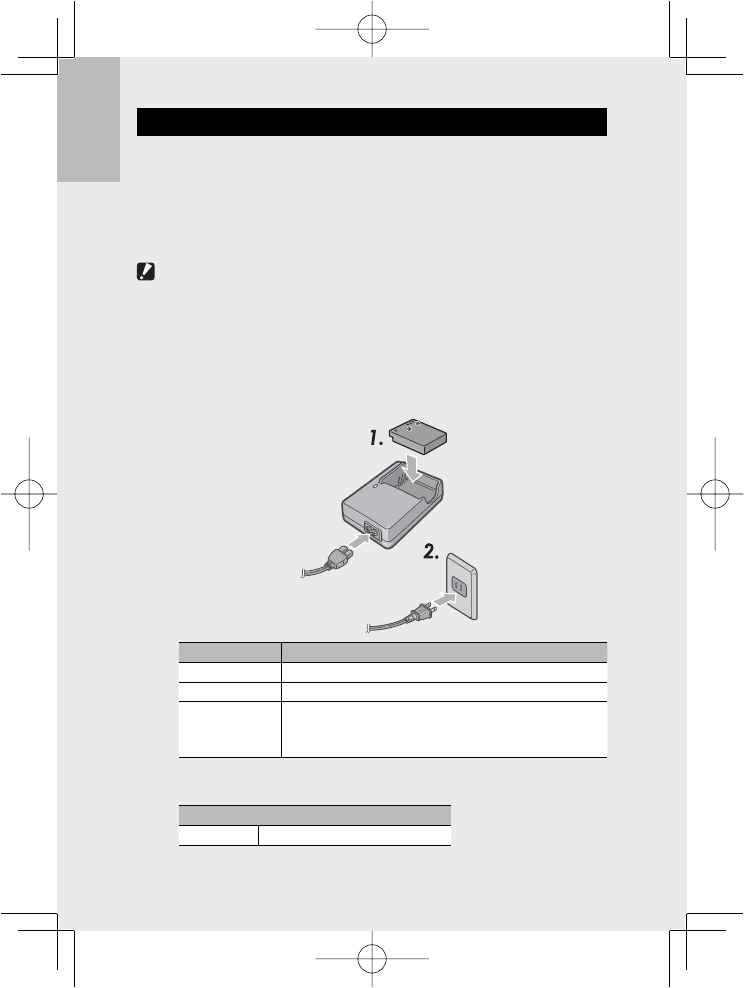

Charging the Rechargeable Battery (DB-65) .............................................................. 26

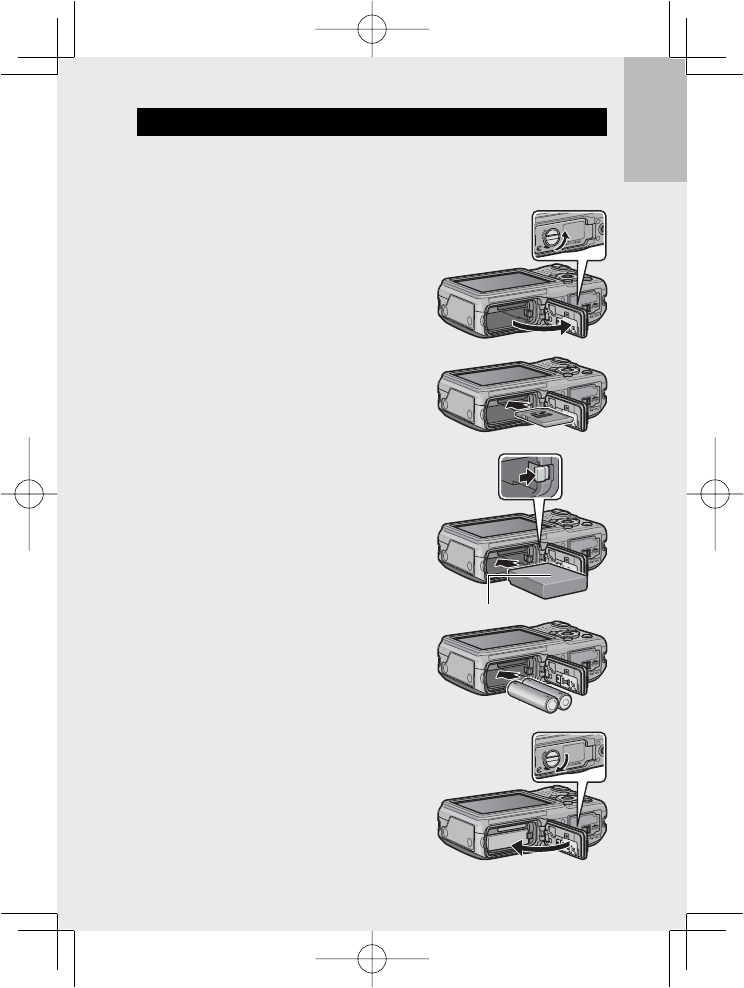

Loading the Battery and SD Memory Card .................................................................27
Turning the Power On/Off .....................................................................................................28

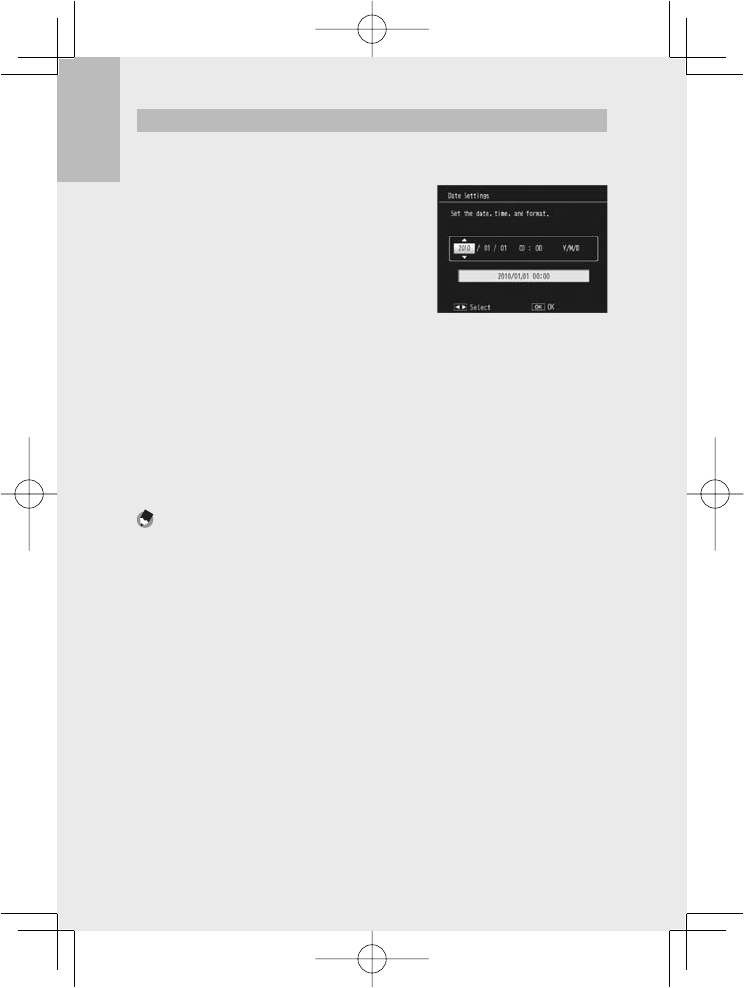

Setting the Language, Date and Time ........................................................................... 29
Basic Shooting .....................................................................................................31
Shooting in Auto Shooting Mode (Focus and Shoot) .......................................... 31

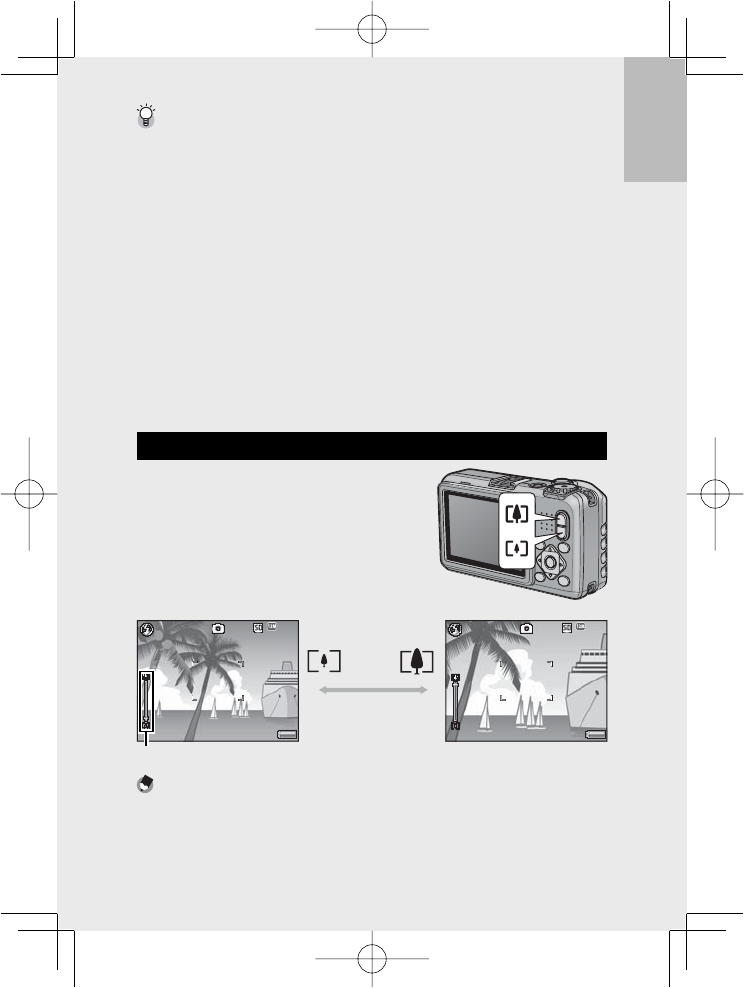

Using the Zoom Function ......................................................................................................33
Shooting Close-Ups (Macro Shooting) ..........................................................................34
Using the Flash ..............................................................................................................................35
Using the Self-timer ...................................................................................................................36
Shooting in CALS Mode ..........................................................................................................37
Shooting with My Settings Mode ..................................................................................... 37
Playing Back Images ..........................................................................................38
Viewing Your Images .................................................................................................................38
Thumbnail View ............................................................................................................................38
Enlarging Images .........................................................................................................................40
Deleting Files ........................................................................................................41
Deleting a File or All Files ........................................................................................................ 41
Deleting Multiple Files..............................................................................................................42
Changing the Display with the DISP. Button .............................................44
Maximizing the Picture Display Brightness ................................................................. 46
The Level Indicator (Electronic Level) .............................................................................46
About the Histogram Display ..............................................................................................48
L7580872_0914_En.indb 6
L7580872_0914_En.indb 6
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bga.png)
7
Advanced Operations 49
1ADJ. Button Functions 50
Selecting Shooting Menu Options Assigned to the ADJ./MEMO Button ....50
Shifting the AE and AF Targets ............................................................................................ 51

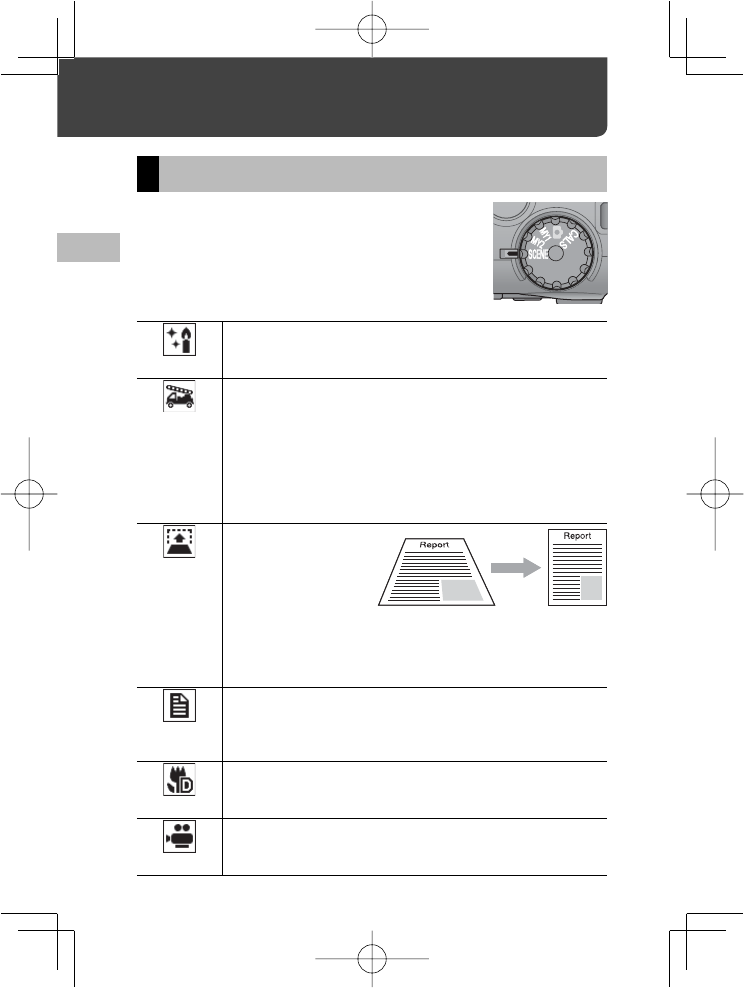

2Taking Pictures in Scene Mode 52

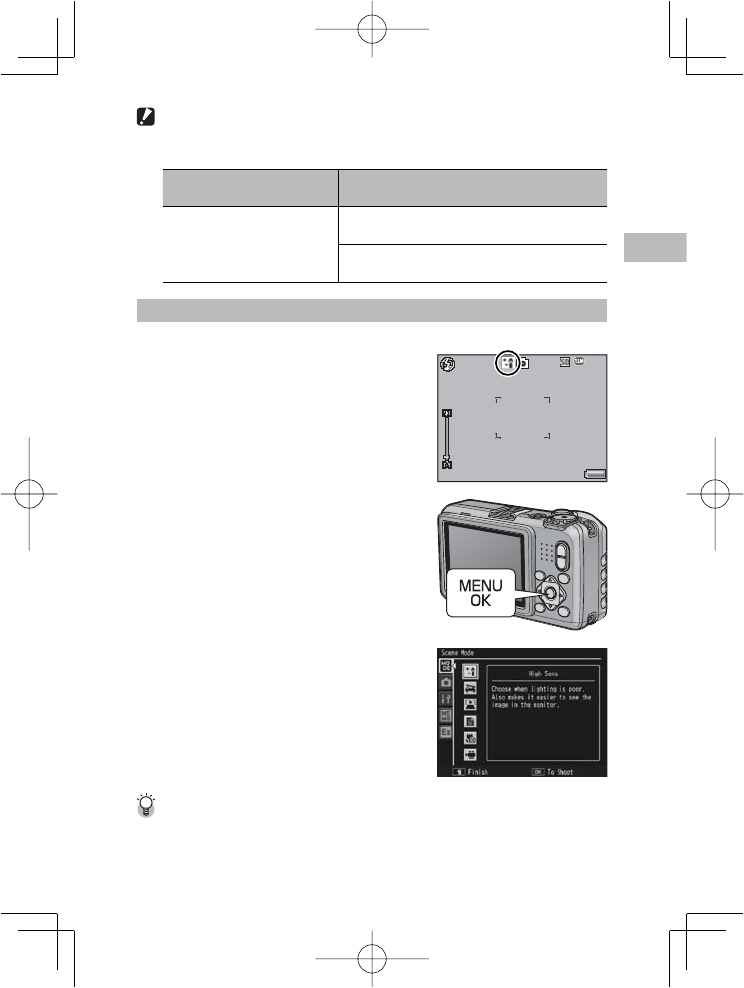

Scene Mode Options .........................................................................................52
Using Skew Correction Mode .............................................................................................. 54
3Shooting and Viewing Movies 55
Shooting Movies .................................................................................................55
Playing Back Movies ...........................................................................................56

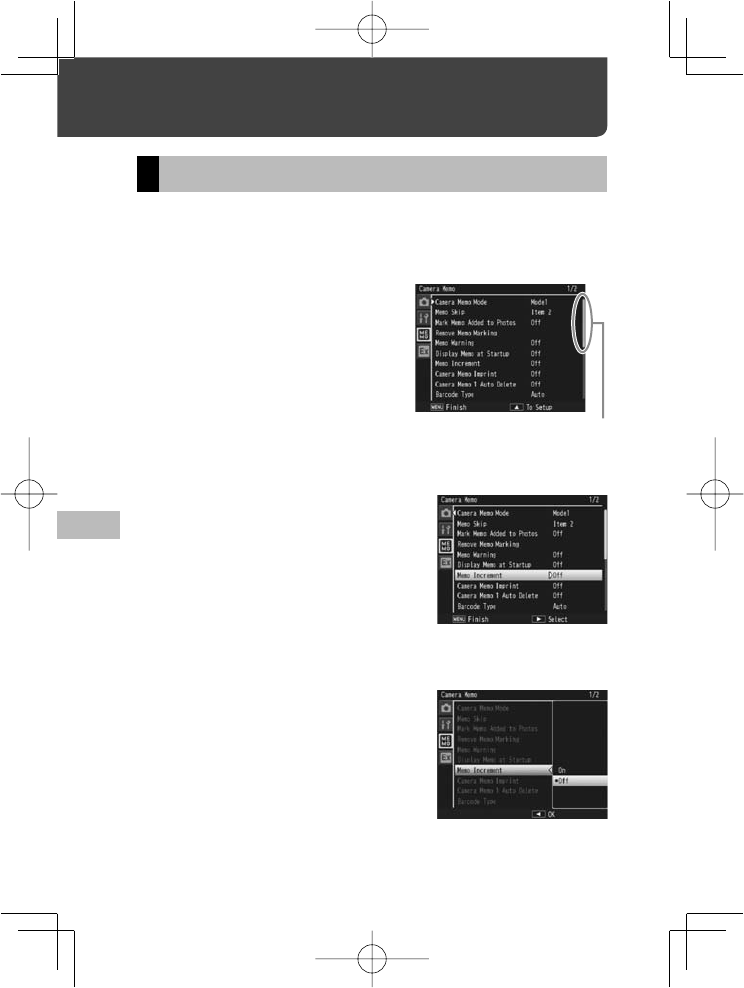

4Memos 57
Adding Memos to New Photos ..........................................................................................57
Viewing Memos ............................................................................................................................ 58
5Using Custom Help 59
Creating Custom Help .......................................................................................59
Viewing Custom Help ........................................................................................61
L7580872_0914_En.indb 7
L7580872_0914_En.indb 7
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bgb.png)
8

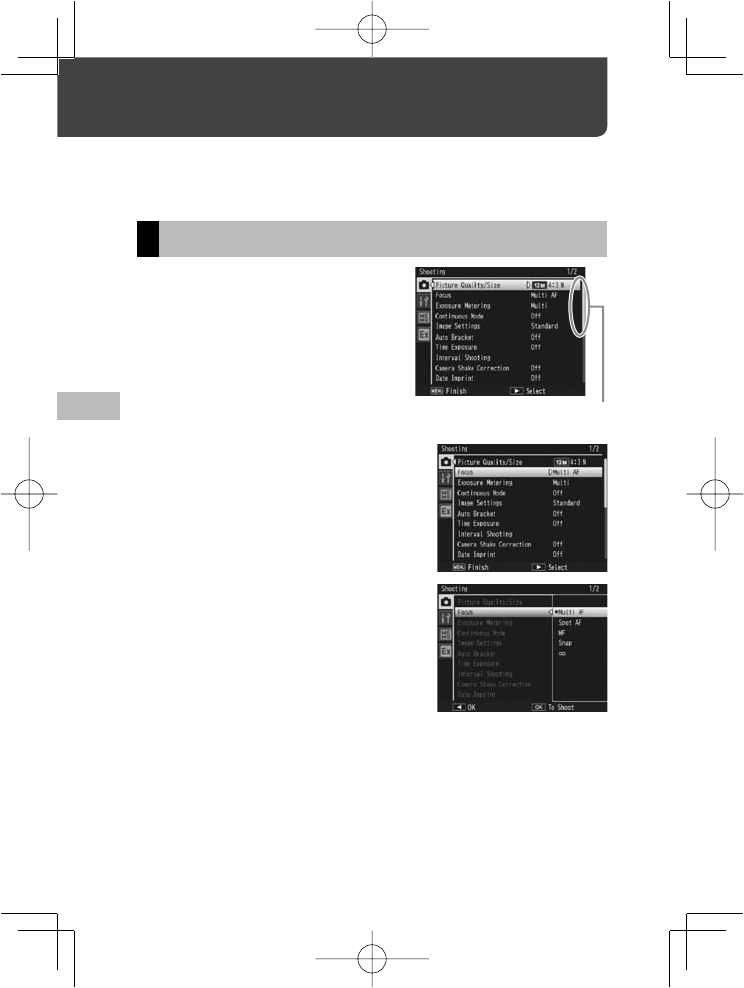

6Shooting Menu 62
Using the Menu ...................................................................................................62
Shooting Menu Options ...................................................................................63
Density: Adjusting Contrast in Text Mode .................................................................... 63
Size: Choosing the Size of Photographs Taken in Text Mode ................................ 63
Movie Size: Choosing a Frame Size for Movies ...........................................................63
Picture Quality/Size: Choosing Size and Compression Options for
Photographs .......................................................................................................................... 63
Focus: Choosing How the Camera Focuses..................................................................63
Exposure Metering: Choosing How the Camera Sets Exposure .......................63
Continuous Mode: Shooting a Series of Photos ...................................................... 64
Image Settings: Adjusting Contrast, Sharpness, Color, and Vividness .............64
Auto Bracket: Varying Settings over a Series of Photographs ............................. 64
Time Exposure: Creating Light Trails .............................................................................. 64
Interval Shooting: Interval Timer Photography ........................................................ 65
Camera Shake Correction: Reducing Blur Caused by Camera Shake ............65
Date Imprint: Imprinting the Time and Date of Recording
on Photographs....................................................................................................................65
Exposure Compensation: Adjusting Exposure ........................................................ 65
White Balance: Adjusting Colors According to the Light Source ......................66
ISO Setting: Controlling the Camera’s Sensitivity to Light .....................................66
Edit Detection: Detecting Changes to Photos ........................................................... 66
Restore Defaults: Restoring Default Shooting Menu Settings ...........................66
Focus ................................................................................................................................................... 67
Manual Focus (MF): Focusing Manually....................................................................... 67
Auto Bracket ................................................................................................................................... 68
Auto Bracket: Varying Exposure over a Series of Photographs ...........................68
White Balance Bracket (WB-BKT): Creating Photographs with Varying
White Balance ....................................................................................................................... 68
Exposure Compensation ........................................................................................................ 69
White Balance ................................................................................................................................ 70
Manual: Measuring White Balance ...................................................................................71
ISO Setting: ISO Sensitivity........................................................................................................ 71
L7580872_0914_En.indb 8
L7580872_0914_En.indb 8
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bgc.png)
9
7Playback Menu 72
Using the Menu ...................................................................................................72
Playback Menu Options ....................................................................................73
Resize: Creating Small Copies of Images .......................................................................73
Trim: Creating Cropped Copies .......................................................................................... 73

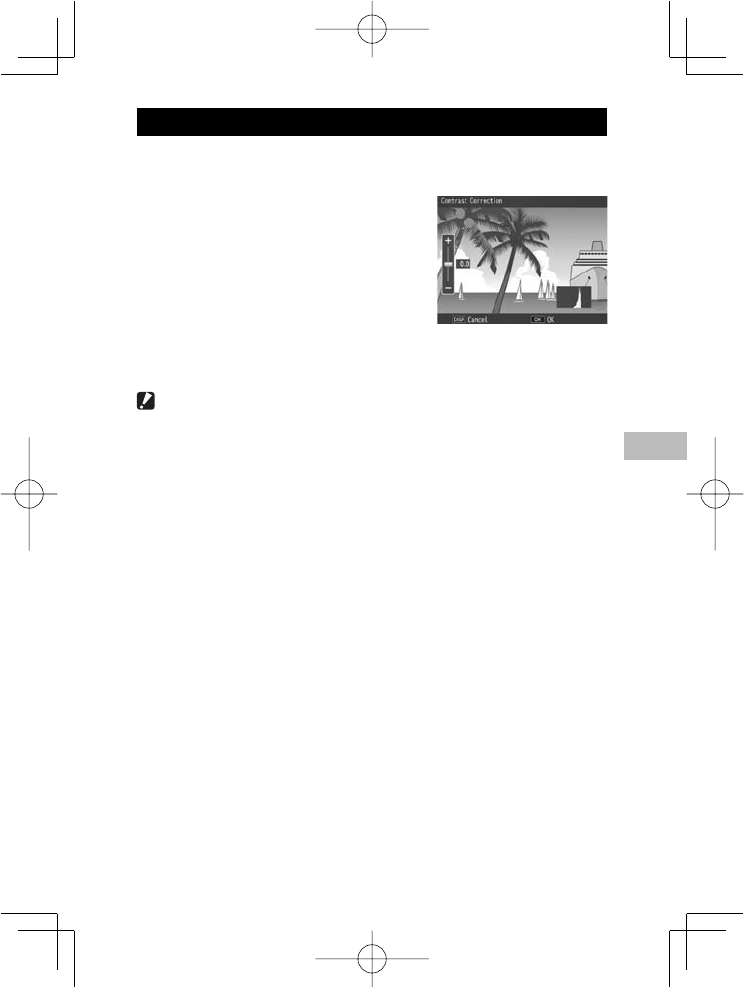

Contrast Correction: Creating Copies with Modified Brightness
and Contrast ..........................................................................................................................73
Skew Correction: Reducing the Effects of Perspective ..........................................73
Protect: Protecting Images from Accidental Deletion ............................................. 73
Slide Show: Automatic Playback ...................................................................................... 73
Copy to Card from Internal Memory: Copying Pictures from Internal
Memory to a Memory Card .............................................................................................73
DPOF: Selecting Pictures for Printing .............................................................................. 73
Recover File: Restoring Deleted Files ..............................................................................74

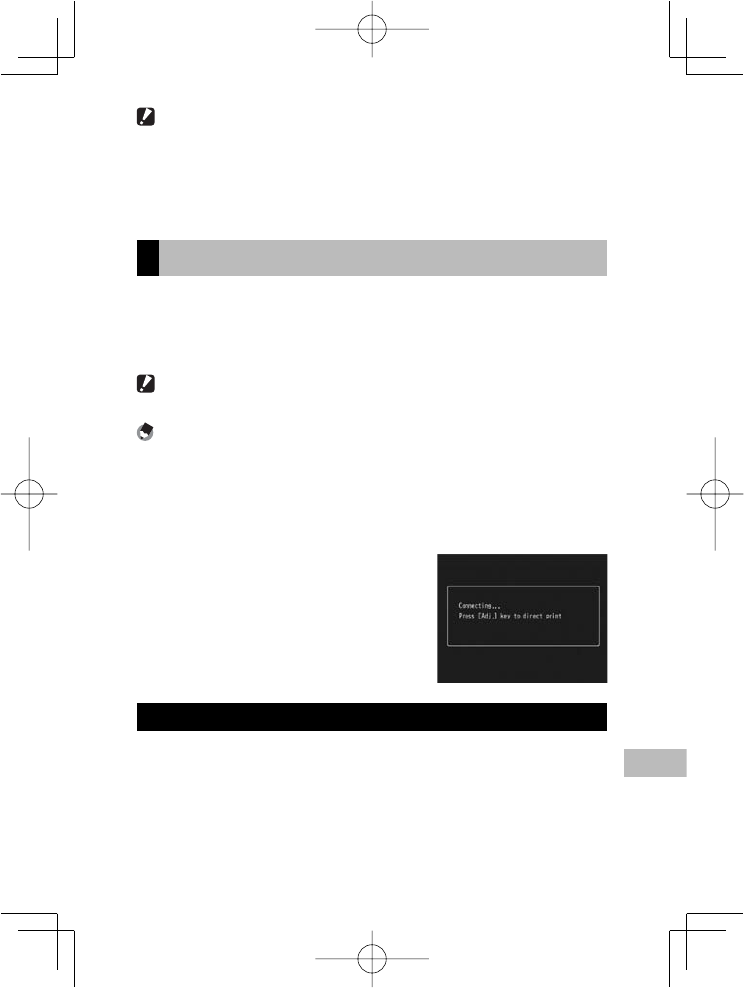

File Send: Wireless Upload...................................................................................................74
Trim ...................................................................................................................................................... 75
Contrast Correction .................................................................................................................... 77
Skew Correction ...........................................................................................................................78
Protect ................................................................................................................................................ 79
DPOF ...................................................................................................................................................80
Viewing Pictures on TV .....................................................................................81
L7580872_0914_En.indb 9
L7580872_0914_En.indb 9
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bgd.png)
10
8Setup Menu 82
Using the Menu ...................................................................................................82
Setup Menu Options..........................................................................................83
Format [Card]: Formatting Memory Cards...................................................................83
Format [Internal Memory]: Formatting Internal Memory .................................. 83
LCD Brightness: Adjusting the Picture Display Brightness ................................... 83
Reg. My Settings: Saving Camera Settings .................................................................83
Stepped Zoom: Adjusting Zoom in Discrete Steps .................................................83
ADJ Button Setting 1–4: Choosing Roles for the ADJ. Button ........................... 84
AF Auxiliary Light: Assisting Autofocus ........................................................................84
Operation Sounds: Choosing the Sounds Made by the Camera ......................84
Volume Settings: Controlling Volume ........................................................................... 84
LCD Confirmation Time: Displaying Photos After Shooting ..............................84
Auto Power Off: Camera Power Saving ........................................................................84
Monitor Auto off Delay: Choosing the Monitor off Delay ................................... 84
LCD Auto Dim: Picture Display Power Saving ............................................................ 84
Digital Zoom Image: Recording Photos Taken with Digital Zoom
at Actual Size ......................................................................................................................... 85
Level Setting: Adjusting Level Indicator Settings ..................................................... 85
Grid Guide Display Options: Choosing a Framing Guide ................................... 85
Shooting Info. Display Frame: Viewing Settings at a Glance ............................ 85
Auto Rotate: Rotating Pictures for Playback ................................................................85
Card Sequence No.: File Numbering Options ...........................................................86
Date Settings: Setting the Camera Clock ..................................................................... 86
Language/N:Choosing a Language ......................................................................86
Video Out Mode: Choosing a Video Format ...............................................................86
CALS Pic Quality: Choosing Picture Quality and Size for CALS Mode ............. 87
Start Date/Time: Displaying the Date at Startup ......................................................87
Choose/Change Password: Choosing a Camera Password ............................... 87
Password Protection: Using a Password to Restrict Camera Access ...............87
Password Validity Period: Choosing the Length of Time the Password
Remains in Effect ................................................................................................................. 87
Power Button Hold Options: Adjusting POWER Button Responsiveness ...87
Reg. My Settings ........................................................................................................................... 88
Digital Zoom Image ...................................................................................................................89
Choose/Change Password ....................................................................................................90
Password Protection ..................................................................................................................92
Camera: Adding Password Protection to the Camera ............................................. 92
Int. Memory: Adding Password Protection to Internal Memory ........................ 92
L7580872_0914_En.indb 10
L7580872_0914_En.indb 10
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bge.png)
11
SD WORM: Disabling Password Protection for SD WORM Cards ........................ 93
Menus: Adding Password Protection to the Menus ................................................. 93
9Camera Memo Menu 94
Using the Menu ...................................................................................................94
Camera Memo Menu Options ........................................................................95
Camera Memo Mode: Choosing a Memo Mode .................................................... 95
Memo Skip: Skipping Memo Combinations ...............................................................95
Mark Memo Added to Photos: Displaying Memos That Have Been Added
to Photos .................................................................................................................................95
Remove Memo Marking: Removing Marking from Memos That Have Been
Added to Photos .................................................................................................................. 95
Memo Warning: Displaying an Empty Description Warning ..............................95
Display Memo at Startup: Displaying the Camera Memo Dialog
at Startup................................................................................................................................. 96
Memo Increment: Incrementing Numerical Memo Descriptions .................... 96
Camera Memo Imprint: Imprinting Memos on Photos .......................................96
Camera Memo 1 Auto Delete: Automatically Deleting the First
Description .............................................................................................................................96
Barcode Type: Choosing a Barcode Type ......................................................................97
Barcode Mode: Choosing a Destination for Barcode Data ...................................97
Scan Time: Choosing a Barcode Scan Time ................................................................. 97
L7580872_0914_En.indb 11
L7580872_0914_En.indb 11
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bgf.png)
12
10 Expanded Settings Menu 98
Using the Menu ...................................................................................................98
Expanded Settings Menu Options ................................................................99
GPS Datum: Choosing a Geodetic System for GPS .................................................. 99
GPS Disp Mode: Choosing How GPS Data Are Displayed .................................... 99
GPS Lock: Disabling GPS Updates .................................................................................... 99
GPS Data Select: Choosing a GPS Device ................................................................. 100
GPS Track Time: Choosing How Long GPS Logs Are Stored ............................. 100
Delete GPS Log: Deleting GPS Logs ............................................................................100
Compass Heading: Choosing How Compass Data Are Displayed ................ 100
Compass Calibration: Calibrating the Compass ................................................... 101
GPS Data Imprint: Recording GPS Data ..................................................................... 101
UTC Data Imprint: Recording UTC Data .................................................................... 101
Heading Data Imprint: Recording the Compass Heading ............................... 101
Range Finder Mode: Range Information Handling ............................................. 101
Communication Mode: Choosing a Wireless Connection Method ............. 102
Import Communication Setting: Loading a Host List ...................................... 102
Send To: Choosing a Host ................................................................................................. 102
Send Status: Choosing When to Select a Host ........................................................ 102

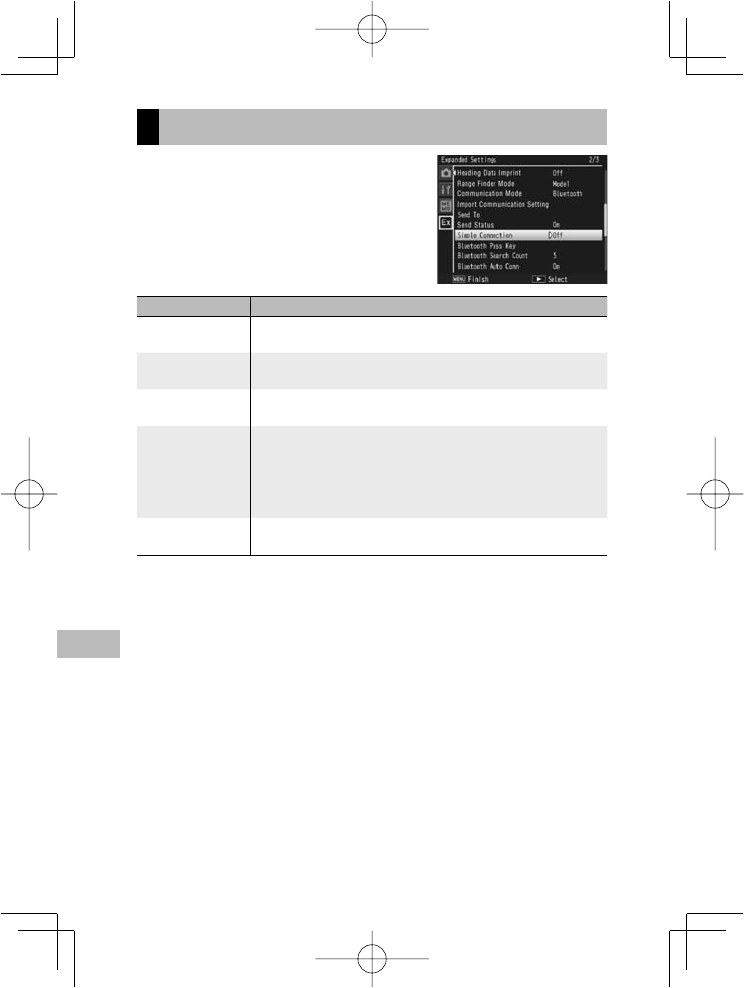

Simple Connection: Using Simple Connection..................................................... 102
Bluetooth Pass Key: Entering a Bluetooth® Password ........................................ 103
Bluetooth Search Count: Limiting the Devices Detected ................................ 103
Bluetooth Auto Conn: Automatic Bluetooth® Connection ............................. 103
Bluetooth Serial: Listing Bluetooth® Devices .......................................................... 103
Bluetooth Master/Slave: Connecting to Multiple Devices ............................... 103
Image File Size: Resizing Images During Transfer .................................................. 103
Auto Delete: Deleting Images After Transfer ........................................................... 104
Quick Send Mode: Uploading Photos as They Are Taken .................................. 104
Bluetooth Profile: Choosing a Bluetooth® Profile .................................................. 104
Custom Help: Enabling Custom Help ......................................................................... 104
Admin Pass Key: Choosing a Password for Custom Help .................................. 104
Admin Mode [Regist]: Updating Custom Help ..................................................... 104
Admin Mode [Delete]: Deleting Custom Help ...................................................... 104
L7580872_0914_En.indb 12
L7580872_0914_En.indb 12
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bg10.png)
13
11 Bluetooth® 105
Bluetooth® Connections ................................................................................ 105

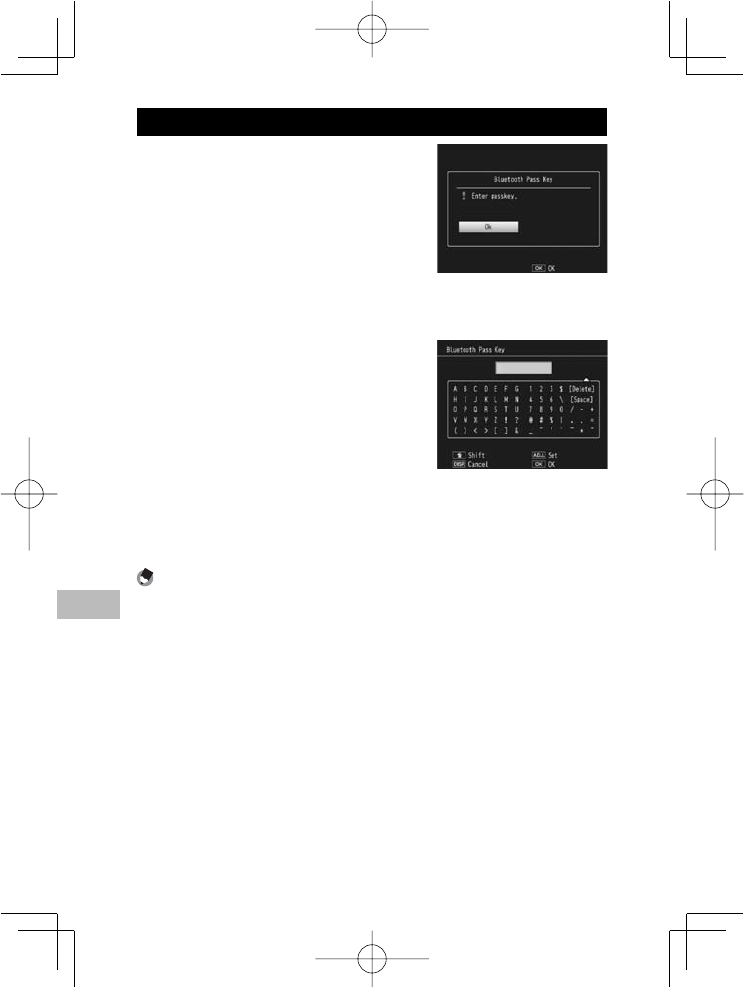

Entering a Password ............................................................................................................... 106
Transferring Images During Playback (Bluetooth®) ............................. 107
Transferring Images During Shooting (Bluetooth®) ............................ 108
One-Touch Transfer ................................................................................................................. 109
Two-Touch Transfer ................................................................................................................. 110
Auto Transfer................................................................................................................................ 111
12 Wireless Networks 112
Connecting to a Wireless Network ............................................................ 112
Configuring the Host ............................................................................................................. 113
Detailed Setups Tab Settings ............................................................................................ 116
Configuring a G700SE-only FTP Server ....................................................................... 120
Uploading Images to the SR-10 Server ....................................................................... 122
Creating a Host List and Transferring It to the Camera ...................... 123
Reading a Host List from a Memory Card ................................................................ 125
Viewing and Editing the Host List .................................................................................. 127
Simple Connections for Wireless LANs ..................................................... 128
Connecting Using [WPS Button] .................................................................................... 129
Connecting Using [WPS PIN] ............................................................................................ 129
Connecting Using [Scan] ..................................................................................................... 130
Transferring Images During Playback (Wireless LANs) ....................... 131
Transferring Images During Shooting (Wireless LANs) ...................... 132
One-Touch Transfer ................................................................................................................. 133
Two-Touch Transfer ................................................................................................................. 134
Auto Transfer................................................................................................................................ 135
13 GPS 136
Connecting to a GPS Unit ............................................................................. 136
The GP-1 GPS Unit (Available Separately).................................................................. 136
Bluetooth®-equipped GPS Units ..................................................................................... 137
The GPS Data Display ..................................................................................... 139
Recording GPS Data ........................................................................................ 140
Viewing GPS Data ............................................................................................ 141
L7580872_0914_En.indb 13
L7580872_0914_En.indb 13
2010/09/14 17:56:31
2010/09/14 17:56:31
![](/img.php?id=1359556&img=bg11.png)
14
14 Barcode Reader 142
The BR-1 Barcode Reader .............................................................................. 142
15 Direct Printing 144
About the Direct Print Function ................................................................. 144
Connecting the Camera to a Printer ......................................................... 144
Printing Still Images ........................................................................................ 145
Printing One or All Still Images ........................................................................................ 145
Printing Several Still Images ............................................................................................... 147
Printing Reports ......................................................................................................................... 148
16 Copying Pictures to a Computer via USB 149
For Windows ......................................................................................................149
System Requirements for Using the Supplied CD-ROM .................................. 149

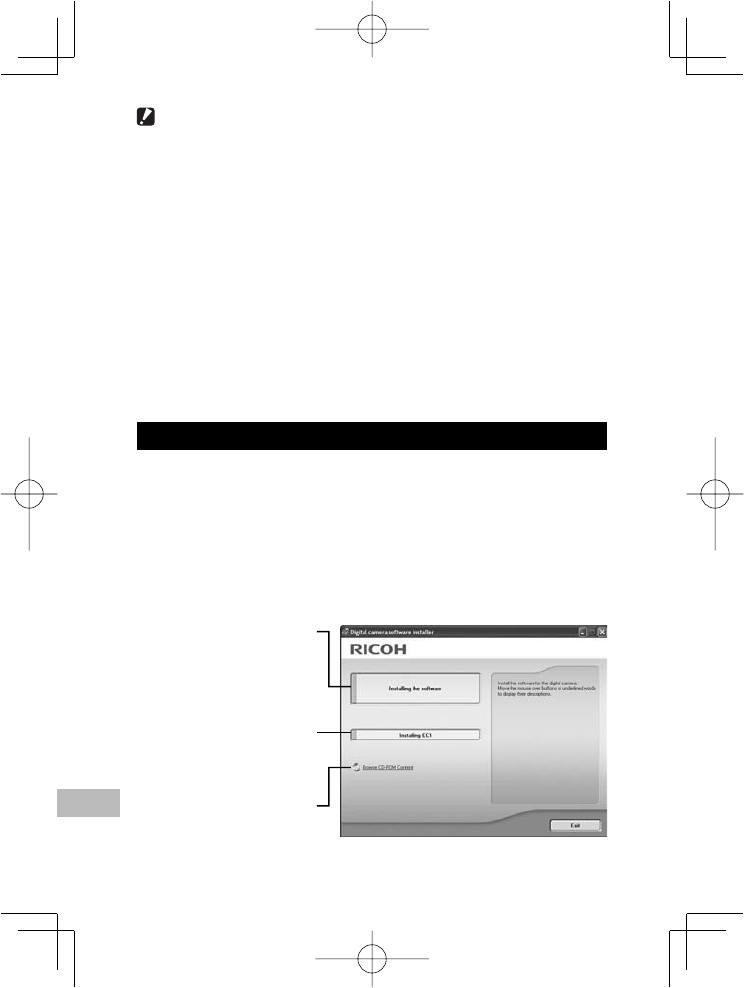

CD-ROM Setup ........................................................................................................................... 150
Copying Pictures to Your Computer ............................................................................. 155
For Macintosh .................................................................................................... 157
Copying Pictures to Your Computer ............................................................................. 157
17 Appendices 159
Troubleshooting ............................................................................................... 159
Error Messages ........................................................................................................................... 159
Camera Troubleshooting ..................................................................................................... 163
Available Settings ............................................................................................ 169
Specifications .................................................................................................... 171
Number of Images That Can Be Stored .................................................... 174
Defaults Settings/Functions Whose Defaults Are Restored
When the Camera Is Turned Off ............................................................. 176

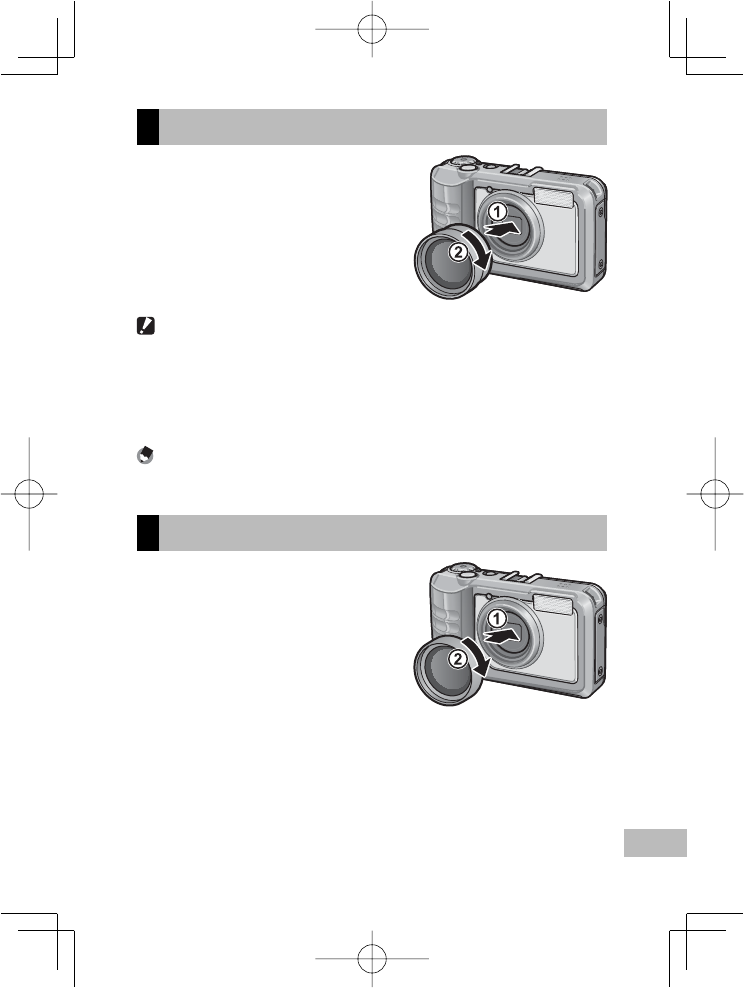

Using a Wide Conversion Lens .................................................................... 179
Optional Filters.................................................................................................. 179
Using the External Flash ................................................................................ 180
Using Your Camera Abroad .......................................................................... 181
Cautions on Use ................................................................................................ 182
Care and Storage .............................................................................................. 184
Warranty and Servicing ................................................................................. 186
Index .................................................................................................................... 192
L7580872_0914_En.indb 14
L7580872_0914_En.indb 14
2010/09/14 17:56:32
2010/09/14 17:56:32
![](/img.php?id=1359556&img=bg12.png)
Basic
Operations
If you are using the camera
for the first time, read this
section.
Packing List ..........................................16

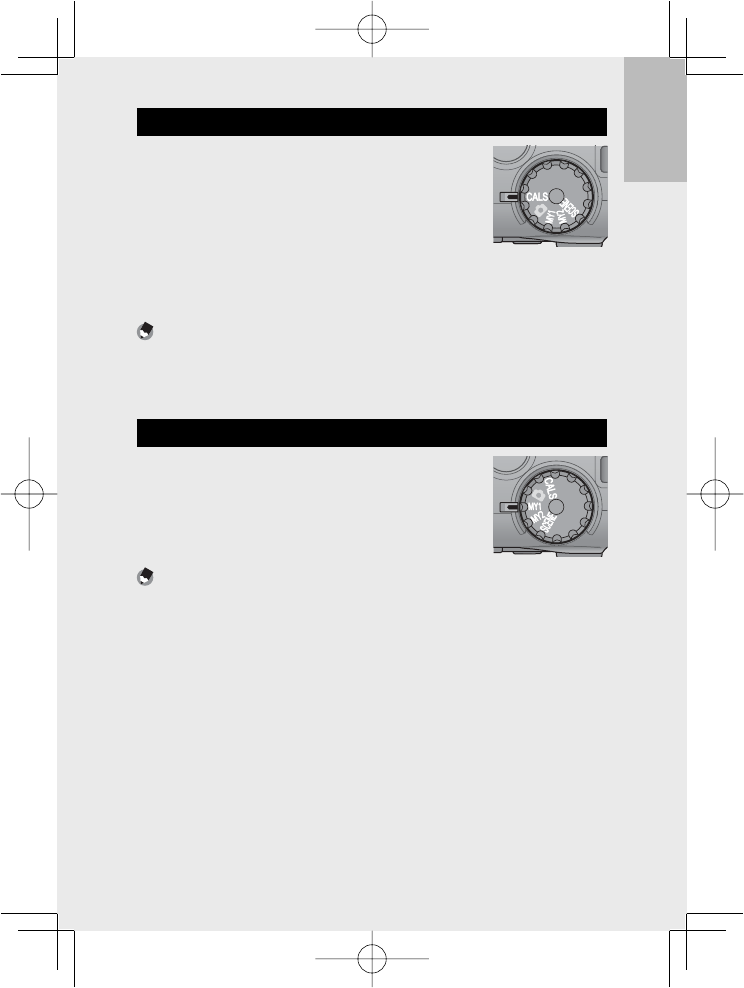

How to Use the Mode Dial ...................17

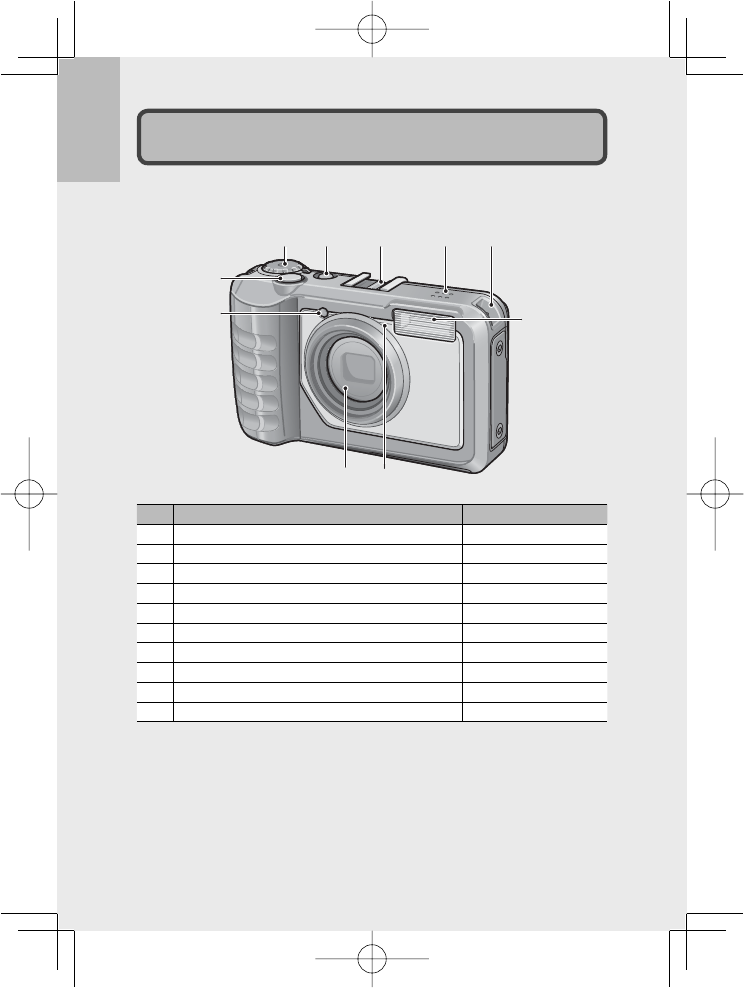

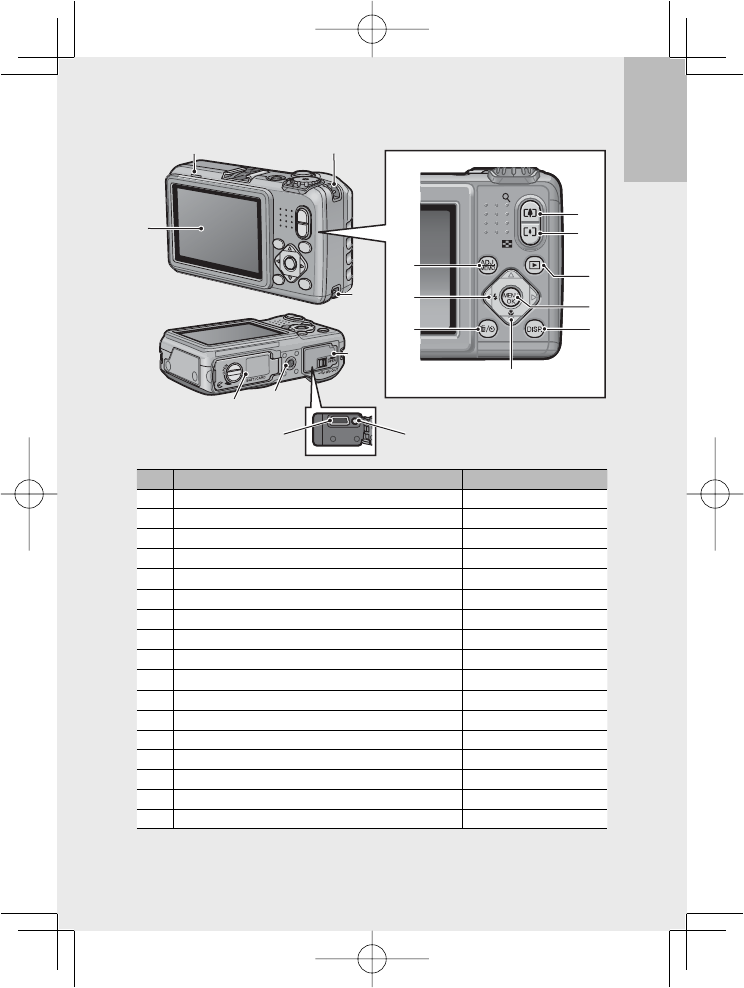

Names of Parts .....................................18
Picture Display .....................................20
Getting Ready ......................................23
Basic Shooting .....................................31
Playing Back Images ............................38
Deleting Files .......................................41
Changing the Display with the DISP.
Button ............................................44
L7580872_0914_En.indb 15
L7580872_0914_En.indb 15
2010/09/14 17:56:32
2010/09/14 17:56:32
![](/img.php?id=1359556&img=bg13.png)
16
If you are using the camera for the first time, read this section.

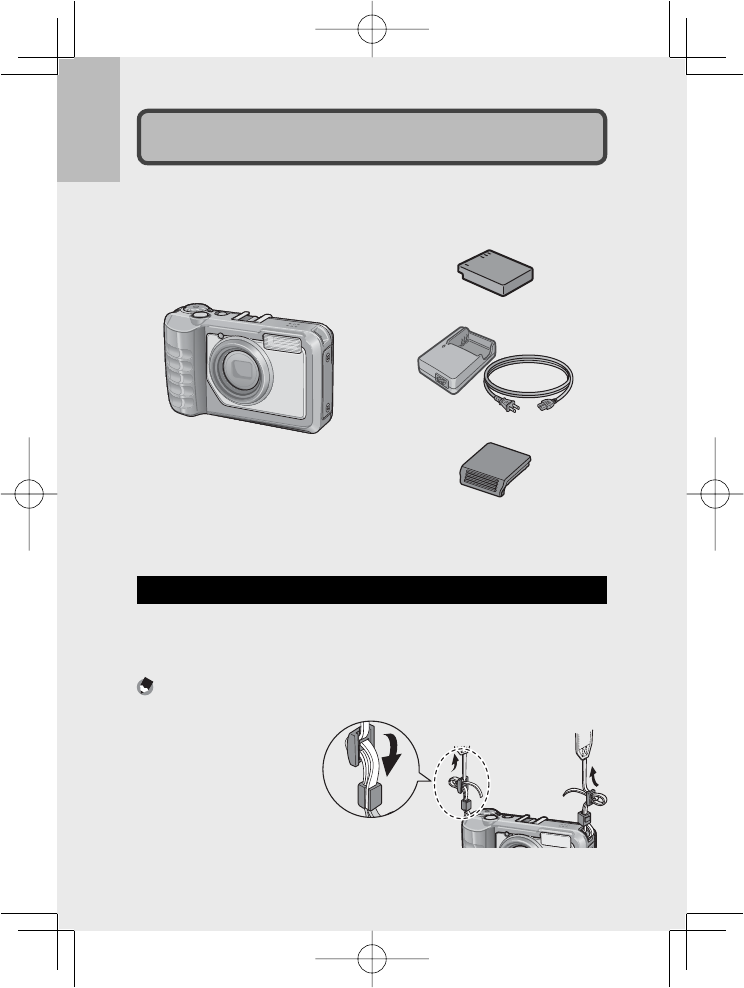

Packing List
Open the package and make sure all the items are included.
* The actual appearance of items included may differ.
• G700SE
The serial number of the camera
is provided on the bottom face of
the camera.
• Rechargeable Battery
• Battery Charger
• Accessory Shoe Cover
• USB Cable (Mini B cable)
• AV Cable
• Neck Strap
• Warranty
• Camera User Guide
• CD-ROM (GP.149)
Optional Accessories
• Rechargeable Battery (DB-65)
• Battery Charger (BJ-6)
• Soft Case (SC-700)
Used to store your camera.
• Wide Conversion Lens (DW-5)
Note -------------------------------------------------------------------------------------
Attaching the Neck Strap to the Camera
Thread the small end of
the strap through the strap
eyelet on the camera and
loop the ends as shown.
• For the latest information on optional accessories, see the Ricoh website (http://
www.ricohpmmc.com/).
L7580872_0914_En.indb 16
L7580872_0914_En.indb 16
2010/09/14 17:56:32
2010/09/14 17:56:32
![](/img.php?id=1359556&img=bg14.png)
17
If you are using the camera for the first time, read this section.
How to Use the Mode Dial
Set the mode dial to
the desired mode
before shooting still
images or movies.
Mode Dial Symbols and Descriptions
Symbol Function Description Refer to
V
CALS Mode Quality and size are adjusted to
produce photographs suitable for
public works photography. Picture
quality and size can be selected
from six options using the [CALS
Pic Quality] item in the setup menu
(GP.87).
P.37
5 Auto Shooting Mode Automatically sets the optimal
aperture value and shutter speed
depending on the subject.
P.31
T,
U
My Settings Mode You can shoot using the settings
registered in [Reg. My Settings].
P.37
W Scene Mode Optimize settings for the current
subject or scene or shoot movies.
P.52
L7580872_0914_En.indb 17
L7580872_0914_En.indb 17
2010/09/14 17:56:32
2010/09/14 17:56:32
![](/img.php?id=1359556&img=bg15.png)
18
If you are using the camera for the first time, read this section.
Names of Parts
Camera
Front View
2
3
1
4 5 6 7
8
9
10
Item Name Refer to
1 AF Auxiliary Light P.84
2 Shutter Release Button P.31
3 Mode Dial P.17, 31, 37, 52
4 POWER Button P.28
5 Accessory Shoe P.180
6 Speaker P.56
7 Strap Eyelet P.16
8 Flash P.35
9 Microphone P.55
10 Lens —
L7580872_0914_En.indb 18
L7580872_0914_En.indb 18
2010/09/14 17:56:32
2010/09/14 17:56:32
![](/img.php?id=1359556&img=bg16.png)
19
If you are using the camera for the first time, read this section.
Rear View
1
2 3
7
6
4
5
8
3
13
9
12
10
11
16
15 14
17
Item Name Refer to
1 Picture Display P.20
2 Auto Focus/Flash Lamp P.32, 35
3 Strap Eyelet P.16
4z (Telephoto)/8 (Enlarged View) Button P.33, 38, 40
5Z (Wide-angle)/9 (Thumbnail View) Button P.33, 38, 40
66 ( Playback) Button P.38
7 MENU/OK Button P.62, 72, 82, 94
8 DISP. Button P.40, 44
9"/N ( Macro) Button P.34
10 D ( Delete)/t ( Self-timer) Button P.36, 41
11 #/F ( Flash) Button P.35
12 ADJ./MEMO Button P.50, 57
13 Terminal Cover P.81, 144, 155, 157
14 AV Output Terminal P.81
15 USB Terminal P.144, 155, 157
16 Tripod Screw Hole —
17 Battery/Card Cover P.27, 179
L7580872_0914_En.indb 19
L7580872_0914_En.indb 19
2010/09/14 17:56:32
2010/09/14 17:56:32
![](/img.php?id=1359556&img=bg17.png)
20
If you are using the camera for the first time, read this section.
Picture Display
Example of Picture Display when Shooting Pictures
F3.5
F3.5
F3.5
1 Sec
1 Sec
1 Sec
4:
3 F
4:3 F
4:3 F
44
4
ΜΥ1
ΜΥ1ΜΥ1
ΜΥ1
Interval
Interval
Interval
X4.8
X4.8
X4.8
1
/
1000
1
/
1000
1
/
1000
EV
+
0.7
EV
+
0.7
EV
+
0.7 ISO 100
ISO 100ISO 100
ISO 100
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
1010
1111
12
12
12
1313
14
14
1515
1616
1717
1818
19
19
19
2020
2121
22
22
23
23
2424
2525
26
26
26 2727 2828 2929
3030
3131
32
32
3333
Still Image Mode
Item Name
Refer to
Item Name
Refer to
1
Flash Mode P.35
18
Camera Shake Correction P.65
2
Edit Detection P.6
19
Battery Symbol P.22
3
Scene Mode/Multi-shot P.52, 64
20
Time Exposure P.64
4
Shooting Mode Types P.17
21
Self-timer P.36
5
My Settings Mode P.37
22
Macro Shooting P.34
6
Remaining Number of Still
Images
P.174
23
Digital Zoom Magnification/
Auto Resize Zoom
P.34, 89
7
Recording Destination P.25
24
Zoom Bar P.33
8
Image Size P.63
25
Interval Shooting P.65
9
Picture Quality P.63
26
Aperture P.171
10
Focus Mode P.63
27
Shutter Speed P.171
11
White Balance P.70
28
Exposure Compensation P.69
12
Exposure Metering P.63
29
ISO Setting P.71
13
Image Settings P.64
30
Level Indicator P.47
14
Auto Bracket P.64
31
AF Frame P.31
15
Histogram P.48
32
Exposure Warning Indicator P.69
16
Memo indicator P.94
33
Camera Shake Warning Symbol
P.33, 65
17
Date Imprint P.65
L7580872_0914_En.indb 20
L7580872_0914_En.indb 20
2010/09/14 17:56:32
2010/09/14 17:56:32
![](/img.php?id=1359556&img=bg18.png)
21
If you are using the camera for the first time, read this section.
640
640
640
00 :
00
00
/
00 :
02
00: 00
/
00: 02
00: 00
/
00: 02
Shutter button : Start
Shutter button : StartShutter button : Start
Shutter button : Start
3434 35
35
35
36
36
Movie Mode
Item Name
Refer to
Item Name
Refer to
34
Recording Time P.174
36
Movie Recording Indicator P.55
35
Remaining Recording Time P.174
Note -------------------------------------------------------------------------------------
When the number of remaining shots is 10,000 or more, “9999” is displayed.

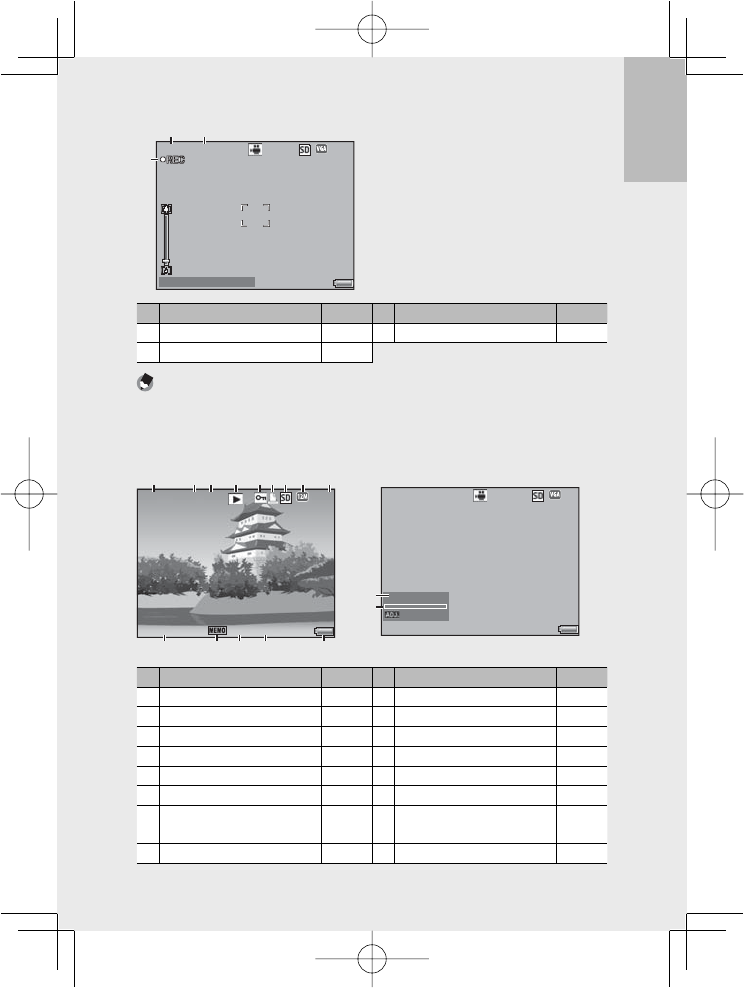

Example of Picture Display During Playback
F3.5
F3.5
F3.5
4:
3 F
4:3 F
4:3 F
0031
/
9999
0031
/
9999
0031
/
9999000-0031
000-0031
000-0031
1
/
100
1
/
100
1
/
100
2010
/
01
/
01
2010
/
01
/
01
2010
/
01
/
01 0
00:
00
00:00
00: 00
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
1010 1111 1212 1313 14
14
14
Still Image Mode
640
640
640
10
/
20
10
/
20
10
/
20
*RMOV0001
*RMOV0001
*RMOV0001
: Start
: Start: Start
: Start
05
05
:12
05:12
05:12
2010
/
01
/
01 00
01 00:
00
2010
/
01
/
01 00:00
2010
/
01
/
01 00:00
1515
1616
Movie Mode
Item Name
Refer to
Item Name
Refer to
1
File Number —
9
Picture Quality P.63
2
Number of Playback Files —
10
Date at Shooting P.30
3
Total Number of Files
—
11
Memo indicator P.94
4
Mode Types —
12
Aperture P.171
5
Protect P.79
13
Shutter Speed P.171
6
DPOF P.80
14
Battery Symbol P.22
7
Playback Data Source P.25
15
Recording Time or Lapsed
Time
—
8
Image Size P.63
16
Indicator —
L7580872_0914_En.indb 21
L7580872_0914_En.indb 21
2010/09/14 17:56:32
2010/09/14 17:56:32
![](/img.php?id=1359556&img=bg19.png)
22
If you are using the camera for the first time, read this section.

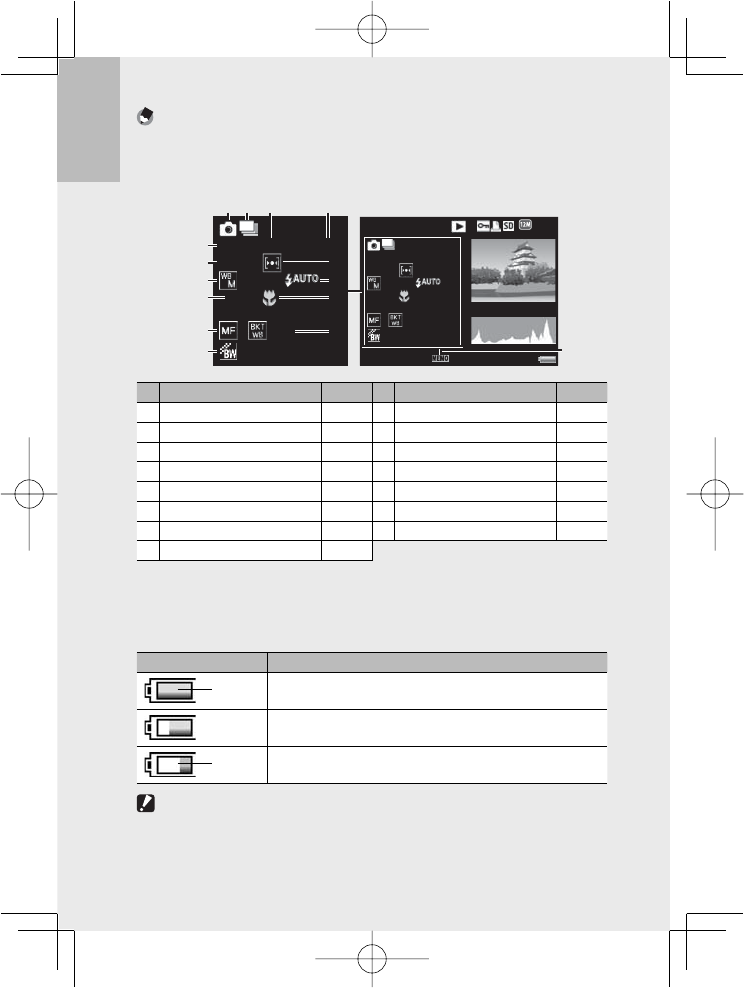

Note -------------------------------------------------------------------------------------
• The picture display may display messages to inform you of operational
instructions or the camera’s status while in use.
• Additional information can be viewed by pressing the DISP. button (GP.44).
4:
3 F
4:3 F
4:3 F
10
/
20
10
/
20
10
/
20100-0273
100-0273
100-0273
2010
/
01
/
01
2010
/
01
/
01
2010
/
01
/
01 0
00:
00
00: 00
00: 00
F5.5
F5.5
F5.5
1
/
60
1
/
60
1
/
60
ISO 100
ISO 100
ISO 100
28 mm
28 mm
28 mm
Blue
Blue
Blue
EV
+
0.7
EV
+
0.7
EV
+
0.7
F5.5
F5.5
F5.5
1
/
60
1
/
60
1
/
60
ISO 100
ISO 100
ISO 100
28
28
mm
28
mm
28
mm
Blue
Blue
Blue
EV
EV
+
0.7
EV
+
0.7
EV
+
0.7
1
1
2
2
4
4
5
5
3
3
6
6
8
8
1212
1414
1010
7
7
9
9
1111
1313
1515
Item Name
Refer to
Item Name
Refer to
1
Shooting Mode —
9
Flash Mode P.35
2
Continuous Mode P.64
10
Focal Length of the Zoom P.33
3
Aperture P.171
11
Macro Shooting P.34
4
Shutter Speed P.171
12
Focus Mode P.63
5
ISO Setting P.71
13
Auto Bracket P.64
6
Exposure Compensation P.69
14
Image Settings P.64
7
Exposure Metering P.63
15
Memo indicator P.94
8
White Balance P.70
Battery Level Indication
A battery symbol appears at the lower right of the picture display to
indicate the battery level. Recharge the battery before it is depleted.
Battery Symbol Description
Green Battery is sufficiently charged.
Battery partially discharged. Recharging is recommended.
Orange
Battery level is low. Recharge the battery.
Caution ---------------------------------------------------------------------------------
Depending on battery make and condition, the level of AAA NiMH batteries may
not be shown correctly.
L7580872_0914_En.indb 22
L7580872_0914_En.indb 22
2010/09/14 17:56:33
2010/09/14 17:56:33
![](/img.php?id=1359556&img=bg1a.png)
23
If you are using the camera for the first time, read this section.
Getting Ready
Turn the power on and get ready to shoot.
Note -------------------------------------------------------------------------------------
• Be sure the camera is off before removing the battery.
• For information on how to turn the camera off, see P.29.
About the Battery
The G700SE can be used with the following batteries:
• DB-65 rechargeable Li-ion batteries (supplied)
• AAA Alkaline Batteries (available in stores)
• AAA Nickel-Hydrogen Batteries (available in stores)
Number of shots you can take ----------------------------------------------------
• Approximate number of shots you can take on a single charge
Battery Type
Number of Shots (Normal Mode)
Rechargeable Battery (DB-65) approx. 360
AAA Alkaline Batteries (available in stores) approx. 40
* When [LCD Auto Dim] (GP.84) is set to [On].
• Based on CIPA standard (Temperature: 23 degrees Celsius, picture display on, 30
seconds between shots, changing the zoom setting from telephoto to wide-
angle or wide-angle to telephoto for each shot, 50% flash usage, turning the
power off after each 10 shots).
• The figure for the number of shots that can be taken with AAA alkaline batteries
is based on measurements made with batteries manufactured by Panasonic.
• If [Off] is selected for [LCD Auto Dim], up to 345 shots can be taken with DB-65
batteries and up to 40 shots with AAA alkaline batteries.
• Set the camera to synchro-monitor mode to increase the number of shots you
can take (GP.44).
• The number of shots is for reference only. If the camera is used for long periods
of time for setting and playback, the shooting time (the number of shots)
will decrease. If you intend to use the camera for a long period of time, we
recommend carrying a spare battery.
L7580872_0914_En.indb 23
L7580872_0914_En.indb 23
2010/09/14 17:56:33
2010/09/14 17:56:33
![](/img.php?id=1359556&img=bg1b.png)
24
If you are using the camera for the first time, read this section.
Caution ---------------------------------------------------------------------------------
• The battery may become very hot immediately after operation. Turn the camera
off and leave it to cool down sufficiently before removing the battery.
• Please remove the battery if you are not going to use the camera for a long
period of time.
• When using a lithium-ion battery, use only the specified rechargeable lithium-
ion battery (DB-65). Do not use any other battery.
• DB-60 Li-ion batteries can not be used.
• NiMH batteries are not charged at purchase; charge before use.
• NiMH batteries may suffer a drop in performance immediately after purchase
or following a month or more of disuse and may need to be recharged two or
three times before they will hold a charge.
• The battery life of alkaline batteries varies with make and the time elapsed since
the date of manufacture. Capacity drops at low temperatures.
• Manganese and Ni-Cd batteries can not be used.
• The drain on the battery increases when a GPS unit or barcode reader is
connected or pictures are uploaded via Bluetooth® or over a wireless LAN. Use a
DB-65 or ready spare AAA batteries.
About the SD Memory Card (available in stores)
Pictures can be stored in the camera’s 103 MB internal memory or on
optional SD, SDHC, and SD WORM memory cards (hereafter referred to
as “memory cards”).
SD WORM cards ----------------------------------------------------------------------
Data stored on SanDisk® SD™ WORM (Write Once Read Many) cards can not be
deleted or modified. The following are not available with SD WORM cards:
Deleting files P.41 Recover File P.74
Skew Correction P.54, 78 Trim P.75
Movie shooting P.55 Contrast Correction P.77
Memos P.57 Protect P.79
Continuous Mode P.64 DPOF P.80
Resize P.73 Format [Card] P.83
Copy to Card from Internal
Memory
P.73
• SD WORM cards can contain up to 510 folders, each holding a maximum of 510
photographs.
• Files can not be copied from a computer to an SD WORM card when the camera
is connected via USB.
L7580872_0914_En.indb 24
L7580872_0914_En.indb 24
2010/09/14 17:56:33
2010/09/14 17:56:33
![](/img.php?id=1359556&img=bg1c.png)
25
If you are using the camera for the first time, read this section.
About Formatting -------------------------------------------------------------------
Before using a memory card for the first time or after using a memory card
in other devices, be sure to format it with this camera. Memory cards can be
formatted using the [Format [Card]] item (GP.83) in the setup menu (GP.82).
Where images are recorded -------------------------------------------------------
When no SD memory card is loaded, the camera records images to the internal
memory (t); when an SD memory card is loaded, it records images to the SD
memory card (u).
Where images are played back from --------------------------------------------
When no SD memory card is loaded, the camera plays back from the internal
memory (t). When an SD memory card is loaded, it plays back from the SD
memory card (u).
Caution ---------------------------------------------------------------------------------
• If an SD memory card is loaded, the camera does not record to the internal
memory, even if the card is full.
• Take care not to get the contacts of the card dirty.
Write-protecting your images ----------------------------------------------------
Move the write-protection switch on the SD memory card
to LOCK to prevent your still images from being accidentally
erased or the card from being formatted.
Note that you cannot shoot images on a locked card because
no data can be recorded to the card. Unlock the card before
shooting. Although SD WORM cards do not have a write-
protection switch, they can not be formatted, and data can not be deleted from
SD WORM cards.
Note -------------------------------------------------------------------------------------
• The [Copy to Card from Internal Memory] item (GP.73) in the playback menu
(GP.72) can be used to copy the pictures in internal memory to a memory
card.
• An SD/SDHC memory card with a Speed Class of 6 or better is recommended
when recording movies with [x1280] selected for [Movie Size] (GP.63).
L7580872_0914_En.indb 25
L7580872_0914_En.indb 25
2010/09/14 17:56:33
2010/09/14 17:56:33
![](/img.php?id=1359556&img=bg1d.png)
26
If you are using the camera for the first time, read this section.
Charging the Rechargeable Battery (DB-65)
DB-65 Li-ion batteries must be charged before use.
1Insert the battery into the battery charger, making sure that
the r and s markings on the battery match those on the
battery charger.
• The battery label should face up.
Caution ---------------------------------------------------------------------------------
Be careful not to reverse the r and s sides.
2Plug the power cable into an outlet.
• Use the battery charger (BJ-6) to recharge the battery.
• Charging starts. Charging status is indicated by the charger lamp as
shown in the table below. Once charging has finished, unplug the
battery charger from the power outlet.
Charger Lamp Description
Lit Charging
Off Charging complete
Flashing The battery charger terminal may be soiled or the battery
charger/battery may be faulty. Unplug the battery charger
from the power outlet, and remove the battery.
• The approximate time needed to recharge a fully-exhausted battery
is shown below.
Rechargeable Battery Charging Time
DB-65 Approx. 150 min. (25 °C)
L7580872_0914_En.indb 26
L7580872_0914_En.indb 26
2010/09/14 17:56:33
2010/09/14 17:56:33
![](/img.php?id=1359556&img=bg1e.png)
27
If you are using the camera for the first time, read this section.
Loading the Battery and SD Memory Card
After recharging the rechargeable battery, load the battery and the SD
memory card. Be sure the camera is off before removing the battery or
the SD memory card.
1Turn the battery/card cover knob
toward the M mark to open the
cover.
2Insert the rechargeable battery and
SD memory card.
• Make sure the SD memory card is
facing the right way and then push the
card all the way in until it clicks.
• When the rechargeable battery is
loaded in place, it is locked with the
hook shown in the figure.
Logo side
Loading the specified dry cell batteries
(available in stores)
• Insert the batteries in the direction
shown.
3Close and knob the battery/card
cover.
• Close the battery/card cover and rotate
the knob to the position opposite the
M icon.
L7580872_0914_En.indb 27
L7580872_0914_En.indb 27
2010/09/14 17:56:33
2010/09/14 17:56:33
![](/img.php?id=1359556&img=bg1f.png)
28
If you are using the camera for the first time, read this section.
Removing the Rechargeable Battery
Turn the battery/card cover knob toward the M mark to open the
cover. Release the hook that locks the rechargeable battery. The
battery is ejected. Pull the battery out of the camera. Be careful not to
drop the battery when removing it from the camera.
Removing the Dry Cell Batteries
Turn the battery/card cover knob toward the M mark to open the cover.
The batteries will be ejected. Pull the batteries out of the camera. Be careful
not to drop the dry cell batteries when removing them from the camera.
Removing the SD Memory Card
Turn the battery/card cover knob toward the M mark to open the
cover. Push in the SD memory card and gently release to eject it. Pull
the card out of the camera.
Caution ---------------------------------------------------------------------------------
• To prevent moisture or dust from entering the camera, close the battery/card
cover securely.
• Before opening or closing the battery/card cover, choose a location free of
water, sand, mud, and other foreign matter and remove any such matter as may
be adhering to the camera.
• Make sure that the rechargeable battery and SD memory card are facing the
right way when inserted into the camera. Inserting the rechargeable battery
or SD memory card in the wrong direction and forcing close the battery/card
cover may damage the camera, rechargeable battery or SD memory card.

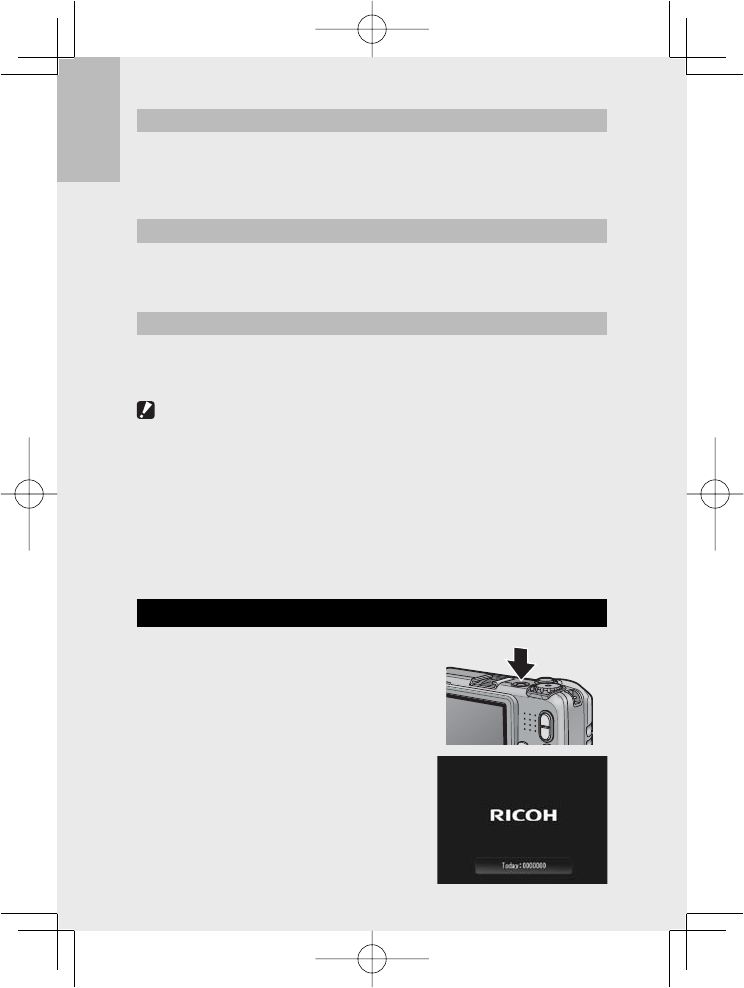

Turning the Power On/Off
Press the POWER button to turn the camera
on or off.
When the camera is turned on, a start-up
sound plays and the picture display turns on.
If the POWER button is pressed when the
camera is on, the number of files recorded
on that day is displayed, and then the
camera turns off.
L7580872_0914_En.indb 28
L7580872_0914_En.indb 28
2010/09/14 17:56:34
2010/09/14 17:56:34
![](/img.php?id=1359556&img=bg20.png)
29
If you are using the camera for the first time, read this section.
Note -------------------------------------------------------------------------------------
• If you adjust the clock before turning the camera off, the camera will display the
number of shots taken since the clock was set.
• A zero is displayed if the clock is not set.

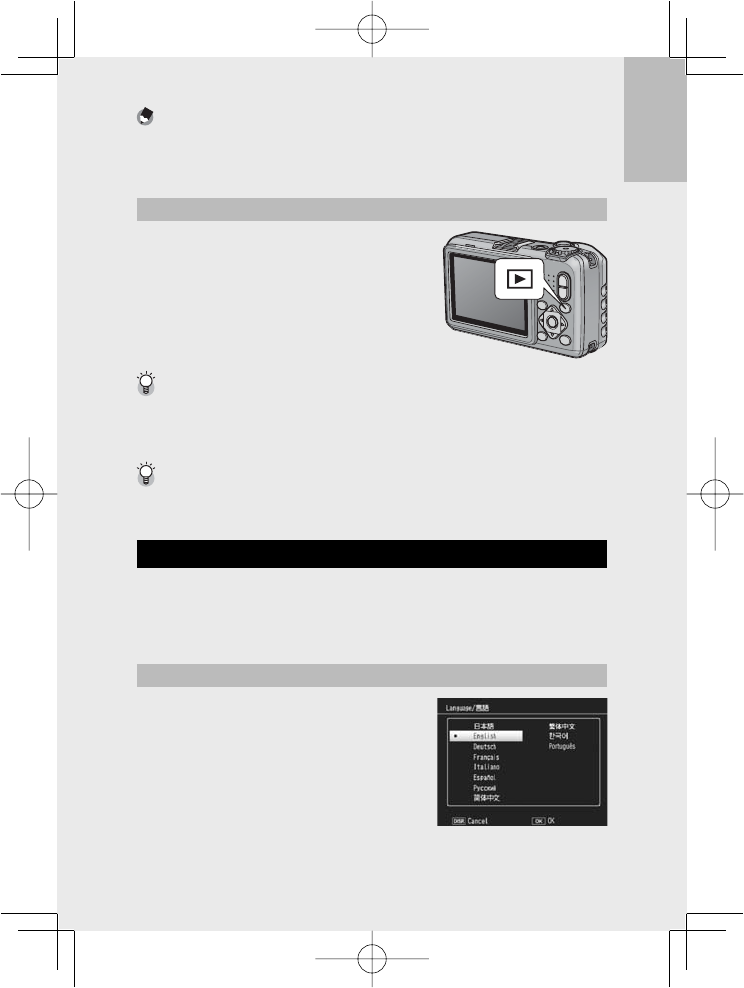

Using the Camera in Playback Mode
Pressing and holding the 6 (Playback)
button turns on the camera in playback
mode, allowing you to start playback at once.
When the camera has been turned on with
the 6 button, pressing the 6 button again
switches playback mode to shooting mode.
About Auto Power Off --------------------------------------------------------------
• If the camera goes unused for a set period of time, it automatically turns itself
off to save power (Auto Power Off).
• The auto power off setting can be changed (GP.84).

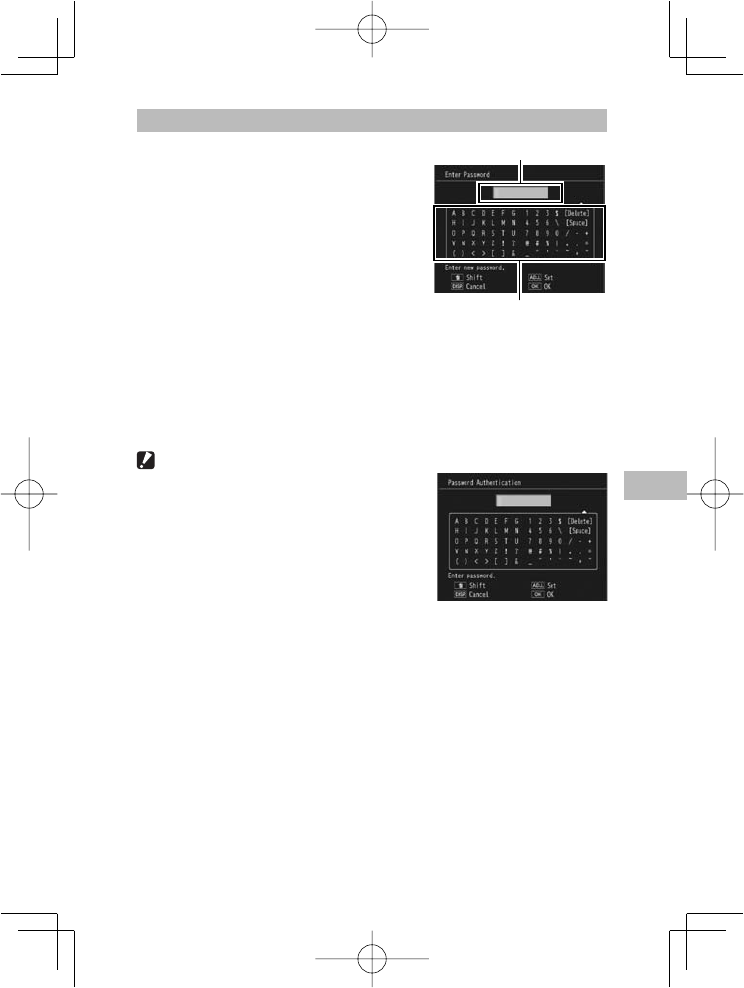

About Password Protection (GP.92) -----------------------------------------
If the camera is password protected, you may be prompted for a password when the
camera is turned on. To use the camera, enter the password as described on P.90.
Setting the Language, Date and Time
When the power is turned on for the first time, the language setting
screen appears (for the picture display language). After setting the
language, go on to the date/time setting (for printing the date and
time on your photos).
Setting the Language
1Press the !" buttons to select a
language.
• When the DISP. button is pressed, the
language setting is canceled and the
date/time setting screen appears.
2Press the MENU/OK button.
• The display language is set, and the date/time setting screen appears.
L7580872_0914_En.indb 29
L7580872_0914_En.indb 29
2010/09/14 17:56:34
2010/09/14 17:56:34
![](/img.php?id=1359556&img=bg21.png)
30
If you are using the camera for the first time, read this section.
Setting the Date and Time
1Press the !"#$ buttons to set the year, month, date, time
and format.
• Change the setting with !" and move
the item with #$.
• You can cancel the setting by pressing
the DISP. button.
2Check the information on the screen and then press the
MENU/OK button.
• The confirmation screen appears.
3Press the MENU/OK button.
• The date and time are set.
• If the battery is low, a warning will be displayed. Use of a fully-
charged battery is recommended; to clear the warning from the
display, press MENU/OK.
Note -------------------------------------------------------------------------------------
• The language, date, and time can be changed at any time using the [Language/
N] and [Date Settings] items (GP.86) in the setup menu (GP.82).
• The [Date Imprint] item (GP.65) in the shooting menu (GP.62) can be used
to stamp photographs with the date and time of recording.
• If the battery is removed for more than three days, the date and time settings
will be lost. These settings must be made again.
• To retain the date and time settings, load a battery with adequate remaining
power for more than ten hours.
L7580872_0914_En.indb 30
L7580872_0914_En.indb 30
2010/09/14 17:56:34
2010/09/14 17:56:34
![](/img.php?id=1359556&img=bg22.png)
31
If you are using the camera for the first time, read this section.
Basic Shooting
Now you are ready.

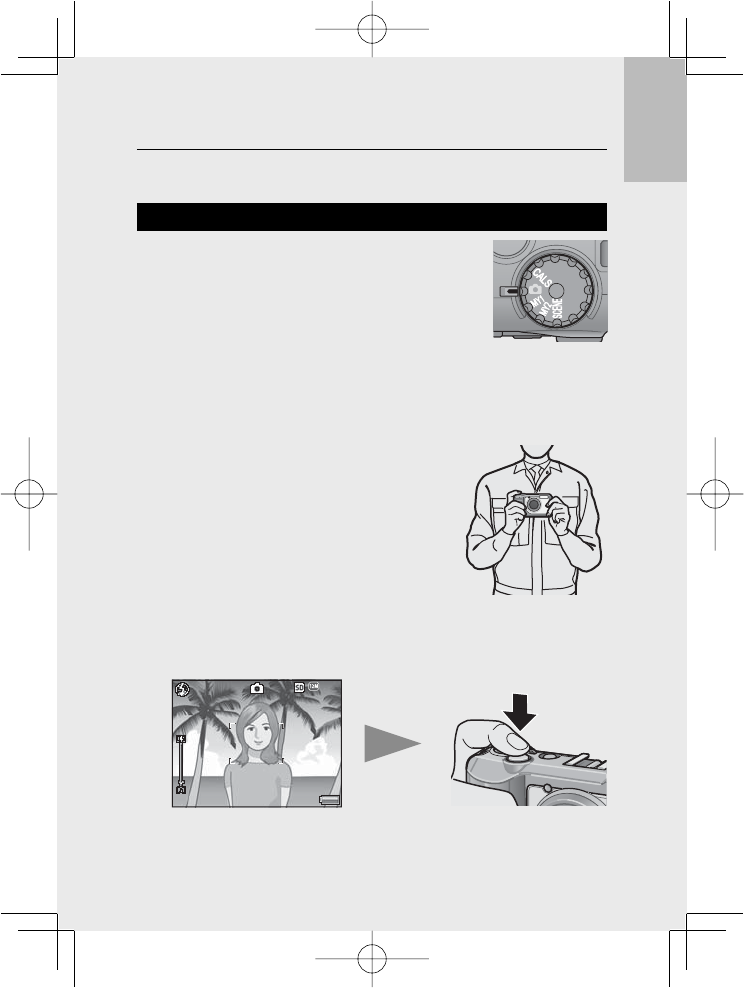

Shooting in Auto Shooting Mode (Focus and Shoot)
Turn the mode dial to 5 to shoot with auto
shooting mode.
The shutter release button works in two steps.
When you press the shutter release button halfway
(Half-press), the auto-focus function is triggered to
determine the focal distance. Next, press it all the way down (Full-
press) to shoot.
When your subject is not in the center of your composition, compose
your photo after focusing (Focus Lock).
1Hold the camera with both hands and
lightly press both elbows against your
body.
2Put your finger on the shutter release
button.
3Frame the picture with your subject in the AF frame in the
center of the screen and press the shutter release button
halfway.
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
• The camera focuses on the subject and the exposure and white
balance are fixed.
• The focal distance is measured at a maximum of nine points. Green
frames appear to indicate the positions that are in focus.
L7580872_0914_En.indb 31
L7580872_0914_En.indb 31
2010/09/14 17:56:34
2010/09/14 17:56:34
![](/img.php?id=1359556&img=bg23.png)
32
If you are using the camera for the first time, read this section.
4

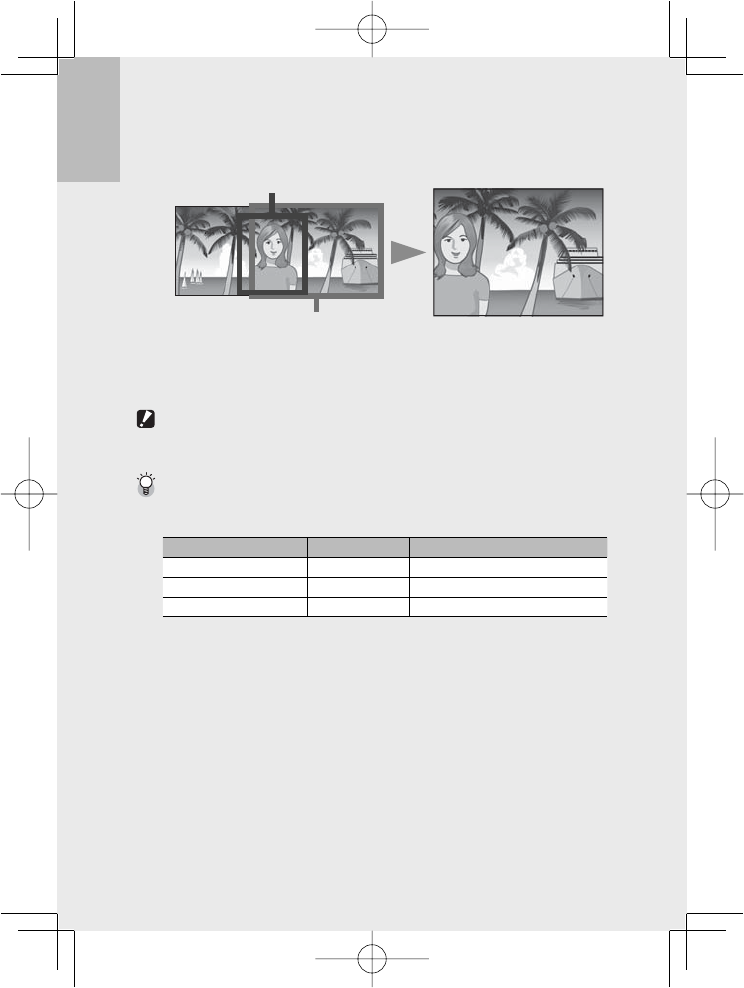

To take a picture with the subject in the foreground in focus
against a background, half-press the shutter release button to
focus on the subject, and then compose your shot.
Shooting range
Subject to be focused
5Gently press the shutter release button all the way.
•
The still image you have taken appears momentarily on the picture
display and is recorded to the internal memory or the SD memory card.
Caution ---------------------------------------------------------------------------------
When you are shooting, be careful not to obstruct the lens or flash with your
fingers, hair, or the strap.
About Focusing -----------------------------------------------------------------------
The frame in the center of the picture display and the auto focus/flash lamp
indicate whether the subject is in or out of focus.
Focus Status Frame Color Auto Focus/Flash Lamp
Before focusing White Off
Subject in focus Green On (Green)
Subject not in focus
Red (Flashing)
Blinks (Green)
It may be impossible to bring the following subjects into focus, or they may not
be in focus even when the frame color is green.
• Objects that lack contrast, such as the sky, a wall that is only one color, or the
hood of a car.
• Flat two-dimensional objects with only horizontal lines and no significant
protrusions.
• Quickly moving objects.
• Things in poorly lit places.
• Areas with strong backlighting, or reflections.
• Things that flicker, such as fluorescent lights.
• Point light sources, such as light bulbs, spotlights, or LEDs.
When you want to shoot subjects like this, first focus on an object the same
distance as your subject and then shoot.
L7580872_0914_En.indb 32
L7580872_0914_En.indb 32
2010/09/14 17:56:34
2010/09/14 17:56:34
![](/img.php?id=1359556&img=bg24.png)
33
If you are using the camera for the first time, read this section.
Preventing Camera Shake ---------------------------------------------------------
• Press the shutter release button gently to prevent camera shake.
• If you move the camera when pressing the shutter release button, the still
image might not come out clearly due to camera shake.
Camera shake tends to occur in the following cases:
- When shooting in a dark place without using the flash
- When using the zoom function
- When [Time Exposure] (GP.64) is selected in the shooting menu (GP.62)
• When the J symbol appears on the picture display, this indicates that
camera shake may occur. To prevent camera shake, try any of the following.
- Selecting [On] for [Camera Shake Correction] (GP.65) in the shooting menu
(GP.62)
- Setting the flash to [Auto] or [Flash On] (GP.35)
- Raising the ISO setting (GP.71)
- Using the self-timer (GP.36)

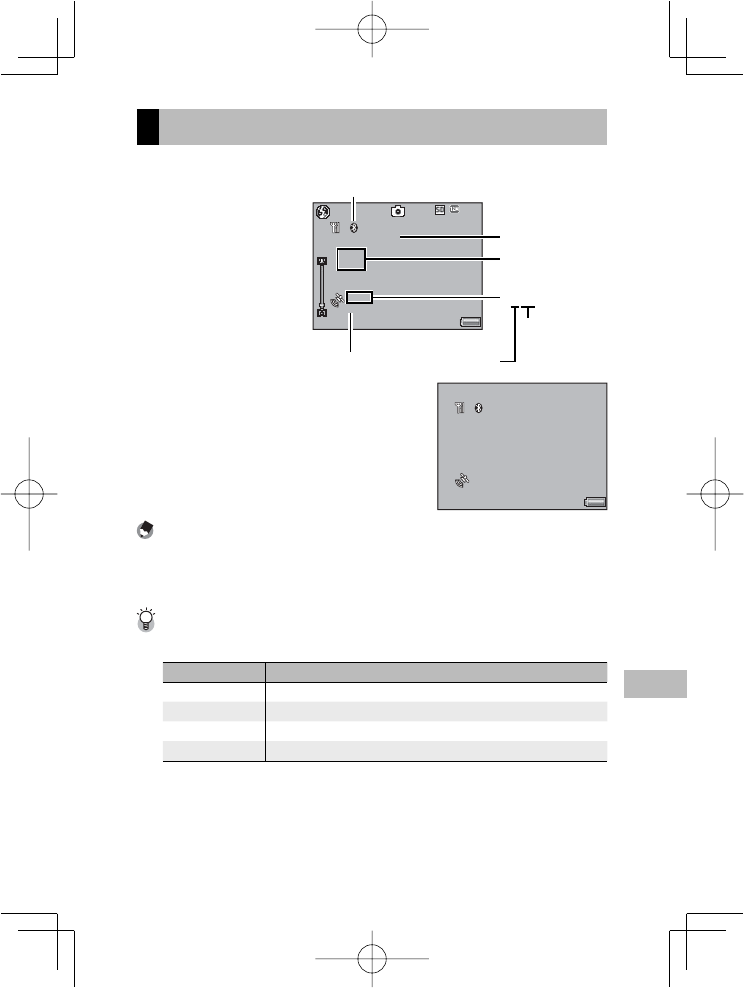

Using the Zoom Function
Press the z (Telephoto) button to zoom in
so that your subject fills more of the frame.
To zoom out and increase the area visible
in the frame, press the Z (Wide-angle)
button.
4:
3 F
4: 3 F
4:3 F
9999
9999
9999
4:
3 F
4:3 F
4:3 F
9999
9999
9999
Wide-angle Telephoto
Zoom bar
Note -------------------------------------------------------------------------------------
The [Stepped Zoom] option (GP.83) in the setup menu (GP.82)
allows optical zoom to be adjusted in six discrete steps.
L7580872_0914_En.indb 33
L7580872_0914_En.indb 33
2010/09/14 17:56:34
2010/09/14 17:56:34
![](/img.php?id=1359556&img=bg25.png)
34
If you are using the camera for the first time, read this section.

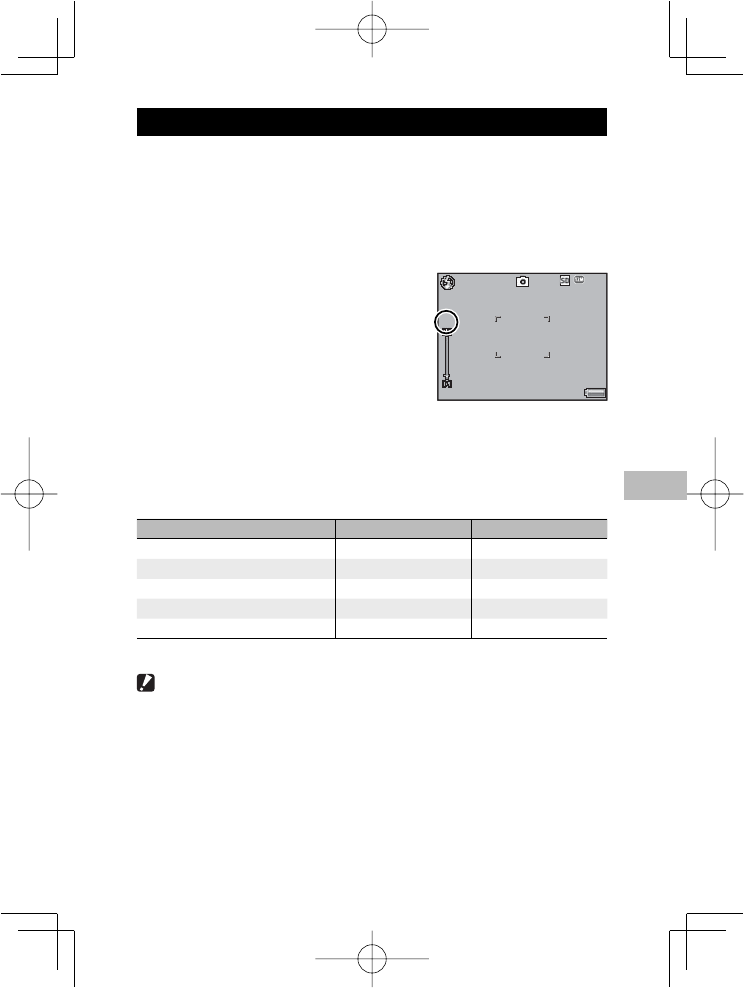

Using the Digital Zoom -------------------------------------------------------------
Optical zoom offers magnifications of up to 5.0 ×; if desired, magnification can be
further increased by up to 4.0 × using digital zoom. For digital zooming, release
the z button once when the zoom reaches the limit on the z end on the
zoom bar, and then hold the z button down again. If [l 4 : 3 F] or [l 4 : 3 N] is
selected for [Picture Quality/Size], you can select [Auto Resize] for [ Digital Zoom
Image] (GP.89).

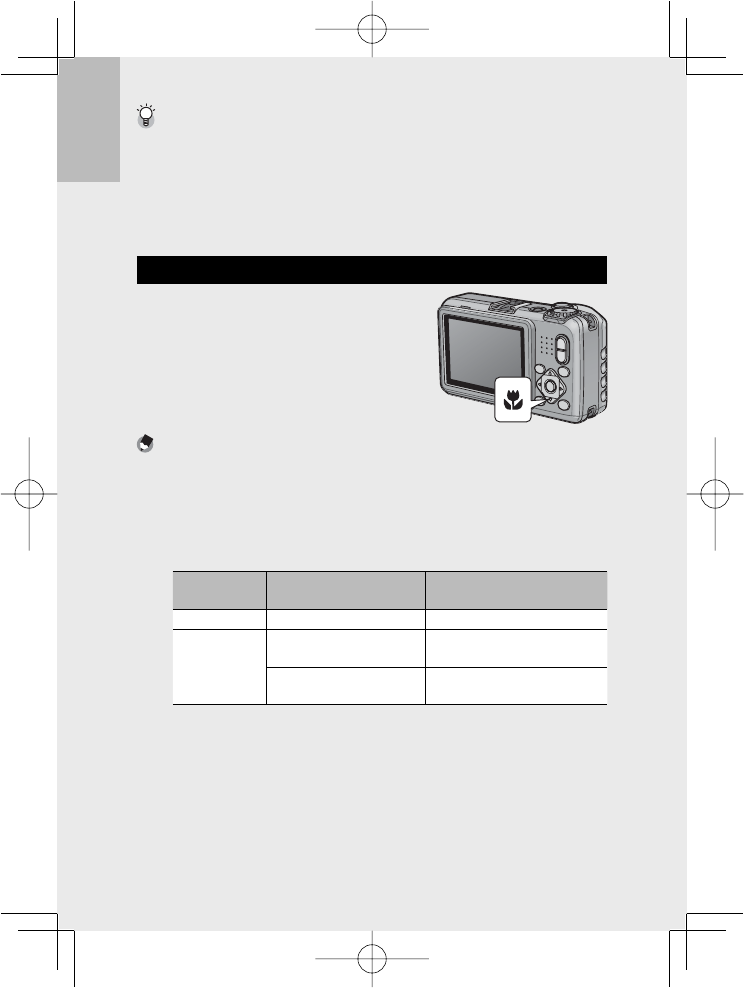

Shooting Close-Ups ( Macro Shooting)
Use macro mode for close-ups. Press the N
(macro button) to enable or disable macro
mode.
Note -------------------------------------------------------------------------------------
• [Focus] (GP.63) is set to [Spot AF].
• Macro mode is not available in manual focus mode (GP.63).
• To take a further close-up picture during macro shooting, use [Zoom Macro]
(GP.52) in scene mode.
• The minimum shooting distance and shooting range when using the zoom are
shown below.
Zoom position
Minimum Shooting Distance
(from the front of the lens)
Shooting Range
Wide-angle Approx. 1 cm Approx. 21.8 mm × 16.4 mm
Telephoto
Approx. 15 cm Approx. 42.3 mm × 31.7 mm
(when digital zoom is not used)
Approx. 15 cm Approx. 10.6 mm × 7.9 mm
(when 4.0 × digital zoom is used)
L7580872_0914_En.indb 34
L7580872_0914_En.indb 34
2010/09/14 17:56:34
2010/09/14 17:56:34
![](/img.php?id=1359556&img=bg26.png)
35
If you are using the camera for the first time, read this section.

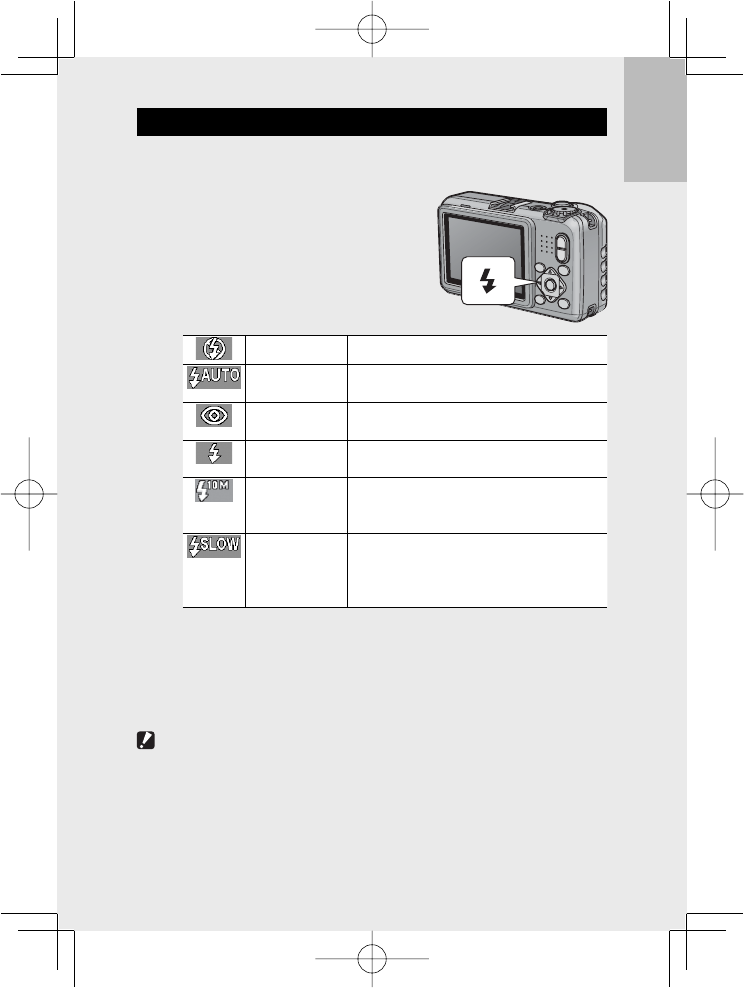

Using the Flash
You can select the flash mode that best suits your shot. At the time of
purchase, the camera is set to [Flash Off].
1With the camera ready to shoot,
press the F button.
• The list of the flash modes symbol is
displayed on the picture display.
Flash Off The flash will not fire.
Auto The flash fires automatically when the subject
is poorly lit or backlit.
Anti Red-Eye Reduces the red-eye phenomenon, in which
people’s eyes appear red in pictures.
Flash On The flash fires regardless of the lighting
conditions.
FLASH ON (10M) The flash always fires with a range of 10 m.
When zoomed in on your subject, the flash
fires with a range of 6.2 m.
Flash Synchro. The flash fires with the shutter speed slowed.
This is useful when taking portrait pictures in
a nightscape. Camera shake may occur, so the
use of a tripod is recommended.
2Press the !" buttons to select the flash mode.
• The flash mode symbol is displayed at the upper left of the picture
display.
• The auto focus/flash lamp blinks while the flash charges. Photos can
be taken when the lamp turns off.
Caution ---------------------------------------------------------------------------------
• You cannot shoot when the flash is charging (approx. 8 seconds).
• If the camera is powered by AAA alkaline or NiMH batteries, the picture display
will turn off while the flash charges.
• After the camera is turned on, it may take longer for the camera to become
ready for shooting when using the flash.
L7580872_0914_En.indb 35
L7580872_0914_En.indb 35
2010/09/14 17:56:35
2010/09/14 17:56:35
![](/img.php?id=1359556&img=bg27.png)
36
If you are using the camera for the first time, read this section.
Note -------------------------------------------------------------------------------------
• The flash mode setting is retained until you press the F button again.
• The auxiliary flash fires to increase the AE accuracy.
• The flash can not be used in some shooting modes or with some shooting
menu options (GP.169).

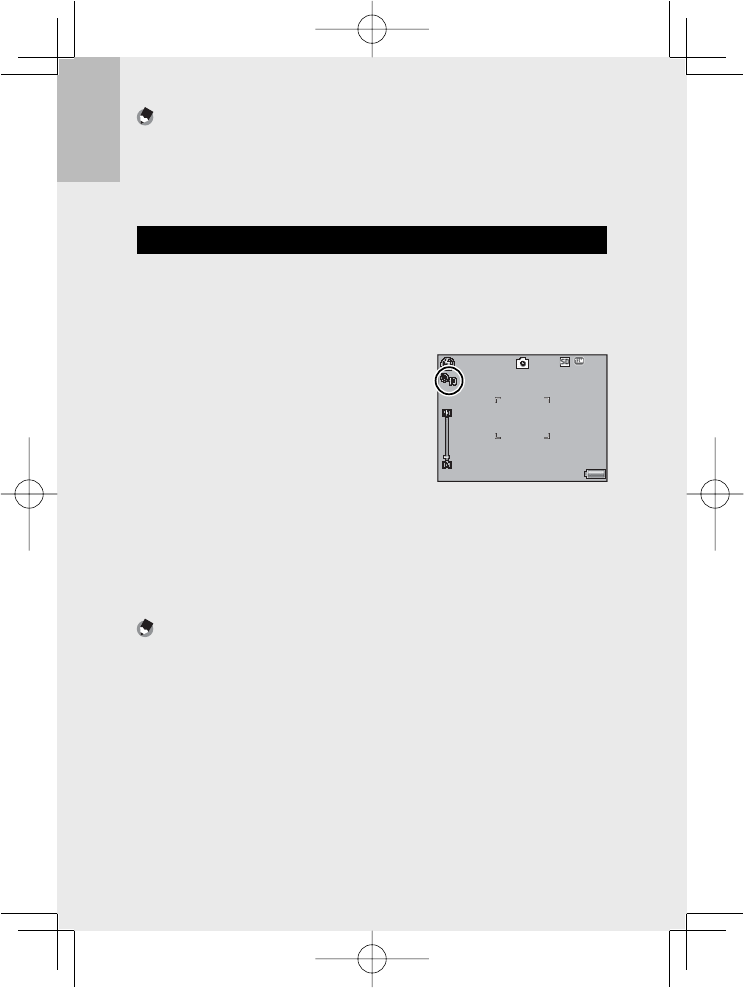

Using the Self-timer
The camera offers a ten-second timer for self-portraits and a two-
second timer to prevent blur caused by camera movement when the
shutter release button is pressed.
1With the camera ready to shoot, press the t (Self-timer)
button.
• The Self-timer symbol appears on the
screen.
• The [10] to the right of the symbol
indicates the number of seconds. In this
case, if you press the shutter release
button, the camera will shoot after 10
seconds.
• Each press of the t button changes the self-timer setting in the
following order: 10 sec, 2 sec, and Self-timer Off.
2Start the timer.
• Press the shutter release button to lock focus and start the timer. If
the ten-second timer is selected, the AF auxiliary light will light.
Note -------------------------------------------------------------------------------------
• The camera remains in self-timer mode even after the image is shot. To cancel
the self-timer, press the t button and change the self-timer setting to [Self-
Timer Off].
• When the self-timer is set to 2 seconds, the AF auxiliary light does not blink.
• When the self-timer is set, the [Interval Shooting] setting is disabled.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
4:
3 F
4:3 F
4:3 F
9999
9999
9999
L7580872_0914_En.indb 36
L7580872_0914_En.indb 36
2010/09/14 17:56:35
2010/09/14 17:56:35
![](/img.php?id=1359556&img=bg28.png)
37
If you are using the camera for the first time, read this section.

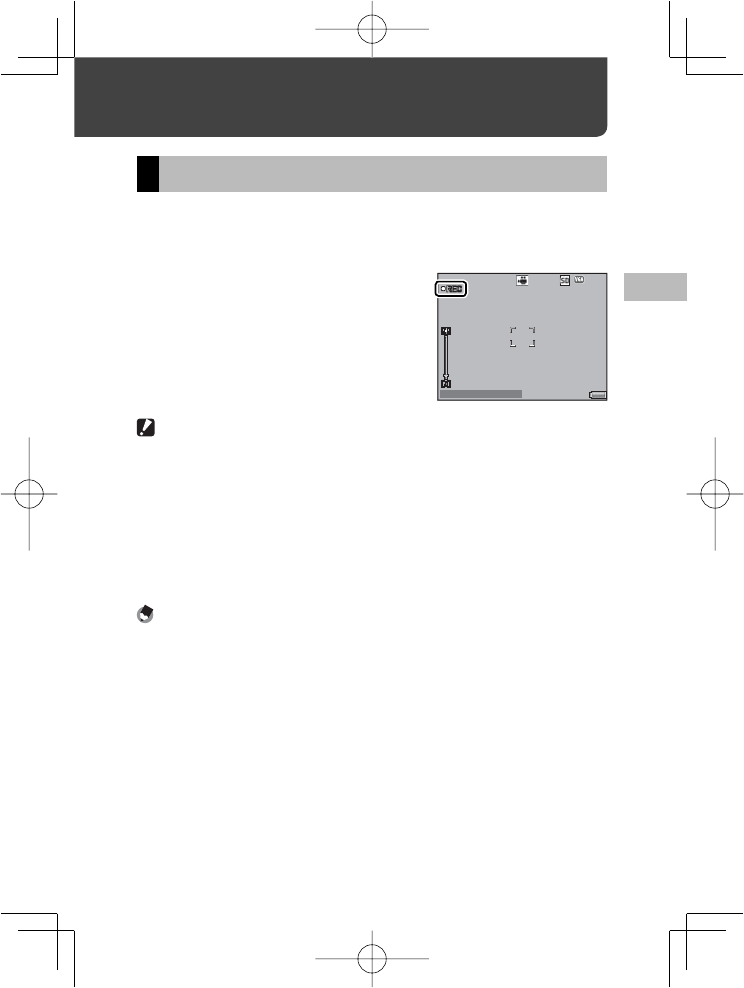

Shooting in CALS Mode
In CALS mode, you can shoot photos in a quality
and size suitable to be submitted as official public
works pictures. Picture quality and size are set
beforehand in [CALS Pic Quality] on the setup menu
(GP.87). At shipment, [CALS Pic Quality] is set to
[a 4 : 3 N] (normal image quality, 1280 × 960 pixels,
with a file size of about 363 KB) to conform to the Japanese standard
for official public works photographs, which requires that images be
1 megapixel with a file size of 500 KB or less.
Note -------------------------------------------------------------------------------------
• When the mode dial is set to a mode other than CALS, [Picture Quality/size]
returns to the setting in the previous mode.
• You can register [CALS Pic Quality] as My Settings (GP.88).
Shooting with My Settings Mode
Rotate the mode dial to T or U to take
photos using settings saved with the [Reg. My
Settings] option in the setup menu (GP.88).
Note -------------------------------------------------------------------------------------
You can change the camera settings set in my settings mode. Changing the
mode or turning the camera off returns the settings to the original MY1 and MY2
settings.
L7580872_0914_En.indb 37
L7580872_0914_En.indb 37
2010/09/14 17:56:35
2010/09/14 17:56:35
![](/img.php?id=1359556&img=bg29.png)
38
If you are using the camera for the first time, read this section.

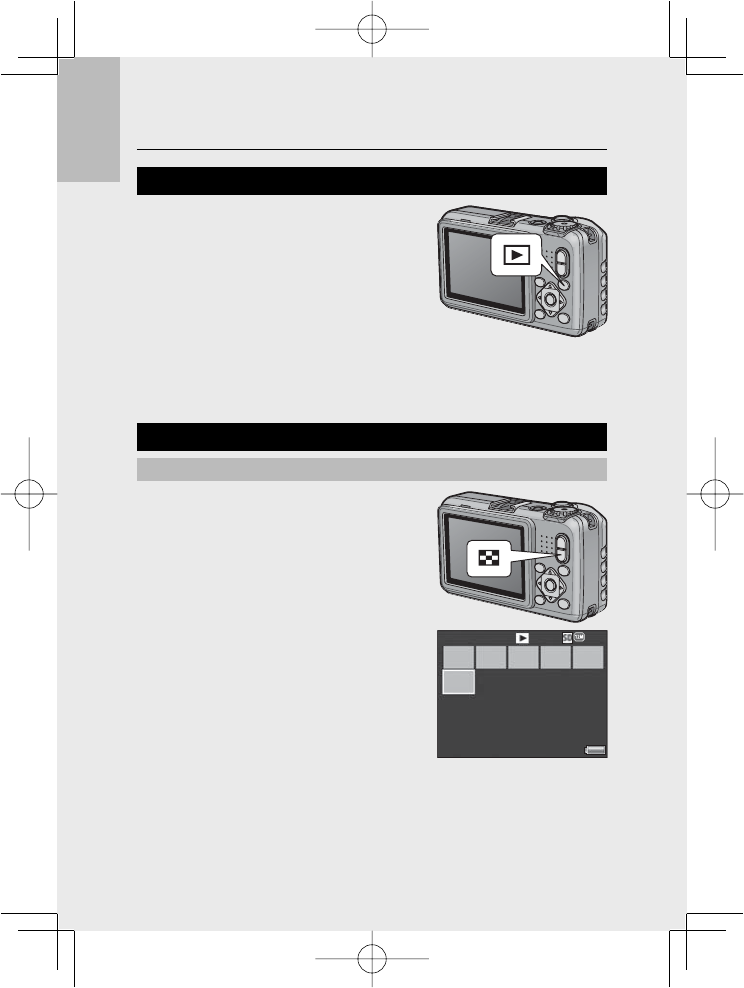

Playing Back Images
Viewing Your Images
To select playback mode, press the 6
(Playback) button. When the camera is off,
pressing and holding the 6 (Playback)
button longer than 1 second turns the
camera on in playback mode.
Press the #$ buttons to display the
previous file or the next file. Press the !"
buttons to display the file 10 frames forward or backward.
To switch the camera from playback mode to shooting mode, press
the 6 button again.
Thumbnail View
20 Frames
Press the 9 (Thumbnail view) button to
view pictures 20 at a time.
Press the DISP. button to change between
the thumbnail list and page list. In the page
list, press the !"#$ buttons to select
the page.
To display the highlighted photo full frame,
press the ADJ./MEMO or 8 (Enlarged view)
button.
F3.5
F3.5F3.5
F3.5
Last File
Last FileLast File
Last File
100-0009
100-0009
100-0009
1
/
30
1
/
30
1
/
30
2010
/
01
/
01
2010
/
01
/
01
2010
/
01
/
01 0
00:
00
00: 00
00: 00
4:
3 F
4:3 F
4:3 F
L7580872_0914_En.indb 38
L7580872_0914_En.indb 38
2010/09/14 17:56:35
2010/09/14 17:56:35
![](/img.php?id=1359556&img=bg2a.png)
39
If you are using the camera for the first time, read this section.

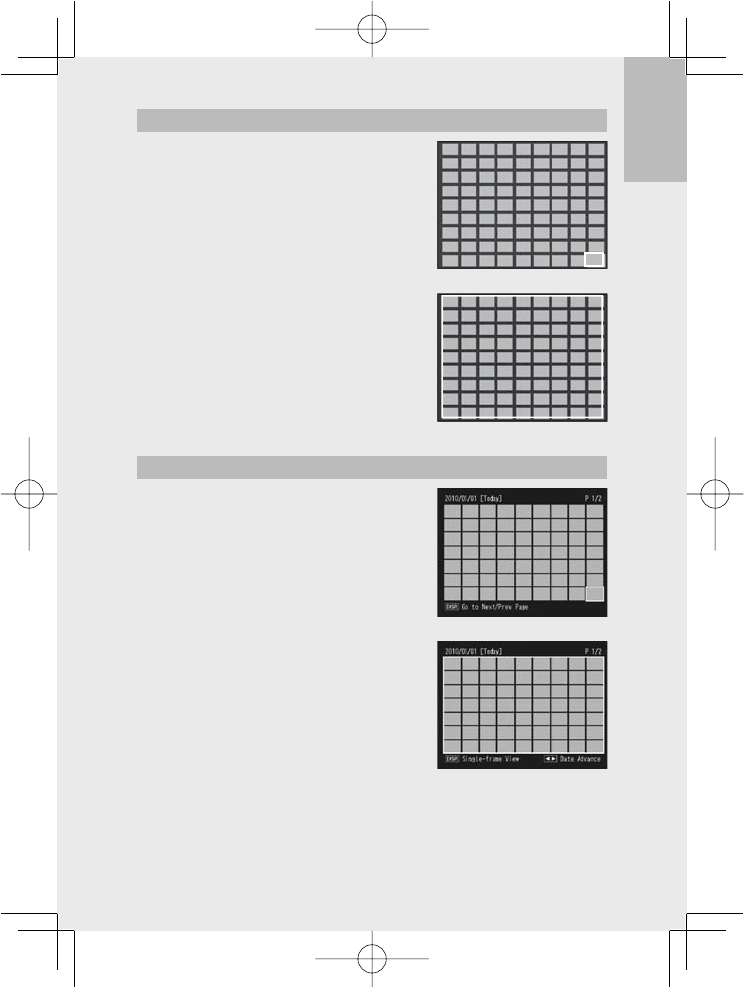

81 Frames
To display pictures 81 at a time, press 9 in
the 20-frame view.
Press the DISP. button to change between
the thumbnail list and page list. In the page
list, press the !"#$ buttons to select
the page.
To display the highlighted photo full frame,
press the ADJ./MEMO button or press 8
twice.
Thumbnail list
Page list
Date of Recording
To switch to a calendar display, press 9 in
the 81-frame view.
Press the DISP. button to change between
the thumbnail list and date list. In the date
list, press the #$ buttons to select the
date, or press the !" buttons to select
the page.
To display the highlighted photo full frame,
press the ADJ./MEMO button or press 8
three times.
Thumbnail list
Date list
L7580872_0914_En.indb 39
L7580872_0914_En.indb 39
2010/09/14 17:56:35
2010/09/14 17:56:35
![](/img.php?id=1359556&img=bg2b.png)
40
If you are using the camera for the first time, read this section.

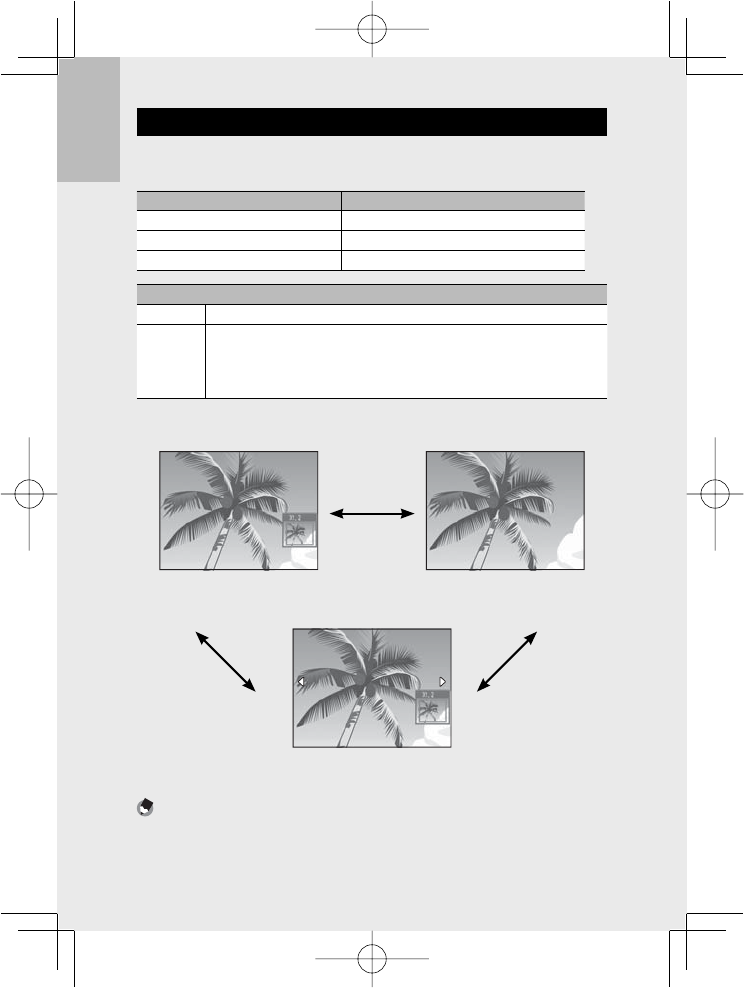

Enlarging Images
To zoom in on a photo that is currently displayed full frame, press the 8
( Enlarged view) button. Maximum magnification varies with image size.
Image Size Enlarged View (maximum magnification)
z 4 : 3 F 3.4 ×
a 4 : 3 F/a 4 : 3 N/b 4 : 3 F 6.7 ×
Image sizes other than those above
16 ×
Operations that can be performed in enlarged view
8/9Zoom in or out. Press !, ", #, or $ to view other areas of the image.
MENU/OK
If the current magnification less than 8 ×, zoom in to 8 × or to maximum
magnification, whichever is less. If the current magnification is 8 × or
more, zoom in to 16 ×. If the picture is currently displayed at maximum
magnification, pressing MENU/OK cancels zoom.
Pressing the DISP. button at this point changes the display as follows.
Last File
Last FileLast File
Last File
101-0084
101-0084
101-0084
Pressing the !"#$
buttons at this point moves
the area displayed.
Pressing the !"#$
buttons at this point moves
the area displayed.
Last File
Last FileLast File
Last File
101-0084
101-0084
101-0084
Pressing
the !"#$ buttons
at this point
displays the previous or next image enlarged.
DISP. button
Pressing and
holding the
DISP. Button
Pressing and
holding the
DISP. Button
Note -------------------------------------------------------------------------------------
• Movies cannot be enlarged.
• Cropped copies (GP.75) can not be zoomed in to the magnifications stated
above.
L7580872_0914_En.indb 40
L7580872_0914_En.indb 40
2010/09/14 17:56:35
2010/09/14 17:56:35
![](/img.php?id=1359556&img=bg2c.png)
41
If you are using the camera for the first time, read this section.
Deleting Files
You can delete files from the SD memory card or internal memory.
Note -------------------------------------------------------------------------------------
• You can use the [Recover File] function to restore needed files that you
accidentally deleted(GP.74). Note, however, that files can not be recovered
if, for example, the camera has been turned off or shooting mode has been
selected since the files were deleted.
• Files can not be deleted from SD WORM memory cards.
Deleting a File or All Files
1Press the 6 (Playback) button.
• The last file recorded is displayed.
2Press the !"#$ buttons to display the file you want to
delete.
• To select multiple pictures, use the 9 (Thumbnail view) button to
select a multi-frame view before proceeding to Step 3.
3Press the D ( Delete) button.
4Press the !" buttons to select
[Delete One] or [Delete All].
• You can change the image for deletion
with the #$buttons.
5Press the MENU/OK button.
• If [Delete All] is selected, press the #$ buttons to select [Yes] and
then press the MENU/OK button.
L7580872_0914_En.indb 41
L7580872_0914_En.indb 41
2010/09/14 17:56:36
2010/09/14 17:56:36
![](/img.php?id=1359556&img=bg2d.png)
42
If you are using the camera for the first time, read this section.
Deleting Multiple Files
You can select multiple files for simultaneous deletion either
individually or by selecting one or more ranges consisting of two
images and all photographs between them. To delete multiple files,
press the D (Delete) button in playback mode and follow the steps
below (to exit at any time without deleting images, press DISP.).
Specifying Multiple Files Separately
1Press the !" buttons to select [Delete Multi] and then
press the MENU/OK button.
• Omit this step if the camera is already in multi-frame view.
2Press the !" buttons to select [Sel. Indiv.] and then press
the MENU/OK button.
3Press the !"#$ buttons to select
the file you want to delete and
press the MENU/OK button.
• The trash symbol is displayed in the
upper left corner of the file.
• Press the ADJ./MEMO button to switch
to the display for specifying a range of
files. See Step 3 and beyond on P.43.
4Repeat Step 3 to select all the files you want to delete.
• If you selected a file by mistake, you can deselect it by selecting the
file and pressing the MENU/OK button.
• Press DISP. to cancel and return to Step 2.
5Press the D (Delete) button.
6Press the #$ buttons to select [Yes] and then press the
MENU/OK button.
Sel/Cancel
Sel/CancelSel/Cancel
Sel/Cancel
Last File
Last FileLast File
Last FileDelete
Delete
Delete
Delete
DeleteDelete
Delete
4:
3 F
3 F4:3 F
4:3 F
Sel/Cancel
Sel/CancelSel/Cancel
Sel/Cancel
Last File
Last FileLast File
Last FileDelete
Delete
Delete
Delete
DeleteDelete
Delete
4:
3 F
3 F4:3 F
4:3 F
L7580872_0914_En.indb 42
L7580872_0914_En.indb 42
2010/09/14 17:56:36
2010/09/14 17:56:36
![](/img.php?id=1359556&img=bg2e.png)
43
If you are using the camera for the first time, read this section.
Specifying a Range of Multiple Files
1Press the !" buttons to select [Delete Multi] and then
press the MENU/OK button.
• Omit this step if the camera is already in multi-frame view.
2Press the !" buttons to select [Sel. Range] and then press
the MENU/OK button.
3Press the !"#$ buttons to select
the starting point of the range of
files you want to delete and press
the MENU/OK button.
• If you make a mistake when selecting
the starting point for the range of files,
press the DISP. button to return to the
screen for selecting the starting point.
• Press the ADJ./MEMO button to switch to the display for specifying
files separately. See Step 3 and beyond on P.42.
4Press the !"#$ buttons to select
the ending point of the range of
files you want to delete and press
the MENU/OK button.
• The trash symbol is displayed in the
upper left corner of the specified files.
• Press DISP. to cancel and return to
Step 2.
5Repeat Steps 3 and 4 to specify all the ranges of files you
want to delete.
6Press the D (Delete) button.
7Press the #$ buttons to select [Yes] and then press the
MENU/OK button.
67
67
/
89
67
/
89
67
/
89Delete
DeleteDelete
Delete
4:
3 F
4:3 F
4:3 F
End
End
End Cancel
CancelCancel
Cancel
67
67
/
89
67
/
89
67
/
89Delete
DeleteDelete
Delete
4:
3 F
4:3 F
4:3 F
End
End
End Cancel
CancelCancel
Cancel
70
70
/
89
8970
/
89
70
/
89
4:
3 F
4:3 F
4:3 F
Start
StartStart
Start Delete
DeleteDelete
Delete
Delete
DeleteDelete
Delete 70
70
/
89
8970
/
89
70
/
89
4:
3 F
4:3 F
4:3 F
Start
StartStart
Start Delete
DeleteDelete
Delete
Delete
DeleteDelete
Delete
L7580872_0914_En.indb 43
L7580872_0914_En.indb 43
2010/09/14 17:56:36
2010/09/14 17:56:36
![](/img.php?id=1359556&img=bg2f.png)
44
If you are using the camera for the first time, read this section.

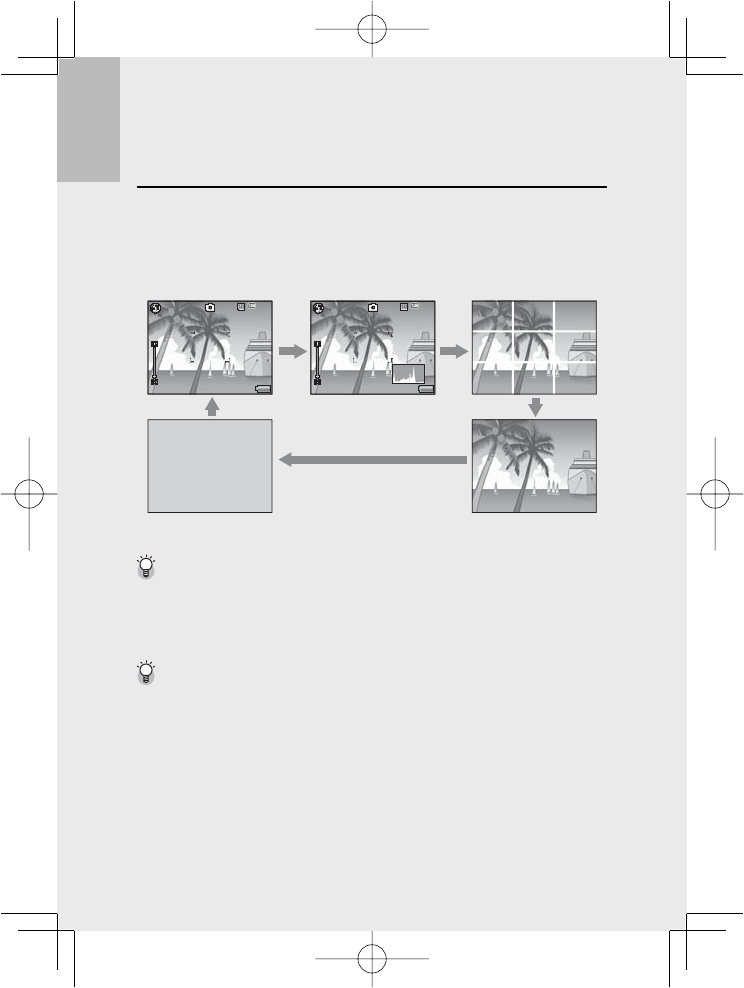

Changing the Display with
the DISP. Button
Pressing the DISP. button allows you to change the screen display
mode and toggle the information displayed on the picture display.
During Shooting Mode
4:
3 F
4:3 F
4:3 F
9999
9999
9999
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
Normal Symbol Display Histogram Display Grid Guide Display
Picture Display Off
(Synchro-Monitor Mode)
No Display

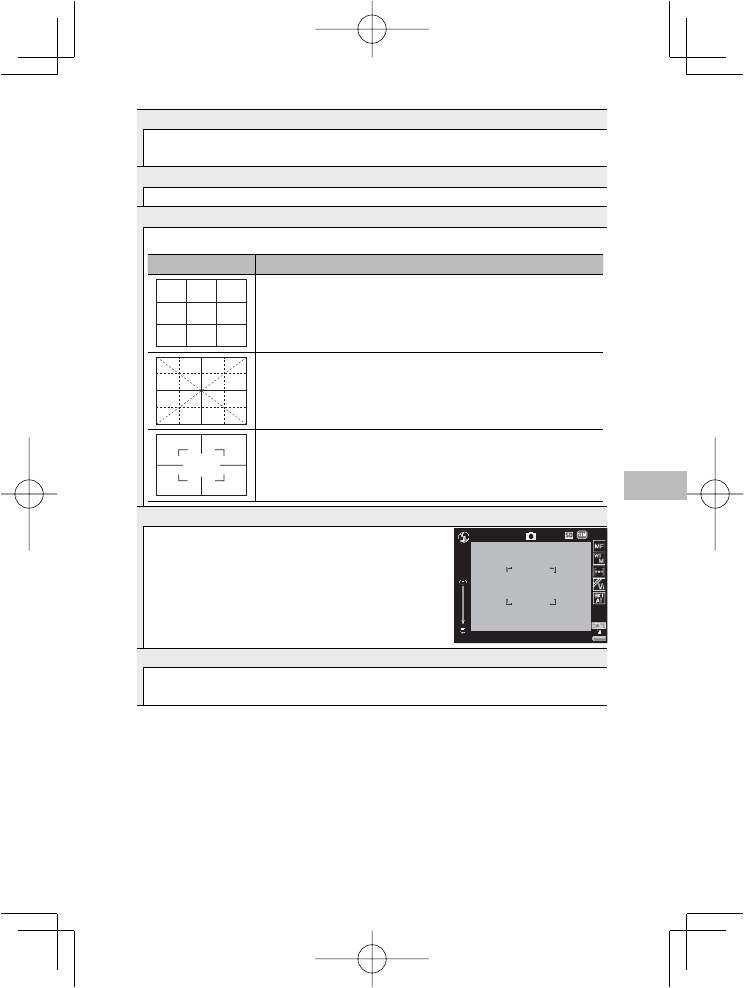

Grid Guide Display -------------------------------------------------------------------
• This displays auxiliary lines on the picture display to help you compose your
picture. These lines are not recorded with images.
• Use [Grid Guide Display Options] on the setup menu to select the grid
(GP.85).
Synchro-Monitor Mode -------------------------------------------------------------
This turns the picture display off except when the camera is operated. This is
effective for saving power consumption. The picture display turns on when the
shutter release button is pressed halfway; once a picture has been taken and the
results displayed, the picture display will turn off (this differs from the [LCD Auto
Dim] and [Monitor Auto off Delay] options in the setup menu).
L7580872_0914_En.indb 44
L7580872_0914_En.indb 44
2010/09/14 17:56:36
2010/09/14 17:56:36
![](/img.php?id=1359556&img=bg30.png)
45
If you are using the camera for the first time, read this section.
Note -------------------------------------------------------------------------------------
• When [Shooting Info. Display Frame] is set to [On] in the setup menu, the
shooting information display frame can be displayed for normal symbol display
and histogram display (GP.85).
• Histograms are not displayed in movie mode. A blinking [O] icon, the
recording time, and the time available are displayed during recording even
when indicators are hidden or the grid guide is displayed.
• When [Level Setting] is set to [Display] or [Disp + Snd] (GP.46), the level
indicator is displayed during normal symbol display and histogram display
(GP.47).
• When the picture display is off (including when the display has turned off
automatically in synchro-monitor mode), pressing any of the following buttons
turns the picture display on: the MENU/OK, ADJ./MEMO, DISP., 8, 9, 6
(Playback).

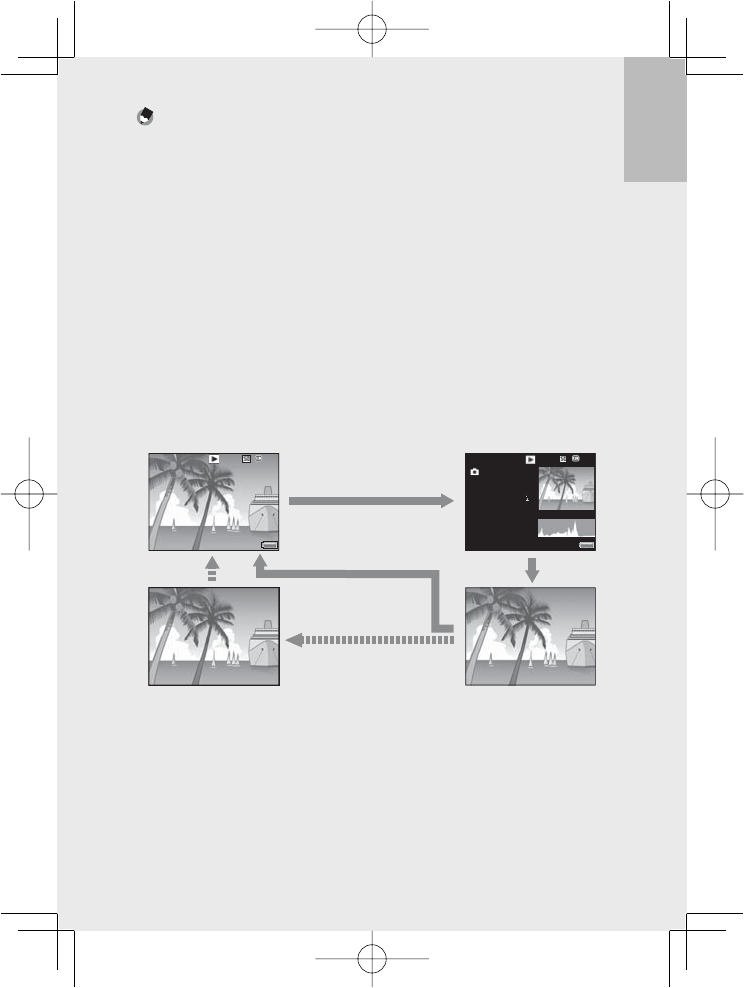

During Playback Mode
F3.5
F3.5
F3.5
0001
/
9999
0001
/
9999
0001
/
9999000-0001
000-0001
000-0001
1
/
1000
1
/
1000
1
/
1000
2010
/
01
/
01
2010
/
01
/
01
2010
/
01
/
01 0
0
0:00
00:00
00:00
4: 3 F
4:3 F
4:3 F 4
4
:
:
3 F
3 F4:3 F
4:3 F
0001
/
9999
0001
/
9999
0001
/
9999100-0001
100-0001100-0001
100-0001
2010
/
01
/
01
2010
/
01
/
01
2010
/
01
/
01 0
0
0:00
00:00
00:00
F3.5
F3.5
F3.5 1
/
1000
1
/
1000
1
/
1000
ISO 100
ISO 100
ISO 100
28
mm
28
mm
28
mm
EV
–
0.3
EV
–
0.3
EV
–
0.3
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Client
Const.type
Location
Supervisor
Affiliates
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Client
Const.type
Location
Supervisor
Affiliates
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Client
Const.type
Location
Supervisor
Affiliates
Normal Symbol
Display
Memo Display
Histogram and Detailed
Information Display
No Display
No memo present
Memo present
L7580872_0914_En.indb 45
L7580872_0914_En.indb 45
2010/09/14 17:56:36
2010/09/14 17:56:36
![](/img.php?id=1359556&img=bg31.png)
46
If you are using the camera for the first time, read this section.

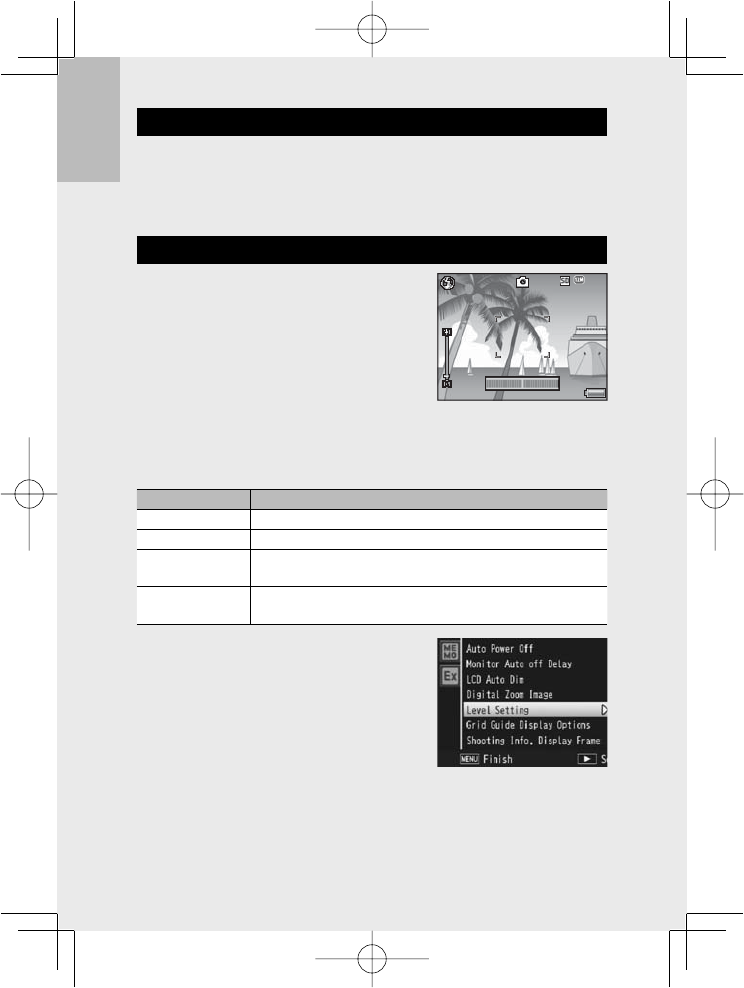

Maximizing the Picture Display Brightness
Hold the DISP. button down in shooting mode to maximize the display
brightness in shooting mode. When the brightness is at the maximum
setting, holding the DISP. button down returns the brightness to the
level set in [LCD Brightness] (GP.83).
The Level Indicator (Electronic Level)
If the level indicator is enabled using the
[Level Setting] option in the setup menu,
the camera will display an indicator and
sound a beep to help you keep the camera
level. The level indicator is displayed during
normal symbol display and histogram
display.
This is useful for keeping the image level when taking pictures of
scenery or buildings. This is also very useful for taking pictures with the
horizon visible.
Available Settings Description
Off The level indicator will not display. The level sound will not emit.
Display The level indicator will display. The level sound will not emit.
Disp + Snd The level indicator appears on the screen and a level sound is
emitted when the image is level.
Sound The level indicator will not display. A level sound is emitted
when the image is level.
1Highlight [ Level Setting] in the
setup menu (GP.82) and press $.
2Press the !" buttons to select the setting and then press
the MENU/OK button.
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
L7580872_0914_En.indb 46
L7580872_0914_En.indb 46
2010/09/14 17:56:36
2010/09/14 17:56:36
![](/img.php?id=1359556&img=bg32.png)
47
If you are using the camera for the first time, read this section.
Level indicator display
When level:
The level indicator becomes green,
indicating that the scale is in the middle. Green
When tilted to the right or left:
The mark on the level indicator becomes
orange, indicating the opposite side of the
direction in which the camera is tilted.
Orange
When the camera is tilted too far to the
right or left:
Half of the level indicator on the opposite
side of the direction in which the camera
is tilted becomes red. The mark on the
level indicator is not displayed.
Red
When the camera is tilted too far forward
or backward, or it cannot be determined
whether the camera is level:
The top and bottom of the level indicator
become red. The mark on the level
indicator is not displayed.
Red
When the camera is held vertically:
When shooting with the camera positioned vertically, the level function
can be used to determine whether the image is vertically level (the level
indicator appears in a different place).
Caution ---------------------------------------------------------------------------------
• Tilt is not shown in synchro-monitor mode or if indicators are hidden or the
framing grid is displayed (GP.44). When [Level Setting] is set to [Disp + Snd],
only the level sound is emitted.
• The level function is not available if the camera is held upside down, when
recording movies, and during interval shooting.
• The level function becomes less accurate when the camera is moving or when
shooting in an environment subject to moving, such as on a amusement ride.
• No level sound is emitted when [Level Setting] is set to [Disp + Snd] or [Sound]
and [Volume Settings] is set to [] (Mute) (GP.84).
• Use this function as a reference to see if images are level when shooting
images. The accuracy of the level when using the camera as a level cannot be
guaranteed.
L7580872_0914_En.indb 47
L7580872_0914_En.indb 47
2010/09/14 17:56:36
2010/09/14 17:56:36
![](/img.php?id=1359556&img=bg33.png)
48
If you are using the camera for the first time, read this section.
About the Histogram Display
When Histogram is on, a histogram appears
in the lower right corner on the picture
display. A histogram is a graph indicating
the number of pixels on the vertical axis
and the brightness on the horizontal axis
(from left to right, shadows (dark areas),
midtones, and highlights (bright areas)).
By using the histogram, you can determine the brightness of an image
without being affected by the brightness around the picture display.
This also helps you correct for areas that are overly bright or dark.
If the histogram has only peaks on the
right side, this picture is overexposed
with too many pixels only for highlight
sections.
If the histogram has only peaks on the left
side without anything else, this picture
is underexposed with too many pixels
only for shadow sections. Refer to this
histogram when correcting the exposure.
Note -------------------------------------------------------------------------------------
• The histogram displayed on the picture display is for reference only.
• After taking a picture, you can correct its brightness and contrast by making
adjustments to the histogram (GP.77).
• Depending on the shooting conditions (use of the flash, dark surrounding light,
etc.), the exposure level indicated in the histogram may not correspond to the
brightness of the shot image.
• Exposure compensation has its limitation. It does not necessarily achieve the
best possible result.
• A histogram with peaks in the center may not necessarily provide the best result
to suit your particular requirements. For example, an adjustment is required if
you want to underexpose or overexpose the image.
• For information on how to correct the exposure compensation, see P.69.
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
L7580872_0914_En.indb 48
L7580872_0914_En.indb 48
2010/09/14 17:56:37
2010/09/14 17:56:37
![](/img.php?id=1359556&img=bg34.png)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Advanced
Operations
Read this section when
you want to learn more
about the different camera
functions.
1 ADJ. Button Functions ...................50
2 Taking Pictures in Scene Mode ......52
3 Shooting and Viewing Movies .......55
4 Memos ............................................57
5 Using Custom Help .........................59
6 Shooting Menu ...............................62
7 Playback Menu ...............................72
8 Setup Menu ....................................82
9 Camera Memo Menu ......................94
10 Expanded Settings Menu ...............98
11 Bluetooth® ....................................105
12 Wireless Networks ........................112
13 GPS ...............................................136
14 Barcode Reader ............................142
15 Direct Printing ..............................144
16 Copying Pictures to a Computer via
USB ...............................................149
17 Appendices ...................................159
L7580872_0914_En.indb 49
L7580872_0914_En.indb 49
2010/09/14 17:56:37
2010/09/14 17:56:37
![](/img.php?id=1359556&img=bg35.png)
50

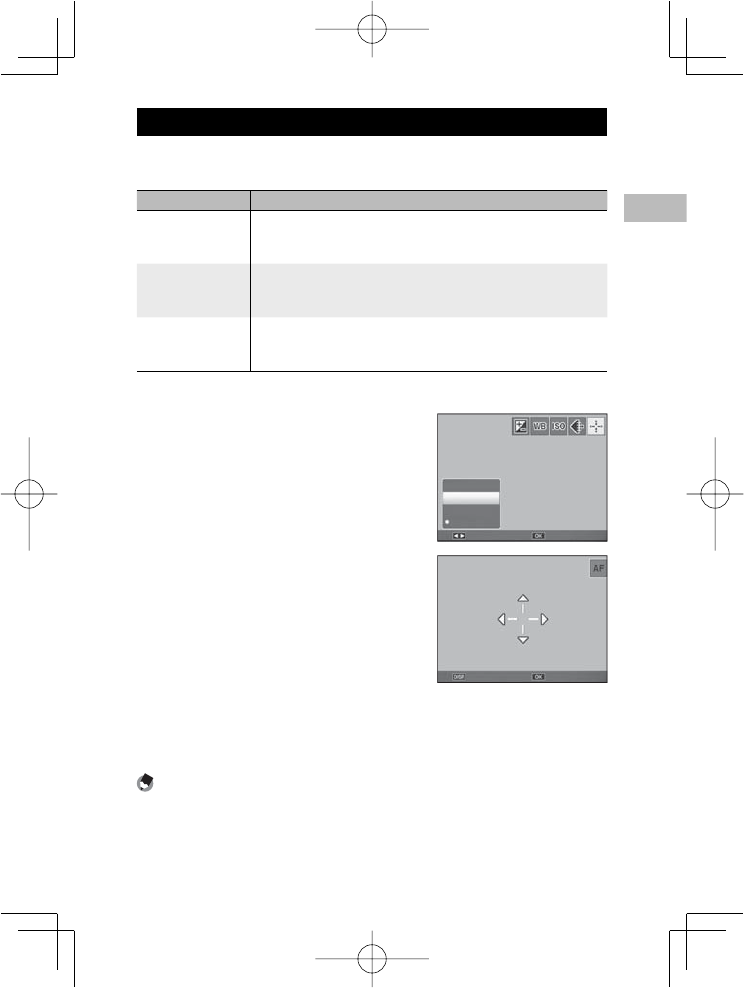

ADJ. Button Functions
1
1 ADJ. Button Functions
The ADJ./MEMO button has the following functions.
1 Assigning four functions from the shooting menu (ADJ. mode)
2 Shifting the AE and AF targets
3 Memos (GP.57)
Selecting Shooting Menu Options Assigned
to the ADJ./MEMO Button
You can assign four functions from the shooting menu to the ADJ./
MEMO button (ADJ. mode). The fifth function is fixed to AE/AF target
shift (GP.51) and cannot be changed.
ADJ. mode gives you quick access to settings by pressing a few
buttons rather than via the menus. It is recommended for options you
find yourself using frequently.
1Set the functions you want to assign to the ADJ./MEMO
button with [ ADJ Button Setting 1/2/3/4] on the setup
menu.
• At the time of purchase, four of the functions are assigned. You can
change the assigned functions.
2Press the ADJ./MEMO button in
shooting mode.
• The ADJ. mode screen appears.
AE/AF
AF
AE
Off
AE/AF
AF
AE
Off
Move Slctn
Move Slctn
Finish
3Press the #$buttons to select the desired item.
4Press the !" buttons to select the setting and then press
the MENU/OK button to confirm the setting.
Note -------------------------------------------------------------------------------------
• For functions that can be assigned to the ADJ./MEMO button, see P.170.
• When using a camera memo, the ADJ. mode is disabled.
L7580872_0914_En.indb 50
L7580872_0914_En.indb 50
2010/09/14 17:56:37
2010/09/14 17:56:37
![](/img.php?id=1359556&img=bg36.png)
51
ADJ. Button Functions
1
Shifting the AE and AF Targets
You can shift the target for automatic exposure (AE) and/or auto focus
(AF).
Available Setting Description
AE/AF AE and AF are set to Spot AE and Spot AF respectively and the
target can be moved for both simultaneously (The targets for
Spot AE and Spot AF occupy the same position).
AF The AF is set to Spot AF and the target can be moved. The
exposure metering is set to the mode selected in [Exposure
Metering] (GP.63) in the shooting menu.
AE The AE is set to Spot AE and the target can be moved. The focus
is set to the mode selected in [Focus] (GP.63) in the shooting
menu.
1Select 5/V mode and press ADJ./MEMO.
2Press the #$ buttons to select P.
3Press the !" buttons to select the
setting and then press the MENU/
OK or ADJ./MEMO button.
• The target shift screen appears.
AE/AF
AF
AE
Off
AE/AF
AF
AE
Off
Move Slctn
Move Slctn
Finish
4Press the !"#$ buttons to
position the target over the subject
that will be used to set focus or
exposure.
• Pressing the DISP. button returns the
display to the screen in Step 2.
Select
Select
OΚ
5Press MENU/OK or ADJ./MEMO.
6Press the shutter release button halfway and then gently
press it the rest of the way down.
Note -------------------------------------------------------------------------------------
• In scene mode, the target icon (P) changes to U. The focus target for macro
mode can be selected as described above.
•
This function is not available when [MF] is selected for [Focus] (GP.63).
L7580872_0914_En.indb 51
L7580872_0914_En.indb 51
2010/09/14 17:56:37
2010/09/14 17:56:37
![](/img.php?id=1359556&img=bg37.png)
52
Taking Pictures in Scene Mode
2
2 Taking Pictures in Scene Mode
Scene Mode Options
You can use scene mode to select from among
five still image modes and movie, and shoot with
settings automatically optimized for shooting
conditions.
High Sens
Use when taking pictures in dimly lit places. The picture display also
becomes brighter.
Firefighting
Use to capture images under difficult conditions such as the scene
of a fire. The focal length is fixed to 2.5 m, allowing you to take clear
pictures in a situation where the auto focus would normally produce
blurred images due to flames, smoke and water vapor. Increasing the
ISO sensitivity extends the range of the flash, and prevents camera
shake by controlling the shutter speed even when the flash is not
used. The sharpness level is also increased in this mode and the
picture display becomes brighter and is suited for firefighting.
Skew Correct
Mode
Reduce the effects
of perspective when
photographing
rectangular objects, such
as message boards or
business cards.
For detailed operations, see P.54. Image size can be set to [a 4 : 3 F],
[a 4 : 3 N], or [z 4 : 3 F] using the [Picture Quality/Size] option
(GP.63) in the shooting menu (GP.62).
Text Mode
Use when capturing text images, for example notes written on a
whiteboard at a meeting. Images are captured in black and white.
Image size can be set to [l 4 : 3] or [c 4 : 3] using the [Size] option
(GP.63) in the shooting menu (GP.62).
Zoom Macro
The camera automatically zooms to the optimal zoom position to
shoot at a higher magnification than in normal macro shooting.
Optical zoom can not be used. Macro mode is selected automatically.
Movie
Allows you to shoot movies with sound. For detailed operations, see
P.55.
L7580872_0914_En.indb 52
L7580872_0914_En.indb 52
2010/09/14 17:56:37
2010/09/14 17:56:37
![](/img.php?id=1359556&img=bg38.png)
53
Taking Pictures in Scene Mode
2
Caution ---------------------------------------------------------------------------------
When using [Zoom Macro], you can shoot close-ups within the following
distances:
Minimum Shooting Distance
(from the front of the lens)
Shooting Range
Approx. 1 cm Approx. 14.8 mm × 11.1 mm
(when digital zoom is not used)
Approx. 3.7 mm × 2.8 mm
(when 4.0 × digital zoom is used)
Selecting a Scene Mode
1Turn the mode dial to W.
• The camera is ready to shoot and the
selected scene mode is displayed at the
top of the picture display.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
2Press the MENU/OK button to
change the scene mode.
• The scene mode selection screen
appears.
3Select a scene mode.
4Press the MENU/OK button.
• The scene mode type is displayed at
the top of the picture display.
5Press the shutter release button to
shoot the picture.
Changing the shooting menu or setup menu setting in scene mode ----
Press the MENU/OK button in shooting mode and then press the # button to
select [MODE] tab. You can then press " once to display the shooting menu,
twice to display the setup menu.
L7580872_0914_En.indb 53
L7580872_0914_En.indb 53
2010/09/14 17:56:37
2010/09/14 17:56:37
![](/img.php?id=1359556&img=bg39.png)
54
Taking Pictures in Scene Mode
2
Using Skew Correction Mode
1Select [Skew Correct Mode] in the scene mode menu and
press the MENU/OK button.
2Press the shutter release button to shoot the picture.
• The display indicates that the image is being processed, and then
the area recognized as the correction range is displayed with an
orange frame. Up to five areas can be recognized.
• If the target area cannot be detected, an error message appears. The
original image remains unchanged.
• To select another correction area, move the orange frame to the
target area by pressing the $ button.
• To cancel skew correction, press the ! button. Even if you cancel
skew correction, the original image remains unchanged.
3Press the MENU/OK button.
• The display indicates that the image is being corrected, and then the
corrected image is recorded. The original image remains unchanged.
Note -------------------------------------------------------------------------------------
You can also correct the skew of a previously shot still image (GP.78).
Caution ---------------------------------------------------------------------------------
When [Skew Correct Mode] is selected, note the following:
• To shoot the subject as large as possible, position it so that the entire portion
of the subject is visible on the picture display.
• The camera may fail to recognize the subject in the following cases:
- When the image is out of focus
- When four edges of the subject are not clearly visible
- When it is hard to distinguish between the subject and background
- When the background is complicated
• Two images, one before correction and the other after correction, are
recorded. If the number of remaining shots is less than two, you cannot shoot
the subject.
• The correction area may not be detected properly if the [Date Imprint]
function is activated.
L7580872_0914_En.indb 54
L7580872_0914_En.indb 54
2010/09/14 17:56:38
2010/09/14 17:56:38
![](/img.php?id=1359556&img=bg3a.png)
55
Shooting and Viewing Movies
3
3 Shooting and Viewing Movies
Shooting Movies
Select [Movie] in the scene mode menu to record movies with sound.
Frame size can be selected as described on P.63. Each movie you shoot
is recorded as an AVI file.
Press the shutter release button to start
recording. The [O] icon will blink. To
zoom in or out using digital zoom, press
z or Z (GP.33). The recording time
and time available are displayed during
recording. Press the shutter release button
again to end recording.
640
640
640
00 :
00
00
/
00 :
02
00: 00
/
00: 02
00:00
/
00:02
Shutter button : Stop
Shutter button : StopShutter button : Stop
Shutter button : Stop
Caution ---------------------------------------------------------------------------------
• While shooting movies, operation sounds may be recorded.
• Movies may be up to 4 GB in size. The maximum length is 12 minutes for
movies recorded at a [Movie Size] of [x 1280] and 29 minutes for movies
recorded at [z 640] or [y 320]. Depending on the type of memory card used,
shooting may end before this length is reached. The maximum total length of
all movie files that can be stored depends on the capacity of the memory card
(GP.174).
• Flicker may be visible in movies recorded under fluorescent lights.
Note -------------------------------------------------------------------------------------
• The remaining recording time may not change uniformly because it is
recalculated from the remaining memory capacity during movie recording.
• Depending on the remaining battery level, the battery may become depleted
during movie shooting. Use of a battery with adequate remaining power is
recommended.
• An SD/SDHC memory card with a Speed Class of 6 or better is recommended
when recording movies with [x1280] selected for [Movie Size] (GP.63).
L7580872_0914_En.indb 55
L7580872_0914_En.indb 55
2010/09/14 17:56:38
2010/09/14 17:56:38
![](/img.php?id=1359556&img=bg3b.png)
56
Shooting and Viewing Movies
3
Playing Back Movies
To play back movies, follow the steps below.
1Select the movie you want to play
back in playback mode.
2Press the ADJ./MEMO button.
• Playback begins. The elapsed playback
indicator or the elapsed time is
displayed on the screen.
640
640
640
0001
/
9999
0001
/
9999
0001
/
9999
*RMOV0001
*RMOV0001
*RMOV0001
: Start
: Start: Start
: Start
10
10
:05
10:05
10:05
2010
/
01
/
01 00
01 00:
00
2010
/
01
/
01 00:00
2010
/
01
/
01 00:00
Fast Forward Press the z button during playback.
Rewind Press the Z button during playback.
Pause/Playback Press the ADJ./MEMO button.
Slow Playback Press and hold the z button during pause.
Slow Rewind Press and hold the Z button during pause.
Next Frame Press the z button during pause.
Previous Frame Press the Z button during pause.
Volume Adjustment Press the !" buttons during playback.
L7580872_0914_En.indb 56
L7580872_0914_En.indb 56
2010/09/14 17:56:38
2010/09/14 17:56:38
![](/img.php?id=1359556&img=bg3c.png)
57

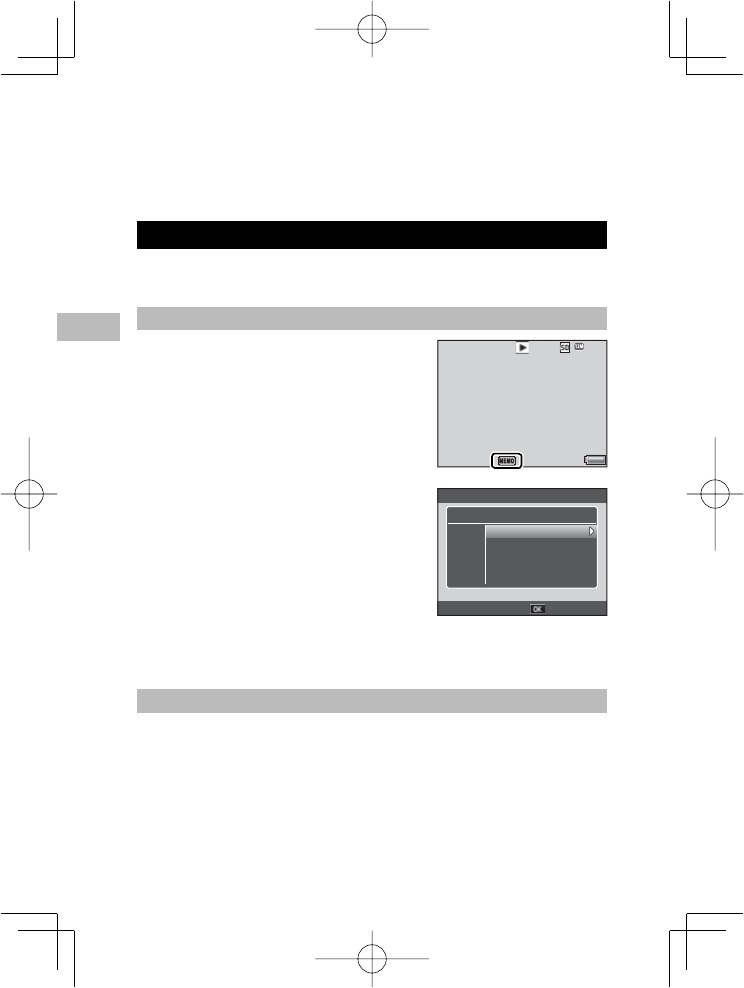

Memos
4
4 Memos
For information on creating, transferring, and configuring memo lists,
see the supplied “Software User Guide”.
Image files created with the camera contain fields that can be used
to store information about the image. The camera memo function
employs these fields for memos that can be used to identify and
classify photos. Read this section for basic information on using
memos.
Caution ---------------------------------------------------------------------------------
• Memos can not be added to movies.
• SD WORM memory cards do not support memos.
• Note that the presence of commas, multiple periods, or any of the following
characters may corrupt the display of item names in Russianlanguage operating
systems: \ / : ? * " < > |
Adding Memos to New Photos
This section describes how to create memos from an existing memo
list that has been transferred to the camera.
1Select 5/V mode and press
ADJ./MEMO.
• The camera memo dialog will be
displayed.
2Create a memo.
• If [Mode1] is selected for [Camera
Memo Mode] (GP.95) in the camera
memo menu, press ! or " to highlight
an item, and then press $ and press
! or " to choose a description.
If [Mode2] is selected, press # or
$ to choose from pre-existing
combinations.
FileName/SAMPLE
FileName/SAMPLE
Camera Memo
Camera Memo
1/2
1/2
FILE LIST
FILE LIST Memo On
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Client
Const.type
Location
Supervisor
Affiliates
Client
Const.type
Location
Supervisor
Affiliates
Company A
Company A
Items Descriptions
FileName/SAMPLE
FileName/SAMPLE
Camera Memo
Camera Memo
1/2
1/2
FILE LIST
FILE LIST Memo On
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Client
Const.type
Location
Supervisor
Affiliates
Client
Const.type
Location
Supervisor
Affiliates
Company A
Company A
Items Descriptions
L7580872_0914_En.indb 57
L7580872_0914_En.indb 57
2010/09/14 17:56:38
2010/09/14 17:56:38
![](/img.php?id=1359556&img=bg3d.png)
58
Memos
4
3Press MENU/OK.
• Press MENU/OK to accept the current memo.
4Take photographs.
• The memo will be added to all new photos.
Viewing Memos
The process for viewing memos varies with the option selected for
[Camera Memo Mode] (GP.95) in the camera memo menu.
Mode1
1Display the desired photo in
playback mode.
• Photographs to which memos have
been added are indicated by a “MEMO”
icon.
F3.5
F3.5
F3.5
0001
/
9999
0001
/
9999
0001
/
9999000-0001
000-0001000-0001
000-0001
1
/
1000
1
/
1000
1
/
1000
2010
/
01
/
01
2010
/
01
/
01
2010
/
01
/
01 0
00:
00
00: 00
00: 00
4:
3 F
4:3 F
4:3 F
2Press ADJ./MEMO.
• The memo will be displayed as
shown at right. Press ! or " to view
additional data. If desired, the memo
can be edited as described on P.29 of
the “Software User Guide”.
FileName/SAMPLE
FileName/SAMPLE
Camera Memo
Camera Memo
1/2
1/2
Memo On
Memo On
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Client
Const.type
Location
Supervisor
Affiliates
Client
Const.type
Location
Supervisor
Affiliates
Company A
Company A
3Press MENU/OK.
• Press MENU/OK to return to normal playback.
Mode2
Memos can be displayed only by pressing DISP. during playback
(GP.45); memos can not be edited.
L7580872_0914_En.indb 58
L7580872_0914_En.indb 58
2010/09/14 17:56:38
2010/09/14 17:56:38
![](/img.php?id=1359556&img=bg3e.png)
59
Using Custom Help
5
5 Using Custom Help
Pressing DISP. when [On] is selected for [Custom Help] (GP.104) in
the expanded settings menu (GP.98) displays previously-selected
JPEG images (“custom help”). Custom help is available in the shooting
(GP.62) and playback (GP.72) menus.
Creating Custom Help
The JPEG images must first be copied to a memory card and then
copied from the card to the camera’s internal memory.
1Ready a memory card.
• Connect the camera or a memory card reader to the computer and
insert a memory card that has been formatted in the camera.
2Copy the images to the [IMPORT] folder.
• Copy the JPEG images to the [IMPORT] folder on the memory card.
Be sure that the folder contains no more than 99 images.
3Disconnect the camera or card reader.
• Disconnect the device as described on P.156. If you are using a card
reader, remove the memory card and insert the card in the camera
(GP.27).

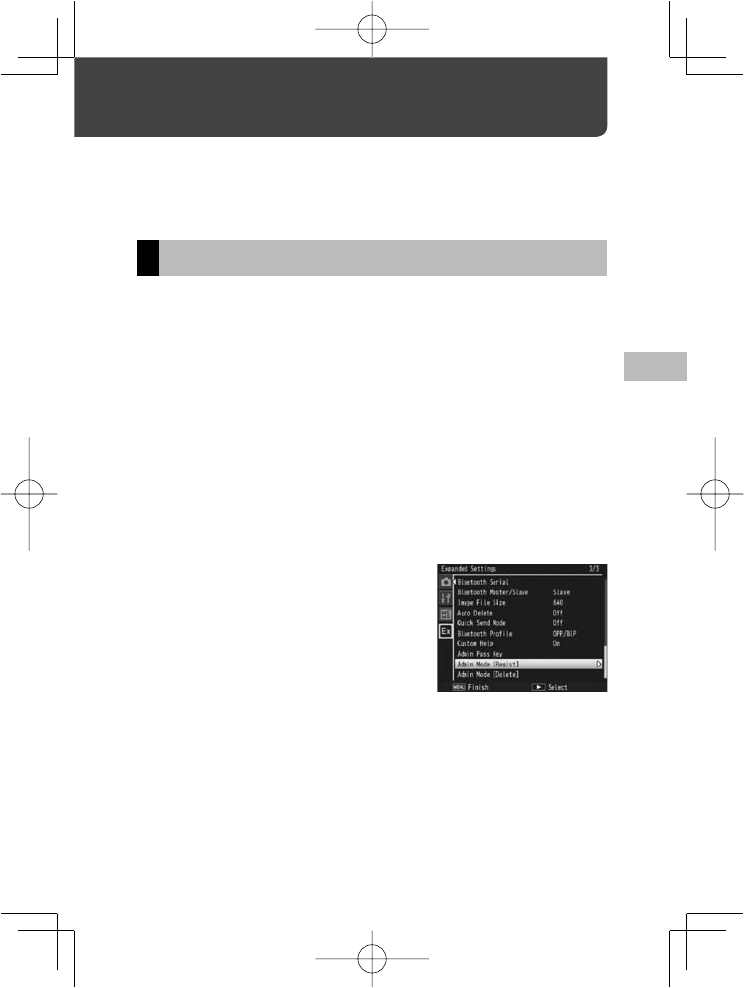

4Select [Admin Mode [Regist]].
• Highlight [Admin Mode [Regist]] in the
expanded settings menu (GP.98) and
press $. You will be prompted to enter
a password.
5Enter a password.
• Enter the password created using the [Admin Pass Key] option
(GP.104) in the expanded settings menu (GP.98; the default
password is “0000”) and press ADJ./MEMO (for information on
entering a password, see P.91). A confirmation dialog will be
displayed if the password is correct; entering an incorrect password
returns you to the expanded settings menu.
L7580872_0914_En.indb 59
L7580872_0914_En.indb 59
2010/09/14 17:56:39
2010/09/14 17:56:39
![](/img.php?id=1359556&img=bg3f.png)
60
Using Custom Help
5

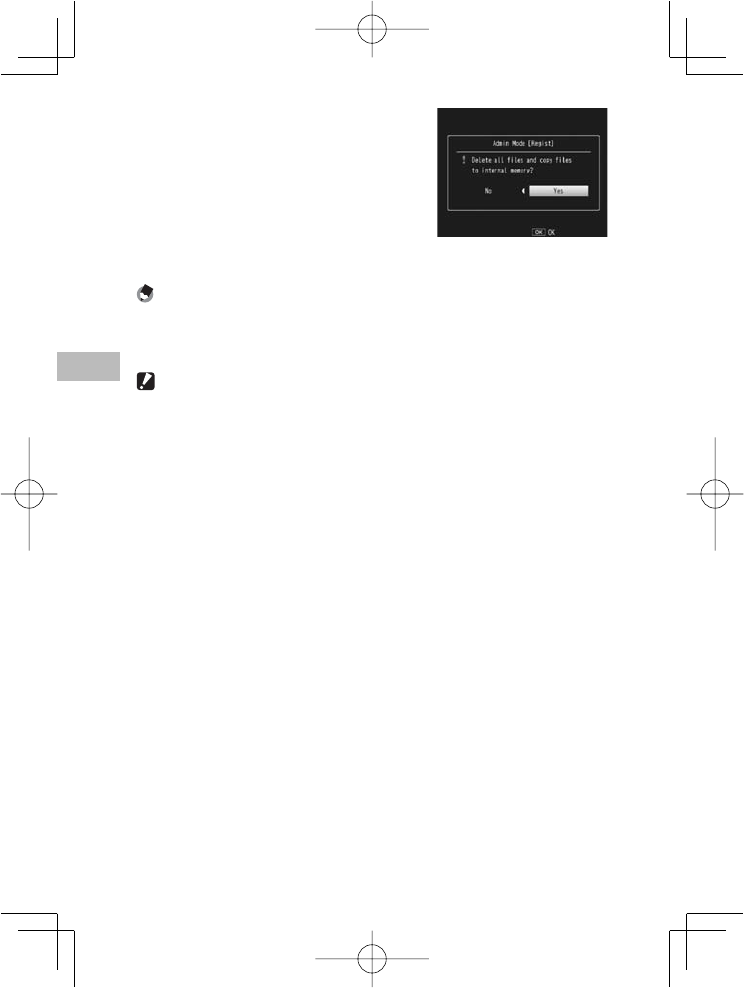

6Select [Yes].
• Highlight [Yes] and press MENU/OK to
copy the images to internal memory
and return to the expanded settings
menu. If memory is insufficient, a
warning will be displayed and copying
will be interrupted. Any custom help
images copied to that point will remain
in internal memory.
Note -------------------------------------------------------------------------------------
• Any existing custom help in internal memory is overwritten.
• Custom help can not be copied to a memory card using the [Copy to Card from
Internal Memory] option (GP.73) in the playback menu (GP.72).
Caution ---------------------------------------------------------------------------------
The images used for custom help must conform to the following:
• Color space: YCbCr 4 : 2 : 2 or 4 : 2 : 0
• Dimensions (W × H): From 32 × 32 to 4000 × 3000 pixels, where the width
is a multiple of 16 and the height a multiple of 8 (YCbCr 4 : 2 : 2) or 16 (YCbCr
4 : 2 : 0)
• File size: 12 MB or less
• File name: A four-character prefix followed by a four-digit number and the
extension “.jpg” (e.g., “PLAY0001.jpg”)
L7580872_0914_En.indb 60
L7580872_0914_En.indb 60
2010/09/14 17:56:39
2010/09/14 17:56:39
![](/img.php?id=1359556&img=bg40.png)
61
Using Custom Help
5
Viewing Custom Help
1Display the menus.
• Press MENU/OK to display the shooting or playback menu.
2Press DISP.
• Custom help is displayed in
ascending order by file name. Press
# or $ to page through help one file
at a time, or ! or " to skip ten files
forward or back. Custom help can
be displayed twenty files at a time
(GP.38) or viewed in enlarged view
(GP.40), but can not be displaying
using the 6 button or deleted by pressing D. Use [Admin Mode
[Delete]] (GP.104) to delete custom help.
3Exit.
• Press DISP. to return to the menus or press the shutter release button
halfway or rotate the mode dial to exit to shooting mode.
Deleting Custom Help---------------------------------------------------------------
To delete custom help, select [Admin Mode [Delete]] (GP.104) in the expanded
settings menu (GP.98) and use the D button as described on P.41.
If you are using the camera for the first time, read
t
How to Use the Mode Dial
Set the mode dial to
the desired mode
before shooting still
images or movies.
Mode Dial Symbols and Descriptions
Symbol Function Description Refer to
V
CALS Mode Quality and size are adjusted to
produce photographs suitable for
public works photography. Picture
quality and size can be selected
from six options using the [CALS
Pic Quality] item in the setup menu
(GP. 87).
P. 3 7
If you are using the camera for the first time, read
t
How to Use the Mode Dial
Set the mode dial to
the desired mode
before shooting still
images or movies.
Mode Dial Symbols and Descriptions
Symbol Function Description Refer to
V
CALS Mode Quality and size are adjusted to
produce photographs suitable for
public works photography. Picture
quality and size can be selected
from six options using the [CALS
Pic Quality] item in the setup menu
(GP. 87).
P. 3 7
L7580872_0914_En.indb 61
L7580872_0914_En.indb 61
2010/09/14 17:56:39
2010/09/14 17:56:39
![](/img.php?id=1359556&img=bg41.png)
62
Shooting Menu
6
6 Shooting Menu
The shooting menu is used to adjust camera settings when taking
pictures. To display the shooting menu, press the MENU/OK button
when the camera is in shooting mode.
Using the Menu
1Press the MENU/OK button in
shooting mode.
• The shooting menu is displayed.
• In scene mode, press # to highlight
the [MODE] tab, press " once to
highlight the shooting menu tab,
and press $ to place the cursor in
the shooting menu. Indicates the range of displayed
screens.
2Press the !" buttons to select the
desired menu item.
• If the DISP. button is pressed at this
point, the cursor moves to the shooting
menu tab.
• Press the " button at the bottom item
to display the next screen.
3Press the $ button.
• The menu item settings are displayed.
4Press the !" buttons to select the
setting.
5Press the MENU/OK button.
• The setting is confirmed, the shooting menu disappears and the
camera is ready to shoot.
• To select the highlighted option and return to the menu shown in
Step 2, press the # button.
L7580872_0914_En.indb 62
L7580872_0914_En.indb 62
2010/09/14 17:56:39
2010/09/14 17:56:39
![](/img.php?id=1359556&img=bg42.png)
63
Shooting Menu
6
Shooting Menu Options
Density
Adjust contrast when using the [Text Mode] option in scene mode.
Size GP.174
Choose the size of pictures taken using the [Text Mode] option in scene mode.
Movie Size GP.174
Choose the movie frame size.
Picture Quality/Size GP.174
Adjust picture quality and size when taking pictures.
Focus GP.67
Choose a focusing mode.
—Multi AF
Measures the distances from nine AF areas and focuses to the nearest AF
area. Choose to prevent out-of-focus photos.
—Spot AF
Selects one AF area at the center of the picture display to allow the camera
to focus on this area automatically.
MF
Enables you to adjust the focus manually (GP.67).
Snap
Fixes the shooting distance to a short distance (approx. 2.5 m (8.2 ft.)).
∞ (Infinity)
Fixes the shooting distance to infinity. It is useful for shooting distant scenes.
Exposure Metering
You can change the metering method (the range to use for metering) used to
determine the exposure value.
—Multi
The entire shooting range is divided into 256 partitions, and each is metered
to determine the overall exposure value.
Center
The entire image is metered, with emphasis on the center, to determine
the exposure value. Use this when the brightness of the center and
surroundings are different.
Spot
Only the center of the image is metered to determine the exposure value.
Use this setting when you want to use the brightness at the center. This is
useful if there is a marked difference in contrast or backlighting.
L7580872_0914_En.indb 63
L7580872_0914_En.indb 63
2010/09/14 17:56:39
2010/09/14 17:56:39
![](/img.php?id=1359556&img=bg43.png)
64
Shooting Menu
6
Continuous Mode
The camera records photographs one after the other
while the shutter release button is pressed. Select
[Off] to take one photo each time the shutter release
button is pressed.
Caution ------------------------------------------------------------------------------
• Focus and exposure value are locked.
• The number of images that can be shot in continuous mode depends on the
image size setting.
• When [Card Sequence No.] is set to [On] (GP.86) and the last four digits of
the file number exceed “9999” during continuous shooting, a separate folder
is created in the SD memory card and successive pictures taken in continuous
mode are stored in this folder.
• The maximum number of consecutive shots that can be taken using
continuous mode is 999.
Image Settings
Adjust contrast, sharpness, and vividness.
Vivid
Take strong, vivid photos with heightened contrast, sharpness, and
vividness.
—Standard
Creates an image with normal picture quality.
Black & White
Creates a black and white picture.
Auto Bracket GP.68
Vary exposure or white balance over a series of pictures.
Time Exposure
Use time exposures to capture fireworks as they rise into the air and explode,
to create trails of light behind cars and other moving objects, or to shoot night
scenery. Choose the exposure time from [Off], [1 second], [2 seconds], [4 seconds],
and [8 seconds].
Note ----------------------------------------------------------------------------------
• The shutter speed may slow down and images may be blurred. Hold the
camera steady by using a tripod when shooting.
• The picture display turns off while shooting.
L7580872_0914_En.indb 64
L7580872_0914_En.indb 64
2010/09/14 17:56:39
2010/09/14 17:56:39
![](/img.php?id=1359556&img=bg44.png)
65
Shooting Menu
6
Interval Shooting
Take photos automatically at intervals ranging
from five seconds to three hours in five-second
increments.
Hours Minutes Seconds
Caution ------------------------------------------------------------------------------
• The interval shooting setting is cleared when the camera is turned off.
• The time until the next picture can be taken according to the shooting menu
setting may be longer than the time set for interval shooting. If this is the case,
the shooting interval becomes longer than the set time.
Note ----------------------------------------------------------------------------------
• Depending on the remaining battery level, the battery may become depleted
during interval shooting. Use of a battery with adequate remaining power is
recommended.
• If you press the shutter release button during interval shooting, the camera
shoots as usual.
• A high speed memory card or a SD memory card with sufficient memory is
recommended.
Camera Shake Correction
Select [On] to reduce the effects of camera shake.
Caution ------------------------------------------------------------------------------
• The camera shake correction function cannot prevent movement of the
shooting subject (caused by wind, etc.).
• Results vary with shooting conditions.
Note ----------------------------------------------------------------------------------
The J symbol appears when camera shake is likely to occur (GP.20).
Date Imprint
You can insert the date (YY/MM/DD) or the date and time (YY/MM/DD hh:mm) at
the lower right of a still image. Select [Off] to turn date imprint off.
Note ----------------------------------------------------------------------------------
• Make the date and time settings in advance (GP.30).
• [Date Imprint] cannot be used with movies.
• The date imprinted in an image cannot be deleted.
Exposure Compensation GP.69
Choose exposure compensation.
L7580872_0914_En.indb 65
L7580872_0914_En.indb 65
2010/09/14 17:56:40
2010/09/14 17:56:40
![](/img.php?id=1359556&img=bg45.png)
66
Shooting Menu
6
White Balance GP.70
Adjust the white balance.
ISO Setting GP.71
Adjust ISO sensitivity.
Edit Detection
If pictures taken with [On] selected for this option are transferred to a computer,
changes made after the images were recorded can be detected using image
authentication software, including the supplied EC1 application.
Caution ------------------------------------------------------------------------------
• Recording times increase when [On] is selected.
• Changes made using the [Resize], [Contrast Correction], and [Skew Correction]
options in the playback menu will be detected by image authentication
software.
Restore Defaults
Select [Yes] and press the MENU/OK button to restore shooting menu settings to
their default values.
Shooting menu options ------------------------------------------------------------
The options displayed in the shooting menu vary with the selected shooting
mode. In scene mode, the options displayed vary with the selected scene. See
P.169 for more information.
L7580872_0914_En.indb 66
L7580872_0914_En.indb 66
2010/09/14 17:56:40
2010/09/14 17:56:40
![](/img.php?id=1359556&img=bg46.png)
67
Shooting Menu
6

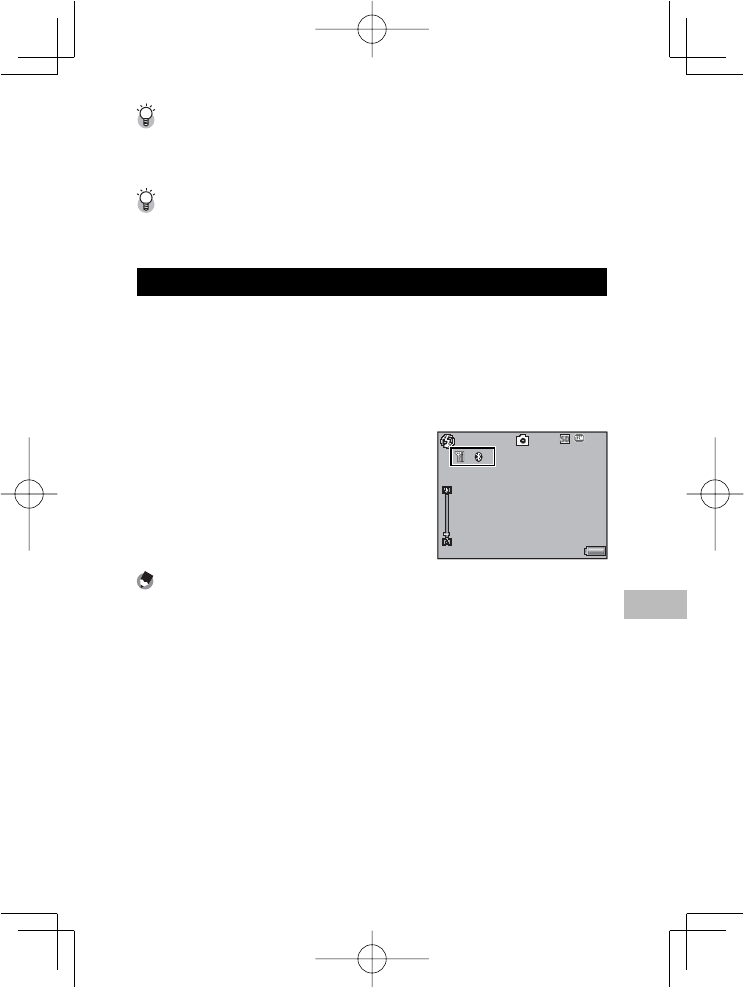

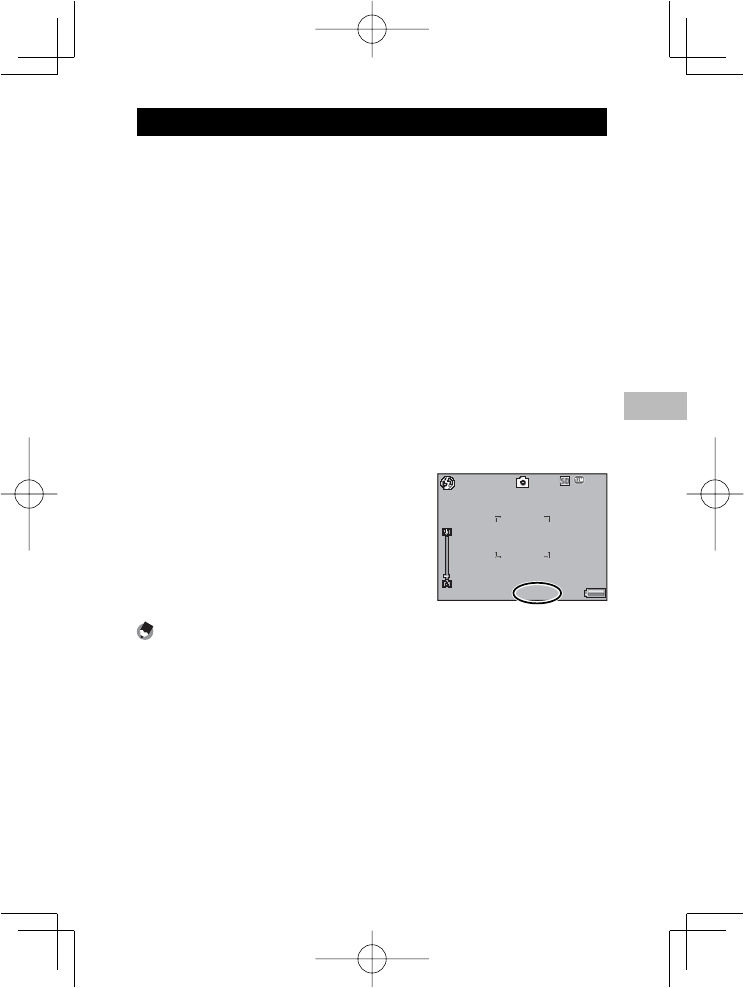

Focus
Manual Focus (MF)
Manual focus (MF) can be used to focus
at a selected distance when the camera is
unable to focus using autofocus. A focus
bar is displayed in the picture display.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
Hold :
Hold :
Hold :
1Press and hold the MENU/OK button as required.
• Pressing and holding the MENU/OK button increases the
magnification only at the center of the screen.
• Pressing and holding the MENU/OK button again returns from
enlarged view to normal view.
2Adjust the zoom position with the zZ buttons as required.
3Press the !" buttons to adjust the focus.
• Pressing the ! button adjusts the focus to farther objects and
pressing the " button adjusts the focus to closer objects.
4Press the shutter release button to shoot the picture.
Note -------------------------------------------------------------------------------------
You can also use manual focus to focus on objects within the macro shooting
range.
L7580872_0914_En.indb 67
L7580872_0914_En.indb 67
2010/09/14 17:56:40
2010/09/14 17:56:40
![](/img.php?id=1359556&img=bg47.png)
68
Shooting Menu
6

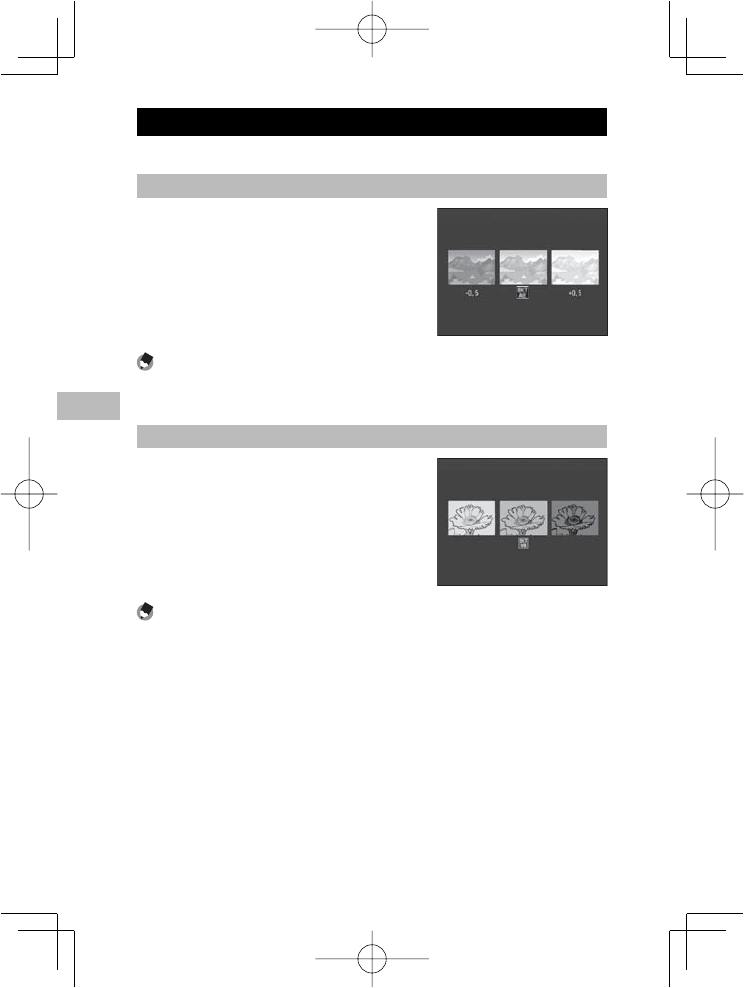

Auto Bracket
Choose the type of bracketing performed.
Auto Bracket
If [On] is selected, the camera will take
three photos each time the shutter release
button is pressed: one underexposed
by 0.5 EV, a second at current exposure
settings, and a third overexposed by 0.5 EV.
An icon is displayed when [On] is selected.
Recording
RecordingRecording
Recording
Note -------------------------------------------------------------------------------------
The exposure compensation can be changed using the shooting menu
(GP.69).
White Balance Bracket (WB-BKT)
The white balance bracket function
automatically records three images—a
reddish image, a bluish image, and an
image of the current white balance.
An icon is displayed when [WB-BKT] is
selected.
Red
RedRed
Red
Recording
RecordingRecording
Recording
Blue
Blue
Blue
Note -------------------------------------------------------------------------------------
• The white balance can be changed using the shooting menu (GP.70).
• Although white balance bracketing can be selected when [Black & White] is
chosen for [Image Settings], bracketing will not be performed.
L7580872_0914_En.indb 68
L7580872_0914_En.indb 68
2010/09/14 17:56:40
2010/09/14 17:56:40
![](/img.php?id=1359556&img=bg48.png)
69
Shooting Menu
6
Exposure Compensation
Use exposure compensation to vary exposure from the value selected
by the camera. Choose from values between –2 and +2; negative
values produce darker pictures, positive values brighter pictures.
Exposure compensation may be required in the following situations:
For backlighting
When the background is particularly bright, the subject will appear
dark (underexposed). In this case, set the exposure level higher (+).
When your subject is whitish
The entire picture will turn out dark (underexposed). Set the exposure
level higher (+).
When your subject is darkish
The entire picture will turn out bright (overexposed). Set the exposure
level lower (–). The same happens when you take a photo of a subject
in a spotlight.
Press the !" buttons to choose a
exposure value and press the MENU/OK
button. The selected value is displayed in
the picture display.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
EV
EV
–
0.3
EV
–
0.3
EV
–
0.3
Note -------------------------------------------------------------------------------------
If the subject is very bright or very dark, [Q] will be displayed and exposure
compensation will not be available.
L7580872_0914_En.indb 69
L7580872_0914_En.indb 69
2010/09/14 17:56:40
2010/09/14 17:56:40
![](/img.php?id=1359556&img=bg49.png)
70
Shooting Menu
6

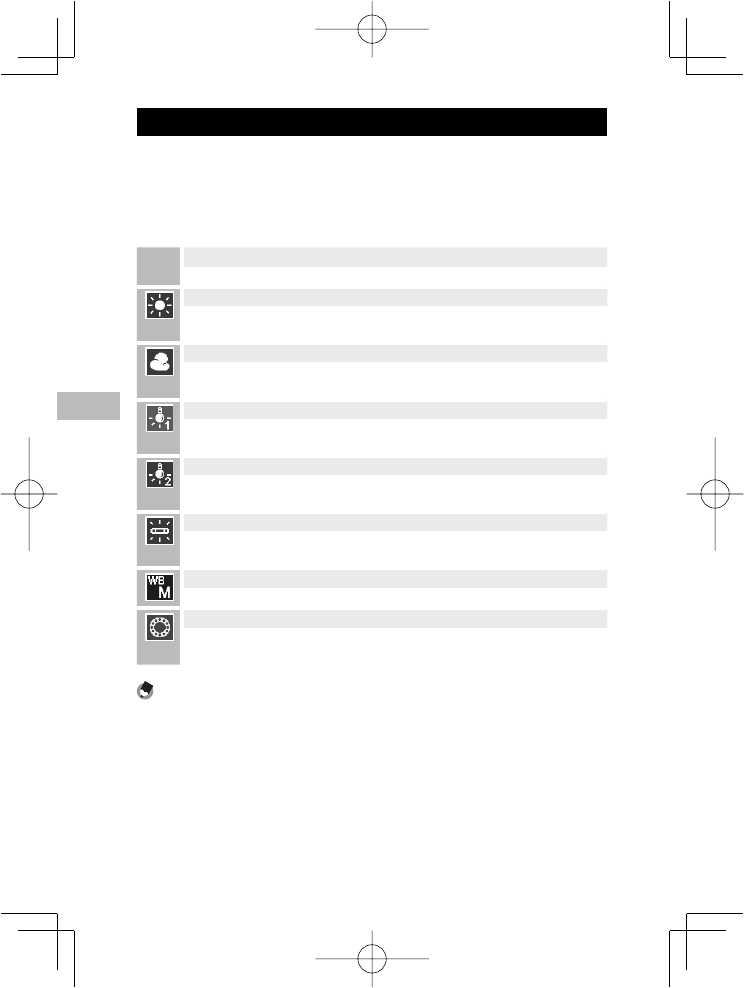

White Balance
Adjust the white balance so that a white subject will appear white. At
purchase, the white balance mode is set to [Auto]. Change the setting
in situations where the white balance is difficult to adjust effectively,
such as when shooting an object of a single color or when shooting
under multiple light sources.
AUTO Auto
Adjusts the white balance automatically.
Outdoors
Select this when shooting outdoors (sunny) and white balance fails to adjust
properly.
Cloudy
Select this when shooting in cloudy weather or shade and the white balance
fails to adjust properly.
Incandescent 1
Select this when shooting under incandescent light and white balance fails to
adjust properly.
Incandescent 2
Select this when shooting under incandescent light (more reddish, compared
with [Incandescent 1]).
Fluorescent
Select this when shooting under fluorescent light and white balance fails to
adjust properly.
Manual
Adjust the white balance manually (GP.71).
Ring Light
Adjust white balance manually as described on P.71. The selected value is
not reset when defaults are restored using [Restore Defaults].
Note -------------------------------------------------------------------------------------
• The white balance may not be adjusted correctly for a subject that is mostly
dark. In this case, add something white to the subject.
• When shooting with the flash, the white balance may not be adjusted correctly
if [Auto] is not selected. In this case, switch to [Auto] to shoot with the flash.
L7580872_0914_En.indb 70
L7580872_0914_En.indb 70
2010/09/14 17:56:40
2010/09/14 17:56:40
![](/img.php?id=1359556&img=bg4a.png)
71
Shooting Menu
6
Manual
1Measure white balance.
• After selecting [Manual] in the white balance menu and placing a
blank piece of paper or other white object under the lighting you
wish to measure, aim the camera at the object and press the DISP.
button to measure white balance.
2Press the MENU/OK button.
• The symbol appears on the screen.
• The effect of the selected white balance setting can be previewed in
the picture display. Repeat the above steps until the desired effect is
achieved.
Note -------------------------------------------------------------------------------------
To cancel [Manual], select a setting other than [Manual].
ISO Setting
ISO sensitivity indicates how sensitive film is to light. A greater value
means higher sensitivity. High sensitivity is suitable for shooting
an object in a dark place or a fast-moving object while minimizing
blurring. When ISO setting is set to [Auto], the camera automatically
changes the sensitivity according to the distance, brightness, zoom,
macro settings, and picture quality/size. Choose settings other than
[Auto] to fix ISO sensitivity at the selected value.
Note -------------------------------------------------------------------------------------
• When the flash is used, the maximum value that will be selected for auto
ISO sensitivity is ISO 400. If the flash is off and image size is set to [l 4 : 3 F]
or [l 4 : 3 N], auto ISO sensitivity will be set to values between ISO 64 and
ISO 400.
• When the flash is set to [FLASH ON (10M)], the maximum value that will be
selected for auto ISO sensitivity is ISO 1600.
• Images shot with a higher sensitivity may appear grainy.
• When [Auto] is selected for ISO sensitivity, the ISO value displayed when the
shutter release button is pressed halfway may in some instances (for example,
when the flash is used) differ from the value selected when the shutter is
released.
L7580872_0914_En.indb 71
L7580872_0914_En.indb 71
2010/09/14 17:56:41
2010/09/14 17:56:41
![](/img.php?id=1359556&img=bg4b.png)
72

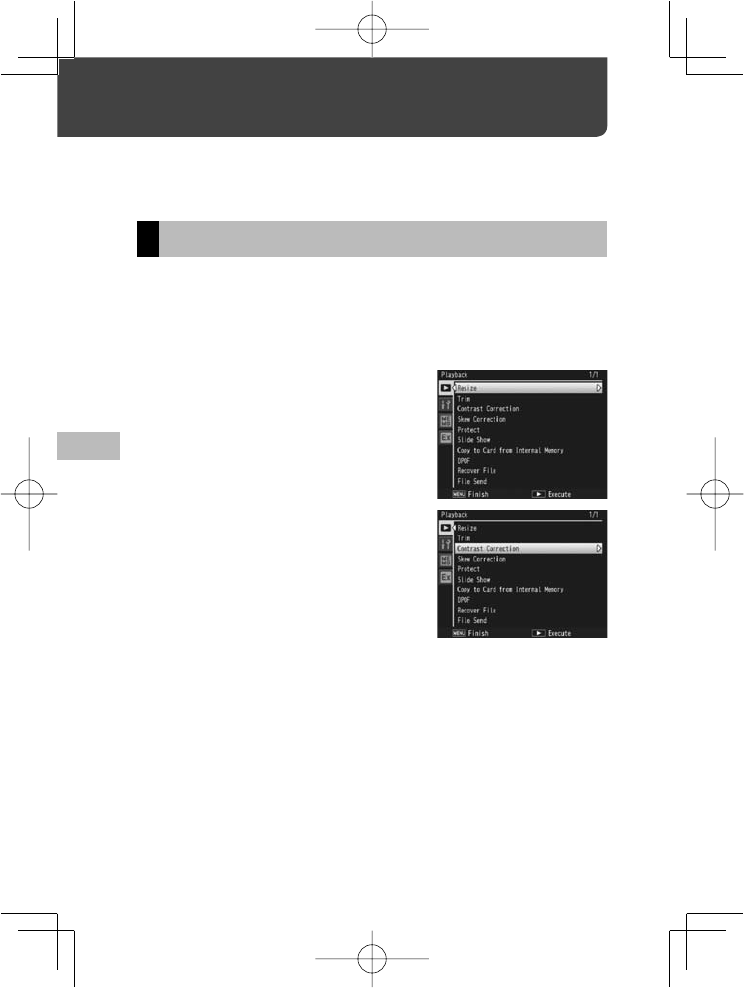

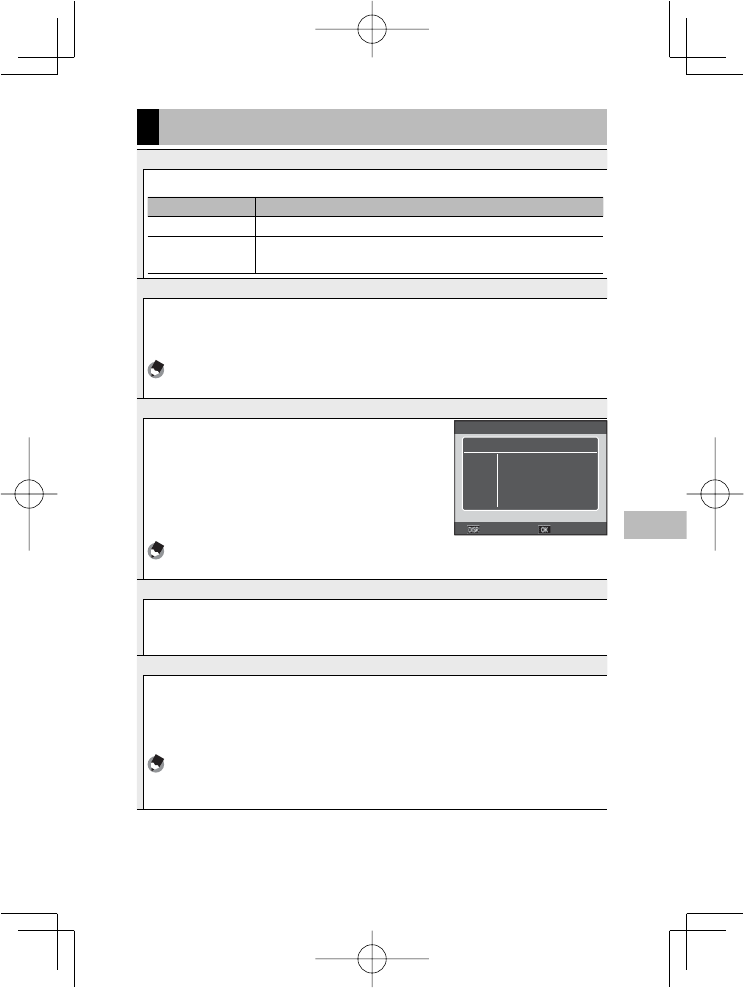

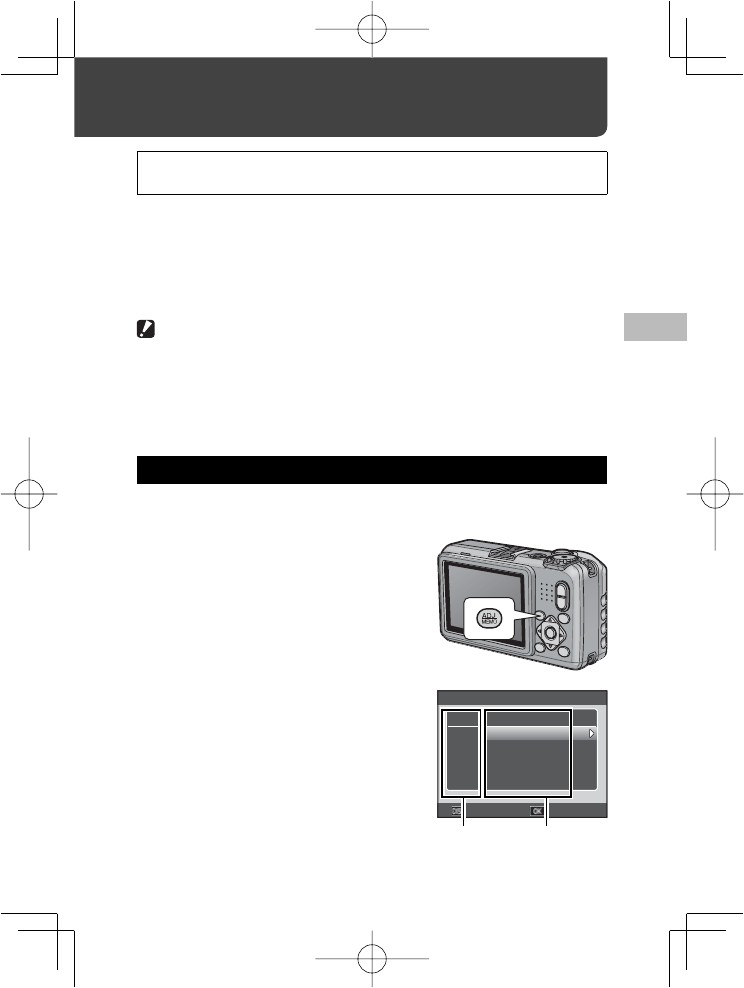

Playback Menu
7
7 Playback Menu
The options in the playback menu can be used to perform a variety of
operations on existing pictures. To display the playback menu, select
playback mode and press the MENU/OK button.
Using the Menu
1Press the 6 (Playback) button to select the playback mode.
2Press the !"#$ buttons to display the desired file.
• For [Slide Show] (GP.73), [Copy to Card from Internal Memory]
(GP.73), or [Recover File] (GP.74), skip this step.
3Press the MENU/OK button.
• The playback menu appears.
4Press the !" buttons to select the
desired item.
• If the DISP. button is pressed at this
point, the cursor moves to the playback
menu tab.
5Press the $ button.
• The screen for the selected menu item appears.
L7580872_0914_En.indb 72
L7580872_0914_En.indb 72
2010/09/14 17:56:41
2010/09/14 17:56:41
![](/img.php?id=1359556&img=bg4c.png)
73
Playback Menu
7
Playback Menu Options
Resize
You can reduce the image size of a shot still image to create a new file with a
different image size.
Original Resized
l 4 : 3 F/l 4 : 3 N/j 3 : 2 F/e 4 : 3 F/c 4 : 3 F/
b 4 : 3 F
a 4 : 3 F/z 4 : 3 F
a 4 : 3 F/a 4 : 3 N z 4 : 3 F
Caution ------------------------------------------------------------------------------
Movies cannot be resized.
Trim GP.75
This function allows you to trim a still image you have shot and then save it as a
separate file.
Contrast Correction GP.77
Create copies of photographs with modified brightness and contrast.
Skew Correction GP.78
Create copies that have been processed to reduce the effects of perspective on
rectangular objects.
Protect GP.79
Protect images from accidental deletion.
Slide Show
You can display the recorded still images and movie files sequentially on the screen.
Note ----------------------------------------------------------------------------------
• Each still image is displayed for three seconds.
• Movies are played back in their entirety.
Copy to Card from Internal Memory
Copy all data from internal memory to a memory card in a single operation.
Note ----------------------------------------------------------------------------------
• If there is not enough space available on the destination memory card, a
warning will be displayed. Select [Yes] to copy only those files for which there is
sufficient space.
• It is not possible to copy the contents of an SD memory card to the internal
memory.
DPOF GP.80
Select pictures for printing.
L7580872_0914_En.indb 73
L7580872_0914_En.indb 73
2010/09/14 17:56:41
2010/09/14 17:56:41
![](/img.php?id=1359556&img=bg4d.png)
74
Playback Menu
7
Recover File
Restore deleted files.
Caution ------------------------------------------------------------------------------
Deleted files cannot be restored after performing any of the following operations.
• Turning the camera off
• Switching from playback mode to shooting mode
• Using DPOF, Resize, Copy to Card from Internal Memory, Skew Correction,
Contrast Correction or Trim
• Files with DPOF settings are deleted
• Internal memory or SD memory card is initialized
• Altering memos in playback mode

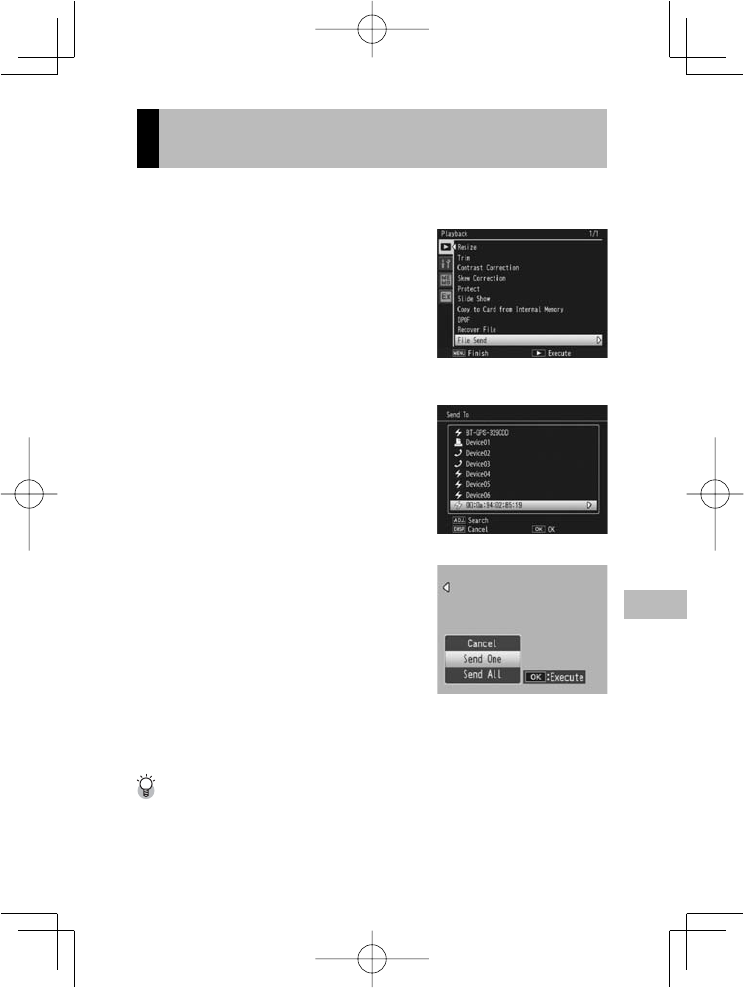

File Send GP.105
Copy files to a computer over a wireless LAN or using Bluetooth®.
L7580872_0914_En.indb 74
L7580872_0914_En.indb 74
2010/09/14 17:56:41
2010/09/14 17:56:41
![](/img.php?id=1359556&img=bg4e.png)
75
Playback Menu
7

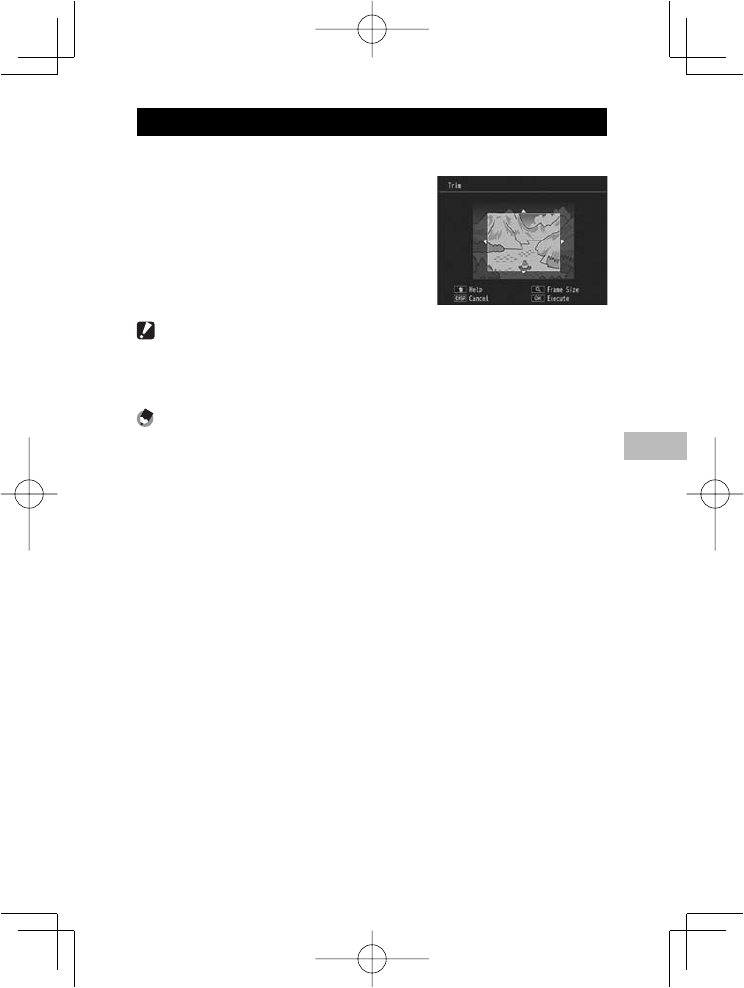

Trim
Create a cropped copy of the current photograph.
Press 8 or 9 to adjust the crop size and
press !,",#, or $ to position the crop.
Press the MENU/OK button to save the
cropped image to a separate file.
Caution ---------------------------------------------------------------------------------
• You can only trim still images shot using this camera.
• While you can trim an image repeatedly, the image is recompressed each time
and there will be some decline in image quality.
Note -------------------------------------------------------------------------------------
• To cancel, press the DISP. button.
• To view help, press the D button while the crop display is shown in the picture
display. Press the D button again to exit help.
• If an image is trimmed, the compression ratio changes to Fine.
• The available settings for the trimming frame size differ depending on the
original image size.
L7580872_0914_En.indb 75
L7580872_0914_En.indb 75
2010/09/14 17:56:41
2010/09/14 17:56:41
![](/img.php?id=1359556&img=bg4f.png)
76
Playback Menu
7
• The size of the image after cropping depends on the size of the original and the
size of the crop (the crop displayed when you select [Trim] is the second largest;
to select the largest crop, press 9).
Original image size Trimming level Trimmed image size
l 4 : 3 F/l 4 : 3 N
(4000 × 3000)
1, 2 4000 × 3000
3 2592 × 1944
4, 5 2048 × 1536
6 1600 × 1200
7 to 10 1280 × 960
11 to 14 640 × 480
j 3 : 2 F
(3984 × 2656)
1 2592 × 1944
2, 3 2048 × 1536
4 1600 × 1200
5 to 7 1280 × 960
8 to 11 640 × 480
e 4 : 3 F
(2592 × 1944)
1 2592 × 1944
2 2048 × 1536
3 1600 × 1200
4 to 7 1280 × 960
8 to 12 640 × 480
c 4 : 3 F
(2048 × 1536)
1 2048 × 1536
2 1600 × 1200
3 to 6 1280 × 960
7 to 10 640 × 480
b 4 : 3 F
(1600 × 1200)
1 1600 × 1200
2 to 4 1280 × 960
5 to 9 640 × 480
a 4 : 3 F/a 4 : 3 N
(1280 × 960)
1 to 3 1280 × 960
4 to 8 640 × 480
z 4 : 3 F
(640 × 480) 1 to 4 640 × 480
L7580872_0914_En.indb 76
L7580872_0914_En.indb 76
2010/09/14 17:56:41
2010/09/14 17:56:41
![](/img.php?id=1359556&img=bg50.png)
77
Playback Menu
7
Contrast Correction
Create copies that have been processed to adjust brightness and
contrast.
Highlight [Contrast Correction] in the
playback menu and press $ to display a
level slider and histogram.
Press ! to make the photo brighter, or
" to make it darker. Five settings are
available.
Press the MENU/OK button. The display indicates that the image is
being corrected, and then the corrected image is recorded.
Caution ---------------------------------------------------------------------------------
• If the camera can not create a corrected copy, an error message will be
displayed and the camera will exit to the playback menu.
• To cancel contrast correction, press the DISP. button.
• You can correct the contrast for still images shot with this camera. You cannot
correct the contrast for movies.
• The desired results may not be achieved with photographs taken with [Text
Mode] selected in scene mode or with [Black & White] selected for [Image
Settings].
• While you can use contrast correction repeatedly, the image is recompressed
each time and there will be some decline in image quality.
L7580872_0914_En.indb 77
L7580872_0914_En.indb 77
2010/09/14 17:56:42
2010/09/14 17:56:42
![](/img.php?id=1359556&img=bg51.png)
78
Playback Menu
7
Skew Correction
Create copies that have been processed to reduce the effects of
perspective on rectangular objects, such as message boards or
business cards.
Caution ---------------------------------------------------------------------------------
You can use skew correction for still images shot with this camera. You cannot use
skew correction for movies.
Note -------------------------------------------------------------------------------------
• If the camera is able to detect an object that can be used to correct perspective,
a message will be displayed with the object shown by an orange frame. The
camera can detect up to five objects.
• If the target area cannot be detected, an error message appears. The original
image remains unchanged.
• To select another correction area, move the orange frame to the target area by
pressing the $ button.
• To cancel skew correction, press the ! button. Even if you cancel skew
correction, the original image remains unchanged.
• The image size does not change for skew corrected images.
• If the image size is large, skew correction will take time. Resize the image
(GP.73) before performing skew correction to speed up the process.
• The following table shows the approximate time required for skew correction.
Image Size Correction time Image Size Correction time
l 4 : 3 F Approx. 29 seconds b 4 : 3 F Approx. 6 seconds
l 4 : 3 N Approx. 28 seconds a 4 : 3 F Approx. 4 seconds
j 3 : 2 F Approx. 24 seconds a 4 : 3 N Approx. 4 seconds
e 4 : 3 F Approx. 13 seconds z 4 : 3 F Approx. 2 seconds
c 4 : 3 F Approx. 8 seconds
• When scene mode is set to [Skew Correct Mode], you can shoot an image and
then immediately correct any skew in the image (GP.54).
L7580872_0914_En.indb 78
L7580872_0914_En.indb 78
2010/09/14 17:56:42
2010/09/14 17:56:42
![](/img.php?id=1359556&img=bg52.png)
79
Playback Menu
7

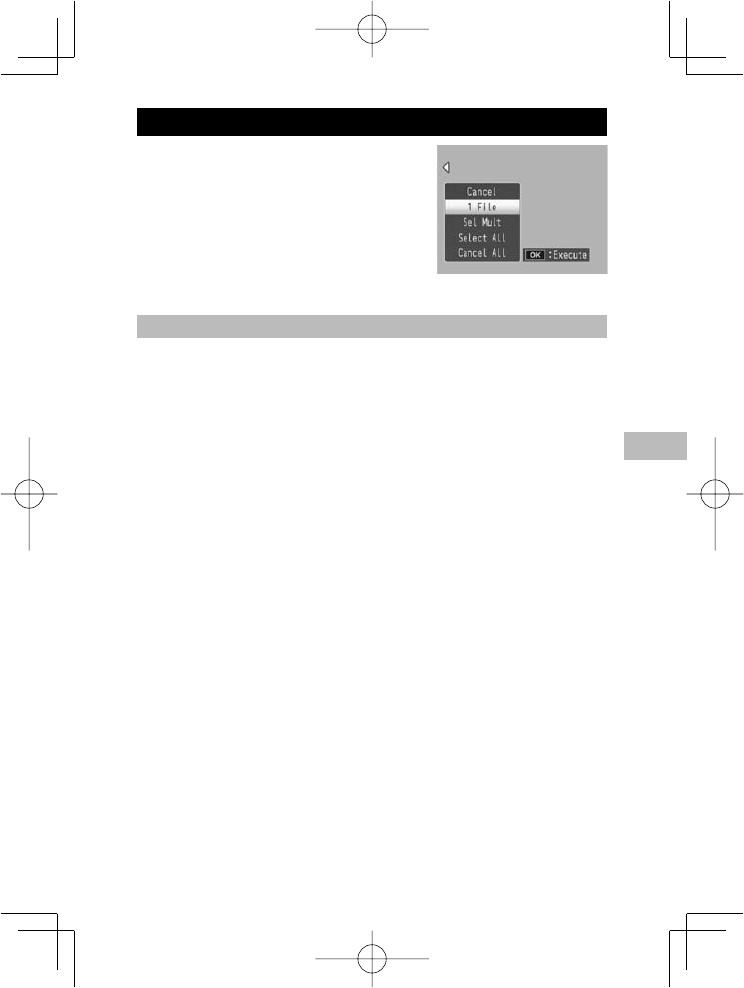

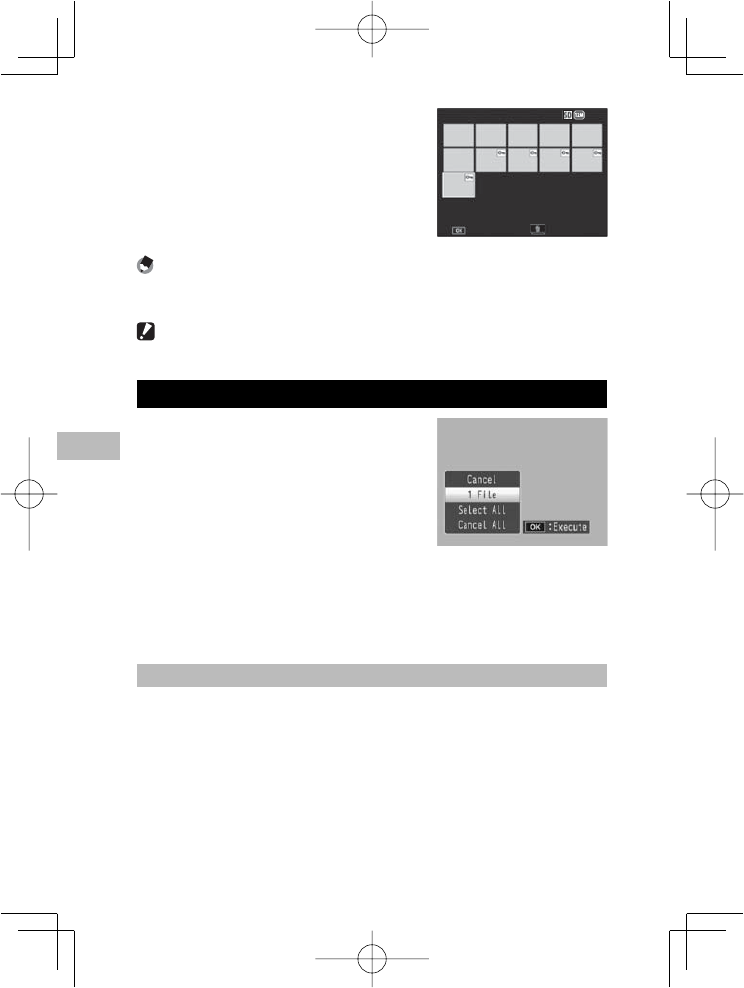

Protect
[Protect] allows you to protect files from
being accidentally deleted.
If [1 File] is selected, you can protect or
unprotect the file selected by pressing the
#$ buttons.
If [Select All] or [Cancel All] is selected, you
can protect or unprotect all files.
Selecting Multiple Files
Select [Sel Mult] to change the protect status of multiple individual
files or of all files in a selected range.
To select multiple individual frames:
1Select [Sel. Indiv.] and press the MENU/OK button.
2Select a frame and press the MENU/OK button.
• Press the ADJ./MEMO button to switch to the display for specifying a
range of files.
• If you selected a file by mistake, you can deselect it by selecting the
file and pressing the MENU/OK button.
• Select all files you want to protect.
3Press the D button.
To select two frames and all frames between them:
1Select [Sel. Range] and press the MENU/OK button.
2Select the first frame and press the MENU/OK button.
• Press the ADJ./MEMO button to switch to the display for specifying
files separately.
• If you make a mistake when selecting the starting point for the range
of files, press the DISP. button to return to the screen for selecting
the starting point.
L7580872_0914_En.indb 79
L7580872_0914_En.indb 79
2010/09/14 17:56:42
2010/09/14 17:56:42
![](/img.php?id=1359556&img=bg53.png)
80
Playback Menu
7
3Select the last frame and press the
MENU/OK button.
• Repeat Steps 2 and 3 to select multiple
ranges.
4Press the D button.
107
107
/
111
107
/
111
107
/
111Protect
ProtectProtect
Protect
4:
3 F
3 F4:3 F
4:3 F
Start
StartStart
Start Execute
ExecuteExecute
Execute
Note -------------------------------------------------------------------------------------
[Sel. Indiv.] and [Sel. Range] can be selected directly if [Protect] is chosen in
thumbnail view.
Caution ---------------------------------------------------------------------------------
Note that formatting deletes all files, including protected files.
DPOF
To request professional prints of the
photographs on a memory card, first use
this option to create a digital “print order”
listing the photos you wish to print and
the number of prints, and then take the
memory card to a digital print service
center that supports the DPOF standard.
To add a photo to or remove it from the print order, select [1 File] and
press the #$ buttons to display the desired file.
Select [Select All] to add all photos to the print order, or [Cancel All] to
remove all files from the print order.

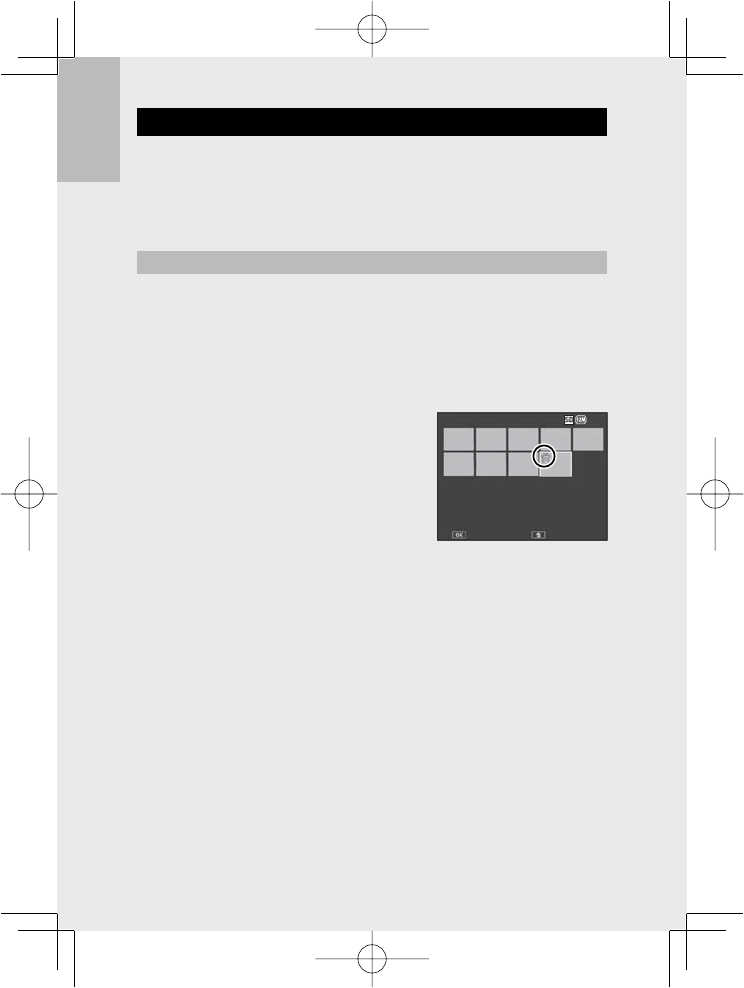

Selecting Multiple Files
To change the print status of multiple individual files, select [DPOF] in
thumbnail view.
Select photos and press the !" buttons to choose the number of
prints; press the ! button to increase the number of copies, or press
the " button to decrease the number of copies.
Press the MENU/OK button to exit when settings are complete.
L7580872_0914_En.indb 80
L7580872_0914_En.indb 80
2010/09/14 17:56:42
2010/09/14 17:56:42
![](/img.php?id=1359556&img=bg54.png)
81
Playback Menu
7
Note -------------------------------------------------------------------------------------
To remove the DPOF settings for multiple still images, follow the same steps
described above to set the number of copies to print to [0] for each image, and
then press the MENU/OK button.
Viewing Pictures on TV
To view pictures on a TV, connect the camera using the supplied AV
cable.
1Securely connect the AV cable to the
Video In terminal on the television.
• Connect the white plug of the AV cable
to the audio input terminal (white) of the
TV unit and the yellow plug to the video
input terminal (yellow).
2Turn the camera off and securely
connect the cable to the camera AV
output terminal.
3Set the television to Video mode (Set the input to Video).
• For details, see the documentation that came with the television.
4Press the POWER button, or press and hold the 6
(Playback) button to turn the camera on.
Caution ---------------------------------------------------------------------------------
• When the AV cable is connected to the camera, the picture display and the
speaker output turn off.
• Do not force the AV cable into the terminal.
• Do not apply excessive force with the AV cable connected.
• When using the AV cable, do not move the camera with the AV cable.
Note -------------------------------------------------------------------------------------
• You can connect the AV cable to the Video In terminal on your video recorder
and record what you have shot to a video recorder.
• The camera supports the following video standards: NTSC and PAL. Where
possible, the camera is set to the standard used in your country or region before
shipment; before connecting the camera to a device that uses a different video
standard, choose the appropriate video mode (GP.86).
Video Input Terminal (yellow)
Audio Input Terminal (white)
Video Input Terminal (yellow)
Audio Input Terminal (white)
L7580872_0914_En.indb 81
L7580872_0914_En.indb 81
2010/09/14 17:56:42
2010/09/14 17:56:42
![](/img.php?id=1359556&img=bg55.png)
82
Setup Menu
8
8 Setup Menu
You can change the camera settings by displaying the setup menu
from the shooting menu (GP.62) or playback menu (GP.72).
Using the Menu
1Press the MENU/OK button.
• The shooting menu (or the playback menu) appears.
2Press # to highlight the tab for the current menu.
3Press ! or " to highlight the
setup menu tab.
• The setup menu tab is second from
the top.
Indicates the range of displayed
screens.
4Press $ to place the cursor in the setup menu.
5Press the !" buttons to select the
desired item.
• If the DISP. button is pressed at this
point, the display returns to the screen
shown in Step 3.
• Press the " button at the bottom item
to display the next screen.
6Press the $ button.
• The menu item settings are displayed.
7Press the !" buttons to select the
setting.
L7580872_0914_En.indb 82
L7580872_0914_En.indb 82
2010/09/14 17:56:42
2010/09/14 17:56:42
![](/img.php?id=1359556&img=bg56.png)
83
Setup Menu
8
8Press MENU/OK, or press # and then MENU/OK.
• The setup menu disappears and the camera is ready for shooting or
playback.
• The setup menu may appear depending on the setting. In this case,
press the MENU/OK button to return to the shooting or playback
screen.
• Pressing the # button in Step 8 confirms the setting and the display
returns to the screen shown in Step 5.
Note -------------------------------------------------------------------------------------
For some functions, the setting selection method may differ from what is
explained here. For detailed operation, see the explanation of each function.
Setup Menu Options
Format [Card]
Select [Yes] and press the D button to format the memory card.
Caution ------------------------------------------------------------------------------
Do not turn the camera off during formatting. Failure to observe this precaution
could result in the system files used by the camera being deleted.
Format [Internal Memory]
Select [Yes] and press the D button to format internal memory. If you have images
in the internal memory that you do not want to delete, copy the images to the SD
memory card before formatting the internal memory (GP.73).
Caution ------------------------------------------------------------------------------
Do not turn the camera off during formatting. Failure to observe this precaution
could result in the system files used by the camera being deleted.
LCD Brightness
Press the !" buttons to adjust the brightness of the picture display.
Reg. My Settings GP.88
Save current camera settings.
Stepped Zoom
Select [On] to allow zoom to be adjusted in discrete steps that on a 35-mm
camera would be equivalent to focal lengths of 28 mm, 35 mm, 50 mm, 85 mm,
105 mm and 140 mm. In macro mode, the stepped zoom focal lengths are roughly
equivalent to 33, 35, 50, 85, 105 and 140 mm on a 35-mm camera.
L7580872_0914_En.indb 83
L7580872_0914_En.indb 83
2010/09/14 17:56:43
2010/09/14 17:56:43
![](/img.php?id=1359556&img=bg57.png)
84
Setup Menu
8
ADJ Button Setting 1–4 GP.50
Choose the role performed by the ADJ./MEMO button.
AF Auxiliary Light
If [On] is selected, the AF auxiliary light will light to assist autofocus.
Operation Sounds
Choose the sounds made by the camera.
Available Settings Description
All All sounds on.
Level Sound Only the level sound is emitted.
Shutter Sounds Only the shutter sound and level sound are emitted.
Note ----------------------------------------------------------------------------------
If you try to perform an operation that cannot be performed, the beep sound is
emitted regardless of the [Operation Sounds] setting.
Volume Settings
The operation sound volume can be changed.
Note ----------------------------------------------------------------------------------
When [Volume Settings] is set to [] (Mute), the level sound is not emitted
even when [Level Setting] is set to [Disp + Snd] or [Sound].
LCD Confirmation Time
Choose how long photos are displayed after shooting. Photos will not be displayed
if [Off] is selected.
Auto Power Off
Choose how long the camera remains on when no operations are performed.
The camera will not turn off automatically if [Off] is selected, during interval timer
photography (GP.65), or when the camera is connected to a computer or printer.
Monitor Auto off Delay
Choose the delay before the picture display turns off automatically to save power
when no operations are performed. Once the display has turned off, any operation
will reactivate the display. This option takes effect only when [Off ] is selected for
[Auto Power Off ].
LCD Auto Dim
If [On] is selected, the picture display will automatically dim to save power if no
operations are performed for about five seconds. This feature is not available in
synchro-monitor mode (GP.44).
L7580872_0914_En.indb 84
L7580872_0914_En.indb 84
2010/09/14 17:56:43
2010/09/14 17:56:43
![](/img.php?id=1359556&img=bg58.png)
85
Setup Menu
8
Digital Zoom Image GP.89
Choose [Auto Resize] to record pictures taken with digital zoom at actual size,
[Normal] to enlarge image data from the center of the frame.
Level Setting GP.46
Adjust level indicator and level sound settings.
Grid Guide Display Options GP.44
Choose the type of framing grid available in shooting mode.
Available Settings Description
A three-by-three grid for “rule of thirds” composition.
A four-by-four grid with diagonal lines running from corner
to corner makes it easy to find the center of the subject. Use
for architectural photography or photographing products for
display.
A two-by-two grid with the center of the frame left clear to
make it easier to view the subject. Use if your subject is in
motion.
Shooting Info. Display Frame
Select [On] to display shooting icons in a frame
surrounding the view through the lens (GP.44).
Shooting information display frame cannot be used
in movie mode.
4:
3 F
4:3 F
4:3 F
44
4
EV
+
0.7
EV
+
0.7
EV
+
0.7 ISO 100
ISO 100ISO 100
ISO 100
Auto Rotate
Select [On] to automatically display pictures in the correct orientation during
playback.
L7580872_0914_En.indb 85
L7580872_0914_En.indb 85
2010/09/14 17:56:43
2010/09/14 17:56:43
![](/img.php?id=1359556&img=bg59.png)
86
Setup Menu
8
Card Sequence No.
When you switch SD memory cards, you can set your camera to continue
consecutive numbering from the previously loaded card.
Available Settings Description
On (Continue
numbering)
Files names consist of “R” followed by a seven-digit number (e.g.,
“R0010001.jpg”), assigned in ascending order from 0010001 to
9999999. When a new memory card is inserted, file numbering
continues from the last number used.
Off (Do not
continue
numbering)
File numbering is assigned, from RIMG0001.jpg to RIMG9999.
jpg, for each SD memory card. When the file name reaches
RIMG9999, no more data can be recorded to that card.
Note ----------------------------------------------------------------------------------
• This option applies only to memory cards. The names of photos in internal
memory consist of “RIMG” and a four-digit number.
• When images are transferred to a computer using DL-10 (GP.155), the file
being transferred is renamed and saved.
Caution ------------------------------------------------------------------------------
When the file name reaches RIMG9999 or R9999999, no more files can be saved.
In this case, move image data from the SD memory card to the memory of the
computer or a storage medium, and then format the SD memory card.
Date Settings GP.30
Set the camera clock.
Note ----------------------------------------------------------------------------------
• If the battery is removed for more than three days, the date and time settings
will be lost. These settings must be made again.
• To retain the date and time settings, load a battery with adequate remaining
power for more than ten hours.
Language/N (*)GP.29
You can change the language displayed on the screen.
Video Out Mode (*)
You can view your still images and movies on a television screen by connecting
your camera to a television with the AV cable that came with your camera. Select
from NTSC (used in North America, the Caribbean, parts of Latin America, and some
East Asian countries) and PAL (used in the United Kingdom and much of Europe,
Australia, New Zealand, and parts of Asia and Africa). SECAM is not supported.
(*) The default setting varies depending on where you purchased the camera.
L7580872_0914_En.indb 86
L7580872_0914_En.indb 86
2010/09/14 17:56:43
2010/09/14 17:56:43
![](/img.php?id=1359556&img=bg5a.png)
87
Setup Menu
8
CALS Pic Quality
Choose picture quality and size options for CALS mode (GP.37).
Start Date/Time
Select [On] to display the current time and date when you turn the camera on and
select shooting mode.
Choose/Change Password GP.90
Choose a password or change the current password. Passwords restrict access to
some camera functions.
Password Protection GP.92
Restrict access to some or all camera functions. Select [Off ] to allow unrestricted
access.
Password Validity Period
Choose how long the camera can be used without re-entering the password. This
option takes effect only when [Camera] or [Int. Memory] is selected for [Password
Protection]. If [Off] is selected, the camera can only be accessed by re-entering the
password.
Power Button Hold Options
If [On] selected, the POWER button must be pressed for at least two seconds to turn
the camera on and for at least five seconds to turn the camera off.
L7580872_0914_En.indb 87
L7580872_0914_En.indb 87
2010/09/14 17:56:43
2010/09/14 17:56:43
![](/img.php?id=1359556&img=bg5b.png)
88
Setup Menu
8
Reg. My Settings
Save current camera settings in [MY1] or [MY2]. Settings saved in [MY1]
are recalled when the mode dial is rotated to T , those saved in
[MY2] when the mode dial is rotated to U.
1Set the camera to the desired settings.
2Select [Reg. My Settings] in the setup menu (GP.82) and
press the $ button.
• A confirmation message appears.
3Select [MY1] or [MY2] and press the MENU/OK button.
• The current camera settings are registered and the display returns to
the setup menu.
• If you do not want to register them, press the DISP. button.
Settings Saved in [Reg. My Settings]
Shooting mode
(V/5/T/U/W)
WB-BKT
Focal distance used in Manual Time Exposure
Zoom position Camera Shake Correction
Macro Date Imprint
Flash Mode Exposure Compensation
Scene mode White Balance
Self-Timer ISO Setting
DISP. mode Edit Detection
Density Stepped Zoom
Picture Quality/Size Digital Zoom Image
Focus Level Setting
Exposure Metering Grid Guide Display Options
Continuous Mode Shooting Info. Display Frame
Image Settings CALS Pic Quality
Auto Bracket
L7580872_0914_En.indb 88
L7580872_0914_En.indb 88
2010/09/14 17:56:44
2010/09/14 17:56:44
![](/img.php?id=1359556&img=bg5c.png)
89
Setup Menu
8

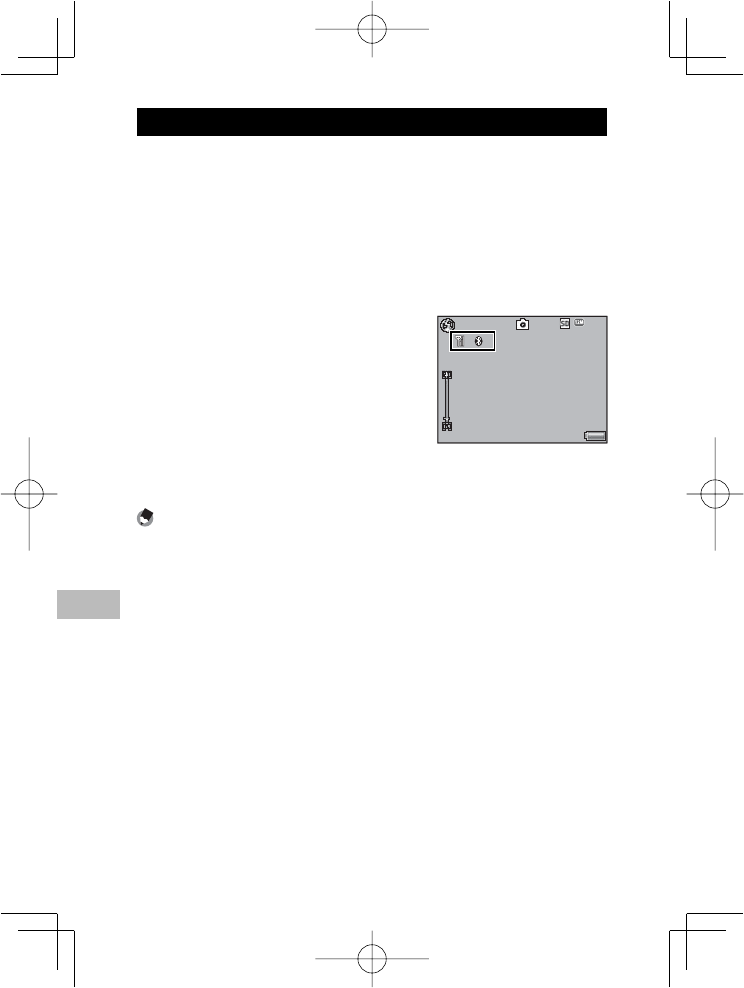

Digital Zoom Image
If [Normal] (the default option) is selected for [Digital Zoom Image] ,
digital zoom will enlarge image data from the center of the frame to
create a picture at the current image size, creating a slightly grainy
image. To record pictures taken with digital zoom at actual size, select
[Auto Resize]. The size at which the image will be recorded varies with
the zoom ratio.
Auto resize takes effect if you keep the z
button pressed when the zoom bar is full.
The size will then change each time the
z button is pressed; the current size is
displayed above the zoom bar.
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
5M
5M
5M
The auto resize zoom is enabled when l 4 : 3 F or l 4 : 3 N is selected
for [Picture Quality/Size] (GP.63), and the digital zoom is enabled in
other cases.
Zoom Magnification and Recorded Image Size
Picture Quality/Size Zoom Magnification Focal Length (*)
l 4 : 3 F/l 4 : 3 N 1.0 × 140 mm
e 4 : 3 F
1.5 ×
210 mm
c 4 : 3 F
2.0 ×
270 mm
a 4 : 3 F 3.1 × 430 mm
z 4 : 3 F 6.3 × 870 mm
(*) Equivalent to that on a 35 mm camera
Caution ---------------------------------------------------------------------------------
• Regardless of the option selected, normal digital zoom is used when [Skew
Correct Mode] is selected in scene mode.
• Fine picture quality is used for all photographs recorded using [Auto Resize],
regardless of the option currently selected for [Picture Quality/Size].
L7580872_0914_En.indb 89
L7580872_0914_En.indb 89
2010/09/14 17:56:44
2010/09/14 17:56:44
![](/img.php?id=1359556&img=bg5d.png)
90
Setup Menu
8

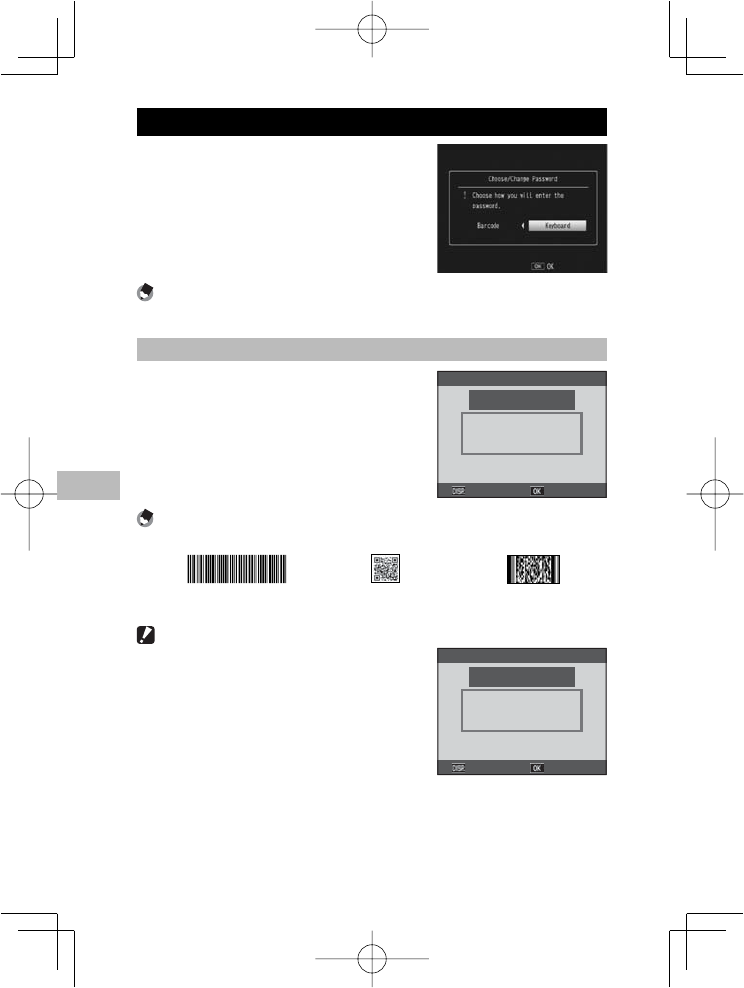

Choose/Change Password
Choose the password that must be entered
to access password-protected settings
(GP.92). The password can be a barcode
or a phrase entered via an on-screen
keyboard.
Note -------------------------------------------------------------------------------------
The current password is required to change an existing password.
Barcode
Frame the barcode in the picture display and
press MENU/OK. If the camera can read the
code, it will set the password to the barcode
and return to the previous menu. Press DISP.
to exit without entering a new password.
Read Barcode
Read Barcode
Cancel Execute
Aim the reader at the barcode
and press OK.
Aim the reader at the barcode
and press OK.
Note -------------------------------------------------------------------------------------
The camera can read linear and matrix barcodes.
Linear Matrix (QR) Matrix (PDF417)
Caution ---------------------------------------------------------------------------------
You will be prompted to enter a password
whenever you attempt to access functions
protected using [Password Protection]. Frame
the password barcode in the picture display and
press MENU/OK. If the barcode is incorrect, a
message will be displayed; select [Yes] to return
to the password entry dialog.
Read Barcode
Read Barcode
Cancel Execute
Aim the reader at the password
barcode and press OK.
Aim the reader at the password
barcode and press OK.
L7580872_0914_En.indb 90
L7580872_0914_En.indb 90
2010/09/14 17:56:44
2010/09/14 17:56:44
![](/img.php?id=1359556&img=bg5e.png)
91
Setup Menu
8
Keyboard
1Enter a password of up to 16
characters.
• Highlight characters using !,",#,
or $ and press MENU/OK to enter the
highlighted character at the current
cursor position (to delete the character
at the current cursor position, select
[Delete]). Press ADJ./MEMO when
entry is complete (to exit without
changing the password, press DISP.).
2Re-enter the password.
• A confirmation dialog will be displayed; re-enter the password as
described above to save the password and return to the setup menu.
If the passwords do not match, a message will be displayed and the
camera will return to the password entry dialog.
Caution ---------------------------------------------------------------------------------
You will be prompted to enter a password
whenever you attempt to access functions
protected using [Password Protection]. Enter
the password as described in Step 1, above. If
the password is incorrect, a message will be
displayed; select [Yes] to return to the password
entry dialog.
Keyboard area
Password area
Keyboard area
Password area
L7580872_0914_En.indb 91
L7580872_0914_En.indb 91
2010/09/14 17:56:44
2010/09/14 17:56:44
![](/img.php?id=1359556&img=bg5f.png)
92
Setup Menu
8
Password Protection
Choose the camera functions protected with the password selected
using [Choose/Change Password] (GP.90). Five options are available.
Off
Choose this option to allow unrestricted access to all camera functions.
No password is required.
Camera
You will be prompted to enter a password when the camera is turned
on. The camera can not be used until you enter the password; if an
incorrect password is entered, the camera will turn off automatically.
Int. Memory
If a memory card is inserted, this option is the same as [Camera]. If no
memory card is inserted, you will be prompted to enter a password
before viewing the images in internal memory (no pictures will be
displayed until the correct password is entered) and when connecting
the camera to a computer or printer (if an incorrect password is
entered, the camera will turn off).
Caution ---------------------------------------------------------------------------------
You will also be prompted to enter a password if you select [Format [Internal
Memory]] after entering an incorrect password. Entering the correct password
will allow you to format internal memory; entering an incorrect password will
cause the camera to exit without formatting internal memory.
L7580872_0914_En.indb 92
L7580872_0914_En.indb 92
2010/09/14 17:56:44
2010/09/14 17:56:44
![](/img.php?id=1359556&img=bg60.png)
93
Setup Menu
8
SD WORM
No password is required when SD WORM cards (GP.24) are used. If
no memory card is inserted or another type of card is used, you will be
prompted to enter a password when the camera is turned on. Entering
an incorrect password will cause the camera to turn off.
Menus
A password is required to display the camera menus. The menus and
ADJ. mode can not be used until the correct password is entered.
Lost Passwords -----------------------------------------------------------------------
Do not forget your password. If you forget your password, contact one of the
Ricoh offices listed on the back cover of this manual.
L7580872_0914_En.indb 93
L7580872_0914_En.indb 93
2010/09/14 17:56:45
2010/09/14 17:56:45
![](/img.php?id=1359556&img=bg61.png)
94
9
Camera Memo Menu
9 Camera Memo Menu
Using the Menu
1Press the MENU/OK button.
• The shooting menu (or the playback menu) appears.
2Press # to highlight the tab for the current menu.
3Press ! or " to highlight the
camera memo menu tab.
• The camera memo menu tab is
third from the top.
Indicates the range of displayed
screens.
4Press $ to place the cursor in the camera memo menu.
5Press the !" buttons to select the
desired item.
• If the DISP. button is pressed at this
point, the display returns to the screen
shown in Step 3.
• Press the " button at the bottom item
to display the next screen.
6Press the $ button.
• The menu item settings are displayed.
7Press the !" buttons to select the
setting.
8Press MENU/OK, or press # and
then MENU/OK.
• The camera memo menu will close and
the camera will return to shooting or
playback.
• Pressing the # button in Step 8 confirms the setting and the display
returns to the screen shown in Step 5.
L7580872_0914_En.indb 94
L7580872_0914_En.indb 94
2010/09/14 17:56:45
2010/09/14 17:56:45
![](/img.php?id=1359556&img=bg62.png)
95
9
Camera Memo Menu
Camera Memo Menu Options
Camera Memo Mode “Software User Guide” GP.28
Choose from the following options:
Available Settings Description
Mode1 Choose a separate description for each item.
Mode2 Choose from pre-selected combinations. Descriptions can not
be selected for individual items.
Memo Skip “Software User Guide” GP.28
When choosing memos with [Mode2] selected for [Camera Memo Mode], you can
press and hold # or $ to skip memos with identical descriptions for a selected
item. Choose from items 1 to 5.
Note ----------------------------------------------------------------------------------
This option only takes effect when [Mode2] is selected for [Camera Memo Mode].
Mark Memo Added to Photos
When [On] is selected, [Memo Marking] will appear
in the camera memo dialog for memos that have
been added to photographs. Marking can be
removed by pressing D in the camera memo dialog
or by selecting [Remove Memo Marking].
FileName/SAMPLE
FileName/SAMPLE
Camera Memo [Memo Marking]
Camera Memo [Memo Marking]
1/45
1/45
FILE LIST
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Company A
Foundation work
Exterior
Beverly Beech
Gamma Company
Client
Const.type
Location
Supervisor
Affiliates
Client
Const.type
Location
Supervisor
Affiliates
Memo On
Memo On
Note ----------------------------------------------------------------------------------
This option only takes effect when [Mode2] is selected for [Camera Memo Mode].
Remove Memo Marking
Remove [Memo Marking] marking from the camera memo dialog for memos that
have been added to photos taken with [On] selected for [Mark Memo Added to
Photos].
Memo Warning
If [On] is selected, a warning will be displayed and the shutter release will be
disabled if you attempt to take a photograph with the description for one or more
memo items set to [No Setting]. The shutter release can be enabled by choosing a
description for the affected items.
Note ----------------------------------------------------------------------------------
This option has no effect when [Mode2] is selected for [Camera Memo Mode] or
[On] is selected for [Camera Memo 1 Auto Delete].
L7580872_0914_En.indb 95
L7580872_0914_En.indb 95
2010/09/14 17:56:45
2010/09/14 17:56:45
![](/img.php?id=1359556&img=bg63.png)
96
9
Camera Memo Menu
Display Memo at Startup
Select [On] to display the camera memo dialog when the camera is turned on.
Note ----------------------------------------------------------------------------------
This option is only available if a memo list has been transferred to the camera.
Memo Increment “Software User Guide” GP.32
If [On] is selected, numbers that appear at the end of memo descriptions can be
increased or decreased by pressing ! or ".
Note ----------------------------------------------------------------------------------
This option only takes effect when [Mode1] is selected for [Camera Memo Mode].
Camera Memo Imprint
Select [On] to stamp the first three memo items on photographs.
Note ----------------------------------------------------------------------------------
• Only the first ten letters of the item name and first 32 letters of the description
will appear on photographs. Only the first 31 letters (including the item name
and the colon that appears between the item name and the description) will
appear on photographs taken with [z 4 : 3 F] selected for [Picture Quality/
Size].
• This option has no effect when [Mode3] is selected for [Barcode Mode].
Camera Memo 1 Auto Delete
If [On] is selected, the description for the first memo item will automatically be set
to [No Setting] when the camera is turned on, a photograph is taken, or a memo
list is transferred to the camera. A warning will be displayed and the shutter release
will be disabled if you attempt to take a photograph with the description for the
first item still set to [No Setting]. The shutter release can be enabled by choosing a
description for the first item.
Note ----------------------------------------------------------------------------------
This option has no effect when [Mode2] is selected for [Camera Memo Mode].
L7580872_0914_En.indb 96
L7580872_0914_En.indb 96
2010/09/14 17:56:45
2010/09/14 17:56:45
![](/img.php?id=1359556&img=bg64.png)
97
9
Camera Memo Menu
Barcode Type
Choose from the following options:
Available Settings Description
Auto The camera automatically detects the barcode type.
Linear Use for linear barcodes. The following types are supported:
EAN-13/8 (JAN-13/8), UPC-A/E, UPC/EAN (with add-ons),
Interleaved 2 of 5, CODEBAR (NW-7), CODE 39, CODE 93,
CODE 128 TYPE C, GS1-128 (EAN-128), and RSS (GS1
DataBar).
QR Code, Micro QR
Code, DataMatrix,
PDF417, Micro PDF417,
MaxiCode, EAN.UCC
When scanning matrix barcodes, choose the option that
corresponds to the type of barcode that will be scanned.
Note ----------------------------------------------------------------------------------
• The camera can read linear barcodes of up to 32 digits and matrix barcodes of
up to 2400 digits.
• Voice memos are not available with matrix barcodes.
Barcode Mode “Software User Guide” GP.36
Choose where barcode data are stored.
Available Settings Description
Mode1 The barcode is stored in the memo list as a temporary
description for the first item. This description is overwritten each
time a barcode is read.
Mode2 The first barcode read is stored in the memo list as a temporary
description for the first item, the second barcode as a
temporary description for the second item, the third barcode
as a temporary description for the third item, and the fourth
barcode as a temporary description for the fourth item. These
descriptions are overwritten in turn as new barcodes are read.
Mode3 This option only takes effect in shooting mode. Up to fifty
barcodes can be stored in the memo list as temporary
descriptions for the first item. These data can be viewed in the
camera memo dialog before shooting but can not be changed
and are deleted after a photograph is taken.
Scan Time
Choose the maximum time the camera will wait for a barcode to be scanned.
Scanning will be interrupted if a barcode is not read in the specified time.
Note ----------------------------------------------------------------------------------
If [27 seconds] or [30 seconds] are selected when a BR-1 barcode reader
(available separately) is connected, the scan delay will be set to 25.5 seconds.
L7580872_0914_En.indb 97
L7580872_0914_En.indb 97
2010/09/14 17:56:45
2010/09/14 17:56:45
![](/img.php?id=1359556&img=bg65.png)
98
Expanded Settings Menu
10
10 Expanded Settings Menu

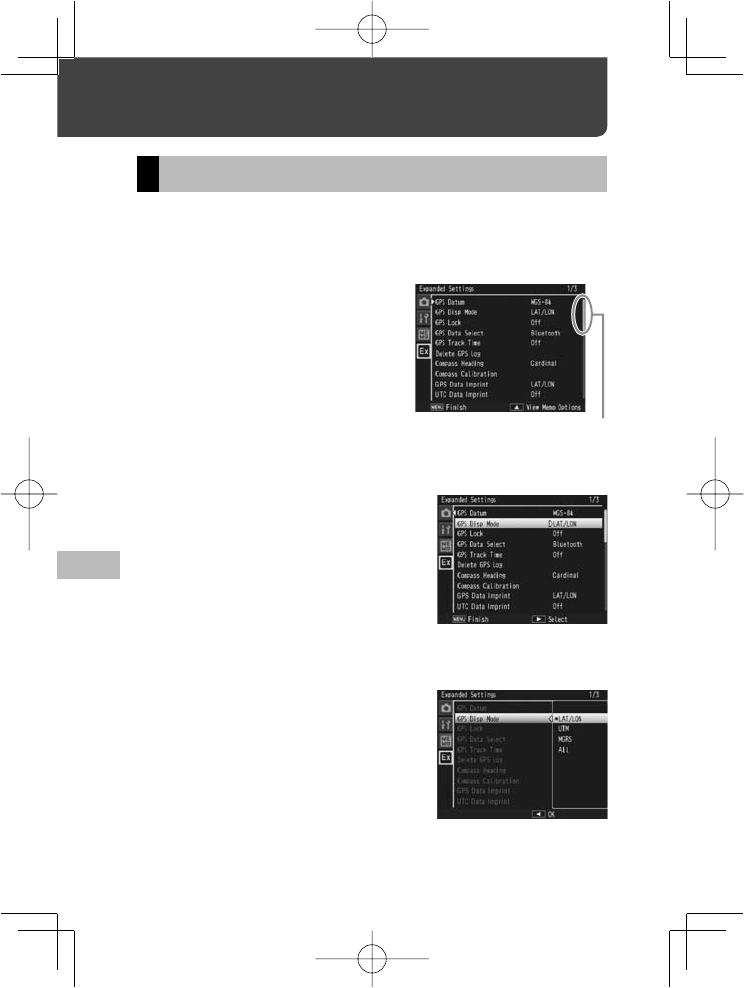

Using the Menu
1Press the MENU/OK button.
• The shooting menu (or the playback menu) appears.
2Press # to highlight the tab for the current menu.
3Press ! or " to highlight the
expanded settings menu tab.
• The expanded settings menu tab is
fourth from the top.
Indicates the range of displayed
screens.
4Press $ to place the cursor in the expanded settings menu.
5Press the !" buttons to select the
desired item.
• If the DISP. button is pressed at this
point, the display returns to the screen
shown in Step 3.
• Press the " button at the bottom item
to display the next screen.
6Press the $ button.
• The menu item settings are displayed.
7Press the !" buttons to select the
setting.
8Press MENU/OK, or press # and
then MENU/OK.
• The expanded settings menu will close
and the camera will return to shooting
or playback.
• Pressing the # button in Step 8 confirms the setting and the display
returns to the screen shown in Step 5.
L7580872_0914_En.indb 98
L7580872_0914_En.indb 98
2010/09/14 17:56:45
2010/09/14 17:56:45
![](/img.php?id=1359556&img=bg66.png)

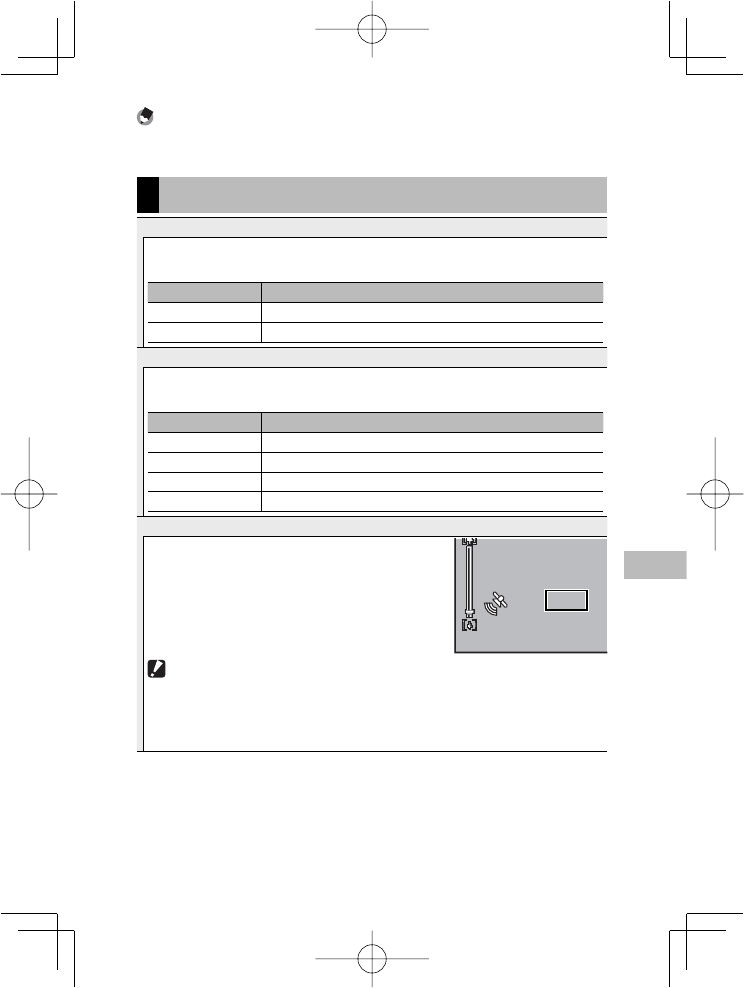

99
Expanded Settings Menu
10
Note -------------------------------------------------------------------------------------
For some functions, the setting selection method may differ from what is
explained here. For detailed operation, see the explanation of each function.
Expanded Settings Menu Options
GPS Datum
Choose the geodetic system used when a GP-1 or Bluetooth®-equipped GPS unit
is connected.
Available Settings Description
TOKYO The system in common use in Japan.
WGS-84 The system in common use internationally.
GPS Disp Mode
Choose the format used to display GPS data from a GP-1 or Bluetooth®-equipped
GPS unit.
Available Settings Description
LAT/LON Show latitude and longitude.
UTM Use Universal Transverse Mercator projection (UTM).
MGRS Use the Military Grid Reference System (MGRS).
ALL Display all of the above.
GPS Lock
If [On] is selected when a GP-1 or Bluetooth®-
equipped GPS unit is used, the $ button can be used
to disable or enable the reception of new GPS data.
N:
03
5
˚035˚N:035˚
N:
03
5
˚
X3
(
4
)
X3
(
4
)
X3
(
4
)
2d
2d
2d
LOCK
LOCKLOCK
LOCK
Caution ------------------------------------------------------------------------------
• If [2Touch] is selected for [Quick Send Mode] (GP.104), files can not be
transmitted when [GPS Lock] is on.
• Changing the option selected for [GPS Datum] or [GPS Data Select] ends GPS
lock.
L7580872_0914_En.indb 99
L7580872_0914_En.indb 99
2010/09/14 17:56:46
2010/09/14 17:56:46
![](/img.php?id=1359556&img=bg67.png)
100
Expanded Settings Menu
10
GPS Data Select GP.136
Choose which device is used when both a GP-1 and a Bluetooth®- equipped GPS
unit are connected. Choose [GPS Options] to use the GP-1, [Bluetooth] to use the
Bluetooth®-equipped GPS unit.
Note ----------------------------------------------------------------------------------
If a GP-1 is connected, the compass heading is available even when [Bluetooth]
is selected.
GPS Track Time
Choose the interval at which GPS log data are written to the memory card. GPS data
will not be logged if [Off] is selected.
Note ----------------------------------------------------------------------------------
• GPS logs are stored in the “GPSLOG” folder as files named using the current date
plus a two-digit file number followed by the extension “.LOG”.
• A new log file is created if the date has changed since the last log file was
created or when the current log file exceeds 500 KB in size.
• Log files are not created if the memory card is locked (GP.25), an SD WORM
card is used, or the memory card is full or not inserted. No warning is displayed
if a log can not be created because the card is full.
• Logs can be deleted using the [Delete GPS Log] option. Formatting the
memory card using the [Format [Card]] option (GP.83) in the setup menu
(GP.82) does not delete GPS log files.
Delete GPS Log
Highlight [Yes] and press MENU/OK to delete all GPS log files.
Note ----------------------------------------------------------------------------------
• GPS logs can not be deleted if the memory card is locked (GP.25).
• Formatting the memory card using the [Format [Card]] option (GP.83) in the
setup menu (GP.82) does not delete GPS log files.
Compass Heading
Choose the format used to display compass headings
received from GP-1 or Bluetooth®-equipped GPS
units that supply compass data.
359.2˚//NNW/mag
359.2˚//NNW/mag
359.2˚//NNW/mag
E: 139˚
139˚E:139˚
E:139˚
N: 035˚
N:035˚
N:035˚
Degrees Points
Available Settings Description
Cardinal The heading is displayed using points of the compass.
Degree The heading is displayed using both points and degrees.
L7580872_0914_En.indb 100
L7580872_0914_En.indb 100
2010/09/14 17:56:46
2010/09/14 17:56:46

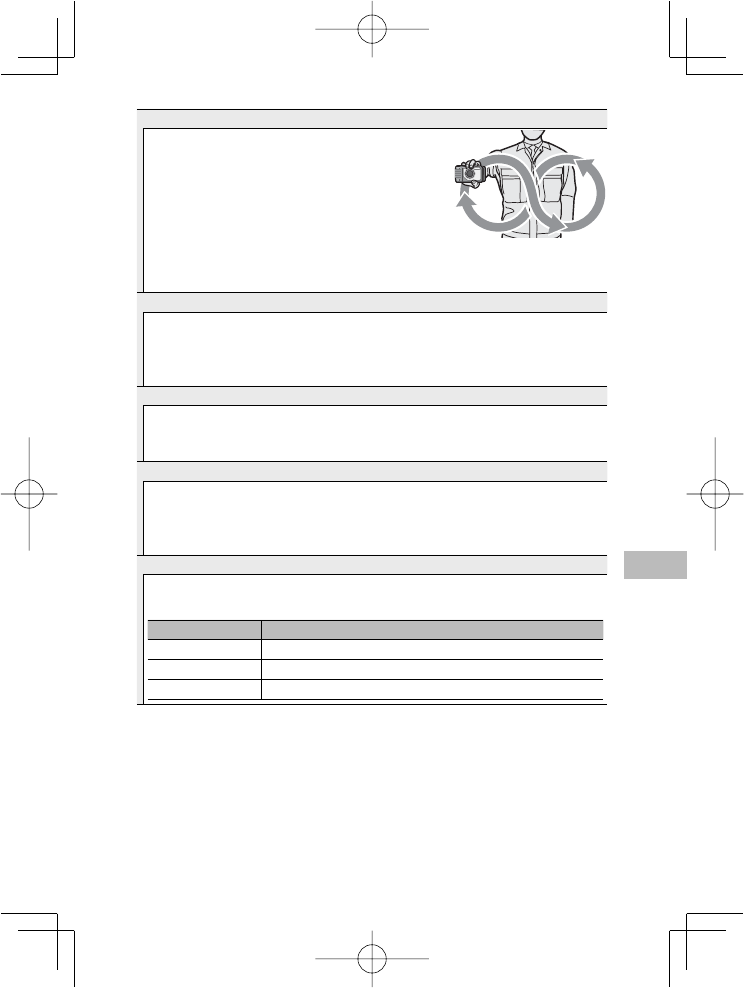

![](/img.php?id=1359556&img=bg68.png)
101
Expanded Settings Menu
10
Compass Calibration
If a GP-1 is connected, its compass can be calibrated
by highlighting [Yes], pressing MENU/OK, and then
holding the camera in one hand and slowly moving it
through a large figure eight while rotating your wrist.
Each pass should take from five to eight seconds; a
beep will sound if calibration is successful, a warning
buzzer if it is not. Press DISP. to cancel and exit to
the expanded settings menu before calibration is
complete.
GPS Data Imprint
Select [On] to record GPS data with photographs taken while a GP-1 or Bluetooth®-
equipped GPS unit is connected. GPS data are recorded in the format selected for
[GPS Disp Mode] (GP.99). GPS data are not recorded when [Off ] is selected or
when GPS data are unavailable.
UTC Data Imprint
Select [On] to record the time provided by the GPS unit with photographs taken
while a GP-1 or Bluetooth®-equipped GPS unit is connected. The time is not
recorded when [Off ] is selected or when GPS data are unavailable.
Heading Data Imprint
If a GP-1 or a Bluetooth®-equipped GPS unit that supplies compass data is
connected, select [On] to record the compass heading in the format selected for
[Compass Heading] (GP.100). The compass heading is not recorded when [Off ] is
selected or when GPS data are unavailable.
Range Finder Mode
Choose how data acquired from a Bluetooth®-equipped laser range finder (available
separately from third-party suppliers) are handled.
Available Settings Description
Mode1 Range data always appear in the picture display.
Mode2 Range data are displayed until a photograph is taken.
Mode3 Photos are taken automatically as range data are acquired.
L7580872_0914_En.indb 101
L7580872_0914_En.indb 101
2010/09/14 17:56:46
2010/09/14 17:56:46
![](/img.php?id=1359556&img=bg69.png)

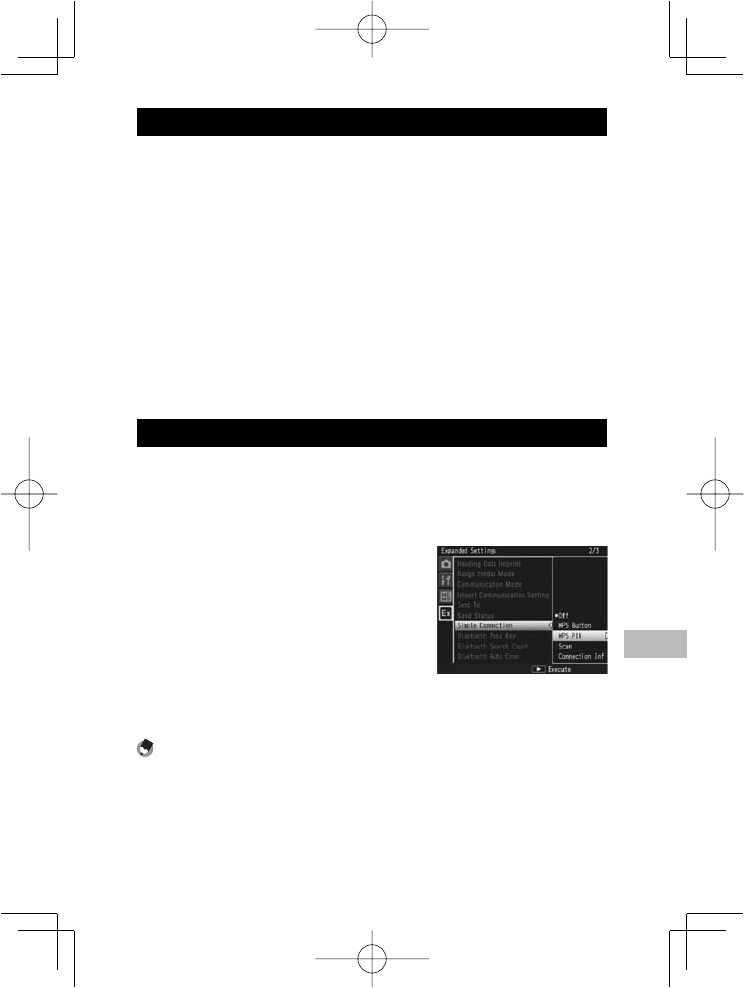

102
Expanded Settings Menu
10
Communication Mode
Choose whether data transmitted using [File Send] (GP.74) and quick send
(GP.104) are sent via wireless LAN ([W-LAN]) or Bluetooth® ([Bluetooth]).
Import Communication Setting GP.125
Highlight [Yes] and press MENU/OK to load a host list previously created and
transmitted to the camera using the supplied ST-10 software (GP.123). Host lists
are required when sending files from the camera to a computer via a wireless LAN
(GP.112).
Send To
View, edit, or choose a host from a host list.
Note ----------------------------------------------------------------------------------
If you do not select a host using this option before connecting to a wireless LAN,
the camera will attempt to connect to the first host in the list when pictures are
sent with [Off] selected for [Send Status] or quick send is used with [1Touch]
selected for [Quick Send Mode] (GP.109).
Send Status
Select [On] to select a host every time pictures are sent, [Off ] to send pictures to the
host selected with [Send To]. Choose [Off ] if you always use the same host.
Simple Connection GP.128
Use a simple connection method to connect to the wireless host or access point
when sending data via wireless LAN.
L7580872_0914_En.indb 102
L7580872_0914_En.indb 102
2010/09/14 17:56:46
2010/09/14 17:56:46
![](/img.php?id=1359556&img=bg6a.png)
103
Expanded Settings Menu
10
Bluetooth Pass Key
Enter a password for Bluetooth® connections, allowing the camera to supply the
password automatically when it connects to a password-protected Bluetooth®
device.
Note ----------------------------------------------------------------------------------
• For information on using passwords with a Bluetooth® device, see the
documentation provided with the equipment.
• The camera supports passwords of up to 16 characters.
• If this option is not used, the password must be entered manually each time
the camera connects to the device.
• The camera can store only one password at a time. When connecting to
multiple devices, ensure that they share the same password.
• Before changing an existing password, enter the current password and press
MENU/OK.
Bluetooth Search Count
Choose the maximum number of Bluetooth® devices (1–10) that will be detected by
the camera.
Bluetooth Auto Conn GP.138
If [On] is selected when the camera is turned on, the camera will automatically
connect to any Bluetooth® devices to which it was connected when it was turned
off.
Bluetooth Serial GP.137
Lists the Bluetooth® devices detected by the camera. Press ! or " to highlight a
device and press MENU/OK to connect.
Bluetooth Master/Slave
Choose [Master] to allow the camera to be used with multiple Bluetooth® devices
simultaneously, [Slave] to allow it to be used with only one device at a time.
Image File Size
Images will automatically be converted to the selected size during transmission.
Select [No Alter] to send images at their original size.
Caution ------------------------------------------------------------------------------
Images are automatically converted to a supported size when sent to BIP-profile
Bluetooth® devices; as a result, images may not be converted to the size selected
with [Image File Size].
L7580872_0914_En.indb 103
L7580872_0914_En.indb 103
2010/09/14 17:56:46
2010/09/14 17:56:46
![](/img.php?id=1359556&img=bg6b.png)
104
Expanded Settings Menu
10
Auto Delete
Select [On] to automatically delete files from the camera after they have been
transmitted to a computer.
Quick Send Mode GP.108
Upload pictures to a computer as they are taken.
Bluetooth Profile
Choose a profile for connection to Bluetooth® devices.
Available Settings Description
OPP/BIP Use BIP if device does not support OPP; otherwise use OPP.
OPP Use OPP (Object Push Profile).
BIP Use BIP (Basic Imaging Profile).
Custom Help GP.59
Select [On] to enable custom help.
Admin Pass Key
Choose a password for custom help.
Note ----------------------------------------------------------------------------------
• The password for custom help is not the same as the password selected for
[Choose/Change Password] (GP.90).
• See “Keyboard” (GP.91) for information on entering a password. Barcode
readers can not be used.
Caution ------------------------------------------------------------------------------
Do not forget your password. If you forget your password, contact one of the
Ricoh offices listed on the back cover of this manual.
Admin Mode [Regist] GP.59
Copy custom help (JPEG image files) from a memory card to internal memory.
Admin Mode [Delete] GP.61
Delete selected custom help files.
L7580872_0914_En.indb 104
L7580872_0914_En.indb 104
2010/09/14 17:56:46
2010/09/14 17:56:46
![](/img.php?id=1359556&img=bg6c.png)

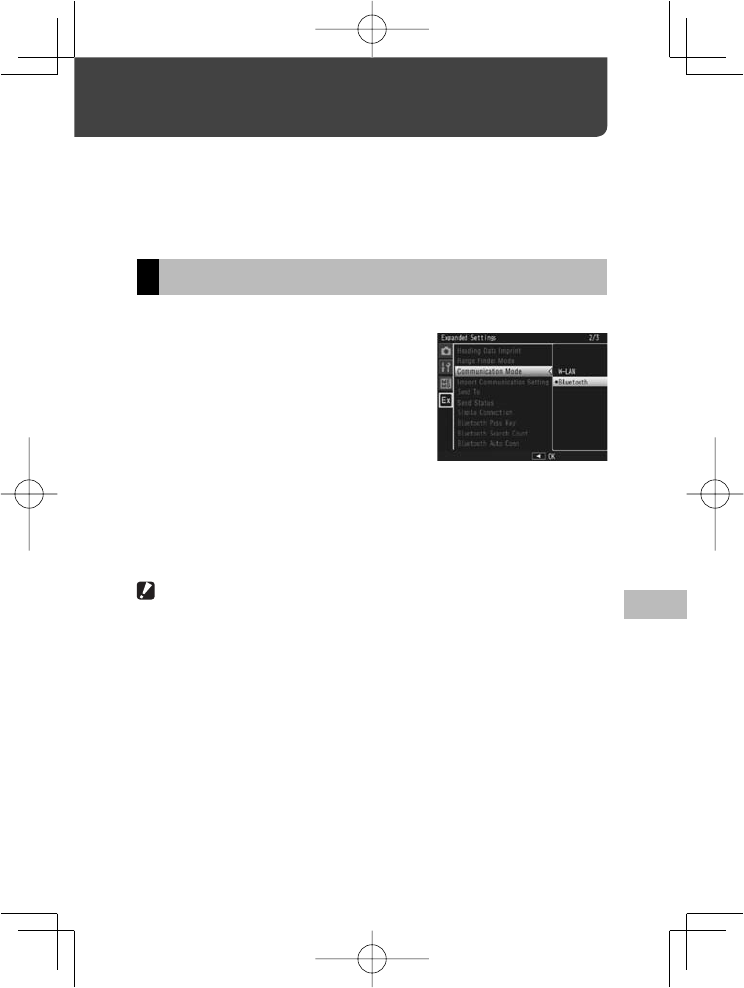

105
Bluetooth®
11
11 Bluetooth®
The camera supports both Bluetooth® and wireless LAN for wireless
data transfer. Bluetooth® can be used to connect simultaneously to
multiple computers and other devices. Before using Bluetooth®, select
[Bluetooth] for [Communication Mode] (GP.102) in the expanded
settings menu (GP.98).
Bluetooth® Connections
Complex settings are not required to transfer images via Bluetooth®.
1Select [Bluetooth] for
[Communication Mode].
• Select [Bluetooth] for [Communication
Mode] (GP.102) in the expanded
settings menu (GP.98).
2Transfer images.
• Transfer images using quick send (GP.104) or the [File Send]
option (GP.74) in the playback menu (GP.72). The camera will
automatically detect potential hosts; select a host to begin transfer
(a password may be required).
Caution ---------------------------------------------------------------------------------
• Bluetooth® has a maximum range of about 10 m (33 ft.); ensure that there are
no obstacles between the two devices.
• The camera can communicate with devices that use the Basic Imaging Profile
(BIP) or Object Push Profile (OPP). Consult the documentation provided with
the Bluetooth® device.
• Movies can not be transferred via Bluetooth®.
L7580872_0914_En.indb 105
L7580872_0914_En.indb 105
2010/09/14 17:56:47
2010/09/14 17:56:47
![](/img.php?id=1359556&img=bg6d.png)
106
Bluetooth®
11
Entering a Password
If an authentication key, or password, is
required for connection to a Bluetooth®
device, a message will be displayed. Enter a
password as described below.
1Press MENU/OK.
• An on-screen keyboard will be displayed.
2Enter the password.
• Enter a password as described on
P.91 (for information on selecting a
password, consult the documentation
provided with the host device). If you
do not enter the correct password
within 30 seconds, an error message
will be displayed; press MENU/OK to try
again.
3Press MENU/OK.
• Press MENU/OK to begin transfer.
Note -------------------------------------------------------------------------------------
• The camera supports passwords of up to 16 characters.
• The camera stores the password and performs authentication automatically
when you next connect to the device; no further password entry is required.
If desired, the password can be stored in the camera before the connection is
made (GP.103).
• If the Bluetooth® device displays a password-entry dialog before the camera,
enter the password on the device first and then enter the same password on
the camera.
L7580872_0914_En.indb 106
L7580872_0914_En.indb 106
2010/09/14 17:56:47
2010/09/14 17:56:47
![](/img.php?id=1359556&img=bg6e.png)
107
Bluetooth®
11

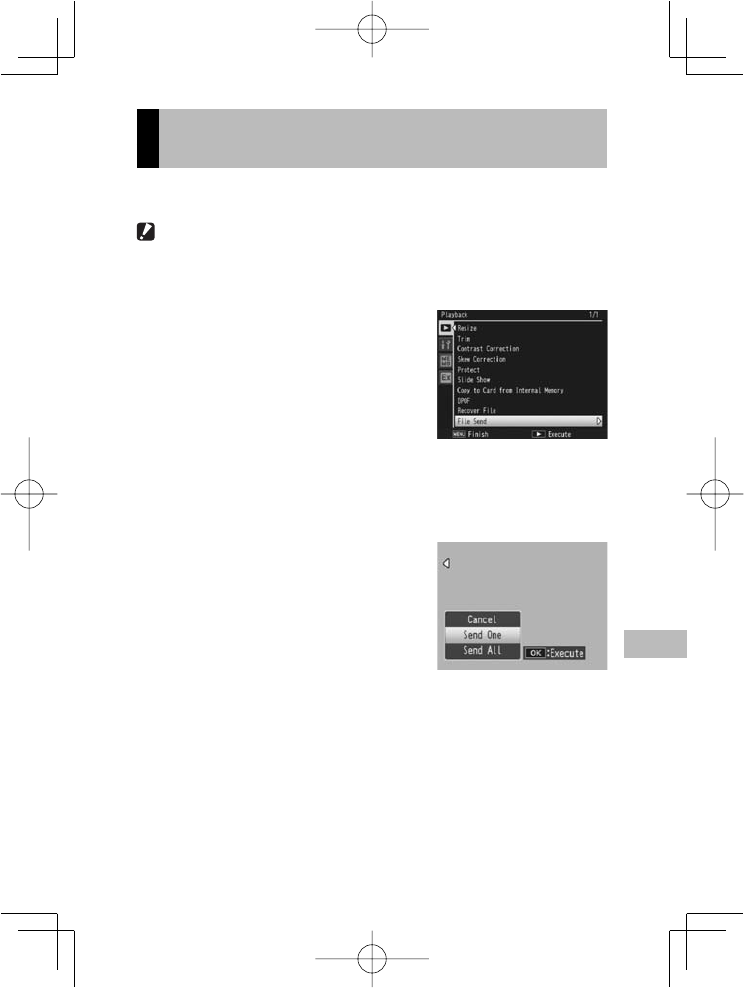

Transferring Images During Playback
(Bluetooth®)
Images can be copied to Bluetooth® devices using the [File Send]
option in the playback menu (GP.72).
1Select [File Send].
• Select [File Send]. If you intend to copy
only one picture, display the picture full
frame before proceeding. Highlight
[File Send] in the playback menu
(GP.72) and press $ to display a list
of devices (if this is the first time you
have used Bluetooth®, a confirmation
dialog will be displayed; highlight [Yes] and press MENU/OK).
2Choose a host.
• Press ! or " to highlight a device and
press MENU/OK (to view a description
of the highlighted device, press $; to
remove the device from the list, press
D). If the desired device does not
appear, press ADJ./MEMO to refresh the
list.
3Transfer images.
• Highlight [Send One] (send only the
current image) or [Send All] (copy all
images), and press MENU/OK. Enter a
password if prompted (GP.106). A
progress indicator will be displayed.
4Press MENU/OK when transfer is complete.
• A message will be displayed when transfer is complete. Press MENU/
OK to return to playback.
Transferring Multiple Selected Images -----------------------------------------
To transfer multiple selected images, select thumbnail view (GP.38) before
selecting [File Send]. After choosing a device as described in Step 2, highlight still
images and press MENU/OK to select or deselect. Press DISP. when your selection
is complete. A confirmation dialog will be displayed; highlight [Yes] and press
MENU/OK to transfer the selected images.
L7580872_0914_En.indb 107
L7580872_0914_En.indb 107
2010/09/14 17:56:47
2010/09/14 17:56:47
![](/img.php?id=1359556&img=bg6f.png)
108
Bluetooth®
11
Skipping Steps 1 and 2--------------------------------------------------------------
Once you have selected a host and password, the options in Step 3 can be
displayed by pressing and holding DISP. during playback.
Interrupting Transfer ---------------------------------------------------------------
Pressing DISP., 6, or the shutter release button interrupts transfer.
Note -------------------------------------------------------------------------------------
Unless [BIP] is selected for [Bluetooth Profile] (GP.104) in the expanded settings
menu (GP.98), images are transferred at the size currently selected for [Image
File Size] (GP.103) in the expanded settings menu (GP.98). If [BIP] is selected
and the image file size is larger than the maximum supported by the device,
images will be resized to the maximum supported by the device.
Transferring Images During Shooting
(Bluetooth®)
The [Quick Send Mode] option (GP.104) in the expanded settings
menu (GP.98) can be used to transfer photographs as they are taken.
Movies can not be transferred.
Available Setting Description
Off Photos are not uploaded during shooting.
1Touch Press MENU/OK when a photo is displayed after shooting to
upload it to a Bluetooth® device.
2Touch Press $ to display the most recent photo and press MENU/OK
to begin upload. Not available when [On] is selected for [GPS
Lock] (GP.99).
Auto Photos are automatically uploaded at their original size as they
are taken.
Caution ---------------------------------------------------------------------------------
Photos are not uploaded in scene mode (GP.52) or if [On] is selected for
[Continuous Mode] (GP.64) in the shooting menu.
Note -------------------------------------------------------------------------------------
• Before shooting, confirm that the host device is on.
• The [Auto Delete] option (GP.104) in the expanded settings menu (GP.98)
can be used to automatically delete photos from the camera after transfer.
L7580872_0914_En.indb 108
L7580872_0914_En.indb 108
2010/09/14 17:56:47
2010/09/14 17:56:47
![](/img.php?id=1359556&img=bg70.png)

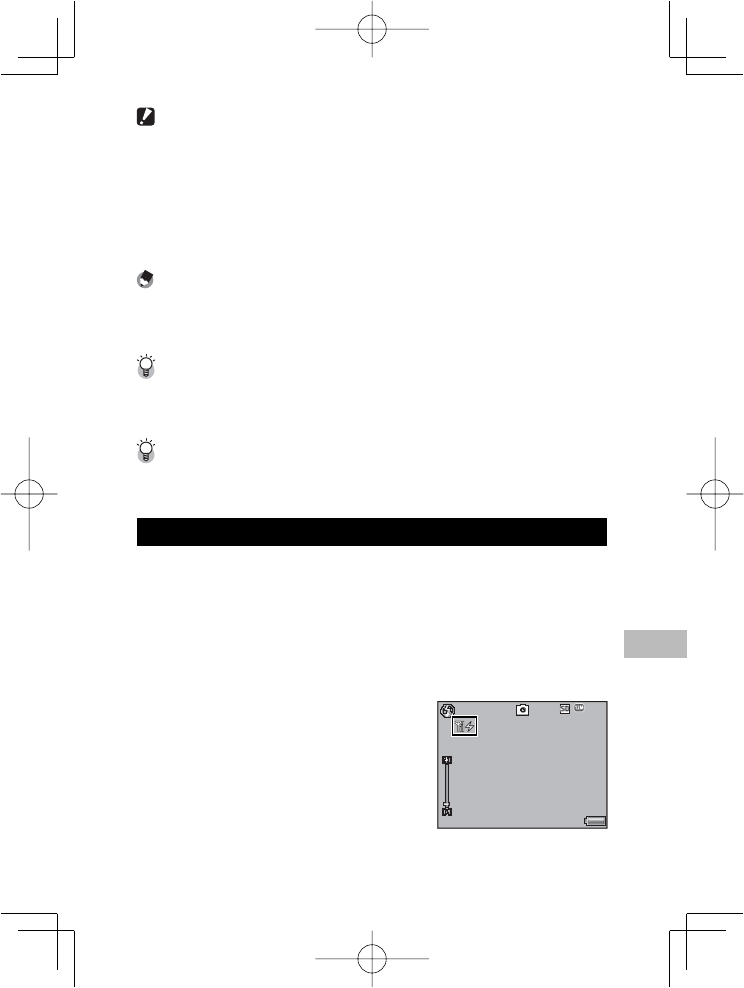

109
Bluetooth®
11
Interrupting Transfer/Terminating the Connection -------------------------
To interrupt transfer, rotate the mode dial or press DISP., 6, or the shutter release
button. To interrupt transfer and terminate the connection, select playback mode
or turn the camera off.
Choosing a Host ----------------------------------------------------------------------
Photos are automatically uploaded to the device last selected for [File Send]
(GP.74) in playback mode. Use [File Send] to choose a different device.
One-Touch Transfer
When [1Touch] is selected for [Quick Send Mode], the MENU/OK
button can be used when a photo is displayed after shooting to
upload it to the device currently selected for [File Send]. The photo is
not uploaded if the button is not pressed in the time selected for [LCD
Confirmation Time] (GP.84) in the setup menu (GP.82); longer
times are recommended.
A Bluetooth® antenna icon is displayed
while the camera is connected to the
device; when transfer is complete, the
camera will return to shooting mode
without terminating the connection. The
connection can be terminated by selecting
playback mode or turning the camera off.
Note -------------------------------------------------------------------------------------
• Photos can not be uploaded if: a device has not been selected using [File Send]
(GP.74), [Off ] is selected for [LCD Confirmation Time], [On] or [WB-BKT] is
selected for [Auto Bracket], or the option selected for [Picture Quality/Size] is
larger than the size supported by the host when [BIP] is selected for [Bluetooth
Profile] (GP.104) in the expanded settings menu (GP.98).
• Images are not resized during transfer, regardless of the option selected for
[Image File Size] (GP.103) in the expanded settings menu (GP.98).
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
11
1
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
11
1
L7580872_0914_En.indb 109
L7580872_0914_En.indb 109
2010/09/14 17:56:47
2010/09/14 17:56:47
![](/img.php?id=1359556&img=bg71.png)

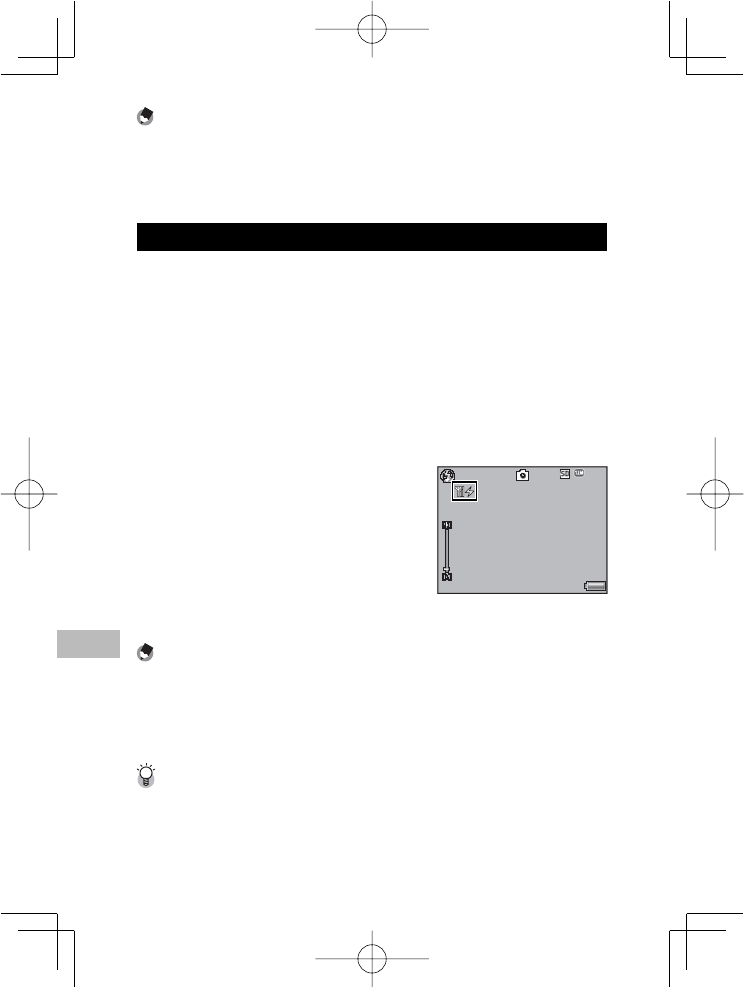

110
Bluetooth®
11
Two-Touch Transfer
To upload your most recent photo:
1Press $.
• A confirmation dialog will be displayed. (If this is the first time you
have used two-touch transfer, you will be asked if you wish to
choose a host; highlight [Yes] and press MENU/OK to display a list of
Bluetooth® devices. Press ! or " to highlight a device and press
MENU/OK. If the desired device does not appear, press ADJ./MEMO
to refresh the list.)
2Press MENU/OK to begin transfer.
• Enter a password if prompted
(GP.106). A progress indicator is
displayed during transfer. A Bluetooth®
antenna icon is displayed while the
camera is connected; when transfer
is complete, the camera will return to
shooting mode without terminating
the connection. The connection can be terminated by selecting
playback mode or turning the camera off.
Note -------------------------------------------------------------------------------------
• Two-touch transfer can not be used when [On] is selected for [GPS Lock]
(GP.99) in the expanded settings menu (GP.98).
• Unless [BIP] is selected for [Bluetooth Profile] (GP.104) in the expanded
settings menu (GP.98), images are transferred at the size currently selected
for [Image File Size] (GP.103) in the expanded settings menu (GP.98). If
[BIP] is selected and the image file size is larger than the maximum supported
by the device, images will be resized to the maximum supported by the device.
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
11
1
4:
3 F
3 F4:3 F
4:3 F
9999
9999
9999
11
1
L7580872_0914_En.indb 110
L7580872_0914_En.indb 110
2010/09/14 17:56:48
2010/09/14 17:56:48
![](/img.php?id=1359556&img=bg72.png)
111
Bluetooth®
11
Auto Transfer
Select [Auto] to automatically upload photos as they are taken.
Note -------------------------------------------------------------------------------------
• Photos can not be uploaded if a device has not been selected using [File Send]
(GP.74) or if the option selected for [Picture Quality/Size] is larger than the size
supported by the host when [BIP] is selected for [Bluetooth Profile] (GP.104) in
the expanded settings menu (GP.98).
• Images are not resized during transfer, regardless of the option selected for
[Image File Size] (GP.103) in the expanded settings menu (GP.98).
L7580872_0914_En.indb 111
L7580872_0914_En.indb 111
2010/09/14 17:56:48
2010/09/14 17:56:48
![](/img.php?id=1359556&img=bg73.png)
112
Wireless Networks
12
12 Wireless Networks
Pictures can be uploaded from the camera over a wireless Local Area
Network (LAN). Before accessing a wireless network, select [W-LAN]
for [Communication Mode] (GP.102) in the expanded settings menu
(GP.98).
Connecting to a Wireless Network
1Configure the host device (GP.113).
• Use the supplied ST-10 software to configure the host ftp server.
If desired, the supplied SR-10 software can be used to create an
SR-10 ftp server on your computer exclusively for use by the G700SE
(GP.120).
2Create a host list (GP.123).
• Use ST-10 to create a host list containing connection information for
the hosts you configured in Step 1.
3Copy the host list to the camera (GP.123).
• Connect the camera to the computer using the supplied USB cable
and transfer the host list to internal memory, or use a memory card
to copy the host list to the camera (GP.125). Host lists can be
edited on the camera after transfer (GP.127).
4Select [W-LAN] for [Communication Mode].
• Select [W-LAN] for [Communication Mode] (GP.102) in the
expanded settings menu (GP.98).
5Transfer images.
• Use quick send (GP.104) or the [File Send] option (GP.74) in
the playback menu (GP.72) to transfer images to a host selected
from a list displayed when transfer begins. If desired, the host can
be selected in advance using the [Send To] option (GP.102) in the
expanded settings menu (GP.98).
L7580872_0914_En.indb 112
L7580872_0914_En.indb 112
2010/09/14 17:56:48
2010/09/14 17:56:48
![](/img.php?id=1359556&img=bg74.png)

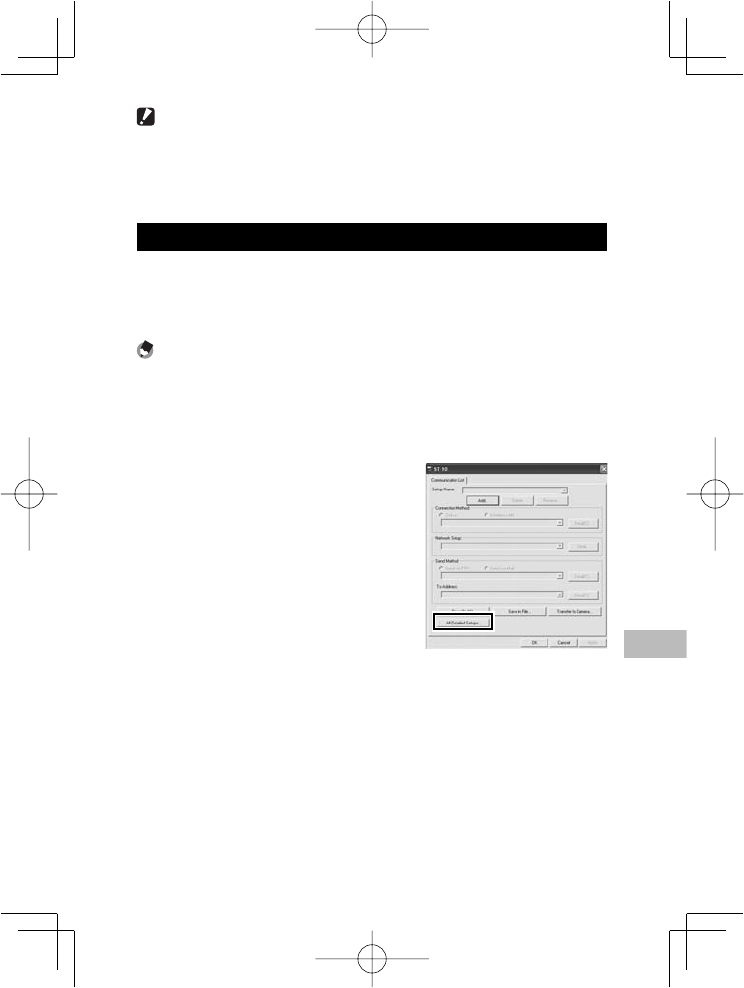

113
Wireless Networks
12
Caution ---------------------------------------------------------------------------------
• The camera’s wireless transmitter has a maximum range of about 30 m (100 ft.);
ensure that there are no obstacles between the two devices.
• The supplied ST-10 software (available for Windows only) is required for
connection to a wireless LAN.
Configuring the Host
Before images can be transferred to a host computer or other
device over a wireless network, a host list containing the necessary
connection information must be copied to the camera. The supplied
ST-10 software is used to configure the host computer for transfer.
Note -------------------------------------------------------------------------------------
See P.151 for information on installing ST-10.
1Start ST-10.
• Start ST-10. In the Windows start menu, select [All Programs] >
[Programs] > [DC Software] > [ST-10].
2Click [All Detailed Setups].
• The ST-10 window will be displayed.
Click [All Detailed Setups].
L7580872_0914_En.indb 113
L7580872_0914_En.indb 113
2010/09/14 17:56:48
2010/09/14 17:56:48
![](/img.php?id=1359556&img=bg75.png)
114
Wireless Networks
12
3Click the desired tab.
• In the [Detailed Setups for selections]
dialog, choose from the following
tabs:
-Network: Enter an IP address.
-Wireless LAN: Adjust wireless LAN
settings.
-FTP Send: Adjust ftp settings.
-Dial-up/Mail Config./Address
Book: Not required; the camera
does not support dial-up
connections or e-mail.
Note -------------------------------------------------------------------------------------
• If the computer is not currently configured for ftp, use the supplied SR-10
software to create an ftp server (GP.120).
• Advanced settings for some options can be accessed by clicking [Detail].
4Click [Add].
• Click the [Add] button under [Setup
Name] to display the [New Name for
the Setup] dialog.
5Enter a name.
• Enter a name for the new
configuration and click [OK].
6Adjust settings.
• Adjust settings as described on P.116.
The configuration currently selected in the [Setup Name] list can be
renamed by clicking [Rename] or deleted by clicking [Delete]. Click
[Apply] to save changes.
L7580872_0914_En.indb 114
L7580872_0914_En.indb 114
2010/09/14 17:56:48
2010/09/14 17:56:48
![](/img.php?id=1359556&img=bg76.png)
115
Wireless Networks
12
7Adjust settings in the remaining tabs.
• Repeat Steps 3–6 to adjust settings in the remaining tabs.
8Save settings and exit.
• Click [OK] to save changes and return to the ST-10 window, and then
click [OK] to exit ST-10.
Caution ---------------------------------------------------------------------------------
Consult the system administrator for information on network settings.
L7580872_0914_En.indb 115
L7580872_0914_En.indb 115
2010/09/14 17:56:49
2010/09/14 17:56:49
![](/img.php?id=1359556&img=bg77.png)
116
Wireless Networks
12
Detailed Setups Tab Settings
[Network] tab
Item Name Description
Host Setup
Host Name
Camera Password
These settings are not required when using this
camera.
Automatically retrieves its
IP address
Select this to retrieve an IP address automatically for
the camera.
Use the following IP address
IP address
Subnet Mask
Default Gateway
Select this to use a fixed IP address, and then enter the
information below.
[IP address]
Fixed IP address for the camera
[Subnet Mask]
Usually enter 255.255.255.0.
[Default Gateway]
IP address of an Internet-connected computer
Automatically retrieves the
address from the DNS server
Select this to retrieve the address automatically from
the DNS server.
Use the following DNS
server addresses
Primary DNS Server
Secondary DNS Server
Select this to use a fixed DNS server address, and then
enter the information below.
[Primary DNS Server]
Primary DNS server address of your Internet service
provider
[Secondary DNS Server]
Secondary DNS server address of your Internet
service provider
L7580872_0914_En.indb 116
L7580872_0914_En.indb 116
2010/09/14 17:56:49
2010/09/14 17:56:49
![](/img.php?id=1359556&img=bg78.png)
117
Wireless Networks
12
[Wireless LAN] tab
Note -------------------------------------------------------------------------------------
Wireless LAN settings do not require adjustment when the simple connection
option is used (GP.128).
Item Name Description
Connection Method Select from the following connection methods.
[Infrastructure]
Connection method for communication through
routers and access points
[AdHoc]
Connection method for communication between
slave devices
ESS-ID A wireless LAN enables communication between a
master device and a slave device having the same
ESS-ID. Enter the same ESS-ID as the master device.
Communication Channel When several access points are in use, a channel is
set to each access point. Select the channel of the
access point.
[Auto]
Select this if [Connection Method] is set to
[Infrastructure] and there is only one access point.
[1-13]
If [Connection Method] is set to [Infrastructure] and
there are several access points or if [Connection
Method] is set to [AdHoc], select the channel you
want to use.
Cryptography Select from the following encryption methods.
[None]
No encryption is used.
[WEP]
This can be selected when [Connection Method] is
set to either [Infrastructure] or [AdHoc].
[AES]
This can be selected only when [Connection
Method] is set to [Infrastructure].
[TKIP]
This can be selected only when [Connection
Method] is set to [Infrastructure].
L7580872_0914_En.indb 117
L7580872_0914_En.indb 117
2010/09/14 17:56:49
2010/09/14 17:56:49
![](/img.php?id=1359556&img=bg79.png)
118
Wireless Networks
12
Item Name Description
Network Key Enter the security key. Select a key type from [String]
and [Hex] and enter an encryption key in the box.
[String]
If [WEP] is selected for [Cryptography], enter
an encryption key of 5 or 13 characters. Entering a 5-
character string uses 40-bit encryption, and entering
a 13-character string uses 128-bit encryption.
If [AES] or [TKIP] is selected, enter an
encryption key from 8 to 63 characters.
[Hex]
If [WEP] is selected for [Cryptography], enter
a ten-character (40 bit) or 26-character (128 bit) key.
If [AES] or [TKIP] is selected, enter a 64-
character key.
Authentication [Open System]
This can be selected only when [Cryptography] is
set to [None] or [WEP]. This authentication does not
use WEP keys.
[Shared Key]
This can be selected only when [Cryptography] is set
to [None] or [WEP]. This authentication compares
the WEP keys of different devices.
[WPA-PSK]
This can be selected only when [Cryptography] is set
to [AES] or [TKIP].
[WPA2-PSK]
This can be selected only when [Cryptography] is set
to [AES] or [TKIP].
[FTP Send] tab
Item Name Description
Server Name Enter the name or IP address of the ftp server to which
images will be uploaded. If you are using the SR-10
server (GP.120), enter the IP address.
User Name and Password Enter a user name and password for the ftp server to
which images will be uploaded. Not required if you
are using the SR-10 server (GP.120).
Specify Folder Choose the destination folder for images uploaded to
the ftp server.
L7580872_0914_En.indb 118
L7580872_0914_En.indb 118
2010/09/14 17:56:49
2010/09/14 17:56:49
![](/img.php?id=1359556&img=bg7a.png)
119
Wireless Networks
12
Item Name Description
Does not send file whose
name already exists
If this option is selected, images will not be uploaded
if an image with the same filename already exists
in the destination folder (SR-10 servers (GP.120)
ignore this setting; during upload, images are
renamed as necessary to avoid duplication as
described on P.122). If this option is not selected,
images in the destination folder will be overwritten by
images with the same filename.
PASV Select this option to connect to the ftp server in PASV
mode. Choose this option when you are unable to
connect to an ftp server that is behind a firewall.
Note -------------------------------------------------------------------------------------
The camera does not support dial-up connections or e-mail, and there is
consequently no need to adjust the settings in the [Dial-up], [Mail Config.], and
[Address Book] tab.
L7580872_0914_En.indb 119
L7580872_0914_En.indb 119
2010/09/14 17:56:49
2010/09/14 17:56:49
![](/img.php?id=1359556&img=bg7b.png)
120
Wireless Networks
12
Configuring a G700SE-only FTP Server
If the computer is not currently configured for use as an ftp server,
the supplied SR-10 software can be used to create an SR-10 ftp server
exclusively for use by this camera.
Caution ---------------------------------------------------------------------------------
SR-10 ftp servers created using the supplied SR-10 software can be used only for
upload from this camera. Other ftp clients can not connect, and images can not
be downloaded to the camera.
Note -------------------------------------------------------------------------------------
See P.151 for information on installing SR-10.
1Start SR-10.
• In the Windows start menu, select
[All Programs] > [Programs] >
[DC Software] > [SR-10]. The SR-10
window will be displayed.
L7580872_0914_En.indb 120
L7580872_0914_En.indb 120
2010/09/14 17:56:49
2010/09/14 17:56:49
![](/img.php?id=1359556&img=bg7c.png)
121
Wireless Networks
12
2Adjust settings.
3
4
2
1
1Specify: Choose a destination folder. Choose [Server] to upload
images to the folder listed in the [Folder name] text box, [Camera]
to upload images to the folder selected in the [FTP Send] tab of
the host list, or [Server+Camera] to upload images to a sub-folder
created under the folder listed in the [Folder name] text box using
the name selected in the [FTP Send] tab of the host list (see below).
Folder named in [Folder Name] text box
Folder named in [Camera] text box
2Folder name: Enter the name of the destination folder or click the
folder icon to navigate to the desired folder. Note that the folder
is not created automatically; if necessary, create a folder with the
desired name.
3Log file name: To create a transmission log, enter a name and path
for the log file.
4PASV Mode Port Number: Enter the port number used for
connection to the ftp server when [PASV] is selected in the ST-10
[FTP Send] tab.
3Click [Apply].
• Click [Apply] to save changes.
4Click [Quit].
• Click [Quit] to exit SR-10.
L7580872_0914_En.indb 121
L7580872_0914_En.indb 121
2010/09/14 17:56:49
2010/09/14 17:56:49
![](/img.php?id=1359556&img=bg7d.png)

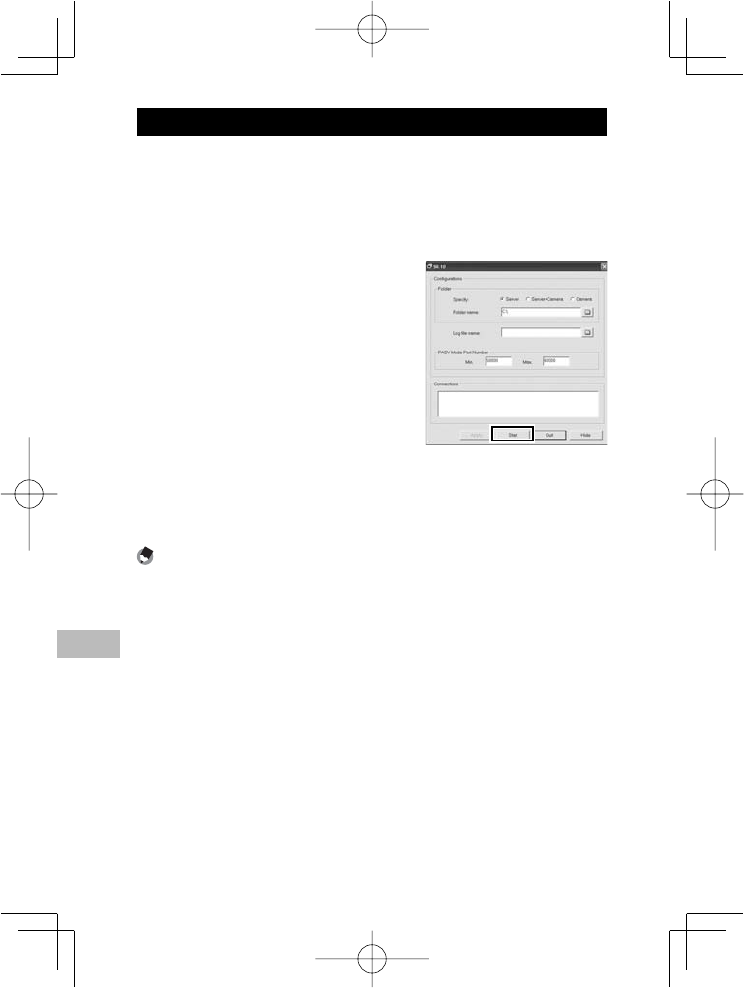

122
Wireless Networks
12
Uploading Images to the SR-10 Server
To upload images to the SR-10 server, transfer the host list to the
camera and then follow the steps below.
1Start SR-10.
• In the Windows start menu, select [All Programs] > [Programs] >
[DC Software] > [SR-10].
2Click [Start].
• The SR-10 window will be displayed;
click [Start] to start the ftp server. The
computer is now ready to receive
images from the camera. To hide the
SR-10 window during upload, click
[Hide]. SR-10 can be displayed again
by clicking the SR-10 icon in the
taskbar.
3Upload images.
• Images are uploaded to the selected folder (GP.121). See P.105 and
112 for more information. Transfer status is displayed in the SR-10
[Connections] list.
Note -------------------------------------------------------------------------------------
If the destination folder contains an image with the same name as an image
uploaded from the camera, the image in the destination folder will be renamed
by adding a suffix assigned in ascending order from -001 to -999 to the end of
the file name. If an image with the same name and suffix already exists in the
destination folder, it will be overwritten.
L7580872_0914_En.indb 122
L7580872_0914_En.indb 122
2010/09/14 17:56:50
2010/09/14 17:56:50
![](/img.php?id=1359556&img=bg7e.png)
123
Wireless Networks
12
Creating a Host List and Transferring It to
the Camera
Once hosts have been configured using ST-10, you can create a host
list for transfer to the camera via USB.
Note -------------------------------------------------------------------------------------
The host list can also be saved on a computer, copied to a memory card, and then
transferred to the camera (GP.125).
1Click [Add] or select an existing
host.
• To add a new host, click [Add]. To
edit settings for an existing host,
choose it from the pull-down
menu. 3
2
1
2Adjust settings.
1Connection Method: Select [Wireless LAN] and choose wireless
LAN settings from the pull-down menu. The settings selected in the
[Wireless LAN] tab (GP.117) will be displayed.
2Network Setup: Choose a network from the pull-down menu. The
settings selected in the [Network] tab (GP.116) will be displayed.
3Send Method: Select [Send via FTP]. The settings selected in the
[FTP Send] tab (GP.118) will be displayed.
3Add host configurations.
• Repeat Steps 1 and 2 to add or edit other host configurations. The
current configuration can be renamed by clicking [Rename] or
deleted by clicking [Delete].
4Click [Apply].
• Click [Apply] to save the host list.
5Connect the camera to the computer.
• Turn the camera off and connect it to the computer using the
supplied USB cable. The camera will turn on automatically.
L7580872_0914_En.indb 123
L7580872_0914_En.indb 123
2010/09/14 17:56:50
2010/09/14 17:56:50

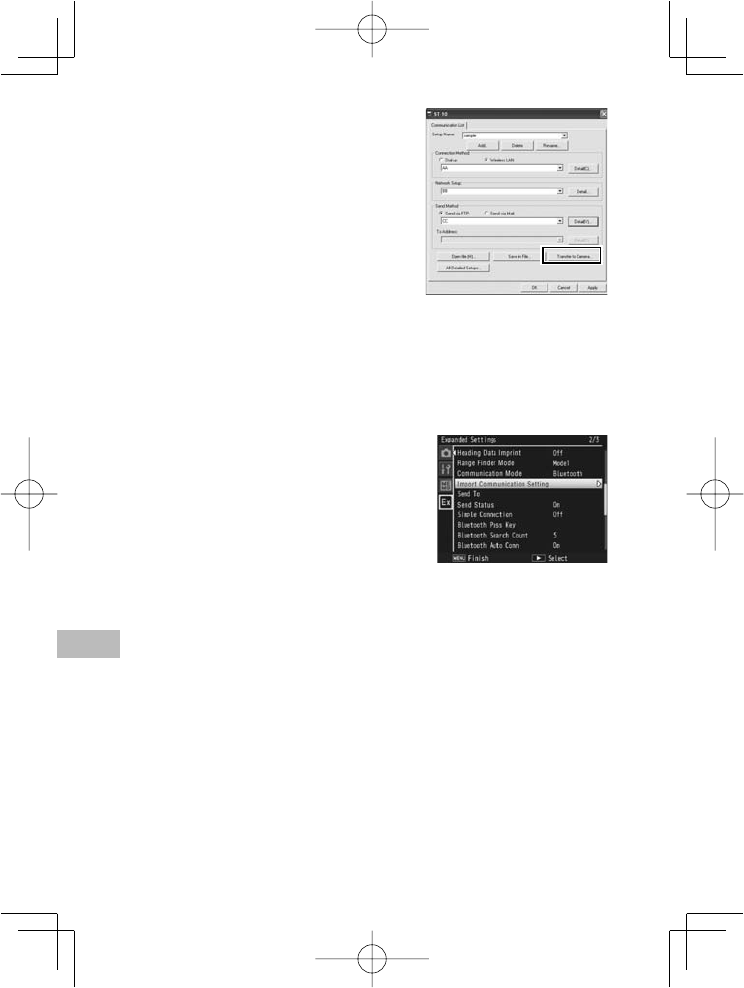

![](/img.php?id=1359556&img=bg7f.png)
124
Wireless Networks
12
6Click [Transfer to Camera].
• Enter the camera password when
prompted and click [OK] to begin
transfer. If you wish to update a host
list already present on the camera,
click [Yes] when prompted. If you did
not click [Apply] in Step 4, you will
also be prompted to save the host
list; click [OK].
7Click [OK] when transfer is complete.
• A message will be displayed when transfer is complete; click [OK].
8Exit ST-10.
• Click [OK] in the ST-10 window to exit ST-10. Remove the camera
from the system and disconnect the USB cable as described on P.156.
9Select [Import Communication
Setting].
• After turning the camera on, highlight
[Import Communication Setting] in the
expanded settings menu (GP.98) and
press $. A confirmation dialog will be
displayed.
L7580872_0914_En.indb 124
L7580872_0914_En.indb 124
2010/09/14 17:56:50
2010/09/14 17:56:50
![](/img.php?id=1359556&img=bg80.png)
125
Wireless Networks
12
10 Select [Yes].
• Press $ to highlight [Yes] and press
MENU/OK to copy the host list to
internal memory and return to the
expanded settings menu. If a host
list is already present, a dialog will be
displayed: select [Yes] to overwrite
the existing list or [No] to exit to the
expanded settings menu without
updating the list.
Note -------------------------------------------------------------------------------------
• ST-10 saves network settings and the host list automatically when you exit the
application. The most recently selected settings are displayed the next time you
start ST-10.
• The password entered in Step 6 is required when opening the host list in ST-10.
• The ST-10 software supplied with this camera can not be used to open or
transfer host lists created using ST-10 software supplied with earlier cameras.
Recreate the host list using the version of ST-10 supplied with this camera.
Reading a Host List from a Memory Card
Host lists created with a computer can be copied to a memory card
inserted in a card reader or card slot and then loaded into the camera’s
internal memory.
Caution ---------------------------------------------------------------------------------
Use a memory card that has been formatted in the camera.
1Click [Save in File].
• After creating a host list as described
in Steps 1–4 on P.123, click [Save in
File] to display the [Save As] dialog.
L7580872_0914_En.indb 125
L7580872_0914_En.indb 125
2010/09/14 17:56:50
2010/09/14 17:56:50
![](/img.php?id=1359556&img=bg81.png)
126
Wireless Networks
12
2Choose a destination.
• Navigate to the desired folder on the computer hard drive and
enter a file name (note that although you can use any name, you
will need to rename the file “SYSTEM.PRM” when copying it to the
memory card in Step 5). Click [Save]. You will be prompted to enter a
password.
3Enter a password and click [OK].
• The host list will be saved to the selected destination and a message
will be displayed.
Note -------------------------------------------------------------------------------------
Host lists stored on the computer hard drive can be opened for editing using the
ST-10 [Open file] option. Enter the password you used in Step 3 when prompted.
A warning will be displayed if the password is incorrect.
4Exit ST-10.
• Click [OK] in the ST-10 window to exit ST-10.
5Copy the host list to the memory
card.
• Insert the memory card in a card reader
or card slot and copy the host list to the
“SYSTEM” folder on the memory card.
Rename the file “SYSTEM.PRM”.
6Insert the memory card in the camera.
7Select [Import Communication Setting].
• After turning the camera on, select [Import Communication Setting]
in the expanded settings menu as described in Step 9 on P.124.
Caution ---------------------------------------------------------------------------------
Only one host list at a time can be read from a memory card.
Note -------------------------------------------------------------------------------------
The host list can also be transferred to the camera by direct USB connection
(GP.123).
L7580872_0914_En.indb 126
L7580872_0914_En.indb 126
2010/09/14 17:56:50
2010/09/14 17:56:50
![](/img.php?id=1359556&img=bg82.png)
127
Wireless Networks
12
Viewing and Editing the Host List
The camera can be used to view and edit the host list.
1Select [Send To].
• After turning the camera on, highlight
[Send To] in the expanded settings
menu (GP.98) and press $ to display
the host list.
2View settings.
• Press ! or " to highlight items and press $ to view. Press DISP. to
return to the previous display.
Host list Category list Settings list
3Edit settings.
• Highlight an entry in the settings list and press $. Edit the setting
using the on-screen keyboard (GP.91) and press MENU/OK to save
changes and return to the settings list. Repeat Steps 2–3 to select
and edit additional settings.
4Return to the expanded settings menu.
• Press MENU/OK to return to the expanded settings menu.
Caution ---------------------------------------------------------------------------------
Check the [Network Key] after editing [Crypt/Authentication] (GP.118). Note
that if [AES/WPA-PSK], [AES/WPA2-PSK], [TKIP/WPA-PSK], or [TKIP/WPA2-PSK] was
selected for [Cryptography] or [Authentication] in ST-10 (GP.117), changing
the [Connection Method] to [AdHoc] automatically changes [Cryptography] to
[None] and [Authentication] to [Open System].
L7580872_0914_En.indb 127
L7580872_0914_En.indb 127
2010/09/14 17:56:50
2010/09/14 17:56:50
![](/img.php?id=1359556&img=bg83.png)
128
Wireless Networks
12
Simple Connections for Wireless LANs
Using the [Simple Connection] option in
the expanded settings menu (GP.98),
you can connect to a wireless LAN without
adjusting settings in the ST-10 [Wireless
LAN] tab (GP.117).
Available Setting Description
Off Simple connection off; the camera connects using the wireless
LAN settings for the host selected for [Send To] (GP.102).
WPS Button If the wireless LAN access point is equipped with a WPS button,
you can connect by simply pressing the button.
WPS PIN If the wireless LAN access point uses a WPS PIN code, you can
connect by entering the PIN on the camera.
Scan The camera automatically searches for and selects a wireless
LAN access point and prompts you to enter a network key
and other information as required. The camera stores this
information even when turned off and supplies it automatically
the next time you connect to the network.
Connection Inf The camera displays information for the wireless LAN access
point to which you are currently connected.
L7580872_0914_En.indb 128
L7580872_0914_En.indb 128
2010/09/14 17:56:51
2010/09/14 17:56:51
![](/img.php?id=1359556&img=bg84.png)
129
Wireless Networks
12
Connecting Using [WPS Button]
1Select [WPS Button] for [Simple Connection].
• Highlight [Simple Connection] in the expanded settings menu
(GP.98) and press $, and then press ! or " to highlight [WPS
Button] and press $. A message will be displayed while the camera
waits for a signal from the wireless LAN access point.
2Press the WPS button.
• Press the WPS button on the wireless LAN access point (see the
documentation provided with the device for details). The camera
will display connection information to show that the connection
has been successfully established; press MENU/OK to return to the
expanded settings menu. If the connection fails or if no connection
is established within two minutes, an error will be displayed and the
camera will exit to the expanded settings menu.
Connecting Using [WPS PIN]
1Select [WPS PIN] for [Simple Connection].
• Highlight [Simple Connection] in the expanded settings menu
(GP.98) and press $, and then press ! or " to highlight [WPS
PIN] and press $.
2Enter the PIN.
• Enter an eight-digit PIN using the on-
screen keyboard (GP.91) and press
MENU/OK. A message will be displayed
while the camera connects. Connection
information is displayed if the attempt
is successful; press MENU/OK to return
to the expanded settings menu. If the
connection fails, an error will be displayed and the camera will exit
to the expanded settings menu.
Note -------------------------------------------------------------------------------------
The camera stores the PIN even when turned off.
L7580872_0914_En.indb 129
L7580872_0914_En.indb 129
2010/09/14 17:56:51
2010/09/14 17:56:51
![](/img.php?id=1359556&img=bg85.png)
130
Wireless Networks
12
Connecting Using [Scan]
1Select [Scan] for [Simple Connection].
• Highlight [Simple Connection] in the expanded settings menu
(GP.98) and press $, and then press ! or " to highlight [Scan]
and press $. A message will be displayed while the camera searches
for wireless LAN access points; when the search is complete, a list of
the available access points will be displayed.
2Select an access point.
• Press ! or " to highlight an access point and press MENU/OK. The
camera will attempt to connect using the wireless LAN settings
last entered for [Scan]. If the attempt is successful, connection
information will be displayed; press MENU/OK to return to the
expanded settings menu.
• If no previous settings exist or if the settings are incorrect, a message
will be displayed prompting you to enter wireless LAN information
manually; highlight [OK] and press MENU/OK to display wireless LAN
settings (GP.117). Press ! or " to highlight items and press $ to
select. Edit settings, using the on-screen keyboard where required,
and press MENU/OK to connect when settings are complete.
Connection information will be displayed if the camera is able to
connect; press MENU/OK to return to the expanded settings menu.
Caution ---------------------------------------------------------------------------------
Upload will be cancelled if the camera is unable to connect at current settings.
The camera will not attempt to connect to the host selected for [Send To]
(GP.102).
L7580872_0914_En.indb 130
L7580872_0914_En.indb 130
2010/09/14 17:56:51
2010/09/14 17:56:51
![](/img.php?id=1359556&img=bg86.png)
131
Wireless Networks
12
Transferring Images During Playback
(Wireless LANs)
The [File Send] option in the playback menu (GP.72) can be used to
upload images to a computer during playback.
Caution ---------------------------------------------------------------------------------
Before uploading images over a wireless LAN, use a computer to create a host list
and transfer it to the camera (GP.123). Images can not be uploaded if a host list
has not been transferred to the camera or if the settings in the list are incorrect.
1Select [File Send].
• If you intend to copy only one picture,
display the picture full frame before
proceeding. Highlight [File Send] in
the playback menu (GP.72) and
press $. If [On] is selected for [Send
Status] (GP.102), the host list will be
displayed. If [Off] is selected, proceed
to Step 3.
2Choose a host.
• Press ! or " to highlight a device and press MENU/OK.
3Transfer images.
• Highlight [Send One] (send only the
current image) or [Send All] (copy
all images), and press MENU/OK. A
progress indicator will be displayed.
4Press MENU/OK when transfer is complete.
• A message will be displayed when transfer is complete. Press MENU/
OK to return to playback.
L7580872_0914_En.indb 131
L7580872_0914_En.indb 131
2010/09/14 17:56:51
2010/09/14 17:56:51
![](/img.php?id=1359556&img=bg87.png)
132
Wireless Networks
12
Transferring Multiple Selected Images -----------------------------------------
To transfer multiple selected images, select thumbnail view (GP.38) before
selecting [File Send]. After choosing a device as described in Step 2, highlight still
images and press MENU/OK to select or deselect. Press DISP. when your selection
is complete. A confirmation dialog will be displayed; highlight [Yes] and press
MENU/OK to transfer the selected images.
Skipping Steps 1 and 2--------------------------------------------------------------
Once you have selected a host and password, the options in Step 3 can be
displayed by pressing and holding DISP. during playback.
Interrupting Transfer ---------------------------------------------------------------
Pressing DISP., 6, or the shutter release button interrupts transfer.
Note -------------------------------------------------------------------------------------
Images are transferred at the size currently selected for [Image File Size]
(GP.103) in the expanded settings menu (GP.98).
Transferring Images During Shooting
(Wireless LANs)
The [Quick Send Mode] option in the expanded settings menu
(GP.98) can be used to transfer photographs as they are taken.
Available Setting Description
Off Photos are not uploaded during shooting.
1Touch Press MENU/OK when a photo is displayed after shooting to
begin upload. Movies can not be transferred.
2Touch Press $ to display the most recent photograph or movie and
press MENU/OK to begin upload. Not available when [On] is
selected for [GPS Lock] (GP.99).
Auto Photos are automatically uploaded at their original size as they
are taken. Photos are not converted to the size selected for
[Image File Size] (GP.103) in the expanded settings menu
(GP.98).
L7580872_0914_En.indb 132
L7580872_0914_En.indb 132
2010/09/14 17:56:52
2010/09/14 17:56:52
![](/img.php?id=1359556&img=bg88.png)
133
Wireless Networks
12
Caution ---------------------------------------------------------------------------------
• Before uploading images over a wireless LAN, use a computer to create a host
list and transfer it to the camera (GP.123). Images can not be uploaded if a
host list has not been transferred to the camera or if the settings in the list are
incorrect.
• Photos are not uploaded in scene mode (GP.52) or if [On] is selected for
[Continuous Mode] (GP.64) in the shooting menu.
• During transfer, the flash does not charge and optical zoom is disabled.
Note -------------------------------------------------------------------------------------
• Before shooting, confirm that the host device is on.
• The [Auto Delete] option (GP.104) in the expanded settings menu (GP.98)
can be used to automatically delete photos from the camera after transfer.
Interrupting Transfer/Terminating the Connection -------------------------
To interrupt transfer, rotate the mode dial or press DISP., 6, or the shutter release
button. To interrupt transfer and terminate the connection, select playback mode
or turn the camera off.
Choosing a Host ----------------------------------------------------------------------
Photos are automatically uploaded to the device last selected for [File Send] in
playback mode (GP.74). Use [File Send] to choose a different device.
One-Touch Transfer
When [1Touch] is selected for [Quick Send Mode], the MENU/OK
button can be used when a photo is displayed after shooting to
upload it to the host currently selected for [File Send] (if no host is
selected, the photo will be uploaded to the first host in the host list).
The photo is not uploaded if the button is not pressed in the time
selected for [LCD Confirmation Time] (GP.84) in the setup menu
(GP.82); longer times are recommended.
A wireless LAN antenna icon is displayed
while the camera is connected; when
transfer is complete, the camera will return
to shooting mode without terminating
the connection. The connection can be
terminated by selecting playback mode or
turning the camera off.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
4:
3 F
4:3 F
4:3 F
9999
9999
9999
L7580872_0914_En.indb 133
L7580872_0914_En.indb 133
2010/09/14 17:56:52
2010/09/14 17:56:52
![](/img.php?id=1359556&img=bg89.png)
134
Wireless Networks
12
Note -------------------------------------------------------------------------------------
• Photos can not be uploaded if: [Off ] is selected for [LCD Confirmation Time], or
[On] or [WB-BKT] is selected for [Auto Bracket].
• Images are not resized during transfer, regardless of the option selected for
[Image File Size] (GP.103) in the expanded settings menu (GP.98).
Two-Touch Transfer
To upload your most recent photo:
1Press $.
• A confirmation dialog will be displayed. (If this is the first time you
have used two-touch transfer and [On] is selected for [Send Status]
as described on P.102, you will be asked if you wish to choose a host;
highlight [Yes] and press MENU/OK to display the host list. Press !
or " to highlight a host and press MENU/OK. If the desired host
does not appear, press ADJ./MEMO to refresh the list. If [Off] is
selected for [Send Status], the image will be uploaded to the host
selected for [Send To].)
2Press MENU/OK to begin transfer.
• A progress indicator is displayed
during transfer. A wireless LAN
antenna icon is displayed while the
camera is connected; when transfer
is complete, the camera will return to
shooting mode without terminating
the connection. The connection can be
terminated by selecting playback mode or turning the camera off.
Note -------------------------------------------------------------------------------------
• Two-touch transfer can not be used when [On] is selected for [GPS Lock]
(GP.99) in the expanded settings menu (GP.98).
• Unless [BIP] is selected for [Bluetooth Profile] (GP.104) in the expanded
settings menu (GP.98), images are transferred at the size currently selected
for [Image File Size] (GP.103) in the expanded settings menu (GP.98).
Choosing a Host ----------------------------------------------------------------------
Photos are automatically uploaded to the device last selected for [File Send] in
playback mode (GP.74). Use [File Send] or the [Send To] option (GP.102) in
the expanded settings menu (GP.98) to choose a different device.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
4:
3 F
4:3 F
4:3 F
9999
9999
9999
L7580872_0914_En.indb 134
L7580872_0914_En.indb 134
2010/09/14 17:56:52
2010/09/14 17:56:52
![](/img.php?id=1359556&img=bg8a.png)
135
Wireless Networks
12
Auto Transfer
Select [Auto] to automatically upload photos as they are taken.
Caution ---------------------------------------------------------------------------------
Images are not resized during transfer, regardless of the option selected for
[Image File Size] (GP.103) in the expanded settings menu (GP.98).
L7580872_0914_En.indb 135
L7580872_0914_En.indb 135
2010/09/14 17:56:52
2010/09/14 17:56:52
![](/img.php?id=1359556&img=bg8b.png)
136
GPS
13
13 GPS
When an optional GP-1 GPS unit or Bluetooth®-equipped GPS unit is
connected, the camera can record the GPS data (including latitude,
longitude, and compass heading) supplied by the device.
Caution ---------------------------------------------------------------------------------
• GPS data are not recorded with photos taken in text mode.
• Local geographic conditions may prevent or delay the acquisition of GPS data.
• When both a GP-1 and a Bluetooth®-equipped GPS unit are connected, the
preferred source can be selected using the [GPS Data Select] option (GP.100)
in the expanded settings menu (GP.98).
Connecting to a GPS Unit
The GP-1 GPS Unit (Available Separately)
There is no need for complicated
adjustments to camera settings when
using the GP-1. To connect the GP-1, turn
the camera off and use the supplied Allen
key to remove the side cover from the
camera. Connect the GP-1 with the status
indicator at the rear of the camera and
tighten the locking nut.
Note -------------------------------------------------------------------------------------
• The GP-1 is not equipped with a battery or on/off switch. It turns on to supply
GPS data when the camera is turned on and turns off when the camera is
turned off.
• Turn the camera off before connecting or disconnecting the GP-1.
L7580872_0914_En.indb 136
L7580872_0914_En.indb 136
2010/09/14 17:56:52
2010/09/14 17:56:52
![](/img.php?id=1359556&img=bg8c.png)
137
GPS
13
Bluetooth®-equipped GPS Units
Bluetooth®-equipped GPS units supply GPS data to the camera
wirelessly.
1Select [Bluetooth Serial].
• Highlight [Bluetooth Serial] in the expanded settings menu
(GP.98) and press $ (if this is the first time you have used
Bluetooth®, the dialog shown at right will be displayed; press #
or $ to highlight [Yes] and press MENU/OK to scan for available
Bluetooth® devices).
2Highlight a device.
• Press ! or " to highlight a device (to
view a description of the device, press
$; to remove the device from the list,
press D). If the desired device does not
appear, press ADJ./MEMO to refresh the
list.
3Press MENU/OK.
• Press MENU/OK. The camera will show
connection status. If prompted for a
password, press MENU/OK and enter a
password as described on P.106. When
a connection is established, GPS data,
a Bluetooth® antenna icon, and a GPS
icon will appear in the shooting display.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
11
1
359.2˚//NNW/mag
359.2˚//NNW/mag
359.2˚//NNW/mag
E:
139˚
E:139˚
E:139˚
N:
035˚
N:035˚
N:035˚
X3
(
4
)
X3
(
4
)
X3
(
4
)
2d
2d
2d
L7580872_0914_En.indb 137
L7580872_0914_En.indb 137
2010/09/14 17:56:52
2010/09/14 17:56:52
![](/img.php?id=1359556&img=bg8d.png)
138
GPS
13
Note -------------------------------------------------------------------------------------
[Send To] lists the most recent device first.
Terminating the Connection ------------------------------------------------------
Turning the camera off terminates the connection.
Connecting Automatically ---------------------------------------------------------
• Selecting [On] for [Bluetooth Auto Conn] (GP.103) in the expanded settings
menu (GP.98) allows the camera to connect automatically to the most
recently-used Bluetooth®- equipped GPS unit. If the camera is turned off with
this option selected, when next turned on it will automatically scan for and
attempt to connect to the most recently used Bluetooth®- equipped GPS unit.
The camera will not connect if the unit is out of range or otherwise inaccessible
(GP.105).
• [Bluetooth Auto Conn] is for use only with GPS devices.
• If prompted to supply a password, press MENU/OK and enter the password for
the Bluetooth® device (GP.106).
• To prevent the camera from connecting automatically, select [Off] for
[Bluetooth Auto Conn] before turning the camera off.
L7580872_0914_En.indb 138
L7580872_0914_En.indb 138
2010/09/14 17:56:53
2010/09/14 17:56:53
![](/img.php?id=1359556&img=bg8e.png)
139
GPS
13
The GPS Data Display
During shooting, GPS data
are displayed as shown
at right.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
11
1
359.2˚//NNW/mag
359.2˚//NNW/mag
359.2˚//NNW/mag
E:
139˚
E:139˚
E:139˚
N:
035˚
N:035˚
N:035˚
X3
(
4
)
X3
(
4
)
X3
(
4
)
2d
2d
2d
Bluetooth® icon
(Bluetooth®-equipped GPS units only)
Heading (GP-1)
Accuracy
×3(4)
Satellites visible
at current
location
Number of
satellites used
Latitude/
longitude
To view more data, press DISP.
11
1
359.2˚//NNW/mag
359.2˚//NNW/mag
359.2˚//NNW/mag
E:
139
˚
31
’
39.565”
E:139˚ 31’39.565”
E:139˚ 31’39.565”
N:
035
˚
34
’
50.428”
N:035˚ 34’50.428”
N:035˚ 34’50.428”
X3
(
4
)
X3
(
4
)
X3
(
4
)
2d
2d
2d
Note -------------------------------------------------------------------------------------
The format for the compass heading and for latitude and longitude can be
chosen using the [Compass Heading] (GP.100) and [GPS Disp Mode] (GP.99)
options in the expanded settings menu (GP.98).
Accuracy -------------------------------------------------------------------------------
The accuracy of the GPS data is displayed as shown below:
Display Contents
no fix The GPS unit cannot receive data.
2d The NMEA-0183 format GSA positioning mode is 2d.
3d The NMEA-0183 format GSA positioning mode is 3d.
Diff The NMEA-0183 format GGA quality is DGPS.
L7580872_0914_En.indb 139
L7580872_0914_En.indb 139
2010/09/14 17:56:53
2010/09/14 17:56:53
![](/img.php?id=1359556&img=bg8f.png)
140
GPS
13
Caution ---------------------------------------------------------------------------------
Some time may be required to update GPS data.
If the number of satellites drops below three,
the GPS icon changes to show that GPS data
can not be acquired.
X00:
(
00
)
X00:
(
00
)
X00:
(
00
)
no fix
no fixno fix
no fix
Retention of GPS Data --------------------------------------------------------------
If the camera is unable to update GPS data, it will store and use the most recently
acquired data for up to ten minutes. Note that these data are deleted if the [GPS
Datum] option (GP.99) in the expanded settings menu (GP.98) is used to
select a different geodetic system.
Recording GPS Data
GPS data can be recorded with each photograph and movie taken
(note that GPS data are not recorded with photographs taken in text
mode).
1With the GPS function enabled, turn the Mode Dial to
5/V.
2Confirm that the camera is
receiving GPS data.
• Confirm that the GPS icon and GPS data
are displayed. Detailed information can
be viewed by pressing DISP.
4:
3 F
4:3 F
4:3 F
9999
9999
9999
359.2˚//NNW/mag
359.2˚//NNW/mag
359.2˚//NNW/mag
E:
139˚
E:139˚
E:139˚
N:
035˚
N:035˚
N:035˚
X3
(
4
)
X3
(
4
)
X3
(
4
)
2d
2d
2d
3Shoot photos or movies.
• GPS data will be recorded with each photograph or movie taken
according to the options currently selected for [GPS Data Imprint]
(GP.101), [UTC Data Imprint] (GP.101), and [Heading Data
Imprint] (GP.101) in the expanded settings menu (GP.98).
Caution ---------------------------------------------------------------------------------
If no GPS data are available when the shutter release button is pressed halfway,
the message “NO GPS FIX” will be displayed and no GPS data will be recorded
when the picture is taken.
L7580872_0914_En.indb 140
L7580872_0914_En.indb 140
2010/09/14 17:56:53
2010/09/14 17:56:53
![](/img.php?id=1359556&img=bg90.png)
141
GPS
13
Viewing GPS Data
GPS data recorded with pictures can be
viewed during playback by pressing the
DISP. button until GPS data are displayed.
F3.5
F3.5F3.5
F3.5
0001
/
9999
0001
/
9999
0001
/
9999000-0001
000-0001000-0001
000-0001
1
/
1000
1
/
1000
1
/
1000
2010
/
01
/
01
2010
/
01
/
01
2010
/
01
/
01 0
00:
00
00: 00
00: 00
4:
3 F
4:3 F
4:3 F
359.2˚//NNW/mag
359.2˚//NNW/mag
359.2˚//NNW/mag
E:
139˚
E:139˚
E:139˚
N:
035˚
N:035˚
N:035˚
X3
(
4
)
X3
(
4
)
X3
(
4
)
2d
2d
2d
Note -------------------------------------------------------------------------------------
• Latitude and longitude are displayed in orange if current GPS data were
unavailable when the picture was taken (GP.136).
• GPS data are included with images transferred to a computer (GP.105, 112).
• GPS data are displayed in the format selected for [GPS Disp Mode] (GP.99) in
the expanded settings menu (GP.98).
The GPS Log ---------------------------------------------------------------------------
The camera logs GPS data to the memory card at the interval selected for [GPS
Track Time] (GP.100) in the expanded settings menu (GP.98; no log is
created if [Off] is selected). Log files can be viewed in a text editor or word
processing software. Entries consist of the longitude, latitude, altitude, track
number, and the date and time, separated by commas; for example, an entry
recording a position of 35° 40´ 1˝ N 139° 45´ 47˝ E at an altitude of 3.5 m at
07:58:14 on October 8, 2010 (UTC) would take the following form:
139.82972,35.66694,3.5,0,08-10-2010 07:58:14
Longitude
Latitude
Altitude Date Time
Track no.
A track number of “1” indicates data logged at the start of GPS recording, “0” data
logged during GPS recording.
L7580872_0914_En.indb 141
L7580872_0914_En.indb 141
2010/09/14 17:56:53
2010/09/14 17:56:53
![](/img.php?id=1359556&img=bg91.png)
142
Barcode Reader
14
14 Barcode Reader
The BR-1 Barcode Reader
When connected to the camera, the BR-1 barcode reader (available
separately) can be used to read linear barcodes for use in camera
memos (GP.57). See the documentation provided with the BR-1 for
more information.
Caution ---------------------------------------------------------------------------------
• Do not transfer or sell the BR-1 to a third party.
• The BR-1 is for commercial use only.
• Be sure that you have read and understood the documentation and all safety
warnings provided with the BR-1 and related equipment.
To connect the BR-1, turn the camera off
and use the supplied Allen key to remove
the side cover from the camera. Connect
the BR-1 with the read button at the rear of
the camera and tighten the locking nut.
When the camera is turned on, it will detect
the BR-1 and an icon will be displayed.
Barcodes can be read by pressing the
BR-1 read button when the camera memo
dialog is displayed (G“Software User
Guide” P.36).
4:
3 F
4:3 F
4:3 F
9999
9999
9999
L7580872_0914_En.indb 142
L7580872_0914_En.indb 142
2010/09/14 17:56:53
2010/09/14 17:56:53
![](/img.php?id=1359556&img=bg92.png)
143
Barcode Reader
14
Note -------------------------------------------------------------------------------------
• The BR-1 is not equipped with a battery or on/off switch. It turns on when the
camera is turned on and turns off when the camera is turned off.
• Turn the camera off before connecting or disconnecting the BR-1.
• The camera can not be used to read barcodes while the BR-1 is connected.
Disconnect the BR-1 to read matrix barcodes.
• The BR-1 can not be used to read password codes when [Barcode] is selected
for [Choose/Change Password] (GP.90) in the setup menu (GP.82).
L7580872_0914_En.indb 143
L7580872_0914_En.indb 143
2010/09/14 17:56:53
2010/09/14 17:56:53
![](/img.php?id=1359556&img=bg93.png)
144
Direct Printing
15
15 Direct Printing
About the Direct Print Function
The Direct Print standard enables direct printing from a camera to a
printer by connecting them via a USB cable. Photos can be printed
quickly and easily from your digital camera without using a computer.
Caution ---------------------------------------------------------------------------------
You cannot print AVI files (movies) with this function.
Note -------------------------------------------------------------------------------------
• This camera uses PictBridge, an industry standard for Direct Printing.
• Your printer must be compatible with PictBridge to use the Direct Print
function. For support information, see the documentation that came with the
printer.
Connecting the Camera to a Printer
Connect your camera to a printer using the USB cable provided.
1Make sure that the camera power is off.
2Open the terminal cover.
• Slide the knob in the direction
shown and open the terminal
cover.
3Connect your camera to a printer
using the USB cable provided.
• Turn on the printer if it is not already on.
• Your camera turns on automatically.
Note -------------------------------------------------------------------------------------
To disconnect the camera from the printer, check that the camera is turned off
after printing is finished, and disconnect the USB cable.
L7580872_0914_En.indb 144
L7580872_0914_En.indb 144
2010/09/14 17:56:54
2010/09/14 17:56:54
![](/img.php?id=1359556&img=bg94.png)
145
Direct Printing
15
Caution ---------------------------------------------------------------------------------
• Do not force the USB cable into the terminal.
• Do not apply excessive force with the USB cable connected.
• When using the USB cable, do not move the camera with the USB cable.
• To prevent moisture or dust from entering the camera, close the terminal cover
securely after disconnecting the USB cable.
Printing Still Images
You can print still images from the camera with a PictBridge-
compatible printer. If a memory card is inserted, the pictures will be
printed from the memory card; otherwise pictures will be printed from
internal memory.
Caution ---------------------------------------------------------------------------------
Do not disconnect the USB cable during printing.
Note -------------------------------------------------------------------------------------
• If a [Printer error.] message appears during image transfer, check the printer
status and take the appropriate action.
• If a computer connection message appears even though the camera is
connected to the printer, reconnect the camera and press the ADJ./MEMO
button within two seconds.
Before printing, connect the camera to the
printer. The message [Connecting...] shown
at right will be displayed if the printer is
ready; press the ADJ./MEMO button to view
the Direct Print playback display.
Printing One or All Still Images
1Select an image for printing and press the ADJ./MEMO
button.
2Select [1 File] or [All Files] and press the ADJ./MEMO button.
• The Direct Print menu appears.
L7580872_0914_En.indb 145
L7580872_0914_En.indb 145
2010/09/14 17:56:54
2010/09/14 17:56:54
![](/img.php?id=1359556&img=bg95.png)
146
Direct Printing
15
3Select an item and press the $ button to view the options
available.
• When [Connecting…] is displayed,
the connection to the printer is not
yet established. When a connection is
established, [Connecting…] disappears
and [Direct Print] appears. Proceed
with this step after the connection is
established.
• The following items can be selected. Each item is available only
when supported by the printer connected to the camera.
Item Name Description
Printing Quantity Sets the print quantity.
Paper Size Sets the paper size.
Paper Type Sets the paper type.
Layout Sets the number of images printed on a sheet of paper.
The number of images that can be laid out on a sheet of
paper varies depending on the connected printer.
Report Print (*)Prints on forms.
Memo Print (*)Choose whether reports will include camera memo
descriptions (GP.148). Depending on the layout selected
with [Report Print], the camera memo may not be printed.
In this case, delete some of the information in the camera
memo.
Print Size Sets the print image size.
Date Print Selects whether to print the date (shooting date). The
date format can be set using the date/time option in the
setup menu. If the picture was taken using [Date Imprint]
(GP.65), only the imprinted date will be printed.
File Name Print Selects whether to print the file name.
Optimize Image Selects whether to optimize the image data (still image)
prior to printing on the printer.
Print Quality Sets the print quality.
Toner Saving (*)Selects whether to conserve toner by using less ink during
printing.
1-Side/2-Sides (*)Selects whether to print on both sides of the paper.
During duplex printing, one copy is printed for each still
image. Only one copy is printed even if you selected more
than one copy to print in Step 3 on P.147.
(*) Compatible Ricoh printers only.
L7580872_0914_En.indb 146
L7580872_0914_En.indb 146
2010/09/14 17:56:54
2010/09/14 17:56:54
![](/img.php?id=1359556&img=bg96.png)
147
Direct Printing
15
Note -------------------------------------------------------------------------------------
• To specify the settings as the default settings
next time the camera is connected to the
printer, press the ADJ./MEMO button when the
screen in Step 3 is displayed. Select [Set] in the
display at right and press the MENU/OK button.
•
To use the settings last set the next time the
camera is connected to the printer, select [Cancel].
4
Select an option and press the MENU/OK button.
• The display returns to the Direct Print menu.
• Repeat Steps 3 and 4 to change other settings as required.
5Press the MENU/OK button.
• The selected still images are sent to the printer and the [Sending…]
screen appears.
• Pressing the DISP. button cancels the operation.
• When the images have been sent to the printer, the display returns
to the Direct Print playback mode screen and printing starts.
Printing Several Still Images
1Press the 9 (Thumbnail view) button.
• Photos will be displayed in multi-frame playback.
2Select an image and press the MENU/OK button.
3Press the !" buttons to set the
number of copies to print.
• Press the ! button to increase the
number of copies, or press the "
button to decrease the number of
copies.
• Repeat Steps 2 and 3 to select
additional images.
4Press the MENU/OK button.
• The Direct Print menu appears.
5Select an item and press the $ button to view the options
available.
• See Steps 3 and following on P.146.
Prnt Fil
Prnt FilPrnt Fil
Prnt Fil
4:
3 F
4:3 F
4:3 F
11
1
Forward
Forward
Last File
Last FileLast File
Last File
Prnt Fil
Prnt FilPrnt Fil
Prnt Fil
4:
3 F
4:3 F
4:3 F
11
1
Forward
Forward
Last File
Last FileLast File
Last File
L7580872_0914_En.indb 147
L7580872_0914_En.indb 147
2010/09/14 17:56:54
2010/09/14 17:56:54
![](/img.php?id=1359556&img=bg97.png)
148
Direct Printing
15
Note -------------------------------------------------------------------------------------
• Only images with a printer symbol (p) are printed. If you cancel printing and
then try to print again, make sure that the printer symbol is on the images you
want to print.
• The same still image can also be printed several times on a single sheet.
• The available items vary depending on the functions of the printer.
• To print images using the printer’s default settings, select [Printer Select] on the
detailed options screen.
Printing Reports
Select [ Report Print] on the Direct Print menu.
You can only select [Report Print] when the camera is connected to a
Ricoh printer that supports PictBridge after setting [Paper Size] to [A4]
on the menu.
The layout that can be selected depends on the connected printer. For
more details, see the documentation that came with the printer.
Available Layouts
1 Frame W/Rule 2 Frames W/Rule 3 Frames W/Rule 4 Frames W/Rule
1 Frame W/O Rule 2 Frames W/O Rule 3 Frames W/O Rule 4 Frames W/O Rule
Const. Photo 1 W/Remark Section Additional Report
1-10
Examples of Printed Reports
1 Frame W/Rule 2 Frames W/O Rule Const. Photo 1
Note -------------------------------------------------------------------------------------
Memos will only be included in the report if [5] is selected for [Number of Items]
in the List Editor (G“Software User Guide” P.24).
L7580872_0914_En.indb 148
L7580872_0914_En.indb 148
2010/09/14 17:56:54
2010/09/14 17:56:54
![](/img.php?id=1359556&img=bg98.png)
149
Copying Pictures to a Computer via USB
16
16 Copying Pictures to a Computer via USB
The screen images shown here may differ from the images displayed
on your computer depending on your computer OS.
For Windows
You can copy pictures to your computer with or without DL-10
software, which can be installed from the supplied CD.
System Requirements for Using the Supplied CD-ROM
The following environments are necessary for using the supplied CD-
ROM. Please check your computer, or the computer's user manual.
Operating Systems
Supported
Windows 2000 Professional Service Pack 4
Windows XP Home Edition Service Pack 3/Professional Service Pack 3
Windows Vista Service Pack 2
Windows 7 (32- and 64-bit)
CPU Pentium® IV: 1.6 GHz or faster
Pentium® M: 1.4 GHz or faster
Core™ 2 Duo: 1.5 GHz or faster
Memory Windows 2000/Windows XP: 512 MB or more
Windows Vista/Windows 7: 1 GB or more
Hard drive space
required for installation
300 MB or more
Display Resolution 1024 × 768 pixels or greater
Display Colors 65,000 colors or greater
CD-ROM Drive A CD-ROM drive compatible with the above-mentioned computer
USB Port A USB port compatible with the above-mentioned computer
L7580872_0914_En.indb 149
L7580872_0914_En.indb 149
2010/09/14 17:56:55
2010/09/14 17:56:55
![](/img.php?id=1359556&img=bg99.png)
150
Copying Pictures to a Computer via USB
16
Caution ---------------------------------------------------------------------------------
• The CD-ROM supports Japanese, English, French and German. Operations are
not guaranteed on operating systems with other languages.
• 64-bit Windows Vista is not supported.
• If your computer has an upgraded OS, the USB function may not work normally,
so it cannot be supported.
• The provided software may not operate properly if changes are made to the
operating system, such as with patches and service package releases.
• The camera does not support connection to a USB port added by using an
extension function (PCI bus or other).
• If used in conjunction with a hub or other USB devices, the software may not
work properly.
• When dealing with movies and other large files, a larger memory environment
is recommended.
• MediaBrowser is not supported under Windows 2000.
CD-ROM Setup
Once you insert the supplied CD-ROM in the CD-ROM drive, the
installer screen appears automatically.
Windows 2000/Windows XP
• The installer screen appears automatically.
Windows Vista/Windows 7
• If an Autorun dialog is displayed, select [Run Autorun.exe]. The installer
will start automatically.
Use this button to install
software required for batch
downloading and editing of
images.
Click this to display the list of
files contained on the CD-ROM.
Install EC1 image
authentication software.
L7580872_0914_En.indb 150
L7580872_0914_En.indb 150
2010/09/14 17:56:55
2010/09/14 17:56:55
![](/img.php?id=1359556&img=bg9a.png)
151
Copying Pictures to a Computer via USB
16
Installing Software
Click [Installing the software] to install the following software.
Software Description
DL-10 Downloads images collectively to your computer.
List Editor Create memo lists.
ME1 View and manage photographs to which memos have
been appended, edit memos, and print memos with
photographs.
ST-10 Adjust settings for connection to wireless LANs.
SR-10
Create an ftp server on your computer for the exclusive
use of this camera.
MediaBrowser Display, manage, and edit existing images. Not supported
under Windows 2000.
USB Driver Used to connect an earlier model Ricoh camera to
a computer running Windows 98/Windows 98 SE/
Windows Me/Windows 2000. Not used with this camera.
WIA Driver Used to connect an earlier model Ricoh camera to
a computer running Windows XP/Windows Vista/
Windows 7. Not used with this camera.
Caution ---------------------------------------------------------------------------------
• Do not install the software when the camera is connected to your computer
with a USB cable.
• The names for DC Software items differ from the names for Caplio Software
items provided with previous models as shown below.
Caplio Software DC Software
RICOH Gate La DL-10
Caplio Viewer DU-10
Caplio Server
SR-10
Caplio Setting ST-10
If Caplio Software from a CD-ROM supplied with a previous model is already
installed on your computer, a message asking you to uninstall the Caplio
Software before installing DC Software will appear when you try to install the
new software.
• Administrator privileges are required for installation.
• DL-10 is not network-compatible. Use as a stand-alone application.
L7580872_0914_En.indb 151
L7580872_0914_En.indb 151
2010/09/14 17:56:55
2010/09/14 17:56:55
![](/img.php?id=1359556&img=bg9b.png)
152
Copying Pictures to a Computer via USB
16
1Click [Installing the software].
Windows 2000/Windows XP
• After a while, the [Choose Setup Language] screen appears.
Windows Vista/Windows 7
• If a [User Account Control] dialog is displayed, select [Yes]
(Windows 7) or [Allow] (Windows Vista). After a short pause, the
[Choose Setup Language] dialog will be displayed.
2Select a language and follow the on-screen instructions to
complete installation.
• The MediaBrowser installer will start. To install MediaBrowser, accept
the license agreement and follow the on-screen instructions.
3When a message appears asking you to restart your
computer, select [Yes, I want to restart my computer now.]
and then click [Finish].
• Your computer will restart automatically.
• After your computer restarts, a Windows security warning message
appears.
4Click [Unblock] for DL-10.
Installing EC1
EC1 can be used to determine whether photographs shot with [On]
selected for [Edit Detection] (GP.66) in the shooting menu have
been altered since they were taken. See the “Software Users Guide” for
details.
1Click [Installing EC1].
• Depending on your user environment, an installation message for
“Visual C++ Runtime Library (×86)” or “.NET Framework 2.0” may
be displayed. If this message appears, follow the instructions on
the message to install the software. If a message instructing you to
restart your computer appears after installation, please restart your
computer.
2Follow the on-screen instructions and install EC1.
L7580872_0914_En.indb 152
L7580872_0914_En.indb 152
2010/09/14 17:56:55
2010/09/14 17:56:55
![](/img.php?id=1359556&img=bg9c.png)
153
Copying Pictures to a Computer via USB
16
Caution ---------------------------------------------------------------------------------
If EC1 is already installed on your computer, you cannot reinstall it. If you try to
reinstall it, a message asking if you want to change or delete EC1 is displayed. To
exit without changing or deleting EC1, click [Cancel].
Installing Other Software
Click [Browse CD-ROM Content] to install the following software:
Software Description
Adobe Reader Required to view manuals in pdf format.
EX1 Rename files according to memo descriptions or export
memos as CSV, XML, or text. EX1 comes in server and
client versions.
Caution ---------------------------------------------------------------------------------
• Do not install the software when the camera is connected to your computer
with a USB cable.
• Administrator privileges are required for installation.
• To install MediaBrowser without installing other applications, double-click the
setup.exe icon in the “MediaBrowser” folder.
Installing Adobe Reader
Acrobat Reader or Adobe Reader need not be installed if already
installed on your computer.
Note -------------------------------------------------------------------------------------
• For details about Adobe Reader, see Help for Adobe Reader.
• Installation of Adobe Reader 9.3 requires either Microsoft Internet Explorer
6.0 or later or Firefox 2.0 or later. Microsoft Internet Explorer is available via
Microsoft Update.
• Installation of Adobe Reader 9.3 requires MSI (Microsoft Windows Installer)
version 3.1 or later. Microsoft Windows Installer is available via Microsoft Update.
L7580872_0914_En.indb 153
L7580872_0914_En.indb 153
2010/09/14 17:56:55
2010/09/14 17:56:55
![](/img.php?id=1359556&img=bg9d.png)
154
Copying Pictures to a Computer via USB
16
1Click [Browse CD-ROM Content].
• The files on the CD-ROM are listed.
2Open the folder for your language in the [Adobe Reader]
folder and double-click the Adobe Reader installer.
• A screen appears to confirm user account management for
Windows 7 and Windows Vista. Select [Continue].
3Install Adobe Reader by following the messages displayed.
Installing EX1
For information on using EX1, see the “Software Users Guide”.
1Click [Browse CD-ROM Content].
• The files on the CD will be displayed.
2Start the installer.
• Double-click [EX1] and then double click either [EX1_for_Server]
(or [EX1_for_Server.exe]) or [EX1_for_Client] (or [EX1_for_Client.
exe]). Under Windows 7 and Windows Vista, a [User Account Control]
dialog will be displayed; click [Continue].
3Install EX1.
• Follow the on-screen instructions.
Uninstalling the Software ---------------------------------------------------------
•
The software can be uninstalled using the [Programs and Features] control panel
(Windows 7 and Windows Vista) or [Add/Remove Programs] control panel (other
versions of Windows).
• Administrator privileges are required.
• Quit any other programs that may be running before uninstalling the software.
L7580872_0914_En.indb 154
L7580872_0914_En.indb 154
2010/09/14 17:56:55
2010/09/14 17:56:55
![](/img.php?id=1359556&img=bg9e.png)
155
Copying Pictures to a Computer via USB
16
Copying Pictures to Your Computer
Follow the steps below to copy pictures to your computer.
1Connect the camera to the computer
using the supplied USB cable.
• Turn the camera off before connecting
the USB cable.
• The camera turns on automatically when
a connection is established.
2Copy photos to the computer.
If DL-10 is installed:
• DL-10 starts and image transfer begins automatically.
• Pictures are copied to the [Digital Camera] folder in [My Documents],
where they are sorted into separate folders by date of recording. See
the “Software User Guide” on the supplied CD for more information.
If DL-10 is not installed:
• Copy files from the camera to the
desired location.
• When an SD memory card is
loaded, its files are displayed.
Otherwise, files in the internal
memory are displayed.
Example of the display
in Windows XP
L7580872_0914_En.indb 155
L7580872_0914_En.indb 155
2010/09/14 17:56:55
2010/09/14 17:56:55
![](/img.php?id=1359556&img=bg9f.png)
156
Copying Pictures to a Computer via USB
16
3Disconnect the USB cable when transfer is complete.
• Click the [Safely Remove Hardware] or
[Unplug or Eject Hardware] icon in the
taskbar (the illustration above shows the icon for Windows XP) and
select [Safely Remove USB Mass Storage Device] or [Stop USB Mass
Storage Device] from the menu that appears. You can then
disconnect the USB cable.
• If the remove hardware icon is not displayed
in Windows 7, click the button in the
taskbar.
Caution ---------------------------------------------------------------------------------
• Do not turn off the camera or disconnect the USB cable during image transfer.
• Do not use force when connecting the cable or when handling the camera with
the cable connected. Do not attempt to transport the camera while the USB
cable is connected.
• To prevent moisture or dust from entering the camera, close the terminal cover
securely after disconnecting the USB cable.
Note -------------------------------------------------------------------------------------
The camera is provided with MediaBrowser software that allows you to display
and edit images from your computer. For how to use MediaBrowser, see the
displayed “Help”.
For the latest information about MediaBrowser, access the Web page of Pixela Co.,
Ltd. (http://www.pixela.co.jp/oem/mediabrowser/e/).
L7580872_0914_En.indb 156
L7580872_0914_En.indb 156
2010/09/14 17:56:56
2010/09/14 17:56:56
![](/img.php?id=1359556&img=bga0.png)
157
Copying Pictures to a Computer via USB
16
For Macintosh
This camera supports the following Macintosh operating systems.
• Mac OS 9.0 to 9.2.2
• Mac OS X 10.1.2 to 10.6.3
Caution ---------------------------------------------------------------------------------
Although the software included in the CD-ROM cannot be used with Macintosh,
it is possible to display the “Software User Guide” (note that Acrobat Reader is
required to view the “Software User Guide” under Mac OS 9).
Copying Pictures to Your Computer
Follow the steps below to copy pictures to your computer.
1Connect the camera to the computer
using the supplied USB cable.
• Turn the camera off before connecting
the USB cable.
• The camera turns on automatically when
a connection is established.
2Copy photos to the computer.
• Copy files from the camera to the
desired location.
• When an SD memory card is
loaded, its files are displayed.
Otherwise, files in the internal
memory are displayed.
3Disconnect the USB cable when transfer is complete.
• Drag the camera volume into the Trash and then disconnect the USB
cable.
L7580872_0914_En.indb 157
L7580872_0914_En.indb 157
2010/09/14 17:56:56
2010/09/14 17:56:56
![](/img.php?id=1359556&img=bga1.png)
158
Copying Pictures to a Computer via USB
16
Caution ---------------------------------------------------------------------------------
• Do not turn off the camera or disconnect the USB cable during image transfer.
• Do not use force when connecting the cable or when handling the camera with
the cable connected. Do not attempt to transport the camera while the USB
cable is connected.
• You can also click [Eject] on the [Special] menu in Mac OS 9 or the [File] menu
in Mac OS X to cancel the connection.
• If the USB cable is disconnected without disabling the connection, the Unsafe
Removal of Device screen may be displayed. Be sure to stop the connection
before removing the USB cable.
• When you connect your camera to a Macintosh computer, a file called
“FINDER.DAT” or “.DS_Store” may be created in your SD memory card, which will
appear as [Unmatched File] on your camera. You can delete this file from the SD
memory card if you wish.
• To prevent moisture or dust from entering the camera, close the terminal cover
securely after disconnecting the USB cable.
L7580872_0914_En.indb 158
L7580872_0914_En.indb 158
2010/09/14 17:56:56
2010/09/14 17:56:56
![](/img.php?id=1359556&img=bga2.png)
159
Appendices
17
17 Appendices
Troubleshooting
Error Messages
If an error message is displayed on the screen, check the information
on the reference page and take the corresponding action.
Non-Bluetooth® or Wireless LAN related error messages
Error Message Cause and Solution Refer to
Insert card. No card is loaded. Insert a card. P.27
Set date. The date is not set. Set the date. P.86
The file number limit has been
exceeded.
The file number limit has been exceeded. Use another card. P.86
Unmatched File This file cannot be displayed on the camera. Check the file
contents on your computer, and then delete the file.
—
Insufficient memory. Continue? All the files cannot be copied because there is insufficient
memory on the card. Use another card.
P.24
Protected The file selected for deletion is protected. P.79
Card Is Write-Protected. The card is locked (write-protected). Unlock the card. P.25
This option is not available with
SD WORM cards.
Selected option is not available with SD WORM cards. Use
a different type of card.
P.24
Print settings cannot be applied
to this file.
This file (movie or other file) cannot be selected for
printing.
—
Insufficient Memory/
Capacity Short
Files cannot be stored. Make sure there is sufficient
memory or delete unwanted files.
P.41,
P.83
The image print number limit has been exceeded. Select an
image and set the number to 0.
P.147
Format internal memory. The internal memory requires formatting. P.83
Format card. The card is not formatted. Format the card with this
camera.
P.83
Card Error Reformat the card. If the error message still appears after
that, the card may be faulty. Do not use the card.
P.83
Writing Data Writing file to memory. Wait until writing finishes. —
No File There are no files that can be played back. —
Out of memory. cannot record. The number of remaining shots is 0. Switch to another card
or the internal memory.
P.24
No files to restore. There are no files to restore. P.74
L7580872_0914_En.indb 159
L7580872_0914_En.indb 159
2010/09/14 17:56:56
2010/09/14 17:56:56
![](/img.php?id=1359556&img=bga3.png)
160
Appendices
17
Error Message Cause and Solution Refer to
Can not —. * Selected option can not be applied to image more than
once, or image was created with different make of camera.
If image was created with different make of camera,
process image using original make of camera.
—
* “—“ indicates the name of the process that can not be applied.
Bluetooth® related error messages
Error Message Cause and Solution Refer to
Requested file cannot be sent. You attempted to send an image other than still ones
(.JPG). Only still images (.JPG) can be sent.
P.105
Verifying failed. The input passkey did not match the destination device.
Enter the correct passkey.
—
The passkey was not entered within the time limit. Enter
the passkey again within the time limit.
P.106
Cannot connect. At the start of transfer, the destination device could not be
connected due to one of the following causes. Check the
device status and start again from the beginning.
• Signal no longer reach the destination device.
• The destination device does not exist nearby (about 10 m
(3.3 ft.)).
• The destination device is not active because the power is
off or due to other causes.
• The destination device does not support the Bluetooth®
Profiles required for communication with this camera.
• Inappropriate device was selected for the destination.
P.105
Cannot send. Transfer was interrupted by one of the following causes.
Check the device status and start again from the beginning.
• Signal no longer reach the destination device.
• The destination device can no longer receive a signal.
• There is insufficient space on the destination device.
—
Wireless LAN related error messages
Communication and send setting errors
Error Message Cause and Solution Refer to
Connection error The camera is unable to establish a connection for some
reason. Check the communication settings.
P.116,
P.127
Send method must be selected The [Send Method] setting is not selected in the
communication settings. Select [Send via FTP].
P.123
Cannot connect to access point The destination access point is off or otherwise not
operating. Check the access point.
—
Incorrect communication settings. Check the send settings. P.116
L7580872_0914_En.indb 160
L7580872_0914_En.indb 160
2010/09/14 17:56:56
2010/09/14 17:56:56
![](/img.php?id=1359556&img=bga4.png)
161
Appendices
17
Error Message Cause and Solution Refer to
The IP address is already in use The same IP address as the camera exists in the destination
network. Check the [IP address] in the Detailed Setups
[Networks] tab.
P.116
Conflicting LAN setting The first destination sent to after turning the camera on
and the setting in the Detailed Settings [Network] tab or
[Wireless LAN] tab is different. To send to a destination
different from the setting in the [Network] or [Wireless
LAN] tab, change the destination in advance and restart
the camera.
P.116,
P.117
Destination not registered The communication list has not been imported by the
camera. Import the communication list into the camera
and try again.
P.123
Invalid key size. When [Crypt/Authentication] in [W/less LAN] is changed
on the camera, check the network key.
• If [WEP/OPEN] or [WEP/SHARED] is selected for [Crypt/
Authentication], enter the [Network Key] as below.
[String]: Five characters or 13 characters
[Hex]: Ten characters or 26 characters
• If [AES/WPA-PSK], [AES/WPA2-PSK], [TKIP/WPA-PSK], or
[TKIP/WPA2-PSK] is selected for [Crypt/Authentication],
the network key must contain 64 characters ([Hex]) or
from 8 to 63 characters ([String]).
P.117,
P.118
Cannot find access point. Camera could not find wireless LAN access point to which it
could connect using [Simple Connection] > [WPS Button]/
[WPS PIN]; check device and confirm that signal is not
blocked and that the access point is within distance of
about 30 m (100 ft.).
P.128
Connection information not
available.
Information required for connection to wireless LAN access
point is not available. Select any option other than [Off] for
[Simple Connection] and try again.
P.128
FTP send setting errors
Error Message Cause and Solution Refer to
No upload server name setting [Server Name] for the destination is not set in the Detailed
Setups [FTP Send] tab. Set the [Server Name] setting.
P.118
Cannot detect IP address Unable to acquire the IP address of the destination server.
Set the correct [Server Name] setting in the Detailed
Setups [FTP Send] tab.
P.118
No response from server The destination server does not respond. Check the
advanced settings on the [FTP Send] tab.
P.118
Cannot connect to server Unable to connect to the destination server. Check the
advanced settings on the [FTP Send] tab
P.118
Setting error either in user name
or password
Incorrect [User Name] or [Password] setting. Set the correct
[User Name] and [Password] settings in the Detailed
Setups [FTP Send] tab.
P.118
L7580872_0914_En.indb 161
L7580872_0914_En.indb 161
2010/09/14 17:56:56
2010/09/14 17:56:56
![](/img.php?id=1359556&img=bga5.png)
162
Appendices
17
Error Message Cause and Solution Refer to
The folder does not exist. The specified inbox folder does not exist on the destination.
Set the correct [Folder Name] setting in the Detailed
Setups [FTP Send] tab.
P.118
Cannot send Unable to send files for some reason. Check the advanced
settings on the [FTP Send] tab.
P.118
Server error An error is received from the server after connecting to the
server. Try resending the file.
—
Note -------------------------------------------------------------------------------------
If you cannot solve the problem using the solutions above, contact a Ricoh office
or your local authorized Ricoh dealer.
L7580872_0914_En.indb 162
L7580872_0914_En.indb 162
2010/09/14 17:56:56
2010/09/14 17:56:56
![](/img.php?id=1359556&img=bga6.png)
163
Appendices
17
Camera Troubleshooting
Power Supply
Problem Cause Solution
Refer to
The camera does not
turn on.
The battery is exhausted or not
inserted.
Check that battery is correctly
inserted. Charge battery
(rechargeable battery only),
insert fresh battery.
P.26,
P.27
An unacceptable battery is used. Use supplied battery or
compatible AAA batteries.
P.23
The camera is automatically
turned off by auto power off.
Turn the camera back on. P.29
The battery is loaded in wrong
direction.
Load correctly. P.27
Because the camera overheated,
the power was automatically
turned off.
Wait until the temperature of
the camera returns to normal. Do
not attempt to cool the camera
suddenly.
—
The camera turns off
during use.
The camera was left unattended
and unused, so auto power off
turned it off.
Turn the camera back on. P.29
Battery is exhausted. Check that battery is correctly
inserted. Charge battery
(rechargeable battery only),
insert fresh battery.
P.26,
P.27
An unacceptable battery is used. Use supplied battery or
compatible AAA batteries.
P.23
The camera does not
turn off.
Camera malfunction Remove the battery and load
it again.
P.27
The battery has been
fully charged, but:
• The battery symbol is
displayed, indicating
a low battery level.
• The camera turns off.
A unacceptable battery is used. Use supplied battery or
compatible AAA batteries.
P.23
Cannot charge the
battery.
Battery has reached the end of its
useful life.
Replace with a new rechargeable
battery.
P.27
Battery runs out
quickly.
It is being used at extreme high or
low temperatures.
——
Many shots are being taken in
dark places or other location
requiring extensive use of flash.
——
L7580872_0914_En.indb 163
L7580872_0914_En.indb 163
2010/09/14 17:56:57
2010/09/14 17:56:57
![](/img.php?id=1359556&img=bga7.png)
164
Appendices
17
Shooting
Problem Cause Solution
Refer to
The camera does not
shoot even if you press
the shutter release
button.
Battery is exhausted. Check that battery is correctly
inserted. Charge battery
(rechargeable battery only),
insert fresh battery.
P.26,
P.27
The camera is not on. Press the POWER button to turn
the camera on.
P.29
The camera is in playback mode. Press the 6 (Playback) button
to select the shooting mode.
P.29
The shutter release button is not
pressed all the way.
Press the shutter release button
all the way.
P.32
The SD memory card is not formatted.
Format the card. P.83
The SD memory card is full. Load a new card, or delete
unwanted files.
P.27,
P.41
The SD memory card has reached
the end of its useful life.
Load a new SD memory card. P.27
The flash is charging. Wait until the auto focus/flash
lamp stops blinking.
P.35
The SD memory card is locked. Unlock the card. P.25
The contact surface of the SD
memory card is dirty.
Wipe with a soft, dry cloth. —
Unable to view the shot
image.
The image confirmation time is
too short.
Lengthen the image
confirmation time.
P.84
Images do not appear
on the picture display.
The camera is not on, or the
picture display is dark.
Turn the camera on, or adjust the
brightness of the picture display.
P.29,
P.83
The VIDEO/AV cable is connected. Disconnect the VIDEO/AV cable. —
The screen display is in synchro-
monitor mode.
Press the DISP. button to change
the display.
P.44
Although the camera
is set to auto focus, it is
unable to focus.
The lens is dirty. Wipe clean with a soft, dry cloth. —
The subject is not in the center of
the shooting range.
Shoot with focus lock. P.31
It is a hard-to-focus subject. Shoot with focus lock or manual
focus.
P.31,
P.67
Although the camera is
not in focus, the green
frame appears in the
center of the picture
display.
The camera incorrectly focused
because the distance to the
subject is too close.
Shoot with macro mode, or move
away from the subject.
P.34
L7580872_0914_En.indb 164
L7580872_0914_En.indb 164
2010/09/14 17:56:57
2010/09/14 17:56:57
![](/img.php?id=1359556&img=bga8.png)
165
Appendices
17
Problem Cause Solution
Refer to
The picture is blurred
(The J symbol
appears).
You moved the camera when
pressing the shutter release
button.
Hold camera in both hands with
your elbows pressed lightly
against your torso.
Use a tripod.
Use the camera shake correction
function.
P.31
P.65
When shooting in a dark place
(such as indoors), the shutter
speed slows down and pictures
become easily blurred.
Use the flash.
Raise the ISO setting.
Use the camera shake correction
function.
P.35
P.71
P.65
The flash does not fire.
Or, the flash cannot
charge.
The flash cannot be used in the
following cases:
• In bracket shooting
• In continuous mode
• In movie mode
In some scene modes, the flash is
disabled by default.
To shoot with the flash, change
the settings or mode.
P.35,
P.169
The flash is set to flash off. Cancel Flash Off. P.35
Battery is exhausted. Check that battery is correctly
inserted. Charge battery
(rechargeable battery only),
insert fresh battery.
P.26,
P.27
Even though the flash
fired, the picture
is dark.
The distance to the subject
exceeds the flash range.
Get closer to your subject and
shoot. Change the flash mode or
the ISO setting.
P.71,
P.171
The subject is dark. Correct the exposure (Exposure
compensation also changes the
light intensity of the flash).
P.69
Cannot use the ADJ.
button function.
The camera memo list is saved on
the SD memory card.
Delete files with the “.mta”
extension in the camera
[TEMPLATE] folder.
—
The image is too bright. The light intensity of the flash is
not appropriate.
Position yourself slightly further
from your subject or turn the
flash off and use other lighting.
P.35
Subject is overexposed (The
[
Q
] symbol appears).
Correct the exposure.
Cancel exposure time.
P.69
P.64
The brightness of the picture
display is not appropriate.
Adjust the brightness of the
picture display.
P.83
The image is too dark. The shot was taken in a dark place
while set to flash off.
Cancel Flash Off. P.35
The subject is underexposed (The
[
Q
] symbol appears).
Correct the exposure.
Set the long exposure time.
P.69
P.64
The brightness of the picture
display is not appropriate.
Adjust the brightness of the
picture display.
P.83
L7580872_0914_En.indb 165
L7580872_0914_En.indb 165
2010/09/14 17:56:57
2010/09/14 17:56:57
![](/img.php?id=1359556&img=bga9.png)
166
Appendices
17
Problem Cause Solution
Refer to
The image lacks natural
color.
The picture was shot in conditions
that made it difficult for auto
white balance to adjust the white
balance.
Add a white object to the
composition, or use a white
balance setting other than auto.
P.70
The date or recording
information does not
appear on the screen.
The screen display function is set
to no display.
Press the DISP. button to change
the display.
P.44
The brightness of the
picture display changes
during AF.
Ambient lighting is poor or differs
from that used for autofocus..
This is normal. —
Vertical streaks
(“smear”) appear in
photos.
Subject is bright. This is normal and does not
indicate a malfunction.
—
The level indicator is
not displayed.
[Level Setting] is set to [Off] or
[Sound].
Set [Level Setting] to [Display] or
[Disp + Snd].
P.46
The display is set to a setting other
than normal symbol display or
histogram.
Press the DISP. button to change
the display to normal symbol
display or histogram.
P.44
The camera is upside down (The
shutter release button is on the
bottom).
Hold the camera correctly. —
The image is tilted even
though it was shot with
the level indicator in
the middle or while
the level sound was
sounding.
You shot the image while moving,
such as on a amusement ride.
Shoot in an environment that is
not moving.
—
The subject is not level. Check the subject. —
L7580872_0914_En.indb 166
L7580872_0914_En.indb 166
2010/09/14 17:56:57
2010/09/14 17:56:57
![](/img.php?id=1359556&img=bgaa.png)
167
Appendices
17
Playback/Deleting
Problem Cause Solution
Refer to
Cannot play back, or the
playback screen does
not appear.
The camera is not in playback
mode.
Press the 6 (Playback) button. P.38
The VIDEO/AV cable is not
connected properly.
Connect properly. P.81
The [Video Out Mode] setting is
incorrect.
Set it to the correct format. P.86
The contents of the SD
memory card cannot
be played back, or the
playback screen does
not appear.
No SD memory card is loaded, or
an SD memory card with no stored
images is loaded.
Load a card with stored images. —
You played back an SD memory
card that was not formatted with
this device.
Load a card that was formatted
and recorded with this device.
P.27,
P.83
You played back an SD memory
card that was not recorded
normally.
Load a normally recorded card. —
The contact surface of the SD
memory card is dirty.
Wipe with a soft, dry cloth. —
There is something wrong with
the SD memory card.
Play back images from another
card and if there is nothing
wrong with the card, the camera
is okay. There may be something
wrong with the card, so do
not use it.
—
The picture display
turned off.
Battery is exhausted. Check that battery is correctly
inserted. Charge battery
(rechargeable battery only),
insert fresh battery.
P.26,
P.27
The camera was left unattended
and unused, so auto power off
turned it off.
Turn the camera back on. P.29
A file cannot be
deleted.
The file is protected. Unprotect the file. P.79
The SD memory card is locked. Unlock the card. P.25
Cannot format the SD
memory card.
The SD memory card is locked. Unlock the card. P.25
L7580872_0914_En.indb 167
L7580872_0914_En.indb 167
2010/09/14 17:56:57
2010/09/14 17:56:57
![](/img.php?id=1359556&img=bgab.png)
168
Appendices
17
Other Problems
Problem Cause Solution
Refer to
Cannot load the SD
memory card.
The card is facing the wrong way. Load correctly. P.27
The camera does not
operate even when the
buttons are pressed.
Battery is exhausted. Check that battery is correctly
inserted. Charge battery
(rechargeable battery only),
insert fresh battery.
P.26,
P.27
Camera malfunction Press the POWER button to turn
the camera off, and then press
the POWER button to turn the
camera on again.
P.29
Remove the battery and load
it again.
P.29
The date is incorrect. The correct date/time are not set. Set the correct date/time. P.86
The set date
disappeared.
The battery was removed. If the battery is removed for
more than three days, the date
setting will be lost. Make the
settings again.
P.86
Auto power off does
not work.
Auto power off is set to [Off]. Set the time for auto power off. P.84
The operation sound
cannot be heard.
The operation sound volume is
turned off.
Use [Volume Settings] to set
the volume to a setting other
than mute.
P.84
Images do not appear
on the TV.
The [Video Out Mode] setting is
incorrect.
Set it to the correct format. P.86
The AV cable is not connected. Connect the AV cable properly. P.81
The TV is not correctly set to
VIDEO IN.
Check that the TV is correctly set
to VIDEO IN.
—
L7580872_0914_En.indb 168
L7580872_0914_En.indb 168
2010/09/14 17:56:57
2010/09/14 17:56:57
![](/img.php?id=1359556&img=bgac.png)
169
Appendices
17
Available Settings
The following table lists the settings available in each shooting mode.
5
V
W
N (Macro) *1✓✓✓✓✓✓
—✓
F (Flash) ✓✓✓✓✓✓✓
—
t (Self-timer) *2✓✓✓✓✓✓✓
—
Digital Zoom *3✓✓✓✓✓✓✓✓
Shooting Menu
Density ————— ✓——
Size ————— ✓——
Movie Size ——————— ✓
Picture Quality/Size ✓— *4✓✓✓
*5—✓—
Focus Multi AF *6✓✓✓✓✓
—— ✓
Spot AF ✓✓✓✓✓
—— ✓
AF —————— ✓—
MF ✓✓
—— ✓—✓✓
Snap
✓✓✓✓✓
—— ✓
∞
✓✓✓✓✓
—— ✓
Exposure Metering ✓✓
—— ✓—✓—
Continuous Mode *7 *8✓✓
———— ✓—
Image Settings ✓✓
—— ✓—✓—
Auto Bracket *8 *9✓✓
———— ✓—
Time Exposure *10 ✓✓
———— ✓—
Interval Shooting *11 ✓✓
——————
Camera Shake Correction *12 ✓✓✓✓✓✓✓
—
Date Imprint ✓✓✓✓✓✓✓
—
*1 [Focus] is set to [Spot AF]. Disabled when [MF] is selected for [Focus].
*2 Disabled during interval timer and continuous shooting.
*3 Not available if image is zoomed in during manual focus.
*4 Picture quality and size for CALS mode is selected using the [CALS Pic Quality] option in the
setup menu.
*5 [a 4 : 3 F], [a 4 : 3 N], and [z 4 : 3 F] only.
*6 Functions as [Spot AF] when digital zoom is in effect.
*7 Disabled during interval timer shooting.
*8 Flash turns off.
*9 Disabled during continuous shooting.
*10 Disabled during auto bracketing and continuous shooting.
*11 Disabled when self-timer is used.
*12 Not available if [Flash On], [FLASH ON (10M)], or [Flash Synchro.] is selected as flash mode for
long time-exposures or continuous shooting or if ten-second self-timer is used.
L7580872_0914_En.indb 169
L7580872_0914_En.indb 169
2010/09/14 17:56:57
2010/09/14 17:56:57
![](/img.php?id=1359556&img=bgad.png)
170
Appendices
17
5
V
W
Shooting Menu
Exposure Compensation ✓✓✓✓✓
—✓—
White Balance *13 ✓✓✓✓✓
—✓✓
ISO Setting ✓✓
——✓—✓—
Edit Detection *14 ✓✓✓✓✓✓✓
—
Restore Defaults ✓———————
Setup Menu
ADJ Button
Setting 1–4
*15
Off ✓✓
——————
Exposure Comp. ✓✓✓✓✓
—✓—
White Balance ✓✓✓✓✓
—✓✓
ISO ✓✓
——————
Quality ✓———————
Focus ✓✓
——————
Image ✓✓
——————
Expo. Metering ✓✓
——————
Cont. Mode ✓✓
——————
Auto Bracket ✓✓
——————
Density ————— ✓——
Shooting Info. Display Frame ✓✓✓✓✓✓✓
—
Other than those above ✓✓✓✓✓✓✓✓
*13 Not available if [Black & White] is selected for [Image Settings].
*14 Disabled during auto bracketing and continuous shooting.
*15 The function displayed when the ADJ. button is pressed in scene mode is always the same and
is not affected by the roles assigned to the button.
L7580872_0914_En.indb 170
L7580872_0914_En.indb 170
2010/09/14 17:56:57
2010/09/14 17:56:57
![](/img.php?id=1359556&img=bgae.png)
171
Appendices
17
Specifications
No. of effective pixels (camera) Approx. 12.10 million effective pixels
Image Sensor 1/2.3˝ CCD (Approx. 12.40 total million pixels)
Lens Focal Length 5.0 mm to 25 mm (equivalent to 28 mm to 140 mm on a 35-mm camera)
F-aperture F3.5 to F5.5
Shooting Distance Normal shooting: Approx. 30 cm to ∞ (Wide-angle) or 50 cm to ∞
(Telephoto) (from the front of the lens)
Macro shooting: Approx. 1 cm to ∞ (Wide-angle), 15 cm to ∞ (Telephoto)
or 1 cm to ∞ (Zoom macro mode) (from the front of the lens)
Lens Construction 11 elements in 9 groups plus 1 prism
Zoom Magnification Optical zoom at 5.0 ×, Digital zoom at 4.0 ×, Auto resize zoom at approx.
6.3 × (VGA image)
Focus Modes Multi AF (CCD method)/Spot AF (CCD method)/MF/Snap/∞ (with AF
Auxiliary Light)
Blur Reduction Digital image stabilizer
Shutter
Speed
Still Image 8, 4, 2, 1 to 1/1500 seconds (The upper and lower limits differ for each
shooting mode and flash mode.)
Movie 1/30 to 1/10000 seconds
Exposure
Control
Exposure
Metering Mode
Multi Light Metering (256 segments)/Center-weighted Light Metering/
Spot Metering (TTL-CCD Metering)
Exposure Mode Program AE
Exposure
Compensation
Manual exposure compensation (+2.0 to –2.0 EV in 1/3 EV Steps), Auto
bracket function (–0.5 EV, ±0, +0.5 EV)
Exposure Range
(auto mode,
center-weighted
metering)
Wide angle: 1.7–15.4 EV
Telephoto: 3.0–15.6 EV
(Exposure range for auto ISO calculated using values for ISO 100.)
Note: At 6.0 EV or lower, each drop of 1.0 EV is associated with a 0.25 EV
drop in brightness. Brightness drops by no more than 1.0 EV.
ISO Sensitivity (Standard
Output Sensitivity)
Auto/ISO 64/ISO 100/ISO 200/ISO 400/ISO 800/ISO 1600/ISO 3200
White Balance Mode Auto/Outdoors/Cloudy/Incandescent 1/Incandescent 2/Fluorescent/Manual/
Ring Light, White balance bracket function
Flash Flash Mode Auto flash (fires automatically in low-light conditions and when the subject
is backlit)/Anti Red-eye/Flash On/FLASH ON (10M)/Flash Synchro./Flash Off
Built-in flash
Range
Approx. 20 cm to 10.0 m (Wide-angle), approx. 40 cm to 6.2 m (Telephoto)
(ISO AUTO/ISO 1600, from the front of the lens)
Charging Time Approx. 8 seconds
Picture Display 3.0˝ Transmissive LCD, approx. 920,000 dots
Shooting Mode
Auto shooting mode/Scene mode (High Sens/Firefighting/Skew Correct
Mode/Text Mode/Zoom Macro/Movie)/My settings mode/CALS mode
Picture Quality Mode *1F (Fine), N (Normal)
L7580872_0914_En.indb 171
L7580872_0914_En.indb 171
2010/09/14 17:56:58
2010/09/14 17:56:58
![](/img.php?id=1359556&img=bgaf.png)
172
Appendices
17
Number of
Recorded
Pixels
Still Image 4000 × 3000, 3984 × 2656, 2592 × 1944, 2048 × 1536, 1600 × 1200,
1280 × 960, 640 × 480
Movie 1280 × 720, 640 × 480, 320 × 240
Text 4000 × 3000, 2048 × 1536
Recording Media SD memory card, SDHC memory card (up to 32 GB), SD WORM card, Internal
Memory (approx. 103 MB)
Recording
Data
Capacity
4000 × 3000 N: approx. 2713 KB/Screen, F: approx. 4735 KB/Screen
3984 × 2656 F: approx. 4177 KB/Screen
2592 × 1944 F: approx. 2281 KB/Screen
2048 × 1536 F: approx. 1431 KB/Screen
1600 × 1200 F: approx. 880 KB/Screen
1280 × 960 N: approx. 363 KB/Screen, F: approx. 708 KB/Screen
640 × 480 F: approx. 190 KB/Screen
Recording
File Format
Still Image JPEG (Exif Ver. 2.21)*2
Movie AVI (Open DML Motion JPEG Format Compliant)
Compression
Format
JPEG Baseline Format Compliant (Still image, movie)
Other Major Shooting Functions Continuous mode, Self-timer (operation time: approx. 10 seconds, approx.
2 seconds), Interval shooting (shooting interval: 5 seconds to 3 hours, in
increments of 5 seconds)*3, AE/AF target shift, Histogram display, Grid
guide display, Electronic level
Other Major Playback Functions Thumbnail view, Enlarged view (maximum 16×), Resize, Contrast
Correction, Skew Correction, Trim, Slide show, DPOF
Interface USB2.0 (High-Speed USB) Mini-B, Mass storage-compatible *4, AV output
1.0 Vp-p (75 Ω)
Video Signal Format NTSC, PAL
Power Supply Rechargeable Battery (DB-65): 3.6 V
Battery life (based on CIPA
standard) *5
DB-65: approx. 360 shots
AAA alkaline: 40 shots *6
(When [LCD Auto Dim] is set to [On] *7)
Dimensions (W × H × D) 118.8 mm × 71.0 mm × 41.0 mm (excluding projections; measured
according to CIPA guidelines)
Weight Approx. 314 g (including memory card and supplied battery)
Approx. 286 g (camera only)
Tripod Hole Shape 1/4-20UNC
Date Maintain Time Approx. 3 days
Operating Temperature –10 °C to 40 °C
Operating Humidity 90% or less
Storage Temperature –20 °C to 60 °C
Water resistance/
Dust resistance
Camera only: JIS/IEC Class 8 water resistance, JIS/IEC Class 6 dust resistance
(IP68)
Camera with optional GP-1 or BR-1 attached: JIS/IEC Class 4 water
resistance, JIS/IEC Class 6 dust resistance (IP64)
L7580872_0914_En.indb 172
L7580872_0914_En.indb 172
2010/09/14 17:56:58
2010/09/14 17:56:58
![](/img.php?id=1359556&img=bgb0.png)
173
Appendices
17
*1 The picture quality mode that can be set varies depending on the image size.
*2 Compatible with DCF and DPOF. DCF is the abbreviation for “Design rule for Camera File system,”
a JEITA standard (Full compatibility with other devices is not guaranteed).
*3 When the flash is set to [Flash Off ].
*4 Mass storage mode is supported by Windows 2000, Windows XP, Windows Vista, Windows 7,
Mac OS 9.0–9.2.2, and Mac OS X 10.1.2–10.6.3.
*5 The number of remaining shots is based on the CIPA standard and may vary depending on
usage conditions. This is for reference only.
*6 When using the AAA Alkaline batteries manufactured by Panasonic.
*7 If [Off] is selected for [LCD Auto Dim], up to 345 shots can be taken with DB-65 batteries and up
to 40 shots with AAA alkaline batteries.
Bluetooth® Communication Port
Communication Method Bluetooth® standard Ver. 2.1 + EDR
Output Bluetooth® standard Power Class 2
Communication Range*1Approx. 10 m (line of sight)
Supported Bluetooth®
Profiles*2
BIP, OPP, SPP
Frequency Band 2.4 GHz (2.4 GHz – 2.4835 GHz)
*1 The communication range may vary depending on obstructions between the two devices,
signal strength, software or operating system in use, and other factors.
*2 These are specifications according to the intended use of the Bluetooth®-enabled devices and
are predetermined by Bluetooth® standards.
Wireless LAN Communication Port
Compliance Standard IEEE802.11b/g
Transmission Method IEEE802.11g: OFDM
IEEE802.11b: DSSS, DQPSK, DBPSK
Data Transfer Speed*1IEEE802.11g: 54M/48M/36M/24M/18M/12M/9M/6M (bps)
IEEE802.11b: 11M/5.5M/2M/1M (bps)
Communication Range*2Approx. 30 m
This varies depending on the location of the devices, usage environment, and
usage conditions.
Security Protocol WEP (64/128bit), WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES)
Frequency Band 2.4 GHz (2.412 - 2.462 GHz)
*1 The data transfer speeds are the maximum theoretical values based on the wireless LAN
standard and may differ from the actual data transfer speed.
*2 The communication range may vary depending on obstructions between the two devices,
signal strength, location of the devices, usage environment, software or operating system in use,
and other factors.
L7580872_0914_En.indb 173
L7580872_0914_En.indb 173
2010/09/14 17:56:58
2010/09/14 17:56:58
![](/img.php?id=1359556&img=bgb1.png)
174
Appendices
17
Number of Images That Can Be Stored
The following table shows the approximate number of images that can
be recorded in the internal memory and onto an SD memory card at
various image size and picture quality settings.
Mode Image Size
Internal
Memory
1 GB 2 GB 4 GB 8 GB 16 GB 32 GB
5
V
W
([Movie] and
[Text mode]
excluded)
l 4 : 3 F 22 202 412 810 1648 3316 6653
l 4 : 3 N 38 351 714 1403 2856 5746 11527
j 3 : 2 F 25 229 465 914 1860 3743 7510
e 4 : 3 F 45 416 842 1653 3364 6769 13580
c 4 : 3 F 72 657 1336 2623 5339 10743 21551
b 4 : 3 F 116 1060 2119 4162 8469 17041 34184
a 4 : 3 F 141 1286 2561 5029 10234 20591 41306
a 4 : 3 N 265 2418 4728 9284 18894 38015 76258
z 4 : 3 F 509 4650 8781 17242 35089 70600 141622
W (Text
Mode)
l 4 : 3 38 351 714 1403 2856 5746 11527
c 4 : 3 72 657 1336 2623 5339 10743 21551
W (Movie) x 1280
20 s
3 min.
3 s
6 min.
13 s
12 min.
14 s
24 min.
54 s
50 min.
6 s
100 min.
31 s
y 640
58 s
8 min.
54 s
18 min.
7 s
35 min.
35 s
72 min.
24 s
145 min.
42 s
292 min.
16 s
z 320 2 min.
22 s
21 min.
34 s
43 min.
53 s
86 min.
10 s
175 min.
22 s
352 min.
50 s
707 min.
47 s
Note -------------------------------------------------------------------------------------
• The figures for storage capacity assume that no camera memo lists, voice
memos, or other camera system files are stored in the internal memory or on an
SD memory card.
• Fewer images can be recorded on SD WORM cards. The figures for SD WORM
cards are given below.
Mode Image Size
128 MB
1 GB
5
V
W
([Movie] and
[Text mode]
excluded)
l 4 : 3 F 25 198
l 4 : 3 N 43 338
j 3 : 2 F 29 229
e 4 : 3 F 51 399
c 4 : 3 F 79 614
b 4 : 3 F 124 956
a 4 : 3 F 147 1137
a 4 : 3 N 252 1944
z 4 : 3 F 412 3172
L7580872_0914_En.indb 174
L7580872_0914_En.indb 174
2010/09/14 17:56:58
2010/09/14 17:56:58
![](/img.php?id=1359556&img=bgb2.png)
175
Appendices
17
• The maximum recording time is the estimated total recording time. Movies may
be up to 4 GB in size. The maximum length is 12 minutes for movies recorded at
a [Movie Size] of [x 1280] and 29 minutes for movies recorded at [z 640] or
[y 320].
• An SD/SDHC memory card with a Speed Class of 6 or better is recommended
when recording movies with [x1280] selected for [Movie Size] (GP.63).
• The number of remaining shots displayed on the picture display may differ from
the actual number of shots, depending on the subject.
• Movie recording time and the maximum number of still pictures may vary
depending on the capacity of the recording destination (internal memory or SD
memory card), shooting conditions, and the type and manufacturer of the SD
memory card.
• Choose image size according to how the picture will be used:
Image Size Description
l 4 : 3 F/l 4 : 3 N/
j 3 : 2 F
• For creating large prints.
• For downloading to a computer for trimming and
other processes.
e 4 : 3 F/c 4 : 3 F • For creating prints.
b 4 : 3 F/a 4 : 3 F/
a 4 : 3 N
• For shooting a large number of pictures.
z 4 : 3 F
• For shooting a large number of pictures.
• For attaching to e-mail.
• For posting on a website.
L7580872_0914_En.indb 175
L7580872_0914_En.indb 175
2010/09/14 17:56:58
2010/09/14 17:56:58
![](/img.php?id=1359556&img=bgb3.png)
176
Appendices
17
Defaults Settings/Functions Whose
Defaults Are Restored When the Camera Is
Turned Off
Turning the camera off may reset some function settings to their
defaults. The table below indicates whether or not the function is reset
to its default when the camera is turned off.
{: setting is saved ×: setting is reset
Function Default Settings
Shooting Density {Normal
Size (Text Mode) {l 4 : 3
Movie Size {x 1280
Picture Quality/Size {l 4 : 3 N
Picture Quality/Size (Skew Correction) {a 4 : 3 F
Focus {Multi AF
Focus (Firefighting) {Snap
Exposure Metering {Multi
Continuous Mode × Off
Image Settings {Standard
Auto Bracket {Off
Time Exposure {Off
Interval Shooting × 0 Sec.
Camera Shake Correction {Off
Date Imprint {Off
Exposure Compensation {0.0
White Balance {Auto
ISO Setting {Auto
Edit Detection {Off
Macro {Macro Off
Flash {Flash Off
Self-Timer × Off
Playback Volume Adjustment {—
Setup LCD Brightness {—
Reg. My Settings {—
Stepped Zoom {Off
ADJ Button Setting 1 {Exposure Comp.
ADJ Button Setting 2 {White Balance
ADJ Button Setting 3 {ISO
ADJ Button Setting 4 {Quality
L7580872_0914_En.indb 176
L7580872_0914_En.indb 176
2010/09/14 17:56:58
2010/09/14 17:56:58
![](/img.php?id=1359556&img=bgb4.png)
177
Appendices
17
{: setting is saved ×: setting is reset
Function Default Settings
Setup AF Auxiliary Light {On
Operation Sounds {All
Volume Settings { (Medium)
LCD Confirmation Time {0.5 seconds
Auto Power Off {30 minutes
Monitor Auto off Delay {Off
LCD Auto Dim {On
Digital Zoom Image {Normal
Level Setting {Display
Grid Guide Display Options {
Shooting Info. Display Frame {Off
Auto Rotate {On
Card Sequence No. {Off
Date Settings {—
Language/N{(*1)
Video Out Mode {(*1)
CALS Pic Quality {a 4 : 3 N
Start Date/Time {On
Choose/Change Password {—
Password Protection {Off
Password Validity Period {Off
Power Button Hold Options {Off
Camera Memo Camera Memo Mode {Mode1
Memo Skip {Item 2
Mark Memo Added to Photos {Off
Memo Warning {Off
Display Memo at Startup {Off
Memo Increment {Off
Camera Memo Imprint {Off
Camera Memo 1 Auto Delete {Off
Barcode Type {Auto
Barcode Mode {Mode1
Scan Time {3 seconds
(*1) The default setting varies depending on where you purchased the camera.
L7580872_0914_En.indb 177
L7580872_0914_En.indb 177
2010/09/14 17:56:58
2010/09/14 17:56:58
![](/img.php?id=1359556&img=bgb5.png)
178
Appendices
17
{: setting is saved ×: setting is reset
Function Default Settings
Expanded
Settings
GPS Datum {WGS-84
GPS Disp Mode {LAT/LON
GPS Lock {Off
GPS Data Select {GPS Options
GPS Track Time {Off
Compass Heading {Cardinal
GPS Data Imprint {Off
UTC Data Imprint {Off
Heading Data Imprint {Off
Range Finder Mode {Mode1
Communication Mode {W-LAN
Send Status {On
Simple Connection {Off
Bluetooth Pass Key {—
Bluetooth Search Count {5
Bluetooth Auto Conn {Off
Bluetooth Master/Slave {Slave
Image File Size {640
Auto Delete {Off
Quick Send Mode {Off
Bluetooth Profile {OPP/BIP
Custom Help {Off
Admin Pass Key {0000
L7580872_0914_En.indb 178
L7580872_0914_En.indb 178
2010/09/14 17:56:58
2010/09/14 17:56:58
![](/img.php?id=1359556&img=bgb6.png)
179
Appendices
17
Using a Wide Conversion Lens
A wide conversion lens (DW-5) enables
shooting at a lens magnification of
0.8 times (equivalent to a 35 mm
camera’s 22 mm zoom in wide-angle).
Caution ---------------------------------------------------------------------------------
• When the wide conversion lens is attached, set the zoom position to the wide-
angle end.
• When the wide conversion lens is attached, even if you use the internal or
external flash, the area around the subject is not illuminated sufficiently so the
picture will be partly underexposed.
Note -------------------------------------------------------------------------------------
For cleaning and storage, see the documentation that came with your wide
conversion lens.
Optional Filters
Commercially-available filters with a
diameter of 37 mm can be mounted on
the lens to protect it from damage and
condensation.
L7580872_0914_En.indb 179
L7580872_0914_En.indb 179
2010/09/14 17:56:59
2010/09/14 17:56:59
![](/img.php?id=1359556&img=bgb7.png)
180
Appendices
17
Using the External Flash
You can attach an external flash and
other accessories (available in stores) to
the accessory shoe.
You can only use an external flash
equipped with both of the following functions.
• Slave flash function (flash is triggered in response to the firing of
another flash)
• Pre-flash support function (flash is synchronized with the second
flash instead of the pre-flash)
Caution ---------------------------------------------------------------------------------
• The accessory shoe conforms to JIS B7101.
• You cannot use an external flash with no spring or lock mechanism.
• You cannot use an external flash for which synchronization with the pre-flash
cannot be cancelled.
Note -------------------------------------------------------------------------------------
The accessory shoe does not support a synchronizer contact.
L7580872_0914_En.indb 180
L7580872_0914_En.indb 180
2010/09/14 17:56:59
2010/09/14 17:56:59
![](/img.php?id=1359556&img=bgb8.png)
181
Appendices
17
Using Your Camera Abroad
Battery Charger (Model BJ-6)
The battery charger can be used in regions with a current of 100–240 V, 50 Hz/60 Hz.
If you are going to travel to a country that uses a different shaped wall outlet/plug,
please consult your travel agent on a plug adapter suitable for wall outlets in your
country of destination.
Do not use electrical transformers. It may damage the camera.
Warranty
This product was manufactured for use in the country in which it was purchased.
The warranty is only valid in the country in which the camera was purchased.
Should the product fail or malfunction while you are abroad, the manufacturer
assumes no responsibility for servicing the product locally or bearing the
expenditure incurred therefore.
Playback on Television in Other Regions
Playback is possible on televisions (or monitors) equipped with a video input
terminal. Please use the AV cable provided.
This camera is compatible with both NTSC and PAL television formats. Set the video
format on the camera to match that of the television you are using.
When you go abroad, set your camera to the local video format.
T
2
L7580872_0914_En.indb 181
L7580872_0914_En.indb 181
2010/09/14 17:56:59
2010/09/14 17:56:59
![](/img.php?id=1359556&img=bgb9.png)
182
Appendices
17
Cautions on Use
Waterproofing/Dust Resistance
• The camera complies with the JIS/IEC Class 8 standard for water resistance
and the JIS/IEC Class 6 (IP68) standard for dust resistance. Note, however,
that when an optional GP-1 GPS unit or BR-1 barcode reader is attached, it
complies with the JIS/IEC Class 4 standard for water resistance only.
• After shooting in the rain or cleaning in water, water may seep through the
eyepiece of the lens segment and the tripod screw holes on the underside.
This is not a problem because these sections are of double structure.
• The internal mechanisms of the camera are neither waterproof nor dustproof.
• Should water enter the inside of the camera, remove the batteries
immediately and contact the Ricoh Repair Center.
Cautions on Use
• When opening and closing the battery/card cover or terminal cover, take
care to prevent any water, sand, mud, dust, or other foreign matter that may
have adhered to the camera from entering the interior of device. If possible,
avoid opening or closing the camera at the beach, near the sea, or in sandy
soil to prevent seawater or sand from getting inside.
• Open and close the battery/card cover or terminal cover with your bare
hands. Do not wear gloves, as any sand, dust, or other foreign matter that
may have adhered to the gloves may get inside the camera. Remove any
water, sand, mud, dust, or other foreign matter that may have adhered to
the camera and open and close the covers in a place where it will not be
exposed to dirt.
• Water droplets may get inside when the cover is opened. Wipe dry before
using.
• Because of its waterproof structure, the mode dial may be hard to turn
when it has not been operated for a long time. If this occurs, operate the dial
several times to restore it to the initial state.
• On a sandy beach or in a dusty place such as a construction site, pay
sufficient attention to prevent sand or dust from adhering to the camera.
• Do not leave the camera in places where there are extremes of temperature
or humidity, such as in a closed car, at the seashore, or in a bathroom.
• Do not force the battery/card cover or terminal cover.
• Do not lift the camera by the battery/card cover or terminal cover.
• If any foreign object (metal, water, liquid) gets inside the camera, stop
using the camera immediately. Turn the power off, remove the battery and
memory card, and consult your nearest dealer or Ricoh Repair Center.
• In cold climates, if the camera has water droplets adhering to its surface, they
may freeze. Using the camera with ice on it may cause it to fail. Do not leave
the camera with water adhering to it.
L7580872_0914_En.indb 182
L7580872_0914_En.indb 182
2010/09/14 17:56:59
2010/09/14 17:56:59
![](/img.php?id=1359556&img=bgba.png)
183
Appendices
17
•
This product was manufactured for use in the country in which it was purchased.
The warranty is only valid in the country in which the camera was purchased.
• Should the product fail or malfunction while you are abroad, the
manufacturer assumes no responsibility for servicing the product locally or
bearing the expenditure incurred therefore.
• Be sure not to drop or apply any sudden force to the camera.
• While you are carrying the camera, be careful not to hit it against other
objects. Take special care to not hit the lens and picture display.
• Firing the flash consecutively may heat the firing unit. Do not fire it
consecutively more than necessary.
• Do not touch the flash and keep foreign objects away from the firing unit.
Doing so can cause burns and fires.
• Do not fire the flash near eyes. It could cause visual impairment (particularly
for infants).
• Do not fire the flash near the driver of a vehicle to avoid causing accidents.
• The battery may become hot after extended use. Touching the battery
immediately after use could result in burns to your fingers.
• If the picture display or panel is exposed to sunlight, they may become
washed out and images may become hard to view.
• The picture display and panel may contain some pixels that do not remain
lit up continually in part or at all. Also, the brightness may become uneven
because of the characteristics of LCDs. These are not failures.
• Do not forcefully press the surface of the picture display.
• In an environment where the temperature changes suddenly, condensation
may occur in the camera, resulting in troubles such as fogging of the glass
surface or malfunctions of the camera. If this occurs, place the camera in a
bag to slow the temperature change as much as possible. Take it out of the
bag after the temperature difference from the atmosphere has decreased
to a fairly small amount. If condensation occurs, remove the battery and
memory card, and wait until the moisture has dried before using the camera.
• To avoid damaging the connectors, do not put any objects into the camera’s
microphone or speaker holes.
• Before taking any important pictures (such as at weddings, on trips abroad,
etc.), test the camera to check operation and ensure proper functioning. We
recommend that you keep this manual and spare battery on hand.
Conditions in which condensation may easily occur: -----------------------
•
When the camera is moved to an environment where the temperature differs greatly.
• In humid places.
• In a room immediately after being heated, or when the camera is exposed
directly to cooled air from an air-conditioner or another similar appliance.
L7580872_0914_En.indb 183
L7580872_0914_En.indb 183
2010/09/14 17:56:59
2010/09/14 17:56:59
![](/img.php?id=1359556&img=bgbb.png)
184
Appendices
17
Care and Storage
Care
• Please note that if fingerprints, dirt, etc. get onto the lens, picture quality will suffer.
• Any dust or dirt on the lens should be gently removed either with a blower
(available from third-party suppliers) or a soft cloth, paying particular attention to
the area around the lens barrel. Do not touch the lens directly with your fingers.
• If the camera is dirty or after use at the beach, take the following steps: Make sure
the battery/card cover and terminal cover are securely closed. Fill a wash-basin or
bowl with tap water and use the water to remove any dirt, sand or salt from the
camera, and then wipe the camera dry with a soft, dry cloth.
•
If the rubber packing is dirty, wipe it clean with a soft, dry cloth. If the rubber packing
has anything sticking to it or it is cracked or damaged, its waterproofing function may
be compromised, resulting in leakage. If dirt cannot be removed or the packing is
damaged, request your nearest dealer or Ricoh Repair Center to replace the packing.
• In the unlikely event that your camera fails to work properly, please consult your
Ricoh Repair Center.
• There are high voltage circuits in this camera. As this is dangerous, do not
dismantle this camera under any circumstances.
• Do not get volatile substances, such as thinner, benzene, or pesticides on your
camera. This may cause a change in quality, paint to peel, etc.
•
As the surface of the picture display is easily scratched, do not rub hard objects against it.
• Clean the surface of the picture display by wiping gently with a soft cloth
containing a small amount of display cleaner (that does not contain organic
solvents) sold in stores.
Use and Storage
• Please avoid using or storing your camera in the following kinds of places, as this
may damage the camera.
- In high heat and humidity, or where there is severe change in temperature or
humidity.
- Places with a lot of dust, dirt or sand.
- Places with severe vibration.
- Places where it is in direct contact with vinyl or rubber products or chemicals,
including mothballs or other insect repellent, for long periods of time.
- Places with strong magnetic fields (near a monitor, transformer, magnet, etc.).
• To keep the camera free from dust and other foreign matter, store it in a lint-free
case. Do not place it directly in a pocket or other location where it will be exposed
to dirt or lint.
• Remove the battery if you are not going to use the camera for a long period of
time.
L7580872_0914_En.indb 184
L7580872_0914_En.indb 184
2010/09/14 17:56:59
2010/09/14 17:56:59
![](/img.php?id=1359556&img=bgbc.png)
185
Appendices
17
Replacing the rubber packing
To maintain the waterproof ability, replace the rubber packing every two years,
regardless of whether it has gotten dirty. If you use the camera frequently in a wet,
sandy, or dusty environment, we recommend replacing the packing every year. The
replacement will be performed by the Ricoh Repair Center on a chargeable basis.
Precautions regarding care of your camera
1. Be sure to turn the power off.
2. Remove the batteries before caring for your camera.
L7580872_0914_En.indb 185
L7580872_0914_En.indb 185
2010/09/14 17:56:59
2010/09/14 17:56:59
![](/img.php?id=1359556&img=bgbd.png)
186
Appendices
17
Warranty and Servicing
1. This product is backed by a limited warranty. During the warranty period mentioned
in the Warranty supplied with your camera, any defective parts will be repaired free
of charge. In the event of a camera malfunction, contact the dealer from which you
purchased the camera or your nearest Ricoh Repair Center. Please note that you will be
not be reimbursed for the cost of bringing the camera to the Ricoh Repair Center.
2. This warranty does not cover any damage resulting from:
1 failure to follow the instructions in the instruction manual;
2 repair, modification or overhaul not conducted by an authorized service center listed
in the instruction manual;
3 fire, natural disaster, act of God, lightning, abnormal voltage, etc.;
4 improper storage (noted in the “Camera User Guide”), leaking of battery and other
fluids, mold, or otherwise insufficient care of the camera.
5 dropping the camera or exposing it to water, mud, sand, etc. with the battery/card
cover or terminal cover open.
3. After the warranty period has passed, you will be liable for all repair fees, including those
incurred at an authorized service center.
4. You will be liable for all repair fees, even within the warranty period, if the warranty card is
not attached or if the distributor's name or the purchase date have been changed or are
not indicated on the card.
5.
Expenses for overhaul and thorough inspection by special request of the customer will be
charged to the customer, whether or not they are incurred during the warranty period.
6. This warranty only applies to the camera and not to the accessories, such as the case and
strap, nor does it apply to the battery and other consumables provided.
7. Any consequential damages arising from failure of the camera, such as expenses incurred
in taking pictures or loss of expected profit, will not be reimbursed whether they occur
during the warranty period or not.
8. The warranty is only valid in the country in which the camera was purchased.
* The above provisions refer to repairs offered free of charge, and do not limit your legal
rights.
* The intention of the above provisions is also described in the warranty card provided
with this camera.
9. Parts essential to the servicing of the camera (that is, components required to maintain
the functions and quality of the camera) will be available for a period of five years after
the camera is discontinued.
10. Please note that if the camera is seriously damaged by flooding, submergence, infiltration
of sand or mud, violent shocks or dropping, it may not be repairable, and restoration to
its original condition may be impossible.
Note -------------------------------------------------------------------------------------
• Before sending the camera in for repair, check the battery and read the
instruction manual again to ensure proper operation.
• Some repairs require a significant amount of time to be completed.
• When sending the camera to a service center, please include a note which
describes the defective part and the problem as precisely as possible.
• Remove all accessories not related to the problem before sending the camera
to the service center.
• This warranty does not apply to data stored on an SD memory card or in
internal memory.
L7580872_0914_En.indb 186
L7580872_0914_En.indb 186
2010/09/14 17:56:59
2010/09/14 17:56:59
![](/img.php?id=1359556&img=bgbe.png)
187
Appendices
17
Notes to users
This Transmitter must not be co-located or operated in conjunction with any other antenna
or transmitter.
The available scientific evidence does not show that any health problems are associated
with using low power wireless devices. There is no proof, however, that these low power
wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio
frequency energy (RF) in the microwave range while being used. Whereas high levels
of RF can produce health effects (by heating tissue), exposure to low-level RF that does
not produce heating effects causes no known adverse health effects. Many studies of
low-level RF exposures have not found any biological effects. Some studies have suggested
that some biological effects might occur, but such findings have not been confirmed by
additional research. G700SE has been tested and found to comply with FCC/IC radiation
exposure limits set forth for an uncontrolled environment and meets the FCC radio
frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. Please refer to the SAR test report that was uploaded at FCC
website.
L7580872_0914_En.indb 187
L7580872_0914_En.indb 187
2010/09/14 17:57:00
2010/09/14 17:57:00
![](/img.php?id=1359556&img=bgbf.png)
188
Appendices
17
INFORMATION TO THE USER
USA FCC Part 15 Class B
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. (FCC 15.105B)
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment. (FCC 15.21)
Properly shielded and grounded cables and connectors must be used for connections to
host computer in order to comply with FCC emission limits. (FCC 15.27)
An AC adapter with a ferrite core must be used for RF interference suppression.
COMPLIANCE INFORMATION STATEMENT
Product Name: DIGITAL CAMERA
Model Number: G700SE
This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of this device.
RICOH AMERICAS CORPORATION
5 Dedrick Place, West Caldwell NJ, 07006 Tel.: 1-800-225-1899
Note to Users in Canada
Note: This Class B digital apparatus complies with Canadian ICES-003
Remarque Concernant les Utilisateurs au Canada
Avertissement : Cet appareil numerique de la classe B est conforme a la norme NMB-003
du Canada
IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS
DANGER-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE
INSTRUCTIONS.
L7580872_0914_En.indb 188
L7580872_0914_En.indb 188
2010/09/14 17:57:00
2010/09/14 17:57:00
![](/img.php?id=1359556&img=bgc0.png)
189
Appendices
17
Notice to Users in EEA Countries
Declaration of Conformity
This product complies with the essential requirements and provisions of Directive 1999/5/
EC of the European Parliament and of the Council of 9 March 1999 on radio equipment
and telecommunications terminal equipment and the mutual recognition of their
conformity.
The CE Declaration of Conformity is available on the Internet at URL:
http://www.ricoh.com/r_dc/support/ce_docs/
National Restrictions
Outdoor use of the 2.4 GHz band is prohibited in the following country:
• France
* Use may be prohibited in other areas also.
Ce produit est conforme aux exigences essentielles et aux dispositions de la Directive
1999/5/CE du Parlement européen et du Conseil du 9 mars 1999, concernant les
équipements hertziens et les équipements terminaux de télécommunications et la
reconnaissance mutuelle de leur conformité.
La Déclaration de conformité CE est disponible sur Internet à l’adresse suivante :
http://www.ricoh.com/r_dc/support/ce_docs/
Restrictions nationales
L’utilisation de la bande de fréquence 2,4 GHz en extérieur est interdite dans le pays
suivant:
• France
* Il se peut que son utilisation soit également interdite dans d’autres pays.
Dieses Produkt entspricht den Anforderungen und Vorschriften der Richtlinie 1999/5/
EG des Europäischen Parlaments und des Rates vom 9. März 1999 über Funkanlagen
und Telekommunikationsendeinrichtungen und die gegenseitige Anerkennung ihrer
Konformität.
Die CE-Konformitätserklärung ist im Internet unter folgender URL abrufbar:
http://www.ricoh.com/r_dc/support/ce_docs/
Nationale Beschränkungen
Die Verwendung einer 2,4 GHz-Frequenz im Freien ist im folgenden Land untersagt:
• Frankreich
* In anderen Ländern kann die Verwendung ebenfalls verboten sein.
L7580872_0914_En.indb 189
L7580872_0914_En.indb 189
2010/09/14 17:57:00
2010/09/14 17:57:00
![](/img.php?id=1359556&img=bgc1.png)
190
Appendices
17
Dit product voldoet aan de essentiële eisen en bepalingen van Richtlijn 1999/5/EG van
het Europees Parlement en de Raad van 9 maart 1999 betreffende radioapparatuur en
telecommunicatie-eindapparatuur en de wederzijdse erkenning van hun conformiteit.
De EG-verklaring van conformiteit is beschikbaar via internet op de volgende URL:
http://www.ricoh.com/r_dc/support/ce_docs/
Nationale beperkingen
Het gebruik van de 2,4GHz-frequentieband is verboden in:
• Frankrijk
* Het gebruik ervan kan ook in andere gebieden verboden zijn.
Questo prodotto è conforme ai requisiti essenziali e alle disposizioni della Direttiva
1999/ 5/CE del Parlamento europeo e del Consiglio, del 9 marzo 1999, riguardante le
apparecchiature radio e le apparecchiature terminali di telecomunicazione e il reciproco
riconoscimento della loro conformità.
La dichiarazione CE di Conformità è disponibile su Internet all’indirizzo:
http://www.ricoh.com/r_dc/support/ce_docs/
Restrizioni nazionali
L’utilizzo in ambiente esterno della banda 2,4 GHz è vietato nel seguente paese:
• Francia
* L’utilizzo potrebbe non essere consentito anche in altre aree.
Este producto cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE del Parlamento Europeo y del Consejo,
de 9 de marzo de 1999, sobre equipos radioeléctricos y equipos terminales de
telecomunicación y reconocimiento mutuo de su conformidad.
La Declaración de Conformidad de CE está disponible en Internet en la siguiente dirección URL:
http://www.ricoh.com/r_dc/support/ce_docs/
Restricciones nacionales
Está prohibido el uso en exterior de la banda de 2,4 GHz en:
• Francia
* Es posible que el uso también esté prohibido en otras zonas.
L7580872_0914_En.indb 190
L7580872_0914_En.indb 190
2010/09/14 17:57:00
2010/09/14 17:57:00
![](/img.php?id=1359556&img=bgc2.png)
191
Appendices
17
Hinweis für Benutzer in Ländern des europäischen Wirtschaftsraumes
Dieses Produkt befindet sich in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/
EG des Europäischen Parlaments und des Rates vom 9. März 1999 über Funkanlagen
und Telekommunikationsendeinrichtungen und die gegenseitige Anerkennung ihrer
Konformität.
Unter der folgenden URL finden Sie die offizielle Konformitätserklärung:
http://www.ricoh.com/r_dc/support/ce_docs/
L7580872_0914_En.indb 191
L7580872_0914_En.indb 191
2010/09/14 17:57:00
2010/09/14 17:57:00
![](/img.php?id=1359556&img=bgc3.png)
192
Index
A
Accessory Shoe .......................................18, 180
ADJ./MEMO Button .................................19, 50
ADJ Button Setting ..................................50, 84
Admin Mode [Delete] .................................104
Admin Mode [Regist] ..................................104
Admin Pass Key ...............................................104
Adobe Reader ..................................................153
AE/AF Target Shift .............................................51
AF Auxiliary Light ......................................18, 84
Auto Bracket ................................................64, 68
Auto Delete .......................................................104
Auto Focus/Flash Lamp ................19, 32, 35
Auto Power Off...........................................29, 84
Auto Rotate ..........................................................85
Auto Shooting Mode .............................17, 31
AV Cable .........................................................16, 81
AV Output Terminal .................................19, 81
B
Barcode Mode ....................................................97
Barcode Reader ...............................................142
Barcode Type .......................................................97
Battery ............................................................. 26, 27
Battery/Card Cover ..................................19, 27
Battery Charger ..........................................16, 26
Bluetooth Auto Conn ..................................103
Bluetooth Master/Slave .............................103
Bluetooth Pass Key........................................103
Bluetooth Profile ............................................104
Bluetooth Search Count ............................103
Bluetooth Serial ..............................................103
BR-1 ........................................................................ 142
C
CALS Mode ...................................................17, 37
CALS Pic Quality ................................................87
Camera Memo ....................................................57
Camera Memo 1 Auto Delete ...................96
Camera Memo Imprint .................................96
Camera Memo Menu .....................................94
Camera Memo Mode .....................................95
Camera Shake .....................................................33
Camera Shake Correction............................65
Card Sequence No. ..........................................86
CD-ROM.......................................................16, 149
Choose/Change Password .................87, 90
Communication Mode...............................102
Compass Calibration ...................................101
Compass Heading .........................................100
Continuous Mode ............................................64
Contrast Correction .................................73, 77
Copy to Card from Internal Memory ....73
Custom Help .............................................59, 104
D
Date Imprint ........................................................65
Date Settings ...............................................29, 86
Delete.......................................................................41
Delete Button ..............................................19, 41
Delete GPS Log ...............................................100
Density ....................................................................63
Digital Zoom ................................................34, 89
Digital Zoom Image ........................34, 85, 89
Direct Print .........................................................144
DISP. Button ..................................................19, 44
Display Memo at Startup .............................96
DL-10 .......................................................... 149, 151
DPOF ................................................................73, 80
E
EC1 ..........................................................................152
Edit Detection .....................................................66
Enlarged view .....................................................40
Error Messages ................................................159
EX1 .......................................................................... 153
Expanded Settings Menu ............................98
Exposure Compensation .....................65, 69
Exposure Metering ..........................................63
External Flash ...................................................180
F
File Send .................................................................74
Firefighting ...........................................................52
Flash ..........................................................18, 19, 35
Focus ................................................................63, 67
Format [Card] ......................................................83
Format [Internal Memory] ...........................83
G
GP-1 ........................................................................136
GPS .........................................................................136
GPS Data Imprint ...........................................101
GPS Data Select ..............................................100
GPS Datum ...........................................................99
GPS Disp Mode ..................................................99
GPS Lock .................................................................99
L7580872_0914_En.indb 192
L7580872_0914_En.indb 192
2010/09/14 17:57:00
2010/09/14 17:57:00
![](/img.php?id=1359556&img=bgc4.png)
193
GPS Track Time ................................................100
Grid Guide Display ...........................................44
Grid Guide Display Options........................85
H
Heading Data Imprint .................................101
High Sens...............................................................52
Histogram Display ............................................48
I
Image File Size .................................................103
Image Settings ...................................................64
Import Communication Setting ..........102
Internal Memory ............................................174
Interval Shooting ..............................................65
ISO Setting ....................................................66, 71
L
Language/N ........................................ 29, 86
LCD Auto Dim .....................................................84
LCD Brightness ...................................................83
LCD Confirmation Time ................................84
Lens ...........................................................................18
Level Indicator ....................................................46
Level Setting ................................................46, 85
List Editor ............................................................151
M
Macro ............................................................... 19, 34
Manual Focus (MF)...........................................67
Mark Memo Added to Photos ..................95
ME1 .........................................................................151
MediaBrowser .................................................. 151
Memo Increment..............................................96
Memo Skip ............................................................95
Memo Warning ..................................................95
MENU/OK Button.......19, 62, 72, 82, 94, 98
Microphone .........................................................18
Mode Dial ......................................................17, 18
Monitor Auto off Delay .................................84
Movie ...............................................................52, 55
Movie Size .............................................................63
My Settings Mode (MY) ........................17, 37
N
Neck strap .............................................................16
O
Operation Sounds ............................................84
Optional Filter ..................................................179
P
Password Protection .......................29, 87, 92
Password Validity Period ...............................87
PictBridge ...........................................................144
Picture Display ............................................19, 20
Picture Quality/Size .........................................63
Playback Button .........................19, 29, 38, 72
Playback Menu ...................................................72
Playback Mode ...................................................29
POWER Button ....................................................18
Power Button Hold Options.......................87
Protect ............................................................. 73, 79
Q
Quick Send Mode ..........................................104
R
Range Finder Mode ......................................101
Rechargeable Battery .....................................26
Recover File ..........................................................74
Reg. My Settings ........................................83, 88
Remove Memo Marking ..............................95
Report Print .......................................................148
Resize .......................................................................73
Restore Defaults ................................................66
S
Scan Time ..............................................................97
Scene Mode (SCENE) ..............................17, 52
SDHC Card ............................................................24
SD Memory Card ............................ 24, 27, 174
SD WORM Card ..................................................24
Self-timer .......................................................19, 36
Send Status ........................................................102
Send To.................................................................102
Setup Menu .........................................................82
Shooting Info. Display Frame ....................85
Shooting Menu ..................................................62
Shutter Release Button .........................18, 31
Simple Connection.......................................102
Size ............................................................................. 63
Skew Correction ........................................73, 78
Skew Correct Mode .................................52, 54
Slide Show ............................................................73
Speaker ...................................................................18
SR-10 ........................................................... 120, 151
ST-10 ........................................................... 113, 151
Start Date/Time .................................................87
Stepped Zoom ...................................................83
Strap Eyelet ...........................................................18
Synchro-Monitor Mode ................................44
L7580872_0914_En.indb 193
L7580872_0914_En.indb 193
2010/09/14 17:57:00
2010/09/14 17:57:00
![](/img.php?id=1359556&img=bgc5.png)
194
T
Terminal Cover ...................................................19
Text Mode .............................................................52
Thumbnail View .................................................38
Time Exposure ....................................................64
Trim ...................................................................73, 75
Tripod Screw Hole ............................................19
TV Playback...........................................................81
U
USB Cable ...................16, 123, 144, 155, 157
USB Terminal ........................................................19
UTC Data Imprint ...........................................101
V
Video Out Mode ................................................86
Volume Settings ................................................84
W
White Balance .............................................66, 70
White Balance Bracket (WB-BKT) ............68
Wide Conversion Lens ........................ 16, 179
Z
Zoom ........................................................................ 33
Zoom Macro ........................................................52
L7580872_0914_En.indb 194
