How to Read This Manual
Introduction
This manual contains detailed instructions and notes on the operation and use of this machine. For your
safety and benefit, read this manual carefully before using the machine. Keep this manual in a handy
place for quick reference.
Legal Prohibition
Do not copy or print any item for which reproduction is prohibited by law.
Copying or printing the following items is generally prohibited by local law:
bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licenses.
The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its
completeness or accuracy. If you have any questions concerning the legality of copying or printing
certain items, consult with your legal advisor.
Disclaimer
Contents of this manual are subject to change without prior notice. In no event will the company be
liable for direct, indirect, special, incidental, or consequential damages as a result of handling or
operating the machine.
To the maximum extent permitted by applicable laws, in no event will the manufacturer be liable for any
damages whatsoever arising out of failures of this machine, losses of the registered data, or the use or
non-use of this product and operation manuals provided with it.
Make sure that you always copy or have backups of the data registered in this machine. Documents or
data might be erased due to your operational errors or malfunctions of the machine.
In no event will the manufacturer be responsible for any documents created by you using this machine or
any results from the data executed by you.
For good output quality, the manufacturer recommends that you use genuine toner from the
manufacturer.
The manufacturer shall not be responsible for any damage or expense that might result from the use of
parts other than genuine parts from the manufacturer with your office products.
Two kinds of size notation are employed in this manual.
Some illustrations or explanations in this guide may differ from your product due to improvement or
change in the product.
5
![](/img.php?id=3031443&img=bg8.png)
Note to Administrator
Password
When you log in to this printer, you will be prompted to enter the password. We strongly recommend
you to change the factory default password immediately to prevent information leakage and
unauthorized operations by others.
You will be prompted to enter your password when you attempt to change printer settings configured
using Web Image Monitor.
To use the factory default password, leave the password blank when using Web Image Monitor.
To Change password for Web Image Monitor, you need to log on as an Administrator, and then make
the necessary settings.
For details about setting a password, see page 47 "Using Web Image Monitor".
About IP Address
In this manual, "IP address" covers both IPv4 and IPv6 environments. Read the instructions that are
relevant to the environment you are using.
6
![](/img.php?id=3031443&img=bg9.png)
Model-Specific Information
This section explains how you can identify the region your machine belongs to.

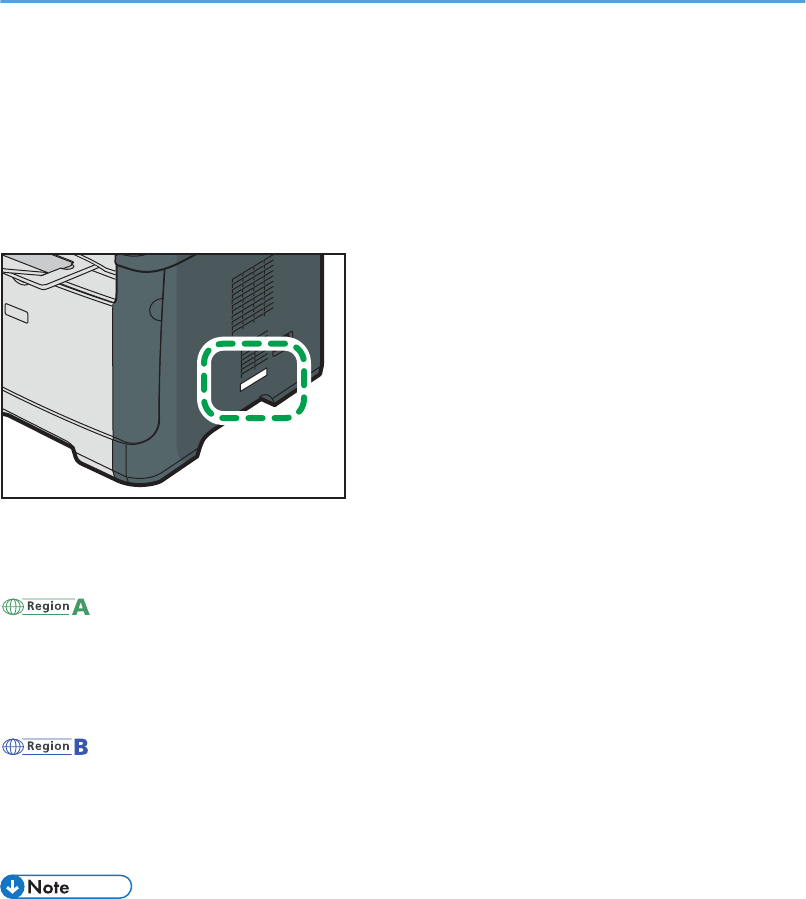

There is a label on the rear of the machine, located in the position shown below. The label contains
details that identify the region your machine belongs to. Read the label.
CVW058
The following information is region-specific. Read the information under the symbol that corresponds to
the region of your machine.
(mainly Europe and Asia)
If the label contains the following, your machine is a region A model:
•CODE XXXX -27
• 220-240V
(mainly North America)
If the label contains the following, your machine is a region B model:
•CODE XXXX -17
• 120V
• Dimensions in this manual are given in two units of measure: metric and inch. If your machine is a
Region A model, refer to the metric units. If your machine is a Region B model, refer to the inch
units.
7
![](/img.php?id=3031443&img=bga.png)
Important Safety Instructions
User Information on Electrical & Electronic Equipment
Users in the countries where this symbol shown in this section has been specified in
national law on collection and treatment of E-waste
Our Products contain high quality components and are designed to facilitate recycling.
Our products or product packaging are marked with the symbol below.
The symbol indicates that the product must not be treated as municipal waste. It must be disposed of
separately via the appropriate return and collection systems available. By following these instructions
you ensure that this product is treated correctly and help to reduce potential impacts on the environment
and human health, which could otherwise result from inappropriate handling. Recycling of products
helps to conserve natural resources and protect the environment.
For more detailed information on collection and recycling systems for this product, please contact the
shop where you purchased it, your local dealer or sales/service representatives.
All Other Users
If you wish to discard this product, please contact your local authorities, the shop where you bought this
product, your local dealer or sales/service representatives.
For Users in India
This product complies with the "India E-waste Rule 2011" and prohibits use of lead, mercury,
hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations
exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2
of the Rule.
8
![](/img.php?id=3031443&img=bgb.png)
Environmental Advice for Users
Users in the EU, Switzerland and Norway
Consumables yield
Please refer to either the User’s Manual for this information or the packaging of the consumable.
Recycled paper
The machine can use recycled paper which is produced in accordance with European standard
EN 12281:2002 or DIN 19309. For products using EP printing technology, the machine can print
on 64g/m2 paper, which contains less raw materials and represents a significant resource
reduction.
Duplex printing (if applicable)
Duplex printing enables both sides of a sheet of paper to be used. This saves paper and reduces
the size of printed documents so that fewer sheets are used. We recommend that this feature is
enabled whenever you print.
Toner and ink cartridge return program
Toner and ink cartridge for recycling will be accepted free of charge from users in accordance with
local regulations.
For details about the return program, please refer to the Web page below or consult your service
person.
https://www.ricoh-return.com/
Energy efficiency
The amount of electricity a machine consumes depends as much on its specifications as it does on
the way you use it. The machine is designed to allow you to reduce electricity costs by switching to
Ready mode after it prints the last page. If required, it can immediately print again from this mode.
If no additional prints are required and a specified period of time passes, the device switches to an
energy saving mode.
In these modes, the machine consumes less power (watts). If the machine is to print again, it needs
a little longer to return from an energy saving mode than from Ready mode.
For maximum energy savings, we recommend that the default setting for power management is
used.
Products that comply with the Energy Star requirement are always energy efficient.
9
![](/img.php?id=3031443&img=bgc.png)
Note for the Battery and/or Accumulator Symbol (For EU countries only)
In accordance with the Battery Directive 2006/66/EC Article 20 Information for end-users Annex II,
the above symbol is printed on batteries and accumulators.
This symbol means that in the European Union, used batteries and accumulators should be disposed of
separately from your household waste.
In the EU, there are separate collection systems for not only used electrical and electronic products but
also batteries and accumulators.
Please dispose of them correctly at your local community waste collection/recycling centre.
10
![](/img.php?id=3031443&img=bgd.png)
Important Safety Instructions
Notes to Users in the State of California
Perchlorate Material - special handling may apply. See: www.dtsc.ca.gov/hazardouswaste/
perchlorate
11
![](/img.php?id=3031443&img=bge.png)
12
![](/img.php?id=3031443&img=bgf.png)
1. Guide to the Machine
Guide to Components
This section introduces the names of the various parts on the front and rear side of the machine and
outlines their functions.

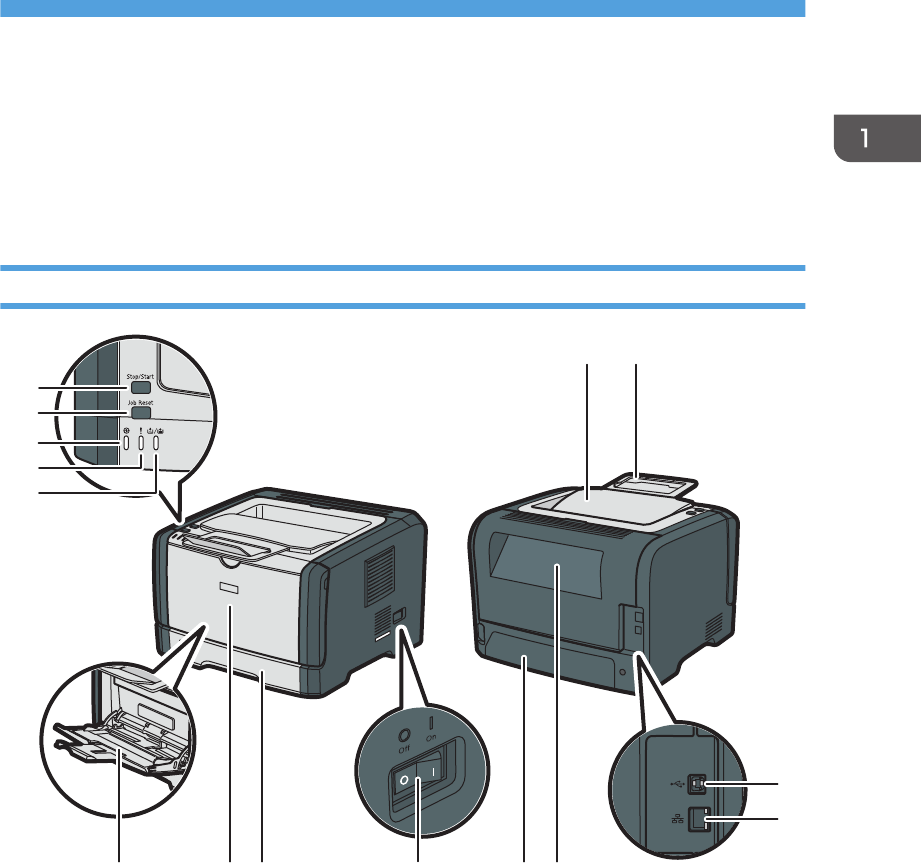

Exterior
CVW036
14
13
11
15
5
12
76
8
9
10
3
4
12
1. Standard Tray
Printed paper is output here. Up to 125 sheets of plain paper can be stacked here.
2. Stop Fences
Raise this fence to prevent paper from falling off.
3. USB Port
Use a USB cable to connect the printer to the host computer.
4. Ethernet Port
Use a network interface cable to connect the printer to the network.
13
![](/img.php?id=3031443&img=bg10.png)
5. Rear Cover
Open this cover to deliver sheets face up or remove jammed paper.
6. Tray 1 Rear Cover
Remove this cover when loading paper longer than A4 in Tray 1.
7. Power Switch
Use this switch to turn the power on or off.
8. Tray 1
This tray can hold up to 250 sheets of plain paper.
9. Front Cover
Lift up this cover to replace consumables or clear a paper jam.

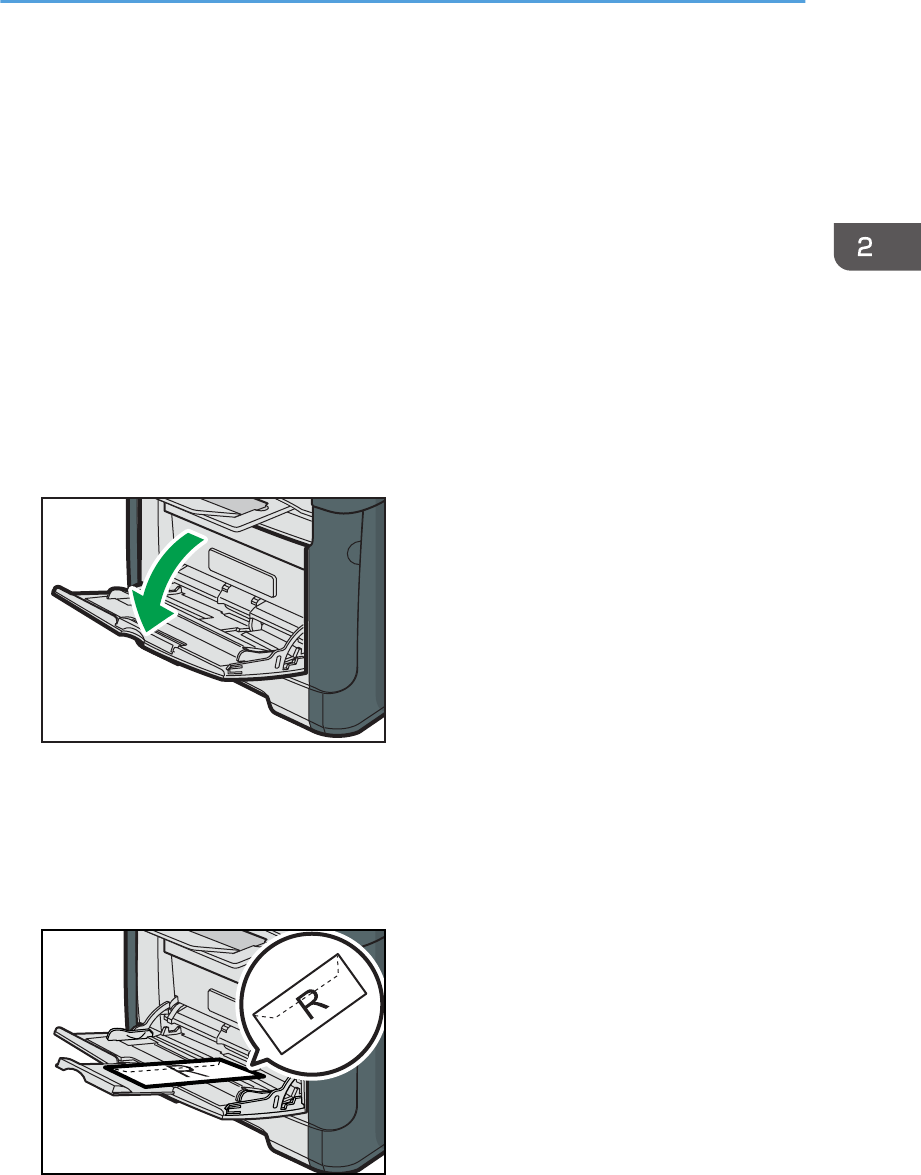

10. Bypass Tray
This tray can hold 50 sheets of plain paper.
11. Toner/Paper End Indicator
This indicator flashes red when the toner is nearly empty, and it lights up when the machine runs out of paper
or toner and when the toner is not set correctly.
12. Alert Indicator
This indicator flashes red when paper jams occur, and it lights up when the paper settings do not match the
settings specified by the driver, and when other errors occur.
13. Power Indicator
This indicator lights up blue when the machine is turned on. It flashes when a print job is received.

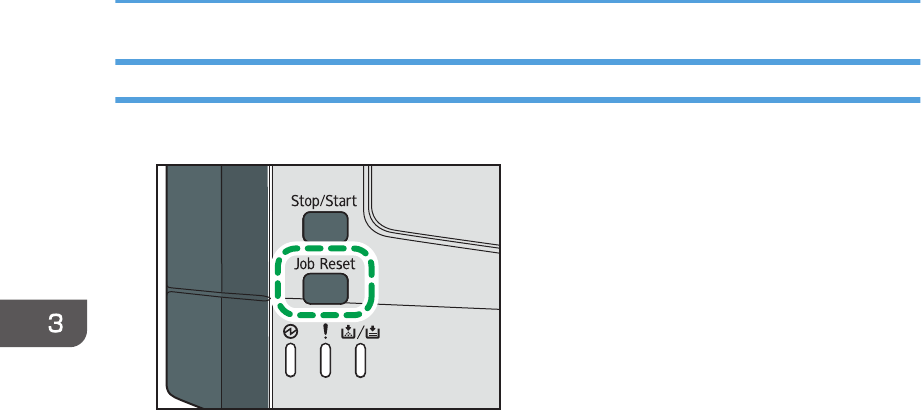

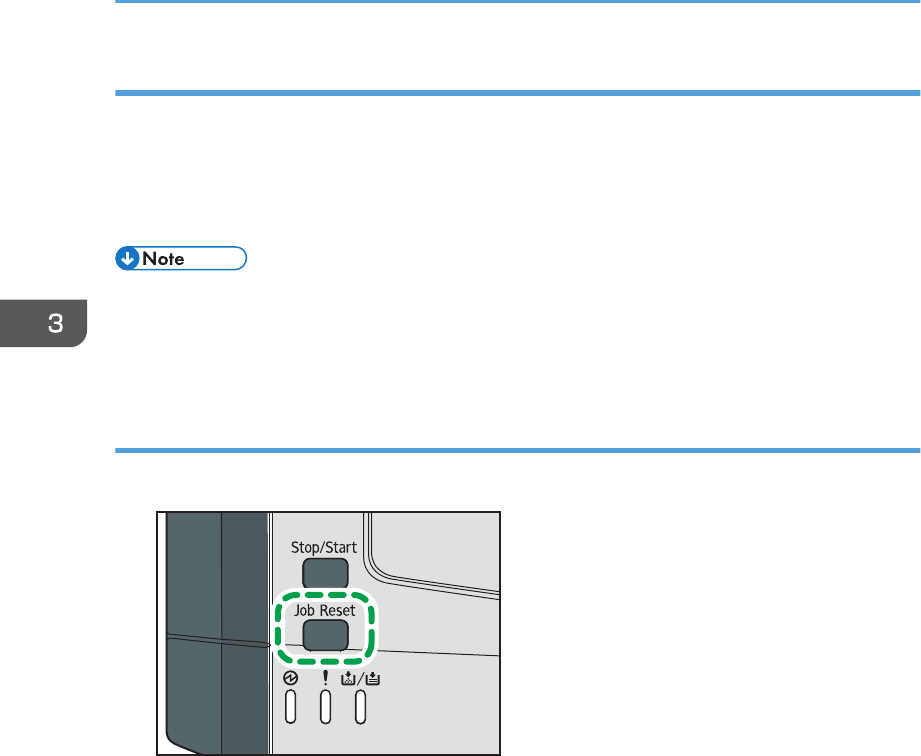

14. [Job Reset] key
Press this key to cancel a job that is currently printing.

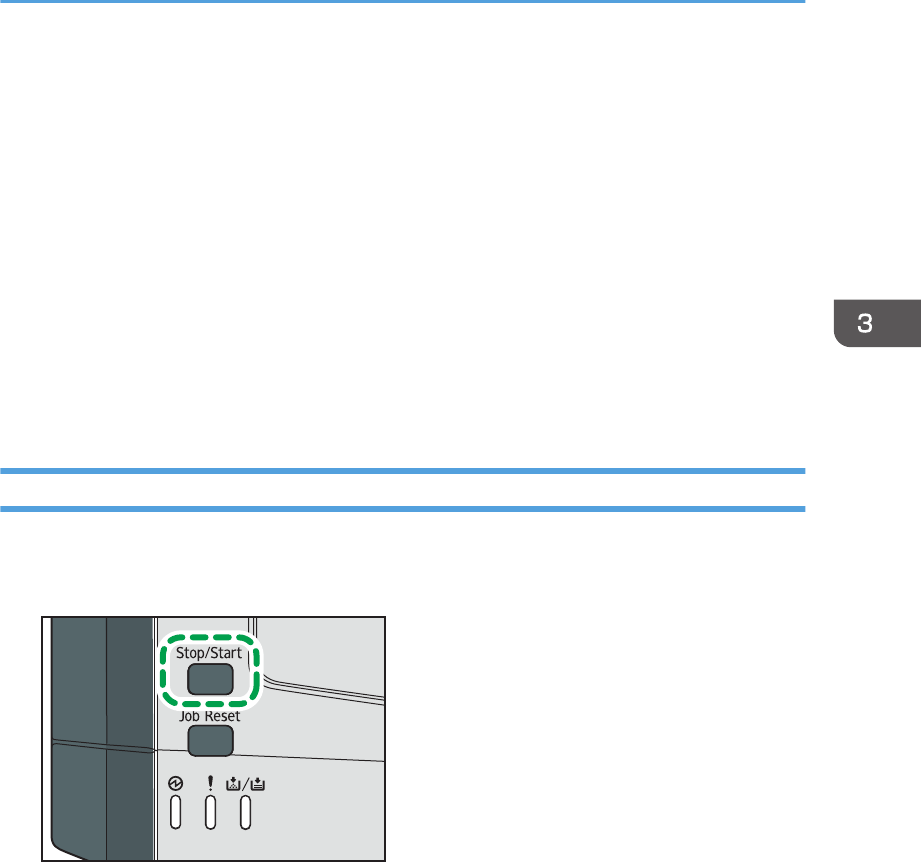

15. [Stop/Start] key
If you press this key, the printer stops receiving data, and printing is not possible.
1. Guide to the Machine
14
![](/img.php?id=3031443&img=bg12.png)
Installing the Printer
This section describes how to install the printer and perform settings after installation.
Where to Put the Printer
The printer's location should be carefully chosen because environmental conditions greatly affect its
performance.
• Do not use flammable sprays or solvents in the vicinity of this machine. Doing so could result in
fire or electric shock.
• Do not place vases, plant pots, cups, toiletries, medicines, small metal objects, or containers
holding water or any other liquids, on or close to this machine. Fire or electric shock could result
from spillage or if such objects or substances fall inside this machine.
• Keep the machine away from humidity and dust. Otherwise a fire or an electric shock might
occur.
• Do not place the machine on an unstable or tilted surface. If it topples over, an injury might
occur.
• Do not place heavy objects on the machine. Doing so can cause the machine to topple over,
possibly resulting in injury.
• Keep the machine in an area that is within optimum environmental conditions. Operating the
machine in an environment that is outside the recommended ranges of humidity and
temperature can cause an electrical fire hazard. Keep the area around the socket free of dust.
Accumulated dust can become an electrical fire hazard.
1. Guide to the Machine
16
![](/img.php?id=3031443&img=bg13.png)
• Make sure the room where you are using the machine is well ventilated and spacious. Good
ventilation is especially important when the machine is used heavily.
• Do not obstruct the machine's vents. Doing so risks fire caused by overheated internal
components.
• Keep the machine away from salt-bearing air and corrosive gases. Also, do not install the
machine in places where chemical reactions are likely (laboratories, etc.), as doing so will
cause the machine to malfunction.

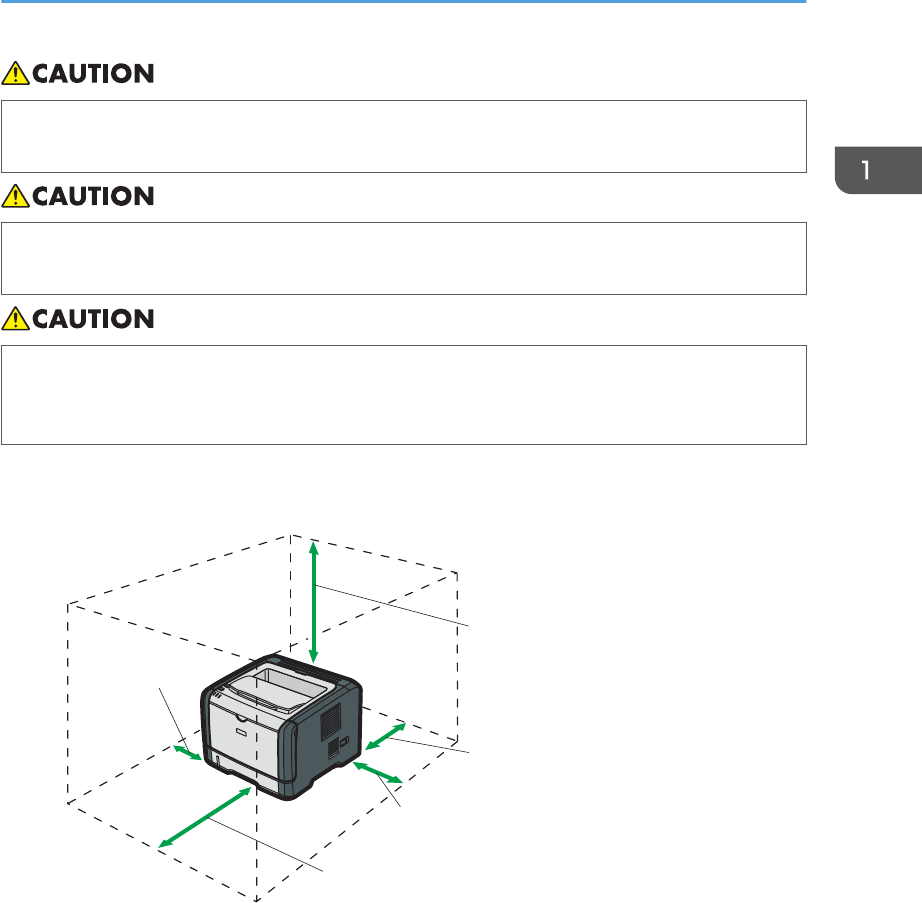

Space Required for Installation
The recommended (or minimum) space requirements are as follows:
CVW502
70 cm
(27.6")
20 cm
(7.9")
40 cm
(15.8")
20 cm
(7.9")
10 cm
(4")

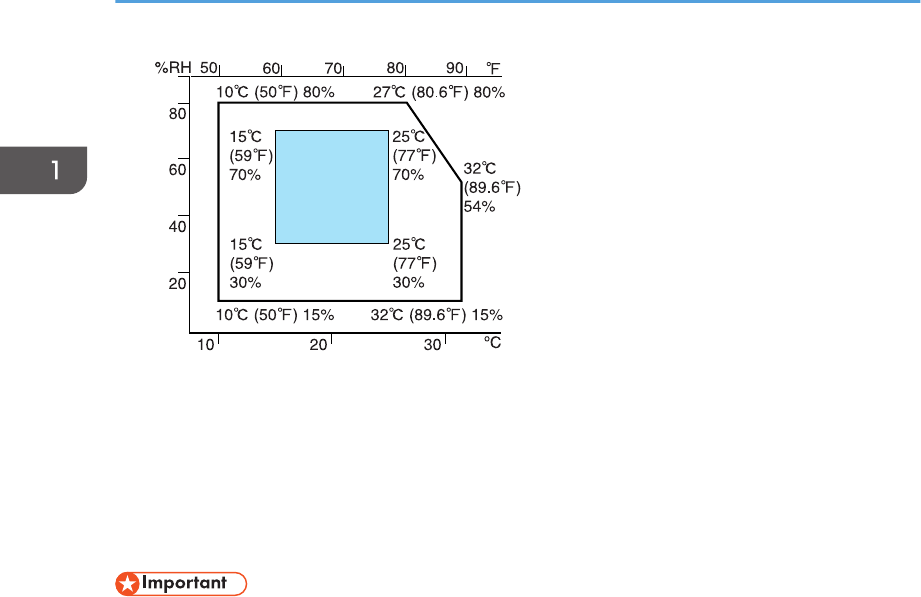

Optimum Environmental Conditions
Permissible and recommended temperature and humidity ranges are as follows:
Installing the Printer
17
![](/img.php?id=3031443&img=bg14.png)
CER119
• White area: Permissible Range
•Blue area: Recommended Range
To avoid possible build-up of ozone, locate this machine in large well ventilated room that has an
air turnover of more than 30m3/hr/person.
Environments to Avoid
• Areas exposed to direct sunlight or strong light
•Dusty areas
• Areas with corrosive gases
• Areas that are excessively cold, hot, or humid
• Areas directly exposed to currents of hot, cold, or room-temperature air from air conditioners
• Areas directly exposed to radiant heat from heaters
• Locations near air conditioners or humidifiers
• Locations near other electronic equipment
• Locations subject to frequent strong vibration
Ventilation
When you use this machine in a confined space without good ventilation for a long time or print
large quantities, you might detect an odd smell.
This might cause the output paper to also have an odd smell.
When you detect an odd smell, regularly ventilate in order to keep the workplace comfortable.
• Set up the machine so that it does not directly ventilate towards people.
• Ventilation should be more than 30 m3/hr/person.
New machine smell
When a machine is new, it might have a unique smell. This smell will subside in about one week.
1. Guide to the Machine
18
![](/img.php?id=3031443&img=bg15.png)
When you detect an odd smell, sufficiently ventilate and circulate the air in the room.
Power requirements
• 220 - 240 V, 4 A, 50/60 Hz
• 120 V, 7 A, 60 Hz
Please be sure to connect the power cord to a power source as above.
Installing the Printer
19
![](/img.php?id=3031443&img=bg16.png)
Installing the Driver and Software
You can install the necessary driver for this machine using the included CD-ROM.
The supplied drivers are supported by the following operating systems:
•PCL 6 printer driver: Windows XP/Vista/7/8 and Windows Server 2003/ 2003
R2/2008/2008 R2/2012
• Smart Organizing Monitor: Windows XP/Vista/7/8 and Windows 2003/ 2003
R2/2008/2008 R2/2012
The procedure in this section is an example based on Windows 7. The actual procedure may vary
depending on the operating system you are using.
• Be sure to disconnect the USB cable or Ethernet cable from the machine and turn the machine off
before beginning the installation.
Quick Install for USB
Use Quick Install to install the printer driver, and Smart Organizing Monitor from the CD-ROM.
1. Close all applications except this manual.
2. Insert the CD-ROM into the CD-ROM drive.
3. Select a language for the interface, and then click [OK].
4. From the CD-ROM menu, click [USB Quick Install].
5. Follow the instructions in the installation wizard.
Quick Install for Network
Use Quick Install to install the printer driver, and Smart Organizing Monitor from the CD-ROM.
1. Close all applications except this manual.
2. Insert the CD-ROM into the CD-ROM drive.
3. Select a language for the interface, and then click [OK].
4. From the CD-ROM menu, click [Network Quick Install].
5. Follow the instructions in the installation wizard.
1. Guide to the Machine
20
![](/img.php?id=3031443&img=bg17.png)
Upgrading or Deleting the Printer Driver
Upgrading the printer driver
1. On the [Start] menu, click [Devices and Printers].
2. Right-click the icon of the printer model you want to modify, and then click [Printer
properties].
3. Click the [Advanced] tab.
4. Click [New Driver...], and then click [Next].
5. Click [Have Disk...].
6. Click [Browse...], and then select the printer driver location.
7. Click [OK], and then specify the printer model.
8. Click [Next].
9. Click [Finish].
10. Click [OK] to close the printer properties window.
11. Restart the computer.
Deleting the printer driver
1. On the [Start] menu, click [Devices and Printers].
2. Right-click the icon of the printer you want to delete, and then click [Remove device].
3. Click [Yes].
4. Click any printer icon, and then click [Print server properties].
5. Click the [Drivers] tab.
6. Click [Change Driver Settings] if it is displayed.
7. Click [Remove...].
8. Select [Remove driver and driver package.], and then click [OK].
9. Click [Yes].
10. Click [Delete].
11. Click [OK].
12. Click [Close] to close the print server properties window.
Installing the Driver and Software
21
![](/img.php?id=3031443&img=bg18.png)
Installing Smart Organizing Monitor
Smart Organizing Monitor is a utility that allows you to modify the machine’s settings or view the
machine’s status from your computer. For details, see page 23 "About Operation Tools".
1. Close all applications except this manual.
2. Insert the CD-ROM into the CD-ROM drive.
3. Select a language for the interface, and then click [OK].
4. From the CD-ROM menu, click [Smart Organizing Monitor].
5. Follow the instructions in the installation wizard.
1. Guide to the Machine
22
![](/img.php?id=3031443&img=bg19.png)
About Operation Tools
This section explains the operation tools of this machine.

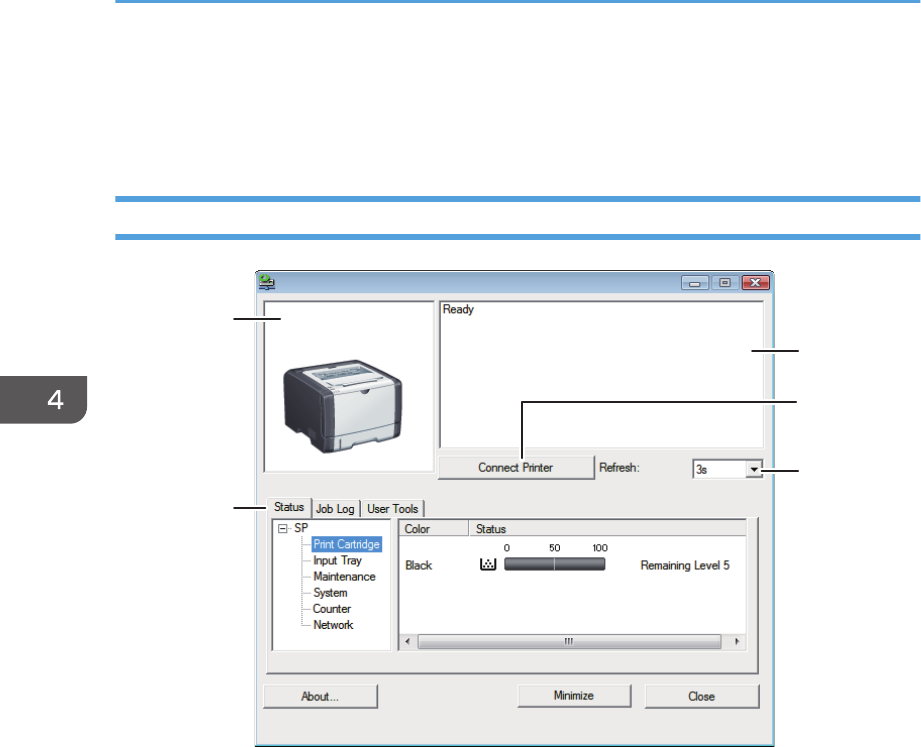

Smart Organizing Monitor
Install this utility on your computer from the included CD-ROM before using it.
Using Smart Organizing Monitor, you can check the machine's status, configure its settings, and use
other functions.
For details about how to use Smart Organizing Monitor, see page 60 "Using Smart Organizing
Monitor".
Web Image Monitor
You can check the machine's status and configure its settings by accessing the machine directly using
Web Image Monitor.
For details about how to use Web Image Monitor, see page 47 "Using Web Image Monitor".
About Operation Tools
23
![](/img.php?id=3031443&img=bg1a.png)
1. Guide to the Machine
24
![](/img.php?id=3031443&img=bg1b.png)
2. Loading Paper
Supported Paper
Paper Size
• A4
• 81/2 " × 11 " (Letter)
• 81/2 " × 14 " (Legal)
• B5 JIS
• 51/2 " × 81/2 " (Half Letter)
• 71/4 " × 101/2 " (Executive)
• A5
• A6
• B6 JIS
• 16K (195 ×267 mm)
• 8"×13"(F)
• 81/2 "×13"(Foolscap)
• 81/4 "×13"(Folio)
• Com10 (104.8×241.3 mm)
• Monarch (98.4×190.5 mm)
• C5 Env (162×229 mm)
• C6 Env (114×162 mm)
• DL Env (110×220 mm)
• Custom Paper Size
The following paper sizes are supported as custom paper sizes:
• Approximately 90-216 mm (3.6-8.5 inches) in width
• Approximately 148-356 mm (5.8-14 inches) in length
Paper Type
• Plain paper (65-99 g/m2 (17-27 lb.))
• Recycled paper (75-90 g/m2 (20-24 lb.))
• Thin paper (52-64 g/m2 (14-16 lb.))
• Thick paper1 (100-130 g/m2 (27-35 lb))
• Thick paper2 (131-162 g/m2 (35-43 lb))
25
![](/img.php?id=3031443&img=bg1c.png)
• Color paper (75-90 g/m2 (20-24 lb.))
•Preprinted paper (75-90 g/m2 (20-24 lb.))
• Prepunched paper (75-90 g/m2 (20-24 lb.))
• Letterhead (100-130 g/m2 (27-35 lb.))
• Bond paper (105-160 g/m2 (28-43 lb.))
• Cardstock (100-130 g/m2 (27-35 lb.))
• Label paper (100-130 g/m2 (27-35 lb.))
• Envelope
Paper Capacity
• Tray1
250 sheets
(80 g/m2, 20 lb.)
• Bypass Tray
50 sheets
(80 g/m2, 20 lb.)
2. Loading Paper
26
![](/img.php?id=3031443&img=bg1d.png)
Non-Recommended Paper Types
Do not use the following types of paper:
•Ink-jet printer paper
• Bent, folded, or creased paper
• Curled or twisted paper
• Torn paper
• Wrinkled paper
• Damp paper
• Dirty or damaged paper
• Paper that is dry enough to emit static electricity
• Paper that has already been printed onto, except a preprinted letterhead paper.
Malfunctions are especially likely when using paper printed on by other than a laser printer
(e.g.monochrome and color copiers, ink-jet printers, etc.)
• Special paper, such as thermal paper and carbon paper
• Paper weighing heavier or lighter than the limit
• Paper with windows, holes, perforations, cutouts, or embossing
• Adhesive label paper on which glue or base paper is exposed
• Paper with clips or staples
• When loading paper, take care not to touch the surface of the paper.
•Even if paper is adequate for the machine, poorly stored paper can cause paper misfeeds, print
quality degradation, or malfunctions.
Non-Recommended Paper Types
27
![](/img.php?id=3031443&img=bg1e.png)

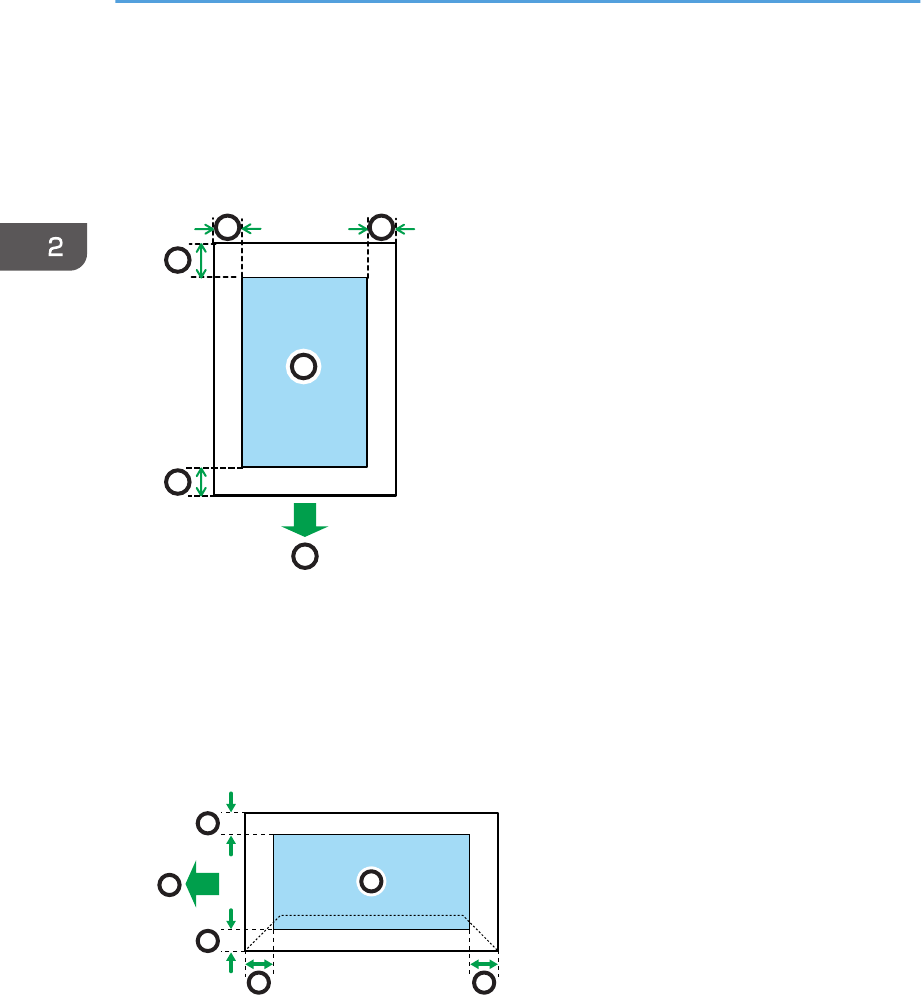

Print Area
The diagram below shows the area of the paper that the machine can print on.
From the printer driver
CHZ904
2
3
3
1
44
1. Print area
2. Feed direction
3. Approx. 4.2 mm (0.2 inches)
4. Approx. 4.2 mm (0.2 inches)
Envelope
CMC044
44
3
3
21
1. Print area
2. Feed direction
3. Approximately 10 mm (0.4 inches)
4. Approximately 10 mm (0.4 inches)
2. Loading Paper
28
![](/img.php?id=3031443&img=bg1f.png)
• The print area may vary depending on the paper size, printer language and printer driver
settings.
•For better envelope printing, we recommend you set the right, left, top, and bottom print
margins to at least 15 mm (0.6 inches) each.
Print Area
29
![](/img.php?id=3031443&img=bg20.png)
Loading Paper

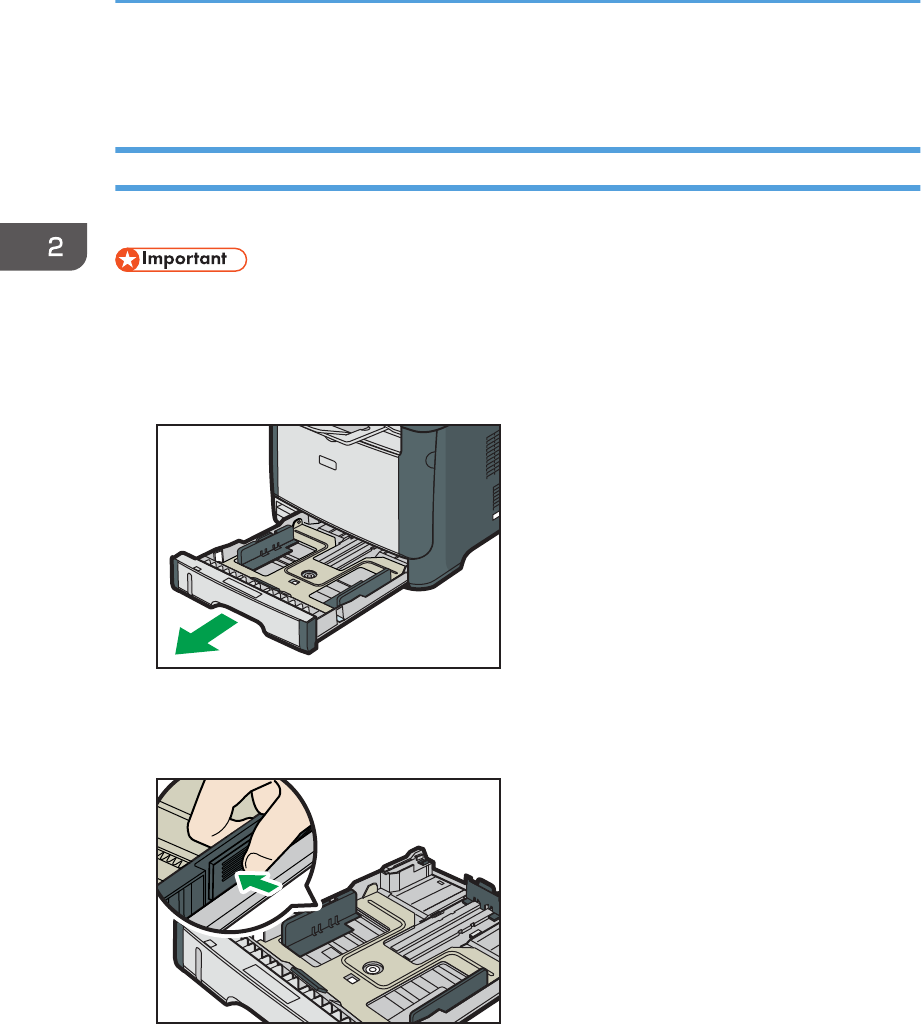

Loading Paper into Tray 1
The following example explains loading procedure for the standard paper tray (Tray 1).
• Before printing on paper other than envelopes, make sure to pull up the levers on the machine rear,
inside the rear cover. Leaving the levers lowered can cause print quality problems when printing on
paper other than envelopes.
1. Pull out tray 1 carefully with both hands.
CVW005
Place the tray on a flat surface.
2. Pinch the clip on the side paper guide and slide it to match the standard size.
CVW045
When loading custom size paper, position the paper guide slightly wider than the actual paper
size.
2. Loading Paper
30
![](/img.php?id=3031443&img=bg21.png)

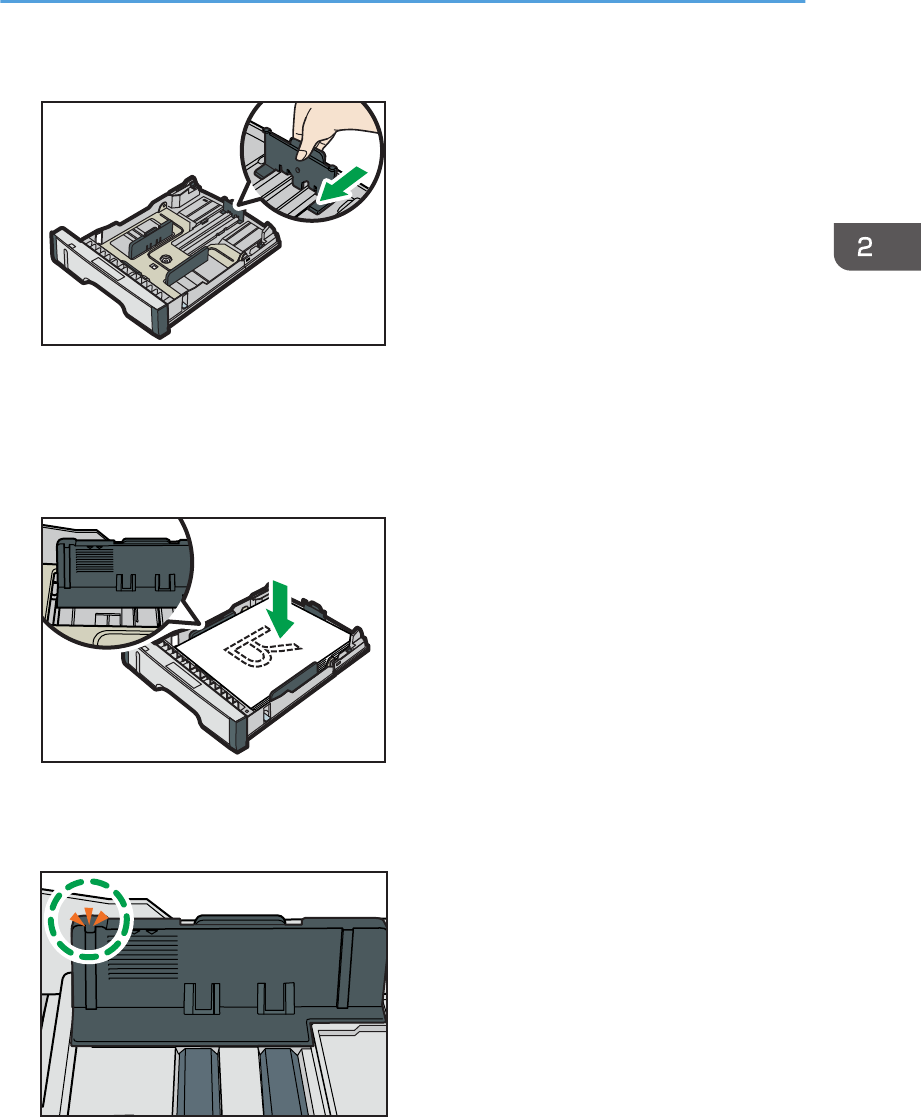

3. Pinch the end paper guide and slide it inward to match the standard size.
CVW046
When loading custom size paper, position the paper guide slightly wider than the actual paper
size.
4. Load the new paper stack print side down.
Make sure paper is not stacked higher than the upper limit marked inside the tray.
CVW047
Slide the guides inward, until they are flush against the paper's sides.
Make sure the paper is not stacked higher than the projection on the side paper guides.
CVW032
Loading Paper
31
![](/img.php?id=3031443&img=bg22.png)

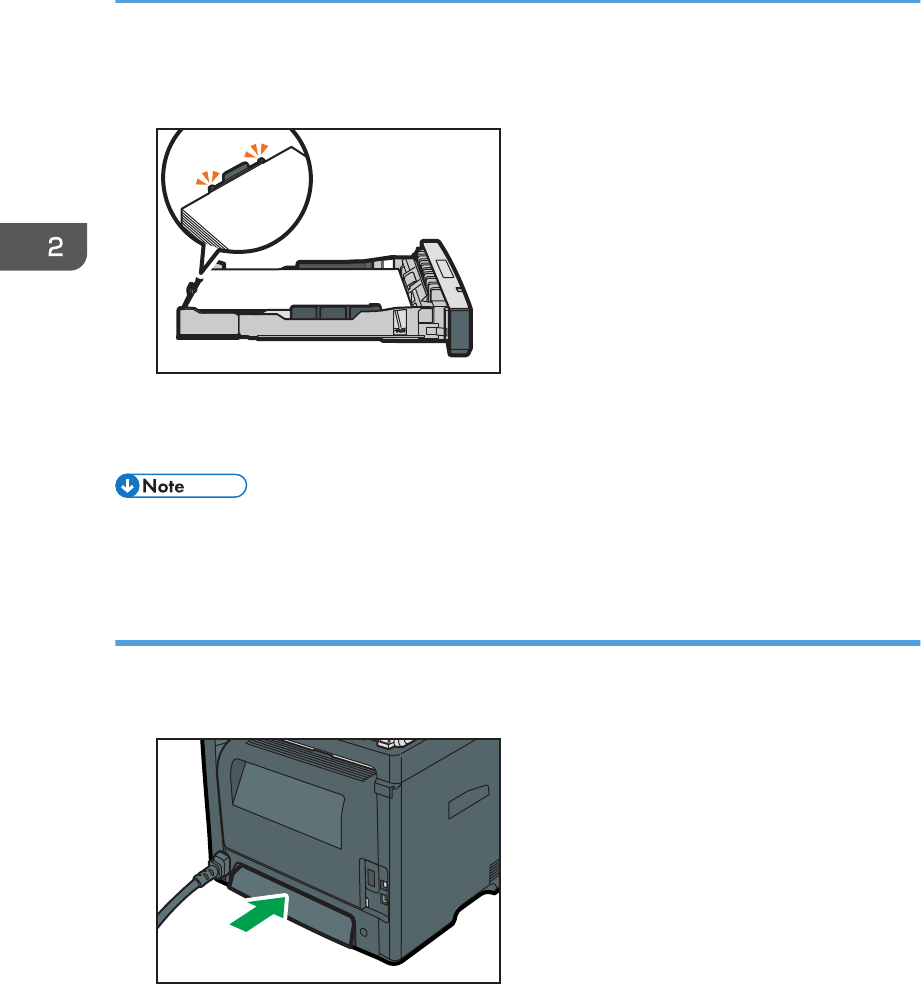

5. Check there are no gaps between the paper and the paper guides; both side and end
paper guides.
CVW033
6. Carefully push tray 1 straight into the machine.
To avoid paper jams, make sure the tray is securely inserted.
• The remaining paper indicator on the left front side of the paper tray shows approximately how
much paper is remaining.
Extending the Tray 1 to load paper
This section explains how to load paper longer than A4 (297 mm) into the machine.
1. Remove the tray 1 rear cover by pushing its center.
CVW007
2. Pull out tray 1 carefully with both hands.
Place the tray on a flat surface.

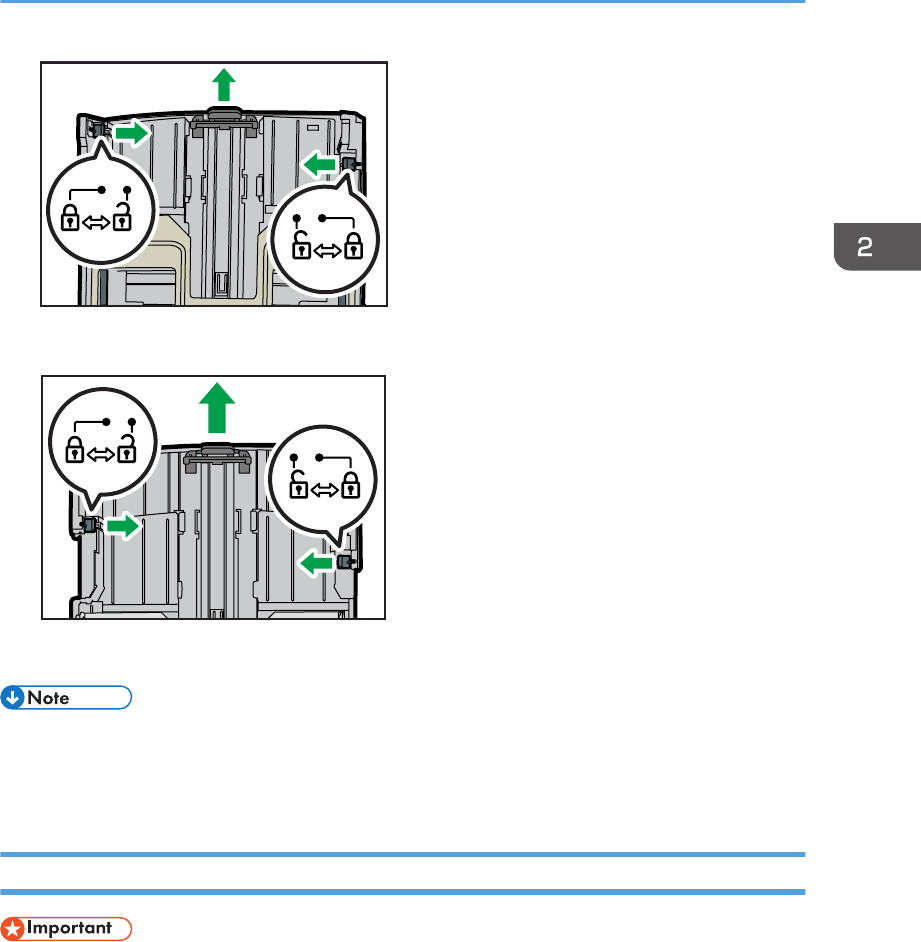

3. Release the extender locks on both sides of the tray, and then pull out the extender until it
clicks.
Make sure the extender's inner surface and the scale are aligned.
2. Loading Paper
32
![](/img.php?id=3031443&img=bg23.png)
CMC057
4. Lock the extender in the extended position.
CMC055
5. Follow Steps 2 to 6 in "Loading Paper into Tray 1".
• To reinsert the extender, you might have to push it with moderate force.
•The remaining paper indicator on the left front side of the paper tray shows approximately how
much paper is remaining.

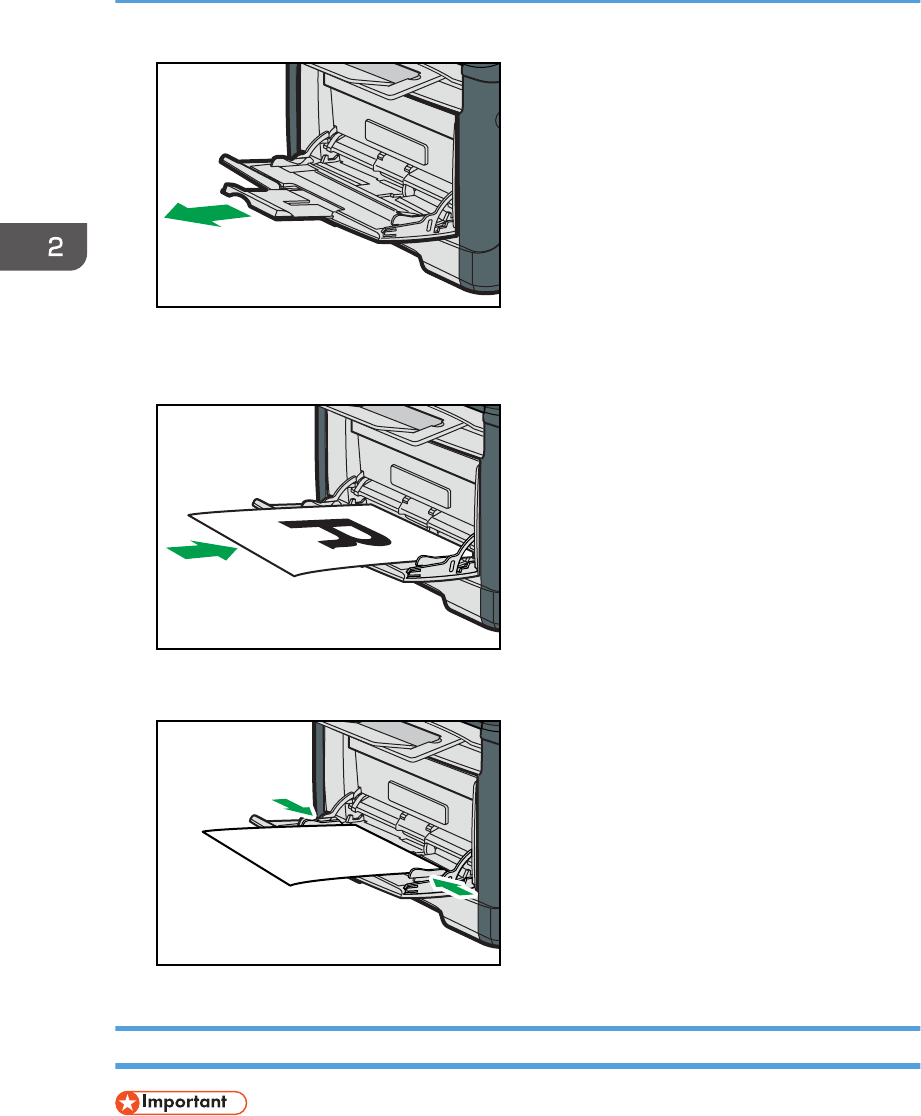

Loading Paper into Bypass Tray
• Before printing on paper other than envelopes, make sure to pull up the levers on the machine rear,
inside the rear cover. Leaving the levers lowered can cause print quality problems when printing on
paper other than envelopes.
•Do not load paper while the machine is printing.
1. Open the bypass tray.
If you load A4 (297 mm) or larger size paper, pull out the bypass tray extension.
Loading Paper
33
![](/img.php?id=3031443&img=bg24.png)
CVW009
2. Slide the side guides outward, then load paper with the print side up, and push in until it
stops against the machine.
CVW010
3. Adjust the side guides to the paper width.
CVW011
Loading Envelopes
• Before printing on envelopes, make sure to lower the levers on the machine rear, inside the rear
cover, to avoid envelopes coming out creased. Also, pull up the levers back to their original
2. Loading Paper
34
![](/img.php?id=3031443&img=bg25.png)
positions after printing. Leaving the levers lowered can cause print quality problems when printing
on paper other than envelopes.
•Avoid using self-adhesive envelopes. They may cause machine malfunctions.
• Check there is no air in the envelopes before loading.
• Load only one size and type of envelope at a time.
• Before loading envelopes, flatten their leading edges (the edge going into the machine) by running
a pencil or ruler across them.
• Some kinds of envelope might cause misfeeds, wrinkles or print poorly.
• Print quality on envelopes may be uneven if parts of an envelope have different thicknesses. Print
one or two envelopes to check print quality.
• In a hot and humid environment, the envelope might be output creased or improper printing
quality.
1. Open the bypass tray.
CVW008
2. Slide the side guides outward, then load envelopes with the print side up, and push in
until it stops against the machine.
Envelopes whose flaps are open must be printed with the flaps open, and envelopes whose flaps
are closed must be printed with the flaps closed. Before loading envelopes, make sure they are as
flat as possible.
CVW012
Loading Paper
35
![](/img.php?id=3031443&img=bg26.png)

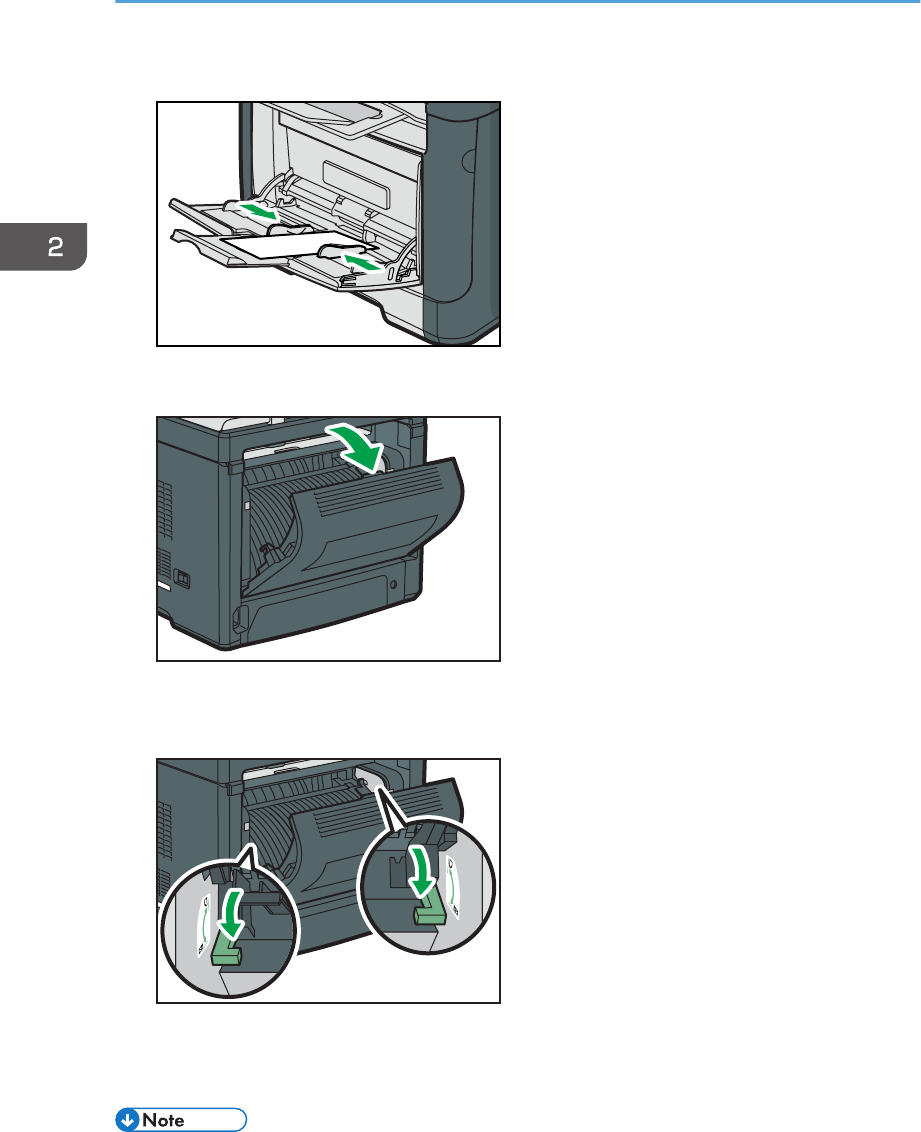

3. Adjust the side guides to the envelope width.
CVW013
4. Open the rear cover.
CVW015
5. Lower the levers for printing envelopes on both sides to the position indicated with an
envelope mark.
CVW016
Make sure to pull up the levers back to their original positions after printing.
6. Close the rear cover.
• Be sure to load envelopes so that their flaps are on the left. If you do not, the envelopes will
become creased.
2. Loading Paper
36
![](/img.php?id=3031443&img=bg27.png)
• If printed envelopes come out badly creased, load the envelopes in the opposite direction, and
then rotate the print object by 180 degrees using the printer driver before printing. For details, see
the printer driver Help.
Specifying Paper Type and Paper Size Using Smart Organizing Monitor
The procedure in this section is an example based on Windows 7. The actual procedure may vary
depending on the operating system you are using.
Specifying the paper type and paper size
1. On the [Start] menu, click [All Programs].
2. Click [Smart Organizing Monitor].
3. Click [Smart Organizing Monitor Status].
4. If the machine you are using is not selected, click [Connect Printer], and then select the
machine's model.
5. Click [OK].
6. On the [User Tools] tab, click [Printer Configuration].
If you are requested to enter an access code, enter the access code and then click [OK].
7. Select the paper type and paper size, and then click [OK].
8. Click [Close].
Specifying a custom paper size
1. On the [Start] menu, click [All Programs].
2. Click [Smart Organizing Monitor].
3. Click [Smart Organizing Monitor Status].
4. If the machine you are using is not selected, click [Connect Printer], and then select the
machine's model.
5. Click [OK].
6. On the [User Tools] tab, click [Printer Configuration].
If you are requested to enter an access code, enter the access code and then click [OK].
7. On the [Paper Input] tab, select [Custom Paper Size] in the [Paper Size] list.
8. In the [Unit] list, select [mm] or [inch].
9. In the [Horizontal] box and [Vertical] box, specify the width and length.
10. Click [OK].
Loading Paper
37
![](/img.php?id=3031443&img=bg28.png)
11. Click [Close].
2. Loading Paper
38
![](/img.php?id=3031443&img=bg29.png)
3. Printing Documents

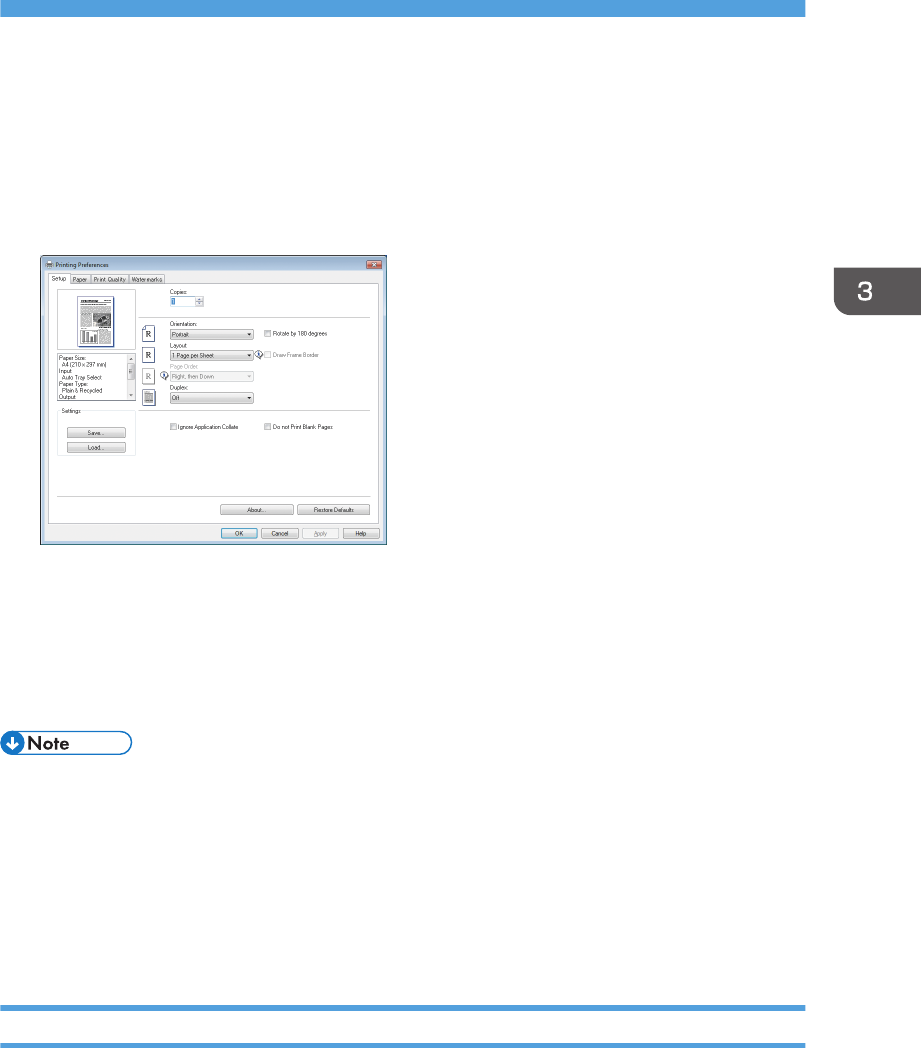

Basic Operation
The following procedure explains how to perform basic printing.
1. Open the printer properties dialog box in your document's application.
For details about each setting, click [Help]. You can also click the information icons to show
configuration information.
2. Set printing options as necessary, and then click [OK].
The printer properties dialog box closes.
3. Click [OK].
• If a paper jam occurs, printing stops after the current page has been printed out. After the jammed
paper is removed, printing restarts from the jammed page automatically. For details about how to
remove the jammed paper, see page 76 "Removing Printing Jams".
•After printing on envelopes, make sure to pull up the levers for printing on envelopes back to their
original positions. Leaving the levers lowered can cause print quality problems when printing on
paper other than envelopes. For details about the levers for printing on envelopes, see page 25
"Loading Paper".
Canceling a Print Job
You can cancel print jobs using either the machine's control panel or your computer, depending on the
status of the job.
39
![](/img.php?id=3031443&img=bg2a.png)
Canceling a print job before printing has started
• Windows
1. Double-click the printer icon on the task tray of your computer.
2. Select the print job you want to cancel, click the [Document] menu, and then click
[Cancel].
• If you cancel a print job that has already been processed, printing may continue for a few pages
before being canceled.
•It may take a while to cancel a large print job.
Canceling a print job while printing
1. Press the [Job Reset] key.
CVW254
3. Printing Documents
40
![](/img.php?id=3031443&img=bg2b.png)
If a Paper Mismatch Occurs
The machine reports an error if:
•The paper type does not match the print job's settings when [Input Tray;] is set to [Auto Tray Select].
• The paper size does not match the print job's settings when [Size Mismatch Detection] in [Tray
Paper Settings] under system settings is enabled.
There are two ways to resolve these errors:
Continue printing using mismatched paper
Use the form-feed function to ignore the error and print using mismatched paper.
Reset the print job
Cancel printing.
Continuing Printing Using Mismatched Paper
If the paper is too small for the print job, the printed image will be cropped.
1. If the Alert indicator lights up, press the [Stop/Start] key.
CVW253
If a Paper Mismatch Occurs
41
![](/img.php?id=3031443&img=bg2c.png)
Resetting the Print Job
1. If the Alert indicator lights up, press the [Job Reset] key.
CVW254
3. Printing Documents
42
![](/img.php?id=3031443&img=bg2d.png)
Using Various Print Functions
This section briefly describes various print functions that you can configure with the printer driver to make
printouts appropriate for your purposes.
Print Quality Functions
Print quality and color tone can be adjusted to suit the print data. Some of the print quality settings you
can configure are described below.
Changing the image printing method
You can select to print with priority on print quality or print speed. When printing images, the higher
the resolution of images, the longer the time required for printing.
Changing the graphics mode
You can send graphic information to the machine as either raster or vector images. Most geometric
shapes or patterns print faster as vector images than as raster images. However, if certain graphics
do not print as they appear on the screen, try to print them as raster images.
Saving toner when printing
You can save toner by printing with lower toner consumption. While this increases the life of the
print cartridge, the output appears slightly lighter.
Changing the printable area
You can change the printable area when printing a document printed on a single page with one
machine is printed on two separate pages with another machine, or vice-versa.
Changing the method of downloading TrueType fonts to the machine
When you print documents that contain characters in TrueType fonts, garbled or distorted
characters may be printed. Changing the method of downloading TrueType fonts may help to solve
the problem.
Changing the dither pattern
A dither pattern is a pattern of dots used to simulate a color or shade of an image. If the pattern is
changed, the characteristics of the image will also change. You can select a pattern suitable for the
image to be printed.
• Some of the functions described above might not be available depending on the printer driver or
operating system. For details, see the printer driver Help.
Using Various Print Functions
43
![](/img.php?id=3031443&img=bg2e.png)
Print Output Functions
You can specify the form of print outputs according to your purposes. This section briefly describes some
of the settings that you can specify.
Printing multiple sets of a document
You can print multiple sets of the same document.
Collating the output in document batches
You can print complete sets of a multiple-page document one set at a time (P1, P2, P1, P2 ...). If this
function is not used when printing multiple sets, prints will be output in page batches (P1, P1, P2,
P2 ...). This function is useful when, for example, making presentation materials.
Changing orientation or rotating the image
You can change the orientation of an image to portrait or landscape. You can also rotate the
image by 180 degrees. Use rotation to prevent an image from being printed upside down when
using paper that a predefined top and bottom (such as letterhead paper).
Printing multiple pages per sheet
You can print multiple pages onto one sheet of paper.
When using this function, a suitable reduction ratio is selected automatically based on the paper
size and the number of pages you want to fit on each sheet.
Printing on both sides of paper (duplex printing)
You can print on both sides of paper.
Reducing or enlarging the document
You can reduce or enlarge documents by a specific ratio, from 25% to 400% in 1% increments.
You can also reduce or enlarge documents automatically to fit a specific paper size. This function is
useful, for example, when printing Web pages.
If the [Enable Large Papers] option is selected, A3/11” × 17”/B4/8K documents can be scaled
to a size that the machine supports, so it can then be printed out.
Suppressing printing of blank pages
If a print job contains blank pages, they can be prevented from being printed.
Printing with a cover page
You can add a cover page to the print job.
You can select to leave the cover page blank, or print the first page of the document on the cover
page. If a cover page is inserted into a duplex job, you can print on its back side also.
Paper for the cover page can either be the same as or different from the remaining pages.
Printing on custom size paper
You can print using non-standard size paper by specifying the size of the paper as custom size.
3. Printing Documents
44
![](/img.php?id=3031443&img=bg2f.png)
To specify a non-standard paper size, select [Custom Paper Size] from the [Document Size:] list,
and then click the [Custom Paper Size...] button in the lower part of the dialog box to configure the
paper size.
Superimposing text on prints (watermark)
You can superimpose watermark text on prints. Various predefined watermarks are provided. You
can also create your own watermarks.
• Some of the functions described above might not be available depending on the printer driver or
operating system. For details, see the printer driver Help.
Using Various Print Functions
45
![](/img.php?id=3031443&img=bg30.png)
3. Printing Documents
46
![](/img.php?id=3031443&img=bg31.png)
4. Configuring the Machine Using
Utilities
Using Web Image Monitor
• Some items might not appear, depending on the model type you are using.
Available operations
The following operations can be remotely performed using Web Image Monitor on a computer:
• Displaying the printer's status or settings
• Configuring the printer's settings
• Configuring the network settings
• Configuring the IPsec settings
• Printing reports
• Setting the administrator password
• Resetting the printer's configuration to the factory default
• Creating backup files of the printer's configuration
• Restoring the printer's configuration from backup files
Recommended Web browsers
• Internet Explorer 6 or later
• Firefox 3.0 or later
• Safari 3.0 or later
Displaying Top Page
When you access the machine using Web Image Monitor, the top page appears in your browser's
window.
1. Launch the Web browser.
2. In the Web browser’s address bar, enter “http://(machine’s IP address)/” to access the
machine.
If a DNS or WINS server is used and the machine’s host name has been specified, you can enter
the host name instead of the IP address.
The top page of Web Image Monitor appears.
47
![](/img.php?id=3031443&img=bg32.png)
Top page
Every Web Image Monitor page is divided into the following areas:
1
4
233
CVW251
1. Menu area
If you select menu, its content will be shown on the work area, or the sub area.
2. Tab area
Contains menus for the Status and Counter modes and tabs for switching between them.
3. Help
If you click this icon, help index page opens.
4. Main area
Displays the contents of the item selected in the menu area.
Printer information in the main area is not automatically updated. Click [Refresh] at the upper right in the main
area to update the printer information. Click the Web browser's [Refresh] button to refresh the entire browser
screen.
• If you use an older version of a supported Web browser or the Web browser has JavaScript and
cookies disabled, display and operation problems may occur.
•If you are using a proxy server, configure the Web browser settings as necessary. For details about
the settings, contact your administrator.
• The previous page may not appear even if the back button of the Web browser is clicked. If this
happens, click the refresh button of the Web browser.
Changing the Interface Language
Select the desired interface language from the [Language] list.
4. Configuring the Machine Using Utilities
48
![](/img.php?id=3031443&img=bg33.png)
Install the Help Source File
Follow the procedure below to install the help.
1. Copy the [WIMHELP] folder on the CD-ROM to your computer's hard drive.
The example procedures explain how to copy the [WIMHELP] folder to the
C:\tmp\WIMHELP directory.
2. Access Web Image Monitor, and then click [Help Source File Setting] on the
[Administrator Tools] page.
3. In the text box, enter “C:\tmp\WIMHELP\”.
4. Enter the administrator password if required.
5. Click [OK].
Displaying Help
To use Help for the first time, you need to install its source file from the CD-ROM provided with this
printer.
• By clicking , the Help icon in the header area, the contents of Help appear.
•By clicking , the Help icon in the main area, Help for the setting items in the main area appears.

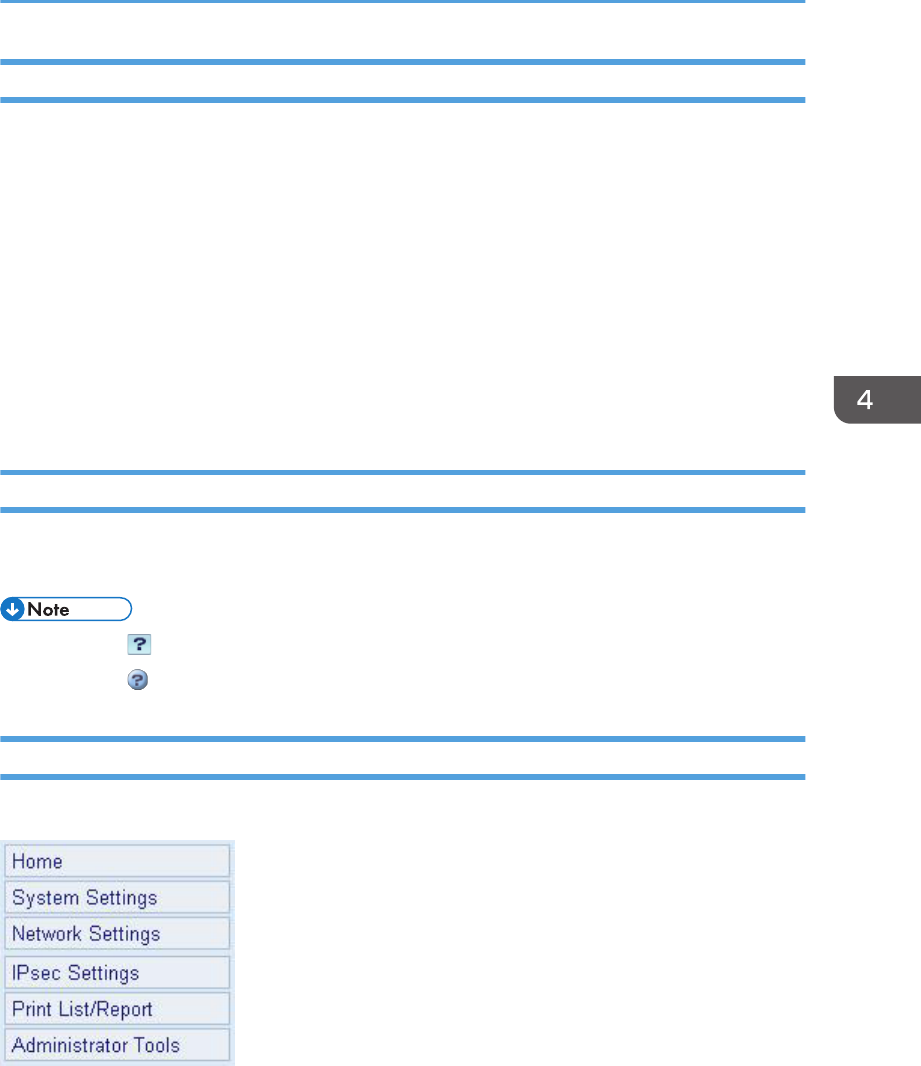

Menu
This section explains the items in the Web browser menu.
Home
Check the current system information.
System Settings
Configure machine settings.
Using Web Image Monitor
49
![](/img.php?id=3031443&img=bg34.png)
Network Settings
Configure network settings.

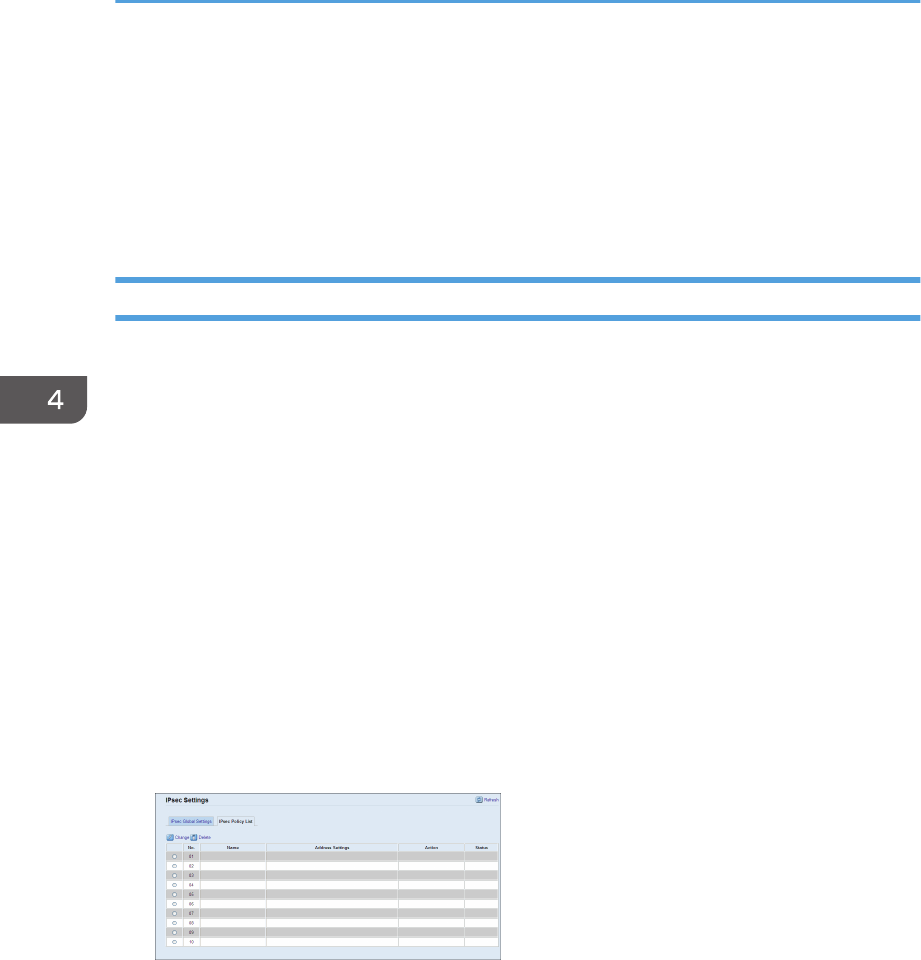

IPsec Settings
Configure IPsec settings.
Print List/Report
Print a list/report related to the printer.
Administrator Tools
Configure administrator settings.
Home
[Status] tab
Click the [Status] tab on the main page to display system information, paper tray status and toner
levels.
[Counter] tab
Click the [Counter] tab on the main page to check the counter information.
•[Print Counter]
Displays the total number of pages printed.
• [Duplex]
Displays the total number of duplex pages printed (pages printed on both front and back
sides).
[Machine Information] tab
Displays information about the machine such as the version of the firmware and the total amount of
memory.
System Settings
[Tray Paper Settings] tab
You can configure tray paper settings.
•[Tray 1]
Select the paper size and paper type for Tray 1.
• [Bypass Tray]
Select the paper size and paper type for the bypass tray.
• [Priority Tray]
Select a tray to check first when automatic tray selection is specified for the print job.
4. Configuring the Machine Using Utilities
50
![](/img.php?id=3031443&img=bg35.png)
• [Bypass Tray Setting Priority]
Select how print jobs using the bypass tray are handled.
•[Size Mismatch Detection]
Select whether to set the machine to report an error if the paper size does not match the print
job's settings.
[I/O Timeout] tab
• [Fixed USB Port]
Specifies whether the same printer driver can be used for multiple machines or not under USB
connection.
Network Settings
[Network Status] tab
•[General Status]
You can check [Ethernet Speed], [IPP Printer Name], [Network Version], [Ethernet MAC
Address], and [Active Interface].
• [TCP/IP Status]
You can specify [DHCP], [IP Address], [Subnet Mask], and [Gateway] for IPv4.
[IPv6 Configuration] tab
• [IPv6]
Select whether to enable or disable IPv6.
• [IPv6 Address]
You can specify [DHCP], [Stateless Address], [Link-local Address], [Manual Configuration
Address] for IPv6.
[Network Application] tab
• [Network Print Setting]
Specify whether or not to print using [IPP], [FTP], [RAW], or [LPR].
• [mDNS Setting]
Specify whether to enable Multicast DNS.
[DNS] tab
• [DNS]
You can specify [DNS Method], [Primary DNS Server], [Secondary DNS Server], [Domain
Name], [IPv6 DNS Method], [Primary IPv6 DNS Server], [Secondary IPv6 DNS Server],
[IPv6 Domain Name], [DNS Resolve Priority], [DNS Timeout (seconds)], and [Host Name].
Using Web Image Monitor
51
![](/img.php?id=3031443&img=bg36.png)
[Auto E-mail Notification] tab
The settings on this tab are for sending a notification e-mail when the machine’s status changes.
You can specify up to two recipients.
•[Display Name]
Enter a sender name for notification e-mail.
• [E-mail Address]
Enter the address of the recipient of the alert email.
• [Paper Misfeed]/[Out of Paper]/[Replace Print Cartridge Soon]/[Call Service]/[Replace
Print Cartridge]/[Cover Open]
Select which items to send notifications about.
[SNMP] tab
• [SNMP]
Select whether to enable the machine to use SNMP services.
• [Trap]
You can specify [Target Trap], [SNMP Management Host 1], and [SNMP Management Host
2].
• [Community]
You can specify [Get Community] and [Trap Community].
• [System]
Enter [Location] and [Contact] that are displayed on the top page.
[SMTP] tab
You can specify [Primary SMTP Server], [Port No.], [Authentication Method], [User Name],
[Password], [Device E-mail Address], and [Server Timeout (seconds)].
[POP3] tab
You can specify [POP3 Server], [User Account], [User Password], and [Authentication].
[Wireless] tab (Type 2 model only)
• [Wireless LAN Status]
The status of the following items is displayed:
[Wireless LAN Status], [Mac Address], [Communication Mode], [SSID], [Wireless Signal
Status], and [Wireless].
• [Channel]
Select an Ad Hoc channel only if Ad Hoc mode is selected for [Communication Mode].
• [Wireless Signal Status]
If Infrastructure mode is selected for [Communication Mode], displays the status of the signal
with the access point.
4. Configuring the Machine Using Utilities
52
![](/img.php?id=3031443&img=bg37.png)
• [Wireless LAN Settings]
•[SSID]
Enter the SSID name. Can contain 32 characters.
When you click [Scan List], a list of access points that is currently available is displayed.
You can select the SSID name from the list.
• [Communication Mode]
Select Infrastructure mode or Ad Hoc mode
• [Ad-Hoc Channel]
Select a channel for Ad-Hoc mode.
• [Authentication]
Select an authentication method.
If [Ad-Hoc] is selected for [Communication Mode], you can select only [Open System]
and [Shared Key].
• [Encryption]
Select an encryption method.
If [Ad-Hoc] is selected for [Communication Mode], you can select only [None] and
[WEP].
• [None]
When it is ON, communication will not be secured by encryption.
• [WEP]
When it is ON, communication will be encrypted in WEP (Wired Equivalent
Privacy).
Specify [WEP Key Length], [WEP Transmit Key ID], and [WEP Key Format] and
enter [WEP Key]. The following table shows the number and types of characters
you can enter, depending on the key settings.
WEP key length is 64 bits WEP key length is 128 bits
WEP format is
Hex
WEP format is
ASCII
WEP format is
Hex
WEP format is
ASCII
WEP key max
length 10 characters 5 characters 26 characters 13 characters
WEP key valid
characters 0–9, A–F, a–f 0x20–0x7e 0–9, A–F, a–f 0x20–0x7e
• [WPA2-PSK]
Using Web Image Monitor
53
![](/img.php?id=3031443&img=bg38.png)
When this is selected, communication will be encrypted with WPA2 (WiFi Protected Access 2).
Enter a value in [WPA Passphrase] that contains from 8 to 64 characters.
•[Mixed Mode WPA/WPA2]
When this is selected, communication will be encrypted with WPA (WiFi Protected Access) or
WPA2 (WiFi Protected Access 2). Enter a value in [WPA Passphrase] that contains from 8 to 64
characters.
IPsec Settings
[IPsec Global Settings] tab
•[IPsec Function]
Select whether to enable or disable IPsec.
• [Default Policy]
Select whether to allow for the default IPsec policy.
• [Broadcast and Multicast Bypass]
Select the services that you do not want to apply IPsec from the following:
[DHCPv4], [DHCPv6], [SNMP], [mDNS], [NetBIOS], [UDP Port 53550]
• [All ICMP Bypass]
Select whether to apply IPsec to ICMP packets (IPv4 and IPv6).
[IPsec Policy List] tab
Click the [IPsec Policy List] tab on the IP security settings page to display the list of registered IPsec
policies.
To configure IPsec policies, select the desired IPsec policy, and then click [Change] to open the
"IPsec Policy Settings" page. The following settings can be made on the "IPsec Policy Settings"
page.
IP Policy Settings
•[No.]
Specify a number between 1 and 10 for the IPsec policy. The number you specify will
determine the position of the policy in the IPsec Policy List.
• [Activity]
4. Configuring the Machine Using Utilities
54
![](/img.php?id=3031443&img=bg39.png)
Select whether to enable or disable the policy.
•[Name]
Enter the name of the policy. Can contain up to 16 characters.
• [Address Type]
Select IPv4 or IPv6 as the type of IP address to be used in IPsec communication.
• [Local Address]
Displays the IP address of this printer.
• [Remote Address]
Enter the IPv4 or IPv6 address of the device with which to communicate.
Can contain up to 39 characters.
• [Prefix Length]
Enter the prefix length of the Remote Address, using a value between 1 and 128. If this setting
is left blank, "32" (IPv4) or "128" (IPv6) will be automatically selected.
• [Action]
Specify how the IP packets are processed from the following:
• [Allow]
IP packets are both sent and received without IPsec applied to them.
• [Drop]
IP packets are discarded.
• [Require Security]
IPsec is applied to IP packets that are both sent and received.
If you have selected [Require Security], you must configure [IPsec Settings] and [IKE Settings].
IPsec Settings
• [Encapsulation Type]
Specify the encapsulation type from the following:
• [Transport]
Select this mode to secure only the payload section of each IP packet when
communicating with IPsec compliant devices.
• [Tunnel]
Select this mode to secure every section of each IP packet. We recommend this type for
communication between security gateways (such as VPN devices).
• [Security Protocol]
Select the security protocol from the following:
• [AH]
Using Web Image Monitor
55
![](/img.php?id=3031443&img=bg3a.png)
Establishes secure communication that supports authentication only.
•[ESP]
Establishes secure communication that supports both authentication and data encryption.
• [ESP&AH]
Establishes secure communication that supports both data encryption and authentication
of packets, including packet headers.
Note that you cannot specify this protocol when [Tunnel] is selected for [Encapsulation
Type].
• [Authentication Algorithm for AH]
Specify the authentication algorithm to be applied when [AH] or [ESP&AH] is selected for
[Security Protocol] from the following:
[MD5], [SHA1]
• [Encryption Algorithm for ESP]
Specify the encryption algorithm to be applied when [ESP] or [ESP&AH] is selected for
[Security Protocol] from the following:
[None], [DES], [3DES], [AES-128], [AES-192], [AES-256]
• [Authentication Algorithm for ESP]
Specify the authentication algorithm to be applied when [[ESP]] is selected for [[Security
Protocol]] from the following:
[[MD5]], [[SHA1]]
• [Life Time]
Specify the life time of the IPsec SA (Security Association) as a time period or data volume.
The SA will expire when the time period you specify elapses or the volume of data you specify
reaches the volume carried.
• [Key Perfect Forward Secrecy]
Select whether to enable or disable PFS (Perfect Forward Secrecy).
IKE Settings
• [IKE Version]
Displays the IKE version.
• [Encryption Algorithm]
Specify the encryption algorithm from the following:
[DES], [3DES], [AES-128], [AES-192], [AES-256]
• [Authentication Algorithm]
Specify the authentication algorithm from the following:
[MD5], [SHA1]
4. Configuring the Machine Using Utilities
56
![](/img.php?id=3031443&img=bg3b.png)
• [IKE Life Time]
Specify the life time of the ISAKMP SA as a time period. Enter a number of seconds.
•[IKE Diffie-Hellman Group]
Select the IKE Diffie-Hellman Group to be used in the generation of the IKE encryption key
from the following:
[DH1], [DH2]
• [Pre-Shared Key]
Specify the PSK (Pre-Shared Key) to be used for authentication of a communicating device.
Can contain up to 32 characters.
• [Key Perfect Forward Secrecy]
Select whether to enable or disable PFS (Perfect Forward Secrecy).
Print List/Report
Print List/Report
•[Configuration Page]
Prints general information about the printer and its current configuration.
• [Test Page]
Prints a test page for checking the printing condition.
• [Maintenance Page]
Prints the maintenance page.
Administrator Tools
Administrator Settings
•[New Password]
Enter the new administrator password. Can contain up to 16 characters.
• [Confirm New Password]
Enter the same password again, to confirm.
Reset Settings
• [Reset IPsec Settings] appears only when a password is specified in [Administrator].
•[Reset Network Settings]
Select to restore network settings to their defaults.
Using Web Image Monitor
57
![](/img.php?id=3031443&img=bg3c.png)
• [Reset Menu Settings]
Select to restore settings that are not related to the network.
•[Reset IPsec Settings]
Select to clear the IP security settings.
Backup Settings
Create backup files containing the printer's configuration settings. If necessary, these backup files
can be used to restore previous configurations.
• [Back up IPsec Settings] appears only when a password is specified in [Administrator].
•[Back up Network Settings]
Backs up the network settings.
• [Back up Menu Settings]
Backs up settings that are not related to the network.
• [Back up IPsec Settings]
Backs up the IP security settings to a file.
Follow the procedure below to create configuration backup files.
1. Select the radio button for the type of data you wish to back up.
2. Enter the administrator password if required.
3. Click [OK].
4. Select [Save] or [Save as] from the dropdown list at the bottom of the Window.
5. The backup file is stored in the default folder if choosing [Save]. Navigate to the
location to save the backup file if choosing [Save as] and proceed to the next step.
6. Specify a name for the file, and click [Save].
Restore Setting
Restore the printer's settings from a previously created backup file.
• [File to Restore]
Enter the path and name of the file to restore, or click [Browse...] to select the file.
Follow the procedure below to restore configuration backup files.
1. Click [Browse...].
2. Navigate to the directory containing the backup file to restore.
3. Select the backup file, and click [Open].
4. Enter the administrator password if required.
5. Click [OK].
4. Configuring the Machine Using Utilities
58
![](/img.php?id=3031443&img=bg3d.png)
6. Reboot the printer if you are requested to do so.
Help Source File Setting
•[Help Source File]
Enter the help source file path.
Using Web Image Monitor
59
![](/img.php?id=3031443&img=bg3e.png)
Using Smart Organizing Monitor
The state and status information of the machine can be checked using Smart Organizing Monitor.
Checking the Status Information
CVW252
1
2
3
5
4
1. Image area
Displays the status of this machine with an icon.
2. Status area
• Printer Name
• Print Cartridge
Displays the following messages to indicate remaining toner levels: Remaining Level 1 to 5, “Almost
Empty” and “Empty”
• Input Tray
You can check the following information about the input trays.
[Input Tray], [Status], [Paper Size], [Paper Type]
Displays the type of the paper loaded into each input tray.
• Maintenance
Displays the consumables statuses.
• System
4. Configuring the Machine Using Utilities
60
![](/img.php?id=3031443&img=bg3f.png)
Displays the system information about the printer, such as the model name, system version, and memory
size.
•Counter
Displays information about the counters.
• Network
Displays network details such as the printer's IP address and network-related comments.
3. Message area
Displays the status of this machine with a message.
For details about error messages, see .page 90 "Error and Status Messages Appear on Smart Organizing
Monitor"
4. [Connect Printer] button
Click to select a printer driver.
5. [Refresh:]
Specify the automatic update of the display.
Configuring the Machine Settings
Smart Organizing Monitor is used to modify the machine’s settings.
1. On the [Start] menu, click [All Programs].
2. Click [Smart Organizing Monitor].
3. Click [Smart Organizing Monitor Status].
4. If the machine you are using is not selected, click [Connect Printer], and then select the
printer driver.
5. Click [OK].
6. On the [User Tools] tab, click [Printer Configuration].
7. Enter the access code.
The default access code is “Admin”.
8. Change the settings if necessary.
9. Click [OK].
10. Click [Close].
Access Code
The configurable functions depend on the authority of the access code you enter.
•Administrator
All tabs in the [Printer Configuration] dialog box are available.
• General users
Using Smart Organizing Monitor
61
![](/img.php?id=3031443&img=bg40.png)
Only the [Paper Input] tab is available.
Tab Settings
This section provides a tab-by-tab overview of the machine settings that can be modified using Smart
Organizing Monitor. For more information on each setting item, see the Smart Organizing Monitor
Help.
Paper Input tab
•You can change paper size and other paper settings.
Maintenance tab
• You can adjust print starting positions.
System tab
• You can set basic functions required to use the printer. The printer can be used on factory-set
defaults, but the configuration can be changed depending on the condition of the user.
• The changed condition holds even if the printer is turned off.
• The access code can be changed on this tab.
IPv6, Network 1, Network 2 and Network 3 tabs
• You can set configurations about network connection and communication.
• The following operations are possible on these tabs:
• Checking the printer name, active protocol, and other printer information
• Making interface settings, including the timeout setting and protocol settings
• Checking or making TCP/IP settings
• Checking or making SMTP and SNMP settings
• Checking or making Alert settings
Wireless LAN Settings tab (Type 2 model only)
• You can set configurations about wireless LAN network connection and communication.
• The following operations are possible on the tab:
• Checking the wireless LAN status
• Connecting wireless LAN manually
• Connecting with one touch using WPS
Configuring the IPv6 Settings
This section explains how to configure the IPv6 settings using Smart Organizing Monitor.
4. Configuring the Machine Using Utilities
62
![](/img.php?id=3031443&img=bg41.png)
IPv6 automatic settings
• A router with DHCP functionality or a DHCP server that is supported by IPv6 is required.
1. On the [Start] menu, click [All Programs].
2. Click [Smart Organizing Monitor].
3. Click [Smart Organizing Monitor Status].
4. Click the [User Tools] tab.
5. Click Printer [Configuration].
6. Enter the access code, and then click [OK].
7. Click the [IPv6] tab.
8. Select [Active] in [IPv6 DHCP:], and the click [OK].
9. Turn off the machine, and then disconnect the USB cable from the machine.
10. Connect the machine to the router or the hub using the Ethernet cable.
11. Follow Steps 1 to 3, and then start Smart Organizing Monitor.
12. Click [Connect Printer].
13. Click [Search Network Printer].
A list of printers currently connecting to the network appears.
14. Select your printer, and then click [OK].
15. If the printer information appears after a while, the connection is established successfully.
If nothing appears on the screen in about two minutes, repeat this procedure.
16. The network settings are complete.
The next step is to install the printer driver from the provided CD-ROM. For details, see page 20
"Installing the Driver and Software".
IPv6 manual settings
1. On the [Start] menu, click [All Programs].
2. Click [Smart Organizing Monitor].
3. Click [Smart Organizing Monitor Status].
4. Click the [User Tools] tab.
5. Click Printer [Configuration].
6. Enter the access code, and then click [OK].
The default access code is "Admin". Enter "Admin" if it has not been changed. Case is significant.
Using Smart Organizing Monitor
63
![](/img.php?id=3031443&img=bg42.png)
7. Click the [IPv6] tab.
8. Select [Inactive] in [IPv6 DHCP:], and the click [OK].
9. Enter values in [Manual address:], [Prefix length:], and [Gateway:], and then click [OK].
10. Turn off the machine, and then disconnect the USB cable from the machine.
11. Connect the machine to the router or the hub using the Ethernet cable.
12. Follow Steps 1 to 3, and then start Smart Organizing Monitor.
13. Click [Connect Printer].
14. Click [Search Network Printer].
A list of printers currently connecting to the network appears.
15. Select your printer, and then click [OK].
16. If the printer information appears after a while, the connection is established successfully.
If nothing appears on the screen in about two minutes, repeat this procedure.
17. The network settings are complete.
The next step is to install the printer driver from the provided CD-ROM. For details, see page 20
"Installing the Driver and Software".
Printing the Configuration Page
1. On the [Start] menu, click [All Programs].
2. Click [Smart Organizing Monitor].
3. Click [Smart Organizing Monitor Status].
4. If the machine you are using is not selected, click [Connect Printer], and then select the
machine's model.
5. Click [OK].
6. On the [User Tools] tab, select [Configuration Page] in the [List/Test Print] list.
7. Click [Print].
4. Configuring the Machine Using Utilities
64
![](/img.php?id=3031443&img=bg43.png)
5. Maintaining the Machine
Replacing the Print Cartridge
• Store print cartridge in a cool dark place.
• Actual printable numbers vary depending on image volume and density, number of pages printed
at a time, paper type and size, and environmental conditions such as temperature and humidity.
Toner quality degrades over time. Early replacement of the print cartridge might be necessary.
Therefore, we recommend you always keep a new print cartridge ready.
• For good print quality, the manufacturer recommends that you use genuine toner from the
manufacturer.
• The manufacturer shall not be responsible for any damage or expense that might result from the use
of parts other than genuine parts from the manufacturer with your office products.
Toner/Paper End indicator
• Replace the print cartridge when the Toner/Paper End indicator lights up.
• Prepare a new print cartridge when the Toner/Paper End indicator flashes.
• Do not allow paper clips, staples, or other small objects to fall inside the machine.
• Do not expose the print cartridge without its cover to direct sunlight for a long time.
• Do not touch the print cartridge's photo conductor unit.
CMC013

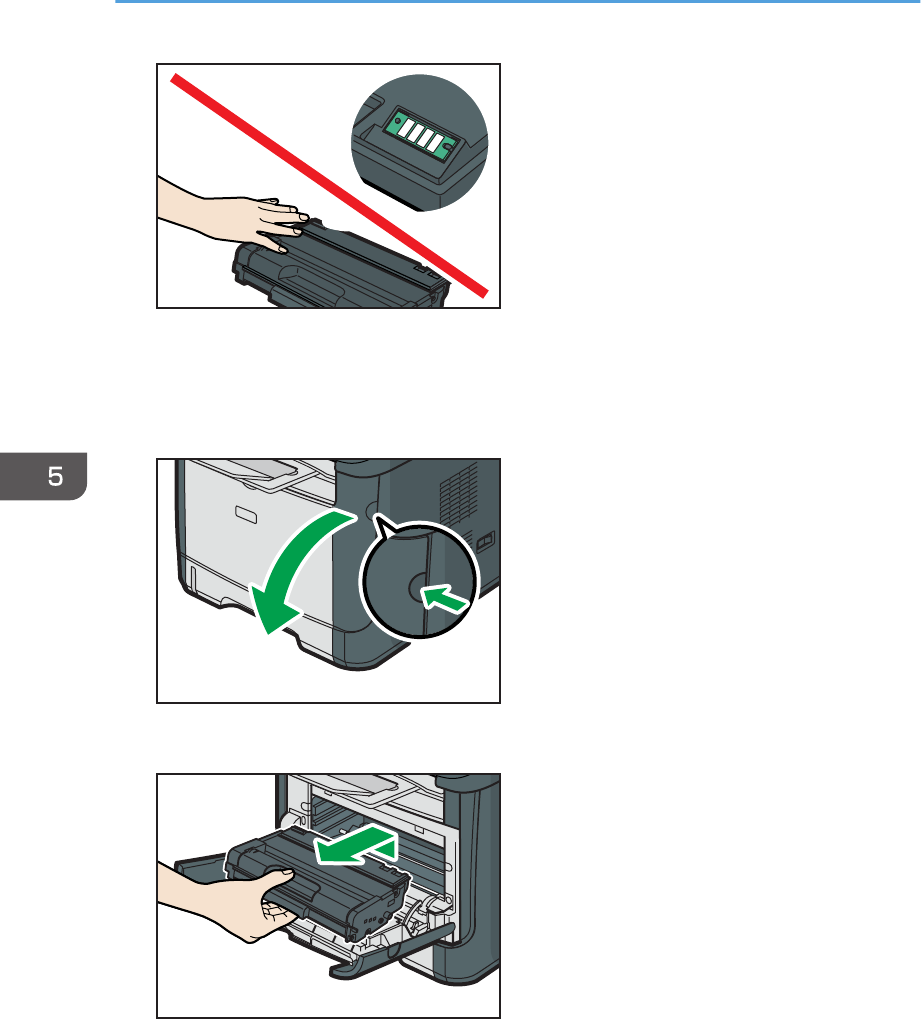

• Do not touch the ID chip on the side of the print cartridge as indicated in the illustration below.
65
![](/img.php?id=3031443&img=bg44.png)
CVW050
• If toner runs out, you cannot print until the print cartridge is replaced.

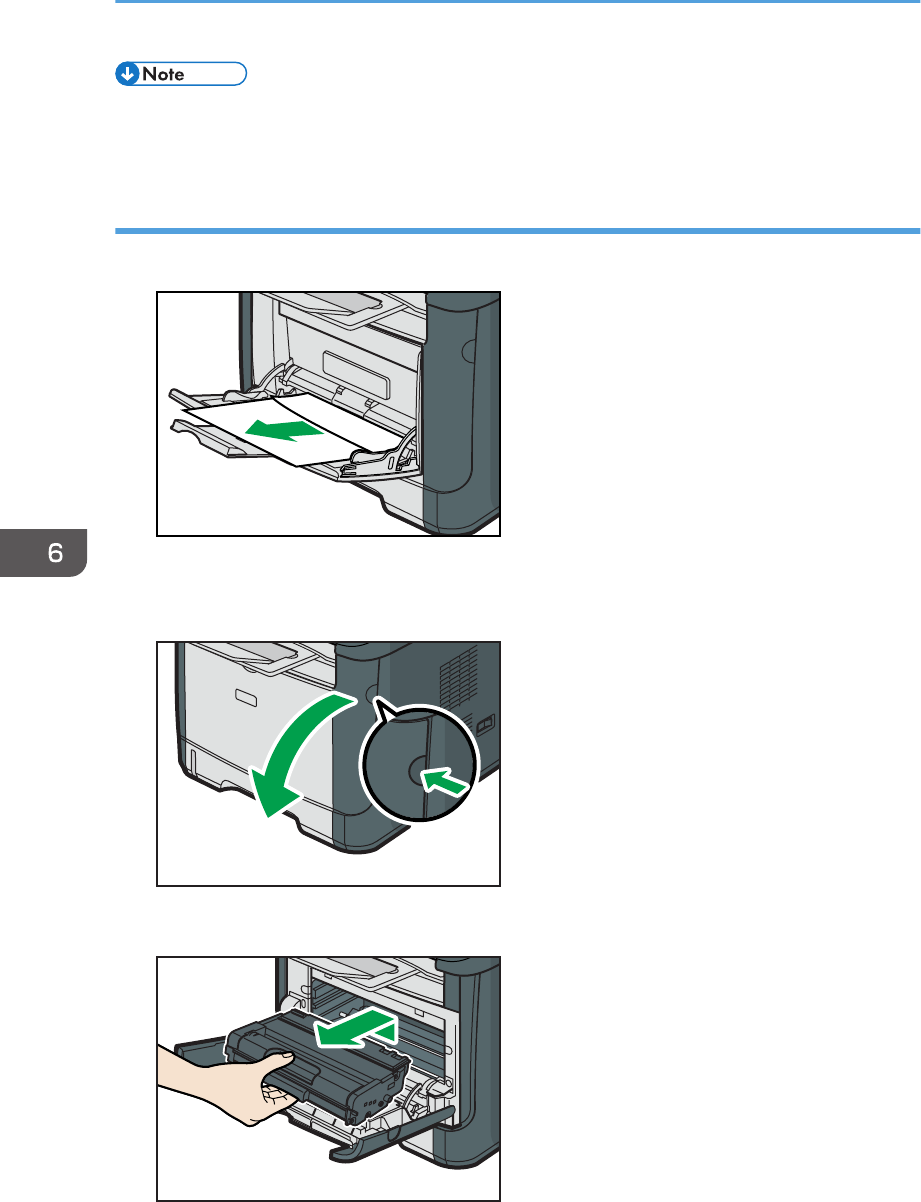

1. If paper is loaded in the bypass tray, remove the paper and close the bypass tray.
2. Push the side button to open the front cover, and then carefully lower it.
CVW023
3. Carefully pull out the print cartridge horizontally, holding its center.
CVW024
• Do not shake the removed print cartridge. Doing so can cause remaining toner to leak.
•Place the old print cartridge on paper or similar material to avoid dirtying your workspace.
5. Maintaining the Machine
66
![](/img.php?id=3031443&img=bg45.png)

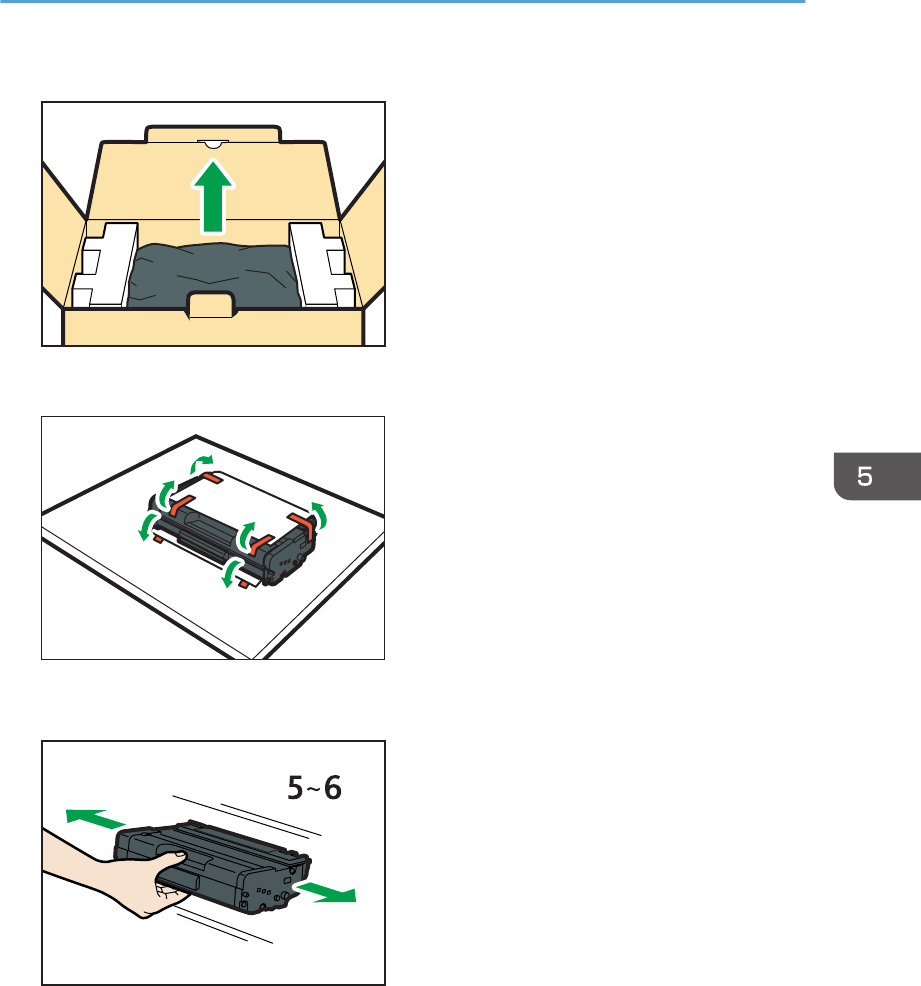

4. Take the new print cartridge out of the box, and then take it out of the plastic bag.
CMC081
5. Place the print cartridge on a flat surface, and then remove the protection sheet.
CMC019
6. Hold the print cartridge and shake it from side to side five or six times.
CMC020
Even distribution of toner within the bottle improves print quality.
Replacing the Print Cartridge
67
![](/img.php?id=3031443&img=bg46.png)
7. Slide the print cartridge in horizontally. When the cartridge can go no further, raise it
slightly and push it fully in. Then push down on the cartridge until it clicks into place.
CVW026
8. Carefully push up the front cover until it closes. Be careful not to trap your fingers.
After closing the front cover, wait until the print cartridge is ready to use.
9. Put the protective sheet you removed in Step 5 on the old print cartridge. Then, put the old
print cartridge into the bag, and then put it into the box.
CMC083
• Make sure to cover the old print cartridge with the protective cover for recycling and environmental
purposes.
•Comply with the print cartridge Recycling Program, whereby used print cartridges are collected for
processing. For details, ask your sales or service representative.
5. Maintaining the Machine
68
![](/img.php?id=3031443&img=bg47.png)
Cautions When Cleaning
Clean the machine periodically to maintain high print quality.
Dry wipe the exterior with a soft cloth. If dry wiping is not sufficient, wipe with a soft, damp cloth that has
been wrung out thoroughly. If you still cannot remove the stain or grime, use a neutral detergent, wipe
over the area with a thoroughly-wrung damp cloth, and then dry wipe the area and allow it to dry.
• To avoid deformation, discoloration, or cracking, do not use volatile chemicals, such as benzine
and thinner, or spray insecticide on the machine.
•If there is dust or grime inside the machine, wipe with a clean, dry cloth.
• You must disconnect the plug from the wall outlet at least once a year. Clean away any dust and
grime from the plug and outlet before reconnecting. Accumulated dust and grime pose a fire
hazard.
• Do not allow paper clips, staples, or other small objects to fall inside the machine.
Cautions When Cleaning
69
![](/img.php?id=3031443&img=bg48.png)

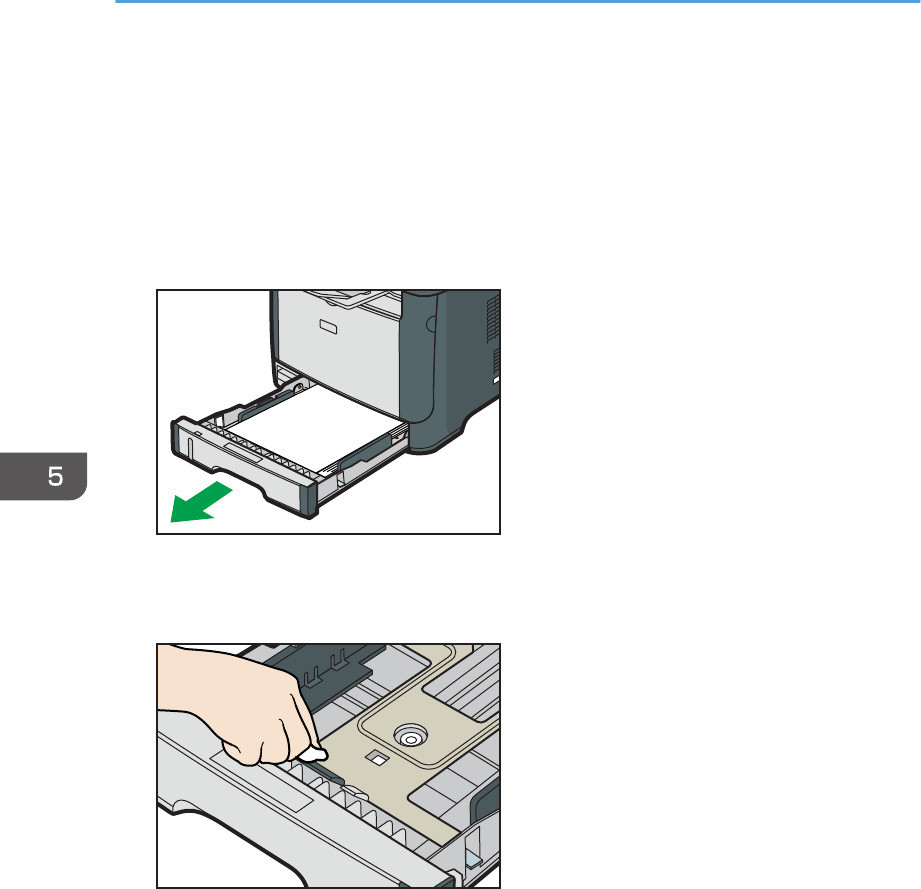

Cleaning the Friction Pad and Paper Feed
Roller
1. Turn off the power.
2. Unplug the power cord from the wall outlet. Remove all the cables from the machine.
3. Pull out tray 1 carefully with both hands.
CVW039
Place the tray on a flat surface. If there is paper in the tray, remove it.

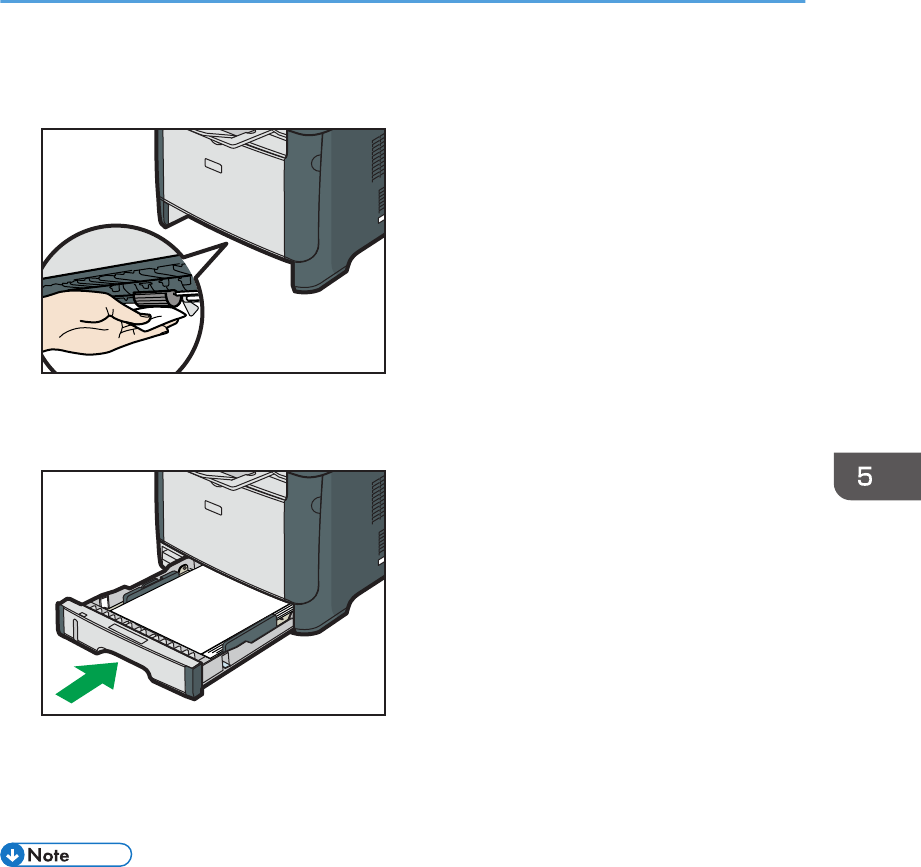

4. Wipe the friction pads with a damp cloth.
CVW051
5. Maintaining the Machine
70
![](/img.php?id=3031443&img=bg49.png)
5. Wipe the rubber part of the roller with a soft damp cloth. After that, wipe it with a dry
cloth to remove the moisture.
CVW040
6. Reload the removed paper into the tray, and then push the tray carefully into the machine
until it clicks into place.
CVW006
7. Insert the plug of the power cord into the wall socket securely. Connect all the interface
cables that were removed.
8. Turn on the power.
• If jams or multi-sheet feeds occur after cleaning the friction pad, contact your sales or service
representative.
Cleaning the Friction Pad and Paper Feed Roller
71
![](/img.php?id=3031443&img=bg4a.png)
5. Maintaining the Machine
72
![](/img.php?id=3031443&img=bg4b.png)
6. Troubleshooting
Common Problems
This section describes how to troubleshoot common problems that may occur while operating the
machine.
Problem Possible cause Solution
The machine does not turn on. The power cord is not
connected properly.
• Make sure that the power
plug is firmly inserted into
the wall outlet.
•Make sure that the wall
outlet is not defective by
connecting another
working device.
The red indicator is lit or
flashing. An error has occurred.
See page 88 "Error and
Status Indicate on the Control
Panel".
Pages do not print. The machine is receiving data.
If the Power indicator is flashing,
the machine is receiving data.
Wait for a while.
Pages are not printed. The interface cable is not
connected correctly.
• Reconnect the cable.
•Check that the interface
cable is the correct type.
Strange noise is heard. The supplies are not properly
installed.
Confirm that the supplies are
properly installed.
• If any of these problems persist, turn off the power, pull out the power cord, and contact your sales
or service representative.
73
![](/img.php?id=3031443&img=bg4c.png)
Paper Feed Problems
If the machine is operating but paper will not feed or paper jams occur frequently, check the condition of
the machine and paper.
Problem Solution
Paper does not feed smoothly.
• Use supported types of paper. See page 25 "Supported
Paper".
•Load paper correctly, making sure that the paper guides
are properly adjusted. See page 30 "Loading Paper".
• If the paper is curled, straighten the paper.
• Take out the paper from tray and fan it well. Then,
reverse the top and bottom of the paper, and put it back
in the tray.
Paper jams occur frequently.
• If there are gaps between the paper and the paper
guides, adjust the paper guides to remove the gaps.
•Avoid printing on both sides of paper when printing
images that contain large solid areas, which consume a
lot of toner.
• Use supported types of paper. See page 25 "Supported
Paper".
• Load paper only as high as the upper limit markings on
the paper guide.
• Make sure that the friction pads and paper feed rollers
are clean. See page 70 "Cleaning the Friction Pad and
Paper Feed Roller".
6. Troubleshooting
74
![](/img.php?id=3031443&img=bg4d.png)
Problem Solution
Multiple sheets of paper are fed at
one time.
• Fan the paper well before loading. Also make sure that
the edges are even by tapping the stack on a flat surface
such as a desk.
•Make sure that the paper guides are in the right position.
• Use supported types of paper. See page 25 "Supported
Paper".
• Load paper only as high as the upper limit markings on
the paper guide.
• Make sure that the friction pads and paper feed rollers
are clean. page 25 "Supported Paper".
• Check that paper was not added while there was still
some left in the tray.
Only add paper when there is none left in the tray.
Paper gets wrinkles.
• Paper is damp. Use paper that has been stored properly.
See page 25 "Supported Paper".
•Paper is too thin. See page 25 "Supported Paper".
• If there are gaps between the paper and the paper
guides, adjust the paper guides to remove the gaps.
The printed paper is curled.
• Load the paper upside down in the paper tray.
• If the paper curl is severe, take prints from the output tray
more frequently.
• Paper is damp. Use paper that has been stored properly.
See page 25 "Supported Paper".

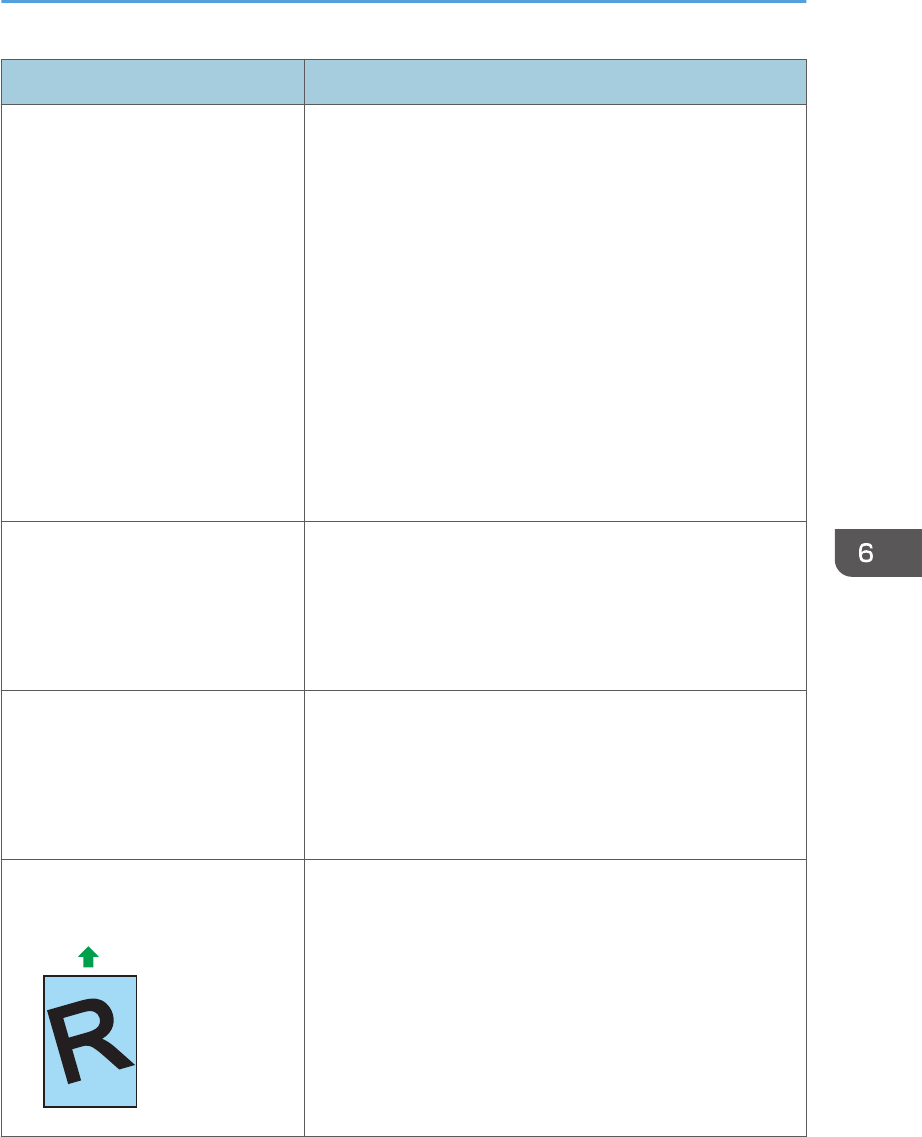

Images are printed diagonally to the
pages.
CER091
If there are gaps between the paper and the paper guides,
adjust the paper guides to remove the gaps.
Paper Feed Problems
75
![](/img.php?id=3031443&img=bg4e.png)
Removing Printing Jams
• Jammed paper may be covered in toner. Be careful not to get toner on your hands or clothes.
•Toner on prints made immediately after clearing a paper jam may be insufficiently fused and can
smudge. Make test prints until smudges no longer appear.
• Do not forcefully remove jammed paper, as it may tear. Torn pieces remaining inside the machine
will cause further jams and possibly damage the machine.
• Paper jams can cause pages to be lost. Check your print job for missing pages and reprint any
pages that did not print out.

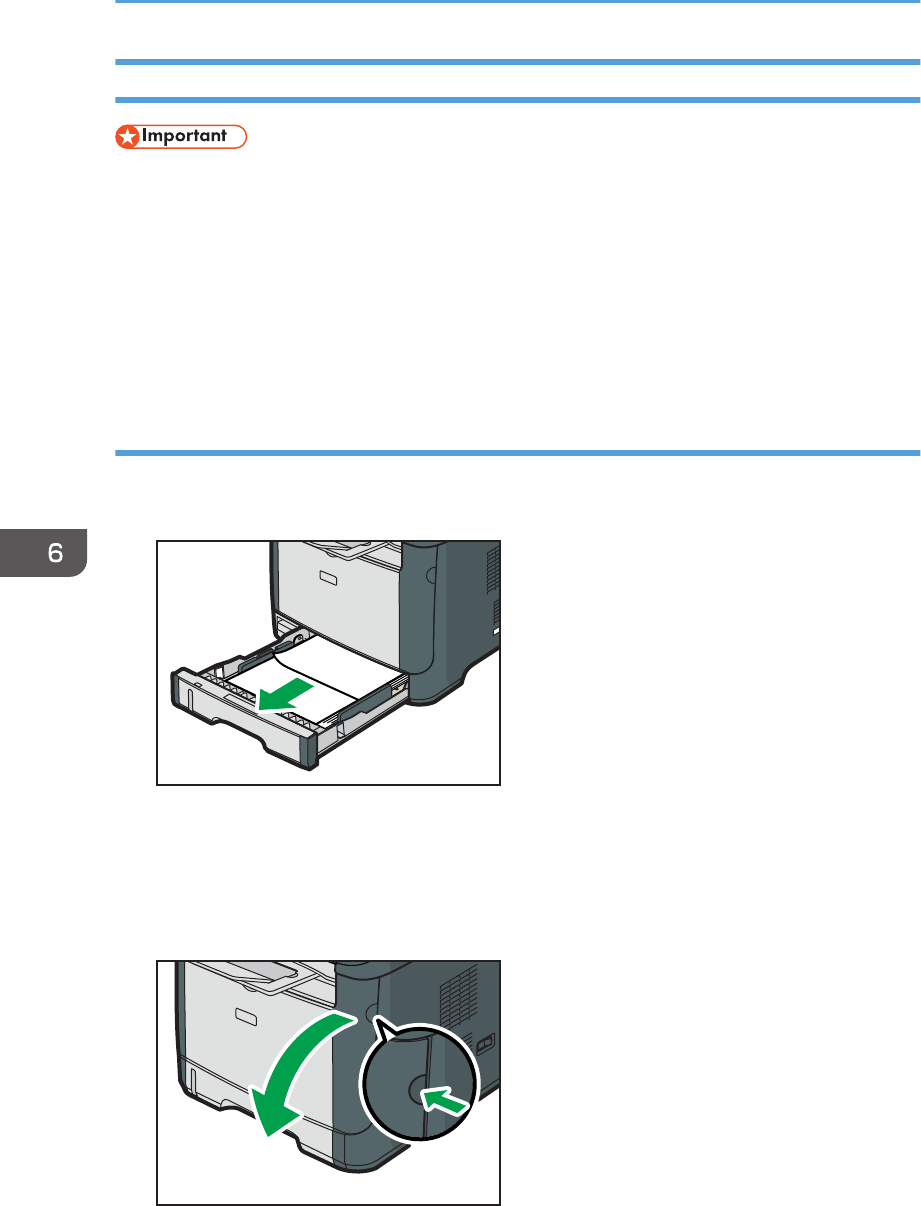

Removing Jammed Paper from Tray 1
1. Pull tray 1 halfway out, and check for jammed paper. If there is jammed paper, remove it
carefully.
CVW022
2. Carefully slide tray 1 back in until it stops.
3. If paper is loaded in the bypass tray, remove the paper.
4. Close the bypass tray.
5. Push the side button to open the front cover, and then carefully lower it.
CVW023
6. Troubleshooting
76
![](/img.php?id=3031443&img=bg4f.png)
6. Carefully pull out the print cartridge horizontally, holding its center.
CVW024
• Do not shake the removed print cartridge. Doing so can cause remaining toner to leak.
•Place the print cartridge on paper or similar material to avoid dirtying your workspace.
7. Lifting the guide plate, remove the jammed paper carefully.
CVW025
8. Slide the print cartridge in horizontally. When the cartridge can go no further, raise it
slightly and push it fully in. Then push down on the cartridge until it clicks into place.
CVW026
9. Using both hands, carefully push up the front cover until it closes.
Paper Feed Problems
77
![](/img.php?id=3031443&img=bg50.png)
• When closing the front cover, push the upper area of the cover firmly. After closing the cover,
check that the error is cleared.
Removing Jammed Paper from the Bypass Tray
1. If paper is jammed in the bypass tray input area, remove the jammed paper carefully.
CVW027
2. Close the bypass tray.
3. Push the side button to open the front cover, and then carefully lower it.
CVW023
4. Carefully pull out the print cartridge horizontally, holding its center.
CVW024
6. Troubleshooting
78
![](/img.php?id=3031443&img=bg51.png)
• Do not shake the removed print cartridge. Doing so can cause remaining toner to leak.
•Place the print cartridge on paper or similar material to avoid dirtying your workspace.
5. Lifting the guide plate, remove the jammed paper carefully.
CVW025
6. Slide the print cartridge in horizontally. When the cartridge can go no further, raise it
slightly and push it fully in. Then push down on the cartridge until it clicks into place.
CVW026
7. Using both hands, carefully push up the front cover until it closes.
• When closing the front cover, push the upper area of the cover firmly. After closing the cover,
check that the error is cleared.
Paper Feed Problems
79
![](/img.php?id=3031443&img=bg52.png)
Removing Jammed Paper from the standard tray or duplex unit
1. Open the rear cover.
CVW052
2. Remove the jammed paper carefully.
CVW053
3. Close the rear cover.
CVW017
6. Troubleshooting
80
![](/img.php?id=3031443&img=bg53.png)

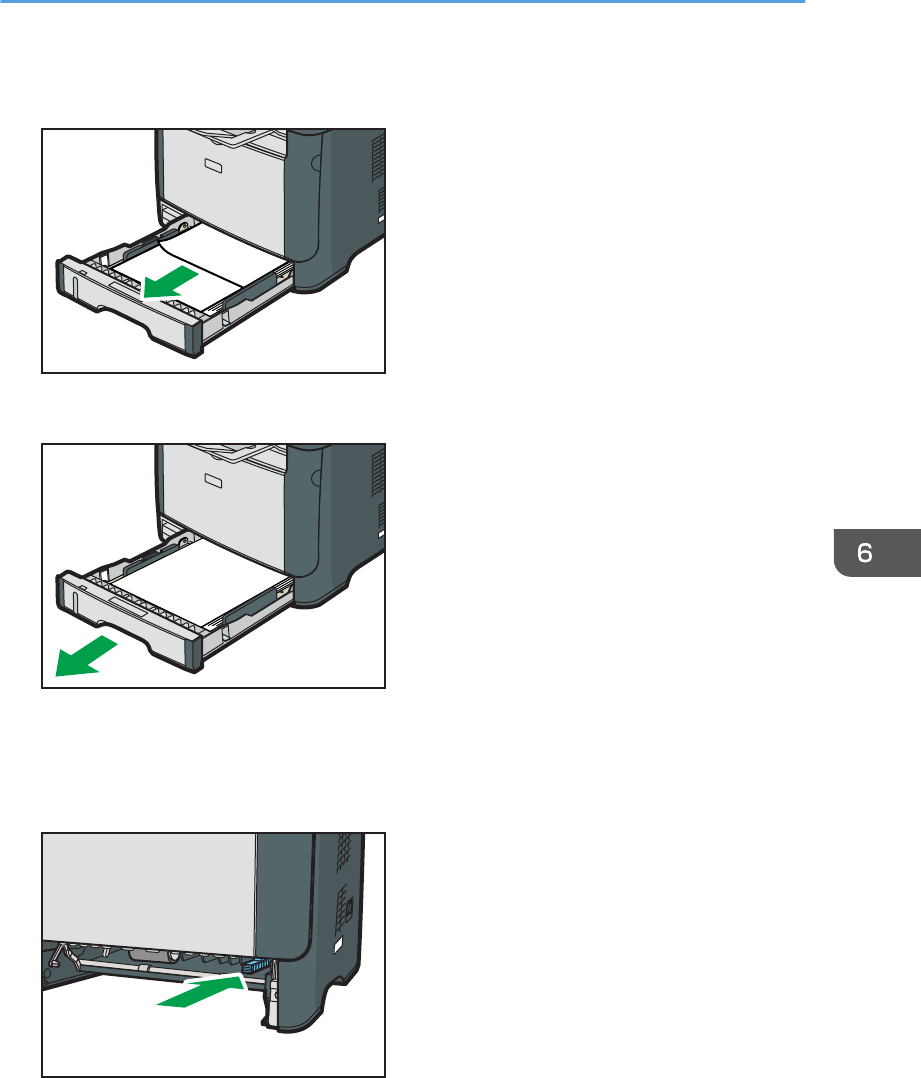

4. Pull tray 1 halfway out, and check for jammed paper. If there is jammed paper, remove it
carefully.
CVW022
5. Pull tray 1 out completely with both hands.
CVW039
Place the tray on a flat surface.
6. Push the lever.
Pushing the lever lowers the duplex transport unit.
CVW043
Paper Feed Problems
81
![](/img.php?id=3031443&img=bg54.png)
7. If there is jammed paper, carefully remove it.
CVW044
8. With the duplex transport unit still lowered, carefully slide tray 1 back in until it stops.
CVW006
9. If paper is loaded in the bypass tray, remove the paper and close the bypass tray.
10. Push the side button to open the front cover, and then carefully lower it.
CVW023
6. Troubleshooting
82
![](/img.php?id=3031443&img=bg55.png)
11. Carefully pull out the print cartridge horizontally, holding its center.
CVW024
• Do not shake the removed print cartridge. Doing so can cause remaining toner to leak.
•Place the print cartridge on paper or similar material to avoid dirtying your workspace.

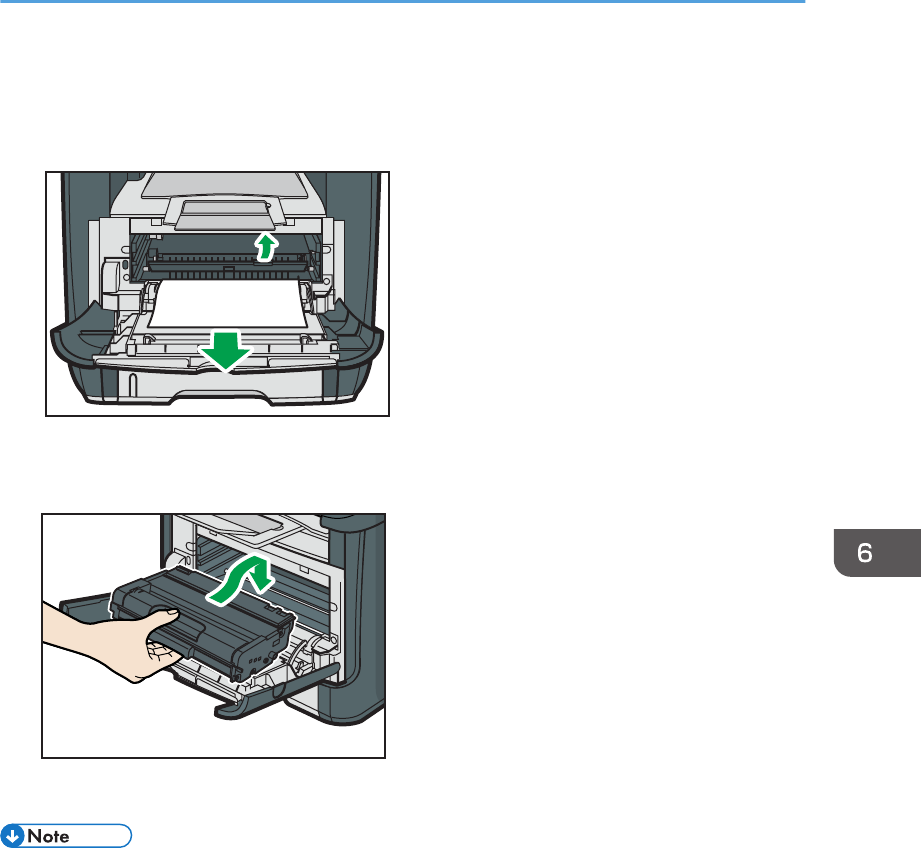

12. Lifting the guide plate, remove the jammed paper carefully.
CVW025
13. Slide the print cartridge in horizontally. When the cartridge can go no further, raise it
slightly and push it fully in. Then push down on the cartridge until it clicks into place.
CVW026
14. Using both hands, carefully push up the front cover until it closes.
Paper Feed Problems
83
![](/img.php?id=3031443&img=bg56.png)
• When closing the covers, push the covers firmly. After closing the covers, check that the error is
cleared.
6. Troubleshooting
84
![](/img.php?id=3031443&img=bg57.png)
Print Quality Problems
Checking the Condition of the Machine
If there is a problem with the quality of printing, first check the condition of the machine.
Possible Cause Solution
There is a problem with the
machine's location.
Make sure that the machine is on a level surface. Place the
machine where it will not be subject to vibration or shock.
Unsupported types of paper is used. Make sure that the paper being used is supported by the
machine. See page 25 "Supported Paper".
The paper type setting is incorrect.
Make sure that the paper type setting of the printer driver
matches the type of paper loaded. See page 25 "Supported
Paper".
A non-genuine print cartridge is
being used.
Refilled or non-genuine print cartridge reduces print quality
and can cause malfunctions. Use genuine print cartridge only.
See page 102 "Consumables".
An old print cartridge is being used. Print cartridge should be opened before their expiration date
and used within six months of being opened.
The machine is dirty. See page 65 "Maintaining the Machine", and clean the
machine as required.
Humidity level surrounding the
machine may be too low.
Using the machine in a room where humidity level is too low
may cause black lines of a few millimeters thick to appear on
printouts with 75-millimeter spaces in between. In this case, set
[Low Humidity Mode] to [On].
For details about how to configure the settings, see page 60
"Using Smart Organizing Monitor" and the Smart Organizing
Monitor Help.
Print Quality Problems
85
![](/img.php?id=3031443&img=bg58.png)
Printer Problems
This section describes printing problems and possible solutions.
Problem Solution
An error occurs.
If an error occurs when printing, change the computer or
printer driver settings.
•Check the printer icon name does not exceed 32
alphanumeric characters. If it does, shorten it.
• Check whether other applications are operating.
Close any other applications, as they may be interfering
with printing. If the problem is not resolved, close
unneeded processes too.
• Check that the latest printer driver is being used.
A print job is canceled. Set [I/O Timeout] to a larger value than the current setting.
There is considerable delay between
the print start command and actual
printing.
• Processing time depends on data volume. High volume
data, such as graphics-heavy documents, take longer to
process.
•To speed up printing, reduce the printing resolution using
the printer driver. For details, see the printer driver Help.
Prints fall in front of the machine
when they are output.
Raise the stop fence. See "Loading Paper", Quick Installation
Guide.
Prints do not stack properly.
• Paper is damp. Use paper that has been stored properly.
See page 25 "Supported Paper".
•Raise the stop fence. See "Unpacking", Quick Installation
Guide.
The whole printout is blurred.
• Paper is damp. Use paper that has been stored properly.
See page 25 "Supported Paper".
• If you enable [Toner Saving], printing is generally less
dense.
• Toner is almost depleted. Replace the print cartridge.
• Condensation may have collected. If rapid change in
temperature or humidity occurs, use this machine only
after it has acclimatized.
6. Troubleshooting
86
![](/img.php?id=3031443&img=bg59.png)
Problem Solution
The toner is powdery and comes
away from the paper, or the printed
image has a matt appearance.
Check if the levers for printing on envelopes inside the rear
cover are properly set. Pull up the levers.
Printed envelopes come out creased. Check if the levers for printing on envelopes inside the rear
cover are properly set. Lower the levers.
Documents are not printed properly
when using a certain application, or
image data is not printed properly.
Some characters are printed faintly
or not printed.
Change the print quality settings.
Print Positions Do Not Match Display Positions
If the position of items on the printed page differs from the position displayed on the computer screen,
the cause may be one of the following.
Possible Cause Solution
Page layout settings have not been configured. Check that the page layout settings are properly
configured in the application.
The paper size setting does not match the paper
loaded.
Make sure the paper size selected in the printer
properties dialog box matches the size of the
paper loaded. For details, see the printer driver
Help.
The printable area has been changed. Set the printable area to maximum. For details, see
the printer driver Help.
• If the position of items on the printed page differs slightly from the position displayed on the
computer screen even after performing the above procedures, you can adjust the printing position
of each tray in the range of -1.5 to +1.5 mm.
Printer Problems
87
![](/img.php?id=3031443&img=bg5a.png)
Error and Status Indicate on the Control Panel
The LED on the operation panel indicates the machine status, including any errors.
LED
Status Solution
Toner/
Paper
End
Alarm Power
- - On The power is on. The status is normal.
- - Flashing Importing data. The status is normal.
Flashing - On The print cartridge is almost
empty.
Replace the print cartridge
before it becomes empty.
On - On • The print cartridge is
empty.
•The print cartridge is not
set correctly.
• The tray has run out of
paper.
• Replace the print
cartridge.
• Set the print cartridge
again correctly.
• Load paper into the tray.
- Flashing On A paper jam has occurred in
the machine.
Use Web Image Monitor or
Smart Organizing Monitor to
determine where the paper jam
is, and then remove the
jammed paper. See page 74
"Paper Feed Problems".
- On On • The size of paper to print
on and the size of the
paper loaded in the tray
do not match.
•A cover is open.
• Use Web Image Monitor
or Smart Organizing
Monitor to check the
paper size settings, and
then change either the
size of paper to print on
or the size of paper
loaded in the tray.
• Confirm that all the covers
are closed completely.
6. Troubleshooting
88
![](/img.php?id=3031443&img=bg5b.png)
LED
Status Solution
Toner/
Paper
End
Alarm Power
- On On Another type of error has
occurred.
Use Web Image Monitor or
Smart Organizing Monitor to
check the error, and then take
appropriate measures. See
page 47 "Using Web Image
Monitor" or page 60 "Using
Smart Organizing Monitor".
On On On A malfunction has occurred. Contact your sales or service
representative.
Error and Status Indicate on the Control Panel
89
![](/img.php?id=3031443&img=bg5c.png)
Error and Status Messages Appear on Smart
Organizing Monitor
Message Causes Solutions
No Response from
I/O Device
Check the cable,
power cord, and
main switch.
• The power cable of the
machine is not plugged in.
•The power of the machine
is not turned ON.
• The USB cable is not
connected.
• Check the printer power cord.
• Check the printer power switch is on.
• Check the USB cable is properly
connected.
Tray Not Detected or
No Paper
The indicated paper
source tray is not set
properly, or no
paper loaded.
Check the indicated
tray.
Tray 1 has run out of paper.
The bypass tray has run out of
paper.
Load paper into Tray 1. See page 30
"Loading Paper".
Load paper into the bypass tray. See
page 30 "Loading Paper".
Tray 1 Jam
Bypass Tray Jam
Duplex Jam
Inner Jam
Outer Jam
Total Jam
A paper jam has occurred in the
machine.
Remove the jammed paper. See page 74
"Paper Feed Problems".
Paper Size Mismatch
Paper of the selected
paper size is not
loaded in the
indicated paper
source tray.
Check the indicated
tray.
The paper size specified on the
machine and the size specified
in the printer driver do not
match.
For details about specifying the paper size
setting on the machine, see page 30
"Loading Paper". For details about
changing the paper size setting in the
printer driver, see the printer driver Help.
6. Troubleshooting
90
![](/img.php?id=3031443&img=bg5d.png)
Message Causes Solutions
Paper Type
Mismatch
Paper of the selected
paper type is not
loaded in the
indicated paper
source tray.
Check the indicated
tray.
The paper type specified on the
machine and the type specified
in the printer driver do not
match.
For details about changing the paper type
setting of the machine, see page 30
"Loading Paper". For details about
changing the paper type setting in the
printer driver, see the printer driver Help.
Print Cartridge is
near empty.
The print cartridge is almost
empty. Prepare a new print cartridge.
Shortly printing
becomes not
available. Please
keep Print Cartridge
handy.
The machine has run out of the
toner.
Replace the print cartridge. See page 65
"Replacing the Print Cartridge".
Printing has been
interrupted because
of the memory
overflow.
The data is too large or
complex to print.
Select [600 x 600 dpi] in [Resolution:] to
reduce the size of data. For details, see the
printer driver Help.
Waste Toner full
No printing is
available.
Open the indicated
cover, and then
replace Print
Cartridge.
The waste toner bottle is full. Replace the print cartridge.
No Toner or Waste
Toner full
No printing is
available.
Open the indicated
cover, and then
replace Print
Cartridge.
The print cartridge has not been
installed.
Reinstall the print cartridge. See page 65
"Replacing the Print Cartridge".
Error and Status Messages Appear on Smart Organizing Monitor
91
![](/img.php?id=3031443&img=bg5e.png)
6. Troubleshooting
92
![](/img.php?id=3031443&img=bg5f.png)
7. Appendix
Functions and Network Settings Available in
an IPv6 Environment
The functions and network settings of this machine that are available in an IPv6 environment differ from
those available in an IPv4 environment. Make sure the functions you use are supported in an IPv6
environment, and then configure the necessary network settings.
For details about specifying the IPv6 settings, see page 60 "Using Smart Organizing Monitor".
Available Functions
FTP Printing
Prints documents via FTP using the EPRT and EPSV commands. Windows Vista/7/8 and an FTP
application that supports IPv6 are required to use these commands.
Printer
Prints documents using the printer driver.
Web Image Monitor
Allows you to check the machine's status and configure its settings using a Web browser.
Configuration Page
Prints a configuration page that shows you the machine's configuration, IP address, and other
details.
93
![](/img.php?id=3031443&img=bg60.png)
Transmission Using IPsec
For securer communications, this machine supports the IPsec protocol. When applied, IPsec encrypts
data packets at the network layer using shared key encryption. The machine uses encryption key
exchange to create a shared key for both sender and receiver. To achieve even higher security, you can
also renew the shared key on a validity period basis.
• IPsec is not applied to data obtained through DHCP, DNS, or WINS.
•IPsec compatible operating systems are Windows XP SP2, Windows Vista/7, Windows Server
2003/2003 R2/2008/2008 R2, Red Hat Enterprise Linux WS 4.0, and Solaris 10. However,
some setting items are not supported depending on the operating system. Make sure the IPsec
settings you specify are consistent with the operating system's IPsec settings.
• If you cannot access Web Image Monitor due to IPsec configuration problems, disable IPsec on
the [Network 2] tab under [Printer Configuration] using Smart Organizing Monitor, and then
access Web Image Monitor.
• For details about specifying the IPsec settings using Web Image Monitor, see page 47 "Using Web
Image Monitor".
• For details about enabling and disabling IPsec using Smart Organizing Monitor, see the Smart
Organizing Monitor Help.
Encryption and Authentication by IPsec
IPsec consists of two main functions: the encryption function, which ensures the confidentiality of data,
and the authentication function, which verifies the sender of the data and the data's integrity. This
machine's IPsec function supports two security protocols: the ESP protocol, which enables both of the
IPsec functions at the same time, and the AH protocol, which enables only the authentication function.
ESP Protocol
The ESP protocol provides secure transmission through both encryption and authentication. This
protocol does not provide header authentication.
•For successful encryption, both the sender and receiver must specify the same encryption
algorithm and encryption key. The encryption algorithm and encryption key are specified
automatically.
• For successful authentication, the sender and receiver must specify the same authentication
algorithm and authentication key. The authentication algorithm and authentication key are
specified automatically.
AH Protocol
The AH protocol provides secure transmission through authentication of packets only, including
headers.
7. Appendix
94
![](/img.php?id=3031443&img=bg61.png)
• For successful authentication, the sender and receiver must specify the same authentication
algorithm and authentication key. The authentication algorithm and authentication key are
specified automatically.
AH Protocol + ESP Protocol
When combined, the ESP and AH protocols provide secure transmission through both encryption
and authentication. These protocols provide header authentication.
•For successful encryption, both the sender and receiver must specify the same encryption
algorithm and encryption key. The encryption algorithm and encryption key are specified
automatically.
• For successful authentication, the sender and receiver must specify the same authentication
algorithm and authentication key. The authentication algorithm and authentication key are
specified automatically.
• Some operating systems use the term "Compliance" in place of "Authentication".
Security Association
This machine uses encryption key exchange as the key setting method. With this method, agreements
such as the IPsec algorithm and key must be specified for both sender and receiver. Such agreements
form what is known as an SA (Security Association). IPsec communication is possible only if the
receiver's and sender's SA settings are identical.
The SA settings are auto configured on both parties' machines. However, before the IPsec SA can be
established, the ISAKMP SA (Phase 1) settings must be auto configured. When this is done, the IPsec SA
(Phase 2) settings, which allow actual IPsec transmission, will be auto configured.
Also, for further security, the SA can be periodically auto updated by applying a validity period (time
limit) for its settings. This machine only supports IKEv1 for encryption key exchange.
Multiple settings can be configured in the SA.
Settings 1-10
You can configure ten separate sets of SA details (such as different shared keys and IPsec
algorithms).
IPsec policies are searched through one by one, starting at [No.1].
Encryption Key Exchange Settings Configuration Flow
This section explains the procedure for specifying encryption key exchange settings.
Transmission Using IPsec
95
![](/img.php?id=3031443&img=bg62.png)
Machine PC
1. Set the IPsec settings on Web Image Monitor. 1. Set the same IPsec settings as the machine on
PC.
2. Enable IPsec settings. 2. Enable IPsec settings.
3. Confirm IPsec transmission.
• After configuring IPsec, you can use "ping" command to check if the connection is established
correctly. Because the response is slow during initial key exchange, it may take some time to
confirm that transmission has been established.
•If you cannot access Web Image Monitor due to IPsec configuration problems, disable IPsec on
the [Network 2] tab under [Printer Configuration] using Smart Organizing Monitor, and then
access Web Image Monitor.
• For details about enabling and disabling IPsec using Smart Organizing Monitor, see the Smart
Organizing Monitor Help.
Specifying Encryption Key Exchange Settings
1. Start the Web browser, and access the machine by entering its IP address.
2. Click [IPsec Settings].
3. Click the [IPsec Policy List] tab.
4. Select the number of the setting you want to modify in the list, and then click [Change].
5. Modify the IPsec related settings as necessary.
6. Enter the administrator password, and then click [Apply].
7. Click the [IPsec Global Settings] tab, and then select [Active] in [IPsec Function].
8. If necessary, specify [Default Policy], [Broadcast and Multicast Bypass], and [All ICMP
Bypass] also.
9. Enter the administrator password, and then click [Apply].
Specifying IPsec Settings on the Computer
Specify exactly the same settings for IPsec SA settings on your computer as are specified for the IPsec
Settings on the machine. Setting methods differ according to the computer's operating system. The
following procedure is based on Windows 7 in an IPv4 environment as an example.
7. Appendix
96
![](/img.php?id=3031443&img=bg63.png)
1. On the [Start] menu, click [Control Panel], [System and Security], and then click
[Administrative Tools].
2. Double-click [Local Security Policy], and then click [IP Security Policies on Local
Computer].
3. In the "Action" menu, click [Create IP Security Policy...].
The IP Security Policy Wizard appears.
4. Click [Next].
5. Enter a security policy name in "Name", and then click [Next].
6. Clear the "Activate the default response rule (earlier versions of Windows only)." check
box, and then click [Next].
7. Select "Edit properties", and then click [Finish].
8. In the "General" tab, click [Settings...].
9. In "Authenticate and generate a new key after every", enter the same validity period (in
minutes) that is specified on the machine in [IKE Life Time], and then click [Methods...].
10. Confirm that the Encryption Algorithm ("Encryption"), Hash Algorithm ("Integrity"), and
IKE Diffie-Hellman Group ("Diffie-Hellman Group") settings in "Security method
preference order" all match those specified on the machine in [IKE Settings].
If the settings are not displayed, click [Add...].
11. Click [OK] twice.
12. Click [Add...] in the "Rules" tab.
The Security Rule Wizard appears.
13. Click [Next].
14. Select "This rule does not specify a tunnel", and then click [Next].
15. Select the type of network for IPsec, and then click [Next].
16. Click [Add...] in the IP Filter List.
17. In [Name], enter an IP Filter name, and then click [Add...].
The IP Filter Wizard appears.
18. Click [Next].
19. In [Description:], enter a name or a detailed explanation of the IP filter, and then click
[Next].
You may click [Next] and proceed to the next step without entering any information in this field.
20. Select "My IP Address" in "Source address", and then click [Next].
21. Select "A specific IP Address or Subnet" in "Destination address", enter the machine's IP
address, and then click [Next].
22. For the IPsec protocol type, select "Any", and then click [Next].
Transmission Using IPsec
97
![](/img.php?id=3031443&img=bg64.png)
23. Click [Finish], and then click [OK].
24. Select the IP filter that you have just created, and then click [Next].
25. Click [Add...] in the Filter Action.
The Filter Action Wizard appears.
26. Click [Next].
27. In [Name], enter a Filter Action name, and then click [Next].
28. Select "Negotiate security", and then click [Next].
29. Select one of options for computers allowed to communicate with, and then click [Next].
30. Select "Custom" and click [Settings...].
31. When [ESP] is selected for the machine in [Security Protocol] under [IPsec Settings], select
[Data integrity and encryption (ESP)], and configure the following settings:
Set the value of [Integrity algorithm] to the same value as the [Authentication Algorithm for ESP]
specified on the machine.
Set the value of [Encryption algorithm] to the same value as the [Encryption Algorithm for ESP]
specified on the machine.
32. When [AH] is selected for the machine in [Security Protocol] under [IPsec Settings], select
[Data and address integrity without encryption (AH)], and configure the following
settings:
Set the value of [Integrity algorithm] to the same value as the [Authentication Algorithm for AH]
specified on the machine.
Clear the [Data integrity and encryption (ESP)] check box.
33. When [ESP&AH] is selected for the machine in [Security Protocol] under [IPsec Settings],
select [Data and address integrity without encryption (AH)], and configure the following
settings:
Set the value of [Integrity algorithm] under [Data and address integrity without encryption (AH)] to
the same value as [Authentication Algorithm for AH] specified on the machine.
Set the value of [Encryption algorithm] under [Data integrity and encryption (ESP)] to the same
value as [Encryption Algorithm for ESP] specified on the machine.
34. In the Session key settings, select "Generate a new key every", and enter the same
validity period (in seconds or Kbytes) as that specified for [Life Time] on the machine.
35. Click [OK], and then click [Next].
36. Click [Finish].
If you are using IPv6 under Windows Vista or a newer version of Windows, you must repeat this
procedure from Step 12 and specify ICMPv6 as an exception. When you reach Step 22, select
[58] as the protocol number for the "Other" target protocol type, and then set [Negotiate security]
to [Permit].
7. Appendix
98
![](/img.php?id=3031443&img=bg65.png)
37. Select the filter action that you have just created, and then click [Next].
38. Select one of options for an authentication method, and then click [Next].
39. Click [Finish], and then click [OK] twice.
The new IP security policy (IPsec settings) is specified.
40. Select the security policy that you have just created, right click on it, and then click
[Assign].
IPsec settings on the computer are enabled.
• To disable the computer's IPsec settings, select the security policy, right click, and then click [Un-
assign].
Transmission Using IPsec
99
![](/img.php?id=3031443&img=bg66.png)
Notes About the Toner
•Proper operation cannot be guaranteed if any third-party toner is used.
• Depending on printing conditions, there are cases where the printer cannot print the number of
sheets indicated in the specifications.
• Replace the print cartridge if the printed image suddenly becomes pale or blurred.
• When operating the machine for the first time, use the print cartridge supplied with this machine. If
this cartridge is not initially used, the following problems may occur:
• Toner/Paper End indicator will flash before the toner runs out.
• Toner/Paper End indicator will light up when the toner runs out, but instead the printed image
suddenly becomes pale or blurred.
• The lifetime of the photo conductor, which is built into the print cartridge, is taken into account when
Toner/Paper End indicator flashes. If the photo conductor stops working before the toner runs out,
Toner/Paper End indicator may flash.
7. Appendix
100
![](/img.php?id=3031443&img=bg67.png)
Moving and Transporting the Machine
This section provides cautions that you must follow when moving the machine both short and long
distances.
Repack the machine in its original packing materials when moving it over a long distance.
• Be sure to disconnect all cables from the machine before transporting it.
•The machine is a precision piece of machinery. Be sure to handle it carefully when moving it.
• Make sure to move the machine horizontally. Take extra caution when carrying the machine up or
down stairs.
• Do not remove the print cartridge when moving the machine.
• Be sure to hold the machine level while carrying it. To prevent toner from spilling, move the
machine carefully.
1. Be sure to check the following points:
• The power switch is turned off.
• The power cord is unplugged from the wall outlet.
• All other cables are unplugged from the machine.
2. Lift the machine using the inset grips on both sides of the machine, and then move it
horizontally to the place where you want to use it.
• To move the machine over a long distance, pack it well and empty all the paper trays. Take care
not to tip or tilt the machine during transit.
•Toner might spill inside the machine if the machine is not kept level during transit.
• For more information about moving the machine, contact your sales or service representative.
Disposal
Ask your sales or service representative for information about correct disposal of this machine.
Where to Inquire
Contact your sales or service representative for further information about the topics included in this
manual or to inquire about other topics not included in this manual.
Moving and Transporting the Machine
101
![](/img.php?id=3031443&img=bg68.png)
Consumables
Print Cartridge
Print cartridge Average printable number of pages per cartridge *1
Black 2,000 or 3,500 pages
*1 The printable number of pages is based on pages that are compliant with ISO/IEC 19752 with the image
density set as the factory default. ISO/IEC 19752 is an international standard for measurement of printable
pages, set by the International Organization for Standardization.
• Unless a print cartridge is replaced before toner runs out, printing will become impossible. To
facilitate cartridge replacement, we recommend you purchase and store extra print cartridges.
•The actual number of printable pages varies depending on the image volume and density, number
of pages printed at a time, paper type and paper size used, and environmental conditions such as
temperature and humidity.
• Print cartridges may need to be changed sooner than indicated above due to deterioration over
the period of use.
• Print cartridges are not covered by warranty. However, if there is a problem, contact the store
where you purchased them.
• The supplied print cartridge can print approximately 1,000 pages.
7. Appendix
102
![](/img.php?id=3031443&img=bg69.png)
Specifications of the Machine
This section lists the machine's specifications.
General Function Specifications
Configuration
Desktop
Print process
Laser electrostatic transfer
Maximum paper size for printing
216 mm × 356 mm (8.5 × 14 inches)
Warm-up time
26 seconds or less (23 °C, 71.6 °F)
Paper sizes
A4, 81/2 " × 11 " (Letter), 81/2 " × 14 " (Legal), B5 JIS, 51/2 " × 81/2 " (Half Letter), 71/4 " ×
101/2 " (Executive), A5, A6, B6 JIS, 16K (195 × 267 mm), 8 " × 13 " (F), 81/2 " × 13
" (Foolscap), 81/4 " × 13 " (Folio), Com10 (104.8×241.3 mm), Monarch (98.4 ×190.5 mm), C5
Env (162 ×229 mm), C6 Evn (114 ×162 mm), DL Env (110 ×220 mm), Custom Paper Size
• The following paper sizes are supported as custom paper sizes:
•Approximately 90-216 mm (3.6-8.5 inches) in width
• Approximately 148-356 mm (5.8-14 inches) in length
Paper type
Plain paper (65-99 g/m2 (17-27 lb.)), Recycled paper (75-90 g/m2 (20-24 lb.)), Thin paper
(52-64 g/m2 (14-16 lb.)), Thick paper 1 (100-130 g/ m2 (27-35 lb)), Thick paper 2 (131-162
g/ m2 (35-43 lb)), Color paper (75-90 g/m2 (20-24 lb.)), Preprinted paper (75-90 g/m2
(20-24 lb.)), Prepunched paper (75-90 g/m2 (20-24 lb.)), Letterhead (100-130 g/m2 (27-35
lb.)), Bond paper (105-160 g/m2 (28-43 lb.)), Cardstock (100-130 g/m2 (27-35 lb.)), Label
paper (100-130 g/m2 (27-35 lb.)), Envelope
Paper output capacity (80 g/m2, 20 lb)
125 sheets
Paper input capacity (80 g/m2, 20 lb)
• Tray 1
250 sheets
Specifications of the Machine
103
![](/img.php?id=3031443&img=bg6a.png)
• Bypass tray
50 sheets
Memory
128 MB
Power requirements
•
220-240 V, 4 A, 50/60 Hz
•
120 V, 7 A, 60 Hz
Power consumption
•Maximum power consumption
: 890 W
: 800 W
•Energy Saver mode 1
50 W or less
• Energy Saver mode 2
3.8 W or less
Machine dimensions (Width × Depth × Height)
370 × 392 × 262 mm (14.6 × 15.4 × 10.3 inches)
Weight (machine body with consumables)
Approximately 12.7 kg (28.0 lb.) or less
Printer Function Specifications
Printing speed
: 28 pages per minute (A4)
: 30 pages per minute (Letter)
Resolution
600 × 600 dpi (maximum: 1200 × 600 dpi)
First print speed
12 seconds or less
Interface
•Ethernet (10BASE-T, 100BASE-TX)
7. Appendix
104
![](/img.php?id=3031443&img=bg6b.png)
• USB 2.0
•Wi-Fi
Printer language
PCL6c
Fonts
80 fonts
Specifications of the Machine
105
![](/img.php?id=3031443&img=bg6c.png)
Copyright Information about Installed
Applications
expat
Copyright (c) 1998, 1999, 2000 Thai Open Source Software Centre, Ltd. and Clark Cooper.
Copyright (c) 2001, 2002 Expat maintainers.
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and
associated documentation files (the "Software"), to deal in the Software without restriction, including
without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the
following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial
portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR
COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN
AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN
CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
JPEG LIBRARY
• The software installed on this product is based in part on the work of the Independent JPEG Group.
OpenLDAP 2.1
http://www.openldap.org/software/download
The OpenLDAP Public License
Version 2.8, 17 August 2003
Redistribution and use of this software and associated documentation ("Software"), with or without
modification, are permitted provided that the following conditions are met:
1. Redistributions in source form must retain copyright statements and notices,
2. Redistributions in binary form must reproduce applicable copyright statements and notices, this list
of conditions, and the following disclaimer in the documentation and/or other materials provided
with the distribution, and
7. Appendix
106
![](/img.php?id=3031443&img=bg6d.png)
3. Redistributions must contain a verbatim copy of this document.
The OpenLDAP Foundation may revise this license from time to time.
Each revision is distinguished by a version number. You may use this Software under terms of this license
revision or under the terms of any subsequent revision of the license.
THIS SOFTWARE IS PROVIDED BY THE OPENLDAP FOUNDATION AND ITS CONTRIBUTORS “AS
IS” AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE OPENLDAP FOUNDATION, ITS CONTRIBUTORS, OR THE
AUTHOR(S) OR OWNER(S) OF THE SOFTWARE BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
The names of the authors and copyright holders must not be used in advertising or otherwise to promote
the sale, use or other dealing in this Software without specific, written prior permission. Title to copyright
in this Software shall at all times remain with copyright holders.
OpenLDAP is a registered trademark of the OpenLDAP Foundation.
Copyright 1999-2003 The OpenLDAP Foundation, Redwood City, California, USA.
All Rights Reserved.
Permission to copy and distribute verbatim copies of this document is granted.
OpenSSL 0.9.8g
http://www.openssl.org/source
LICENSE ISSUES
The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License
and the original SSLeay license apply to the toolkit. See below for the actual license texts. Actually
both licenses are BSD-style Open Source licenses. In case of any license issues related to OpenSSL
please contact openssl-core@openssl.org.
OpenSSL License
Copyright (c) 1998-2011 The OpenSSL Project. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions
and the following disclaimer.
Copyright Information about Installed Applications
107
![](/img.php?id=3031443&img=bg6e.png)
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions
and the following disclaimer in the documentation and/or other materials provided with the
distribution.
3. All advertising materials mentioning features or use of this software must display the following
acknowledgment:
"This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit. (http://www.openssl.org/)"
4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote
products derived from this software without prior written permission. For written permission,
please contact openssl-core@openssl.org.
5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL"
appear in their names without prior written permission of the OpenSSL Project.
6. Redistributions of any form whatsoever must retain the following acknowledgment:
"This product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit (http://www.openssl.org/)"
THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT “AS IS” AND ANY EXPRESSED OR
IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE OpenSSL PROJECT OR ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).
This product includes software written by Tim Hudson (tjh@cryptsoft.com).
Original SSLeay License
Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
All rights reserved.
This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).
The implementation was written so as to conform with Netscapes SSL.
This library is free for commercial and non-commercial use as long as the following conditions are
aheared to. The following conditions apply to all code found in this distribution, be it the RC4, RSA,
lhash, DES, etc., code; not just the SSL code. The SSL documentation included with this distribution
is covered by the same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com).
Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be
removed.
7. Appendix
108
![](/img.php?id=3031443&img=bg6f.png)
If this package is used in a product, Eric Young should be given attribution as the author of the
parts of the library used.
This can be in the form of a textual message at program startup or in documentation (online or
textual) provided with the package.
Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions are met:
1. Redistributions of source code must retain the copyright notice, this list of conditions and the
following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions
and the following disclaimer in the documentation and/or other materials provided with the
distribution.
3. All advertising materials mentioning features or use of this software must display the following
acknowledgement:
"This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)"
The word 'cryptographic' can be left out if the rouines from the library being used are not
cryptographic related :-).
4. If you include any Windows specific code (or a derivative thereof) from the apps directory
(application code) you must include an acknowledgement:
"This product includes software written by Tim Hudson (tjh@cryptsoft.com)"
THIS SOFTWARE IS PROVIDED BY ERIC YOUNG “AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO
EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
The licence and distribution terms for any publically available version or derivative of this code
cannot be changed. i.e. this code cannot simply be copied and put under another distribution
licence [including the GNU Public Licence.]
Copyright Information about Installed Applications
109
![](/img.php?id=3031443&img=bg70.png)
Trademarks
Adobe, Acrobat, and Reader are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
TrueType, and Safari are trademarks of Apple Inc., registered in the U.S. and other countries.
Firefox® is a registered trademark of the Mozilla Foundation.
Java is a registered trademark of Oracle and/or its affiliates.
LINUX® is the registered trademark of Linus Torvalds in the U.S. and other countries.
Microsoft®, Windows®, Windows Server®, Windows Vista®, and Internet Explorer® are either
registered trademarks or trademarks of Microsoft Corporation in the United States and/or other
countries.
PCL® is a registered trademark of Hewlett-Packard Company.
Red Hat is a registered trademark of Red Hat, Inc.
Other product names used herein are for identification purposes only and might be trademarks of their
respective companies. We disclaim any and all rights to those marks.
The proper name of Internet Explorer 6 is Microsoft® Internet Explorer® 6.
The proper names of the Windows operating systems are as follows:
•The product names of Windows XP are as follows:
Microsoft® Windows® XP Professional
Microsoft® Windows® XP Home Edition
Microsoft® Windows® XP Professional x64 Edition
• The product names of Windows Vista are as follows:
Microsoft® Windows Vista® Ultimate
Microsoft® Windows Vista® Business
Microsoft® Windows Vista® Home Premium
Microsoft® Windows Vista® Home Basic
Microsoft® Windows Vista® Enterprise
• The product names of Windows 7 are as follows:
Microsoft® Windows® 7 Starter
Microsoft® Windows® 7 Home Premium
Microsoft® Windows® 7 Professional
Microsoft® Windows® 7 Ultimate
Microsoft® Windows® 7 Enterprise
• The product names of Windows 8 are as follows:
7. Appendix
110
![](/img.php?id=3031443&img=bg71.png)
Microsoft® Windows® 8
Microsoft® Windows® 8 Pro
Microsoft® Windows® 8 Enterprise
•The product names of Windows Server 2003 are as follows:
Microsoft® Windows Server® 2003 Standard Edition
Microsoft® Windows Server® 2003 Enterprise Edition
Microsoft® Windows Server® 2003 Web Edition
Microsoft® Windows Server® 2003 Datacenter Edition
• The product names of Windows Server 2003 R2 are as follows:
Microsoft® Windows Server® 2003 R2 Standard Edition
Microsoft® Windows Server® 2003 R2 Enterprise Edition
Microsoft® Windows Server® 2003 R2 Datacenter Edition
• The product names of Windows Server 2008 are as follows:
Microsoft® Windows Server® 2008 Foundation
Microsoft® Windows Server® 2008 Standard
Microsoft® Windows Server® 2008 Enterprise
Microsoft® Windows Server® 2008 Datacenter
Microsoft® Windows Server® 2008 for Itanium-based Systems
Microsoft® Windows® Web Server 2008
Microsoft® Windows® HPC Server 2008
• The product names of Windows Server 2008 R2 are as follows:
Microsoft® Windows Server® 2008 R2 Foundation
Microsoft® Windows Server® 2008 R2 Standard
Microsoft® Windows Server® 2008 R2 Enterprise
Microsoft® Windows Server® 2008 R2 Datacenter
Microsoft® Windows Server® 2008 R2 for Itanium-based Systems
Microsoft® Windows® Web Server R2 2008
Microsoft® Windows® HPC Server R2 2008
• The product names of Windows Server 2012 are as follows:
Microsoft® Windows Server® 2012 Foundation
Microsoft® Windows Server® 2012 Essentials
Microsoft® Windows Server® 2012 Standard
Microsoft® Windows Server® 2012 Datacenter
Trademarks
111
![](/img.php?id=3031443&img=bg72.png)
7. Appendix
112
![](/img.php?id=3031443&img=bg73.png)
INDEX
A
Authentication........................................................94
B
Basic operation......................................................39
C
Cleaning.......................................................... 69, 70
Configuration page...............................................64
Consumables.......................................................102
Copyright information.........................................106
D
Delete..................................................................... 21
Disclaimer.................................................................5
Driver......................................................................20
E
Encryption.............................................................. 94
Encryption key exchange...............................95, 96
Error messages................................................88, 90
expat.................................................................... 106
Exterior................................................................... 13
I
Install...................................................................... 20
Installing the printer............................................... 16
Interior.................................................................... 15
Introduction.............................................................. 5
IPsec transmission.................................................. 94
IPv6 environment...................................................93
J
Job cancel..............................................................39
JPEG LIBRARY......................................................106
L
Language............................................................... 48
Legal prohibition......................................................5
Loading paper....................................................... 30
M
Machine settings....................................................61
Models..................................................................... 7
Moving.................................................................101
N
Non-recommended paper................................... 27
Notes....................................................................100
O
OpenLDAP...........................................................106
OpenSSL..............................................................107
Operation tools..................................................... 23
P
Paper jam..................................................76, 78, 80
Paper mismatch..................................................... 41
Print area................................................................28
Print cartridge................................................65, 102
Print functions......................................................... 43
Print output functions..............................................44
Print quality functions.............................................43
Printer function.....................................................104
Q
Quick install for network....................................... 20
Quick install for usb...............................................20
S
SA (Security Association)......................................95
Smart Organizing Monitor...................... 22, 23, 60
Software.................................................................20
Specifications..............................................103, 104
Specifying the custom paper size........................ 37
Specifying the paper type and paper size..........37
Status indicate........................................................88
Status information..................................................60
Status messages.....................................................90
Supported paper...................................................25
System information................................................ 60
T
Toner..............................................................65, 100
Trademarks.......................................................... 110
Tray 1..................................................................... 30
Tray paper settings................................................50
Troubleshooting...........................73, 74, 85, 86, 87
113
