DR-6280
Open to Secure Desktop Reader
User Manual
1. Introduction
The DR-6280 is an advanced MIFARE Classic® EV1 and MIFARE®
DESFire® EV1 O2S Desktop Reader. It reads the O2S ID Data and CSN
and transmits it to connected access control software, such as
Rosslare’s AxTraxNG™.
It has a slim and attractive design and is built for convenience and
portability. With its USB computer interface, it is quick and easy to
install and runs without any additional power source. Designed to sit
safely on any desktop, the DR-6280 is sturdily built, with surface-
gripping rubber feet.
1.1 Features
Contactless Smart Card Reader (13.56 MHz)
Meets ISO14443 Type A Standard
AES 128‐bit encryption during transmission MIFARE DESFire EV1
Reads O2S ID data from O2S credentials
Reads CSN of non‐O2S Credentials
Bi-Colored LED
Supports USB 2.0 Standard (compatible with USB 1.1), meets the
EIA Standard
Driver supports the following Operating Systems:
Windows 7 32- and 64-Bit, Windows Vista, and Vista 64-Bit,
Windows XP and XP 64-Bit, Server 2003, XP and Server 2008,
Windows XP Embedded, Windows CE 4.2, 5.0 and 6.0, Mac
OS-X

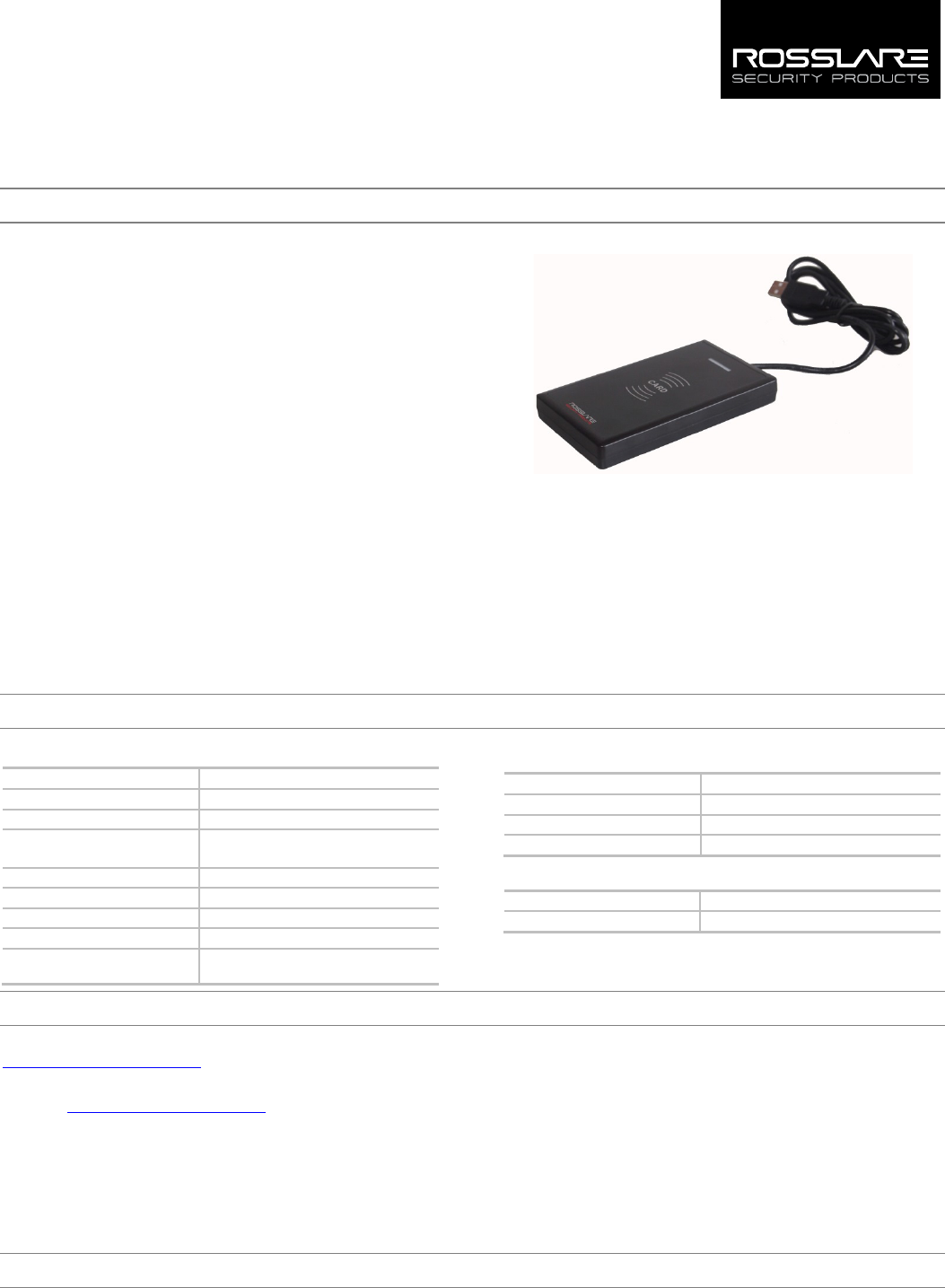

Figure 1: DR-6280
2. Technical Specifications
2.1 Electrical Characteristics
Operating Voltage Range 5 VDC (USB powered)
Standby Current 87 mA
Max. Operation Current 135 mA
Supported Transponders MIFARE Classic EV1
MIFARE DESFire EV1
Read Card Distance Up to 5 cm
RF Modulation ASK
Operation Frequency 13.56 MHz
Bit Rate 106 kHz
Output Formats All output formats per the O2S card
presented to reader
2.2 Environmental Characteristics
Operating Environment Indoor use
Operating Temperature Range 0°C to 63°C (32°F to 145°F)
Storage Temperature Range -20°C to 63°C (-4°F to 145°F)
Relative Humidity Range 0 to 95% (non-condensing)
2.3 Physical Characteristics
Weight 130 g (4.6 oz)
Dimensions (L x W x H) 123 x 70 x 16.2 mm (4.9 x 2.8 x 0.6 in.)
3. Installing the USB Driver
To download the driver, please refer to
http://www.rosslaresecurity.com
To install the driver for all cables:
1. Go to http://www.rosslaresecurity.com.
2. Click
Downloads
in the Quick Links section.
3. In
Document Types
, select Driver and click Search.
4. Click the Download icon.
5. Double-click the installation file: CDM20824_Setup.
After a few moments, a completion message appears and the
window closes.
4. Enrolling Cards using AxTraxNG
You must use the AxTraxNG software to enroll cards.
Please refer to Appendix J in the
AxTraxNG™ Software Installation and
User Manual
.
